Compilation of PCF commands for reference

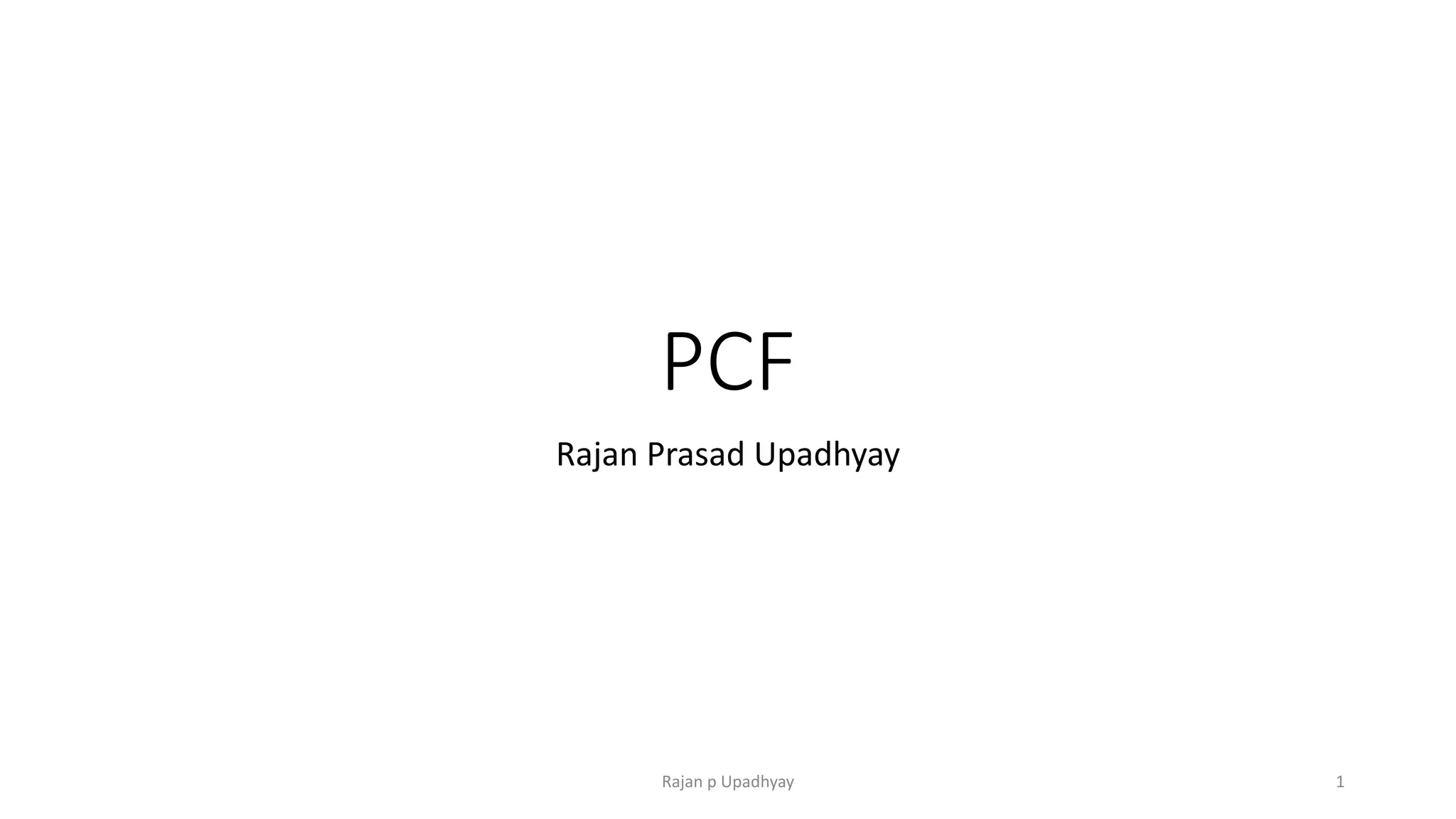

1. PCF
Rajan Prasad Upadhyay
Rajan p Upadhyay 1

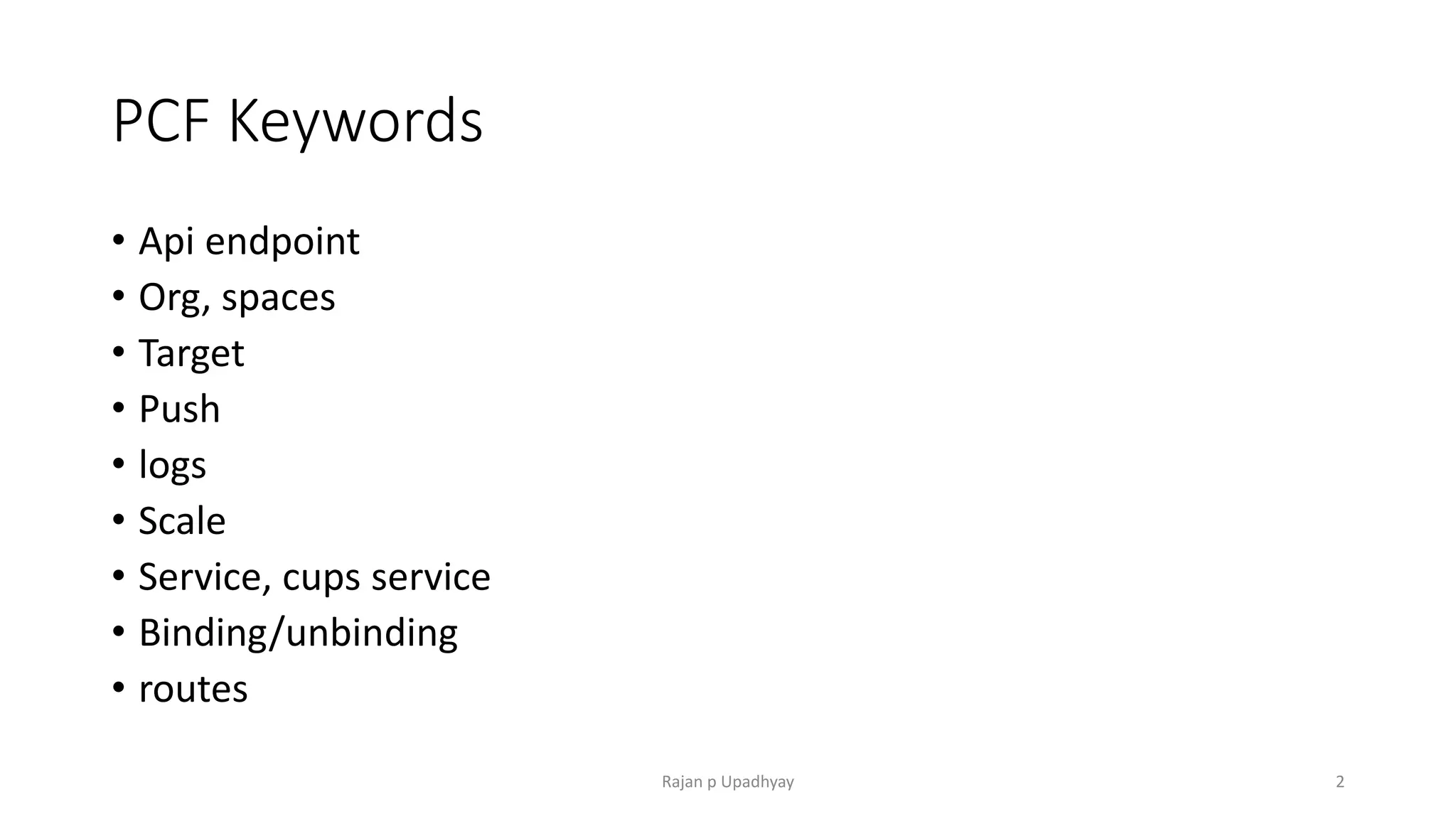

2. PCF Keywords
• Api endpoint
• Org, spaces
• Target
• Push
• logs
• Scale
• Service, cups service
• Binding/unbinding
• routes
Rajan p Upadhyay 2

3. Basic Commands
• Cf api
• Cf login
• Cf logout
• Cf target
Rajan p Upadhyay 3

4. Other commands
• Cf apps
• Cf app APP_NAME
• Cf push APP_NAME
• Cf push –f <manifest_file> -p<package_file>
• Cf scale APP_NAME
• Cf scale APP_name –i <instances_num> -k <disk_limit> -m<memory>
-f
• Cf delete APP_NAME -r
Rajan p Upadhyay 4

5. More commands
• Cf rename APP_NAME NEW_NAME
• Cf start APP_NAME
• Cf stop APP_NAME
• Cf restart APP_NAME
• Cf restage APP_NAME
• Cf events APP_NAME
• Cf restart-app-instance APP_NAME Index
• Cf logs APP_NAME
Rajan p Upadhyay 5

6. Even more commands
• Cf env App_Name
• Cf set-env APP_NAME <Key> <Value>
• Cf unset-env APP_NAME <Key>
Rajan p Upadhyay 6

7. Services command
• Cf marketplace
• Cf services
• Cf service SERVICE_INSTANCE
• Cf create-service SERVICE PLAN SERVICE_INSTANCE
• Cf delete-service SERVICE_INSTANCE
• Cf rename-service SERVICE_INSTANCE NEW_SERVICE_INSTANCE
• Cf bind-service APP_NAME SERVICE_INSTANCE
• Cf unbind-service APP_NAME SERVICE_INSTANCE
• Cf create-user-provided-service SERVICE_INSTANCE
• Cf update-user-provided-service SERVICE_INSTANCE
• Eg. Create database user provided service in interactive mode
cf cups SERVICE_NAME -p "url, username, password, encrypted"
Rajan p Upadhyay 7

8. Org commands
• Cf orgs
• Cf org ORG_NAME
• Cf create-org ORG_NAME
• Cf delete-org ORG_NAME
• Cf rename-org ORG_NAME NEW_ORG_NAME
Rajan p Upadhyay 8

9. Spaces
• Cf spaces
• Cf space SPACE_NAME
• Cf create-space SPACE
• Cf delete-space SPACE
• Cf rename-space SPACE NEW_SPACE
Rajan p Upadhyay 9

10. Domain commands
• Cf domains
• Cf create-domain ORG DOMAIN
• Cf delete-domain DOMAIN
• -- shared domain can only be created by admins
• Cf create-shared-domain DOMAIN
• Cf delete-shared-domain DOMAIN
Rajan p Upadhyay 10

11. Routes command
• Cf routes
• Cf create-route SPACE DOMAIN [-n HOST]
• Cf check-route HOST DOMAIN
• Cf map-route APP_NAME DOMAIN [-n HOST]
• Cf unmap-route APP_NAME DOMAIN
• Cf delete-orphaned-routes
• -- routing is very important
Rajan p Upadhyay 11

12. extra commands
• Cf buildpacks
• Cf feature-flags
Rajan p Upadhyay 12

13. Blue Green JVM
• For zero down-time in production
• Route = host + shared_domain
• We can have many routes point to same application
• Blue Gree JVM
• deploy application in PR with a non production route. One prefixed green
and one prefixed blue
• Create the production route manually: without mapping to any jvm
• Which ever instance is tested, point the PR_ROUTE to that jvm instance
Rajan p Upadhyay 13

14. Blue green jvm example
• Say in PR, an application ABC needs to be deployed with a route abc.
rajanu.com.np
Where shared-domain=rajanu.com.np and host=abc
• Deploy the application with a host green-abc and app-name green-abc
ie route = green-abc.rajanu.com.np
• Create the abc route manually
cf creae-route <SPACE> rajanu.com.np –n abc
• When testing is finished with the application and it ok, map the route
cf map-route ABC rajanu.com.np –n abc
• Now route abc. rajanu.com.np will also point to the application ABC in
addition to green-abc.rajanu.com.np
• you can unmap the green-abc route from the application
Rajan p Upadhyay 14

15. Blue green jvm example continued
• Next time you have some change in code and want to deploy in PR
• Deploy it with host blue-abc with a new applicationName blue-abc.
• So the new instance will have a mapped route of blue-abc.rajanu.com.np
• Lets say the testing is complete and you want to make this the production
version. You can map the abc route to blue-abc application.
Cf map-route blue-abc rajanu.com.np –n abc
• Now the route abc. rajanu.com.np will be pointing to both the instances green-
abc and blue-abc
• Now unmap the route from the green-abc instance so that it will only point to
blue-abc instance
• Cf unmap-route green-abc rajanu.com.np –n abc
• If some problem is discovered and you want to backout the changes, simply map
the route to green-abc and unmap it from blue-abc.
Rajan p Upadhyay 15
