This presentation is aim to give an initial understanding of how MySQL/Galera works, and some advice.

1. Galera Explained
A Beginner (?) Level Tutorial
Marco “The Grinch” Tusa
2015

2. About me Marco “The Grinch”
• Former UN, MySQL AB,
Pythian, Percona
• 2 kids, 1 wife
• Ex-MySQL AB employee
• History of Religions;
Ski; Snowboard; Scuba Di
ving;

3. My Motto
Use the Right Tool for the Job

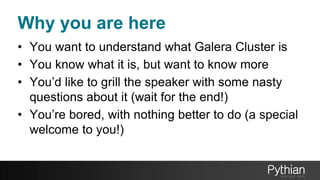

4. Why you are here
• You want to understand what Galera Cluster is
• You know what it is, but want to know more
• You’d like to grill the speaker with some nasty
questions about it (wait for the end!)
• You’re bored, with nothing better to do (a special
welcome to you!)

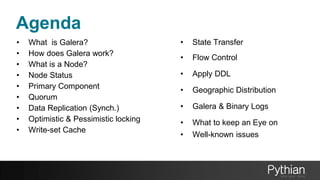

5. Agenda
• What is Galera?
• How does Galera work?
• What is a Node?
• Node Status
• Primary Component
• Quorum
• Data Replication (Synch.)
• Optimistic & Pessimistic locking
• Write-set Cache
• State Transfer
• Flow Control
• Apply DDL
• Geographic Distribution
• Galera & Binary Logs
• What to keep an Eye on
• Well-known issues

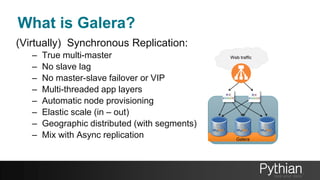

6. What is Galera?
(Virtually) Synchronous Replication:
– True multi-master
– No slave lag
– No master-slave failover or VIP
– Multi-threaded app layers
– Automatic node provisioning
– Elastic scale (in – out)
– Geographic distributed (with segments)
– Mix with Async replication Galera
Balancer
Web traffic

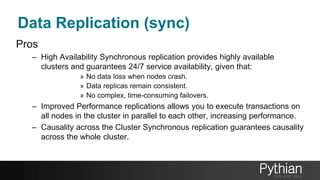

7. Data Replication (sync)
Pros
– High Availability Synchronous replication provides highly available
clusters and guarantees 24/7 service availability, given that:
» No data loss when nodes crash.
» Data replicas remain consistent.
» No complex, time-consuming failovers.
– Improved Performance replications allows you to execute transactions on
all nodes in the cluster in parallel to each other, increasing performance.
– Causality across the Cluster Synchronous replication guarantees causality
across the whole cluster.

8. What is Galera NOT?
• Not Write-scalable solution
• Not great for a high amount of
parallel, small requests
• Not great for working with Foreign
Keys
• Not good for sharding Data (each
node has the entire dataset)
Galera
Balancer
Web traffic

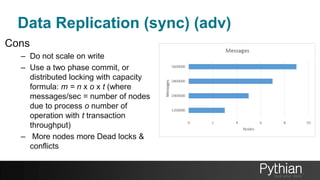

9. Data Replication (sync) (adv)
Cons
– Do not scale on write
– Use a two phase commit, or
distributed locking with capacity
formula: m = n x o x t (where
messages/sec = number of nodes
due to process o number of
operation with t transaction
throughput)
– More nodes more Dead locks &
conflicts

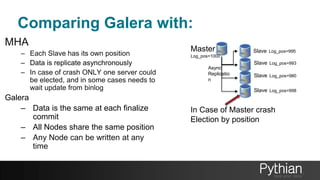

10. Comparing Galera with:
MHA
– Each Slave has its own position
– Data is replicate asynchronously
– In case of crash ONLY one server could
be elected, and in some cases needs to
wait update from binlog
Galera
– Data is the same at each finalize
commit
– All Nodes share the same position
– Any Node can be written at any
time
Master
Log_pos=1000
Slave Log_pos=995
Slave Log_pos=993
Slave Log_pos=980
Slave Log_pos=998
Async
Replicatio
n
In Case of Master crash
Election by position

11. Comparing Galera with:
Continuent Enterprise
– Applications connect to an entry point
– All data is distributed asynchronously
– A central point keep information on all
Galera
– Application can connect any node
– Data is shared using XA transactions
– Status and State is at cluster level
Async
Replication
Canada Italy
Entry point
(man in the
middle)

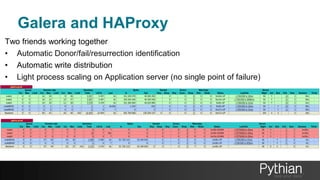

12. Galera and HAProxy
Two friends working together
• Automatic Donor/fail/resurrection identification
• Automatic write distribution
• Light process scaling on Application server (no single point of failure)

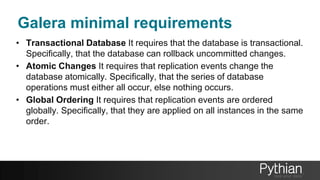

13. • Transactional Database It requires that the database is transactional.
Specifically, that the database can rollback uncommitted changes.
• Atomic Changes It requires that replication events change the
database atomically. Specifically, that the series of database
operations must either all occur, else nothing occurs.
• Global Ordering It requires that replication events are ordered
globally. Specifically, that they are applied on all instances in the same
order.
Galera minimal requirements

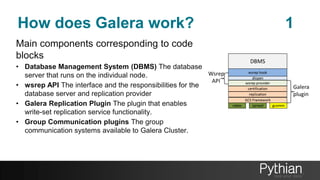

14. How does Galera work? 1
Main components corresponding to code
blocks
• Database Management System (DBMS) The database
server that runs on the individual node.
• wsrep API The interface and the responsibilities for the
database server and replication provider
• Galera Replication Plugin The plugin that enables
write-set replication service functionality.
• Group Communication plugins The group
communication systems available to Galera Cluster.

15. How does Galera work? 2
Main components (WSREP API)
• Is a generic replication plugin interface for databases
• Database servers have a state
• State refers to the contents of the database
• Changes in the database state as a series of atomic
changes, or transactions
• In a database cluster, all nodes always have the same
state

16. How does Galera work? 3
Main components (Galera Replication Plugin)
The Galera Replication Plugin implements the wsrep API. It operates as
the wsrep provider.
• Certification Layer This layer prepares the write-sets and performs the
certification checks on them, ensuring that they can be applied.
• Replication Layer This layer manages the replication protocol and provides the
total ordering capability.
• Group Communication Framework This layer provides a plugin architecture
for the various group communication systems that connect to Galera Cluster.

17. How does Galera work? 4
Main components (Group communication plugin)
• Implements a virtual synchrony QoS (Quality of Service)
• Implements its own runtime-configurable temporal flow control. Flow
control keeps nodes synchronized to the faction of a second
• Provides a total ordering of messages from multiple sources. It uses this
to generate Global Transaction ID’s in a multi-master cluster
• Is a symmetric undirected graph. All database nodes connect to each
other over a TCP connection

18. What is a Node? 1
• Standard MySQL
Replication
Master
Slave
Slave
• Galera MySQL Replication
Node
Node Node
9cba28fa-a8be-11e4-8f41-9f963e1dbf4f

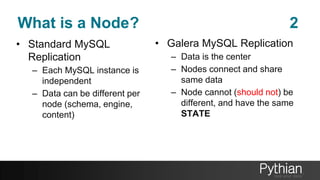

19. What is a Node? 2
• Standard MySQL
Replication
– Each MySQL instance is
independent
– Data can be different per
node (schema, engine,
content)
• Galera MySQL Replication
– Data is the center
– Nodes connect and share
same data
– Node cannot (should not) be
different, and have the same
STATE

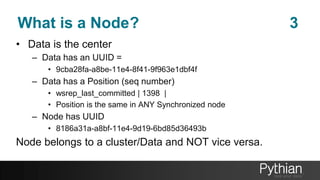

20. What is a Node? 3
• Data is the center
– Data has an UUID =
• 9cba28fa-a8be-11e4-8f41-9f963e1dbf4f
– Data has a Position (seq number)
• wsrep_last_committed | 1398 |
• Position is the same in ANY Synchronized node
– Node has UUID
• 8186a31a-a8bf-11e4-9d19-6bd85d36493b
Node belongs to a cluster/Data and NOT vice versa.

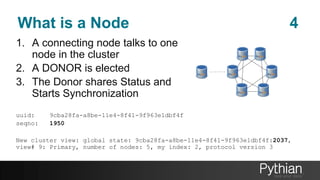

21. What is a Node 4
1. A connecting node talks to one
node in the cluster
2. A DONOR is elected
3. The Donor shares Status and
Starts Synchronization
uuid: 9cba28fa-a8be-11e4-8f41-9f963e1dbf4f
seqno: 1950
New cluster view: global state: 9cba28fa-a8be-11e4-8f41-9f963e1dbf4f:2037,
view# 9: Primary, number of nodes: 5, my index: 2, protocol version 3

22. Segments
• A segment is a logical
grouping of nodes.
• Replication between Segment
is optimized
• Traffic and messaging is
reduced
• In case of SST, the donor is
chosen by proximity

23. Node Status
1. Node connect and
Send status
2. Cluster provides a DONOR
3. Status (data) Exchange
starts (node Joiner)
4. Donor ends transmission,
applies “delta” and rejoins
5. Joiner -> Joined check
seq_num and become Synced

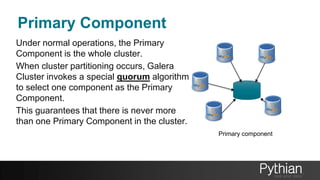

24. Primary Component
Under normal operations, the Primary
Component is the whole cluster.
When cluster partitioning occurs, Galera
Cluster invokes a special quorum algorithm
to select one component as the Primary
Component.
This guarantees that there is never more
than one Primary Component in the cluster.
Primary component

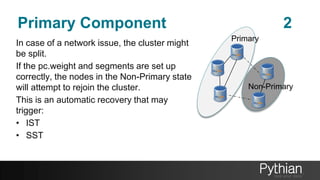

25. Primary Component 2
In case of a network issue, the cluster might
be split.
If the pc.weight and segments are set up
correctly, the nodes in the Non-Primary state
will attempt to rejoin the cluster.
This is an automatic recovery that may
trigger:
• IST
• SST
Primary
Non-Primary

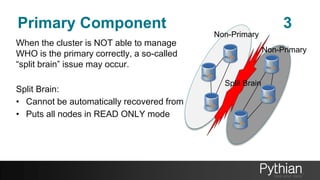

26. Primary Component 3
When the cluster is NOT able to manage
WHO is the primary correctly, a so-called
“split brain” issue may occur.
Split Brain:
• Cannot be automatically recovered from
• Puts all nodes in READ ONLY mode
Non-Primary
Non-Primary
Split Brain

27. Quorum
Quorum can be managed using:
• Pc.weight
• Segments
Segments do not modify the quorum calculation but are
useful to logically group servers.
• Zone 1: Segment=1, weight = 2
• Zone 2: Segment=2, weight = 1

28. Quorum (adv)
•

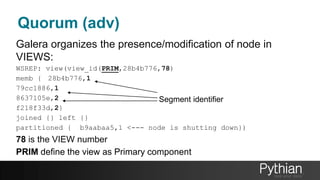

29. Quorum (adv)
Galera organizes the presence/modification of node in
VIEWS:
WSREP: view(view_id(PRIM,28b4b776,78)
memb { 28b4b776,1
79cc1886,1
8637105e,2
f218f33d,2}
joined {} left {}
partitioned { b9aabaa5,1 <--- node is shutting down})
78 is the VIEW number
PRIM define the view as Primary component
Segment identifier

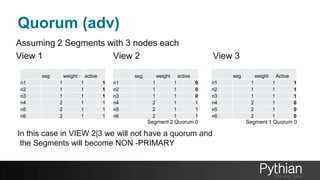

30. Quorum (adv)
Assuming 2 Segments with 3 nodes each
View 1 View 2 View 3
seg weight active
n1 1 1 1
n2 1 1 1
n3 1 1 1
n4 2 1 1
n5 2 1 1
n6 2 1 1
seg weight active
n1 1 1 0
n2 1 1 0
n3 1 1 0
n4 2 1 1
n5 2 1 1
n6 2 1 1
seg weight Active
n1 1 1 1
n2 1 1 1
n3 1 1 1
n4 2 1 0
n5 2 1 0
n6 2 1 0
Segment 2 Quorum 0 Segment 1 Quorum 0
In this case in VIEW 2|3 we will not have a quorum and
the Segments will become NON -PRIMARY

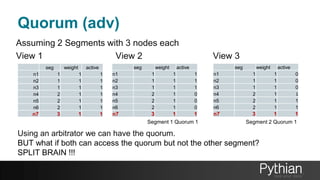

31. Quorum (adv)
Assuming 2 Segments with 3 nodes each
View 1 View 2 View 3
Segment 1 Quorum 1 Segment 2 Quorum 1
Using an arbitrator we can have the quorum.
BUT what if both can access the quorum but not the other segment?
SPLIT BRAIN !!!
seg weight active
n1 1 1 1
n2 1 1 1
n3 1 1 1
n4 2 1 1
n5 2 1 1
n6 2 1 1
n7 3 1 1
seg weight active
n1 1 1 1
n2 1 1 1
n3 1 1 1
n4 2 1 0
n5 2 1 0
n6 2 1 0
n7 3 1 1
seg weight active
n1 1 1 0
n2 1 1 0
n3 1 1 0
n4 2 1 1
n5 2 1 1
n6 2 1 1
n7 3 1 1

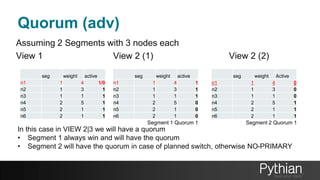

32. Quorum (adv)
Assuming 2 Segments with 3 nodes each
View 1 View 2 (1) View 2 (2)
seg weight active
n1 1 4 1/0
n2 1 3 1
n3 1 1 1
n4 2 5 1
n5 2 1 1
n6 2 1 1
seg weight active
n1 1 4 1
n2 1 3 1
n3 1 1 1
n4 2 5 0
n5 2 1 0
n6 2 1 0
seg weight Active
n1 1 4 0
n2 1 3 0
n3 1 1 0
n4 2 5 1
n5 2 1 1
n6 2 1 1
Segment 1 Quorum 1 Segment 2 Quorum 1
In this case in VIEW 2|3 we will have a quorum
• Segment 1 always win and will have the quorum
• Segment 2 will have the quorum in case of planned switch, otherwise NO-PRIMARY

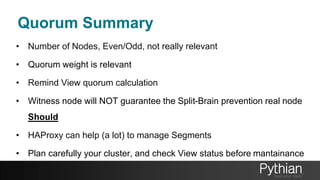

33. Quorum Summary
• Number of Nodes, Even/Odd, not really relevant
• Quorum weight is relevant
• Remind View quorum calculation
• Witness node will NOT guarantee the Split-Brain prevention real node
Should
• HAProxy can help (a lot) to manage Segments
• Plan carefully your cluster, and check View status before mantainance

34. Data Replication (sync)
• On commit, but before commit
• Transaction changes are
ordered by PK and collected in
a write set
• The write set is certified on each
node (including originator) for
apply/reject
• On failure, the originator rolls
back, while others discard the
write set

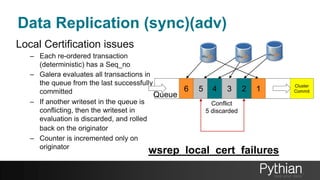

35. Data Replication (sync)(adv)
Local Certification issues
– Each re-ordered transaction
(deterministic) has a Seq_no
– Galera evaluates all transactions in
the queue from the last successfully
committed
– If another writeset in the queue is
conflicting, then the writeset in
evaluation is discarded, and rolled
back on the originator
– Counter is incremented only on
originator
6 5 4 23 1
Cluster
Commit
Queue
Conflict
5 discarded
wsrep_local_cert_failures

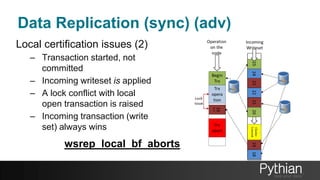

36. Data Replication (sync) (adv)
Local certification issues (2)
– Transaction started, not
committed
– Incoming writeset is applied
– A lock conflict with local
open transaction is raised
– Incoming transaction (write
set) always wins
wsrep_local_bf_aborts

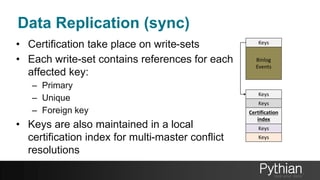

37. Data Replication (sync)
• Certification take place on write-sets
• Each write-set contains references for each
affected key:
– Primary
– Unique
– Foreign key
• Keys are also maintained in a local
certification index for multi-master conflict
resolutions

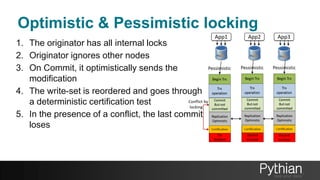

38. Optimistic & Pessimistic locking
1. The originator has all internal locks
2. Originator ignores other nodes
3. On Commit, it optimistically sends the
modification
4. The write-set is reordered and goes through
a deterministic certification test
5. In the presence of a conflict, the last commit
loses

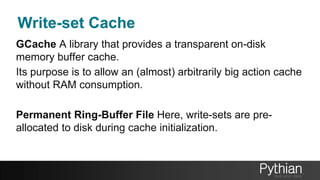

39. Write-set Cache
GCache A library that provides a transparent on-disk
memory buffer cache.
Its purpose is to allow an (almost) arbitrarily big action cache
without RAM consumption.
Permanent Ring-Buffer File Here, write-sets are pre-
allocated to disk during cache initialization.

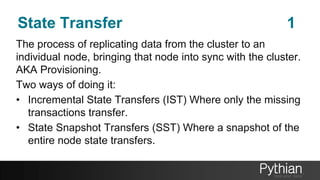

40. State Transfer 1
The process of replicating data from the cluster to an
individual node, bringing that node into sync with the cluster.
AKA Provisioning.
Two ways of doing it:
• Incremental State Transfers (IST) Where only the missing
transactions transfer.
• State Snapshot Transfers (SST) Where a snapshot of the
entire node state transfers.

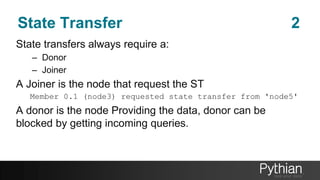

41. State Transfer 2
State transfers always require a:
– Donor
– Joiner
A Joiner is the node that request the ST
Member 0.1 (node3) requested state transfer from 'node5'
A donor is the node Providing the data, donor can be
blocked by getting incoming queries.

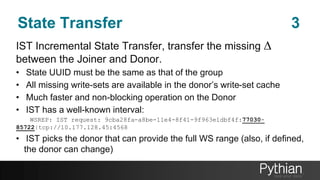

42. State Transfer 3
IST Incremental State Transfer, transfer the missing D
between the Joiner and Donor.
• State UUID must be the same as that of the group
• All missing write-sets are available in the donor’s write-set cache
• Much faster and non-blocking operation on the Donor
• IST has a well-known interval:
WSREP: IST request: 9cba28fa-a8be-11e4-8f41-9f963e1dbf4f:77030-
85722|tcp://10.177.128.45:4568
• IST picks the donor that can provide the full WS range (also, if defined,
the donor can change)

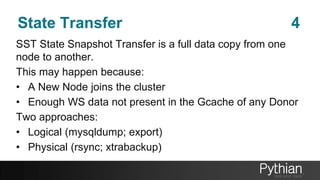

43. State Transfer 4
SST State Snapshot Transfer is a full data copy from one
node to another.
This may happen because:
• A New Node joins the cluster
• Enough WS data not present in the Gcache of any Donor
Two approaches:
• Logical (mysqldump; export)
• Physical (rsync; xtrabackup)

44. Flow Control
Galera Cluster manages the replication process using a
feedback mechanism named FLOW CONTROL.
• Allows any node to pause and resume replication
• Prevents any node from lagging too far behind
Modes
– No Flow Control
– Write-set Caching
– Catching Up
– Cluster Sync

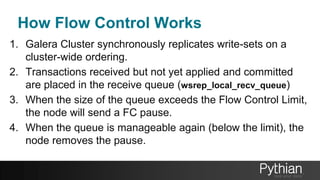

45. How Flow Control Works
1. Galera Cluster synchronously replicates write-sets on a
cluster-wide ordering.
2. Transactions received but not yet applied and committed
are placed in the receive queue (wsrep_local_recv_queue)
3. When the size of the queue exceeds the Flow Control Limit,
the node will send a FC pause.
4. When the queue is manageable again (below the limit), the
node removes the pause.

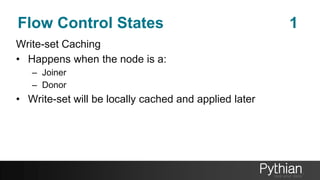

46. Flow Control States 1
Write-set Caching
• Happens when the node is a:
– Joiner
– Donor
• Write-set will be locally cached and applied later

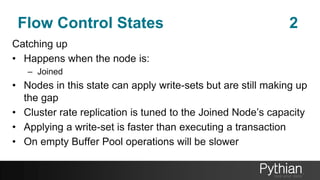

47. Flow Control States 2
Catching up
• Happens when the node is:
– Joined
• Nodes in this state can apply write-sets but are still making up
the gap
• Cluster rate replication is tuned to the Joined Node’s capacity
• Applying a write-set is faster than executing a transaction
• On empty Buffer Pool operations will be slower

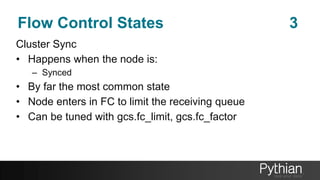

48. Flow Control States 3
Cluster Sync
• Happens when the node is:
– Synced
• By far the most common state
• Node enters in FC to limit the receiving queue
• Can be tuned with gcs.fc_limit, gcs.fc_factor

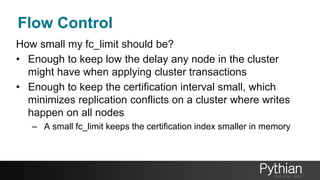

49. Flow Control
How small my fc_limit should be?
• Enough to keep low the delay any node in the cluster
might have when applying cluster transactions
• Enough to keep the certification interval small, which
minimizes replication conflicts on a cluster where writes
happen on all nodes
– A small fc_limit keeps the certification index smaller in memory

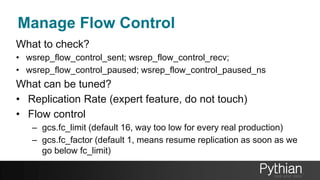

50. Manage Flow Control
What to check?
• wsrep_flow_control_sent; wsrep_flow_control_recv;
• wsrep_flow_control_paused; wsrep_flow_control_paused_ns
What can be tuned?
• Replication Rate (expert feature, do not touch)
• Flow control
– gcs.fc_limit (default 16, way too low for every real production)
– gcs.fc_factor (default 1, means resume replication as soon as we
go below fc_limit)

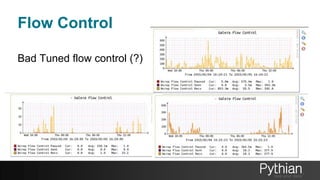

51. Flow Control
Bad Tuned flow control (?)

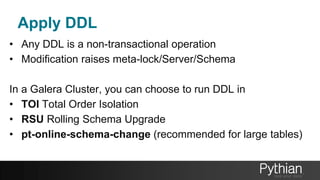

52. Apply DDL
• Any DDL is a non-transactional operation
• Modification raises meta-lock/Server/Schema
In a Galera Cluster, you can choose to run DDL in
• TOI Total Order Isolation
• RSU Rolling Schema Upgrade
• pt-online-schema-change (recommended for large tables)

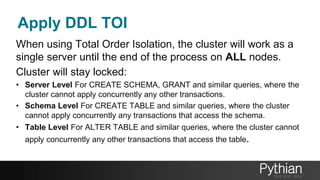

53. Apply DDL TOI
When using Total Order Isolation, the cluster will work as a
single server until the end of the process on ALL nodes.
Cluster will stay locked:
• Server Level For CREATE SCHEMA, GRANT and similar queries, where the
cluster cannot apply concurrently any other transactions.
• Schema Level For CREATE TABLE and similar queries, where the cluster
cannot apply concurrently any transactions that access the schema.
• Table Level For ALTER TABLE and similar queries, where the cluster cannot
apply concurrently any other transactions that access the table.

54. Apply DDL RSU
When using Rolling Schema Upgrade, each modification will
apply ONLY on the node where the command is executed.
• Different structure between Nodes
• Data inconsistency
• Dangerous use of WSREP_ON
(http://www.tusacentral.net/joomla/index.php/mysql-blogs/168-how-to-mess-up-your-data-using-
one-command-in-mysqlgalera.html)
In short, this is potentially unsafe.

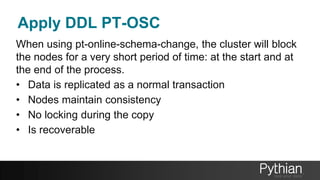

55. Apply DDL PT-OSC
When using pt-online-schema-change, the cluster will block
the nodes for a very short period of time: at the start and at
the end of the process.
• Data is replicated as a normal transaction
• Nodes maintain consistency
• No locking during the copy
• Is recoverable

56. Geographic distribution
Galera Cluster is well suited to cover a geographic
distributed scenario.
• Use a combination of Asynchronous and Synchronous
replication
• Use Master/Slave settings inside Galera
• Use of Segments

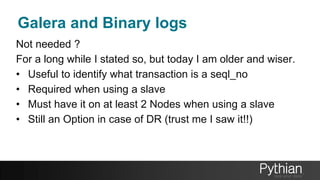

57. Galera and Binary logs
Not needed ?
For a long while I stated so, but today I am older and wiser.
• Useful to identify what transaction is a seql_no
• Required when using a slave
• Must have it on at least 2 Nodes when using a slave
• Still an Option in case of DR (trust me I saw it!!)

58. Galera and Binary logs
Understand the differences between
SQL_LOG_BIN & WSREP_ON
• SQL_LOG_BIN will prevent ANY DML to be replicated
NOTE: Standard MySQL exclude DML and DDL
• WSREP_ON will prevent ANY DML & DDL to be replicated
• Use of GLOBAL in this context will cause data inconsistency at 99%

59. What to keep an eye on
As any complex system, Galera Cluster requires your
attention on many areas, the most critical:
• Certification
• Network performance
• Proper schema design (PK/UK/FK)
• Number of nodes (write distribution, not write scaling)
• Correctly plan schema modification

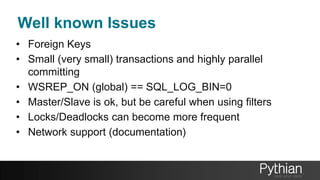

60. Well known Issues
• Foreign Keys
• Small (very small) transactions and highly parallel
committing
• WSREP_ON (global) == SQL_LOG_BIN=0
• Master/Slave is ok, but be careful when using filters
• Locks/Deadlocks can become more frequent
• Network support (documentation)

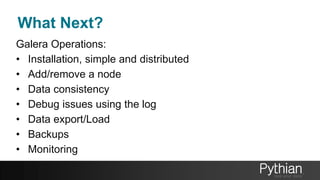

61. What Next?
Galera Operations:
• Installation, simple and distributed
• Add/remove a node
• Data consistency
• Debug issues using the log
• Data export/Load
• Backups
• Monitoring

62. Q & A

63. Thank you
To contact us
sales@pythian.com
1-877-PYTHIAN
To follow us
http://www.pythian.com/blog
http://www.facebook.com/pages/The-Pythian-
Group/163902527671
@pythian
http://www.linkedin.com/company/pythian
To contact Me
tusa@pythian.com
marcotusa@tusacentral.net
To follow me
http://www.tusacentral.net/
https://www.facebook.com/marco.tusa.94
@marcotusa
http://it.linkedin.com/in/marcotusa/
