The document introduces Dapr, an open source distributed application runtime that makes it easier to build microservices applications. Dapr provides building blocks like service invocation, state management, secrets, pub/sub, and bindings to cloud resources that take care of common challenges in microservices. It supports any programming language or platform and can be self-hosted or run on Kubernetes. Dapr also includes tools for observability and monitoring microservices applications.

1. Dapr: Distributed Application Runtime
Moaid Hathot
Senior Software Engineer @ Microsoft | ex-Azure MVP
Moaid.Hathot@outlook.com
@MoaidHathot
https://moaid.codes
https://meetup.com/Code-Digest

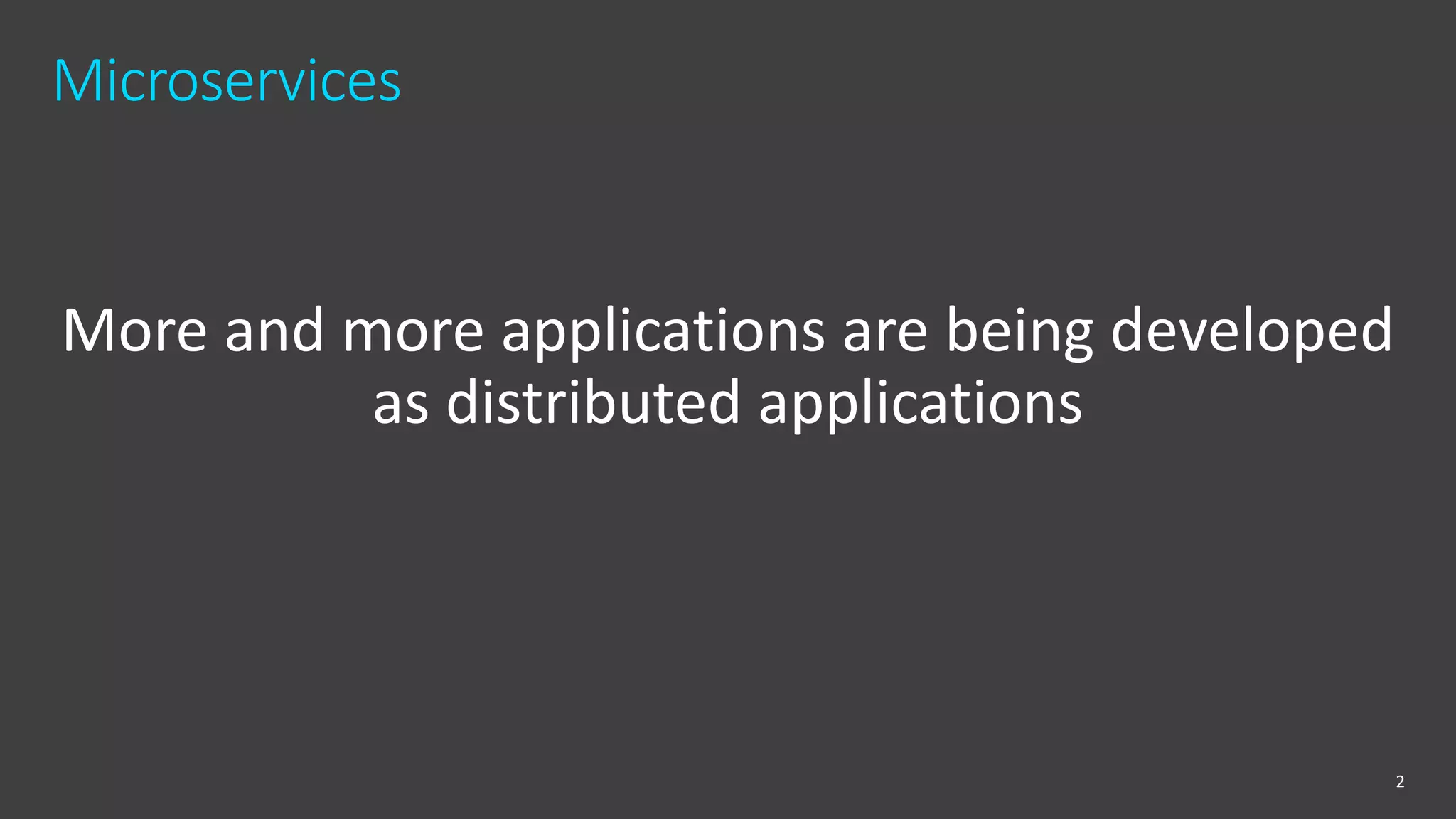

2. Microservices
More and more applications are being developed
as distributed applications
2

3. Microservices
 Modularity
 Loose service coupling
 Service-independent deployments
 Better scalability
 Better reliability
 Multiple stacks
3

4. Microservices – price tag
 Concurrency issues
 Failure handling
 Retry policies
 State management
 Distributed tracing
 Deployment
 Communication Security
 Access Control
4

5. Microservices – price tag
Less time to develop business logic
5

6. Microservices – price tag
6

7. About Moaid Hathot
7
 Senior software Engineer @ Microsoft
 Ex-Azure MVP
 Code Jedi & Software Architect
 Software Craftsmanship advocate
 Clean Coder
 Co-Founder of Code.Digest();
 https://meetup.com/Code-Digest
 Co-Founder of ILDC’s .NET Bond
Moaid Hathot

8. Microservices – solutions
 Serverless architecture
 Azure Functions & AWS Lambada
 Stateless, event-driven microservices
 Virtual Actor model
 Object-oriented microservices
 E.g Microsoft Orleans
 The cloud takes care of
 Activating, retries, scaling, failure handling
8

9. Microservices – solution issues
 Coupled to Stack
 Coupled to cloud providers
 A single application depends on multiple SDKs
 FaaS and Actor integration can be complicated
 FaaS runtimes can be heavy
9

10. Dapr
Distributed Application Runtime
10

11. Dapr
 Portable, Event-driven runtime for building microservices
 Open Source
 https://github.com/dapr/dapr
 19.2K Github stars
 197 contributors
 1.5K forks
 Alpha phase
11

12. Dapr
 Supports any platform
 Services knows only HTTP/gRPC
 Can decide to use dedicated SDKs
 Services are not aware of the actual technologies
 Services are not aware of other services
 Everything is configurable via yaml files
 E.g you can switch from Cosmos DB to DynamoDB
12

13. Dapr
 Sidecar architecture
 Dapr is isolated via Process or Container from your app
 Two hosting modes
 Self-hosting
 Kubernetes
13

14. Dapr – self hosting
14

15. Dapr – self hosting
15

16. Dapr – self hosting
16
HTTP/gRPC

17. Dapr – Kubernetes
17
HTTP/gRPC

18. Dapr – Kubernetes
18
HTTP/gRPC
Container
Container

19. Dapr – Kubernetes
19
HTTP/gRPC
Container
Container
Pod

20. Dapr
20
Image Source

21. Dapr – building blocks
21
Image Source

22. Dapr – building blocks
22
Image Source

23. Dapr – building blocks
23
Image Source

24. Dapr – building blocks
24
Image Source

25. Dapr – building blocks
25
Image Source

26. Dapr – building blocks
26
Image Source

27. Dapr – building blocks
27
Image Source

28. Dapr – building blocks
28
Image Source

29. Dapr – Service Invocation
 Every service has an id (name)
 Calling services must know that id
 HTTP or gRPC
 Takes care of
 Discoverability
 Reliability
 Retries
 Failure handling
30

30. Dapr – Service Invocation
31
Image Source

31. Dapr – Service Invocation
32
Image Source

32. Dapr – Service Invocation
33
Image Source

33. Dapr – Service Invocation
34
Image Source

34. Dapr – Service Invocation
35
Image Source

35. Dapr – Service Invocation
36
Image Source

36. Dapr – Service Invocation
37
Image Source

37. Dapr – Service Invocation
38
Image Source

38. Demo
 Run Dapr
 Service Invocation
39

39. Dapr – State Management
 The actual store is not known to services
 Support for many platforms, including:
 Redis
 AWS DynamoDB
 Azure Cosmos DB
 MongoDB
 Cassandra
 SQL Server
 More…
 Easy to implement new state store
40

40. Dapr – State Management
41
Image Source

41. Dapr – State Management
42
Image Source

42. Dapr – State Management
43
Image Source

43. Dapr – State Management
44
Image Source

44. Dapr – State Management
45
Image Source

45. Dapr – State Management
46
Image Source

46. Dapr - Secrets
 Provides an API for retrieving secrets
 Supports
 Azure KeyVault
 AWS Secret Manager
 GCP Cloud KMS
 GCP Secret Manager
 Kubernetes
 Hashicorp Vault
 More…
 Easy to implement new secret stores
47

47. Dapr – Secrets
48
Image Source

48. Demo
 State Management
 Redis
 CosmosDB
 Secret Store
 Azure KeyVault
49

49. Dapr – Pub/Sub
 Publish/subscribe pattern
 Used for decoupling services
 Producer send messages to a topic
 Consumers receives messages from a topic
 Dapr APIs provides at-least-once guarantees
 Supports multiple brokers
 Kafka
 RabbitMQ
 Redis Streams
 Azure Event Hubs
 More…
50

50. Dapr – Pub/Sub
51
Image Source

51. Dapr – Pub/Sub
52
Image Source

52. Dapr – Pub/Sub
53
Image Source

53. Dapr – Pub/Sub
54
Image Source

54. Dapr – Pub/Sub
55
Image Source

55. Demo
 Pub/Sub
56

56. Dapr – Resource Bindings
 Input/Output with cloud resources
 Similar in concepts to Azure Function’s Binding
 Trigger your service or invoke external systems
 Takes care of connections, polling, queuing, etc…
 Benefits
 Focus on Business logic
 Your code is free from SDKs and libraries
 Auto handling for retries & failure recovery
 Switch bindings at run time
 Deploy to different environments without code changes
57

57. Dapr – Resource Bindings
 Inputs (partial list)
 Kafka
 RabbitMQ
 AWS Kinesis
 AWS SQS
 GCP Cloud Pub/Sub
 Azure EventHubs
 Azure SignalR Service
 Azure Service Bus Queues
 More…
58

58. Dapr – Resource Bindings
 Outputs (partial list)
 Kafka
 RabbitMQ
 AWS Kinesis
 AWS DynamoDB
 GCP Cloud Pub/Sub
 GCP Storage Bucket
 Azure EventHubs
 Azure SignalR Service
 More…
59

59. Dapr – Resource Bindings
60

60. Dapr – Resource Bindings
61

61. Dapr – Resource Bindings
62
Cosmos DB
DynamoDB
Event Hubs

62. Demo
 Bindings
 SignalR Binding
63

63. Dapr – Observability
 Monitor the Dapr system services
 Including interaction and behaviors
 Integrates with OpenTelemetry
 Supports
 Azure Monitor
 Azure ApplicationInsights
 Elastic Search
 Zipkin
 More…
64

64. Dapr – Observability
 Metrics
 Latency, traffic failures, error rate, CPU usage, etc…
 Logs
 Traces, errors, etc…
 Each trace contains hostname, component name and id, more…
 Distributed Tracing
 Debugging and monitoring distributed flows
 W3C tracing
 Health
 Determine health via HTTP endpoint
65

65. Dapr - Dashboard
 Web-based UI for Dapr
 View information, logs, etc…
 Support both locally and Kubernetes sidecars
 Can stop running sidecars (Self hosted)
 View sidecars logs
66

66. Dapr - Dashboard
67
Image Source
More Info

67. Demo
 Observability
68

68. Dapr – Virtual Actors
 The Actor Model
 Self-contained unit of code (actor)
 Actors interacts using via messages
 The runtime manages how, when and where each actor runs
 Dapr implements the Virtual Actors Model
 Takes care of
 Lifetime
 Retries
 Failover
 Concurrency
69

69. summary
 Microservices has many benefits
 But also, challenges
 Dapr
 Runtime for building microservices
 Any platform, any stack, any environment
 Takes care of a lot of the challenges
 Open Source
 Community
 Demo repo:
 https://github.com/MoaidHathot/Azure-Israel-Dapr-2020
70

70. Dapr
Questions?
Moaid Hathot
Senior Software Engineer @ Microsoft | ex-Azure MVP
Moaid.Hathot@outlook.com
@MoaidHathot
https://moaid.codes
https://meetup.com/Code-Digest
