Pcap Headers Description
- 1. PCAP HEADERS DESCRIPTION By : Shravan Kumar (a.k.a cor3sm4sh3r )

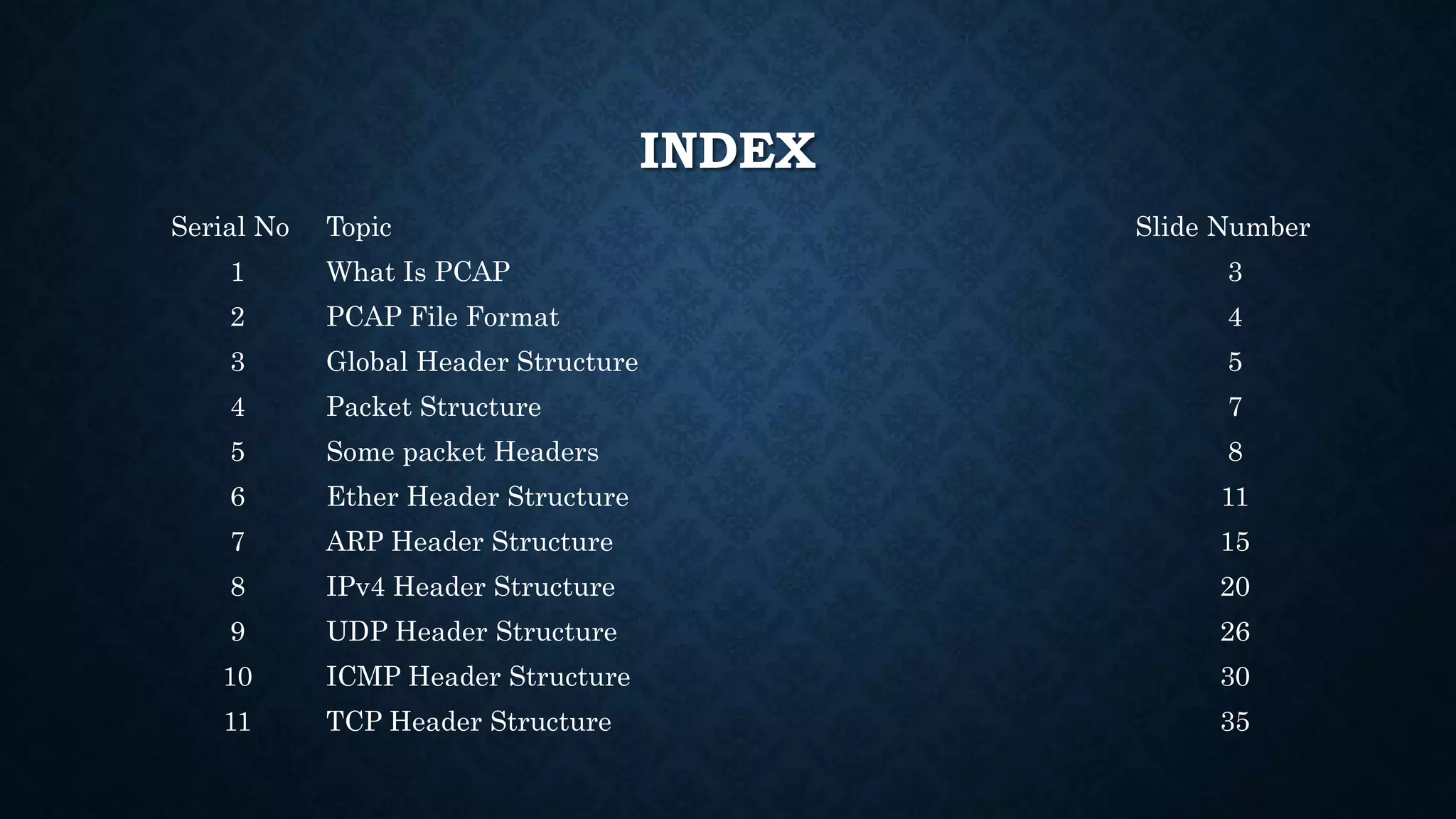

- 2. INDEX Serial No Topic Slide Number 1 What Is PCAP 3 2 PCAP File Format 4 3 Global Header Structure 5 4 Packet Structure 7 5 Some packet Headers 8 6 Ether Header Structure 11 7 ARP Header Structure 15 8 IPv4 Header Structure 20 9 UDP Header Structure 26 10 ICMP Header Structure 30 11 TCP Header Structure 35
- 3. WHAT IS PCAP • PCAP stands for Packet capture • PCAP consist of all the captured network data on a particular interface • Many softwares uses WinPcap and libPcap libraries to capture the network data and store it in pcap format • Examples Wireshark ,TCPDUMP, KISMET , ETHEREAL , and all other software you may have encountered while dealing with network traffic analysis
- 5. GLOBAL HEADER • These are the first 24 bytes of PCAP file
- 6. CONT … • These are the first 24 bytes of PCAP file • 4 bytes Magic Number • 2 bytes Major Version Number • 2 bytes Minor Version Number • 8 bytes GMT timezone offset • 4 bytes Maximum snap length (65535) • 4 bytes Link-Layer Header Type
- 7. PACKET STRUCTURE • A packet consist of two things • PACKET HEADER • PACKET DATA • First packet header starts immediately after the global header there are no padding in between them
- 8. SOME PACKET HEADERS • ARP packet headers • ICMP packet headers
- 9. CONT … • TCP packet headers • HTTP packet headers
- 10. CONT … • UDP packet header ( DNS query )
- 11. ETHER HEADER STRUCTURE • Its 14 bytes header
- 12. CONT … • It’s the first header in packet headers • Below is the packet Dump • The high lighted area is the ether header • 14 bytes can be broken into 3 fields
- 13. CONT … • First 6 bytes Destination MAC address • Next 6 bytes Source MAC address • Next 2 bytes Type of packet (ARP , DOD (IPv4), IPv6 … etc ) •
- 14. CONT … • Last 2 bytes decide the next type of header • For example if type is 0800 it’s a IPv4 ( DOD ) packet so IPv4 header is the next header • If type is 0806 it’s a ARP packet so ARP header is the next header • ARP header is 28 bytes • IPv4 header is 20 bytes
- 15. ARP HEADER STRUCTURE • Its 28 bytes header
- 16. CONT …
- 17. CONT … • Below is the packet dump ,highlighted area is the ARP header
- 18. CONT … • ARP header can be broken into 9 fields • First 2 bytes hardware type • 2 bytes protocol type • 1 byte hardware size • 1 byte protocol size • 2 bytes opcode
- 19. CONT … • 6 bytes source MAC address • 4 bytes source IP address • 6 bytes destination MAC address • 4 bytes destination IP address • Total ARP packet size is 64 bytes ( Ether header + Arp header + Padding ) • Rest of the bytes are padding to compensate the size •
- 20. IPV4 HEADER STRUCTURE • It’s a 20 bytes header
- 21. CONT …
- 22. CONT …
- 23. CONT … • First byte is constant 0x45 for ipv4 and 0x60 for IPv6 • Next byte is differentiated service field • 2 bytes for total length = total packet size – 14 (ether header ) • In the above example total packet size is 471 • The total length is 457 ( 471 -14) bytes • This total length field is used to correctly identify how many bytes are there in this packet.
- 24. CONT … • Next 2 bytes Identification bytes • Next 1 bytes used to store flags • 1 byte Fragment Offset • 1 byte Time To Live ( TTL ) its 128 here • 1 byte for Protocol its very important byte , this byte is used to determine the next type of header ( TCP , UDP , ICMP , or other ) • Next 2 bytes are Checksum
- 25. CONT … • 4 bytes Source IP address • 4 bytes Destination IP address • As mentioned earlier the next header is decided using the protocol field
- 26. UDP HEADER STRUCTURE • Its only 8 byte long
- 27. CONT …
- 28. CONT … PCAP DUMP
- 29. CONT … • Can be broken into 4 fields • 2 bytes source port • 2 bytes destination port • 2 bytes length field (size of UDP header + size of rest of the payload ) • The payload which is the packet data = length field value – 8 bytes • 2 bytes checksum
- 30. ICMP HEADER STRUCTURE • Its also only 8 bytes header
- 31. CONT …
- 32. CONT … • First 8 bytes of the high lighted area are ICMP header rest of the bytes are payload
- 33. CONT … • 8 bytes header can be broken into five fields • First 1 bytes is for type of ICMP i.e. request ,reply ,destination unreachable … etc • Next 1 byte for code • There are 45 type codes for ICMP • Next 2 bytes checksum • Next 2 bytes Identifier • Next 2 bytes sequence Number
- 34. CONT … • Rest of the bytes are payload
- 35. TCP HEADER STRUCTURE • Its 20 bytes long header
- 36. CONT …
- 37. CONT … • PCAP DUMP
- 38. CONT .. • First 2 bytes Source port • Next 2 bytes Destination port • 4 bytes Sequence Number • 4 bytes Acknowledgement Number • 2 bytes Flags • 2 bytes window size • 2 bytes checksum • 2 bytes urgent pointer
- 39. CONT … • The bytes following TCP headers are the packet data or payload of the packet
- 40. THANK YOU
