The document discusses real-time data and the PI System for managing it. The PI System collects real-time data from various sources, historizes large volumes of data reliably over long periods, and allows users to find, analyze, deliver, and visualize the data. It provides a comprehensive view of operational information through intuitive visuals to help users make informed decisions.

2. Real-Time Data is Everywhere
• In an organization, there are always ‘islands’ of systems with ‘silos’ of data
• There is a need to connect this data across systems, to people, to actions
• The accessibility of this data is paramount for informed decision making at all levels of business.

3. What are Your Data needs?
I need to know the
moment it goes out
of tune
My process is like a
baby – I need to watch
its every move
The turbine is not working
– what’s the problem?
ACTUATORS
MOTORS
PUMPS
I need to combine data
from 3 sources

4. Sales By Industry

5. What is a PI System?
The Industry Standard in Enterprise Infrastructure
for management of real-time data and events
COLLECT HISTORIZE FIND ANALYZE DELIVER VISUALIZE

6. • The PI System Collects from > 450 interfaces:
• Distributed Control Systems (DCS)
• Energy Management Systems (EMS)
• Supervisory Control and Data Acquisition (SCADA) systems
• Programmable Logic Controllers (PLC)
• Batch execution systems
• Enterprise Resource Planning (ERP) systems
• Lab Information Management Systems (LIMS)
• Maintenance systems
• Relational databases
• Mobile solutions
• Manufacturing automation systems
• Information technology equipment
COLLECT
Interface to, and acquire data from a multitude of sources.
COLLECT

7. What is a PI System?
The Industry Standard in Enterprise Infrastructure
for management of real-time data and events
HISTORIZECOLLECT FIND ANALYZE DELIVER VISUALIZE

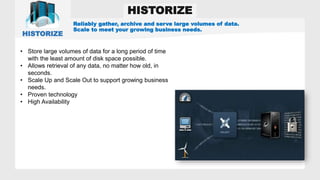

8. Reliably gather, archive and serve large volumes of data.
Scale to meet your growing business needs.
HISTORIZE
• Store large volumes of data for a long period of time
with the least amount of disk space possible.
• Allows retrieval of any data, no matter how old, in
seconds.
• Scale Up and Scale Out to support growing business
needs.
• Proven technology
• High Availability
HISTORIZE

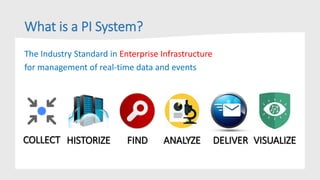

9. What is a PI System?
The Industry Standard in Enterprise Infrastructure
for management of real-time data and events
FINDHISTORIZECOLLECT ANALYZE DELIVER VISUALIZE

10. Organize and quickly locate your data to optimize business decisions.
FIND
• Asset centric view of your assets
via elements and attributes
• templates for standardization and reuse
• Use hierarchies, categories and
connectivity models
• Data references to time series (PI Points)
and other data such as asset data
• Configuration, Analysis and Reporting
gets easier through templatizing of assets
• Event Frames allow to track any
kind of incident and alarm
FIND

11. What is a PI System?
The Industry Standard in Enterprise Infrastructure
for management of real-time data and events
ANALYZEFINDHISTORIZECOLLECT DELIVER VISUALIZE

12. Convert real-time data and events into actionable information.
Measure and improve business performance.
ANALYZE
ANALYZE
• Combine data elements together
• Aggregate totals and averages
• Filter out irrelevant data.
• Includes both configured and programmed analytics
• Enables organizations to continually improve by analyzing data and obtaining insight into
their operations.
• Excel Reports with PI Data Link
Example: Outage Reports
• Advanced Pattern Recognition / Advanced
Analytics
Example: Matlab, R Analytics

13. What is a PI System?
The Industry Standard in Enterprise Infrastructure
for management of real-time data and events
DELIVERANALYZEFINDHISTORIZECOLLECT VISUALIZE

14. Bring systems and people together, by delivering the right information
to the right place at the right time.
DELIVER
DELIVER
• PI Notifications –deliver exceptions to humans or push to other
systems
• PI Data Access –allow applications to pull data from
the PI System SQL Data Access
• Web Services
• OPC Servers
• Software Development Kits

15. What is a PI System?
The Industry Standard in Enterprise Infrastructure
for management of real-time data and events
DELIVERANALYZEFINDHISTORIZECOLLECT VISUALIZE

16. Gain a comprehensive view of your operational information with
intuitive visuals.
VISUALIZE
VISUALIZE
• PI ProcessBook –operational awareness using easy to build
process graphics and data analysis displays
• PI WebParts for SharePoint –Collaborate, Share Information, KPIs
• PI DataLink for Excel and Excel Services –Build and Publish Reports
• PI and MS Excel PowerPivot, PowerView–Build and Publish Drill
Down Reports
• PI Data Access Technologies –Integrate with standard off the shelf
tools
• PI Notifications Delivery Channel for Microsoft Lync –Deliver a
Notification via Instant Message
• PI Coresight -“The Fastest, EasiestWay to VisualizePI System
Data” on Desktop and Mobile devices
• PI ManualLogger–Feed data into PI from non-automated data
sources

17. The PI System Infrastructure
PI
Notifications
PI Server
PI ProcessBook
PI DataLink
PI WebParts
PI Visualization
Suite
PI System Access
PI Event Frames
PI Analytics
PI AF
PI Data
Archive
PIInterfaces
MOTORS
PUMPS

18. The PI System Infrastructure
PI Data
Archive
PI AF
Machine Friendly :] Human Friendly :)
‘The pump is down - what’s
happening?’
PI Coresight
PI ProcessBook
PI DataLink
PI Notifications
OPC
Modbus
Text Files
Databases
PI Server
