OSCON 2011 CouchApps

+

= CouchApps
Blog: http://bradley-holt.com
@BradleyHolt (http://twitter.com/BradleyHolt)
bradley.holt@foundline.com

Co-Founder and
Technical Director

from Vermont

Battery Park - Burlington, Vermont by Marty Desilets, on Flickr

Author

http://oreilly.com/catalog/9781449303129/ http://oreilly.com/catalog/9781449303433/

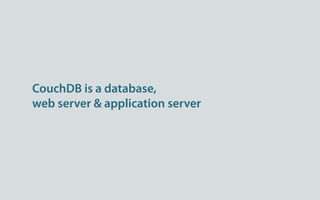

CouchDB is a database,
web server & application server

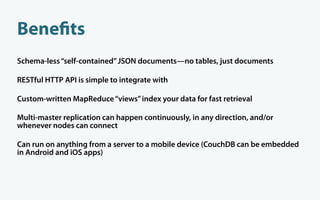

Bene ts
Schema-less “self-contained” JSON documents—no tables, just documents

RESTful HTTP API is simple to integrate with

Custom-written MapReduce “views” index your data for fast retrieval

Multi-master replication can happen continuously, in any direction, and/or
whenever nodes can connect

Can run on anything from a server to a mobile device (CouchDB can be embedded
in Android and iOS apps)

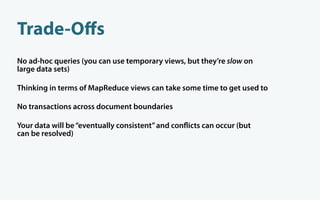

Trade-Oﬀs
No ad-hoc queries (you can use temporary views, but they’re slow on
large data sets)

Thinking in terms of MapReduce views can take some time to get used to

No transactions across document boundaries

Your data will be “eventually consistent” and con icts can occur (but
can be resolved)

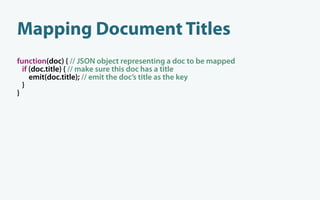

Mapping Document Titles
function(doc) { // JSON object representing a doc to be mapped
if (doc.title) { // make sure this doc has a title
emit(doc.title); // emit the doc’s title as the key
}
}

Mapped Document Titles
key id value

"Building iPhone Apps with
"978-0-596-80579-1" null
HTML, CSS, and JavaScript"

"CouchDB: The Deﬁnitive
"978-0-596-15589-6" null
Guide"

"DocBook: The Deﬁnitive
"978-1-565-92580-9" null
Guide"

"RESTful Web Services" "978-0-596-52926-0" null

Mapping Document Authors
function(doc) { // JSON object representing a doc to be mapped
if (doc.authors) { // make sure this doc has an authors eld
for (var i in doc.authors) {
emit(doc.authors[i]); // emit each author as the key
}
}
}

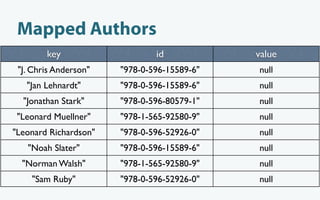

Mapped Authors
key id value
"J. Chris Anderson" "978-0-596-15589-6" null
"Jan Lehnardt" "978-0-596-15589-6" null
"Jonathan Stark" "978-0-596-80579-1" null
"Leonard Muellner" "978-1-565-92580-9" null
"Leonard Richardson" "978-0-596-52926-0" null
"Noah Slater" "978-0-596-15589-6" null
"Norman Walsh" "978-1-565-92580-9" null
"Sam Ruby" "978-0-596-52926-0" null

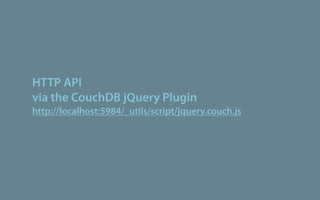

HTTP API
via the CouchDB jQuery Plugin
http://localhost:5984/_utils/script/jquery.couch.js

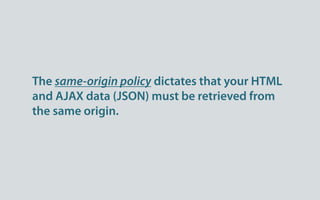

The same-origin policy dictates that your HTML
and AJAX data (JSON) must be retrieved from
the same origin.

Create Database
$.couch.db("mydb").create({
success: function(data) {
console.log(data);
}
});

PUT http://localhost:5984/mydb 201 Created

{"ok":true}

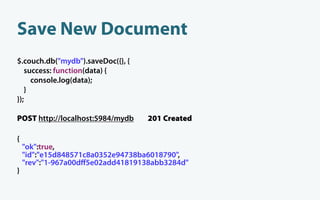

Save New Document
$.couch.db("mydb").saveDoc({}, {
console.log(data);
}
});

POST http://localhost:5984/mydb 201 Created

{
"ok":true,
"id":"e15d848571c8a0352e94738ba6018790",
"rev":"1-967a00dﬀ5e02add41819138abb3284d"
}

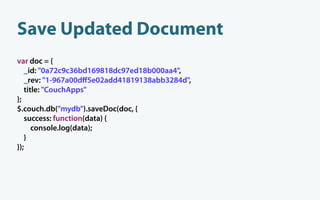

Save Updated Document
var doc = {
_id: "0a72c9c36bd169818dc97ed18b000aa4",
_rev: "1-967a00dﬀ5e02add41819138abb3284d",
title: "CouchApps"
};
$.couch.db("mydb").saveDoc(doc, {
console.log(data);
}
});

Save Updated Document (cont’d)
PUT http://localhost:5984/mydb/0a72c9c36bd169818dc97ed18b000aa4 201 Created

{
"ok":true,
"id":"0a72c9c36bd169818dc97ed18b000aa4",
"rev":"2-516027e3179a22a22e06874c374e8ef0"
}

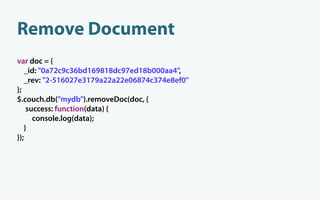

Remove Document
var doc = {
_id: "0a72c9c36bd169818dc97ed18b000aa4",
_rev: "2-516027e3179a22a22e06874c374e8ef0"
};
$.couch.db("mydb").removeDoc(doc, {
console.log(data);
}
});

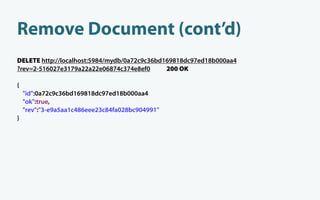

Remove Document (cont’d)
DELETE http://localhost:5984/mydb/0a72c9c36bd169818dc97ed18b000aa4
?rev=2-516027e3179a22a22e06874c374e8ef0 200 OK

{
"id":0a72c9c36bd169818dc97ed18b000aa4
"ok":true,
"rev":"3-e9a5aa1c486eee23c84fa028bc904991"
}

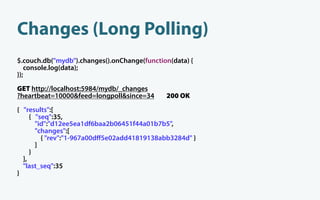

Changes (Long Polling)
$.couch.db("mydb").changes().onChange(function(data) {
console.log(data);
});
GET http://localhost:5984/mydb/_changes
?heartbeat=10000&feed=longpoll&since=34 200 OK
{ "results":[
{ "seq":35,
"id":"d12ee5ea1df6baa2b06451f44a01b7b5",
"changes":[
{ "rev":"1-967a00dﬀ5e02add41819138abb3284d" }
]
}
],
"last_seq":35
}

Bene ts
Streamlining of your codebase (no middle tier)

Same language on both the client and server (JavaScript)

Show and list functions let you generate HTML from within CouchDB, if you don’t
want to rely on JavaScript

Replication of both data and code together

Deploy/replicate an application along with its data

Goes “with the grain” of the web

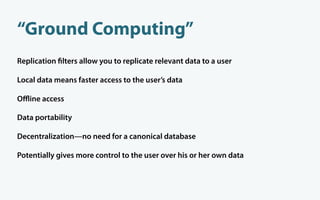

“Ground Computing”
Replication lters allow you to replicate relevant data to a user

Local data means faster access to the user’s data

Oﬄine access

Data portability

Decentralization—no need for a canonical database

Potentially gives more control to the user over his or her own data

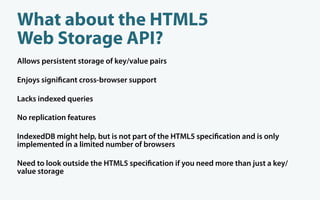

What about the HTML5
Web Storage API?
Allows persistent storage of key/value pairs

Enjoys signi cant cross-browser support

Lacks indexed queries

No replication features

IndexedDB might help, but is not part of the HTML5 speci cation and is only
implemented in a limited number of browsers

Need to look outside the HTML5 speci cation if you need more than just a key/
value storage

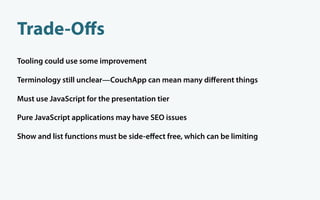

Trade-Offs
Tooling could use some improvement

Terminology still unclear—CouchApp can mean many different things

Must use JavaScript for the presentation tier

Pure JavaScript applications may have SEO issues

Show and list functions must be side-effect free, which can be limiting

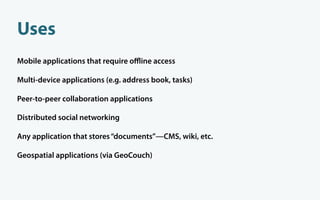

Uses
Mobile applications that require oﬄine access

Multi-device applications (e.g. address book, tasks)

Peer-to-peer collaboration applications

Distributed social networking

Any application that stores “documents”—CMS, wiki, etc.

Geospatial applications (via GeoCouch)

}
Mustache
Logic-Less Templates

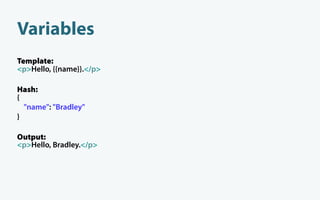

Variables
Template:
<p>Hello, {{name}}.</p>

Hash:
{
"name": "Bradley"
}

Output:
<p>Hello, Bradley.</p>

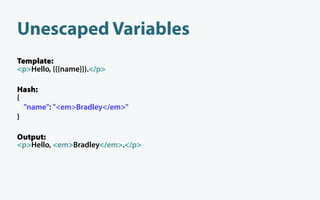

Unescaped Variables
Template:
<p>Hello, {{{name}}}.</p>

Hash:
{
"name": "<em>Bradley</em>"
}

Output:
<p>Hello, <em>Bradley</em>.</p>

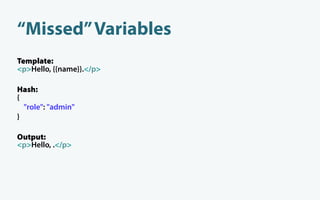

“Missed” Variables
Template:
<p>Hello, {{name}}.</p>

Hash:
{
"role": "admin"
}

Output:
<p>Hello, .</p>

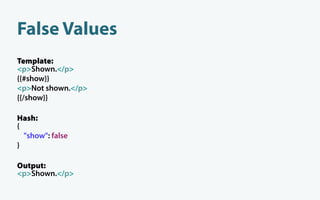

False Values
Template:
<p>Shown.</p>
{{#show}}
<p>Not shown.</p>
{{/show}}

Hash:
{
"show": false
}

Output:
<p>Shown.</p>

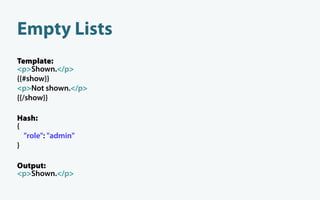

Empty Lists
Template:
<p>Shown.</p>
{{#show}}
<p>Not shown.</p>
{{/show}}

Hash:
{
"role": "admin"
}

Output:
<p>Shown.</p>

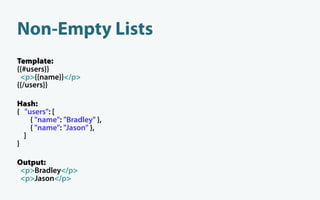

Non-Empty Lists
Template:
{{#users}}
<p>{{name}}</p>
{{/users}}

Hash:
{ "users": [
{ "name": "Bradley" },
{ "name": "Jason" },
]
}

Output:
<p>Bradley</p>
<p>Jason</p>

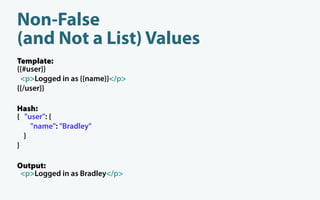

Non-False
(and Not a List) Values
Template:
{{#user}}
<p>Logged in as {{name}}</p>
{{/user}}

Hash:
{ "user": {
"name": "Bradley"
}
}

Output:
<p>Logged in as Bradley</p>

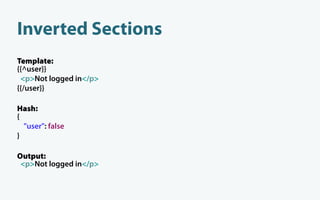

Inverted Sections
Template:
{{^user}}
<p>Not logged in</p>
{{/user}}

Hash:
{
"user": false
}

Output:
<p>Not logged in</p>

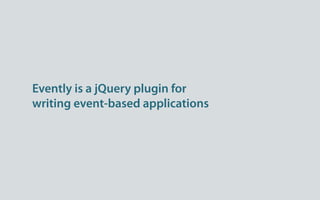

Evently is a jQuery plugin for
writing event-based applications

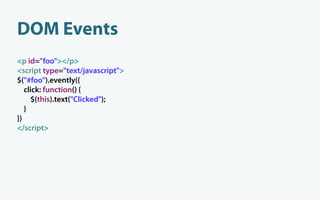

DOM Events
<p id="foo"></p>
<script type="text/javascript">
$("#foo").evently({
click: function() {
$(this).text("Clicked");
}
})
</script>

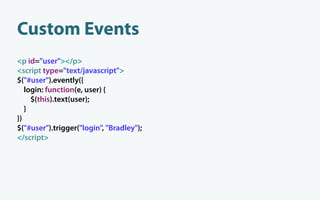

Custom Events
<p id="user"></p>
$("#user").evently({
login: function(e, user) {
$(this).text(user);
}
})
$("#user").trigger("login", "Bradley");
</script>

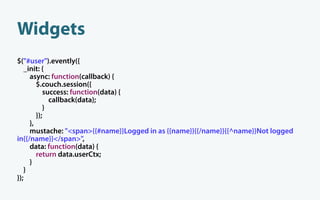

Widgets
$("#user").evently({
_init: {
async: function(callback) {
$.couch.session({
callback(data);
}
});
},
mustache: "<span>{{#name}}Logged in as {{name}}{{/name}}{{^name}}Not logged
in{{/name}}</span>",
data: function(data) {
return data.userCtx;
}
}
});

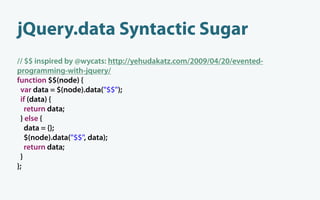

jQuery.data Syntactic Sugar
// $$ inspired by @wycats: http://yehudakatz.com/2009/04/20/evented-
programming-with-jquery/
function $$(node) {
var data = $(node).data("$$");
if (data) {
return data;
} else {
data = {};
$(node).data("$$", data);
return data;
}
};

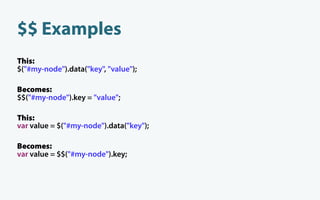

$$ Examples
This:
$("#my-node").data("key", "value");

Becomes:
$$("#my-node").key = "value";

This:
var value = $("#my-node").data("key");

Becomes:
var value = $$("#my-node").key;

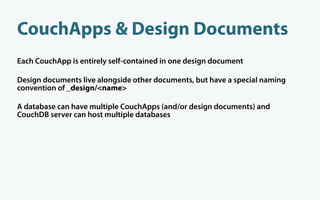

CouchApps & Design Documents
Each CouchApp is entirely self-contained in one design document

Design documents live alongside other documents, but have a special naming
convention of _design/<name>

A database can have multiple CouchApps (and/or design documents) and
CouchDB server can host multiple databases

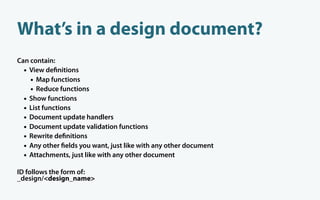

What’s in a design document?
Can contain:
• View de nitions
• Map functions
• Reduce functions
• Show functions
• List functions
• Document update handlers
• Document update validation functions
• Rewrite de nitions
• Any other elds you want, just like with any other document
• Attachments, just like with any other document
ID follows the form of:
_design/<design_name>

Exploring Pages,
a CouchApp Wiki

views/recent-comments/map.js
function(doc) {
if (doc.type == "comment") {
emit([doc.topic, doc.at], doc);
}
};

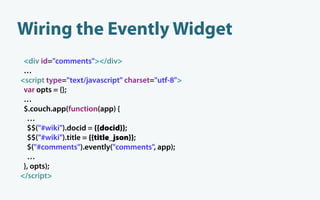

Wiring the Evently Widget
<div id="comments"></div>
…
<script type="text/javascript" charset="utf-8">
var opts = {};
…
$.couch.app(function(app) {
…
$$("#wiki").docid = {{docid}};
$$("#wiki").title = {{title_json}};
$("#comments").evently("comments", app);
…
}, opts);
</script>

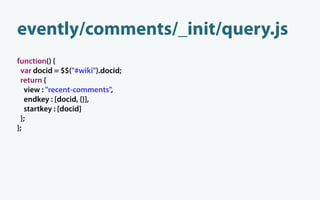

evently/comments/_init/query.js
function() {
var docid = $$("#wiki").docid;
return {
view : "recent-comments",
endkey : [docid, {}],
startkey : [docid]
};
};

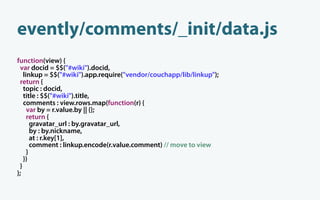

evently/comments/_init/data.js
function(view) {
var docid = $$("#wiki").docid,
linkup = $$("#wiki").app.require("vendor/couchapp/lib/linkup");
return {
topic : docid,
title : $$("#wiki").title,
comments : view.rows.map(function(r) {
var by = r.value.by || {};
return {
gravatar_url : by.gravatar_url,
by : by.nickname,
at : r.key[1],
comment : linkup.encode(r.value.comment) // move to view
}
})
}
};

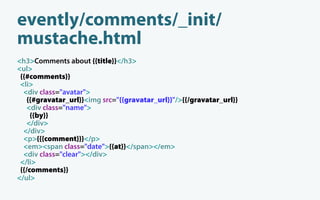

evently/comments/_init/
mustache.html
<h3>Comments about {{title}}</h3>
<ul>
{{#comments}}
<li>
<div class="avatar">
{{#gravatar_url}}<img src="{{gravatar_url}}"/>{{/gravatar_url}}
<div class="name">
{{by}}
</div>
</div>
<p>{{{comment}}}</p>
<em><span class="date">{{at}}</span></em>
<div class="clear"></div>
</li>
{{/comments}}
</ul>

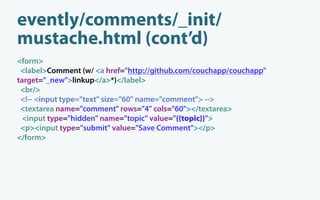

evently/comments/_init/
mustache.html (cont’d)
<form>
<label>Comment (w/ <a href="http://github.com/couchapp/couchapp"
target="_new">linkup</a>*)</label>
<br/>

<textarea name="comment" rows="4" cols="60"></textarea>
<input type="hidden" name="topic" value="{{topic}}">
<p><input type="submit" value="Save Comment"></p>
</form>

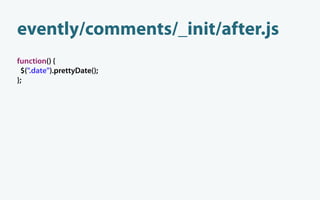

evently/comments/_init/after.js
function() {
$(".date").prettyDate();
};

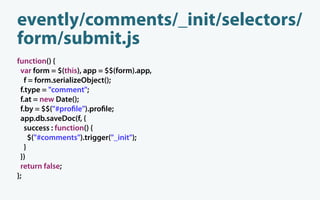

evently/comments/_init/selectors/
form/submit.js
function() {
var form = $(this), app = $$(form).app,
f = form.serializeObject();
f.type = "comment";
f.at = new Date();
f.by = $$("#pro le").pro le;
app.db.saveDoc(f, {
success : function() {
$("#comments").trigger("_init");
}
})
return false;
};

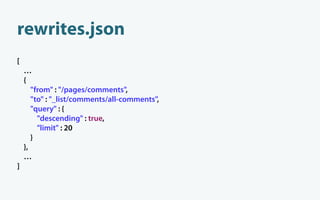

rewrites.json
[
…
{
"from" : "/pages/comments",
"to" : "_list/comments/all-comments",
"query" : {
"descending" : true,
"limit" : 20
}
},
…
]

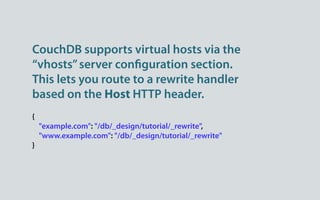

CouchDB supports virtual hosts via the
“vhosts” server con guration section.
This lets you route to a rewrite handler
based on the Host HTTP header.
{
"example.com": "/db/_design/tutorial/_rewrite",
"www.example.com": "/db/_design/tutorial/_rewrite"
}

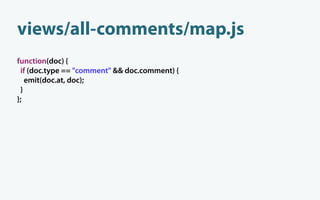

views/all-comments/map.js
function(doc) {
if (doc.type == "comment" && doc.comment) {
emit(doc.at, doc);
}
};

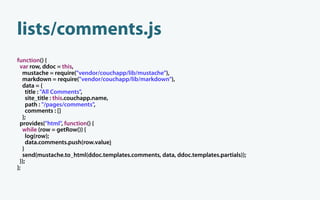

lists/comments.js
function() {
var row, ddoc = this,
mustache = require("vendor/couchapp/lib/mustache"),
markdown = require("vendor/couchapp/lib/markdown"),
data = {
title : "All Comments",
site_title : this.couchapp.name,
path : "/pages/comments",
comments : []
};
provides("html", function() {
while (row = getRow()) {
log(row);
data.comments.push(row.value)
}
send(mustache.to_html(ddoc.templates.comments, data, ddoc.templates.partials));
});
};

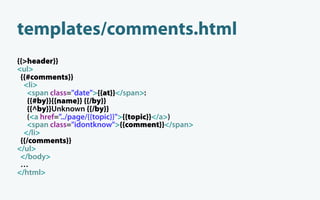

templates/comments.html
{{>header}}
<ul>
{{#comments}}
<li>
<span class="date">{{at}}</span>:
{{#by}}{{name}} {{/by}}
{{^by}}Unknown {{/by}}
(<a href="../page/{{topic}}">{{topic}}</a>)
<span class="idontknow">{{comment}}</span>
</li>
{{/comments}}
</ul>
</body>
…
</html>

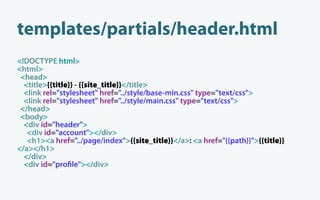

templates/partials/header.html
<!DOCTYPE html>
<html>
<head>
<title>{{title}} - {{site_title}}</title>
<link rel="stylesheet" href="../style/base-min.css" type="text/css">
<link rel="stylesheet" href="../style/main.css" type="text/css">
</head>
<body>
<div id="header">
<div id="account"></div>
<h1><a href="../page/index">{{site_title}}</a>: <a href="{{path}}">{{title}}
</a></h1>
</div>
<div id="pro le"></div>

Security
validate_doc_update.js

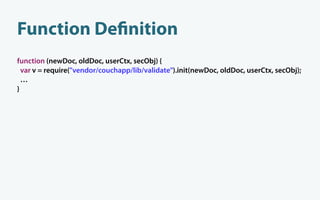

Function De nition
function (newDoc, oldDoc, userCtx, secObj) {
var v = require("vendor/couchapp/lib/validate").init(newDoc, oldDoc, userCtx, secObj);
…
}

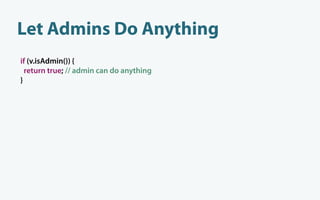

Let Admins Do Anything
if (v.isAdmin()) {
return true; // admin can do anything
}

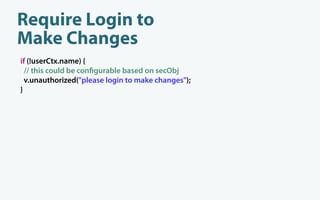

Require Login to
Make Changes
if (!userCtx.name) {
// this could be con gurable based on secObj
v.unauthorized("please login to make changes");
}

Only Let Admins Delete
// only admin may delete
if (newDoc._deleted) {
v.unauthorized("only admin may delete docs");
}

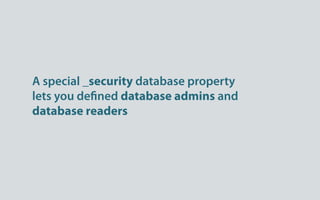

A special _security database property
lets you de ned database admins and
database readers

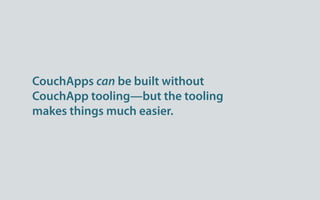

CouchApps can be built without
CouchApp tooling—but the tooling
makes things much easier.

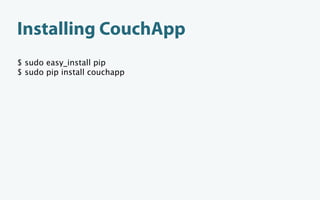

Installing CouchApp
$ sudo easy_install pip
$ sudo pip install couchapp

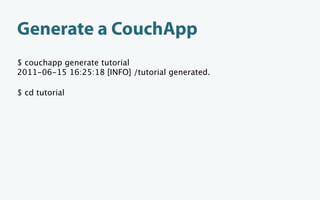

Generate a CouchApp
$ couchapp generate tutorial
2011-06-15 16:25:18 [INFO] /tutorial generated.

$ cd tutorial

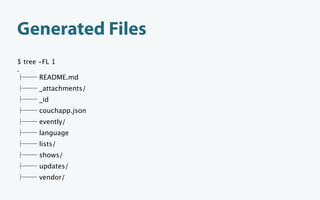

Generated Files
$ tree -FL 1
.
README.md
_attachments/
_id
couchapp.json
evently/
language
lists/
shows/
updates/
vendor/

README.md
Generated by CouchApp
CouchApps are web applications which can be served directly from CouchDB. This
gives them the nice property of replicating just like any other data stored in CouchDB.
They are also simple to write as they can use the built-in jQuery libraries and plugins
that ship with CouchDB.
More info about CouchApps here.
Deploying this app
Assuming you just cloned this app from git, and you have changed into the app directory
in your terminal, you want to push it to your CouchDB with the CouchApp command
line tool…

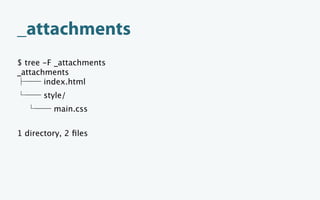

_attachments
$ tree -F _attachments
_attachments
index.html
style/
main.css

1 directory, 2 ﬁles

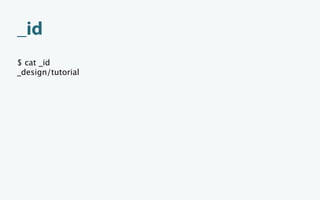

_id
$ cat _id
_design/tutorial

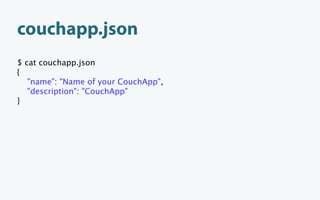

couchapp.json
$ cat couchapp.json
{
"name": "Name of your CouchApp",
"description": "CouchApp"
}

evently
$ tree -F evently
evently
items/
   _changes/
   data.js
   mustache.html
   query.json
proﬁle/
proﬁleReady/
mustache.html
selectors/
form/

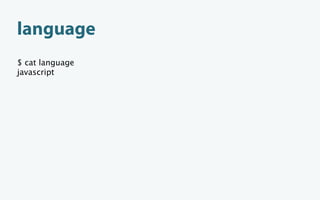

language
$ cat language
javascript

lists
$ tree -F lists
lists

0 directories, 0 ﬁles

shows
$ tree -F shows
shows

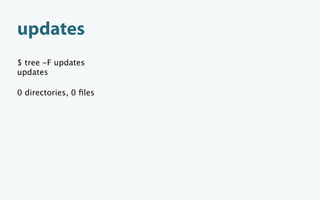

updates
$ tree -F updates
updates

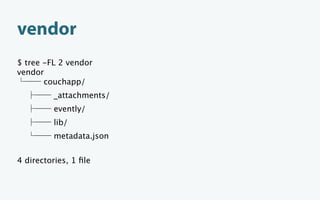

vendor
$ tree -FL 2 vendor
vendor
couchapp/
_attachments/
evently/
lib/
metadata.json

4 directories, 1 ﬁle

views
$ tree -F views
views
recent-items/
map.js

1 directory, 1 ﬁle

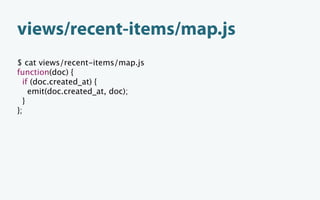

views/recent-items/map.js
$ cat views/recent-items/map.js
function(doc) {
if (doc.created_at) {
emit(doc.created_at, doc);
}
};

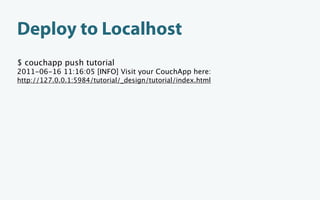

Deploy to Localhost
$ couchapp push tutorial
2011-06-16 11:16:05 [INFO] Visit your CouchApp here:
http://127.0.0.1:5984/tutorial/_design/tutorial/index.html

Pathbinder is a jQuery plugin for triggering
events based on the path components of a
URL hash.

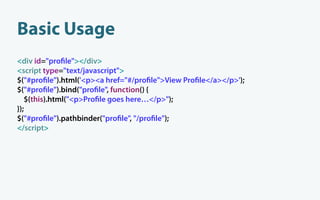

Basic Usage
$("#pro le").html('<p><a href="#/pro le">View Pro le</a></p>');
$("#pro le").bind("pro le", function() {
$(this).html("<p>Pro le goes here…</p>");
});
$("#pro le").pathbinder("pro le", "/pro le");
</script>

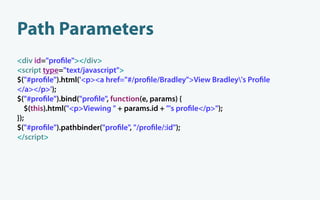

Path Parameters
$("#pro le").html('<p><a href="#/pro le/Bradley">View Bradley's Pro le
</a></p>');
$("#pro le").bind("pro le", function(e, params) {
$(this).html("<p>Viewing " + params.id + "'s pro le</p>");
});
$("#pro le").pathbinder("pro le", "/pro le/:id");
</script>

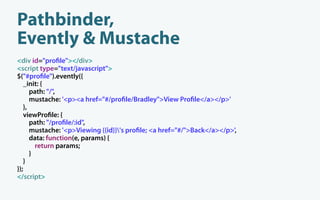

Pathbinder,
Evently & Mustache
$("#pro le").evently({
_init: {
path: "/",
mustache: '<p><a href="#/pro le/Bradley">View Pro le</a></p>'
},
viewPro le: {
path: "/pro le/:id",
mustache: '<p>Viewing {{id}}'s pro le; <a href="#/">Back</a></p>',
data: function(e, params) {
return params;
}
}
});
</script>

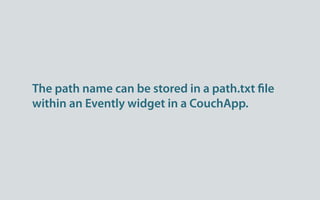

The path name can be stored in a path.txt le
within an Evently widget in a CouchApp.

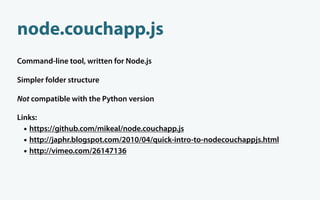

node.couchapp.js
Command-line tool, written for Node.js

Simpler folder structure

Not compatible with the Python version

Links:
• https://github.com/mikeal/node.couchapp.js
• http://japhr.blogspot.com/2010/04/quick-intro-to-nodecouchappjs.html
• http://vimeo.com/26147136

Kanso Framework
Also built using Node.js

http://kansojs.org/

soca
“Sammy On Couch App” or “Sittin’ on a Couch App”

Command-line tool written in Ruby

Uses Sammy.js

https://github.com/quirkey/soca

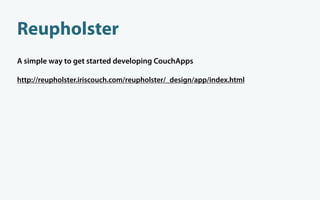

Reupholster
A simple way to get started developing CouchApps

http://reupholster.iriscouch.com/reupholster/_design/app/index.html

See the CouchApp wiki for a list of CouchApps

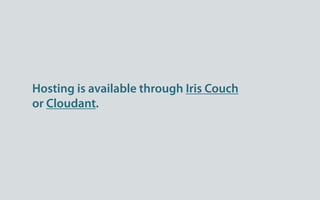

Hosting is available through Iris Couch
or Cloudant.

CouchDB & CouchApp Resources
CouchApp Wiki Scaling CouchDB
http://couchapp.org/ by Bradley Holt (O’Reilly)
063-6-920-01840-7
CouchDB Wiki
http://wiki.apache.org/couchdb/ Beginning CouchDB
by Joe Lennon (Apress)
CouchDB: The De nitive Guide 978-1-430-27237-3
by J. Chris Anderson, Jan Lehnardt, and
Noah Slater (O’Reilly)
978-0-596-15589-6

Writing and Querying MapReduce Views in
CouchDB
by Bradley Holt (O’Reilly)
978-1-449-30312-9

OSCON 2011 CouchApps

More Related Content

What's hot

Viewers also liked

Similar to OSCON 2011 CouchApps

More from Bradley Holt

Recently uploaded

OSCON 2011 CouchApps

Editor's Notes
