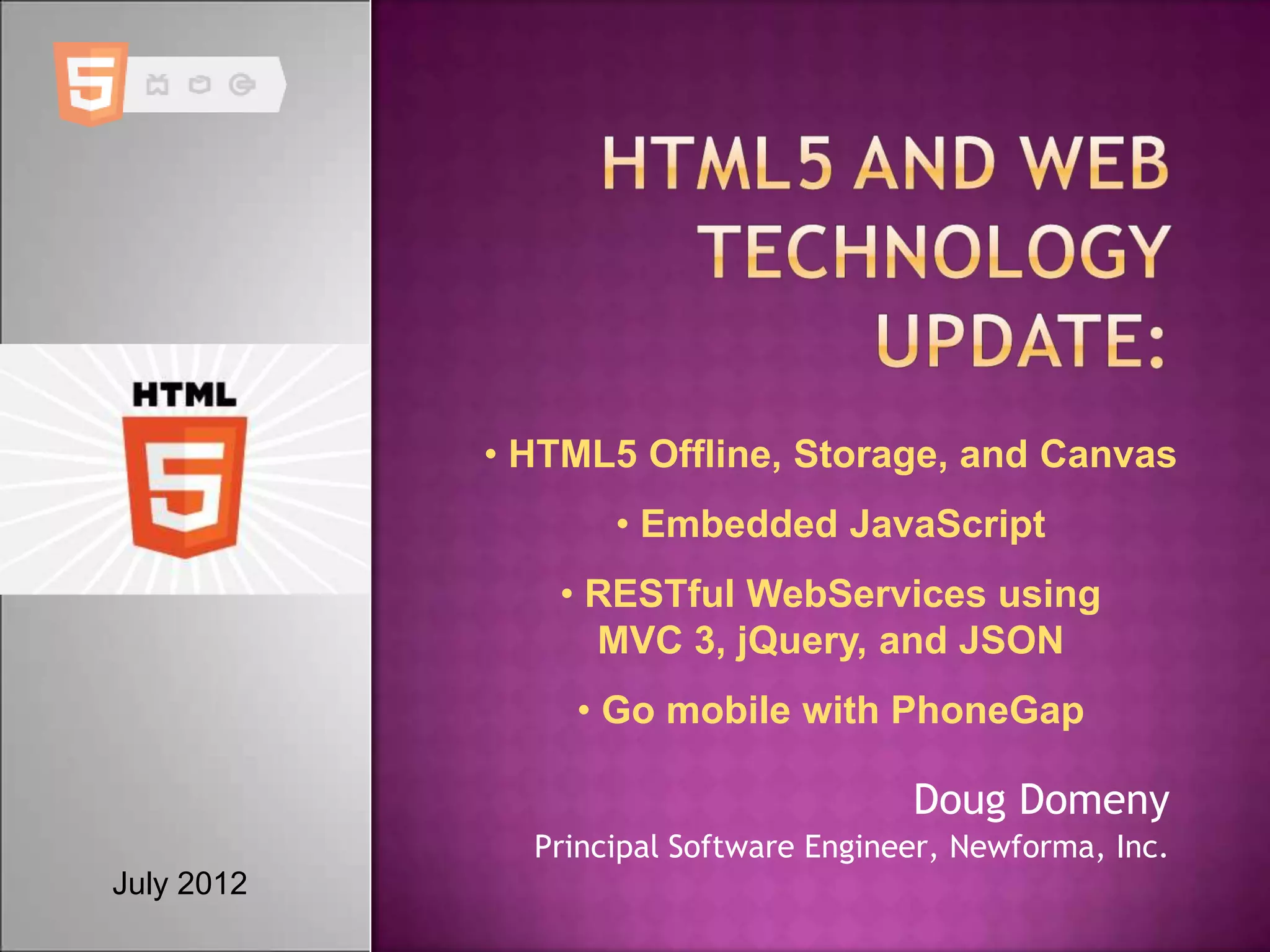

Html5 and web technology update

• HTML5 Offline, Storage, and Canvas
• Embedded JavaScript
• RESTful WebServices using
MVC 3, jQuery, and JSON
• Go mobile with PhoneGap

Doug Domeny
Principal Software Engineer, Newforma, Inc.
July 2012

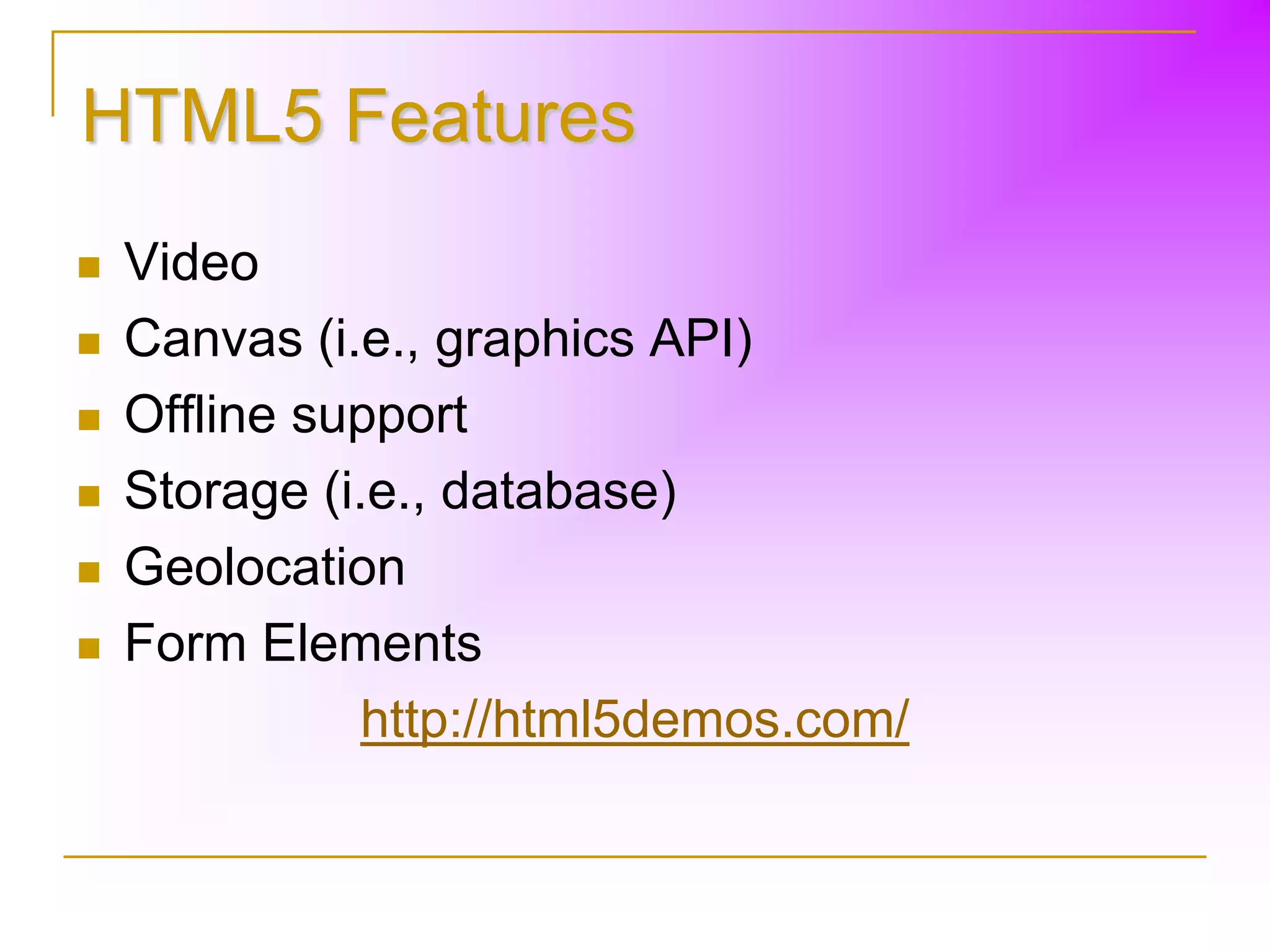

HTML5 Features
 Video
 Canvas (i.e., graphics API)
 Offline support
 Storage (i.e., database)
 Geolocation
 Form Elements
http://html5demos.com/

HTML5 Form Elements
 <input type="search" name="q" placeholder="Search"
autofocus />
 <input type="email" placeholder="Enter your email
address" />
 <input type="url" placeholder="Enter your web address" />
 <input type="number" min="1" max="12" value="12" />
 <input type="range" min="1" max="12" value="12" />
 <input type="date" />
 <input type="datetime" />
 <input type="color" />
http://localhost/html5cap/form.html

HTML5 Elements
 <header>
The header element represents a group of introductory or
navigational aids. The header element can also be used to wrap
a section’s table of contents, a search form, or any relevant
logos.
 <hgroup>
The hgroup element represents the heading of a section. The
element is used to group a set of h1–h6 elements when the
heading has multiple levels, such as subheadings, alternative
titles, or taglines.
 <footer>
The footer element represents a footer for its nearest ancestor
sectioning content or sectioning root element. A footer typically
contains information about its section such as who wrote it, links
to related documents, copyright data, and the like.

HTML5 Elements

 <nav>
The nav element represents a section of a page that links to
other pages or to parts within the page: a section with
navigation links.
 <article>
The article element represents a component of a page that
consists of a self-contained composition that is intended to
be independently distributable or reusable, e.g. in
syndication. This could be a forum post, a magazine or
newspaper article, a Web log entry, or any other
independent item of content.

HTML5 Elements
 <section>
The section element represents a generic document or
application section. Examples of sections would be
chapters, the tabbed pages in a tabbed dialog box, or the
numbered sections of a thesis.
 <aside>
The aside element represents a section of a page that
consists of content that is tangentially related to the
content around the aside element. Such sections are often
represented as sidebars in printed typography.
 <time datetime=“2012-05-12”>May 12, 2012</time>

http://diveintohtml5.info/semantics.html#new-elements

HTML5 Document

 <!DOCTYPE html>
 <html lang="en">
 <head>
 <meta charset="utf-8" />
 <title></title>
 </head>
 <body></body>
 </html>

 <!DOCTYPE html>
<html lang="en" manifest="CacheManifest.ashx">
 CACHE MANIFEST
/HoneyDoList/css/style.css
/HoneyDoList/ejs/HoneyDoListItemRow.htm
/HoneyDoList/ejs/SelectList.htm
/HoneyDoList/images/810%20Floor%20Plan.jpg
/HoneyDoList/js/appCacheEventLogger.js
/HoneyDoList/js/ejs.js
/HoneyDoList/js/jquery-1.5.1.min.js
/HoneyDoList/js/json2.js
/HoneyDoList/js/modernizr-1.7.min.js
/HoneyDoList/HoneyDoList.html
/HoneyDoList/HoneyDoListItemForm.html
…
NETWORK:
*
# 2012-05-12 12:46:40Z

<table>
<thead>
<tr>
<th>Description</th>
<th>Location</th>
<th>Discipline</th>
<th>Status</th>
</tr>
</thead>
<tbody>
<%
for (var i = 0; i < items.length; i++)
{
var item = items[i];
%>
<tr>
<td><%= item.description %></td>
<td><%= item.location %></td>
<td><%= item.discipline %></td>
<td><%= item.status %></td>
</tr>
<%
}
%>
</tbody>
</table>

EJS
 <script src="js/ejs.js"
type="text/javascript"></script>

 http://code.google.com/p/embeddedjavascript

 public JsonResult Locations() {
SelectionList list = _lists.GetLocations("json");
return Json(list, JsonRequestBehavior.AllowGet);
}
 http://localhost/HoneyDo/Lists/Locations
 {"items":[
{"val": "Kitchen", "txt": "Kitchen"}, JSON
{"val": "Living", "txt": "Living Room"}, JavaScript Object Notation
{"val": "Dining", "txt": "Dining Room"},
http://www.json.org
{"val": "Base", "txt": "Basement"},
{"val": "BedRm", "txt": "Bedroom"},
{"val": "Garage", "txt": "Garage"},
{"val": "Deck", "txt": "Deck"},
{"val": "Lav", "txt": "Bathroom"},
{"val": "Stairs", "txt": "Stairs"}
]}

 jQuery.ajax( {
url: "http://localhost/HoneyDo/Lists/" + list.key,
dataType: "text",
context: list,
success: function (data) {
var json = data;
if (Modernizr.localstorage ) {
// localStorage is always a string
localStorage[this.key] = json;
}
updateList(this.key, json);
numListsUpdated++;
if (numListsUpdated == lists.length) {
clearTimeout(timer);
initdb();
}
}
});

 localStorage (key/value strings)
 5 MB limit
 Supported by all browsers
 WebSqlDatabase (SQLite)
 Safari, Chrome, Opera
 NOT FireFox (has IndexedDB instead)
 IE doesn’t have any database yet

 if (Modernizr.localstorage)
{
// localStorage is always a string
localStorage[key] = value;
}

 if (Modernizr.websqldatabase) {
db = openDatabase(“honeydodb", "0.1",
“HoneyDo Database",
10 * 1024 * 1024);
 db.transaction(function (tx) {
tx.executeSql("insert into HoneyDoList
(location, description, discipline, status)
values (?,?,?,?);",
values,
nullDataHandler, errorHandler);
}, myTransactionErrorCallback,
myTransactionSuccessCallback);

Modernizr: feature detection
 Modernizr is a small JavaScript library that detects the
availability of native implementations for next-generation web
technologies:
 HTML5
 CSS3

 Geolocation API

 SVG

 Touch Events

 WebGL

 <script src=“js/modernizr-1.7.js" type="text/javascript"></script>
 http://www.modernizr.com/
 http://localhost/html5cap/index.html

Visual Studio
 HTML5 ASP.Net Controls
http://sourceforge.net/projects/html5asp/
 Inputs with Custom Keyboards
 Inputs with Placeholder Text
 Dynamically created email links
 tappable phone numbers
 Map Links with Start and Finish addresses

 Visual Studio 2010 HTML5 Templates
 HTML5 Page Template with jQuery 1.5.1 & Modernizr 1.7
 HTML5 Web Site Template with jQuery 1.5.1 & Modernizr 1.7

 <canvas id="floorplan" width="300" height="225"></canvas>
 var canvas = $("#floorplan").get(0);
var c = canvas.getContext("2d");
c.save();
c.lineWidth = 1;
c.lineJoin = "round";
var flipped = (y < 3 * r + 5);
c.translate(x, y);
if (flipped) {
c.rotate(180 * deg);
}
// number background outline
c.strokeStyle = "#F00";
c.beginPath();
c.moveTo(-r, 0);
c.lineTo(-r, -3 * r);
c.lineTo(r, -3 * r);
c.lineTo(r, 0);
// circle
c.arc(0, 0, r, 0, Math.PI * 2, true);
c.stroke();
c.restore();

HTML 5 canvas cheat sheet
 http://blog.nihilogic.dk/2009/02/html5-canvas-cheat-sheet.html

Adobe PhoneGap
open source hybrid framework
document.addEventListener("deviceready",
function () {

if (navigator.network) {
setInterval(function () {
navigator.network.isReachable(
"localhost",
privateNetwork, {});
}, 5000);
}

if (navigator.compass) {
navigator.compass.watchHeading(
function (heading) {
heading += window.orientation;
drawCompass(heading, window.orientation)
;
}, { frequency: 2000 });
}

if (navigator.camera) {
$("#cameraSection").show();
}
}

appMobi

 50,000+ active developers; 25% created 3 or more
 Types of apps: 40% media, 35% games, 15% retail
 Apps run over 100 million times
 Majority of apps published to both iOS and Android
 In past 12 months, average time to complete halved to
just 8 weeks
appMobi press release: June 25, 2012
http://www.marketwatch.com/story/appmobi-crosses-100-million-hybrid-html5-app-starts-2012-06-25

Resources
 diveintohtml5.info/
 html5demos.com/
 HTML 5 canvas cheat sheet
 jquery.com/
 embedded javascript
 www.phonegap.com/
 Android Apps
 iPhone Apps
 HTML5 apps on Windows
Phone with PhoneGap
