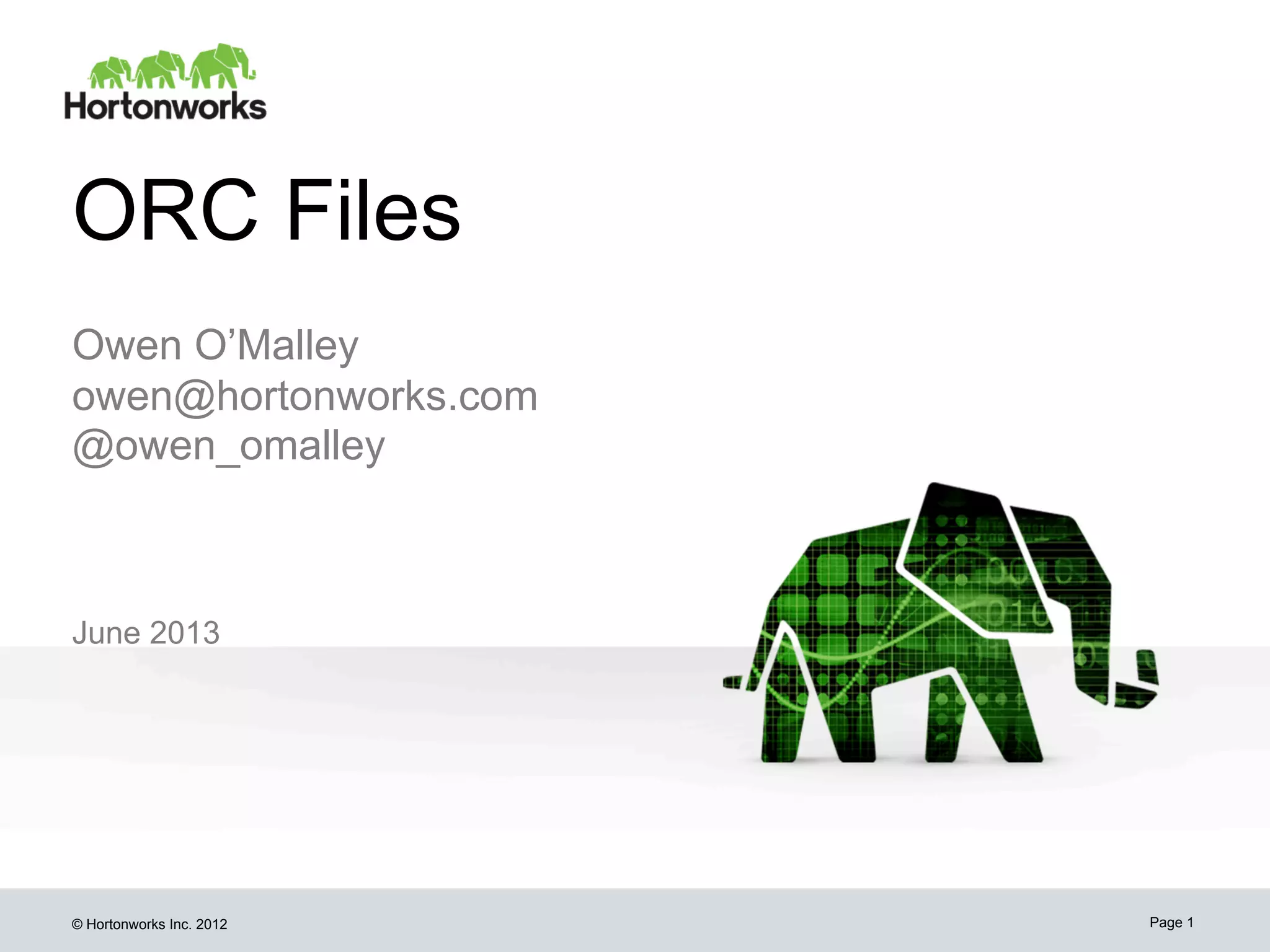

ORC Files
June 2013
Page 1
Owen O’Malley
owen@hortonworks.com
@owen_omalley
owen@hortonworks.com

2. © Hortonworks Inc. 2012

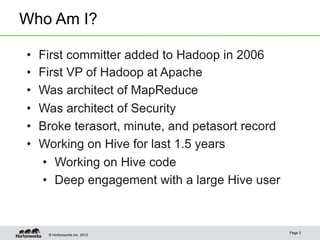

Who Am I?
Page 2

3. © Hortonworks Inc. 2012

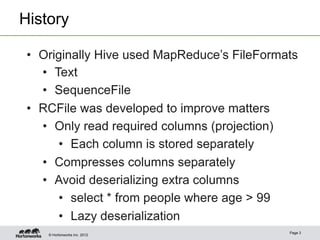

History
Page 3

4. © Hortonworks Inc. 2012

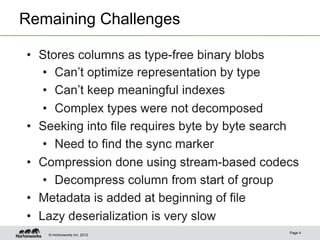

Remaining Challenges
Page 4

5. © Hortonworks Inc. 2012
Requirements
Page 5

6. © Hortonworks Inc. 2012

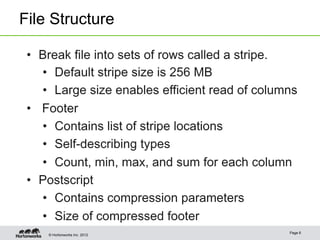

File Structure
Page 6

7. © Hortonworks Inc. 2012

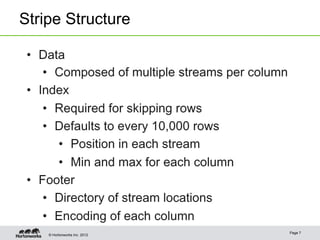

Stripe Structure
Page 7

8. © Hortonworks Inc. 2012
File Layout
Page 8
File Footer
Postscript
Index Data
Row Data
Stripe Footer
256MBStripe
Index Data
Row Data
Stripe Footer
256MBStripe
Index Data
Row Data
Stripe Footer
256MBStripe
Column 1
Column 2
Column 7
Column 8
Column 3
Column 6
Column 4
Column 5
Column 1
Column 2
Column 7
Column 8
Column 3
Column 6
Column 4
Column 5
Stream 2.1
Stream 2.2
Stream 2.3
Stream 2.4

9. © Hortonworks Inc. 2012

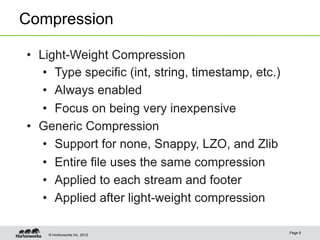

Compression
Page 9

10. © Hortonworks Inc. 2012

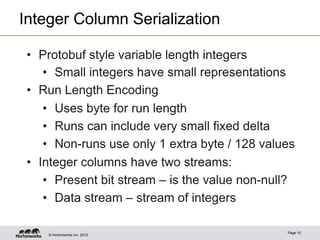

Integer Column Serialization
Page 10

11. © Hortonworks Inc. 2012

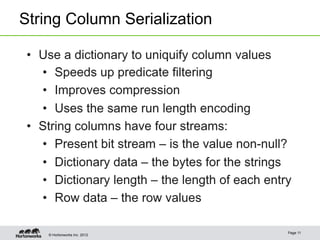

String Column Serialization
Page 11

12. © Hortonworks Inc. 2012

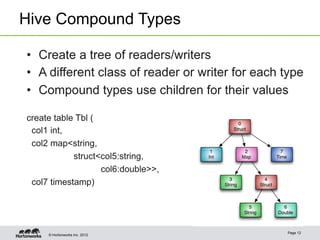

Hive Compound Types
Page 12
0
Struct
4
Struct
3
String
1
Int
2
Map
7
Time
5
String
6
Double

13. © Hortonworks Inc. 2012

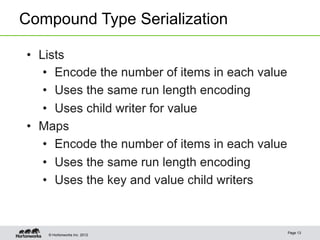

Compound Type Serialization
Page 13

14. © Hortonworks Inc. 2012

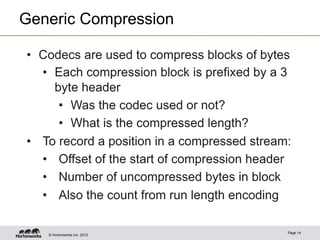

Generic Compression
Page 14

15. © Hortonworks Inc. 2012

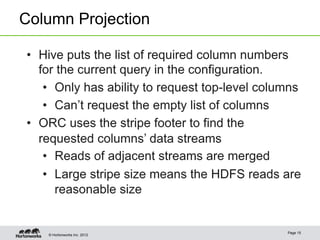

Column Projection
Page 15

16. © Hortonworks Inc. 2012

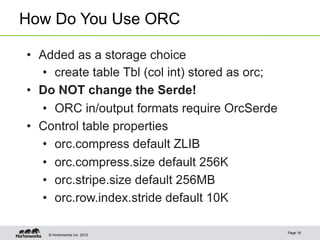

How Do You Use ORC
Page 16

17. © Hortonworks Inc. 2012

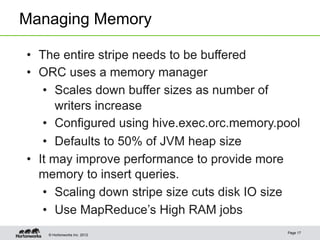

Managing Memory
Page 17

18. © Hortonworks Inc. 2012
Pavan’s Trick
Page 18

19. © Hortonworks Inc. 2012

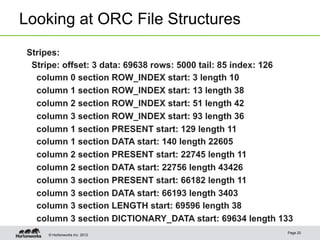

Looking at ORC File Structures
Page 19

20. © Hortonworks Inc. 2012
Looking at ORC File Structures
Page 20

21. © Hortonworks Inc. 2012

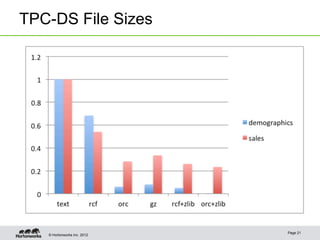

TPC-DS File Sizes
Page 21

22. © Hortonworks Inc. 2012

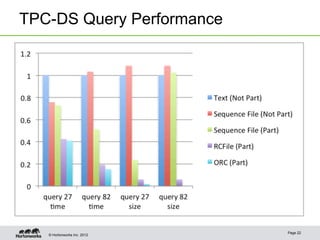

TPC-DS Query Performance
Page 22

23. © Hortonworks Inc. 2012

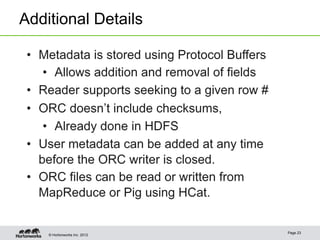

Additional Details
Page 23

24. © Hortonworks Inc. 2012
Current work
Page 24

25. © Hortonworks Inc. 2012

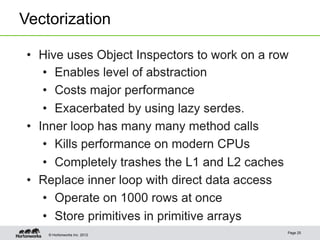

Vectorization
Page 25

26. © Hortonworks Inc. 2012

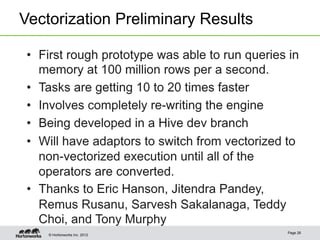

Vectorization Preliminary Results
Page 26

27. © Hortonworks Inc. 2012

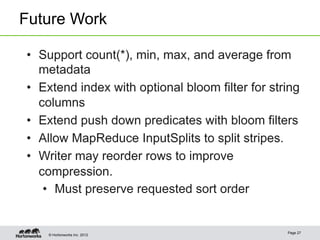

Future Work
Page 27

28. © Hortonworks Inc. 2012

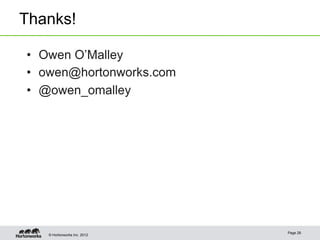

Thanks!
Page 28

29. © Hortonworks Inc. 2012

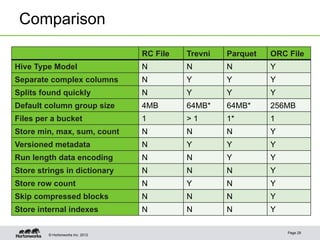

Comparison
Page 29
RC File Trevni Parquet ORC File
Hive Type Model N N N Y
Separate complex columns N Y Y Y
Splits found quickly N Y Y Y
Default column group size 4MB 64MB* 64MB* 256MB
Files per a bucket 1 > 1 1* 1
Store min, max, sum, count N N N Y
Versioned metadata N Y Y Y
Run length data encoding N N Y Y
Store strings in dictionary N N N Y
Store row count N Y N Y
Skip compressed blocks N N N Y
Store internal indexes N N N Y
