1. PERFORMANCE UPDATE: WHEN
APACHE ORC MET APACHE SPARK
Dongjoon Hyun - dhyun@hortonworks.com
Owen O'Malley - owen@hortonworks.com
@owen_omalley

2. 2 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Agenda
Performance Update
Spark – Apache ORC 1.4 Integration
Benchmark Overview
Results
Roadmap

3. 3 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

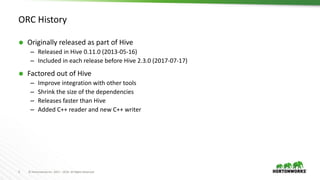

ORC History
 Originally released as part of Hive
– Released in Hive 0.11.0 (2013-05-16)
– Included in each release before Hive 2.3.0 (2017-07-17)
 Factored out of Hive
– Improve integration with other tools
– Shrink the size of the dependencies
– Releases faster than Hive
– Added C++ reader and new C++ writer

4. 4 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

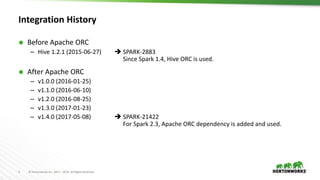

Integration History
 Before Apache ORC
– Hive 1.2.1 (2015-06-27)  SPARK-2883
Since Spark 1.4, Hive ORC is used.
 After Apache ORC
– v1.0.0 (2016-01-25)
– v1.1.0 (2016-06-10)
– v1.2.0 (2016-08-25)
– v1.3.0 (2017-01-23)
– v1.4.0 (2017-05-08)  SPARK-21422
For Spark 2.3, Apache ORC dependency is added and used.

5. 5 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

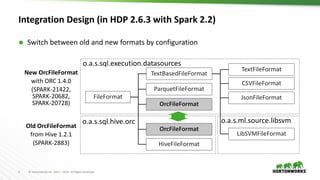

Integration Design (in HDP 2.6.3 with Spark 2.2)
 Switch between old and new formats by configuration
FileFormat
TextBasedFileFormat
ParquetFileFormat
OrcFileFormat
HiveFileFormat
JsonFileFormat
LibSVMFileFormat
CSVFileFormat
TextFileFormat
o.a.s.sql.execution.datasources
o.a.s.ml.source.libsvmo.a.s.sql.hive.orc
OrcFileFormat
Old OrcFileFormat
from Hive 1.2.1
(SPARK-2883)
New OrcFileFormat
with ORC 1.4.0
(SPARK-21422,
SPARK-20682,
SPARK-20728)

6. 6 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Benefit in Apache Spark
 Speed
– Use both Spark ColumnarBatch and ORC RowBatch together more seamlessly
 Stability
– Apache ORC 1.4.0 has many fixes and we can depend on ORC community more.
 Usability
– User can use ORC data sources without hive module, i.e, -Phive.
 Maintainability
– Reduce the Hive dependency and can remove old legacy code later.

7. 7 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

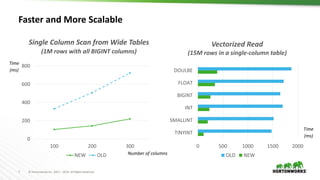

Faster and More Scalable
Number of columns
Time
(ms)
Single Column Scan from Wide Tables
(1M rows with all BIGINT columns)
0 500 1000 1500 2000
TINYINT
SMALLINT
INT
BIGINT
FLOAT
DOULBE
OLD NEW
Vectorized Read
(15M rows in a single-column table)
Time
(ms)
0
200
400
600
800
100 200 300
NEW OLD

8. 8 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

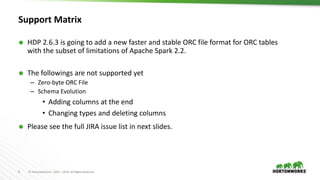

Support Matrix
 HDP 2.6.3 is going to add a new faster and stable ORC file format for ORC tables
with the subset of limitations of Apache Spark 2.2.
 The followings are not supported yet
– Zero-byte ORC File
– Schema Evolution
• Adding columns at the end
• Changing types and deleting columns
 Please see the full JIRA issue list in next slides.

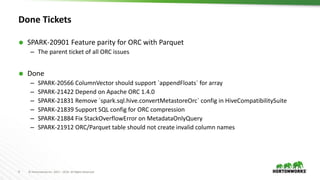

9. 9 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Done Tickets
 SPARK-20901 Feature parity for ORC with Parquet
– The parent ticket of all ORC issues
 Done
– SPARK-20566 ColumnVector should support `appendFloats` for array
– SPARK-21422 Depend on Apache ORC 1.4.0
– SPARK-21831 Remove `spark.sql.hive.convertMetastoreOrc` config in HiveCompatibilitySuite
– SPARK-21839 Support SQL config for ORC compression
– SPARK-21884 Fix StackOverflowError on MetadataOnlyQuery
– SPARK-21912 ORC/Parquet table should not create invalid column names

10. 10 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

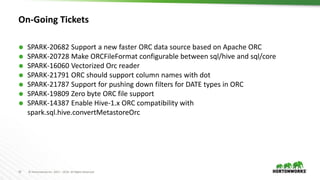

On-Going Tickets
 SPARK-20682 Support a new faster ORC data source based on Apache ORC
 SPARK-20728 Make ORCFileFormat configurable between sql/hive and sql/core
 SPARK-16060 Vectorized Orc reader
 SPARK-21791 ORC should support column names with dot
 SPARK-21787 Support for pushing down filters for DATE types in ORC
 SPARK-19809 Zero byte ORC file support
 SPARK-14387 Enable Hive-1.x ORC compatibility with
spark.sql.hive.convertMetastoreOrc

11. 11 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

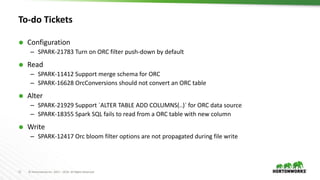

To-do Tickets
 Configuration
– SPARK-21783 Turn on ORC filter push-down by default
 Read
– SPARK-11412 Support merge schema for ORC
– SPARK-16628 OrcConversions should not convert an ORC table
 Alter
– SPARK-21929 Support `ALTER TABLE ADD COLUMNS(..)` for ORC data source
– SPARK-18355 Spark SQL fails to read from a ORC table with new column
 Write
– SPARK-12417 Orc bloom filter options are not propagated during file write

12. 12 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Agenda
Performance Update
Spark – Apache ORC 1.4 Integration
Benchmark Overview
Results
Roadmap

13. 13 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

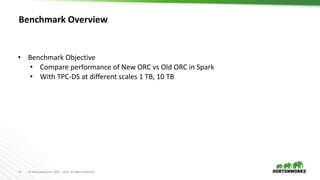

Benchmark Overview
• Benchmark Objective
• Compare performance of New ORC vs Old ORC in Spark
• With TPC-DS at different scales 1 TB, 10 TB

14. 14 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

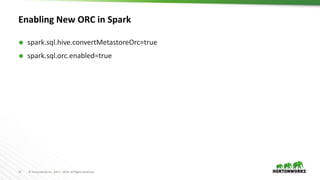

Enabling New ORC in Spark
 spark.sql.hive.convertMetastoreOrc=true
 spark.sql.orc.enabled=true

15. 15 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

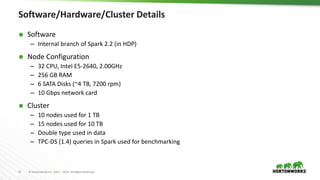

Software/Hardware/Cluster Details
 Software
– Internal branch of Spark 2.2 (in HDP)
 Node Configuration
– 32 CPU, Intel E5-2640, 2.00GHz
– 256 GB RAM
– 6 SATA Disks (~4 TB, 7200 rpm)
– 10 Gbps network card
 Cluster
– 10 nodes used for 1 TB
– 15 nodes used for 10 TB
– Double type used in data
– TPC-DS (1.4) queries in Spark used for benchmarking

16. 16 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

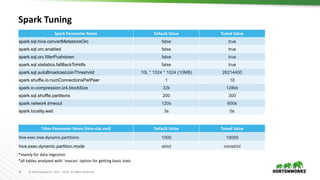

Spark Tuning
Spark Parameter Name Default Value Tuned Value
spark.sql.hive.convertMetastoreOrc false true
spark.sql.orc.enabled false true
spark.sql.orc.filterPushdown false true
spark.sql.statistics.fallBackToHdfs false true
spark.sql.autoBroadcastJoinThreshold 10L * 1024 * 1024 (10MB) 26214400
spark.shuffle.io.numConnectionsPerPeer 1 10
spark.io.compression.lz4.blockSize 32k 128kb
spark.sql.shuffle.partitions 200 300
spark.network.timeout 120s 600s
spark.locality.wait 3s 0s
*Hive Parameter Name (hive-site.xml) Default Value Tuned Value
hive.exec.max.dynamic.partitions 1000 10000
hive.exec.dynamic.partition.mode strict nonstrict
*mainly for data ingestion
*all tables analyzed with `noscan` option for getting basic stats

17. 17 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Agenda
Performance Update
Spark – Apache ORC 1.4 Integration
Benchmark Overview
Results
Roadmap

18. 18 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

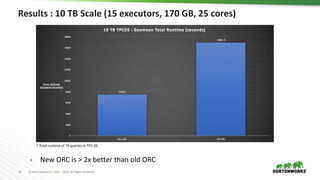

Results : 10 TB Scale (15 executors, 170 GB, 25 cores)
* Total runtime of 74 queries in TPC-DS
- New ORC is > 2x better than old ORC

19. 19 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Results : 10 TB Scale (15 executors, 170 GB, 25 cores)
New ORC vs Old ORC
New ORC consistently outperforms old ORC in all queries significantly

20. 20 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

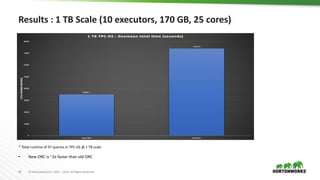

Results : 1 TB Scale (10 executors, 170 GB, 25 cores)
* Total runtime of 97 queries in TPC-DS @ 1 TB scale
• New ORC is ~2x faster than old ORC

21. 21 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

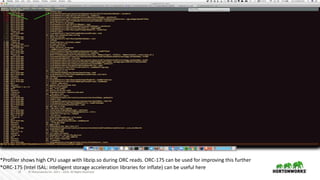

*Profiler shows high CPU usage with libzip.so during ORC reads. ORC-175 can be used for improving this further
*ORC-175 (Intel ISAL: intelligent storage acceleration libraries for inflate) can be useful here

22. 22 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

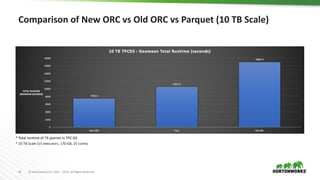

Comparison of New ORC vs Old ORC vs Parquet (10 TB Scale)
* Total runtime of 74 queries in TPC-DS
* 10 TB Scale (15 executors, 170 GB, 25 cores)

23. 23 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Agenda
Performance Update
Spark – Apache ORC 1.4 Integration
Benchmark Overview
Results
Roadmap

24. 24 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

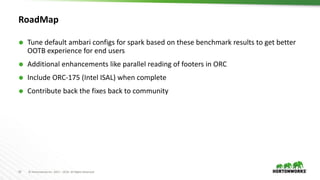

RoadMap
 Tune default ambari configs for spark based on these benchmark results to get better
OOTB experience for end users
 Additional enhancements like parallel reading of footers in ORC
 Include ORC-175 (Intel ISAL) when complete
 Contribute back the fixes back to community

25. 25 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

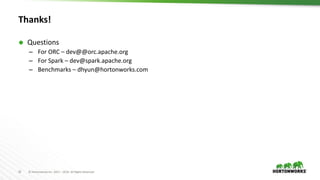

Thanks!
 Questions
– For ORC – dev@@orc.apache.org
– For Spark – dev@spark.apache.org
– Benchmarks – dhyun@hortonworks.com

26. 26 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

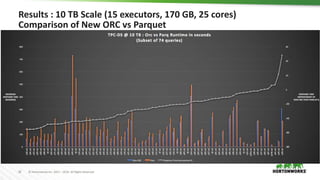

Results : 10 TB Scale (15 executors, 170 GB, 25 cores)
Comparison of New ORC vs Parquet
