More Related Content Similar to Protect your private data with ORC column encryption (20) More from Owen O'Malley (20) Protect your private data with ORC column encryption1. PROTECT YOUR PRIVATE DATA
WITH ORC COLUMN
ENCRYPTION
Owen O’Malley
owen@cloudera.com
September 2019
@owen_omalley
2. © 2019 Cloudera, Inc. All rights reserved. 2

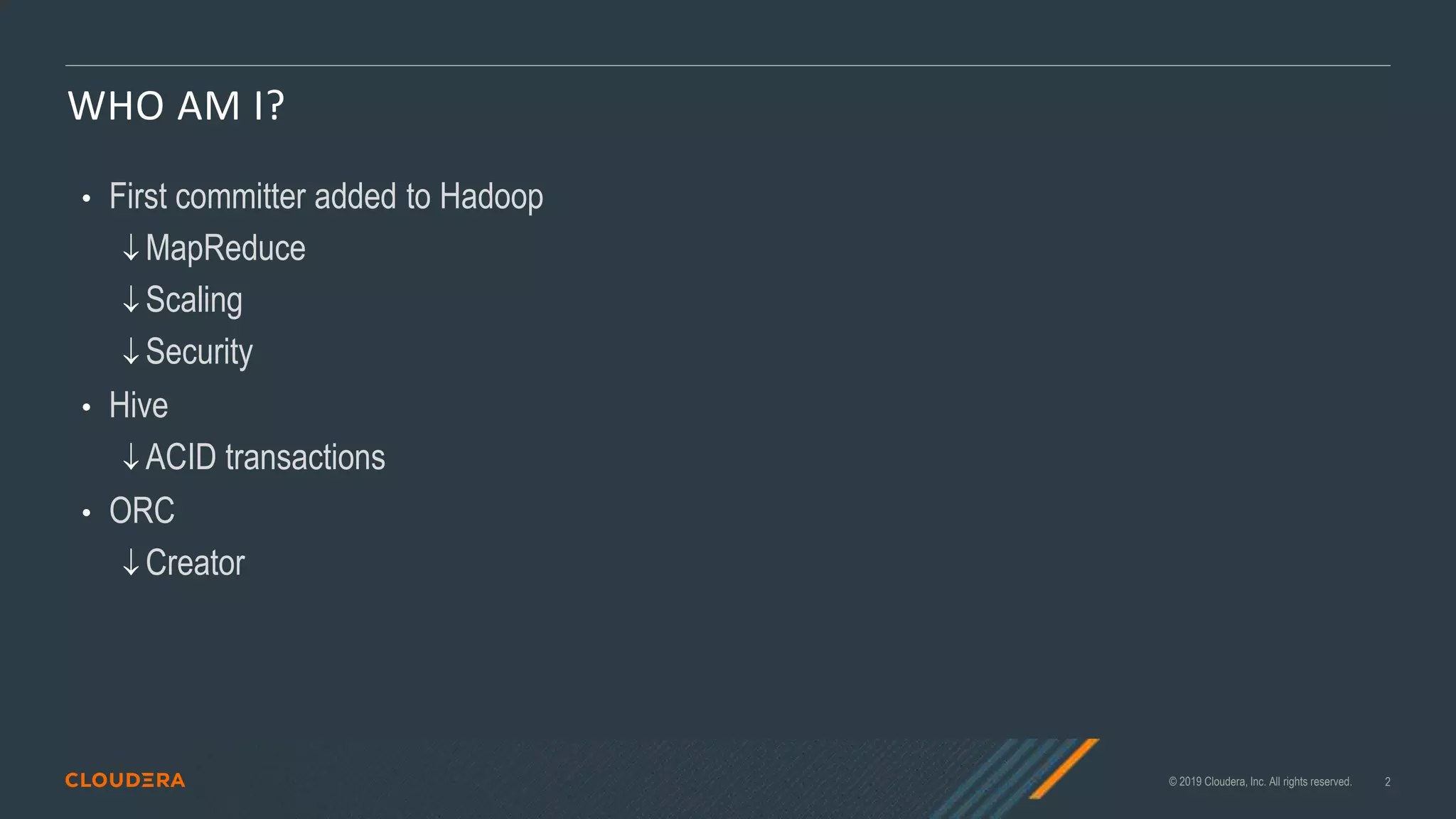

WHO AM I?
• First committer added to Hadoop
MapReduce
Scaling
Security
• Hive
ACID transactions
• ORC
Creator
4. © 2019 Cloudera, Inc. All rights reserved. 4
EXAMPLE DATA LAKE SCENARIO
Marketing
Demographics
Electronic
medical records
CRM
POS
(Structured)(Structured) (Structured) (Structured) (Structured)
Cluster 1: Dublin Cluster 2: San Francisco
(Unstructured)(Unstructured)(Unstructured)
Cluster 3: Prague
(Structured)
On Premise Data Lakes
(Unstructured)(Structured) (Unstructured) (Structured)
Cloud Data Lakes
Social
Weblogs & Feeds
Transactional
Mobile
IoT
Personal Data
5. © 2019 Cloudera, Inc. All rights reserved. 5
DIFFERENCES IN THE BIG DATA CONTEXT
• Breaking down silos: fantastic for analytics, but security challenges
Centralized data lake with multi-tenancy requires secure (and easy) authentication and fine-grained
authorization
• Data democratization and the Data Scientist role (often a data super user with
elevated privileges)
• Data is maintained over a long duration
• Cloud and Hybrid architectures spanning data center and (multiple) public clouds
further broaden the attack surface area and present novel authentication and
authorization challenges
• Along with adherence to security fundamentals and defense in-depth, a data-centric
approach to security becomes critical
6. Watch Towers
Limited Entry Points
Moat
Kerberos
Securing your data lake
High Hard Walls
Check Identity
Inner Walls
Firewall
Encryption, TLS, Key
Trustee, Navigator
Encrypt, Ranger KMS
LDAP/AD
Apache Knox: AuthN, API
Gateway, Proxy, SSO
Apache Ranger : ABAC
AuthZ, Audits,
Anonymization
Apache Metron:
Detection
7. © 2019 Cloudera, Inc. All rights reserved. 7
DATA PROTECTION IN HADOOP
• Must be applied in three different levels
Storage – encrypt data at rest
• HDFS encryption zones
• Volume encryption
Transmission – encrypt data in motion
• SSL
Upon access – apply restrictions when accessed
• Ranger dynamic masking and row filtering
8. Dynamic Row Filtering & Column Masking WithApache Ranger &Apache Hive
User 2: Ivanna
Location : EU
Group: HR
User 1: Joe
Location : US
Group: Analyst
Original Query:
SELECT country, nationalid,
ccnumber, mrn, name FROM
ww_customers
Country National ID CC No DOB MRN Name Policy ID
US 232323233 4539067047629850 9/12/1969 8233054331 John Doe nj23j424
US 333287465 5391304868205600 8/13/1979 3736885376 Jane Doe cadsd984
Germany T22000129 4532786256545550 3/5/1963 876452830A Ernie Schwarz KK-2345909
Country National ID CC No MRN Name
US xxxxx3233 4539 xxxx xxxx
xxxx
null John Doe
US xxxxx7465 5391 xxxx xxxx
xxxx
null Jane Doe
Ranger Policy Enforcement
Query Rewritten based on Dynamic Ranger
Policies:
Filter rows by region & apply relevant column
masking
Users from US Analyst group see data for
US persons with CC and National ID
(SSN) as masked values and MRN is
nullified
Country National ID Name MRN
Germany T22000129 Ernie Schwarz 876452830A
EU HR Policy Admins can see
unmasked but are restricted by
row filtering policies to see data
for EU persons only
Original Query:
SELECT country,
nationalid, name, mrn
FROM ww_customers
Analysts
HR Marketing
Ranger
10. © 2019 Cloudera, Inc. All rights reserved. 10
FRAMING THE PROBLEM…
• Related data, different security requirements
• Authorization – who can see it
• Audit – track who read it
• Encrypt on disk – regulatory
• File-level (or blob) granularity isn’t enough
• File systems don’t understand columns
11. © 2019 Cloudera, Inc. All rights reserved. 11
REQUIREMENTS
• Readers should transparently decrypt data
If and only if the user has access to the key
The data must be decrypted locally
Old readers must not break!
• Columns are only decrypted as necessary
• Master keys must be managed securely
Support for Key Management Server & hardware
Support for key rolling
13. © 2019 Cloudera, Inc. All rights reserved. 13
PARTIAL SOLUTION – HDFS ENCRYPTION ZONES
• Transparent HDFS Encryption
• Encryption zones
• HDFS directory trees
• Unique master key for each zone
• Client decrypts data
• Key Management via KeyProvider API
14. © 2019 Cloudera, Inc. All rights reserved. 14
HDFS ENCRYPTION ZONE LIMITATIONS
• Very coarse protection
• Only entire directory subtrees
• No ability to protect columns
• A lot of users need access to keys
• Moves between zones is painful
• When writing with Hive, data is moved multiple times per a query
15. © 2019 Cloudera, Inc. All rights reserved. 15
PARTIAL SOLUTION – HIVE SERVER 2
• Limit access to warehouse data to Hive
• Only “hive” user has HDFS access
• Breaks Hadoop’s multi-paradigm data access
• Many customers use both Hive & Spark
• JDBC isn’t a distributed protocol
• Funneling large data through a small pipe
• Spark Data Warehouse Connector to LLAP fixes this
16. © 2019 Cloudera, Inc. All rights reserved. 16
PARTIAL SOLUTION – SEPARATE TABLES
• Split private information out of tables
• Separate directories in HDFS
• HDFS and/or HS2 authorization
• Enables HDFS encryption
• Limitations
• Need to join with other tables
• Higher operational overhead
17. © 2019 Cloudera, Inc. All rights reserved. 17
PARTIAL SOLUTION – ENCRYPTION UDF
• Hive has user defined functions
• aes_encrypt and aes_decrypt
• Limitations
• Key management is problematic
• Encryption is not seeded
• Size of value leaks information
19. © 2019 Cloudera, Inc. All rights reserved. 19
COLUMNAR ENCRYPTION
• Columnar file formats, such as ORC and Parquet
• Write data in columns
• Column projection
• Better compression
• Encryption works really well
• Only encrypt bytes for column
• Can store multiple variants of data
21. © 2019 Cloudera, Inc. All rights reserved. 21
USER EXPERIENCE
• Set table properties for encryption
• orc.encrypt = ”pii:ssn,email;credit:card_info”
• orc.mask = “sha256:card_info”
• Define where to get the encryption keys
• Configuration defines the key provider via URI
22. © 2019 Cloudera, Inc. All rights reserved. 22
KEY MANAGEMENT
• Create a master key for each use case
• “pii”, “pci”, or “hipaa”
• Each column in each file uses unique local key
• Allows audit of which users read which files
• Ranger policies limit access to keys
• Who, What, When, Where
23. © 2019 Cloudera, Inc. All rights reserved. 23
KEY PROVIDER API
• Provides limited access to encryption keys
• Encrypts or decrypts local keys
• Users are never given master keys
• Key versions and key rolling of master keys
• Allows 3rd party plugins
• Supports Cloud, Hadoop or Ranger KMS
25. © 2019 Cloudera, Inc. All rights reserved. 25
ENCRYPTION FLOW
• Local key
• Random for each encrypted column in file
• Encrypted w/ master key by KMS
• Encrypted local key is stored in file metadata
• IV is generated to be unique
• Column, kind, stripe, & counter
26. © 2019 Cloudera, Inc. All rights reserved. 26
STATIC DATA MASKING
• What happens without key access?
• Define static masks
• Nullify – all values become null
• Redact – mask values ‘Xxxxx Xxxxx!’
• Can define ranges to unmask
• SHA256 – replace with SHA256
• Custom - user defined
27. © 2019 Cloudera, Inc. All rights reserved. 27
DATA ANONYMIZATION
• Anonymization is hard!
• AOL search logs
• Netflix prize datasets
• NYC taxi dataset
• Always evaluate security tradeoffs
• Tokenization is a useful technique
• Assigns arbitrary replacements
28. © 2019 Cloudera, Inc. All rights reserved. 28
KEY DISPOSAL
• Often need to keep data for 90 days
• Currently the data is written twice
• With column encryption:
• Roll keys daily
• Delete master key after 90 days
29. © 2019 Cloudera, Inc. All rights reserved. 29
ORC ENCRYPTION DESIGN
• Write both variants of streams
• Masked unencrypted
• Unmasked encrypted
• Encrypt both data and statistics
• Maintain compatibility for old readers
• Read unencrypted variant
• Preserve ability to seek in file
30. © 2019 Cloudera, Inc. All rights reserved. 30
ORC WRITE PIPELINE
• Streams go through pipeline
• Run length encoding
• Compression (zlib, snappy, lzo, lz4, zstd, or none)
• Encryption
• Encryption is AES/CTR
• Allows seek
• No padding
32. © 2019 Cloudera, Inc. All rights reserved. 32
CONCLUSIONS
• ORC column encryptions provides
Transparent encryption
Multi-paradigm column security
Compatible with old readers
Static masking
Audit logging (via KMS logging)
• Supports file merging
• Released in ORC 1.6
33. © 2019 Cloudera, Inc. All rights reserved. 33
INTEGRATION WITH OTHER TOOLS
• Hive & Spark
No change other than defining table properties
• Apache Hive’s LLAP
Cache and fast processing of SQL queries
Column encryption changes internal interfaces
Cache both encrypted and unencrypted variants
Ensure audit log reflects end-user and what they accessed
34. © 2019 Cloudera, Inc. All rights reserved. 34
LIMITATIONS
• Need encryption policy for write
Current Atlas & Ranger tags lag data
Auto-discovery requires pre-access
• Changes to masking policy
Need to re-write files
• Need additional data masks
Credit card, addresses, etc.
• Decrypted local keys could be saved
