1. Techday Sofia 2016 @ StorPool
Sofia, Bulgaria, February 25th
© OpenNebula Project. Creative Commons Attribution-NonCommercial-ShareAlike License
OpenNebula is Evolving…
Fast!
Jaime Melis
1

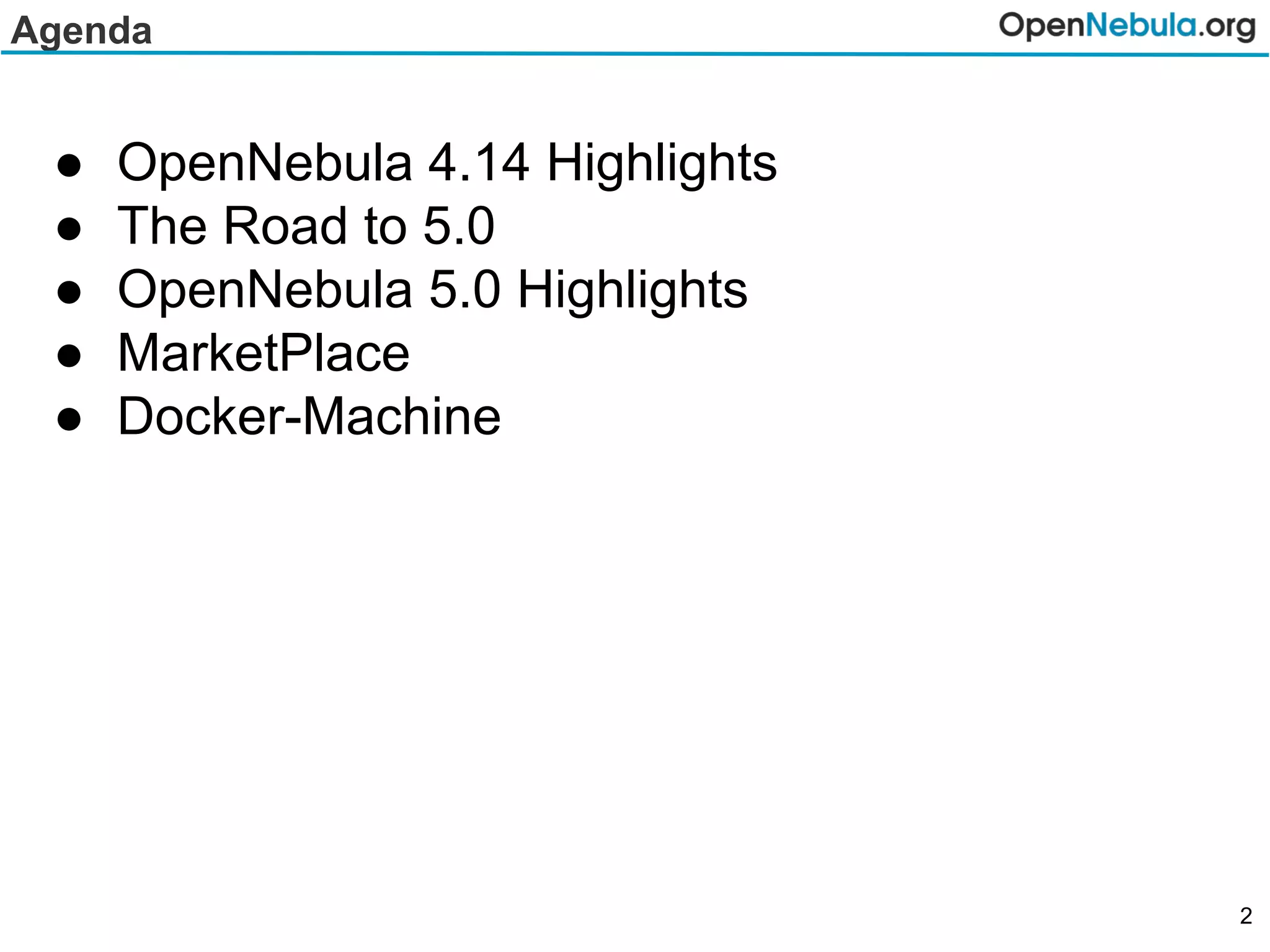

2. Agenda
● OpenNebula 4.14 Highlights
● The Road to 5.0
● OpenNebula 5.0 Highlights
● MarketPlace
● Docker-Machine
2

3. Great A'Tuin
the turtle comes, swimming slowly through the interstellar
gulf, hydrogen frost on his ponderous limbs, his huge and
ancient shell pocked with meteor craters. Through sea-
sized eyes that are crusted with rheum and asteroid dust
He stares fixedly at the Destination.
Terry Pratchett - The Colour of Magic
3

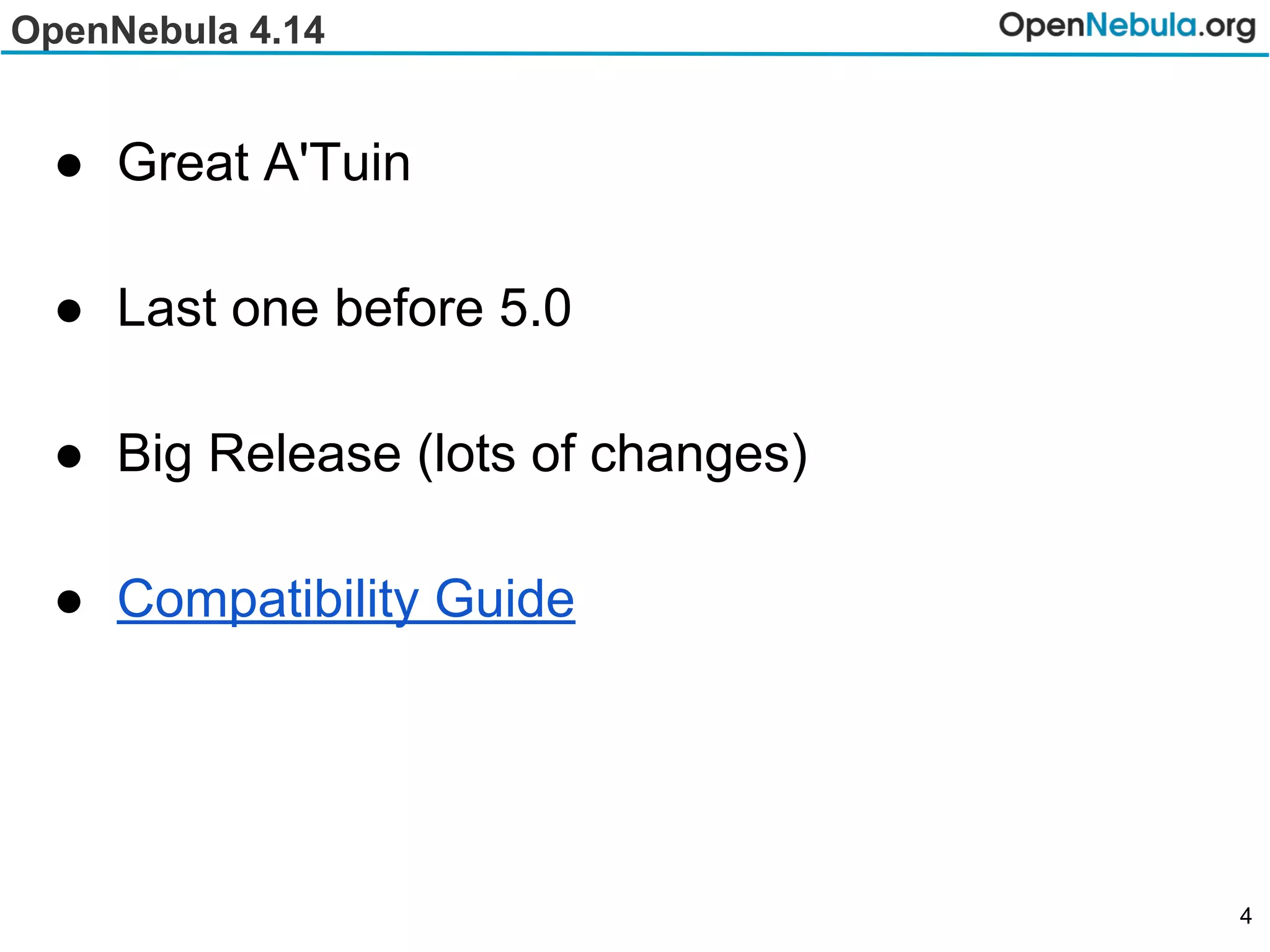

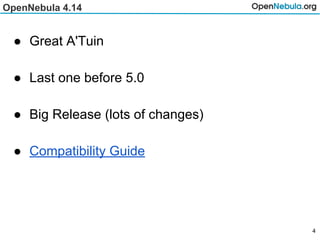

4. OpenNebula 4.14
● Great A'Tuin
● Last one before 5.0
● Big Release (lots of changes)
● Compatibility Guide
4

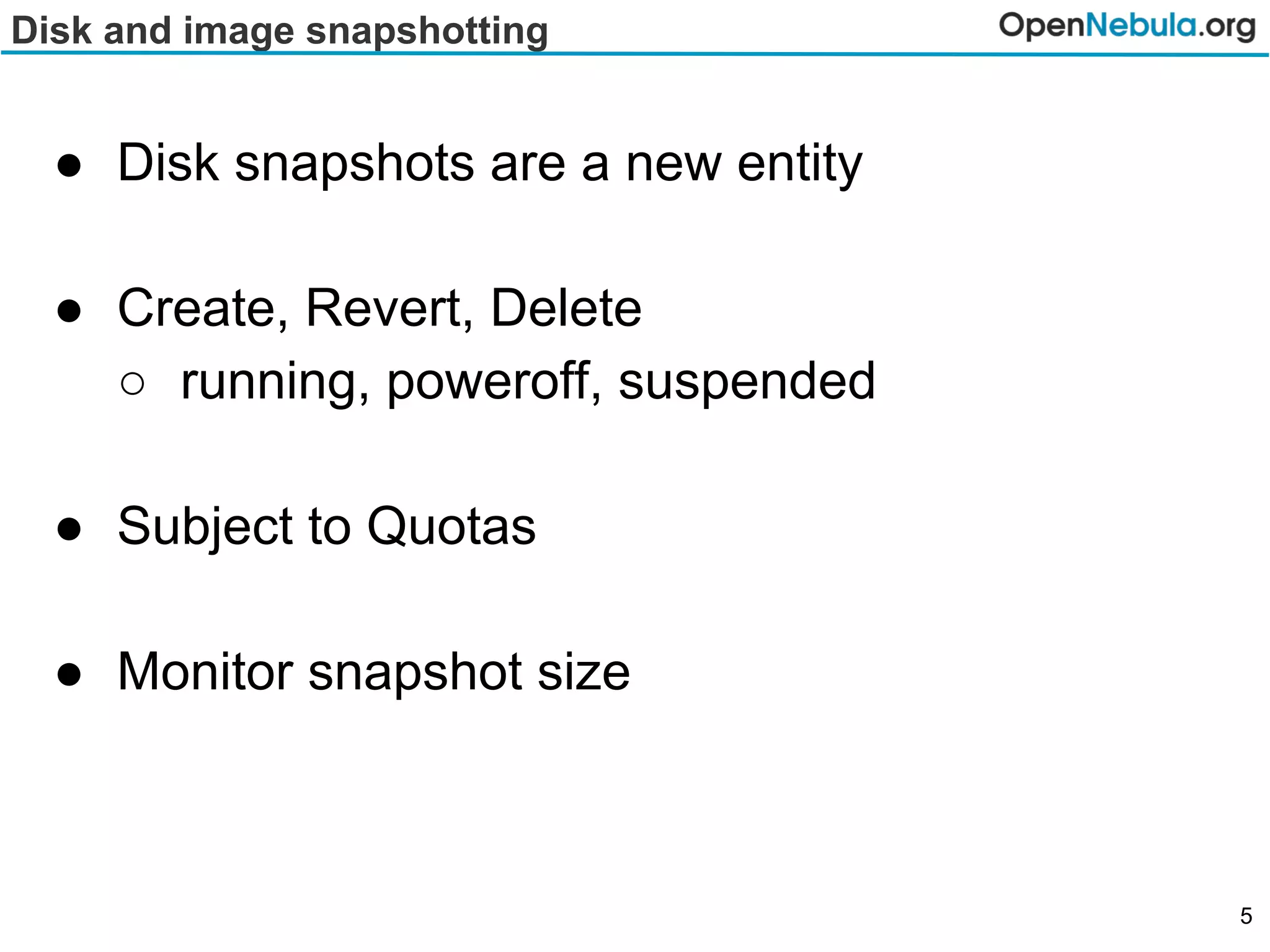

5. Disk and image snapshotting
● Disk snapshots are a new entity
● Create, Revert, Delete
○ running, poweroff, suspended
● Subject to Quotas
● Monitor snapshot size
5

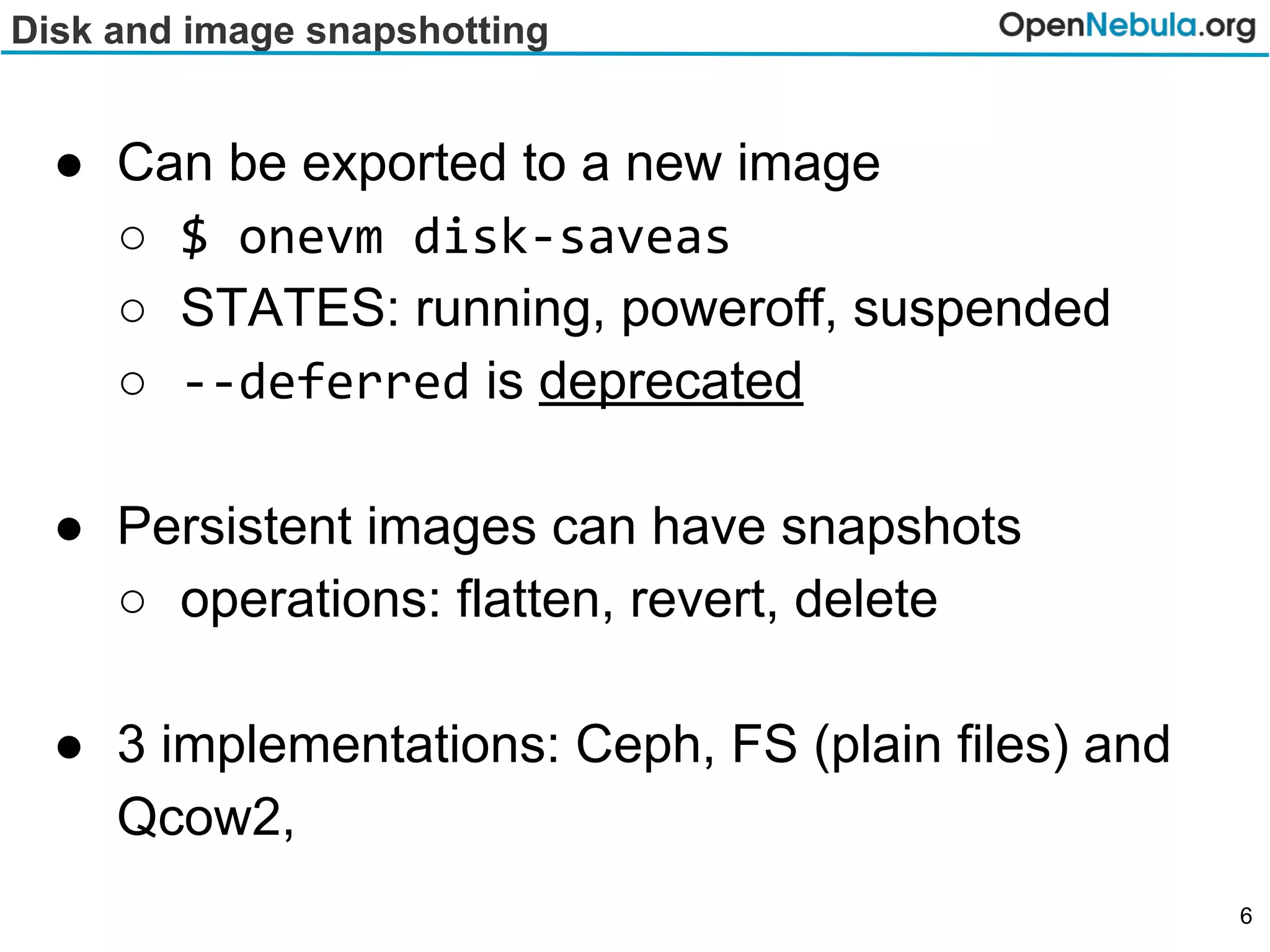

6. Disk and image snapshotting
● Can be exported to a new image
○ $ onevm disk-saveas
○ STATES: running, poweroff, suspended
○ --deferred is deprecated
● Persistent images can have snapshots
○ operations: flatten, revert, delete
● 3 implementations: Ceph, FS (plain files) and
Qcow2,
6

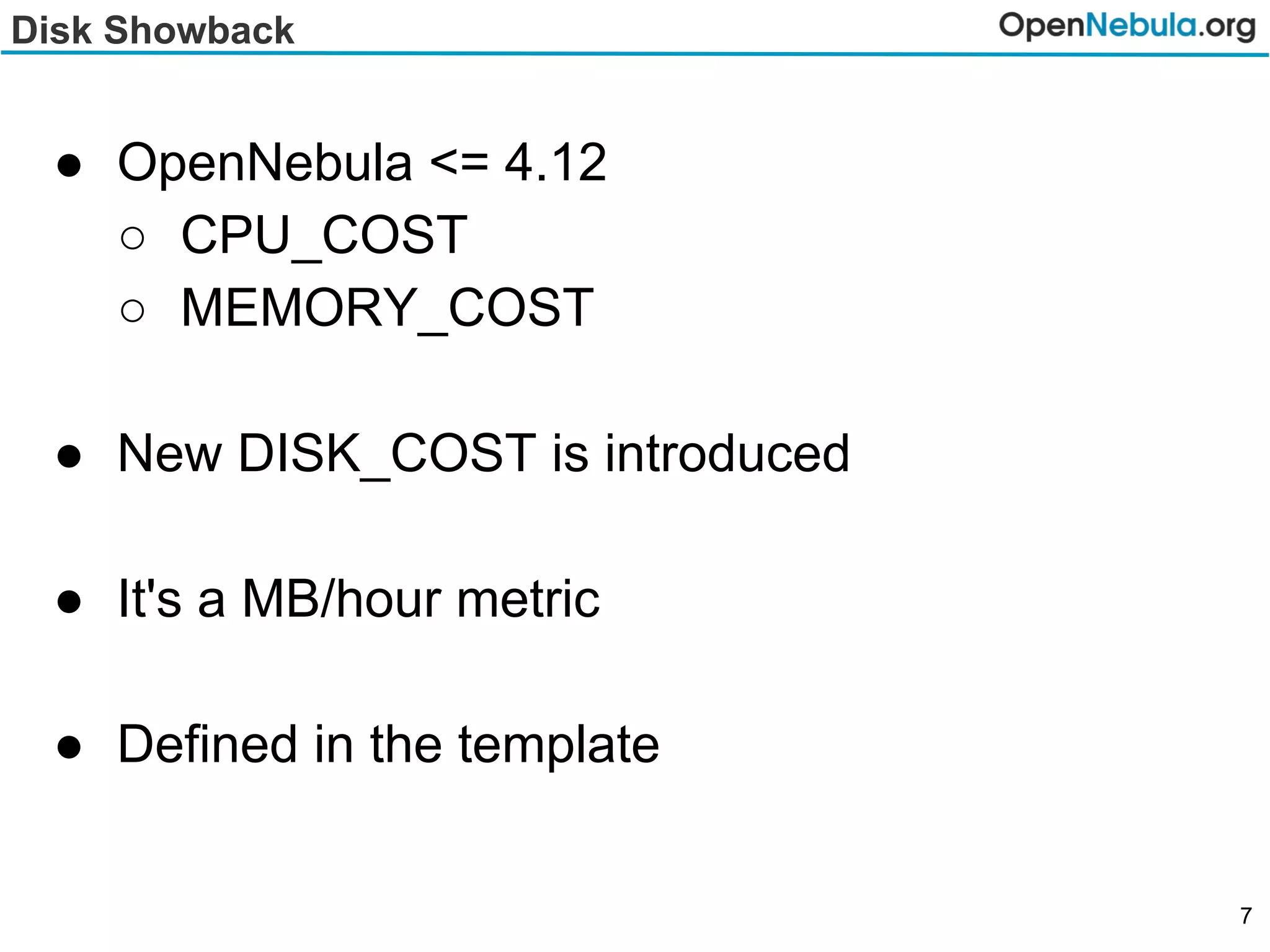

7. Disk Showback
● OpenNebula <= 4.12
○ CPU_COST
○ MEMORY_COST
● New DISK_COST is introduced
● It's a MB/hour metric
● Defined in the template
7

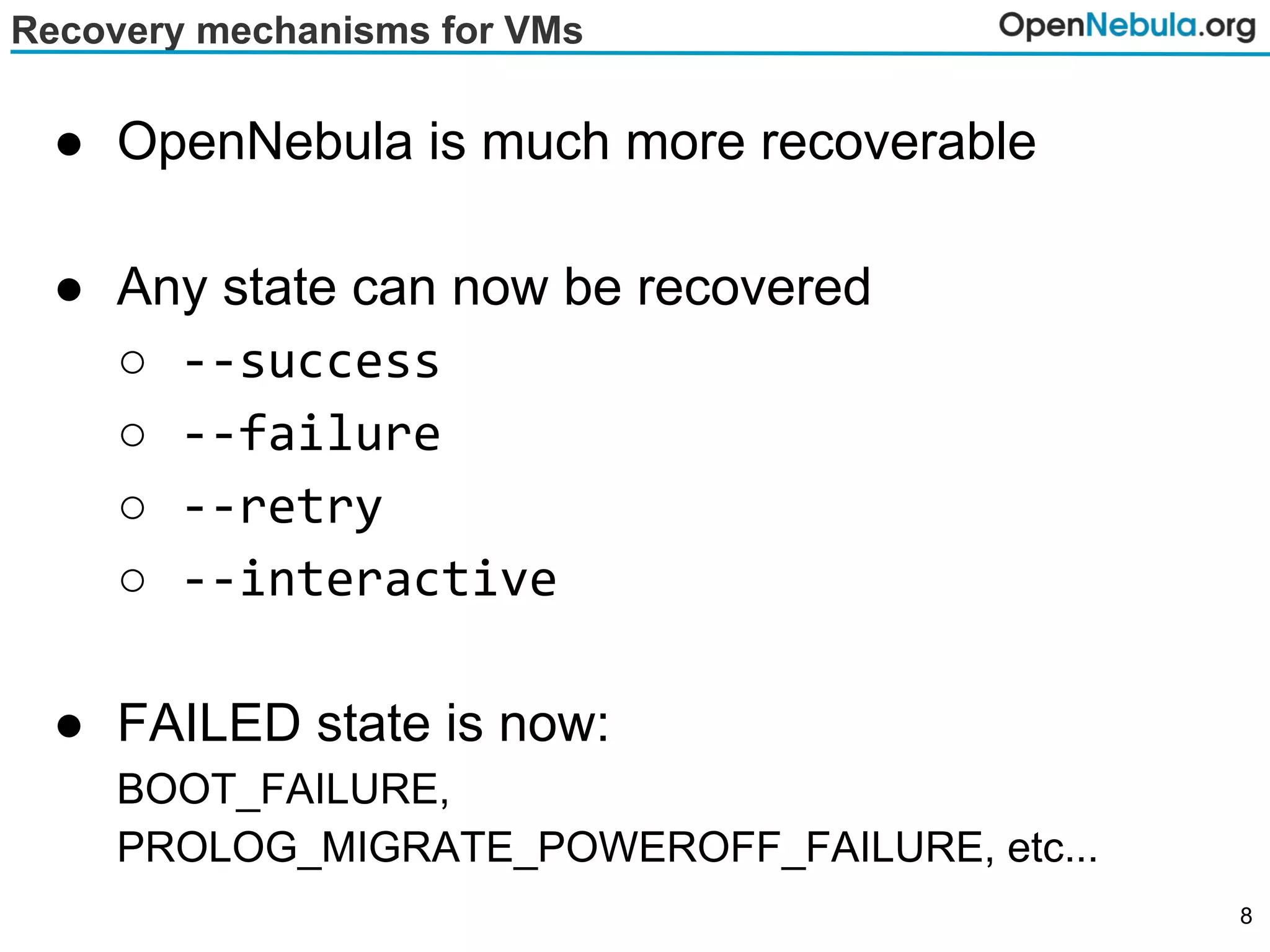

8. Recovery mechanisms for VMs
● OpenNebula is much more recoverable
● Any state can now be recovered
○ --success
○ --failure
○ --retry
○ --interactive
● FAILED state is now:
BOOT_FAILURE,
PROLOG_MIGRATE_POWEROFF_FAILURE, etc...
8

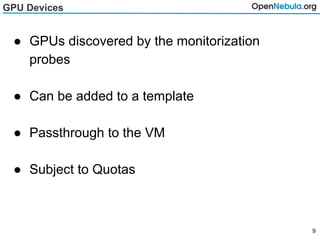

9. GPU Devices
● GPUs discovered by the monitorization
probes
● Can be added to a template
● Passthrough to the VM
● Subject to Quotas
9

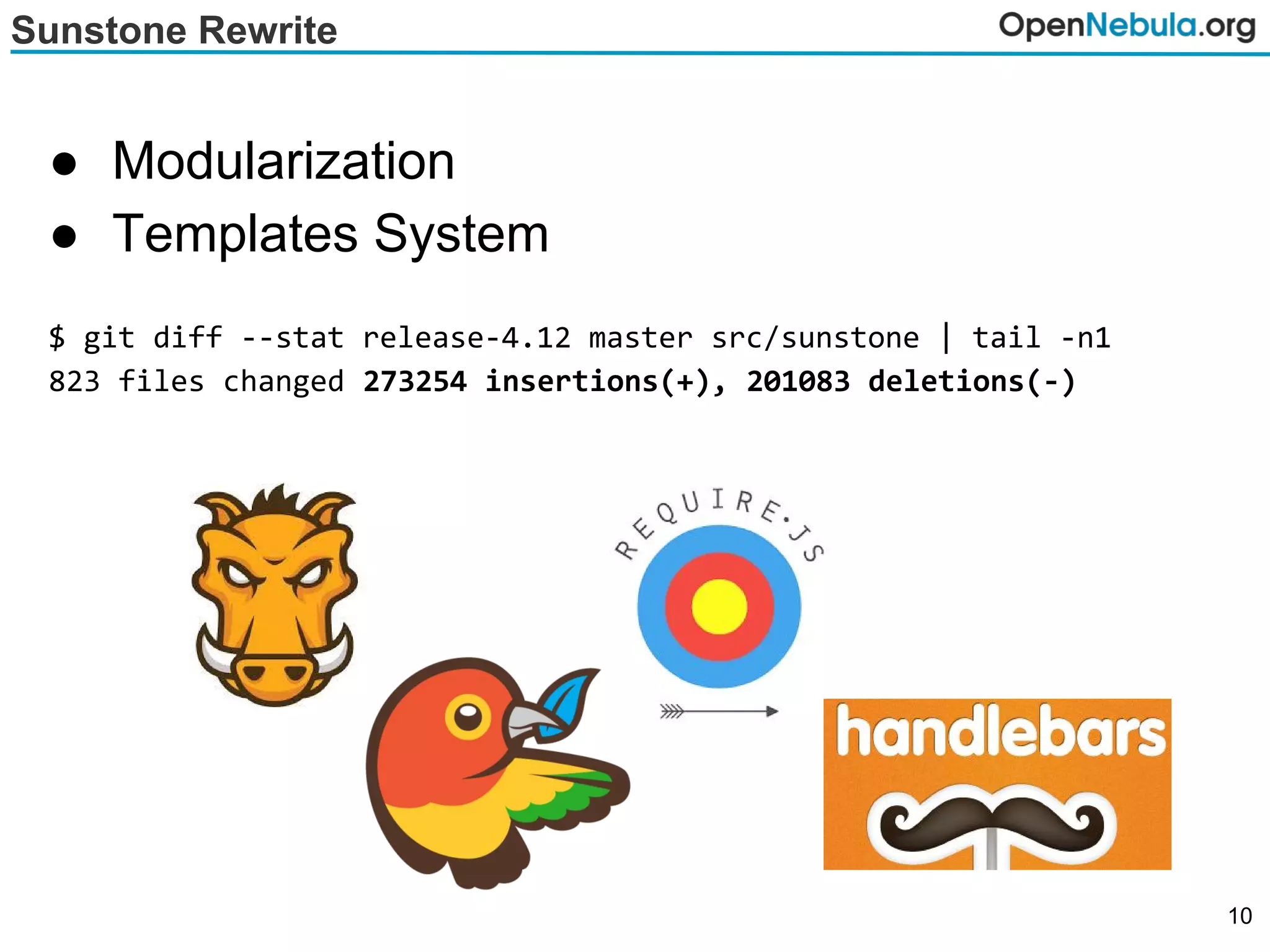

10. Sunstone Rewrite
● Modularization
● Templates System
$ git diff --stat release-4.12 master src/sunstone | tail -n1
823 files changed 273254 insertions(+), 201083 deletions(-)
10

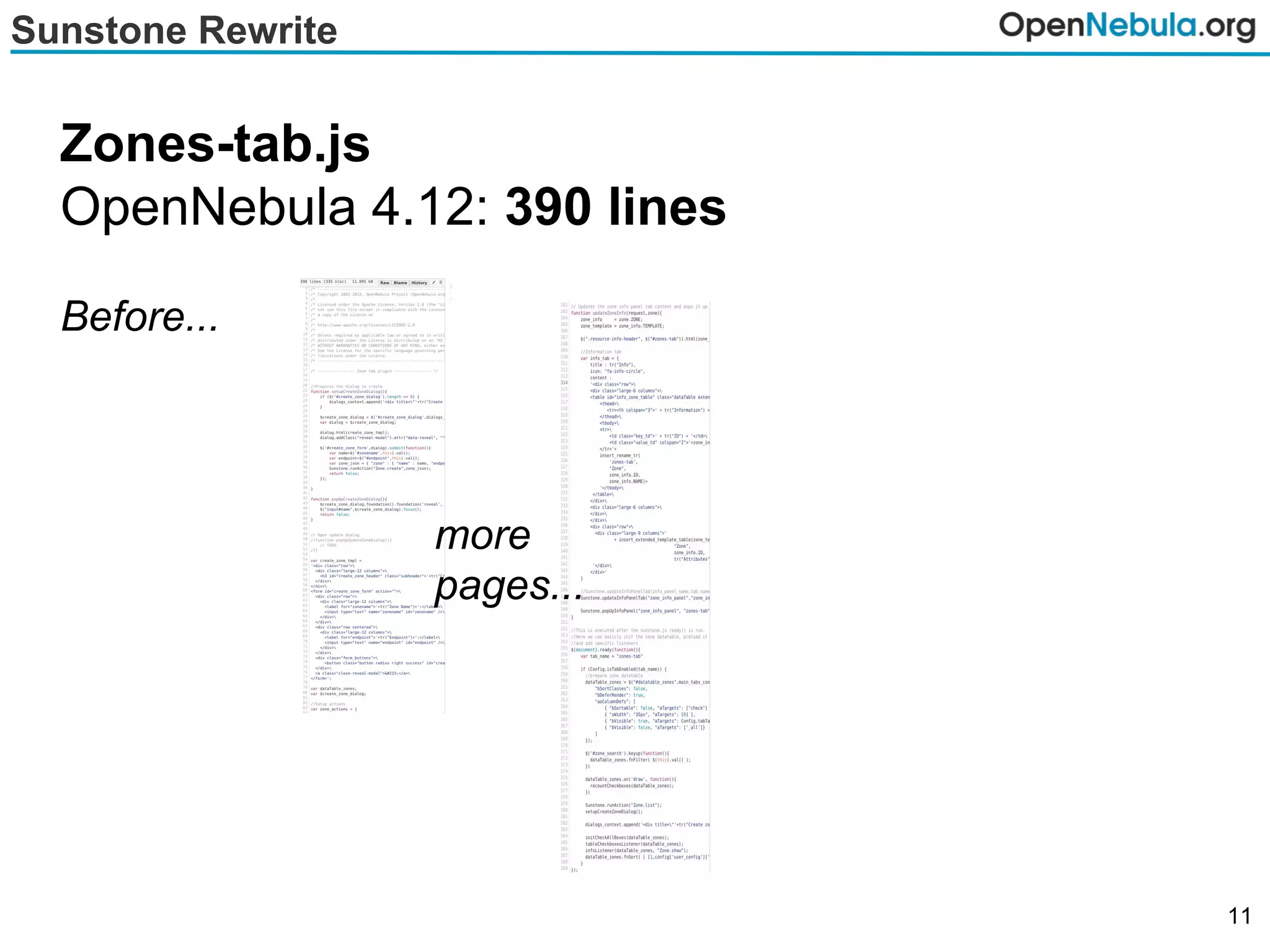

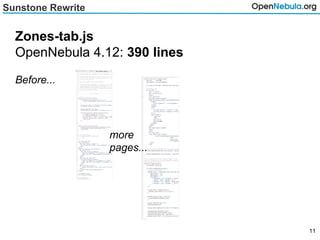

11. Sunstone Rewrite
Zones-tab.js
OpenNebula 4.12: 390 lines
Before...
more
pages...
11

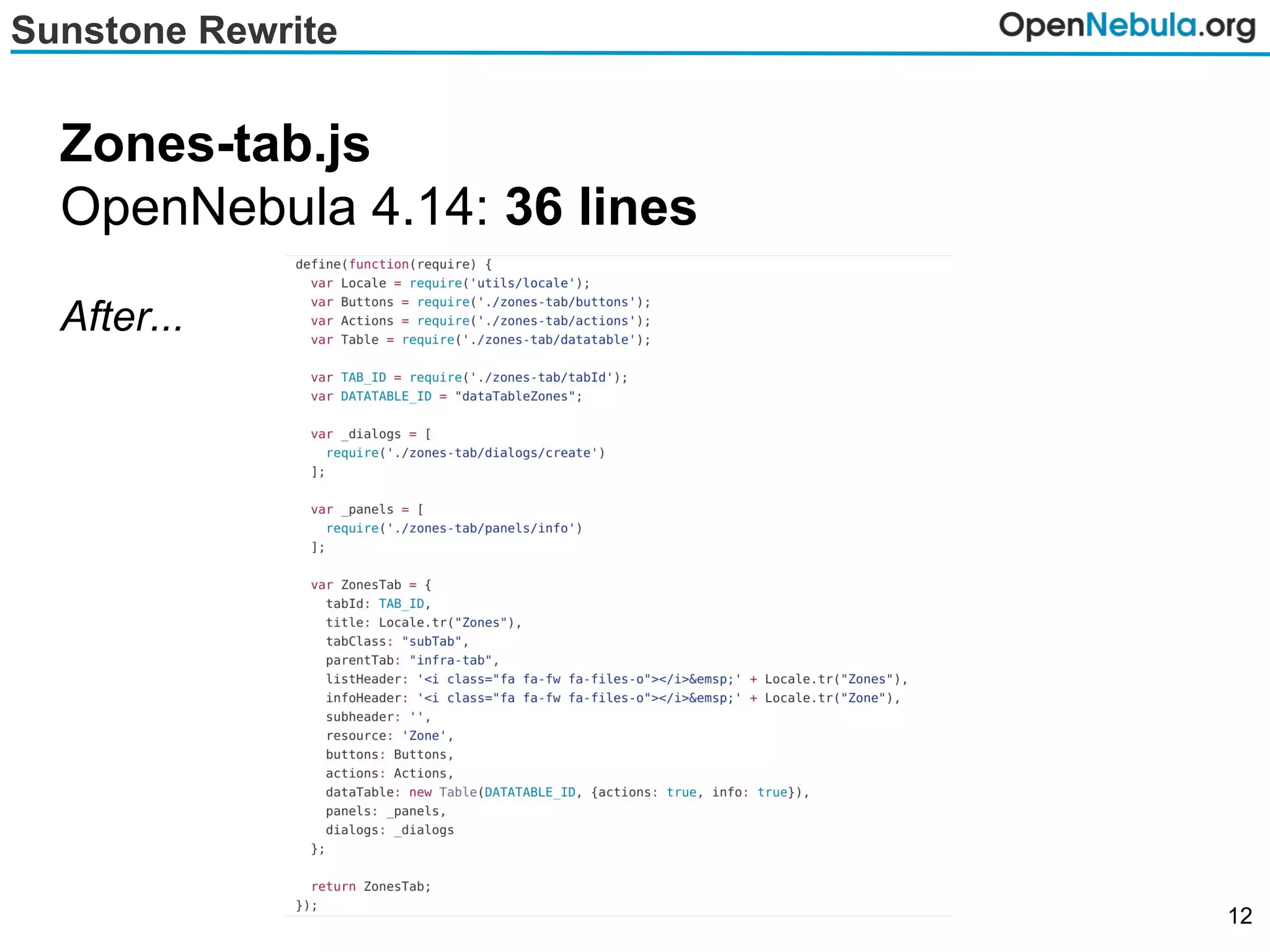

12. Sunstone Rewrite
Zones-tab.js
OpenNebula 4.14: 36 lines
After...
more
pages...
12

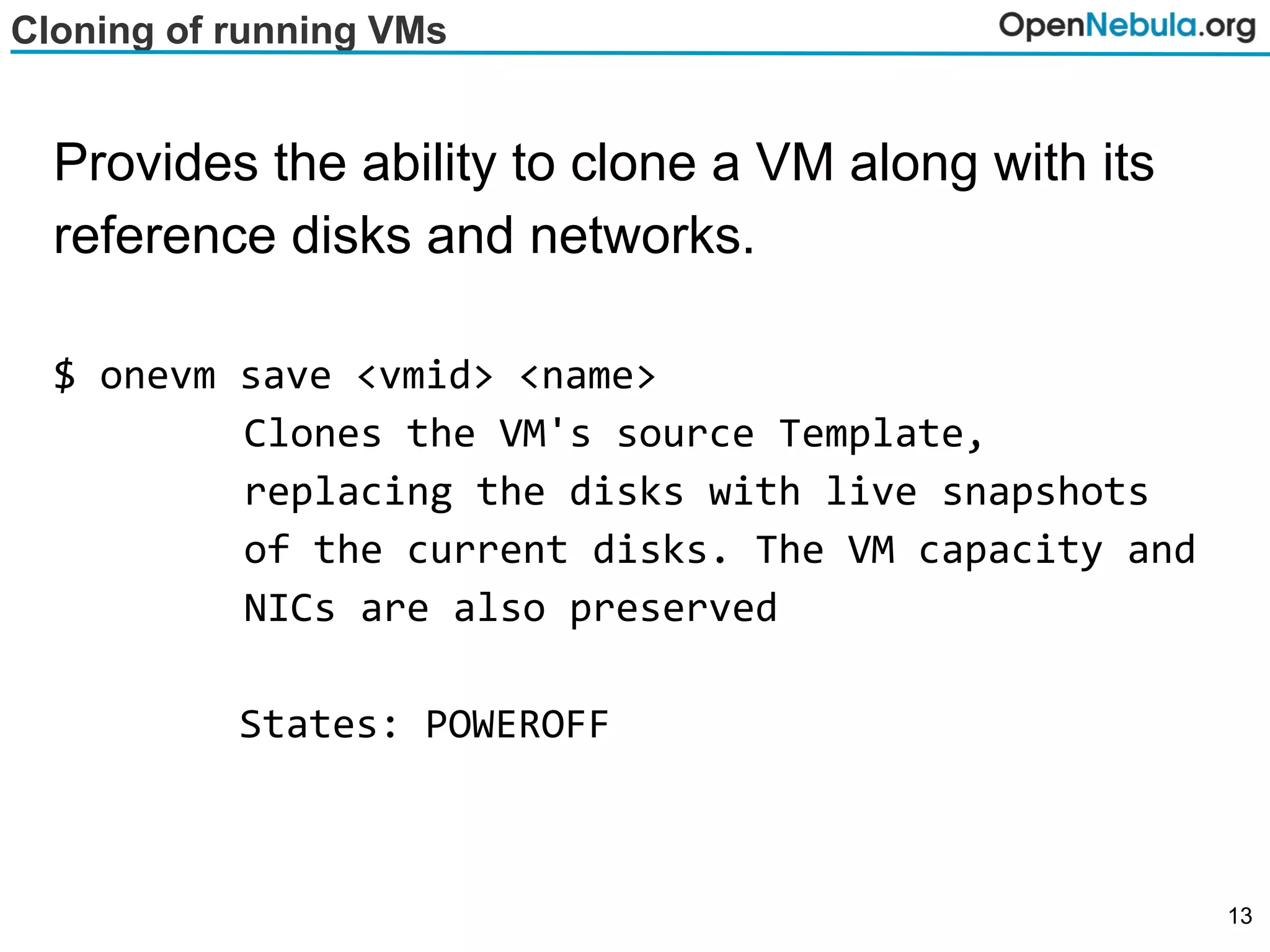

13. Cloning of running VMs
Provides the ability to clone a VM along with its
reference disks and networks.
$ onevm save <vmid> <name>
Clones the VM's source Template,
replacing the disks with live snapshots
of the current disks. The VM capacity and
NICs are also preserved
States: POWEROFF
13

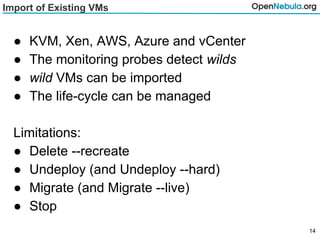

14. Import of Existing VMs
● KVM, Xen, AWS, Azure and vCenter
● The monitoring probes detect wilds
● wild VMs can be imported
● The life-cycle can be managed
Limitations:
● Delete --recreate
● Undeploy (and Undeploy --hard)
● Migrate (and Migrate --live)
● Stop
14

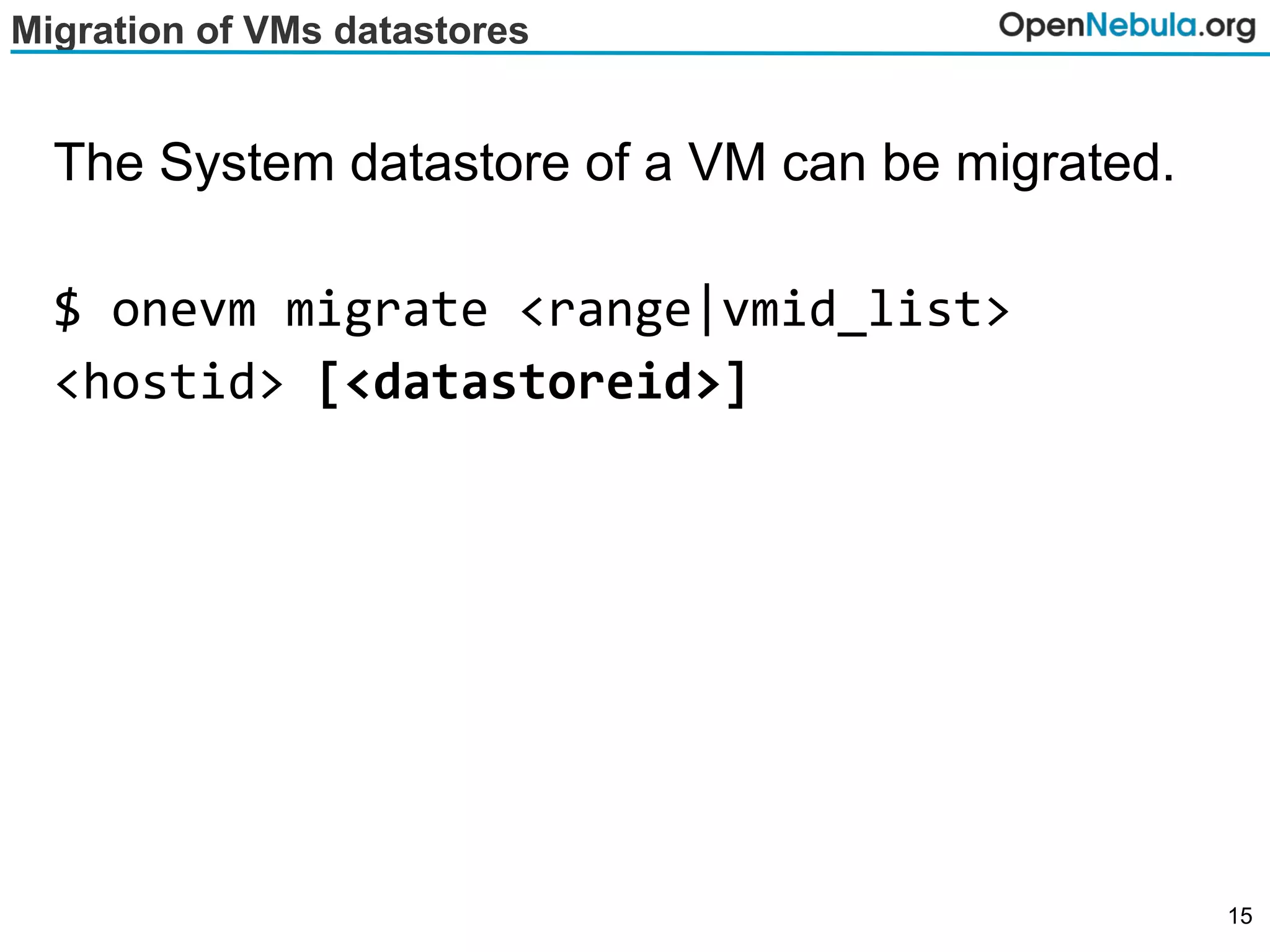

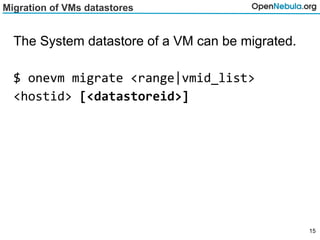

15. Migration of VMs datastores
The System datastore of a VM can be migrated.
$ onevm migrate <range|vmid_list>
<hostid> [<datastoreid>]
15

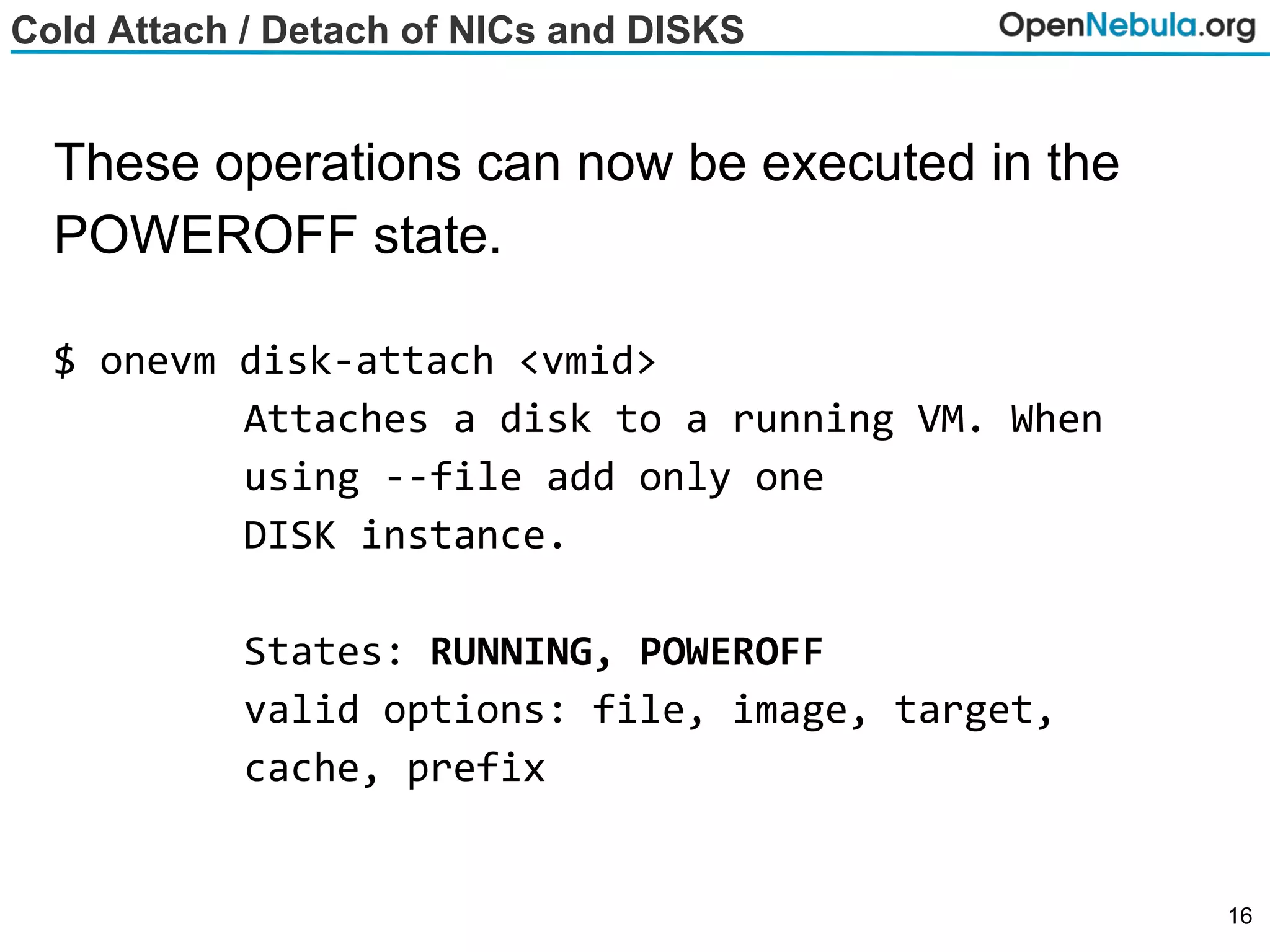

16. Cold Attach / Detach of NICs and DISKS
These operations can now be executed in the
POWEROFF state.
$ onevm disk-attach <vmid>
Attaches a disk to a running VM. When
using --file add only one
DISK instance.
States: RUNNING, POWEROFF
valid options: file, image, target,
cache, prefix
16

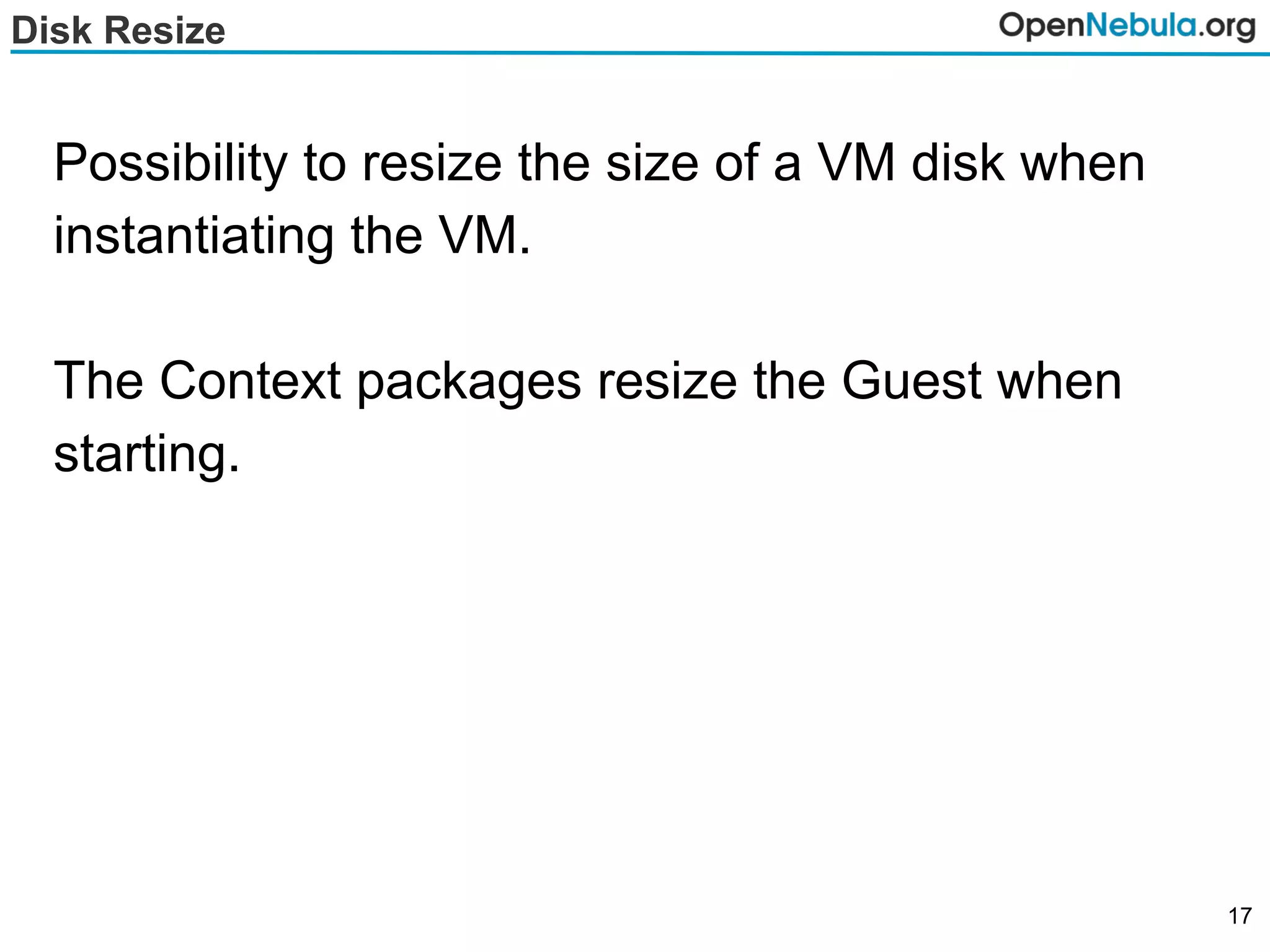

17. Disk Resize
Possibility to resize the size of a VM disk when
instantiating the VM.
The Context packages resize the Guest when
starting.
17

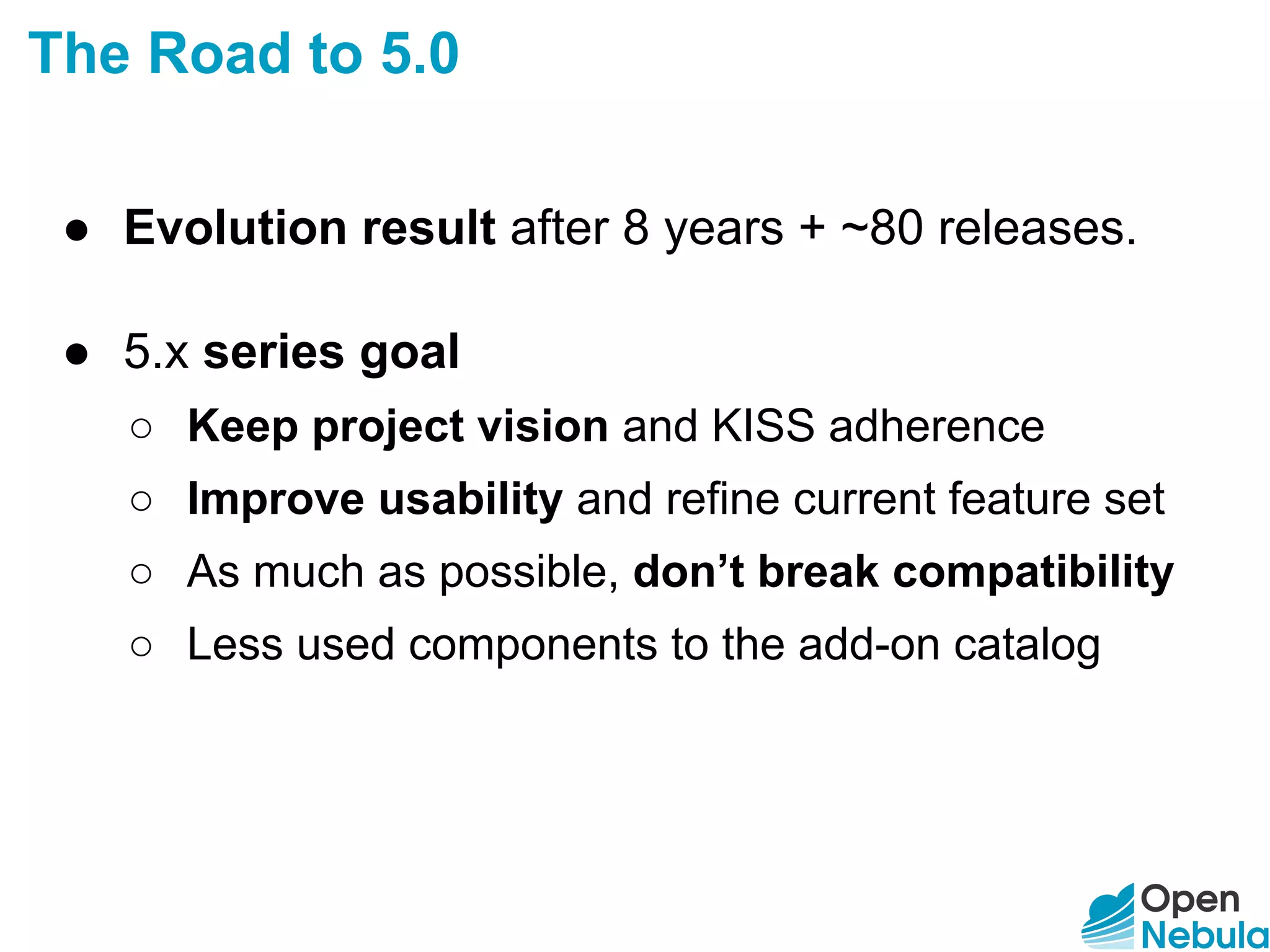

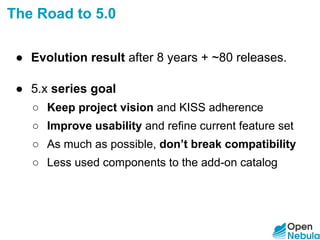

18. The Road to 5.0
● Evolution result after 8 years + ~80 releases.
● 5.x series goal
○ Keep project vision and KISS adherence
○ Improve usability and refine current feature set
○ As much as possible, don’t break compatibility
○ Less used components to the add-on catalog

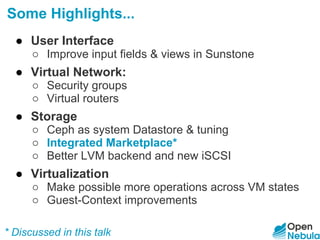

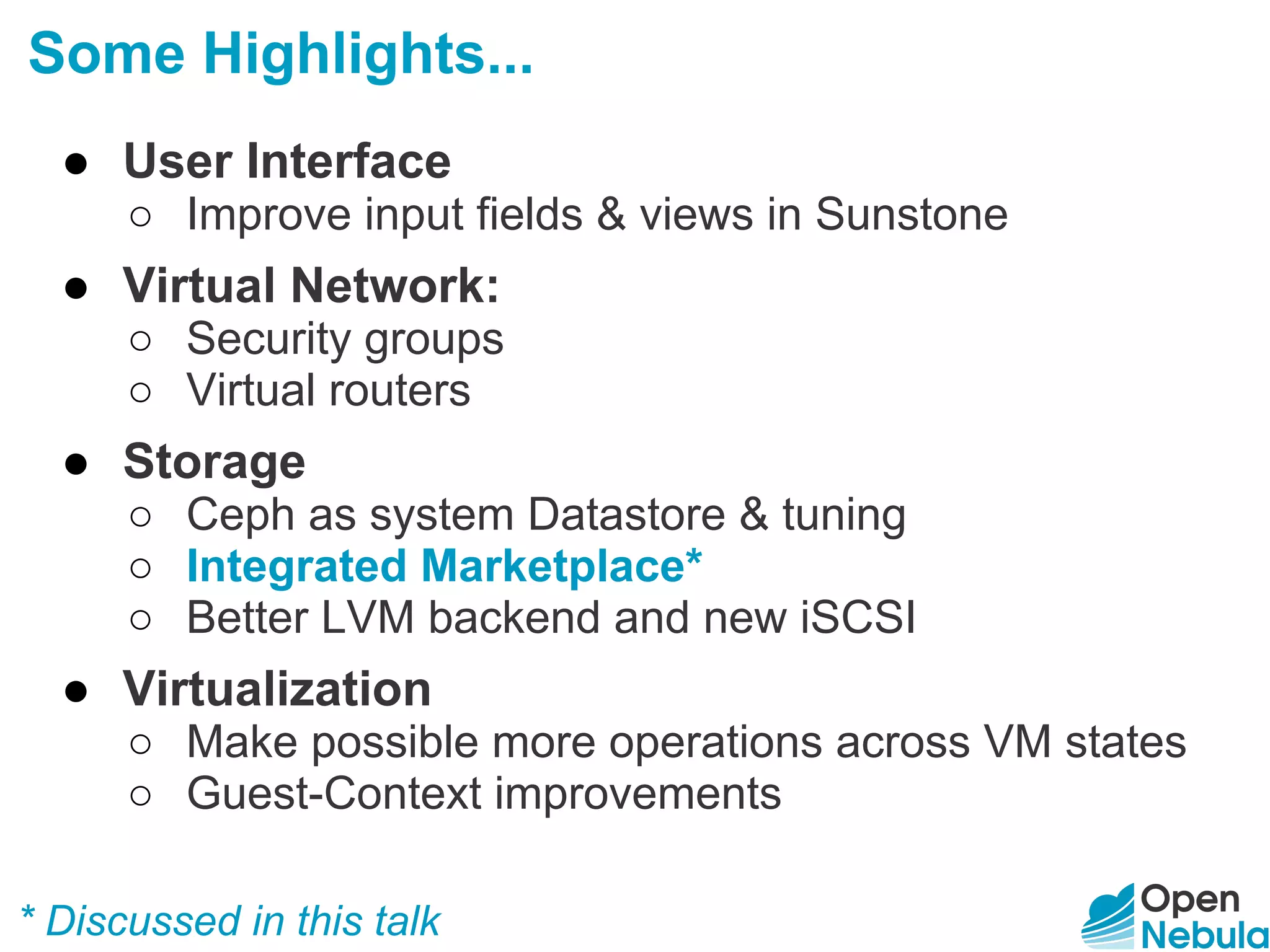

19. Some Highlights...
● User Interface
○ Improve input fields & views in Sunstone
● Virtual Network:
○ Security groups
○ Virtual routers
● Storage
○ Ceph as system Datastore & tuning
○ Integrated Marketplace*
○ Better LVM backend and new iSCSI
● Virtualization
○ Make possible more operations across VM states
○ Guest-Context improvements
* Discussed in this talk

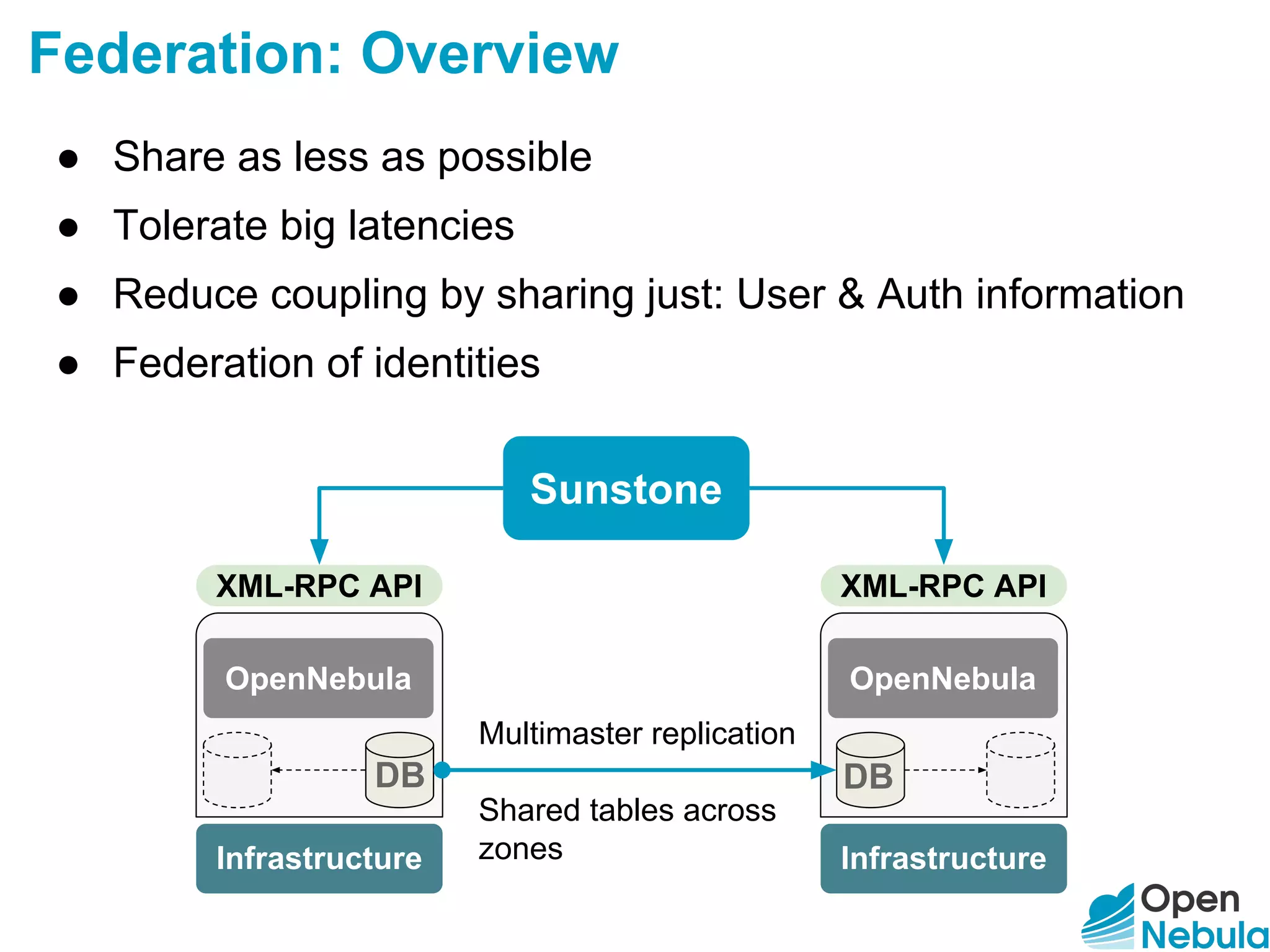

20. ● Share as less as possible
● Tolerate big latencies
● Reduce coupling by sharing just: User & Auth information
● Federation of identities
Federation: Overview
Multimaster replication
Shared tables across
zones
Sunstone
OpenNebula
Infrastructure
XML-RPC API
OpenNebula
Infrastructure
XML-RPC API
DBDB

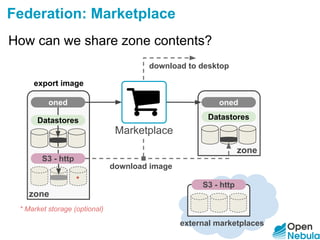

21. º
º
Federation: Marketplace
oned
export image
S3 - http
Datastores
*
* Market storage (optional)
º
oned
Datastores
download image
S3 - http
external marketplaces
download to desktop
Marketplace
zone
zone
How can we share zone contents?

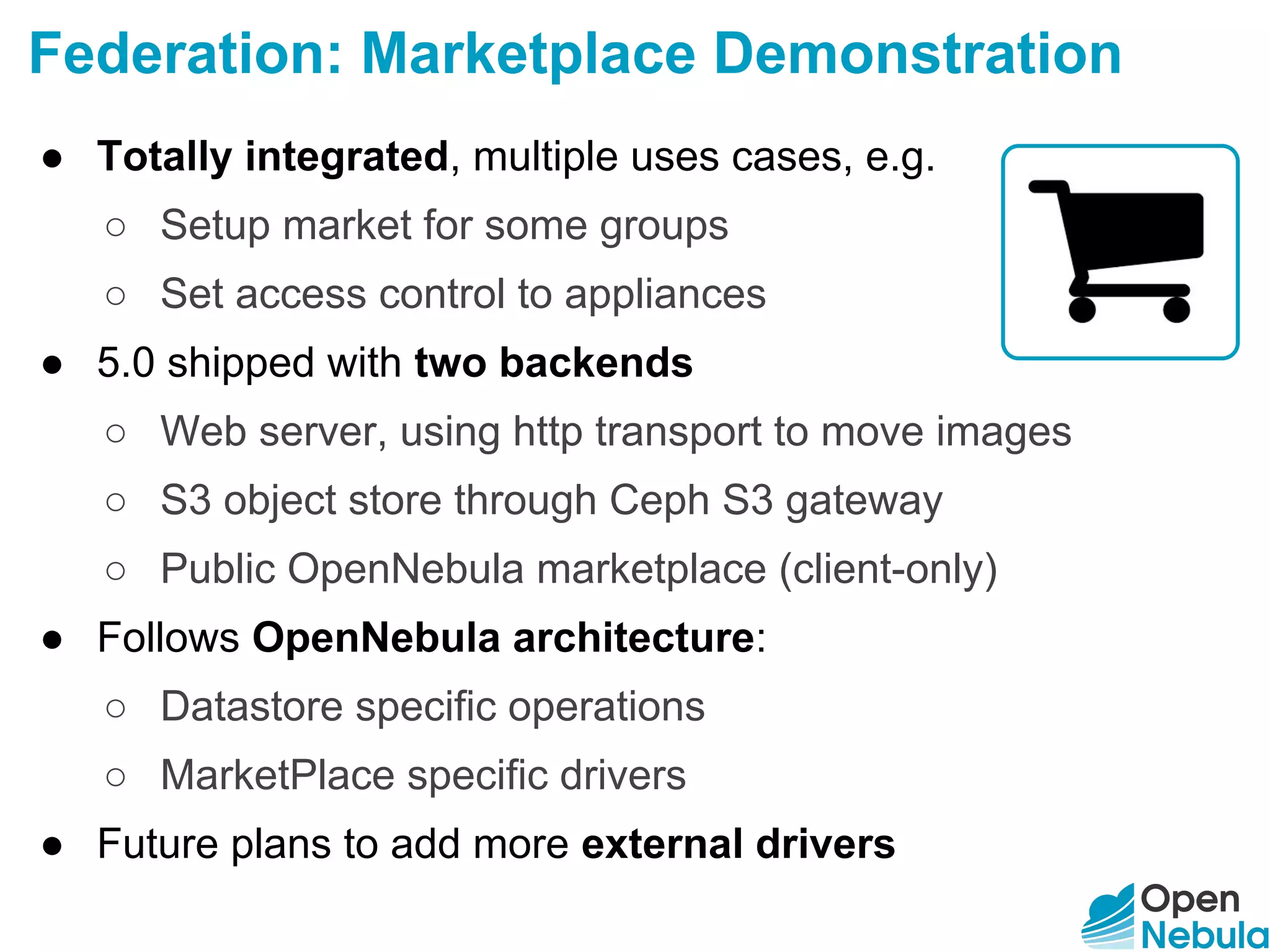

22. Federation: Marketplace Demonstration
● Totally integrated, multiple uses cases, e.g.
○ Setup market for some groups
○ Set access control to appliances
● 5.0 shipped with two backends
○ Web server, using http transport to move images
○ S3 object store through Ceph S3 gateway
○ Public OpenNebula marketplace (client-only)
● Follows OpenNebula architecture:
○ Datastore specific operations
○ MarketPlace specific drivers
● Future plans to add more external drivers

23. Docker and OpenNebula
+

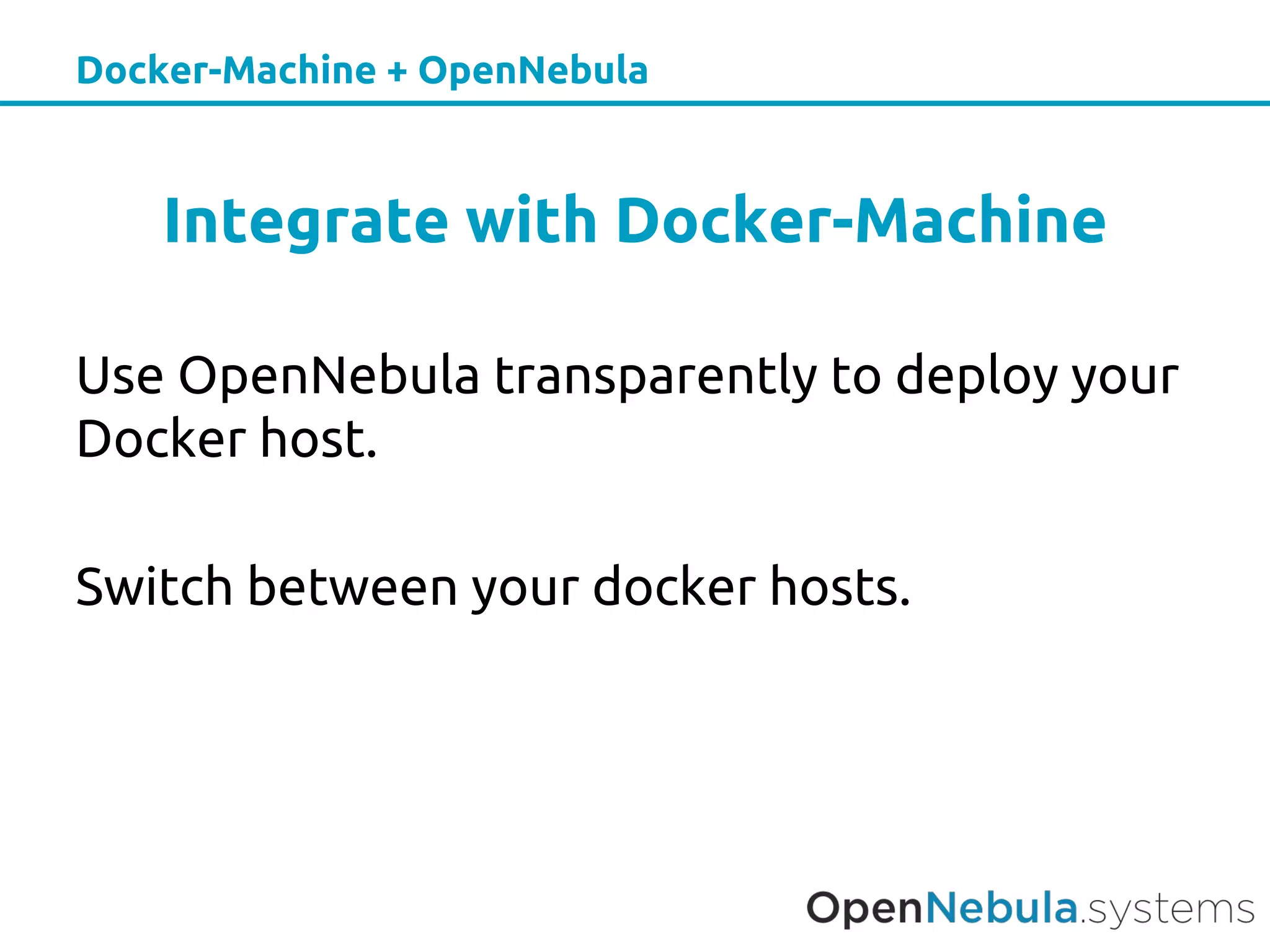

24. Docker-Machine + OpenNebula
Integrate with Docker-Machine
Use OpenNebula transparently to deploy your
Docker host.
Switch between your docker hosts.

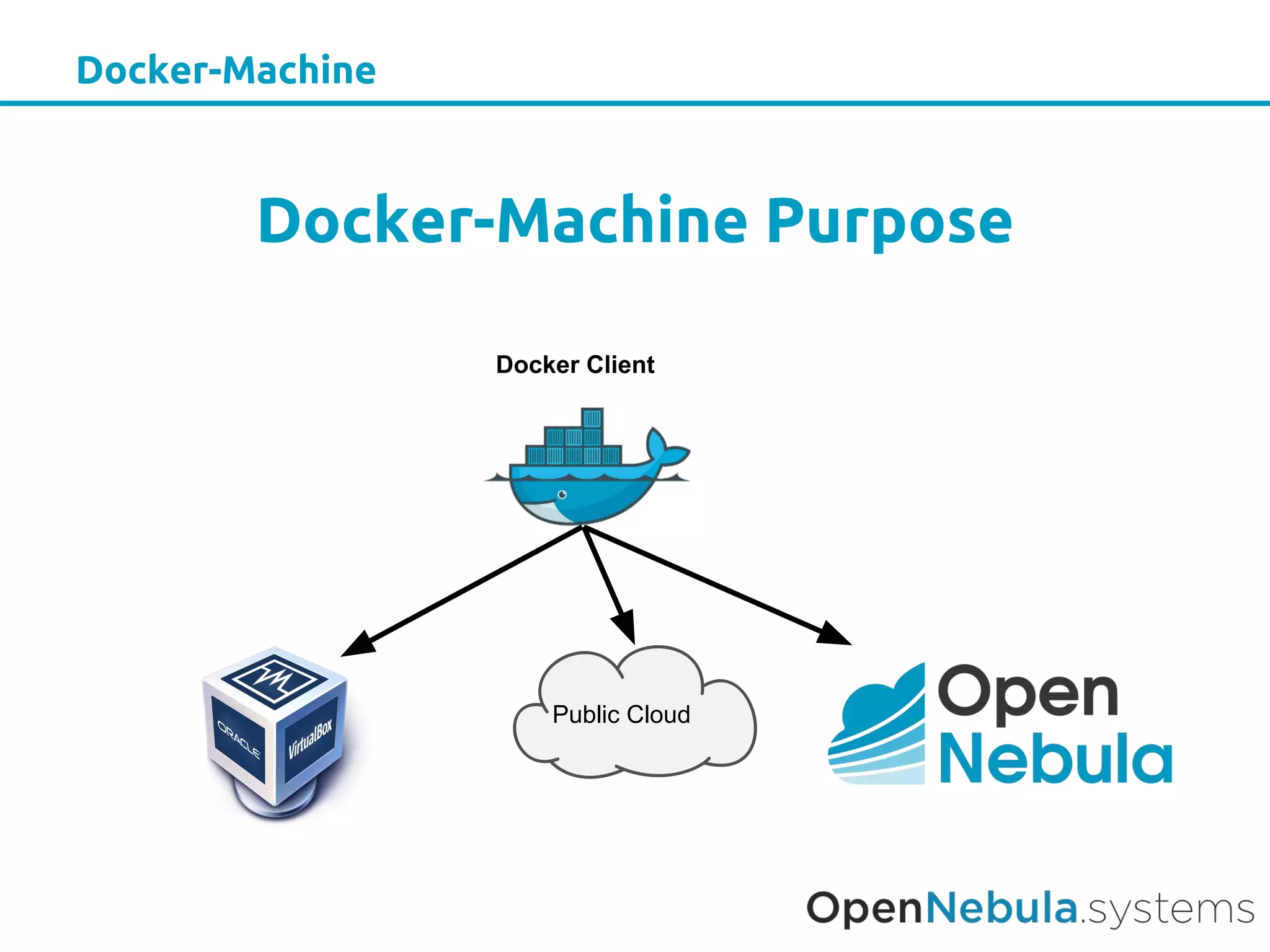

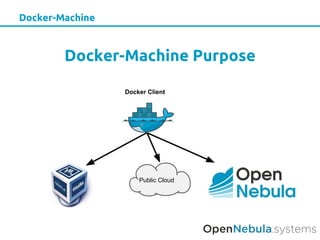

25. Docker-Machine
Docker-Machine Purpose
Docker Client
Public Cloud

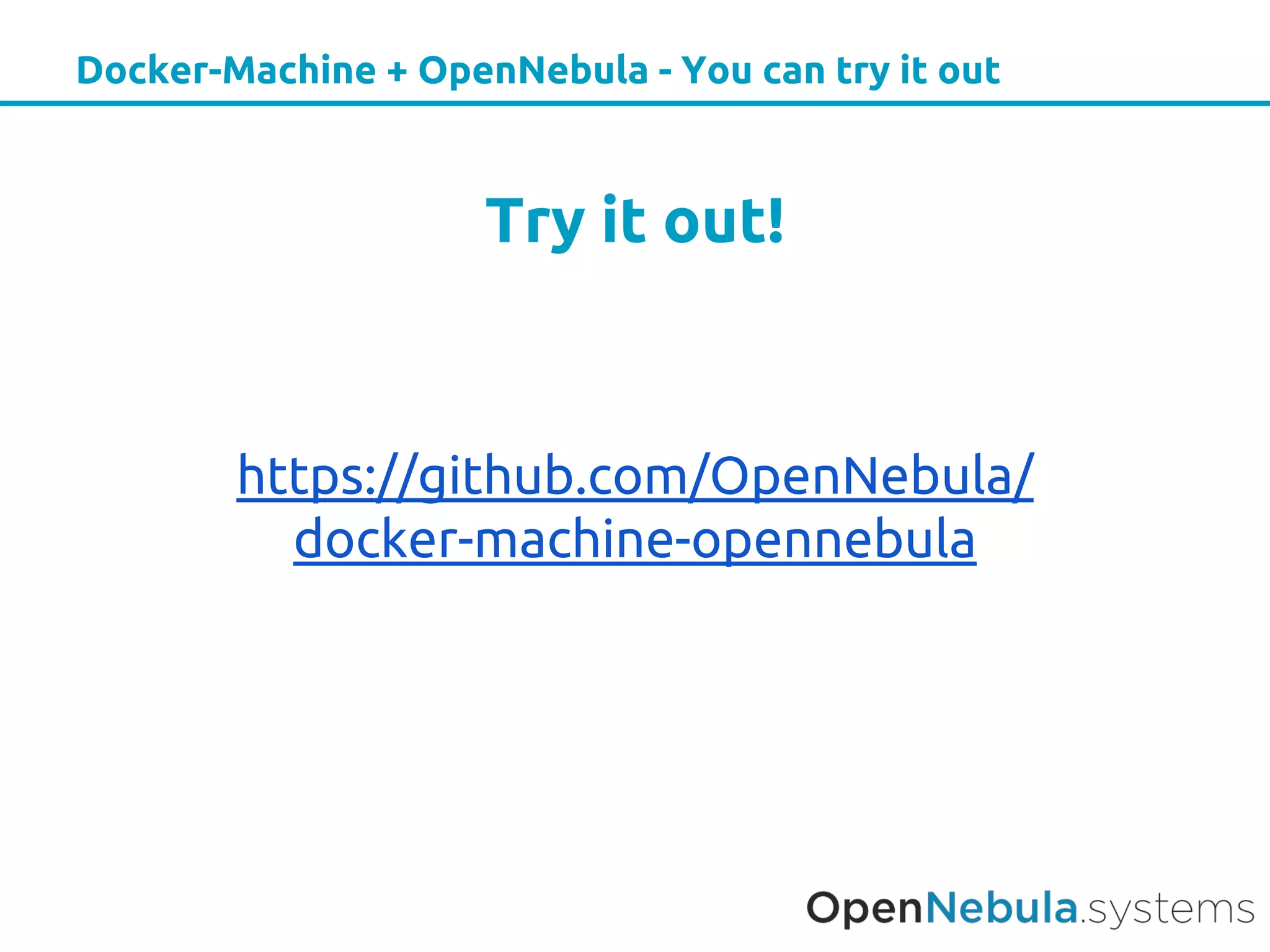

26. Docker-Machine + OpenNebula - You can try it out
Try it out!
https://github.com/OpenNebula/
docker-machine-opennebula

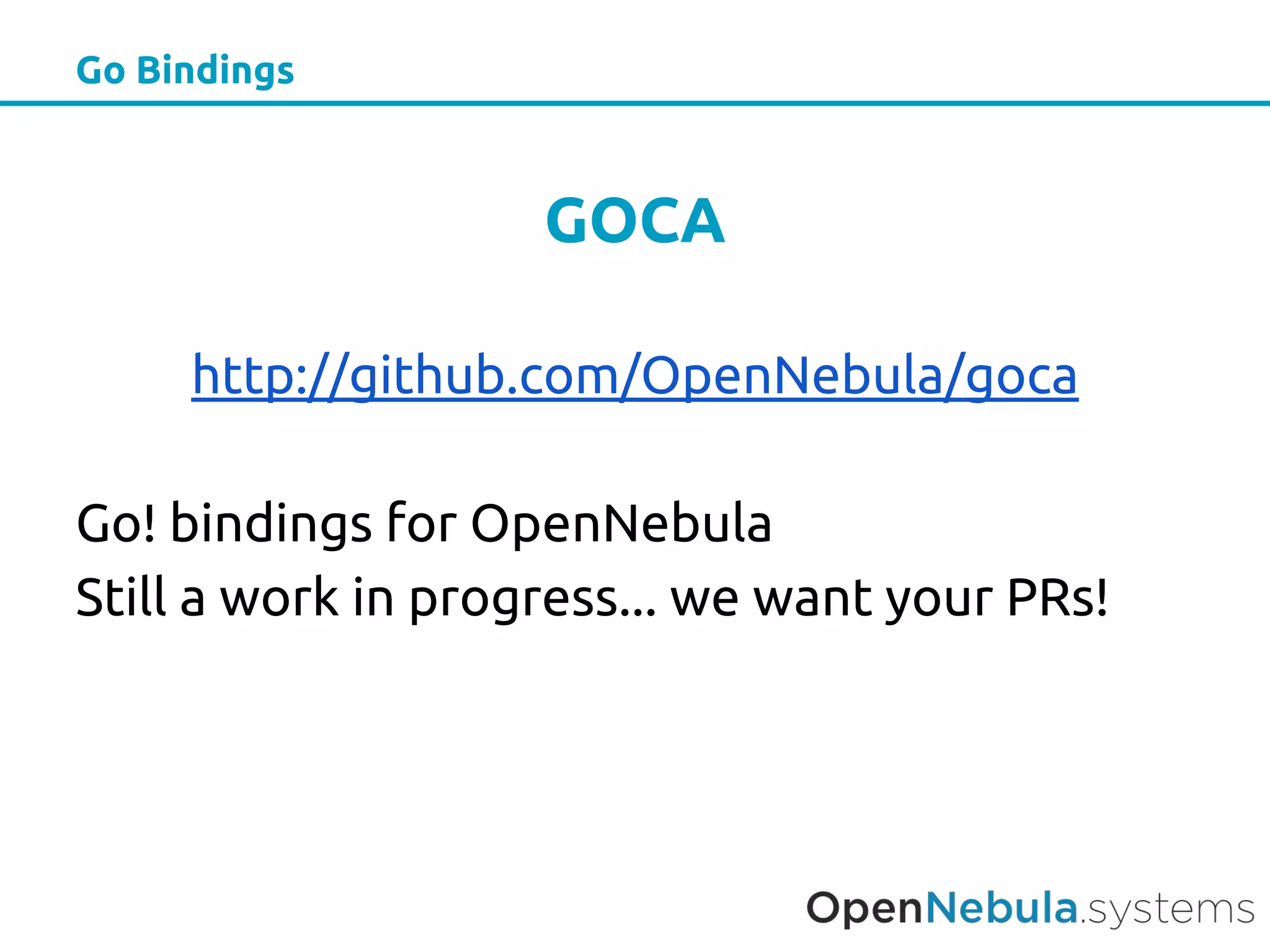

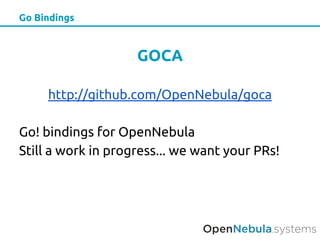

27. Go Bindings
GOCA
http://github.com/OpenNebula/goca
Go! bindings for OpenNebula
Still a work in progress... we want your PRs!

28. Questions?
We Will Be Happy to Answer any Question
Building your Enterprise-ready Cloud with OpenNebula
@opennebula
You are missing a lot if you do not
upgrade!
28
