1. Paris, France – August 25th 2014
OpenNebula
CentOS Dojo
OpenNebula and tips for CentOS 7
Javi Fontán
Project Engineer
© OpenNebula Project. Creative Commons Attribution-NonCommercial-ShareAlike License
OpenNebula - Latest Innovations in Private Cloud Computing 1/18

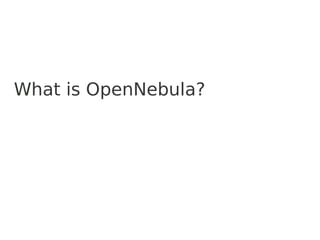

2. What is OpenNebula?

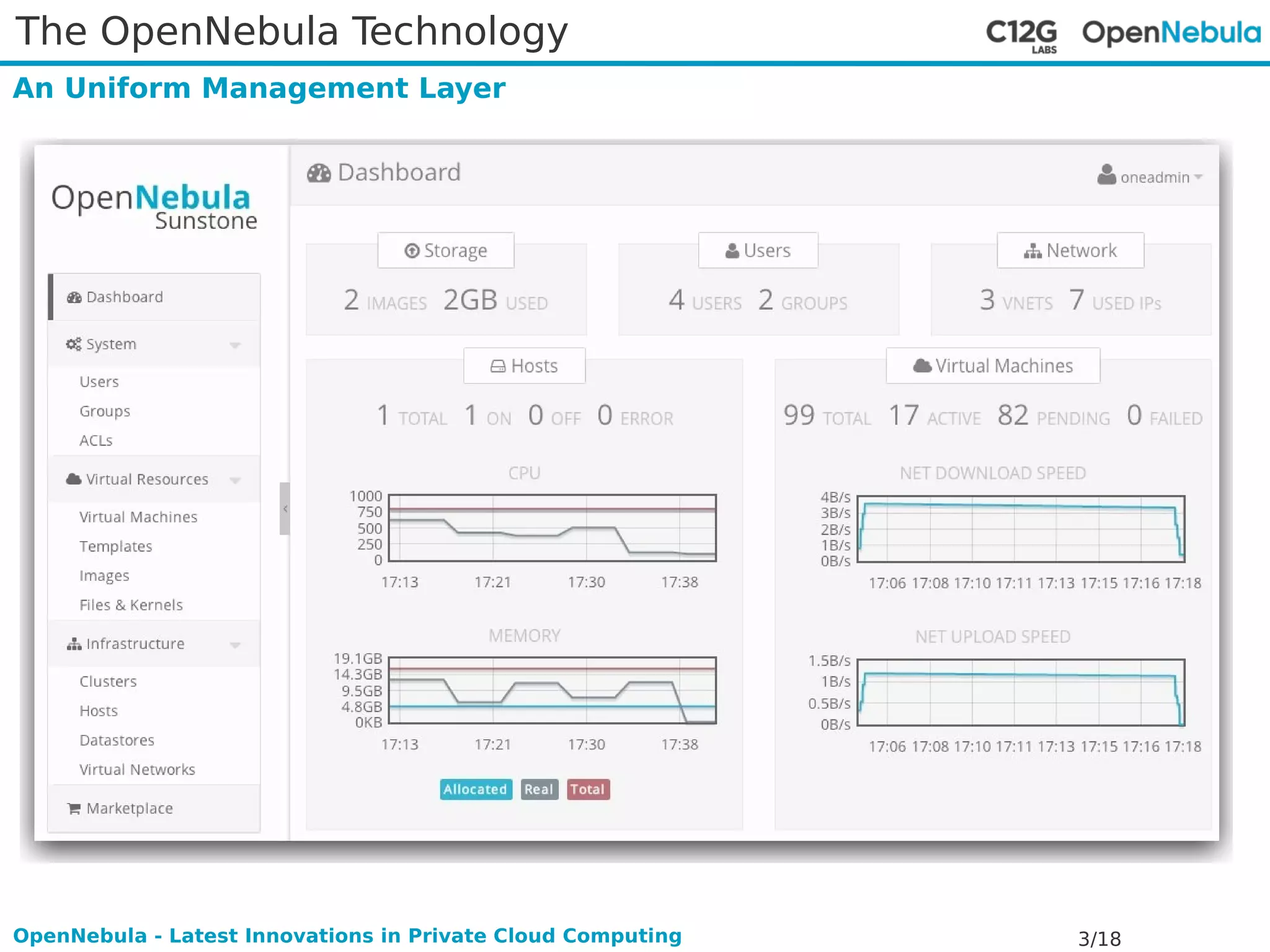

3. The OpenNebula Technology
An Uniform Management Layer
OpenNebula - Latest Innovations in Private Cloud Computing 3/18

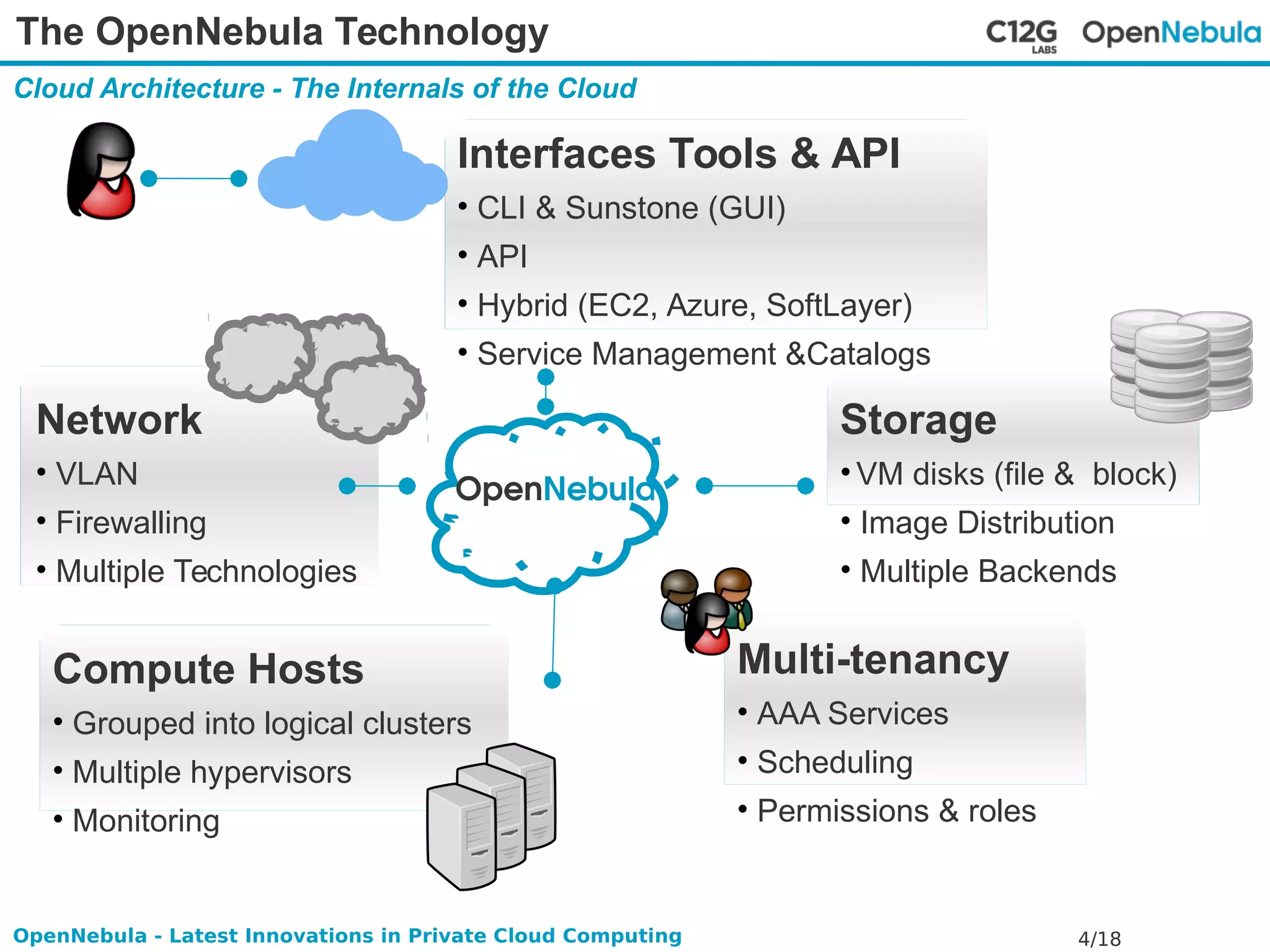

4. The OpenNebula Technology
Cloud Architecture - The Internals of the Cloud
Interfaces Tools & API
• CLI & Sunstone (GUI)
• API
• Hybrid (EC2, Azure, SoftLayer)
• Service Management &Catalogs
Network
• VLAN
• Firewalling
• Multiple Technologies
Compute Hosts
• Grouped into logical clusters
• Multiple hypervisors
• Monitoring
Storage
• VM disks (file & block)
• Image Distribution
• Multiple Backends
Multi-tenancy
• AAA Services
• Scheduling
• Permissions & roles
OpenNebula - Latest Innovations in Private Cloud Computing 4/18

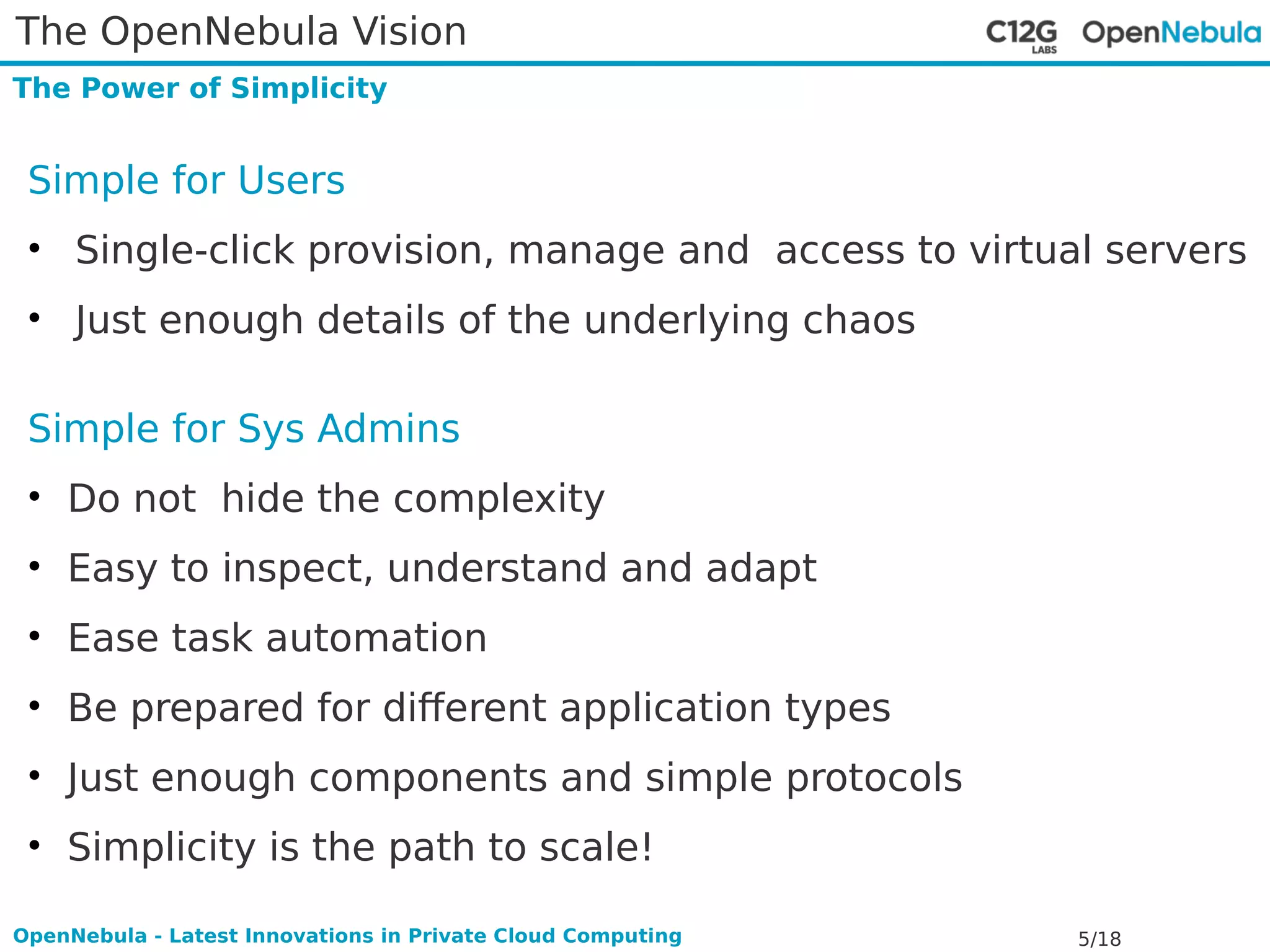

5. The OpenNebula Vision
The Power of Simplicity
Simple for Users
• Single-click provision, manage and access to virtual servers
• Just enough details of the underlying chaos
Simple for Sys Admins
• Do not hide the complexity
• Easy to inspect, understand and adapt
• Ease task automation
• Be prepared for different application types
• Just enough components and simple protocols
• Simplicity is the path to scale!
OpenNebula - Latest Innovations in Private Cloud Computing 5/18

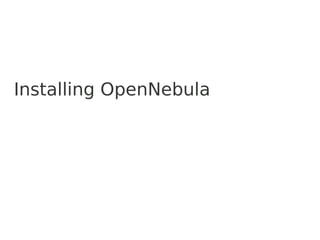

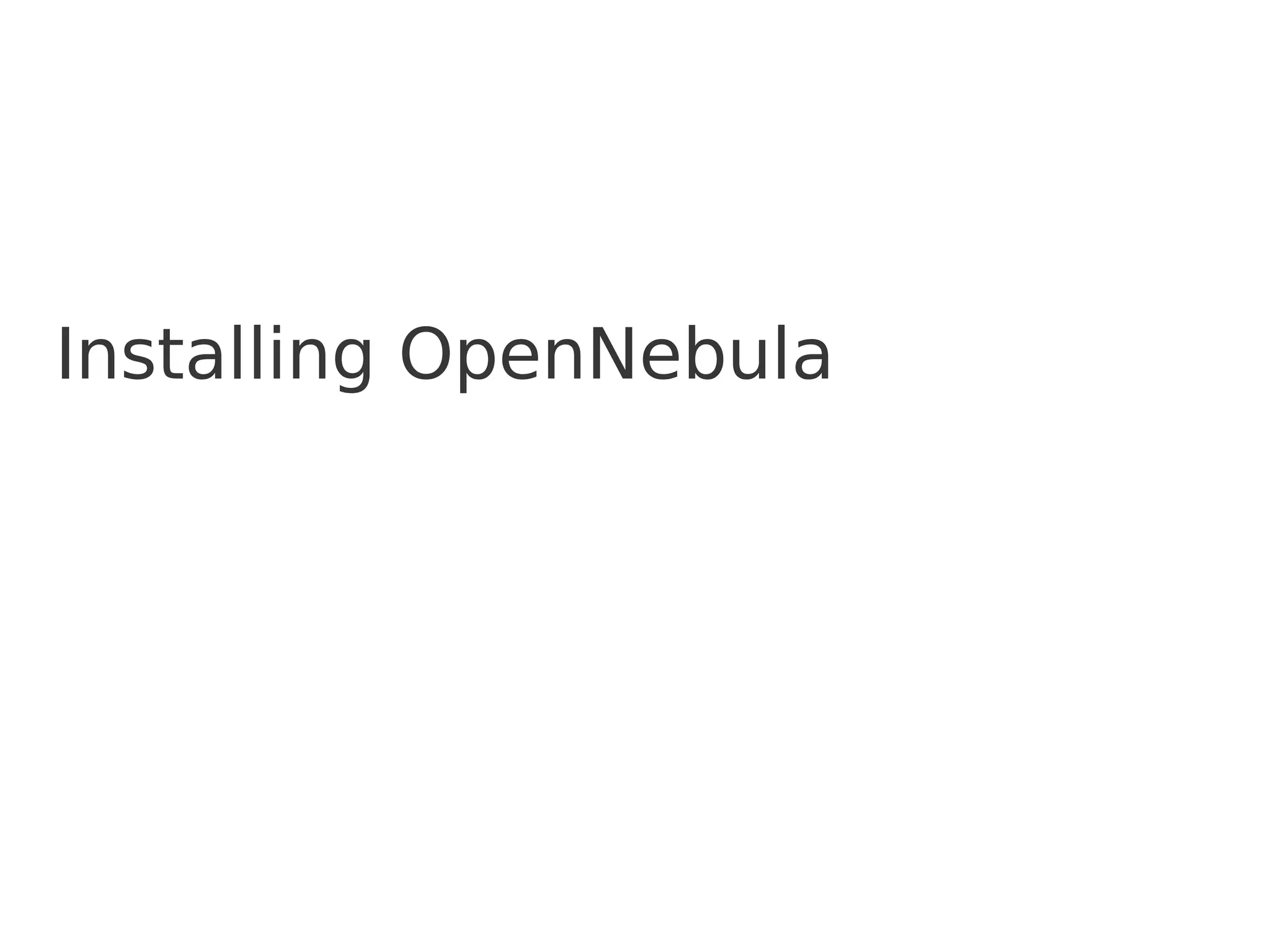

6. Installing OpenNebula

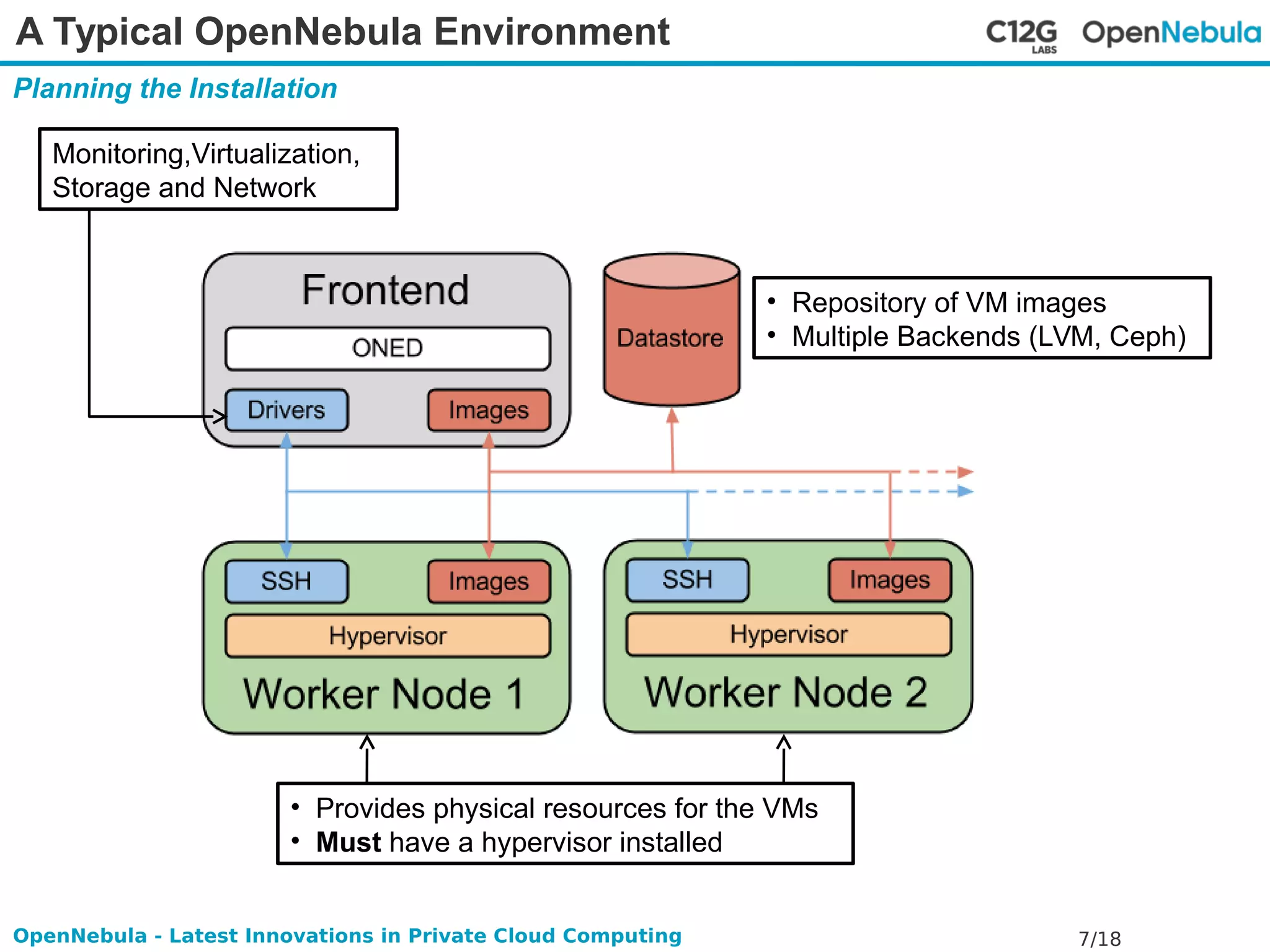

7. A Typical OpenNebula Environment
Planning the Installation
• Repository of VM images
• Multiple Backends (LVM, Ceph)
Monitoring,Virtualization,
Storage and Network
• Provides physical resources for the VMs
• Must have a hypervisor installed
OpenNebula - Latest Innovations in Private Cloud Computing 7/18

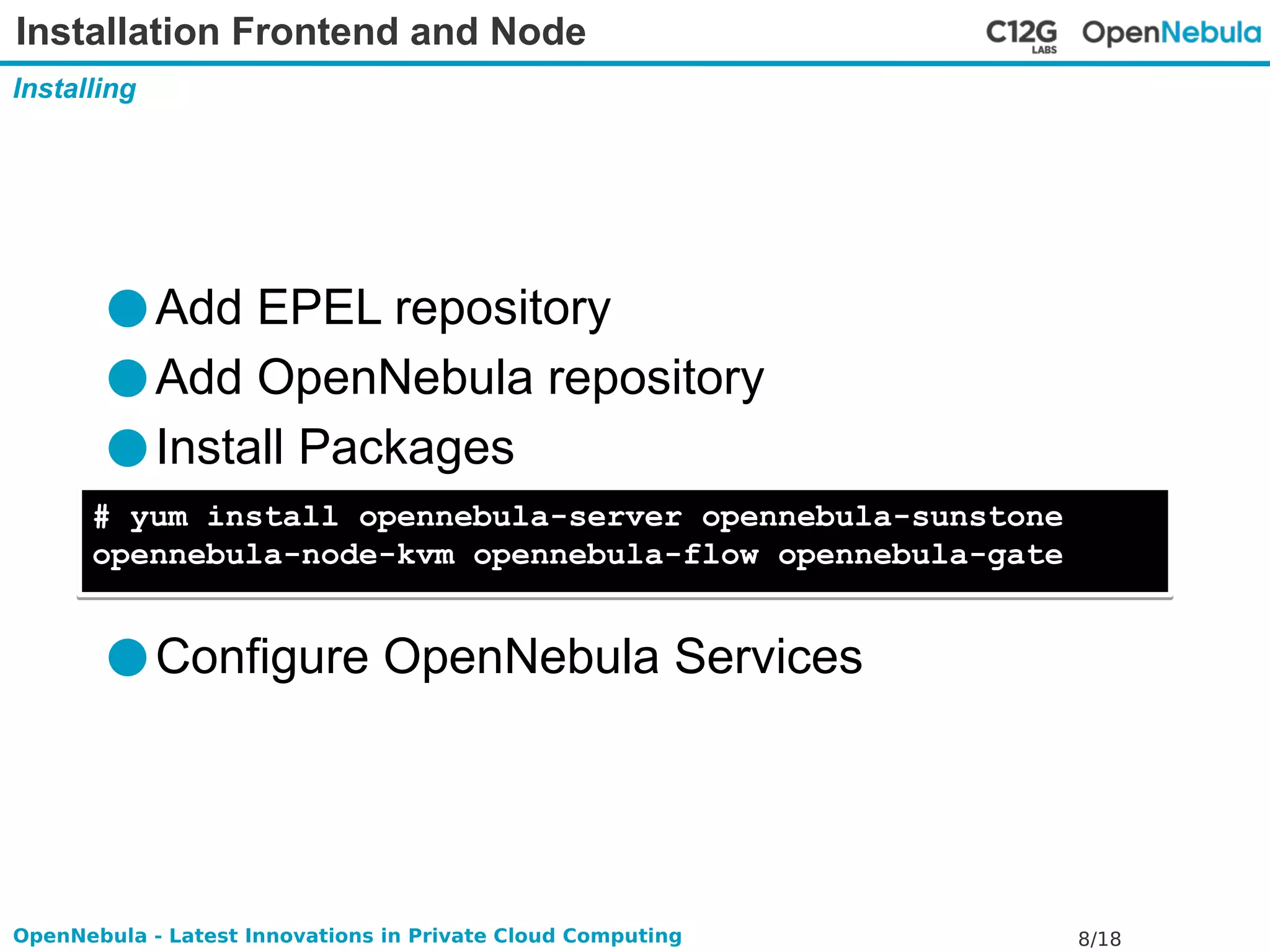

8. Installation Frontend and Node
Installing
●Add EPEL repository
●Add OpenNebula repository
●Install Packages
# yum install opennebula-server opennebula-sunstone
opennebula-node-kvm opennebula-flow opennebula-gate
●Configure OpenNebula Services
OpenNebula - Latest Innovations in Private Cloud Computing 8/18

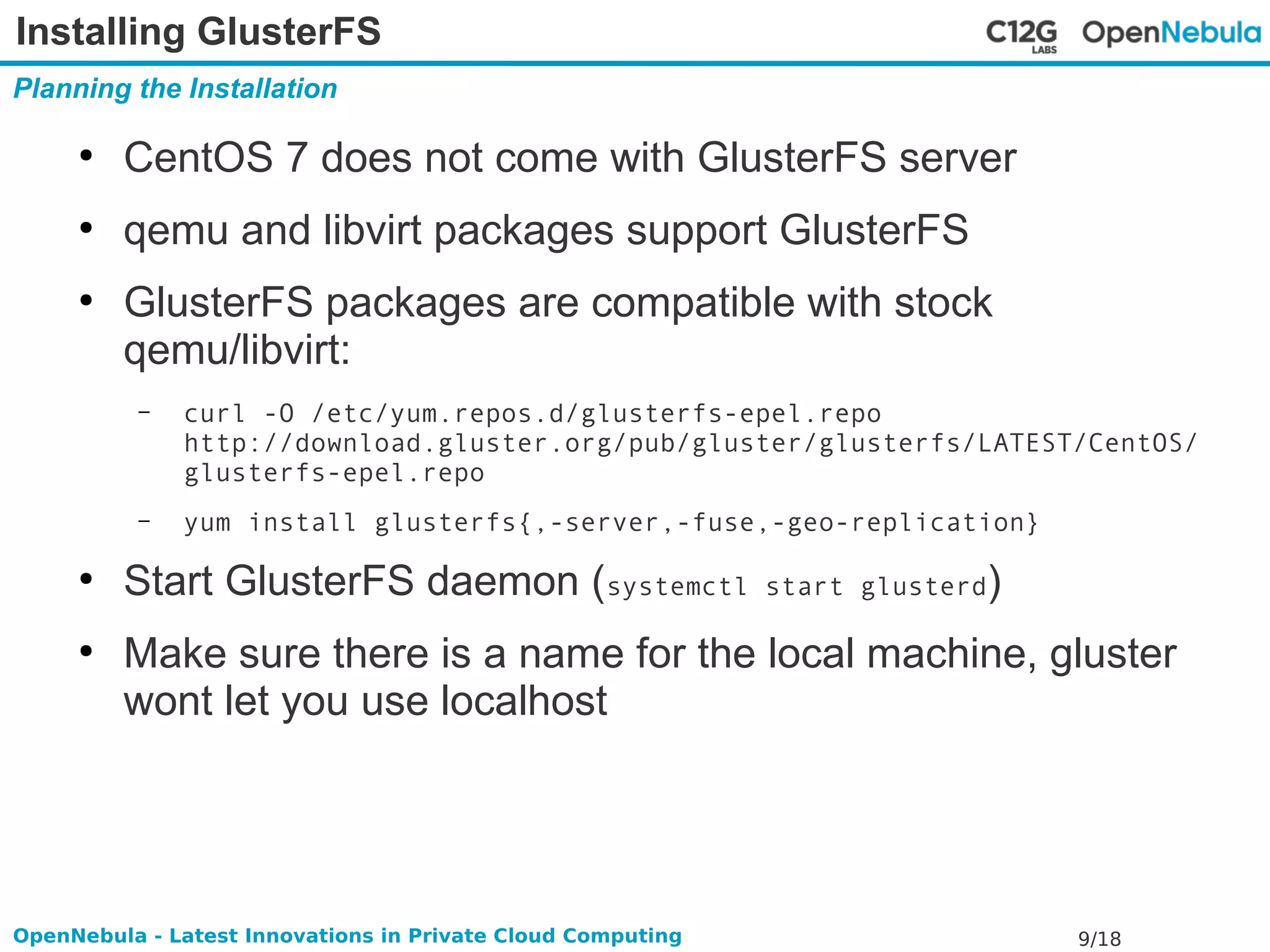

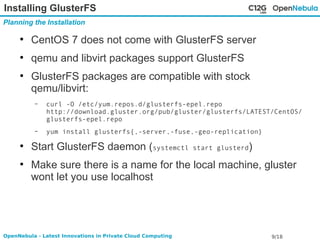

9. Installing GlusterFS
Planning the Installation
● CentOS 7 does not come with GlusterFS server
● qemu and libvirt packages support GlusterFS
● GlusterFS packages are compatible with stock
qemu/libvirt:
– curl -O /etc/yum.repos.d/glusterfs-epel.repo
http://download.gluster.org/pub/gluster/glusterfs/LATEST/CentOS/
glusterfs-epel.repo
– yum install glusterfs{,-server,-fuse,-geo-replication}
● Start GlusterFS daemon (systemctl start glusterd)
● Make sure there is a name for the local machine, gluster
wont let you use localhost
OpenNebula - Latest Innovations in Private Cloud Computing 9/18

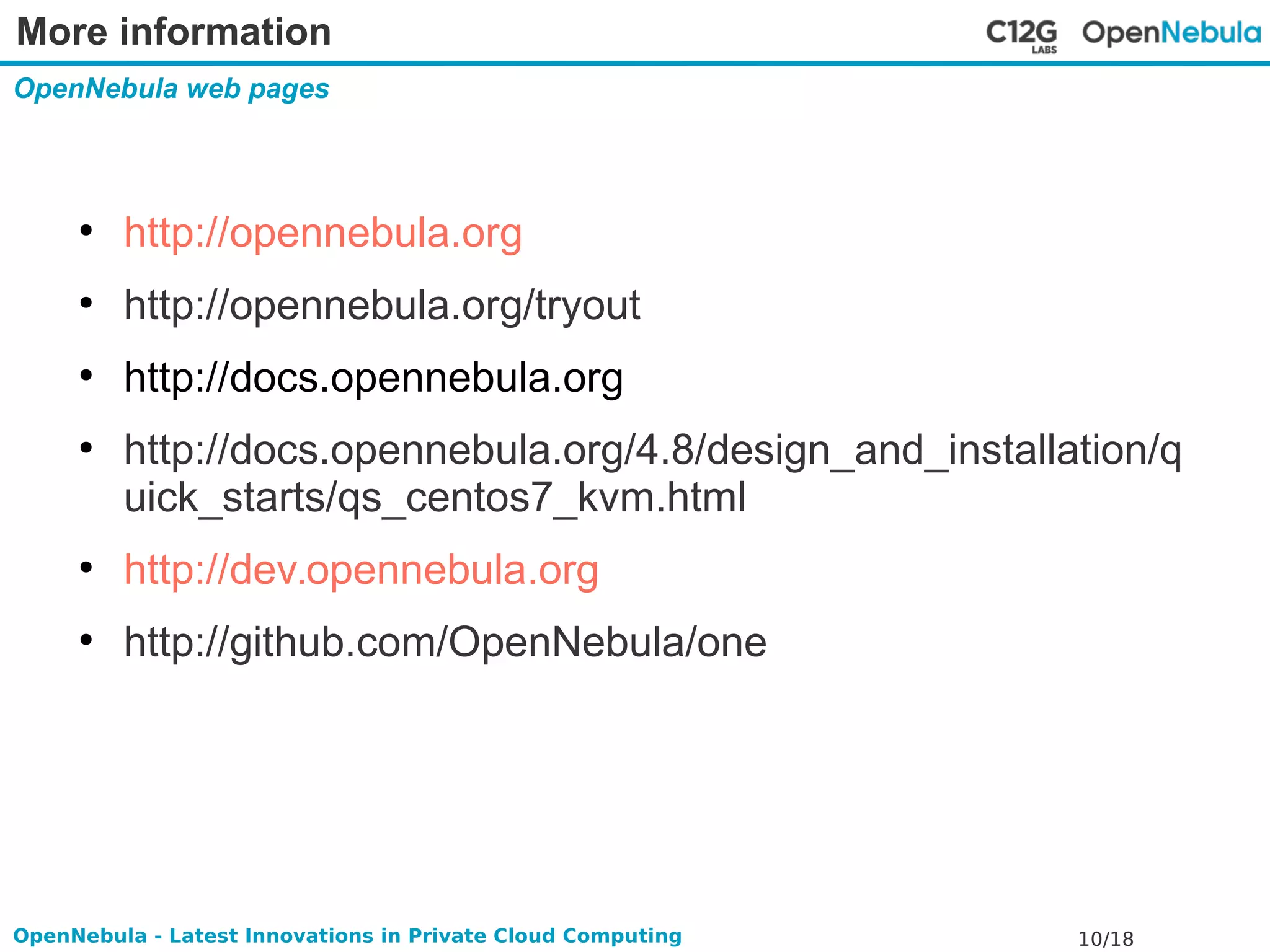

10. More information
OpenNebula web pages
● http://opennebula.org
● http://opennebula.org/tryout
● http://docs.opennebula.org
● http://docs.opennebula.org/4.8/design_and_installation/q
uick_starts/qs_centos7_kvm.html
● http://dev.opennebula.org
● http://github.com/OpenNebula/one
OpenNebula - Latest Innovations in Private Cloud Computing 10/18

11. Tips for CentOS 7

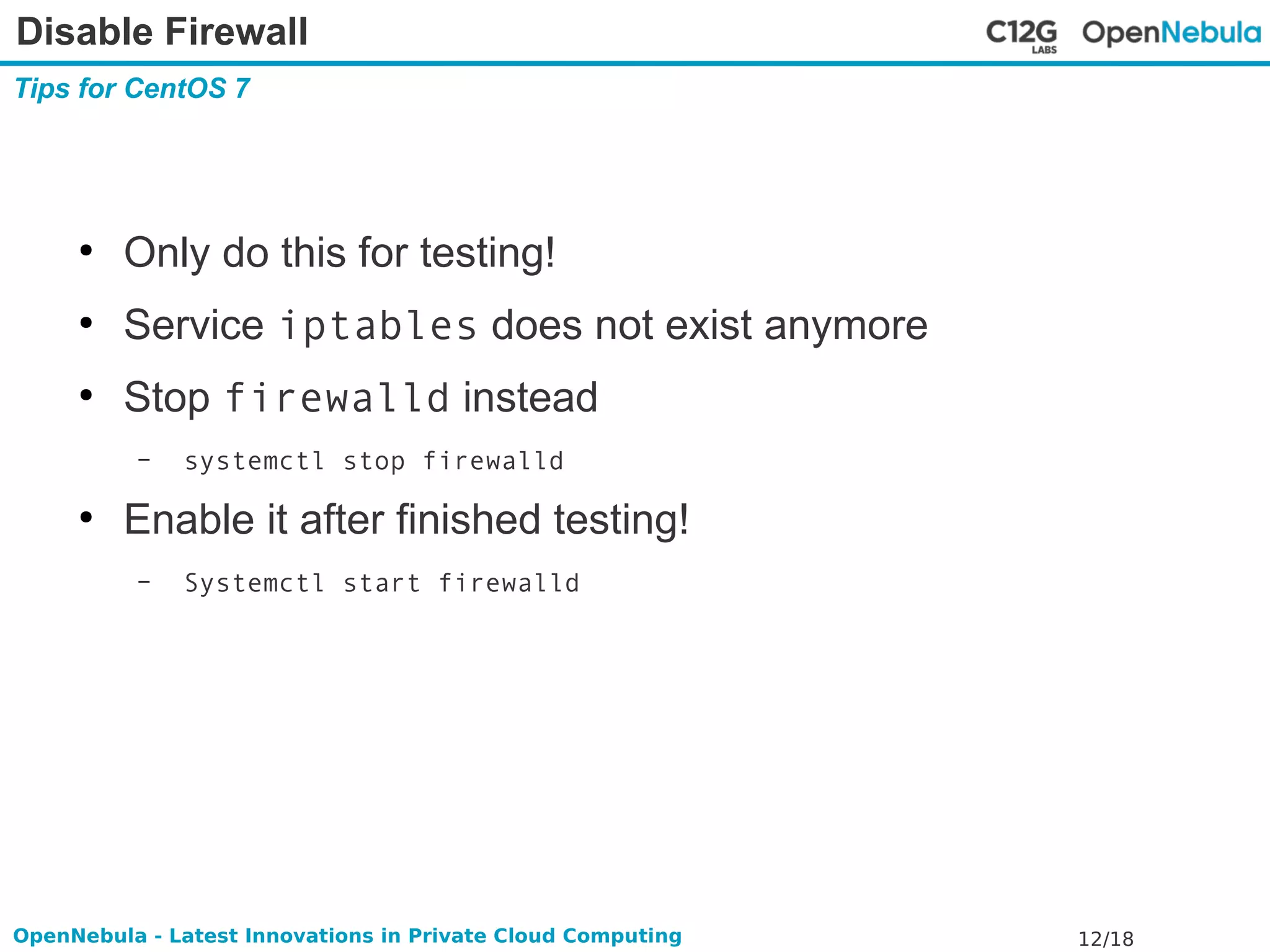

12. Disable Firewall
Tips for CentOS 7
● Only do this for testing!
● Service iptables does not exist anymore
● Stop firewalld instead
– systemctl stop firewalld
● Enable it after finished testing!
– Systemctl start firewalld
OpenNebula - Latest Innovations in Private Cloud Computing 12/18

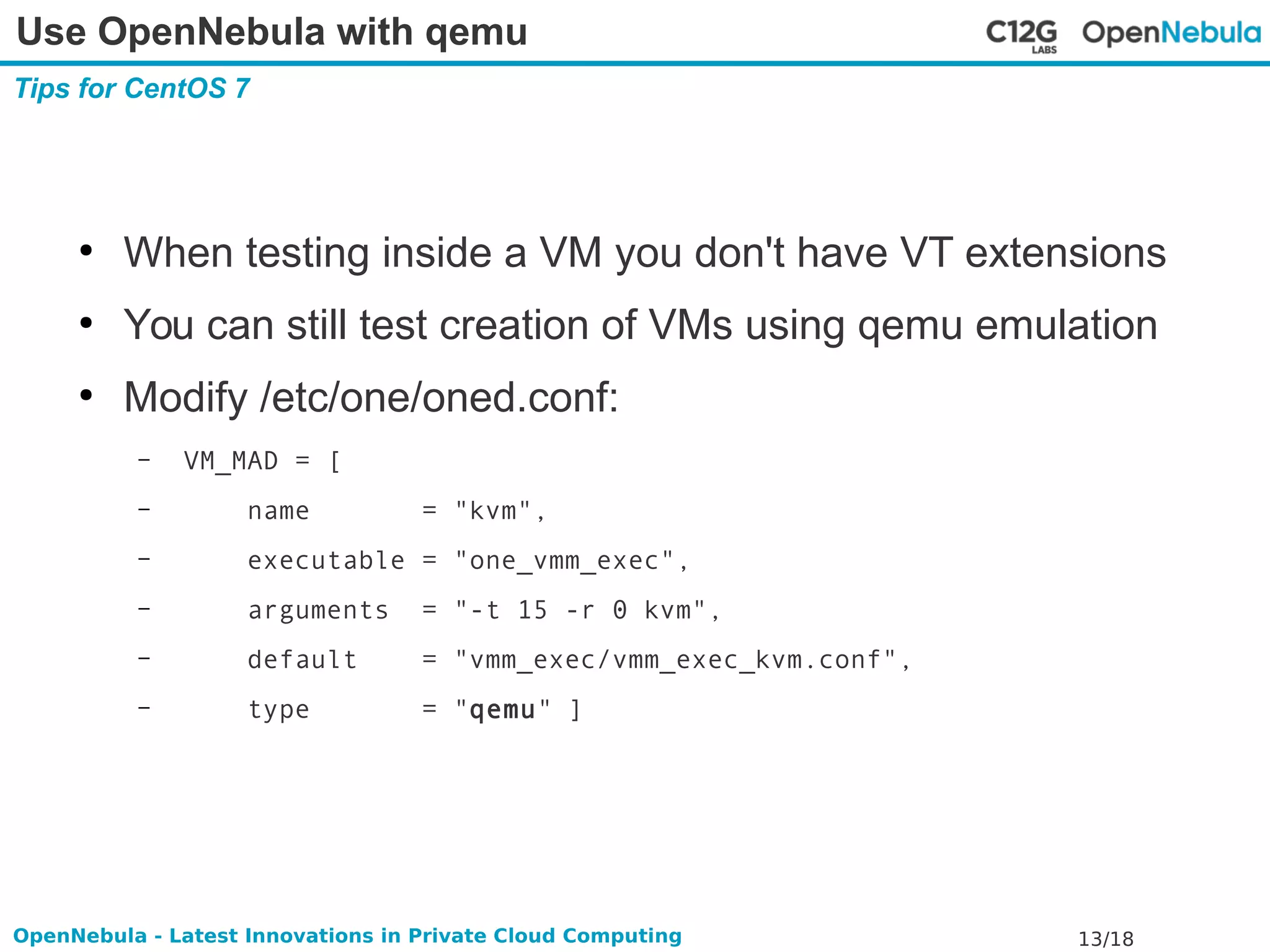

13. Use OpenNebula with qemu
Tips for CentOS 7
● When testing inside a VM you don't have VT extensions
● You can still test creation of VMs using qemu emulation
● Modify /etc/one/oned.conf:
– VM_MAD = [
– name = "kvm",
– executable = "one_vmm_exec",
– arguments = "-t 15 -r 0 kvm",
– default = "vmm_exec/vmm_exec_kvm.conf",
– type = "qemu" ]
OpenNebula - Latest Innovations in Private Cloud Computing 13/18

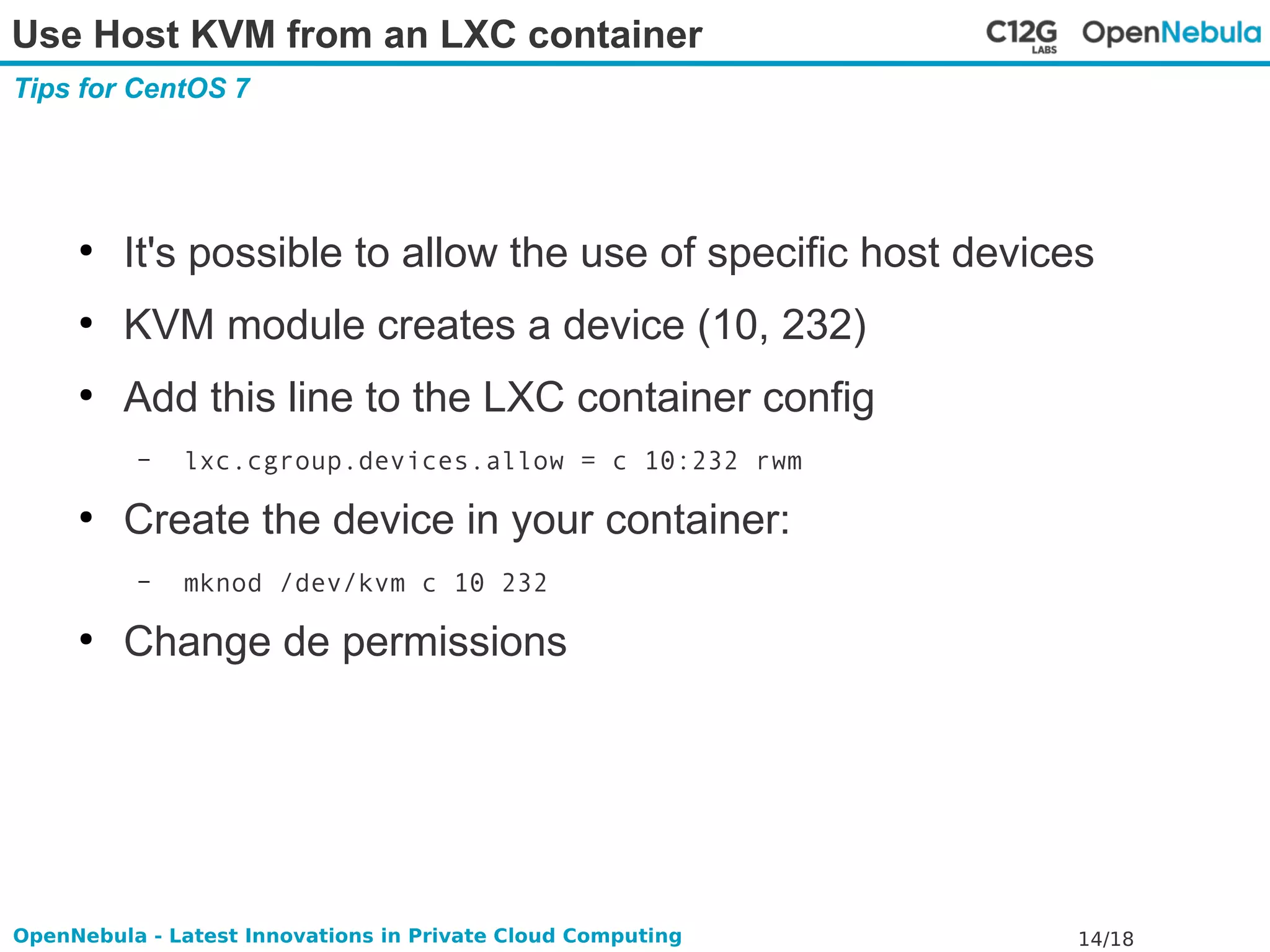

14. Use Host KVM from an LXC container
Tips for CentOS 7
● It's possible to allow the use of specific host devices
● KVM module creates a device (10, 232)
● Add this line to the LXC container config
– lxc.cgroup.devices.allow = c 10:232 rwm
● Create the device in your container:
– mknod /dev/kvm c 10 232
● Change de permissions
OpenNebula - Latest Innovations in Private Cloud Computing 14/18

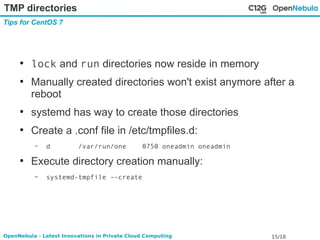

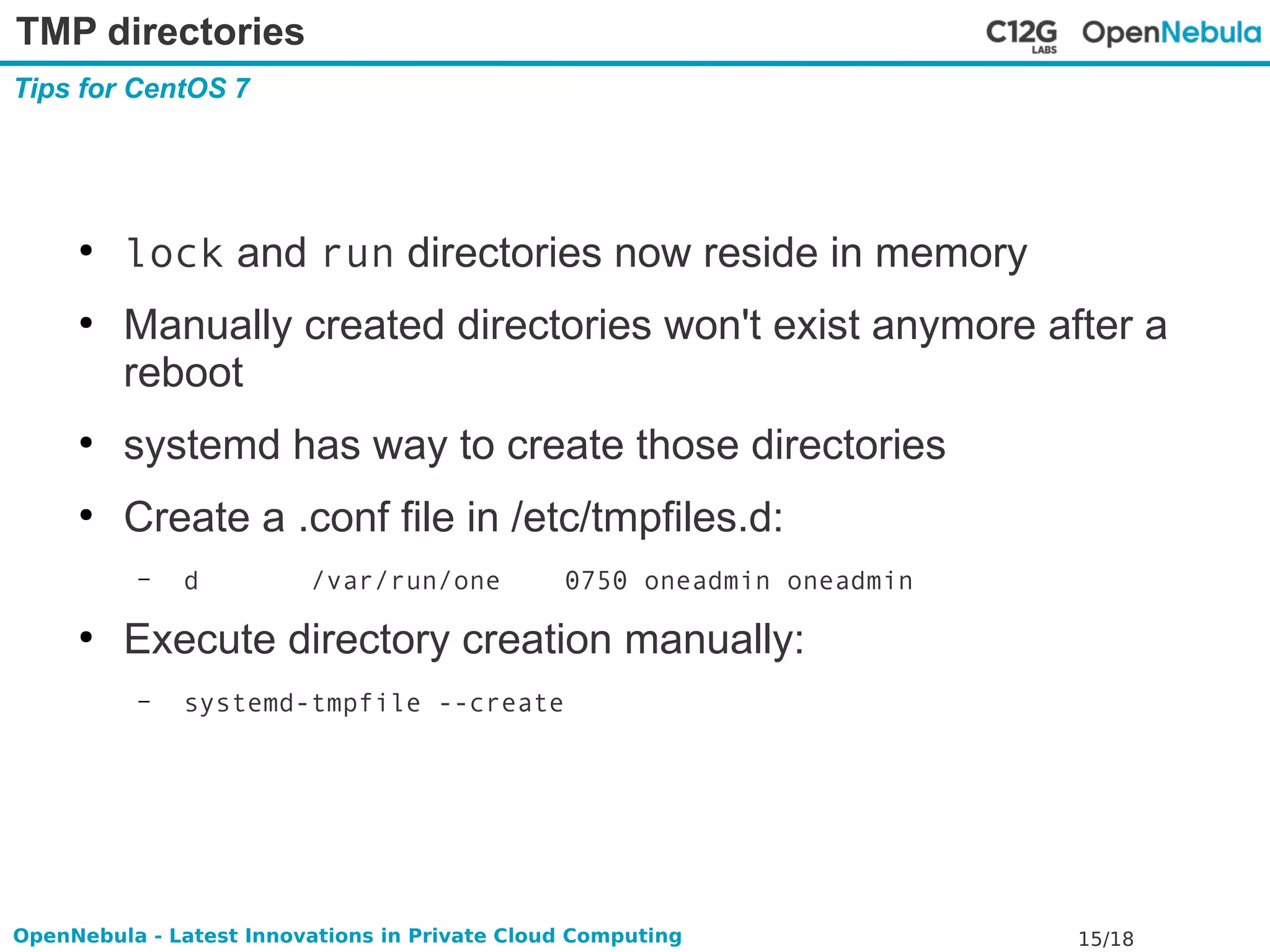

15. TMP directories
Tips for CentOS 7
● lock and run directories now reside in memory
● Manually created directories won't exist anymore after a
reboot
● systemd has way to create those directories
● Create a .conf file in /etc/tmpfiles.d:
– d /var/run/one 0750 oneadmin oneadmin
● Execute directory creation manually:
– systemd-tmpfile --create
OpenNebula - Latest Innovations in Private Cloud Computing 15/18

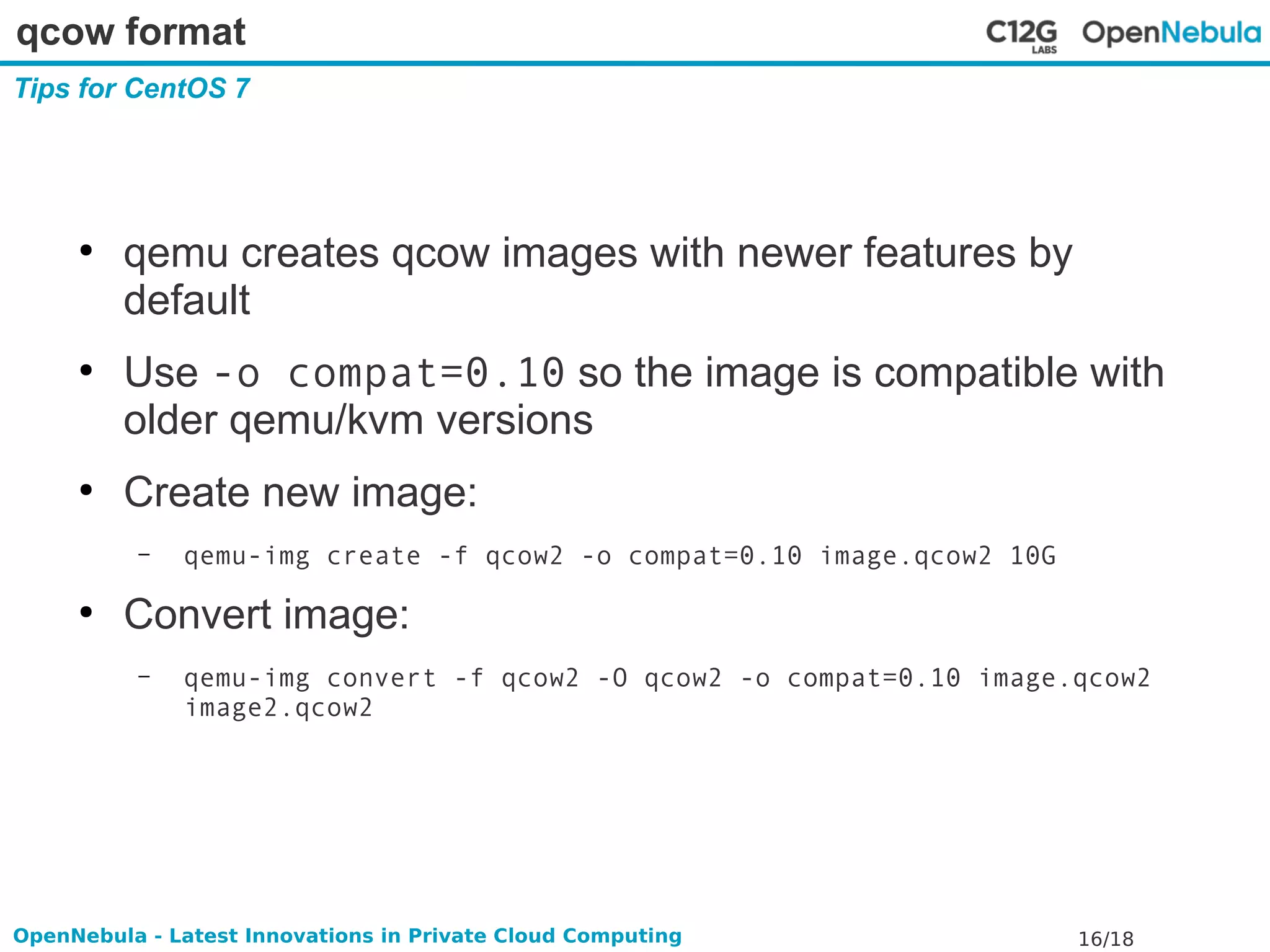

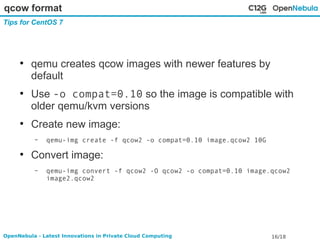

16. qcow format
Tips for CentOS 7
● qemu creates qcow images with newer features by
default
● Use -o compat=0.10 so the image is compatible with
older qemu/kvm versions
● Create new image:
– qemu-img create -f qcow2 -o compat=0.10 image.qcow2 10G
● Convert image:
– qemu-img convert -f qcow2 -O qcow2 -o compat=0.10 image.qcow2
image2.qcow2
OpenNebula - Latest Innovations in Private Cloud Computing 16/18

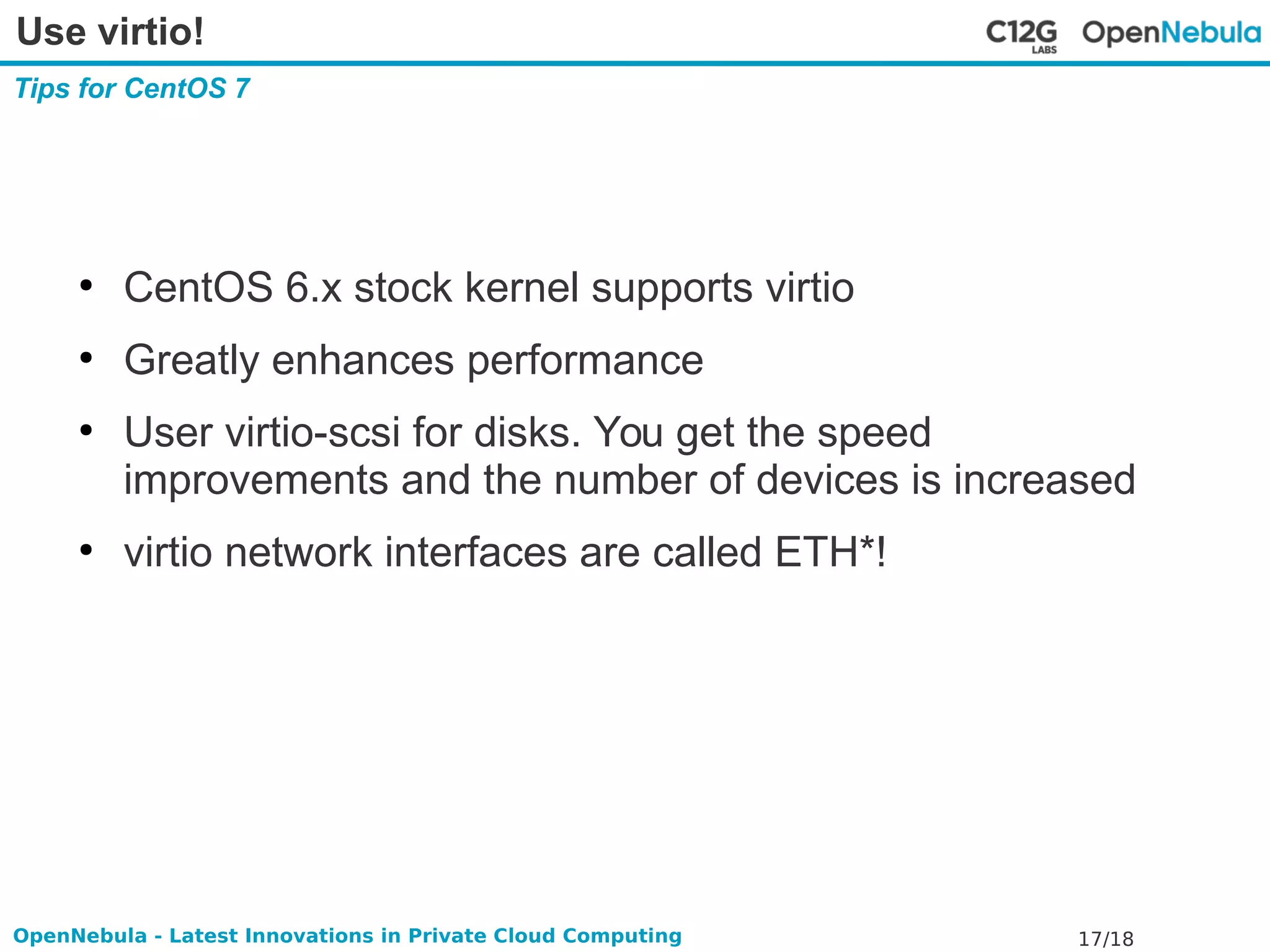

17. Use virtio!
Tips for CentOS 7
● CentOS 6.x stock kernel supports virtio
● Greatly enhances performance
● User virtio-scsi for disks. You get the speed
improvements and the number of devices is increased
● virtio network interfaces are called ETH*!
OpenNebula - Latest Innovations in Private Cloud Computing 17/18

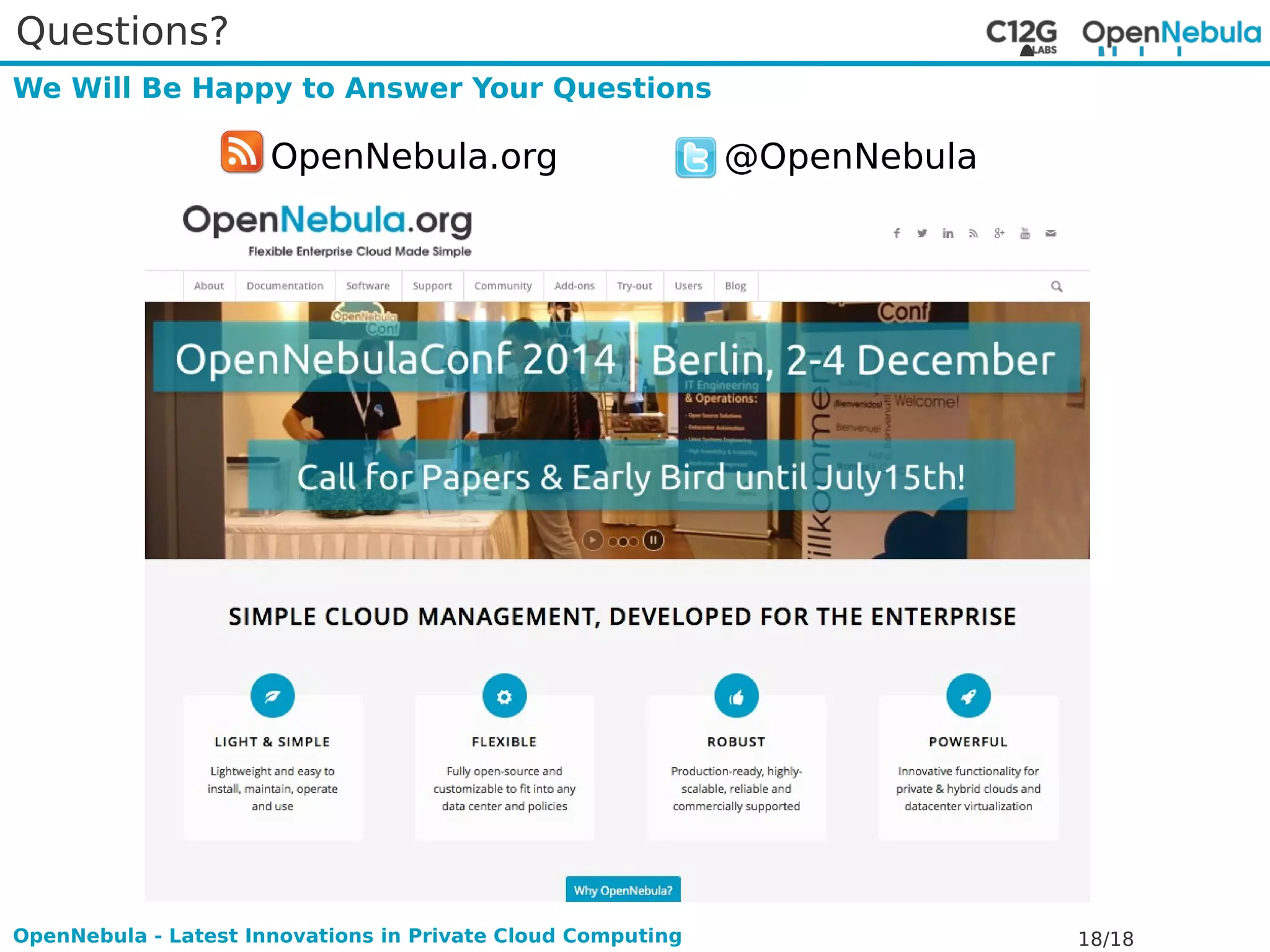

18. Questions?
We Will Be Happy to Answer Your Questions
OpenNebula.org @OpenNebula
OpenNebula - Latest Innovations in Private Cloud Computing 18/18
