This document provides information about using OpenNebula's oneprovision tool to provision clusters in a cloud environment. It includes an example of a provision template that specifies details like the driver, project, OS, and networking. It outlines commands for creating and managing provisioned clusters, hosts, datastores and networks. These include listing, deleting, power control and SSH access for hosts. The goal is to demonstrate how to provision resources and hosts on demand using OpenNebula.

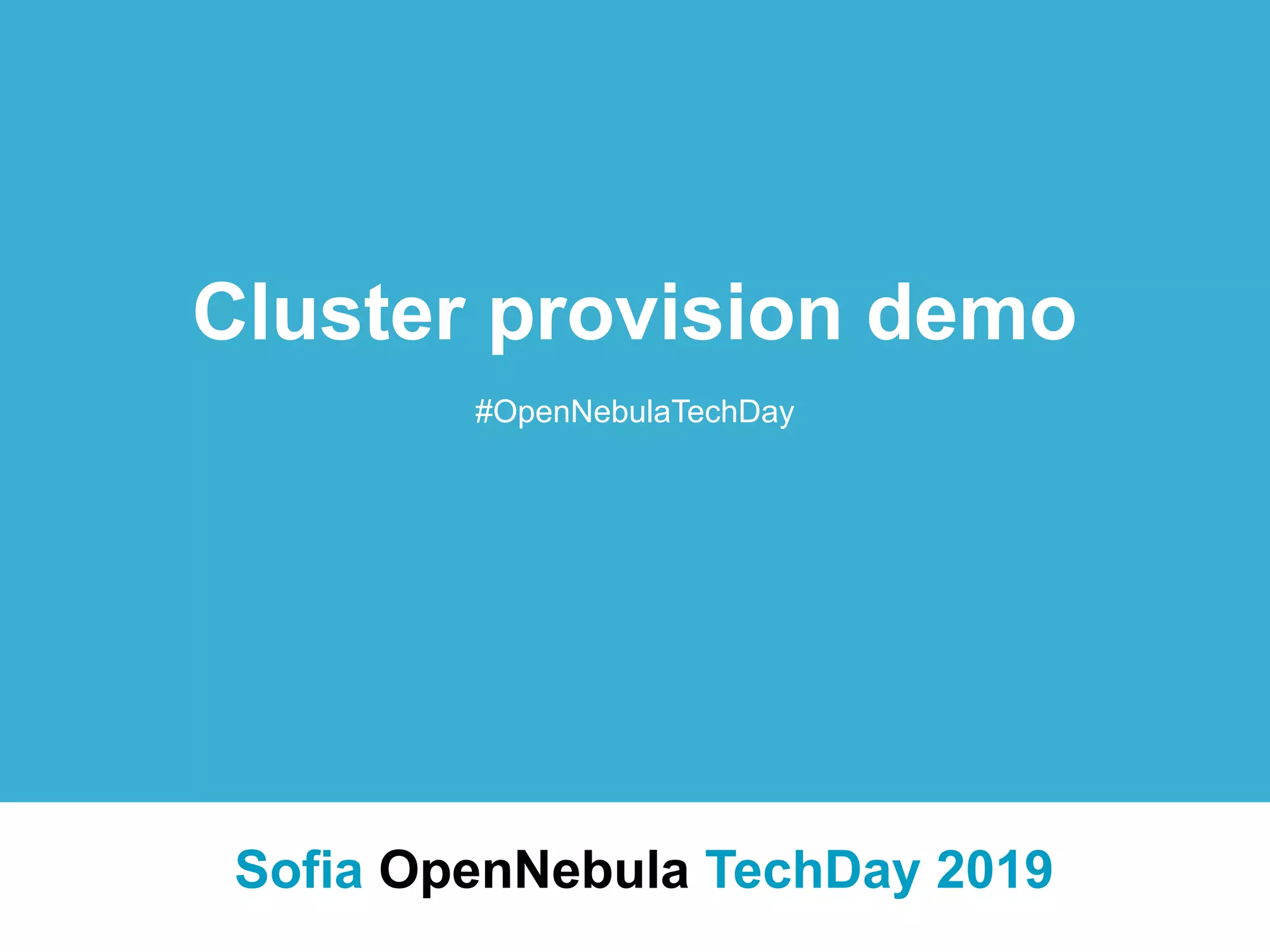

1. Cluster provision demo
#OpenNebulaTechDay
Sofia OpenNebula TechDay 2019

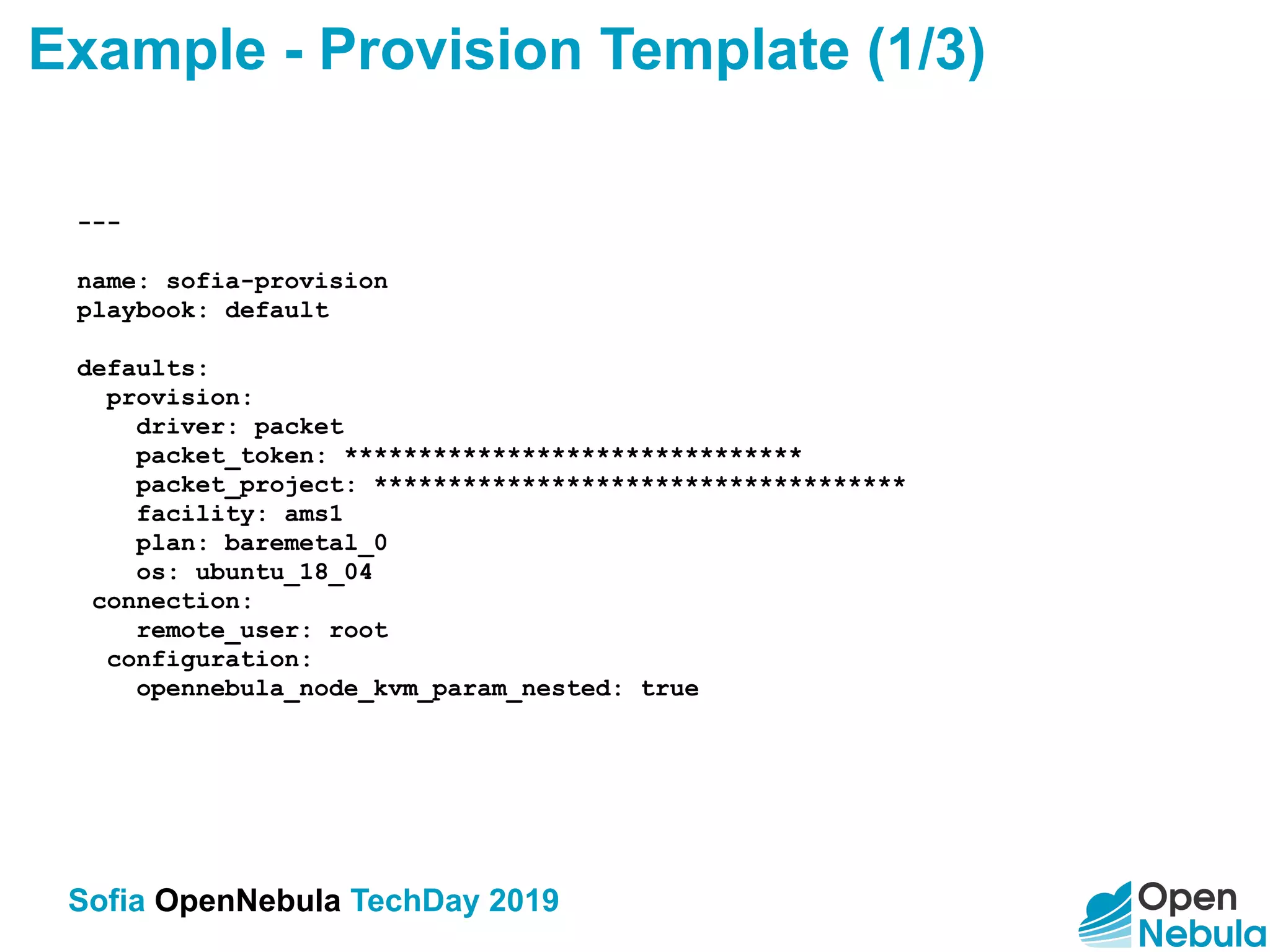

2. Example - Provision Template (1/3)
---
name: sofia-provision
playbook: default
defaults:
provision:
driver: packet
packet_token: *******************************
packet_project: ************************************
facility: ams1
plan: baremetal_0
os: ubuntu_18_04
connection:
remote_user: root
configuration:
opennebula_node_kvm_param_nested: true
Sofia OpenNebula TechDay 2019

3. Example - Provision Template (2/3)
cluster:
name: sofia-cluster
hosts:
- reserved_cpu: 100
im_mad: kvm
vm_mad: kvm
provision:
hostname: "<%= @name %>-host1"
datastores:
- name: "<%= @name %>-images"
ds_mad: fs
tm_mad: ssh
- name: "<%= @name %>-system"
type: system_ds
tm_mad: ssh
safe_dirs: "/var/tmp /tmp"
Sofia OpenNebula TechDay 2019

4. Example - Provision Template (3/3)
networks:
- name: "<%= @name %>-hostonly_nat"
vn_mad: dummy
bridge: br0
dns: "8.8.8.8 8.8.4.4"
gateway: "192.168.150.1"
description: "Host-only networking with NAT"
filter_ip_spoofing: "YES"
filter_mac_spoofing: "YES"
ar:
- ip: 192.168.150.2
size: 253
type: IP4
Sofia OpenNebula TechDay 2019

5. Commands
Main commands
● oneprovision list
● oneprovision create [TEMPLATE]
● oneprovision delete
● oneprovision configure
Sofia OpenNebula TechDay 2019

6. Example - Provision
$ oneprovision create simple.yaml -d
2019-05-10 10:09:17 INFO : Creating provision objects
WARNING: This operation can take tens of minutes. Please be patient.
2019-05-10 10:09:18 INFO : Deploying
2019-05-10 10:11:59 INFO : Monitoring hosts
2019-05-10 10:12:03 INFO : Checking working SSH connection
2019-05-10 10:12:05 INFO : Configuring hosts
ID: 44747806-ec80-464d-aa52-47a7f4dec823
There are 2 information modes:
● -d: Verbose mode
● -D: Debug mode
Sofia OpenNebula TechDay 2019

7. Commands
Host specific commands
● oneprovision host list
● oneprovision host poweroff [ID]
● oneprovision host resume [ID]
● oneprovision host reboot [ID]
● oneprovision host reset [ID]
● oneprovision host ssh [ID]
Sofia OpenNebula TechDay 2019

8. Example - Host Management
$ oneprovision host poweroff 2 -d
2019-05-10 10:52:24 INFO : Powering off host: 2
HOST 2: disabled
$ oneprovision host resume 2 -d
2019-05-10 10:53:31 INFO : Resuming host: 2
HOST 2: enabled
$ oneprovision host ssh 2
Welcome to Ubuntu 18.04 LTS (GNU/Linux 4.15.0-20-generic x86_64)
* Documentation: https://help.ubuntu.com
* Management: https://landscape.canonical.com
* Support: https://ubuntu.com/advantage
Last login: Fri May 10 08:53:45 2019 from 212.161.114.185
root@sofia-provision-host1:~#
Sofia OpenNebula TechDay 2019

9. Other Commands
Other commands
● oneprovision cluster list
● oneprovision cluster delete [ID]
● oneprovision datastore list
● oneprovision datastore delete [ID]
● oneprovision vnet list
● oneprovision vnet delete [ID]
Sofia OpenNebula TechDay 2019

10. Gaming Experiment
http://bit.ly/EdgeExperiment
Sofia OpenNebula TechDay 2019

11. THANKS!
OpenNebula TechDay
Sofia 2019
