New features for vCenter in OpenNebula 5.4 Talk held in Techday Madrid, 2017. More info: https://opennebula.org/community/techdays/techday-madrid-2017/

1. OpenNebula 5.4 Enhancements
vCenter Integration
Jaime Melis
Infrastructure engineer, OpenNebula Systems
OpenNebula.systems
© OpenNebula Systems. This presentation is confidential and owned by OpenNebula Systems. Unauthorized use or disclosure of the included
information is strictly prohibited. OpenNebula is trademark of OpenNebula Systems. All the other product and company names mentioned herein
may be the trademarks or registered trademarks of their respective owners.

2. Introduction
OpenNebula approach to
vCenter integration
OpenNebula.systems

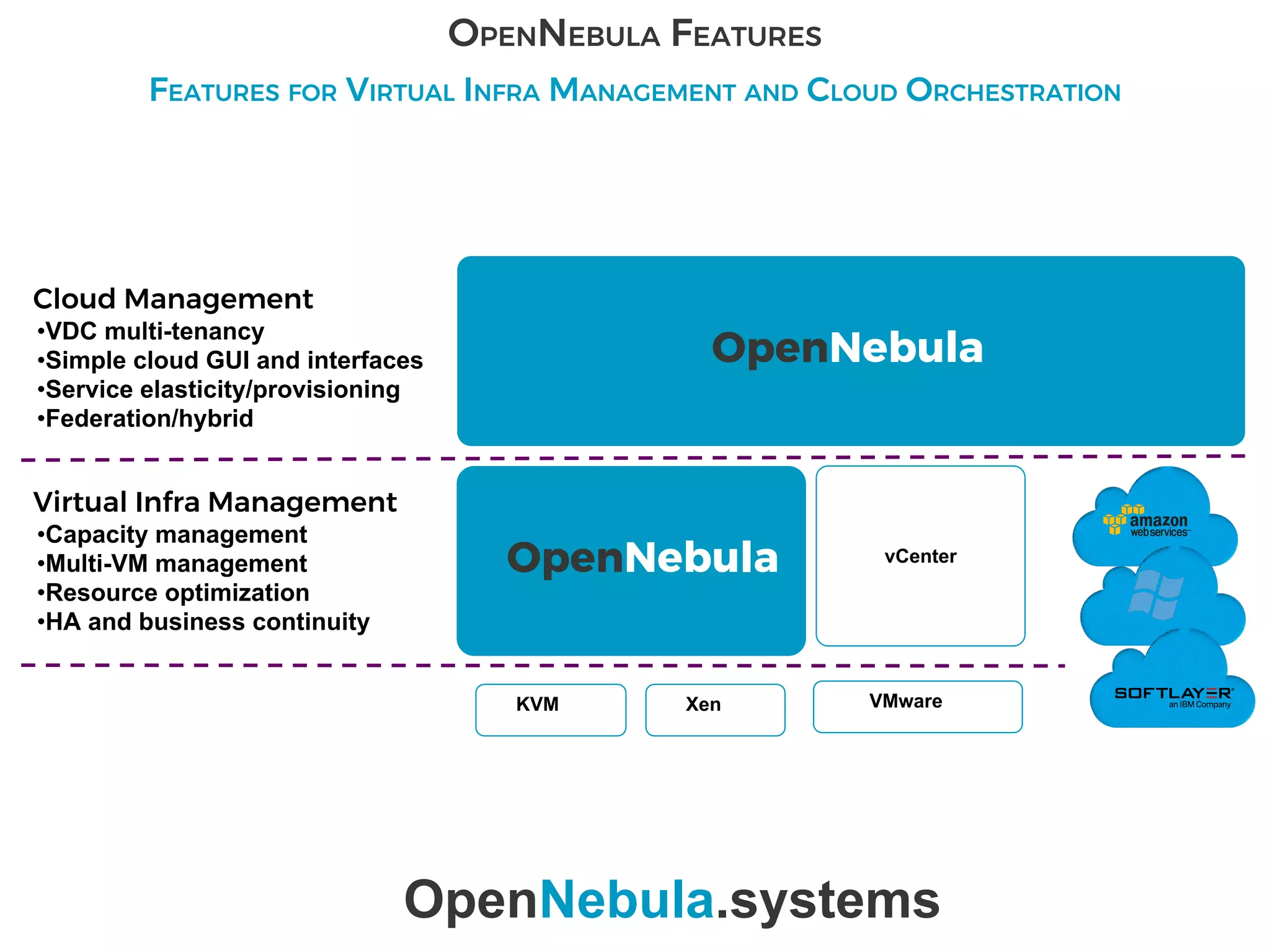

3. OPENNEBULA FEATURES
FEATURES FOR VIRTUAL INFRA MANAGEMENT AND CLOUD ORCHESTRATION
KVM Xen
Virtual Infra Management
•Capacity management
•Multi-VM management
•Resource optimization
•HA and business continuity
OpenNebula
Cloud Management
•VDC multi-tenancy
•Simple cloud GUI and interfaces
•Service elasticity/provisioning
•Federation/hybrid
vCenter
VMware
OpenNebula
OpenNebula.systems

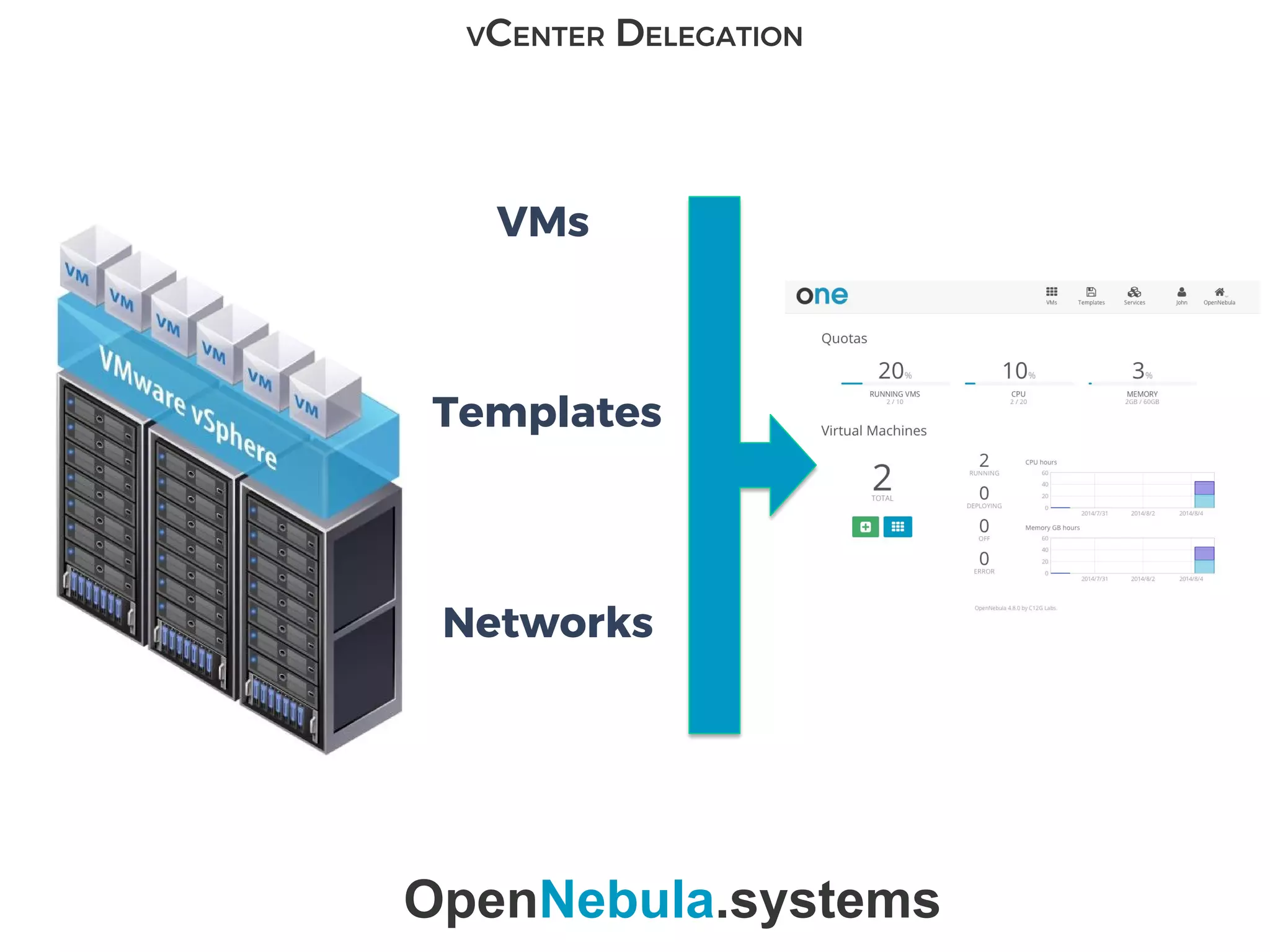

4. VCENTER DELEGATION
VMs
Templates
Networks
OpenNebula.systems

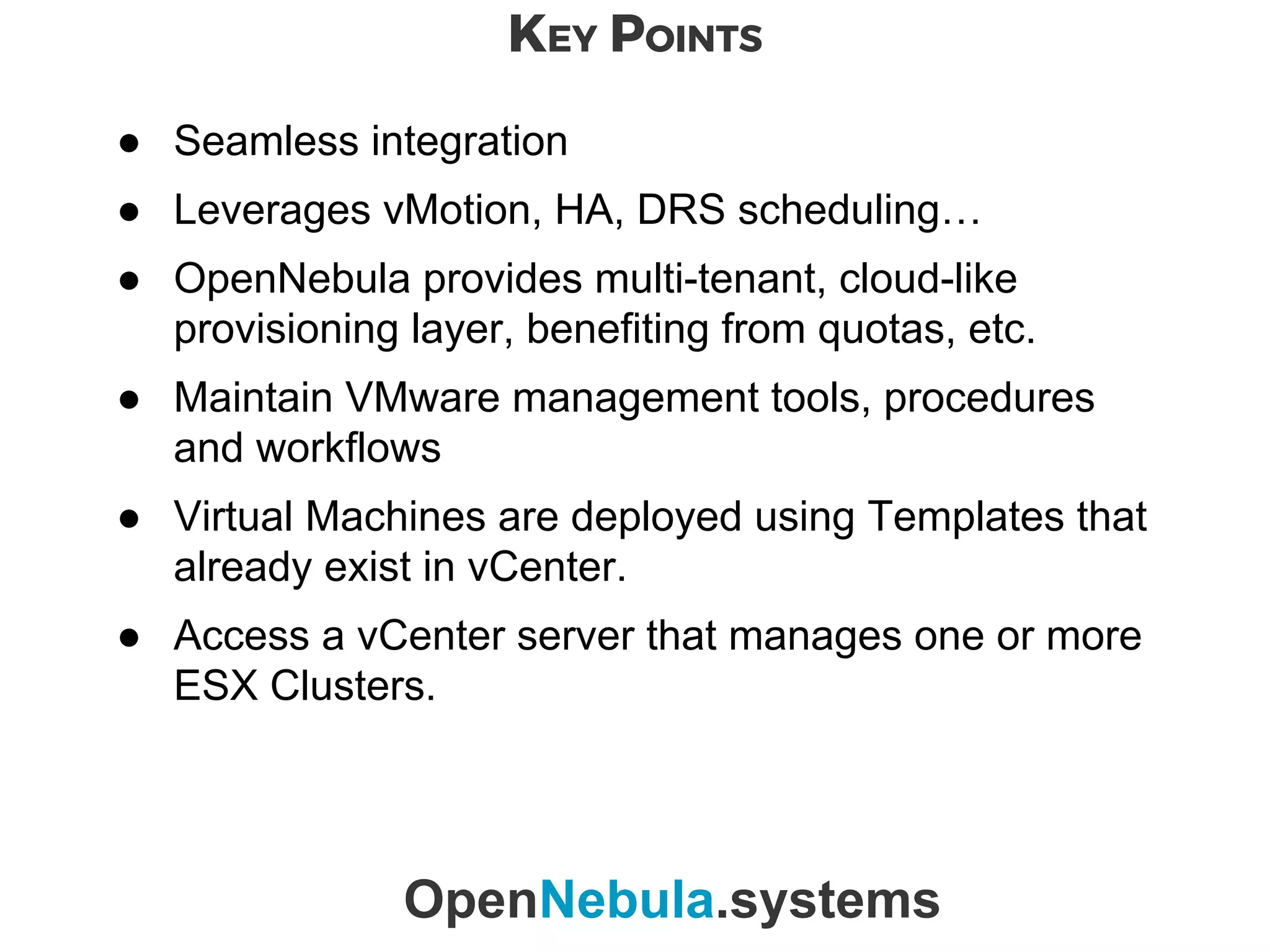

5. KEY POINTS
OpenNebula.systems
● Seamless integration
● Leverages vMotion, HA, DRS scheduling…
● OpenNebula provides multi-tenant, cloud-like
provisioning layer, benefiting from quotas, etc.
● Maintain VMware management tools, procedures
and workflows
● Virtual Machines are deployed using Templates that
already exist in vCenter.
● Access a vCenter server that manages one or more
ESX Clusters.

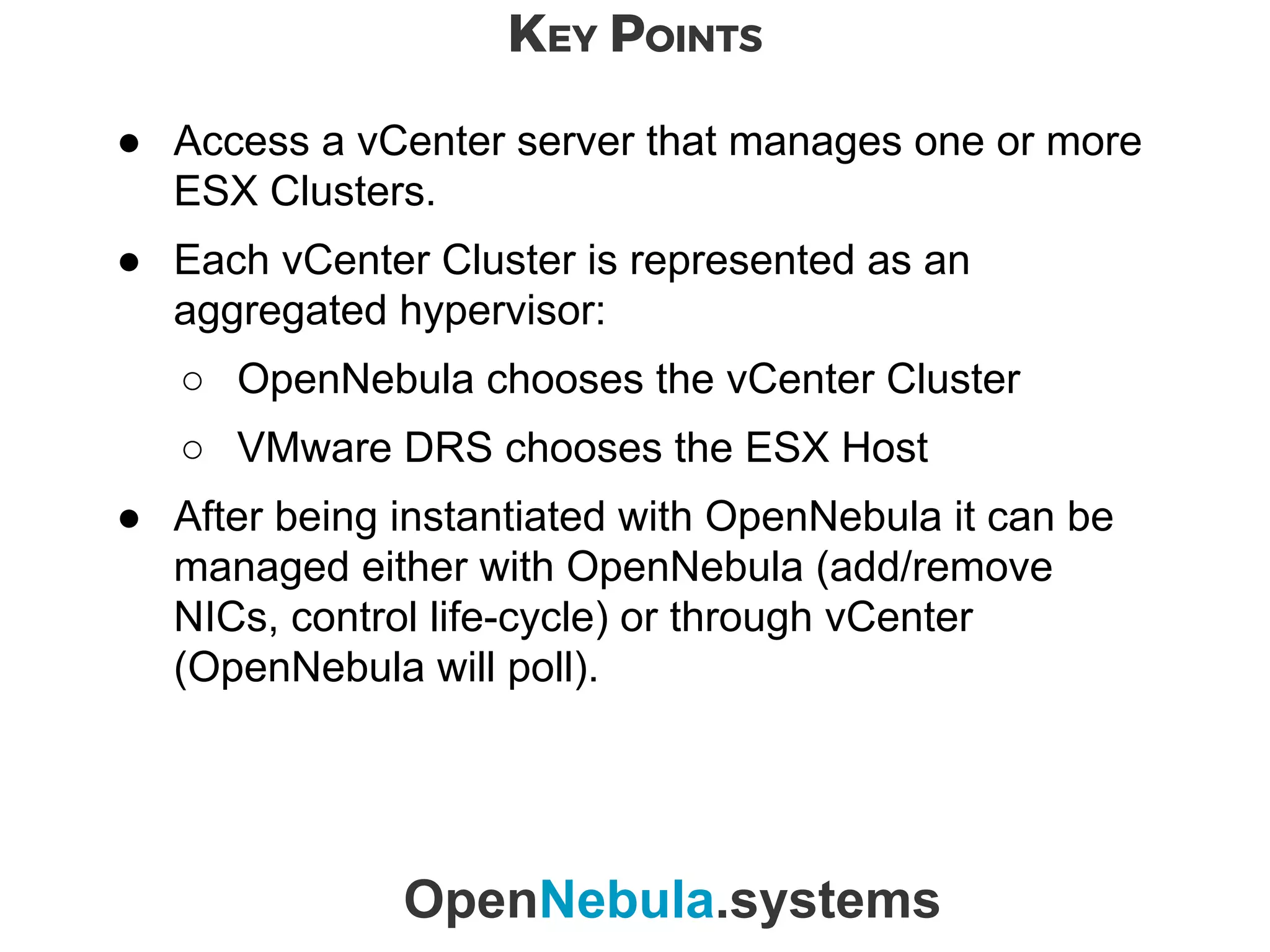

6. KEY POINTS
OpenNebula.systems
● Access a vCenter server that manages one or more
ESX Clusters.
● Each vCenter Cluster is represented as an
aggregated hypervisor:
○ OpenNebula chooses the vCenter Cluster
○ VMware DRS chooses the ESX Host
● After being instantiated with OpenNebula it can be
managed either with OpenNebula (add/remove
NICs, control life-cycle) or through vCenter
(OpenNebula will poll).

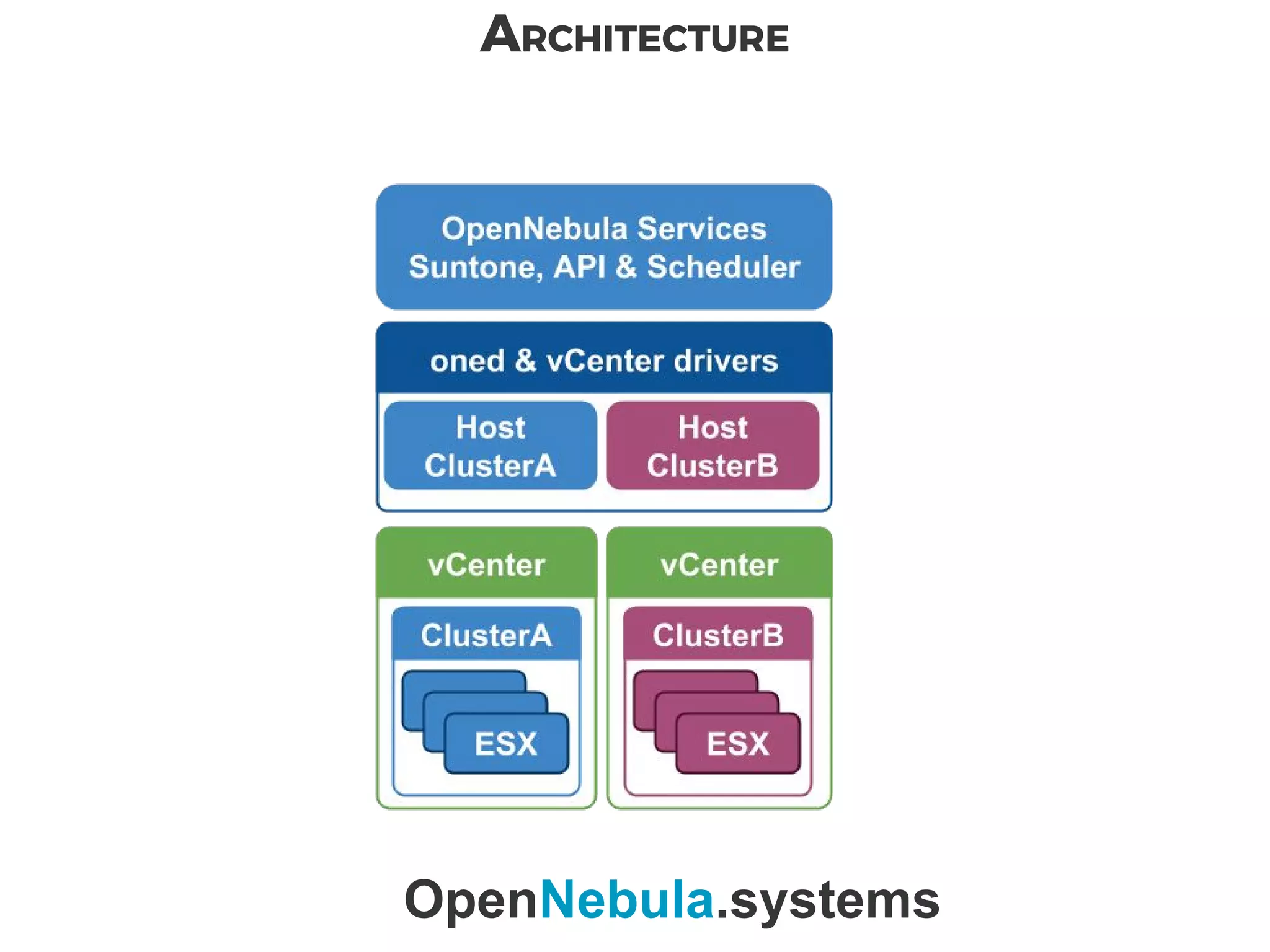

7. ARCHITECTURE
OpenNebula.systems

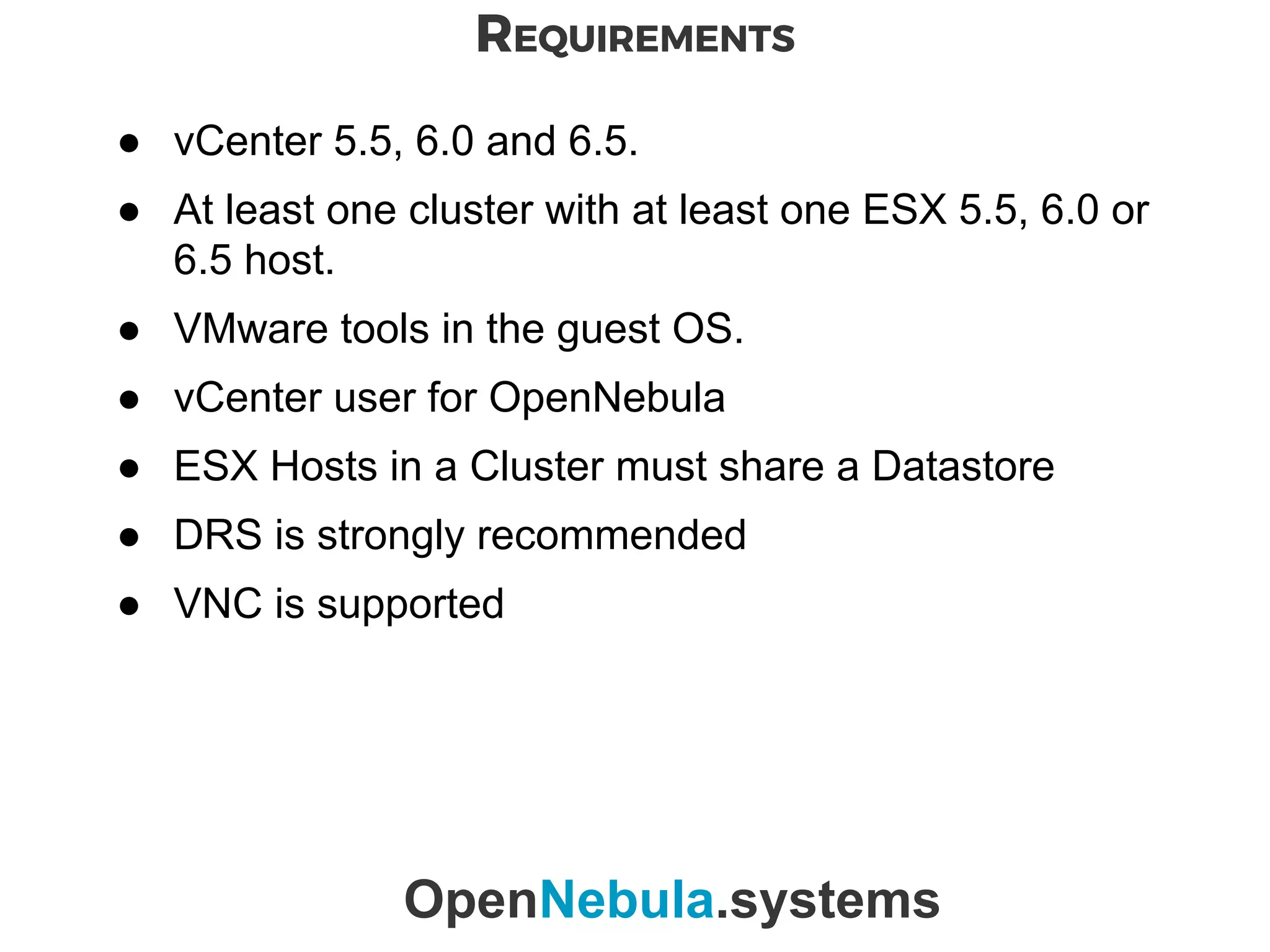

8. REQUIREMENTS
OpenNebula.systems
● vCenter 5.5, 6.0 and 6.5.
● At least one cluster with at least one ESX 5.5, 6.0 or
6.5 host.
● VMware tools in the guest OS.
● vCenter user for OpenNebula
● ESX Hosts in a Cluster must share a Datastore
● DRS is strongly recommended
● VNC is supported

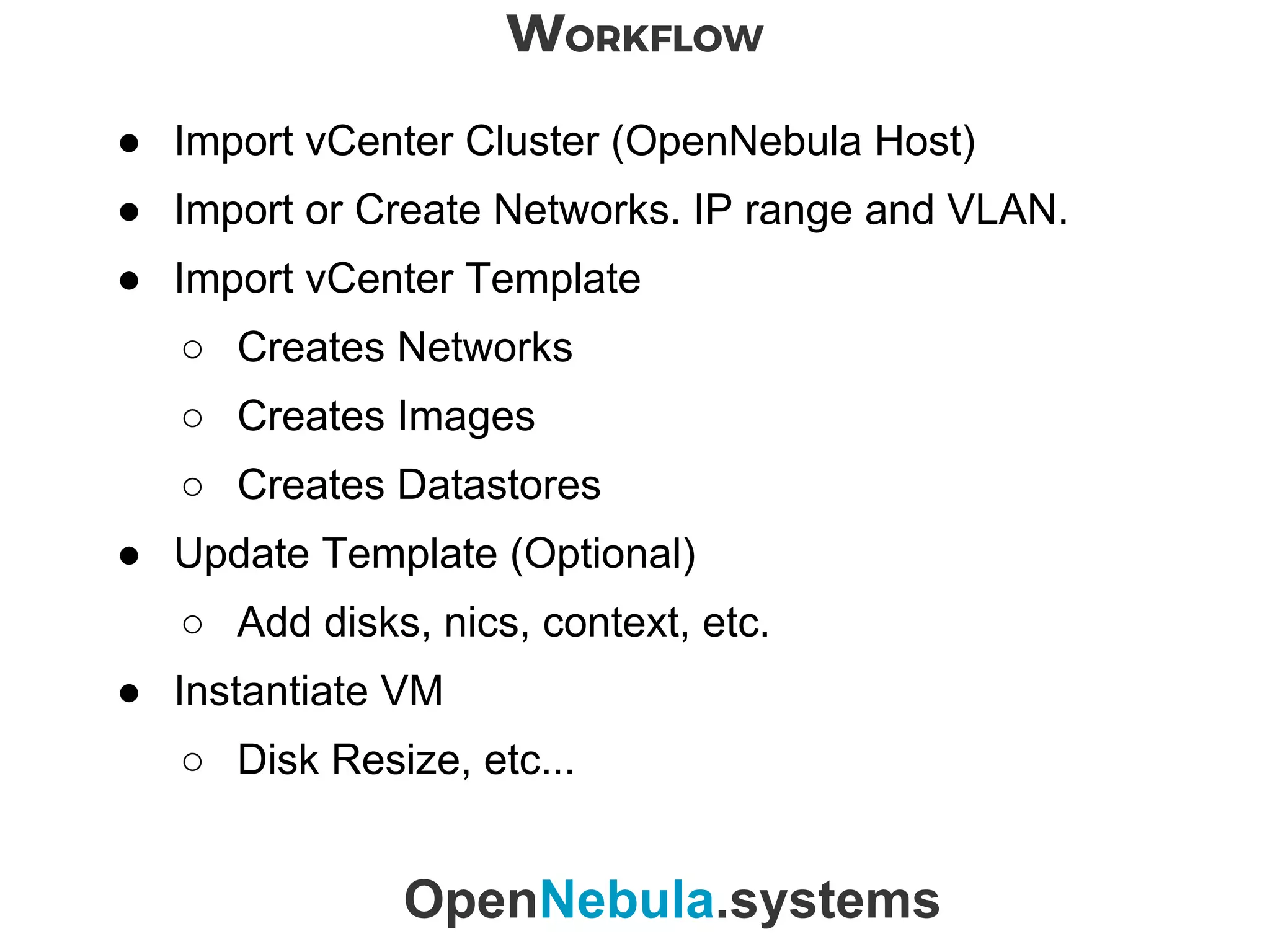

9. WORKFLOW
OpenNebula.systems
● Import vCenter Cluster (OpenNebula Host)
● Import or Create Networks. IP range and VLAN.
● Import vCenter Template
○ Creates Networks
○ Creates Images
○ Creates Datastores
● Update Template (Optional)
○ Add disks, nics, context, etc.
● Instantiate VM
○ Disk Resize, etc...

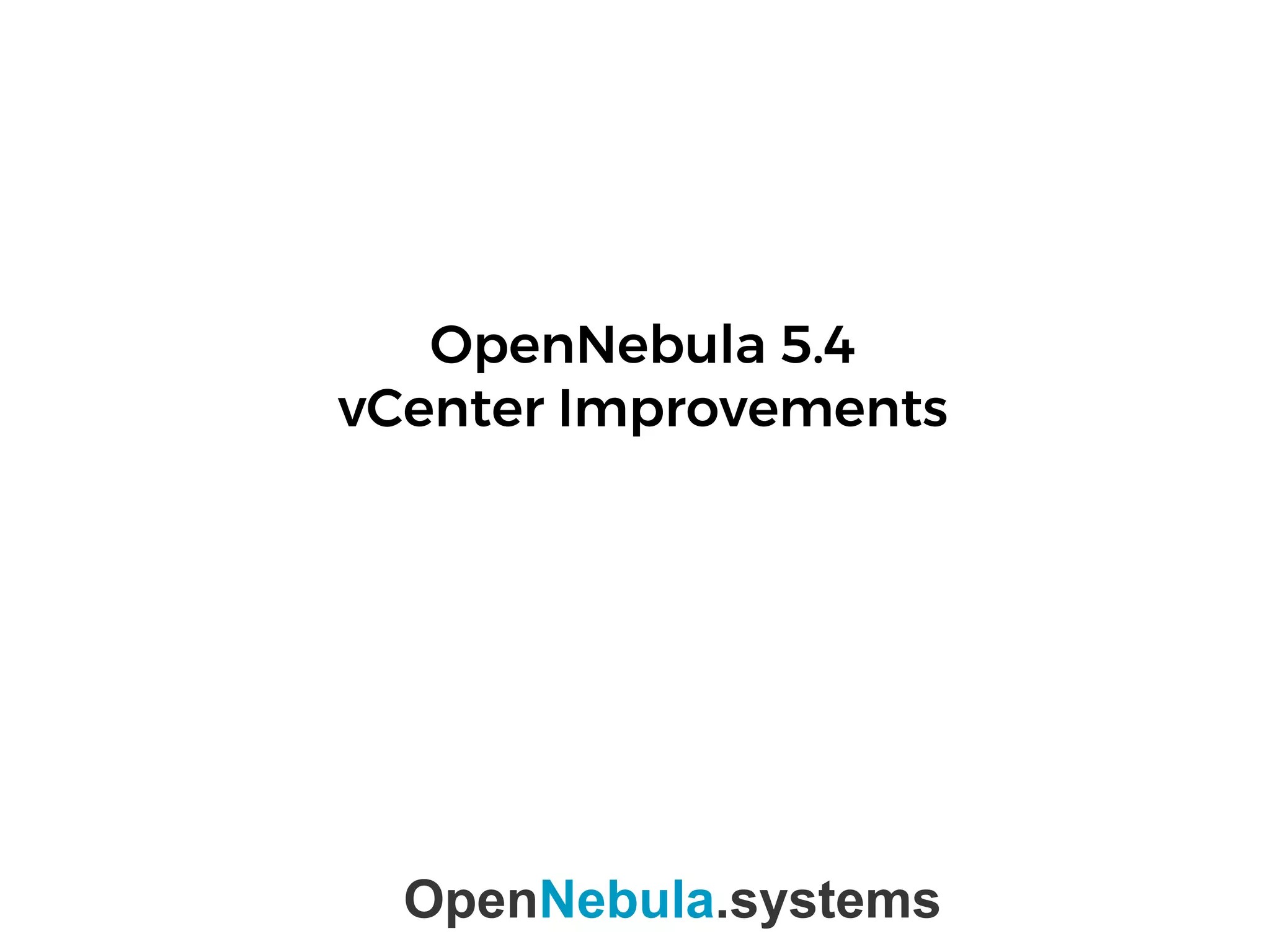

10. OpenNebula 5.4
vCenter Improvements
OpenNebula.systems

11. GOAL OF OPENNEBULA 5.4
OpenNebula.systems
Up to speed with

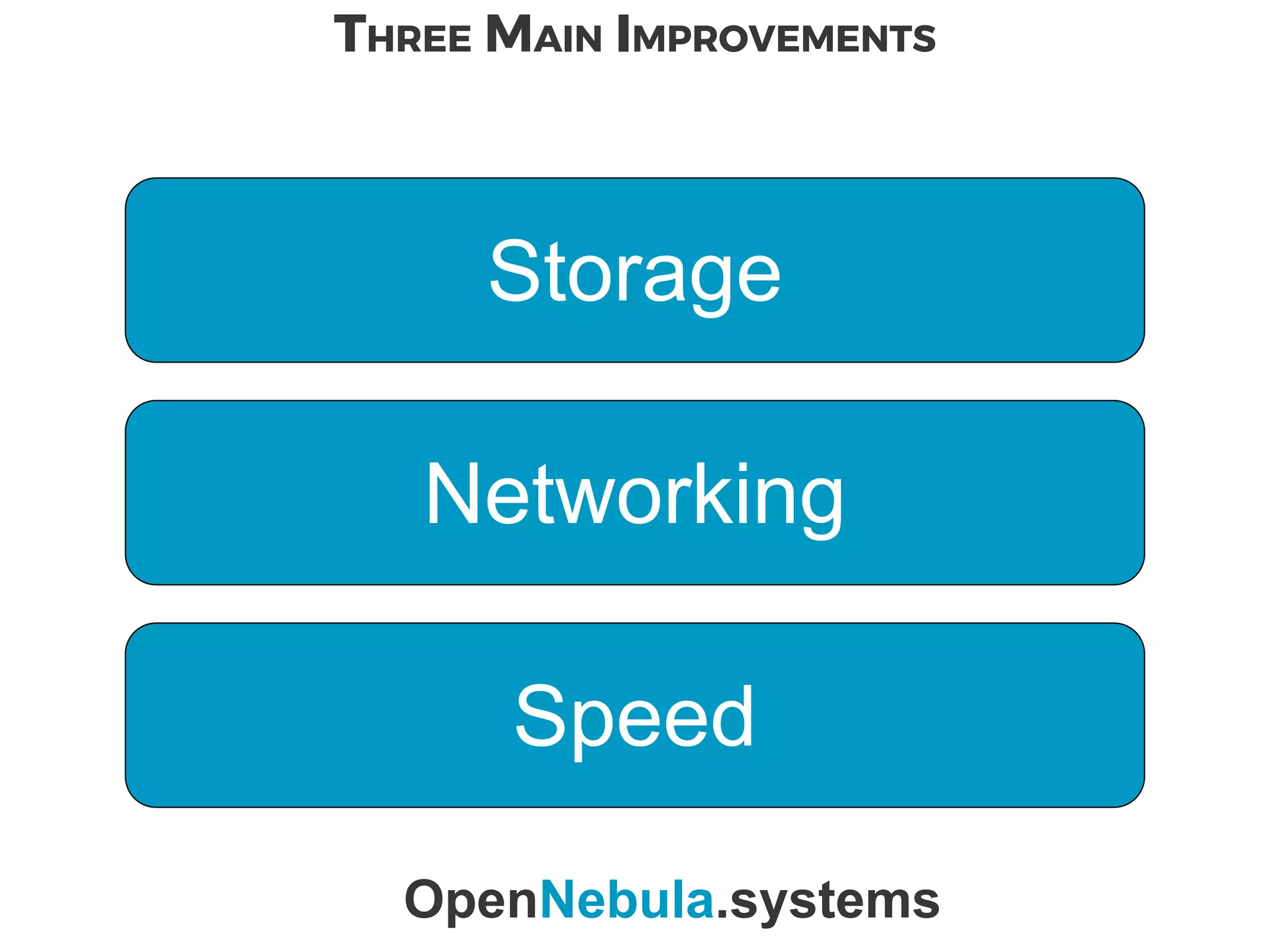

12. THREE MAIN IMPROVEMENTS
OpenNebula.systems
Networking
Storage
Speed

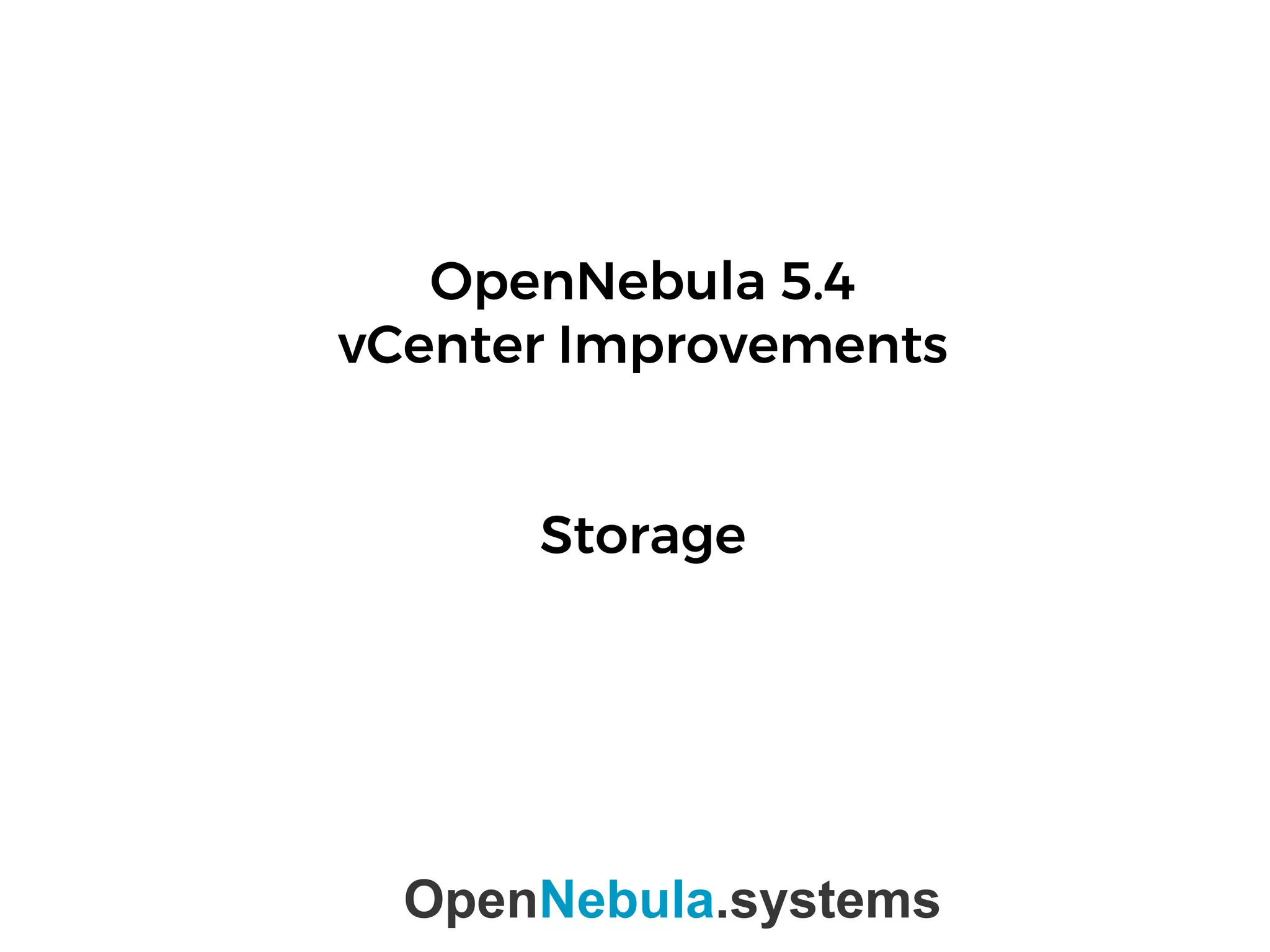

13. OpenNebula 5.4
vCenter Improvements
Storage
OpenNebula.systems

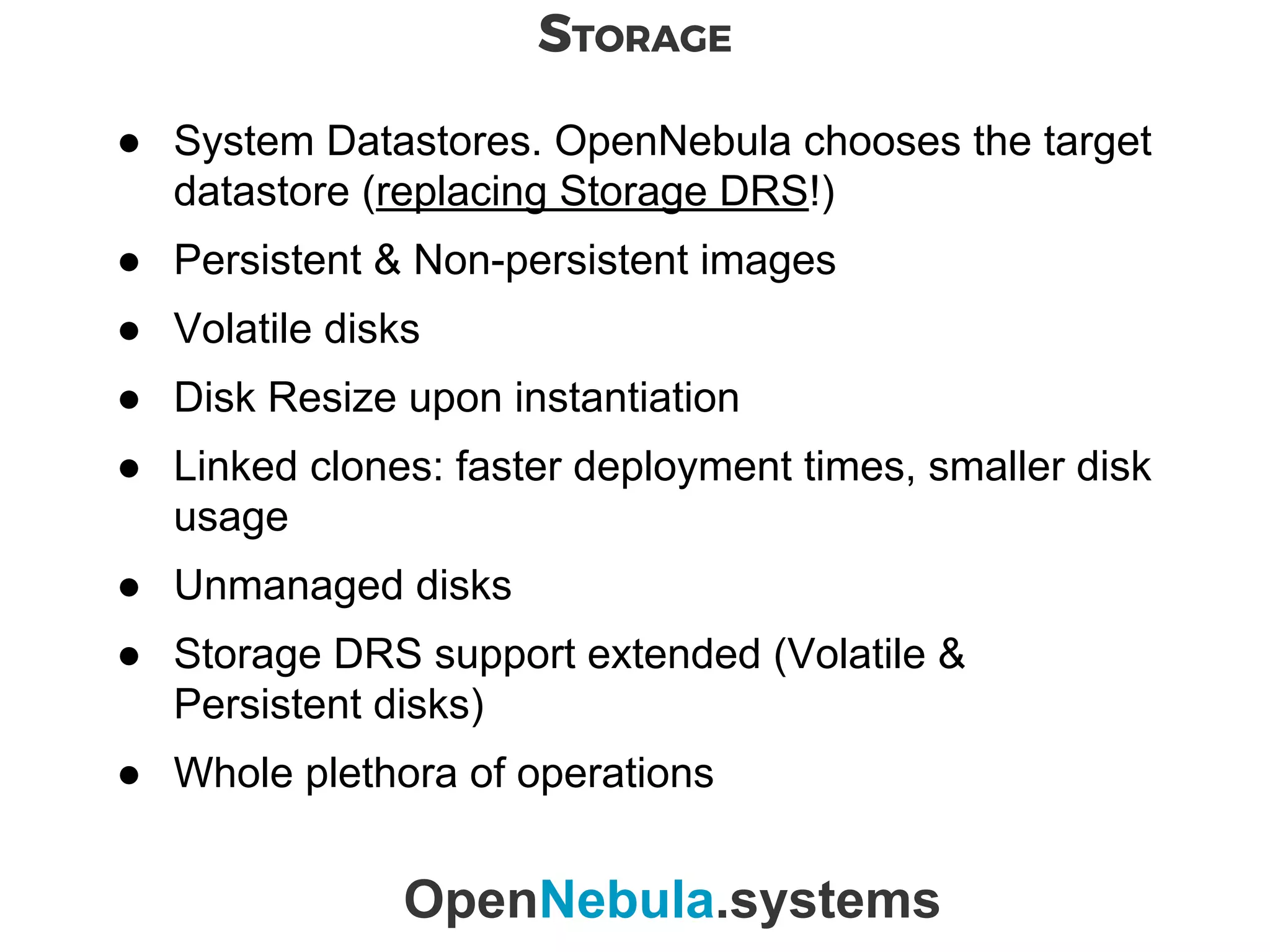

14. STORAGE
OpenNebula.systems
● System Datastores. OpenNebula chooses the target
datastore (replacing Storage DRS!)
● Persistent & Non-persistent images
● Volatile disks
● Disk Resize upon instantiation
● Linked clones: faster deployment times, smaller disk
usage
● Unmanaged disks
● Storage DRS support extended (Volatile &
Persistent disks)
● Whole plethora of operations

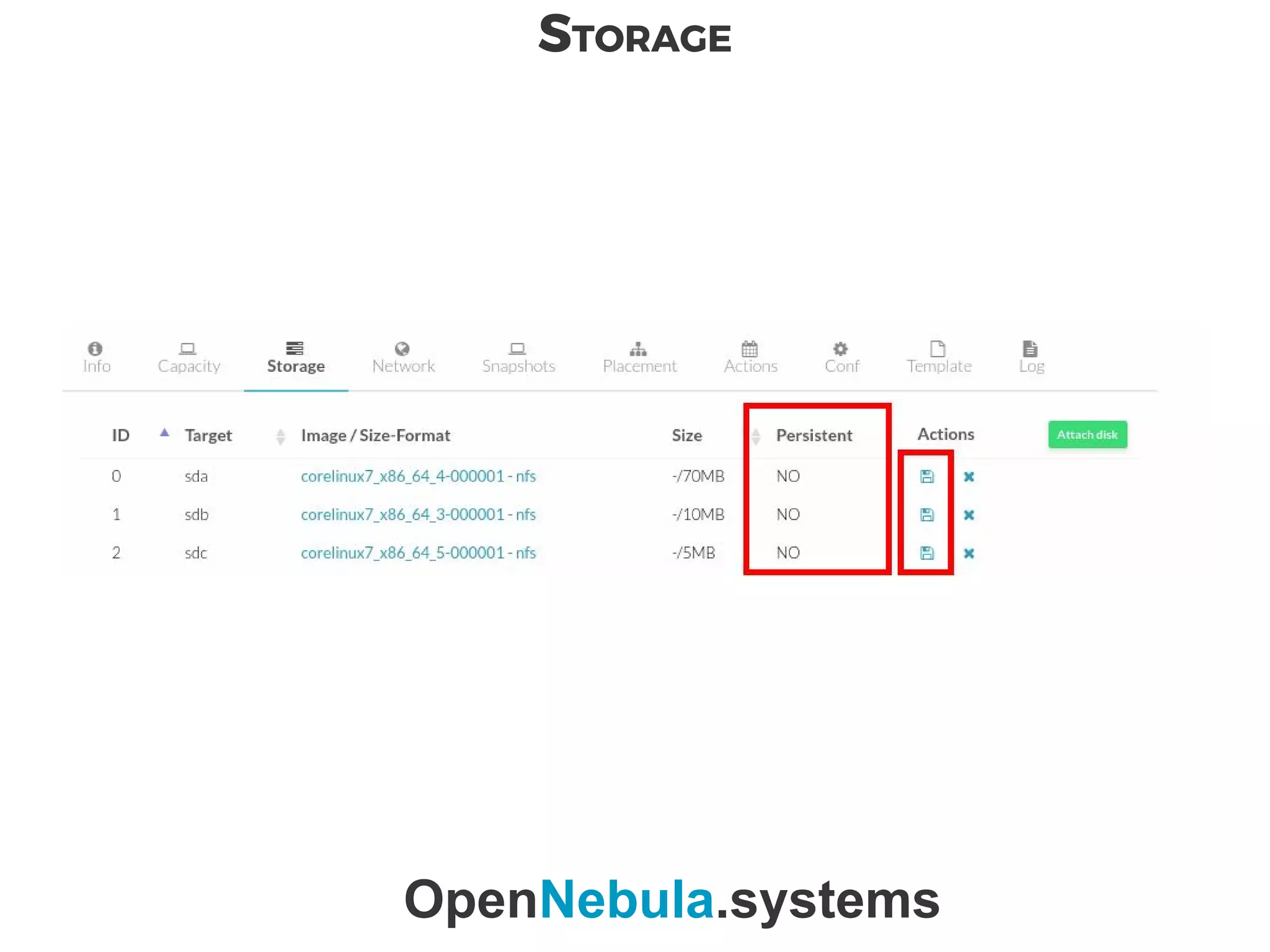

15. STORAGE
OpenNebula.systems

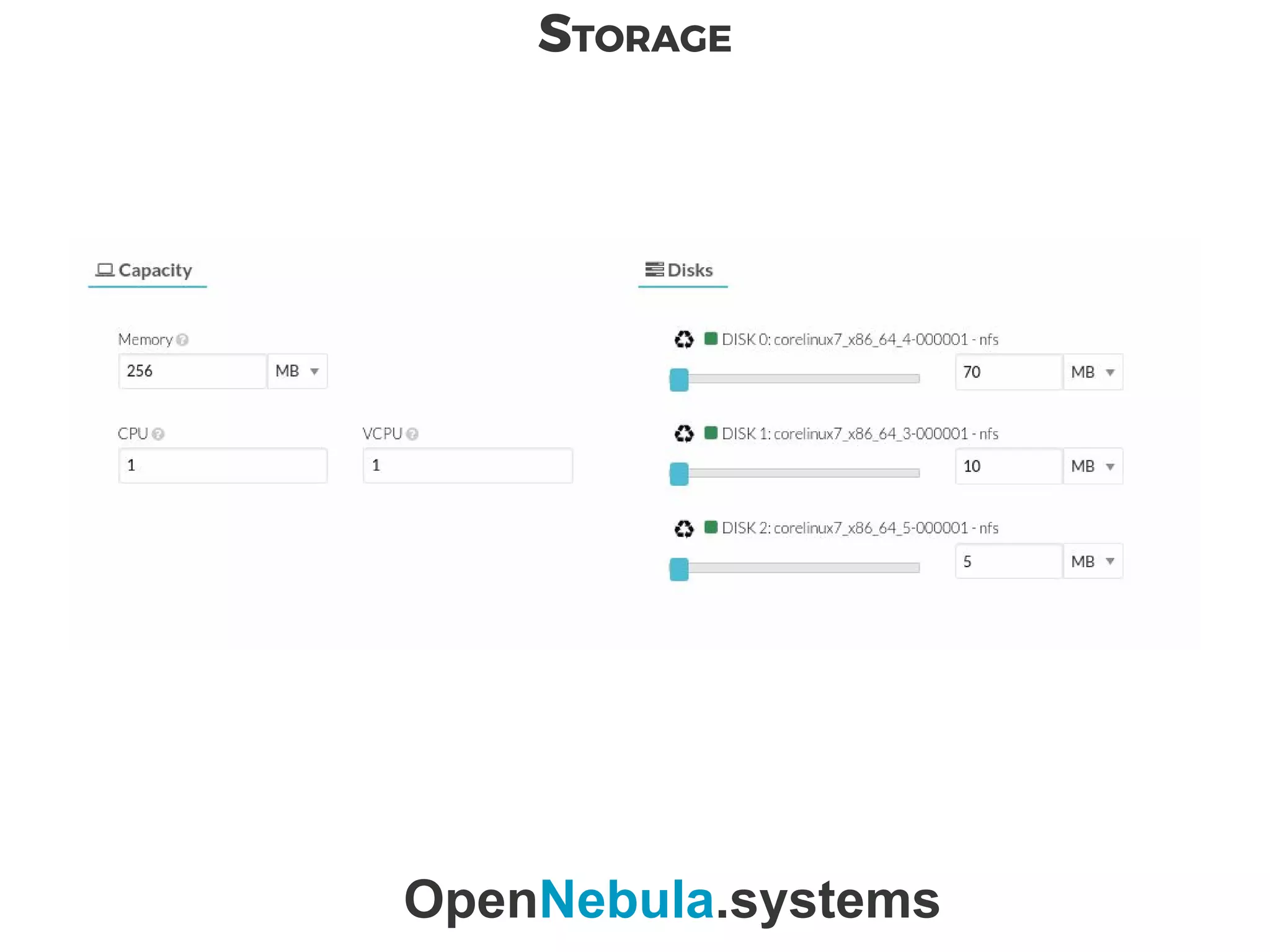

16. STORAGE
OpenNebula.systems

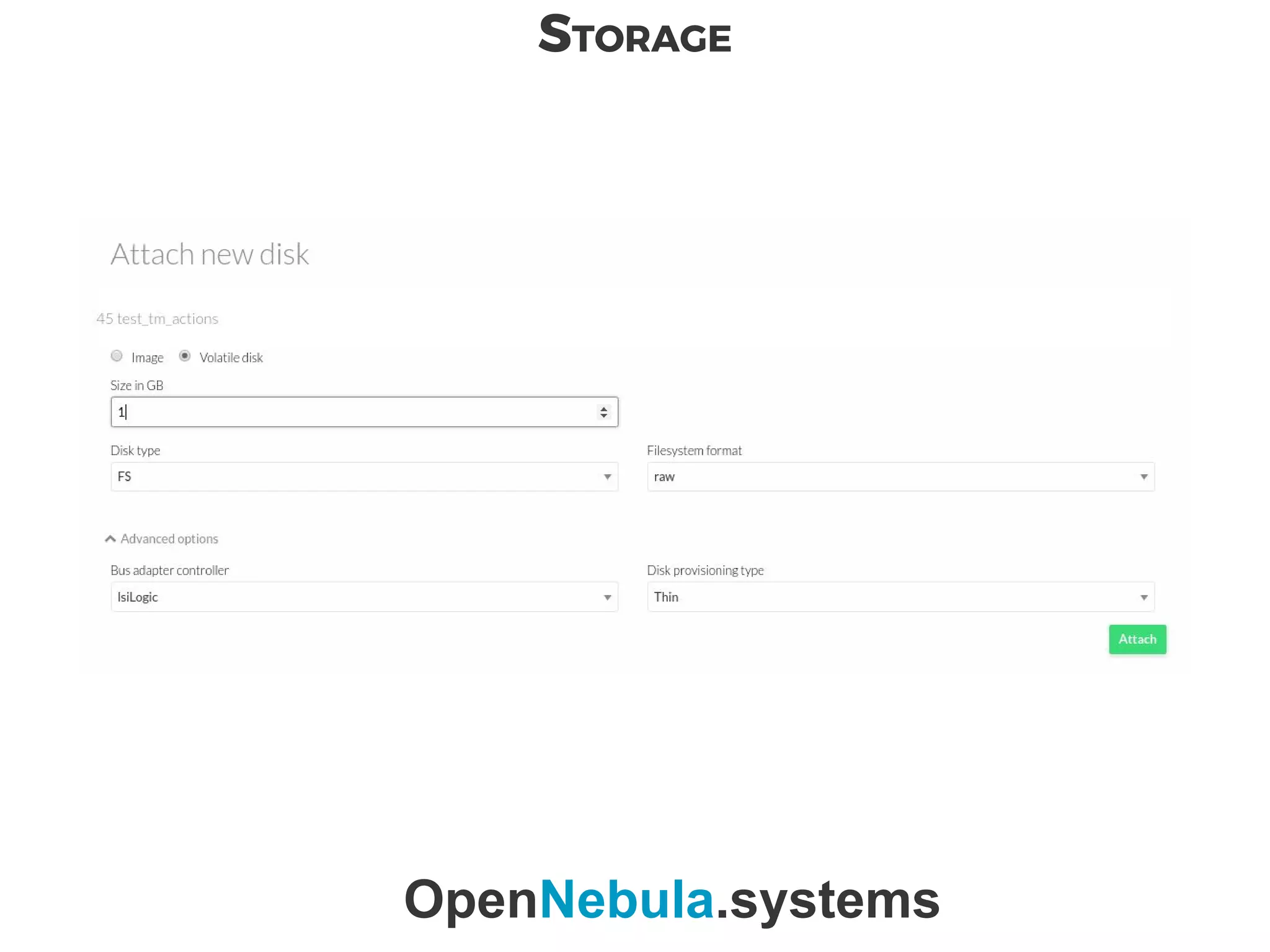

17. STORAGE
OpenNebula.systems

18. OpenNebula 5.4
vCenter Improvements
Networking
OpenNebula.systems

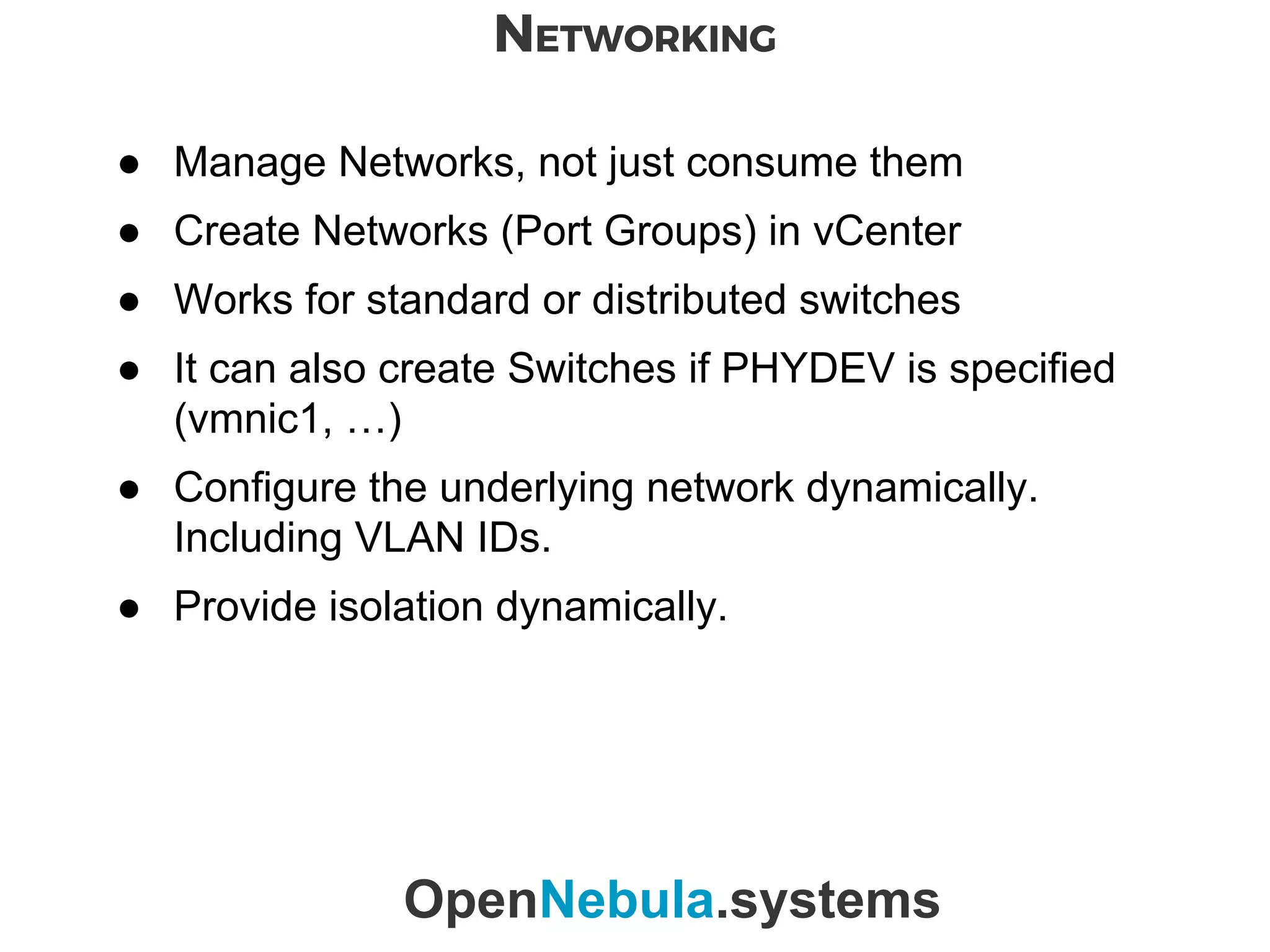

19. NETWORKING
OpenNebula.systems
● Manage Networks, not just consume them
● Create Networks (Port Groups) in vCenter
● Works for standard or distributed switches
● It can also create Switches if PHYDEV is specified
(vmnic1, …)
● Configure the underlying network dynamically.
Including VLAN IDs.
● Provide isolation dynamically.

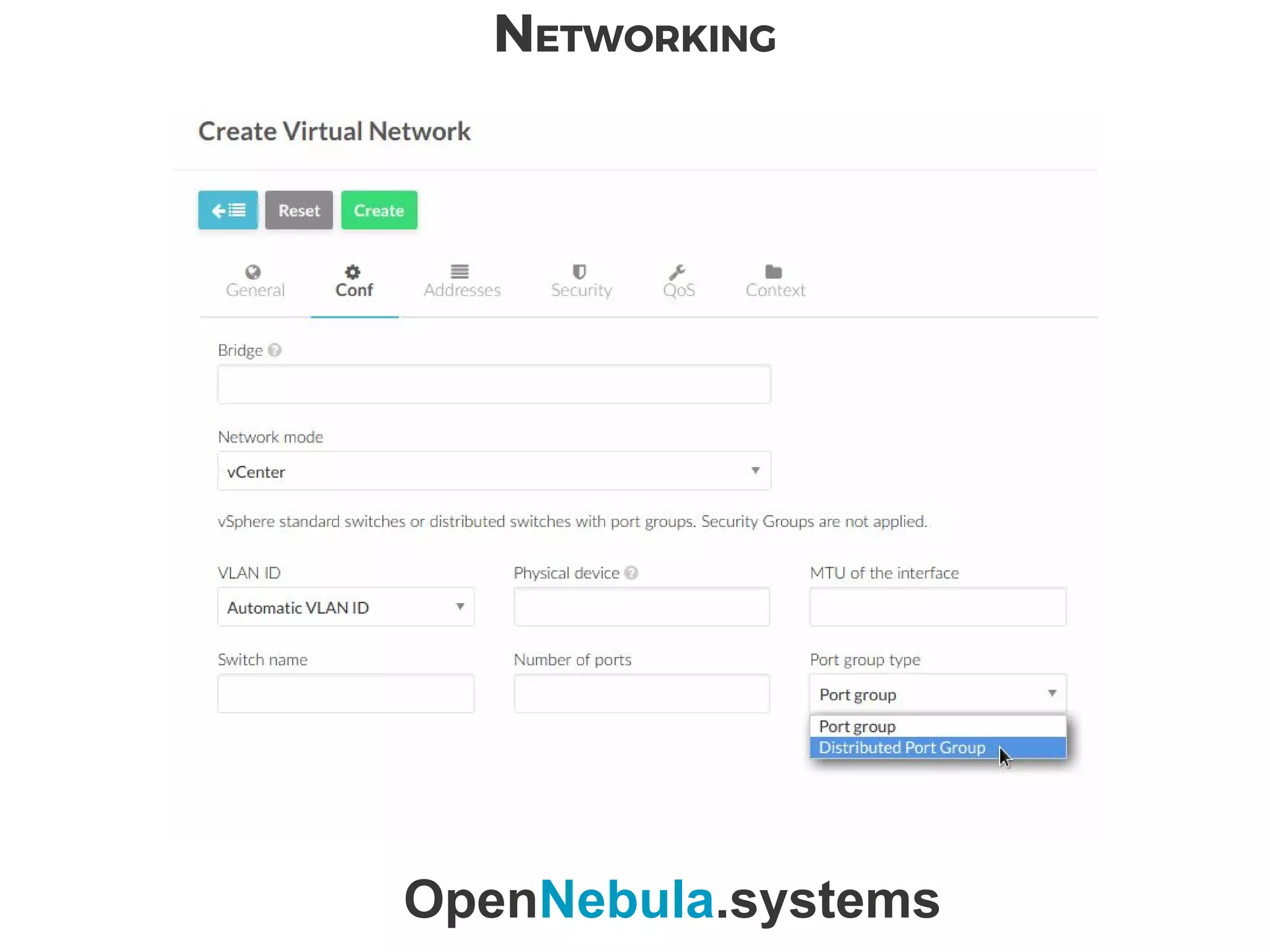

20. NETWORKING
OpenNebula.systems

21. OpenNebula 5.4
vCenter Improvements
Speed
OpenNebula.systems

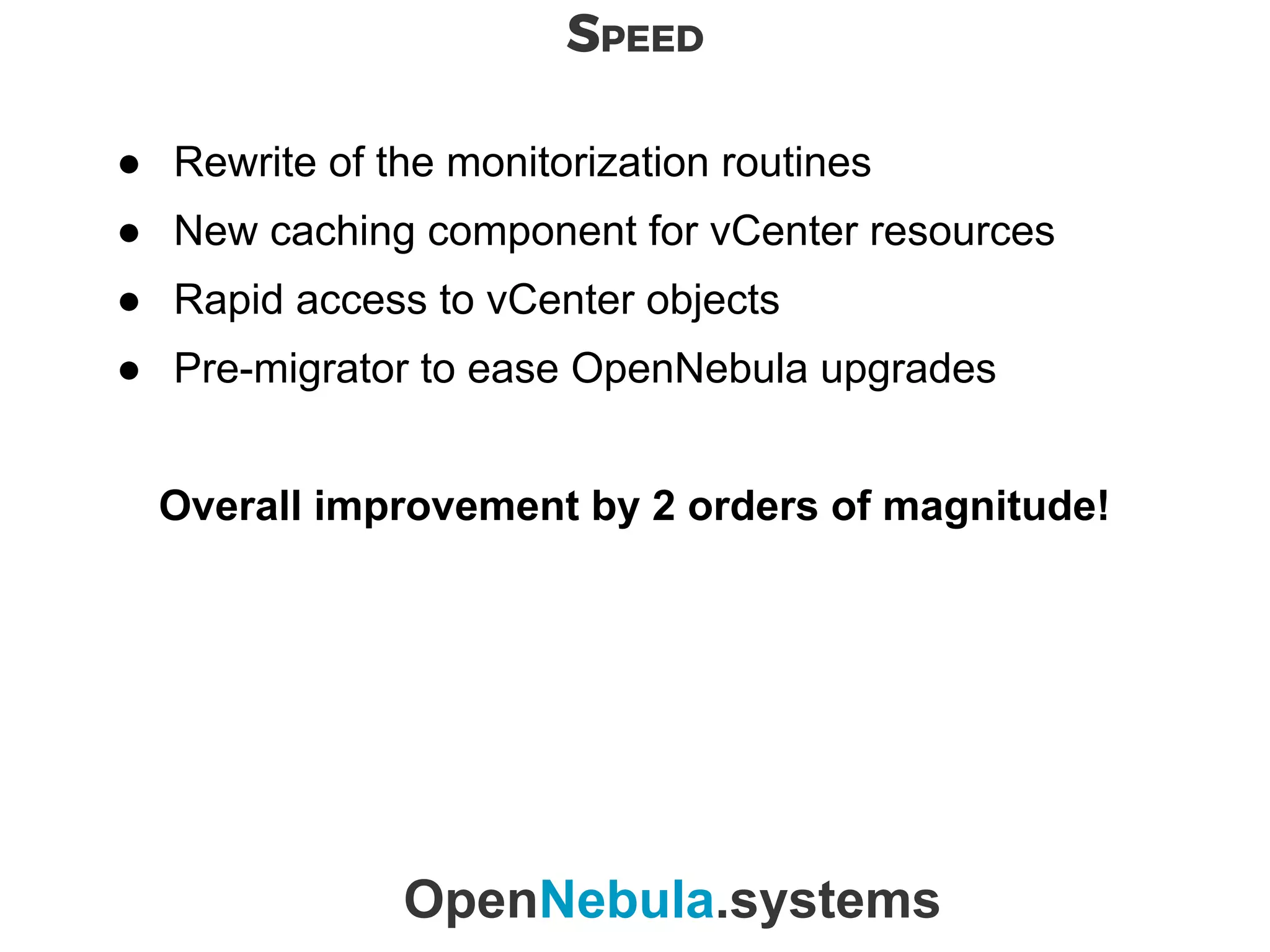

22. SPEED
OpenNebula.systems
● Rewrite of the monitorization routines
● New caching component for vCenter resources
● Rapid access to vCenter objects
● Pre-migrator to ease OpenNebula upgrades
Overall improvement by 2 orders of magnitude!

23. OpenNebula 5.4
vCenter Improvements
Fixing Limitations
OpenNebula.systems

24. FIXING LIMITATIONS
OpenNebula.systems
● Attach / Detach poweroff state
● Choose in what folder VMs will be placed
● Context regeneration
● Resources with spaces (including cluster names)
● Proper cleanup of terminated VMs after poweroff
● Recover delete cleans all resources
● VNC is configured automatically for Wild VMs

25. Questions?
Questions?
Thank you!
