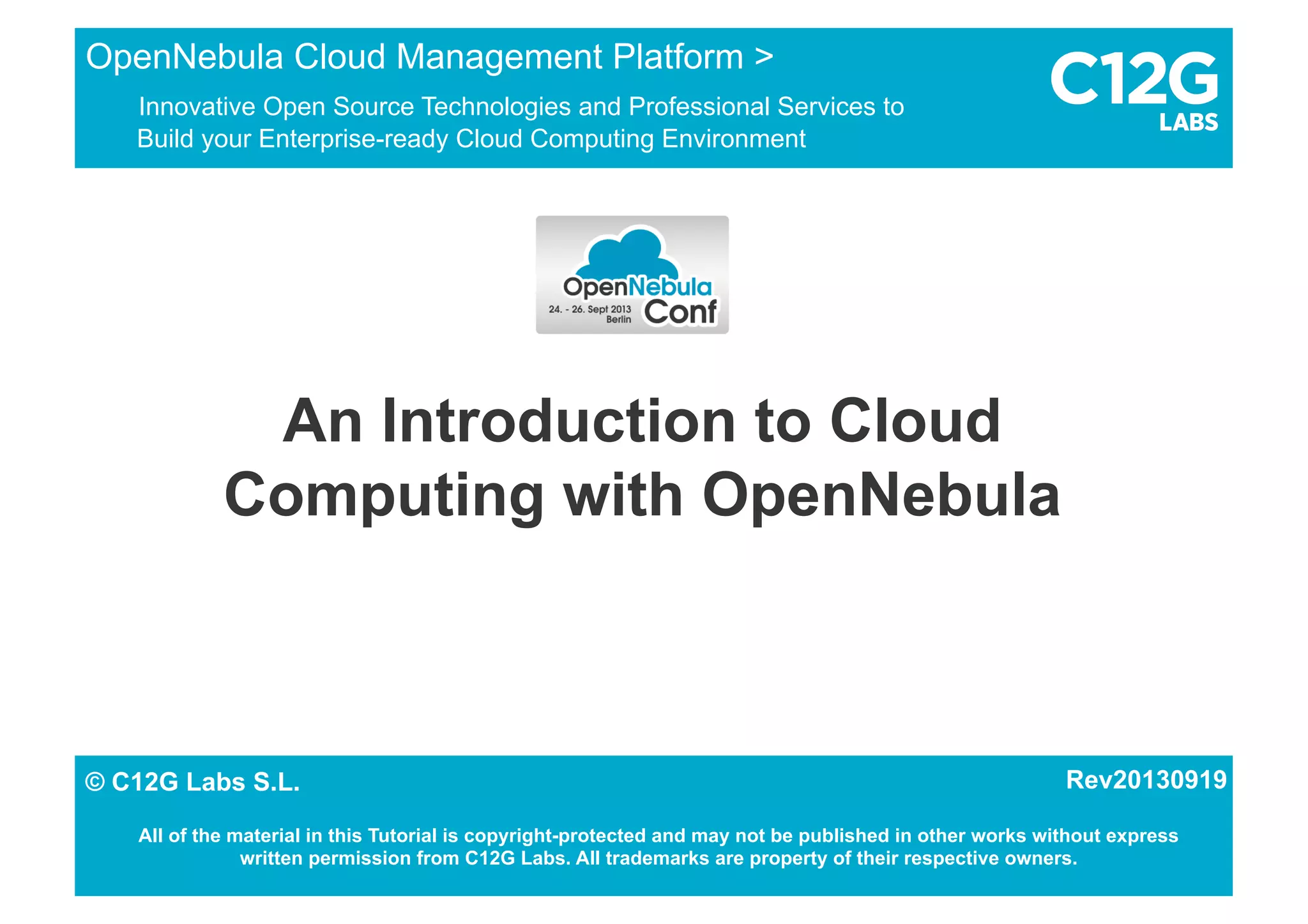

1. An Introduction to Cloud
Computing with OpenNebula
OpenNebula Cloud Management Platform >
Innovative Open Source Technologies and Professional Services to
Build your Enterprise-ready Cloud Computing Environment
1/15© C12G Labs S.L.
All of the material in this Tutorial is copyright-protected and may not be published in other works without express
written permission from C12G Labs. All trademarks are property of their respective owners.
© C12G Labs S.L. Rev20130919

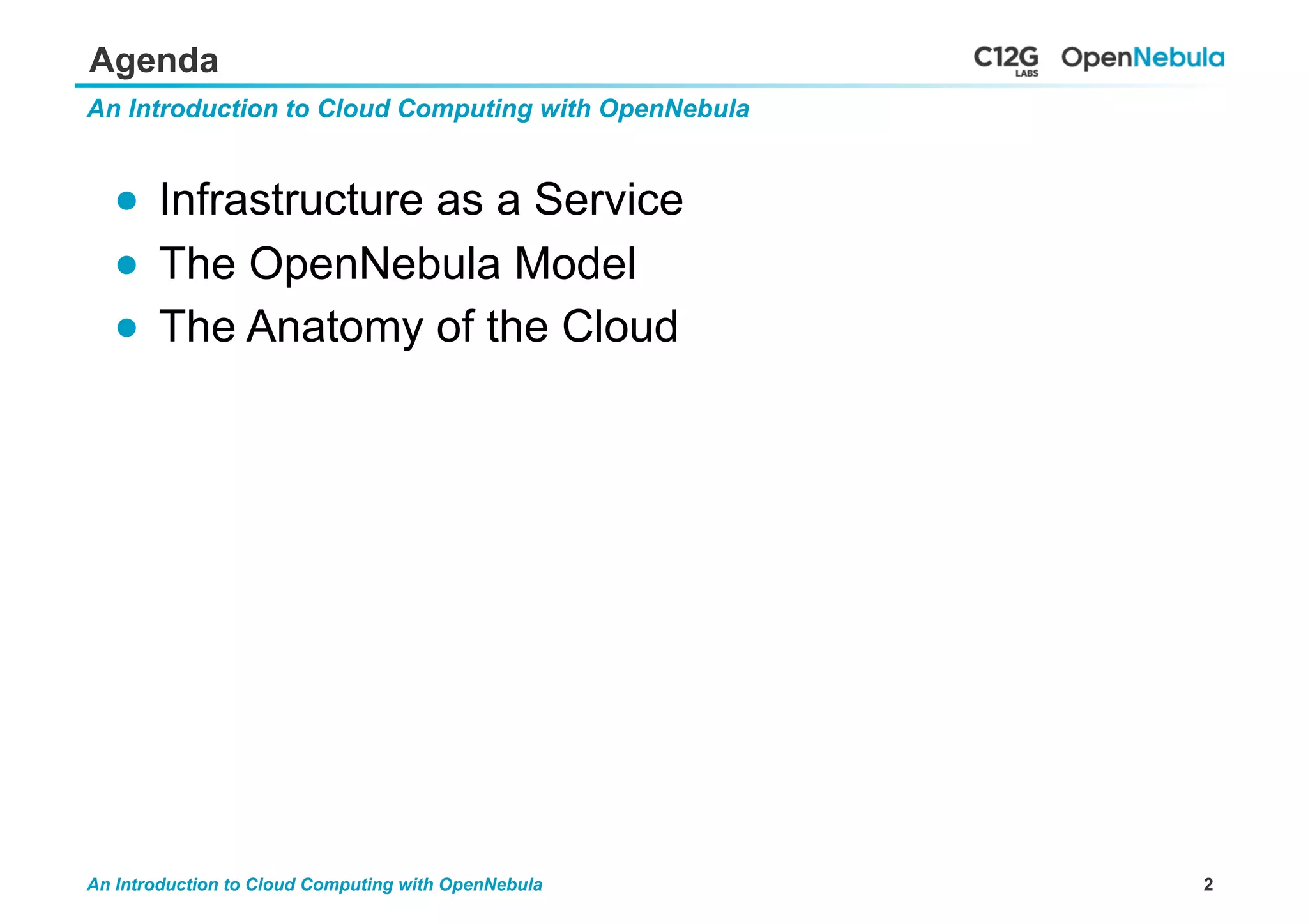

2. 2An Introduction to Cloud Computing with OpenNebula
Agenda
An Introduction to Cloud Computing with OpenNebula
● Infrastructure as a Service
● The OpenNebula Model
● The Anatomy of the Cloud

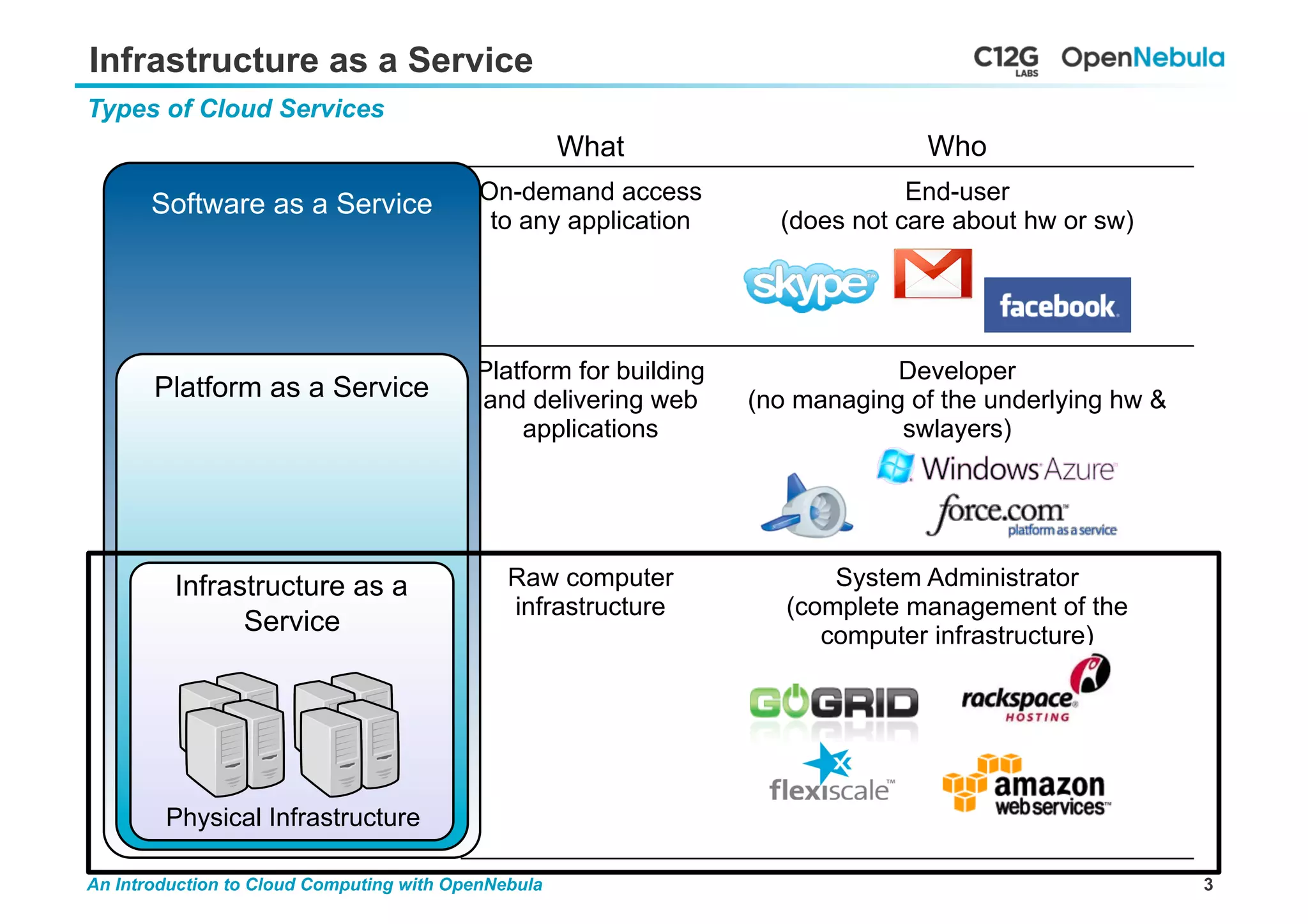

3. 3An Introduction to Cloud Computing with OpenNebula
Infrastructure as a Service
Types of Cloud Services
What Who
On-demand access
to any application
End-user
(does not care about hw or sw)
Platform for building
and delivering web
applications
Developer
(no managing of the underlying hw &
swlayers)
Raw computer
infrastructure
System Administrator
(complete management of the
computer infrastructure)
Software as a Service
ﾺ
Platform as a Service
Infrastructure as a
Service
Physical Infrastructure

4. 4An Introduction to Cloud Computing with OpenNebula
Infrastructure as a Service
Types of Cloud Deployments
• Simple Web Interface
• Raw Infrastructure Resources
• Pay-as-you-go (On-demand access)
• Elastic & “infinite” Capacity

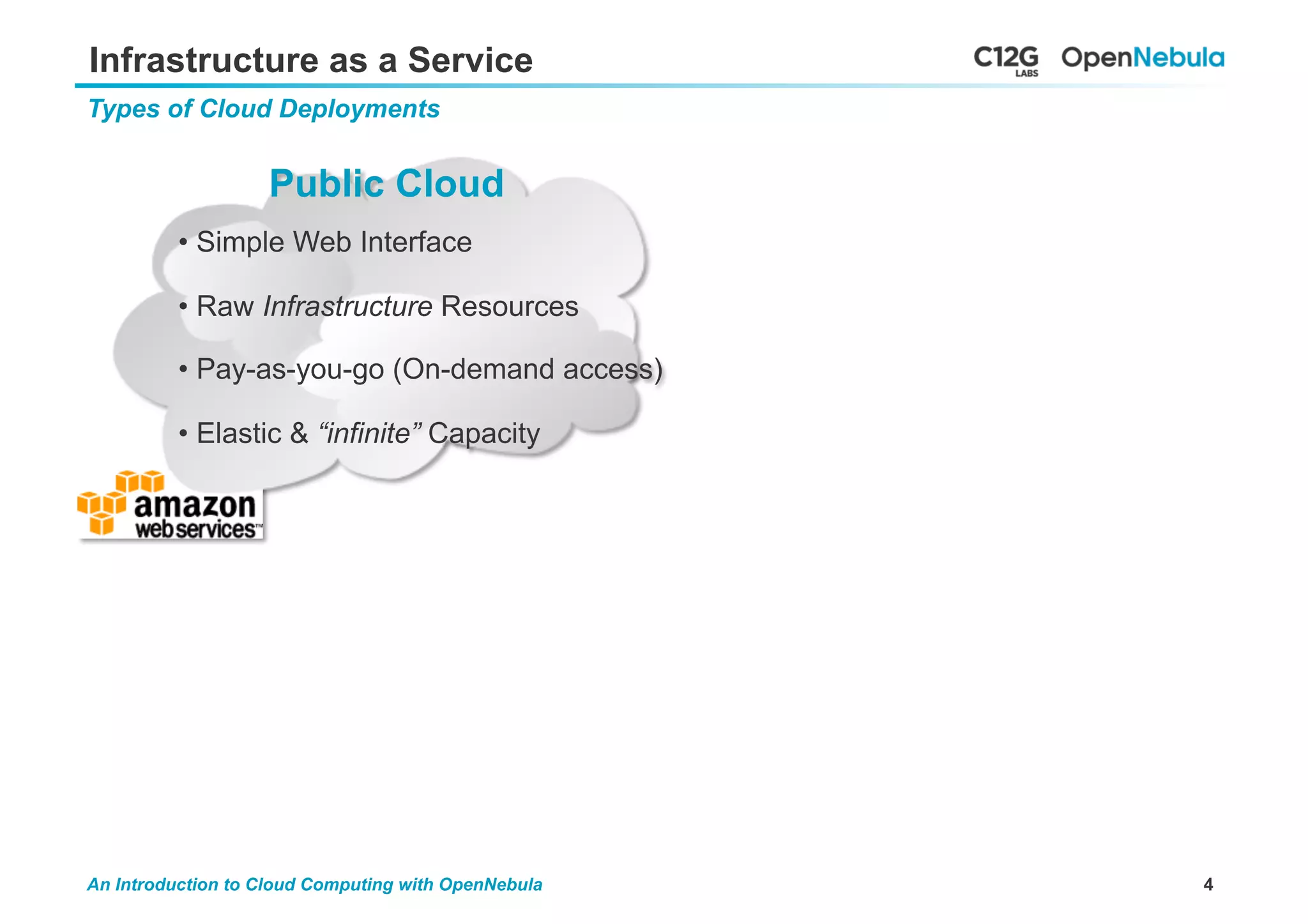

Public Cloud

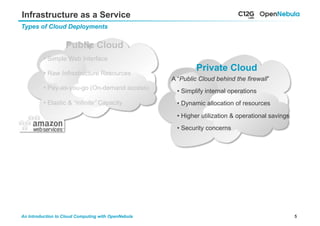

5. 5An Introduction to Cloud Computing with OpenNebula
• Simple Web Interface
• Raw Infrastructure Resources
• Pay-as-you-go (On-demand access)
• Elastic & “infinite” Capacity
Public Cloud

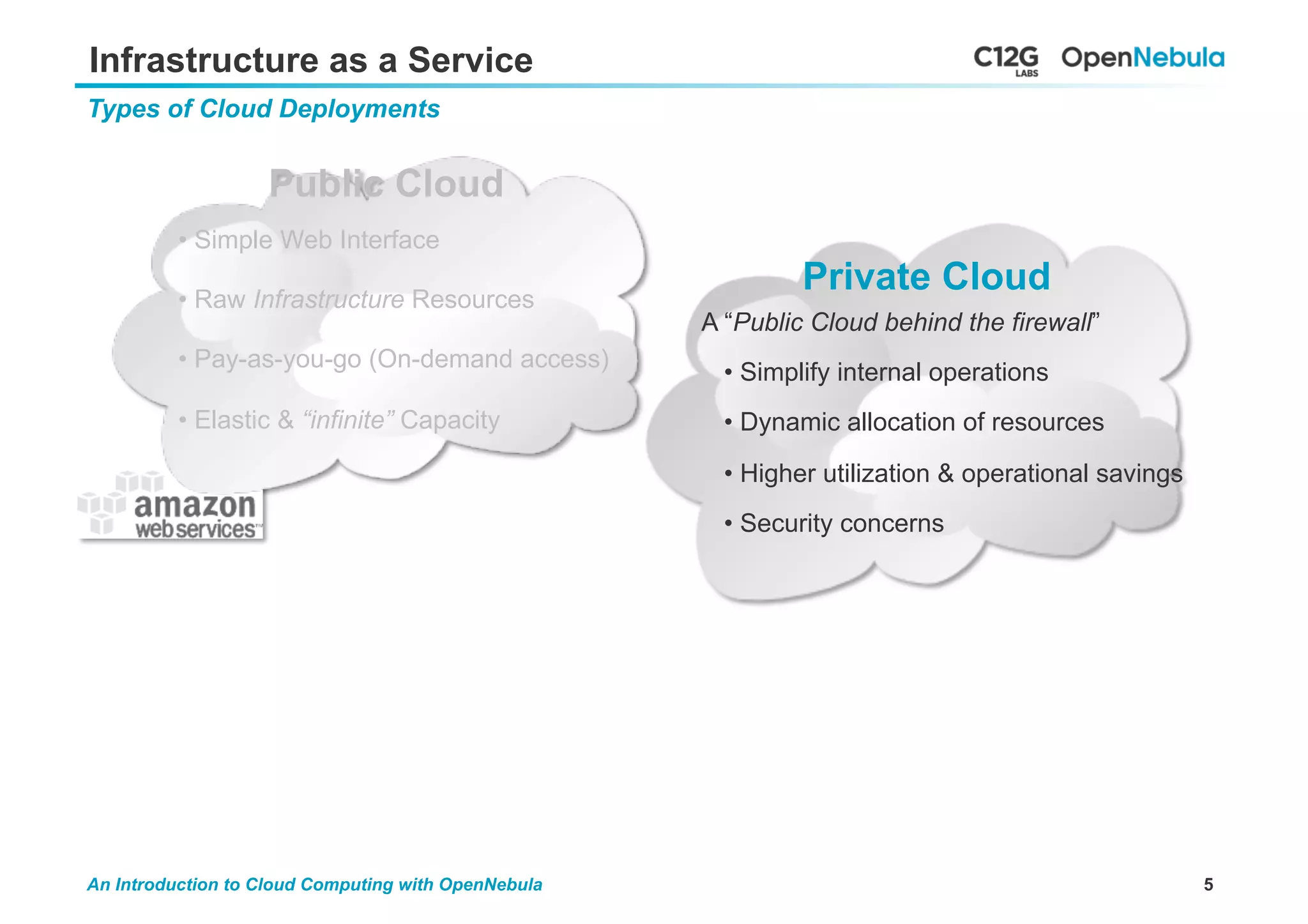

A “Public Cloud behind the firewall”
• Simplify internal operations
• Dynamic allocation of resources
• Higher utilization & operational savings
• Security concerns
Private Cloud
Infrastructure as a Service
Types of Cloud Deployments

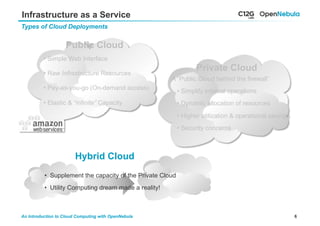

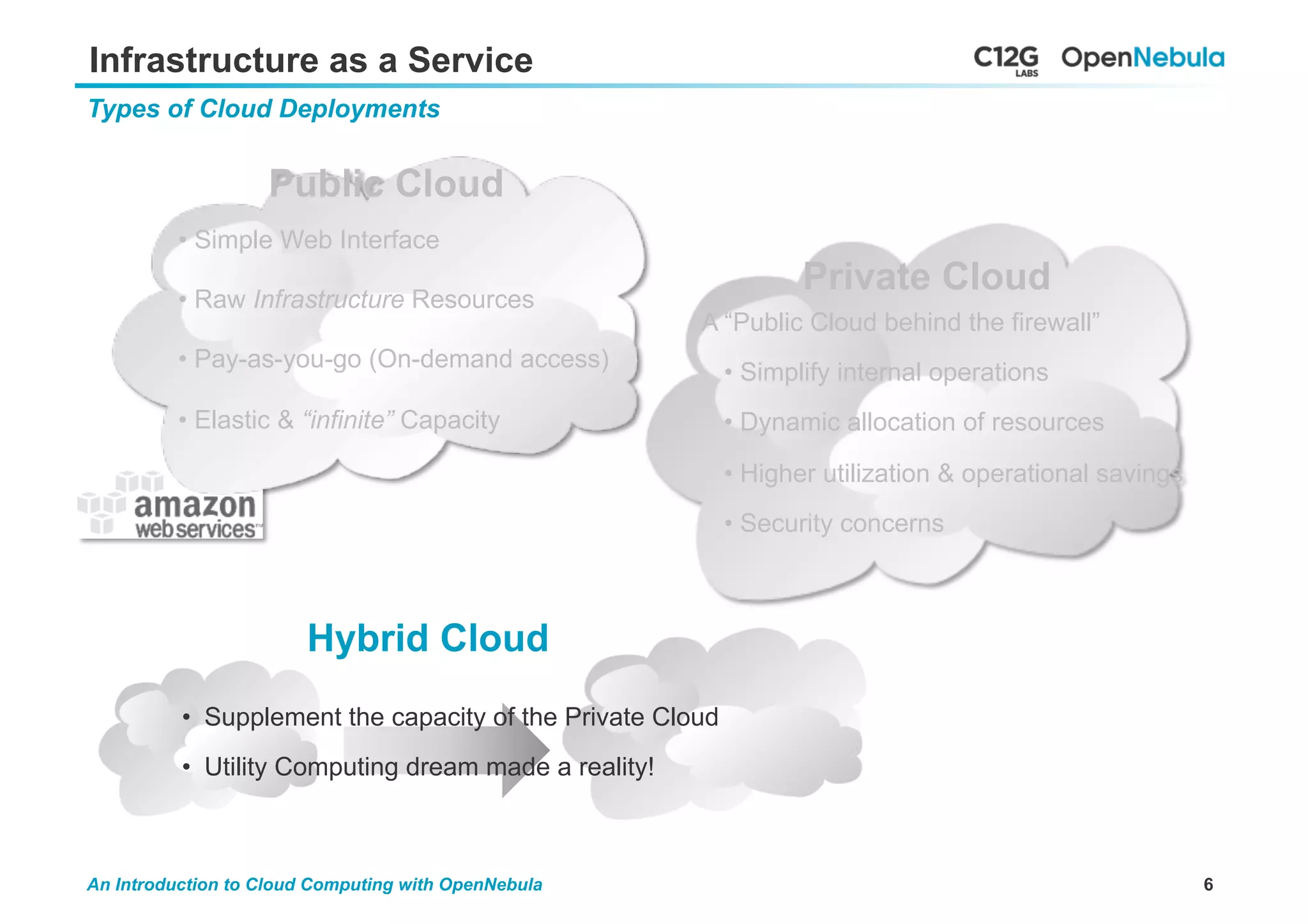

6. 6An Introduction to Cloud Computing with OpenNebula
• Simple Web Interface
• Raw Infrastructure Resources
• Pay-as-you-go (On-demand access)
• Elastic & “infinite” Capacity
Public Cloud
A “Public Cloud behind the firewall”
• Simplify internal operations
• Dynamic allocation of resources
• Higher utilization & operational savings
• Security concerns
Private Cloud
• Supplement the capacity of the Private Cloud
• Utility Computing dream made a reality!
Hybrid Cloud
Infrastructure as a Service
Types of Cloud Deployments

7. 7An Introduction to Cloud Computing with OpenNebula
• Simple Web Interface
• Raw Infrastructure Resources
• Pay-as-you-go (On-demand access)
• Elastic & “infinite” Capacity
Public Cloud
A “Public Cloud behind the firewall”
• Simplify internal operations
• Dynamic allocation of resources
• Higher utilization & operational savings
• Security concerns
Private Cloud
• Suplement the capacity of the Private Cloud
• Utility Computing dream made a reality!
Hybrid Cloud
Infrastructure as a Service

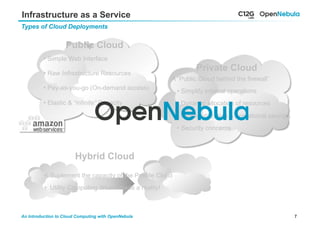

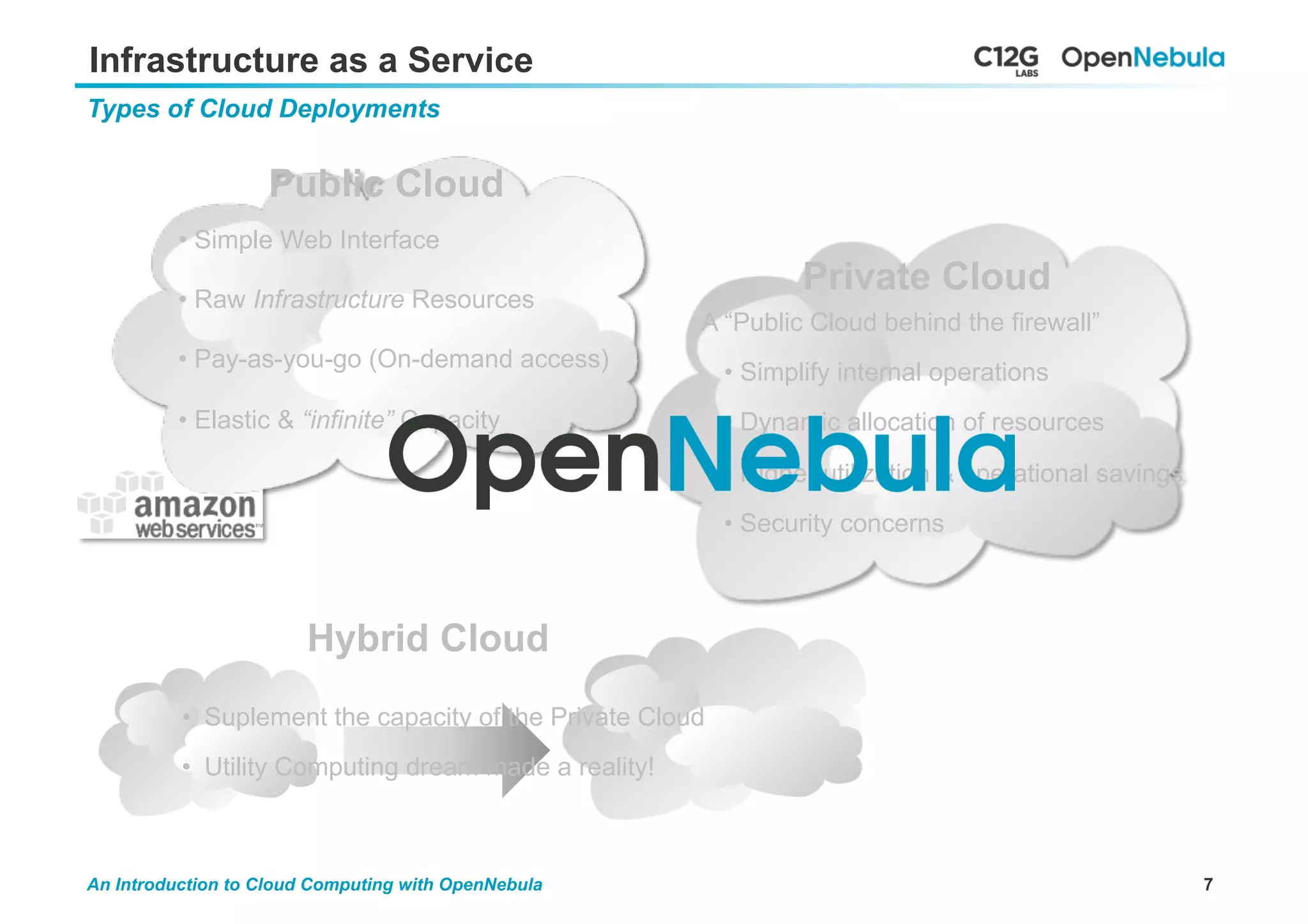

Types of Cloud Deployments

8. 8An Introduction to Cloud Computing with OpenNebula

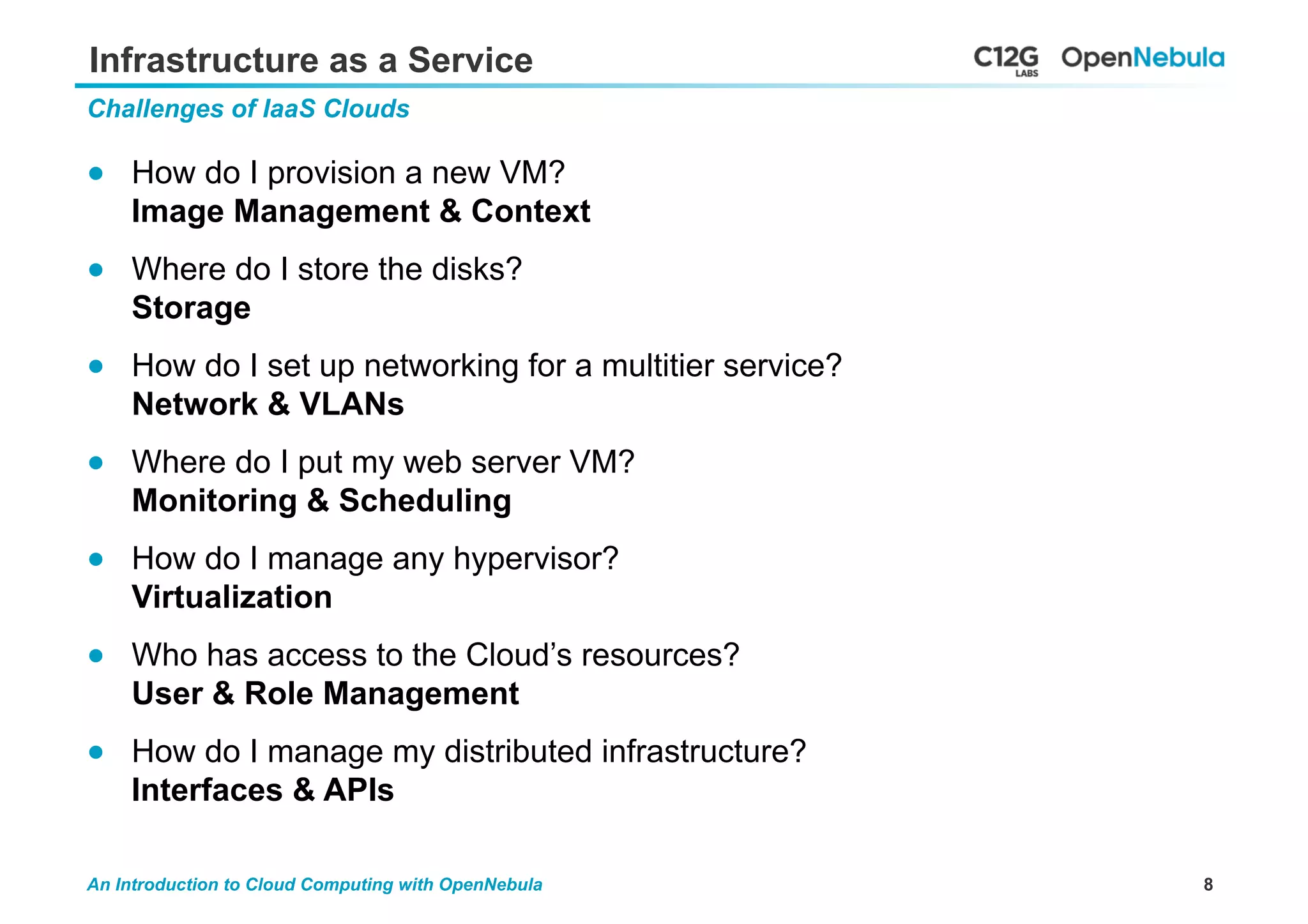

Infrastructure as a Service
Challenges of IaaS Clouds
● How do I provision a new VM?
Image Management & Context
● Where do I store the disks?
Storage
● How do I set up networking for a multitier service?
Network & VLANs
● Where do I put my web server VM?
Monitoring & Scheduling
● How do I manage any hypervisor?
Virtualization
● Who has access to the Cloud’s resources?
User & Role Management
● How do I manage my distributed infrastructure?
Interfaces & APIs

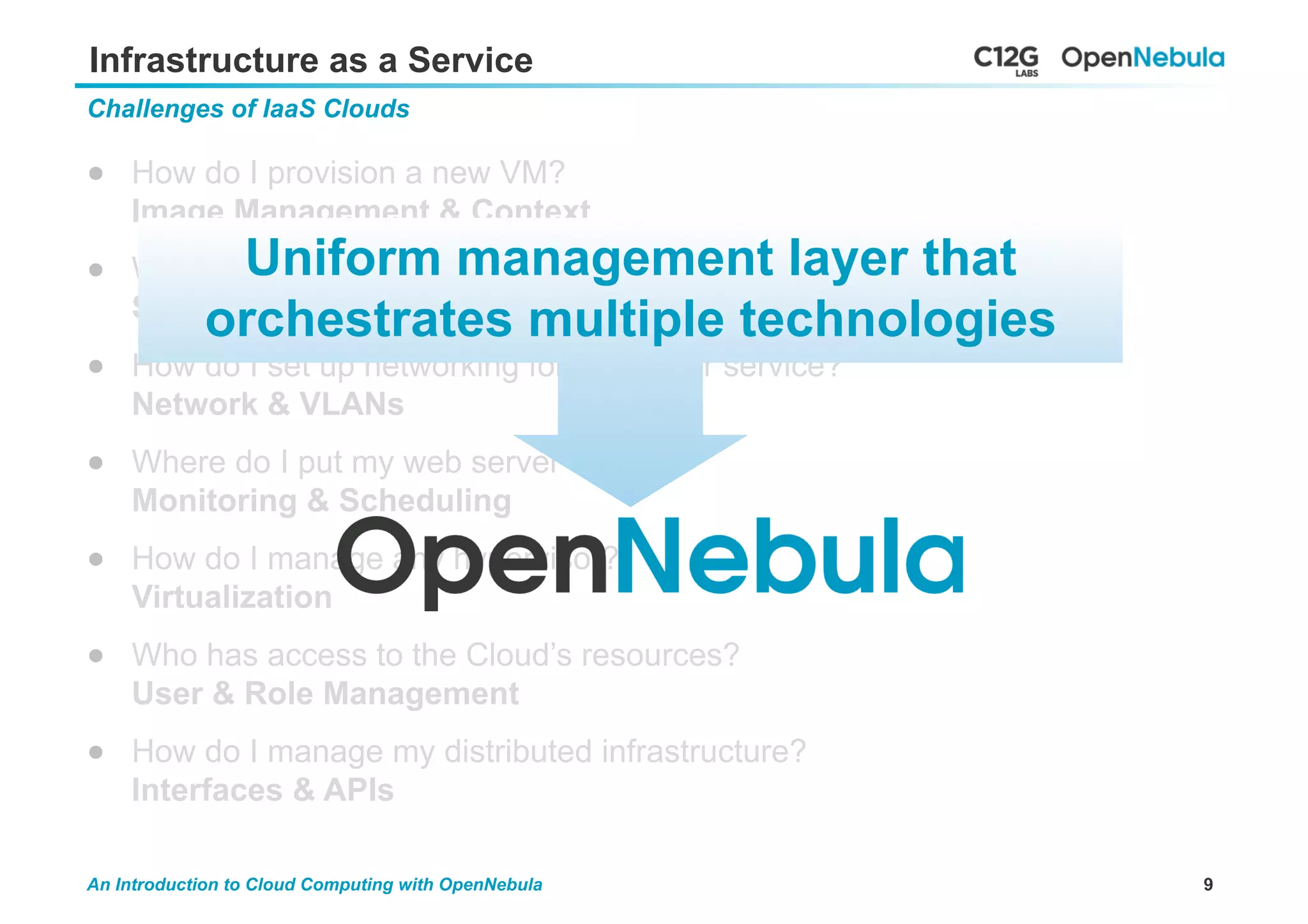

9. 9An Introduction to Cloud Computing with OpenNebula
● How do I provision a new VM?
Image Management & Context
● Where do I store the disks?
Storage
● How do I set up networking for a multitier service?
Network & VLANs
● Where do I put my web server VM?
Monitoring & Scheduling
● How do I manage any hypervisor?
Virtualization
● Who has access to the Cloud’s resources?
User & Role Management
● How do I manage my distributed infrastructure?
Interfaces & APIs
Uniform management layer that
orchestrates multiple technologies
Infrastructure as a Service
Challenges of IaaS Clouds

10. 10An Introduction to Cloud Computing with OpenNebula

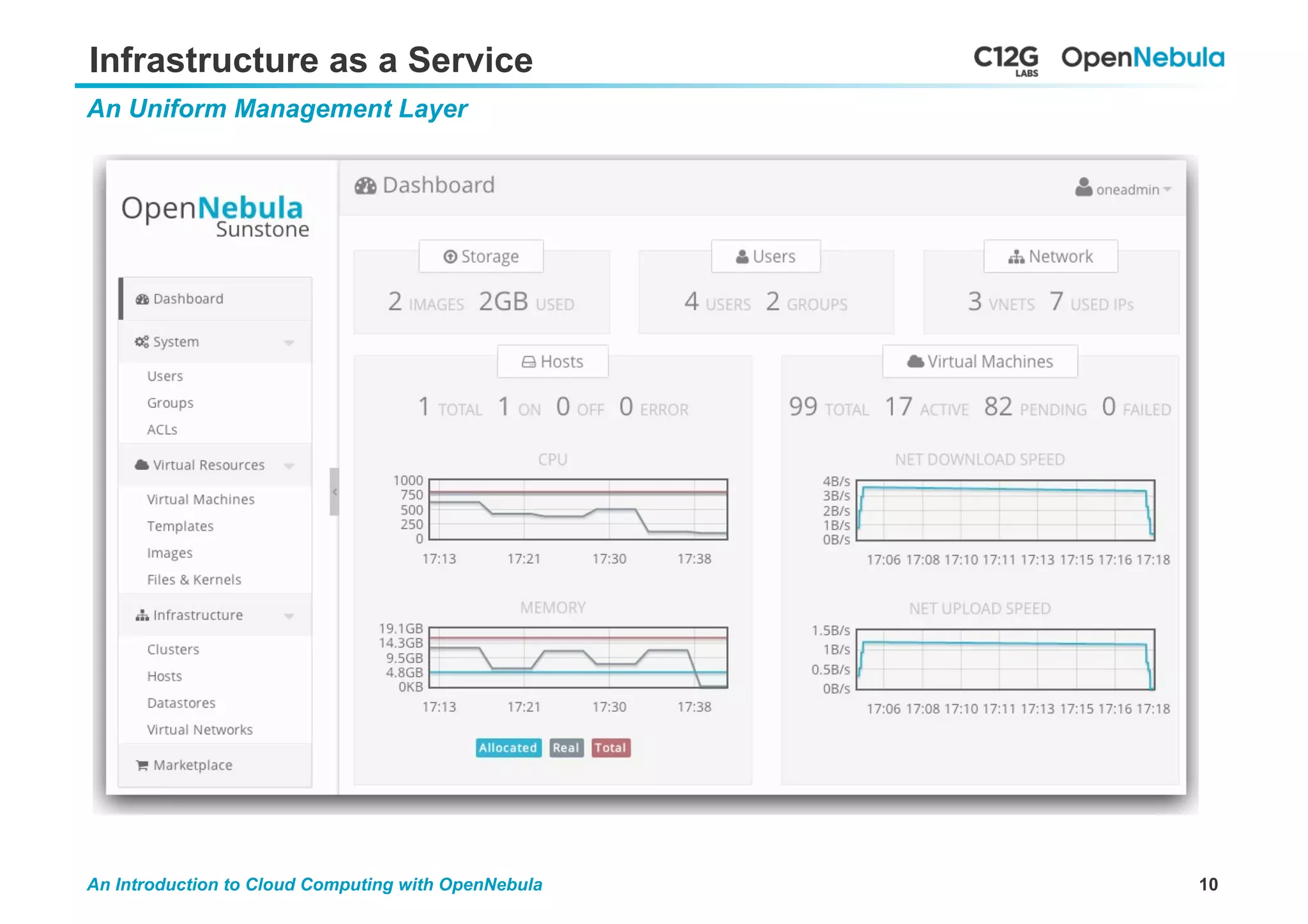

An Uniform Management Layer
Infrastructure as a Service

11. 11An Introduction to Cloud Computing with OpenNebula

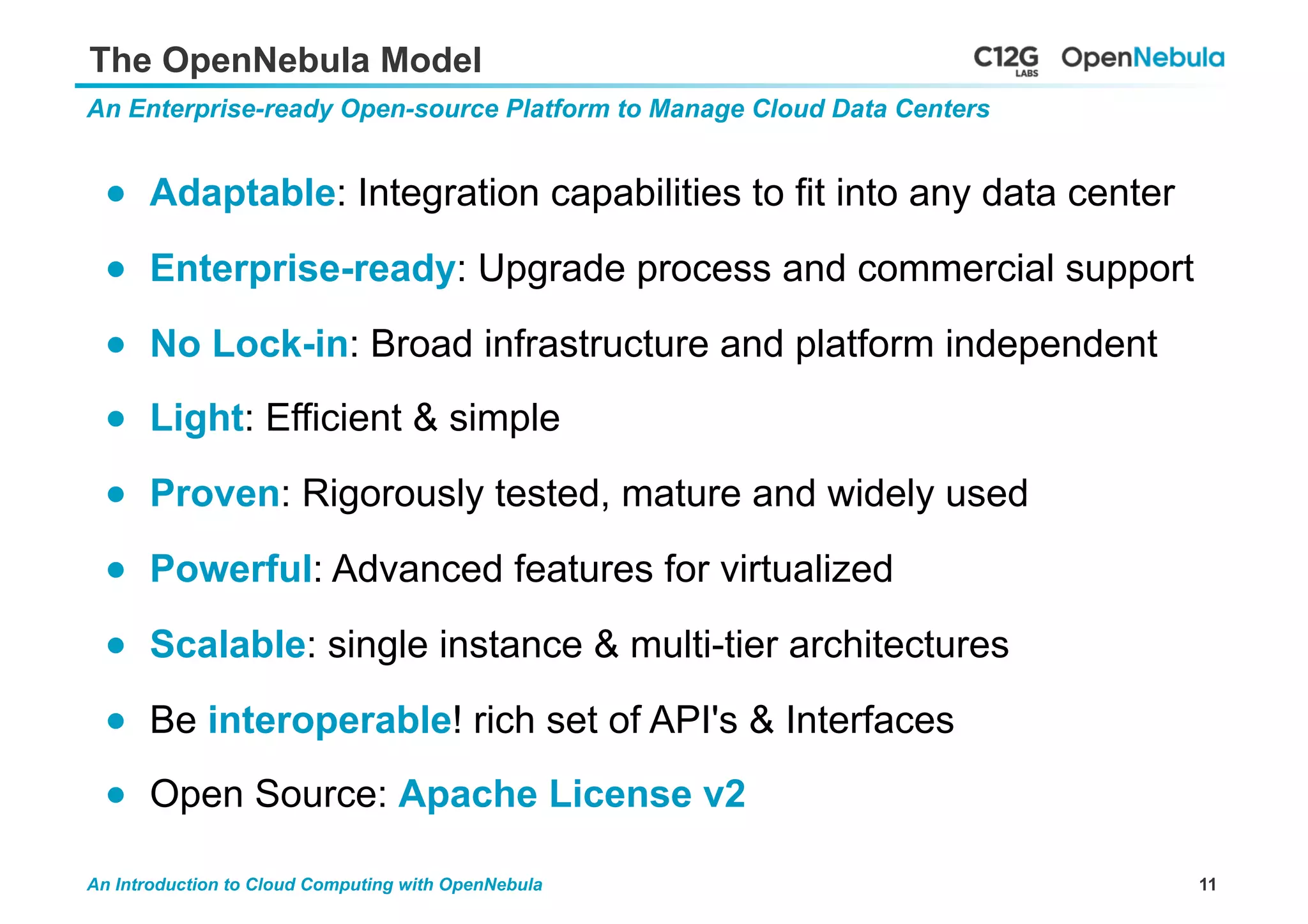

The OpenNebula Model
● Adaptable: Integration capabilities to fit into any data center
● Enterprise-ready: Upgrade process and commercial support
● No Lock-in: Broad infrastructure and platform independent
● Light: Efficient & simple
● Proven: Rigorously tested, mature and widely used
● Powerful: Advanced features for virtualized
● Scalable: single instance & multi-tier architectures
● Be interoperable! rich set of API's & Interfaces
● Open Source: Apache License v2
An Enterprise-ready Open-source Platform to Manage Cloud Data Centers

12. 12An Introduction to Cloud Computing with OpenNebula

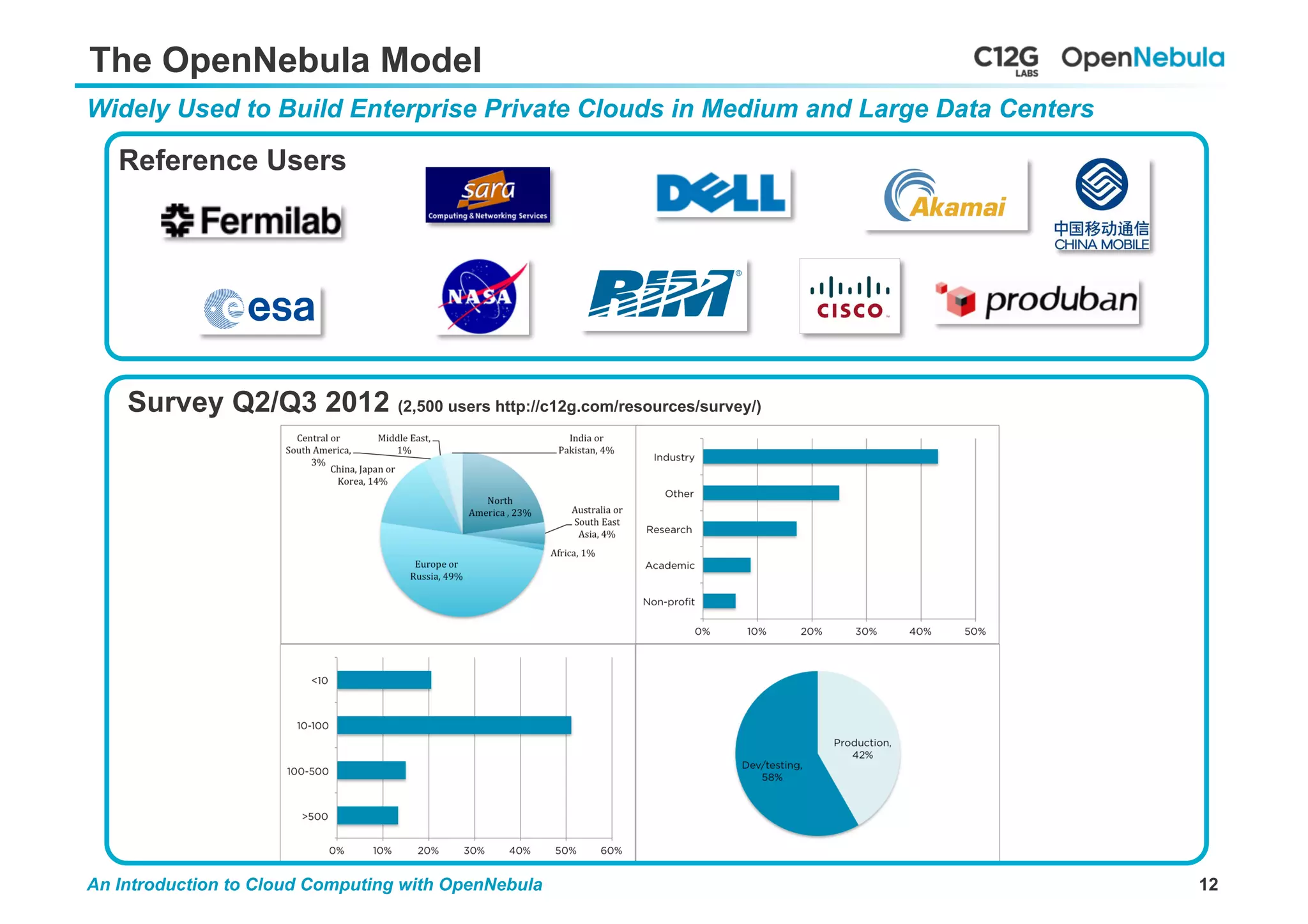

Widely Used to Build Enterprise Private Clouds in Medium and Large Data Centers
Reference Users
Survey Q2/Q3 2012 (2,500 users http://c12g.com/resources/survey/)
The OpenNebula Model

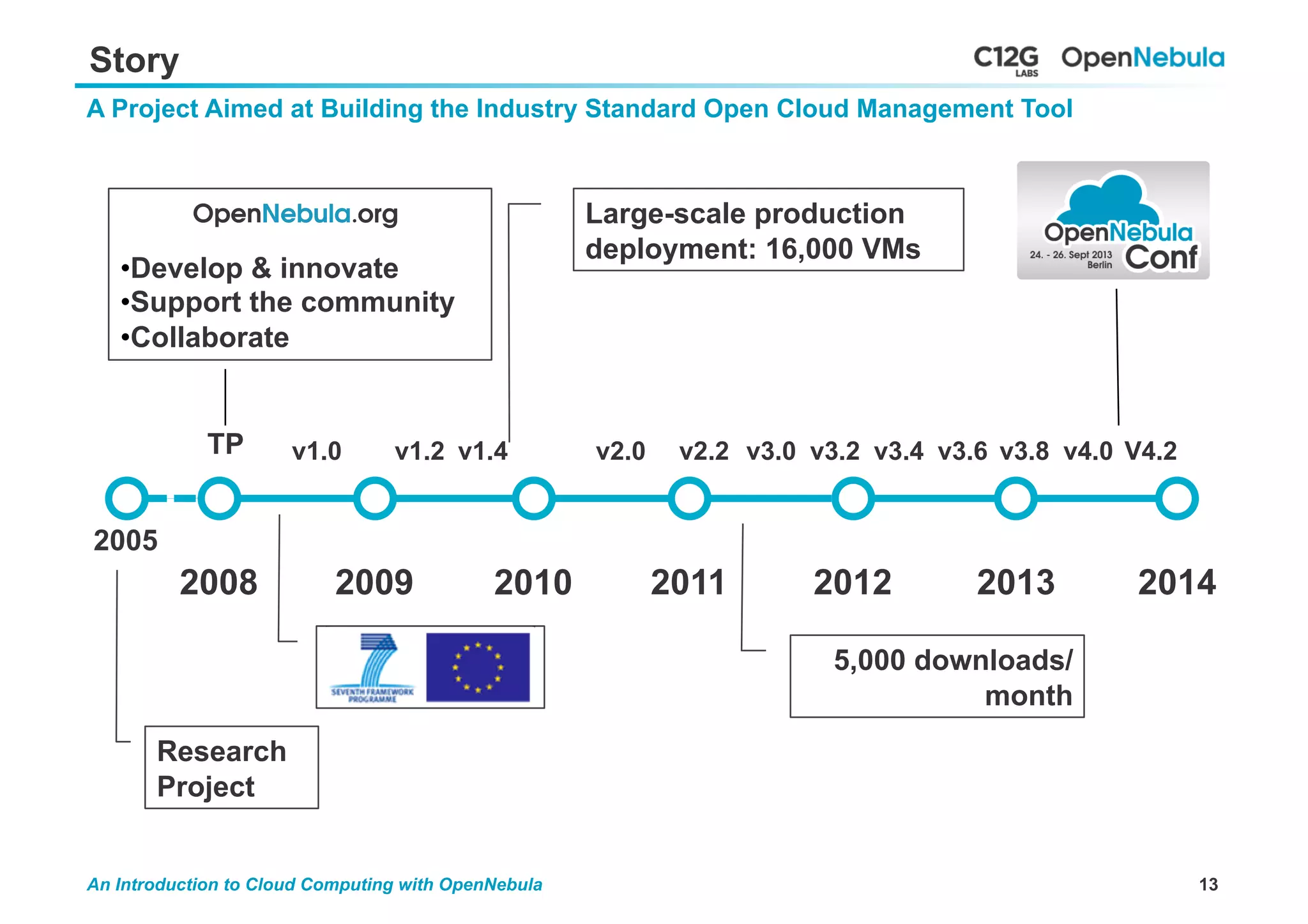

13. 13An Introduction to Cloud Computing with OpenNebula
Story
A Project Aimed at Building the Industry Standard Open Cloud Management Tool
2005
2008 2009 2010 2011 2012
• Develop & innovate
• Support the community
• Collaborate
Large-scale production
deployment: 16,000 VMs
5,000 downloads/
month
20142013
Research
Project
TP v1.0 v1.2 v1.4 v2.0 v2.2 v3.0 v3.2 v3.4 v3.6 v3.8 v4.0 V4.2

14. 14An Introduction to Cloud Computing with OpenNebula

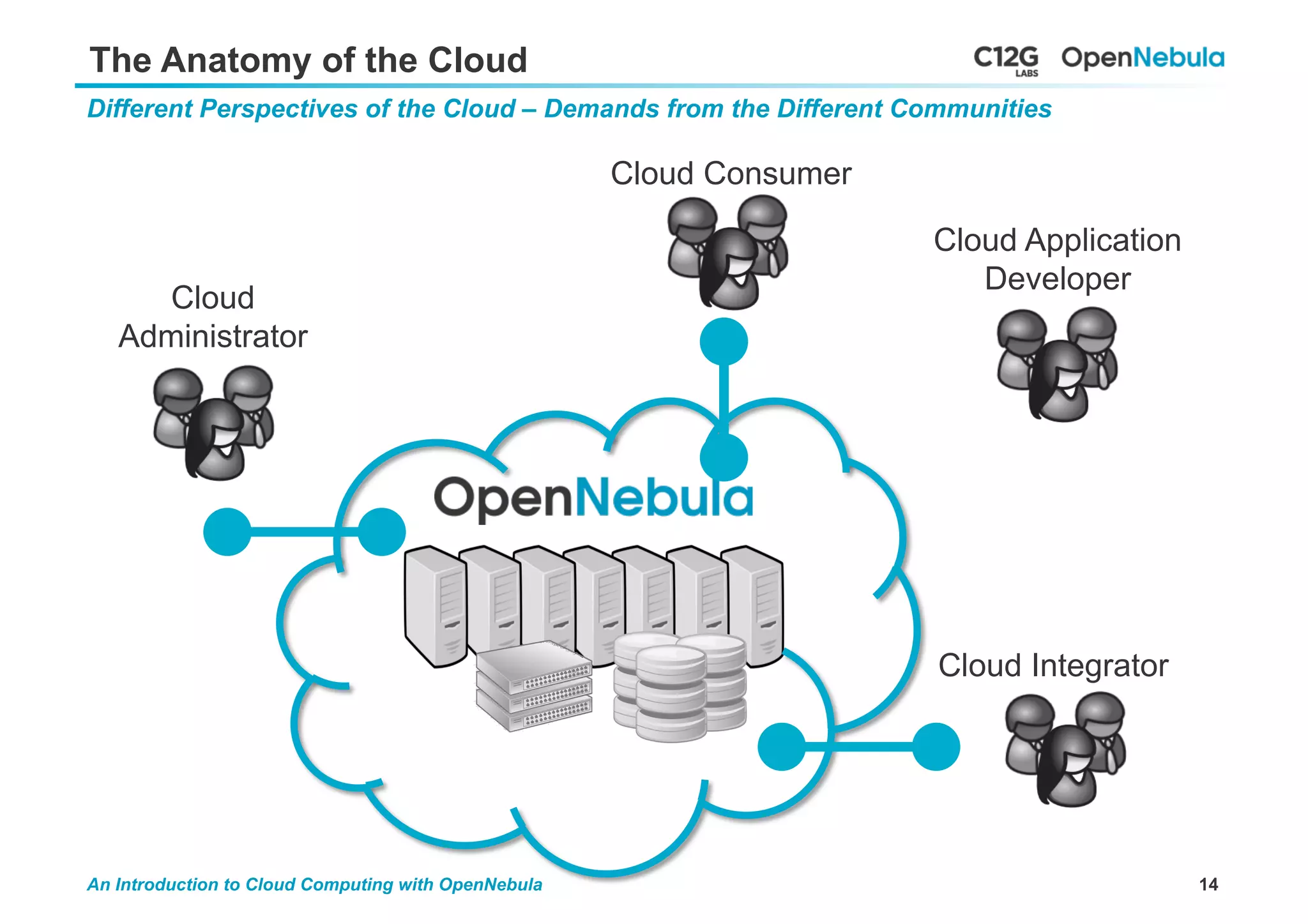

The Anatomy of the Cloud
Different Perspectives of the Cloud – Demands from the Different Communities
Cloud Consumer
Cloud
Administrator
Cloud Integrator
Cloud Application
Developer

15. 15An Introduction to Cloud Computing with OpenNebula
The Anatomy of the Cloud

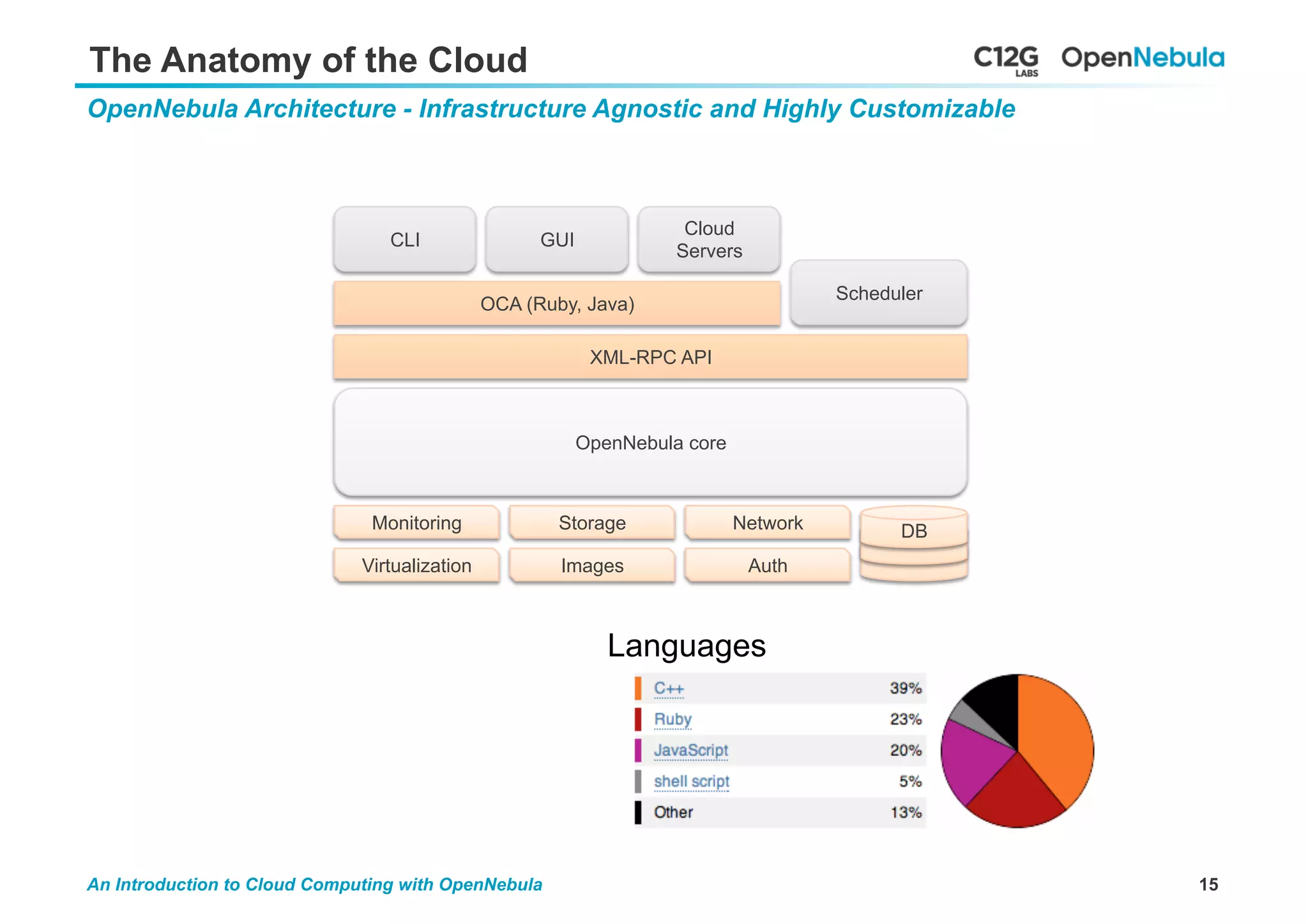

OpenNebula Architecture - Infrastructure Agnostic and Highly Customizable
OpenNebula core
Virtualization Images
Storage Network
Auth
Monitoring
Scheduler
XML-RPC API
OCA (Ruby, Java)
CLI GUI
Cloud
Servers
DB
Languages

16. 16An Introduction to Cloud Computing with OpenNebula

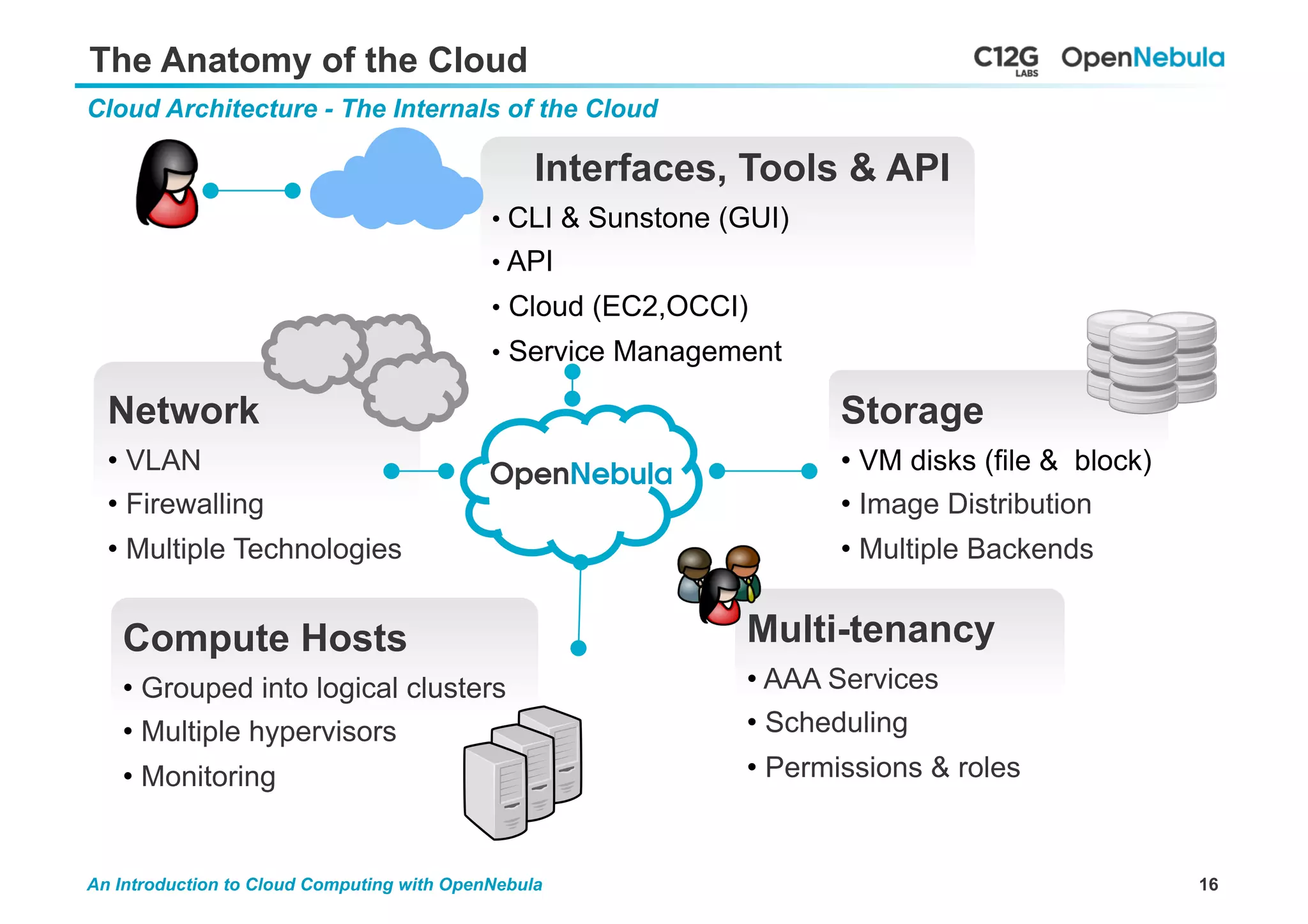

The Anatomy of the Cloud
Cloud Architecture - The Internals of the Cloud
Interfaces, Tools & API
• CLI & Sunstone (GUI)
• API
• Cloud (EC2,OCCI)
• Service Management & Catalogs
Compute Hosts
• Grouped into logical clusters
• Multiple hypervisors
• Monitoring
Storage
• VM disks (file & block)
• Image Distribution
• Multiple Backends
Multi-tenancy
• AAA Services
• Scheduling
• Permissions & roles
Network
• VLAN
• Firewalling
• Multiple Technologies

17. 17An Introduction to Cloud Computing with OpenNebula
The Anatomy of the Cloud

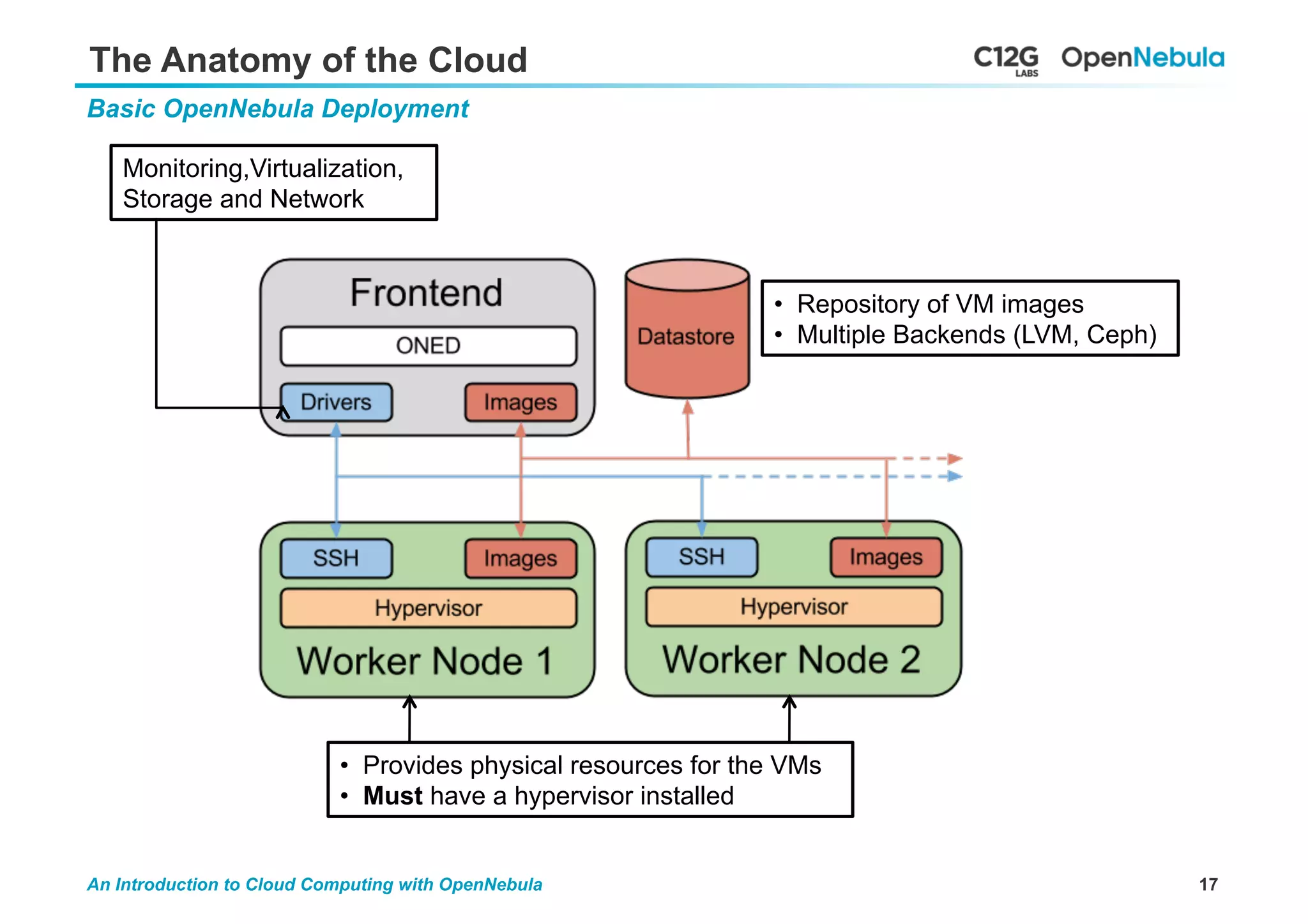

Basic OpenNebula Deployment
• Repository of VM images
• Multiple Backends (LVM, Ceph)
Monitoring,Virtualization,
Storage and Network
• Provides physical resources for the VMs
• Must have a hypervisor installed

18. 18An Introduction to Cloud Computing with OpenNebula
We Will Be Happy to Clarify Any Question
Questions?
