Operator overloading allows normal C++ operators like + and - to have additional meanings when used with user-defined types. It makes statements more intuitive, for example writing d2 = d1 + 45 instead of d2.add_days(d1, 45). Operators can be overloaded by defining operator functions that specify their behavior for a class. Only certain operators can be overloaded, and their syntax and semantics must be preserved.

1. OOPS
PRESENTATION
OPERATOR OVERLOADING
By:-
Aditi Chauhan (013)
Akhilesh kr Jha (029)
Arpan Rathi (056)
Chandan Kumar (078)
Vikas Verma (L.E.)

2. Overloading Operator
 Operator overloading is a very neat feature of object
oriented programming
 Operator overloading allows it to give normal C++ operators
such as +,-,==,< additional meanings
 It makes statements more intuitive and readable
for example:
Date d1(12,3,1989);
Date d2;
d2.add_days(d1,45);
// can be written with the + operator as

3. 3
C++ Philosophy (continued)
 Operators retain their precedence and associativity, even when
overloaded
 Operators retain their number of operands
 Cannot redefine operators on built-in types
 Not possible to define new operators
 Only (a subset of) the built-in C++ operators can be overloaded
Operator Overloading CS-2303, C-Term 2010

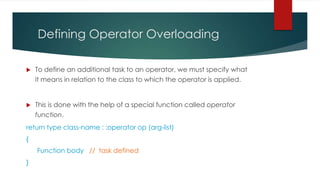

4. Defining Operator Overloading
 To define an additional task to an operator, we must specify what
it means in relation to the class to which the operator is applied.
 This is done with the help of a special function called operator
function.
return type class-name : :operator op (arg-list)
{
Function body // task defined
}

5. 5
Operators that Can and Cannot be
Overloaded
Operators that can be overloaded
+ - * / % ^ & |
~ ! = < > += -= *=
/= %= ^= &= |= << >> >>=
<<= == != <= >= && || ++
-- ->* , -> [] () new delete
new[] delete[]
Operators that cannot be overloaded
. .* :: ?:
Operator Overloading CS-2303, C-Term 2010

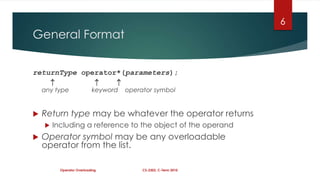

6. 6
General Format
returnType operator*(parameters);
  
any type keyword operator symbol
 Return type may be whatever the operator returns
 Including a reference to the object of the operand
 Operator symbol may be any overloadable
operator from the list.
Operator Overloading CS-2303, C-Term 2010

7. Defining Operator Overloading
return type class-name : :operator op (arg-list)
{
Function body // task defined
}
 return type is the type of value returned by the specified operation.
 op is the operator being overloaded.
 op is preceded by the keyword operator.
 operator op is the function name.

8. continue…
Defining Operator Overloading
Operator Function must be either
 member function (non-static)
Or
 friend function.
The basic difference :
 A friend function will have only one argument for unary operators and two
for binary operators.
 A member function has no arguments for unary operators and one
argument for binary operators.
 This is because the object used to invoke the member function is passed
implicitly and therefore is available for the member function.
 Arguments may be passed either by value or by reference.

9. Process of Operator Overloading
The process of overloading involves the following steps:
 Create a class that defines the data type that is to be used in
the overloading operation.
 Declare the operator function operator op( ) in the public part
of the class. It may be either a member function or a friend
function.
 Define the operator function to implement the required
operations.

10. Process of Operator Overloading
Overloaded operator functions can be invoked by expressions such as:
For unary operators: op x or x op
For binary operators: x op y
op x or x op would be interpreted as
for a friend function: operator op (x)
for a member function: x.operator op ( )
x op y would be interpreted as
for a friend function: operator op (x,y)
for a member function: x.operator op (y)

11. Overloading Unary Operators
Consider a unary minus operator:
 It takes just one operand.
 It changes the sign of an operand when applied to a basic
data item.
 The unary minus when applied to an object should change
the sign of each of its data items.

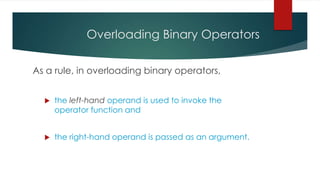

12. Overloading Binary Operators
As a rule, in overloading binary operators,
 the left-hand operand is used to invoke the
operator function and
 the right-hand operand is passed as an argument.

13. Overloading Binary Operators
return complex((x+c.x), (y+c.y));
The compiler invokes an appropriate
constructor, initializes an object with no name and returns
the contents for copying into an object.
Such an object is called a temporary object and goes
out of space as soon as the contents are assigned to
another object.

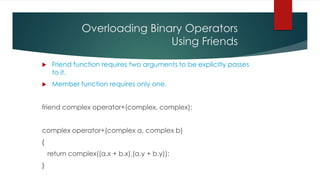

14. Overloading Binary Operators
Using Friends
 Friend function requires two arguments to be explicitly passes
to it.
 Member function requires only one.
friend complex operator+(complex, complex);
complex operator+(complex a, complex b)
{
return complex((a.x + b.x),(a.y + b.y));
}

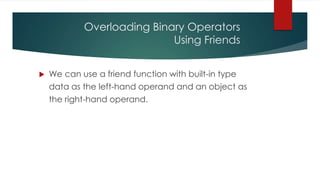

15. Overloading Binary Operators
Using Friends
 We can use a friend function with built-in type
data as the left-hand operand and an object as
the right-hand operand.

16. Rules For Overloading Operators
 Only existing operators can be overloaded. New operators cannot
be created.
 The overloaded operator must have at least one operand that is of
user-defined type.
 We cannot change the basic meaning of an operator.
 Overloaded operators follow the syntax rules of the original operators.

17. continue…
Rules For Overloading Operators
 The following operators that cannot be
overloaded:
Size of Size of operator
 . Membership operator
 .* Pointer-to-member operator
 :: Scope resolution operator
 ?; Conditional operator

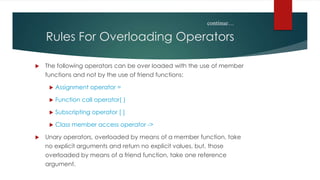

18. continue…
Rules For Overloading Operators
 The following operators can be over loaded with the use of member
functions and not by the use of friend functions:
 Assignment operator =
 Function call operator( )
 Subscripting operator [ ]
 Class member access operator ->
 Unary operators, overloaded by means of a member function, take
no explicit arguments and return no explicit values, but, those
overloaded by means of a friend function, take one reference
argument.

19. continue…
Rules For Overloading Operators
 Binary operators overloaded through a member function take
one explicit argument and those which are overloaded
through a friend function take two explicit arguments.
 When using binary operators overloaded through a member
function, the left hand operand must be an object of the
relevant class.
 Binary arithmetic operators such as +, -, * and / must explicitly
return a value. They must not attempt to change their own
arguments.

20. Overloading Unary Operators
class Date
{
void operator++(); // prefix increment operator
}
void Date::operator++ ()
{
if (++day > days_in_month())
{
day=1;
if (++month > 12)
month=1;
year++;
}}
Date d1(31,12,1999);
++d1; // results in 1.1.2000

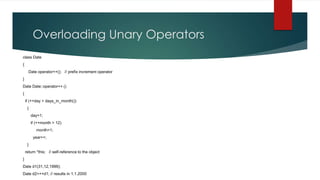

21. Overloading Unary Operators
class Date
{
Date operator++(); // prefix increment operator
}
Date Date::operator++ ()
{
if (++day > days_in_month())
{
day=1;
if (++month > 12)
month=1;
year++;
}
return *this; // self-reference to the object
}
Date d1(31,12,1999);
Date d2=++d1; // results in 1.1.2000

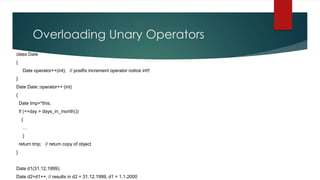

22. Overloading Unary Operators
class Date
{
Date operator++(int); // postfix increment operator notice int!!
}
Date Date::operator++ (int)
{
Date tmp=*this;
if (++day > days_in_month())
{
…
}
return tmp; // return copy of object
}
Date d1(31,12,1999);
Date d2=d1++; // results in d2 = 31.12.1999, d1 = 1.1.2000

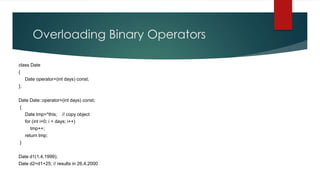

23. Overloading Binary Operators
class Date
{
Date operator+(int days) const;
};
Date Date::operator+(int days) const;
{
Date tmp=*this; // copy object
for (int i=0; i < days; i++)
tmp++;
return tmp;
}
Date d1(1,4,1999);
Date d2=d1+25; // results in 26.4.2000

24. Overloading Binary Operators
class Date
{
Date& operator+=(int days); // must be reference as += modifies
// the left hand argument
};
Date& Date::operator+=(int days) // return type reference to object
{
for (int i=0; i < days; i++)
*this++;
return *this; // return reference to object
}
Date d1(1,4,1999);
d1+=25; // results in 26.4.2000

25. Overloading Relational
Operators
class Date
{
bool operator==(Date d)
{
return (day==d.day) && (month=d.month) && (year==d.year);
};
bool operator<(Date d)
{
if (year < d.year)
return true;
else
if (year==d.year) && (month < d.month)
return true;
else
return (month==d.month) && (day < d.day);
};
};

26. Overloading Binary Operators
int Date::operator-(Date d) const
{
int days=0;
if (*this > d)
while (*this != ++d)
days++;
else
while (*this != --d)
days--;
return days;
}
Date d1(24,4,1988);
Date d2(13,3,1998);
int diff = d1-d2; // diff = 42

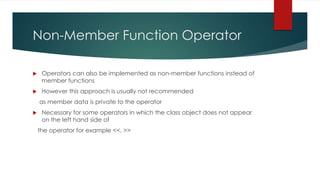

27. Non-Member Function Operator
 Operators can also be implemented as non-member functions instead of
member functions
 However this approach is usually not recommended
as member data is private to the operator
 Necessary for some operators in which the class object does not appear
on the left hand side of
the operator for example <<, >>

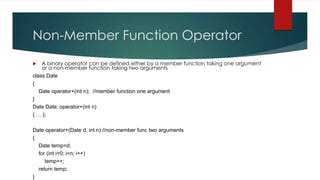

28. Non-Member Function Operator
 A binary operator can be defined either by a member function taking one argument
or a non-member function taking two arguments
class Date
{
Date operator+(int n); //member function one argument
}
Date Date::operator+(int n)
{ … };
Date operator+(Date d, int n) //non-member func two arguments
{
Date temp=d;
for (int i=0; i<n; i++)
temp++;
return temp;
}

29. Non-Member Function Operator
 An unary operator can be defined either by a member function taking no argument or a non-
member function taking one argument
class Date
{
Date operator++(); //member function postfix increment no argument
}
Date Date::operator++()
{ … };
Date operator++(Date& d) // non-member function one reference argument
{
// more complicated as member data is private to non-member function
int tmp_day = d.get_day();
int tmp_month = d.get_month();
d.set_day(tmp_day+1);
…
}

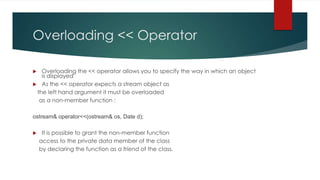

30. Overloading << Operator
 Overloading the << operator allows you to specify the way in which an object
is displayed
 As the << operator expects a stream object as
the left hand argument it must be overloaded
as a non-member function :
ostream& operator<<(ostream& os, Date d);
 It is possible to grant the non-member function
access to the private data member of the class
by declaring the function as a friend of the class.

31. Overloading << Operator
#include <iostream>
class Date
{
friend ostream& operator<<(ostream& os, Date d);
// this non-member function is a friend of class date
…
};
ostream& operator<<(ostream& os, Date d)
{
os << d.day << ”.” << d.month << ”.” << d.year; //access private data as friend
};
Date d1(16,3,1998);
cout << ”Today’s date is: ” << d1 << endl;
