A single pole single throw switch is used to control a lamp by connecting or disconnecting its two terminals. The switch works on the principle of making or breaking an electrical circuit. When the switch is on, it connects the two terminals allowing current to flow through the lamp, powering it. When the switch is off, it breaks the connection between the terminals, stopping the current from reaching the lamp and turning it off. The switch provides easy operation and requires fewer wires than other wiring methods. Safety warnings are provided to disconnect power before working with electrical equipment.

1. ONE LAMP CONSTROLLED BY
ONE SWITCH
PRESENTED BY:-
A.MANISH
16011BB001

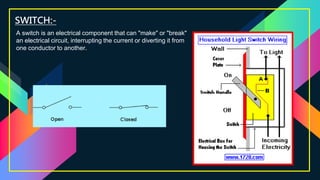

2. SWITCH:-
A switch is an electrical component that can "make" or "break"
an electrical circuit, interrupting the current or diverting it from
one conductor to another.

3. CONSTRUCTION:-
Requirements:-
Single Way Switch (SPST = Single Pole Single
Through) x 1 No
Lamp (Light Bulb) x 1 No
Short pieces of cables x 3 No
single pole single throw switch(SPSS)

4. WORKING PRINCIPLE:-
Lamp is turned on, the two terminals are connected,
and when it is turned off, the contact between the two
is broken.

5. WORKING PRINCIPLE:-
It works on the principle of make or break. That u may either connect or disconnect a device
( say a bulb) by help of it from the electrical circuit.

6. 6

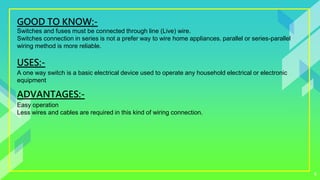

GOOD TO KNOW:-
Switches and fuses must be connected through line (Live) wire.
Switches connection in series is not a prefer way to wire home appliances. parallel or series-parallel
wiring method is more reliable.
A one way switch is a basic electrical device used to operate any household electrical or electronic
equipment
USES:-
ADVANTAGES:-
Easy operation
Less wires and cables are required in this kind of wiring connection.

7. Electricity is Our Enemy, if you give it a chance to kill you, Remember, they will never miss it. Please
read all caution and instruction while doing this tutorial in practical.
 Disconnect the power source before servicing, repairing or installing electrical equipments.
 Never try to work on electricity without proper guidance and care.
WARNIGN
:-
