The document discusses methods used by scientists to study Earth's oceans. It describes how oceanography developed as a field in the late 1800s and 1920s using ships equipped with new measuring devices like sonar. Modern techniques like satellites and submersibles now map ocean surfaces, temperatures, currents, and seafloor features. Studies indicate Earth's early oceans formed from water released by volcanism that condensed as the planet cooled. Oceans now contain 97% of Earth's water and cover 71% of its surface.

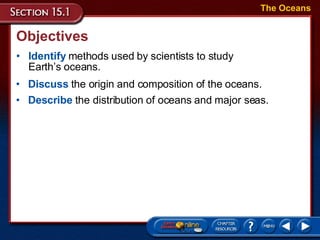

1. Objectives Identify methods used by scientists to study Earth’s oceans. The Oceans Discuss the origin and composition of the oceans. Describe the distribution of oceans and major seas.

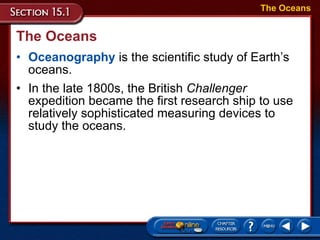

2. The Oceans Oceanography is the scientific study of Earth’s oceans. In the late 1800s, the British Challenger expedition became the first research ship to use relatively sophisticated measuring devices to study the oceans. The Oceans

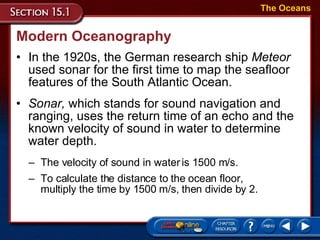

3. Modern Oceanography In the 1920s, the German research ship Meteor used sonar for the first time to map the seafloor features of the South Atlantic Ocean. The Oceans Sonar, which stands for sound navigation and ranging, uses the return time of an echo and the known velocity of sound in water to determine water depth. The velocity of sound in water is 1500 m/s. To calculate the distance to the ocean floor, multiply the time by 1500 m/s, then divide by 2.

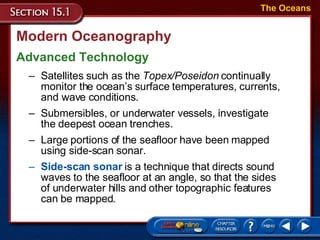

4. Modern Oceanography Advanced Technology The Oceans Satellites such as the Topex/Poseidon continually monitor the ocean’s surface temperatures, currents, and wave conditions. Submersibles, or underwater vessels, investigate the deepest ocean trenches. Large portions of the seafloor have been mapped using side-scan sonar. Side-scan sonar is a technique that directs sound waves to the seafloor at an angle, so that the sides of underwater hills and other topographic features can be mapped.

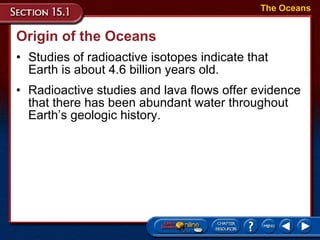

5. Origin of the Oceans Studies of radioactive isotopes indicate that Earth is about 4.6 billion years old. The Oceans Radioactive studies and lava flows offer evidence that there has been abundant water throughout Earth’s geologic history.

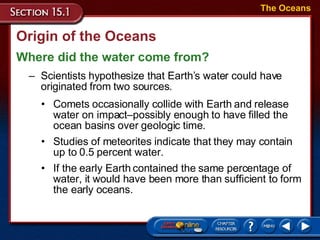

6. Origin of the Oceans Where did the water come from? The Oceans Scientists hypothesize that Earth’s water could have originated from two sources. Comets occasionally collide with Earth and release water on impact – possibly enough to have filled the ocean basins over geologic time. Studies of meteorites indicate that they may contain up to 0.5 percent water. If the early Earth contained the same percentage of water, it would have been more than sufficient to form the early oceans.

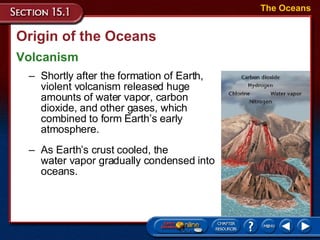

7. Origin of the Oceans Volcanism The Oceans Shortly after the formation of Earth, violent volcanism released huge amounts of water vapor, carbon dioxide, and other gases, which combined to form Earth’s early atmosphere. As Earth’s crust cooled, the water vapor gradually condensed into oceans.

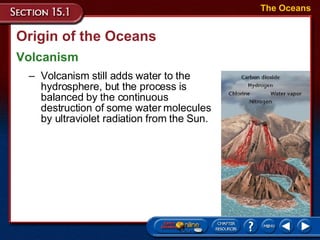

8. Origin of the Oceans Volcanism The Oceans Volcanism still adds water to the hydrosphere, but the process is balanced by the continuous destruction of some water molecules by ultraviolet radiation from the Sun.

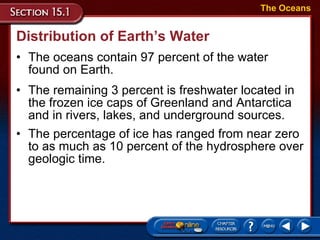

9. Distribution of Earth’s Water The oceans contain 97 percent of the water found on Earth. The Oceans The remaining 3 percent is freshwater located in the frozen ice caps of Greenland and Antarctica and in rivers, lakes, and underground sources. The percentage of ice has ranged from near zero to as much as 10 percent of the hydrosphere over geologic time.

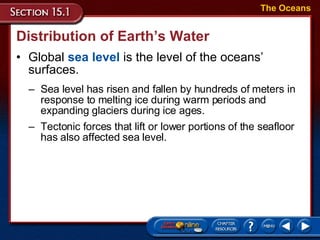

10. Distribution of Earth’s Water Global sea level is the level of the oceans’ surfaces. The Oceans Sea level has risen and fallen by hundreds of meters in response to melting ice during warm periods and expanding glaciers during ice ages. Tectonic forces that lift or lower portions of the seafloor has also affected sea level.

11. Distribution of Earth’s Water The Blue Planet The Oceans Approximately 71 percent of Earth’s surface is covered by oceans that have an average depth of 3800 m. Because most landmasses are in the northern hemisphere, oceans only cover 61 percent of the surface. Water covers 81 percent of the southern hemisphere.

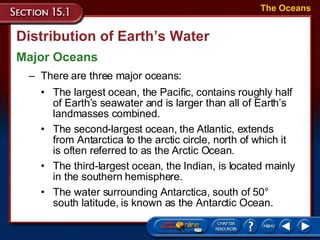

12. Distribution of Earth’s Water Major Oceans The Oceans There are three major oceans: The largest ocean, the Pacific, contains roughly half of Earth’s seawater and is larger than all of Earth’s landmasses combined. The second-largest ocean, the Atlantic, extends from Antarctica to the arctic circle, north of which it is often referred to as the Arctic Ocean. The third-largest ocean, the Indian, is located mainly in the southern hemisphere. The water surrounding Antarctica, south of 50° south latitude, is known as the Antarctic Ocean.

13. Distribution of Earth’s Water Major Oceans The Oceans

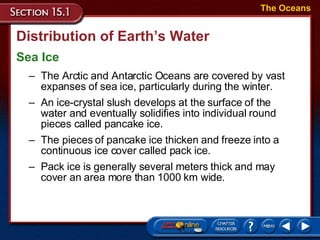

14. Distribution of Earth’s Water Sea Ice The Oceans The Arctic and Antarctic Oceans are covered by vast expanses of sea ice, particularly during the winter. An ice-crystal slush develops at the surface of the water and eventually solidifies into individual round pieces called pancake ice. The pieces of pancake ice thicken and freeze into a continuous ice cover called pack ice. Pack ice is generally several meters thick and may cover an area more than 1000 km wide.

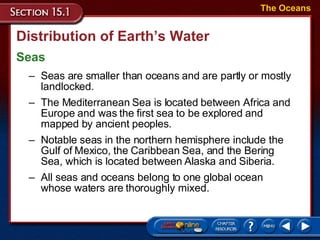

15. Distribution of Earth’s Water Seas The Oceans Seas are smaller than oceans and are partly or mostly landlocked. The Mediterranean Sea is located between Africa and Europe and was the first sea to be explored and mapped by ancient peoples. Notable seas in the northern hemisphere include the Gulf of Mexico, the Caribbean Sea, and the Bering Sea, which is located between Alaska and Siberia. All seas and oceans belong to one global ocean whose waters are thoroughly mixed.

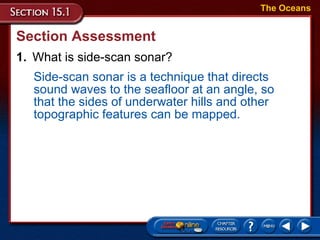

16. Section Assessment 1. What is side-scan sonar? The Oceans Side-scan sonar is a technique that directs sound waves to the seafloor at an angle, so that the sides of underwater hills and other topographic features can be mapped.

17. Section Assessment 2. According to one hypothesis, how did volcanism play a part in forming Earth’s early oceans? The Oceans During a period of massive volcanism that occurred shortly after the formation of Earth, huge quantities of water vapor, carbon dioxide, and other gases were released. These gases formed Earth’s early atmosphere. As Earth’s crust cooled, the water vapor gradually condensed into oceans. FL: SC.H.1.4.3, SC.D.1.4.1

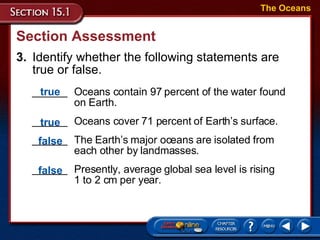

18. Section Assessment 3. Identify whether the following statements are true or false. ______ Oceans contain 97 percent of the water found on Earth. ______ Oceans cover 71 percent of Earth’s surface. ______ The Earth’s major oceans are isolated from each other by landmasses. ______ Presently, average global sea level is rising 1 to 2 cm per year. The Oceans true true false false

19. End of Section 1

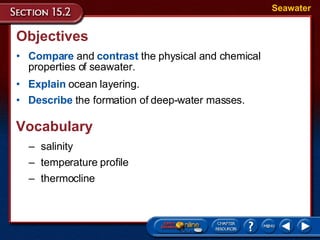

20. Objectives Compare and contrast the physical and chemical properties of seawater. Explain ocean layering. Describe the formation of deep-water masses. salinity temperature profile thermocline Vocabulary Seawater

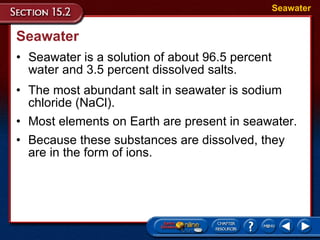

21. Seawater Seawater is a solution of about 96.5 percent water and 3.5 percent dissolved salts. Seawater The most abundant salt in seawater is sodium chloride (NaCl). Most elements on Earth are present in seawater. Because these substances are dissolved, they are in the form of ions.

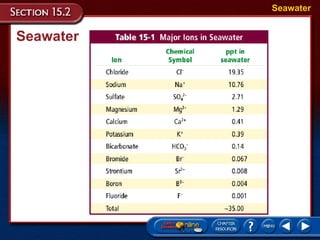

22. Seawater Seawater

23. Chemical Properties of Seawater Salinity is a measure of the amount of dissolved salts in seawater that is expressed as grams of salt per kilogram of water, or parts per thousand (ppt). Seawater The total salt content of seawater is, on average, 35 ppt, or 3.5 percent. Seawater also contains dissolved gases and nutrients.

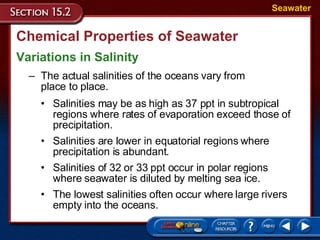

24. Chemical Properties of Seawater Variations in Salinity Seawater The actual salinities of the oceans vary from place to place. Salinities may be as high as 37 ppt in subtropical regions where rates of evaporation exceed those of precipitation. Salinities are lower in equatorial regions where precipitation is abundant. Salinities of 32 or 33 ppt occur in polar regions where seawater is diluted by melting sea ice. The lowest salinities often occur where large rivers empty into the oceans.

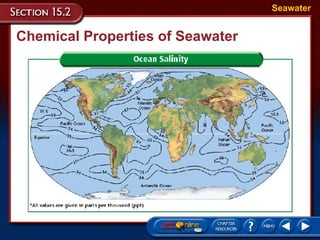

25. Chemical Properties of Seawater Seawater

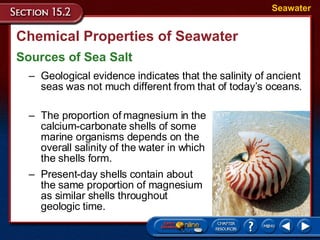

26. Chemical Properties of Seawater Sources of Sea Salt Seawater Geological evidence indicates that the salinity of ancient seas was not much different from that of today’s oceans. The proportion of magnesium in the calcium-carbonate shells of some marine organisms depends on the overall salinity of the water in which the shells form. Present-day shells contain about the same proportion of magnesium as similar shells throughout geologic time.

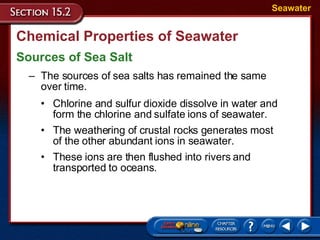

27. Chemical Properties of Seawater Sources of Sea Salt Seawater The sources of sea salts has remained the same over time. Chlorine and sulfur dioxide dissolve in water and form the chlorine and sulfate ions of seawater. The weathering of crustal rocks generates most of the other abundant ions in seawater. These ions are then flushed into rivers and transported to oceans.

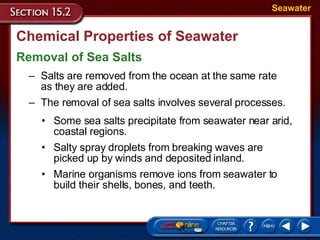

28. Chemical Properties of Seawater Removal of Sea Salts Seawater Salts are removed from the ocean at the same rate as they are added. The removal of sea salts involves several processes. Some sea salts precipitate from seawater near arid, coastal regions. Salty spray droplets from breaking waves are picked up by winds and deposited inland. Marine organisms remove ions from seawater to build their shells, bones, and teeth.

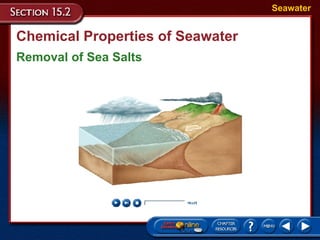

29. Chemical Properties of Seawater Removal of Sea Salts Seawater

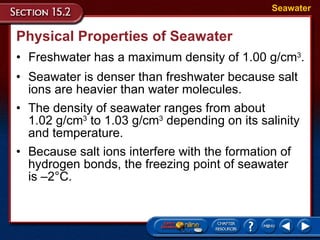

30. Physical Properties of Seawater Freshwater has a maximum density of 1.00 g/cm 3 . Seawater Seawater is denser than freshwater because salt ions are heavier than water molecules. The density of seawater ranges from about 1.02 g/cm 3 to 1.03 g/cm 3 depending on its salinity and temperature. Because salt ions interfere with the formation of hydrogen bonds, the freezing point of seawater is –2°C.

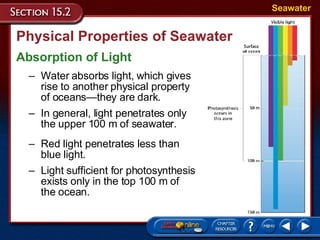

31. Physical Properties of Seawater Absorption of Light Seawater Water absorbs light, which gives rise to another physical property of oceans—they are dark. In general, light penetrates only the upper 100 m of seawater. Red light penetrates less than blue light. Light sufficient for photosynthesis exists only in the top 100 m of the ocean.

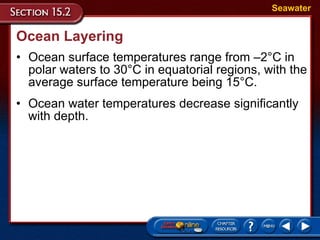

32. Ocean Layering Ocean surface temperatures range from –2°C in polar waters to 30°C in equatorial regions, with the average surface temperature being 15°C. Seawater Ocean water temperatures decrease significantly with depth.

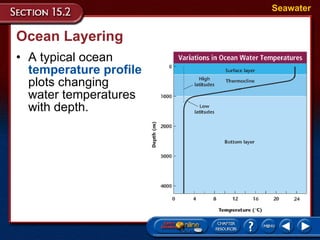

33. Ocean Layering A typical ocean temperature profile plots changing water temperatures with depth. Seawater

34. Ocean Layering Based on temperature variations, the ocean can be divided into three layers. Seawater The first layer is a relatively warm, sunlit, surface layer some 100 m thick. The thermocline is a transitional layer which is characterized by rapidly decreasing temperatures with depth. The bottom layer is cold and dark with temperatures near freezing.

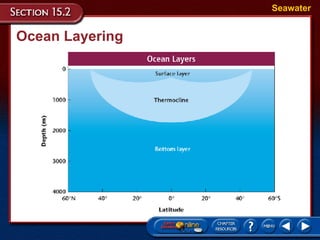

35. Ocean Layering Seawater

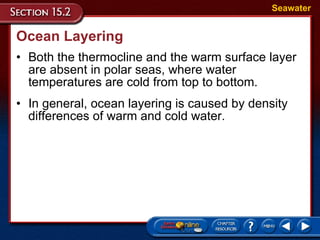

36. Ocean Layering Both the thermocline and the warm surface layer are absent in polar seas, where water temperatures are cold from top to bottom. Seawater In general, ocean layering is caused by density differences of warm and cold water.

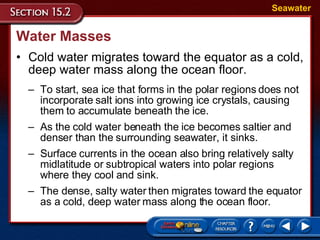

37. Water Masses Cold water migrates toward the equator as a cold, deep water mass along the ocean floor. Seawater To start, sea ice that forms in the polar regions does not incorporate salt ions into growing ice crystals, causing them to accumulate beneath the ice. As the cold water beneath the ice becomes saltier and denser than the surrounding seawater, it sinks. Surface currents in the ocean also bring relatively salty midlatitude or subtropical waters into polar regions where they cool and sink. The dense, salty water then migrates toward the equator as a cold, deep water mass along the ocean floor.

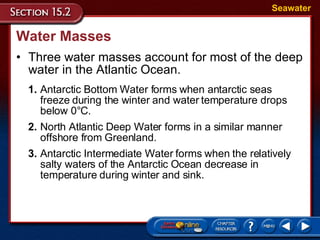

38. Water Masses Three water masses account for most of the deep water in the Atlantic Ocean. Seawater 1. Antarctic Bottom Water forms when antarctic seas freeze during the winter and water temperature drops below 0°C. 2. North Atlantic Deep Water forms in a similar manner offshore from Greenland. 3. Antarctic Intermediate Water forms when the relatively salty waters of the Antarctic Ocean decrease in temperature during winter and sink.

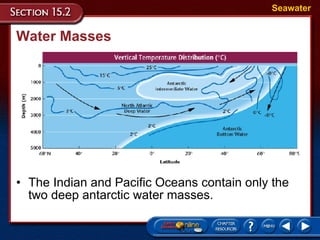

39. Water Masses The Indian and Pacific Oceans contain only the two deep antarctic water masses. Seawater

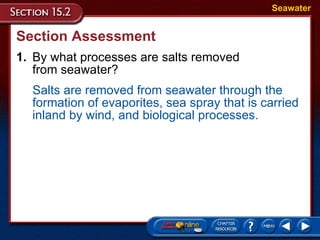

40. Section Assessment 1. By what processes are salts removed from seawater? Seawater Salts are removed from seawater through the formation of evaporites, sea spray that is carried inland by wind, and biological processes.

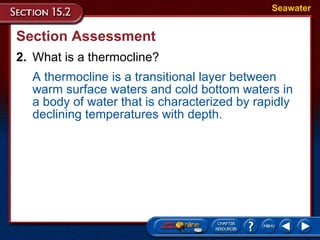

41. Section Assessment 2. What is a thermocline? Seawater A thermocline is a transitional layer between warm surface waters and cold bottom waters in a body of water that is characterized by rapidly declining temperatures with depth.

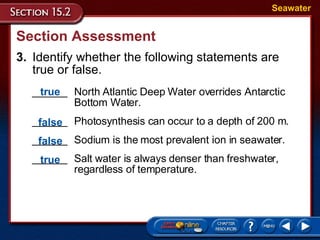

42. Section Assessment 3. Identify whether the following statements are true or false. Seawater ______ North Atlantic Deep Water overrides Antarctic Bottom Water. ______ Photosynthesis can occur to a depth of 200 m. ______ Sodium is the most prevalent ion in seawater. ______ Salt water is always denser than freshwater, regardless of temperature. true false false true

43. End of Section 2

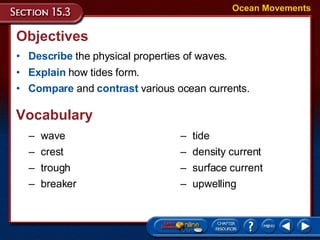

44. Objectives Describe the physical properties of waves. wave crest trough breaker Explain how tides form. Compare and contrast various ocean currents. Vocabulary Ocean Movements tide density current surface current upwelling

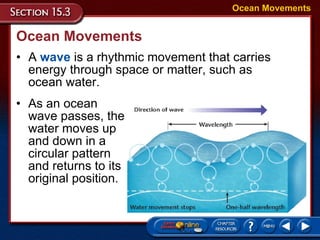

45. Ocean Movements A wave is a rhythmic movement that carries energy through space or matter, such as ocean water. Ocean Movements As an ocean wave passes, the water moves up and down in a circular pattern and returns to its original position.

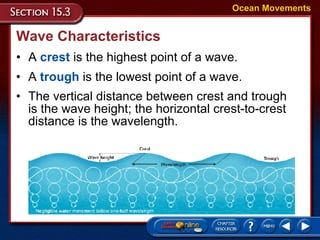

46. Wave Characteristics A crest is the highest point of a wave. Ocean Movements A trough is the lowest point of a wave. The vertical distance between crest and trough is the wave height; the horizontal crest-to-crest distance is the wavelength.

47. Wave Characteristics The wavelength determines the wave base, which is the depth to which the wave disturbs the water. Ocean Movements Wave speed increases with wavelength.

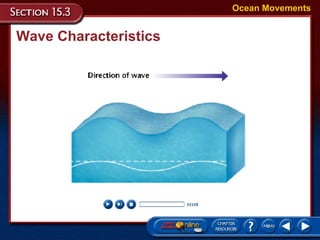

48. Wave Characteristics Ocean Movements

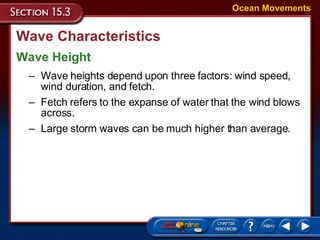

49. Wave Characteristics Wave Height Ocean Movements Wave heights depend upon three factors: wind speed, wind duration, and fetch. Fetch refers to the expanse of water that the wind blows across. Large storm waves can be much higher than average.

50. Wave Characteristics Breaking Waves Ocean Movements Ocean waves begin to lose energy and slow down near the shore because of friction with the ocean bottom. As the water becomes shallower, incoming wave crests gradually catch up with the slower wave crests ahead. Breakers are waves where the crests collapse forward when the wave becomes higher, steeper, and unstable as it nears shore.

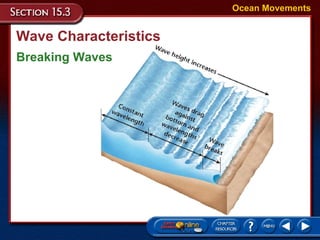

51. Wave Characteristics Breaking Waves Ocean Movements

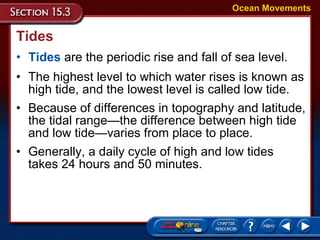

52. Tides Tides are the periodic rise and fall of sea level. Ocean Movements The highest level to which water rises is known as high tide, and the lowest level is called low tide. Because of differences in topography and latitude, the tidal range—the difference between high tide and low tide—varies from place to place. Generally, a daily cycle of high and low tides takes 24 hours and 50 minutes.

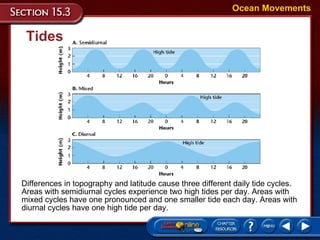

53. Tides Ocean Movements Differences in topography and latitude cause three different daily tide cycles. Areas with semidiurnal cycles experience two high tides per day. Areas with mixed cycles have one pronounced and one smaller tide each day. Areas with diurnal cycles have one high tide per day.

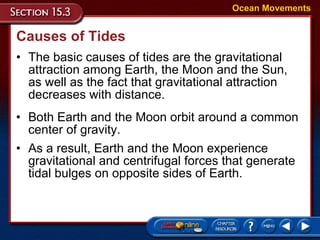

54. Causes of Tides The basic causes of tides are the gravitational attraction among Earth, the Moon and the Sun, as well as the fact that gravitational attraction decreases with distance. Ocean Movements Both Earth and the Moon orbit around a common center of gravity. As a result, Earth and the Moon experience gravitational and centrifugal forces that generate tidal bulges on opposite sides of Earth.

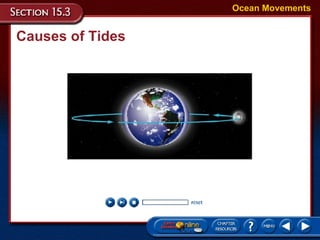

55. Causes of Tides Ocean Movements

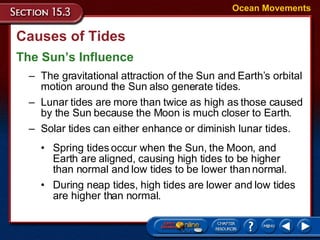

56. Causes of Tides The Sun’s Influence Ocean Movements The gravitational attraction of the Sun and Earth’s orbital motion around the Sun also generate tides. Lunar tides are more than twice as high as those caused by the Sun because the Moon is much closer to Earth. Solar tides can either enhance or diminish lunar tides. Spring tides occur when the Sun, the Moon, and Earth are aligned, causing high tides to be higher than normal and low tides to be lower than normal. During neap tides, high tides are lower and low tides are higher than normal.

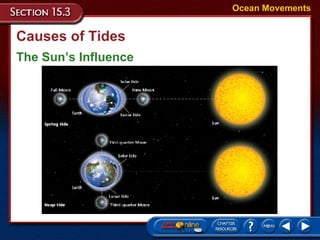

57. Causes of Tides The Sun’s Influence Ocean Movements

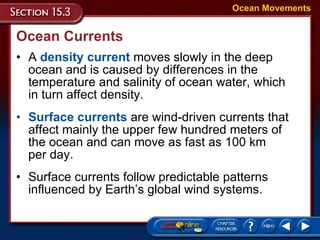

58. Ocean Currents A density current moves slowly in the deep ocean and is caused by differences in the temperature and salinity of ocean water, which in turn affect density. Ocean Movements Surface currents are wind-driven currents that affect mainly the upper few hundred meters of the ocean and can move as fast as 100 km per day. Surface currents follow predictable patterns influenced by Earth’s global wind systems.

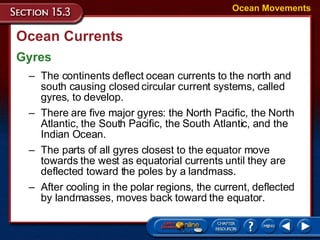

59. Ocean Currents Gyres Ocean Movements The continents deflect ocean currents to the north and south causing closed circular current systems, called gyres, to develop. There are five major gyres: the North Pacific, the North Atlantic, the South Pacific, the South Atlantic, and the Indian Ocean. The parts of all gyres closest to the equator move towards the west as equatorial currents until they are deflected toward the poles by a landmass. After cooling in the polar regions, the current, deflected by landmasses, moves back toward the equator.

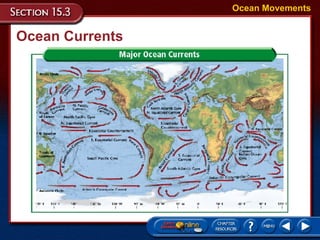

60. Ocean Currents Ocean Movements

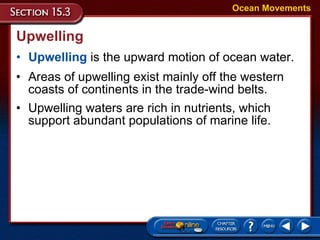

61. Upwelling Upwelling is the upward motion of ocean water. Ocean Movements Areas of upwelling exist mainly off the western coasts of continents in the trade-wind belts. Upwelling waters are rich in nutrients, which support abundant populations of marine life.

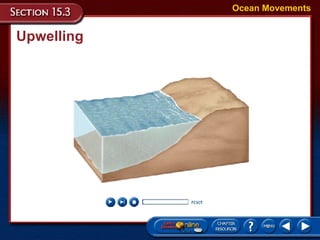

62. Upwelling Ocean Movements

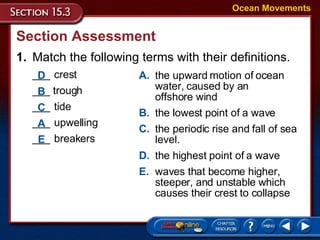

63. Section Assessment 1. Match the following terms with their definitions. ___ crest ___ trough ___ tide ___ upwelling ___ breakers Ocean Movements A. the upward motion of ocean water, caused by an offshore wind B. the lowest point of a wave C. the periodic rise and fall of sea level. D. the highest point of a wave E. waves that become higher, steeper, and unstable which causes their crest to collapse D B C A E

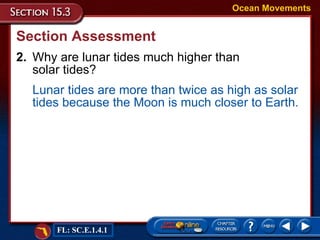

64. Section Assessment 2. Why are lunar tides much higher than solar tides? Ocean Movements Lunar tides are more than twice as high as solar tides because the Moon is much closer to Earth. FL: SC.E.1.4.1

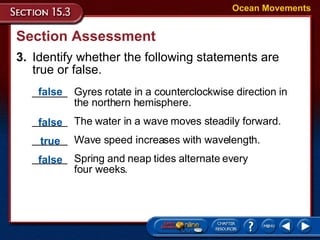

65. Section Assessment 3. Identify whether the following statements are true or false. Ocean Movements ______ Gyres rotate in a counterclockwise direction in the northern hemisphere. ______ The water in a wave moves steadily forward. ______ Wave speed increases with wavelength. ______ Spring and neap tides alternate every four weeks. false false true false

66. End of Section 3

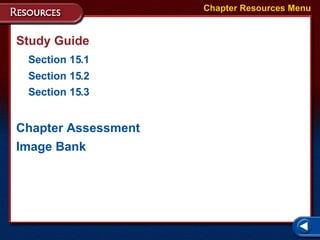

67. Chapter Resources Menu Study Guide Section 15.1 Section 15.2 Section 15.3 Chapter Assessment Image Bank Chapter Resources Menu

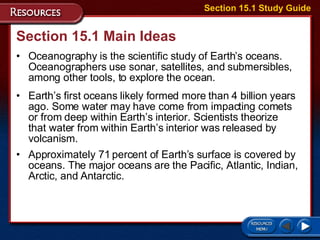

68. Section 15.1 Main Ideas Oceanography is the scientific study of Earth’s oceans. Oceanographers use sonar, satellites, and submersibles, among other tools, to explore the ocean. Earth’s first oceans likely formed more than 4 billion years ago. Some water may have come from impacting comets or from deep within Earth’s interior. Scientists theorize that water from within Earth’s interior was released by volcanism. Approximately 71 percent of Earth’s surface is covered by oceans. The major oceans are the Pacific, Atlantic, Indian, Arctic, and Antarctic. Section 15.1 Study Guide

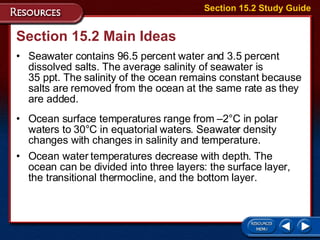

69. Section 15.2 Main Ideas Seawater contains 96.5 percent water and 3.5 percent dissolved salts. The average salinity of seawater is 35 ppt. The salinity of the ocean remains constant because salts are removed from the ocean at the same rate as they are added. Ocean surface temperatures range from –2°C in polar waters to 30°C in equatorial waters. Seawater density changes with changes in salinity and temperature. Ocean water temperatures decrease with depth. The ocean can be divided into three layers: the surface layer, the transitional thermocline, and the bottom layer. Section 15.2 Study Guide

70. Section 15.3 Main Ideas Ocean waves are generated by wind. Water in a wave moves in a circular motion but does not move forward. When waves reach shallow water, friction with the ocean bottom slows them, and they become breakers. Tides are caused by the gravitational attraction among Earth, the Moon, and the Sun. Lunar tides are twice as high as solar tides. Density currents are deep currents generated by salinity and temperature differences. Wind-driven surface currents affect the upper few hundred meters of the ocean. Upwelling occurs when winds push surface water aside and the surface water is replaced by cold, deep water. Section 15.3 Study Guide

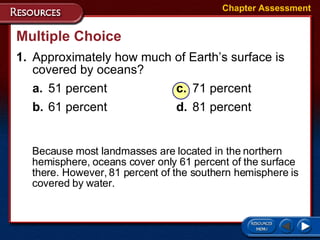

71. 1. Approximately how much of Earth’s surface is covered by oceans? a. 51 percent c. 71 percent b. 61 percent d. 81 percent Multiple Choice Chapter Assessment Because most landmasses are located in the northern hemisphere, oceans cover only 61 percent of the surface there. However, 81 percent of the southern hemisphere is covered by water.

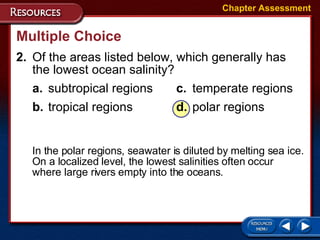

72. 2. Of the areas listed below, which generally has the lowest ocean salinity? a. subtropical regions c. temperate regions b. tropical regions d. polar regions Multiple Choice In the polar regions, seawater is diluted by melting sea ice. On a localized level, the lowest salinities often occur where large rivers empty into the oceans. Chapter Assessment

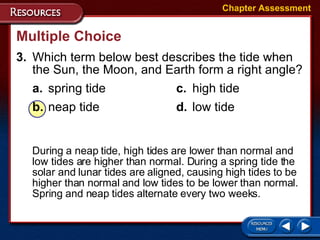

73. Multiple Choice 3. Which term below best describes the tide when the Sun, the Moon, and Earth form a right angle? a. spring tide c. high tide b. neap tide d. low tide Chapter Assessment During a neap tide, high tides are lower than normal and low tides are higher than normal. During a spring tide the solar and lunar tides are aligned, causing high tides to be higher than normal and low tides to be lower than normal. Spring and neap tides alternate every two weeks.

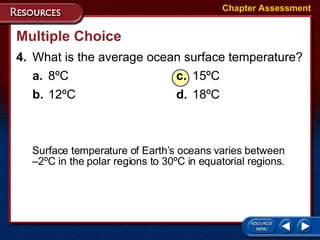

74. Multiple Choice 4. What is the average ocean surface temperature? a. 8ºC c. 15ºC b. 12ºC d. 18ºC Chapter Assessment Surface temperature of Earth’s oceans varies between –2ºC in the polar regions to 30ºC in equatorial regions.

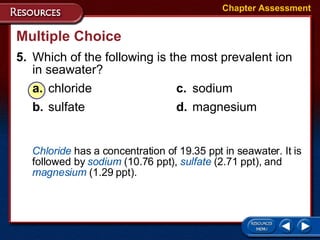

75. Multiple Choice 5. Which of the following is the most prevalent ion in seawater? a. chloride c. sodium b. sulfate d. magnesium Chapter Assessment Chloride has a concentration of 19.35 ppt in seawater. It is followed by sodium (10.76 ppt), sulfate (2.71 ppt), and magnesium (1.29 ppt).

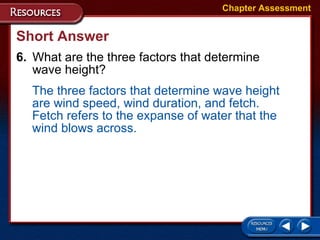

76. Short Answer 6. What are the three factors that determine wave height? Chapter Assessment The three factors that determine wave height are wind speed, wind duration, and fetch. Fetch refers to the expanse of water that the wind blows across.

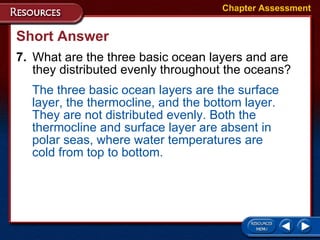

77. Short Answer 7. What are the three basic ocean layers and are they distributed evenly throughout the oceans? Chapter Assessment The three basic ocean layers are the surface layer, the thermocline, and the bottom layer. They are not distributed evenly. Both the thermocline and surface layer are absent in polar seas, where water temperatures are cold from top to bottom.

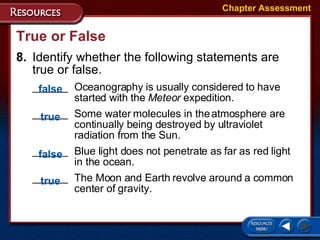

78. True or False 8. Identify whether the following statements are true or false. ______ Oceanography is usually considered to have started with the Meteor expedition. ______ Some water molecules in the atmosphere are continually being destroyed by ultraviolet radiation from the Sun. ______ Blue light does not penetrate as far as red light in the ocean. ______ The Moon and Earth revolve around a common center of gravity. Chapter Assessment false true false true

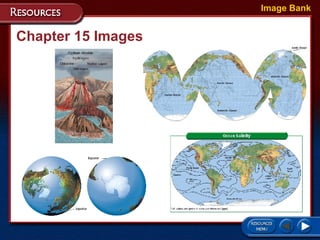

79. Chapter 15 Images Image Bank

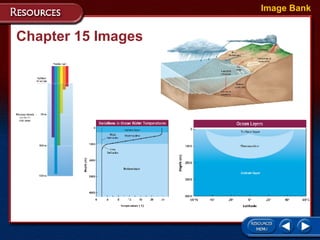

80. Chapter 15 Images Image Bank

81. Chapter 15 Images Image Bank

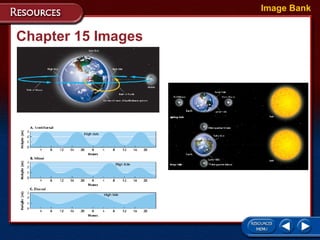

82. Chapter 15 Images Image Bank

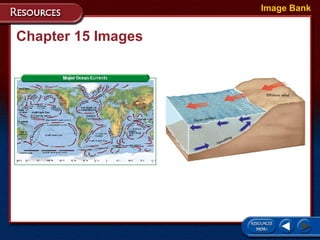

83. Chapter 15 Images Image Bank

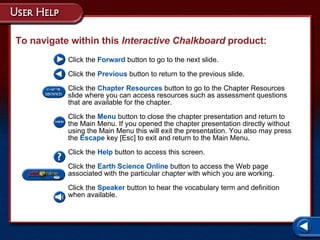

84. Help To navigate within this Interactive Chalkboard product: Click the Forward button to go to the next slide. Click the Previous button to return to the previous slide. Click the Chapter Resources button to go to the Chapter Resources slide where you can access resources such as assessment questions that are available for the chapter. Click the Menu button to close the chapter presentation and return to the Main Menu. If you opened the chapter presentation directly without using the Main Menu this will exit the presentation. You also may press the Escape key [Esc] to exit and return to the Main Menu. Click the Help button to access this screen. Click the Earth Science Online button to access the Web page associated with the particular chapter with which you are working. Click the Speaker button to hear the vocabulary term and definition when available.
