1. Nuget is easier than you thinkNuget is easier than you think
andand
you should be using it.you should be using it.
By
Justin James

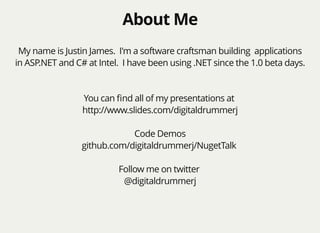

2. About MeAbout Me
My name is Justin James. I'm a software craftsman building applications
in ASP.NET and C# at Intel. I have been using .NET since the 1.0 beta days.
You can find all of my presentations at
http://www.slides.com/digitaldrummerj
Code Demos
github.com/digitaldrummerj/NugetTalk
Follow me on twitter
@digitaldrummerj

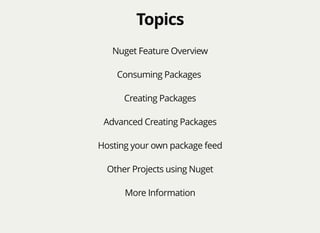

3. TopicsTopics
Nuget Feature Overview
Consuming Packages
Creating Packages
Advanced Creating Packages
Hosting your own package feed
Other Projects using Nuget

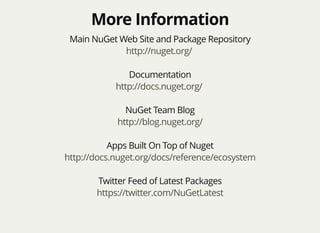

More Information

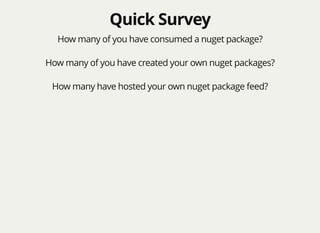

4. Quick SurveyQuick Survey
How many of you have consumed a nuget package?
How many of you have created your own nuget packages?
How many have hosted your own nuget package feed?

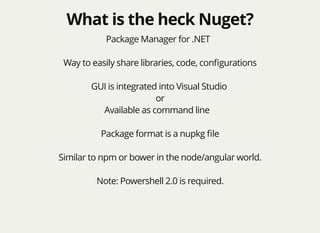

5. What is the heck Nuget?What is the heck Nuget?
Package Manager for .NET
Way to easily share libraries, code, configurations
GUI is integrated into Visual Studio
or
Available as command line
Package format is a nupkg file
Similar to npm or bower in the node/angular world.
Note: Powershell 2.0 is required.

6. Where can I get nuget packages?Where can I get nuget packages?
Public Gallery: http://www.nuget.org/packages
Public Feed: https://www.nuget.org/api/v2/
A package source can be any URL or folder path
You can have multiple sources configured

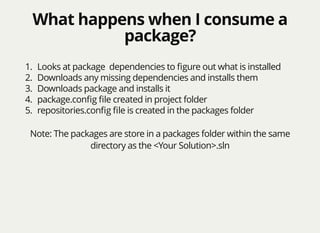

7. What happens when I consume aWhat happens when I consume a
package?package?
1. Looks at package dependencies to figure out what is installed
2. Downloads any missing dependencies and installs them
3. Downloads package and installs it
4. package.config file created in project folder
5. repositories.config file is created in the packages folder
Note: The packages are store in a packages folder within the same
directory as the <Your Solution>.sln

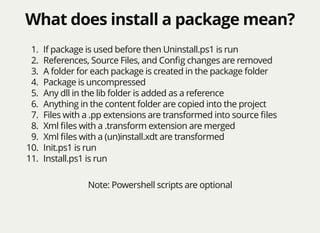

8. What does install a package mean?What does install a package mean?
1. If package is used before then Uninstall.ps1 is run
2. References, Source Files, and Config changes are removed
3. A folder for each package is created in the package folder
4. Package is uncompressed
5. Any dll in the lib folder is added as a reference
6. Anything in the content folder are copied into the project
7. Files with a .pp extensions are transformed into source files
8. Xml files with a .transform extension are merged
9. Xml files with a (un)install.xdt are transformed
10. Init.ps1 is run
11. Install.ps1 is run
Note: Powershell scripts are optional

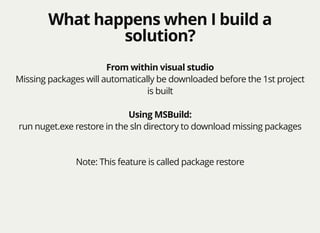

9. What happens when I build aWhat happens when I build a
solution?solution?
From within visual studio
Missing packages will automatically be downloaded before the 1st project
is built
Using MSBuild:
run nuget.exe restore in the sln directory to download missing packages
Note: This feature is called package restore

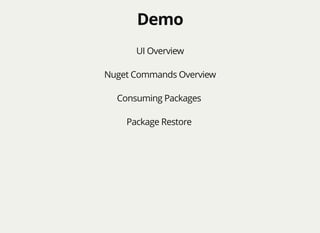

10. DemoDemo
UI Overview

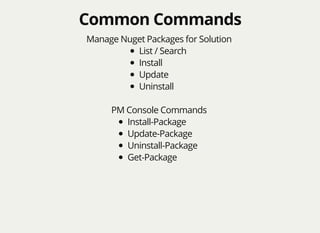

Nuget Commands Overview
Consuming Packages
Package Restore

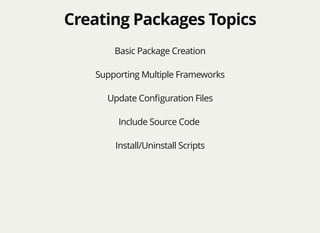

11. Creating Packages TopicsCreating Packages Topics
Basic Package Creation
Supporting Multiple Frameworks
Update Configuration Files
Include Source Code
Install/Uninstall Scripts

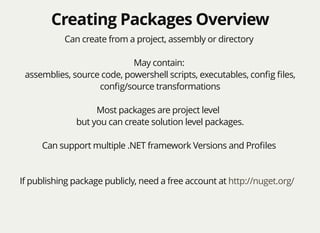

12. Creating Packages OverviewCreating Packages Overview
Can create from a project, assembly or directory
May contain:
assemblies, source code, powershell scripts, executables, config files,
config/source transformations
Most packages are project level
but you can create solution level packages.
Can support multiple .NET framework Versions and Profiles
If publishing package publicly, need a free account at http://nuget.org/

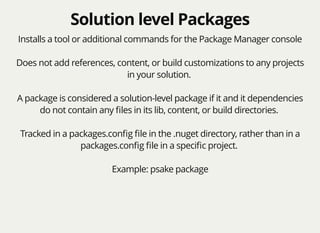

13. Solution level PackagesSolution level Packages
Installs a tool or additional commands for the Package Manager console
Does not add references, content, or build customizations to any projects
in your solution.
A package is considered a solution-level package if it and it dependencies
do not contain any files in its lib, content, or build directories.
Tracked in a packages.config file in the .nuget directory, rather than in a
packages.config file in a specific project.
Example: psake package

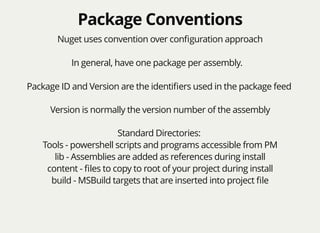

14. Package ConventionsPackage Conventions
Nuget uses convention over configuration approach
In general, have one package per assembly.
Package ID and Version are the identifiers used in the package feed
Version is normally the version number of the assembly
Standard Directories:
Tools - powershell scripts and programs accessible from PM
lib - Assemblies are added as references during install
content - files to copy to root of your project during install
build - MSBuild targets that are inserted into project file

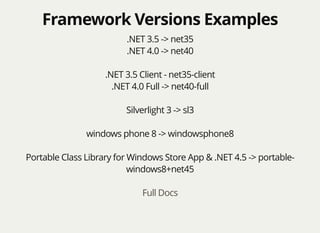

15. Supporting Multiple FrameworksSupporting Multiple Frameworks
supports multiple frameworks in same package
can target any .NET profiles (client, full, compact)
Framework name is case sensitive
naming convention is
[lib/content/tools]{framework}{version}
Examples :
libnet20 to support .NET 2.0
libnet40-client to support .NET 4.0 client profile
Note: empty folder indicates don't do anything for that version

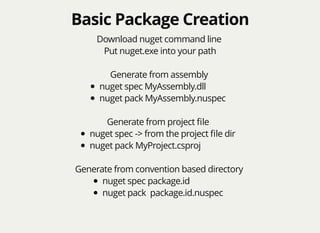

16. Basic Package CreationBasic Package Creation
Download nuget command line
Put nuget.exe into your path
Generate from assembly
nuget spec MyAssembly.dll
nuget pack MyAssembly.nuspec
Generate from project file
nuget spec -> from the project file dir
nuget pack MyProject.csproj
Generate from convention based directory
nuget spec package.id
nuget pack package.id.nuspec

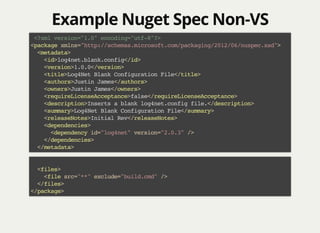

17. Example Nuget Spec Non-VSExample Nuget Spec Non-VS
<?xml version="1.0" encoding="utf-8"?>
<package xmlns="http://schemas.microsoft.com/packaging/2012/06/nuspec.xsd">
<metadata>
<id>log4net.blank.config</id>
<version>1.0.0</version>
<title>Log4Net Blank Configuration File</title>
<authors>Justin James</authors>
<owners>Justin James</owners>
<requireLicenseAcceptance>false</requireLicenseAcceptance>
<description>Inserts a blank log4net.config file.</description>
<summary>Log4Net Blank Configuration File</summary>
<releaseNotes>Initial Rev</releaseNotes>

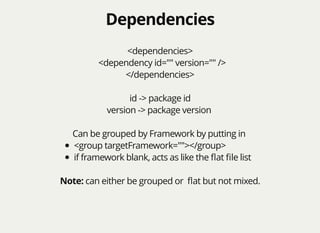

<dependencies>
<dependency id="log4net" version="2.0.3" />
</dependencies>
</metadata>

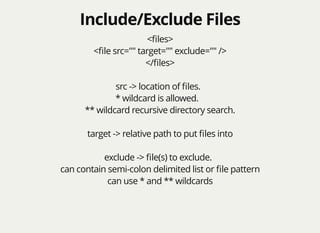

<files>
<file src="**" exclude="build.cmd" />
</files>
</package>

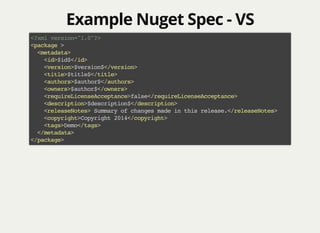

18. Example Nuget Spec - VSExample Nuget Spec - VS
<?xml version="1.0"?>
<package >
<metadata>
<id>$id$</id>
<version>$version$</version>
<title>$title$</title>
<authors>$author$</authors>
<owners>$author$</owners>
<requireLicenseAcceptance>false</requireLicenseAcceptance>
<description>$description$</description>
<releaseNotes> Summary of changes made in this release.</releaseNotes>
<copyright>Copyright 2014</copyright>
<tags>Demo</tags>
</metadata>
</package>

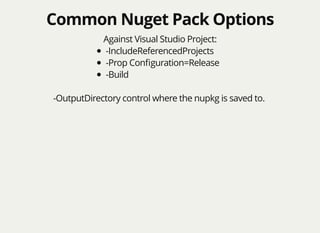

19. Common Nuget Pack OptionsCommon Nuget Pack Options
Against Visual Studio Project:
-IncludeReferencedProjects
-Prop Configuration=Release
-Build
-OutputDirectory control where the nupkg is saved to.

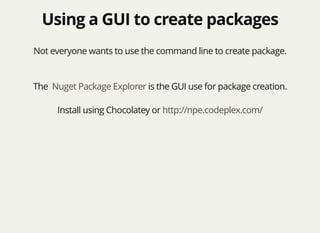

20. Using a GUI to create packagesUsing a GUI to create packages
Not everyone wants to use the command line to create package.
The is the GUI use for package creation.Nuget Package Explorer
Install using Chocolatey or http://npe.codeplex.com/

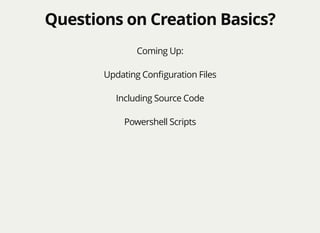

21. Questions on Creation Basics?Questions on Creation Basics?
Coming Up:
Updating Configuration Files
Including Source Code
Powershell Scripts

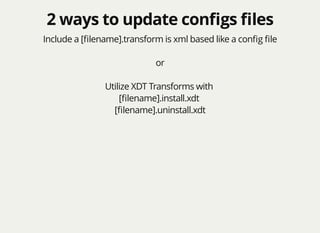

22. 2 ways to update configs files2 ways to update configs files
Include a [filename].transform is xml based like a config file
or
Utilize XDT Transforms with
[filename].install.xdt
[filename].uninstall.xdt

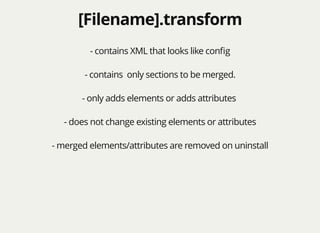

23. [Filename].transform[Filename].transform
- contains XML that looks like config
- contains only sections to be merged.
- only adds elements or adds attributes
- does not change existing elements or attributes
- merged elements/attributes are removed on uninstall

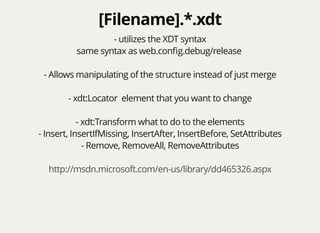

24. [Filename].*.xdt[Filename].*.xdt
- utilizes the XDT syntax
same syntax as web.config.debug/release
- Allows manipulating of the structure instead of just merge
- xdt:Locator element that you want to change
- xdt:Transform what to do to the elements
- Insert, InsertIfMissing, InsertAfter, InsertBefore, SetAttributes
- Remove, RemoveAll, RemoveAttributes
http://msdn.microsoft.com/en-us/library/dd465326.aspx

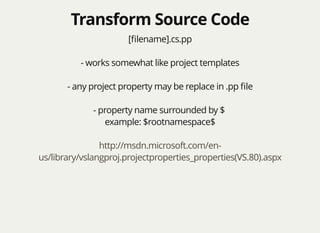

25. Transform Source CodeTransform Source Code
[filename].cs.pp
- works somewhat like project templates
- any project property may be replace in .pp file
- property name surrounded by $
example: $rootnamespace$
http://msdn.microsoft.com/en-
us/library/vslangproj.projectproperties_properties(VS.80).aspx

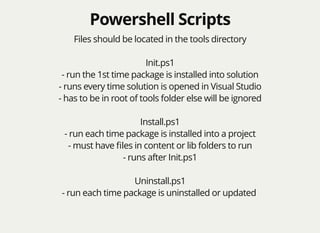

26. Powershell ScriptsPowershell Scripts
Files should be located in the tools directory
Init.ps1
- run the 1st time package is installed into solution
- runs every time solution is opened in Visual Studio
- has to be in root of tools folder else will be ignored
Install.ps1
- run each time package is installed into a project
- must have files in content or lib folders to run
- runs after Init.ps1
Uninstall.ps1
- run each time package is uninstalled or updated

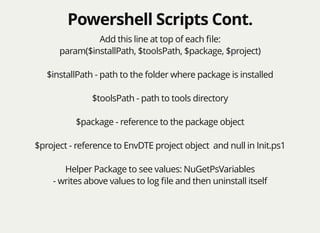

27. Powershell Scripts Cont.Powershell Scripts Cont.
Add this line at top of each file:
param($installPath, $toolsPath, $package, $project)
$installPath - path to the folder where package is installed
$toolsPath - path to tools directory
$package - reference to the package object
$project - reference to EnvDTE project object and null in Init.ps1
Helper Package to see values: NuGetPsVariables
- writes above values to log file and then uninstall itself

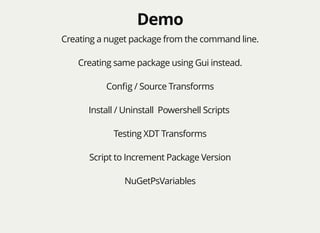

28. DemoDemo
Creating a nuget package from the command line.
Creating same package using Gui instead.
Config / Source Transforms
Install / Uninstall Powershell Scripts
Testing XDT Transforms
Script to Increment Package Version
NuGetPsVariables

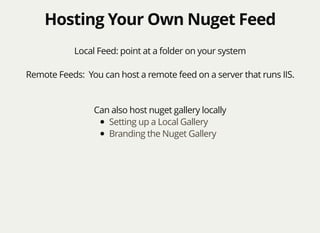

29. Hosting Your Own Nuget FeedHosting Your Own Nuget Feed
Local Feed: point at a folder on your system
Remote Feeds: You can host a remote feed on a server that runs IIS.
Can also host nuget gallery locally
Setting up a Local Gallery
Branding the Nuget Gallery

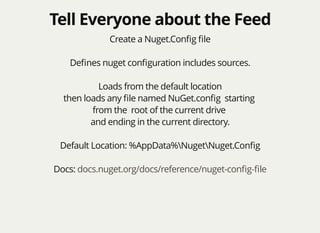

30. Tell Everyone about the FeedTell Everyone about the Feed
Create a Nuget.Config file
Defines nuget configuration includes sources.
Loads from the default location
then loads any file named NuGet.config starting
from the root of the current drive
and ending in the current directory.
Default Location: %AppData%NugetNuget.Config
Docs: docs.nuget.org/docs/reference/nuget-config-file

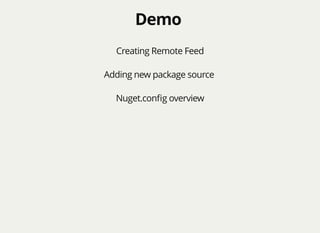

31. DemoDemo
Creating Remote Feed
Adding new package source
Nuget.config overview

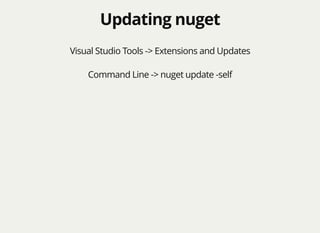

32. Updating nugetUpdating nuget
Visual Studio Tools -> Extensions and Updates
Command Line -> nuget update -self

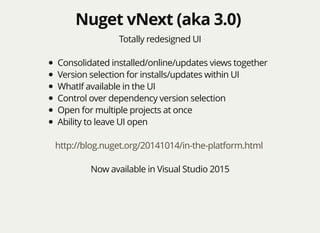

33. Nuget vNext (aka 3.0)Nuget vNext (aka 3.0)
Totally redesigned UI
Consolidated installed/online/updates views together
Version selection for installs/updates within UI
WhatIf available in the UI
Control over dependency version selection
Open for multiple projects at once
Ability to leave UI open
http://blog.nuget.org/20141014/in-the-platform.html
Now available in Visual Studio 2015

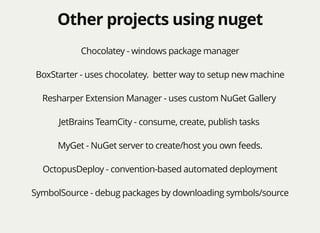

34. Other projects using nugetOther projects using nuget
Chocolatey - windows package manager
BoxStarter - uses chocolatey. better way to setup new machine
Resharper Extension Manager - uses custom NuGet Gallery
JetBrains TeamCity - consume, create, publish tasks
MyGet - NuGet server to create/host you own feeds.
OctopusDeploy - convention-based automated deployment
SymbolSource - debug packages by downloading symbols/source

35. More InformationMore Information
Main NuGet Web Site and Package Repository
http://nuget.org/
Documentation
http://docs.nuget.org/
NuGet Team Blog
http://blog.nuget.org/
Apps Built On Top of Nuget
http://docs.nuget.org/docs/reference/ecosystem
Twitter Feed of Latest Packages
https://twitter.com/NuGetLatest

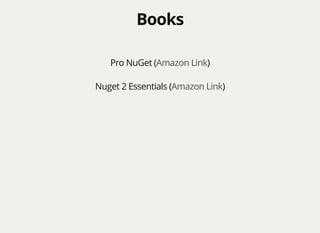

36. BooksBooks
Pro NuGet ( )Amazon Link
Nuget 2 Essentials ( )Amazon Link

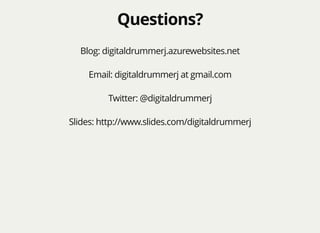

37. Questions?Questions?
Blog: digitaldrummerj.azurewebsites.net
Email: digitaldrummerj at gmail.com
Twitter: @digitaldrummerj
Slides: http://www.slides.com/digitaldrummerj

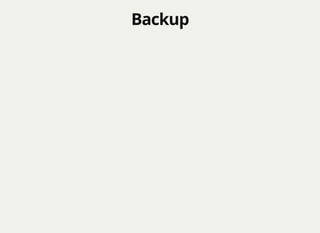

38. BackupBackup

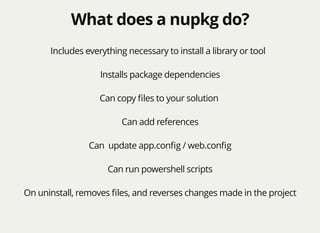

39. What does a nupkg do?What does a nupkg do?
Includes everything necessary to install a library or tool
Installs package dependencies
Can copy files to your solution
Can add references
Can update app.config / web.config
Can run powershell scripts
On uninstall, removes files, and reverses changes made in the project

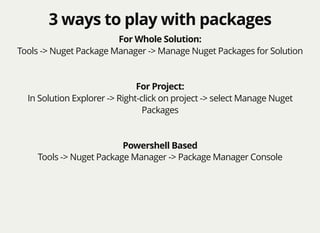

40. 3 ways to play with packages3 ways to play with packages
For Whole Solution:
Tools -> Nuget Package Manager -> Manage Nuget Packages for Solution
For Project:
In Solution Explorer -> Right-click on project -> select Manage Nuget
Packages
Powershell Based
Tools -> Nuget Package Manager -> Package Manager Console

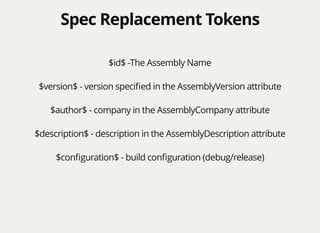

41. Spec Replacement TokensSpec Replacement Tokens
$id$ -The Assembly Name
$version$ - version specified in the AssemblyVersion attribute
$author$ - company in the AssemblyCompany attribute
$description$ - description in the AssemblyDescription attribute
$configuration$ - build configuration (debug/release)

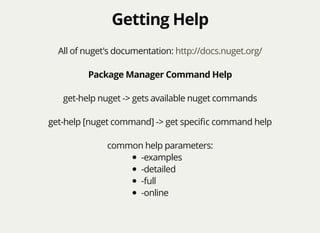

42. Getting HelpGetting Help
All of nuget's documentation: http://docs.nuget.org/
Package Manager Command Help
get-help nuget -> gets available nuget commands
get-help [nuget command] -> get specific command help
common help parameters:
-examples
-detailed
-full
-online

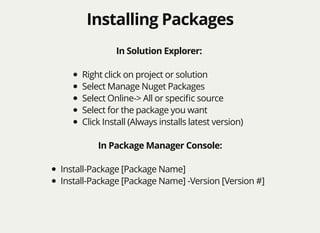

43. Installing PackagesInstalling Packages
In Solution Explorer:
Right click on project or solution
Select Manage Nuget Packages
Select Online-> All or specific source
Select for the package you want
Click Install (Always installs latest version)
In Package Manager Console:
Install-Package [Package Name]
Install-Package [Package Name] -Version [Version #]

44. Common CommandsCommon Commands
Manage Nuget Packages for Solution
List / Search
Install
Update
Uninstall
PM Console Commands
Install-Package
Update-Package
Uninstall-Package
Get-Package

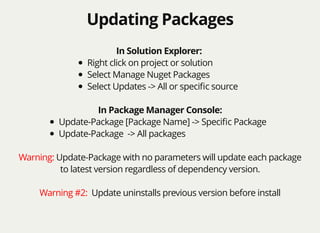

45. Updating PackagesUpdating Packages
In Solution Explorer:
Right click on project or solution
Select Manage Nuget Packages
Select Updates -> All or specific source
In Package Manager Console:
Update-Package [Package Name] -> Specific Package
Update-Package -> All packages
Warning: Update-Package with no parameters will update each package
to latest version regardless of dependency version.
Warning #2: Update uninstalls previous version before install

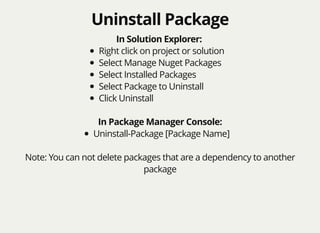

46. Uninstall PackageUninstall Package
In Solution Explorer:
Right click on project or solution
Select Manage Nuget Packages
Select Installed Packages
Select Package to Uninstall
Click Uninstall
In Package Manager Console:
Uninstall-Package [Package Name]
Note: You can not delete packages that are a dependency to another
package

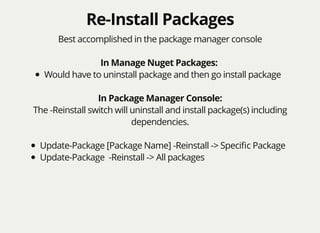

47. Re-Install PackagesRe-Install Packages
Best accomplished in the package manager console
In Manage Nuget Packages:
Would have to uninstall package and then go install package
In Package Manager Console:
The -Reinstall switch will uninstall and install package(s) including
dependencies.
Update-Package [Package Name] -Reinstall -> Specific Package
Update-Package -Reinstall -> All packages

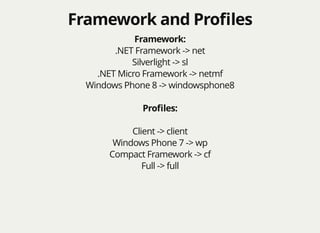

48. Framework and ProfilesFramework and Profiles
Framework:
.NET Framework -> net
Silverlight -> sl
.NET Micro Framework -> netmf
Windows Phone 8 -> windowsphone8
Profiles:
Client -> client
Windows Phone 7 -> wp
Compact Framework -> cf
Full -> full

49. Framework Versions ExamplesFramework Versions Examples
.NET 3.5 -> net35
.NET 4.0 -> net40
.NET 3.5 Client - net35-client
.NET 4.0 Full -> net40-full
Silverlight 3 -> sl3
windows phone 8 -> windowsphone8
Portable Class Library for Windows Store App & .NET 4.5 -> portable-
windows8+net45
Full Docs

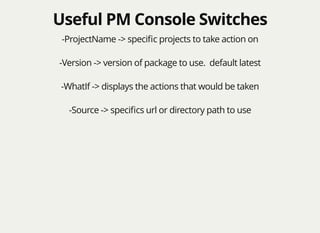

50. Useful PM Console SwitchesUseful PM Console Switches
-ProjectName -> specific projects to take action on
-Version -> version of package to use. default latest
-WhatIf -> displays the actions that would be taken
-Source -> specifics url or directory path to use

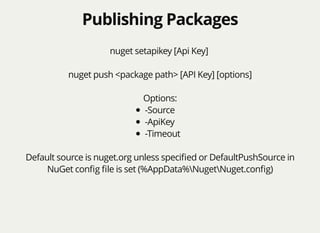

51. Publishing PackagesPublishing Packages
nuget setapikey [Api Key]
nuget push <package path> [API Key] [options]
Options:
-Source
-ApiKey
-Timeout
Default source is nuget.org unless specified or DefaultPushSource in
NuGet config file is set (%AppData%NugetNuget.config)

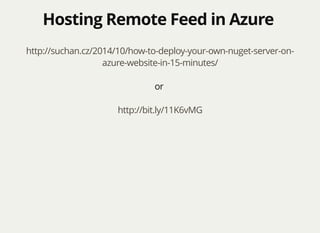

52. Hosting Remote Feed in AzureHosting Remote Feed in Azure
http://suchan.cz/2014/10/how-to-deploy-your-own-nuget-server-on-
azure-website-in-15-minutes/
or
http://bit.ly/11K6vMG

53. Include/Exclude FilesInclude/Exclude Files
<files>
<file src="" target="" exclude="" />
</files>
src -> location of files.
* wildcard is allowed.
** wildcard recursive directory search.
target -> relative path to put files into
exclude -> file(s) to exclude.
can contain semi-colon delimited list or file pattern
can use * and ** wildcards

54. DependenciesDependencies
<dependencies>
<dependency id="" version="" />
</dependencies>
id -> package id
version -> package version
Can be grouped by Framework by putting in
<group targetFramework=""></group>
if framework blank, acts as like the flat file list
Note: can either be grouped or flat but not mixed.

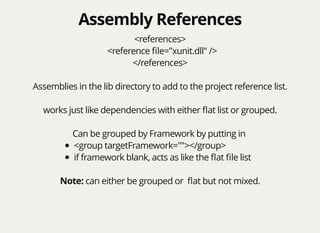

55. Assembly ReferencesAssembly References
<references>
<reference file="xunit.dll" />
</references>
Assemblies in the lib directory to add to the project reference list.
works just like dependencies with either flat list or grouped.
Can be grouped by Framework by putting in
<group targetFramework=""></group>
if framework blank, acts as like the flat file list
Note: can either be grouped or flat but not mixed.

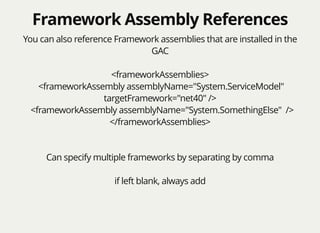

56. Framework Assembly ReferencesFramework Assembly References
You can also reference Framework assemblies that are installed in the
GAC
<frameworkAssemblies>
<frameworkAssembly assemblyName="System.ServiceModel"
targetFramework="net40" />
<frameworkAssembly assemblyName="System.SomethingElse" />
</frameworkAssemblies>
Can specify multiple frameworks by separating by comma
if left blank, always add

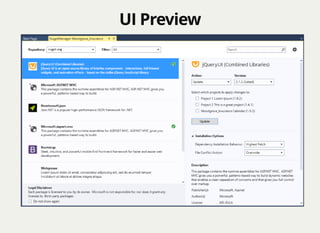

57. UI PreviewUI Preview
