National Transmission And Dispatch Company (NTDC)

NATIONAL TRANSMISSION &
DESPATCH COMPANY
MUMMAD DAUD
GENERAL MANAGER PLANNING
NTDC
NTDC’s PRESENT SYSTEM, FUTURE PLANS,
BOTTLENECKS & KPIs
PRESENTATION BY

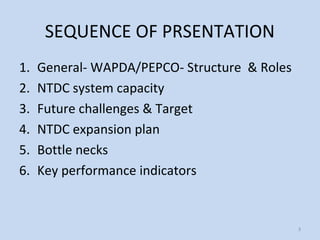

SEQUENCE OF PRSENTATION
1. General- WAPDA/PEPCO- Structure & Roles
2. NTDC system capacity
3. Future challenges & Target
4. NTDC expansion plan

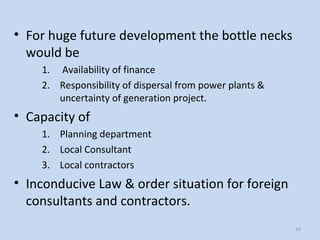

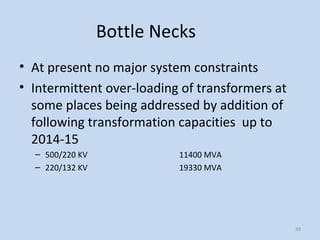

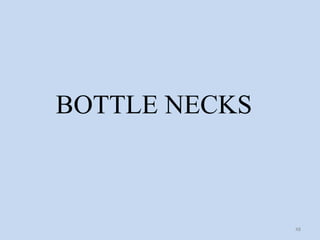

5. Bottle necks

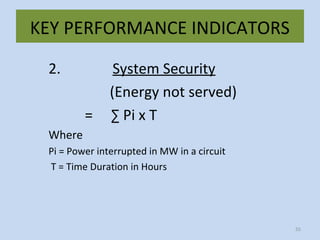

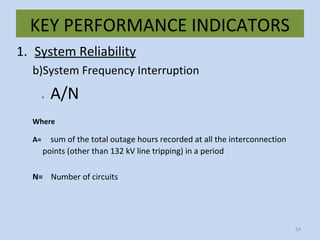

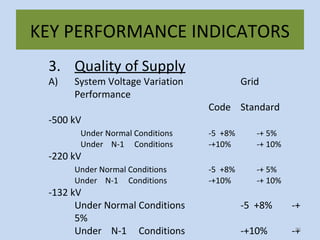

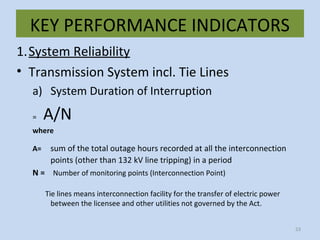

6. Key performance indicators
3

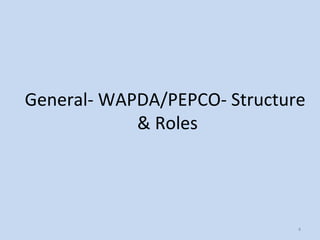

General- WAPDA/PEPCO- Structure
& Roles
4

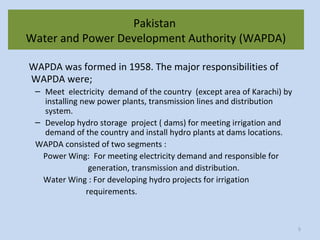

Pakistan
Water and Power Development Authority (WAPDA)
WAPDA was formed in 1958. The major responsibilities of
WAPDA were;
– Meet electricity demand of the country (except area of Karachi) by
installing new power plants, transmission lines and distribution
system.
– Develop hydro storage project ( dams) for meeting irrigation and
demand of the country and install hydro plants at dams locations.
WAPDA consisted of two segments :
Power Wing: For meeting electricity demand and responsible for
generation, transmission and distribution.
Water Wing : For developing hydro projects for irrigation
requirements.
5

6
PAKISTAN POWER SECTOR: BACKGROUND
1. The GoP approved Pakistan Power Sector Strategic Plan for
restructuring and reform in 1992, according to which, the power wing of
WAPDA was structured into four (4) Generation Companies (GENCOs),
one (1) National Transmission and Dispatch Company (NTDC) and nine
(9) Distribution Companies (DISCOs).
2. PEPCO was established in 1998 as an independent entity with mandate
to restructure Pakistan Power Sector, corporatise & commercialize the
restructured entities, and to bring about reforms thru introduction of
competition, enhancement of efficiencies and best financial and prudent
utility practices.
3. PEPCO initiated the restructuring and reform process in 1998 with
limited initial success. The reform process was considerably slowed
down beyond 2001 when PEPCO was reduced to a Division in WAPDA.
4. The GoP reactivated the mandate of PEPCO in October 2007 to bridge
the increasing demand supply gap and to reduce the resulting load
shedding in the country.
6

Chairman WAPDAChairman WAPDA MD PEPCOMD PEPCO
PEPCO Management
Team
PEPCO Management
Team
WATER
WING
WATER
WING
FINANCE
WING
FINANCE
WING
POWER
WING
POWER
WING
COMMON
SERVICES
COMMON
SERVICES
RESIDUAL WAPDA
WINGS PART
TRANSITION TO
CORPORATE
ENTITIES
WATERWATER
HYDEL
FINANCE
HYDEL
FINANCE
HYDEL
POWER
HYDEL
POWER
SERVICESSERVICES
RESTRUCTURED POWER
WING
RESTRUCTURED POWER
WING
GENCOsGENCOs NTDCNTDC DISCOsDISCOs
(4) (1) (9)
• HOSPITALS
• ACADEMY
• ETC
AUTONOMOUS COMPANIES WITH
INDEPENDENT COMMERCIAL
OPERATIONS THROUGH BOD
MEMBERS: Hydel power,
Finance, Water
MEMBERS: Hydel power,
Finance, Water
GOP/MW&PGOP/MW&P Chairman PEPCOChairman PEPCO
NEW FACE OF PAKISTAN’S POWER SECTORNEW FACE OF PAKISTAN’S POWER SECTOR
7

National Transmission and Dispatch Company Ltd.
National Transmission & Despatch Company (NTDC)
Limited was incorporated on 6th November, 1998 and
commenced commercial operation on 24th December,
1998. It was organized to take over all the properties,
rights and assets, obligations and liabilities of 220 KV and
500KV Grid Stations and Transmission Lines/Network
owned by Pakistan Water and Power Development
Authority (WAPDA). .
8

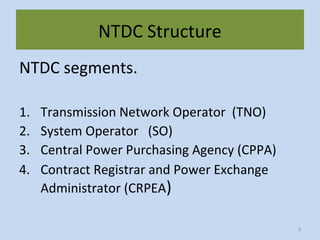

NTDC Structure
NTDC segments.
1. Transmission Network Operator (TNO)
2. System Operator (SO)
3. Central Power Purchasing Agency (CPPA)
4. Contract Registrar and Power Exchange
Administrator (CRPEA)
9

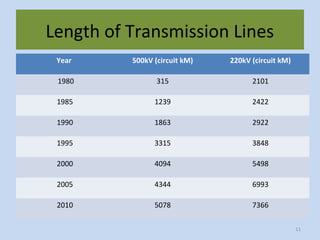

Length of Transmission Lines
Year 500kV (circuit kM) 220kV (circuit kM)
1980 315 2101
1985 1239 2422
1990 1863 2922
1995 3315 3848
2000 4094 5498
2005 4344 6993
2010 5078 7366
11

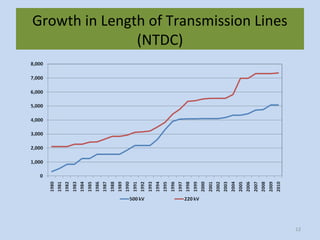

Growth in Length of Transmission Lines
(NTDC)
12

No MVA No
1980 0 0 5
1985 2 1350 10
1990 6 4974 14
1995 7 6774 18
2000 9 8274 24
2005 9 8274 26
2010 12 14850 26*
No. & Capacity of Substations (NTDC)
*1 No. 220 KV gird station was added & 1No.
220 KV Grid station was converted to 500 KV 13
500- KV Substations 220- KV Substations

Growth of Transmission System capacity –MVA
(NTDC)
14

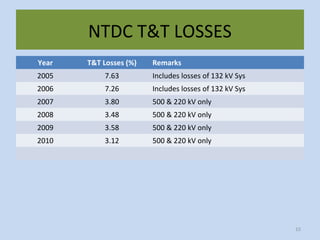

Year T&T Losses (%) Remarks
2005 7.63 Includes losses of 132 kV Sys
2006 7.26 Includes losses of 132 kV Sys
2007 3.80 500 & 220 kV only
2008 3.48 500 & 220 kV only
2009 3.58 500 & 220 kV only
2010 3.12 500 & 220 kV only
15
NTDC T&T LOSSES

Future challenges & Targets
17

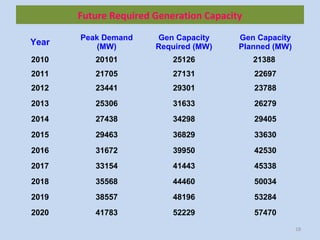

Future Required Generation Capacity
Year
Peak Demand
(MW)
Gen Capacity
Required (MW)
Gen Capacity
Planned (MW)
2010 20101 25126 21388
2011 21705 27131 22697
2012 23441 29301 23788
2013 25306 31633 26279
2014 27438 34298 29405
2015 29463 36829 33630
2016 31672 39950 42530
2017 33154 41443 45338
2018 35568 44460 50034
2019 38557 48196 53284
2020 41783 52229 57470
18

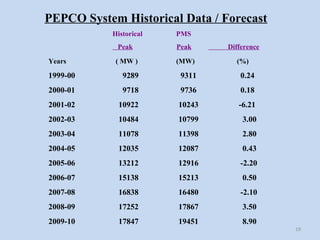

PEPCO System Historical Data / Forecast
Historical PMS
Peak Peak Difference
Years ( MW ) (MW) (%)
1999-00 9289 9311 0.24
2000-01 9718 9736 0.18
2001-02 10922 10243 -6.21
2002-03 10484 10799 3.00
2003-04 11078 11398 2.80
2004-05 12035 12087 0.43
2005-06 13212 12916 -2.20
2006-07 15138 15213 0.50
2007-08 16838 16480 -2.10
2008-09 17252 17867 3.50
2009-10 17847 19451 8.90
19

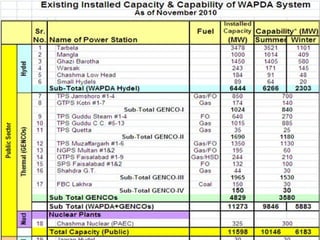

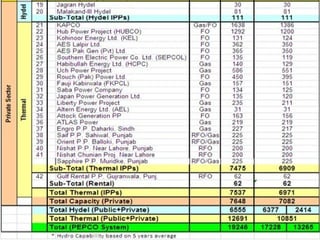

EXISTING GENERATING CAPACITY (Oct, 2010)
* Hydro availability based on last 5 years average
** Excludes 10% Forced Outages for GENCOs & 6.0% for IPPs & Rental
Type of Generation
Nameplate
/Installed
Capacity
(MW)
Derated/
Dependable
Capacity
(MW)
Availability (MW)
Summer Winter
WAPDA Hydro 6444 6444 6250 2300*
GENCOs 4829 3580 2780 3222**
IPPs (incl Nuclear) 7911 7695 5750 6900**
Rental 62 60 60 60**
Total 19246 17779 14840 12482
20

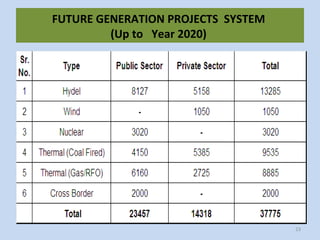

FUTURE GENERATION PROJECTS SYSTEM
(Up to Year 2020)
23

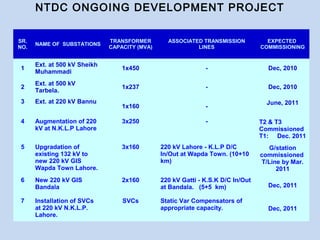

NTDC ONGOING DEVELOPMENT PROJECT
SR.
NO.
NAME OF SUBSTATIONS
TRANSFORMER
CAPACITY (MVA)
ASSOCIATED TRANSMISSION
LINES
EXPECTED
COMMISSIONING
1
Ext. at 500 kV Sheikh
Muhammadi
1x450 - Dec, 2010
2
Ext. at 500 kV
Tarbela.
1x237 - Dec, 2010
3 Ext. at 220 kV Bannu
1x160 -
June, 2011
4 Augmentation of 220
kV at N.K.L.P Lahore
3x250 - T2 & T3
Commissioned
T1: Dec. 2011
5 Upgradation of
existing 132 kV to
new 220 kV GIS
Wapda Town Lahore.
3x160 220 kV Lahore - K.L.P D/C
In/Out at Wapda Town. (10+10
km)
G/station
commissioned
T/Line by Mar.
2011
6 New 220 kV GIS
Bandala
2x160 220 kV Gatti - K.S.K D/C In/Out
at Bandala. (5+5 km) Dec, 2011
7 Installation of SVCs
at 220 kV N.K.L.P.
Lahore.
SVCs Static Var Compensators of
appropriate capacity. Dec, 2011

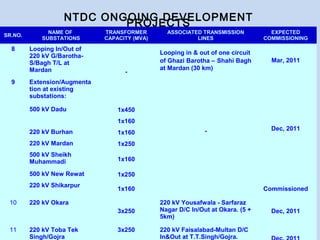

SR.NO.
NAME OF
SUBSTATIONS
TRANSFORMER
CAPACITY (MVA)
LINES
EXPECTED
COMMISSIONING
8 Looping In/Out of
220 kV G/Barotha-
S/Bagh T/L at
Mardan -
Looping in & out of one circuit
of Ghazi Barotha – Shahi Bagh
at Mardan (30 km)
Mar, 2011
9 Extension/Augmenta
tion at existing
substations:
- Dec, 2011
500 kV Dadu 1x450
1x160
220 kV Burhan 1x160
220 kV Mardan 1x250
500 kV Sheikh
Muhammadi 1x160
500 kV New Rewat 1x250
220 kV Shikarpur
1x160 Commissioned
10 220 kV Okara
3x250
220 kV Yousafwala - Sarfaraz
Nagar D/C In/Out at Okara. (5 +
5km)
Dec, 2011
11 220 kV Toba Tek
Singh/Gojra
3x250 220 kV Faisalabad-Multan D/C
In&Out at T.T.Singh/Gojra.
NTDC ONGOING DEVELOPMENT
PROJECTS

SR.
NO.
NAME OF NEW
SUBSTATIONS
TRANSFORMER
CAPACITY
(MVA)
LINES
EXPECTED
COMMISSIONING

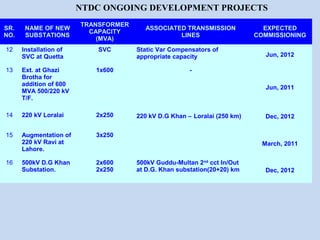

12 Installation of
SVC at Quetta
SVC Static Var Compensators of
appropriate capacity Jun, 2012
13 Ext. at Ghazi
Brotha for
addition of 600
MVA 500/220 kV
T/F.
1x600 -
Jun, 2011
14 220 kV Loralai 2x250 220 kV D.G Khan – Loralai (250 km) Dec, 2012
15 Augmentation of
220 kV Ravi at
Lahore.
3x250
March, 2011
16 500kV D.G Khan
Substation.
2x600
2x250
500kV Guddu-Multan 2nd
cct In/Out
at D.G. Khan substation(20+20) km Dec, 2012
NTDC ONGOING DEVELOPMENT PROJECTS

SR.
NO.
NAME OF NEW
SUBSTATIONS
TRANSFORMER
CAPACITY
(MVA)
LINES
EXPECTED
COMMISSIONING
17 220 kV Rohri
New for
interconnection
of IPPs at Engro
Energy PP and
Mari (Dharki)
CCPP
2x250 220 kV D/C T/L Dharki CCPP–
Rohri New (115 km)
Dec, 2011
132 kV D/C T/L for In/Out of
Rohri-Khairpur/Gambat D/C T/L
at Rohri New (1+1 km)
220kV D/C Rohri New-Shikarpur
T/L (50 km)
220 kV D/C T/L for In/Out of
Dharki -Rohri New at Engro
CCPP (5+5 km)
132 kV Rohri New-Gambat D/C
T/L (53 km)
18 220 kV
Gridstation at
Khuzdar,
2x160
220kV D/C Dadu – Khuzdar
Transmission Line (300 km) Dec, 2011
19 220 kV Grid
Station at Ghazi
Road, Lahore
3x160 220 kV D/C T/L for In&Out of
NKLP – Sarfraz Nagar at Ghazi
Road. (30 km)
Dec, 2012
220 kV D/C T/L for In&Out of
Ravi– KSK at Ghazi Rd. (30 km)

SR.
NO.
NAME OF NEW
SUBSTATIONS
T/F
CAPACITY
(MVA)
LINES
EXPECTED
COMMISSIONING

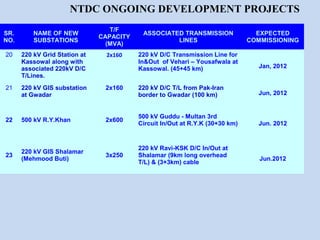

20 220 kV Grid Station at
Kassowal along with
associated 220kV D/C
T/Lines.
2x160 220 kV D/C Transmission Line for
In&Out of Vehari – Yousafwala at
Kassowal. (45+45 km) Jan, 2012
21 220 kV GIS substation
at Gwadar
2x160 220 kV D/C T/L from Pak-Iran
border to Gwadar (100 km) Jun, 2012
22 500 kV R.Y.Khan 2x600
500 kV Guddu - Multan 3rd
Circuit In/Out at R.Y.K (30+30 km) Jun. 2012
23
220 kV GIS Shalamar
(Mehmood Buti)
3x250
220 kV Ravi-KSK D/C In/Out at
Shalamar (9km long overhead
T/L) & (3+3km) cable
Jun.2012

S.#
Name of
Project
Transfor-
mer
Capacity
(MVA)
ASSOCIATED
TRANSMISSION
LINES
Estimated
Cost
(Rs. in
Million)
Eqt. US$
in Million
Approval
by
ECNEC
Financing
Expected
commissi-
oning
1
220 kV
Gujrat
3x250
220 kV Mangla-
Ghakkar D/C In/Out at
Gujrat (2+2 km)
2805 33 22.10.2007 JICA 2011-12
2
220 kV
Chishtian
2x250
220 kV Vehari -
Chishtian D/C T/Line.
( 65 km)
3740 44 22.10.2007 JICA
2011-12
3 500 kV New
Lahore
2x750 Two 500 kV S/C
T/Lines for In/out of
500 kV Sahiwal –
Lahore S/C at Lahore
New (15+15 km)
12665 149 PC-I
cleared by
CDWP on
18.03.2010
JICA 2012-13
Two 500 kV S/C
500 kV Lahore –
Gujranwala S/C at
Lahore New (50+50
km)
220 kV D/C T/Line for In/out
of 220 kV NKLP-Ghazi
Road at Lahore New. (50
km)
220 kV D/C T/Line for In/out
of 220 kV NKLP-Wapda
Town at Lahore New.
(54km)

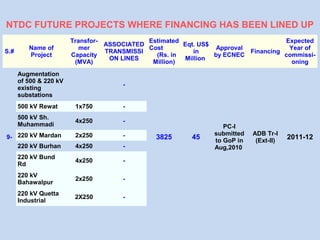

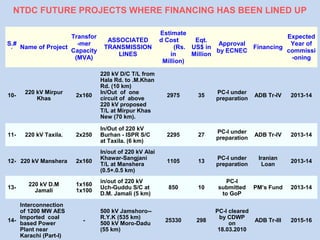

NTDC FUTURE PROJECTS WHERE FINANCING HAS BEEN LINED UP

S.#
Name of
Project
Transfor-
mer
Capacity
(MVA)
ASSOCIATED
TRANSMISSION
LINES
Estimated
Cost
(Rs. in
Million)
Eqt. US$
in
Million
Approval
by ECNEC
Financing
Expected
Year of
commissi-
oning
4-
500 kV
Shikarpur
2x600
Two 500 kV S/C
500 kV Dadu-Guddu
circuit No:1 at
Shikarpur (20+20
km)
8160 96
Pc-I
Cleared
by CDWP
on
18.03.2010
JICA
2012-13
Two 500 kV S/C
500 kV Dadu-Guddu
circuit No:2 at
Shikarpur. (22+22
km)
220 kV D/C for
In/Out of 500/220 kV
Guddu – Sibbi S/C
at Shikarpur (50 km)

S.#
Name of
Project
Transfor-
mer
Capacity
(MVA)
ASSOCIATED
TRANSMISSION
LINES
Estimated
Cost
(Rs. in
Million)
Eqt. US$
in
Million
Approval
by ECNEC
Financing
Expected
Year of
commissi-
oning
5-
2nd
source of
supply to
Islamabad
University
-
220 kV D/C T/L
for In/out of
Manshera-
Islamabad T/L
(40 km)
1105 13
PC-I under
preparatio
n
ADB Tr-IV 2012-13
6-
2nd
Source of
supply to
Hala Road
Grid Station
-
220 kV D/C T/L
from T.M Khan
Road to Hala
Road (30 km)
850 10
PC-I under
preparatio
n
ADB Tr-iV 2012-13
7-
220 kV
Nowshera
2x160 - 850 10 06.02.2008 ADB Tr-iV 2012-13
8-
220 kV
Chakdara
2X250
220 kV Chakdara
– Mardan (85
km)
3230 38
PC-I under
preparatio
n
ADB Tr-iIV 2013-14

S.#
Name of
Project
Transfor-
mer
Capacity
(MVA)
ASSOCIATED
TRANSMISSI
ON LINES
Estimated
Cost
(Rs. in
Million)
Eqt. US$
in
Million
Approval
by ECNEC
Financing
Expected
Year of
commissi-
oning
9-
Augmentation
of 500 & 220 kV
existing
substations
-
3825 45
PC-I
submitted
to GoP in
Aug,2010
ADB Tr-I
(Ext-II)
2011-12
500 kV Rewat 1x750 -
500 kV Sh.
Muhammadi
4x250 -
220 kV Mardan 2x250 -
220 kV Burhan 4x250 -
220 kV Bund
Rd
4x250 -
220 kV
Bahawalpur
2x250 -
220 kV Quetta
Industrial
2X250 -

S.#
`
Name of Project
Transfor
-mer
Capacity
(MVA)
ASSOCIATED
TRANSMISSION
LINES
Estimate
d Cost
(Rs.
in
Million)
Eqt.
US$ in
Million
Approval
by ECNEC
Financing
Expected
Year of
commissi
-oning
10-
220 kV Mirpur
Khas
2x160
220 kV D/C T/L from
Hala Rd. to .M.Khan
Rd. (10 km)
In/Out of one
circuit of above
220 kV proposed
T/L at Mirpur Khas
New (70 km).
2975 35
PC-I under
preparation
ADB Tr-IV 2013-14
11- 220 kV Taxila. 2x250
In/Out of 220 kV
Burhan - ISPR S/C
at Taxila. (6 km)
2295 27
PC-I under
preparation
ADB Tr-IV 2013-14
12- 220 kV Manshera 2x160
In/out of 220 kV Alai
Khawar-Sangjani
T/L at Manshera
(0.5+.0.5 km)
1105 13
PC-I under
preparation
Iranian
Loan
2013-14
13-
220 kV D.M
Jamali
1x160
1x100
in/out of 220 kV
Uch-Guddu S/C at
D.M. Jamali (5 km)
850 10
PC-I
submitted
to GoP
PM’s Fund 2013-14
14-
Interconnection
of 1200 MW AES
Imported coal
based Power
Plant near
Karachi (Part-I)
-
500 kV Jamshoro--
R.Y.K (535 km)
500 kV Moro-Dadu
(55 km)
25330 298
PC-I cleared
by CDWP
on
18.03.2010
ADB Tr-III 2015-16

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST*
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

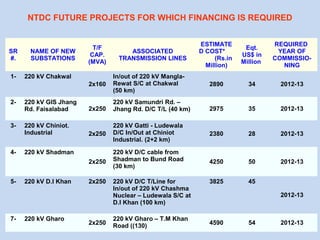

1- 220 kV Chakwal
2x160
In/out of 220 kV Mangla-
Rewat S/C at Chakwal
(50 km)
2890 34 2012-13
2- 220 kV GIS Jhang
Rd. Faisalabad 2x250
220 kV Samundri Rd. –
Jhang Rd. D/C T/L (40 km) 2975 35 2012-13
3- 220 kV Chiniot.
Industrial 2x250
220 kV Gatti - Ludewala
D/C In/Out at Chiniot
Industrial. (2+2 km)
2380 28 2012-13
4- 220 kV Shadman
2x250
220 kV D/C cable from
Shadman to Bund Road
(30 km)
4250 50 2012-13
5- 220 kV D.I Khan 2x250 220 kV D/C T/Line for
In/out of 220 kV Chashma
Nuclear – Ludewala S/C at
D.I Khan (100 km)
3825 45
2012-13
7- 220 kV Gharo
2x250
220 kV Gharo – T.M Khan
Road ((130) 4590 54 2012-13
NTDC FUTURE PROJECTS FOR WHICH FINANCING IS REQUIRED

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRD
YEAR OF
COMMISSIO-
NING
8- 220 kV Jhimpir
2x250
In/Out of 220 kV Gharo – T.M
Khan Road at Jhimpir (65
km)
3230 38 2012-13
9- 220 kV
Mastung 2x250
220 KV Mastung Sibbi (120
km) 4080 48 2013-14
10- 220 kV Jamrud`
2x250
220 kV Jamrud – Sh.
Muhammadi (10 km) 1445 17 2013-14
11- 500 kV
Faisalabad New 2x750
In/out of 500 kV Muzaffargarh
– Gatti 1st
circuit at at
Faisalabad new (1+1 km) 6630 78 2013-14
2x250
220 kV Faisalabad New – T.T
Singh D/C T/Line (70 km)
12- 220 kV M-3
Industrial
Estate
Faisalabad 2x250
220 kV M3 Industrial Estate –
Faisalabad New (70 km)
In/Out of 220 kV Faisalabad
New - M3 Industrial Estate at
220 kV Chinot Industrial New
(30 km)
3570 42 2013-14

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

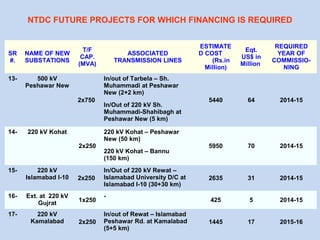

13- 500 kV
Peshawar New
2x750
In/out of Tarbela – Sh.
Muhammadi at Peshawar
New (2+2 km)
In/Out of 220 kV Sh.
Muhammadi-Shahibagh at
Peshawar New (5 km)
5440 64 2014-15
14- 220 kV Kohat
2x250
220 kV Kohat – Peshawar
New (50 km)
220 kV Kohat – Bannu
(150 km)
5950 70 2014-15
15- 220 kV
Islamabad I-10 2x250
In/Out of 220 kV Rewat –
Islamabad University D/C at
Islamabad I-10 (30+30 km)
2635 31 2014-15
16- Ext. at 220 kV
Gujrat 1x250
-
425 5 2014-15
17- 220 kV
Kamalabad 2x250
In/out of Rewat – Islamabad
Peshawar Rd. at Kamalabad
(5+5 km)
1445 17 2015-16

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING
18- Ext. at 500 kV
Gujranwala 1x600
-
1700 20 2015-16
19- Ext. at 500 kV
Lahore New 1x750
-
2040 24 2015-16
20- 220 kV Kamra
2x250
In/out of 220 kV Tarbela –
Taxila at Kamra (5 km) 1275 15 2015-16
21- 220 kV Iqbal
Town 2x250
In/Out of 220 kV Lahore –
Wapda Town D/C at Iqbal
Town (20+20 km)
2125 25 2015-16
22- 220 kV
Gujranwala
New
2x250
In/Out of 220 kV Mangala –
K.S.K at Gujranwala New
(20 km)
220 kV Nokhar - Gujranwala
New (50 kM)
2890 34 2015-16
23- 220 kV Pindi
Bhattian 2x250
220 kV Pindi Bhattian Ind. –
Gujranwala (50 km) 2380 28 2015-16
24- 220 kV Head
Faqirian 2x250
220 kV Head Faqirian –
Ludewala (60 km) 2380
28
2015-16

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

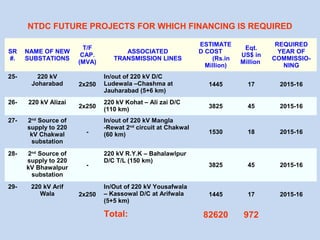

25- 220 kV
Joharabad 2x250
In/out of 220 kV D/C
Ludewala –Chashma at
Jauharabad (5+6 km)
1445 17 2015-16
26- 220 kV Alizai
2x250
220 kV Kohat – Ali zai D/C
(110 km) 3825 45 2015-16
27- 2nd
Source of
supply to 220
kV Chakwal
substation
-
In/out of 220 kV Mangla
-Rewat 2nd
circuit at Chakwal
(60 km) 1530 18 2015-16
28- 2nd
Source of
supply to 220
kV Bhawalpur
substation
-
220 kV R.Y.K – Bahalawlpur
D/C T/L (150 km)
3825 45 2015-16
29- 220 kV Arif
Wala 2x250
In/Out of 220 kV Yousafwala
– Kassowal D/C at Arifwala
(5+5 km)
1445 17 2015-16
Total: 82620 972

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING
1-
Power Dispersal
from 747 MW
CCPP at Guddu
-
500 kV Guddu New PP –
M. Garh (256 km)
In/Out of Guddu – Multan
at New Guddu (10+10 km)
7735 91 2012-13
2-
Dispersal of
Power from Uch-2
-
220 kV Uch-II – Sibbi D/C
(125 km)
2975 35 2012-13
3-
UAE Combined
Cycle power plant
at GTPS
Faisalabad
1x160
In/out of existing 220 kV
T/lines at Proposed power
plant
1700 20 2012-13
4-
Interconnection of
1200 MW AES
Imported coal
based power near
Karachi (Part-II)
500 kV
switch
ing
statio
n at
Matiari
500 kV S/C T/Line from
AES Power Plant to
Matiari switching station
(200 km)
In/Out of 500 kV Hub-
Jamshoro S/C T/Line at
AES (45+45 km)
In/out of 500 kV
Jamshoro-R.Y.K at Matiari
(5+5 km)
14450
(PC-I
cleared by
CDWP on
18.3.10)
170 2015-16
POWER DISPERSAL PROJECTS FOR THERMAL POWER PLANTS

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

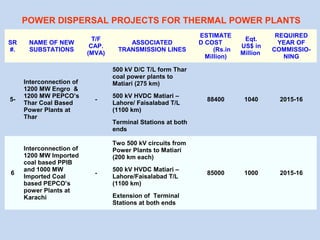

5-
Interconnection of
1200 MW Engro &
1200 MW PEPCO’s
Thar Coal Based
Power Plants at
Thar
-
500 kV D/C T/L form Thar
coal power plants to
Matiari (275 km)
500 kV HVDC Matiari –
Lahore/ Faisalabad T/L
(1100 km)
Terminal Stations at both
ends
88400 1040 2015-16
6
Interconnection of
1200 MW Imported
coal based PPIB
and 1000 MW
Imported Coal
based PEPCO’s
power Plants at
Karachi
-
Two 500 kV circuits from
Power Plants to Matiari
(200 km each)
500 kV HVDC Matiari –
Lahore/Faisalabad T/L
(1100 km)
Extension of Terminal
Stations at both ends
85000 1000 2015-16

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

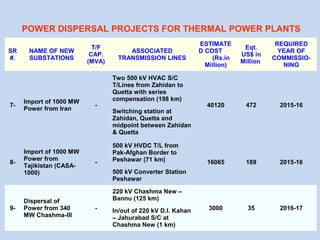

7-
Import of 1000 MW
Power from Iran
-
Two 500 kV HVAC S/C
T/Lines from Zahidan to
Quetta with series
compensation (198 km)
Switching station at
Zahidan, Quetta and
midpoint between Zahidan
& Quetta
40120 472 2015-16
8-
Import of 1000 MW
Power from
Tajikistan (CASA-
1000)
-
500 kV HVDC T/L from
Pak-Afghan Border to
Peshawar (71 km)
500 kV Converter Station
Peshawar
16065 189 2015-16
9-
Dispersal of
Power from 340
MW Chashma-III
-
220 kV Chashma New –
Bannu (125 km)
In/out of 220 kV D.I. Kahan
– Jahurabad S/C at
Chashma New (1 km)
3000 35 2016-17

SR
#.
NAME OF NEW
SUBSTATIONS
T/F
CAP.
(MVA)
ASSOCIATED
TRANSMISSION LINES
ESTIMATE
D COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

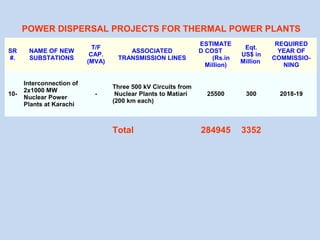

10-
Interconnection of
2x1000 MW
Nuclear Power
Plants at Karachi
-
Three 500 kV Circuits from
Nuclear Plants to Matiari
(200 km each)
25500 300 2018-19
Total 284945 3352

SR
#.
NAME OF NEW
SUBSTATIONS
T/F CAP.
(MVA)
ASSOCIATED
TRANSMISSION
LINES
ESTIMATED
COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING

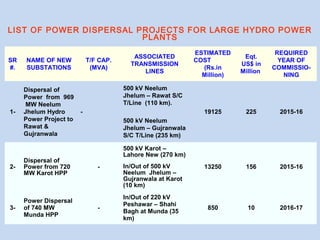

1-
Dispersal of
Power from 969
MW Neelum
Jhelum Hydro
Power Project to
Rawat &
Gujranwala
-
500 kV Neelum
Jhelum – Rawat S/C
T/Line (110 km).
500 kV Neelum
Jhelum – Gujranwala
S/C T/Line (235 km)
19125 225 2015-16
2-
Dispersal of
Power from 720
MW Karot HPP
-
500 kV Karot –
Lahore New (270 km)
In/Out of 500 kV
Neelum Jhelum –
Gujranwala at Karot
(10 km)
13250 156 2015-16
3-
Power Dispersal
of 740 MW
Munda HPP
-
In/Out of 220 kV
Peshawar – Shahi
Bagh at Munda (35
km)
850 10 2016-17
LIST OF POWER DISPERSAL PROJECTS FOR LARGE HYDRO POWER
PLANTS

SR
#.
NAME OF NEW
SUBSTATIONS
T/F CAP.
(MVA)
ASSOCIATED
TRANSMISSION
LINES
ESTIMATED
COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING
11000
PLANTS

SR
#.
NAME OF NEW
SUBSTATIONS
T/F CAP.
(MVA)
ASSOCIATED
TRANSMISSION
LINES
ESTIMATED
COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIRED
YEAR OF
COMMISSIO-
NING
6-
Dispersal of
Power from 4500
MW Diamer
Basha HPP to
Lahore with
interconnection
at Dasu and
Gujar Khan
765 kV
HVAC
substations
at Gujar
Khan &
Lahore with
765/500 kV
3x500 MVA
T/Fs
500 MVAR
SVC at
Gujar Khan
Three 765 kV HVAC
T/Ls from Basha to
Gujar Khan (407 km
long each)
Two 765 kV HVAC
T/Ls from Gujar
Khan to Lahore (260
km long each)
113900 1340 2018-19
PLANTS

SR
#.
NAME OF NEW
SUBSTATIONS
T/F CAP.
(MVA)
ASSOCIATED
TRANSMISSION
LINES
ESTIMATED
COST
(Rs.in
Million)
Eqt.
US$ in
Million
REQUIREDD
YEAR OF
COMMISSIO-
NING

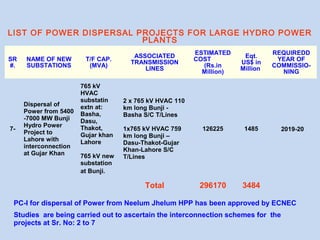

7-
Dispersal of
Power from 5400
-7000 MW Bunji
Hydro Power
Project to
Lahore with
interconnection
at Gujar Khan
765 kV
HVAC
substatin
extn at:
Basha,
Dasu,
Thakot,
Gujar khan
Lahore
765 kV new
substation
at Bunji.
2 x 765 kV HVAC 110
km long Bunji -
Basha S/C T/Lines
1x765 kV HVAC 759
km long Bunji –
Dasu-Thakot-Gujar
Khan-Lahore S/C
T/Lines
126225 1485 2019-20
Total 296170 3484
PLANTS
PC-I for dispersal of Power from Neelum Jhelum HPP has been approved by ECNEC
Studies are being carried out to ascertain the interconnection schemes for the
projects at Sr. No: 2 to 7

Bottle Necks
• At present no major system constraints
• Intermittent over-loading of transformers at
some places being addressed by addition of
following transformation capacities up to
2014-15
– 500/220 KV 11400 MVA
– 220/132 KV 19330 MVA
49

50
• For huge future development the bottle necks
would be
1. Availability of finance
2. Responsibility of dispersal from power plants &
uncertainty of generation project.
• Capacity of
1. Planning department
2. Local Consultant
3. Local contractors
• Inconducive Law & order situation for foreign
consultants and contractors.

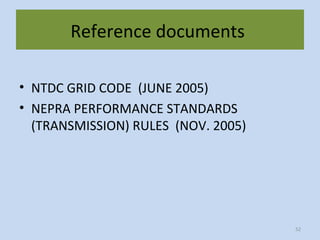

Reference documents
• NTDC GRID CODE (JUNE 2005)
• NEPRA PERFORMANCE STANDARDS
(TRANSMISSION) RULES (NOV. 2005)
52

KEY PERFORMANCE INDICATORS
1.System Reliability
• Transmission System incl. Tie Lines
a) System Duration of Interruption
= A/N
where
A= sum of the total outage hours recorded at all the interconnection
points (other than 132 kV line tripping) in a period
N = Number of monitoring points (Interconnection Point)
Tie lines means interconnection facility for the transfer of electric power
between the licensee and other utilities not governed by the Act.
53

1. System Reliability
b)System Frequency Interruption
= A/N
Where
A= sum of the total outage hours recorded at all the interconnection
points (other than 132 kV line tripping) in a period
N= Number of circuits
54

2. System Security
(Energy not served)
= ∑ Pi x T
Where
Pi = Power interrupted in MW in a circuit
T = Time Duration in Hours
55

3. Quality of Supply
A) System Voltage Variation Grid
Performance
Code Standard
-500 kV
Under Normal Conditions -5 +8% -+ 5%
Under N-1 Conditions -+10% -+ 10%
-220 kV
Under Normal Conditions -5 +8% -+ 5%
Under N-1 Conditions -+10% -+ 10%
-132 kV
Under Normal Conditions -5 +8% -+
5%
Under N-1 Conditions -+10% -+56

National Transmission And Dispatch Company (NTDC)

More Related Content

What's hot

Viewers also liked

Similar to National Transmission And Dispatch Company (NTDC)

More from Aneel-k Suthar

Recently uploaded

National Transmission And Dispatch Company (NTDC)
