1. 2

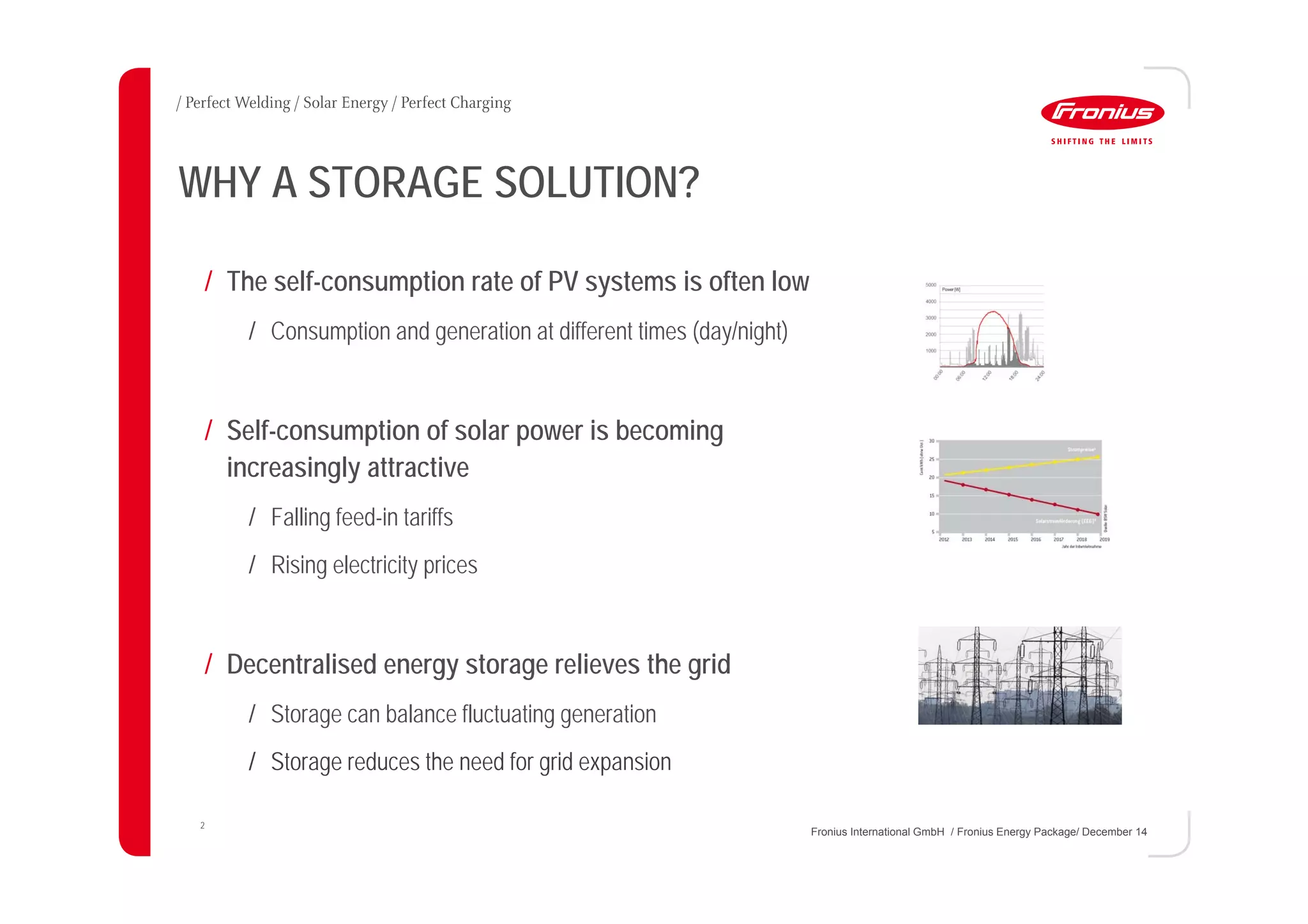

WHY A STORAGE SOLUTION?
/ The self-consumption rate of PV systems is often low
/ Consumption and generation at different times (day/night)
/ Self-consumption of solar power is becoming
increasingly attractive
/ Falling feed-in tariffs
/ Rising electricity prices
/ Decentralised energy storage relieves the grid
/ Storage can balance fluctuating generation
/ Storage reduces the need for grid expansion
Fronius International GmbH / Fronius Energy Package/ December 14
2. 3

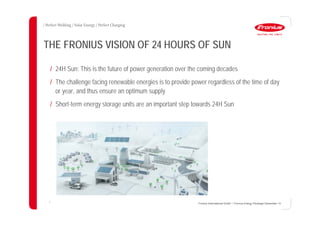

THE FRONIUS VISION OF 24 HOURS OF SUN
/ 24H Sun: This is the future of power generation over the coming decades
/ The challenge facing renewable energies is to provide power regardless of the time of day
or year, and thus ensure an optimum supply
/ Short-term energy storage units are an important step towards 24H Sun
Fronius International GmbH / Fronius Energy Package/ December 14
3. 4

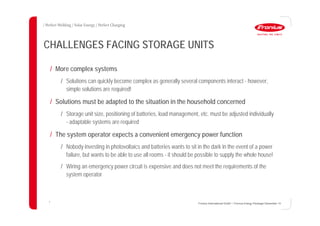

CHALLENGES FACING STORAGE UNITS
/ More complex systems
/ Solutions can quickly become complex as generally several components interact - however,
simple solutions are required!
/ Solutions must be adapted to the situation in the household concerned
/ Storage unit size, positioning of batteries, load management, etc. must be adjusted individually
- adaptable systems are required
/ The system operator expects a convenient emergency power function
/ Nobody investing in photovoltaics and batteries wants to sit in the dark in the event of a power
failure, but wants to be able to use all rooms - it should be possible to supply the whole house!
/ Wiring an emergency power circuit is expensive and does not meet the requirements of the
system operator
Fronius International GmbH / Fronius Energy Package/ December 14

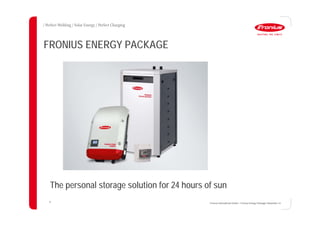

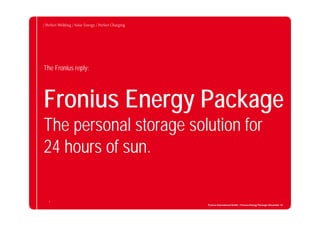

4. Fronius Energy Package
The personal storage solution for
24 hours of sun.
The Fronius reply:
5
Fronius International GmbH / Fronius Energy Package/ December 14
5. 6

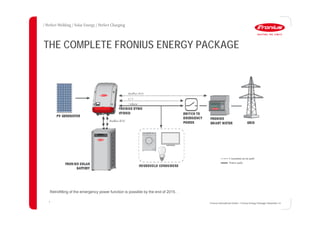

THE COMPLETE FRONIUS ENERGY PACKAGE
Fronius International GmbH / Fronius Energy Package/ December 14
Retrofitting of the emergency power function is possible by the end of 2015. .
6. 7

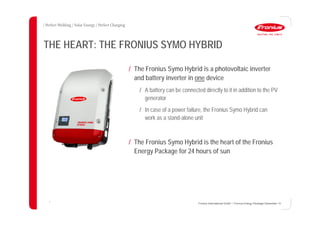

THE HEART: THE FRONIUS SYMO HYBRID
/ The Fronius Symo Hybrid is a photovoltaic inverter
and battery inverter in one device
/ A battery can be connected directly to it in addition to the PV
generator
/ In case of a power failure, the Fronius Symo Hybrid can
work as a stand-alone unit
/ The Fronius Symo Hybrid is the heart of the Fronius
Energy Package for 24 hours of sun
Fronius International GmbH / Fronius Energy Package/ December 14
7. 8
Fronius International GmbH / Fronius Energy Package/ December 14
THE FRONIUS SYMO HYBRID
SnapINverter
The same simple installation and
commissioning process as per the Fronius
Galvo and Fronius Symo.

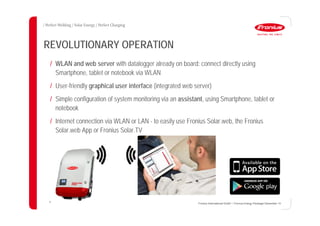

WLAN and web server
WLAN and web server already on board: connect directly
using Smartphone, tablet or notebook via WLAN!
Battery know-how
Fronius has been working on the careful use of
batteries for many decades. This know-how helps to
increase the efficiency and service life of the storage
system!
Feed-in management
Dynamic feed-in control can be
implemented easily and direct connection to
the ripple control receiver is possible
8. 9

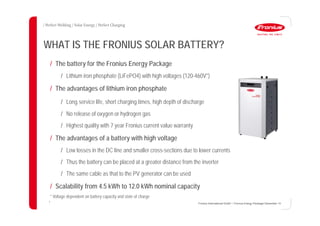

WHAT IS THE FRONIUS SOLAR BATTERY?
Fronius International GmbH / Fronius Energy Package/ December 14
/ The battery for the Fronius Energy Package
/ Lithium iron phosphate (LiFePO4) with high voltages (120-460V*)
/ The advantages of lithium iron phosphate
/ Long service life, short charging times, high depth of discharge
/ No release of oxygen or hydrogen gas
/ Highest quality with 7 year Fronius current value warranty
/ The advantages of a battery with high voltage
/ Low losses in the DC line and smaller cross-sections due to lower currents
/ Thus the battery can be placed at a greater distance from the inverter
/ The same cable as that to the PV generator can be used
/ Scalability from 4.5 kWh to 12.0 kWh nominal capacity
* Voltage dependent on battery capacity and state of charge
9. 10

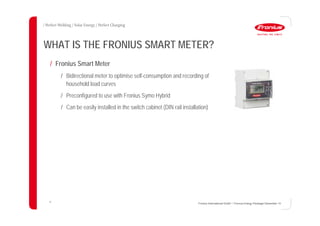

WHAT IS THE FRONIUS SMART METER?
Fronius International GmbH / Fronius Energy Package/ December 14
/ Fronius Smart Meter
/ Bidirectional meter to optimise self-consumption and recording of
household load curves
/ Preconfigured to use with Fronius Symo Hybrid
/ Can be easily installed in the switch cabinet (DIN rail installation)
10. 11

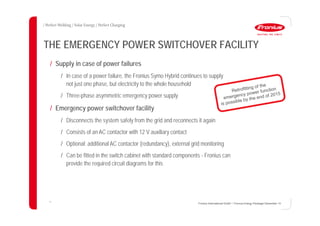

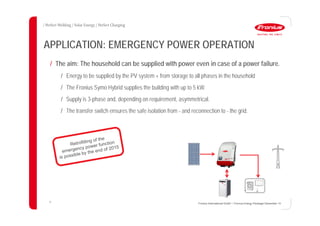

THE EMERGENCY POWER SWITCHOVER FACILITY
Fronius International GmbH / Fronius Energy Package/ December 14
/ Supply in case of power failures
/ In case of a power failure, the Fronius Symo Hybrid continues to supply
not just one phase, but electricity to the whole household
/ Three-phase asymmetric emergency power supply
/ Emergency power switchover facility
/ Disconnects the system safely from the grid and reconnects it again
/ Consists of an AC contactor with 12 V auxiliary contact
/ Optional: additional AC contactor (redundancy), external grid monitoring
/ Can be fitted in the switch cabinet with standard components - Fronius can
provide the required circuit diagrams for this
11. 12

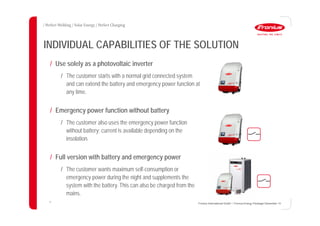

INDIVIDUAL CAPABILITIES OF THE SOLUTION
Fronius International GmbH / Fronius Energy Package/ December 14
/ Use solely as a photovoltaic inverter
/ The customer starts with a normal grid connected system
and can extend the battery and emergency power function at
any time.
/ Emergency power function without battery
/ The customer also uses the emergency power function
without battery; current is available depending on the
insolation.
/ Full version with battery and emergency power
/ The customer wants maximum self-consumption or
emergency power during the night and supplements the
system with the battery. This can also be charged from the
mains.
12. 13

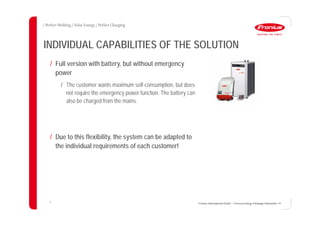

INDIVIDUAL CAPABILITIES OF THE SOLUTION
Fronius International GmbH / Fronius Energy Package/ December 14
/ Full version with battery, but without emergency
power
/ The customer wants maximum self-consumption, but does
not require the emergency power function. The battery can
also be charged from the mains.
/ Due to this flexibility, the system can be adapted to
the individual requirements of each customer!
13. MULTI FLOW TECHNOLOGY
/ With Multi Flow technology, it is possible to manage
various DC and AC energy flows in parallel:
/ Energy can be provided by the modules and by the battery
simultaneously.
/ Energy from the modules can be conducted in the battery
and the home network simultaneously.
/ The battery can be charged not only from the DC side, but
also from the AC side. This makes the inverter suitable for
AC-coupled retrofitting.
The inverter manages the energy flows so that the greatest
possible self-sufficiency is achieved.
14
Fronius International GmbH / Fronius Energy Package/ December 14
14. 15
APPLICATION: A HIGH DEGREE OF SELF-CONSUMPTION
Fronius International GmbH / Fronius Energy Package/ December 14
/ The aim: No current to flow through the meter - no feed-in, no supply from the grid
/ During the day
/ Energy to be supplied by the PV system to storage and all phases in the household (good
weather)
/ Energy to be supplied by the PV system + from storage to all phases in the household (bad
weather)
/ During the night
/ Energy to be supplied from storage to all phases in the household
15. 16
APPLICATION: EMERGENCY POWER OPERATION
Fronius International GmbH / Fronius Energy Package/ December 14
/ The aim: The household can be supplied with power even in case of a power failure.
/ Energy to be supplied by the PV system + from storage to all phases in the household
/ The Fronius Symo Hybrid supplies the building with up to 5 kW.
/ Supply is 3-phase and, depending on requirement, asymmetrical.
/ The transfer switch ensures the safe isolation from - and reconnection to - the grid.
16. 17

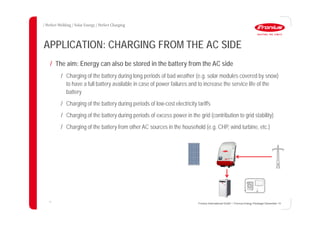

APPLICATION: CHARGING FROM THE AC SIDE
Fronius International GmbH / Fronius Energy Package/ December 14
/ The aim: Energy can also be stored in the battery from the AC side
/ Charging of the battery during long periods of bad weather (e.g. solar modules covered by snow)
to have a full battery available in case of power failures and to increase the service life of the
battery
/ Charging of the battery during periods of low-cost electricity tariffs
/ Charging of the battery during periods of excess power in the grid (contribution to grid stability)
/ Charging of the battery from other AC sources in the household (e.g. CHP, wind turbine, etc.)
17. 18
Fronius International GmbH / Fronius Energy Package/ December 14

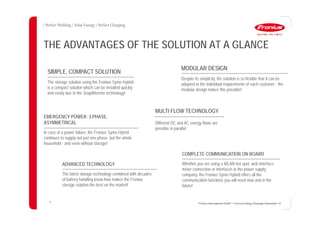

THE ADVANTAGES OF THE SOLUTION AT A GLANCE
MODULAR DESIGN
Despite its simplicity, the solution is so flexible that it can be
adapted to the individual requirements of each customer - the
modular design makes this possible!
EMERGENCY POWER: 3-PHASE,
ASYMMETRICAL
In case of a power failure, the Fronius Symo Hybrid
continues to supply not just one phase, but the whole
household - and even without storage!
SIMPLE, COMPACT SOLUTION
The storage solution using the Fronius Symo Hybrid
is a compact solution which can be installed quickly
and easily due to the SnapINverter technology!
COMPLETE COMMUNICATION ON BOARD
Whether you are using a WLAN hot spot, web interface,
meter connection or interfaces to the power supply
company, the Fronius Symo Hybrid offers all the
communication functions you will need now and in the
future!
ADVANCED TECHNOLOGY
The latest storage technology combined with decades
of battery handling know-how makes the Fronius
storage solution the best on the market!
MULTI FLOW TECHNOLOGY
Different DC and AC energy flows are
possible in parallel.
19. 2020
FRONIUS SYMO HYBRID TECHNICAL DATA
INPUT DATA SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
PV input power 5.0 kW 6.5 kW 8.0 kW
Max. input current (Idc max) 1 x 16 A
Max. short circuit current, module array 24 A
Min. input voltage (Udc min) 150 V
Feed-in start voltage (Udc start) 200 V
Nominal input voltage (Udc,r) 595 V
Max. input voltage (Udc max) 1000 V
MPP voltage range (Umpp min – Umpp max) 200 – 800 V 255 – 800 V 320 – 800 V
Number of MPP trackers 1
Number of DC connections (PV) 2
BATTERY INPUT SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
Max. output power to battery Dependent on connected Fronius Solar Battery
Max. input power from battery Dependent on connected Fronius Solar Battery
Fronius International GmbH / Fronius Energy Package/ December 14
20. 2121

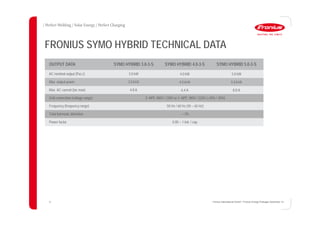

FRONIUS SYMO HYBRID TECHNICAL DATA
OUTPUT DATA SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
AC nominal output (Pac,r) 3.0 kW 4.0 kW 5.0 kW
Max. output power 3.0 kVA 4.0 kVA 5.0 kVA
Max. AC current (Iac max) 4.8 A 6.4 A 8.0 A
Grid connection (voltage range) 3~NPE 400V / 230V or 3~NPE 380V / 220V (+20% / 30%)
Frequency (frequency range) 50 Hz / 60 Hz (45 – 65 Hz)
Total harmonic distortion < 3%
Power factor 0.85 – 1 ind. / cap.
Fronius International GmbH / Fronius Energy Package/ December 14
21. 2222

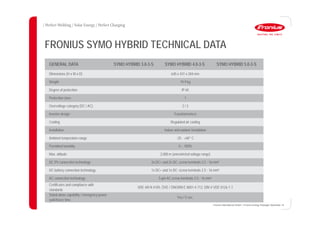

FRONIUS SYMO HYBRID TECHNICAL DATA
GENERAL DATA SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
Dimensions (H x W x D) 645 x 431 x 204 mm
Weight 19.9 kg
Degree of protection IP 65
Protection class 1
Overvoltage category (DC / AC) 2 / 3
Inverter design Transformerless
Cooling Regulated air cooling
Installation Indoor and outdoor installation
Ambient temperature range -25 - +60° C
Permitted humidity 0 – 100%
Max. altitude 2,000 m (unrestricted voltage range)
DC PV connection technology 2x DC+ and 2x DC- screw terminals 2.5 - 16 mm²
DC battery connection technology 1x DC+ and 1x DC- screw terminals 2.5 - 16 mm²
AC connection technology 5-pin AC screw terminals 2.5 - 16 mm²
Certificates and compliance with
standards
VDE AR N 4105, ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1
Stand-alone capability / emergency power
switchover time
Yes / 5 sec.
Fronius International GmbH / Fronius Energy Package/ December 14
22. 2323

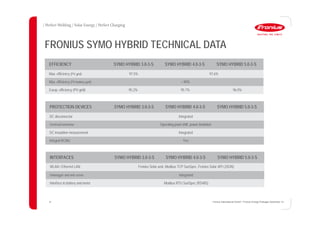

FRONIUS SYMO HYBRID TECHNICAL DATA
EFFICIENCY SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
Max. efficiency (PV-grid) 97.5% 97.6%
Max. efficiency (PV-battery-grid) > 90%
Europ. efficiency (PV-grid) 95.2% 95.7% 96.0%
PROTECTION DEVICES SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
DC disconnector Integrated
Overload behaviour Operating point shift, power limitation
DC insulation measurement Integrated
Integral RCMU Yes
INTERFACES SYMO HYBRID 3.0-3-S SYMO HYBRID 4.0-3-S SYMO HYBRID 5.0-3-S
WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
Datalogger and web server Integrated
Interface to battery and meter Modbus RTU SunSpec (RS485)
Fronius International GmbH / Fronius Energy Package/ December 14
23. 24

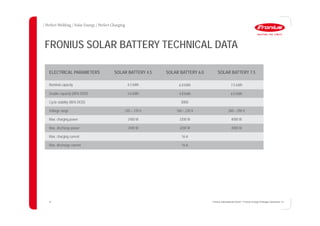

FRONIUS SOLAR BATTERY TECHNICAL DATA
ELECTRICAL PARAMETERS SOLAR BATTERY 4.5 SOLAR BATTERY 6.0 SOLAR BATTERY 7.5
Nominal capacity 4.5 kWh 6.0 kWh 7.5 kWh
Usable capacity (80% DOD) 3.6 kWh 4.8 kWh 6.0 kWh
Cycle stability (80% DOD) 8000
Voltage range 120 – 170 V 160 – 230 V 200 – 290 V
Max. charging power 2400 W 3200 W 4000 W
Max. discharge power 2400 W 3200 W 4000 W
Max. charging current 16 A
Max. discharge current 16 A
24 Fronius International GmbH / Fronius Energy Package/ December 14
24. 25

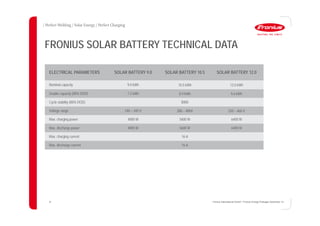

FRONIUS SOLAR BATTERY TECHNICAL DATA
ELECTRICAL PARAMETERS SOLAR BATTERY 9.0 SOLAR BATTERY 10.5 SOLAR BATTERY 12.0
Nominal capacity 9.0 kWh 10.5 kWh 12.0 kWh
Usable capacity (80% DOD) 7.2 kWh 8.4 kWh 9.6 kWh
Cycle stability (80% DOD) 8000
Voltage range 240 – 345 V 280 – 400V 320 – 460 V
Max. charging power 4800 W 5600 W 6400 W
Max. discharge power 4800 W 5600 W 6400 W
Max. charging current 16 A
Max. discharge current 16 A
25 Fronius International GmbH / Fronius Energy Package/ December 14
25. 26
FRONIUS SOLAR BATTERY TECHNICAL DATA
GENERAL DATA SOLAR BATTERY 4.5 SOLAR BATTERY 6.0 SOLAR BATTERY 7.5
Battery technology LiFePO4
Dimensions (H x W x D) 955 x 570 x 611 mm
Weight 91 kg 108 kg 125 kg
Degree of protection IP 20
Protection class 1
Installation location Indoor installation
Ambient temperature range 5 – 35 °C
Permitted humidity 0 – 100%
DC connection technology Screw terminals 2.5 – 16 mm²
Certificates and compliance with
standards
IEC/EN 62133; EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 62311:2008, FCC Part 15 Subpart B:2012 ClassB, UN 38.3
Communication to inverter Modbus RTU SunSpec (RS485)
26 Fronius International GmbH / Fronius Energy Package/ December 14
26. 27

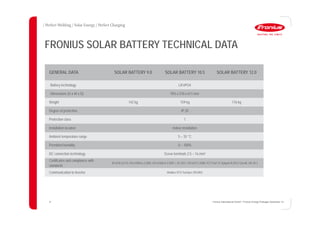

FRONIUS SOLAR BATTERY TECHNICAL DATA
GENERAL DATA SOLAR BATTERY 9.0 SOLAR BATTERY 10.5 SOLAR BATTERY 12.0
Battery technology LiFePO4
Dimensions (H x W x D) 955 x 570 x 611 mm
Weight 142 kg 159 kg 176 kg
Degree of protection IP 20
Protection class 1
Installation location Indoor installation
Ambient temperature range 5 – 35 °C
Permitted humidity 0 – 100%
DC connection technology Screw terminals 2.5 – 16 mm²
Certificates and compliance with
standards
IEC/EN 62133; EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 62311:2008, FCC Part 15 Subpart B:2012 ClassB, UN 38.3
Communication to inverter Modbus RTU SunSpec (RS485)
27 Fronius International GmbH / Fronius Energy Package/ December 14
27. 28

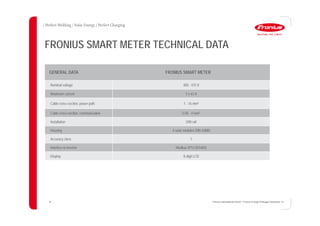

FRONIUS SMART METER TECHNICAL DATA
GENERAL DATA FRONIUS SMART METER
Nominal voltage 400 - 415 V
Maximum current 3 x 63 A
Cable cross-section, power path 1 - 16 mm²
Cable cross-section, communication 0.05 - 4 mm²
Installation DIN rail
Housing 4 solar modules DIN 43880
Accuracy class 1
Interface to inverter Modbus RTU (RS485)
Display 8-digit LCD
28 Fronius International GmbH / Fronius Energy Package/ December 14
28. The benefits for the
system operator
Fronius Energy Package
Fronius International GmbH / Fronius Energy Package/ December 1429
29. Maximum independence:
sun by day, sun by night and sun
during power outages.
Fronius Energy Package
30
Fronius International GmbH / Fronius Energy Package/ December 14
30. 31

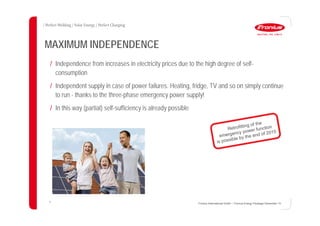

MAXIMUM INDEPENDENCE
/ Independence from increases in electricity prices due to the high degree of self-
consumption
/ Independent supply in case of power failures. Heating, fridge, TV and so on simply continue
to run - thanks to the three-phase emergency power supply!
/ In this way (partial) self-sufficiency is already possible
Fronius International GmbH / Fronius Energy Package/ December 14
31. Perfectly adapted solutions - as
individual as the customers
Fronius Energy Package
32
Fronius International GmbH / Fronius Energy Package/ December 14
32. 33

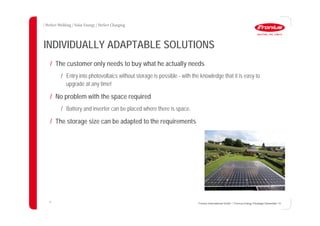

INDIVIDUALLY ADAPTABLE SOLUTIONS
/ The customer only needs to buy what he actually needs
/ Entry into photovoltaics without storage is possible - with the knowledge that it is easy to
upgrade at any time!
/ No problem with the space required
/ Battery and inverter can be placed where there is space.
/ The storage size can be adapted to the requirements
Fronius International GmbH / Fronius Energy Package/ December 14
33. Revolutionary operation: extremely
simple commissioning, impressive
monitoring
Fronius Energy Package
34
Fronius International GmbH / Fronius Energy Package/ December 14
34. 35

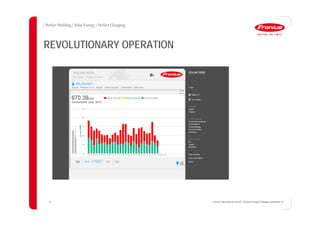

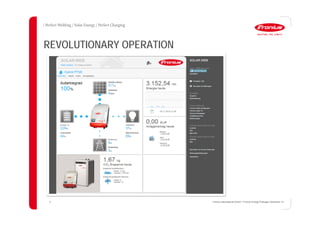

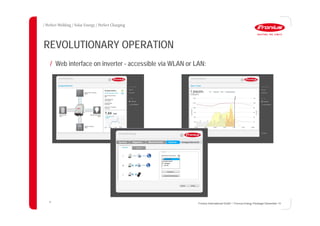

REVOLUTIONARY OPERATION
/ WLAN and web server with datalogger already on board: connect directly using
Smartphone, tablet or notebook via WLAN
/ User-friendly graphical user interface (integrated web server)
/ Simple configuration of system monitoring via an assistant, using Smartphone, tablet or
notebook
/ Internet connection via WLAN or LAN - to easily use Fronius Solar.web, the Fronius
Solar.web App or Fronius Solar.TV
Fronius International GmbH / Fronius Energy Package/ December 14

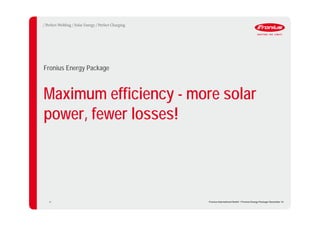

39. Maximum efficiency - more solar
power, fewer losses!
Fronius Energy Package
40 Fronius International GmbH / Fronius Energy Package/ December 14
40. 41

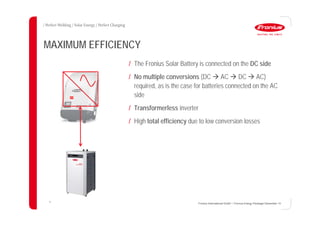

MAXIMUM EFFICIENCY
/ The Fronius Solar Battery is connected on the DC side
/ No multiple conversions (DC AC DC AC)
required, as is the case for batteries connected on the AC
side
/ Transformerless inverter
/ High total efficiency due to low conversion losses
Fronius International GmbH / Fronius Energy Package/ December 14
=
41. 42
FRONIUS ENERGY PACKAGE
Fronius International GmbH / Fronius Energy Package/ December 14
The personal storage solution for 24 hours of sun
