This document provides information about heavy duty slurry pumps from Natus Mining Solutions, including: - Pumps are available with rubber or metal linings to handle abrasive and corrosive slurries. - Features include ultra-heavy duty construction, hard metal or elastomer linings, and innovative design. - It describes the pump components like the shaft, impeller, sealing options, and materials used. - Technical specifications and performance data are provided for various pump models.

1. SLURRY PUMPING
31 Goodman Street
Rynfield
Benoni
Tel: +27 11 425-4029
Email: emquieries@natusminingsolutions.co.za

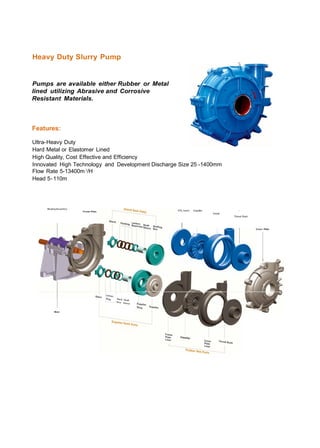

2. Heavy Duty Slurry Pump
Pumps are available either Rubber or Metal
lined utilizing Abrasive and Corrosive
Resistant Materials.
Features:
Ultra-Heavy Duty
Hard Metal or Elastomer Lined
High Quality, Cost Effective and Efficiency
Innovated High Technology and Development Discharge Size 25 -1400mm
Flow Rate 5-13400m3/H
Head 5-110m
I
Volute
Throat Bush

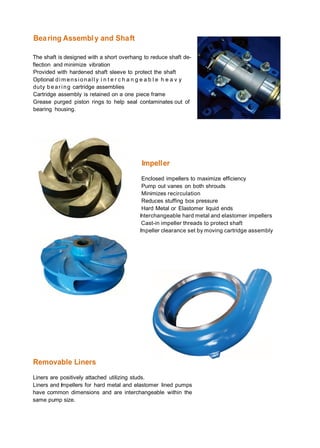

3. Bearing Assembly and Shaft
The shaft is designed with a short overhang to reduce shaft de­
flection and minimize vibration
Provided with hardened shaft sleeve to protect the shaft
Optional dim ensionall y i n t e r c h a n g e a b l e h e a v y
duty bearing cartridge assemblies
Cartridge assembly is retained on a one piece frame
Grease purged piston rings to help seal contaminates out of
bearing housing.
Impeller
Removable Liners
Enclosed impellers to maximize efficiency
Pump out vanes on both shrouds
Minimizes recirculation
Reduces stuffing box pressure
Hard Metal or Elastomer liquid ends
Interchangeable hard metal and elastomer impellers
Cast-in impeller threads to protect shaft
Impeller clearance set by moving cartridge assembly
Liners are positively attached utilizing studs.
Liners and Impellers for hard metal and elastomer lined pumps
have common dimensions and are interchangeable within the
same pump size.

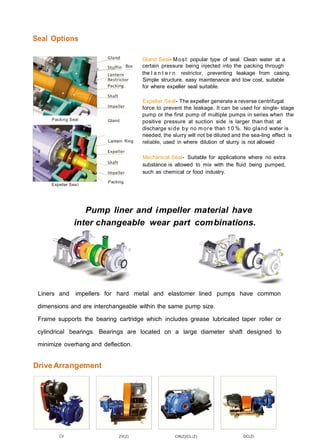

4. Seal Options
Gland Seal- Most popular type of seal. Clean water at a
Box certain pressure being injected into the packing throughL---- -
the l a n t e r n restrictor, preventing leakage from casing.
Simple structure, easy maintenance and low cost, suitable
for where expeller seal suitable.
Packing Seal Gland
Lantern Ring
Expeller Sea l
Packing
Expeller Seal- The expeller generate a reverse centrifugal
force to prevent the leakage. It can be used for single­ stage
pump or the first pump of multiple pumps in series when the
positive pressure at suction side is larger than that at
discharge side by no more than 1 0 %. No gland water is
needed, the slurry will not be diluted and the sea-ling effect is
reliable, used in where dilution of slurry is not allowed
Mechanical Seal- Suitable for applications where no extra
substance is allowed to mix with the fluid being pumped,
such as chemical or food industry.
Pump liner and impeller material have
inter changeable wear part combinations.
Liners and impellers for hard metal and elastomer lined pumps have common
dimensions and are interchangeable within the same pump size.
Frame supports the bearing cartridge which includes grease lubricated taper roller or
cylindrical bearings. Bearings are located on a large diameter shaft designed to
minimize overhang and deflection.
Drive Arrangement
CV ZV(Z) CR(Z)/CL(Z) DC(Z)

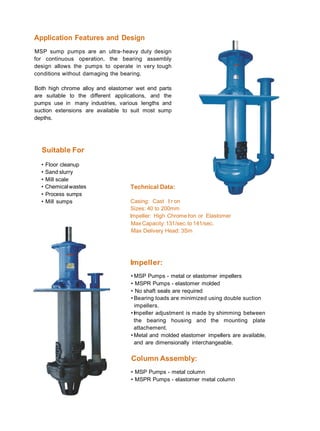

5. Application Features and Design
MSP sump pumps are an ultra-heavy duty design
for continuous operation, the bearing assembly
design allows the pumps to operate in very tough
conditions without damaging the bearing.
Both high chrome alloy and elastomer wet end parts
are suitable to the different applications, and the
pumps use in many industries, various lengths and
suction extensions are available to suit most sump
depths.
Suitable For
• Floor cleanup
• Sand slurry
• Mill scale
• Chemicalwastes
• Process sumps
Technical Data:
• Mill sumps Casing: Cast II r on
Sizes: 40 to 200mm
Impeller: High Chrome Iron or Elastomer
MaxCapacity: 131/sec.to 141/sec.
Max Delivery Head: 3Sm
Impeller:
• MSP Pumps - metal or elastomer impellers
• MSPR Pumps - elastomer molded
• No shaft seals are required
• Bearing loads are minimized using double suction
impellers.
•Impeller adjustment is made by shimming between
the bearing housing and the mounting plate
attachement.
• Metal and molded elastomer impellers are available,
and are dimensionally interchangeable.
Column Assembly:
• MSP Pumps - metal column
• MSPR Pumps - elastomer metal column

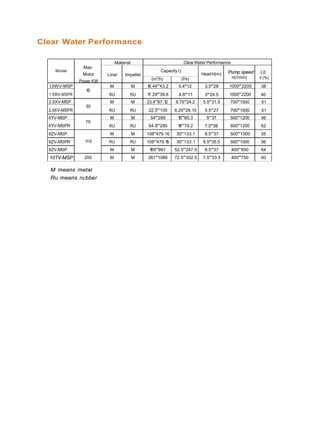

6. Clear Water Performance
Model
Max.
Motor
Power KW
Material ClearWater Performance
Liner Impeller
Capacity Q
HeadH(m) Pump speed
n(r/min)
Eff.
ri (%)(m3
/h) (l/s)
1.5WV-MSP
15
M M 19.44"'43.2 5.4"'12 3.5"'28 1000"'2200 38
1.5WV-MSPR RU RU 17.28"'39.6 4.8"'11 3"'24.5 1000"'2200 40
2.5XV-MSP
30
M M 23.4"'87.12 6.75"'24.2 5.5"'31.5 700"'1500 51
2.5XV-MSPR RU RU 22.5"'105 6.25"'29.15 5.5"'27 700"'1500 51
4YV-MSP
75
M M 54"'289 15"'80.3 5"'37 500"'1200 56
4YV-MSPR RU RU 64.8"'285 18"'79.2 7.5"'38 600"'1200 62
6ZV-MSP
110
M M 108"'479.16 30"'133.1 8.5"'37 500"'1000 55
6ZV-MSPR RU RU 108"'479.16 30"'133.1 8.5"'35.5 500"'1000 56
8ZV-MSP M M 189"'891 52.5"'247.5 6.5"'37 400"'850 64
10TV-MSP 200 M M 261"'1089 72.5"'302.5 7.5"'33.5 400"'750 60
M means metal
Ru means ru bber

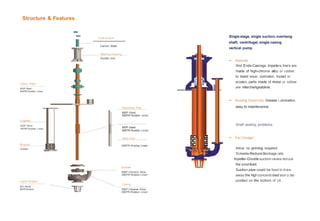

7. -
Structure & Features
-
Carbon Steel
Bearing Housing
Ductile Iron
Clamp Plate
MSP-Steel
MSPR-Rubber Lined
Single stage, single suction,overhang
shaft, centrifugal, single casing
vertical pump
• Material:
Wet Ends-Casings, impellers,liners are
made of high-chrome alloy or rubber,
to resist wear, corrosion, impact or
erosion, parts made of metal or rubber
are interchangeablele.
Column
MSP-Steel
MSPR-Rubber Lined
Strainer
Rubber
Lower Strainer
MS- Metal
MSR-Rubber
Discharge Pipe
MSP-Steel
MSPR-Rubber Lined
MSP-Steel
MSPR-Rubber Lined
Back Liner
MSPR-Rubber Lined
Impeller
MSP-Chrome Alloy
MSPR-Rubber Lined
Casing
MSP-Chrome Alloy
MSPR-Rubber Lined
• Bearing Assembly- Grease Lubrication,
easy to maintenance.
Shaft sealing problems.
• Part Design:
Allow no priming required.
Screens-Reduceblockage rate.
Impeller-Double suctionvanes reduce
the axial load.
Suction pipe-could be fixed to draw
away the highconcentrated slurry de­
posited on the bottom of pit.
Shaft Spacer

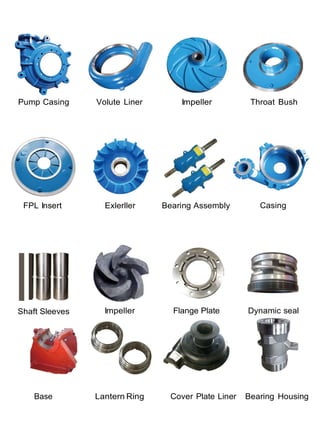

8. Pump Casing
FPL Insert
Shaft Sleeves
Volute Liner
Exlerller
Impeller
Impeller
Bearing Assembly
Flange Plate
Throat Bush
Casing
Dynamic seal
Base Lantern Ring Cover Plate Liner Bearing Housing

9. l'7A_
.···.f.- .

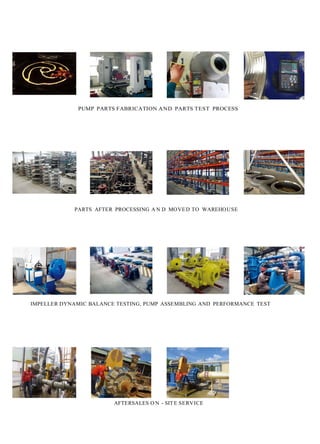

PUMP PARTS FABRICATION AND PARTS TEST PROCESS
PARTS AFTER PROCESSING A N D MOVED TO WAREHOUSE
IMPELLER DYNAMIC BALANCE TESTING, PUMP ASSEMBLING AND PERFORMANCE TEST
·
<; , . 0
II ' •
AFTERSALES O N - SIT E SERVICE
. ·. '.',. · · - '
• L

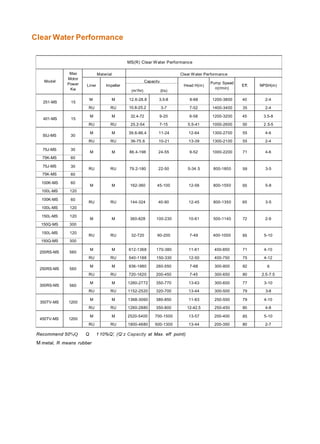

10. Clear Water Performance
MS(R) Clear Water Performance
Model
Max
Motor
Power
Kw
Material Clear Water Performance
Liner Impeller
Capacity
Head H(m)
Pump Speed
n(r/min)
Eff. NPSH(m)
(m3
/hr) (l/s)
251-MS 15
M M 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4
RU RU 10.8-25.2 3-7 7-52 1400-3400 35 2-4
401-MS 15
M M 32.4-72 9-20 6-58 1200-3200 45 3.5-8
RU RU 25.2-54 7-15 5.5-41 1000-2600 50 2.5-5
50J-MS 30
M M 39.6-86.4 11-24 12-64 1300-2700 55 4-6
RU RU 36-75.6 10-21 13-39 1300-2100 55 2-4
75J-MS 30
M M 86.4-198 24-55 9-52 1000-2200 71 4-6
75K-MS 60
75J-MS 30
RU RU 79.2-180 22-50 5-34.5 800-1800 59 3-5
75K-MS 60
100K-MS 60
M M 162-360 45-100 12-56 800-1550 65 5-8
100L-MS 120
100K-MS 60
RU RU 144-324 40-90 12-45 800-1350 65 3-5
100L-MS 120
150L-MS 120
M M 360-828 100-230 10-61 500-1140 72 2-9
150Q-MS 300
150L-MS 120
RU RU 32-720 90-200 7-49 400-1000 65 5-10
150Q-MS 300
200RS-MS 560
M M 612-1368 170-380 11-61 400-850 71 4-10
RU RU 540-1188 150-330 12-50 400-750 75 4-12
250RS-MS 560
M M 936-1980 260-550 7-68 300-800 82 6
RU RU 720-1620 200-450 7-45 300-650 80 2.5-7.5
300RS-MS 560
M M 1260-2772 350-770 13-63 300-600 77 3-10
RU RU 1152-2520 320-700 13-44 300-500 79 3-8
350TV-MS 1200
M M 1368-3060 380-850 11-63 250-550 79 4-10
RU RU 1260-2880 350-800 12-42.5 250-450 80 4-8
450TV-MS 1200
M M 2520-5400 700-1500 13-57 200-400 85 5-10
RU RU 1800-4680 500-1300 13-44 200-350 80 2-7
Recommend 50%Q Q 1 10%Q', (Q’z Capacity at Max. eff point)
M metal, R means rubber

11. MIZZTECH PUMPS MODEL SHEET
AH(R) MS HH MSH
1.5/1B-AH 25I-MS 1.5/1C-HH 1.5/1J-MH
1.5/1B-AHR 25I-MSR 3/2D-HH 3/2K-MH
2/1.5B-AH 40I-MS 4/3E-HH 4/3L-MH
2/1.5B-AHR 40I-MSR 6/4F-HH 6/4M-MH
3/2C-AH 50J-MS
3/2C-AHR 50J-MSR L(R)&ML
4/3C-AH 80J-MS 20A-L 20A-ML
4/3C-AHR 80J-MSR 50B-L 50I-ML
6/4D-AH 100K-MS 50B-L(R) 50I-MLR
6/4D-AHR 100K-MSR 75C-L 75J-ML
6/4E-AH 100L-MS 100D-L 100K-ML
6/4E-AHR 100L-MSR 150E-L 150L-ML
8/6E-AH 150L-MS 300S-L 300U-ML
8/6E-AHR 150L-MSR 400ST-L 400RS-L
10/8F-AH 200M-MS 450ST-L 450ST-L
10/8F-AHR 200N-MSR M&SM
12/10ST-AH 1250RS-MS 10/8R-M 10/8Q-MM
12/10ST-AHR 250RS-MSR 10/8E-M 10/8L-MM
14/12ST-AH 300RS-MS G&MSG
14/12ST-AHR 300RS-MSR 6/4D-G 6/4K-MSG
16/14TU-AH 350TV-MS 8/6E-G 8/6L-MSG
16/14TU-AHR 350TV-MSR 10/8F-G 10/8M-MSG
20/18TU-AH 450TV-AH 12/10G-G 12/10N-MSG
20/18TU-AHR 450TV-AHR 14/12G-G 14/12N-MSG
SP(R)&MS(R) 14/12T-G 14/12V-MSG
40PV-SP 40WV-MSP 16/14G-GH 16/14N-MSGH
40PV-SPR 40WV-MSPR SH&SH
65QV-SP 65XV-MSP 6/4E-SH 100SH-L
65QV-SPR 65XV-MSPR 8/6F-SH 150SH-M
100RV-SP 100TV-MSP 12/10T-SH 250SH-V
100RV-SPR 100YV-MSPR
150SV-SP 150ZV-MSP AF&MSF
150SV-SPR 150ZV-MSPR 2QV-AF 2XV-MSF
200SV-SP 200ZV-MSP 3QV-AF 3XV-MSF
250TV-SP 250UV-MSP 4RV-AF 4YV-MSF
6SV-AF 6ZV-MSF
8SV-AF 8ZV-MSF

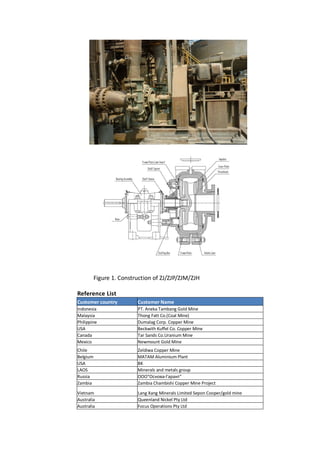

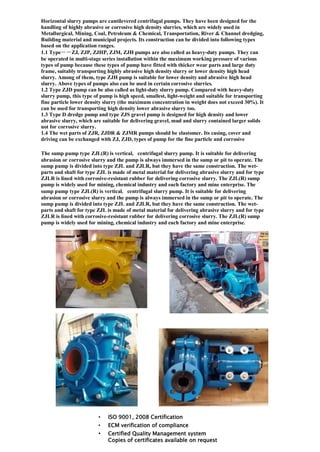

12. Horizontal slurry pumps are cantilevered centrifugal pumps. They have been designed for the
handling of highly abrasive or corrosive high density slurries, which are widely used in
Metallurgical, Mining, Coal, Petroleum & Chemical, Transportation, River & Channel dredging,
Building material and municipal projects. Its construction can be divided into following types
based on the application ranges.
1.1 Type－－ZJ, ZJP, ZJHP, ZJM, ZJH pumps are also called as heavy-duty pumps. They can
be operated in multi-stage series installation within the maximum working pressure of various
types of pump because these types of pump have fitted with thicker wear parts and large duty
frame, suitably transporting highly abrasive high density slurry or lower density high head
slurry. Among of them, type ZJH pump is suitable for lower density and abrasive high head
slurry. Above types of pumps also can be used in certain corrosive slurries.
1.2 Type ZJD pump can be also called as light-duty slurry pump. Compared with heavy-duty
slurry pump, this type of pump is high speed, smallest, light-weight and suitable for transporting
fine particle lower density slurry (the maximum concentration in weight does not exceed 30%). It
can be used for transporting high density lower abrasive slurry too.
1.3 Type D dredge pump and type ZJS gravel pump is designed for high density and lower
abrasive slurry, which are suitable for delivering gravel, mud and slurry contained larger solids
not for corrosive slurry.
1.4 The wet parts of ZJR, ZJDR & ZJMR pumps should be elastomer. Its casing, cover and
driving can be exchanged with ZJ, ZJD, types of pump for the fine particle and corrosive
The sump pump type ZJL(R) is vertical, centrifugal slurry pump. It is suitable for delivering
abrasion or corrosive slurry and the pump is always immersed in the sump or pit to operate. The
sump pump is divided into type ZJL and ZJLR, but they have the same construction. The wet-
parts and shaft for type ZJL is made of metal material for delivering abrasive slurry and for type
ZJLR is lined with corrosive-resistant rubber for delivering corrosive slurry. The ZJL(R) sump
pump is widely used for mining, chemical industry and each factory and mine enterprise. The
sump pump type ZJL(R) is vertical, centrifugal slurry pump. It is suitable for delivering
abrasion or corrosive slurry and the pump is always immersed in the sump or pit to operate. The
sump pump is divided into type ZJL and ZJLR, but they have the same construction. The wet-
parts and shaft for type ZJL is made of metal material for delivering abrasive slurry and for type
ZJLR is lined with corrosive-resistant rubber for delivering corrosive slurry. The ZJL(R) sump
pump is widely used for mining, chemical industry and each factory and mine enterprise.
• ISO 9001, 2008 Certification
• ECM verification of compliance
• Certified Quality Management system
Copies of certificates available on request

13. Reference List
Customer country Customer Name
Indonesia PT. Aneka Tambang Gold Mine
Malaysia Thong Fatt Co.(Coal Mine)
Philippine Dumalag Corp. Copper Mine
USA Beckwith Kuffel Co. Copper Mine
Canada Tar Sands Co.Uranium Mine
Mexico Newmount Gold Mine
Chile Zeldiwa Copper Mine
Belgium MATAM Aluminium Plant
USA BK
LAOS Minerals and metals group
Russia ООО"Основа-Гарант"
Zambia Zambia Chambishi Copper Mine Project
Vietnam Lang Xang Minerals Limited Sepon Cooper/gold mine
Australia Queenland Nickel Pty Ltd
Australia Focus Operations Pty Ltd
Figure 1. Construction of ZJ/ZJP/ZJM/ZJH
