This document provides instructions for accessing and configuring a Nexus 1000v VSM. It outlines steps to SSH into the VSM at IP 10.1.1.102 using username "admin" and password "cciedc01" or "Cciedc01". It also describes configuring two Nexus 5000 series switches N5K1 and N5K2 to allow VLAN 1 on various ports and interfaces to support the VSM, including the VPC peer link and ports 10 and 20. Finally, it mentions allowing VLAN 1 on the vNICs such as eth0 and eth1 of the VSM template to see the VEM after completing the outlined configuration.

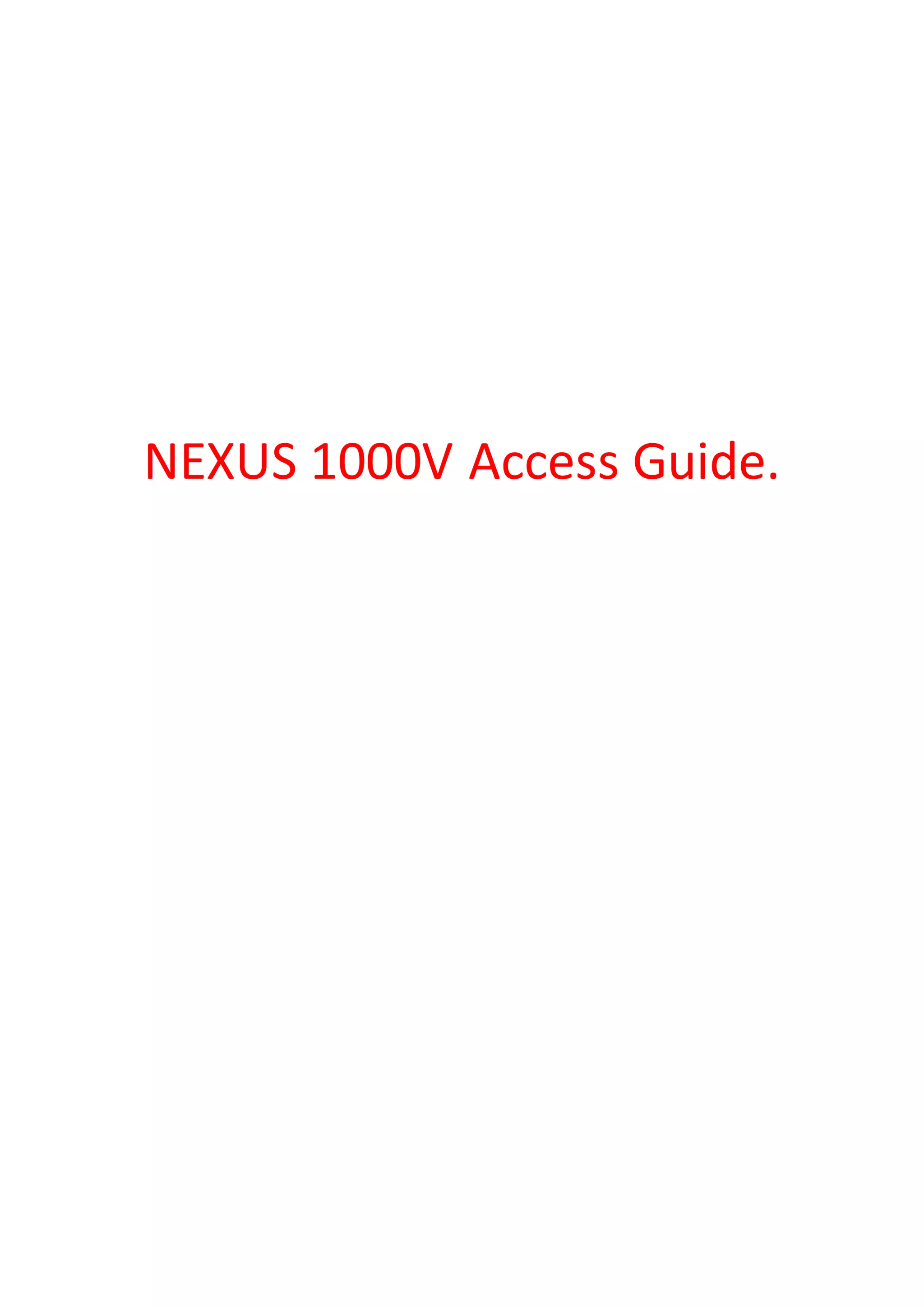

1. NEXUS 1000V Access Guide.

2. To access Nexus 1000v VSM
Ssh to 10.1.1.102 ip address
Username-admin,password—cciedc01 or Cciedc01
1. Configure N5K1 and N5K2 as per below configuration
N5K1
!
1.1 Allow VLAN 1 on VPC-Peer Link
int po 200
switchport trunk allowed vlan add 1

3. no sh
1.2 ! Allow VLAN 1 on VPC 10 and 20
int po 10
switchport trunk allowed vlan add 1
!
int po 20
switchport trunk allowed vlan add 1
!
1.3 Configure Interface Connect to VSM
int e1/17
switchport mode trunk
switchport trunk allowed vlan 1
speed 1000
no sh
---------------------------------------------------------------------
!
!
N5K2
!
int po 200
switchport trunk allowed vlan add 1
no sh
!
int po 10
switchport trunk allowed vlan add 1
!
int po 20
switchport trunk allowed vlan add 1
!

4. int e1/17
switchport mode trunk
switchport trunk allowed vlan 1
speed 1000
no sh
2. Allow VLAN 1 On vNIC’s i.e eth0 and eth 1.If you create Template
then allow on that.

5. After Doing all these configuration you will see VEM
