1. Isaac Newton proposed that objects have a tendency to maintain their state of motion unless acted upon by an external force, known as the principle of inertia. 2. Newton established three laws of motion: the first law describes inertia and states that an object at rest stays at rest and an object in motion stays in motion unless acted on by an unbalanced force; the second law relates force, mass, and acceleration; the third law states that for every action there is an equal and opposite reaction. 3. Forces can be categorized as either contact forces, which require touching an object, or long-range forces like gravity that act from a distance. Forces have identifiable agents that cause them, and free body diagrams are

1. 1
Newton’s Laws of Motion
Chapter 6

2. 2

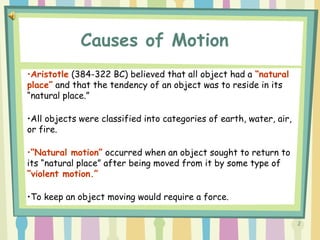

•Aristotle (384-322 BC) believed that all object had a “natural
place” and that the tendency of an object was to reside in its
“natural place.”
•All objects were classified into categories of earth, water, air,
or fire.
•“Natural motion” occurred when an object sought to return to
its “natural place” after being moved from it by some type of
“violent motion.”
•To keep an object moving would require a force.
Causes of Motion

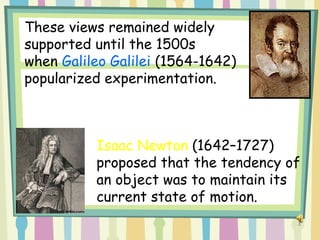

3. 3
These views remained widely
supported until the 1500s
when Galileo Galilei (1564-1642)
popularized experimentation.
Isaac Newton (1642–1727)
proposed that the tendency of
an object was to maintain its
current state of motion.

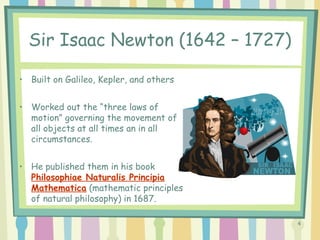

4. 4
Sir Isaac Newton (1642 – 1727)
• Built on Galileo, Kepler, and others
• Worked out the “three laws of
motion” governing the movement of
all objects at all times an in all
circumstances.
• He published them in his book
Philosophiae Naturalis Principia
Mathematica (mathematic principles
of natural philosophy) in 1687.

5. 5
Sir Isaac Newton
– 1st
Law – an object at rest or in motion stays at rest or
in motion unless acted upon by an outside force
* Known as the “Principle of Inertia”
– 2nd
Law – describes how an object accelerates or
changes direction when a force is applied to it
* F = ma
– 3rd
Law – for action there is an equal and opposite
reaction

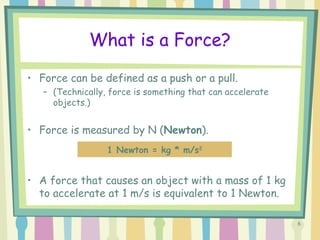

6. 6
What is a Force?
• Force can be defined as a push or a pull.
– (Technically, force is something that can accelerate
objects.)
• Force is measured by N (Newton).
• A force that causes an object with a mass of 1 kg
to accelerate at 1 m/s is equivalent to 1 Newton.
1 Newton = kg * m/s2

7. 7
What are the types of Forces?
Type of Force Force Symbol
Contact Friction Ffric or Ff
Contact Normal FN
Contact Applied FAppl
Contact Spring FS
Contact Tension FT
Contact Thrust Fthrust
Long-Range Weight Fgrav

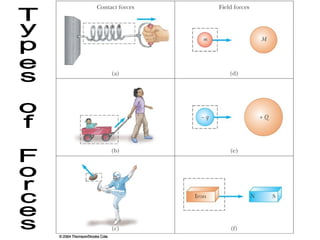

8. 8

9. 9

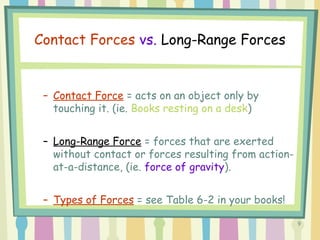

Contact Forces vs. Long-Range Forces
– Contact Force = acts on an object only by
touching it. (ie. Books resting on a desk)
– Long-Range Force = forces that are exerted
without contact or forces resulting from action-
at-a-distance, (ie. force of gravity).
– Types of Forces = see Table 6-2 in your books!

10. 10
Forces have Agents
– Each force has a specific, identifiable, immediate
cause called the agent.
– How to solve for agents:
– 1. Create a pictorial model of situation.
– 2. Circle the system and identify every place where the
system touches the environment.
– 3. It is at these places that contact forces are exerted.
– 4. Then identify any long-range forces on the system, ie.
Force of gravity (Fgrav).

11. 11

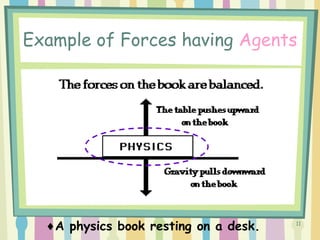

Example of Forces having Agents
♦A physics book resting on a desk.

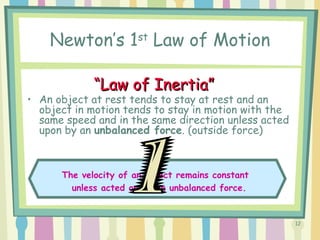

12. 12
Newton’s 1st
Law of Motion
• An object at rest tends to stay at rest and an
object in motion tends to stay in motion with the
same speed and in the same direction unless acted
upon by an unbalanced force. (outside force)
The velocity of an object remains constant
unless acted on by an unbalanced force.
““Law of Inertia”Law of Inertia”

13. 13
Newton’s 1st
Law of Motion

14. 14
Newton’s 1st
Law of Motion
• Inertia - the resistance an object has to
a change in its state of motion. [Newton’s
1st Law]
• Equilibrium - if the net force on an object
is zero, then it is said to be in equilibrium.
– An object is in equilibrium when: at rest or
moving at constant velocity.

15. 15

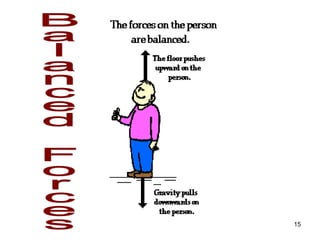

16. 16

17. 17
Some Examples from Real Life
Two teams are playing tug of war. They are both
exerting equal force on the rope in opposite
directions. This balanced force results in no change
of motion.
A soccer ball is sitting at rest. It takes
an unbalanced force of a kick to change
its motion.

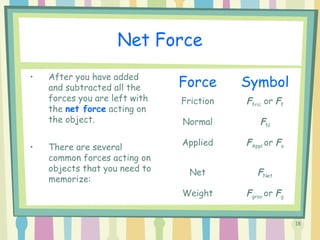

18. 18
Net Force
• After you have added
and subtracted all the
forces you are left with
the net force acting on
the object.
• There are several
common forces acting on
objects that you need to
memorize:
Force Symbol
Friction Ffric or Ff
Normal FN
Applied FAppl or Fa
Net FNet
Weight Fgrav or Fg

19. 19

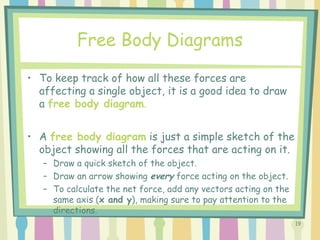

Free Body Diagrams
• To keep track of how all these forces are
affecting a single object, it is a good idea to draw
a free body diagram.
• A free body diagram is just a simple sketch of the
object showing all the forces that are acting on it.
– Draw a quick sketch of the object.
– Draw an arrow showing every force acting on the object.
– To calculate the net force, add any vectors acting on the
same axis (x and y), making sure to pay attention to the
directions.

20. 20

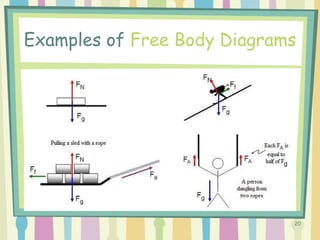

Examples of Free Body Diagrams

21. 21

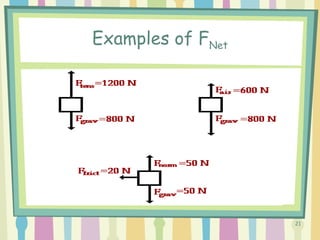

Examples of FNet

22. 22
Examples of FNet
