Network Automation provides three examples of network automation projects and their learnings: 1. A script to find a host and change its VLAN using Python showed that small, focused scripts are good starting points and don't require extensive systems. 2. Automating a new datacenter configuration using Python templates and YAML files helped manage crises by standardizing cabling and configurations. Permanently improving requires focusing on delivery over systems. 3. Exposing network data through a REST API allowed querying operational status, configurations, and security policies. Sharing information benefits teams and moves beyond just automating the network team's work.

1. Network Automation
Alejandro Salinas

2. Intro

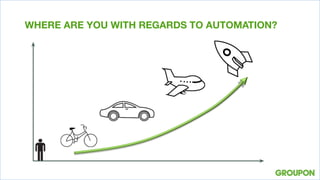

3. WHERE ARE YOU WITH REGARDS TO AUTOMATION?

4. IT’S ALSO ABOUT PROCESS AND CULTURAL CHANGE

5. Story 1
An experiment that pays off

6. xkcd.com

7. • A script to find a host in the network and its port settings
• A script to change the vlan in a specific port
• A script that combines both functionalities
THREE SCRIPTS

8. THREE SCRIPTS (CONT)
[asalinas:juniper_tools] ./set_vlan.py vlan2 myhost.grpn -p
Password:
INFO: Looking for myhost.grpn MAC address
INFO: Translating hostname myhost.grpn into MAC address ab:cd:fe:00:01:02
INFO: Starting search in: myswitch.grpn
INFO: Getting MAC Address table
INFO: Host myhost.grpn (MAC: ab:cd:fe:00:01:02) is in myswitch.grpn (vlan,port) [('vlan1', 'ge-2/0/20.0')]
INFO: DISCOVERY COMPLETED - Setting Vlans
INFO: Getting VLAN info...
INFO: vlan vlan2 exists in myswitch.grpn - OK
INFO: Getting interface ge-2/0/20 information
INFO: Current vlans are ['vlan1']
INFO: Interface ge-2/0/20 is in access mode, setting/changing vlan.
INFO: Locking configuration
INFO: Configuration Sent OK
INFO: Configuration Validation OK
INFO: Config diff:
[edit interfaces ge-2/0/20 unit 0 family ethernet-switching vlan]
- members vlan1;
+ members vlan2;
INFO: Releasing Lock
INFO: Cleanup: myswitch.grpn

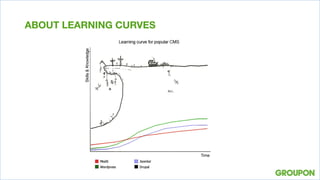

10. ABOUT LEARNING CURVES

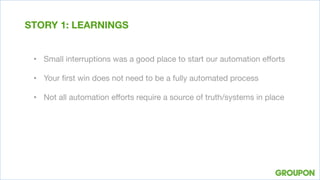

11. • Small interruptions was a good place to start our automation efforts
• Your first win does not need to be a fully automated process
• Not all automation efforts require a source of truth/systems in place
STORY 1: LEARNINGS

12. Story 2
Code your way out of a crisis

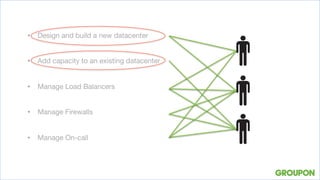

13. • Design and build a new datacenter
• Add capacity to an existing datacenter
• Manage Load Balancers
• Manage Firewalls
• Manage On-call

14. • 1 x Predictable cabling standard
• N x Jinja Templates
• N x YAML Files
• Code to use all of the above

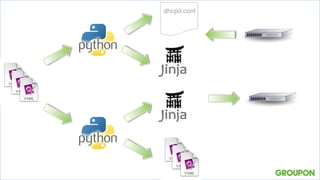

15. dhcpd.conf

16. Results
TODO list:
• Check ports
• Check OS versions
• Check licenses
• Check IP allocations
• Check vlans
• Check routing

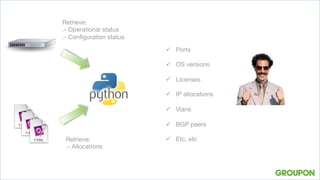

17. Retrieve:
.- Operational status
.- Configuration status
Retrieve:
.- Allocations
ü Ports
ü OS versions
ü Licenses
ü IP allocations
ü Vlans
ü BGP peers
ü Etc, etc

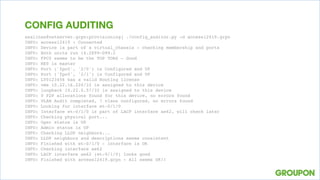

18. asalinas@netserver.grpn:provisioning] ./config_auditor.py -d access12419.grpn
INFO: access12419 : Connected
INFO: Device is part of a virtual_chassis - checking membership and ports
INFO: Both units run 14.2X99-D99.2
INFO: FPC0 seems to be the TOP TORS – Good
INFO: RE0 is master
INFO: Port ('fpc0', '2/0') is Configured and UP
INFO: Port ('fpc0', '2/1') is Configured and UP
INFO: LY0123456 has a valid Routing license
INFO: vme 10.22.16.220/22 is assigned to this device
INFO: loopback 10.22.0.57/32 is assigned to this device
INFO: 0 P2P allocations found for this device, no errors found
INFO: VLAN Audit completed, 7 vlans configured, no errors found
INFO: Looking for interface et-0/1/0
INFO: Interface et-0/1/0 is part of LACP interface ae62, will check later
INFO: Checking physical port...
INFO: Oper status is UP
INFO: Admin status is UP
INFO: Checking LLDP neighbors...
INFO: LLDP neighbors and descriptions seems consistent
INFO: Finished with et-0/1/0 - interface is OK
INFO: Checking interface ae62
INFO: LACP interface ae62 (et-0/1/0) looks good
INFO: Finished with access12419.grpn - All seems OK!!
CONFIG AUDITING

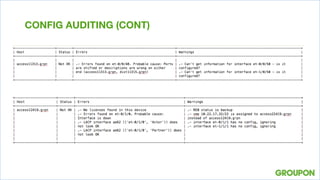

19. CONFIG AUDITING (CONT)

20. CONFIG AUDITING (CONT)

21. PERMANENT IMPROVEMENT

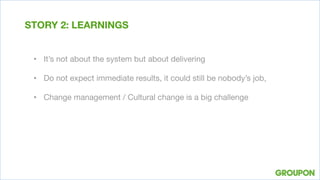

22. • It’s not about the system but about delivering
• Do not expect immediate results, it could still be nobody’s job,
• Change management / Cultural change is a big challenge
STORY 2: LEARNINGS

23. Story 3
Ask the Network

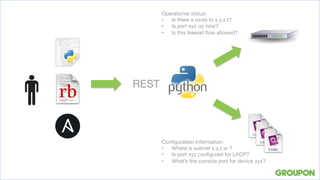

24. Operational status:
• Is there a route to x.y.z.t?
• Is port xyz up now?
• Is this firewall flow allowed?
Configuration information:
• Where is subnet x.y.z.w ?
• Is port xyz configured for LACP?
• What’s the console port for device xyz?
REST

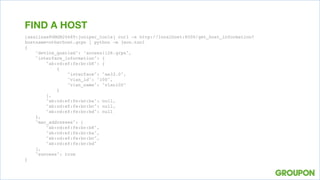

25. [asalinas@GMGM20689:juniper_tools] curl -s http://localhost:8000/get_host_information?
hostname=otherhost.grpn | python -m json.tool
{
"device_queried": "access1128.grpn",
"interface_information": {
"ab:cd:ef:fe:bc:b8": [
{
"interface": "ae33.0",
"vlan_id": "100",
"vlan_name": "vlan100"
}
],
"ab:cd:ef:fe:bc:ba": null,
"ab:cd:ef:fe:bc:bc": null,
"ab:cd:ef:fe:bc:bd": null
},
"mac_addresses": [
"ab:cd:ef:fe:bc:b8",
"ab:cd:ef:fe:bc:ba",
"ab:cd:ef:fe:bc:bc",
"ab:cd:ef:fe:bc:bd"
],
"success": true
}
FIND A HOST

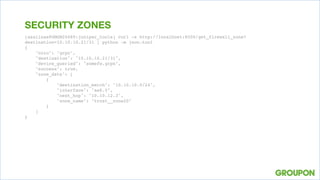

26. [asalinas@GMGM20689:juniper_tools] curl -s http://localhost:8000/get_firewall_zone?
destination=10.10.10.21/31 | python -m json.tool
{
"colo": "grpn",
"destination": "10.10.10.21/31",
"device_queried": "somefw.grpn",
"success": true,
"zone_data": [
{
"destination_match": "10.10.10.0/24",
"interface": "ae8.0",
"next_hop": "10.10.12.3",
"zone_name": "trust__zone20"
}
]
}
SECURITY ZONES

27. [asalinas@GMGM20689:~] curl -s "http://localhost:8000/check_flow?
source=10.1.2.3&destination=10.11.12.13&port=22" | python -m json.tool
{
"action_type": "permit",
"destination": "10.11.12.13",
"destination_zone": "trust__zone1",
"device_queried": "somefw.grpn",
"dst_colo": "colo1",
"policy_name": "NETOPS-9999",
"source": "10.1.2.3",
"source_zone": "trust__zone2",
"src_colo": "colo2",
"success": true
}
IS THIS FLOW ALLOWED?

28. [asalinas@GMGM20689] curl -s "http://localhost:8000/get_policy_by_name?
device_name=somefw.grpn&policy_name=NETOPS-9999" | python -m json.tool
{
"device_name": "somefw.grpn",
"policy_information": {
"NETOPS-9999": {
"action": "permit",
"application": "junos-ssh",
"destination_addresses": [
"host1.grpn",
"host2.grpn"
],
"destination_zone_name": "trust__zone1",
"policy_sequence_number": "100",
"policy_state": "enabled",
"seq_check": "No",
"source_addresses": "host3.grpn",
"source_zone_name": "trust__zone2",
"syn_check": "No"
}
},
"policy_name": "NETOPS-9999",
"success": true
}
FIREWALL POLICY DETAIL

29. get_firewall_zone
get_policy_by_name

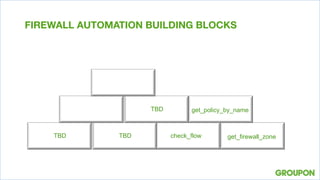

FIREWALL AUTOMATION BUILDING BLOCKS
check_flowTBD
TBD
TBD

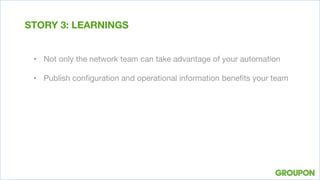

30. • Not only the network team can take advantage of your automation
• Publish configuration and operational information benefits your team
STORY 3: LEARNINGS
