1. Multiprocessor Scheduling
SHOAIB MANZOOR
F19-MSCS-5020

2. Multicore Processors
 Multiple CPU cores are packed into single chip.
 Making single CPU too fast by this technique.

3. Difficulties in Multicore
 C Program uses only one CPU.
 Adding more CPUs doesn’t make the program run faster.
 To OVERCOME this difficulty we need to rewrite the C program to run in parallel
(Threads).

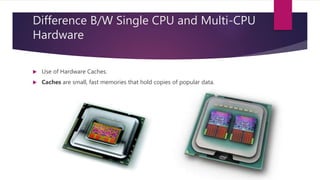

4. Difference B/W Single CPU and Multi-CPU
Hardware
 Use of Hardware Caches.
 Caches are small, fast memories that hold copies of popular data.

5. Temporal locality and spatial locality
 Temporal locality is that when a piece of data is accessed, it is likely to be
accessed again in the near future. E.g. Loop
 Spatial locality is that if a program accesses a data item at address x, it is likely
to access data items near x as well. E.g. Arrays

6. Cache Coherence
 Multiple processors with single shared memory.

7. Bus Snooping
 Each cache pays attention to memory updates by observing the bus that
connects them to main memory.
 it will notice the change.
 Then it will remove it from its cache or it will update the data.

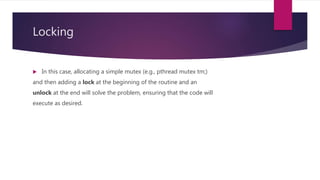

8. Locking
 In this case, allocating a simple mutex (e.g., pthread mutex tm;)
and then adding a lock at the beginning of the routine and an
unlock at the end will solve the problem, ensuring that the code will
execute as desired.

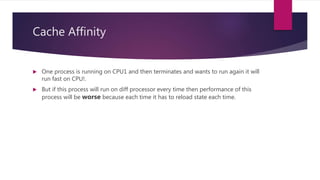

9. Cache Affinity
 One process is running on CPU1 and then terminates and wants to run again it will
run fast on CPU!.
 But if this process will run on diff processor every time then performance of this
process will be worse because each time it has to reload state each time.

10. SQMS
 Single Queue Multiprocessor Scheduling.
 Reuse the basic framework for single processor scheduling, by putting all jobs that
need to be scheduled into a single queue.

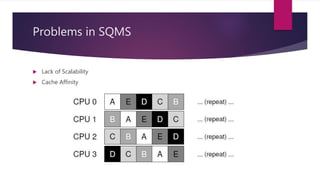

11. Problems in SQMS
 Lack of Scalability
 Cache Affinity

12. Overcome to Cache Affinity

13. Multi-Queue Scheduling
 Problems caused in single-queue schedulers, some systems opt for multiple
queues, e.g., one per CPU.
 By using RR system will behave like this

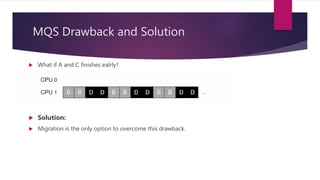

14. MQS Drawback and Solution
 What if A and C finishes ealrly?
 Solution:
 Migration is the only option to overcome this drawback.

15. Linux Multiprocessor Schedulers
 O(1) scheduler.
 Completely Fair Scheduler (CFS).
 BF Scheduler (BFS).
 Both O(1) and CFS use multiple queues, whereas BFS uses a single queue,

16. Thank you

17. Any Question???
