This document discusses multi-pipe filesystems (mpipefs), which allow multiple processes to communicate through pipes in more flexible ways than traditional pipes. Mpipefs supports long packets, header blocks, enumerated and collective pipes like broadcast and reduce. It also allows splicing pipes together. Examples show mounting mpipefs and using pipes to pass data and arguments between processes.

1. © 2010 IBM Corporation
MULTI-PIPES
Eric Van Hensbergen (IBM Research)
Noah Evans (Alcatel-Lucent Bell-Labs)
Pravin Shinde (ETH Zurich)
Tuesday, November 23, 2010

2. IBM Research
© 2010 IBM Corporation
Motivation
Figure 7: The data dependency graph for a portion of the Hartree-Fock
procedure using a traditional formulation.
12
64,000 Node TorusDataflow Oriented HPC Problems
2
Tuesday, November 23, 2010

3. IBM Research
© 2010 IBM Corporation
PUSH Pipelines
3
For more detail: refer to PODC09 Short Paper on PUSH Dataflow Shell
UNIX Model
a | b | c
PUSH Model
a |< b >| c
Tuesday, November 23, 2010

4. IBM Research
© 2010 IBM Corporation
AAA
BBB
ABABAB
ABA
BAB
4
Problem: Limitations of Traditional Pipes
AAA
BBB
Tuesday, November 23, 2010

5. IBM Research
© 2010 IBM Corporation5
Long Packet Pipes
AAA
BBB
AAA BBB
BBB
AAA
AAA
BBB
Tuesday, November 23, 2010

6. IBM Research
© 2010 IBM Corporation
TYPE
SIZE
DESTINATION
PARAMETERS
pwrite(pipefd, buf, sz, ~(0));
6
Header Control Blocks
Tuesday, November 23, 2010

7. IBM Research
© 2010 IBM Corporation7
Enumerated Pipes
1:A 2:B
A B
A B
A
B
Tuesday, November 23, 2010

8. IBM Research
© 2010 IBM Corporation
A
A
A
Broadcast
Reduce(+)
Allreduce(+)
(B+C)
B
C
(A+B+C)
B
C
A
8
Collective Pipes
Tuesday, November 23, 2010

9. IBM Research
© 2010 IBM Corporation
spliceto(b) a b = a b
splicefrom(b) a b = a b
9
Splicing Pipes
Tuesday, November 23, 2010

10. IBM Research
© 2010 IBM Corporation
Example Simple Invocation
•mpipefs
•mount /srv/mpipe /n/testpipe
•ls -l /n/testpipe
•echo hello > /n/testpipe/data &
•cat /n/testpipe/data
10
--rw-rw-rw- M 24 ericvh ericvh 0 Oct 10 18:10 /n/testpipe/data
hello
Tuesday, November 23, 2010

11. IBM Research
© 2010 IBM Corporation
Passing Arguments via aname
•mount /srv/mpipe /n/test othername
•ls -l /n/test
•mount /srv/mpipe /n/test2 -b bcastpipe
•mount /srv/mpipe /n/test3 -e 5 enumpipe
•....you get the idea, read the man page for more details
11
--rw-rw-rw- M 26 ericvh ericvh 0 Oct 10 18:12 /n/test/otherpipe
Tuesday, November 23, 2010

12. IBM Research
© 2010 IBM Corporation
Example for writing control blocks
int
pipewrite(int fd, char *data, ulong size, ulong which)
{
int n;
char hdr[255];
ulong tag = ~0;
char pkttype='p';
/* header byte is at offset ~0 */
n = snprint(hdr, 31, "%cn%ludn%ludnn", pkttype, size, which);
n = pwrite(fd, hdr, n+1, tag);
if(n <= 0)
return n;
return write(fd, data, size);
}
12
Tuesday, November 23, 2010

13. IBM Research
© 2010 IBM Corporation
Larger Example (execfs)
13
/proc
/clone
/###
/stdin
/stdout
/stderr
/args
/ctl
/fd
/fpregs
/kregs
/mem
/note
/noteid
/notepg
/ns
/proc
/profile
/regs
/segment
/status
/text
/wait
mount -a /srv/mpipe /proc/### stdin
mount -a /srv/mpipe /proc/### stdout
mount -a /srv/mpipe /proc/### stderr
Tuesday, November 23, 2010

14. IBM Research
© 2010 IBM Corporation

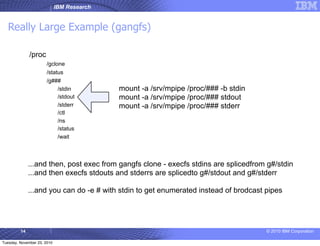

Really Large Example (gangfs)
14
/proc
/gclone
/status
/g###
/stdin
/stdout
/stderr
/ctl
/ns
/status
/wait
mount -a /srv/mpipe /proc/### -b stdin
mount -a /srv/mpipe /proc/### stdout
mount -a /srv/mpipe /proc/### stderr
...and then, post exec from gangfs clone - execfs stdins are splicedfrom g#/stdin
...and then execfs stdouts and stderrs are splicedto g#/stdout and g#/stderr
...and you can do -e # with stdin to get enumerated instead of brodcast pipes
Tuesday, November 23, 2010

15. IBM Research
© 2010 IBM Corporation
This project is supported in part by the
U.S. Department of Energy under
Award Number DE-FG02- 08ER25851
http://www.research.ibm.com/austin
http://goo.gl/5eFB
Code Available: http://www.bitbucket.org/ericvh/hare/sys/src/cmd/uem
Man Page Available: http://www.bitbucket.org/ericvh/hare/sys/man/4/mpipefs
15
Tuesday, November 23, 2010
