The document discusses techniques for improving memory efficiency in PyTorch. It explains how to perform operations in-place to reuse memory buffers and avoid reallocating memory. Specific PyTorch APIs like fill_() that operate in-place are highlighted. Memory sharing strategies are presented, such as reusing memory buffers across layers after they are no longer needed. The technique of recomputing intermediate outputs during backpropagation to further reduce memory usage is also covered. Examples demonstrate how these approaches can enable training larger models with less memory.

1. Memory Efficient Pytorch
SNU RPLab
Hyungjoo Cho

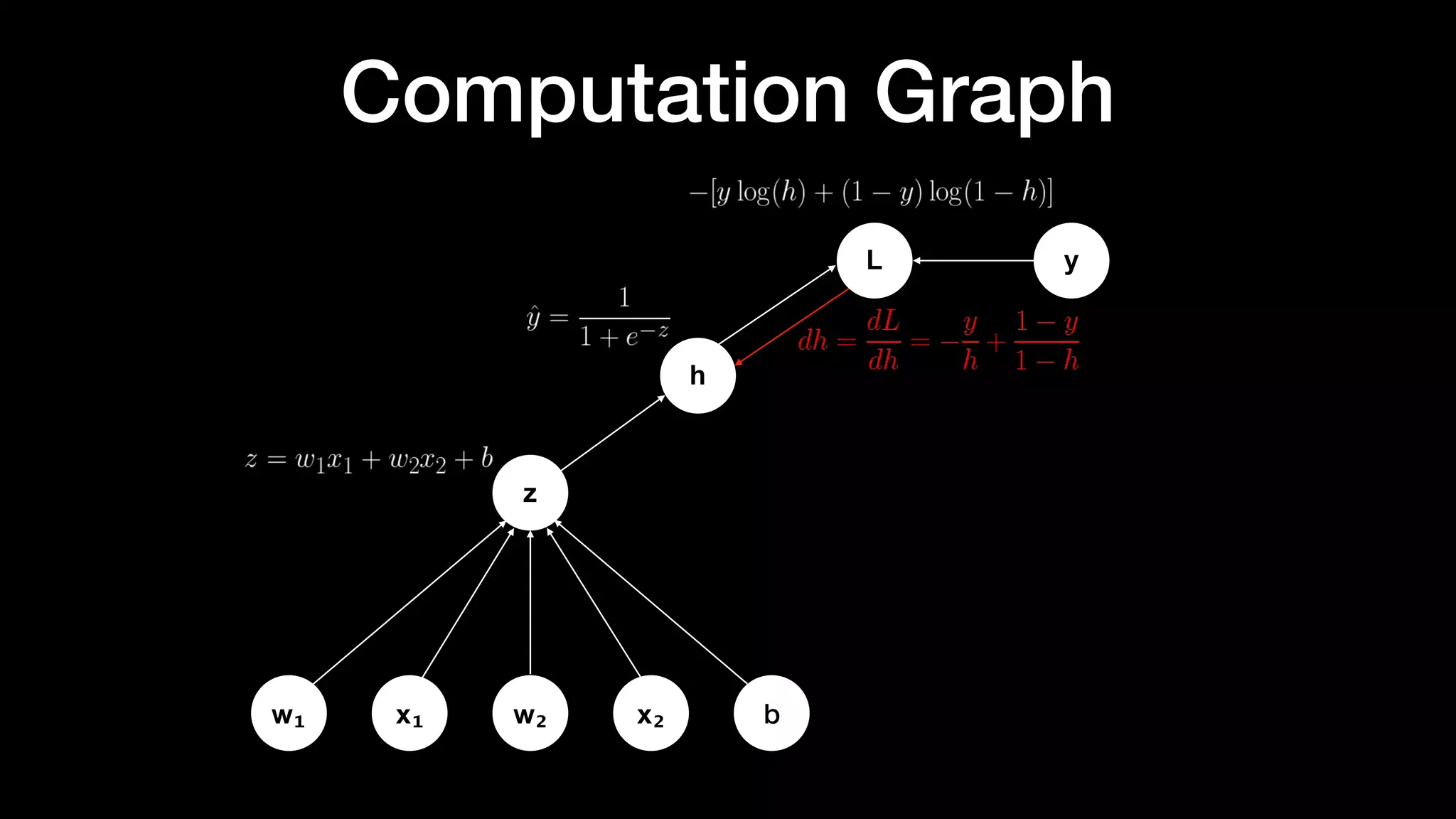

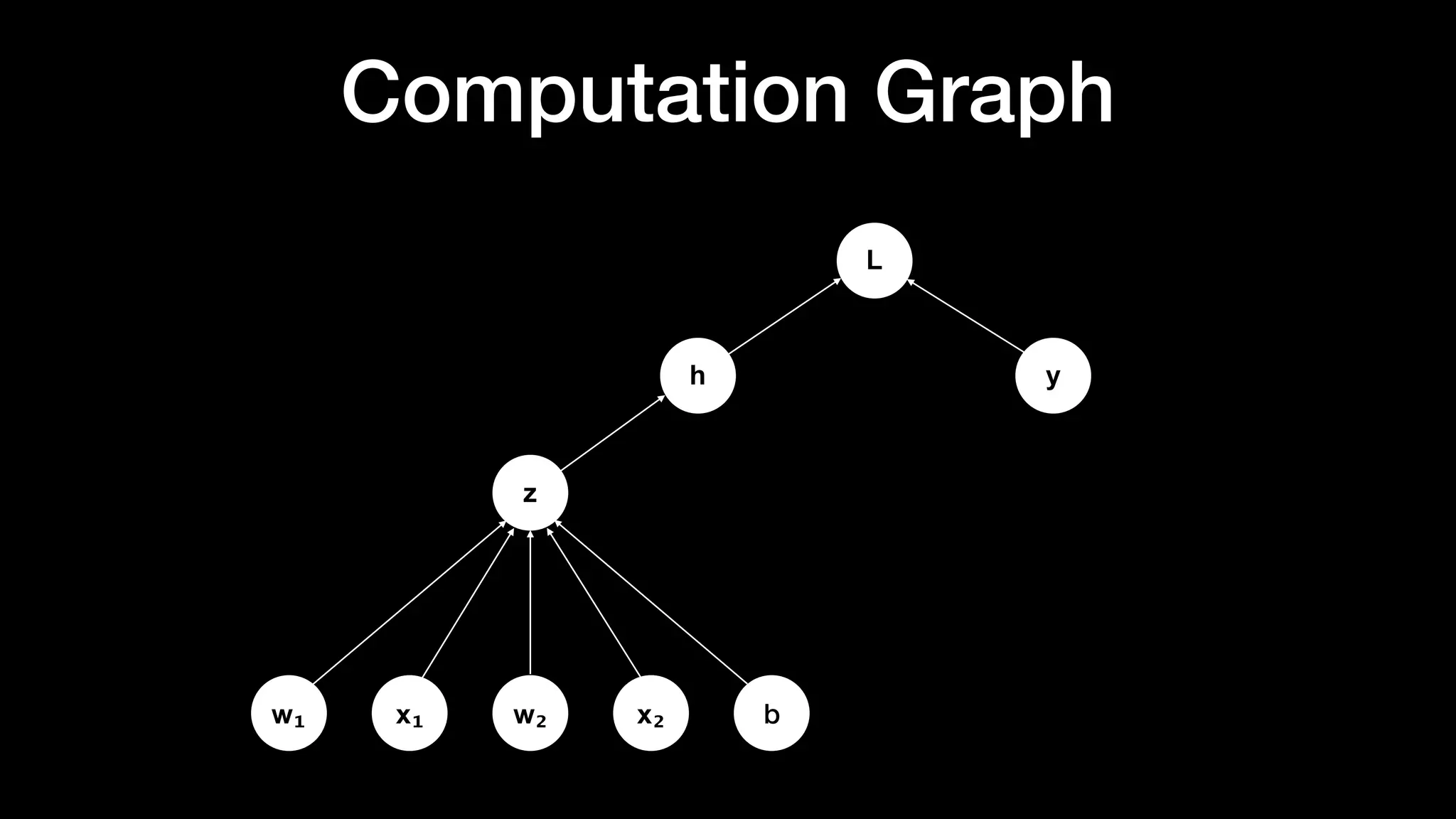

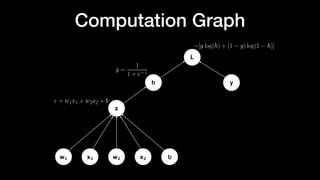

2. Computation Graph
w₁ x₁ w₂ x₂ b
z
h
L
y

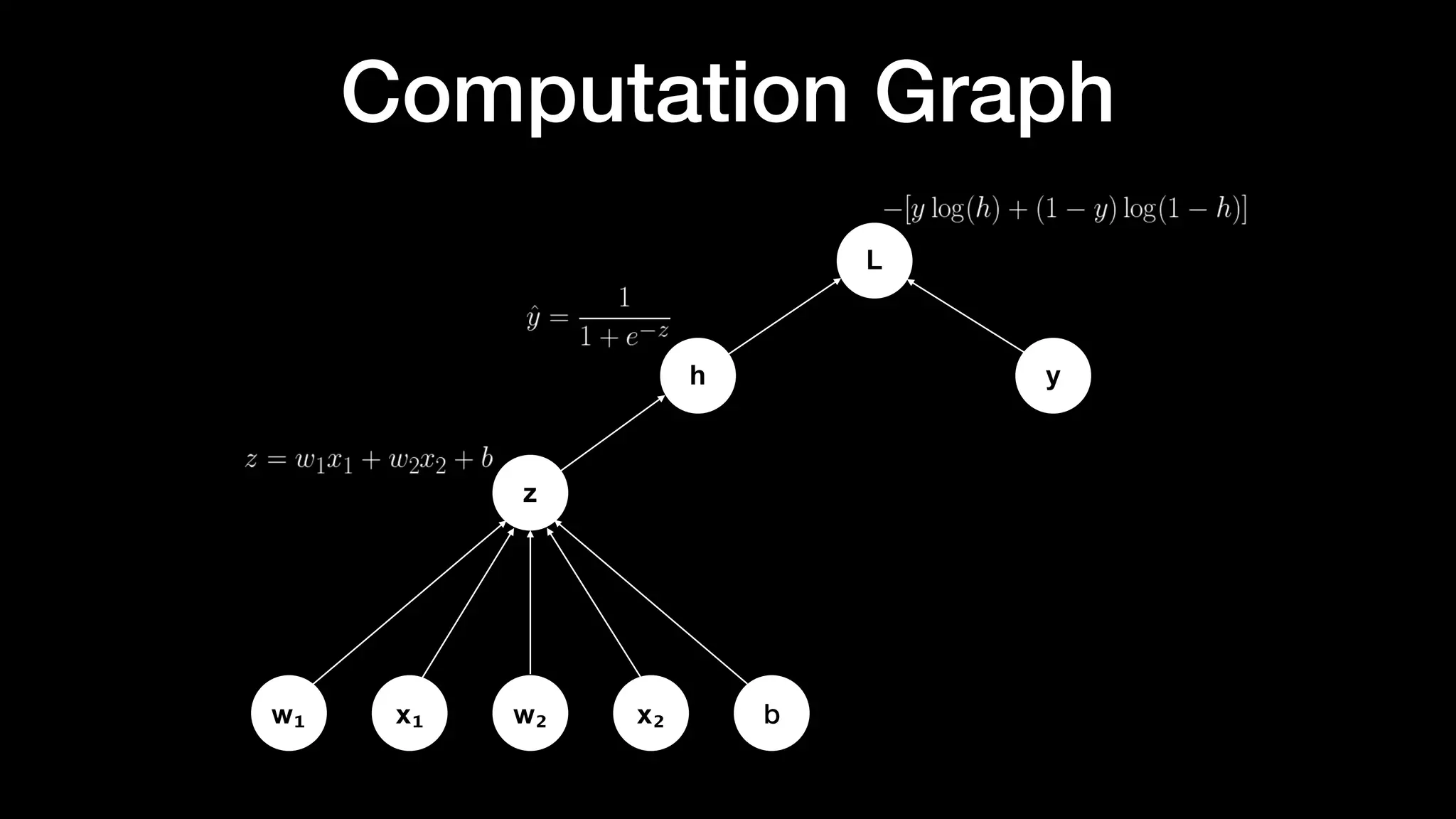

3. Computation Graph
w₁ x₁ w₂ x₂ b
z
h
L
y

4. Computation Graph
w₁ x₁ w₂ x₂ b
z
h
yL

5. Computation Graph
w₁ x₁ w₂ x₂ b
z
h
yL

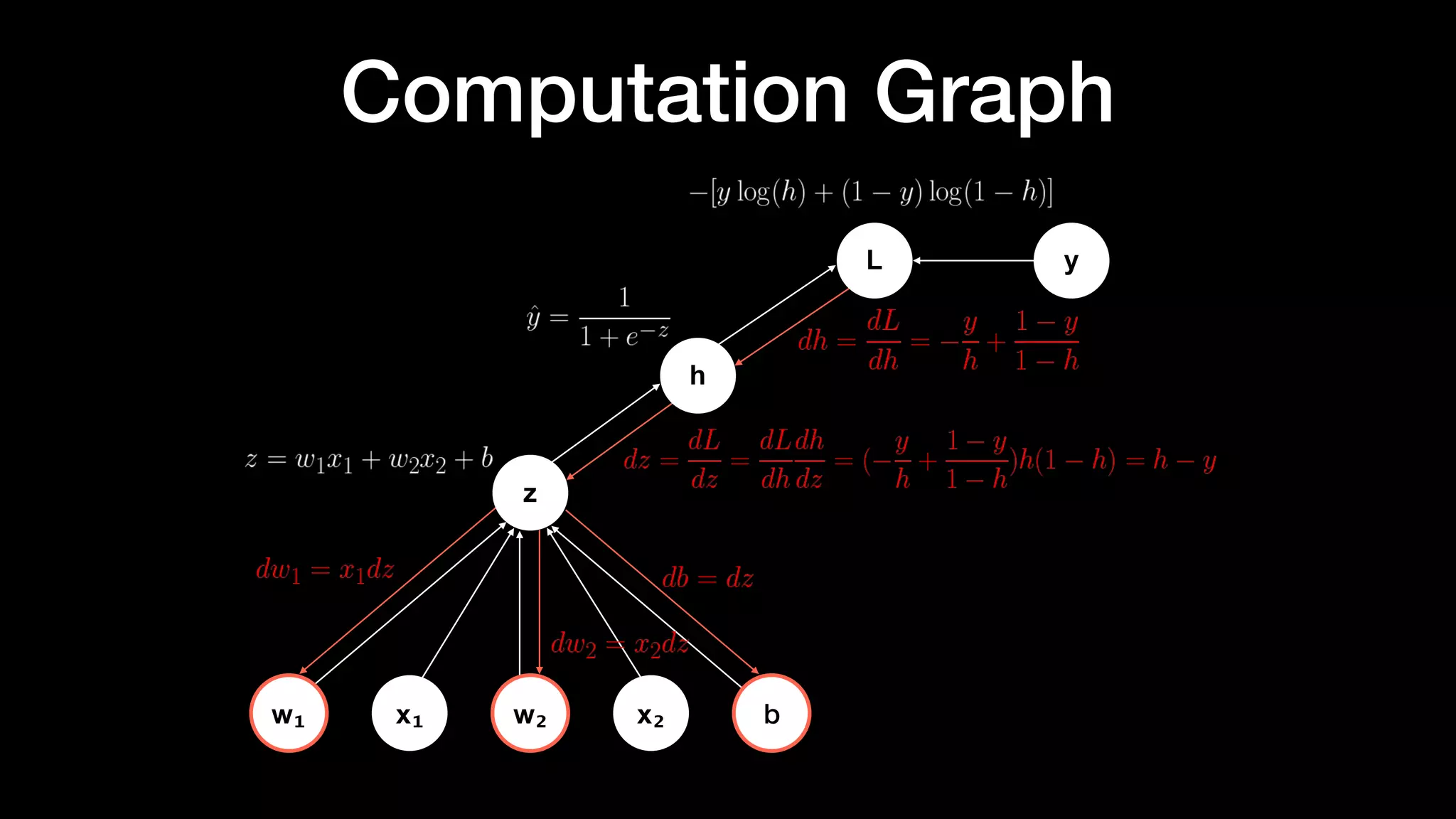

6. Computation Graph
w₁ x₁ w₂ x₂
z
h
yL
b

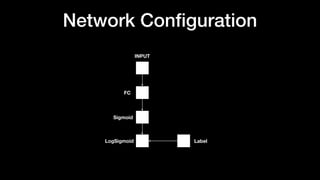

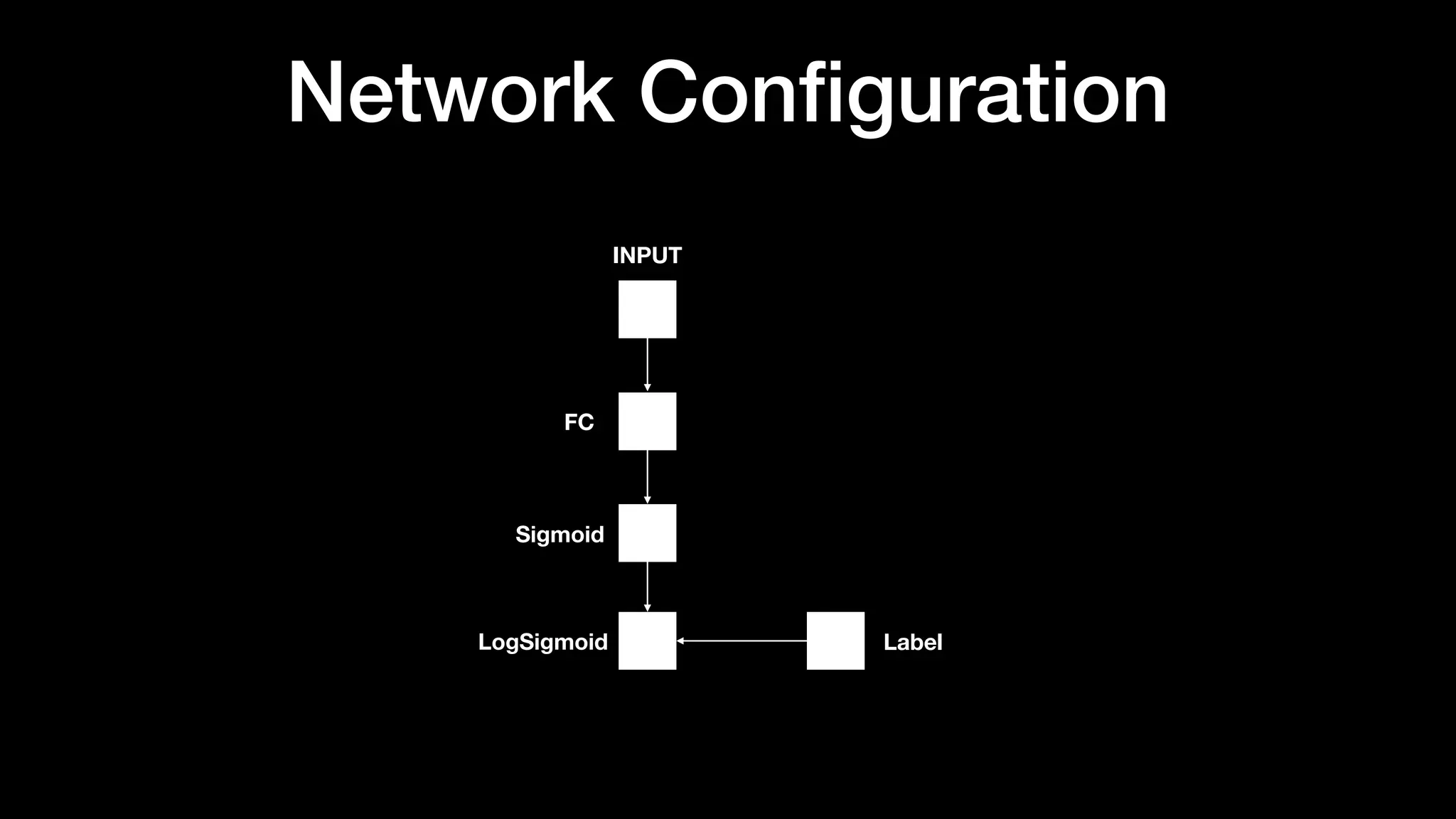

7. Network Configuration
INPUT
FC
Sigmoid
LogSigmoid Label

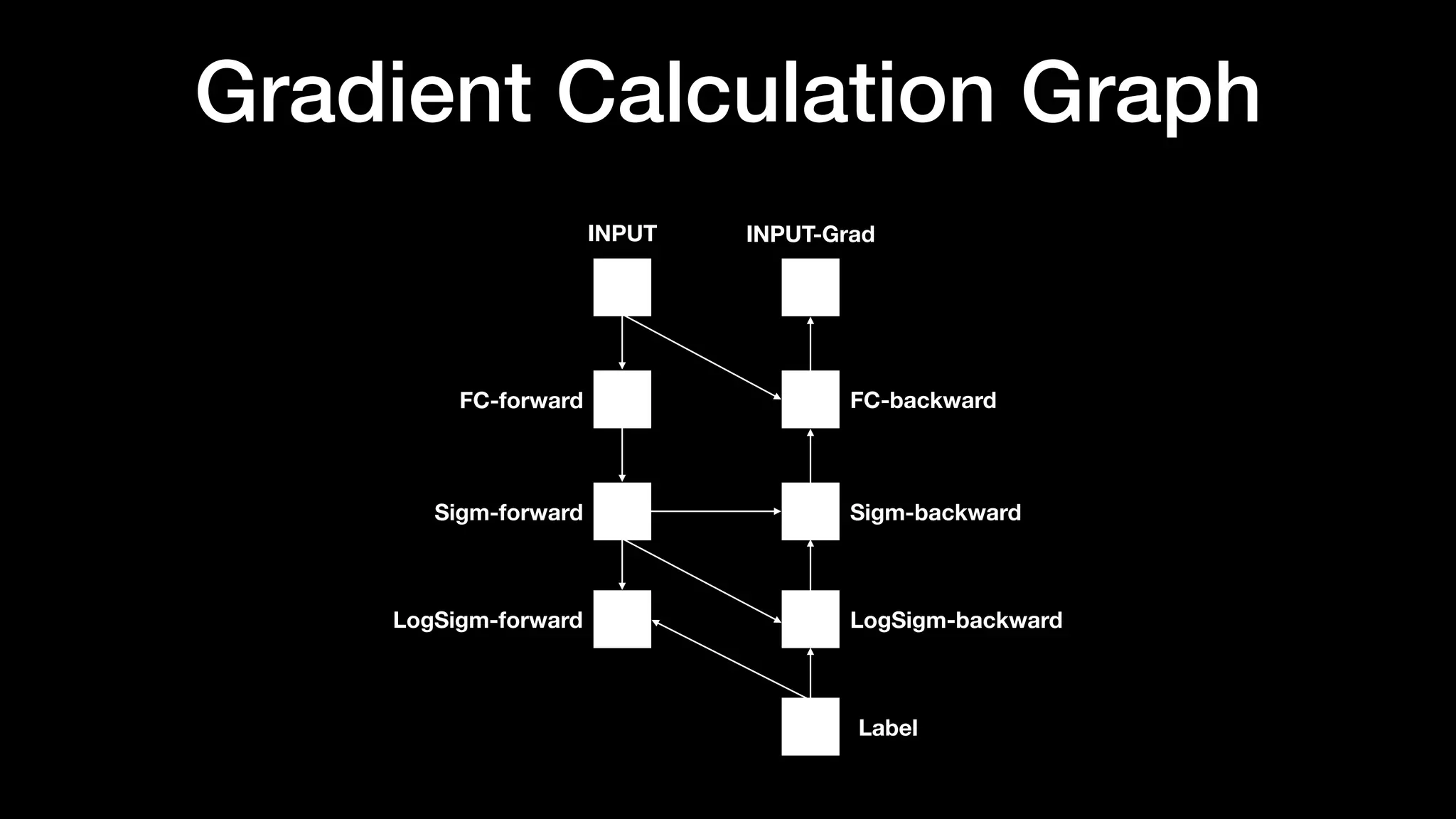

8. Gradient Calculation Graph
INPUT
FC-forward
Sigm-forward
LogSigm-forward LogSigm-backward
FC-backward
Sigm-backward
Label
INPUT-Grad

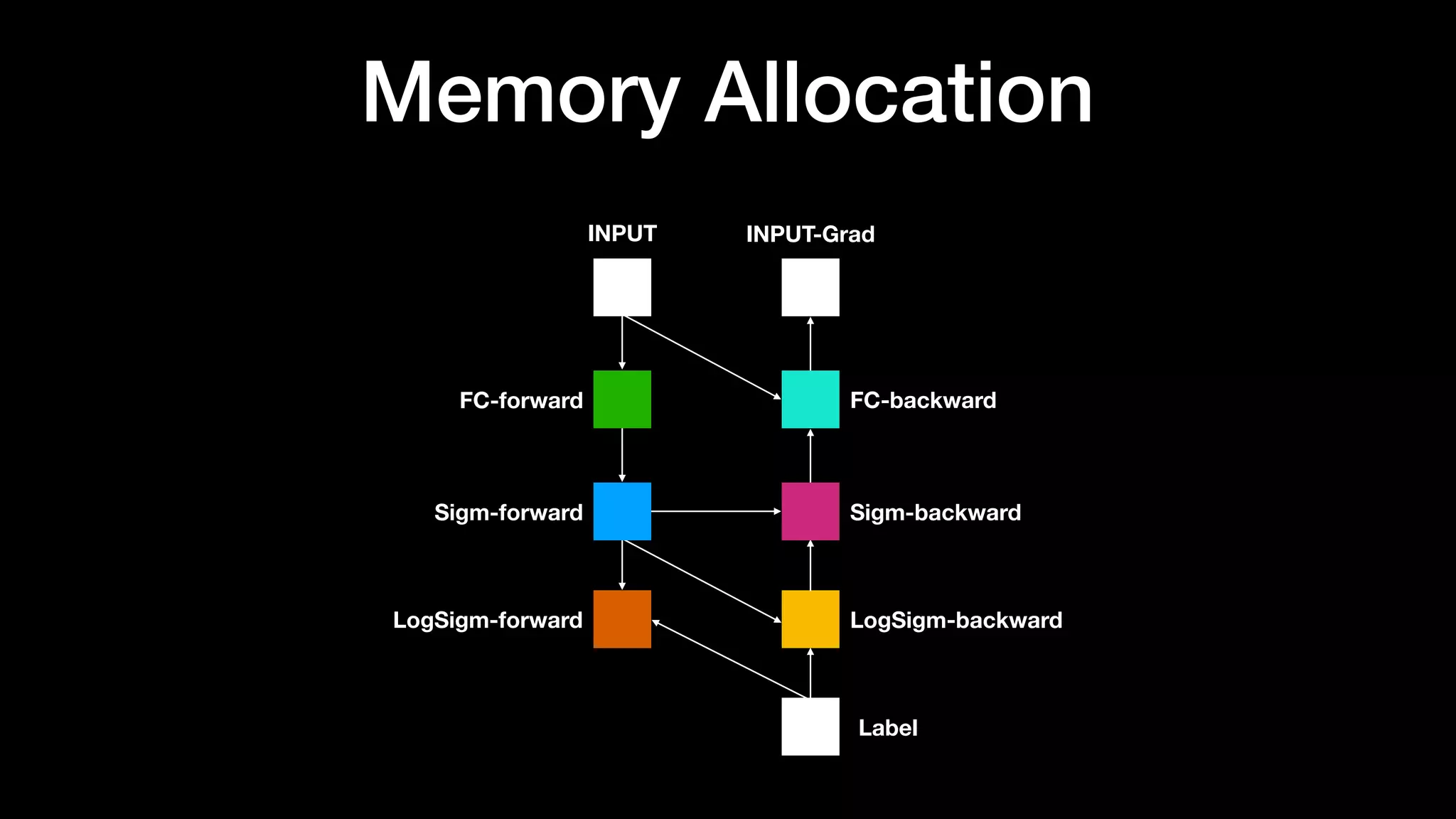

9. Memory Allocation
INPUT
FC-forward
Sigm-forward
LogSigm-forward LogSigm-backward
FC-backward
Sigm-backward
Label
INPUT-Grad

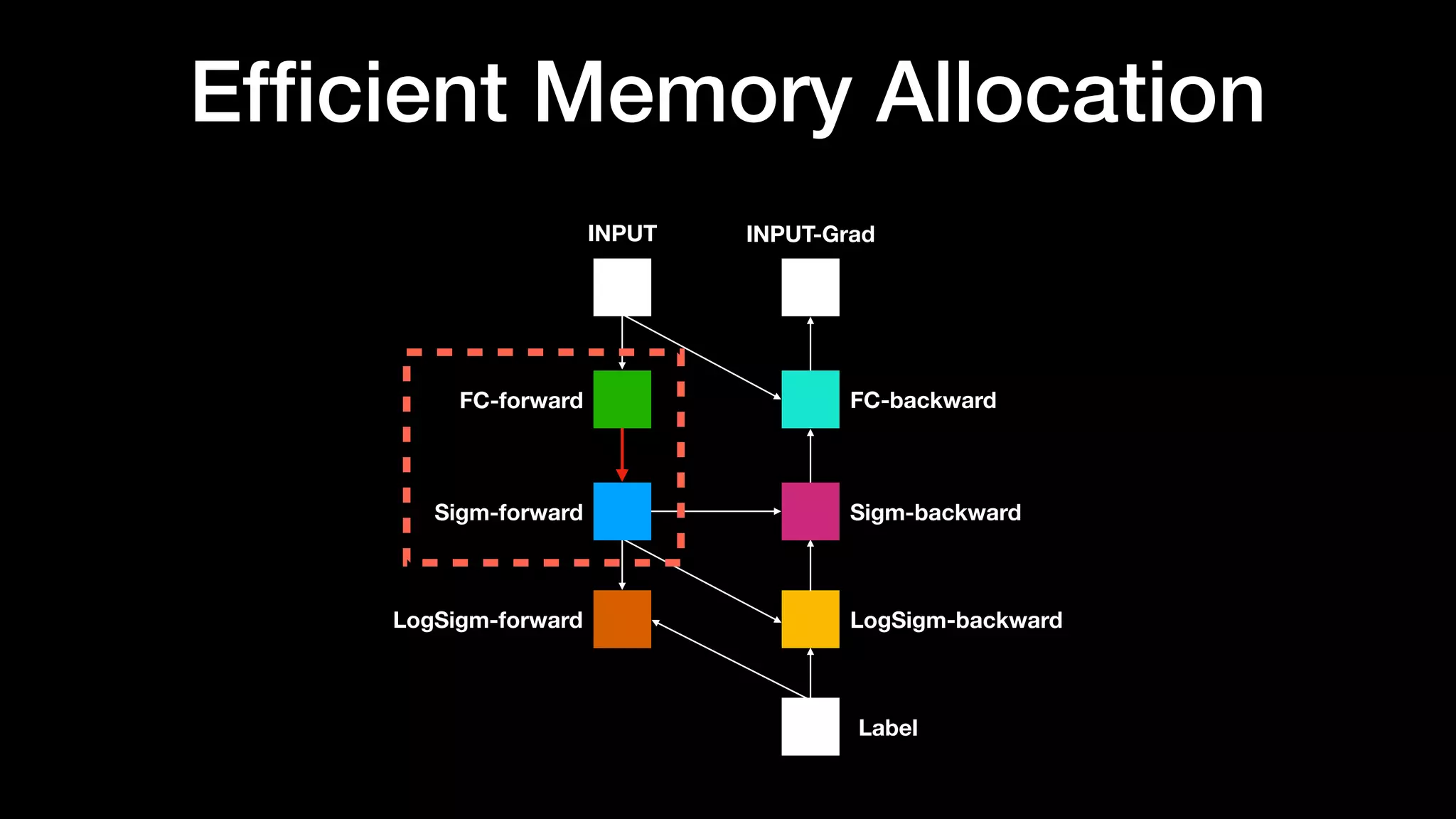

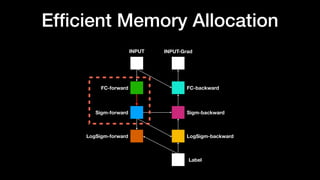

10. Efficient Memory Allocation
INPUT
FC-forward
Sigm-forward
LogSigm-forward LogSigm-backward
FC-backward
Sigm-backward
Label
INPUT-Grad

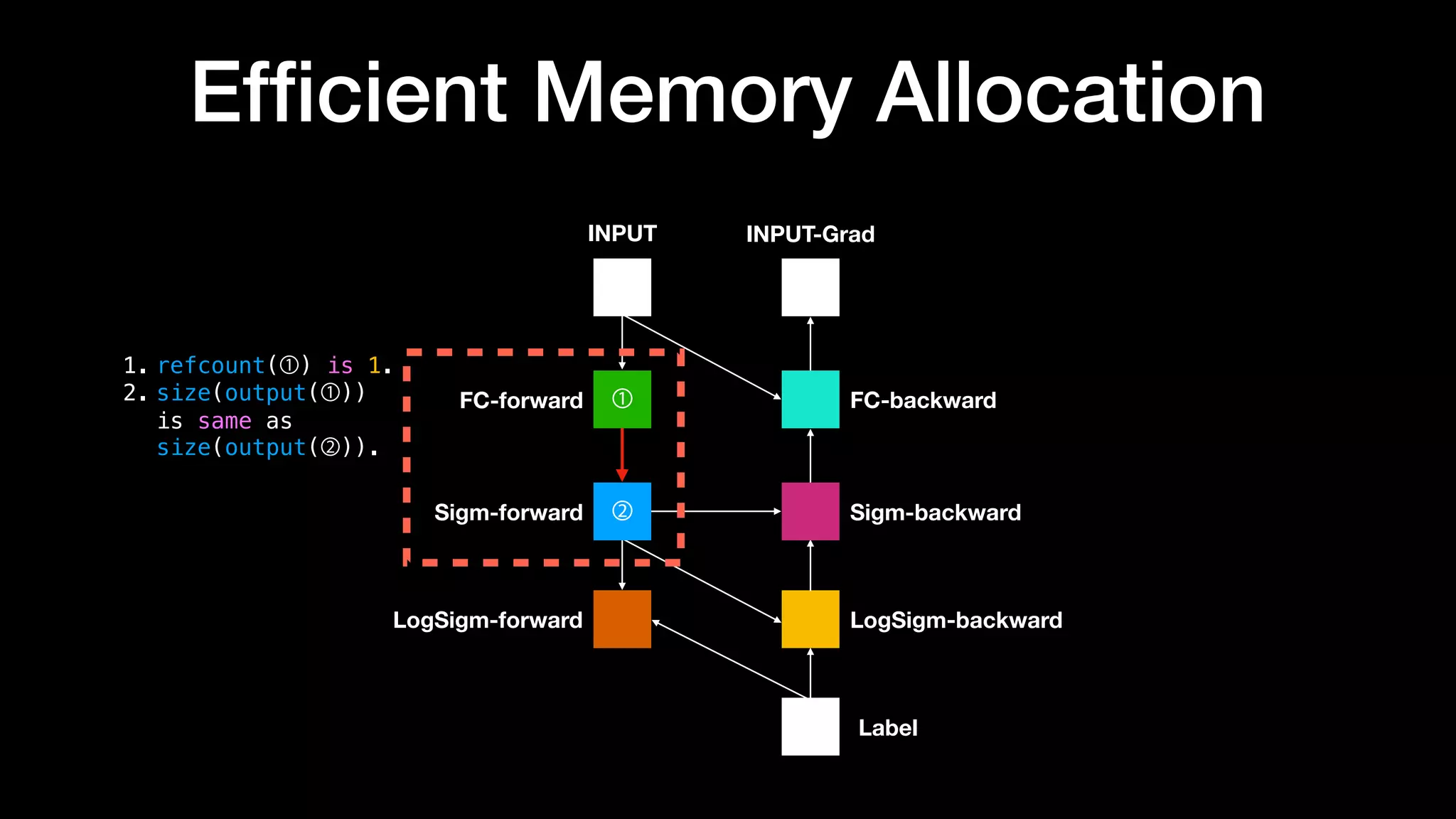

11. Efficient Memory Allocation
INPUT
FC-forward
Sigm-forward
LogSigm-forward LogSigm-backward
FC-backward
Sigm-backward
Label
INPUT-Grad
①
②
1. refcount(①) is 1.
2. size(output(①))
is same as
size(output(②)).

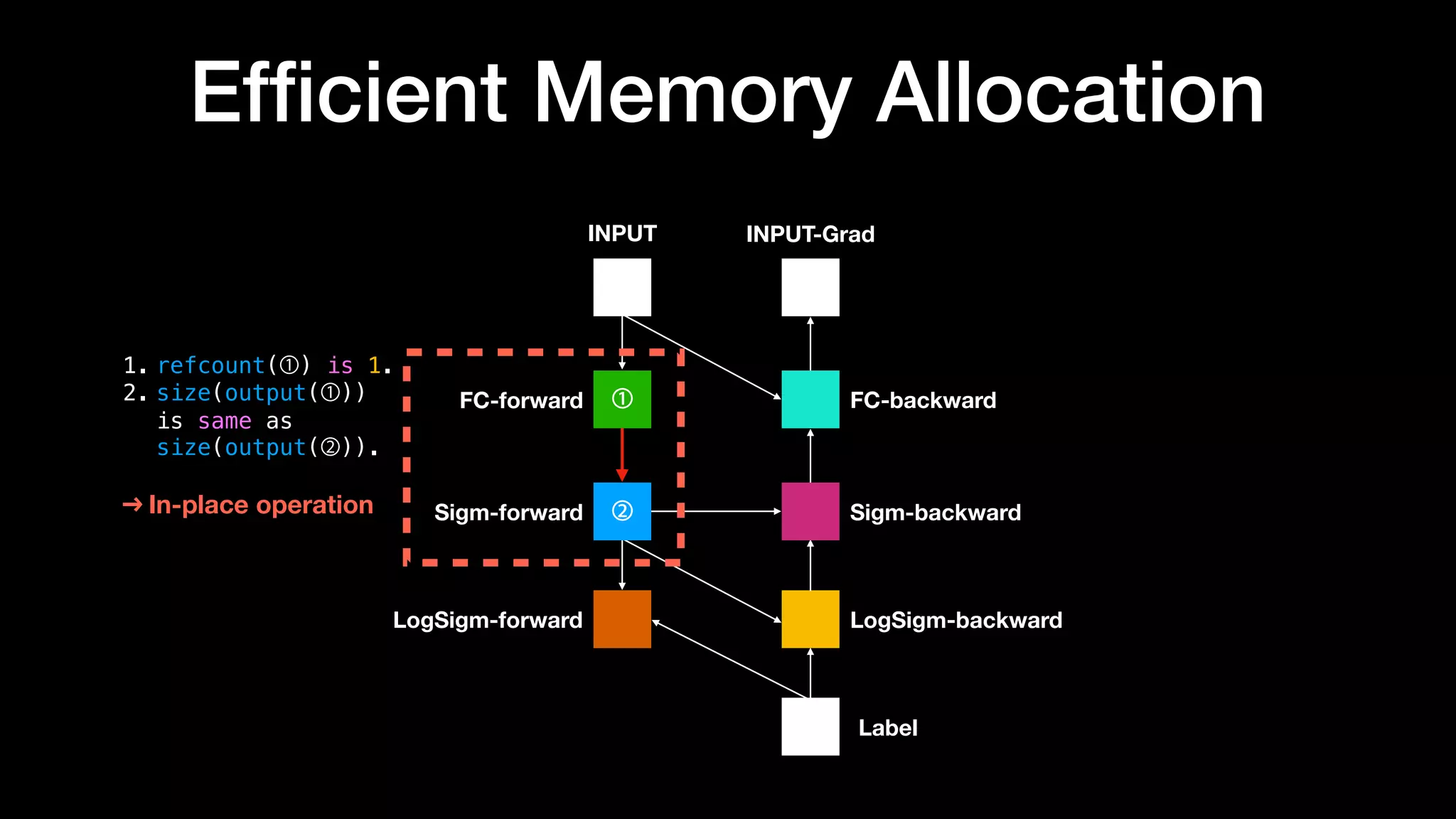

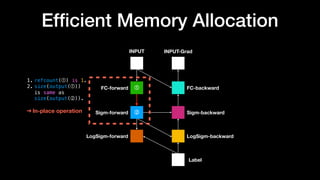

12. Efficient Memory Allocation
INPUT
FC-forward
Sigm-forward
LogSigm-forward LogSigm-backward
FC-backward
Sigm-backward
Label
INPUT-Grad
①
②
1. refcount(①) is 1.
2. size(output(①))
is same as
size(output(②)).
In-place operation

13. In-place Operation

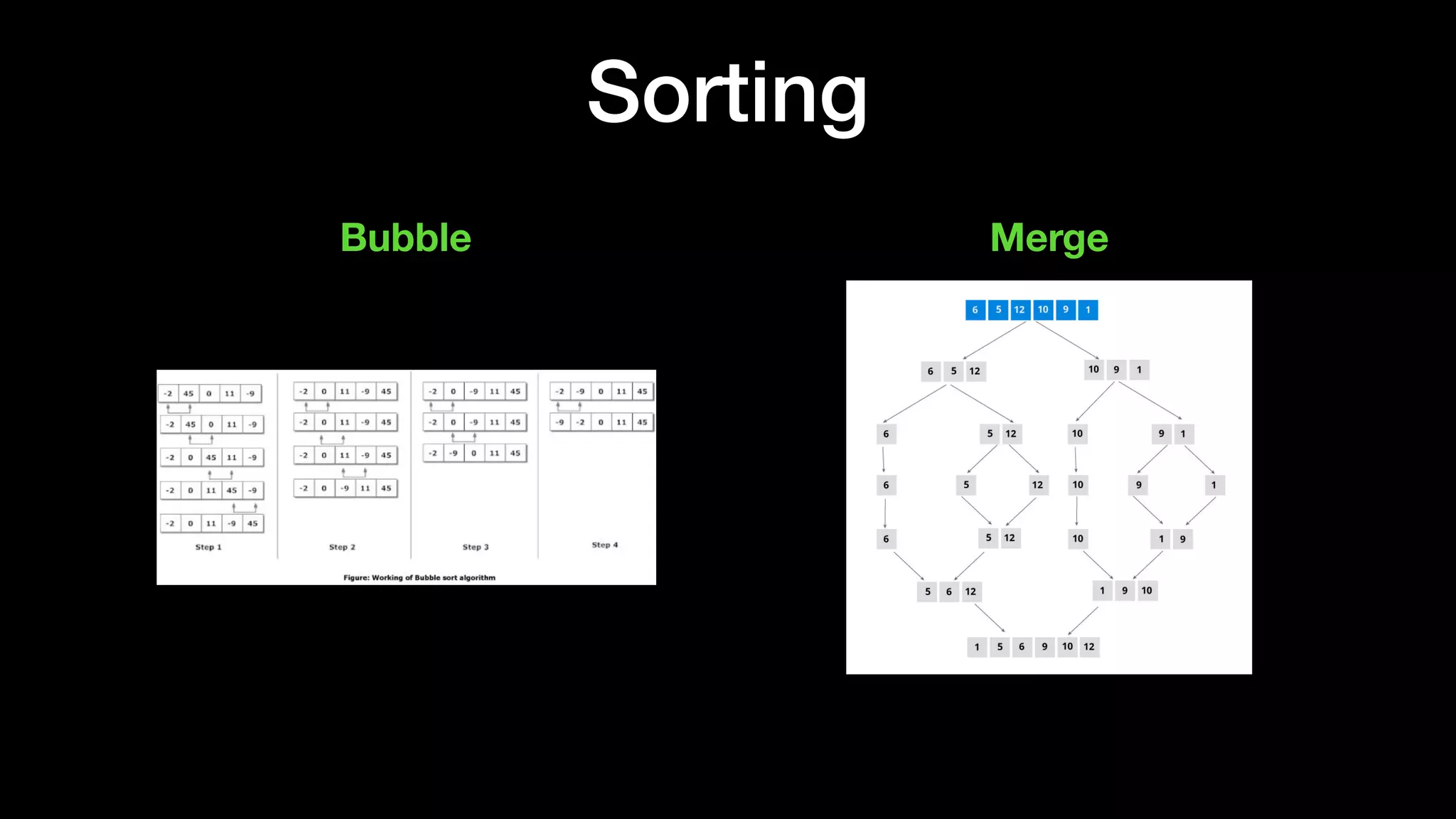

14. Sorting
Bubble Merge

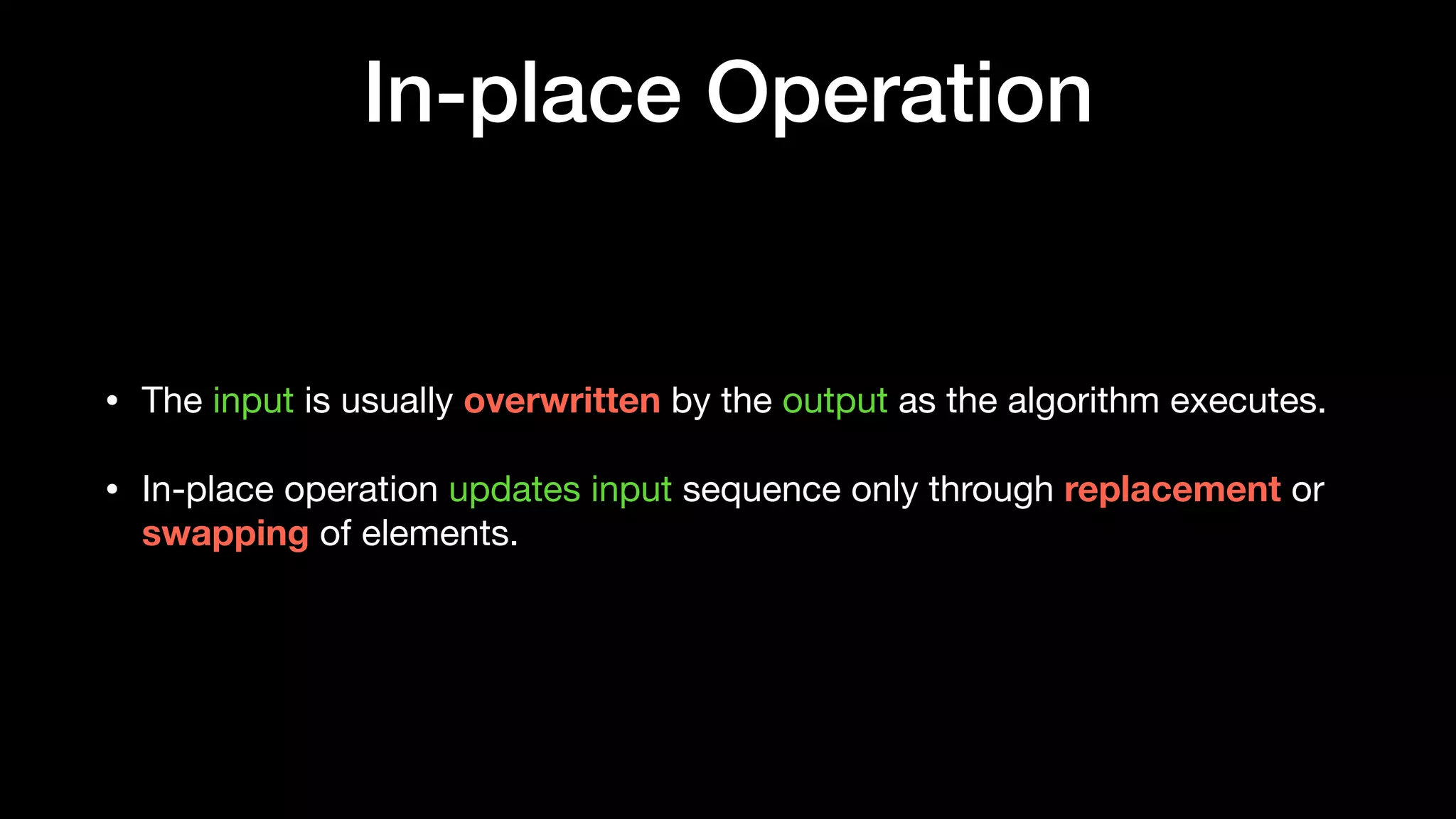

15. In-place Operation
• The input is usually overwritten by the output as the algorithm executes.
• In-place operation updates input sequence only through replacement or
swapping of elements.

16. In-place in Pytorch

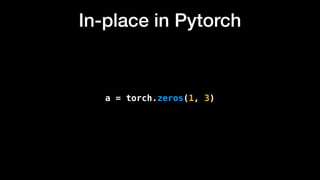

17. a = torch.zeros(1, 3)
In-place in Pytorch

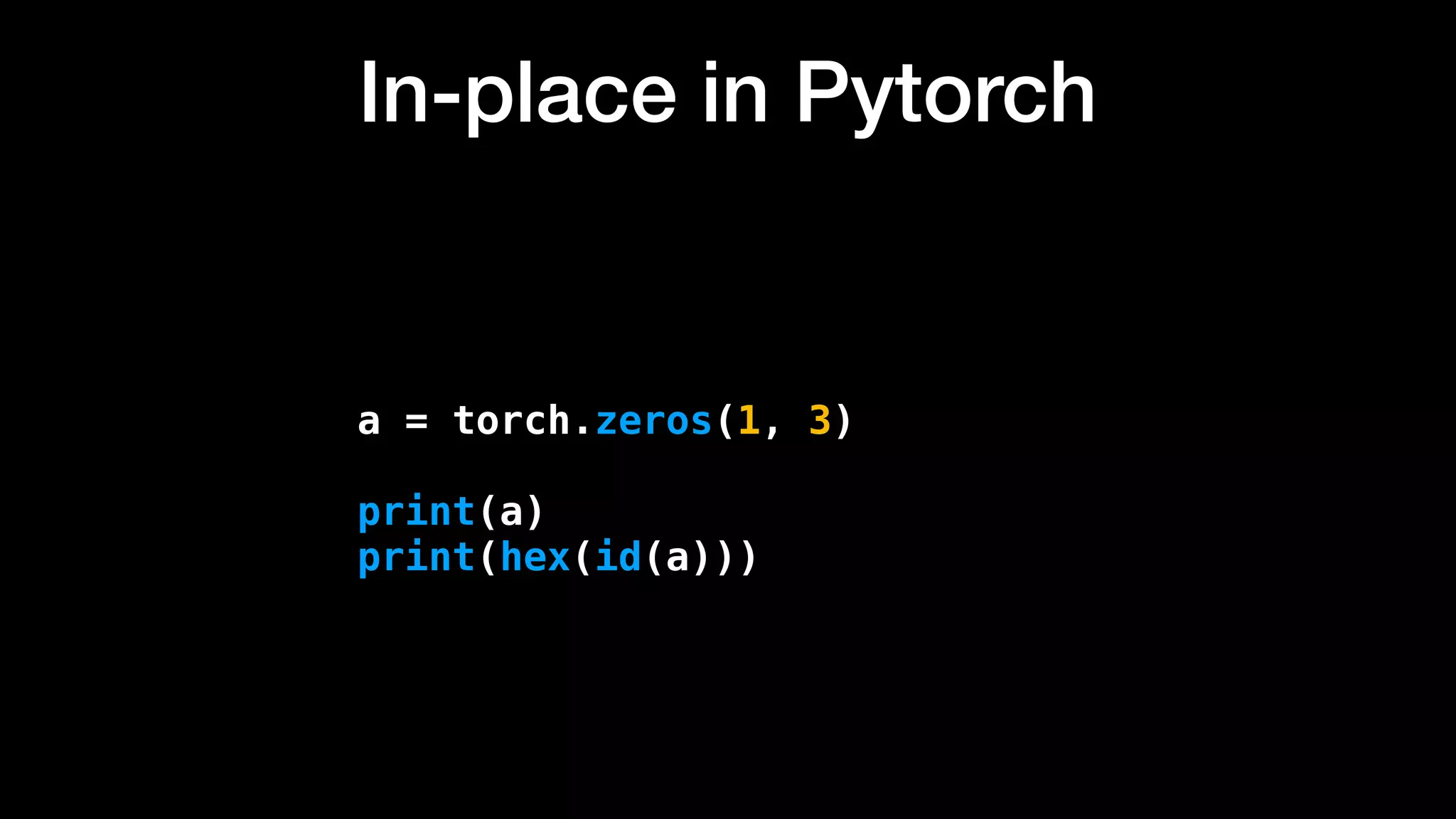

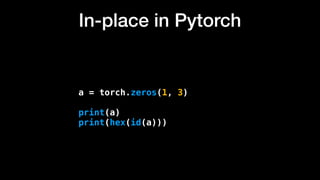

18. a = torch.zeros(1, 3)
print(a)
print(hex(id(a)))
In-place in Pytorch

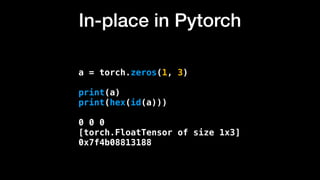

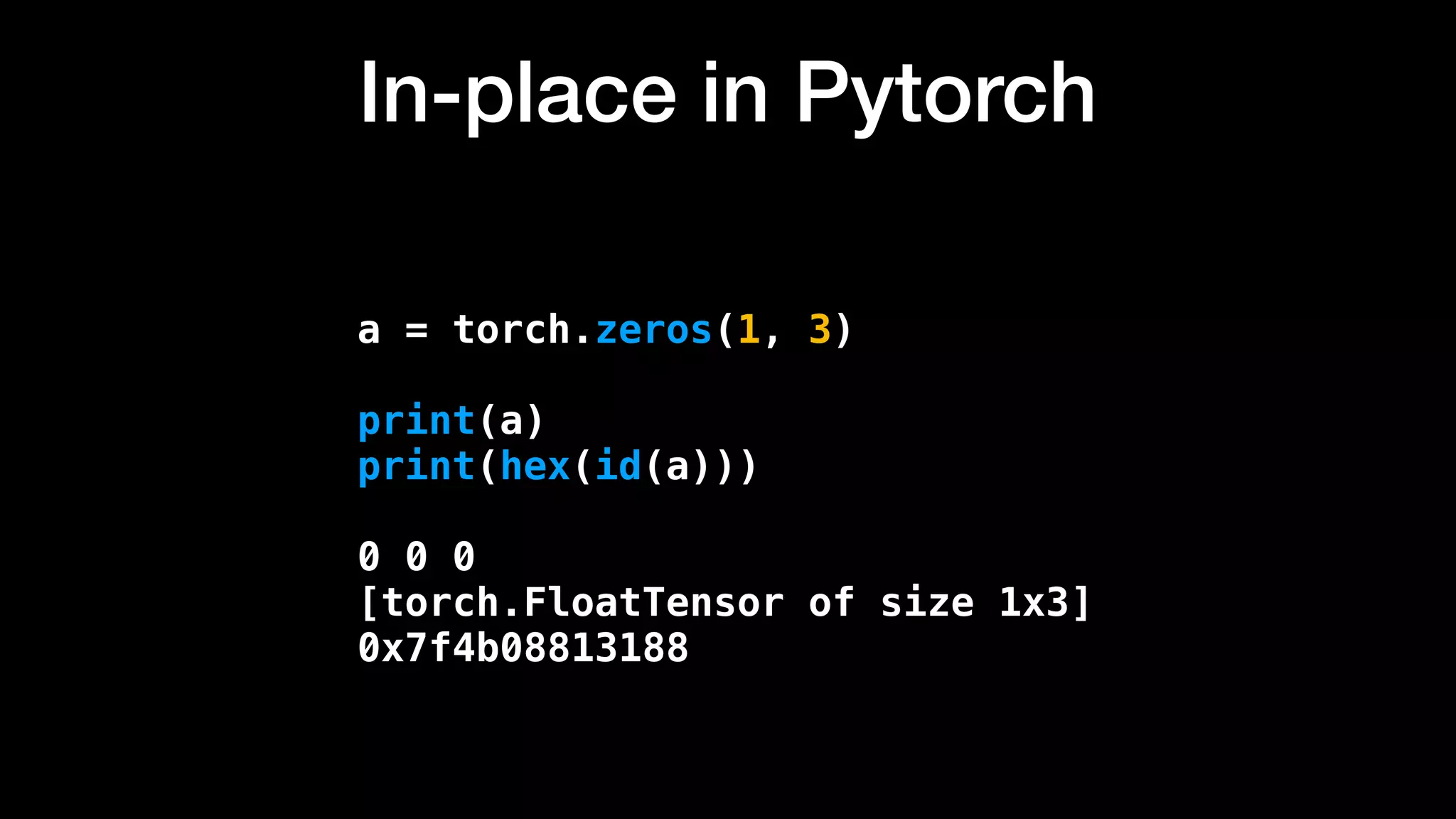

19. a = torch.zeros(1, 3)
print(a)
print(hex(id(a)))
0 0 0
[torch.FloatTensor of size 1x3]
0x7f4b08813188
In-place in Pytorch

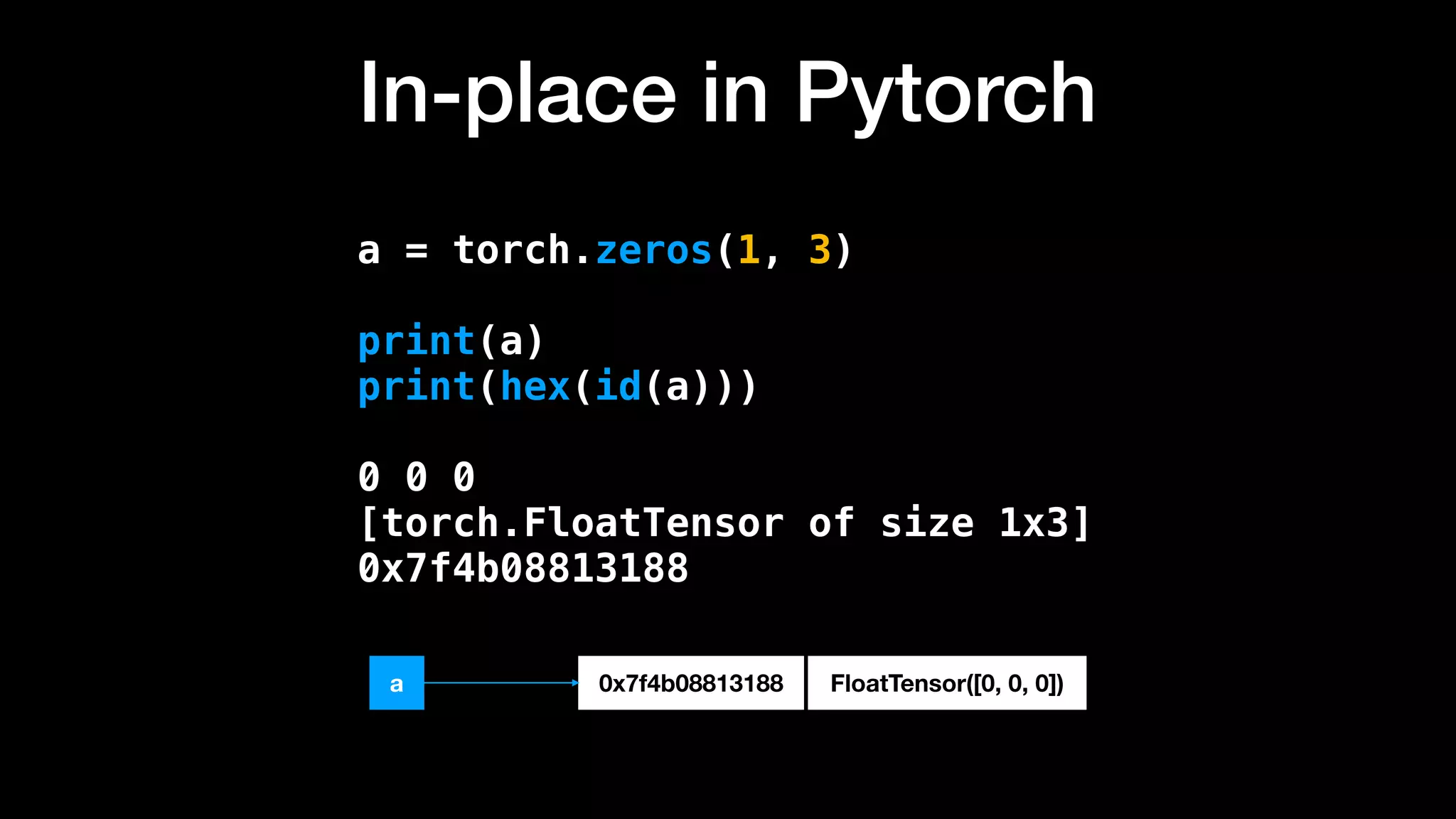

20. a = torch.zeros(1, 3)
print(a)
print(hex(id(a)))
0 0 0
[torch.FloatTensor of size 1x3]
0x7f4b08813188
0x7f4b08813188 FloatTensor([0, 0, 0])a
In-place in Pytorch

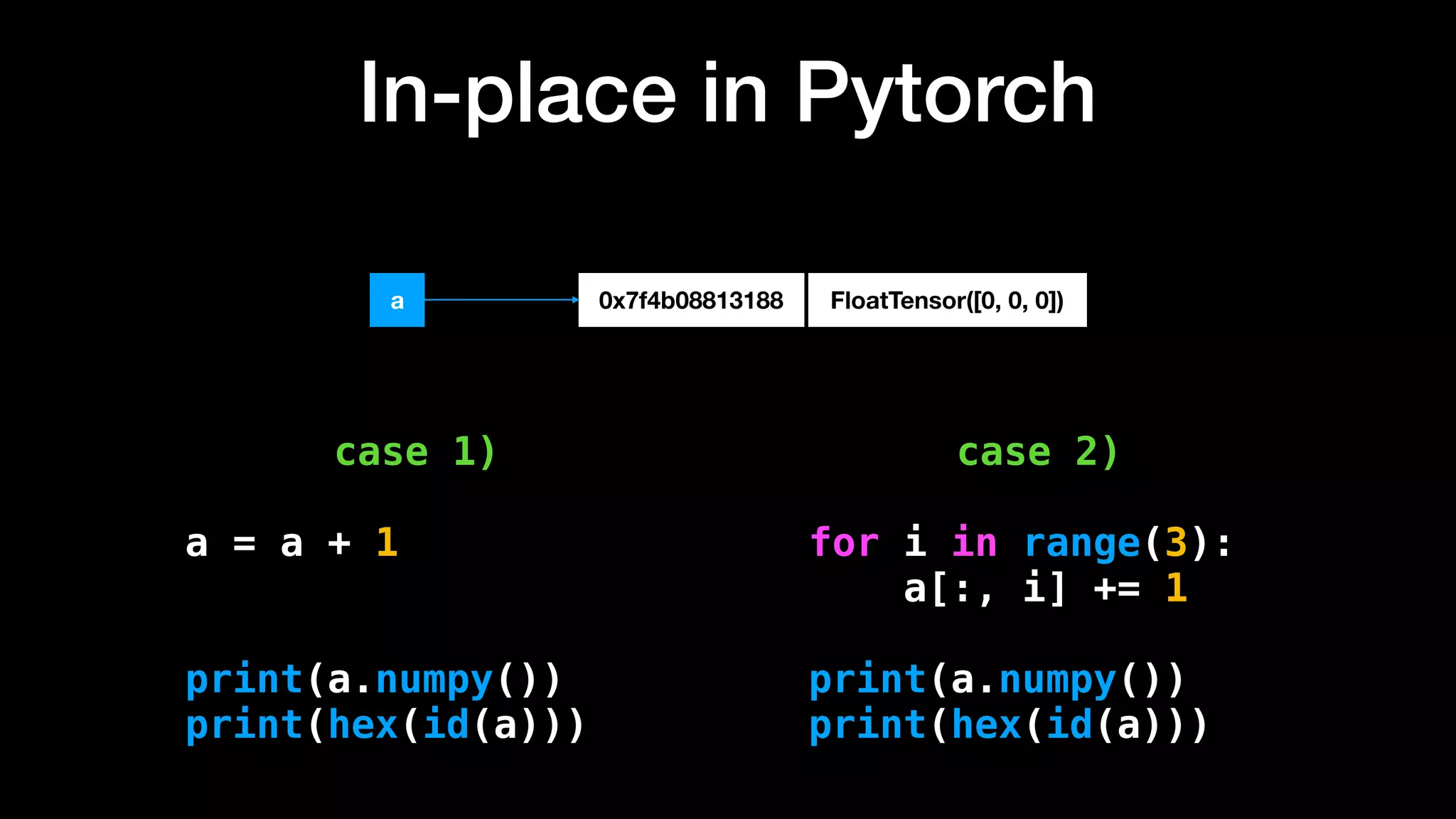

21. case 1)
a = a + 1
print(a.numpy())
print(hex(id(a)))
0x7f4b08813188 FloatTensor([0, 0, 0])a
case 2)
for i in range(3):
a[:, i] += 1
print(a.numpy())
print(hex(id(a)))
In-place in Pytorch

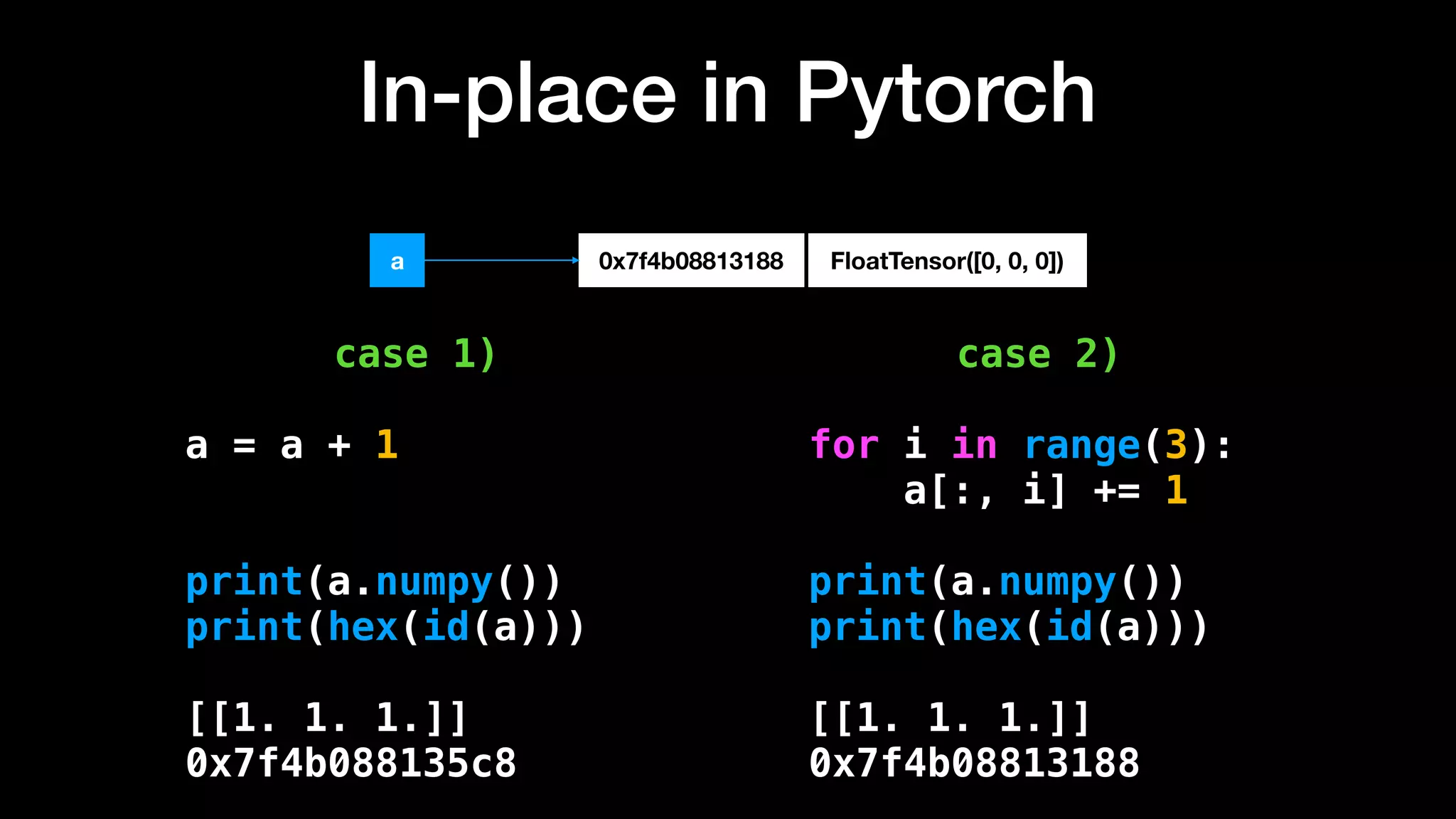

22. case 1)
a = a + 1
print(a.numpy())
print(hex(id(a)))
[[1. 1. 1.]]
0x7f4b088135c8
0x7f4b08813188 FloatTensor([0, 0, 0])a
case 2)
for i in range(3):
a[:, i] += 1
print(a.numpy())
print(hex(id(a)))
[[1. 1. 1.]]
0x7f4b08813188
In-place in Pytorch

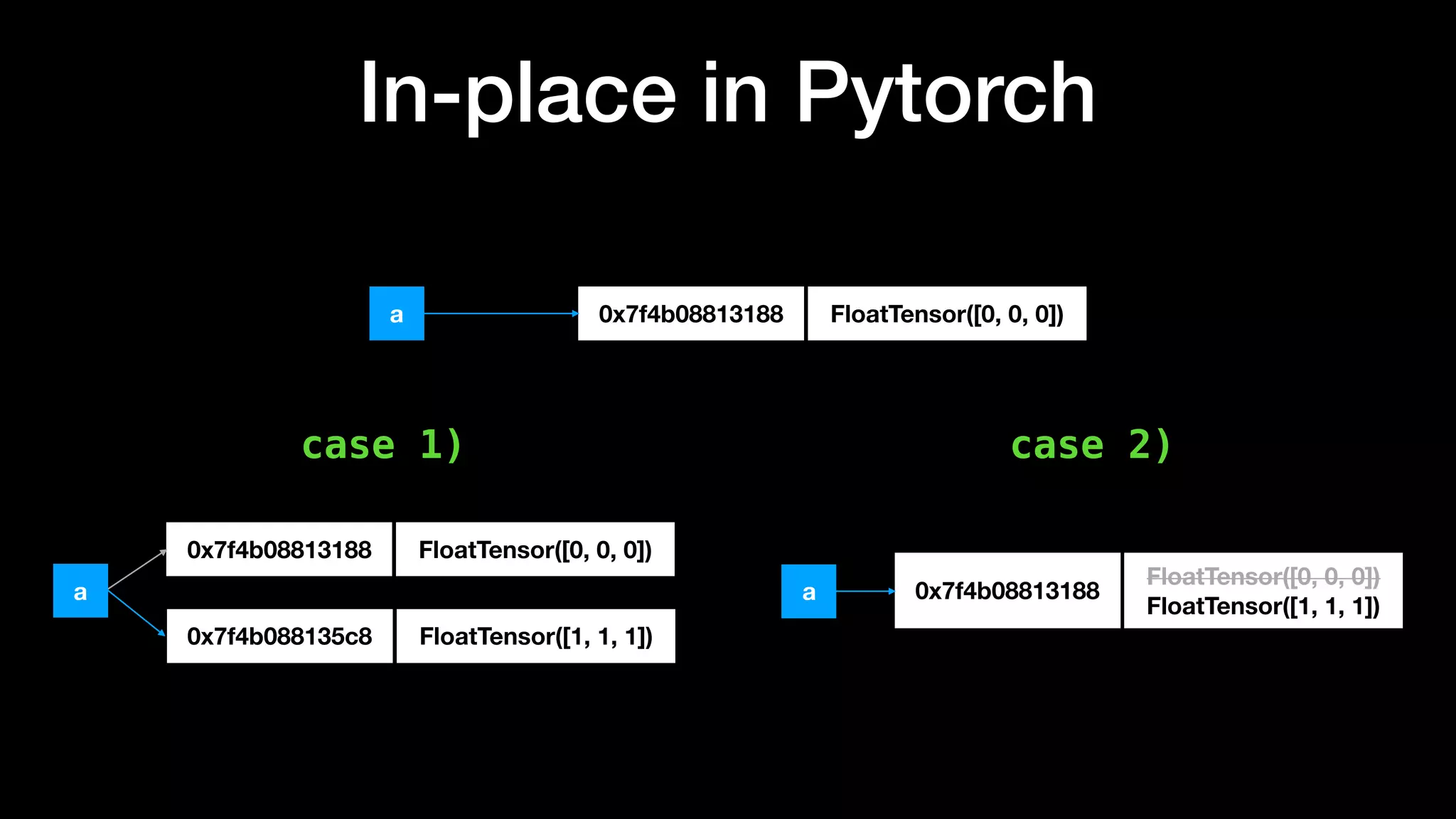

23. case 1)
0x7f4b08813188 FloatTensor([0, 0, 0])a
case 2)
0x7f4b08813188 FloatTensor([0, 0, 0])
a
0x7f4b088135c8 FloatTensor([1, 1, 1])
0x7f4b08813188
FloatTensor([0, 0, 0])
FloatTensor([1, 1, 1])
a
In-place in Pytorch

24. case 1)
0x7f4b08813188 FloatTensor([0, 0, 0])a
case 2)
0x7f4b08813188 FloatTensor([0, 0, 0])
a
0x7f4b088135c8 FloatTensor([1, 1, 1])
0x7f4b08813188
FloatTensor([0, 0, 0])
FloatTensor([1, 1, 1])
a
Out of place In-place
In-place in Pytorch

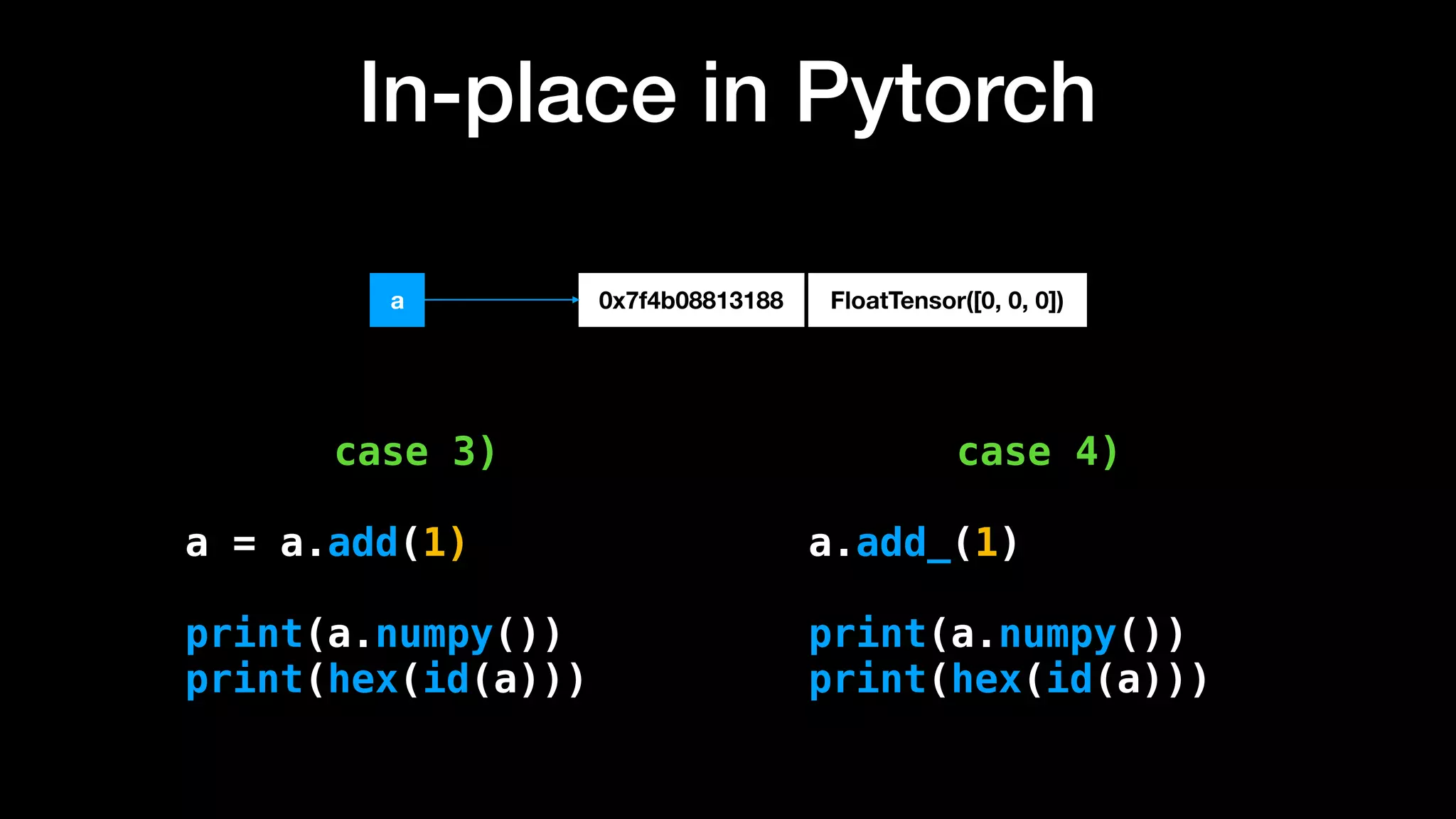

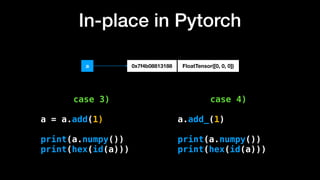

25. case 3)
a = a.add(1)
print(a.numpy())
print(hex(id(a)))
0x7f4b08813188 FloatTensor([0, 0, 0])a
case 4)
a.add_(1)
print(a.numpy())
print(hex(id(a)))
In-place in Pytorch

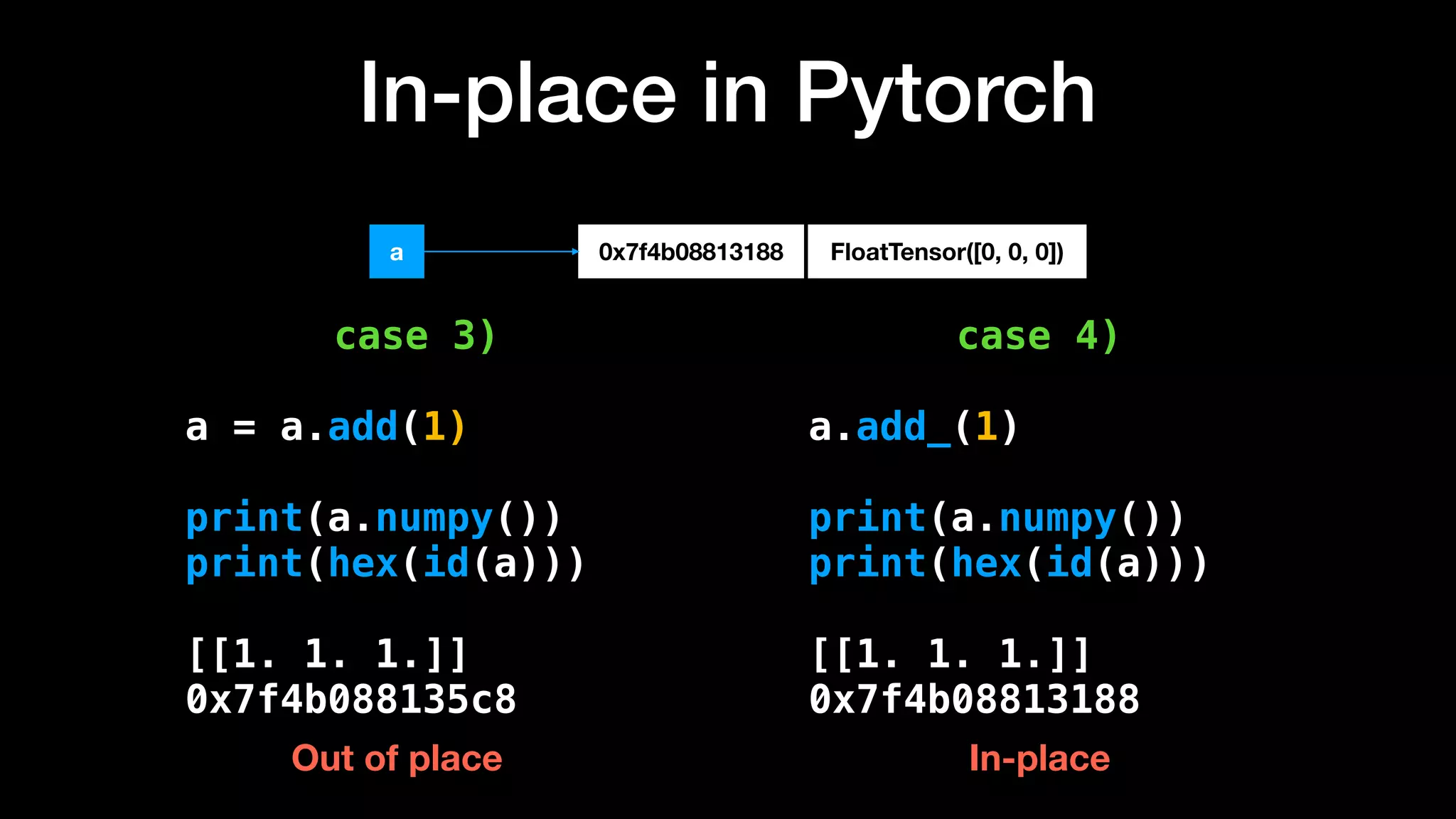

26. case 3)
a = a.add(1)
print(a.numpy())
print(hex(id(a)))
[[1. 1. 1.]]
0x7f4b088135c8
0x7f4b08813188 FloatTensor([0, 0, 0])a
case 4)
a.add_(1)
print(a.numpy())
print(hex(id(a)))
[[1. 1. 1.]]
0x7f4b08813188
In-place in Pytorch
Out of place In-place

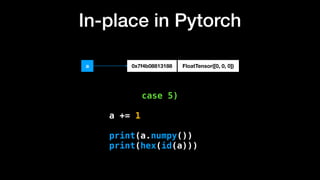

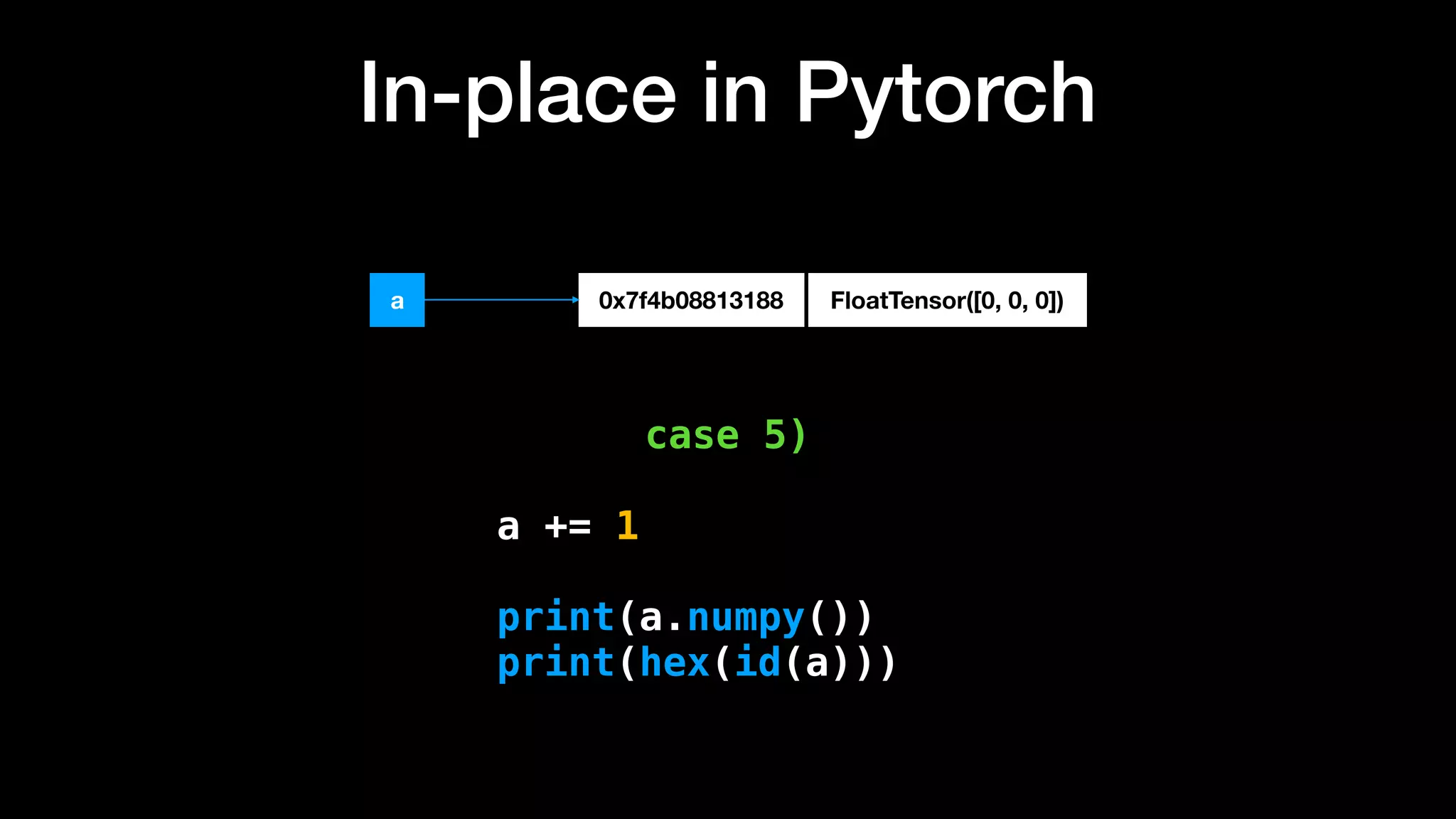

27. case 5)
a += 1
print(a.numpy())
print(hex(id(a)))
0x7f4b08813188 FloatTensor([0, 0, 0])a
In-place in Pytorch

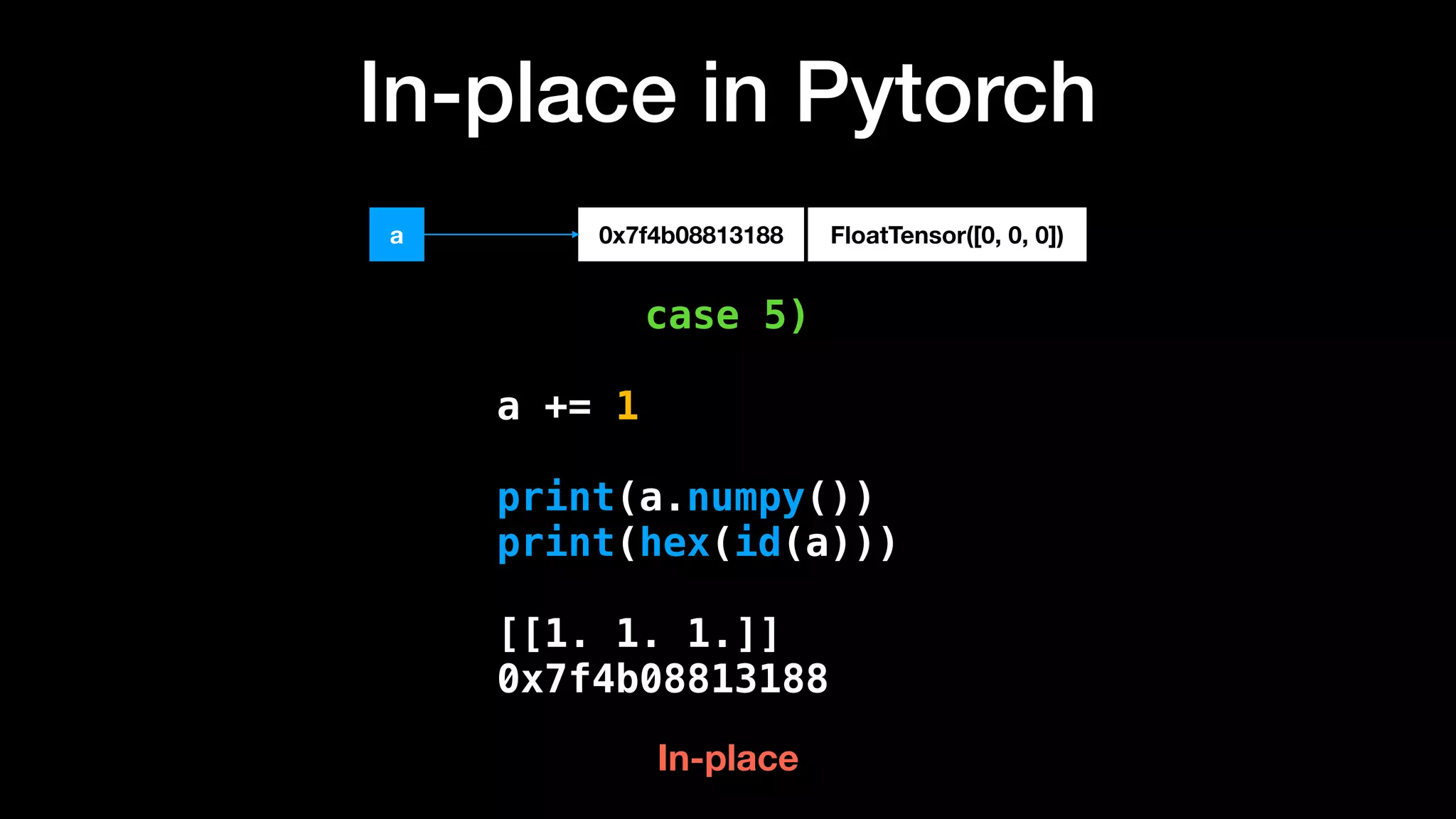

28. case 5)
a += 1
print(a.numpy())
print(hex(id(a)))
[[1. 1. 1.]]
0x7f4b08813188
0x7f4b08813188 FloatTensor([0, 0, 0])a
In-place in Pytorch
In-place

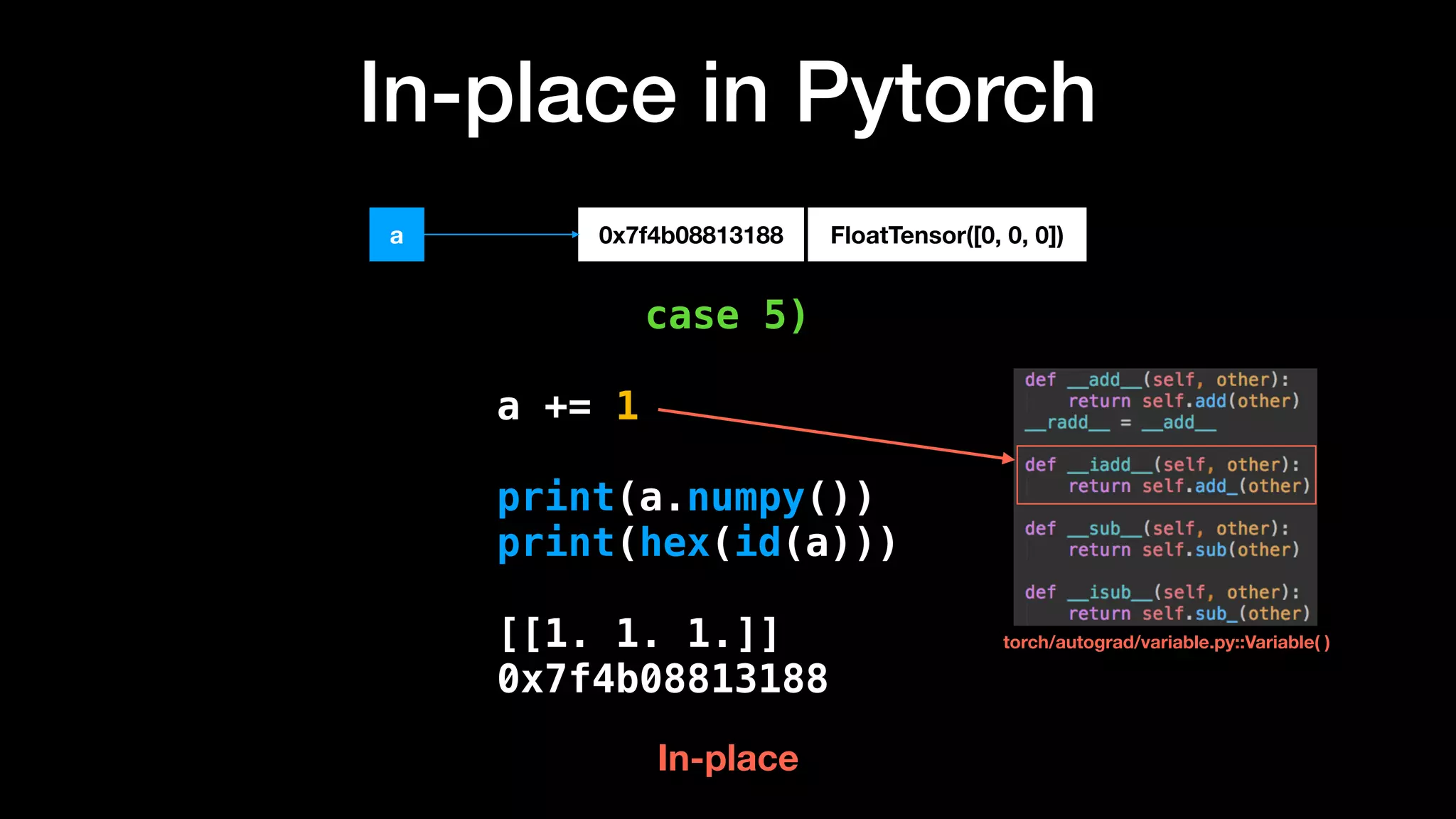

29. case 5)
a += 1
print(a.numpy())
print(hex(id(a)))
[[1. 1. 1.]]
0x7f4b08813188
0x7f4b08813188 FloatTensor([0, 0, 0])a
In-place in Pytorch
In-place
torch/autograd/variable.py::Variable( )

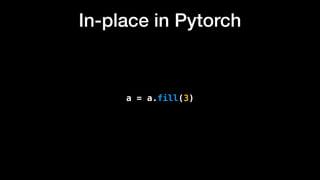

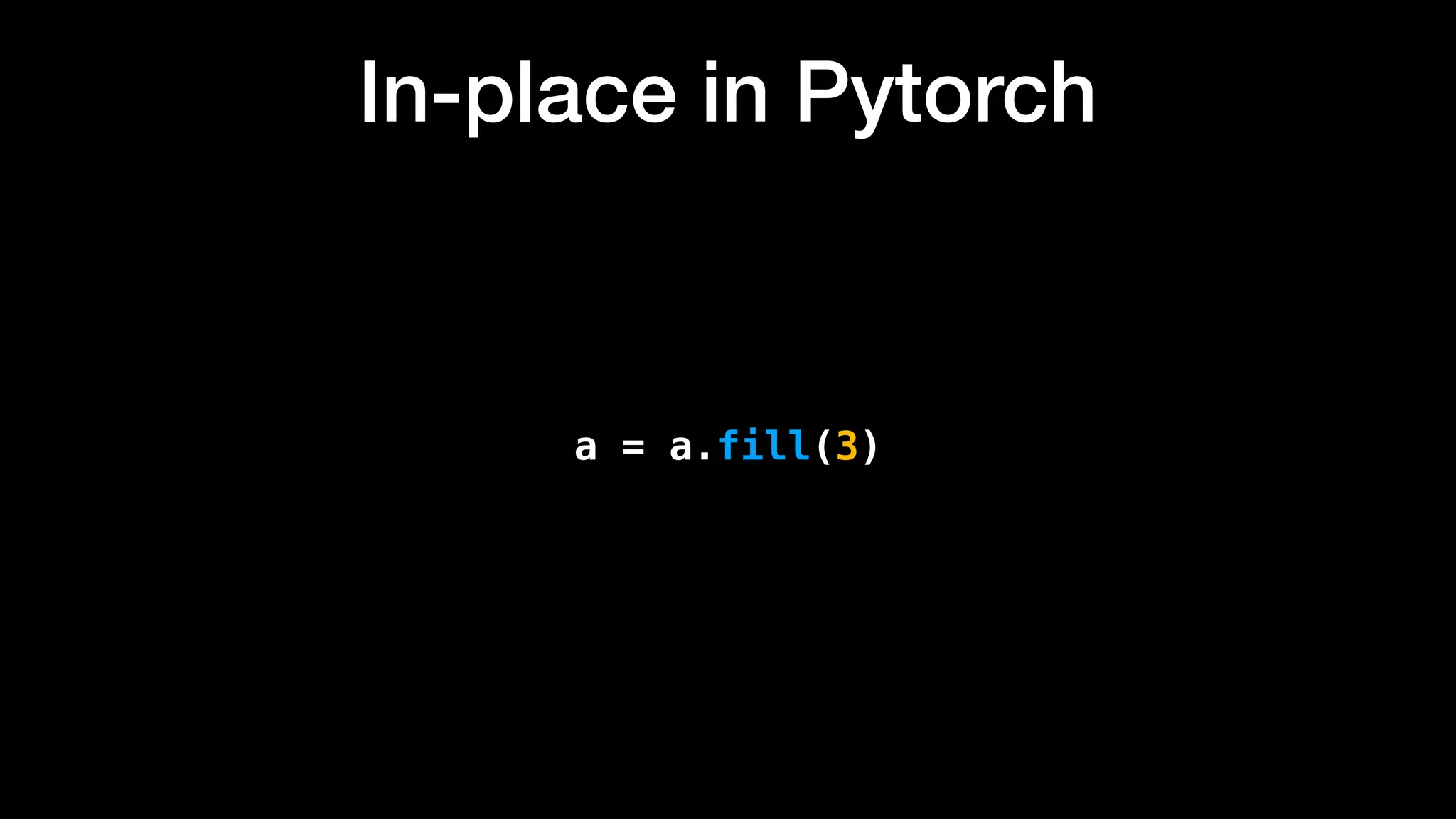

30. a = a.fill(3)
In-place in Pytorch

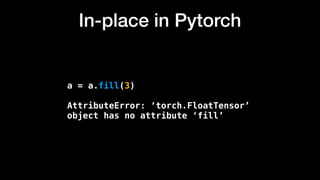

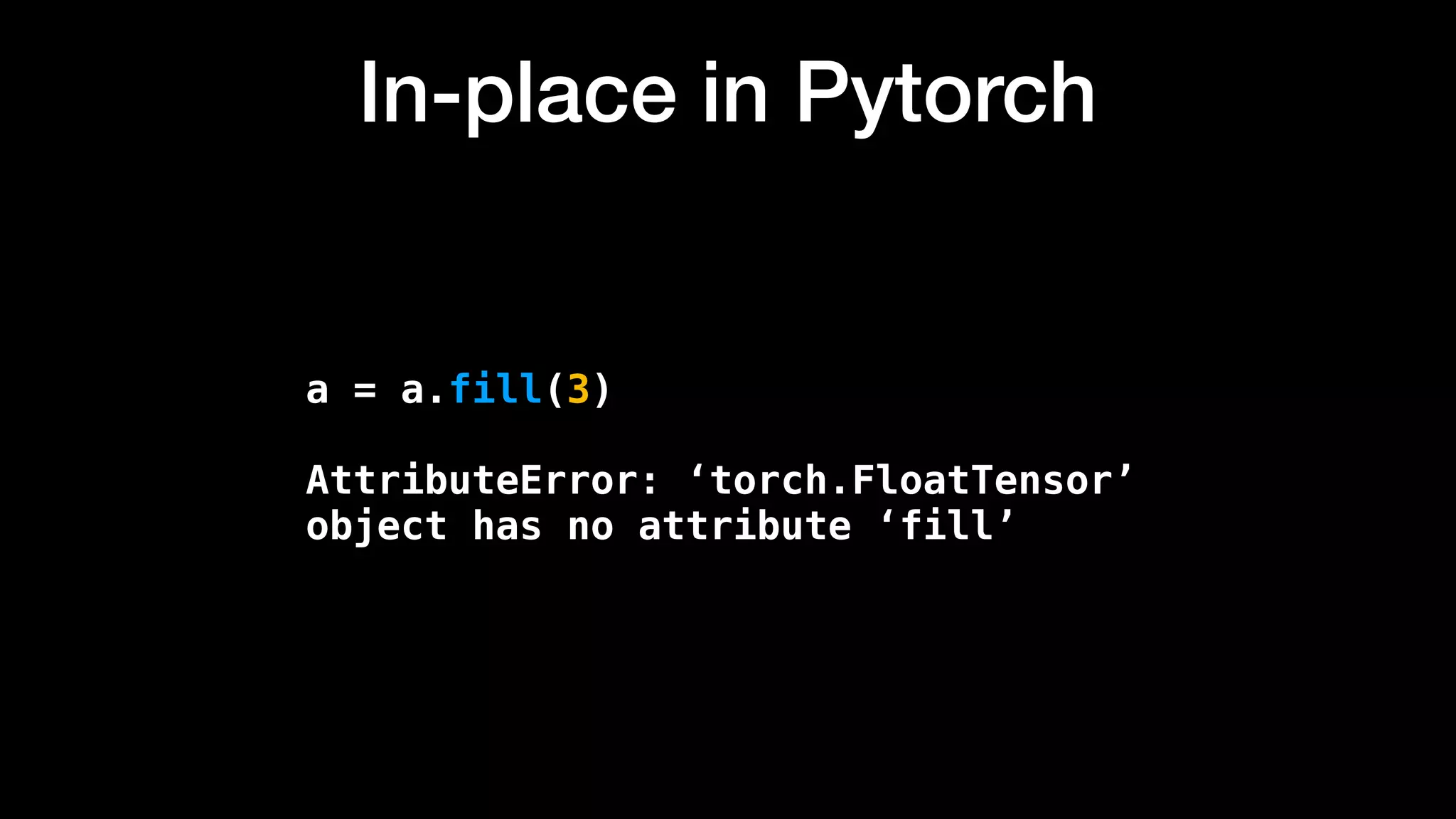

31. a = a.fill(3)
AttributeError: ‘torch.FloatTensor’
object has no attribute ‘fill’
In-place in Pytorch

32. a.fill_(3)
print(a.numpy())
[[3. 3. 3.]]
In-place in Pytorch

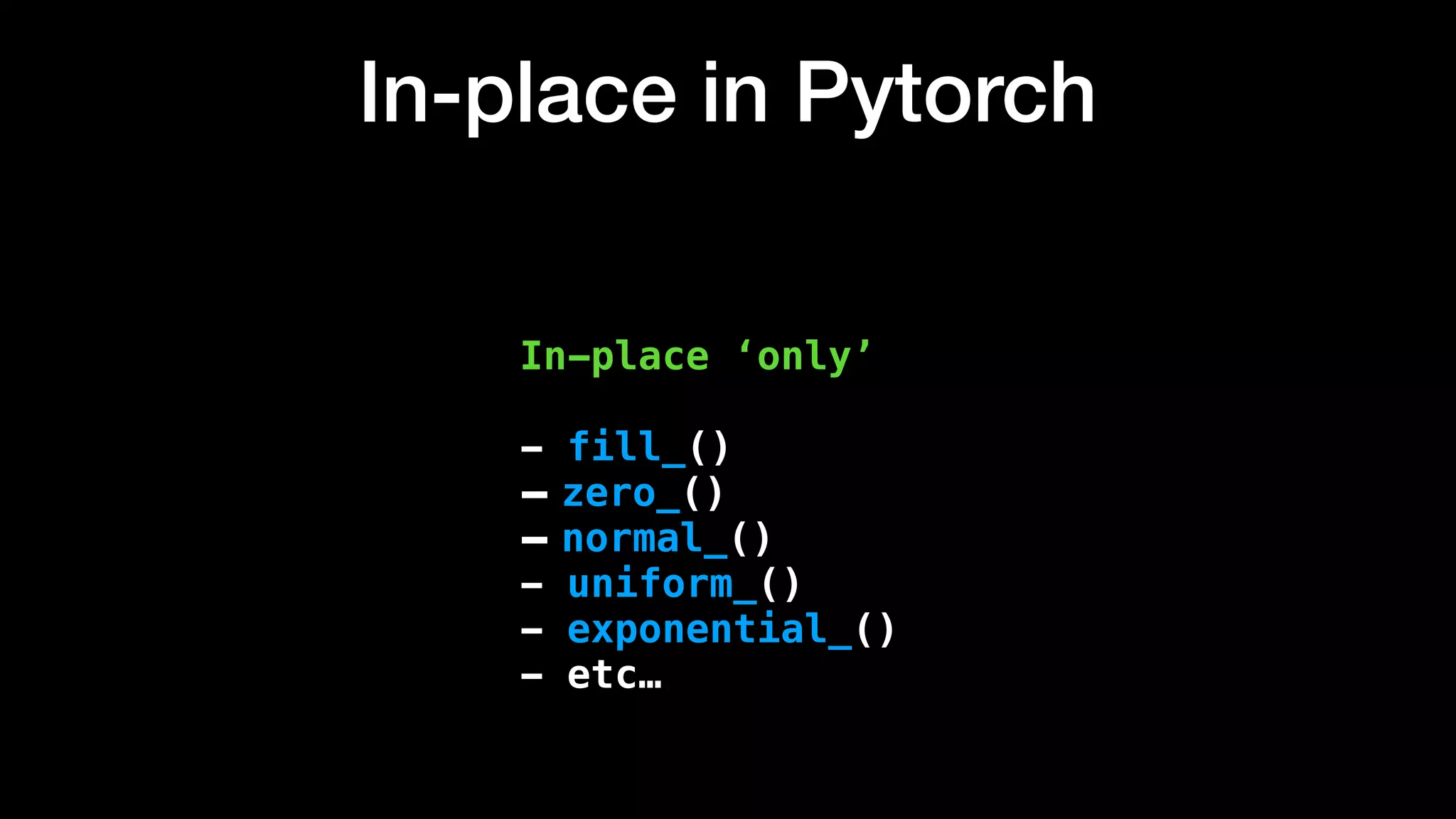

33. In-place in Pytorch
In-place ‘only’
- fill_()
- zero_()
- normal_()
- uniform_()
- exponential_()
- etc…

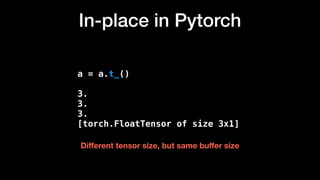

34. In-place in Pytorch
a = a.t_()
3.
3.
3.
[torch.FloatTensor of size 3x1]
Different tensor size, but same buffer size

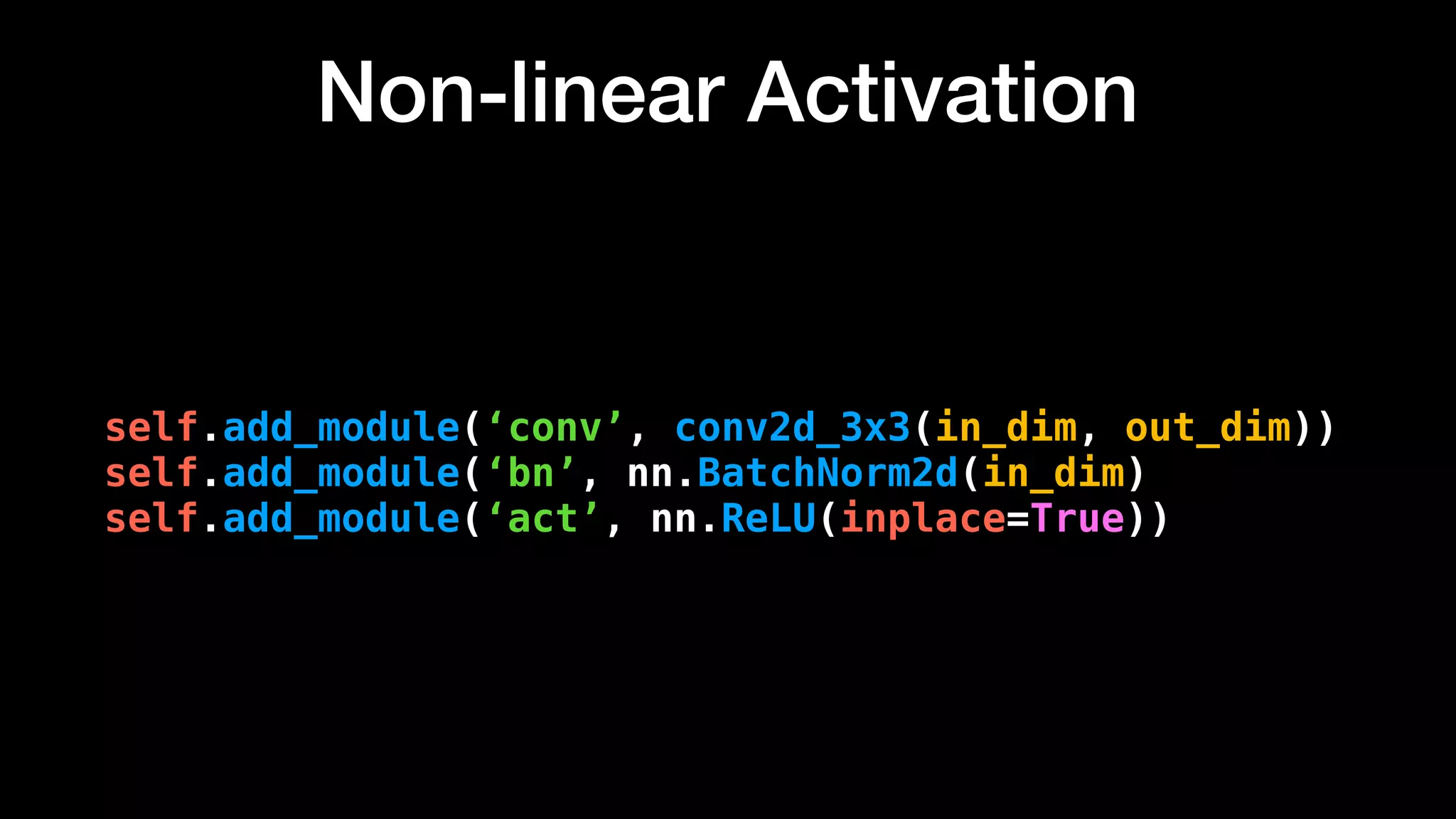

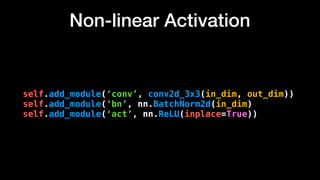

35. Non-linear Activation
self.add_module(‘conv’, conv2d_3x3(in_dim, out_dim))
self.add_module(‘bn’, nn.BatchNorm2d(in_dim)
self.add_module(‘act’, nn.ReLU(inplace=True))

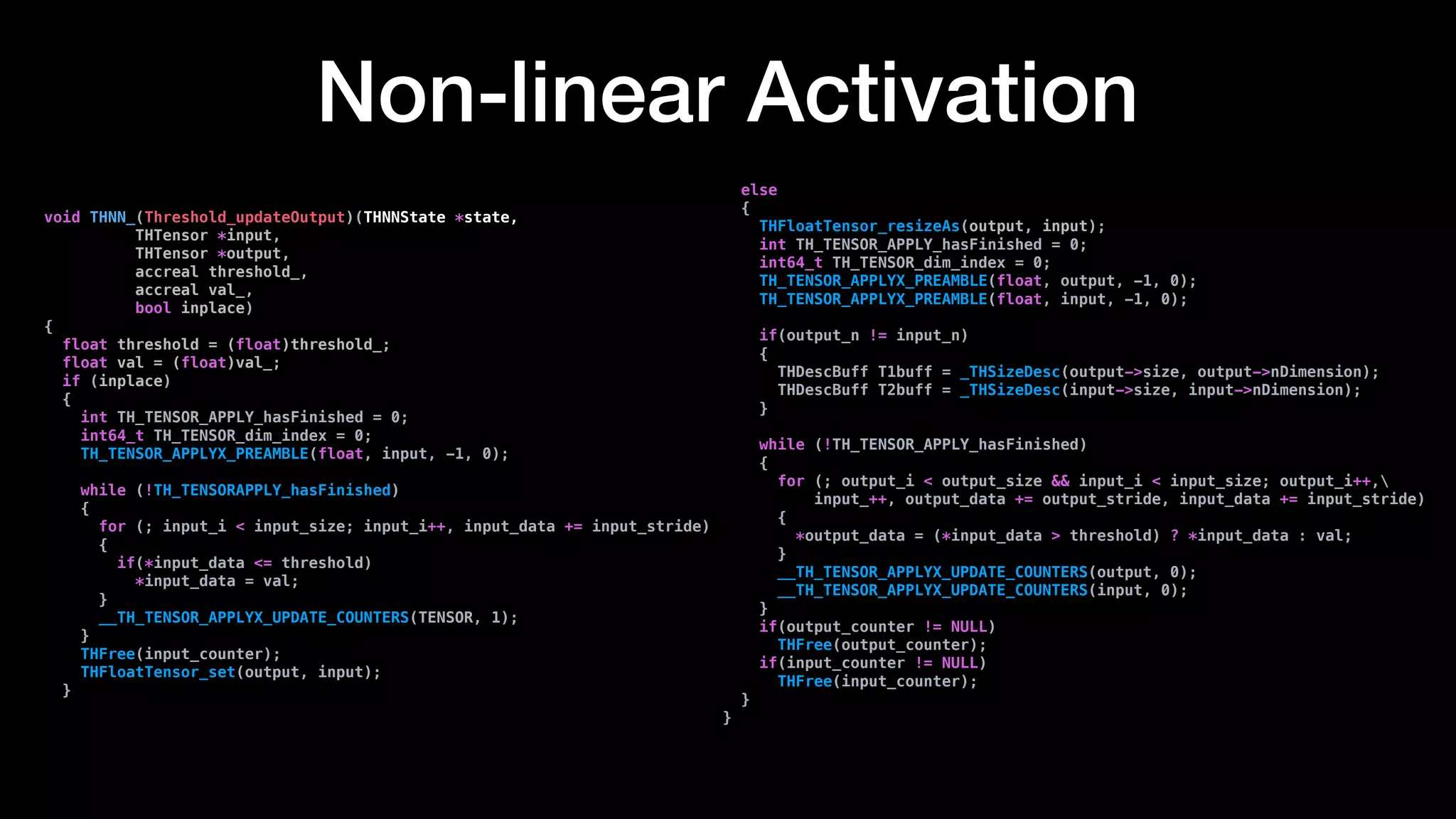

36. Non-linear Activation
void THNN_(Threshold_updateOutput)(THNNState *state,
THTensor *input,
THTensor *output,
accreal threshold_,
accreal val_,
bool inplace)
{
float threshold = (float)threshold_;
float val = (float)val_;
if (inplace)
{
int TH_TENSOR_APPLY_hasFinished = 0;
int64_t TH_TENSOR_dim_index = 0;
TH_TENSOR_APPLYX_PREAMBLE(float, input, -1, 0);
while (!TH_TENSORAPPLY_hasFinished)
{
for (; input_i < input_size; input_i++, input_data += input_stride)
{
if(*input_data <= threshold)
*input_data = val;
}
__TH_TENSOR_APPLYX_UPDATE_COUNTERS(TENSOR, 1);
}
THFree(input_counter);
THFloatTensor_set(output, input);
}
else
{
THFloatTensor_resizeAs(output, input);
int TH_TENSOR_APPLY_hasFinished = 0;
int64_t TH_TENSOR_dim_index = 0;
TH_TENSOR_APPLYX_PREAMBLE(float, output, -1, 0);
TH_TENSOR_APPLYX_PREAMBLE(float, input, -1, 0);
if(output_n != input_n)
{
THDescBuff T1buff = _THSizeDesc(output->size, output->nDimension);
THDescBuff T2buff = _THSizeDesc(input->size, input->nDimension);
}
while (!TH_TENSOR_APPLY_hasFinished)
{
for (; output_i < output_size && input_i < input_size; output_i++,
input_++, output_data += output_stride, input_data += input_stride)
{
*output_data = (*input_data > threshold) ? *input_data : val;
}
__TH_TENSOR_APPLYX_UPDATE_COUNTERS(output, 0);
__TH_TENSOR_APPLYX_UPDATE_COUNTERS(input, 0);
}
if(output_counter != NULL)
THFree(output_counter);
if(input_counter != NULL)
THFree(input_counter);
}
}

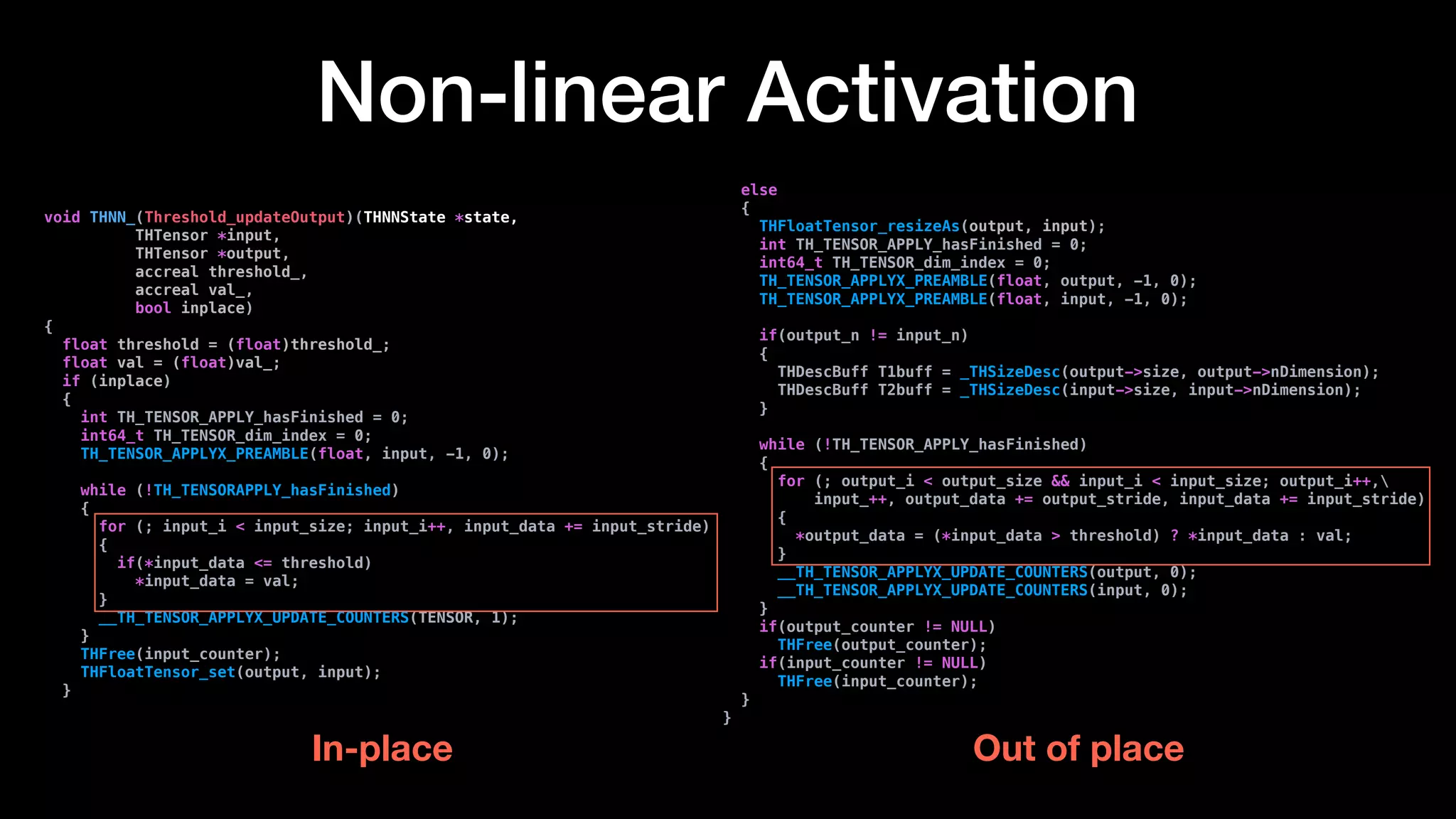

37. Non-linear Activation
void THNN_(Threshold_updateOutput)(THNNState *state,
THTensor *input,
THTensor *output,
accreal threshold_,
accreal val_,
bool inplace)
{
float threshold = (float)threshold_;
float val = (float)val_;
if (inplace)
{
int TH_TENSOR_APPLY_hasFinished = 0;
int64_t TH_TENSOR_dim_index = 0;
TH_TENSOR_APPLYX_PREAMBLE(float, input, -1, 0);
while (!TH_TENSORAPPLY_hasFinished)
{
for (; input_i < input_size; input_i++, input_data += input_stride)
{
if(*input_data <= threshold)
*input_data = val;
}
__TH_TENSOR_APPLYX_UPDATE_COUNTERS(TENSOR, 1);
}
THFree(input_counter);
THFloatTensor_set(output, input);
}
else
{
THFloatTensor_resizeAs(output, input);
int TH_TENSOR_APPLY_hasFinished = 0;
int64_t TH_TENSOR_dim_index = 0;
TH_TENSOR_APPLYX_PREAMBLE(float, output, -1, 0);
TH_TENSOR_APPLYX_PREAMBLE(float, input, -1, 0);
if(output_n != input_n)
{
THDescBuff T1buff = _THSizeDesc(output->size, output->nDimension);
THDescBuff T2buff = _THSizeDesc(input->size, input->nDimension);
}
while (!TH_TENSOR_APPLY_hasFinished)
{
for (; output_i < output_size && input_i < input_size; output_i++,
input_++, output_data += output_stride, input_data += input_stride)
{
*output_data = (*input_data > threshold) ? *input_data : val;
}
__TH_TENSOR_APPLYX_UPDATE_COUNTERS(output, 0);
__TH_TENSOR_APPLYX_UPDATE_COUNTERS(input, 0);
}
if(output_counter != NULL)
THFree(output_counter);
if(input_counter != NULL)
THFree(input_counter);
}
}
In-place Out of place

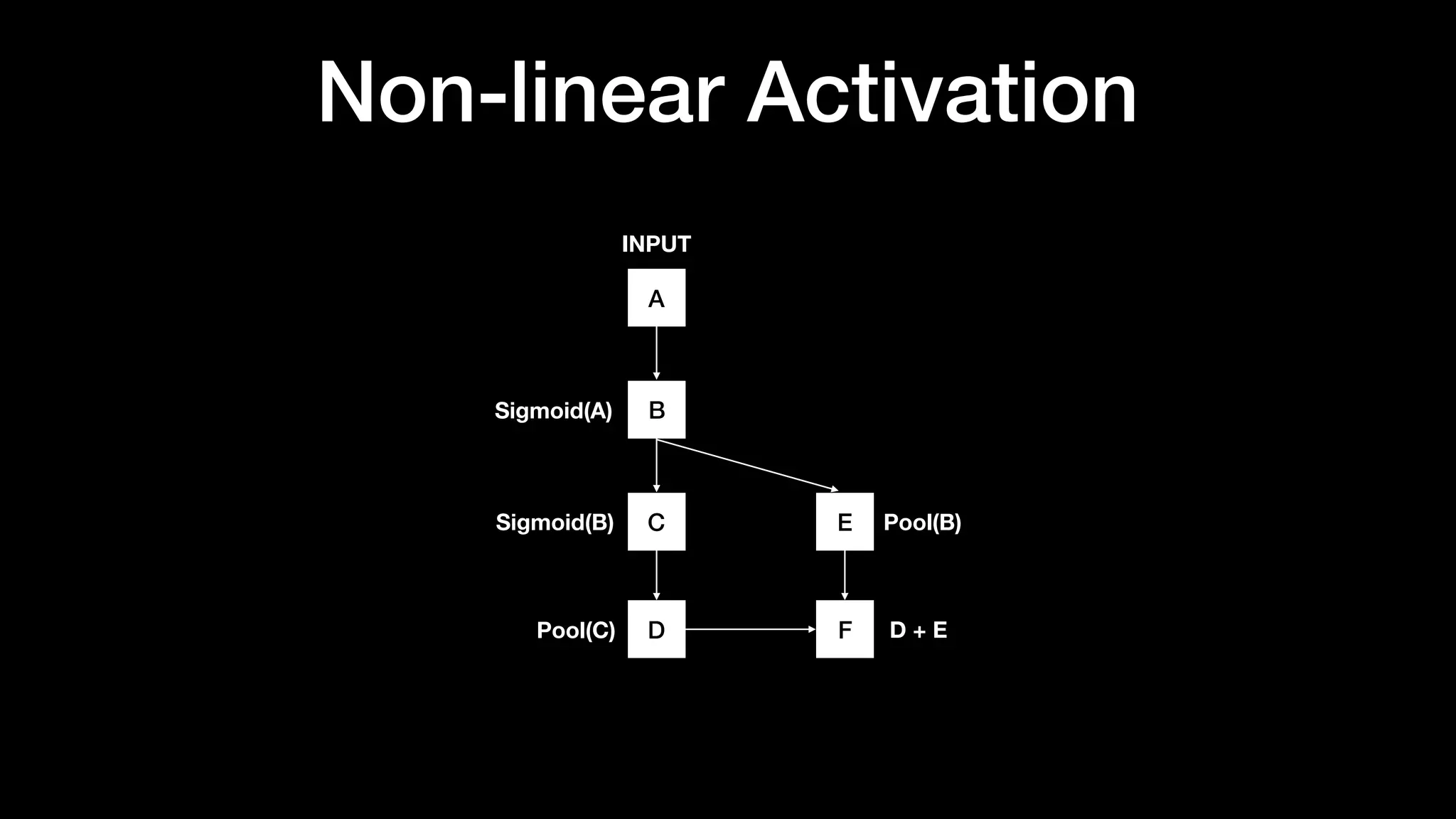

38. Non-linear Activation
A
C
B
INPUT
Sigmoid(A)
Sigmoid(B)
D FPool(C) D + E
E
B
Pool(B)

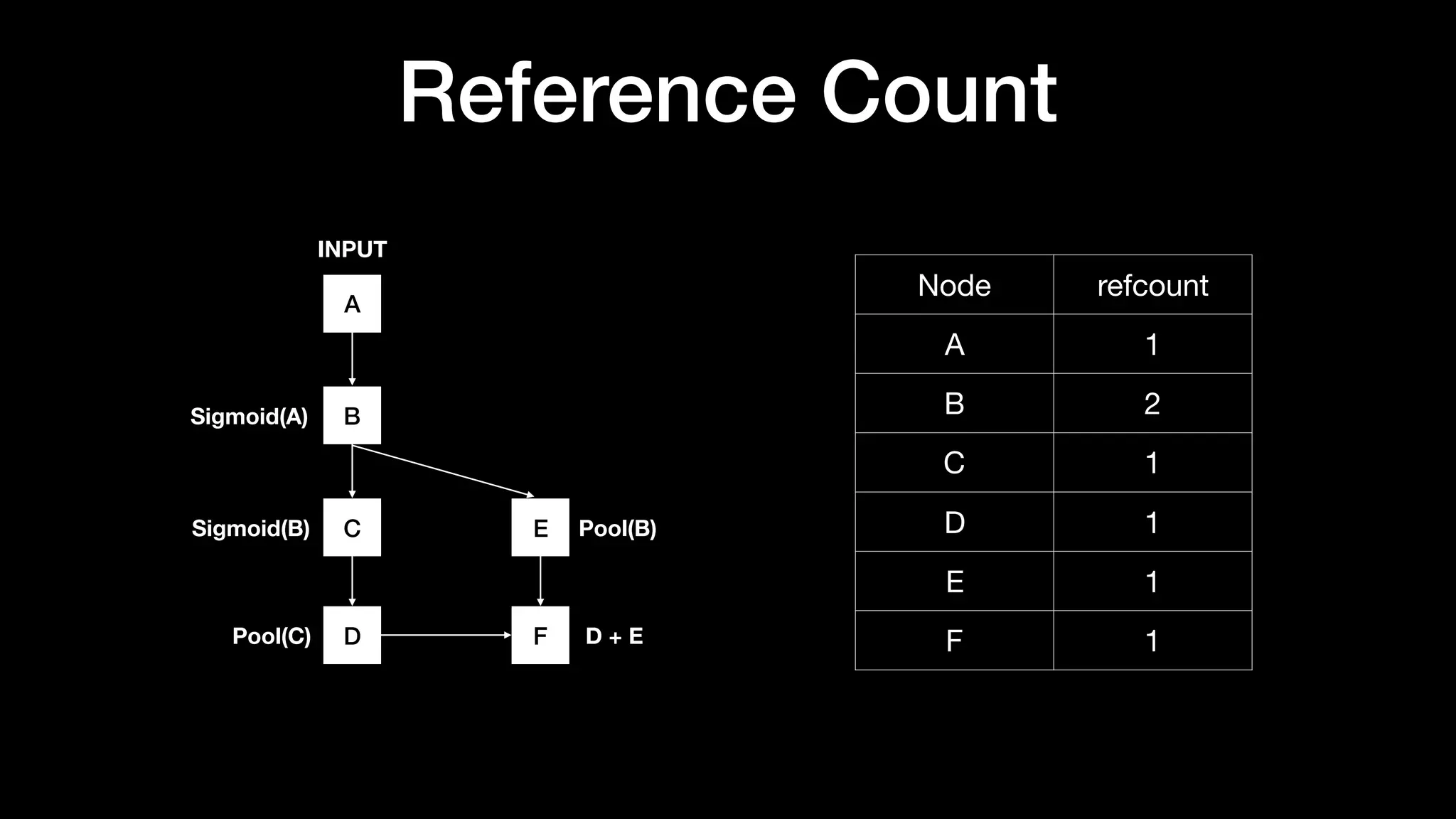

39. Reference Count
A
C
B
INPUT
Sigmoid(A)
Sigmoid(B)
D FPool(C) D + E
E
B
Pool(B)
Node refcount
A 1
B 2
C 1
D 1
E 1
F 1

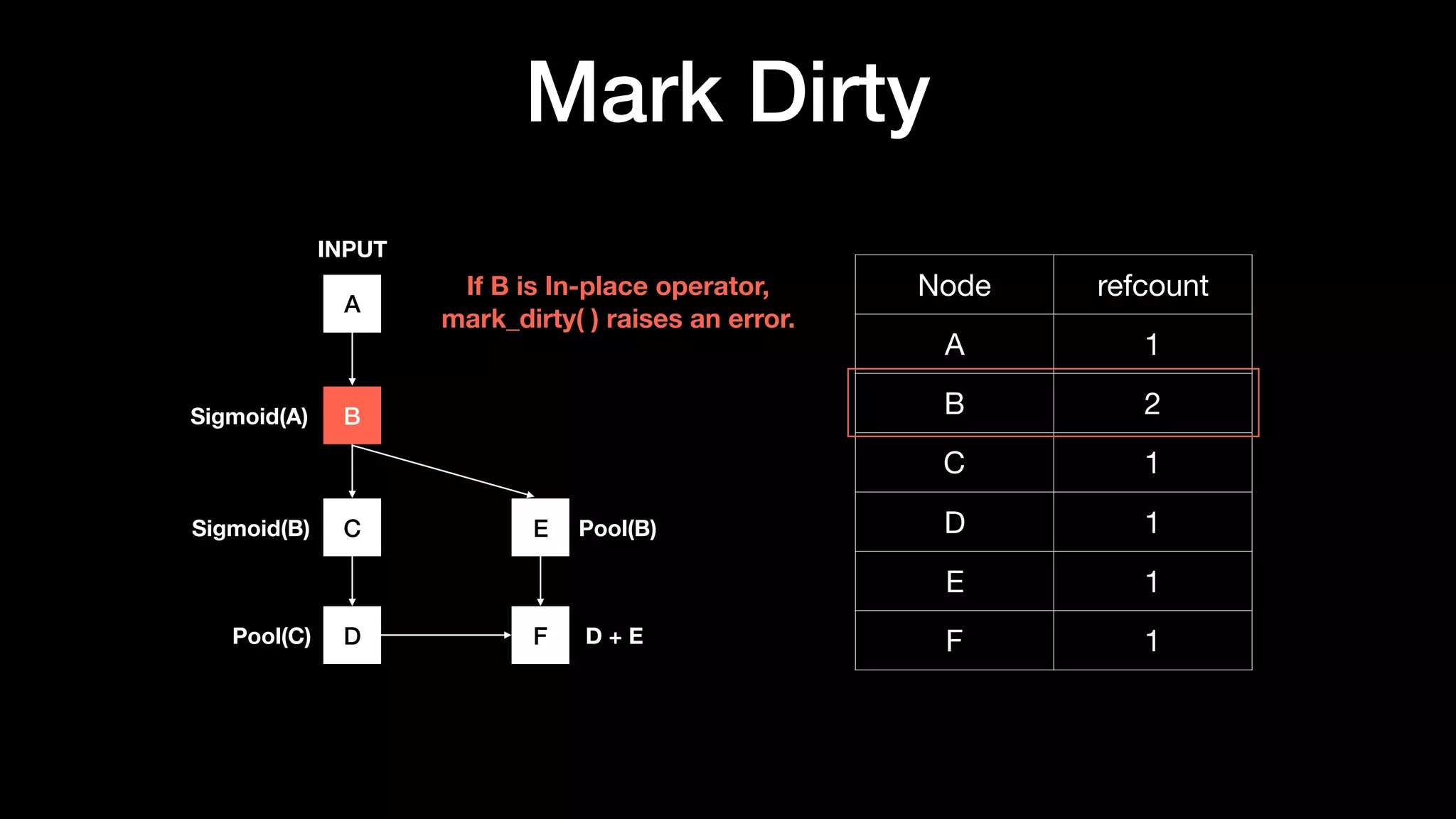

40. Mark Dirty
A
C
B
INPUT
Sigmoid(A)
Sigmoid(B)
D FPool(C) D + E
E
B
Pool(B)
Node refcount
A 1
B 2
C 1
D 1
E 1
F 1
If B is In-place operator,
mark_dirty( ) raises an error.

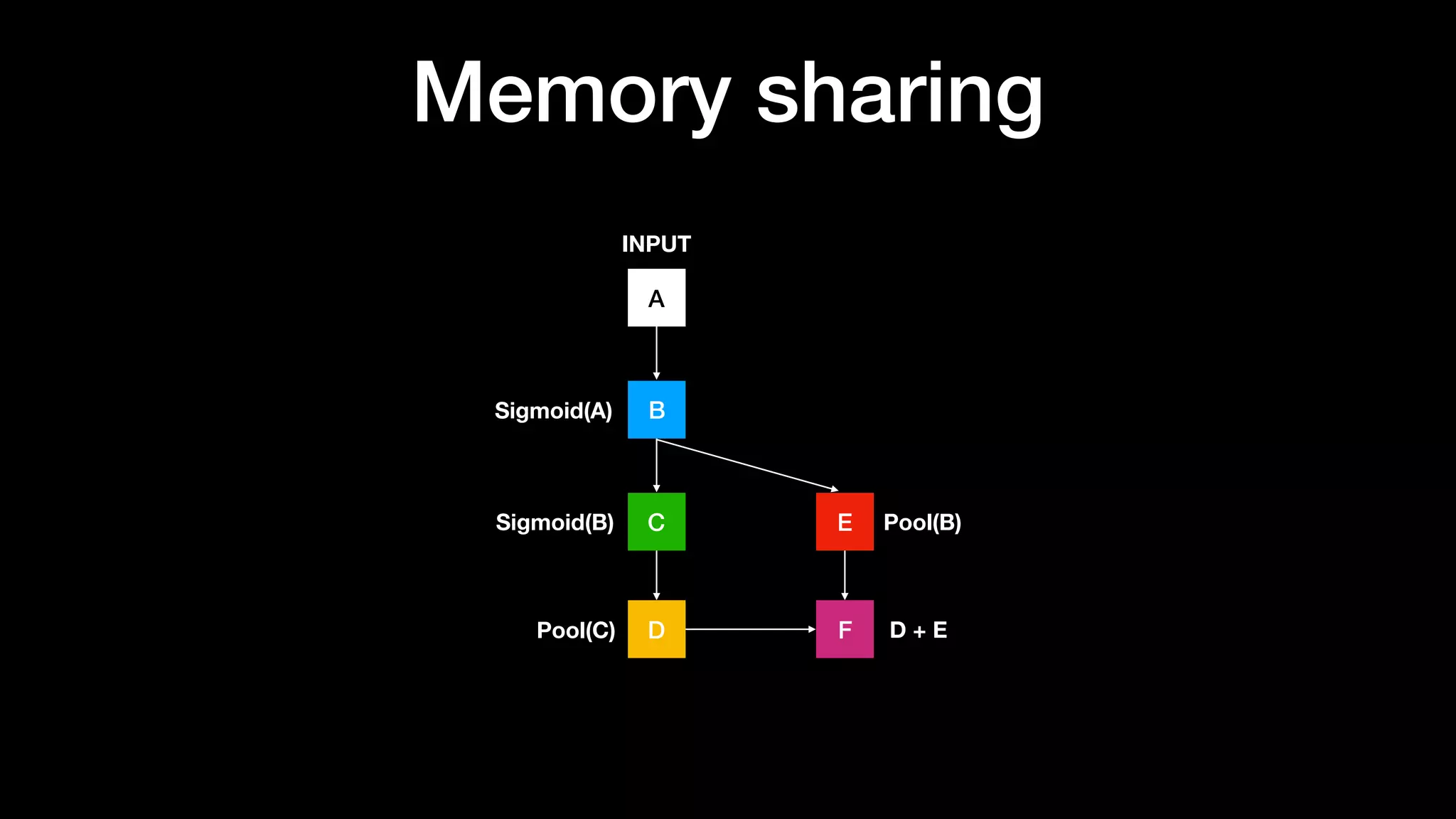

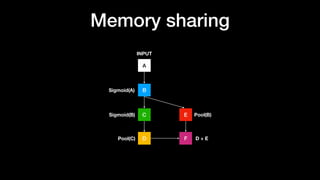

41. Memory sharing
A
B
INPUT
Sigmoid(A)
Sigmoid(B)
FPool(C) D + E
B
Pool(B)C
D
E

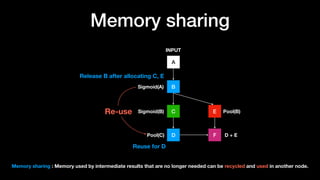

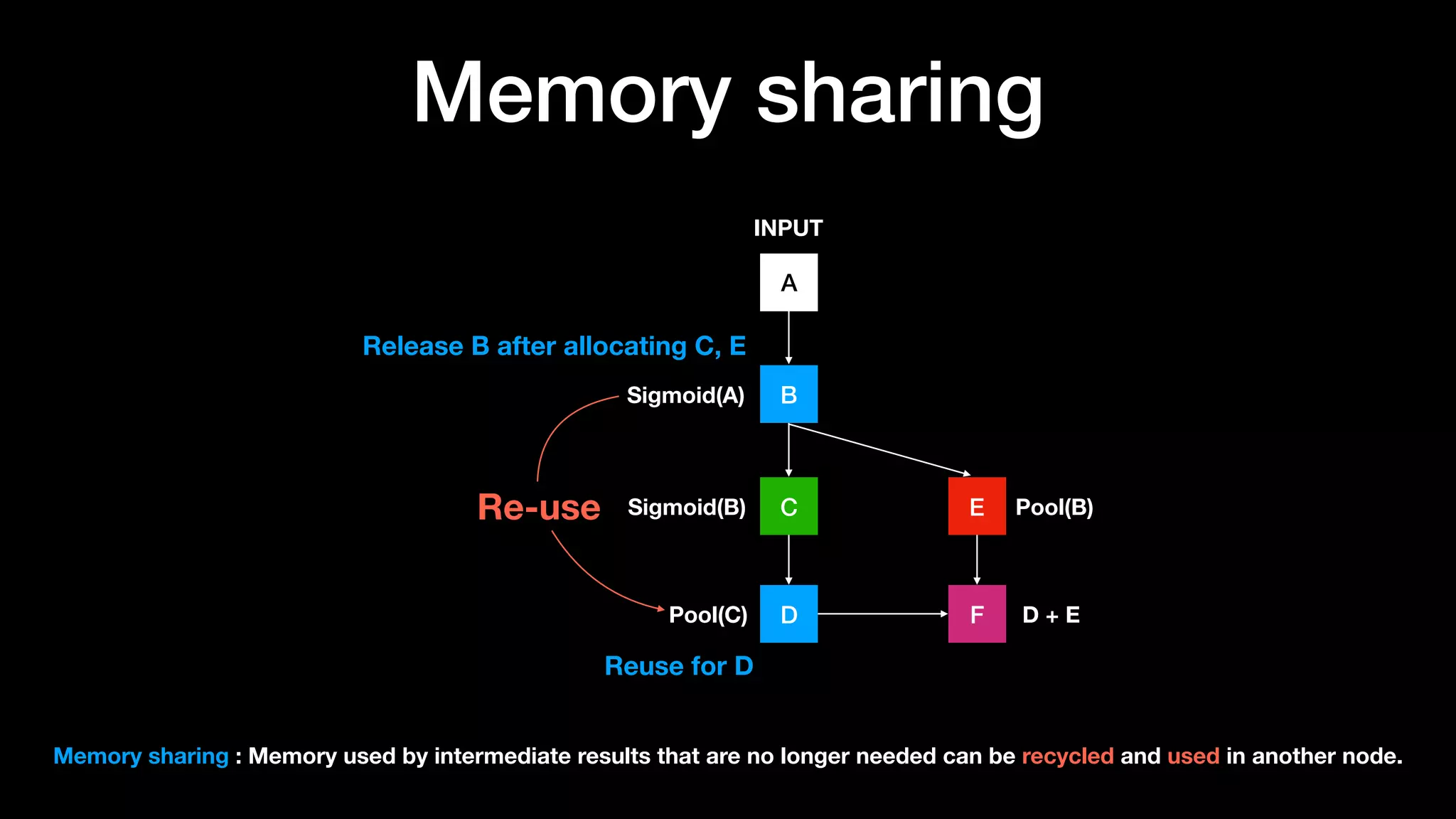

42. Memory sharing
A
B
INPUT
Sigmoid(A)
Sigmoid(B)
FPool(C) D + E
B
Pool(B)C
D
ERe-use
Release B after allocating C, E
Reuse for D
Memory sharing : Memory used by intermediate results that are no longer needed can be recycled and used in another node.

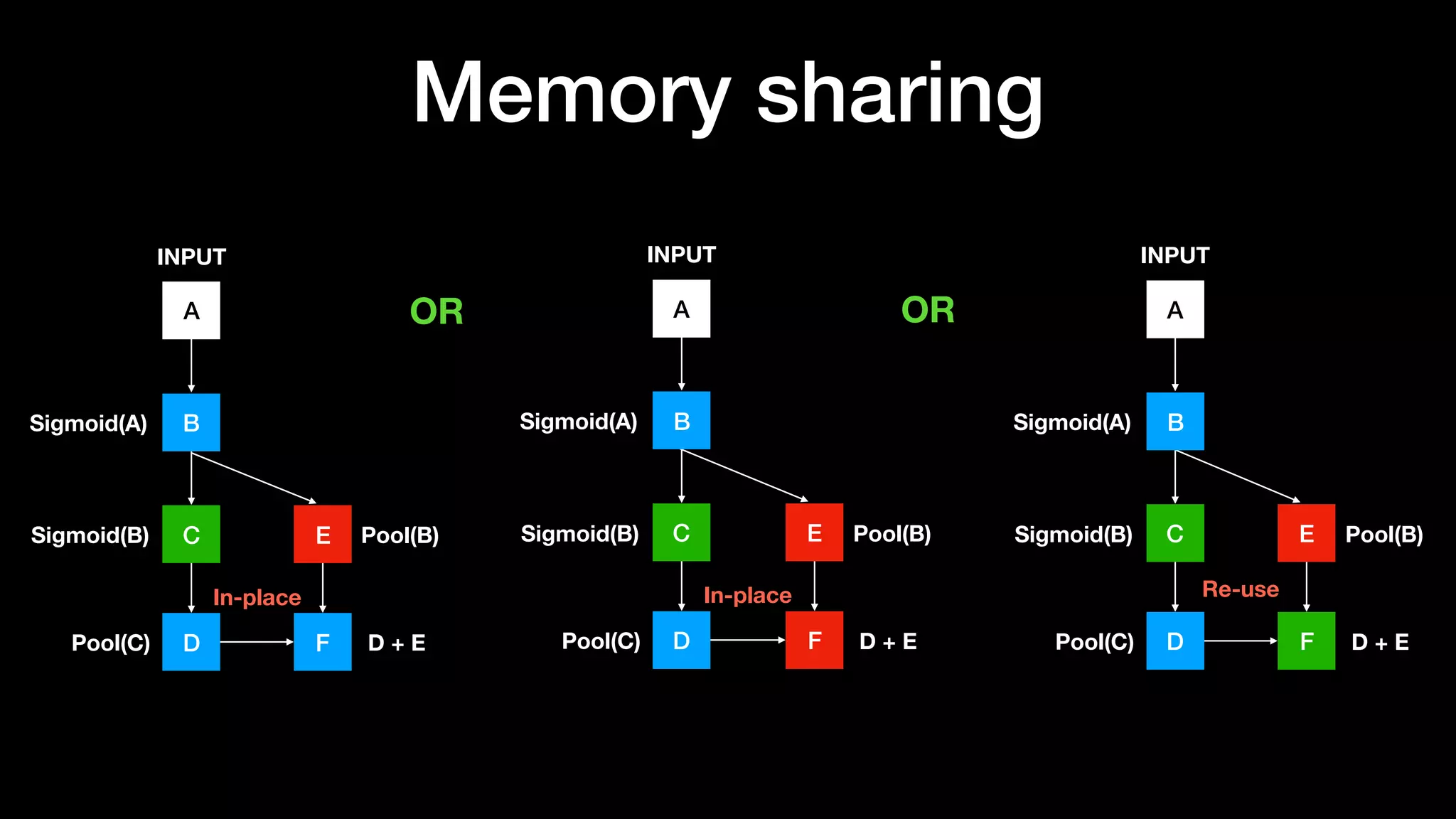

43. Memory sharing
A
B
INPUT
Sigmoid(A)
Sigmoid(B)
FPool(C) D + E
B
Pool(B)C
D
E
In-place
A
B
INPUT
Sigmoid(A)
Sigmoid(B)
FPool(C) D + E
B
Pool(B)C
D
E
In-place
OR A
B
INPUT
Sigmoid(A)
Sigmoid(B)
FPool(C) D + E
B
Pool(B)C
D
E
OR
Re-use

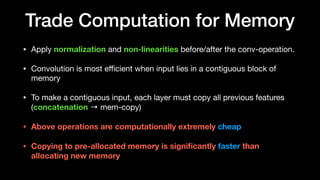

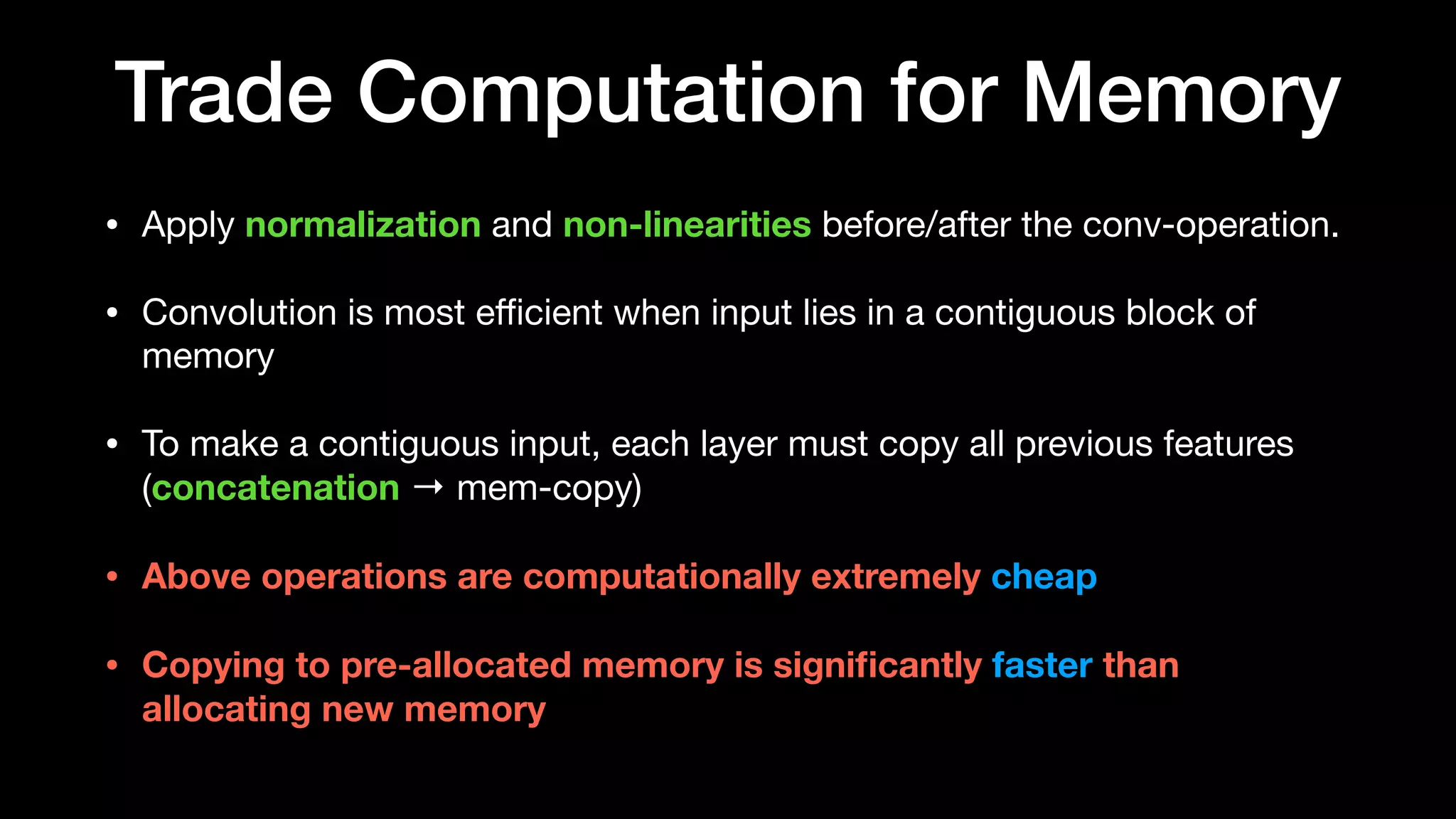

44. Trade Computation for Memory
• Apply normalization and non-linearities before/after the conv-operation.
• Convolution is most efficient when input lies in a contiguous block of
memory
• To make a contiguous input, each layer must copy all previous features
(concatenation → mem-copy)
• Above operations are computationally extremely cheap
• Copying to pre-allocated memory is significantly faster than
allocating new memory

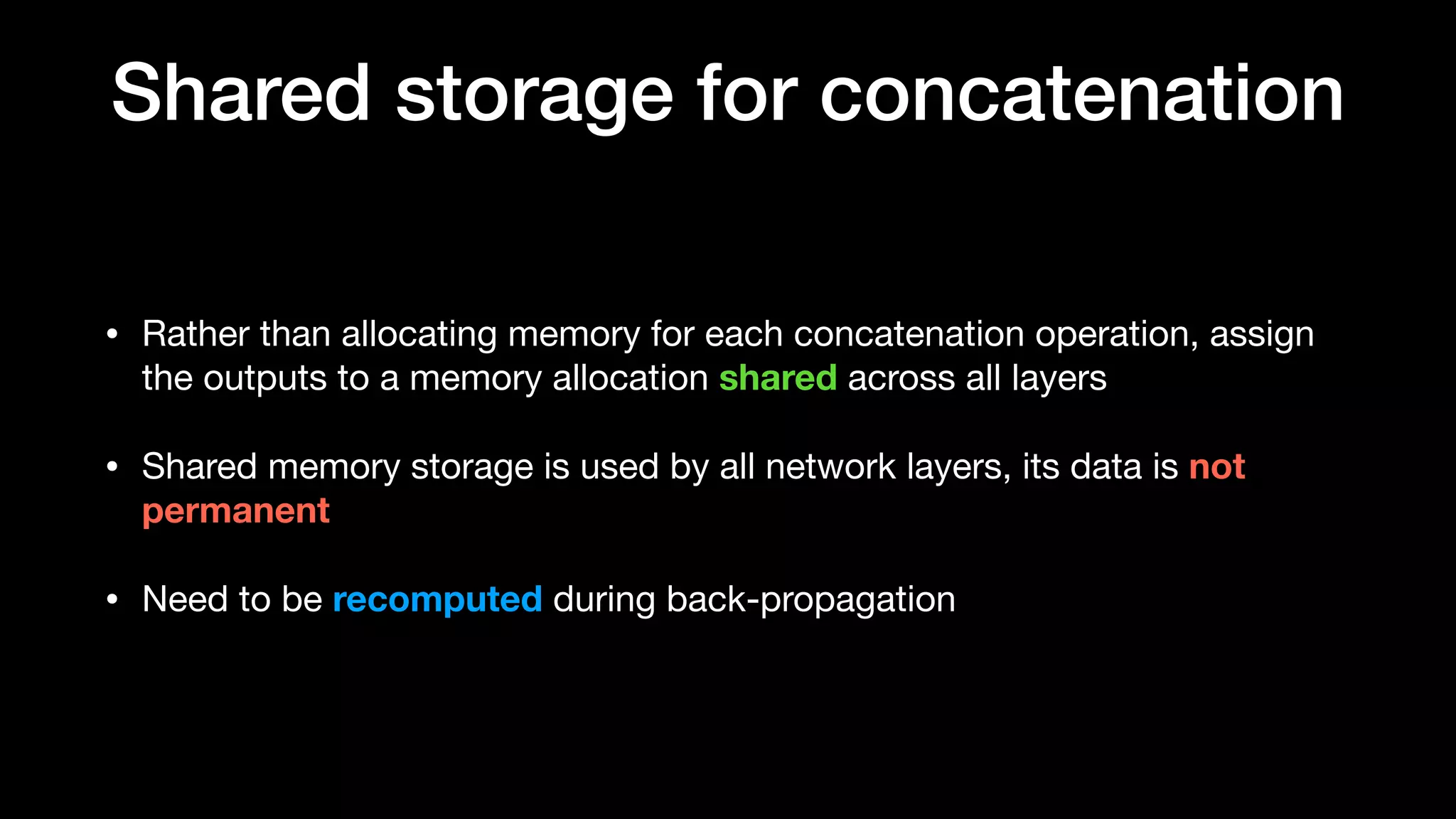

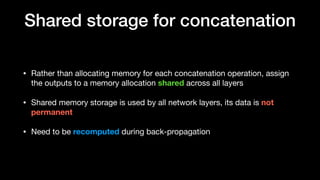

45. Shared storage for concatenation
• Rather than allocating memory for each concatenation operation, assign
the outputs to a memory allocation shared across all layers
• Shared memory storage is used by all network layers, its data is not
permanent
• Need to be recomputed during back-propagation

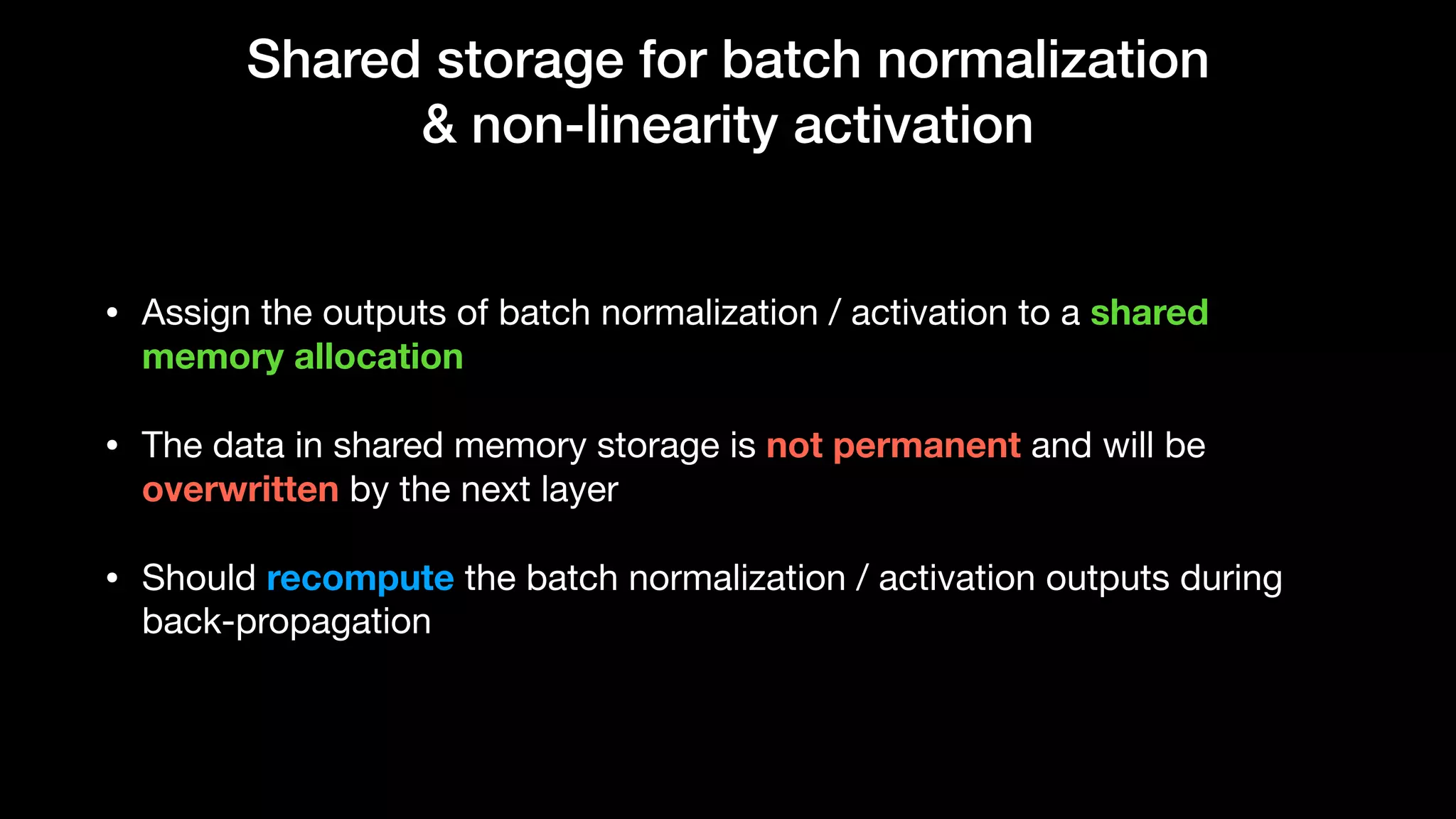

46. Shared storage for batch normalization
& non-linearity activation
• Assign the outputs of batch normalization / activation to a shared
memory allocation
• The data in shared memory storage is not permanent and will be
overwritten by the next layer
• Should recompute the batch normalization / activation outputs during
back-propagation

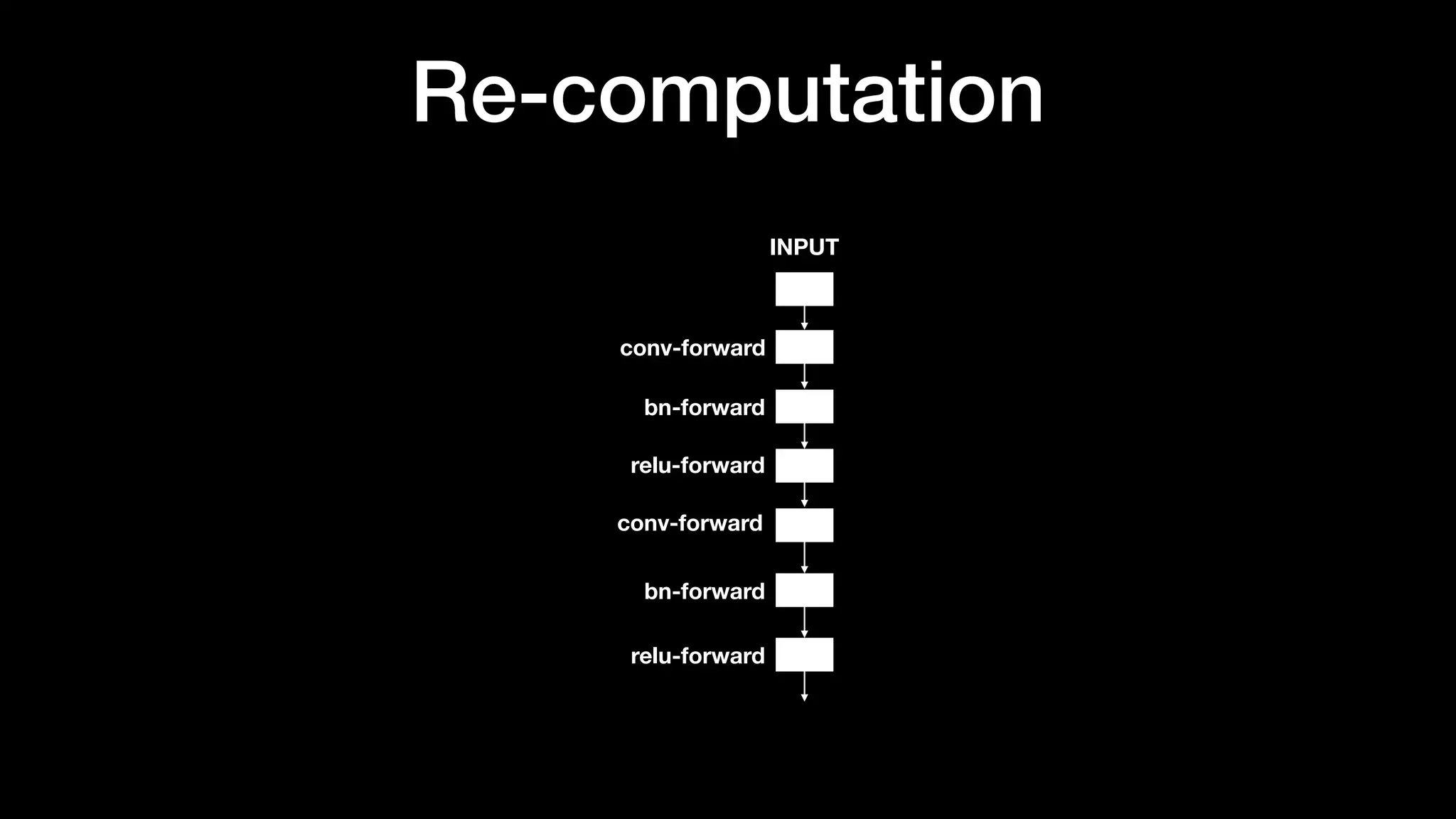

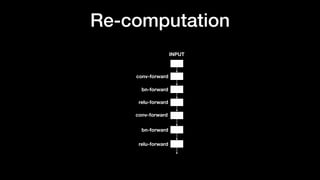

47. Re-computation
INPUT
conv-forward
bn-forward
relu-forward
conv-forward
bn-forward
relu-forward

48. Re-computation
INPUT
conv-forward
bn-forward
relu-forward
conv-forward
bn-forward
relu-forward
conv-backward
bn-backward
relu-backward
conv-backward
bn-backward
relu-backward
INPUT-Grad

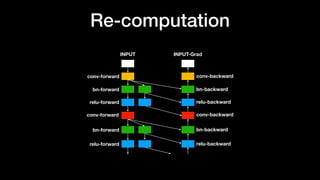

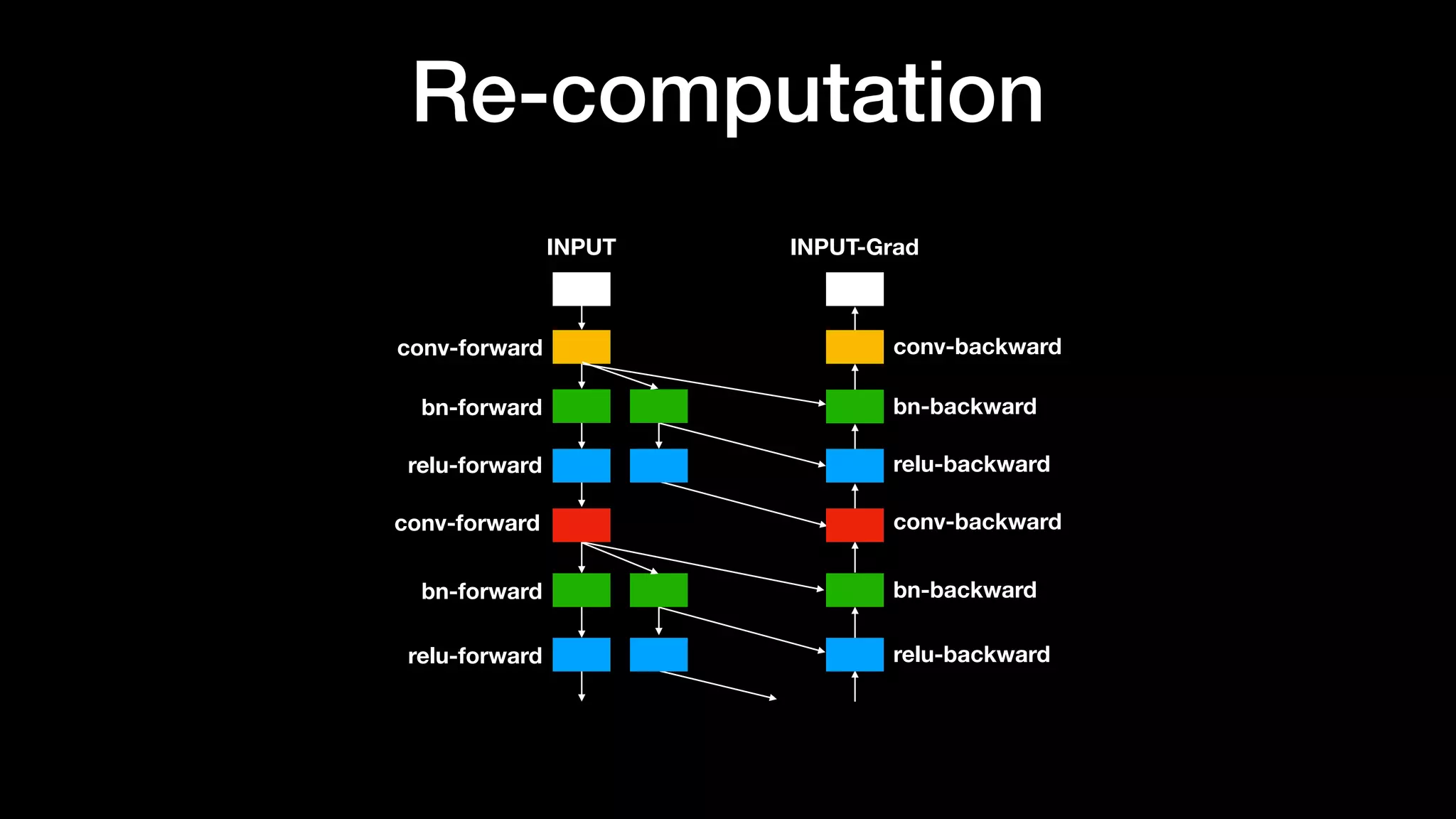

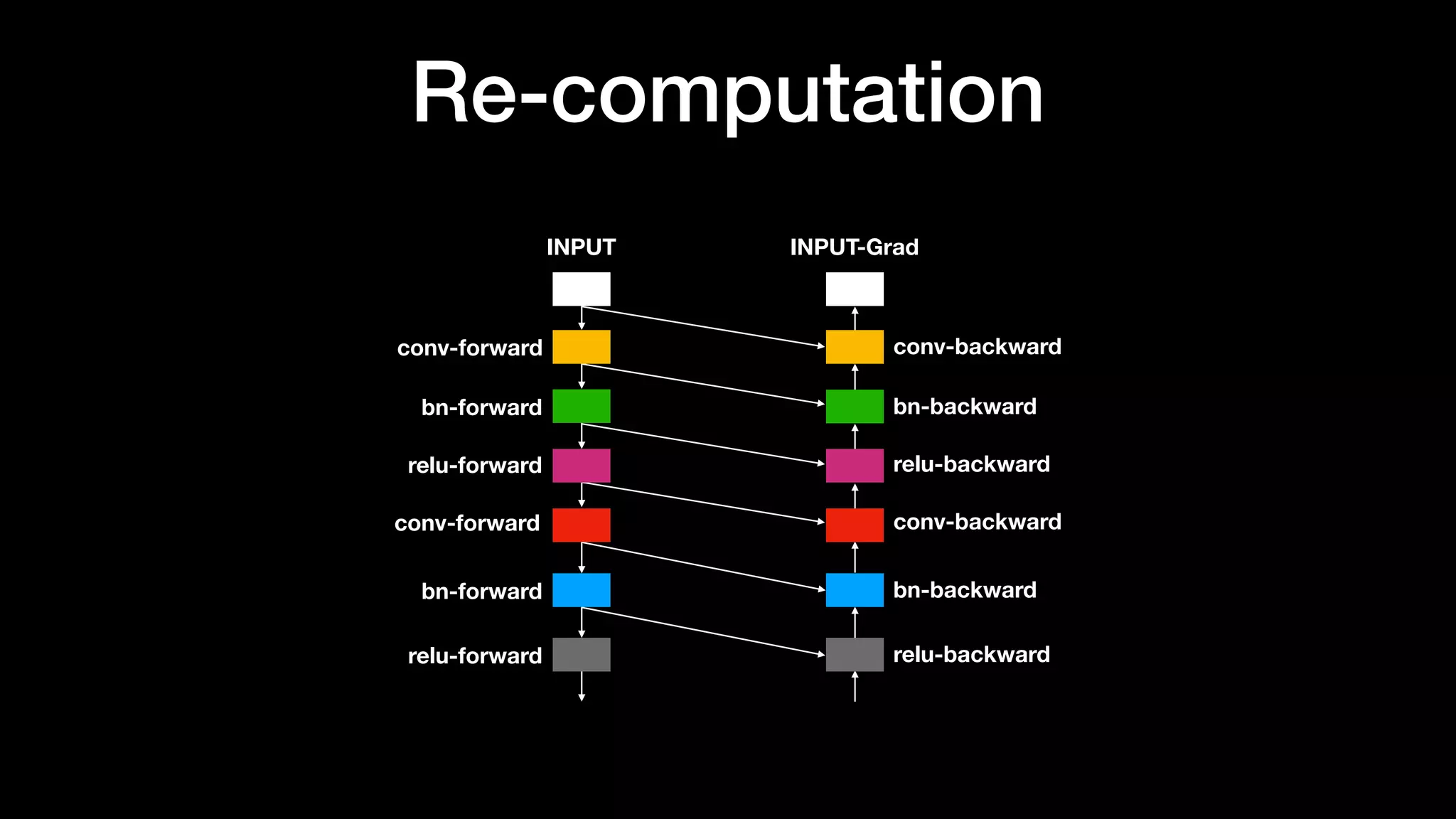

49. Re-computation
INPUT
conv-forward
bn-forward
relu-forward
conv-forward
bn-forward
relu-forward
conv-backward
bn-backward
relu-backward
conv-backward
bn-backward
relu-backward
INPUT-Grad

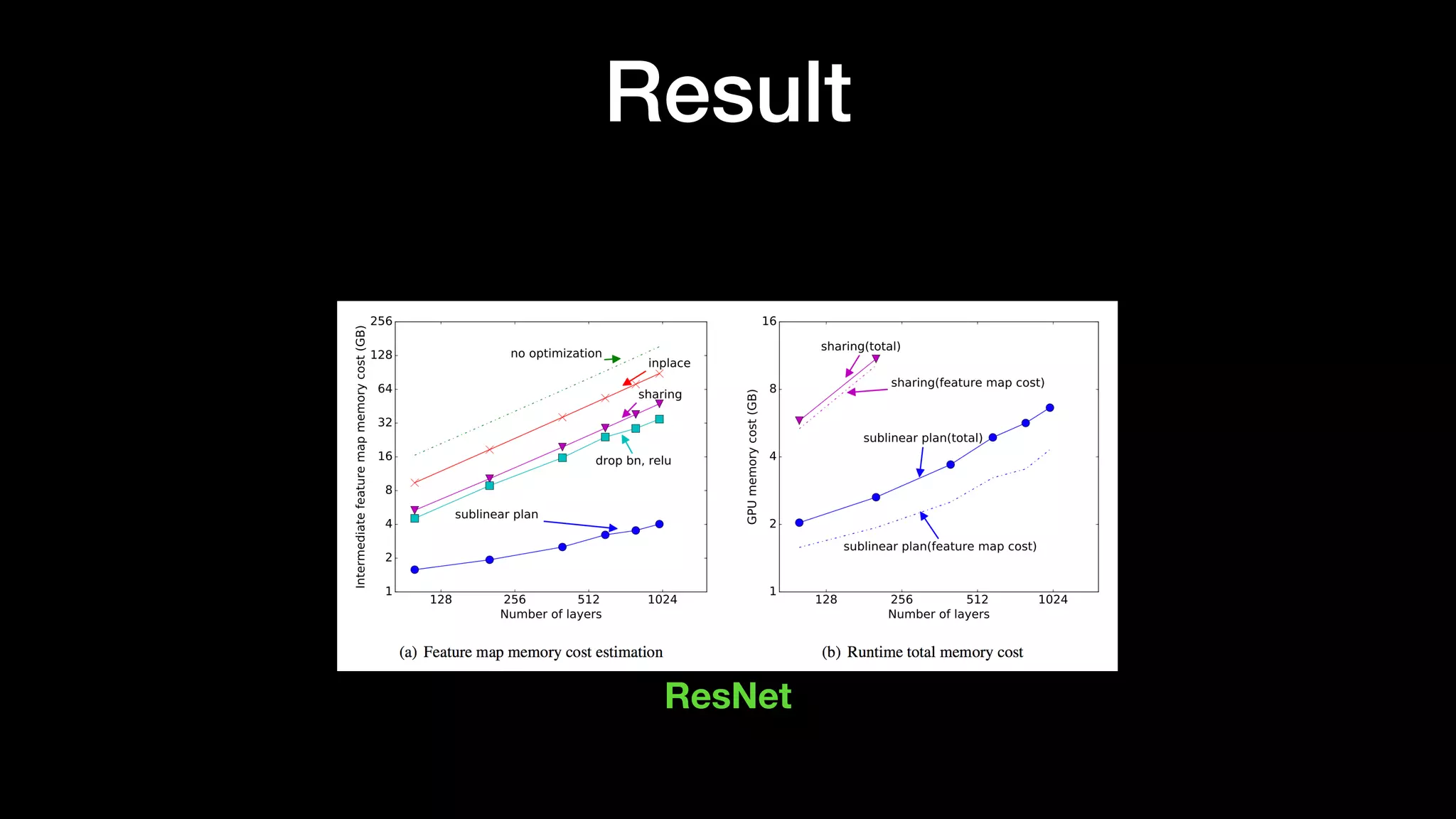

50. Result
ResNet

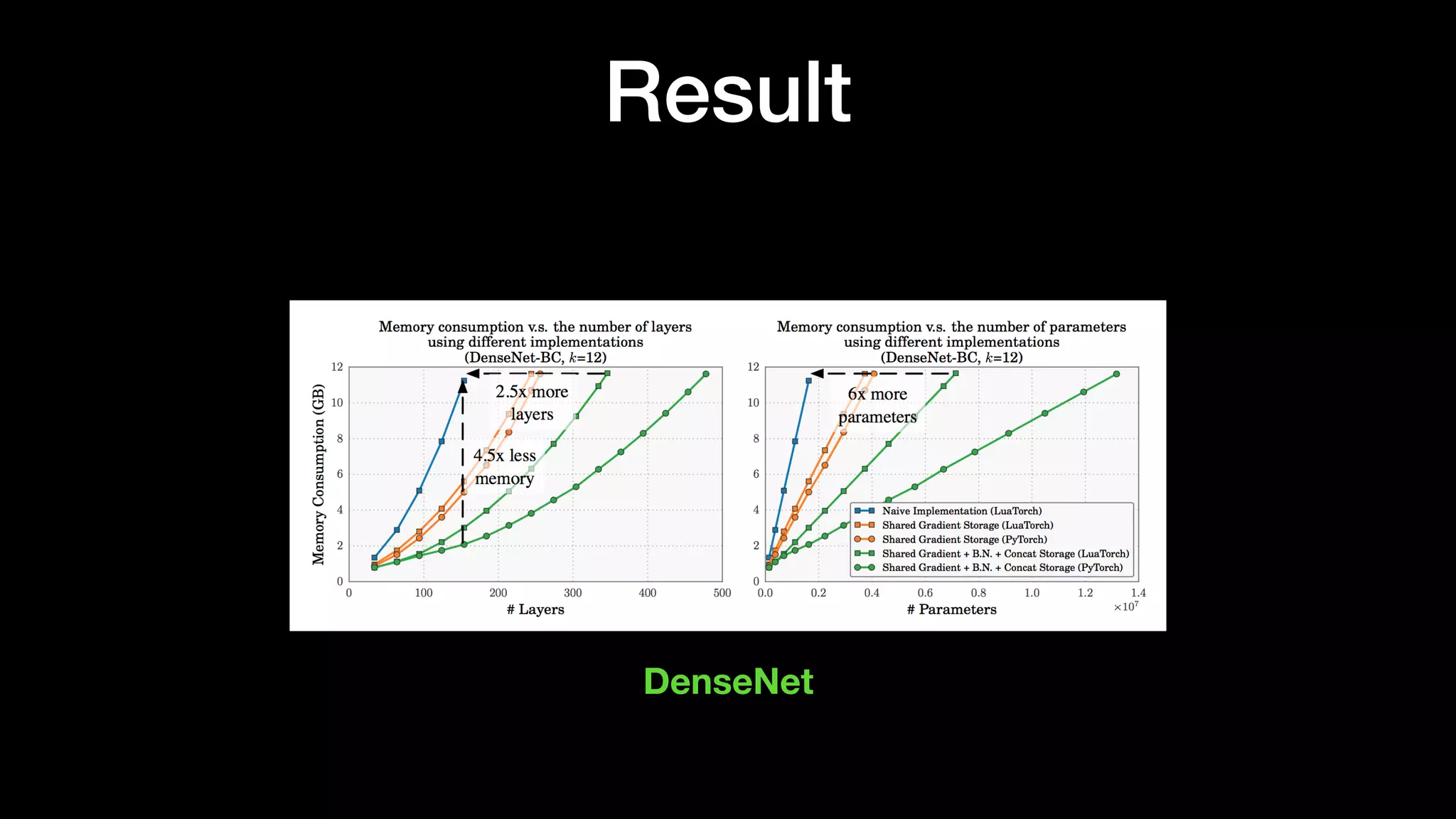

51. Result
DenseNet

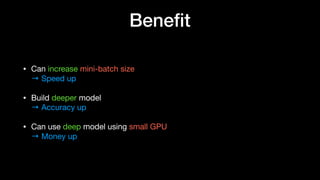

52. Benefit
• Can increase mini-batch size
→ Speed up
• Build deeper model
→ Accuracy up
• Can use deep model using small GPU
→ Money up

53. Thanks 😊
