This document discusses using PGP security with Mule to encrypt and decrypt messages between parties. It describes requirements for installing the Unlimited Strength Jurisdiction Policy files for Java, and explains how to configure a security manager, key manager, and credential accessor to encrypt and decrypt messages. Examples are provided of the configuration in Spring and flows using encrypt and decrypt transformers.

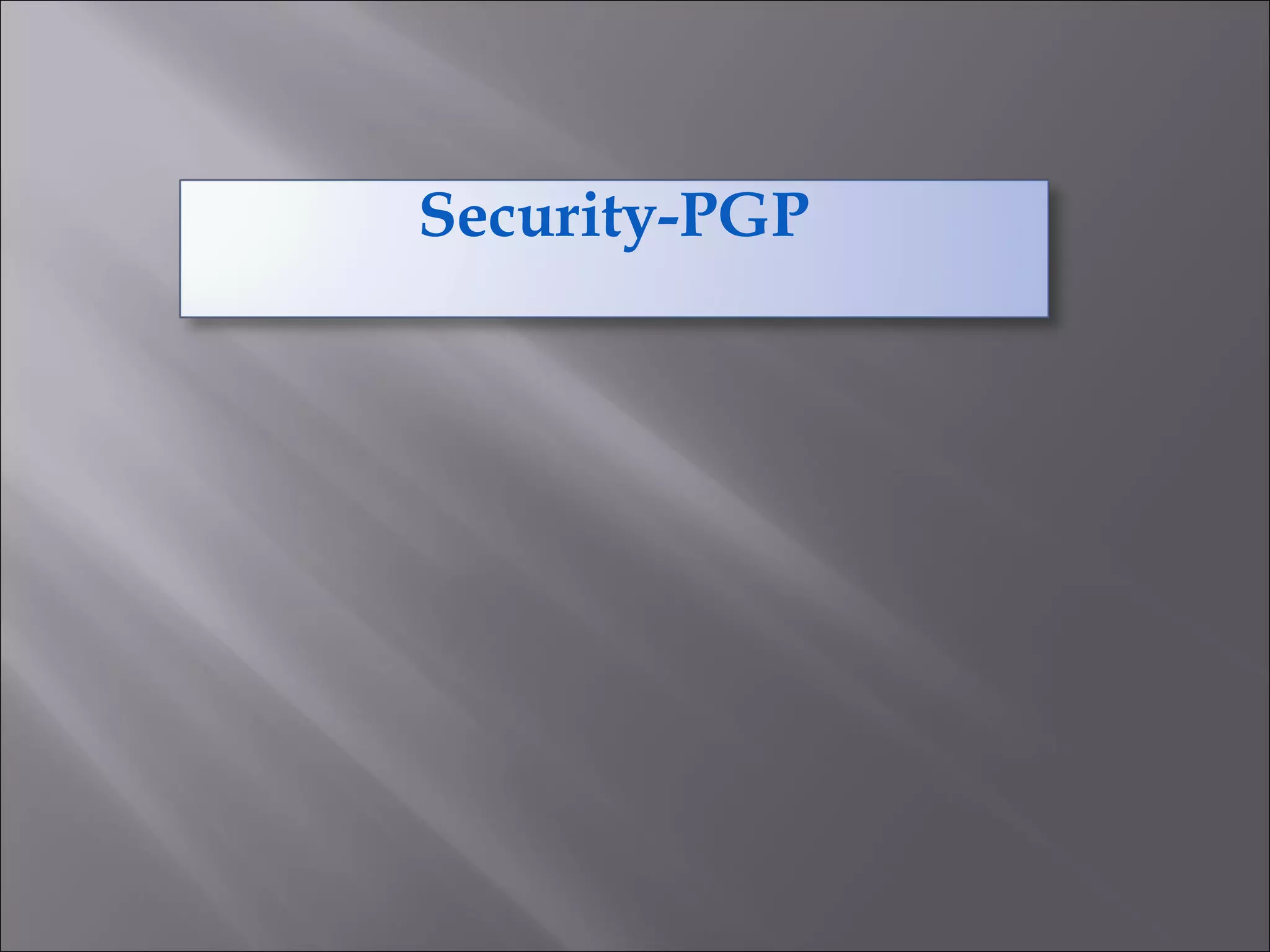

1. Security-PGP

2. 2

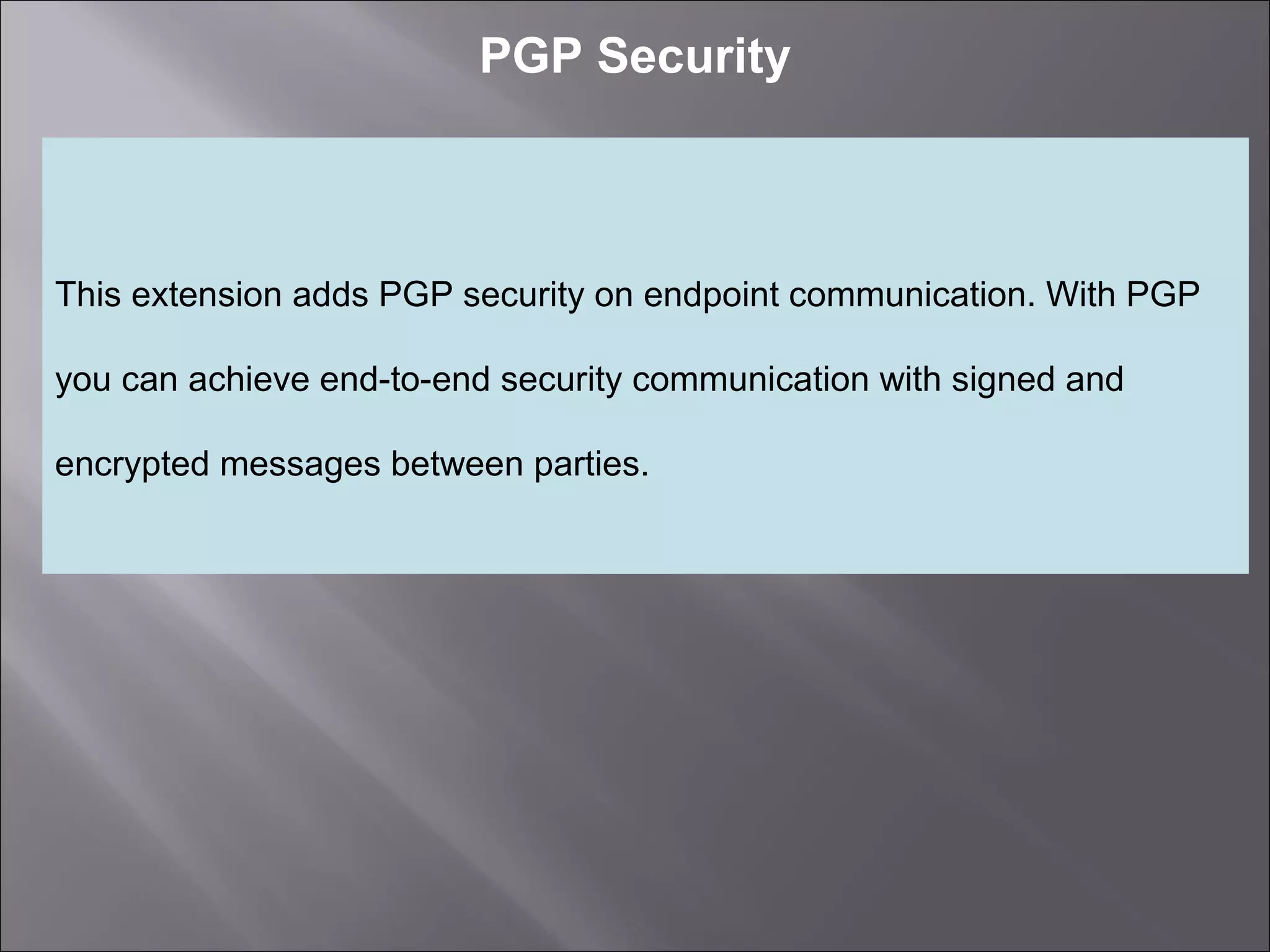

PGP Security
This extension adds PGP security on endpoint communication. With PGP
you can achieve end-to-end security communication with signed and
encrypted messages between parties.

3. 3
Requirements
Policy Files
If you are running JDK 1.4+ that comes with the Sun JCE by default, you
must install the Unlimited Strength Jurisdiction Policy files, which can be
downloaded from the following URL (note that they are listed entirely at the
bottom of the page, in the Other Downloads section):
JDK 1.4
JDK 5
JDK 6
These files must be installed in $JAVA_HOME$/jre/lib/security

4. 4
According to Sun, the default distribution of the JCE allows "strong, but
limited strength cryptography." This means that you cannot use RSA keys
bigger than 2048 bits and no symmetric ciphers that use more than 128
bits. ElGamal is not allowed at all, thus DH/DSS cannot be used for
encryption.

5. 5
Encrypting and Decrypting
To encrypt and decrypt messages you need to configure the following
elements:
A security manager: responsible of holding a security provider, which
contains the key rings, and the encryption strategy to be used. This allows
for the encryption of all messages using the same key or to facilitate the
use of different key rings.
A key manager: which is responsible for reading the key rings.
A credential accessor: which determines the key ring and key manager to
be used to encrypt/decrypt the message being processed.

6. 6
Example
<spring:beans>
<spring:bean id="pgpKeyManager" class="org.mule.module.pgp.PGPKeyRingImpl"
init-method="initialise">
<spring:property name="publicKeyRingFileName" value="pubring.gpg"/>
<spring:property name="secretKeyRingFileName" value="secring.gpg"/>
<spring:property name="secretAliasId" value="$
{public.KeyId.LongValue}"/>
<spring:property name="secretPassphrase" value="$
{secret.Passphrase}"/>
</spring:bean>
<spring:bean id="credentialAccessor"
class="com.somecompany.apps.AppCredentialAccessor">
<spring:property name="credentials" value="John Smith (TestingKey)
&lt;john.smith@somecompany.com&gt;"/>
</spring:bean>
</spring:beans>

7. 7
<pgp:security-manager>
<pgp:security-provider name="pgpSecurityProvider" keyManager-ref="pgpKeyManager"/>
<pgp:keybased-encryption-strategy
name="keyBasedEncryptionStrategy"
keyManager-ref="pgpKeyManager"
credentialsAccessor-ref="credentialAccessor"/>
</pgp:security-manager>

8. 8
The pgpKeyManager (in the spring:beans tag) is the one responsible for
reading the rings. You have to set all the parameters: public and secret
rings, the alias id (the long value in the ring) and the secret passphrase. In
the same section, you can see the credentials accessor which needs to
implement the CredentialsAccessor interface basically returning the key id
based on the message (MuleEvent). Finally the pgp:security-manager
glues both beans.

9. 9
You are ready to encrypt and decrypt messages in your flows. The
following two flows show how to use the encrypt-transformer and decrypt-
transformer to encrypt and decrypt files.

10. 10
<flow name="processEncryptFiles">
<file:inbound-endpoint connector-ref="inputEncrypt"
path="file:///temp/fileInput" moveToDirectory="file:///temp/fileInputBackup"
moveToPattern="#[header:originalFilename].backup" transformer-
refs="file2Bytes" />
<encrypt-transformer name="pgpEncrypt"
strategy-ref="keyBasedEncryptionStrategy" />
<file:outbound-endpoint connector-ref="output"
path="file:///temp/fileOutput" outputPattern="#[function:datestamp]-
#[header:originalFilename]" />
</flow>
<flow name="processDecryptFiles">
<file:inbound-endpoint connector-ref="inputDecrypt"
path="file:///temp/fileOutput" moveToDirectory="file:///temp/fileOutputEncrypted"
moveToPattern="#[header:originalFilename].backup" transformer-
refs="file2Bytes" />
<decrypt-transformer name="pgpDecrypt"
strategy-ref="keyBasedEncryptionStrategy" />
<file:outbound-endpoint connector-ref="output"
path="file:///temp/fileOutputDecrypted" outputPattern="#[function:datestamp]-
#[header:originalFilename]" />
</flow>
