The document outlines various types of flooring commonly used in ground construction, including mud and muram flooring, along with their advantages and disadvantages. It emphasizes factors to consider when selecting flooring types, such as durability, maintenance, and hygiene. Mud flooring is highlighted for its eco-friendliness and temperature control, while muram flooring is noted for its smooth surface and longer lifespan with proper maintenance.

1. MEGHANA S

2. There are various types of floors which are commonly adopted in
residential or public buildings.
 The different types of floors which are commonly used for ground floor
construction are given below:
(1) Mud flooring
(2) Muram flooring
(3) Brick flooring
(4) Flag stone flooring
(5) Tiled flooring
(6) Cement concrete flooring
(7) Granolithic flooring
(8) Terrazzo flooring
(9) Mosaic flooring
(10) Marble flooring
(11)Timber flooring
(12) Asphalt flooring
(13) Rubber flooring
(14) Linoleum flooring
(15) Acid proof flooring

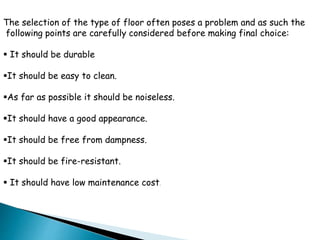

3. The selection of the type of floor often poses a problem and as such the
following points are carefully considered before making final choice:
 It should be durable
It should be easy to clean.
As far as possible it should be noiseless.
It should have a good appearance.
It should be free from dampness.
It should be fire-resistant.
 It should have low maintenance cost.

4. MUD FLOORING
In a tropical country like India, mud floors are commonly constructed in
villages. They remain warm in winter and cold in summer and hence are
most suitable for places where the temperature is extreme during these
season.
MATERIALS
COW MANURE CUT STRAWS SAND
CLAY SOIL
RATIO :- 1:1:1:4

5. Construction
• Upon the prepared bed, a 25 cm thick layer of selected moist earth is
evenly spread out and is rammed well so as to get a consolidated thickness
of about 15 cm.
• It is important to note that no water is used during the process of
ramming. In order to prevent the formation of cracks after drying,
chopped straw in small quantity is mixed with the moist earth before
ramming.
• The floor is maintained by giving a thin cement cow-dung wash (1:2 to
1:3) once or twice a week.

6. • 25mm thick layer
before ramming.
• Reduced to 15mm – after
ramming
• Cracked because of
usage of more water
• Cow dung wash for
finishing.
•Avoid cracks due to
presence of fiber
content.
• Finished look

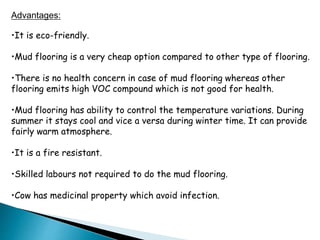

7. Advantages:
•It is eco-friendly.
•Mud flooring is a very cheap option compared to other type of flooring.
•There is no health concern in case of mud flooring whereas other
flooring emits high VOC compound which is not good for health.
•Mud flooring has ability to control the temperature variations. During
summer it stays cool and vice a versa during winter time. It can provide
fairly warm atmosphere.
•It is a fire resistant.
•Skilled labours not required to do the mud flooring.
•Cow has medicinal property which avoid infection.

8. Disadvantages:
•It is not durable.
•Mud flooring requires frequent maintenance, once or twice in a week.
•The surface of the mud flooring is not smooth as other flooring.
•Mud flooring gets weathered due to certain activities i.e. walking,
moving of furniture, etc.
•It is not moisture resistant therefore there are chances of the growth
of bacteria which is unhygienic.
•It dost not resist heavy load as the floor gets dent.
•Mud flooring has low resistance to stain as it has high porosity.
•Its life is limited.

9. MURAM FLOORING
Any disintegrated rock is called muram.
CONSTRUCTION:
 upon the prepared sub-grade a 15 cm. thick layer of muram is laid. A 25mm
thick layer of powder muram is spread over the already laid muram layer
and water is sprinkled over the entire surface.
 The surfaces then rammed well. After ramming the surface is saturated
with water, So that a thin layer is formed on the top of the rammed
surface.
 Then the surface is trampled well till the cream of muram rises to the top.
The surface is left in this state for about a day and then it is rammed
again with wooden rammers called thapies for about three days.

10. The dry hard surface thus formed is then smeared with a thick coat of
cow dung and rammed once again for two days in the morning.
Finally the surface is finished with a cement cow-dung plaster 1:4
(1cement: 4 cow dung). To maintain the floor in good condition, it is given
a wash of cement cow-dung plaster once a Week and the surface is wiped
immediately.
.
trampling

11. Varnished muram flooring which can be used in cities
with less maintenance.
Masonry trowel
float

12. merits and demerits of muram flooring may be summarised below:
Merits:
 It is cheap
 It has smooth, hard and fairly impervious surface.
 It is easy in construction.
 It has sufficiently long life if properly maintained.
It maintains comfortable temperature in all seasons.
Demerits:
 For perfect maintenance of the surface it has to be given cement cow-
dung wash once or twice a week.
 This may be objectionable from sanitary consideration

13. comparison
Mud flooring Muram flooring
•Major element is clay soil.
•Duration – 4-5 days.
•Smooth finish
•Not durable
•Major element is
powdered muram.
•Duration – 8-10 days.
•Not so smooth finish
•Durable
