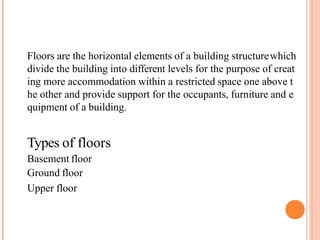

2. Floors are the horizontal elements of a building structurewhich
divide the building into different levels for the purpose of creat
ing more accommodation within a restricted space one above t
he other and provide support for the occupants, furniture and e
quipment of a building.
Types of floors
Basement floor
Ground floor
Upper floor

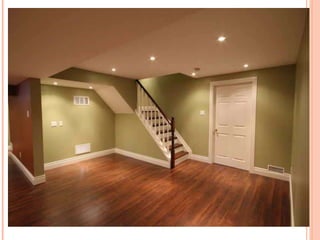

3. Basement floor
The construction of floor below the ground surface is known
as basement floor.
Basement ceiling height shall not be less than 7 feet above the
finished floor.
A smoke alarm shall be installed in thebasement.
All basement stairs shall have a light source to illuminate all tr
eads and landings. Lights shall be operated by a switch located
at the top and bottom of the stairs.
If adding a bedroom and the house is equipped with a gas-fired
appliance, a carbon monoxide alarm shall be installed in the ba
sement.
4. Ground floor
The floor resting directly on the ground surface are known as
Ground floor.
Upper floor
The upper floors have the major problem of strength and stabili
ty since they are supported only at their ends, on walls, beams
etc.
Upper floors do not have problem of damp resistance.
5.
6.
7. INTRODUCTION
The purpose of a floor is to provide a level surface capable of
supporting the occupants of a building, furniture,
equipment and sometimes internal partitions.
To perform this function and in addition, others which may
vary according to the situation of the floor in the building
and the nature of the building
the following
itself, the floor must satisfy
requirements:-
i) Adequate strength and stability
ii) Adequate fire resistance
iii) Sound insulation
i v ) Damp resistance
v) Thermal insulation 7
8. COMPONENTS OF
FLOORING
1. Sub floor, base course or floor base:-
The floor base is a structural component which
supports the floor covering.
For the ground floors, the object of floor base is to
give proper support to the covering so that it
does not settle and to provide damp resistance
and thermal insulation.
Ground floors may either rest directly on the
little distance
ground or may be supported a
above the ground.
2. Floor covering or simply flooring 8
9. Materials used for Floors
Ceramic tiles,
Plain tiles,
Mosaic tiles,
Glazed tiles,
Mud and Murum,
Bricks,
Flag stone,
Concrete,
Terrazzo,
Marble,
Wood or timber,
Asphalt,
Rubber,
Cork,
Glass,
Plastic or PVC
11. SELECTION OF FLOORING
MATERIAL
INITIAL COST:- The cost of material should be in
conformity with the type of building and its likely
use.
APPEARANCE:– Covering should give pleasing
appearance that is it should produce the desired
color effect and architectural beauty
CLEANLINESS:– The flooring should be capable of
being cleaned easily and it should be not
absorbent.
DURABILITY:– The flooring should have
resistance to wear, temperature
sufficient
changes,
that long life
disintegration with time and decay so
is obtained.
11
12. SELECTION OF FLOORING
MATERIAL
should offer the
DAMP RESISTANCE:– Flooring
resistance against dampness so that healthy
environment is obtained in the building.
SOUND INSULATION:– The flooring should
noise. Also, it should not be such that
produced when users walk on it.
THERMAL INSULATION:– The flooring
insulate the
the noise is
should offer
comfort is
reasonably good thermal insulation so that
imparted to the residents of the building.
SMOOTHNESS:– The flooring material should be smooth
and should have even surface. However, it should not be
slippery. 1
13. SELECTION OF
FLOORING MATERIAL
FIRE RESISTANCE:– This is more important for
sufficient
obtained
upper floors. Flooring material should offer
fire resistance so that fire barriers are
between different levels of the building.
HARDNESS:– It should be sufficiently hard so as to have
resistance to indentation marks, imprints etc. likely to
be caused by shifting of furniture, equipments etc.
MAINTENANCE:– The flooring material should
require least maintenance.
13

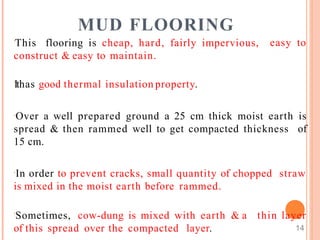

14. MUD FLOORING
This flooring is cheap, hard, fairly impervious,
construct & easy to maintain.
easy to
Ithas good thermal insulation property.
Over a well prepared ground a 25 cm thick moist earth is
spread & then rammed well to get compacted thickness of
15 cm.
In order to prevent cracks, small quantity of chopped straw
is mixed in the moist earth before rammed.
Sometimes, cow-dung is mixed with earth & a
of this spread over the compacted layer.
thin layer
14

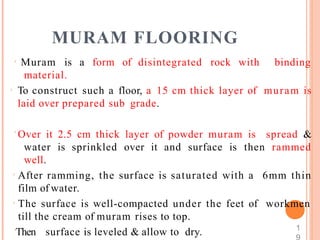

19. MURAM FLOORING
Muram is a form of disintegrated rock with
material.
To construct such a floor, a 15 cm thick layer of
laid over prepared sub grade.
binding
muram is
Over it 2.5 cm thick layer of powder muram is spread &
water is sprinkled over it and surface is then rammed
well.
After ramming, the surface is saturated with a
film of water.
The surface is well-compacted under the feet of
till the cream of muram rises to top.
Then surface is leveled & allow to dry.
6mm thin
workmen
1
20. Mud and Murum flooring
Merits
• Mud flooring and murum flooring are used only in low cost housing
specially in villages.
• Such flooring is cheap, hard, fairly impervious, easy to construct and
easy to maintain.
• It has good thermal insulation property due to which it remainscool
in summer and fairly warm in winter.
• It is easy in construction, repair and maintenance.
Demerits
• Proper maintenance, the floors are required to be given a wash of
cement and cow dung once in a week.
21. BRICK FLOORING
It is used in cheap construction, specially where
good bricks are available.
This flooring is specially suited to ware-house,
stores, godowns etc.
10 to 15 cm thick layer of lean cement concrete
(1:8:16) or lime concrete is laid over the prepared
sub grade.
This forms the base course, over which bricks are
laid flat on 12 mm thick mortar bed in such way
that all the joints are full with mortar.
2
25. BRICK FLOORING
Prepared By: Prof
Merits
1. It is hard and durable.
2. It is non-slippery and fire resistant surface.
3. It is cheaper in initial cost than cement concrete, mosaic, terrazzo fl
ooring.
4. It is easy in maintenance cost.
Demerits
1. It is absorbent.

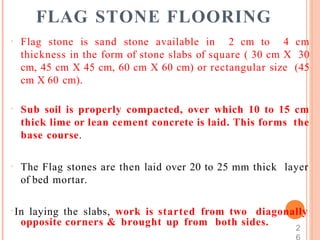

26. FLAG STONE FLOORING
Flag stone is sand stone available in 2 cm to 4 cm
thickness in the form of stone slabs of square ( 30 cm X 30
cm, 45 cm X 45 cm, 60 cm X 60 cm) or rectangular size (45
cm X 60 cm).
Sub soil is properly compacted, over which 10 to 15 cm
thick lime or lean cement concrete is laid. This forms the
base course.
The Flag stones are then laid over 20 to 25 mm thick layer
of bed mortar.
In laying the slabs, work is started from two diagonally
opposite corners & brought up from both sides. 2
31. FLAG STONE FLOORING
Merits
1. It provides a hard, durable and wear resisting floor surface and
as such can be used for godowns, stones,workshops.
2. It is easy in construction.
3. It is easily repairable and maintainable.
4. It is used in place Tamil nadu ,Andhra Pradesh, where slab stones are
available.
Demerits
1. Its usage is not comfortable for living purpose due to not offeri
ng perfect even surface.
2. It does not give a pleasing appearance, so can not be used in r
esidential building or important public building.

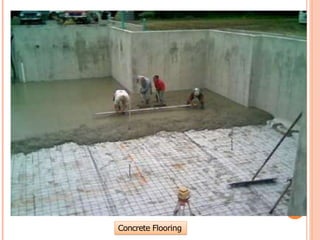

32. CEMENT CONCRETE
FLOORING
32
This is commonly used for residential,
commercial & even industrial building.
It is moderately cheap, quite durable and easy to
construct.
Thefloor consists of two components:-
a) Base concrete b) Topping or wearing surface.
• They are constructed either monolithically or non-
monolithically.
• When the floor is laid monolithically, good bond
between the two components is obtained resulting in
smaller overall thickness.
33. CEMENT CONCRETE
FLOORING
33
three
However, such a construction has
disadvantages
a)Topping is damaged during subsequent
operations.
b)Hair cracks are developed because of
settlement of freshly laid base course which
has notset.
c)Work progress is slow because to wait till the
initial setting of base course.
Hence, in most of the cases, non-monolithic
construction is preferred.
34. CEMENT CONCRETE FLOORING
The base course may be 7.5 to 10 cm thick, either in lean
cement concrete (1:3:6 to 1:5:10) or lime concrete
& 60% coarse
containing 40% mortar of 1:2 lime-sand
aggregate of 40mm nominal size.
When base concrete has hardened, its surface is brushed
with stiff broom & cleaned thoroughly.
Itis wetted the previous night and excess water is drained.
The topping consists of 1:2:4 cement concrete, laid in desired
thickness (usually 4cm) in one single operation.
Other alternate layers are then laid after 72 hrs, so that
initial shrinkage of already laid panels takes place, thus
eliminating the cracks.
The prepared surface is protected from sunlight, rain, other
damages for a period 12 to 20 hrs.
The surface is then properly cured for a period of 7 to 14
days.
3

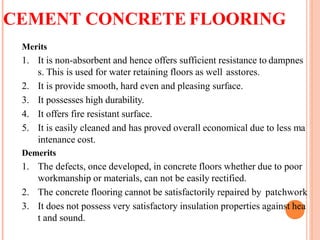

36. CEMENT CONCRETE FLOORING
Merits
1. It is non-absorbent and hence offers sufficient resistance to dampnes
s. This is used for water retaining floors as well asstores.
2. It is provide smooth, hard even and pleasing surface.
3. It possesses high durability.
4. It offers fire resistant surface.
5. It is easily cleaned and has proved overall economical due to less ma
intenance cost.
Demerits
1. The defects, once developed, in concrete floors whether due to poor
workmanship or materials, can not be easily rectified.
2. The concrete flooring cannot be satisfactorily repaired by patchwork
3. It does not possess very satisfactory insulation properties against hea
t and sound.
38. TERRAZZO FLOORING
decorative and
The flooring
has good wearing
is however more
It is very
properties.
expensive.
It is widely
used in residential buildings,
offices, schools and other public
hospitals,
buildings.
Terrazzo
containing
is special prepared concrete surface
cement and marble chips in
proportion to 1:2.
When surface has set, the chips are exposed by
grinding operation. The sub base preparation and
concrete base laying is done in the similar
manner of cement concrete flooring. 3
39. TERRAZZO FLOORING
The top layer may have 40 mm thickness
consisting of:-
a) 34 mm thick cement concrete layer (1:2:4) laid
over the base concrete.
b) About 6 mm thick terrazzo topping.
Concrete of the grade 1:2:4 is then laid in
alternate panels leveled and finished to rough
surface. When the surface is hardened, the
terrazzo mix is laid and finished to the level
surface. Additional marble chips may be added
during the tempingand rolling operations. So
that, at least 80% of the finished surface show
exposed marble chips. 3
40. TERRAZZO FLOORING
The surface is then floated and trowelled and left to dry
for 12 to 20 hours. After that the surface is cured
properly for 2 to 3 days.
The first grinding is done, preferably by machine using
using plenty
scrabbed and
course grade (no. 60) carborundum stones
of water. The ground surface is then
cleaned.
Cement grout of cream like consistency, is then applied
and is cured for 7 days. Then second grinding is done
with carborundum stones of fine grade (no. 120). 4
41. TERRAZZO FLOORING
The surface is cured for 4 to 6 days and final
grinding is done with carborundum stone of 320
grit size.
The surface is thoroughly scrabbed and cleaned
using plenty of water.
Wax polish is applied with the help of polishing
machine to get final glossy surface.
4

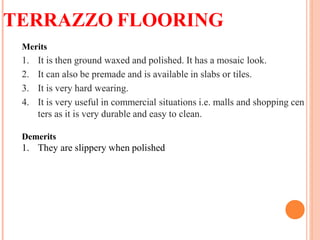

42. TERRAZZO FLOORING
Merits
1. It is then ground waxed and polished. It has a mosaic look.
2. It can also be premade and is available in slabs or tiles.
3. It is very hard wearing.
4. It is very useful in commercial situations i.e. malls and shopping cen
ters as it is very durable and easy to clean.
Demerits
1. They are slippery when polished
47. MOSAIC FLOORING
47
It is made of small pieces of broken tiles of china
glazed or of cement or of marble arranged in
different pattern.
A concrete base is prepared as in the case of
concrete flooring and over it 5 to 8 cm thick lime-
surkhi (Powder of bricks) mortar is spread and
leveled.
On this, a 3 mm thick cementing material in the
form of paste of 2 parts of slaked lime, one part of
powdered marble and one part of puzzolana
material is spread and is left to dry for about 4
hours.

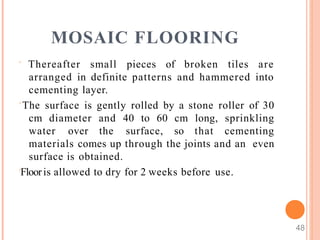

48. MOSAIC FLOORING
48
Thereafter small pieces of broken tiles are
arranged in definite patterns and hammered into
cementing layer.
The surface is gently rolled by a stone roller of 30
cm diameter and 40 to 60 cm long, sprinkling
water over the surface, so that cementing
materials comes up through the joints and an even
surface is obtained.
Flooris allowed to dry for 2 weeks before use.
49. MOSAIC FLOORING
Merits
1. They are laid in different sizes usually in rectangular and square
shapes.
2. They are long lasting.
3. This is a superior type of flooring used in bathrooms and kitchensof
residential buildings and in hospitals, sanatoriums andtemples
Demerits
1. They are slippery when polished

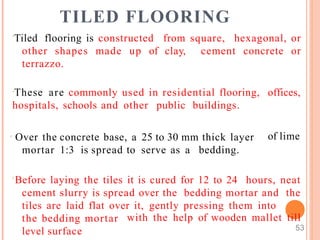

53. TILED FLOORING
Tiled flooring is constructed from square, hexagonal, or
other shapes made up of clay, cement concrete or
terrazzo.
These are commonly used in residential flooring,
hospitals, schools and other public buildings.
Over the concrete base, a 25 to 30 mm thick layer
mortar 1:3 is spread to serve as a bedding.
offices,
of lime
Before laying the tiles it is cured for 12 to 24 hours, neat
cement slurry is spread over the bedding mortar and the
tiles are laid flat over it, gently pressing them into
the bedding mortar
level surface
with the help of wooden mallet till
53
56. MARBLE FLOORING
It is a superior type of flooring used in bathrooms and
kitchens of residential building and in hospitals,
sanatoriums, temples etc. where extra cleanliness is an
essential requirement.
The base concrete is prepared in the same manner as
that of concrete floor.
Over the base concrete, 20 mm thick bedding mortar of
either 1:4 cement-sand mix is spread under the area of
each individual slab.
The marble slab is then laid over it, gently pressed with the
wooden mallet and leveled. The paved area is properly
cured for about a week.
60. WOODEN FLOORING
It is used for carpentry halls, dancing halls,
auditorium etc.
They are not commonly used in residential
building of India because timber flooring is quiet
costlier.
In hilly areas, where timber is cheaply & readily
available, and where temperature drops very low,
timber flooring is quite common.
One of the major problems in timber flooring is
the damp prevention.
This can be done by introducing D.P.C. layer
below the flooring.
60
64. ASPHALT FLOORING
64
1) ASPHALT MASTIC FLOORING:-
Asphalt mastic is the mixture of sand and asphalt in
laid in continuous
the ratio of 2:1, mixed hot and then
sheet.
It can also be applied cold, by mixing with
and asbestos.
The thickness of asphalt mastic may be
mineral oil
2.5cm for
concrete
ordinary construction. It is laid on cement
base course.
65. ASPHALT FLOORING
65
2) ASPHALTIC TILES:-
These are prepared from asphalt, asbestos fibers,
and mineral pigments by pressing the mix in
different sizes with thickness wearing from 3 to 6
mm.
Asphaltic tiles are cheap, resilient, soundproof,
non absorbent and moisture proof.
66. ASPHALT FLOORING
66

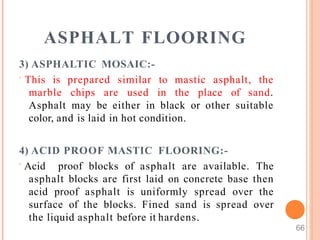

3) ASPHALTIC MOSAIC:-
This is prepared similar to mastic asphalt, the
marble chips are used in the place of sand.
Asphalt may be either in black or other suitable
color, and is laid in hot condition.
4) ACID PROOF MASTIC FLOORING:-
Acid proof blocks of asphalt are available. The
asphalt blocks are first laid on concrete base then
acid proof asphalt is uniformly spread over the
surface of the blocks. Fined sand is spread over
the liquid asphalt before it hardens.

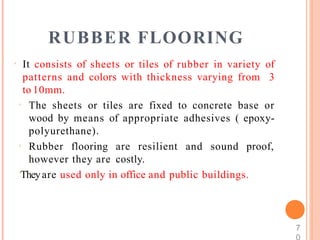

70. RUBBER FLOORING
It consists of sheets or tiles of rubber in variety of
patterns and colors with thickness varying from 3
to 10mm.
The sheets or tiles are fixed to concrete base or
wood by means of appropriate adhesives ( epoxy-
polyurethane).
Rubber flooring are resilient and sound proof,
however they are costly.
Theyare used only in office and public buildings.
7
75. LINOLEUM FLOORING
(COVERING)
It is covering which is available in rolls and
which is spread directly on concrete or wooden
flooring.
The sheets are either plane or printed and are
available in 2 to 6 mm thickness and 2 to 4 m wide
rolls.
Linoleum tiles are also available which can be
fixed to concrete base in different pattern.
are attractive, resilient,
and can be cleaned very
Linoleum covering
durable and cheap
easily.
However it is subjected to rotting when kept wet or
moist for some time. Therefore it cannot be used
for bathrooms, kitchens etc.
7
76. LINOLEUM FLOORING
Merits
1. It provides attractive, resilient, durable and cheap floor surface.
2. It offers surface which can easily washed and clean.
3. It offers adequate against insulation noise and heat.
Demerits
1. It is subject to rotting when kept wet for sufficient time and not
recommended for basements.
2. It does not offer resistance against fire, being combustible nature

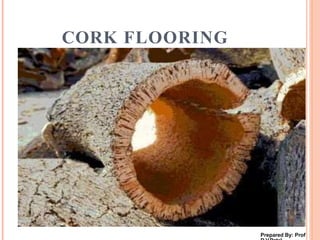

78. CORK FLOORING
Itis perfectly noise less and used in libraries,
art galleries, broadcasting stations etc.
theatres,
Cork is the outer bark of cork oak tree, is available in the
form of cork carpet and cork tiles.
It is fixed to concrete base by inserting a layer of
saturated felt.
They are available in various sized (10cm x 10cm to
30cm x 90cm) various thickness (5 to 15mm) and
various shades.
78

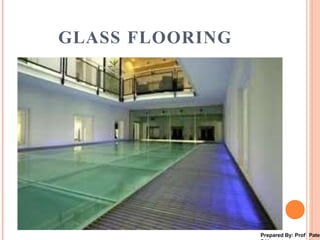

81. GLASS FLOORING
This is a special purpose flooring used in
circumstances where it is desired to transmit
light from upper floor to lower floor and
specially to admit the light at the basement
from the upper floor.
Structural glass is available in the form of tiles
in thickness varying from 12 to 30 mm.
Glass flooring is very costly and it is not used
commonly. 8

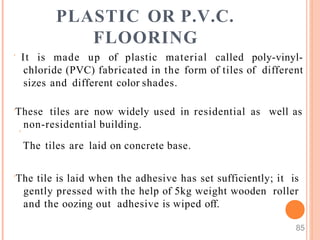

85. PLASTIC OR P.V.C.
FLOORING
85
It is made up of plastic material called poly-vinyl-
chloride (PVC) fabricated in the form of tiles of different
sizes and different color shades.
These tiles are now widely used in residential as
non-residential building.
The tiles are laid on concrete base.
well as
The tile is laid when the adhesive has set sufficiently; it is
gently pressed with the help of 5kg weight wooden roller
and the oozing out adhesive is wiped off.
86. PLASTIC OR P.V.C.
FLOORING
86
The floor is washed with warm soap water before
used.
Itis resilient, smooth, good looking and can be
easily cleaned.
It is costly and slippery and can be damaged very
easily when in contact with burning object.
89. Choice of construction for upper Floor
Toprovide this function, a floor must satisfy the following
requirements.
1. General type of building construction,
2. Amount and type of floor loading or flooring load,
3. Plan of building,
4. Sound insulation
5. Initial cost
6. Fire resistance
7. Types of ceiling
8. Weight and position of floor
9. Wearing surface
90. Types of Upper Floor
Depending upon the materials used for construction and arrange
ment of beam , girder etc. upper floor may be classified in to the f
ollowing types:
1. Steel joist and stone or precast concrete flooring
2. Jack arch floor
3. Reinforced cement concrete floor
4. Ribbed or hollow tiled flooring
5. Filler joists floor
6. Precast concrete floor
7. Timber floor
91. Steel joist and stone or precast concrete flooring
• This types of floor is quite common in location where stone sla
b are easily available in span of 1 to 3 meters and widths 30 to
60 cm.
• Where stone slabs are not available precast concrete slab can b
e used.
• The slabs are place at lower flange of rolled steeljoists.
• The spacing of steel joists depend upon the length of available
stone slab.
• The joist have the clear span equal to the width of theroom.
• The space between the top of the slab and top of steel joist(RS
J) is filled with lime concrete.
92.
93. Jack arch floors
• Jack arch is an arch of either brick or concrete, supported on lower flange ofmi
ld steel joists (R.S.J.).
• The joists are spaced 1 to 1.5 m centre to centre, and are supported at their ends
either on the walls or on longitudinal girders.
• The rise of the arch is kept equal to 1/12th of thespan.
• The bottom of the floor is not plane; this is the only disadvantage of thisfloor.
Brick Jack ArchFlooring
• Before starting the work, the RSJ should be properly secured inposition.
• Only first class bricks should be used.
• Successive rings should be properly interlocked.
• Key brick should be properly and tightly secured in richmortar.
• If lime mortar is used, RSJ should encased in cement mortar.
• Top concrete and flooring should not be laid unless the brickwork is properlyc
ured.
94.

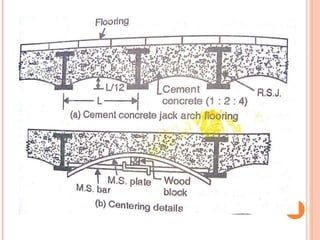

95. Cement concrete Jack Arch Flooring
• Cement concrete Jack Arch Flooring are made of 1 : 2 : 4 cement
concrete, supported on the lower flanges of M.S. joists.
• The construction of concrete jack arches is relatively simple. The
centering consists of a 3 mm thick mild steel plate, bent to the sha
pe of arch, and having pair of holes at ends, spaced at 75 cmc/c.
• The centering plate is supported on the lower flange of joists thro
ugh a pair of 12 mm dia. Rods.
• The ends of the rods pass through symmetrical holes of the center
ing plate and finally rest on the lower flange of R.S.J.
• In order to check the deflection of the centering plate, a wooden
packing block is tightly inserted between M.S. plate andRod.
96.
97. REINFORCED CEMENT CONCRETE FLOOR S
• Floors of modern buildings are invariably made of reinforced cemen
t concrete (R.C.C.), because of the inherent advantages of this type o
f construction.
• Concrete, which is strong in compression but is weak in tension . Ho
wever, it is suitably reinforced with the help of steel bars which take
the entire bending tension.
• Due to this, the overall thickness of R.C.C. floors is comparatively s
mall, thereby reducing the self weight of floor itself.
• R.C.C. floors are also comparatively fire proof and damp proof, The
method of construction is also easy except that centering isrequired.
• These floors can also be used on large spans, and therefore, more sui
table for big size rooms, halls etc.
98. R.C.C. floors can be classified into the following types
• Simple slab flooring
• Reinforced brick flooring
• Beam-slab flooring
• Flat slab flooring.
Prepared By: Prof
99. Simple R.C.C. slab Flooring
• In simple R.C.C flooring, the R.C.C. slab bends downwards, causi
ng tension at the bottom.
• Due to this mild steel bars reinforcement is placed at the bottom
of the slab, keeping a minimum clear cover of 15 mm.
• Half these bars are bent up near end to take up negative bending
moment caused due to partial fixidity at theends.
• This main reinforcement is placed in the direction of the span of t
he slab, which is equal to the width of the room, specially when th
e length of the room is more than 1.5 times the width of theroom.
• Such a slab is known as one way reinforced slab.
• Such slabs are quite suitable and economical for spans up to5m.
• When the length of room is less than 1.5 times the width of room,
the slab bends in both direction.
• Such slab is known as two way reinforcement slab.
Prepared By: Prof
100.
101. Reinforced Brick Flooring
• Reinforced brick work is a typical type of construction in which the co
mpressive strength of bricks is utilized to bear the compressive stress a
nd steel bars are used to bear the tensile stresses ina slab.
• In other words, the usual cement concrete is replaced by the bricks. H
owever, since the size of a brick is limited, continuity in the slab is obt
ained by filling the joints between the bricks by cement mortar.
• The reinforcing bars are embedded in the gap between the bricks, whic
h is filled with cement mortar. Such type of construction is quite suitab
le and cheap for small span floor slabs carrying comparatively lighter l
oads.
• The depth of reinforced brick slab is governed by the thickness of the
bricks available. Modular bricks are 10 cm thick (nominal). Hence thic
kness of slab may be kept as 10 cm.
• First class bricks should be used for such a work. Cement mortar used
to fill the joints etc. should be of 1 : 3 ratio, with proper water-cement
ratio to make the mortar workable.
• The width of the joint between adjacent bricks is generally kept equal t
o 2 cm.
102.

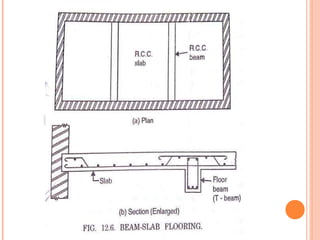

103. Beam-Slab Flooring
• When the width of room becomes more, the span of slab incre
ases, and simple R.C.C slab becomes uneconomical.
• In that case, the floor structure consists of R.C.C. beams and sl
abs cast monolithically.
• The beams, known as T-beams, act as intermediate supports to
the slab which is continuous over these beams.
• When the size of the room {i.e.. hall) is very large, intermediat
e T-beams are constructed either supported on R.C.C. columns
or end walls.
104.
105. Flat Slab Flooring
• A flat slab is a typical type of construction in which a reinforced sl
ab is built monolithically with the supporting columns and is reinfo
rced in two or more directions, without any provision of beams.
• The flat slab thus transfers the load directly to the supporting colu
mns suitably spaced below the slab.
• Because of exclusion of beam system in this type of construction, a
plain ceiling is obtained, thus giving attractive appearance from arc
hitectural point of view.
106.

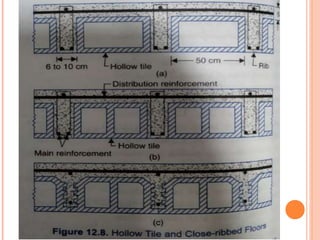

107. RIBBED OR HOLLOW TILED FLOORING
• Concrete is incapable of resisting tension which is caused in the lower part
of the thickness of the slab. This lower part does not partake in load bearing
, and hence part of it can be replaced by hollow tiles so that weight of the sl
ab is reduced.
• The clear spacing of ribs depends upon the size of hollow blocks available,
but it should normally not exceed 50 cm.
• The width of ribs may vary between 6 to 10 cm. The span of ribs may be as
much as 7 m.
• Main reinforcement is provided at the bottom of the rib. To resist the supp
ort moment (negative) an additional bar is placed at the top of rib section.
• A minimum cover of 2.5 cm is provided. The depth of rib is calculated on t
he basis of bending moment as well as the cost ratio of steel and concrete.
• Depth of rib is usually kept as at least L/20 with free support and at least L/
25 with fixed support, where Lis the span of the ribs.
• Hollow tiles are available in different widths and different depths. Sometim
es, to suit the requirements of the depth of rib, hollow tiles of required dept
h may be manufactured at the site.
108.
109. FILLER JOISTS FLOORS
• This is a typical type of composite construction in which R.S.J
of small sections are placed in concrete.
• The spacing of the joists may vary between 40 to 90 cm.
• The filler joists may either rest on walls (if the span is less) or
on longitudinal steel beams.
• The joists act as reinforcement, and no separatereinforcement
is provided in the concrete filled in between thejoists.
• Concrete should completely surround the filler joists and steel
beams, with a minimum cover of 2.5 cm over filler joists.
110.
111. PRE-CAST CONCRETE FLOORS
• With the modern developments in construction technology, precast bea
m slab units are now available with the help of which the floors can be
constructed easily. without use of any form work.
• These precast units are available in about 25 cm width, various depths,
and various spans.
• Precast units can be supported either on walls or on rolled steel joists.
The sides of each unit are provided with grooves to form connecting jo
ggles for adjacent units.
• The joints are grouted with cement mortar, using concrete guns.
• Such floors are economical, light weight, sound proof, fire proof.
112.
113. TIMBER FLOORS
• Timber floors which is quite light in weight, have poor fire resista
nce and sound insulation property.
• They are quite costly except at those location where local timberi
s cheaply available.
• timber floor are basically three types,
• Single joist timber floors.
• Double joists timber floors
• Framed or triple joists timber floor
