The document describes several assembly language programs written for the 8086 microprocessor: 1. Programs for 16-bit addition, subtraction, multiplication, and division by initializing values in registers and memory locations and performing operations. 2. Programs for sorting arrays in ascending and descending order by comparing elements and exchanging values. 3. Programs for string copy and reverse by initializing source and destination addresses and moving elements. 4. A program for searching an array by loading elements, comparing to a value, and displaying results. 5. Programs for file manipulation and interfacing with a stepper motor and keyboard/display.

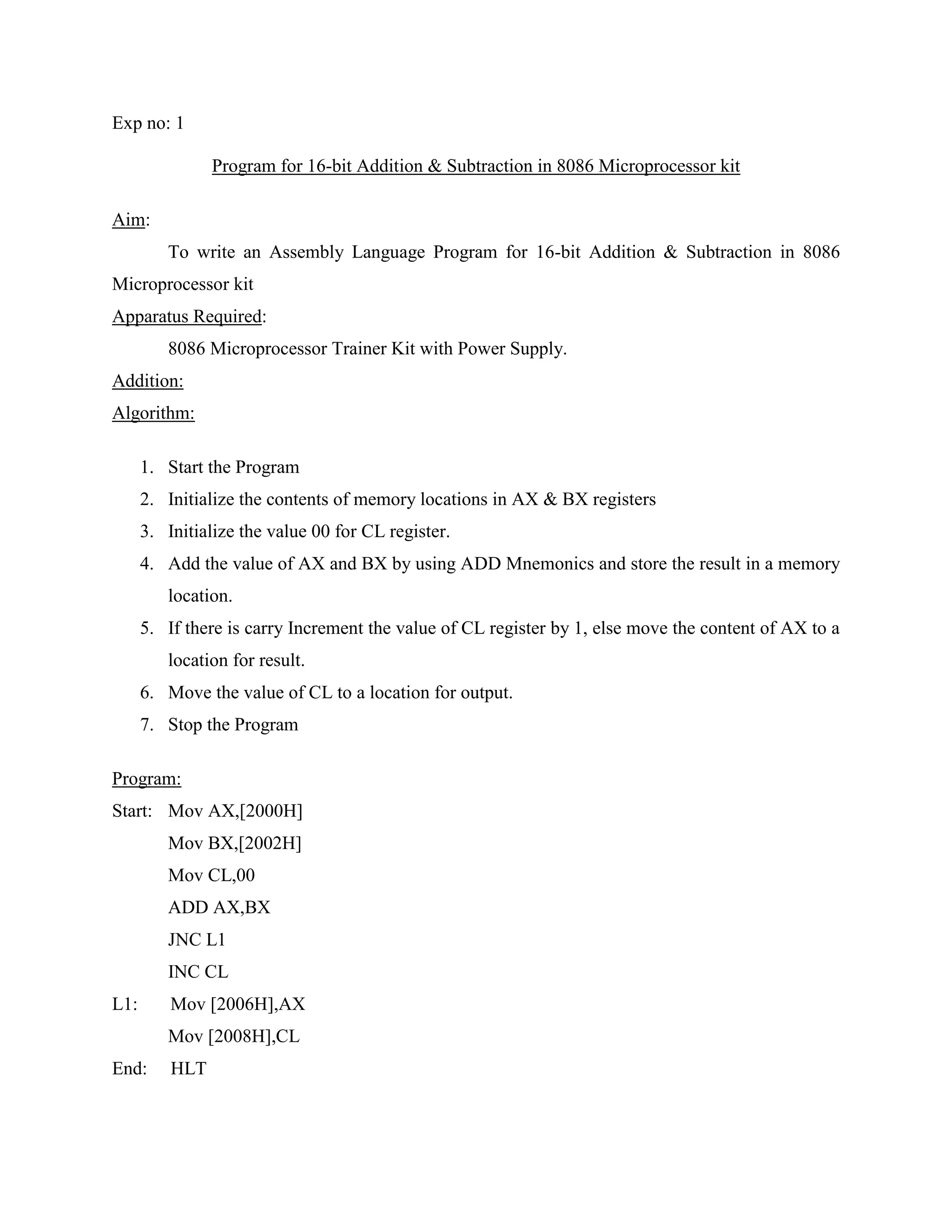

1. Exp no: 1
Program for 16-bit Addition & Subtraction in 8086 Microprocessor kit
Aim:
To write an Assembly Language Program for 16-bit Addition & Subtraction in 8086
Microprocessor kit
Apparatus Required:
8086 Microprocessor Trainer Kit with Power Supply.
Addition:
Algorithm:
1. Start the Program
2. Initialize the contents of memory locations in AX & BX registers
3. Initialize the value 00 for CL register.
4. Add the value of AX and BX by using ADD Mnemonics and store the result in a memory
location.
5. If there is carry Increment the value of CL register by 1, else move the content of AX to a
location for result.
6. Move the value of CL to a location for output.
7. Stop the Program
Program:
Start: Mov AX,[2000H]
Mov BX,[2002H]
Mov CL,00
ADD AX,BX
JNC L1
INC CL
L1: Mov [2006H],AX
Mov [2008H],CL
End: HLT

2. Subtraction:
Algorithm:
1. Start the Program
2. Initialize the contents of memory locations in AX & BX registers
3. Initialize the value 00 for CL register.
4. Subtract the value of AX and BX by using SUB Mnemonics and store the result in a
memory location.
5. If there is carry Increment the value of CL register by 1, else move the content of AX to a
location for result.
6. Move the value of CL to a location for output.
7. Stop the Program
Program:
Strat: Mov AX,[2000H]
Mov BX,[2002H]
Mov CL,00H
SUB AX,BX
JNC L1
INC CL
L1: Mov [2006H],AX
Mov [2008H],CL
End: HLT
Result:
Thus the ALP to add and subtract 16 bit number using 8086 Microprocessor Kit was
written and executed successfully.

3. Exp no: 2
Program for 16-bit Division & Multiplication in 8086 Microprocessor kit.
Aim:
To write an Assembly Language Program for 16-bit Division & Multiplication in 8086
Microprocessor kit.
Apparatus Required:
8086 Microprocessor Trainer Kit with Power Supply.
Multiplication:
Algorithm:
1. start the program
2. initialize the contents for AX and BX from memory locations
3. Multiple the AX and BX value using MUL Mnemonics and store the result in a memory
location.
4. move the content of AX and DX to memory locations to check the result.
5. stop the program
Program:
Start: mov AX,[2000H]
mov BX,[2002H]
MUL BX
mov [2006H],AX
mov [2008H],DX
end: HLT
Division:
Algorithm:
1. start the program
2. initialize the contents for AX and BX from memory locations
3. Multiple the AX and BX value using MUL Mnemonics and store the result in a memory
location.

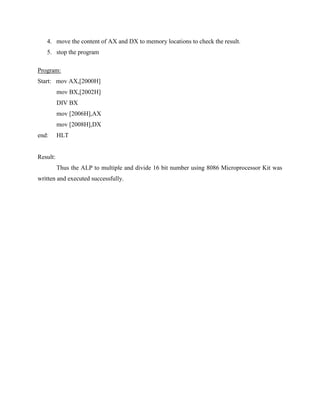

4. 4. move the content of AX and DX to memory locations to check the result.
5. stop the program
Program:
Start: mov AX,[2000H]
mov BX,[2002H]
DIV BX
mov [2006H],AX
mov [2008H],DX
end: HLT
Result:
Thus the ALP to multiple and divide 16 bit number using 8086 Microprocessor Kit was
written and executed successfully.

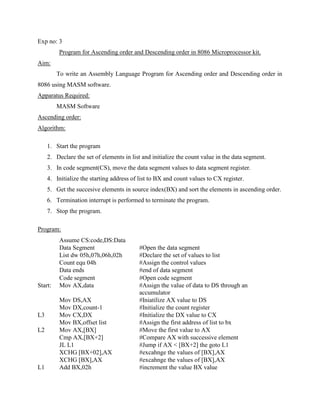

5. Exp no: 3
Program for Ascending order and Descending order in 8086 Microprocessor kit.
Aim:
To write an Assembly Language Program for Ascending order and Descending order in
8086 using MASM software.
Apparatus Required:
MASM Software
Ascending order:
Algorithm:
1. Start the program
2. Declare the set of elements in list and initialize the count value in the data segment.
3. In code segment(CS), move the data segment values to data segment register.
4. Initialize the starting address of list to BX and count values to CX register.
5. Get the succesive elements in source index(BX) and sort the elements in ascending order.
6. Termination interrupt is performed to terminate the program.
7. Stop the program.
Program:
Assume CS:code,DS:Data
Data Segment #Open the data segment
List dw 05h,07h,06h,02h #Declare the set of values to list
Count equ 04h #Assign the control values
Data ends #end of data segment
Code segment #Open code segment
Start: Mov AX,data #Assign the value of data to DS through an
accumulator
Mov DS,AX #Iniatilize AX value to DS
Mov DX,count-1 #Initialize the count register
L3 Mov CX,DX #Initialize the DX value to CX
Mov BX,offset list #Assign the first address of list to bx
L2 Mov AX,[BX] #Move the first value to AX
Cmp AX,[BX+2] #Compare AX with successive element
JL L1 #Jump if AX < [BX+2] the goto L1
XCHG [BX+02],AX #excahnge the values of [BX],AX
XCHG [BX],AX #excahnge the values of [BX],AX
L1 Add BX,02h #increment the value BX value

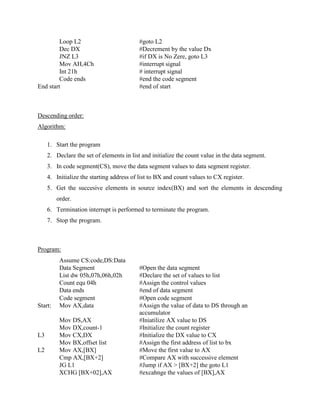

6. Loop L2 #goto L2
Dec DX #Decrement by the value Dx
JNZ L3 #if DX is No Zere, goto L3
Mov AH,4Ch #interrupt signal
Int 21h # interrupt signal
Code ends #end the code segment
End start #end of start
Descending order:
Algorithm:
1. Start the program
2. Declare the set of elements in list and initialize the count value in the data segment.
3. In code segment(CS), move the data segment values to data segment register.
4. Initialize the starting address of list to BX and count values to CX register.
5. Get the succesive elements in source index(BX) and sort the elements in descending
order.
6. Termination interrupt is performed to terminate the program.
7. Stop the program.
Program:
Assume CS:code,DS:Data
Data Segment #Open the data segment
List dw 05h,07h,06h,02h #Declare the set of values to list
Count equ 04h #Assign the control values
Data ends #end of data segment
Code segment #Open code segment
Start: Mov AX,data #Assign the value of data to DS through an
accumulator
Mov DS,AX #Iniatilize AX value to DS
Mov DX,count-1 #Initialize the count register
L3 Mov CX,DX #Initialize the DX value to CX
Mov BX,offset list #Assign the first address of list to bx
L2 Mov AX,[BX] #Move the first value to AX
Cmp AX,[BX+2] #Compare AX with successive element
JG L1 #Jump if AX > [BX+2] the goto L1
XCHG [BX+02],AX #excahnge the values of [BX],AX

7. XCHG [BX],AX #excahnge the values of [BX],AX
L1 Add BX,02h #increment the value BX value
Loop L2 #goto L2
Dec DX #Decrement by the value Dx
JNZ L3 #if DX is No Zere, goto L3
Mov AH,4Ch #interrupt signal
Int 21h # interrupt signal
Code ends #end the code segment
End start #end of start
Result:
Thus , the Assembly language program for sort the elements in ascending and descending
order was written , executed successfully and the output was verified.

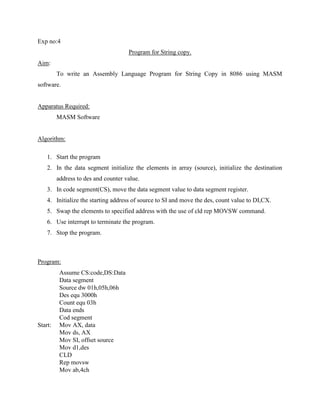

8. Exp no:4
Program for String copy.
Aim:
To write an Assembly Language Program for String Copy in 8086 using MASM
software.
Apparatus Required:
MASM Software
Algorithm:
1. Start the program
2. In the data segment initialize the elements in array (source), initialize the destination
address to des and counter value.
3. In code segment(CS), move the data segment value to data segment register.
4. Initialize the starting address of source to SI and move the des, count value to DI,CX.
5. Swap the elements to specified address with the use of cld rep MOVSW command.
6. Use interrupt to terminate the program.
7. Stop the program.
Program:
Assume CS:code,DS:Data
Data segment
Source dw 01h,05h,06h
Des equ 3000h
Count equ 03h
Data ends
Cod segment
Start: Mov AX, data
Mov ds, AX
Mov SI, offset source
Mov d1,des
CLD
Rep movsw
Mov ab,4ch

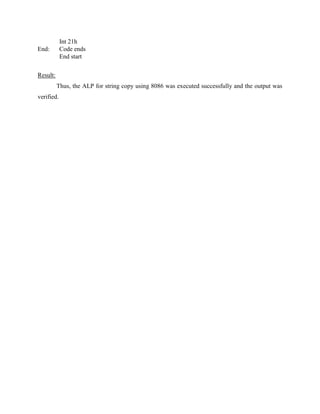

9. Int 21h
End: Code ends
End start
Result:
Thus, the ALP for string copy using 8086 was executed successfully and the output was
verified.

10. Exp no: 5
Program for Reverse the String.
Aim:
To write an Assembly Language Program for Reverse the String in 8086 using MASM
software.
Apparatus Required:
MASM Software
Algorithm:
1. Start the program
2. In the data segment, initialize the elements in array named as src, initialize the empty
array size as ds and the count value.
3. In code segment (CS), move the data segment value to data segment register.
4. Move the count value (count +1) to count register and define the offset address of des to
di and move the 06h to dx.
5. Define the offset address of src to s1 then move the s1 to bx then bx to dx.
6. Decrement the destination index then subtract the source index value.
7. Decrement the CX if nonzero goto step 5.
8. Stop the program.
Program:
Assume cs: code, ds: data
Data segment
src dw 09h,08h,07h
des dw 10h
count equ 03h
data ends
code segment
start: mov ax, data
mov ds, ax
mov cx,count+1
mov di, offset des
mov dx, 06h
mov si, offset src
add si, dx

11. loop: mov bx, [si]
mov [di], bx
add di, 02h
dec cx
jnz loop
mov ah, 4ch
int 21h
code ends
end start.
RESULT:
Thus the ALP for reverse the string in 8086 was written and executed successfully and
the output was verified.

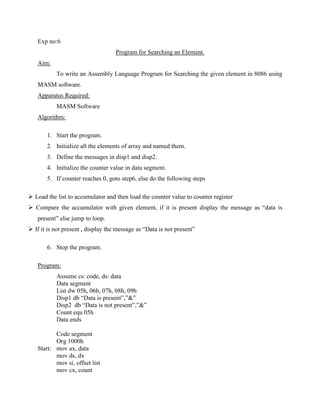

12. Exp no:6
Program for Searching an Element.
Aim:
To write an Assembly Language Program for Searching the given element in 8086 using
MASM software.
Apparatus Required:
MASM Software
Algorithm:
1. Start the program.
2. Initialize all the elements of array and named them.
3. Define the messages in disp1 and disp2.
4. Initialize the counter value in data segment.
5. If counter reaches 0, goto step6, else do the following steps
 Load the list to accumulator and then load the counter value to counter register
 Compare the accumulator with given element, if it is present display the message as “data is
present” else jump to loop.
 If it is not present , display the message as “Data is not present”
6. Stop the program.
Program:
Assume cs: code, ds: data
Data segment
List dw 05h, 06h, 07h, 08h, 09h
Disp1 db “Data is present”,”&”
Disp2 db “Data is not present”,”&”
Count equ 05h
Data ends
Code segment
Org 1000h
Start: mov ax, data
mov ds, dx
mov si, offset list
mov cx, count

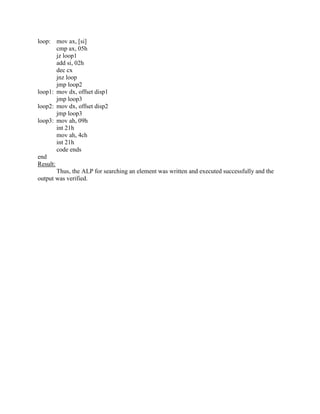

13. loop: mov ax, [si]
cmp ax, 05h
jz loop1
add si, 02h
dec cx
jnz loop
jmp loop2
loop1: mov dx, offset disp1
jmp loop3
loop2: mov dx, offset disp2
jmp loop3
loop3: mov ah, 09h
int 21h
mov ah, 4ch
int 21h
code ends
end
Result:
Thus, the ALP for searching an element was written and executed successfully and the
output was verified.

14. Exp no:7
Program for File Manipulation in 8086.
Aim:
To write an Assembly Language Program for File Manipulation in 8086 using MASM
software.
Apparatus Required:
MASM Software
Algorithm:
1. Start the program
2. In the data segment define byte for filename and named as FN
3. In code segment, move the data segment values to ds register
4. Initialize the address of FN to DX register.
5. Interrupt command (3ch) is used to pen a file.
6. Perform the termination using terminate interrupt for program.
7. Stop the program.
Program:
Assume cs: code, ds: data
Data segment
FN DB “siva.txt”,”$”
Data ends
Code segment
Start: mov ax, data
mov ds, ax
mov dx, offset FN
mov cx, 00h
mov ah,3ch
int 21h
code ends
end start
Result:
Thus the ALP for file manipulation in 8086 using MASM software was written and
executed successfully and the output was verified.

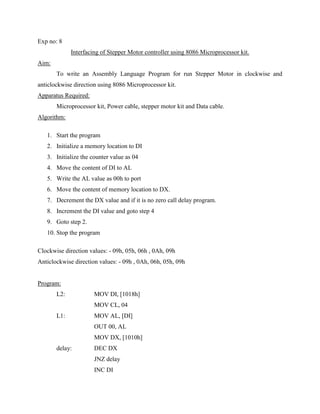

15. Exp no: 8
Interfacing of Stepper Motor controller using 8086 Microprocessor kit.
Aim:
To write an Assembly Language Program for run Stepper Motor in clockwise and
anticlockwise direction using 8086 Microprocessor kit.
Apparatus Required:
Microprocessor kit, Power cable, stepper motor kit and Data cable.
Algorithm:
1. Start the program
2. Initialize a memory location to DI
3. Initialize the counter value as 04
4. Move the content of DI to AL
5. Write the AL value as 00h to port
6. Move the content of memory location to DX.
7. Decrement the DX value and if it is no zero call delay program.
8. Increment the DI value and goto step 4
9. Goto step 2.
10. Stop the program
Clockwise direction values: - 09h, 05h, 06h , 0Ah, 09h
Anticlockwise direction values: - 09h , 0Ah, 06h, 05h, 09h
Program:
L2: MOV DI, [1018h]
MOV CL, 04
L1: MOV AL, [DI]
OUT 00, AL
MOV DX, [1010h]
delay: DEC DX
JNZ delay
INC DI

16. LOOP L1
JUMP L2
HLT
Clockwise direction values: - 09h, 05h, 06h, 0Ah, 09h
Anticlockwise direction values: - 09h, 0Ah, 06h, 05h, 09h
Result:
Thus, the assembly language program in 8086 for stepper motor in clockwise and
anticlockwise was written and executed successfully and the output was verified.

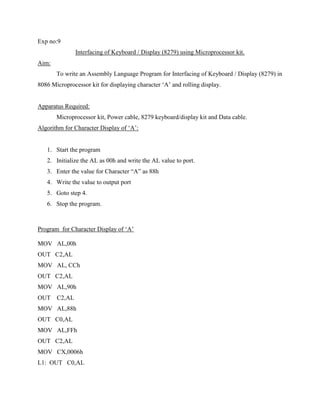

17. Exp no:9
Interfacing of Keyboard / Display (8279) using Microprocessor kit.
Aim:
To write an Assembly Language Program for Interfacing of Keyboard / Display (8279) in
8086 Microprocessor kit for displaying character „A‟ and rolling display.
Apparatus Required:
Microprocessor kit, Power cable, 8279 keyboard/display kit and Data cable.
Algorithm for Character Display of „A‟:
1. Start the program
2. Initialize the AL as 00h and write the AL value to port.
3. Enter the value for Character “A” as 88h
4. Write the value to output port
5. Goto step 4.
6. Stop the program.
Program for Character Display of „A‟
MOV AL,00h
OUT C2,AL
MOV AL, CCh
OUT C2,AL
MOV AL,90h
OUT C2,AL
MOV AL,88h
OUT C0,AL
MOV AL,FFh
OUT C2,AL
MOV CX,0006h
L1: OUT C0,AL

18. LOOP L1
HLT
Algorithm for Rolling Display:
1. Start the program
2. Set the counter value for number of characters to roll and write the value port.
3. Move the 10h, CCh, 90h value for number of characters to roll and write the value port.
4. Move the roll character values to source index(SI) and write into port.
5. Move the value 0A0Fh to the register DX
6. Decrement it till reach 00h.
7. If DX is no zero goto step 6 and increment Source index to accept next value
8. Goto step 4.
9. Stop the program.
Program for Rolling Display:
START: MOV SI,[2000h]
MOV CX, 000Fh
MOV AL, 10h
OUT C2, AL
MOV AL, CCh
OUT C2,AL
MOV AL,90h
OUT C2,AL
L1: MOV AL,[SI]
OUT C0,AL
MOV DX,0A0Fh
L2: DEC DX
JNZ L2
INC SI
LOOP L1
JMP START
Result: Thus, the assembly language program in 8086 to display the character „A‟
and roll the display was written and executed successfully and the output was verified.

19. Exp no:10
Interfacing of ADC with 8086 Microprocessor kit.
Aim :
To write an Assembly Language Program for Interfacing ADC in 8086 Microprocessor
kit.
Apparatus Required:
Microprocessor kit, Power cable, ADC kit and Data cable
Algorithm for ADC:
1. Start the program.
2. Move the control register values to AL register and write those values to ports.
3. Move the initial value 00yh to AL and write the value to port.
4. Accept the analog value from ADC kit and store it in AL.
5. Compare the AL with 01h, if it true and no zero goto step 4.
6. Accept the analog value from port and store it in AL.
7. Move the value in AL to a memory Location [1500h].
8. Stop the program.
Program for ADC:
MOV AL,10h
OUT C8,AL
MOV AL,18h
OUT C8,AL
MOV AL,01h
OUT D0,AL
MOV AL,00h
MOV AL,00h
MOV AL,00h
MOV AL,00h
OUT D0,AL

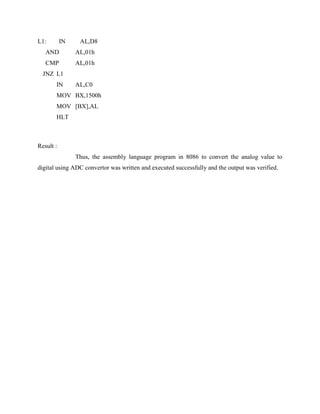

20. L1: IN AL,D8
AND AL,01h
CMP AL,01h
JNZ L1
IN AL,C0
MOV BX,1500h
MOV [BX],AL
HLT
Result :
Thus, the assembly language program in 8086 to convert the analog value to
digital using ADC convertor was written and executed successfully and the output was verified.

21. Exp no:11
Interfacing of DAC with 8086 Microprocessor kit.
Aim :
To write an Assembly Language Program for Interfacing of DAC with 8086
Microprocessor kit for generating waveforms such as sine wave, triangular wave, saw tooth
wave and square wave.
Apparatus Required:
Microprocessor kit, Power cable, DAC kit and Data cable.
Algorithm:
SAW TOOTH WAVE:
1. Start the program
2. Initialize the register AL as 00h
3. Write the initial value in port
4. Increment the AL value and check if no zero goto step 3.
5. Stop the program
TRIANGULAR WAVE:
1. Start the program
2. Initialize the BL register as 00h
3. Move the contents of BL to AL
4. Write the AL value in Port
5. Increment the BL value and check if it is no zero goto step 2
6. Initialize the BL register as FFh
7. Move the contents of BL to AL
8. Write the AL value in Port
9. Decrement the BL register and check if it is zero goto step 6
10. Goto step 1
11. Stop the program

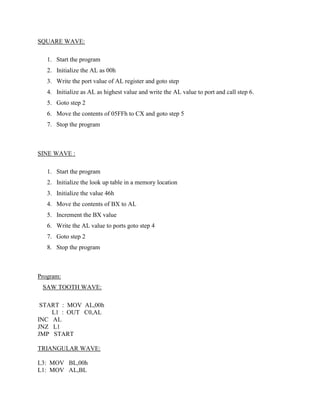

22. SQUARE WAVE:
1. Start the program
2. Initialize the AL as 00h
3. Write the port value of AL register and goto step
4. Initialize as AL as highest value and write the AL value to port and call step 6.
5. Goto step 2
6. Move the contents of 05FFh to CX and goto step 5
7. Stop the program
SINE WAVE :
1. Start the program
2. Initialize the look up table in a memory location
3. Initialize the value 46h
4. Move the contents of BX to AL
5. Increment the BX value
6. Write the AL value to ports goto step 4
7. Goto step 2
8. Stop the program
Program:
SAW TOOTH WAVE:
START : MOV AL,00h
L1 : OUT C0,AL
INC AL
JNZ L1
JMP START
TRIANGULAR WAVE:
L3: MOV BL,00h
L1: MOV AL,BL

23. OUT C8,AL
INC BL
JNZ L1
MOV BL,FFh
L2: MOV AL,BL
OUT C8,AL
DEC BL
JNZ L2
JMP L3
SQUARE WAVE:
START: MOV AL,00h
OUT C8,AL
CALL ROUTINE
MOV AL,FFh
OUT C8,AL
CALL ROUTINE
JMP START
ROUTINE : MOV CX,05FFh
L3 : LOOP L3
RET
SINE WAVE GENERATION:
START: MOV BX,1100h
MOV CL,46h
L1: MOV AL,[BX]
OUT C0,AL
INC BX
LOOP L1
JMP START
Result :
Thus, the assembly language program in 8086 to convert the digital values to
analog using DAC convertor for generating waveforms such as sine wave, triangular wave, saw
tooth wave and square wave was written and executed successfully and the output was verified.

24. Exp no:12
Interfacing of Timer with 8086 Microprocessor kit.
Aim:
To write an Assembly Language Program for Interfacing of Timer with 8086
Microprocessor kit.
Apparatus Required:
Microprocessor kit, Power cable, Timer kit and Data cable.
Algorithm:
1. Start the program.
2. Move the counter value to AL either it may be even or odd and write the AL value to output
port.
3. Move the highest value (10h) to AL either it may be even or odd and write the AL value to
output port.
4. Move the initial value (00h) to AL either it may be even or odd and write the AL value to output
port.
5. Stop the program.
Program:
Mov AL, 36h
Out C8, AL
Mov AL, 10h
Out C8, AL
Mov AL, 00h
Out C8, AL
HLT.
Result:
Thus, the assembly language program in 8086 microprocessor interface with
timer was written and executed successfully and the output was verified.
