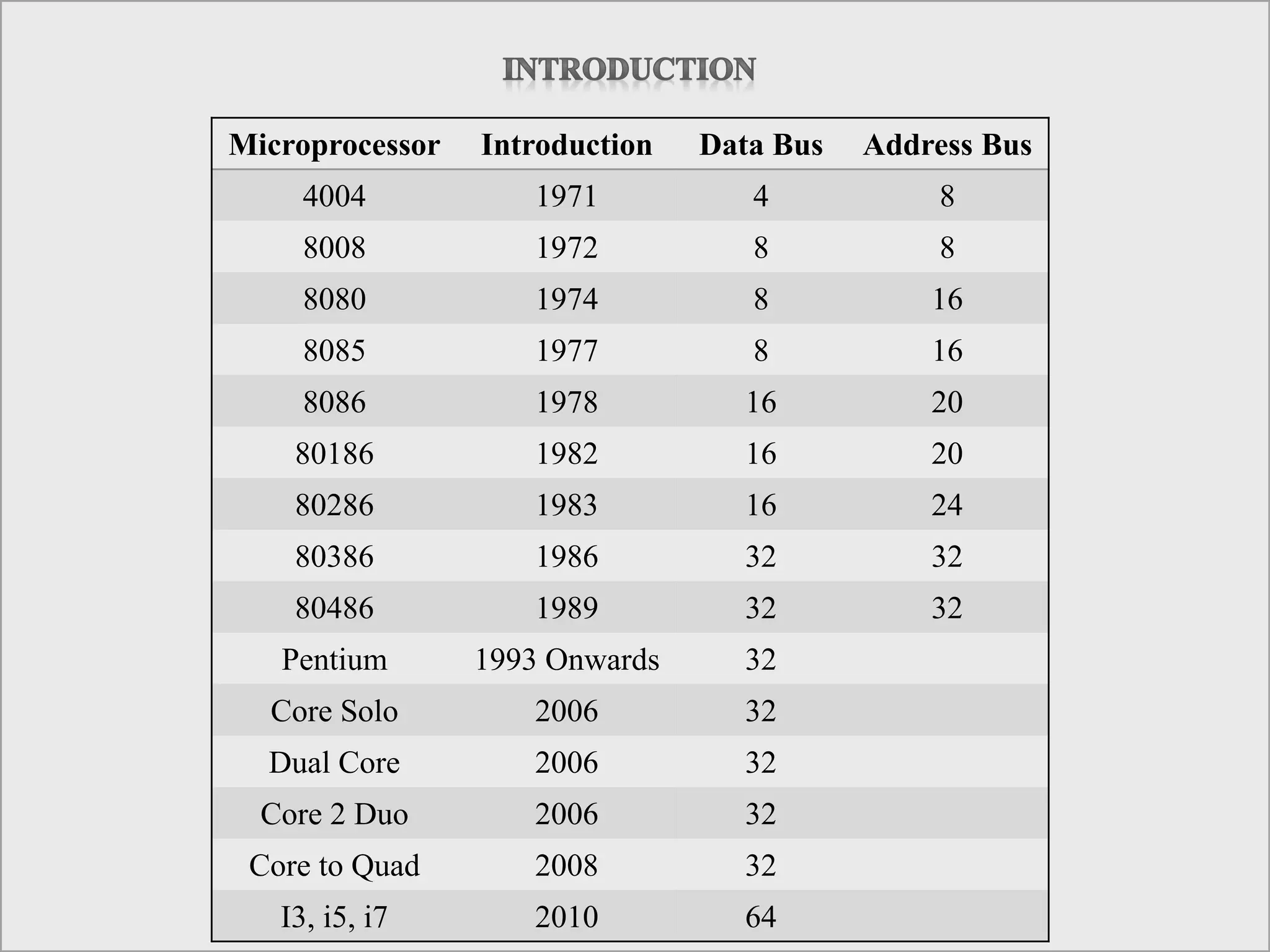

- A table showing the evolution of microprocessors from the 4004 in 1971 to modern Intel processors with increasing data bus widths and capabilities.
- Descriptions of the differences between microprocessors which are the central components of computers, and microcontrollers which integrate CPU and peripherals into a single chip for embedded systems.
- Examples of assembly language instructions for the 8085 microprocessor and their opcodes, addressing modes, and effects on status flags.
Embedded Systems,Embedded Systems Project,Winter training,Technogroovy
like our page for more updates:
https://www.facebook.com/Technogroovyindia
With Best Regard's
Technogroovy Systems India Pvt. Ltd.
www.technogroovy.com
Call- +91-9582888121
Whatsapp- +91-8800718323
8085 Microprocessor, Features/Characteristics of 8085, Communication between Microprocessor & Memory, 8085 Programming Model, 8085 Registers, Flag Register, General Purpose Register, Special Purpose Register, Stack Pointer, Program Counter, Interrupts, Control Unit, Architecture/Block Diagram of 8085 & its explanation, Pin diagram of 8085
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
More Related Content
Similar to MPMC Architecture of 8085 Microprocessor and Programming.pptx
Embedded Systems,Embedded Systems Project,Winter training,Technogroovy
like our page for more updates:
https://www.facebook.com/Technogroovyindia
With Best Regard's
Technogroovy Systems India Pvt. Ltd.
www.technogroovy.com
Call- +91-9582888121
Whatsapp- +91-8800718323
8085 Microprocessor, Features/Characteristics of 8085, Communication between Microprocessor & Memory, 8085 Programming Model, 8085 Registers, Flag Register, General Purpose Register, Special Purpose Register, Stack Pointer, Program Counter, Interrupts, Control Unit, Architecture/Block Diagram of 8085 & its explanation, Pin diagram of 8085
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control.
In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including
A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain
A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
4. 4

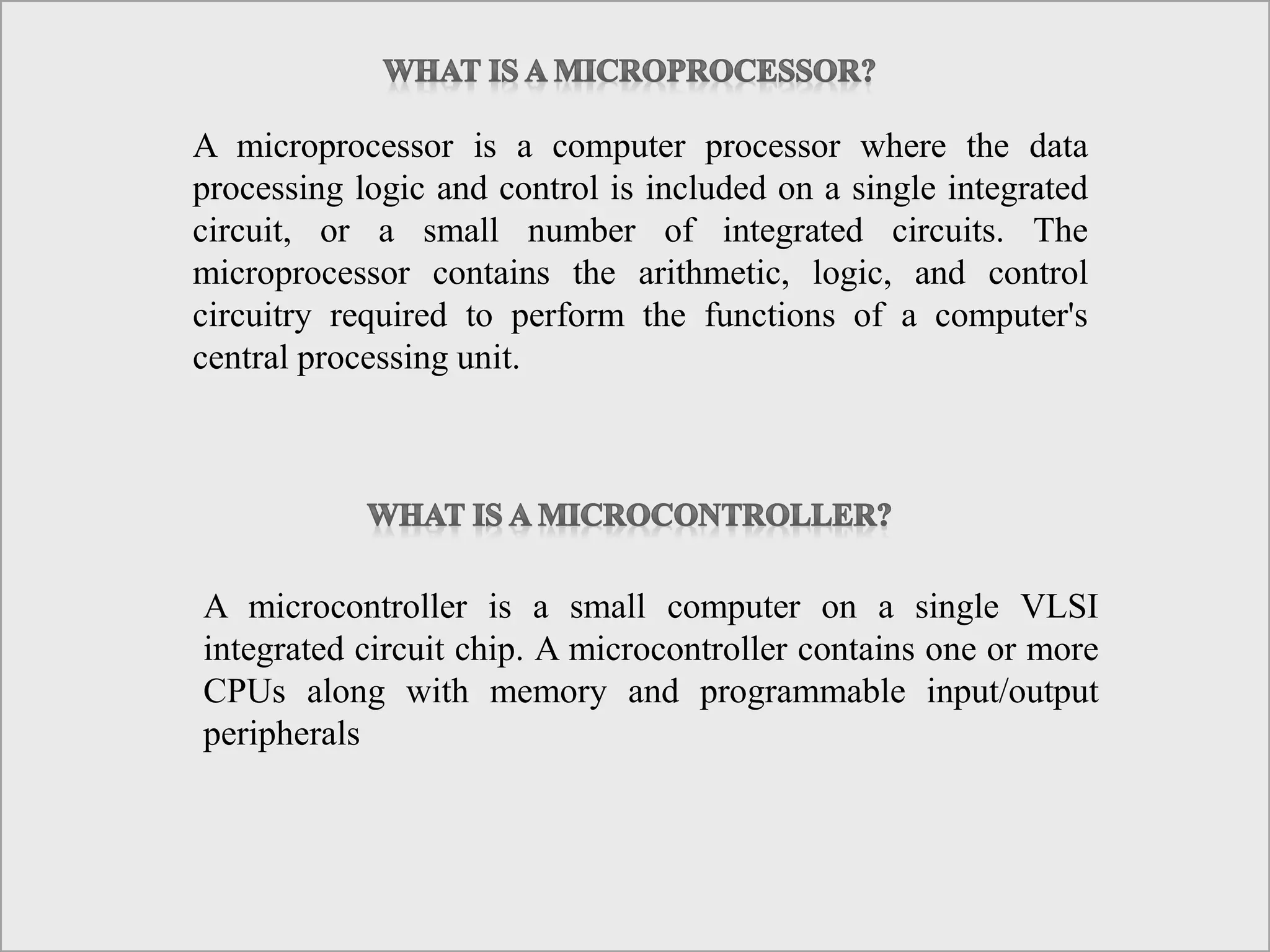

A microprocessor is a computer processor where the data
processing logic and control is included on a single integrated
circuit, or a small number of integrated circuits. The
microprocessor contains the arithmetic, logic, and control
circuitry required to perform the functions of a computer's
central processing unit.
A microcontroller is a small computer on a single VLSI
integrated circuit chip. A microcontroller contains one or more
CPUs along with memory and programmable input/output
peripherals
5. 5

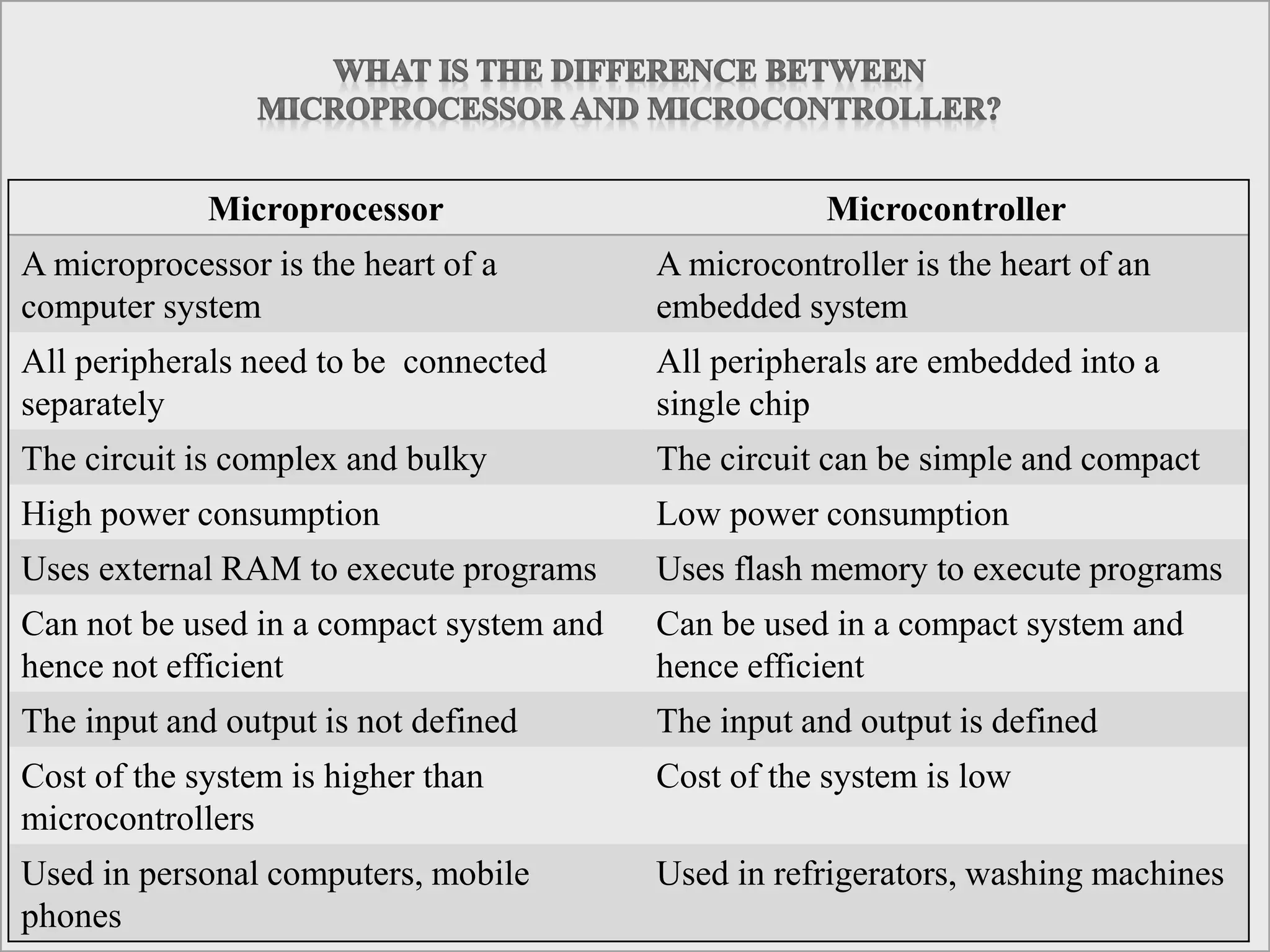

Microprocessor Microcontroller
A microprocessor is the heart of a
computer system
A microcontroller is the heart of an
embedded system
All peripherals need to be connected
separately
All peripherals are embedded into a
single chip
The circuit is complex and bulky The circuit can be simple and compact
High power consumption Low power consumption
Uses external RAM to execute programs Uses flash memory to execute programs
Can not be used in a compact system and
hence not efficient
Can be used in a compact system and
hence efficient
The input and output is not defined The input and output is defined
Cost of the system is higher than
microcontrollers
Cost of the system is low
Used in personal computers, mobile
phones
Used in refrigerators, washing machines

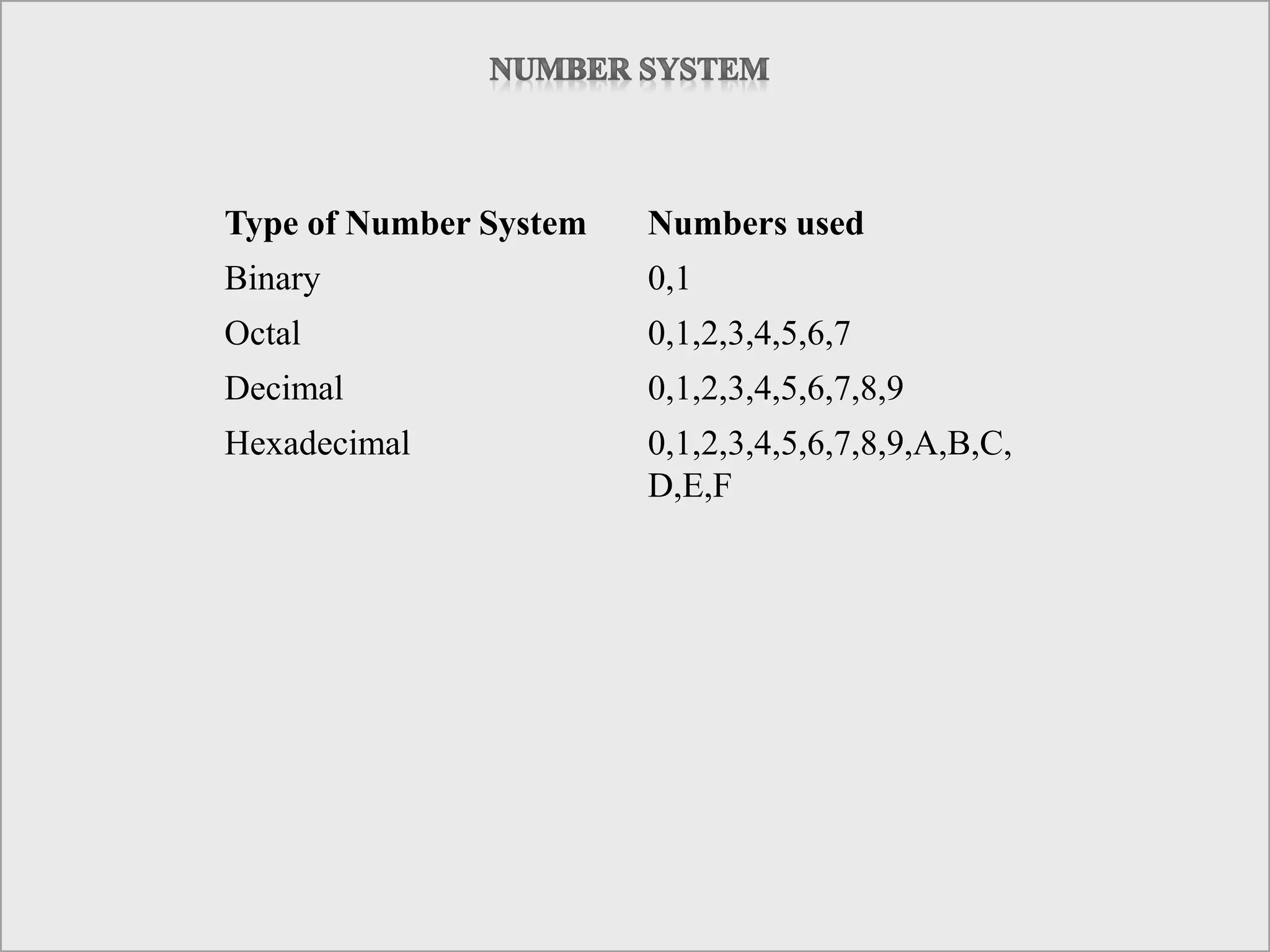

6. 6
Type of Number System Numbers used
Binary 0,1
Octal 0,1,2,3,4,5,6,7
Decimal 0,1,2,3,4,5,6,7,8,9
Hexadecimal 0,1,2,3,4,5,6,7,8,9,A,B,C,
D,E,F

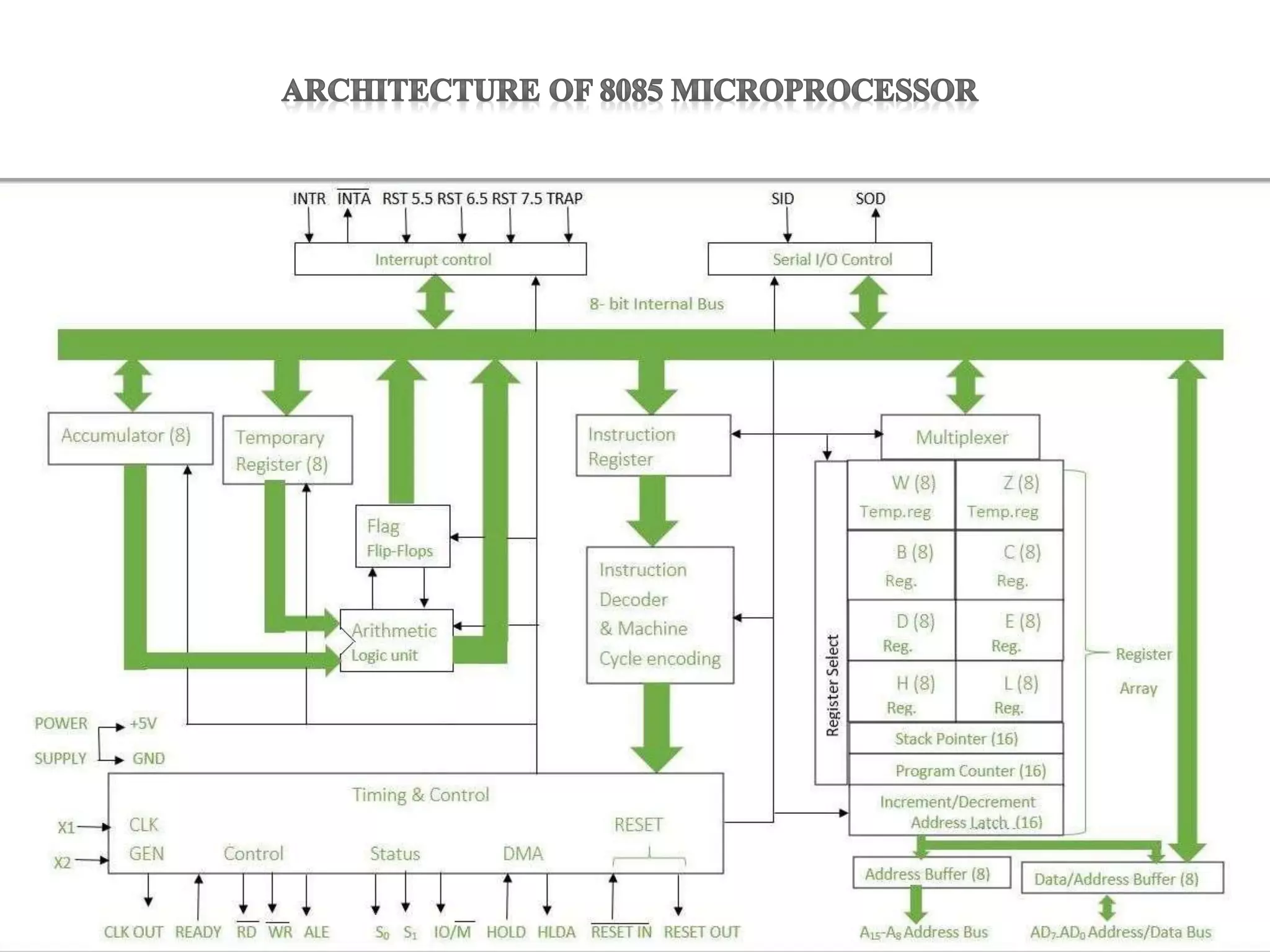

9. 9

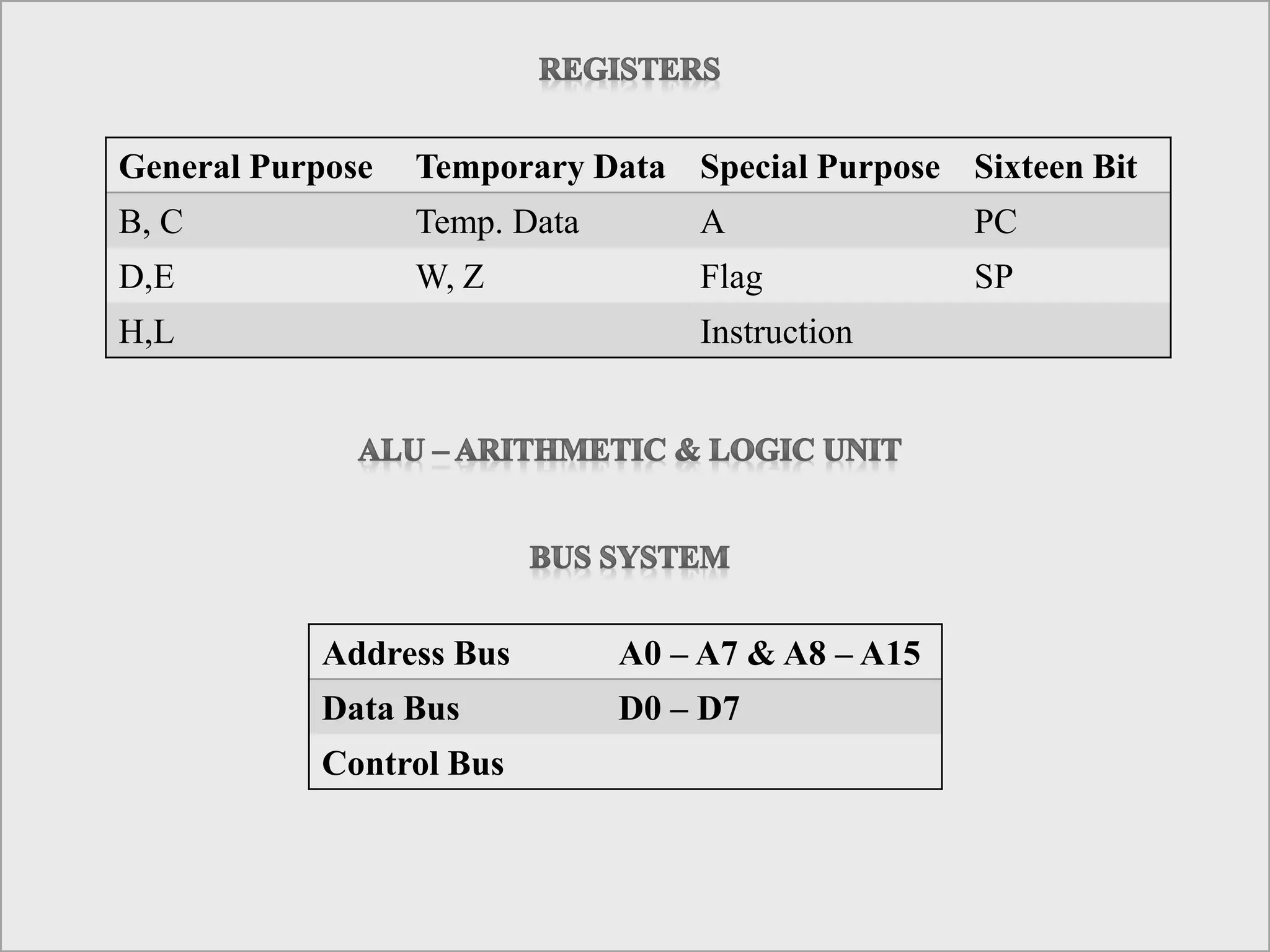

General Purpose Temporary Data Special Purpose Sixteen Bit
B, C Temp. Data A PC
D,E W, Z Flag SP
H,L Instruction
Address Bus A0 – A7 & A8 – A15
Data Bus D0 – D7
Control Bus
10. 10

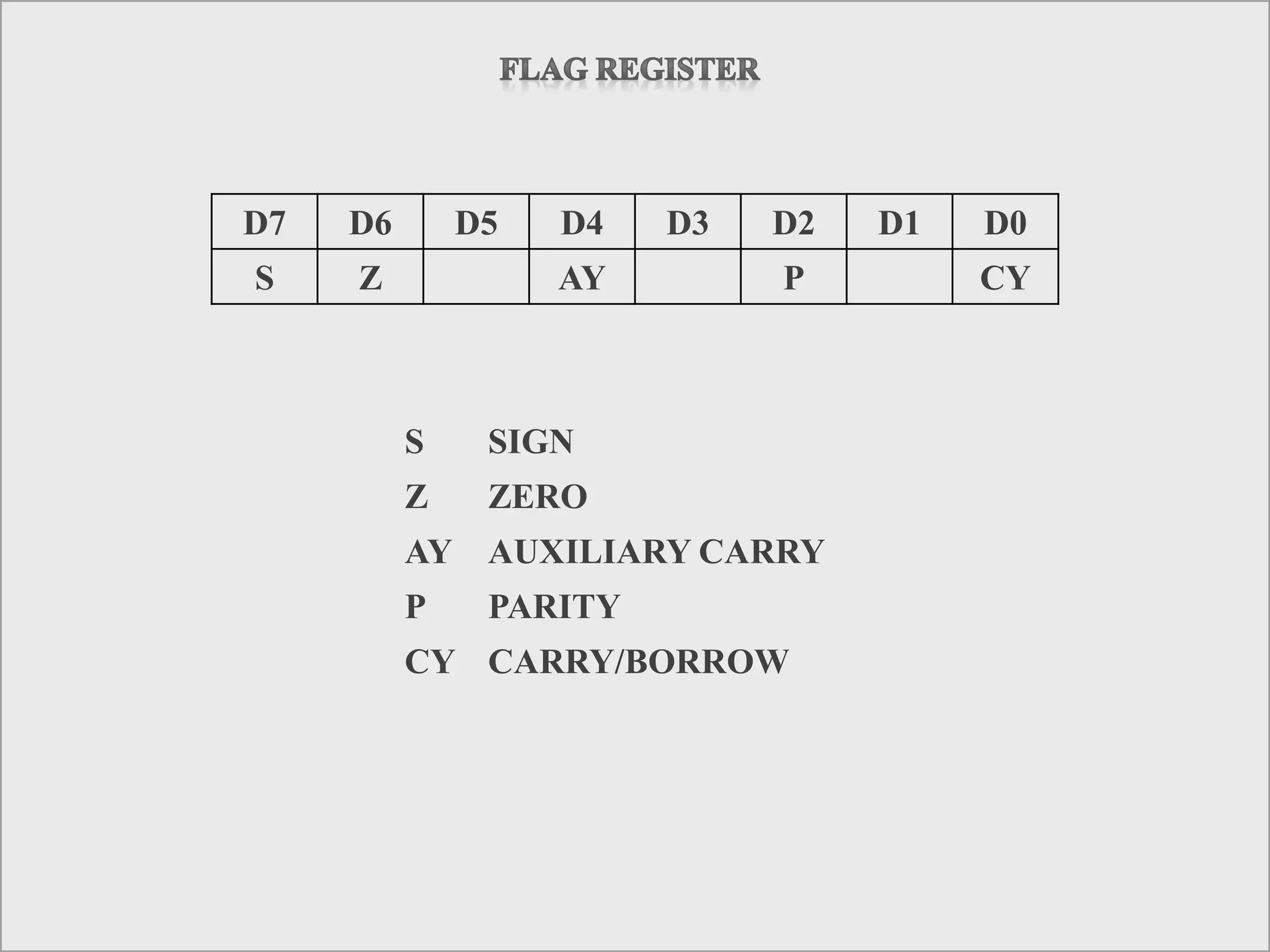

D7 D6 D5 D4 D3 D2 D1 D0
S Z AY P CY
S SIGN
Z ZERO
AY AUXILIARY CARRY
P PARITY
CY CARRY/BORROW
11. 11

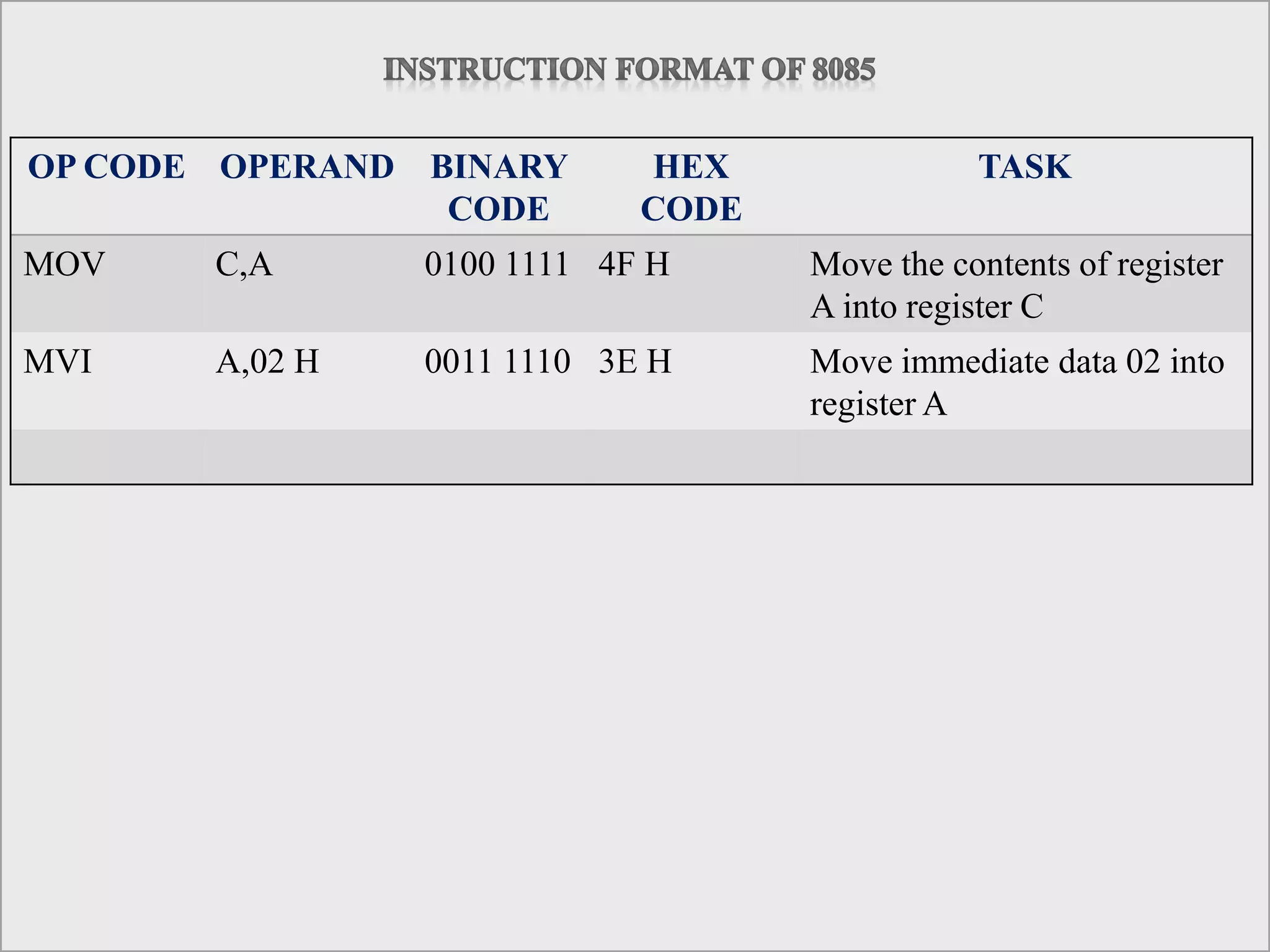

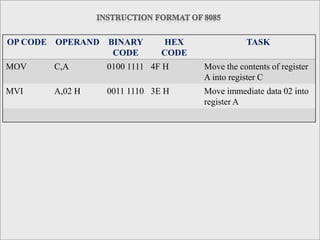

OP CODE OPERAND BINARY
CODE
HEX
CODE
TASK
MOV C,A 0100 1111 4F H Move the contents of register
A into register C
MVI A,02 H 0011 1110 3E H Move immediate data 02 into
register A
12. 12

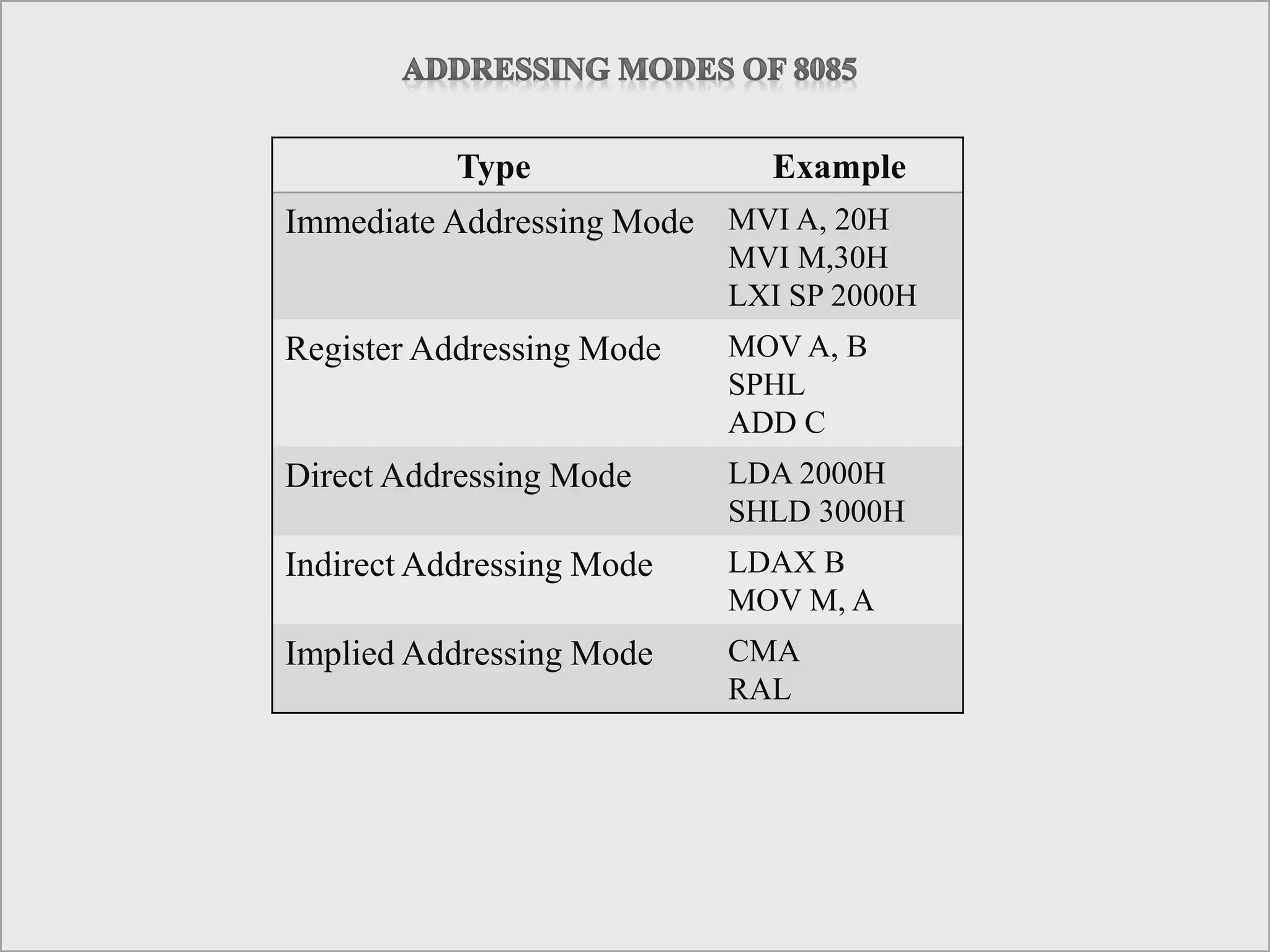

Type Example
Immediate Addressing Mode MVI A, 20H
MVI M,30H
LXI SP 2000H
Register Addressing Mode MOV A, B
SPHL
ADD C
Direct Addressing Mode LDA 2000H
SHLD 3000H
Indirect Addressing Mode LDAX B
MOV M, A
Implied Addressing Mode CMA
RAL

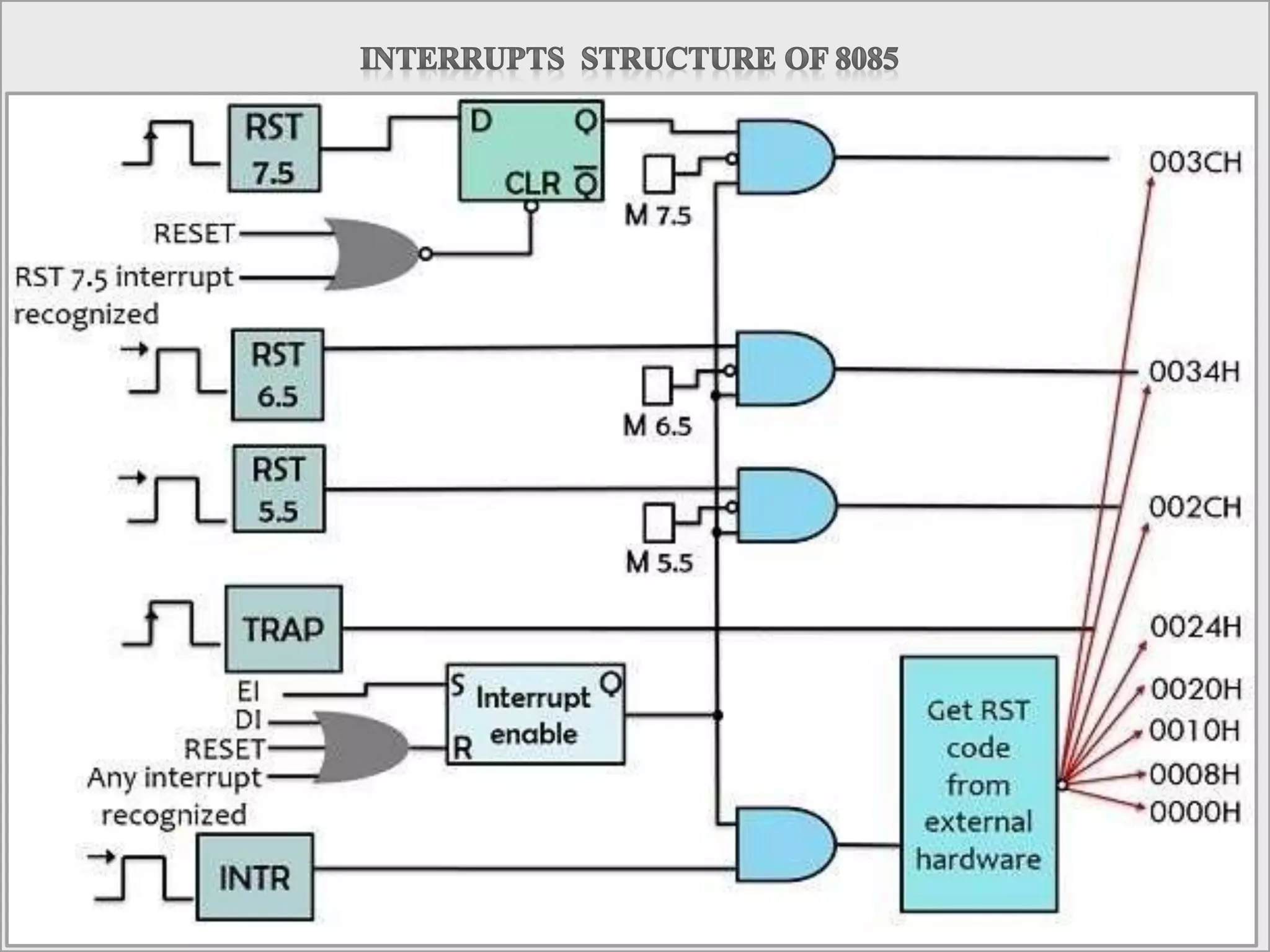

13. 13

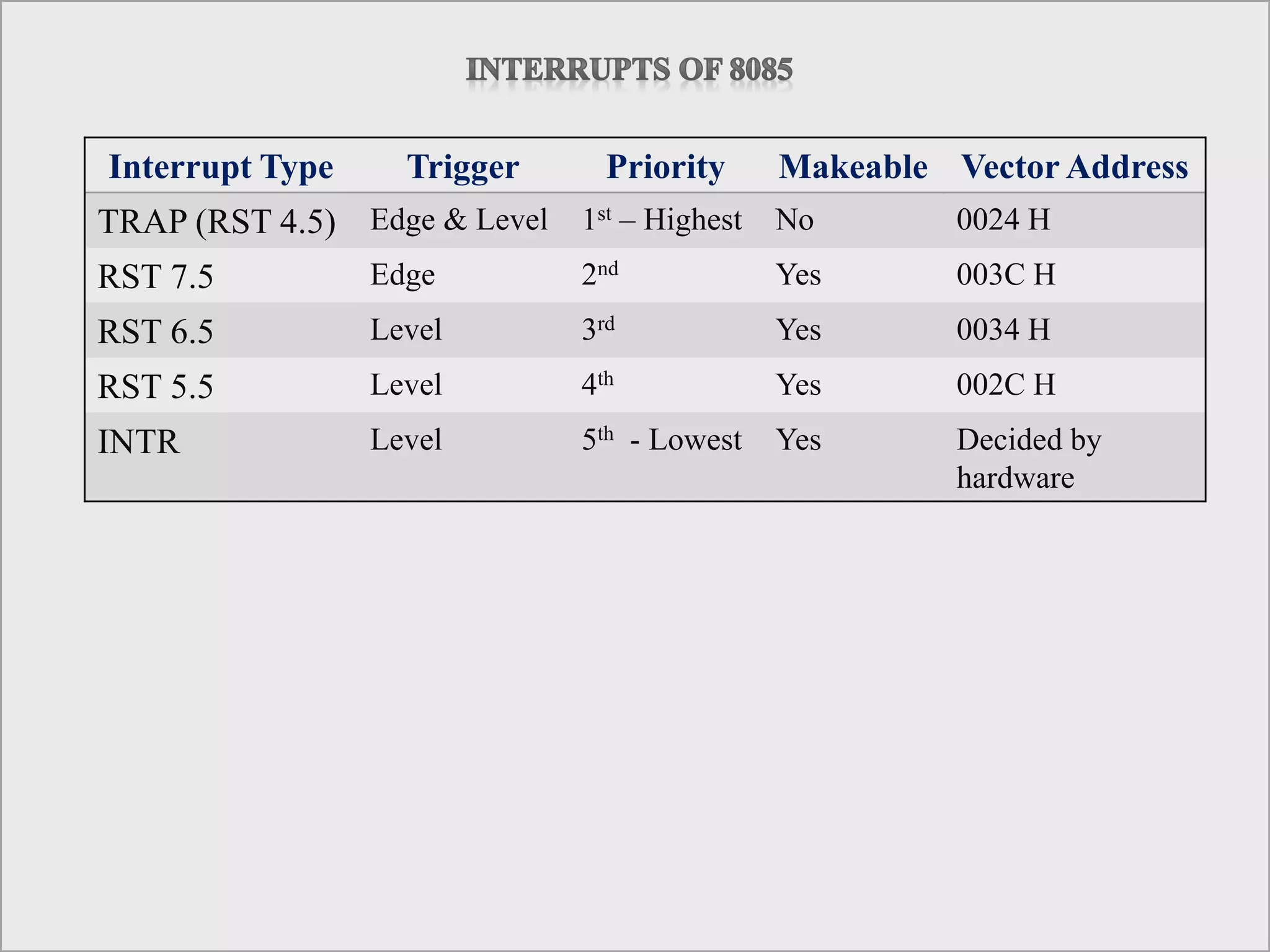

Interrupt Type Trigger Priority Makeable Vector Address
TRAP (RST 4.5) Edge & Level 1st – Highest No 0024 H
RST 7.5 Edge 2nd Yes 003C H
RST 6.5 Level 3rd Yes 0034 H
RST 5.5 Level 4th Yes 002C H
INTR Level 5th - Lowest Yes Decided by
hardware

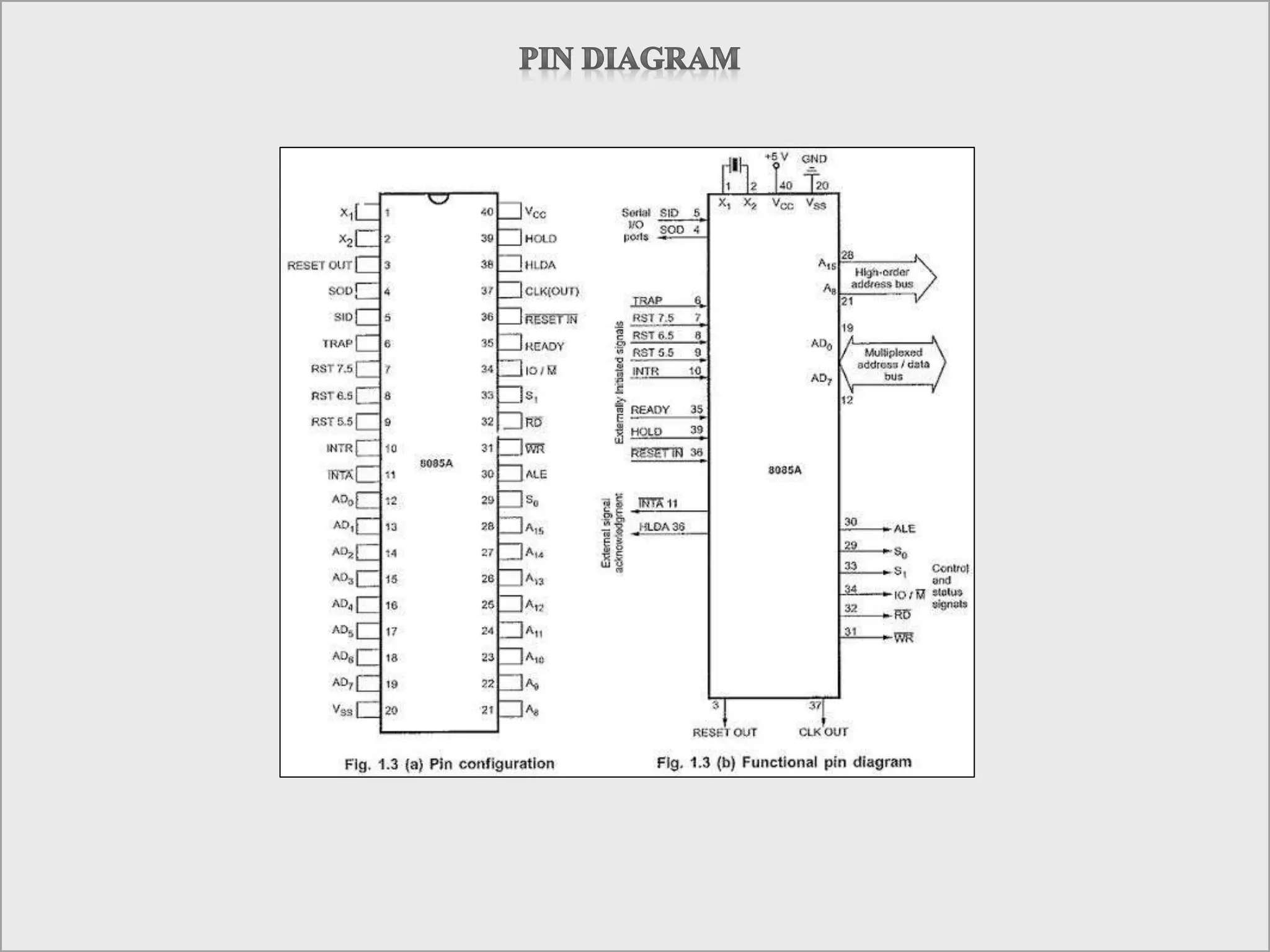

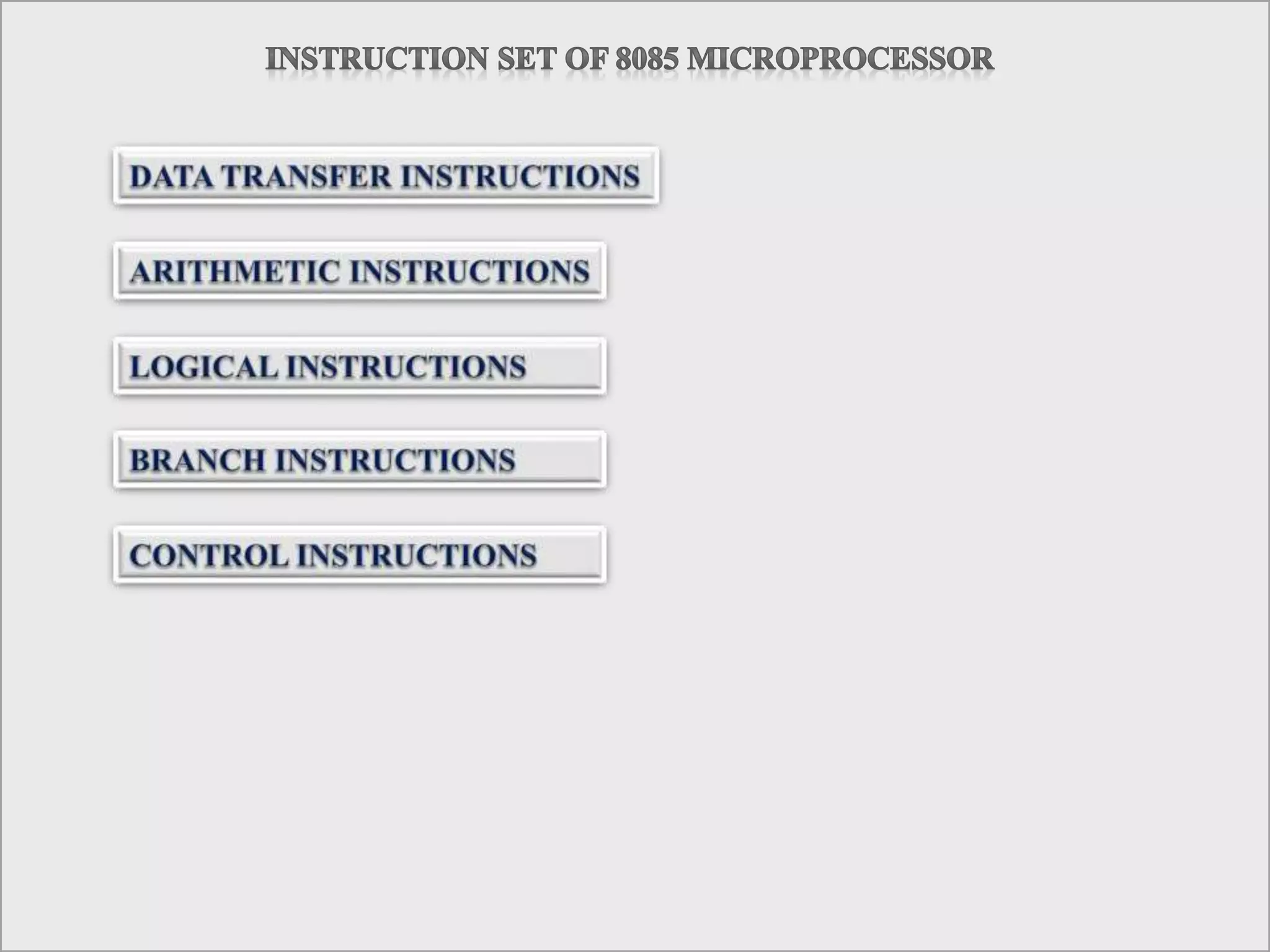

17. 17

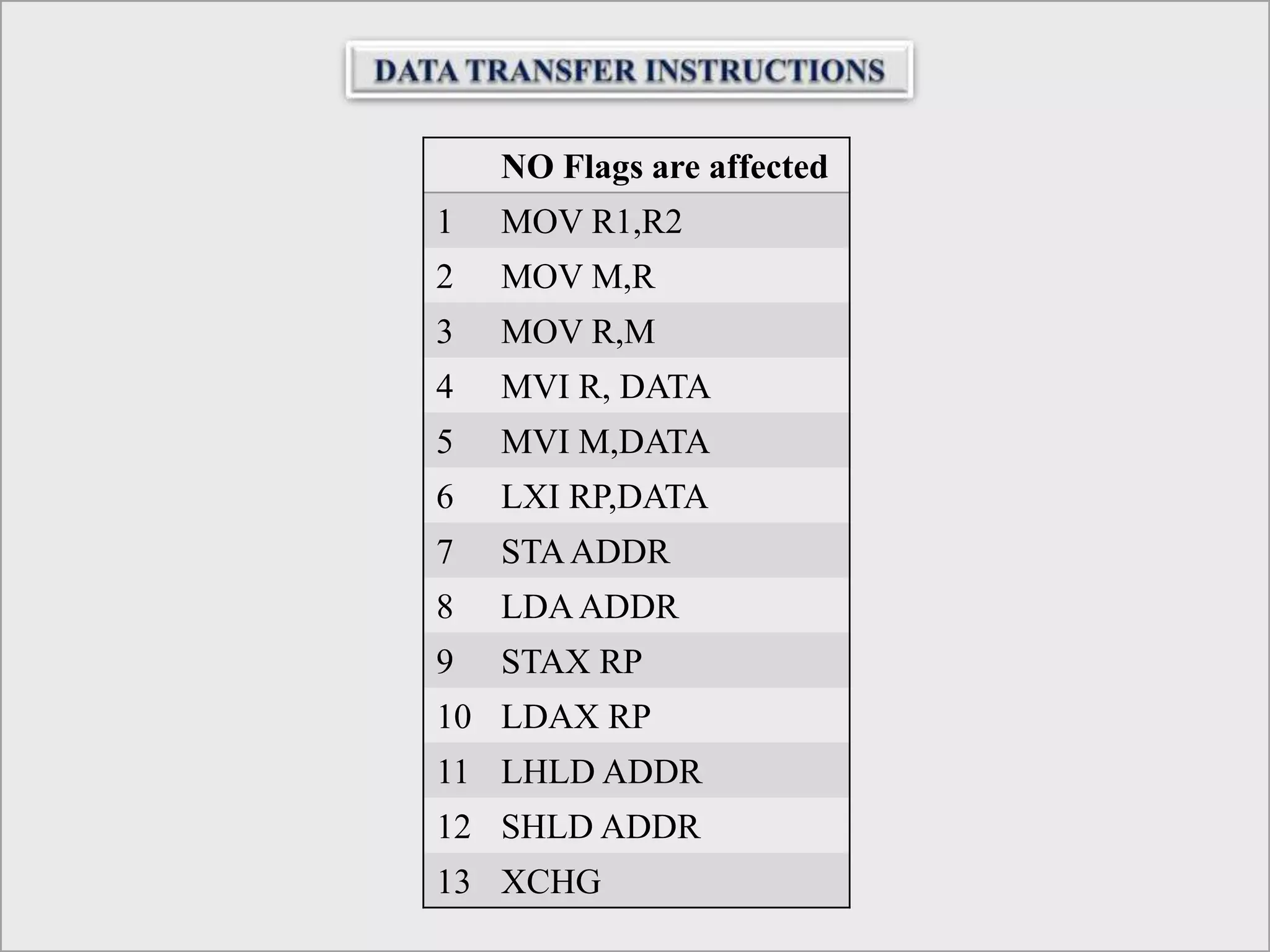

NO Flags are affected
1 MOV R1,R2
2 MOV M,R
3 MOV R,M
4 MVI R, DATA
5 MVI M,DATA
6 LXI RP,DATA
7 STAADDR
8 LDAADDR
9 STAX RP
10 LDAX RP
11 LHLD ADDR
12 SHLD ADDR
13 XCHG

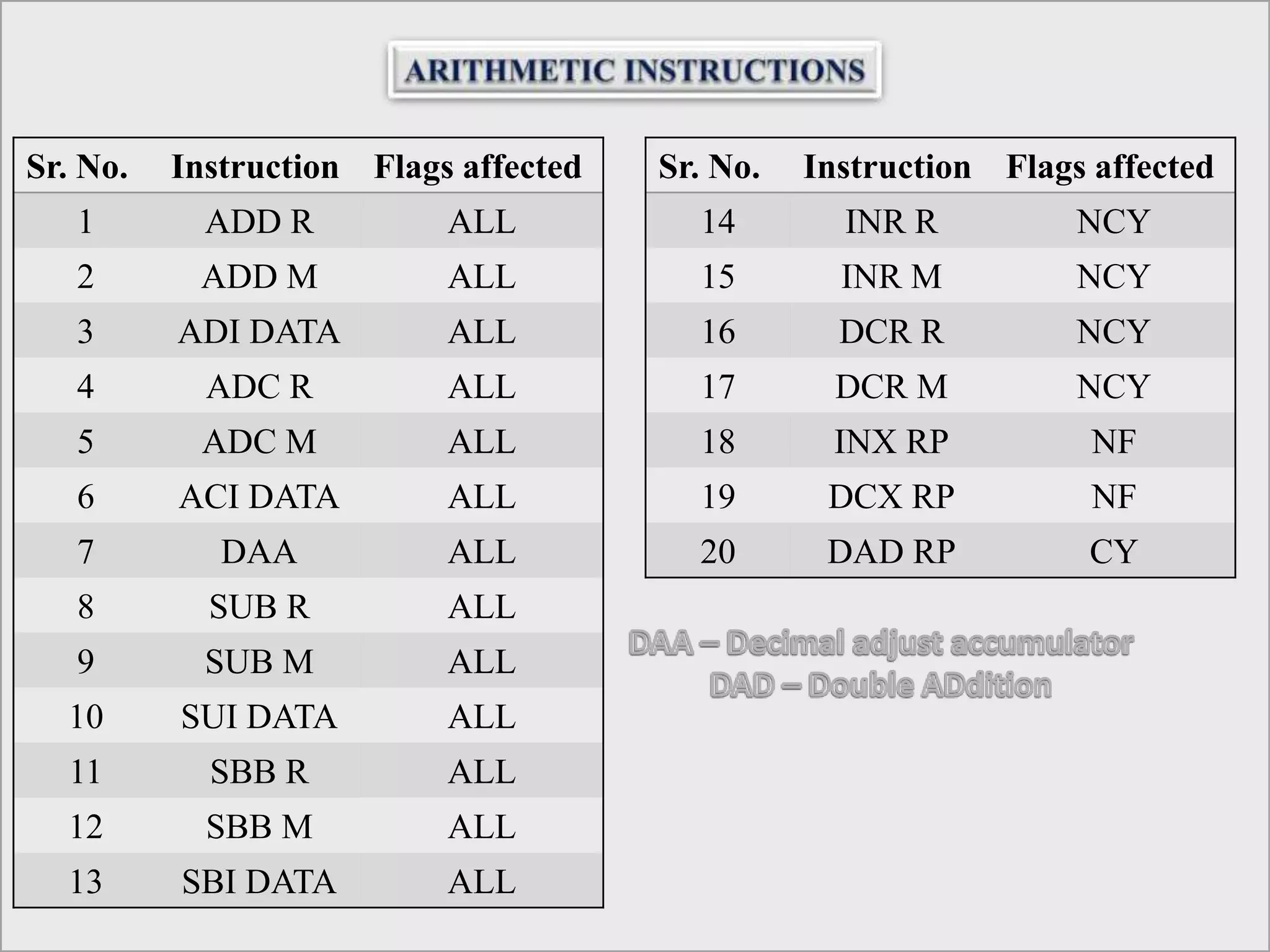

18. 18

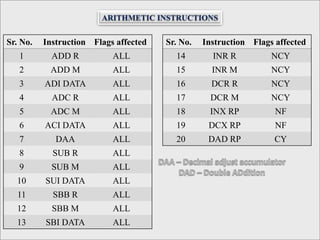

Sr. No. Instruction Flags affected
1 ADD R ALL
2 ADD M ALL
3 ADI DATA ALL
4 ADC R ALL
5 ADC M ALL
6 ACI DATA ALL
7 DAA ALL
8 SUB R ALL
9 SUB M ALL
10 SUI DATA ALL
11 SBB R ALL
12 SBB M ALL
13 SBI DATA ALL
Sr. No. Instruction Flags affected
14 INR R NCY
15 INR M NCY
16 DCR R NCY
17 DCR M NCY
18 INX RP NF
19 DCX RP NF
20 DAD RP CY

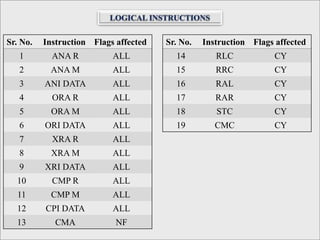

19. 19

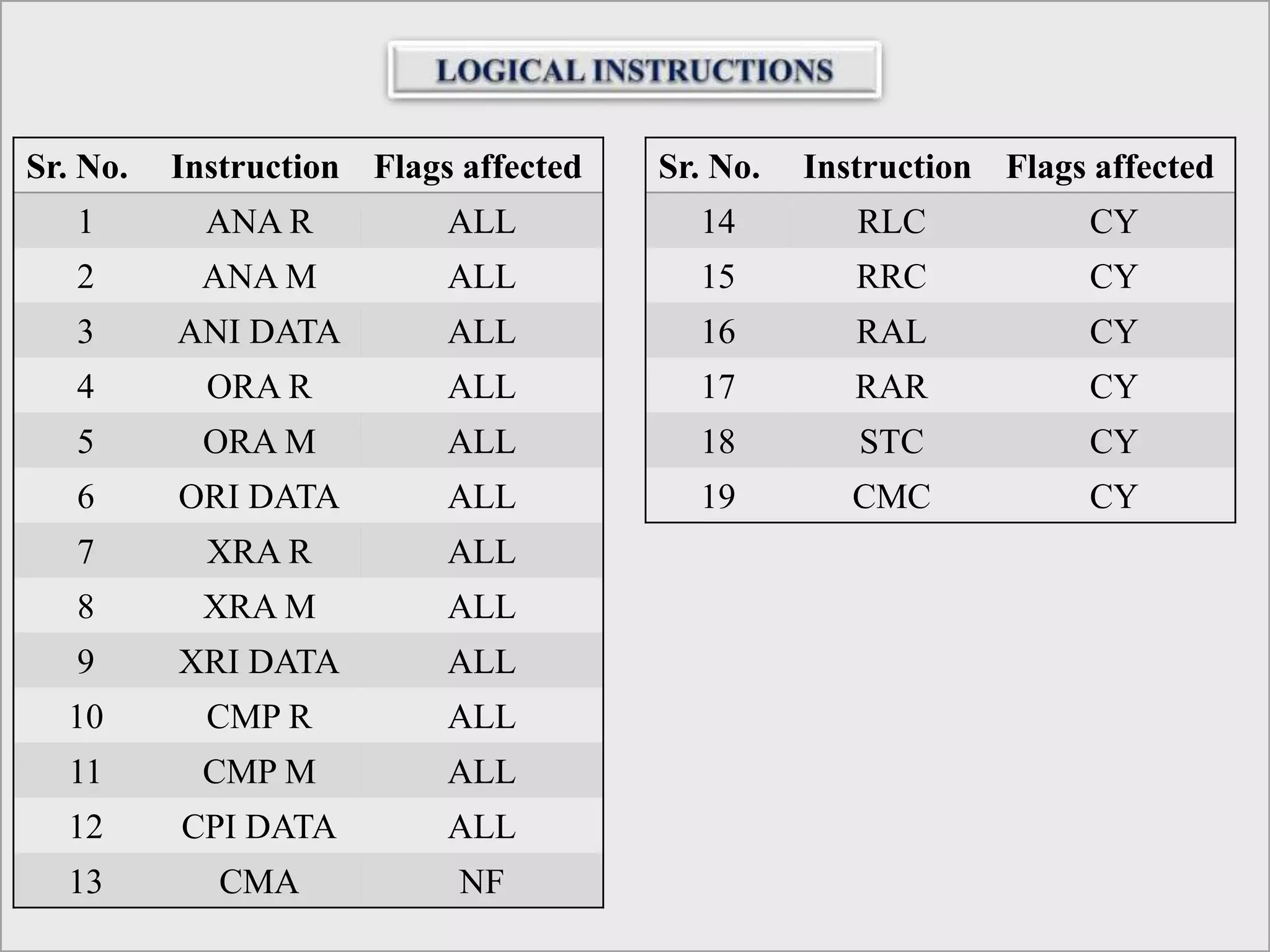

Sr. No. Instruction Flags affected
1 ANA R ALL
2 ANA M ALL
3 ANI DATA ALL
4 ORA R ALL
5 ORA M ALL
6 ORI DATA ALL
7 XRA R ALL
8 XRA M ALL
9 XRI DATA ALL
10 CMP R ALL
11 CMP M ALL
12 CPI DATA ALL
13 CMA NF
Sr. No. Instruction Flags affected
14 RLC CY
15 RRC CY
16 RAL CY
17 RAR CY
18 STC CY
19 CMC CY
20. 20

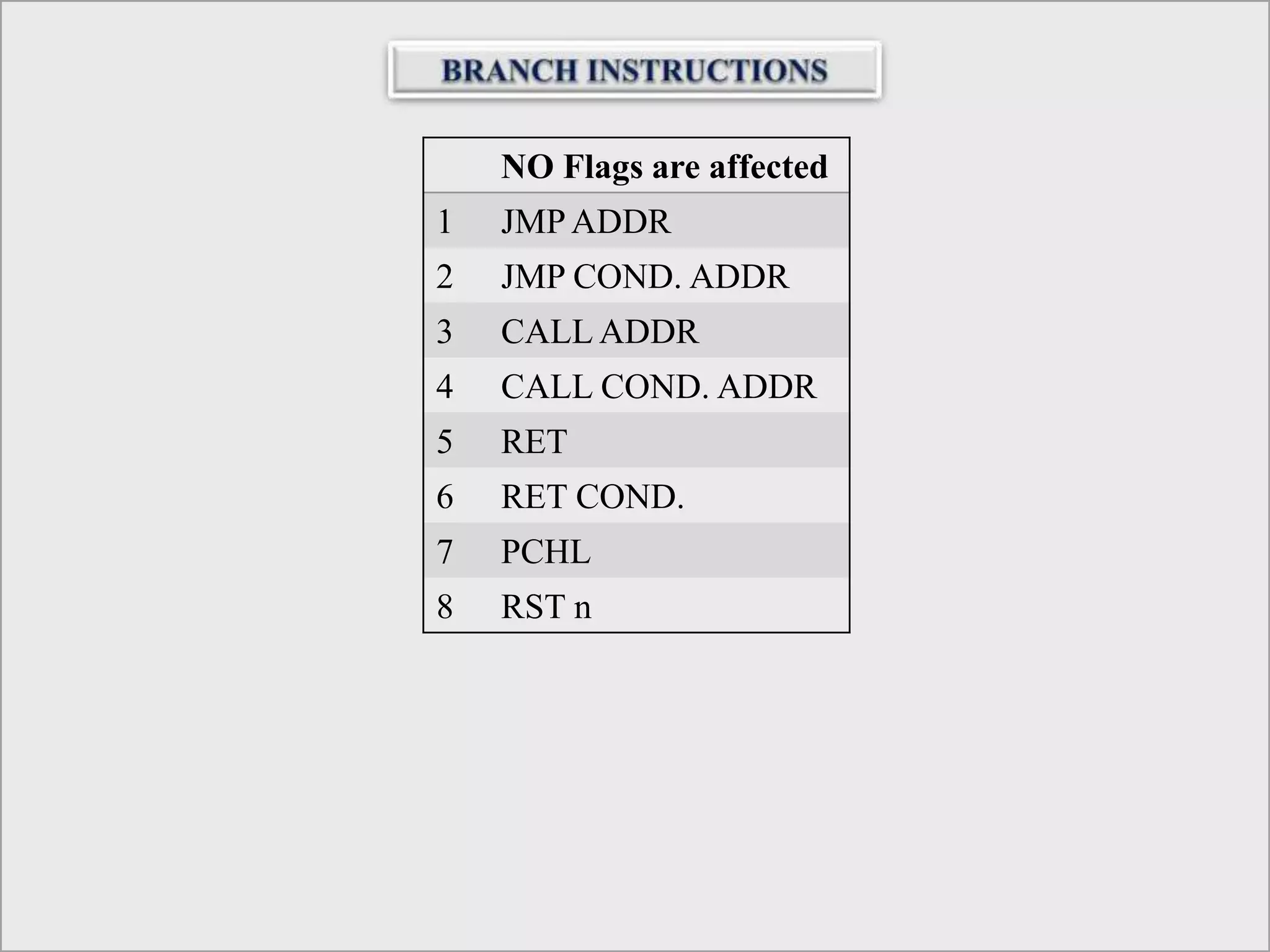

NO Flags are affected
1 JMPADDR
2 JMP COND. ADDR
3 CALL ADDR
4 CALL COND. ADDR
5 RET
6 RET COND.
7 PCHL
8 RST n

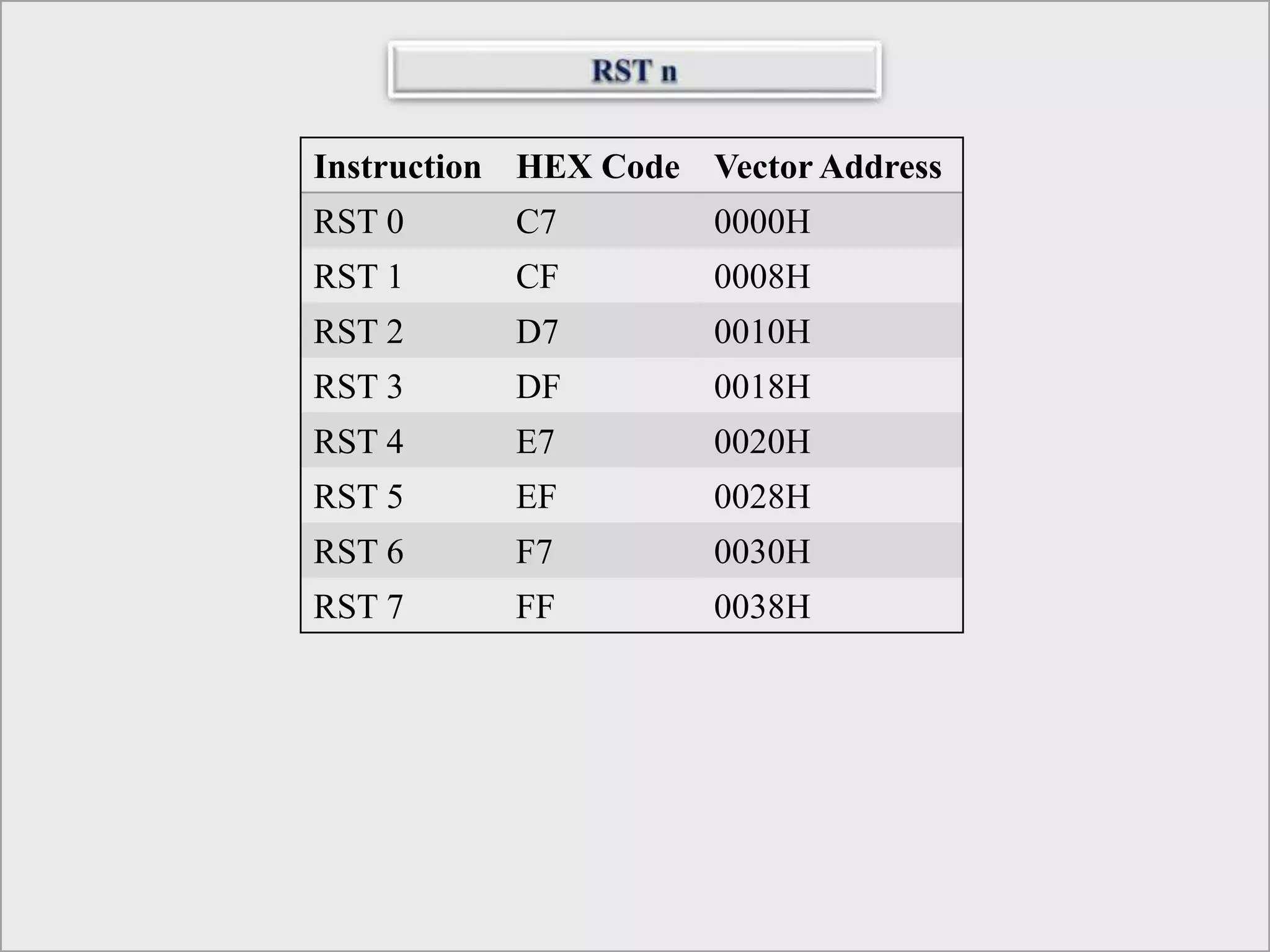

22. 22

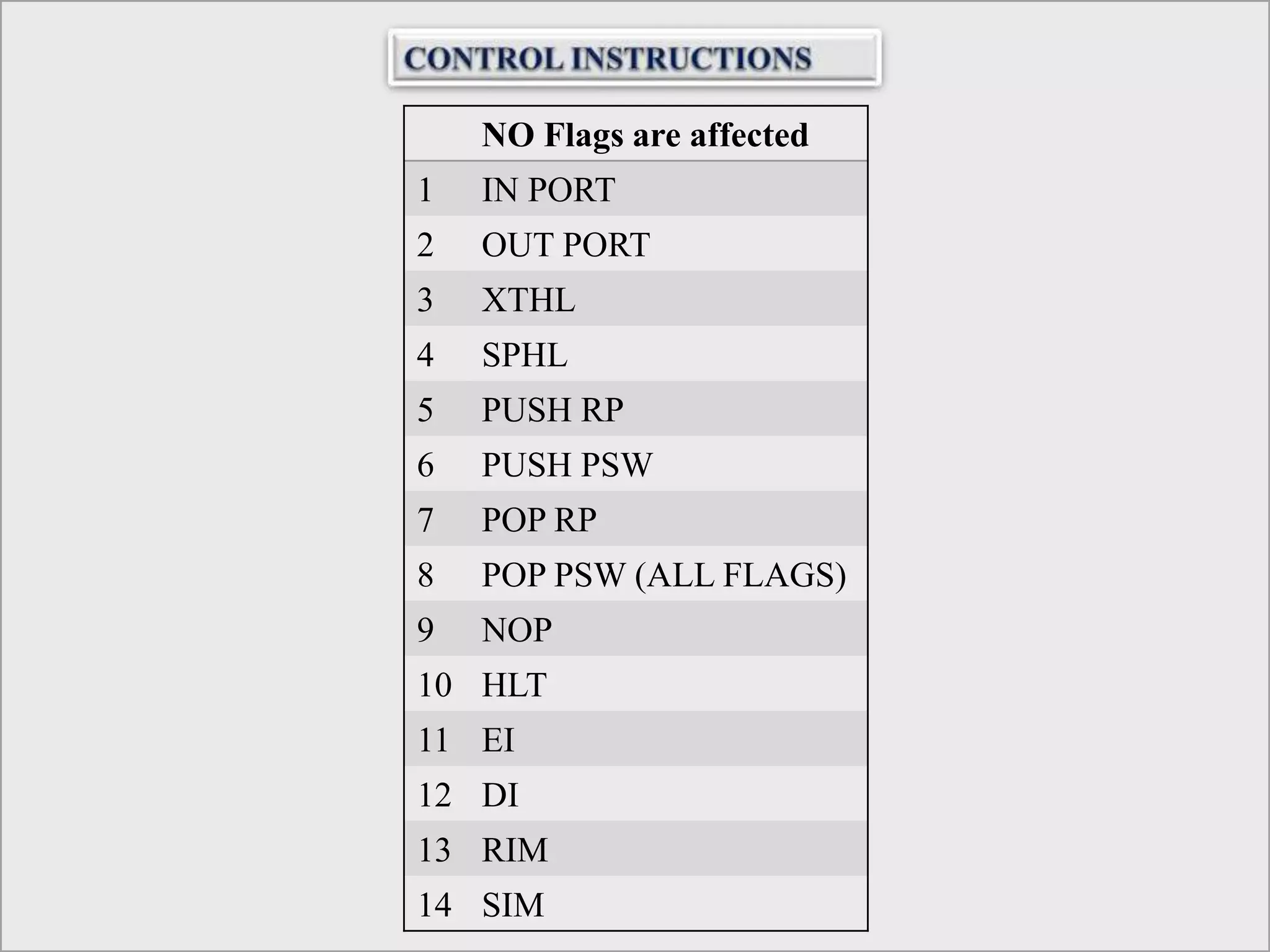

NO Flags are affected
1 IN PORT
2 OUT PORT
3 XTHL
4 SPHL
5 PUSH RP
6 PUSH PSW
7 POP RP
8 POP PSW (ALL FLAGS)
9 NOP
10 HLT
11 EI
12 DI
13 RIM
14 SIM
23. 23

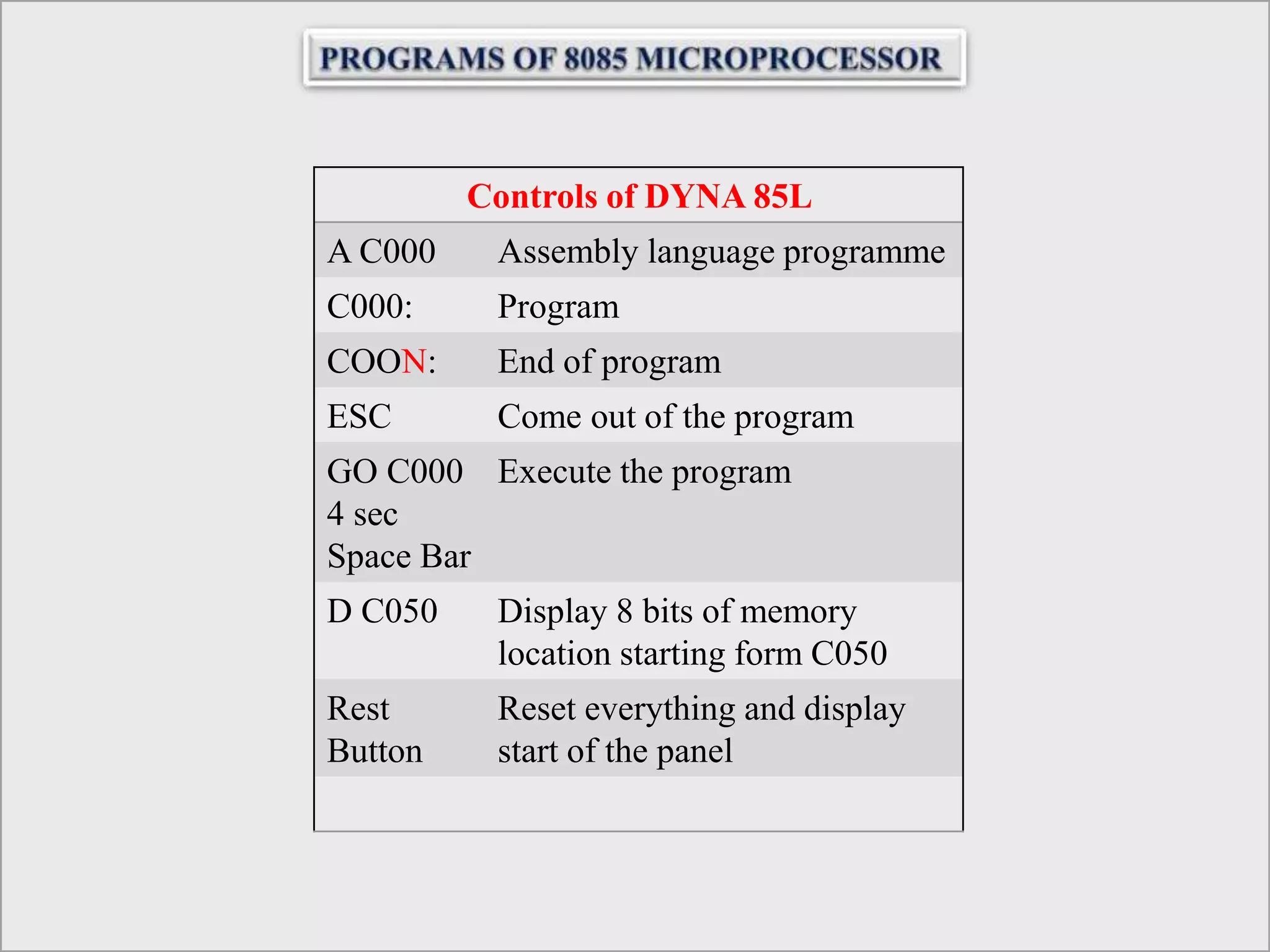

Controls of DYNA 85L
A C000 Assembly language programme
C000: Program
COON: End of program
ESC Come out of the program
GO C000
4 sec
Space Bar
Execute the program
D C050 Display 8 bits of memory
location starting form C050
Rest
Button
Reset everything and display
start of the panel
24. 24

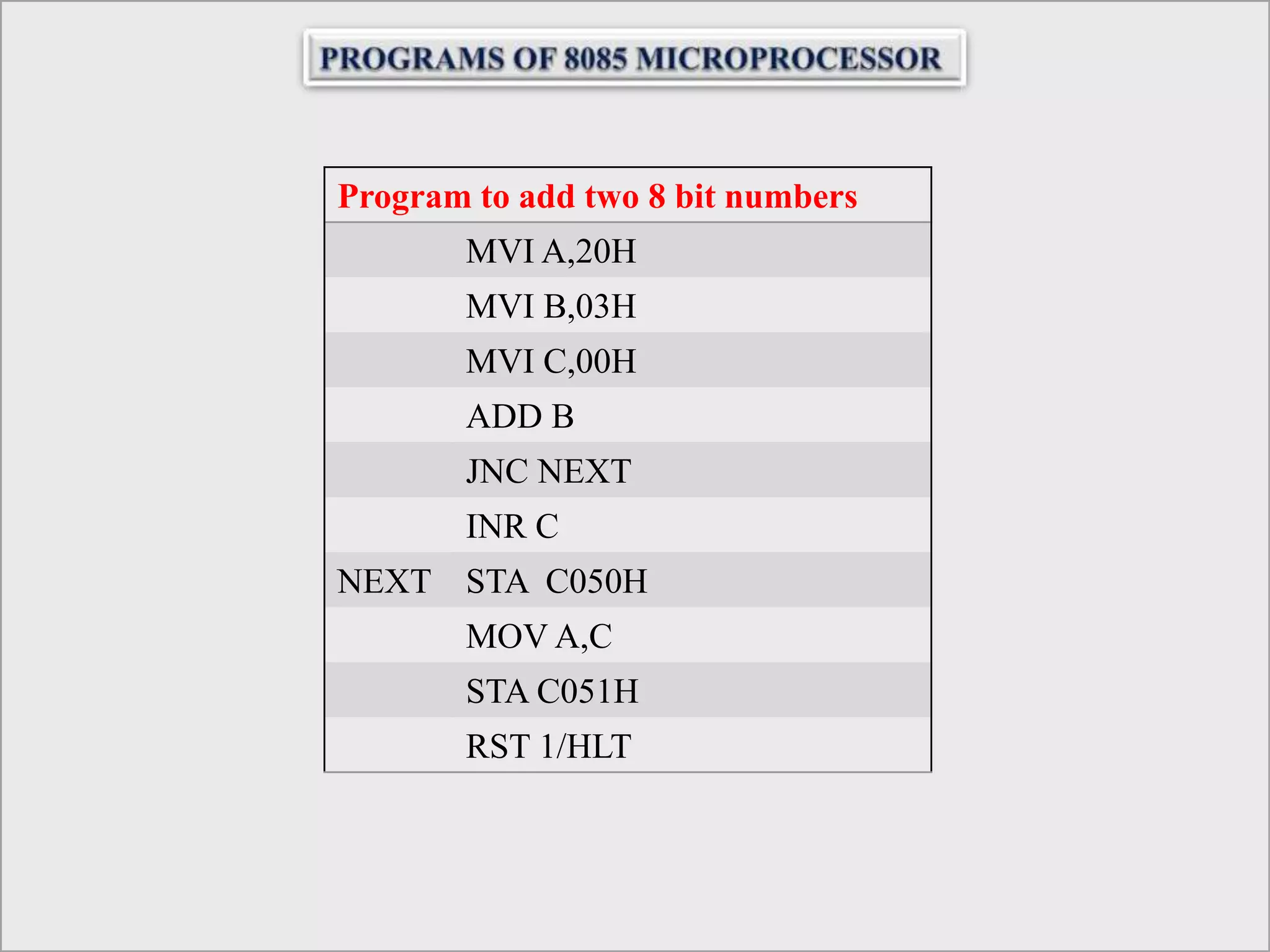

Program to add two 8 bit numbers
MVI A,20H
MVI B,03H
MVI C,00H
ADD B
JNC NEXT
INR C
NEXT STA C050H
MOV A,C
STA C051H
RST 1/HLT
25. 25

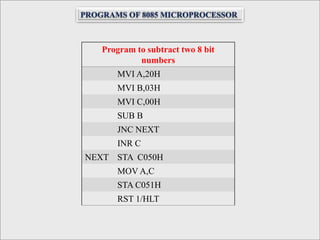

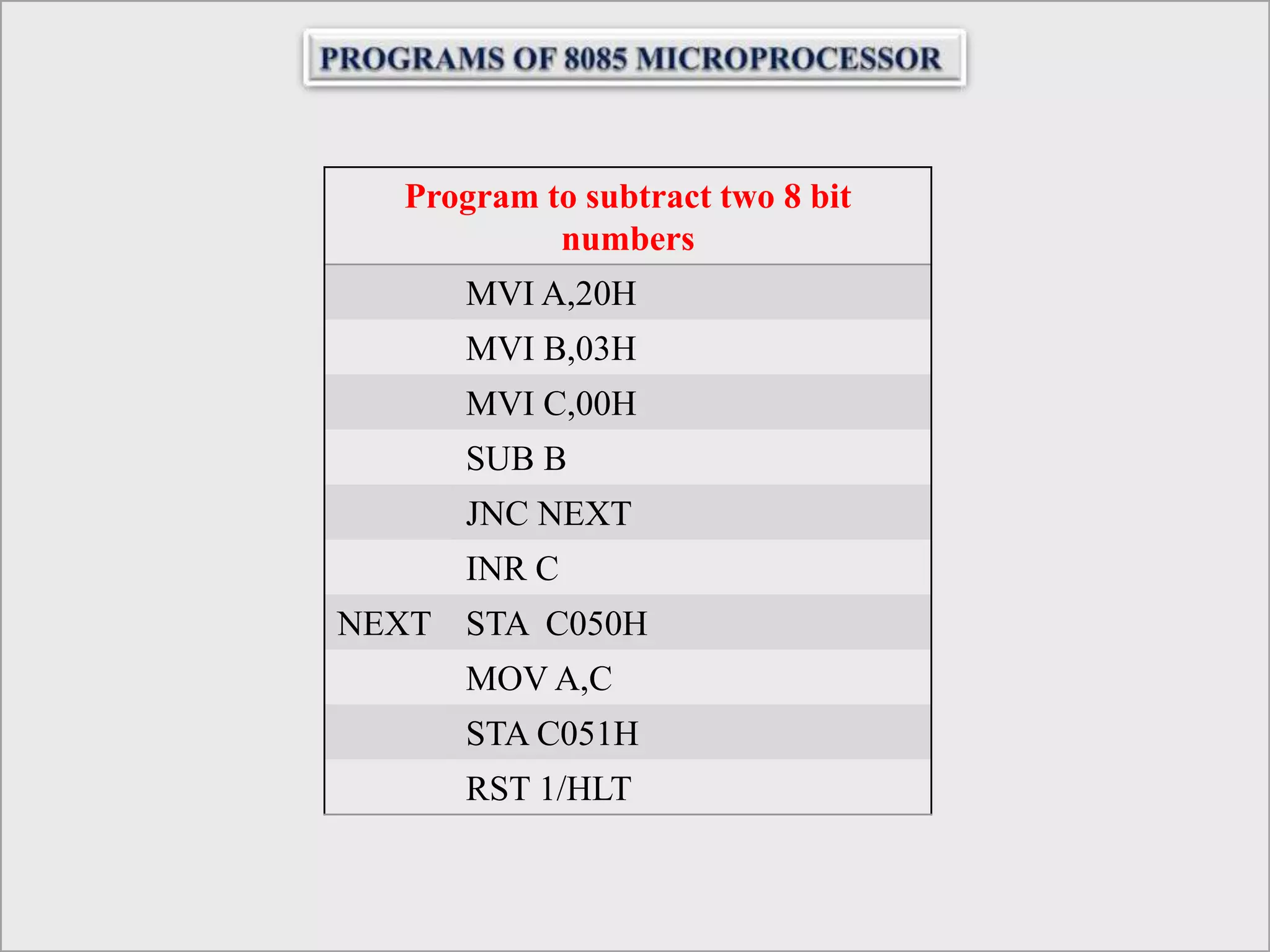

Program to subtract two 8 bit
numbers
MVI A,20H
MVI B,03H
MVI C,00H
SUB B
JNC NEXT
INR C
NEXT STA C050H
MOV A,C
STA C051H
RST 1/HLT

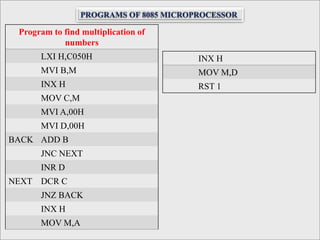

26. 26
Program to find multiplication of
numbers
LXI H,C050H
MVI B,M
INX H
MOV C,M
MVI A,00H
MVI D,00H
BACK ADD B
JNC NEXT
INR D
NEXT DCR C
JNZ BACK
INX H
MOV M,A
INX H
MOV M,D
RST 1
27. 27

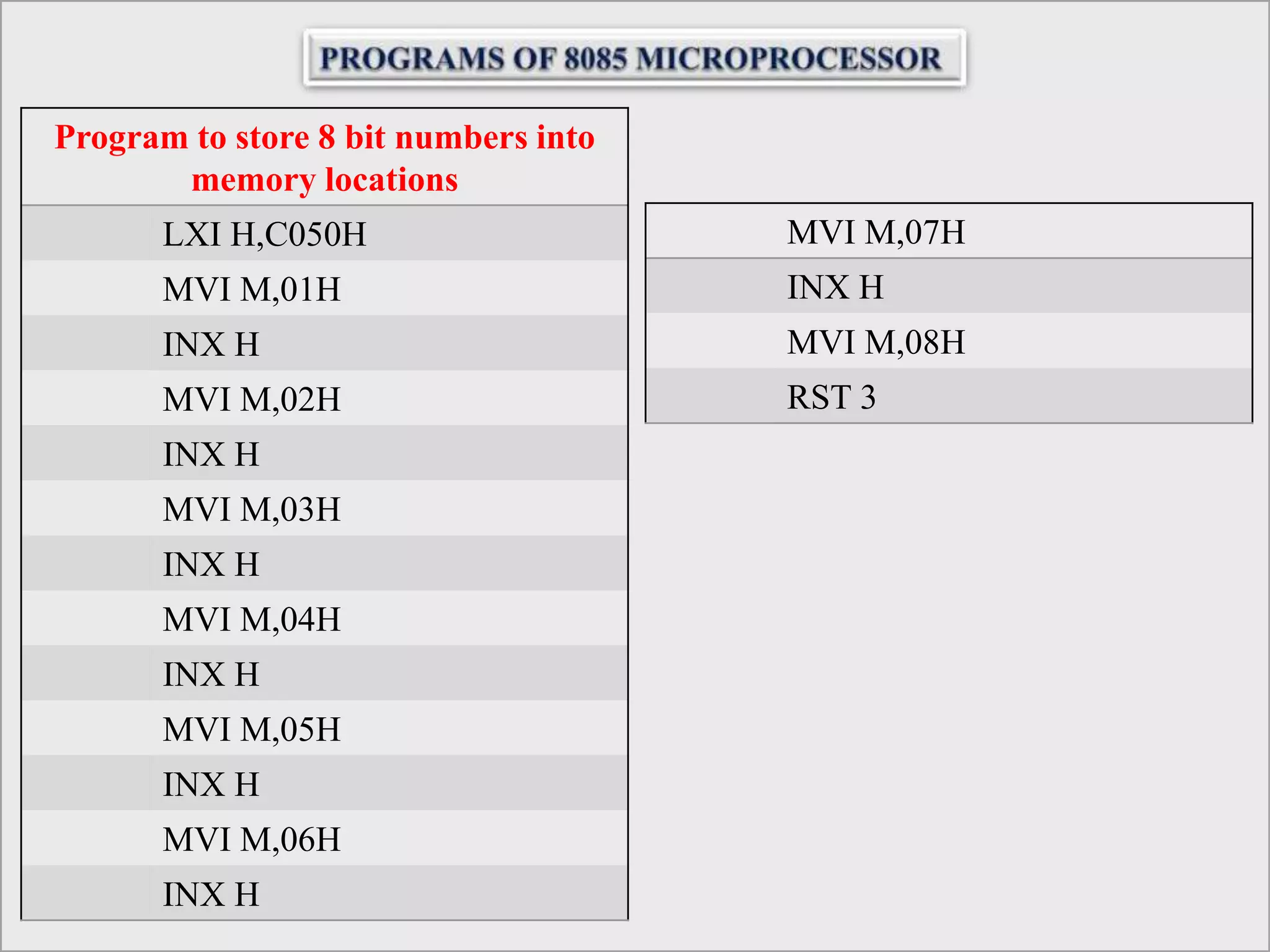

Program to store 8 bit numbers into
memory locations
LXI H,C050H
MVI M,01H
INX H
MVI M,02H
INX H
MVI M,03H
INX H
MVI M,04H
INX H
MVI M,05H
INX H
MVI M,06H
INX H
MVI M,07H
INX H
MVI M,08H
RST 3
28. 28

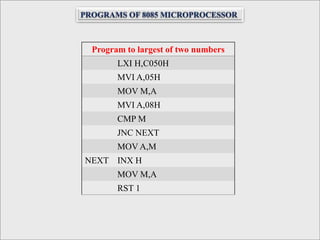

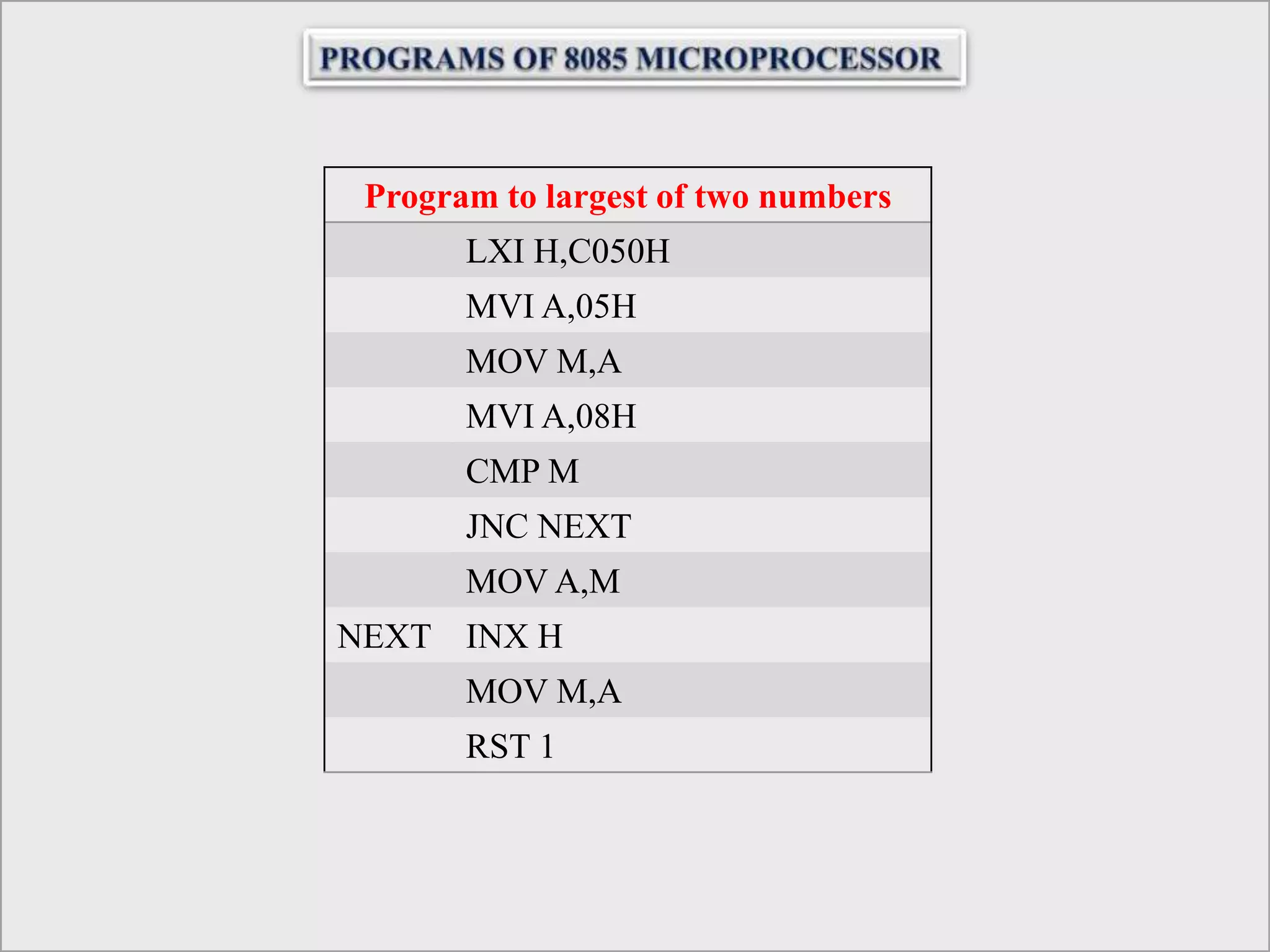

Program to largest of two numbers
LXI H,C050H
MVI A,05H
MOV M,A
MVI A,08H
CMP M
JNC NEXT
MOV A,M
NEXT INX H
MOV M,A
RST 1
29. 29

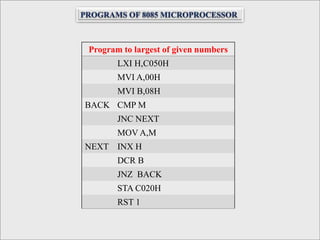

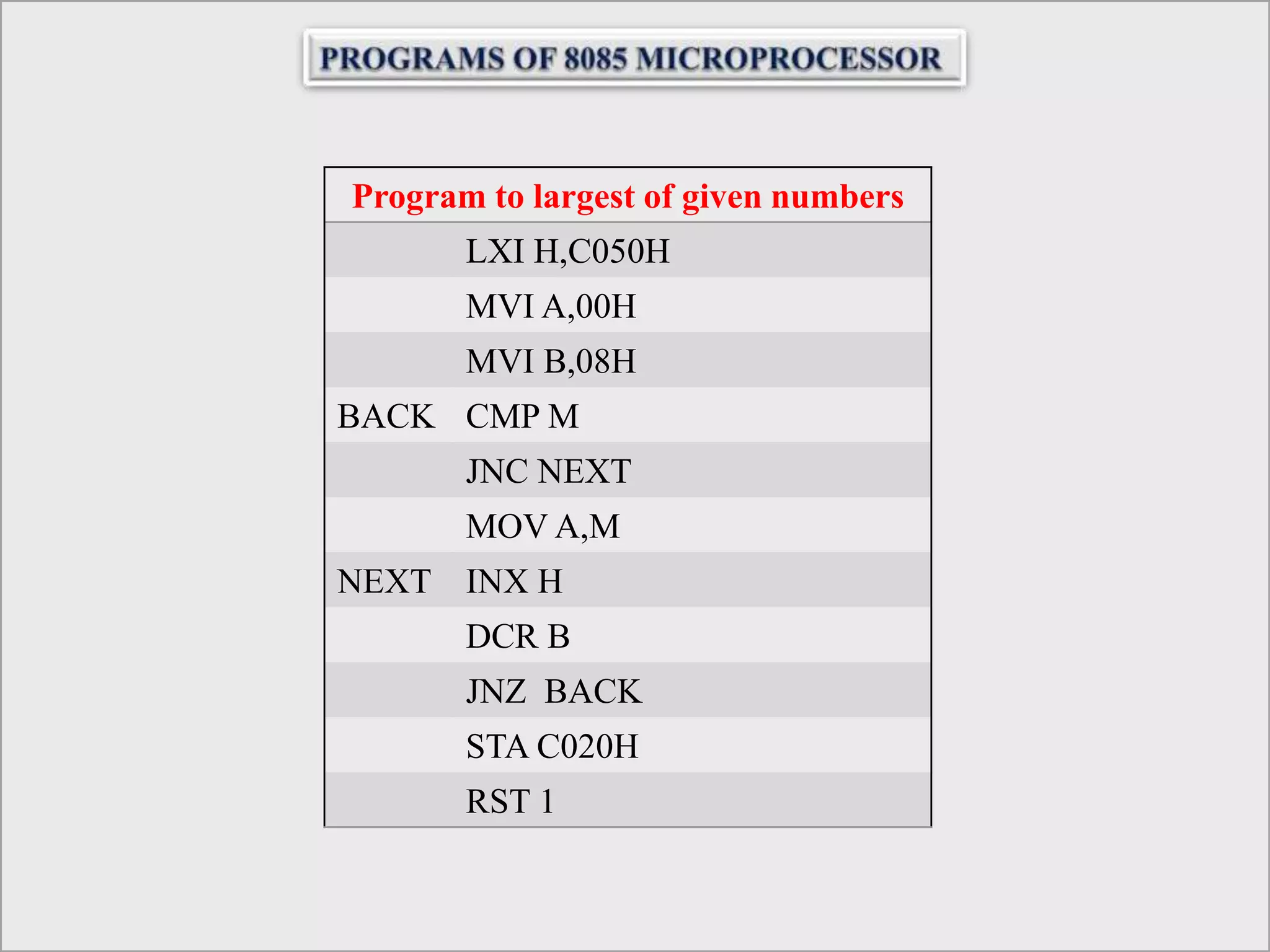

Program to largest of given numbers
LXI H,C050H
MVI A,00H
MVI B,08H
BACK CMP M
JNC NEXT
MOV A,M
NEXT INX H
DCR B
JNZ BACK
STA C020H
RST 1
30. 30

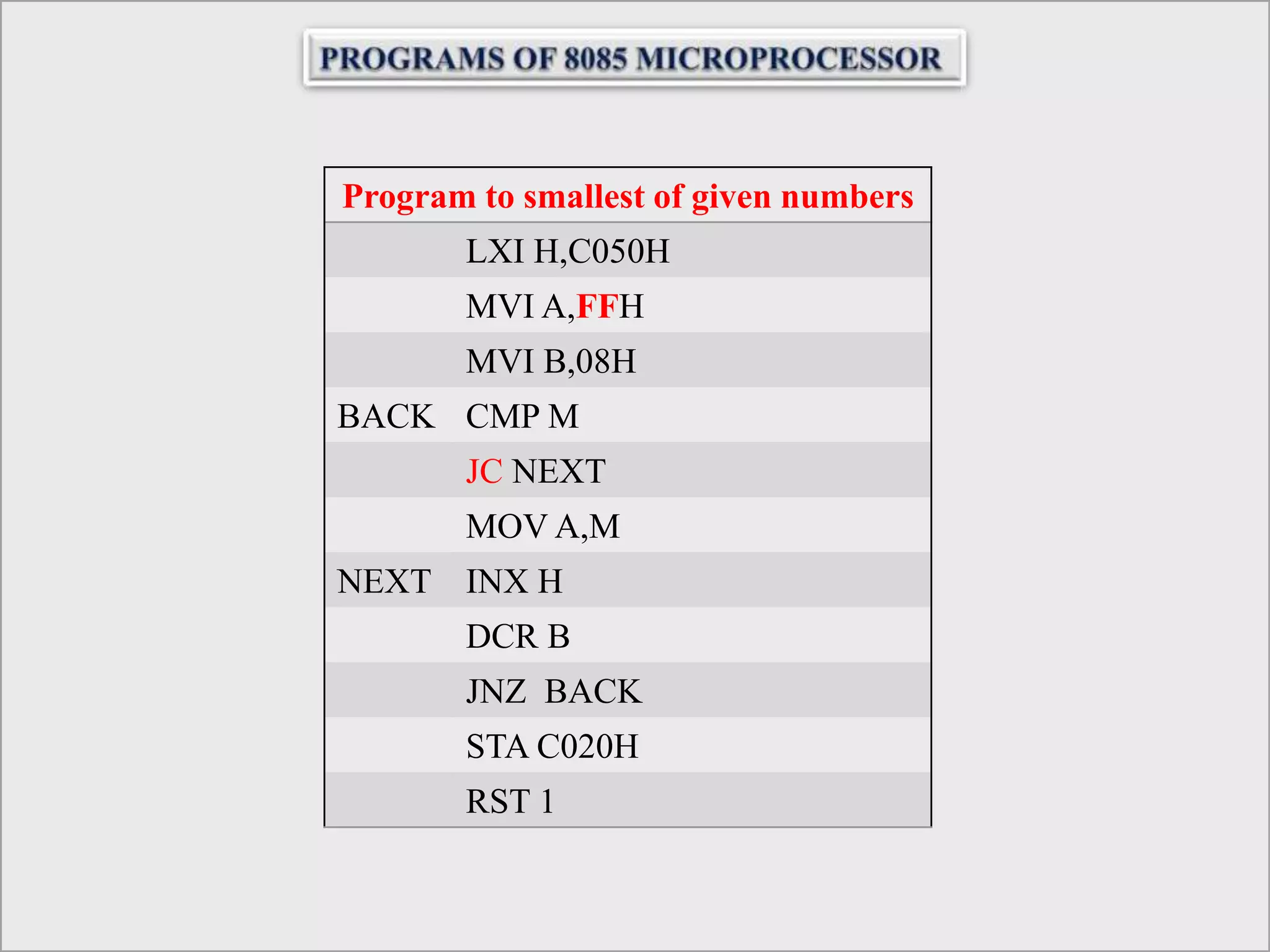

Program to smallest of given numbers
LXI H,C050H
MVI A,FFH
MVI B,08H
BACK CMP M
JC NEXT
MOV A,M
NEXT INX H
DCR B
JNZ BACK
STA C020H
RST 1

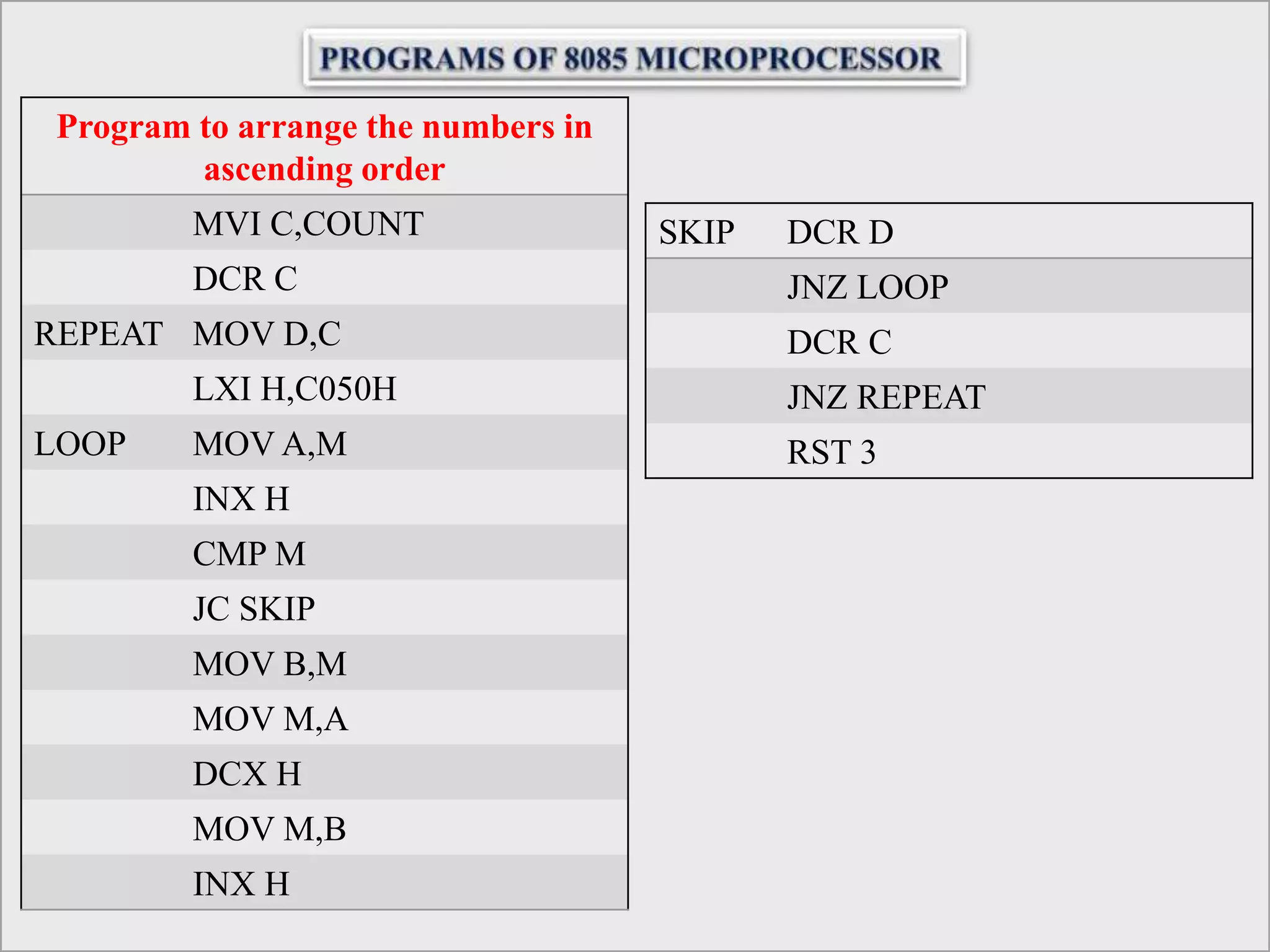

31. 31

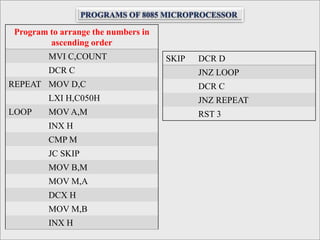

Program to arrange the numbers in
ascending order
MVI C,COUNT
DCR C
REPEAT MOV D,C
LXI H,C050H
LOOP MOV A,M
INX H
CMP M
JC SKIP
MOV B,M
MOV M,A
DCX H
MOV M,B
INX H
SKIP DCR D
JNZ LOOP
DCR C
JNZ REPEAT
RST 3
32. 32

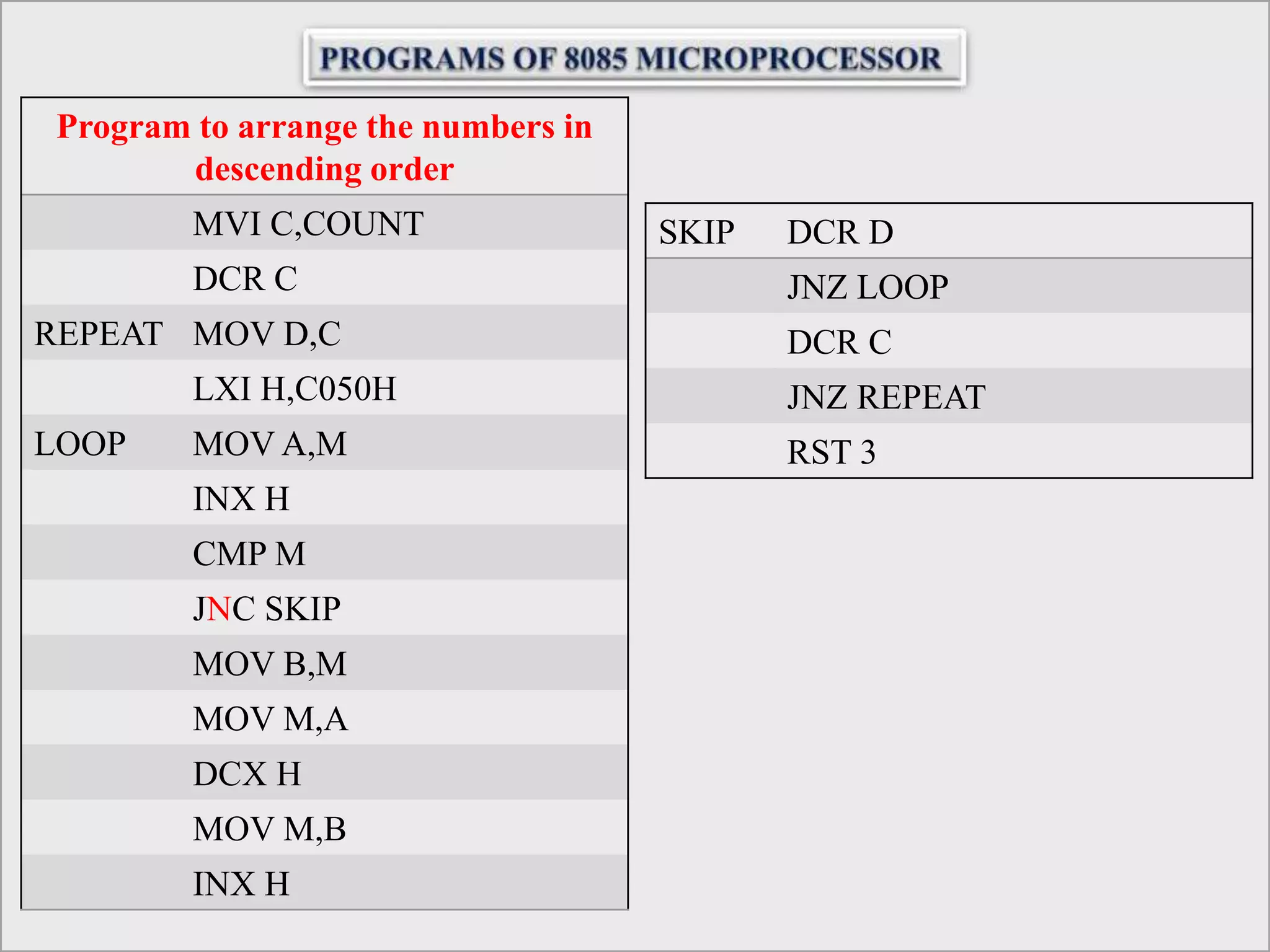

Program to arrange the numbers in
descending order
MVI C,COUNT
DCR C
REPEAT MOV D,C
LXI H,C050H
LOOP MOV A,M
INX H
CMP M
JNC SKIP
MOV B,M
MOV M,A
DCX H
MOV M,B
INX H
SKIP DCR D
JNZ LOOP
DCR C
JNZ REPEAT
RST 3
