ALAMZEB
ROLL NO.09

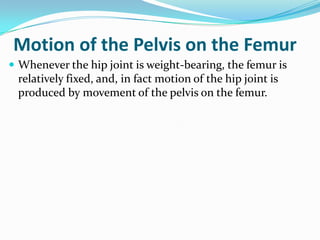

Motion of the Pelvis on the Femur
 Whenever the hip joint is weight-bearing, the femur is
relatively fixed, and, in fact motion of the hip joint is
produced by movement of the pelvis on the femur.

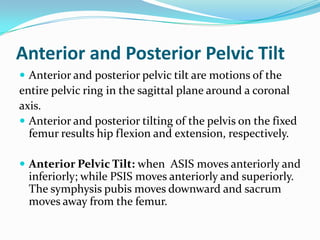

Anterior and Posterior Pelvic Tilt
 Anterior and posterior pelvic tilt are motions of the
entire pelvic ring in the sagittal plane around a coronal
axis.
 Anterior and posterior tilting of the pelvis on the fixed
femur results hip flexion and extension, respectively.
 Anterior Pelvic Tilt: when ASIS moves anteriorly and
inferiorly; while PSIS moves anteriorly and superiorly.
The symphysis pubis moves downward and sacrum
moves away from the femur.
 Posterior Pelvic Tilt: when ASIS moves posteriorly
and superiorly; while PSIS moves posteriorly and
inferiorly. The symphysis pubis moves upward and
sacrum moves towards the femur.

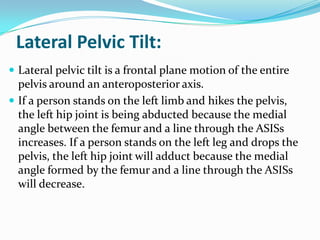

Lateral Pelvic Tilt:
 Lateral pelvic tilt is a frontal plane motion of the entire
pelvis around an anteroposterior axis.

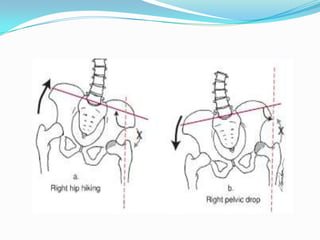

 If a person stands on the left limb and hikes the pelvis,
the left hip joint is being abducted because the medial
angle between the femur and a line through the ASISs
increases. If a person stands on the left leg and drops the
pelvis, the left hip joint will adduct because the medial
angle formed by the femur and a line through the ASISs
will decrease.
Anterior and Posterior Pelvic Rotation:
 Pelvic rotation is motion of the entire pelvic ring in the
transverse plane around a vertical axis.
 Occurs in both unilateral and bilateral stance.
 Forward rotation of the pelvis occurs in unilateral stance
when the side of the pelvis opposite to the supporting hip
joint moves anteriorly. Forward rotation of the pelvis
produces medial rotation of the supporting hip joint.
 Backward rotation of the pelvis occurs when the side of
the pelvis opposite the supporting hip moves posteriorly.
Posterior rotation of the pelvis produces lateral rotation of
the supporting hip joint.
Pelvic rotation
