This document compares MOSFET models in Micro-Cap and PSpice simulation software. It includes SPICE netlists for a standard MOSFET model and compares characteristics such as Vgs-Id, Rds(on), gate charge, switching time, output characteristics, and body diode forward current between the two simulators. Minor parameter differences are noted between the Micro-Cap and PSpice models.

1. MOSFET Model
PSpice vs. Micro-Cap
Toshiba TPCA8003-H Standard
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
1

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
2
Content
 Micro-Cap vs. PSpice
 Spice Net list (Standard Model)
 Vgs-Id Characteristics
Vgs-Id Characteristics Comparison
 Rds(on) Characteristics
Rds(on) Characteristics Comparison
 Gate Charge Characteristics
Gate Charge Characteristics Comparison
 Switching Time Characteristics
Switching Time Characteristics Comparison
 Output Characteristics
 BODY DIODE Forward Current
BODY DIODE Forward Current Comparison
 Reverse Recovery Characteristics
Reverse Recovery Characteristics Comparison
 Zener Voltage Characteristics

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
3

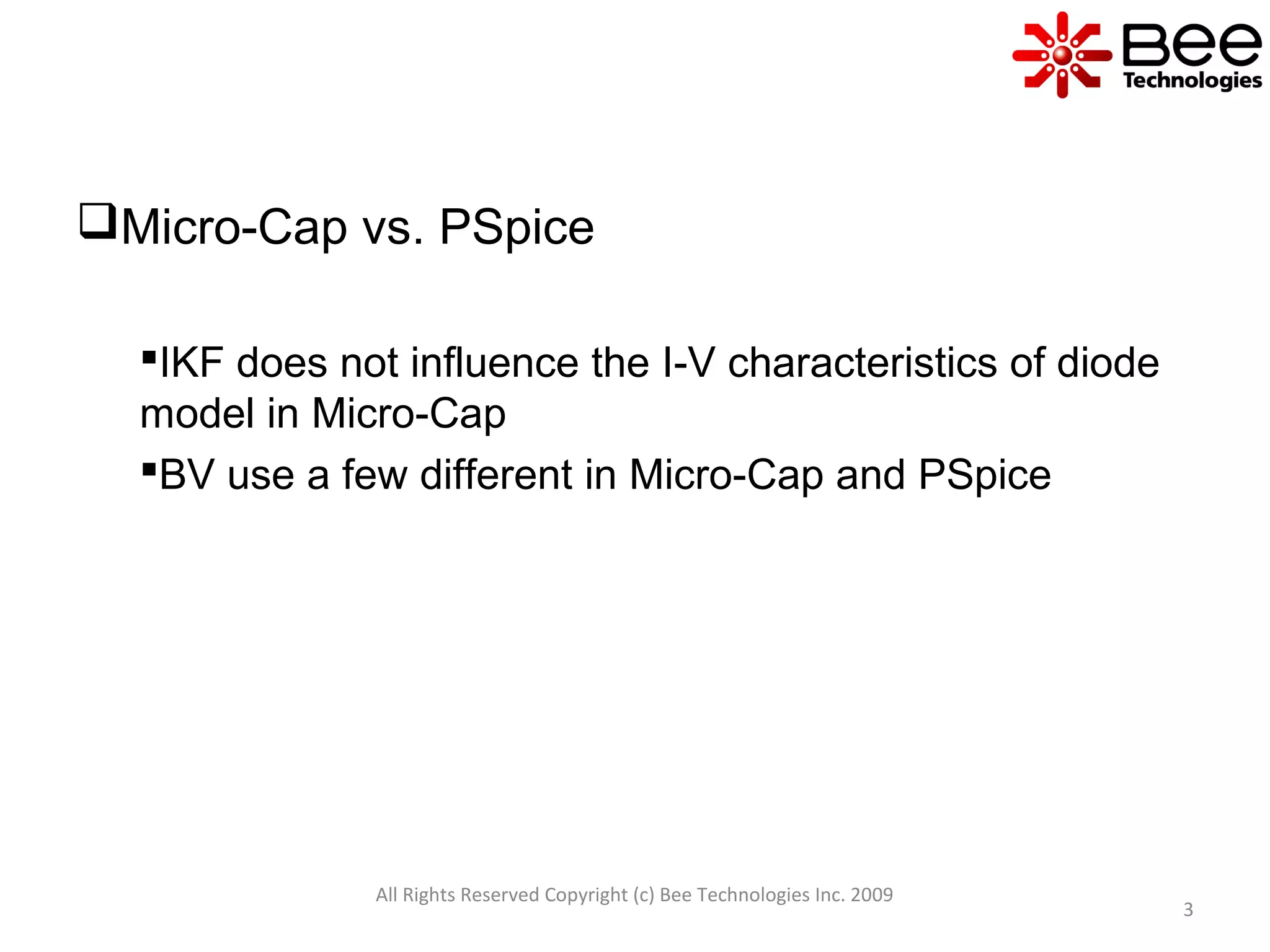

Micro-Cap vs. PSpice
IKF does not influence the I-V characteristics of diode
model in Micro-Cap
BV use a few different in Micro-Cap and PSpice

4. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
4

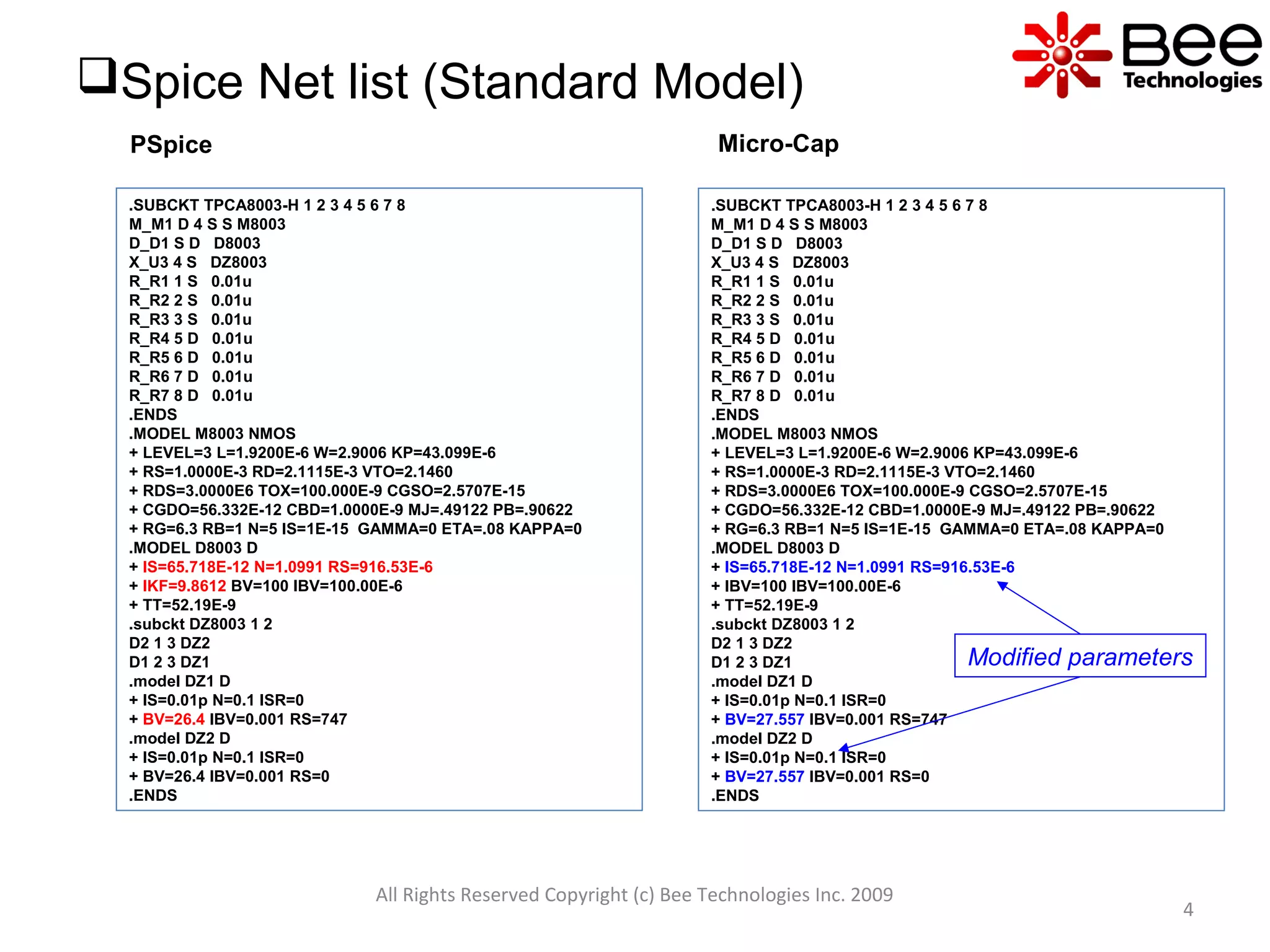

Spice Net list (Standard Model)
Micro-CapPSpice
.SUBCKT TPCA8003-H 1 2 3 4 5 6 7 8
M_M1 D 4 S S M8003
D_D1 S D D8003
X_U3 4 S DZ8003
R_R1 1 S 0.01u
R_R2 2 S 0.01u
R_R3 3 S 0.01u
R_R4 5 D 0.01u
R_R5 6 D 0.01u
R_R6 7 D 0.01u
R_R7 8 D 0.01u
.ENDS
.MODEL M8003 NMOS
+ LEVEL=3 L=1.9200E-6 W=2.9006 KP=43.099E-6
+ RS=1.0000E-3 RD=2.1115E-3 VTO=2.1460
+ RDS=3.0000E6 TOX=100.000E-9 CGSO=2.5707E-15
+ CGDO=56.332E-12 CBD=1.0000E-9 MJ=.49122 PB=.90622
+ RG=6.3 RB=1 N=5 IS=1E-15 GAMMA=0 ETA=.08 KAPPA=0
.MODEL D8003 D
+ IS=65.718E-12 N=1.0991 RS=916.53E-6
+ IKF=9.8612 BV=100 IBV=100.00E-6
+ TT=52.19E-9
.subckt DZ8003 1 2
D2 1 3 DZ2
D1 2 3 DZ1
.model DZ1 D
+ IS=0.01p N=0.1 ISR=0
+ BV=26.4 IBV=0.001 RS=747
.model DZ2 D
+ IS=0.01p N=0.1 ISR=0
+ BV=26.4 IBV=0.001 RS=0
.ENDS
.SUBCKT TPCA8003-H 1 2 3 4 5 6 7 8
M_M1 D 4 S S M8003
D_D1 S D D8003
X_U3 4 S DZ8003
R_R1 1 S 0.01u
R_R2 2 S 0.01u
R_R3 3 S 0.01u
R_R4 5 D 0.01u
R_R5 6 D 0.01u
R_R6 7 D 0.01u
R_R7 8 D 0.01u
.ENDS
.MODEL M8003 NMOS
+ LEVEL=3 L=1.9200E-6 W=2.9006 KP=43.099E-6
+ RS=1.0000E-3 RD=2.1115E-3 VTO=2.1460
+ RDS=3.0000E6 TOX=100.000E-9 CGSO=2.5707E-15
+ CGDO=56.332E-12 CBD=1.0000E-9 MJ=.49122 PB=.90622
+ RG=6.3 RB=1 N=5 IS=1E-15 GAMMA=0 ETA=.08 KAPPA=0
.MODEL D8003 D
+ IS=65.718E-12 N=1.0991 RS=916.53E-6
+ IBV=100 IBV=100.00E-6
+ TT=52.19E-9
.subckt DZ8003 1 2
D2 1 3 DZ2
D1 2 3 DZ1
.model DZ1 D
+ IS=0.01p N=0.1 ISR=0
+ BV=27.557 IBV=0.001 RS=747
.model DZ2 D
+ IS=0.01p N=0.1 ISR=0
+ BV=27.557 IBV=0.001 RS=0
.ENDS
Modified parameters

5. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
5

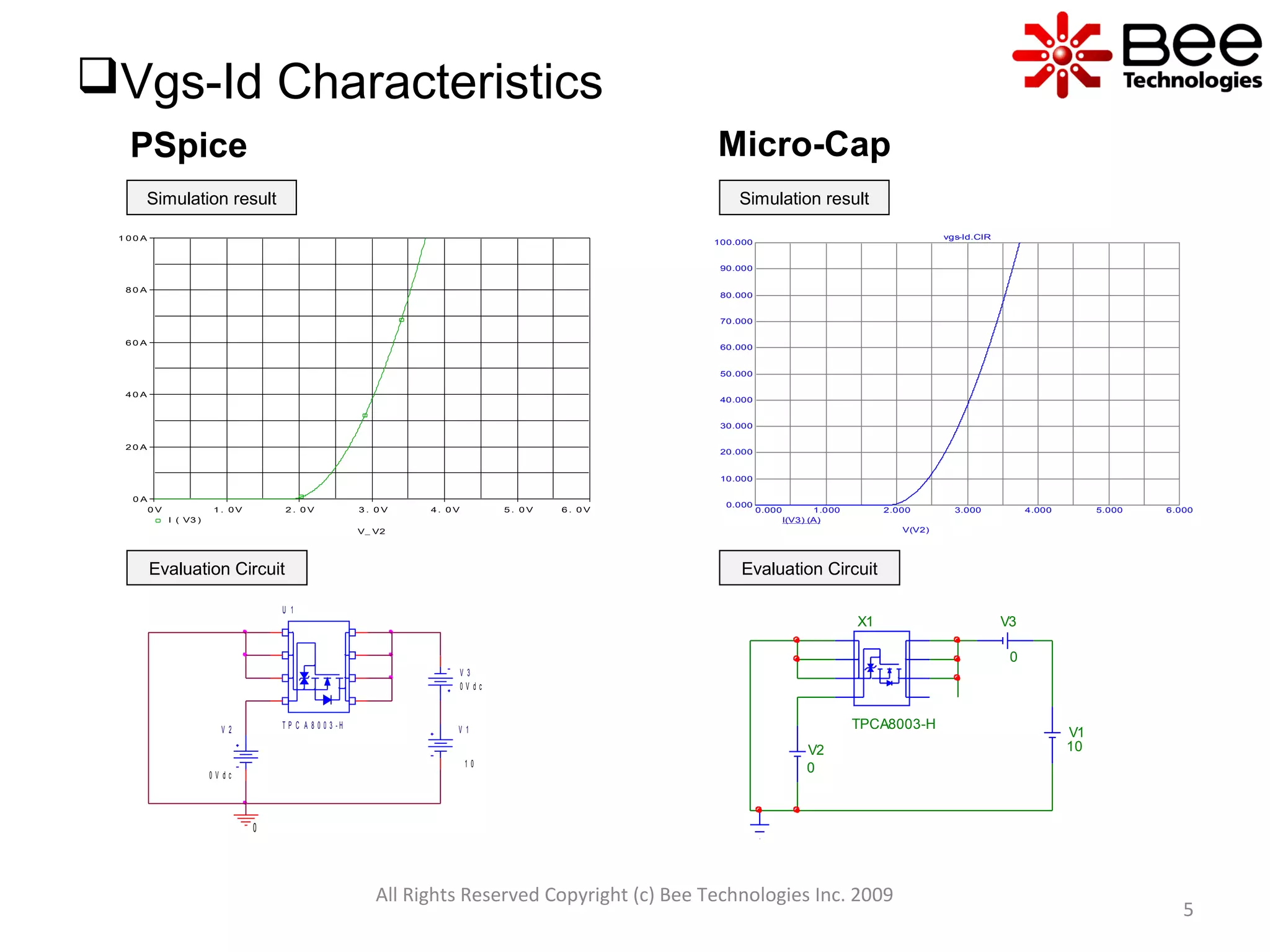

Vgs-Id Characteristics
Micro-CapPSpice
V 2
0 V d c
V 1
1 0
V 3
0 V d c
U 1
T P C A 8 0 0 3 - H
0
V_ V2
0 V 1 . 0 V 2 . 0 V 3 . 0 V 4 . 0 V 5 . 0 V 6 . 0 V
I ( V3 )
0 A
2 0 A
4 0 A
6 0 A
8 0 A
1 0 0 A
Simulation result
Evaluation Circuit
0.000 1.000 2.000 3.000 4.000 5.000 6.000
0.000
10.000
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
I(V3) (A)
V(V2)
vgs-Id.CIR
X1
TPCA8003-H
V1
10
V3
0
V2
0
Simulation result
Evaluation Circuit

6. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
6

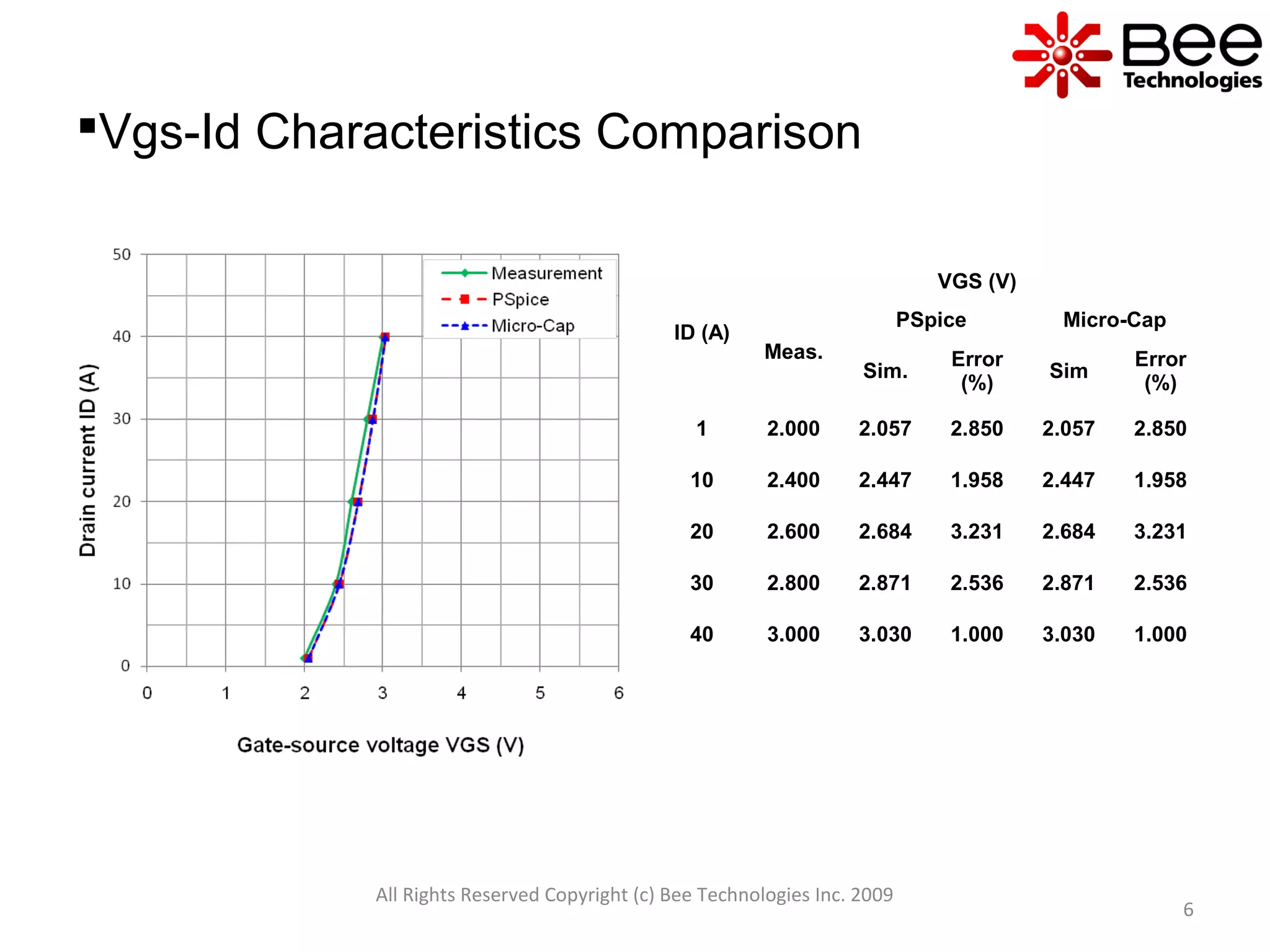

Vgs-Id Characteristics Comparison
ID (A)
VGS (V)
Meas.
PSpice Micro-Cap
Sim.
Error
(%)
Sim
Error
(%)
1 2.000 2.057 2.850 2.057 2.850
10 2.400 2.447 1.958 2.447 1.958
20 2.600 2.684 3.231 2.684 3.231
30 2.800 2.871 2.536 2.871 2.536
40 3.000 3.030 1.000 3.030 1.000

7. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
7

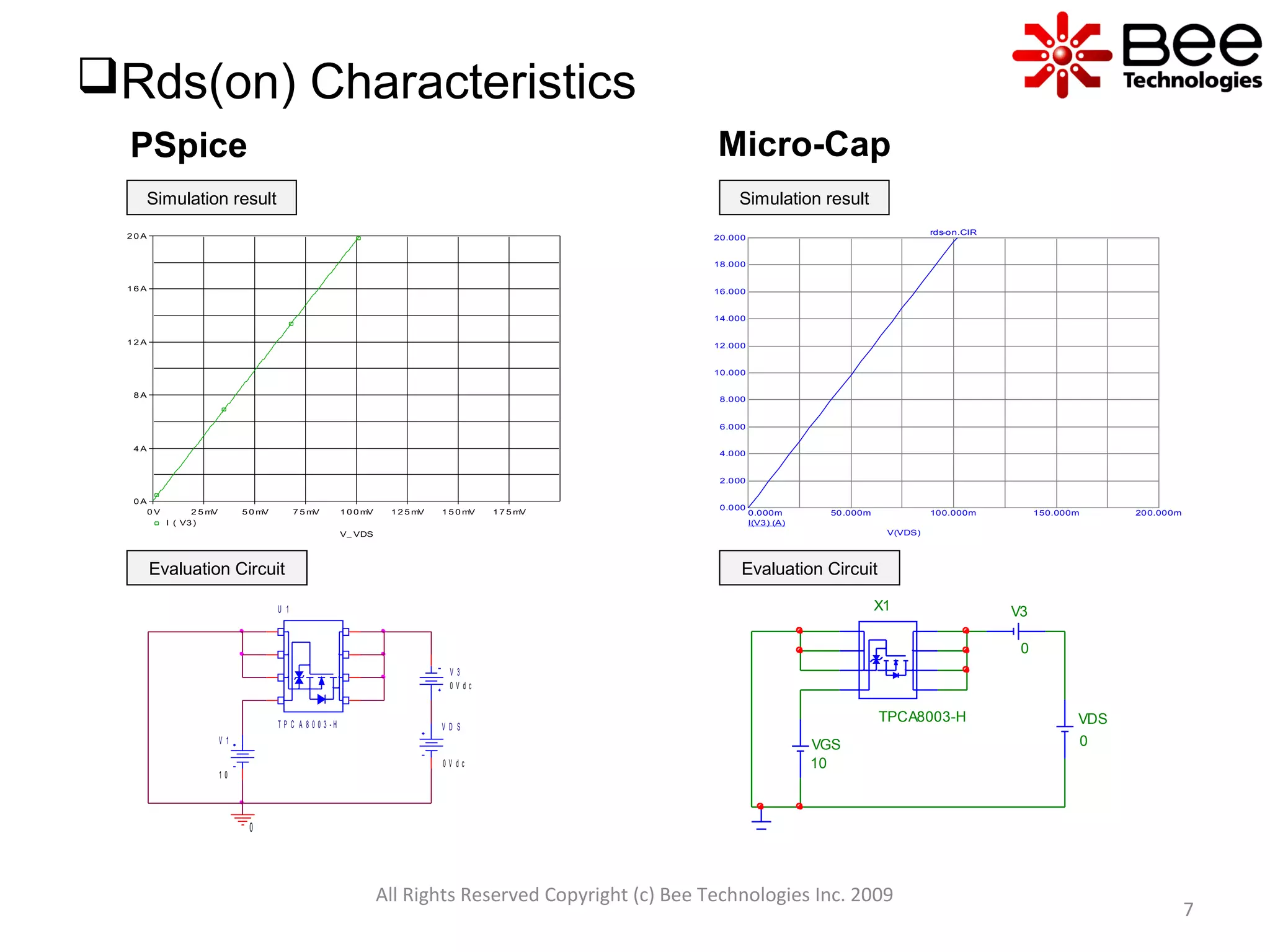

Rds(on) Characteristics
Micro-CapPSpice
Simulation result
Evaluation Circuit
Simulation result
Evaluation Circuit
V_ VDS
0 V 2 5 mV 5 0 mV 7 5 mV 1 0 0 mV 1 2 5 mV 1 5 0 mV 1 7 5 mV
I ( V3 )
0 A
4 A
8 A
1 2 A
1 6 A
2 0 A
V 3
0 V d c
V D S
0 V d c
V 1
1 0
U 1
T P C A 8 0 0 3 - H
0
0.000m 50.000m 100.000m 150.000m 200.000m
0.000
2.000
4.000
6.000
8.000
10.000
12.000
14.000
16.000
18.000
20.000
I(V3) (A)
V(VDS)
rds-on.CIR
X1
TPCA8003-H VDS
0
V3
0
VGS
10

8. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
8

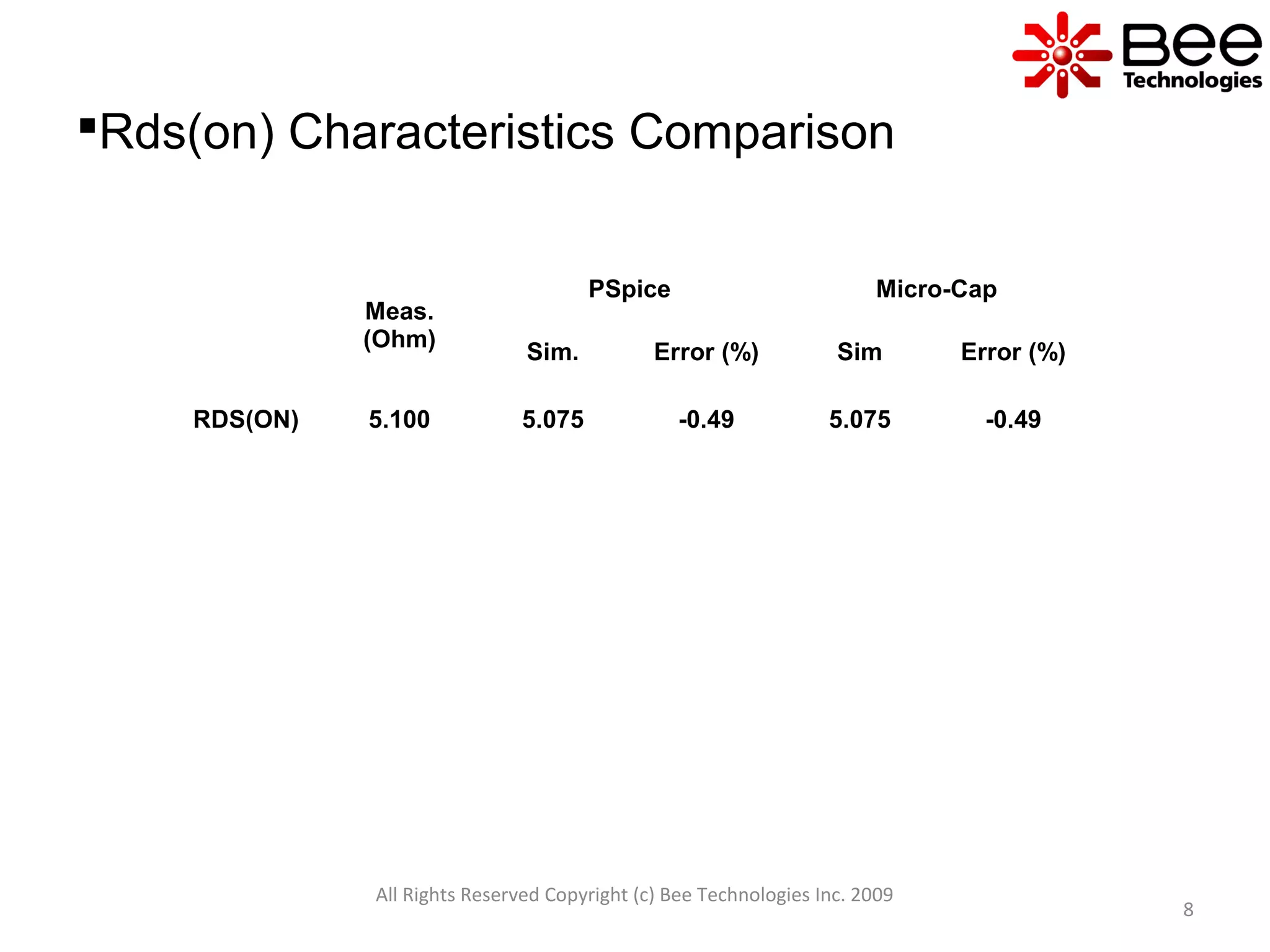

Rds(on) Characteristics Comparison
Meas.
(Ohm)
PSpice Micro-Cap
Sim. Error (%) Sim Error (%)
RDS(ON) 5.100 5.075 -0.49 5.075 -0.49

9. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
9
Gate Charge Characteristics
Micro-CapPSpice
Simulation result
Evaluation Circuit
Simulation result
Evaluation Circuit
V D D
2 4
I 1T D = 0
T F = 5 n
P W = 6 0 0 u
P E R = 1 0 0 0 u
I 1 = 0
I 2 = 1 m
T R = 5 n -
+
W 1
I O N = 0 u A
I O F F = 1 m A
W
I 2
3 5
0
D 1
D b r e a k
U 1
T P C A 8 0 0 3 - H
Ti me* 1mA
0 8n 16n 24n 32n 40n
V( W1: 3)
0V
4V
8V
1 2V
1 6V
0.000n 8.000n 16.000n 24.000n 32.000n 40.000n
0.000
2.000
4.000
6.000
8.000
10.000
12.000
14.000
16.000
V(4) (V)
T*0.001
Gate-charge.CIR
I1
DC 0 AC 0 0 Pulse 0 1m 0 10n 10n 600u 1000u
D1 I2
DC 35 AC 0 0
V2
24
VMOD
0
W1
VMOD
WMOD
X1
TPCA8003-H

10. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
10

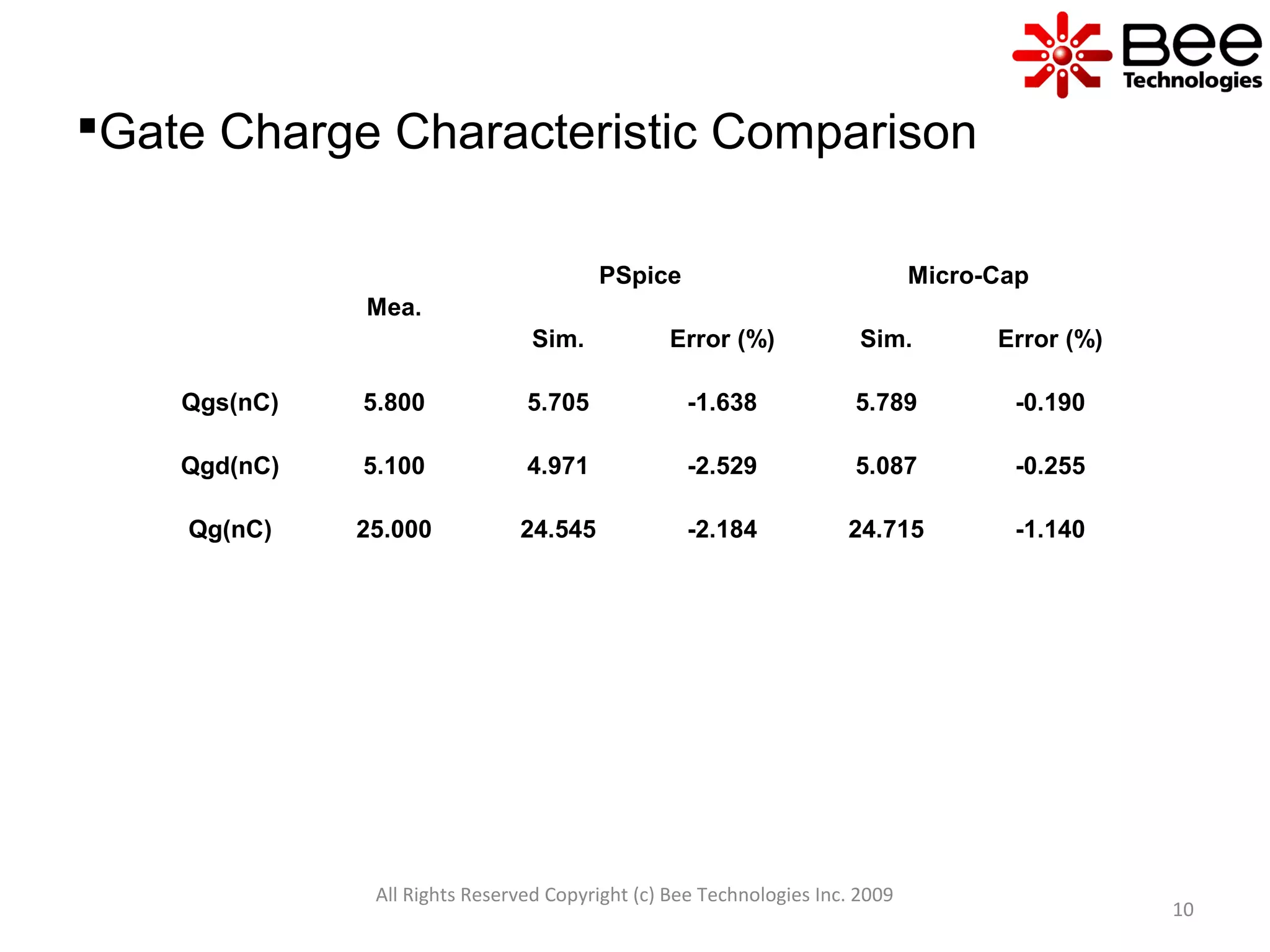

Gate Charge Characteristic Comparison
Mea.
PSpice Micro-Cap
Sim. Error (%) Sim. Error (%)
Qgs(nC) 5.800 5.705 -1.638 5.789 -0.190
Qgd(nC) 5.100 4.971 -2.529 5.087 -0.255
Qg(nC) 25.000 24.545 -2.184 24.715 -1.140

11. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
11

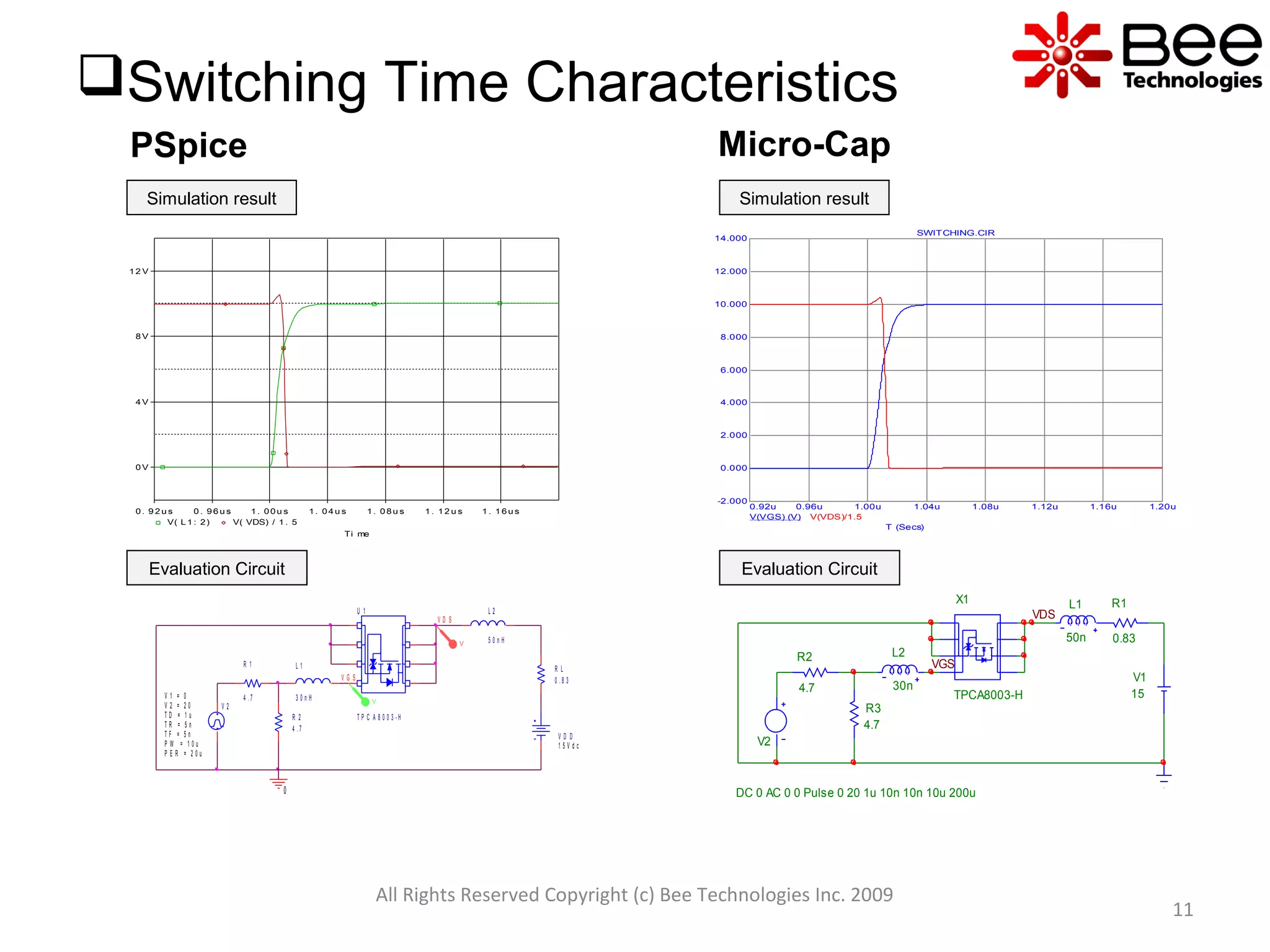

Switching Time Characteristics
Micro-CapPSpice
Simulation result
Evaluation Circuit
Simulation result
Evaluation Circuit
Ti me
0 . 9 2 u s 0 . 9 6 u s 1 . 0 0 u s 1 . 0 4 u s 1 . 0 8 u s 1 . 1 2 u s 1 . 1 6 u s
V( L 1 : 2 ) V( VDS) / 1 . 5
0 V
4 V
8 V
1 2 V
L1
50n
R1
0.83
R2
4.7
L2
30n
R3
4.7
V1
15
V2
DC 0 AC 0 0 Pulse 0 20 1u 10n 10n 10u 200u
X1
TPCA8003-H
VDS
VGS
0
V D D
1 5 V d c
V 2
T D = 1 u
T F = 5 n
P W = 1 0 u
P E R = 2 0 u
V 1 = 0
T R = 5 n
V 2 = 2 0
V G S
U 1
T P C A 8 0 0 3 - H
L 2
5 0 n H
R 2
4 . 7
R 1
4 . 7
L 1
3 0 n H
V D S
R L
0 . 8 3
V
V
0.92u 0.96u 1.00u 1.04u 1.08u 1.12u 1.16u 1.20u
-2.000
0.000
2.000
4.000
6.000
8.000
10.000
12.000
14.000
V(VGS) (V)
T (Secs)
V(VDS)/1.5
SWITCHING.CIR

12. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
12

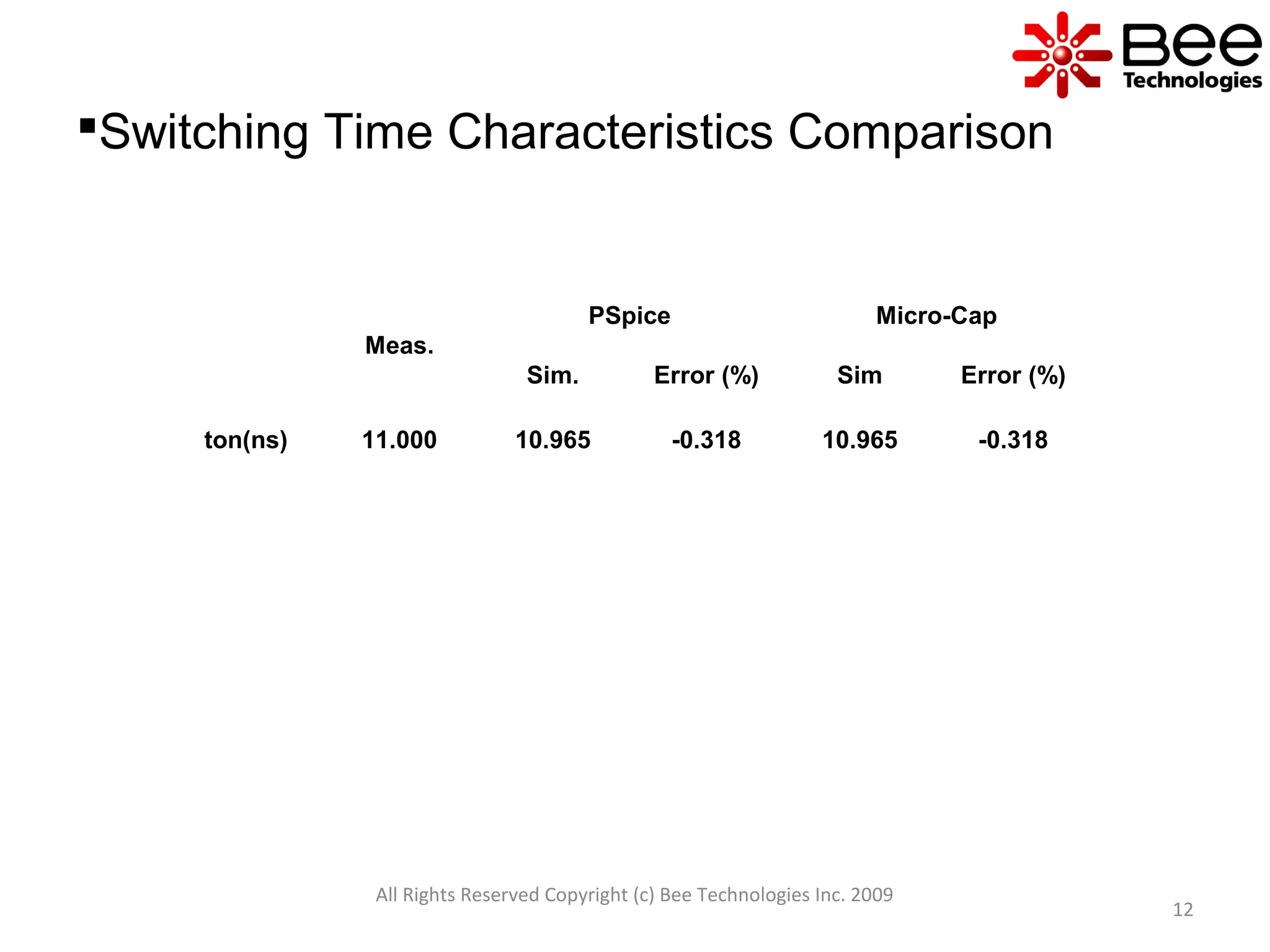

Switching Time Characteristics Comparison
Meas.
PSpice Micro-Cap
Sim. Error (%) Sim Error (%)
ton(ns) 11.000 10.965 -0.318 10.965 -0.318

13. 0.000 1.000 2.000 3.000 4.000 5.000
0.000
10.000
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
I(V3) (A)
V(V1)
OUTPUT.CIR V2.dc.value=2.6...10
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

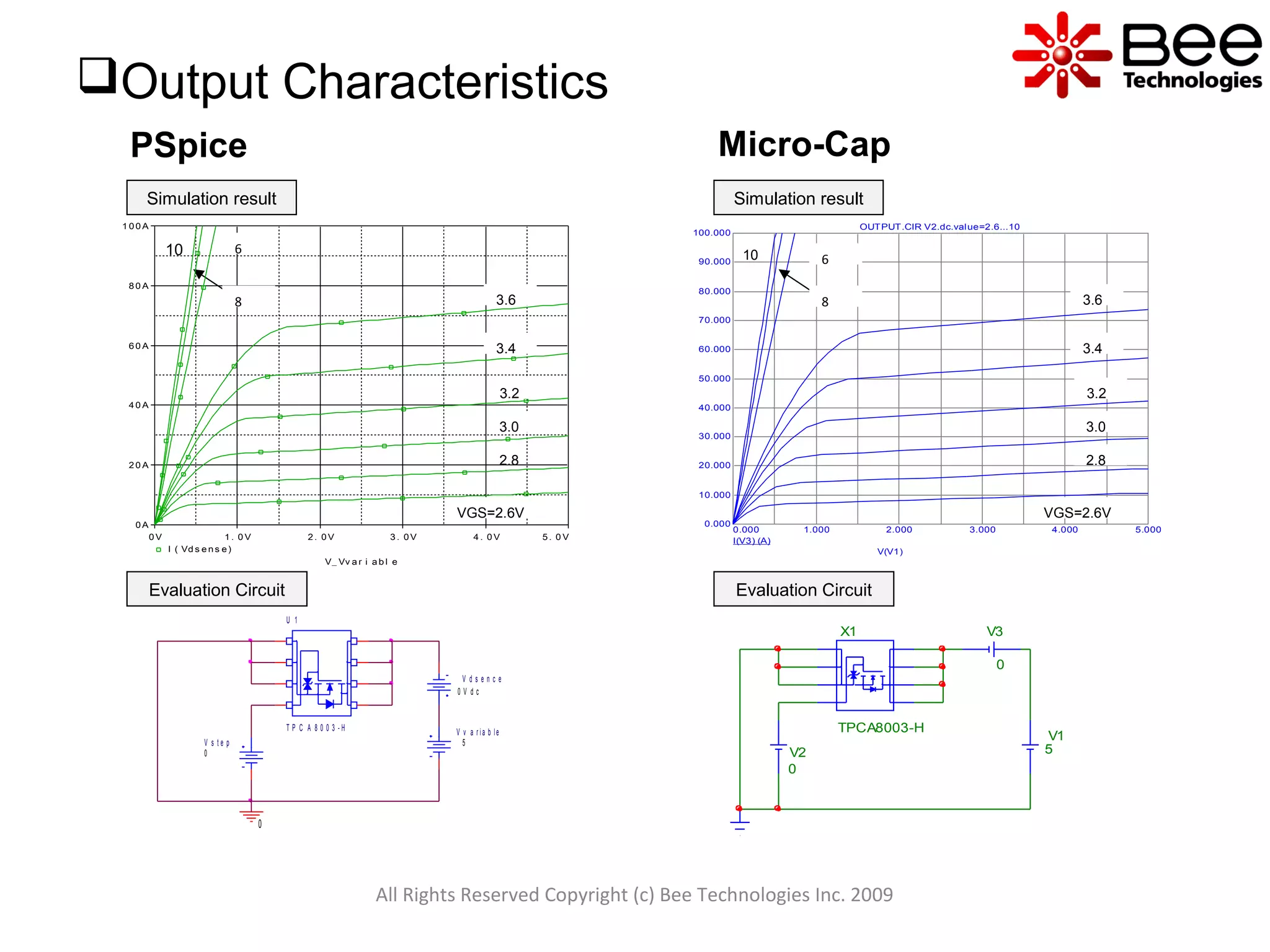

Output Characteristics
Micro-Cap
Simulation result
Evaluation Circuit
2.8
10
V_ Vv a r i a b l e
0 V 1 . 0 V 2 . 0 V 3 . 0 V 4 . 0 V 5 . 0 V
I ( Vd s e n s e )
0 A
2 0 A
4 0 A
6 0 A
8 0 A
1 0 0 A
VGS=2.6V
3.0
3.2
3.4
3.6
6
8
PSpice
Simulation result
Evaluation Circuit
2.8
10
VGS=2.6V
3.0
3.2
3.4
3.6
6
8
X1
TPCA8003-H
V1
5
V3
0
V2
0
V v a r i a b le
5V s t e p
0
V d s e n c e
0 V d c
U 1
T P C A 8 0 0 3 - H
0

14. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
14

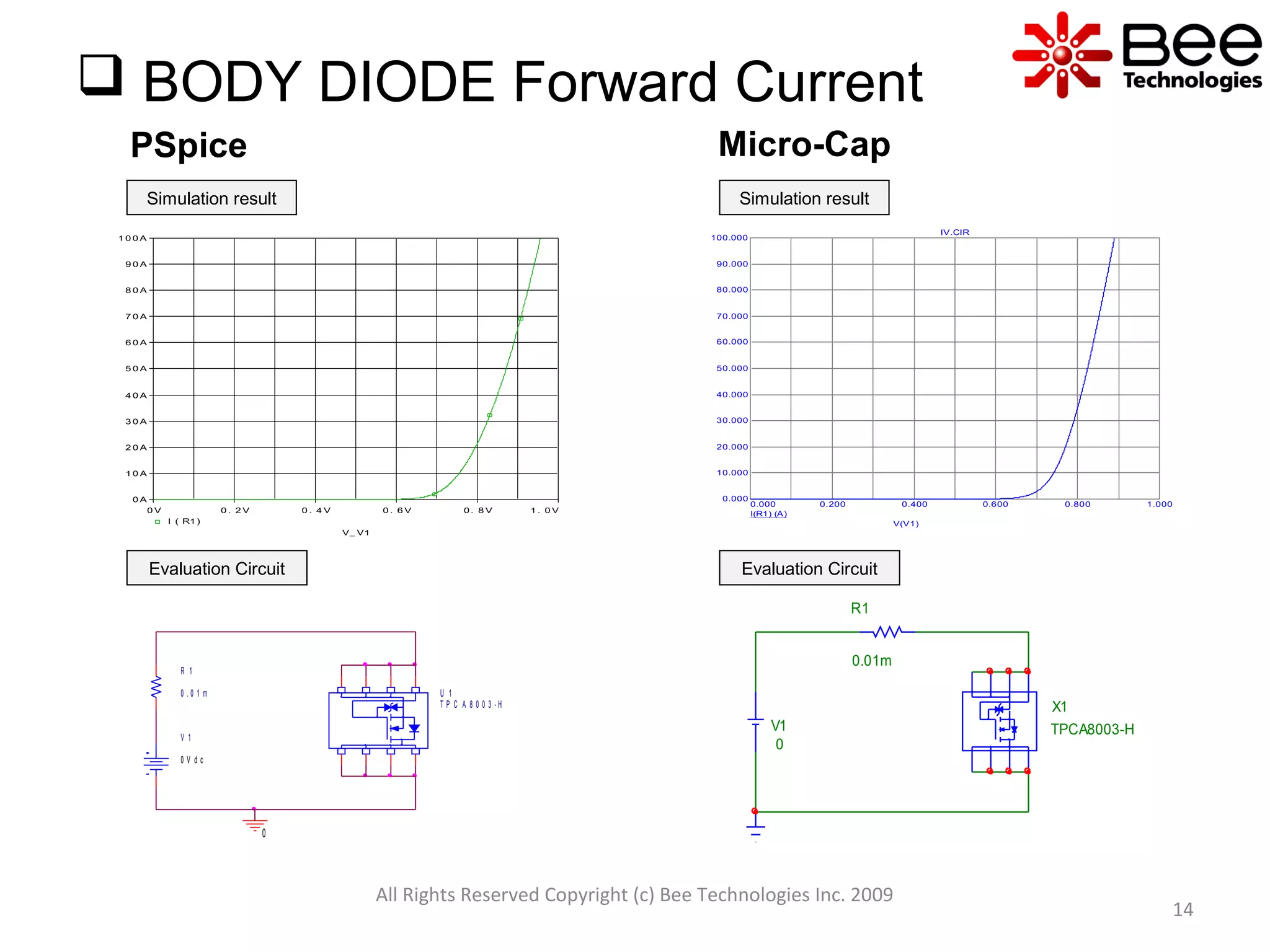

 BODY DIODE Forward Current
Micro-CapPSpice
Simulation result
Evaluation Circuit
Simulation result
Evaluation Circuit
V_ V1
0 V 0 . 2 V 0 . 4 V 0 . 6 V 0 . 8 V 1 . 0 V
I ( R1 )
0 A
1 0 A
2 0 A
3 0 A
4 0 A
5 0 A
6 0 A
7 0 A
8 0 A
9 0 A
1 0 0 A
0.000 0.200 0.400 0.600 0.800 1.000
0.000
10.000
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
I(R1) (A)
V(V1)
IV.CIR
V 1
0 V d c
0
R 1
0 . 0 1 m U 1
T P C A 8 0 0 3 - H
R1
0.01m
V1
0
X1
TPCA8003-H

15. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
15

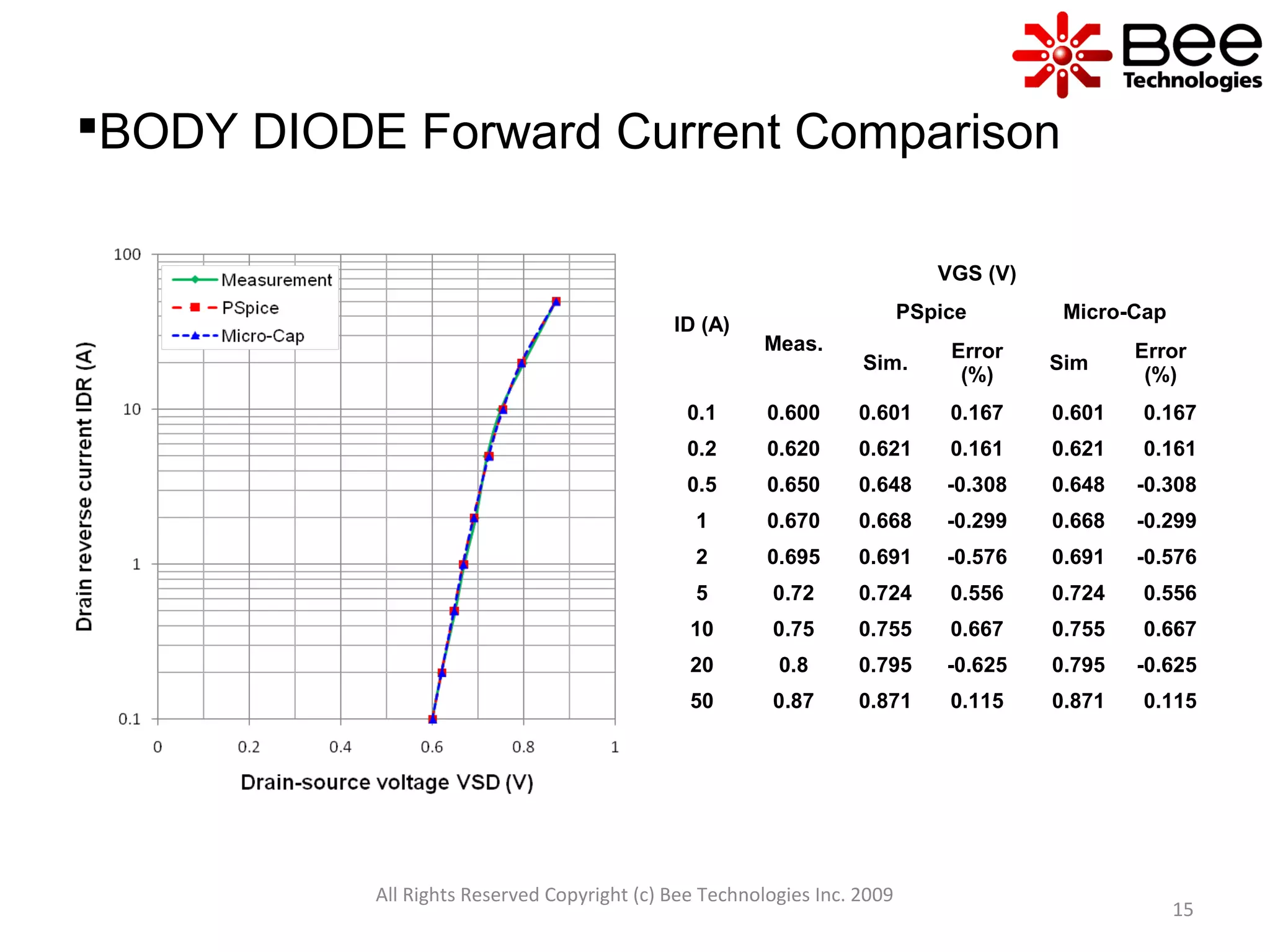

BODY DIODE Forward Current Comparison
ID (A)
VGS (V)
Meas.
PSpice Micro-Cap
Sim.
Error
(%)
Sim
Error
(%)
0.1 0.600 0.601 0.167 0.601 0.167
0.2 0.620 0.621 0.161 0.621 0.161
0.5 0.650 0.648 -0.308 0.648 -0.308
1 0.670 0.668 -0.299 0.668 -0.299
2 0.695 0.691 -0.576 0.691 -0.576
5 0.72 0.724 0.556 0.724 0.556
10 0.75 0.755 0.667 0.755 0.667
20 0.8 0.795 -0.625 0.795 -0.625
50 0.87 0.871 0.115 0.871 0.115

16. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
16

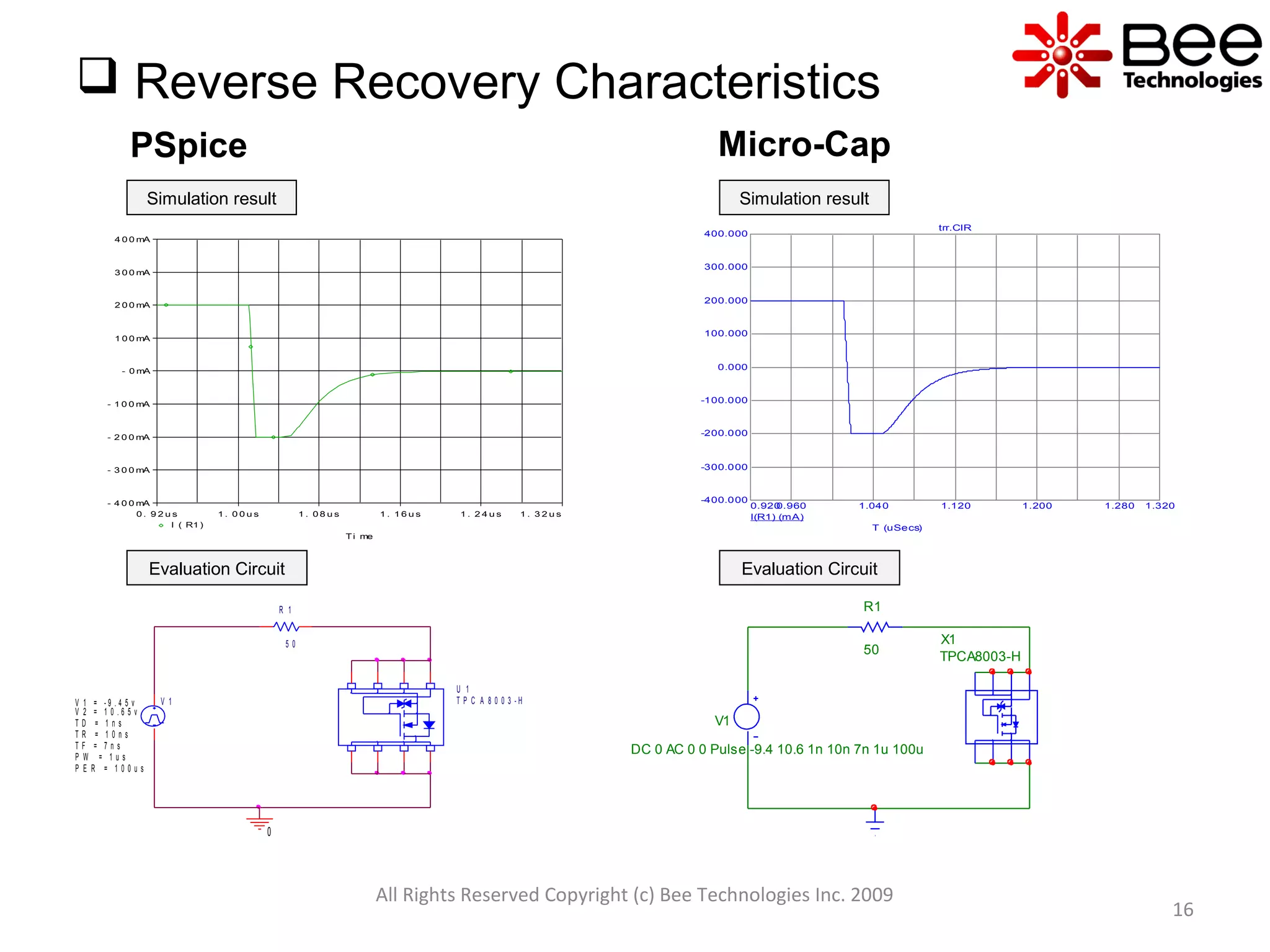

 Reverse Recovery Characteristics
Micro-CapPSpice
Simulation result
Evaluation Circuit
Simulation result
Evaluation Circuit
Ti me
0 . 9 2 u s 1 . 0 0 u s 1 . 0 8 u s 1 . 1 6 u s 1 . 2 4 u s 1 . 3 2 u s
I ( R1 )
- 4 0 0 mA
- 3 0 0 mA
- 2 0 0 mA
- 1 0 0 mA
- 0 mA
1 0 0 mA
2 0 0 mA
3 0 0 mA
4 0 0 mA
0.9200.960 1.040 1.120 1.200 1.280 1.320
-400.000
-300.000
-200.000
-100.000
0.000
100.000
200.000
300.000
400.000
I(R1) (mA)
T (uSecs)
trr.CIR
0
U 1
T P C A 8 0 0 3 - HV 1
T D = 1 n s
T F = 7 n s
P W = 1 u s
P E R = 1 0 0 u s
V 1 = - 9 . 4 5 v
T R = 1 0 n s
V 2 = 1 0 . 6 5 v
R 1
5 0
V1
DC 0 AC 0 0 Pulse -9.4 10.6 1n 10n 7n 1u 100u
R1
50
X1
TPCA8003-H

17. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
17

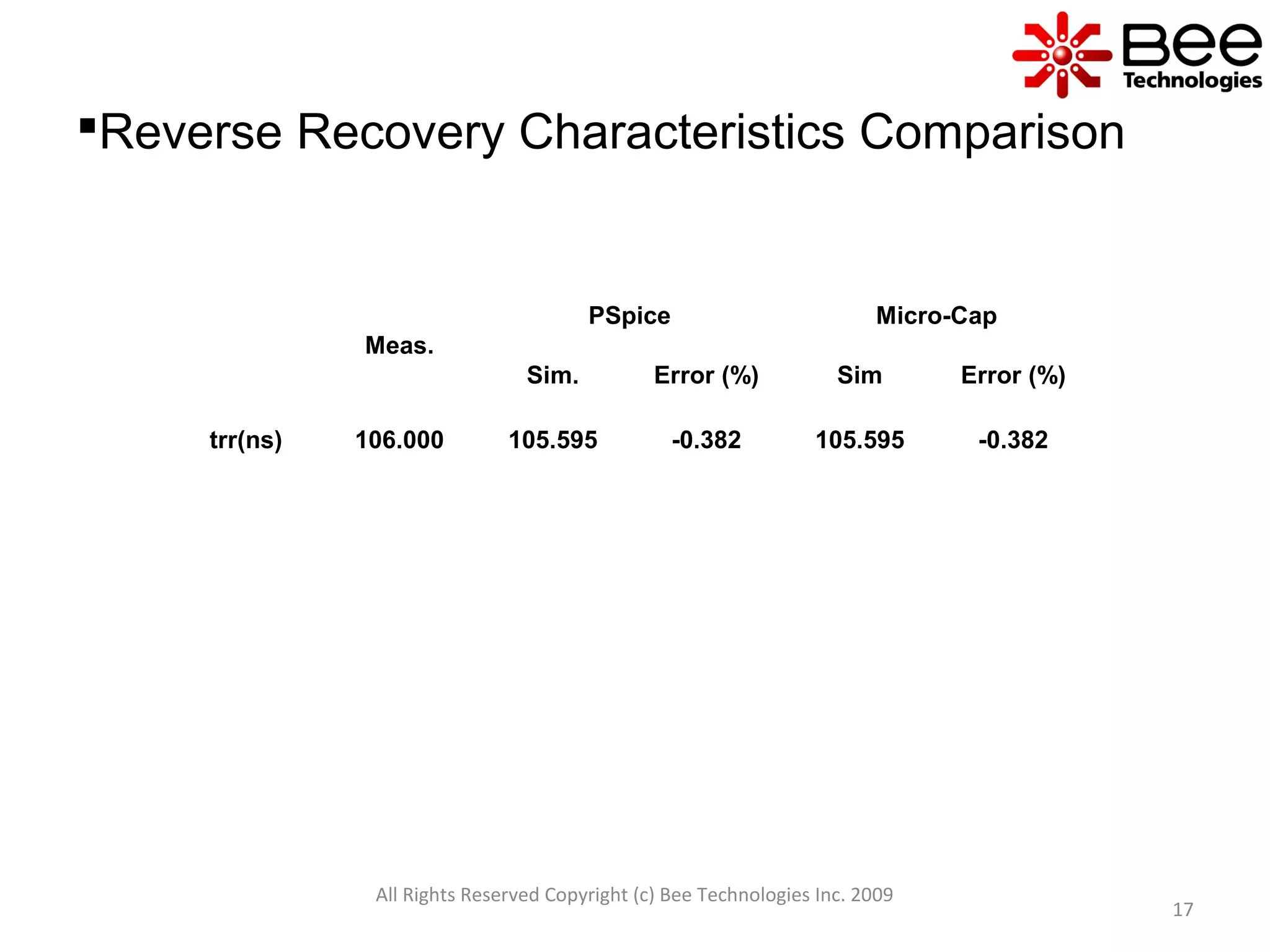

Reverse Recovery Characteristics Comparison
Meas.
PSpice Micro-Cap
Sim. Error (%) Sim Error (%)
trr(ns) 106.000 105.595 -0.382 105.595 -0.382

18. All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
18

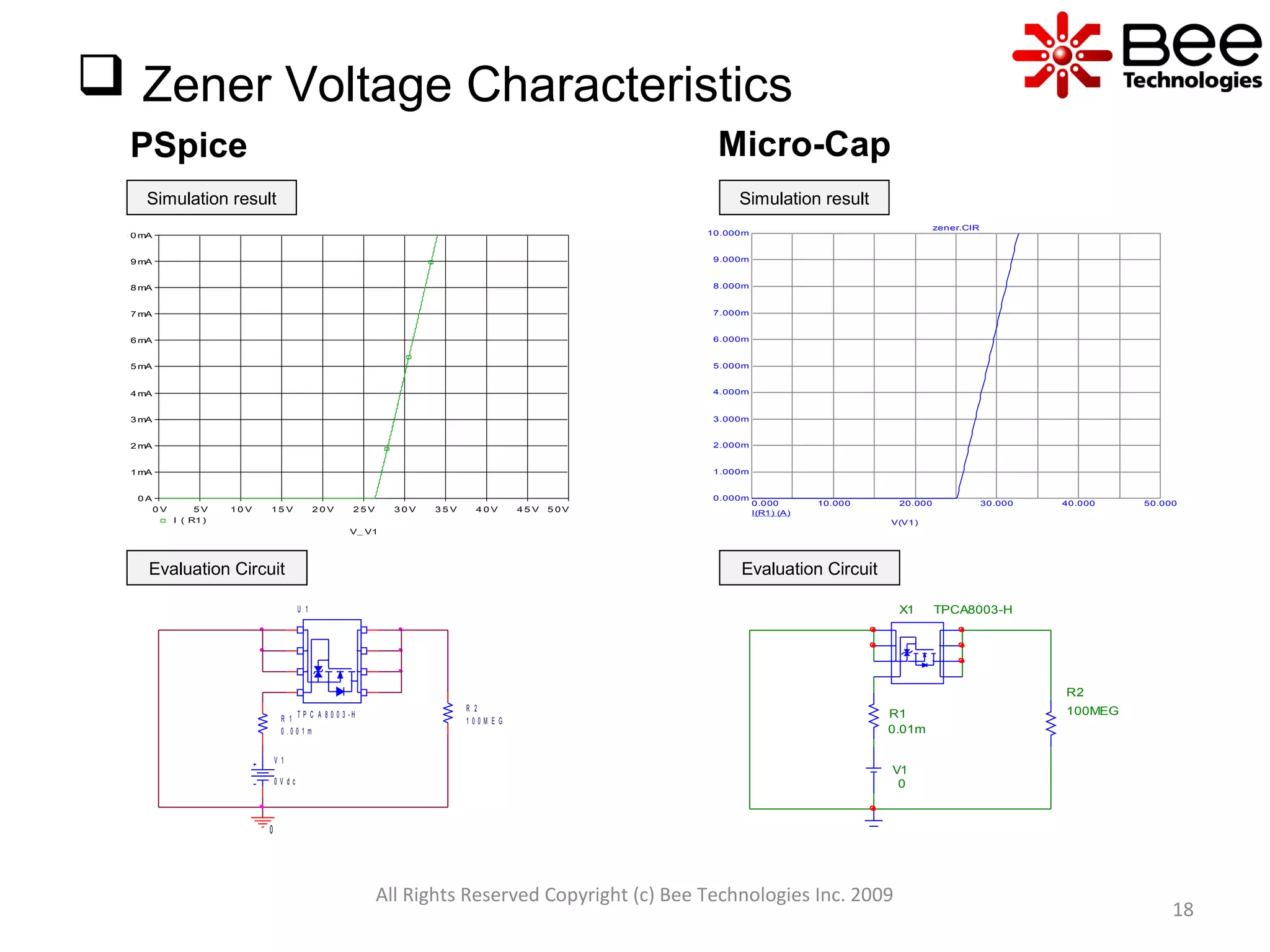

 Zener Voltage Characteristics
Micro-CapPSpice
Simulation result
Evaluation Circuit
Simulation result
Evaluation Circuit
0.000 10.000 20.000 30.000 40.000 50.000
0.000m
1.000m
2.000m
3.000m
4.000m
5.000m
6.000m
7.000m
8.000m
9.000m
10.000m
I(R1) (A)
V(V1)
zener.CIR
0
U 1
T P C A 8 0 0 3 - H
R 2
1 0 0 M E GR 1
0 . 0 0 1 m
V 1
0 V d c
R1
0.01m
V1
0
X1 TPCA8003-H
R2
100MEG
V_ V1
0 V 5 V 1 0 V 1 5 V 2 0 V 2 5 V 3 0 V 3 5 V 4 0 V 4 5 V 5 0 V
I ( R1 )
0 A
1 mA
2 mA
3 mA
4 mA
5 mA
6 mA
7 mA
8 mA
9 mA
1 0 mA
