MORTAR

B.ARCH 1ST SEMESTER

….

BUILDING MATERIALS - I
MORTAR

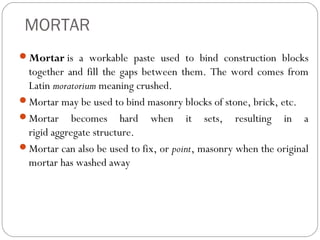

Mortar is a workable paste used to bind construction blocks

together and fill the gaps between them. The word comes from
Latin moratorium meaning crushed.
Mortar may be used to bind masonry blocks of stone, brick, etc.
Mortar becomes hard when it sets, resulting in a
rigid aggregate structure.
Mortar can also be used to fix, or point, masonry when the original
mortar has washed away
MORTAR

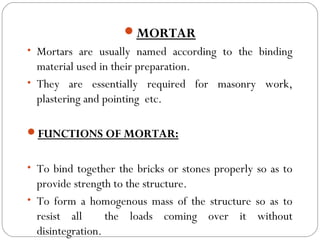

• Mortars are usually named according to the binding

material used in their preparation.
• They are essentially required for masonry work,
plastering and pointing etc.
FUNCTIONS OF MORTAR:
• To bind together the bricks or stones properly so as to

provide strength to the structure.
• To form a homogenous mass of the structure so as to
resist all
the loads coming over it without
disintegration.

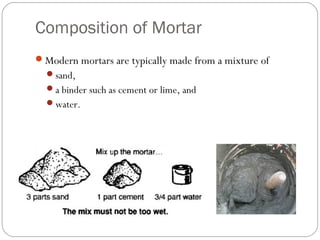

Composition of Mortar
Modern mortars are typically made from a mixture of
sand,
a binder such as cement or lime, and
water.

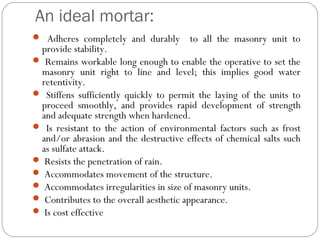

An ideal mortar:
 Adheres completely and durably

to all the masonry unit to

provide stability.
 Remains workable long enough to enable the operative to set the
masonry unit right to line and level; this implies good water
retentivity.
 Stiffens sufficiently quickly to permit the laying of the units to
proceed smoothly, and provides rapid development of strength
and adequate strength when hardened.
 Is resistant to the action of environmental factors such as frost
and/or abrasion and the destructive effects of chemical salts such
as sulfate attack.
 Resists the penetration of rain.
 Accommodates movement of the structure.
 Accommodates irregularities in size of masonry units.
 Contributes to the overall aesthetic appearance.
 Is cost effective

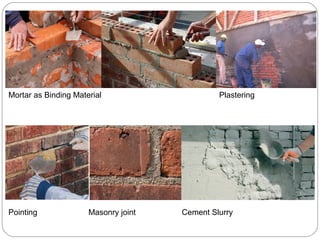

Mortar as Binding Material

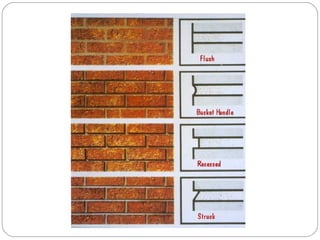

Pointing

Masonry joint

Plastering

Cement Slurry

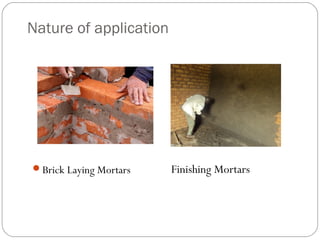

Nature of application

Brick Laying Mortars

Finishing Mortars
PROPERTIES

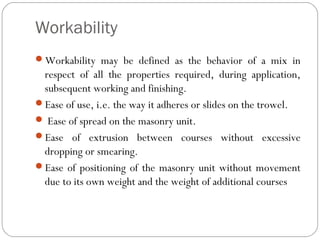

Workability
Workability may be defined as the behavior of a mix in

respect of all the properties required, during application,
subsequent working and finishing.
Ease of use, i.e. the way it adheres or slides on the trowel.
 Ease of spread on the masonry unit.
Ease of extrusion between courses without excessive
dropping or smearing.
Ease of positioning of the masonry unit without movement
due to its own weight and the weight of additional courses

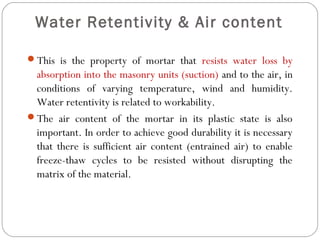

Water Retentivity & Air content
This is the property of mortar that resists water loss by

absorption into the masonry units (suction) and to the air, in
conditions of varying temperature, wind and humidity.
Water retentivity is related to workability.
The air content of the mortar in its plastic state is also
important. In order to achieve good durability it is necessary
that there is sufficient air content (entrained air) to enable
freeze-thaw cycles to be resisted without disrupting the
matrix of the material.

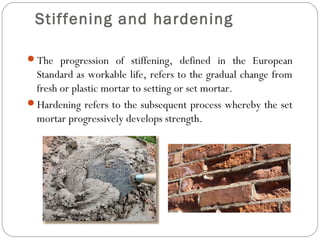

Stiffening and hardening
The progression of stiffening, defined in the European

Standard as workable life, refers to the gradual change from
fresh or plastic mortar to setting or set mortar.
Hardening refers to the subsequent process whereby the set
mortar progressively develops strength.

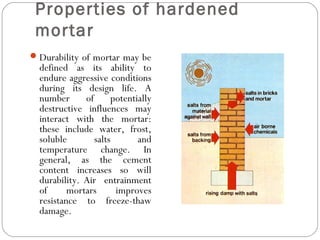

Properties of hardened
mortar
 Durability of mortar may be

defined as its ability to
endure aggressive conditions
during its design life. A
number
of
potentially
destructive influences may
interact with the mortar:
these include water, frost,
soluble
salts
and
temperature change. In
general, as the cement
content increases so will
durability. Air entrainment
of
mortars
improves
resistance to freeze-thaw
damage.

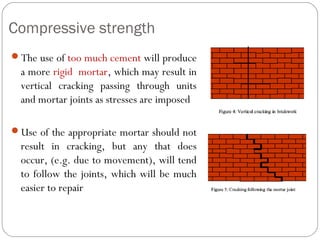

Compressive strength
The use of too much cement will produce

a more rigid mortar, which may result in
vertical cracking passing through units
and mortar joints as stresses are imposed
Use of the appropriate mortar should not

result in cracking, but any that does
occur, (e.g. due to movement), will tend
to follow the joints, which will be much
easier to repair
MORTAR BUILDING MATERIALS

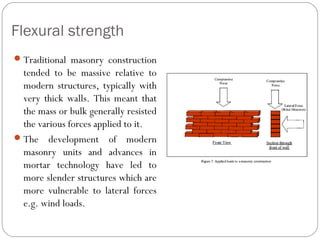

Flexural strength
 Traditional masonry construction

tended to be massive relative to
modern structures, typically with
very thick walls. This meant that
the mass or bulk generally resisted
the various forces applied to it.
 The development of modern
masonry units and advances in
mortar technology have led to
more slender structures which are
more vulnerable to lateral forces
e.g. wind loads.

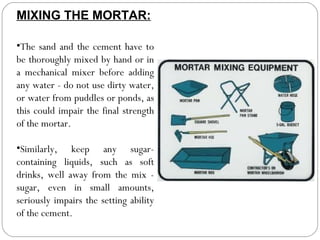

MIXING THE MORTAR:
•The sand and the cement have to
be thoroughly mixed by hand or in
a mechanical mixer before adding
any water - do not use dirty water,
or water from puddles or ponds, as
this could impair the final strength
of the mortar.
•Similarly, keep any sugarcontaining liquids, such as soft
drinks, well away from the mix sugar, even in small amounts,
seriously impairs the setting ability
of the cement.
MORTAR BUILDING MATERIALS

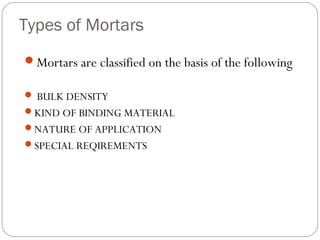

Types of Mortars
Mortars are classified on the basis of the following
 BULK DENSITY
KIND OF BINDING MATERIAL
NATURE OF APPLICATION
SPECIAL REQIREMENTS
By Bulk Density
According to the bulk density of mortar in dry

state , there are two types of mortars.
Heavy Mortar Bulk Density =/> 1500 kg/m3
Lightweight Mortar -

Bulk Density < 1500 kg/m3

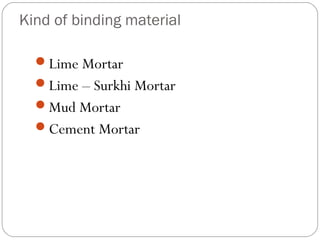

Kind of binding material
Lime Mortar
Lime – Surkhi Mortar
Mud Mortar
Cement Mortar

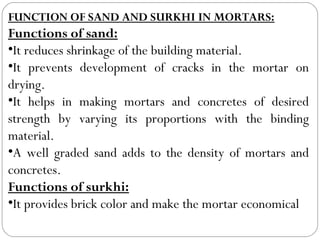

FUNCTION OF SAND AND SURKHI IN MORTARS:

Functions of sand:
•It reduces shrinkage of the building material.
•It prevents development of cracks in the mortar on
drying.
•It helps in making mortars and concretes of desired
strength by varying its proportions with the binding
material.
•A well graded sand adds to the density of mortars and
concretes.
Functions of surkhi:
•It provides brick color and make the mortar economical

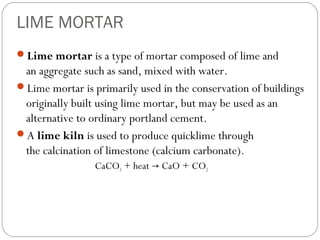

LIME MORTAR
LIME MORTAR
Lime mortar is a type of mortar composed of lime and

an aggregate such as sand, mixed with water.
Lime mortar is primarily used in the conservation of buildings
originally built using lime mortar, but may be used as an
alternative to ordinary portland cement.
A lime kiln is used to produce quicklime through
the calcination of limestone (calcium carbonate).
CaCO3 + heat → CaO + CO2

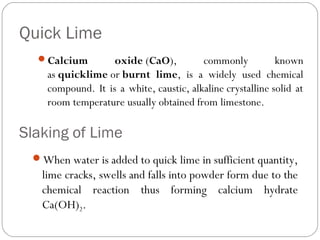

Quick Lime
Calcium

oxide (CaO),
commonly
known
as quicklime or burnt lime, is a widely used chemical
compound. It is a white, caustic, alkaline crystalline solid at
room temperature usually obtained from limestone.

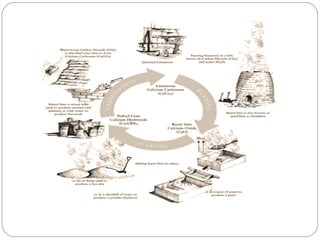

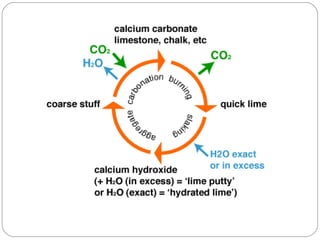

Slaking of Lime
When water is added to quick lime in sufficient quantity,

lime cracks, swells and falls into powder form due to the
chemical reaction thus forming calcium hydrate
Ca(OH)2.
MORTAR BUILDING MATERIALS
MORTAR BUILDING MATERIALS

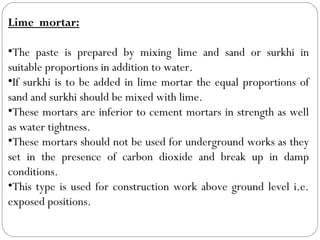

Lime mortar:
•The paste is prepared by mixing lime and sand or surkhi in
suitable proportions in addition to water.
•If surkhi is to be added in lime mortar the equal proportions of
sand and surkhi should be mixed with lime.
•These mortars are inferior to cement mortars in strength as well
as water tightness.
•These mortars should not be used for underground works as they
set in the presence of carbon dioxide and break up in damp
conditions.
•This type is used for construction work above ground level i.e.
exposed positions.
Ht: 40 cm
6 – 9 m Dia

BULLOCK DRIVEN GRINDING MILL

Width: 30 cm
Pivot

Roller

Roller

Revolving Pan
180- 240 CM Dia
Power

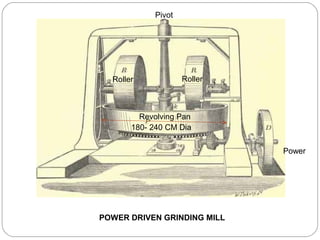

POWER DRIVEN GRINDING MILL

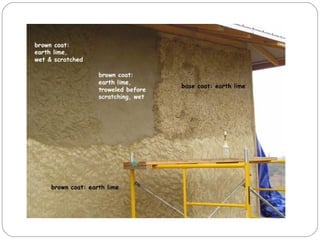

MORTAR BUILDING MATERIALS

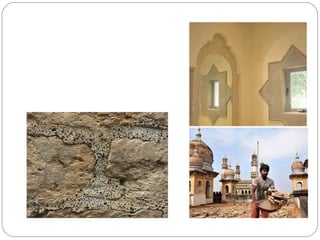

MORTAR BUILDING MATERIALS
MUD MORTAR

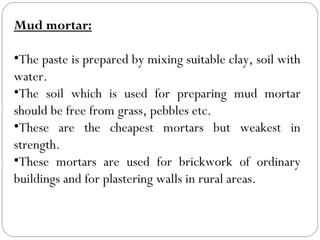

Mud mortar:
•The paste is prepared by mixing suitable clay, soil with
water.
•The soil which is used for preparing mud mortar
should be free from grass, pebbles etc.
•These are the cheapest mortars but weakest in
strength.
•These mortars are used for brickwork of ordinary
buildings and for plastering walls in rural areas.

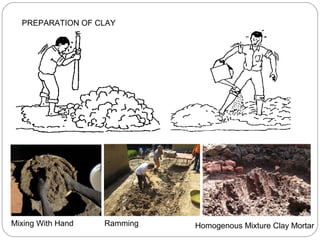

PREPARATION OF CLAY

Mixing With Hand

Ramming

Homogenous Mixture Clay Mortar

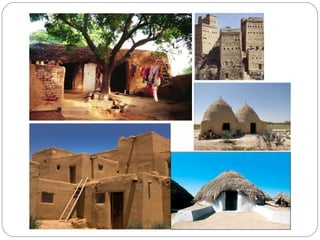

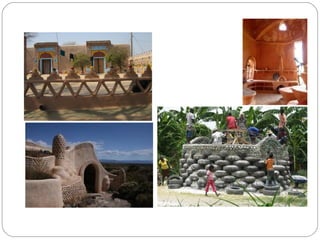

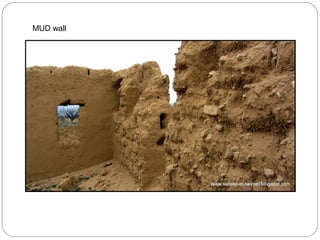

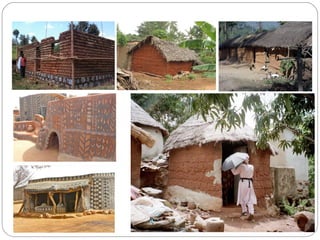

MUD wall

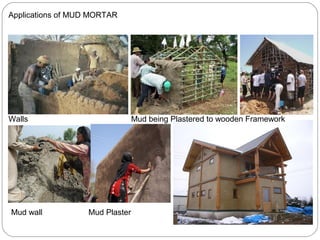

Applications of MUD MORTAR

Walls

Mud wall

Mud being Plastered to wooden Framework

Mud Plaster

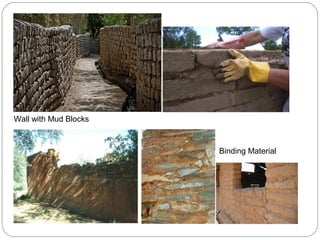

Wall with Mud Blocks

Binding Material

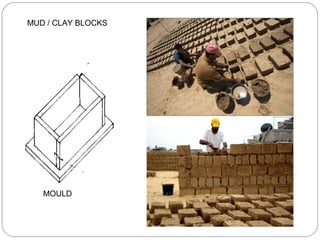

MUD / CLAY BLOCKS

MOULD
MORTAR BUILDING MATERIALS
MORTAR BUILDING MATERIALS
MORTAR BUILDING MATERIALS

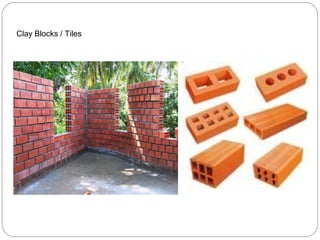

Clay Blocks / Tiles
TERRACOTTA –
Burnt Clay

Solar Panels
embedded in clay tiles

Shingles

Tiled Roofs

Roof Tiles

Pot Tiles

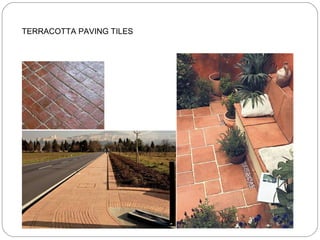

TERRACOTTA PAVING TILES
TERRACOTTA

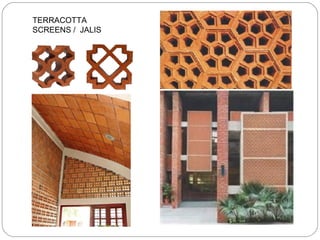

SCREENS / JALIS

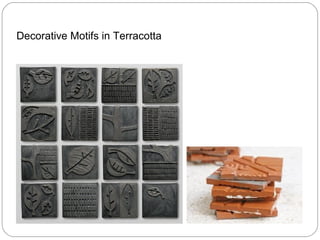

Decorative Motifs in Terracotta
CEMENT MORTAR

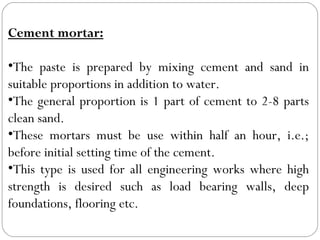

Cement mortar:
•The paste is prepared by mixing cement and sand in
suitable proportions in addition to water.

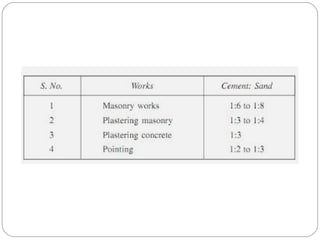

•The general proportion is 1 part of cement to 2-8 parts
clean sand.
•These mortars must be use within half an hour, i.e.;
before initial setting time of the cement.
•This type is used for all engineering works where high
strength is desired such as load bearing walls, deep
foundations, flooring etc.

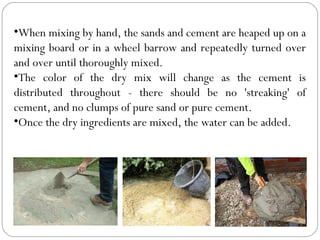

•When mixing by hand, the sands and cement are heaped up on a
mixing board or in a wheel barrow and repeatedly turned over
and over until thoroughly mixed.
•The color of the dry mix will change as the cement is
distributed throughout - there should be no 'streaking' of
cement, and no clumps of pure sand or pure cement.
•Once the dry ingredients are mixed, the water can be added.

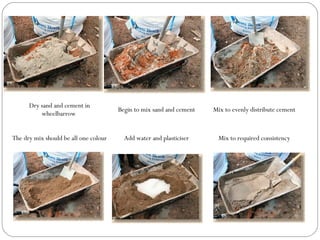

Dry sand and cement in
wheelbarrow

Begin to mix sand and cement

Mix to evenly distribute cement

The dry mix should be all one colour

Add water and plasticiser

Mix to required consistency

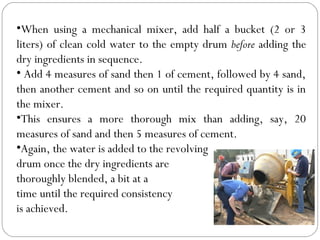

•When using a mechanical mixer, add half a bucket (2 or 3
liters) of clean cold water to the empty drum before adding the
dry ingredients in sequence.
• Add 4 measures of sand then 1 of cement, followed by 4 sand,
then another cement and so on until the required quantity is in
the mixer.
•This ensures a more thorough mix than adding, say, 20
measures of sand and then 5 measures of cement.
•Again, the water is added to the revolving
drum once the dry ingredients are
thoroughly blended, a bit at a
time until the required consistency
is achieved.

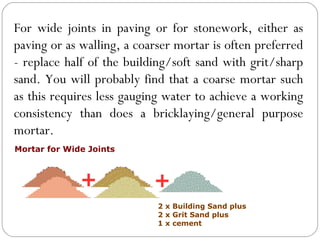

For wide joints in paving or for stonework, either as
paving or as walling, a coarser mortar is often preferred
- replace half of the building/soft sand with grit/sharp
sand. You will probably find that a coarse mortar such
as this requires less gauging water to achieve a working
consistency than does a bricklaying/general purpose
mortar.
Mortar for Wide Joints

2 x Building Sand plus
2 x Grit Sand plus
1 x cement

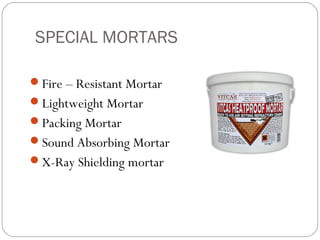

SPECIAL MORTARS
Fire – Resistant Mortar
Lightweight Mortar
Packing Mortar
Sound Absorbing Mortar
X-Ray Shielding mortar

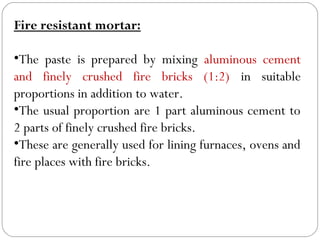

Fire resistant mortar:
•The paste is prepared by mixing aluminous cement
and finely crushed fire bricks (1:2) in suitable
proportions in addition to water.
•The usual proportion are 1 part aluminous cement to
2 parts of finely crushed fire bricks.
•These are generally used for lining furnaces, ovens and
fire places with fire bricks.

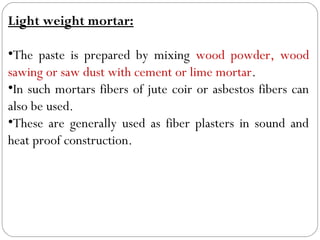

Light weight mortar:
•The paste is prepared by mixing wood powder, wood
sawing or saw dust with cement or lime mortar.
•In such mortars fibers of jute coir or asbestos fibers can
also be used.
•These are generally used as fiber plasters in sound and
heat proof construction.
THANK YOU

More Related Content

What's hot

Bricks
BricksBricks
Bricks
BricksBricks
Building construction materials
Building construction materialsBuilding construction materials
Building construction materials
Akash Patel

Flooring and types of flooring
Flooring and types of flooringFlooring and types of flooring
Flooring and types of flooring
Nagadatt Sharma Nagilla

Plastering ppt
Plastering pptPlastering ppt
Plastering ppt
gayathrysatheesan1

Plastering
PlasteringPlastering
Plastering
Roopa Chikkalgi

Foundation types
Foundation typesFoundation types
Foundation types
Ashwini Ingale

Building construction materials -Tiles
Building construction materials -TilesBuilding construction materials -Tiles
Mortars and Plasters
Mortars and PlastersMortars and Plasters
Mortars and Plasters
GAURAV. H .TANDON

Tiles
TilesTiles
Flooring
FlooringFlooring
Flooring
Jitesh Dhule

Mortar (masonry)
Mortar (masonry)Mortar (masonry)
Mortar (masonry)
Maruthish Shankar

Concrete blocks and their types
Concrete blocks and their typesConcrete blocks and their types
Concrete blocks and their types
Maliha Mehr

COMPOSITION AND MANUFACTURING OF BRICKS.pptx
COMPOSITION AND MANUFACTURING OF BRICKS.pptxCOMPOSITION AND MANUFACTURING OF BRICKS.pptx
COMPOSITION AND MANUFACTURING OF BRICKS.pptx
ila vamsi krishna

Sand
SandSand
Stone masonry
Stone masonry Stone masonry
Stone masonry
Dr. Mohd Zameeruddin

stone ppt
stone ppt stone ppt
stone ppt
winner

Chapter 10 wall finishes ( plastering,pointing &amp; painting)
Chapter 10 wall finishes ( plastering,pointing &amp; painting)Chapter 10 wall finishes ( plastering,pointing &amp; painting)
Chapter 10 wall finishes ( plastering,pointing &amp; painting)
KHUSHBU SHAH

Bricks
BricksBricks
Bricks
Jitesh Dhule

types of Flooring in construction
types of Flooring in constructiontypes of Flooring in construction
types of Flooring in construction
Udisha15


What's hot (20)

Bricks
BricksBricks
Bricks

Bricks
BricksBricks
Bricks

Building construction materials
Building construction materialsBuilding construction materials
Building construction materials

Flooring and types of flooring
Flooring and types of flooringFlooring and types of flooring
Flooring and types of flooring

Plastering ppt
Plastering pptPlastering ppt
Plastering ppt

Plastering
PlasteringPlastering
Plastering

Foundation types
Foundation typesFoundation types
Foundation types

Building construction materials -Tiles
Building construction materials -TilesBuilding construction materials -Tiles
Building construction materials -Tiles

Mortars and Plasters
Mortars and PlastersMortars and Plasters
Mortars and Plasters

Tiles
TilesTiles
Tiles

Flooring
FlooringFlooring
Flooring

Mortar (masonry)
Mortar (masonry)Mortar (masonry)
Mortar (masonry)

Concrete blocks and their types
Concrete blocks and their typesConcrete blocks and their types
Concrete blocks and their types

COMPOSITION AND MANUFACTURING OF BRICKS.pptx
COMPOSITION AND MANUFACTURING OF BRICKS.pptxCOMPOSITION AND MANUFACTURING OF BRICKS.pptx
COMPOSITION AND MANUFACTURING OF BRICKS.pptx

Sand
SandSand
Sand

Stone masonry
Stone masonry Stone masonry
Stone masonry

stone ppt
stone ppt stone ppt
stone ppt

Chapter 10 wall finishes ( plastering,pointing &amp; painting)
Chapter 10 wall finishes ( plastering,pointing &amp; painting)Chapter 10 wall finishes ( plastering,pointing &amp; painting)
Chapter 10 wall finishes ( plastering,pointing &amp; painting)

Bricks
BricksBricks
Bricks

types of Flooring in construction
types of Flooring in constructiontypes of Flooring in construction
types of Flooring in construction


Similar to MORTAR BUILDING MATERIALS

Cement,lime,mud mortors
Cement,lime,mud mortorsCement,lime,mud mortors
Cement,lime,mud mortors
Siddharth Siddhu

1st Mortars
1st  Mortars1st  Mortars
1st Mortars
guest910cb9a

Mortar
MortarMortar
Aggrigatemortor 170209141826
Aggrigatemortor 170209141826Aggrigatemortor 170209141826
Aggrigatemortor 170209141826
ram saran

Mortar plaster pointing
Mortar plaster pointingMortar plaster pointing
Mortar plaster pointing
Divya Vishnoi

Mortar.ppt
Mortar.pptMortar.ppt
Mortar.ppt
JagadishVengala1

B-Tech Construction Material Presentaion.ppt
B-Tech Construction Material Presentaion.pptB-Tech Construction Material Presentaion.ppt
B-Tech Construction Material Presentaion.ppt
mosesnhidza

Mortar-Chap 6 @CE506 PPT (1).pptx semester 3
Mortar-Chap 6 @CE506 PPT (1).pptx semester 3Mortar-Chap 6 @CE506 PPT (1).pptx semester 3
Mortar-Chap 6 @CE506 PPT (1).pptx semester 3
siddhantpandey500

Mortar and Concrete overall surkhi function
Mortar and Concrete overall surkhi functionMortar and Concrete overall surkhi function
Mortar and Concrete overall surkhi function
anasali786mughalali

CE 6506 CONSTRUCTION TECHNIQUES EQUIPMENTS & PRACTICE
CE 6506 CONSTRUCTION  TECHNIQUES  EQUIPMENTS  & PRACTICE CE 6506 CONSTRUCTION  TECHNIQUES  EQUIPMENTS  & PRACTICE
CE 6506 CONSTRUCTION TECHNIQUES EQUIPMENTS & PRACTICE
Anbarasan Muthaiyah

Mortors
MortorsMortors
Mortors
kaleemuet17

lecture 4MORTAR.ppt
lecture 4MORTAR.pptlecture 4MORTAR.ppt
lecture 4MORTAR.ppt
ssuserb4074f

Mortar
MortarMortar
Mortar
paul makesh

Cement morter
Cement morterCement morter
Cement morter
mrinalmanik64

Building materials
Building materialsBuilding materials
Building materials
Alay Desai

Gangaram yadav ppt road con....
Gangaram yadav ppt road con....Gangaram yadav ppt road con....
Gangaram yadav ppt road con....
RaazYadav6

Other Building Materials.docx
Other Building Materials.docxOther Building Materials.docx
Other Building Materials.docx
basamuel

Building materials
Building materialsBuilding materials
Building materials
heart trust nta

Buildingmaterials 131128125947-phpapp01
Buildingmaterials 131128125947-phpapp01Buildingmaterials 131128125947-phpapp01
Buildingmaterials 131128125947-phpapp01
Udit Jain

MD MAHFUJUR RAHMAN RAJ.pptx
MD MAHFUJUR RAHMAN RAJ.pptxMD MAHFUJUR RAHMAN RAJ.pptx
MD MAHFUJUR RAHMAN RAJ.pptx
rajviewport


Similar to MORTAR BUILDING MATERIALS (20)

Cement,lime,mud mortors
Cement,lime,mud mortorsCement,lime,mud mortors
Cement,lime,mud mortors

1st Mortars
1st  Mortars1st  Mortars
1st Mortars

Mortar
MortarMortar
Mortar

Aggrigatemortor 170209141826
Aggrigatemortor 170209141826Aggrigatemortor 170209141826
Aggrigatemortor 170209141826

Mortar plaster pointing
Mortar plaster pointingMortar plaster pointing
Mortar plaster pointing

Mortar.ppt
Mortar.pptMortar.ppt
Mortar.ppt

B-Tech Construction Material Presentaion.ppt
B-Tech Construction Material Presentaion.pptB-Tech Construction Material Presentaion.ppt
B-Tech Construction Material Presentaion.ppt

Mortar-Chap 6 @CE506 PPT (1).pptx semester 3
Mortar-Chap 6 @CE506 PPT (1).pptx semester 3Mortar-Chap 6 @CE506 PPT (1).pptx semester 3
Mortar-Chap 6 @CE506 PPT (1).pptx semester 3

Mortar and Concrete overall surkhi function
Mortar and Concrete overall surkhi functionMortar and Concrete overall surkhi function
Mortar and Concrete overall surkhi function

CE 6506 CONSTRUCTION TECHNIQUES EQUIPMENTS & PRACTICE
CE 6506 CONSTRUCTION  TECHNIQUES  EQUIPMENTS  & PRACTICE CE 6506 CONSTRUCTION  TECHNIQUES  EQUIPMENTS  & PRACTICE
CE 6506 CONSTRUCTION TECHNIQUES EQUIPMENTS & PRACTICE

Mortors
MortorsMortors
Mortors

lecture 4MORTAR.ppt
lecture 4MORTAR.pptlecture 4MORTAR.ppt
lecture 4MORTAR.ppt

Mortar
MortarMortar
Mortar

Cement morter
Cement morterCement morter
Cement morter

Building materials
Building materialsBuilding materials
Building materials

Gangaram yadav ppt road con....
Gangaram yadav ppt road con....Gangaram yadav ppt road con....
Gangaram yadav ppt road con....

Other Building Materials.docx
Other Building Materials.docxOther Building Materials.docx
Other Building Materials.docx

Building materials
Building materialsBuilding materials
Building materials

Buildingmaterials 131128125947-phpapp01
Buildingmaterials 131128125947-phpapp01Buildingmaterials 131128125947-phpapp01
Buildingmaterials 131128125947-phpapp01

MD MAHFUJUR RAHMAN RAJ.pptx
MD MAHFUJUR RAHMAN RAJ.pptxMD MAHFUJUR RAHMAN RAJ.pptx
MD MAHFUJUR RAHMAN RAJ.pptx


Recently uploaded

What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17
Celine George

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V
DrRavindrakshirsagar1

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
thanhluan21

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides
Celine George

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx
AntonioJarligoCompra

Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj TripathiPower of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Pankaj523992

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254
NurFitriah45

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx
UmeshTimilsina1

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Murugan Solaiyappan

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt
Dr. S. Bulomine Regi

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
Murugan Solaiyappan

FEELINGS AND EMOTIONS INSIDE OUT MOVIE.ppt
FEELINGS AND EMOTIONS INSIDE OUT MOVIE.pptFEELINGS AND EMOTIONS INSIDE OUT MOVIE.ppt
FEELINGS AND EMOTIONS INSIDE OUT MOVIE.ppt
JenezarieTarra1

New Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 SlidesNew Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 Slides
Celine George

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
Celine George


Recently uploaded (20)

What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx

Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj TripathiPower of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence

FEELINGS AND EMOTIONS INSIDE OUT MOVIE.ppt
FEELINGS AND EMOTIONS INSIDE OUT MOVIE.pptFEELINGS AND EMOTIONS INSIDE OUT MOVIE.ppt
FEELINGS AND EMOTIONS INSIDE OUT MOVIE.ppt

New Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 SlidesNew Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 Slides

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17

What is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 SlidesWhat is Rescue Session in Odoo 17 POS - Odoo 17 Slides
What is Rescue Session in Odoo 17 POS - Odoo 17 Slides


MORTAR BUILDING MATERIALS

  • 2. MORTAR Mortar is a workable paste used to bind construction blocks together and fill the gaps between them. The word comes from Latin moratorium meaning crushed. Mortar may be used to bind masonry blocks of stone, brick, etc. Mortar becomes hard when it sets, resulting in a rigid aggregate structure. Mortar can also be used to fix, or point, masonry when the original mortar has washed away
  • 3. MORTAR • Mortars are usually named according to the binding material used in their preparation. • They are essentially required for masonry work, plastering and pointing etc. FUNCTIONS OF MORTAR: • To bind together the bricks or stones properly so as to provide strength to the structure. • To form a homogenous mass of the structure so as to resist all the loads coming over it without disintegration.
  • 4. Composition of Mortar Modern mortars are typically made from a mixture of  sand, a binder such as cement or lime, and water.
  • 5. An ideal mortar:  Adheres completely and durably to all the masonry unit to provide stability.  Remains workable long enough to enable the operative to set the masonry unit right to line and level; this implies good water retentivity.  Stiffens sufficiently quickly to permit the laying of the units to proceed smoothly, and provides rapid development of strength and adequate strength when hardened.  Is resistant to the action of environmental factors such as frost and/or abrasion and the destructive effects of chemical salts such as sulfate attack.  Resists the penetration of rain.  Accommodates movement of the structure.  Accommodates irregularities in size of masonry units.  Contributes to the overall aesthetic appearance.  Is cost effective
  • 6. Mortar as Binding Material Pointing Masonry joint Plastering Cement Slurry
  • 7. Nature of application Brick Laying Mortars Finishing Mortars
  • 9. Workability Workability may be defined as the behavior of a mix in respect of all the properties required, during application, subsequent working and finishing. Ease of use, i.e. the way it adheres or slides on the trowel.  Ease of spread on the masonry unit. Ease of extrusion between courses without excessive dropping or smearing. Ease of positioning of the masonry unit without movement due to its own weight and the weight of additional courses
  • 10. Water Retentivity & Air content This is the property of mortar that resists water loss by absorption into the masonry units (suction) and to the air, in conditions of varying temperature, wind and humidity. Water retentivity is related to workability. The air content of the mortar in its plastic state is also important. In order to achieve good durability it is necessary that there is sufficient air content (entrained air) to enable freeze-thaw cycles to be resisted without disrupting the matrix of the material.
  • 11. Stiffening and hardening The progression of stiffening, defined in the European Standard as workable life, refers to the gradual change from fresh or plastic mortar to setting or set mortar. Hardening refers to the subsequent process whereby the set mortar progressively develops strength.
  • 12. Properties of hardened mortar  Durability of mortar may be defined as its ability to endure aggressive conditions during its design life. A number of potentially destructive influences may interact with the mortar: these include water, frost, soluble salts and temperature change. In general, as the cement content increases so will durability. Air entrainment of mortars improves resistance to freeze-thaw damage.
  • 13. Compressive strength The use of too much cement will produce a more rigid mortar, which may result in vertical cracking passing through units and mortar joints as stresses are imposed Use of the appropriate mortar should not result in cracking, but any that does occur, (e.g. due to movement), will tend to follow the joints, which will be much easier to repair
  • 15. Flexural strength  Traditional masonry construction tended to be massive relative to modern structures, typically with very thick walls. This meant that the mass or bulk generally resisted the various forces applied to it.  The development of modern masonry units and advances in mortar technology have led to more slender structures which are more vulnerable to lateral forces e.g. wind loads.
  • 16. MIXING THE MORTAR: •The sand and the cement have to be thoroughly mixed by hand or in a mechanical mixer before adding any water - do not use dirty water, or water from puddles or ponds, as this could impair the final strength of the mortar. •Similarly, keep any sugarcontaining liquids, such as soft drinks, well away from the mix sugar, even in small amounts, seriously impairs the setting ability of the cement.
  • 18. Types of Mortars Mortars are classified on the basis of the following  BULK DENSITY KIND OF BINDING MATERIAL NATURE OF APPLICATION SPECIAL REQIREMENTS
  • 19. By Bulk Density According to the bulk density of mortar in dry state , there are two types of mortars. Heavy Mortar Bulk Density =/> 1500 kg/m3 Lightweight Mortar - Bulk Density < 1500 kg/m3
  • 20. Kind of binding material Lime Mortar Lime – Surkhi Mortar Mud Mortar Cement Mortar
  • 21. FUNCTION OF SAND AND SURKHI IN MORTARS: Functions of sand: •It reduces shrinkage of the building material. •It prevents development of cracks in the mortar on drying. •It helps in making mortars and concretes of desired strength by varying its proportions with the binding material. •A well graded sand adds to the density of mortars and concretes. Functions of surkhi: •It provides brick color and make the mortar economical
  • 23. LIME MORTAR Lime mortar is a type of mortar composed of lime and an aggregate such as sand, mixed with water. Lime mortar is primarily used in the conservation of buildings originally built using lime mortar, but may be used as an alternative to ordinary portland cement. A lime kiln is used to produce quicklime through the calcination of limestone (calcium carbonate). CaCO3 + heat → CaO + CO2
  • 24. Quick Lime Calcium oxide (CaO), commonly known as quicklime or burnt lime, is a widely used chemical compound. It is a white, caustic, alkaline crystalline solid at room temperature usually obtained from limestone. Slaking of Lime When water is added to quick lime in sufficient quantity, lime cracks, swells and falls into powder form due to the chemical reaction thus forming calcium hydrate Ca(OH)2.
  • 27. Lime mortar: •The paste is prepared by mixing lime and sand or surkhi in suitable proportions in addition to water. •If surkhi is to be added in lime mortar the equal proportions of sand and surkhi should be mixed with lime. •These mortars are inferior to cement mortars in strength as well as water tightness. •These mortars should not be used for underground works as they set in the presence of carbon dioxide and break up in damp conditions. •This type is used for construction work above ground level i.e. exposed positions.
  • 28. Ht: 40 cm 6 – 9 m Dia BULLOCK DRIVEN GRINDING MILL Width: 30 cm
  • 29. Pivot Roller Roller Revolving Pan 180- 240 CM Dia Power POWER DRIVEN GRINDING MILL
  • 33. Mud mortar: •The paste is prepared by mixing suitable clay, soil with water. •The soil which is used for preparing mud mortar should be free from grass, pebbles etc. •These are the cheapest mortars but weakest in strength. •These mortars are used for brickwork of ordinary buildings and for plastering walls in rural areas.
  • 34. PREPARATION OF CLAY Mixing With Hand Ramming Homogenous Mixture Clay Mortar
  • 36. Applications of MUD MORTAR Walls Mud wall Mud being Plastered to wooden Framework Mud Plaster
  • 37. Wall with Mud Blocks Binding Material
  • 38. MUD / CLAY BLOCKS MOULD
  • 42. Clay Blocks / Tiles
  • 43. TERRACOTTA – Burnt Clay Solar Panels embedded in clay tiles Shingles Tiled Roofs Roof Tiles Pot Tiles
  • 46. Decorative Motifs in Terracotta
  • 48. Cement mortar: •The paste is prepared by mixing cement and sand in suitable proportions in addition to water. •The general proportion is 1 part of cement to 2-8 parts clean sand. •These mortars must be use within half an hour, i.e.; before initial setting time of the cement. •This type is used for all engineering works where high strength is desired such as load bearing walls, deep foundations, flooring etc.
  • 49. •When mixing by hand, the sands and cement are heaped up on a mixing board or in a wheel barrow and repeatedly turned over and over until thoroughly mixed. •The color of the dry mix will change as the cement is distributed throughout - there should be no 'streaking' of cement, and no clumps of pure sand or pure cement. •Once the dry ingredients are mixed, the water can be added.
  • 50. Dry sand and cement in wheelbarrow Begin to mix sand and cement Mix to evenly distribute cement The dry mix should be all one colour Add water and plasticiser Mix to required consistency
  • 51. •When using a mechanical mixer, add half a bucket (2 or 3 liters) of clean cold water to the empty drum before adding the dry ingredients in sequence. • Add 4 measures of sand then 1 of cement, followed by 4 sand, then another cement and so on until the required quantity is in the mixer. •This ensures a more thorough mix than adding, say, 20 measures of sand and then 5 measures of cement. •Again, the water is added to the revolving drum once the dry ingredients are thoroughly blended, a bit at a time until the required consistency is achieved.
  • 52. For wide joints in paving or for stonework, either as paving or as walling, a coarser mortar is often preferred - replace half of the building/soft sand with grit/sharp sand. You will probably find that a coarse mortar such as this requires less gauging water to achieve a working consistency than does a bricklaying/general purpose mortar. Mortar for Wide Joints 2 x Building Sand plus 2 x Grit Sand plus 1 x cement
  • 53. SPECIAL MORTARS Fire – Resistant Mortar Lightweight Mortar Packing Mortar Sound Absorbing Mortar X-Ray Shielding mortar
  • 54. Fire resistant mortar: •The paste is prepared by mixing aluminous cement and finely crushed fire bricks (1:2) in suitable proportions in addition to water. •The usual proportion are 1 part aluminous cement to 2 parts of finely crushed fire bricks. •These are generally used for lining furnaces, ovens and fire places with fire bricks.
  • 55. Light weight mortar: •The paste is prepared by mixing wood powder, wood sawing or saw dust with cement or lime mortar. •In such mortars fibers of jute coir or asbestos fibers can also be used. •These are generally used as fiber plasters in sound and heat proof construction.
