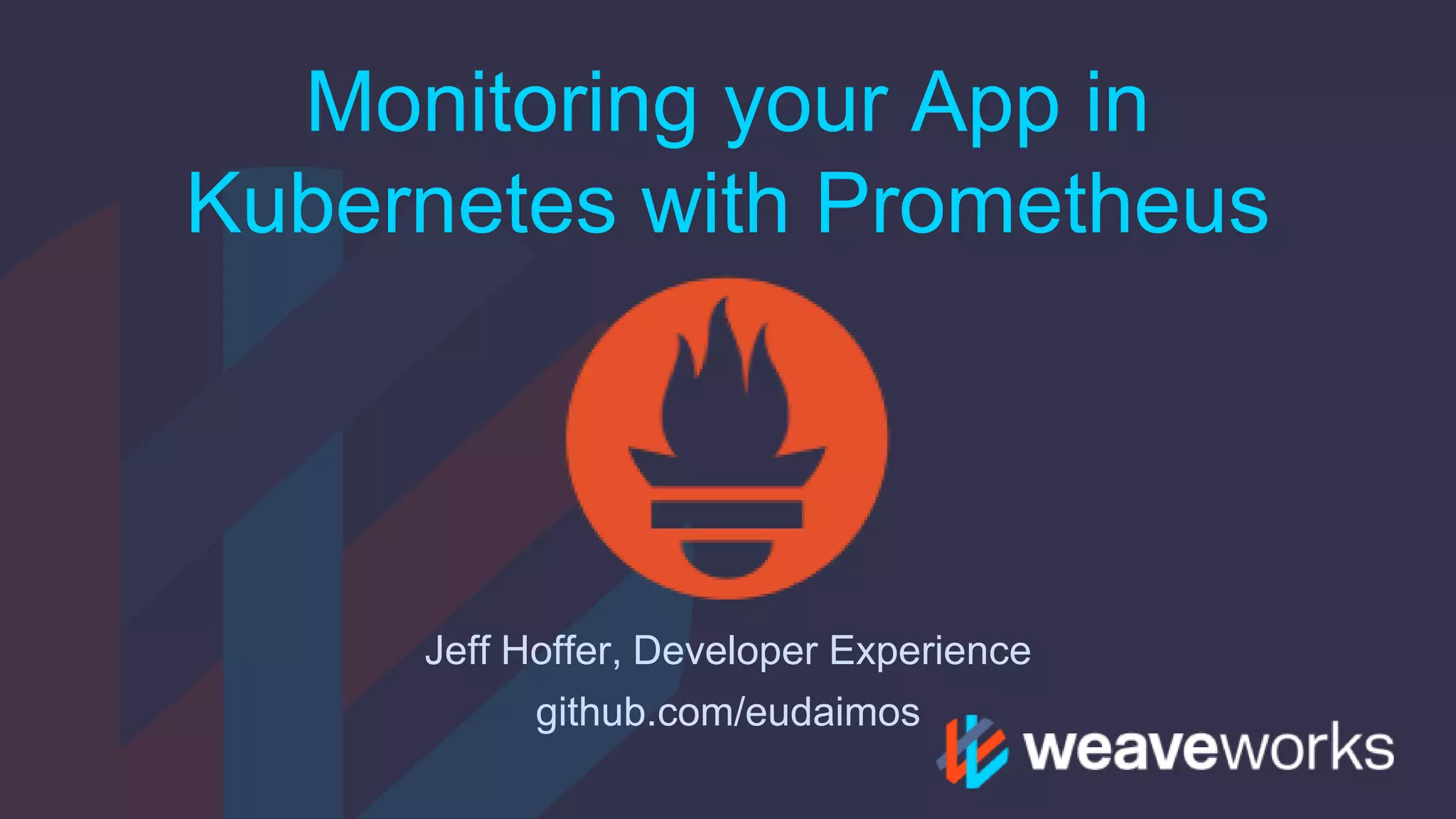

1. Monitoring your App in
Kubernetes with Prometheus
Jeff Hoffer, Developer Experience
github.com/eudaimos

2. What does Weave do?
Weave helps devops
iterate faster with:
• observability &
monitoring
• continuous delivery
• container networks &
firewalls
Use Prometheus to
power our Monitoring
solution

3. What does Weave do?
Weave helps devops
iterate faster with:
• observability &
monitoring
• continuous delivery
• container networks &
firewalls
Use Prometheus to
power our Monitoring
solution

4. Agenda
1. Prometheus concepts: data model & PromQL
2. Prometheus architecture & pull model
3. Why Prometheus & Kubernetes are a good fit
4. What is Cortex?
5. Kubernetes recap
6. Training on real app
7. What’s next?

5. Prometheus
Borg —> Kubernetes
Borgmon —> Prometheus
Initially developed at Soundcloud

6. Data model & PromQL
• Prometheus is a labelled time-series database
• Labels are key-value pairs
• A time-series is [(timestamp, value), …]
• lists of timestamp, value tuples
• values are just floats – PromQL lets you make sense of them
• So the data type of Prometheus is
• {key1=A, key2=B} —> [(t0, v0), (t1, v1), …]
• …

7. Metrics Types
• count - single numeric metric that only goes up
• gauge - single numeric metric that arbitrarily goes up or down
• histogram - samples observations and counts them in
configurable buckets
• histogram_quantile() to calculate quantiles from histograms
or aggregations
• summary - samples observations and counts them
• configurable quantiles over sliding time windows
{quantile=“.5“}

8. Data model & PromQL
• __name__ is a magic label, you can
shorten the query syntax from
{__name__=“requests”}
to:
requests

9. Data model & PromQL
• Example: counter requests over a spike in traffic:
• 1, 2, 3, 13, 23, 33, 34, 35, 36
time
requests
1
3
13
23
33
36
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36

10. Data model & PromQL
• What Prom is storing
• {__name__=“requests”} —>
[(t1, 1), (t2, 2), (t3, 3), (t4, 13),
(t5, 23), (t6, 33), (t7, 34), (t8, 35),
(t9, 36), (t10, 37)]
or
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36

11. Data model & PromQL
• the [P] (period) syntax after a label turns an
instant type into a vector type
• for each value, turn the value into a vector
of all the values before and including that
value for the last period P
• Example P: 5s, 1m, 2h…

12. Data model & PromQL
• Recall our time-series requests
• What is requests[3s]? Vector query:
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1
2
3

13. Data model & PromQL
• Recall our time-series requests
• What is requests[3s]? Vector query:
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2
2 3
3 13

14. Data model & PromQL
• Recall our time-series requests
• What is requests[3s]? Vector query:
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3
2 3 13
3 13 23

15. Data model & PromQL
• Recall our time-series requests
• What is requests[3s]? Vector query:
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36

16. Data model & PromQL
• rate() finds the per second rate of change
over a vector query
• for each vector rate() just does (last_value
- first_value) / (last_time - first_time)

17. Data model & PromQL
• rate(requests[3s])
• [
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

18. Data model & PromQL
• rate(requests[3s])
• [3-1
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

19. Data model & PromQL
• rate(requests[3s])
• [2
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

20. Data model & PromQL
• rate(requests[3s])
• [2/(3-1)
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

21. Data model & PromQL
• rate(requests[3s])
• [2/2
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

22. Data model & PromQL
• rate(requests[3s])
• [1,
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

23. Data model & PromQL
• rate(requests[3s])
• [1, 13-2
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

24. Data model & PromQL
• rate(requests[3s])
• [1, 11
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

25. Data model & PromQL
• rate(requests[3s])
• [1, 11/(4-2)
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

26. Data model & PromQL
• rate(requests[3s])
• [1, 11/2
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

27. Data model & PromQL
• rate(requests[3s])
• [1, 5.5
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

28. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 23-3
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

29. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 20
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

30. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 20/2
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

31. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 10
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

32. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 10, 10
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

33. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 10, 10, 5.5,
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

34. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 10, 10, 5.5, 1
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

35. Data model & PromQL
• rate(requests[3s])
• [1, 5.5, 10, 10, 5.5, 1, 1]
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - first_value) / (last_time - first_time)

36. time
requests
1
3
13
23
33
36
t1 t2 t3 t4 t5 t6 t7 t8 t9
1 2 3 13 23 33 34 35 36
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
requests[3s]
time
rate(requests[3s])
1
5
10
t3 t4 t5 t6 t7 t8 t9
1 5.5 10 10 5.5 1 1

37. Now we can understand irate (“instantaneous rate”)
• irate(requests[3s])
• [
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - 2nd_last_value) / (last_time - 2nd_last_time)

38. Now we can understand irate (“instantaneous rate”)
• irate(requests[3s])
• [1, 10, 10, 10, 1, 1, 1]
t1-3 t2-4 t3-5 t4-6 t5-7 t6-8 t7-9
1 2 3 13 23 33 34
2 3 13 23 33 34 35
3 13 23 33 34 35 36
(last_value - 2nd_last_value) / (last_time - 2nd_last_time)

39. Labels
• Recall that requests is just shorthand for
{__name__=“requests”}
• We can have more labels: {__name__=“requests”,
job=“frontend”}
• Shortens to requests{job=“frontend”}
• And so we could query
rate(requests{job=“frontend”}[1m])

40. Label Operators
• = -> exact match string
• != -> exact match string negated
• =~ -> regex match label
• !~ -> regex match negated
• Regex matching is slower b/c Prometheus
can’t use indexes

41. Architecture
Prometheus

42. Architecture
Prometheus

43. Alerts
• You can define PromQL queries that trigger alerts when
the result of a query matches a criteria. Example:
# Alert for any instance that have a median request latency >1s.
ALERT APIHighRequestLatency
IF api_http_request_latencies_second{quantile="0.5"} > 1
FOR 1m
ANNOTATIONS {
summary = "High request latency on {{ $labels.instance }}",
description = "{{ $labels.instance }} has a median request latency above 1s (current value: {{ $value }}s)",
}

44. Cortex
• Distributed, multi-tenant version of
Prometheus
• Prometheus architecture is single-server
• We wanted to build something scalable

45. CortexPrometheus

46. Cortex
• We run it for you
• Long term storage for your metrics
• We open sourced it
• https://github.com/weaveworks/cortex

47. Recap: all you need to know (Kube)
Pods
containers
ServicesDeployments
Container
Docker container image, contains your application code in an isolated
environment.
Pod A set of containers, sharing network namespace and local volumes, co-
scheduled on one machine. Mortal. Has pod IP. Has labels.
Deployment Specify how many replicas of a pod should run in a cluster. Then ensures that
many are running across the cluster. Has labels.
Service Names things in DNS. Gets virtual IP. Two types: ClusterIP for internal
services, NodePort for publishing to outside. Routes based on labels.

48. kind: Deployment
metadata:
name: nginx-deployment
spec:
replicas: 2
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.7.9
kind: Service
metadata:
name: frontend
spec:
type: NodePort
selector:
app: nginx
ports:
- port: 80
targetPort: 80
nodePort: 30002
Kubernetes services and deployments

49. Why Kubernetes <3 Prometheus
• Prom discovers what to scrape by asking Kube
• Prom’s pull model matches Kube dynamic
scheduling
• Allows Prom to identify thing it’s pulling from
• Prom label/value pairs mirror Kube labels
• Pods were made for exporters

50. Training!

51. Join the Weave user group!
meetup.com/pro/Weave/
weave.works/help

52. Other topics
Kubernetes 101
Continuous delivery: hooking up my CI/CD pipeline
to Kubernetes
Network policy for security
We have talks on all these topics in the Weave
user group!

53. Thanks! Questions?
We are hiring!
DX in San Francisco
Engineers in London & SF
weave.works/weave-company/hiring
