PPR Maths nbk

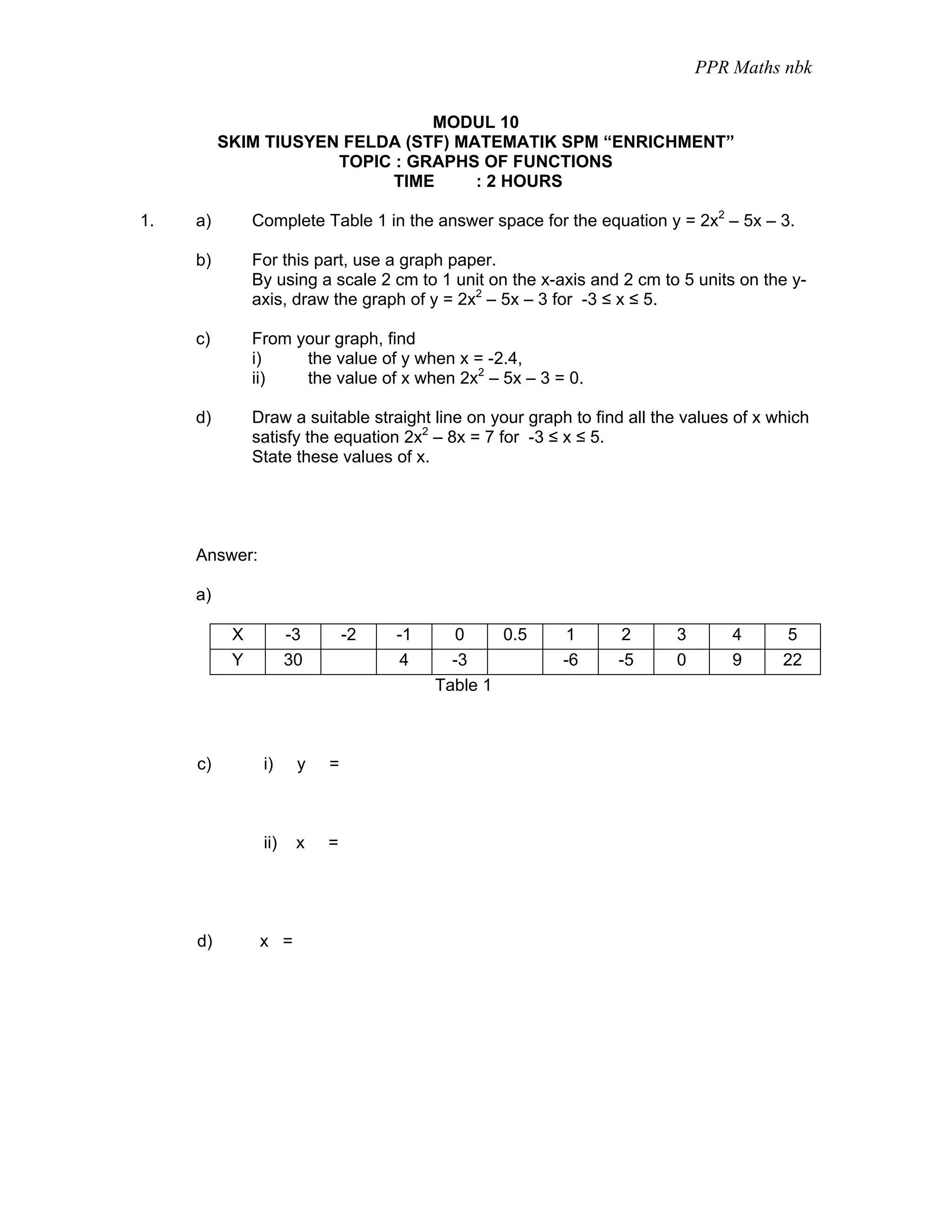

                                MODUL 10
          SKIM TIUSYEN FELDA (STF) MATEMATIK SPM “ENRICHMENT”
                      TOPIC : GRAPHS OF FUNCTIONS
                            TIME     : 2 HOURS

1.   a)        Complete Table 1 in the answer space for the equation y = 2x2 – 5x – 3.

     b)        For this part, use a graph paper.
               By using a scale 2 cm to 1 unit on the x-axis and 2 cm to 5 units on the y-
               axis, draw the graph of y = 2x2 – 5x – 3 for -3 ≤ x ≤ 5.

     c)        From your graph, find
               i)    the value of y when x = -2.4,
               ii)   the value of x when 2x2 – 5x – 3 = 0.

     d)        Draw a suitable straight line on your graph to find all the values of x which
               satisfy the equation 2x2 – 8x = 7 for -3 ≤ x ≤ 5.
               State these values of x.




     Answer:

     a)

           X          -3       -2   -1     0     0.5     1        2      3       4       5
           Y          30             4     -3            -6      -5      0       9      22
                                         Table 1



     c)         i)     y   =



                ii)    x   =




     d)         x =
PPR Maths nbk

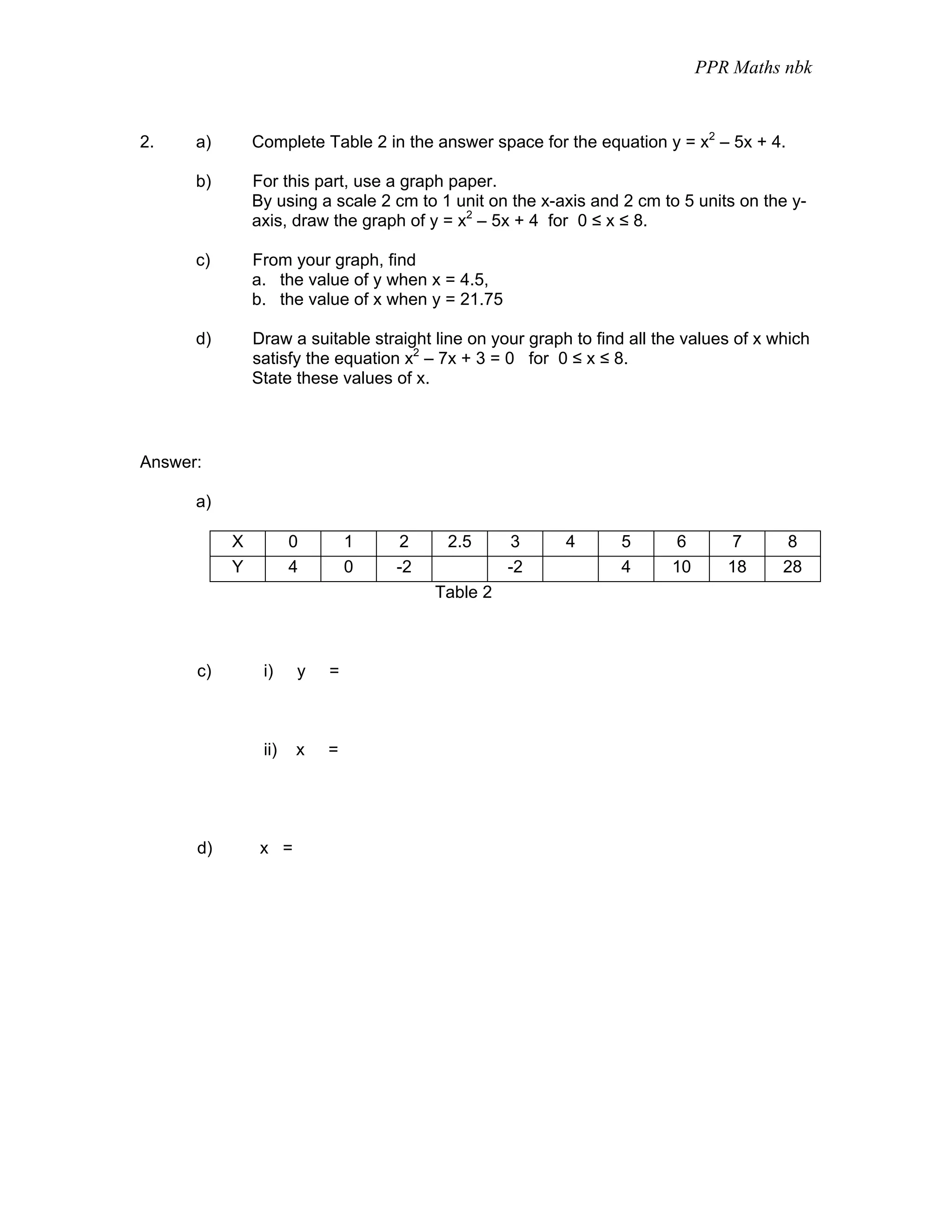

2.    a)       Complete Table 2 in the answer space for the equation y = x2 – 5x + 4.

      b)       For this part, use a graph paper.
               By using a scale 2 cm to 1 unit on the x-axis and 2 cm to 5 units on the y-
               axis, draw the graph of y = x2 – 5x + 4 for 0 ≤ x ≤ 8.

      c)       From your graph, find
               a. the value of y when x = 4.5,
               b. the value of x when y = 21.75

      d)       Draw a suitable straight line on your graph to find all the values of x which
               satisfy the equation x2 – 7x + 3 = 0 for 0 ≤ x ≤ 8.
               State these values of x.



Answer:

      a)

           X          0       1    2      2.5      3      4      5      6       7        8
           Y          4       0   -2              -2             4      10      18      28
                                        Table 2



      c)        i)    y   =



                ii)   x   =




      d)        x =
PPR Maths nbk


                                                                                   5

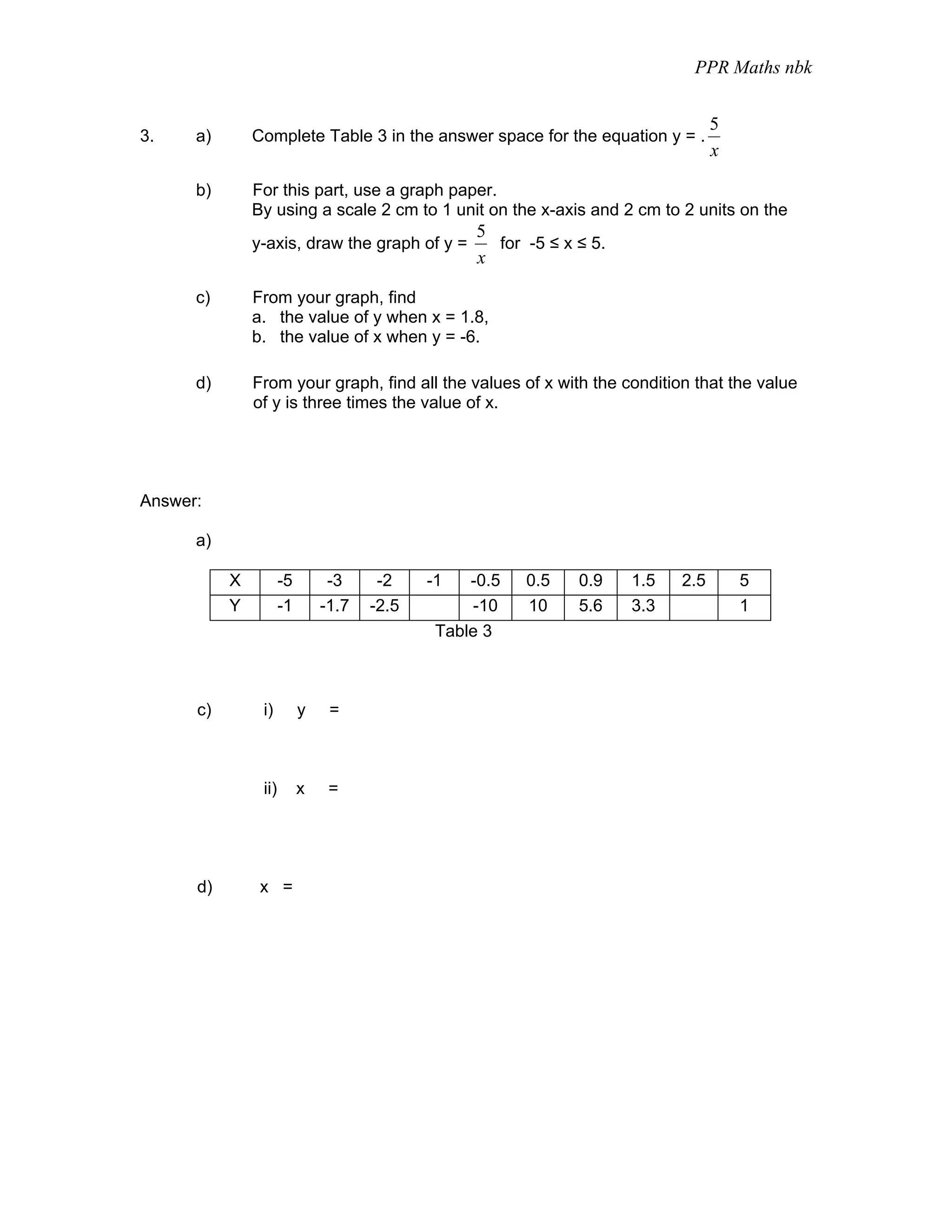

3.    a)       Complete Table 3 in the answer space for the equation y = .
                                                                                   x

      b)       For this part, use a graph paper.
               By using a scale 2 cm to 1 unit on the x-axis and 2 cm to 2 units on the
                                                   5
               y-axis, draw the graph of y =         for -5 ≤ x ≤ 5.
                                                   x

      c)       From your graph, find
               a. the value of y when x = 1.8,
               b. the value of x when y = -6.

      d)       From your graph, find all the values of x with the condition that the value
               of y is three times the value of x.




Answer:

      a)

           X          -5        -3     -2    -1   -0.5   0.5    0.9    1.5   2.5       5
           Y          -1       -1.7   -2.5         -10   10     5.6    3.3             1
                                              Table 3



      c)        i)         y    =



                ii)        x    =




      d)        x =
PPR Maths nbk



                                                                            2

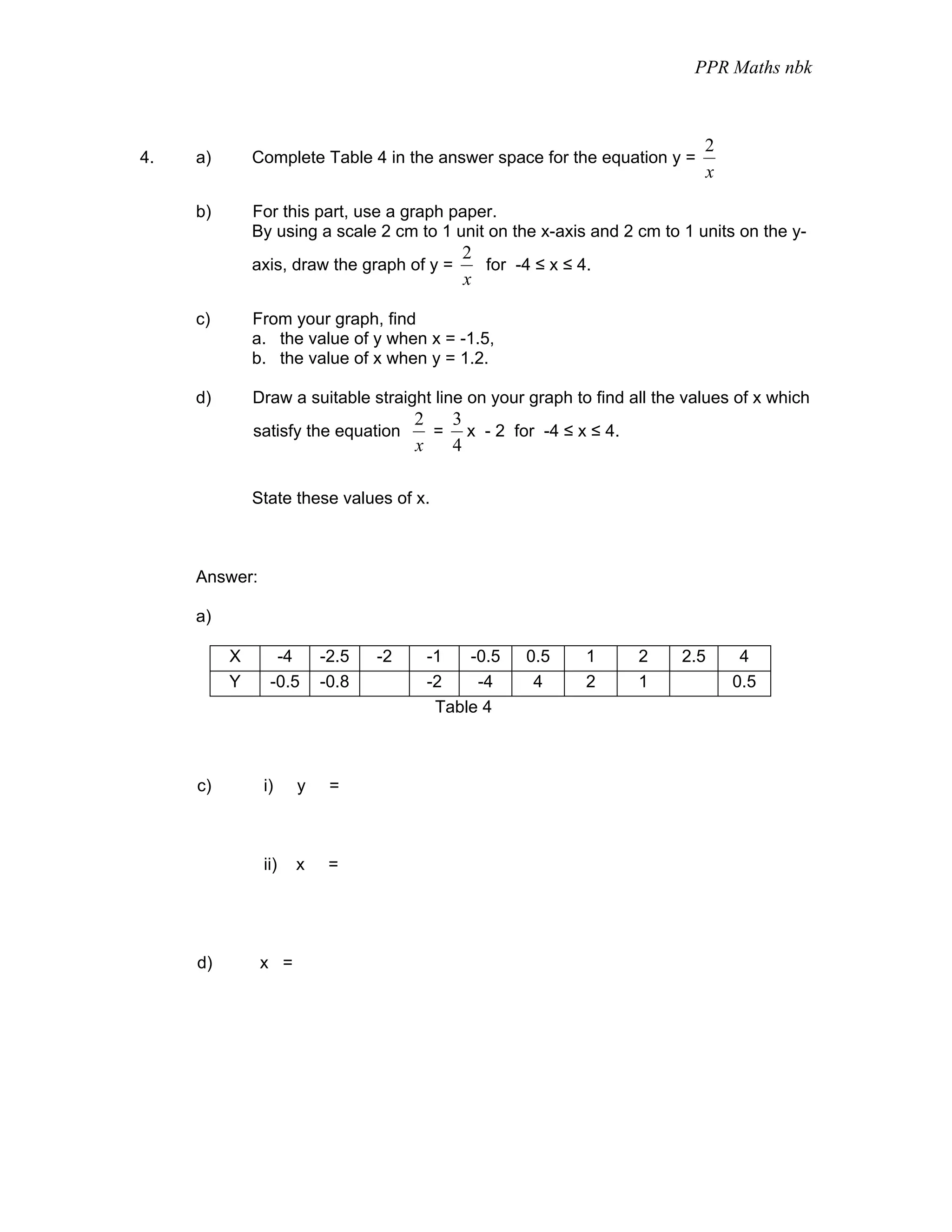

4.   a)       Complete Table 4 in the answer space for the equation y =
                                                                            x

     b)       For this part, use a graph paper.
              By using a scale 2 cm to 1 unit on the x-axis and 2 cm to 1 units on the y-
                                            2
              axis, draw the graph of y =     for -4 ≤ x ≤ 4.
                                            x

     c)       From your graph, find
              a. the value of y when x = -1.5,
              b. the value of x when y = 1.2.

     d)       Draw a suitable straight line on your graph to find all the values of x which
                                     2  3
              satisfy the equation     = x - 2 for -4 ≤ x ≤ 4.
                                     x  4

              State these values of x.



     Answer:

     a)

          X      -4      -2.5   -2    -1   -0.5     0.5     1      2     2.5     4
          Y     -0.5     -0.8         -2    -4       4      2      1            0.5
                                       Table 4



     c)        i)    y    =



               ii)   x    =




     d)        x =
PPR Maths nbk

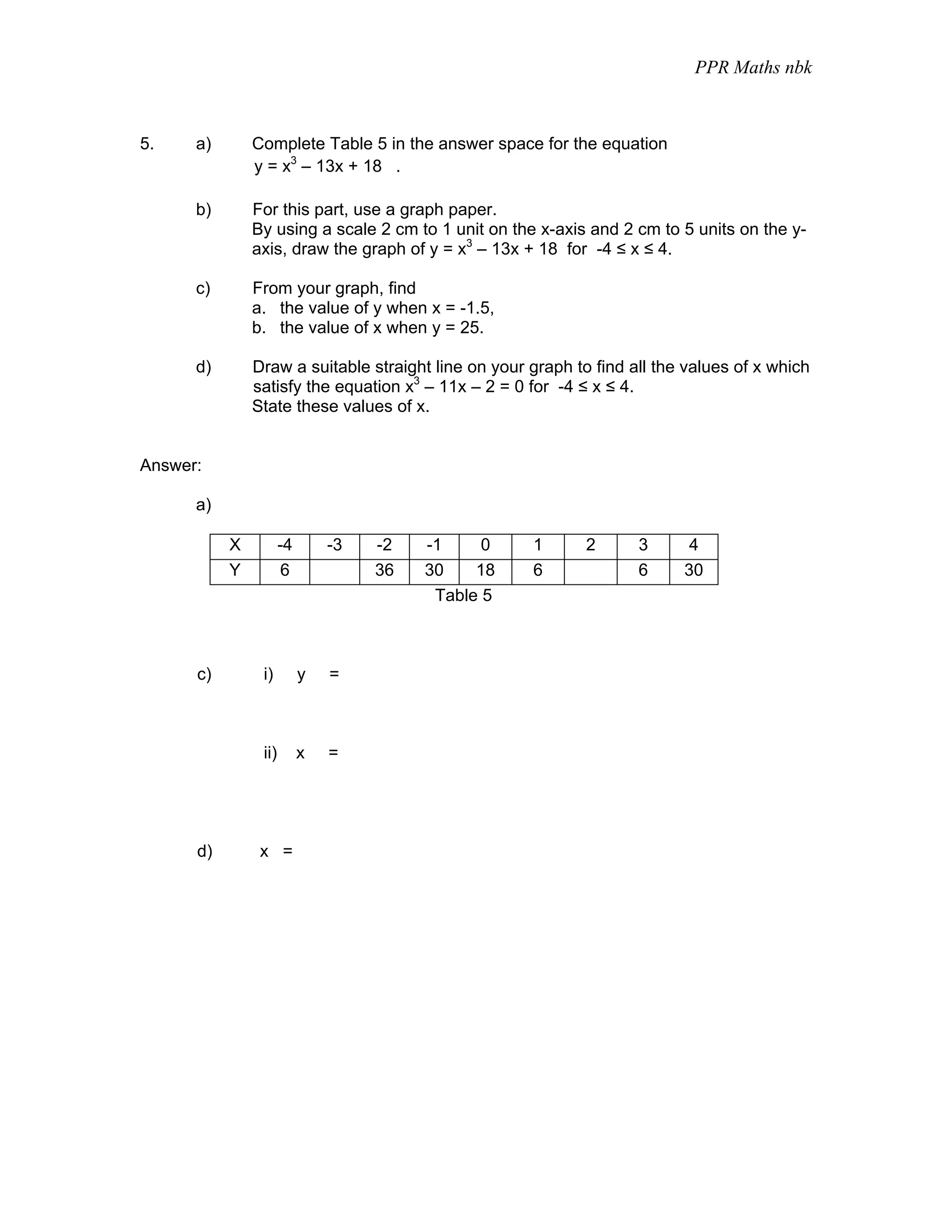

5.    a)       Complete Table 5 in the answer space for the equation
               y = x3 – 13x + 18 .

      b)       For this part, use a graph paper.
               By using a scale 2 cm to 1 unit on the x-axis and 2 cm to 5 units on the y-
               axis, draw the graph of y = x3 – 13x + 18 for -4 ≤ x ≤ 4.

      c)       From your graph, find
               a. the value of y when x = -1.5,
               b. the value of x when y = 25.

      d)       Draw a suitable straight line on your graph to find all the values of x which
               satisfy the equation x3 – 11x – 2 = 0 for -4 ≤ x ≤ 4.
               State these values of x.


Answer:

      a)

           X          -4       -3   -2   -1     0    1       2      3      4
           Y           6            36   30    18    6              6     30
                                          Table 5



      c)        i)         y   =



                ii)        x   =




      d)        x =
PPR Maths nbk

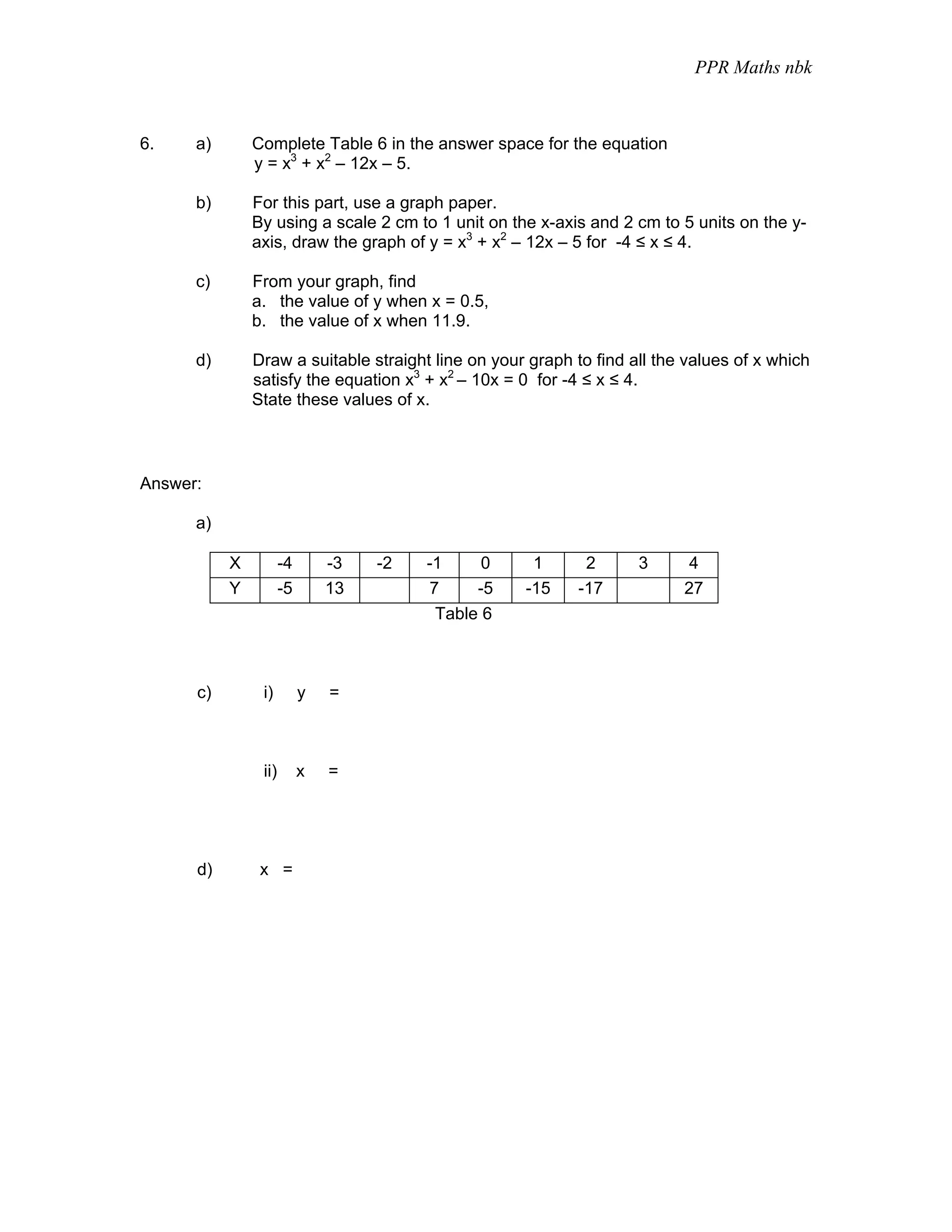

6.    a)       Complete Table 6 in the answer space for the equation
               y = x3 + x2 – 12x – 5.

      b)       For this part, use a graph paper.
               By using a scale 2 cm to 1 unit on the x-axis and 2 cm to 5 units on the y-
               axis, draw the graph of y = x3 + x2 – 12x – 5 for -4 ≤ x ≤ 4.

      c)       From your graph, find
               a. the value of y when x = 0.5,
               b. the value of x when 11.9.

      d)       Draw a suitable straight line on your graph to find all the values of x which
               satisfy the equation x3 + x2 – 10x = 0 for -4 ≤ x ≤ 4.
               State these values of x.



Answer:

      a)

           X          -4       -3   -2   -1     0    1       2      3      4
           Y          -5       13        7     -5   -15     -17           27
                                          Table 6



      c)        i)         y   =



                ii)        x   =




      d)        x =
PPR Maths nbk

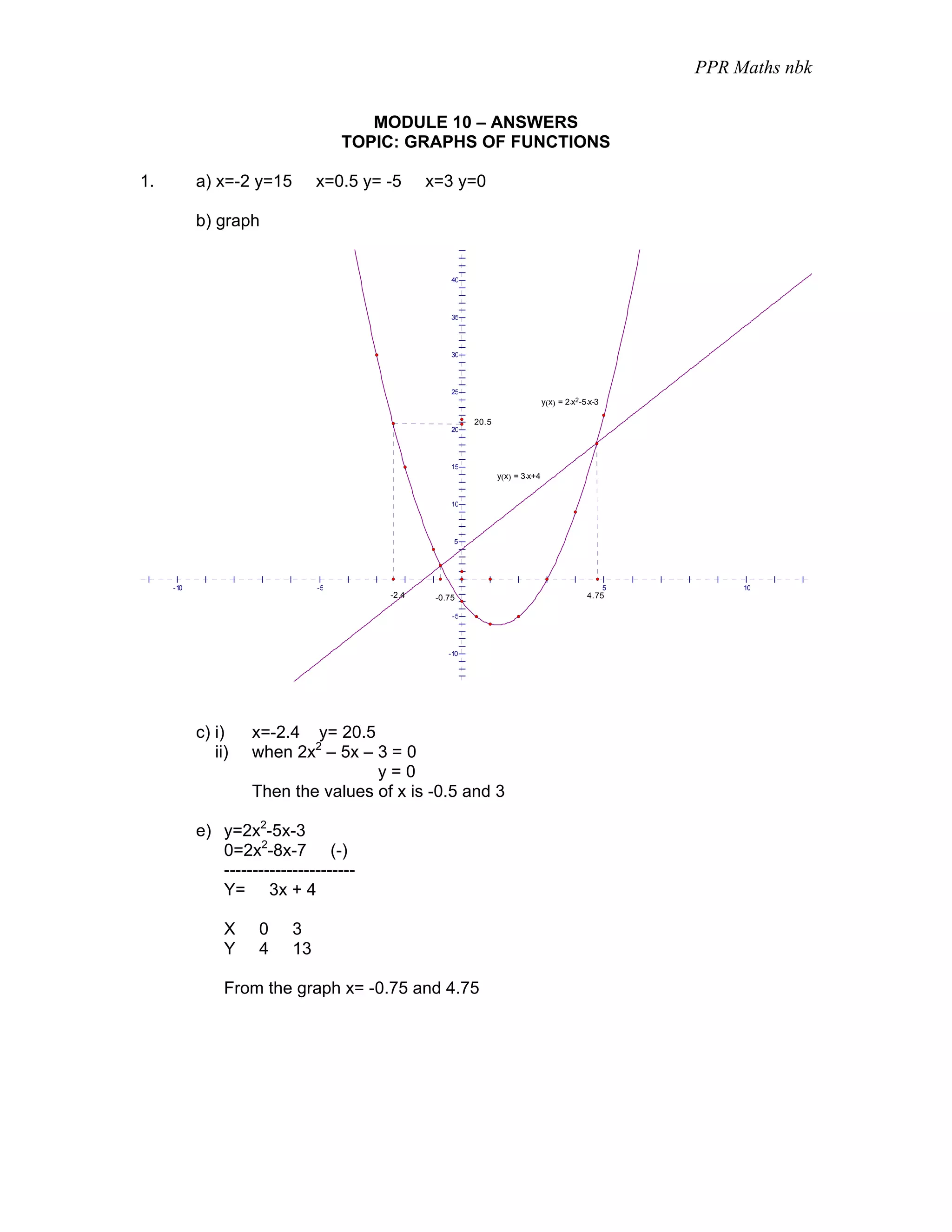

                                       MODULE 10 – ANSWERS
                                    TOPIC: GRAPHS OF FUNCTIONS

1.         a) x=-2 y=15        x=0.5 y= -5     x=3 y=0

           b) graph


                                                    40




                                                    35




                                                    30




                                                    25
                                                                               y(x) = 2⋅x2-5⋅x-3

                                                         20.5
                                                    20




                                                    15
                                                                y(x) = 3⋅x+4


                                                    10




                                                    5




     -10                       -5                                                                  5        10
                                        -2.4    -0.75                                       4.75

                                                    -5




                                                   -10




           c) i)    x=-2.4 y= 20.5
              ii)   when 2x2 – 5x – 3 = 0
                                    y=0
                    Then the values of x is -0.5 and 3

           e) y=2x2-5x-3
              0=2x2-8x-7 (-)
              -----------------------
              Y= 3x + 4

                X    0    3
                Y    4    13

                From the graph x= -0.75 and 4.75
PPR Maths nbk

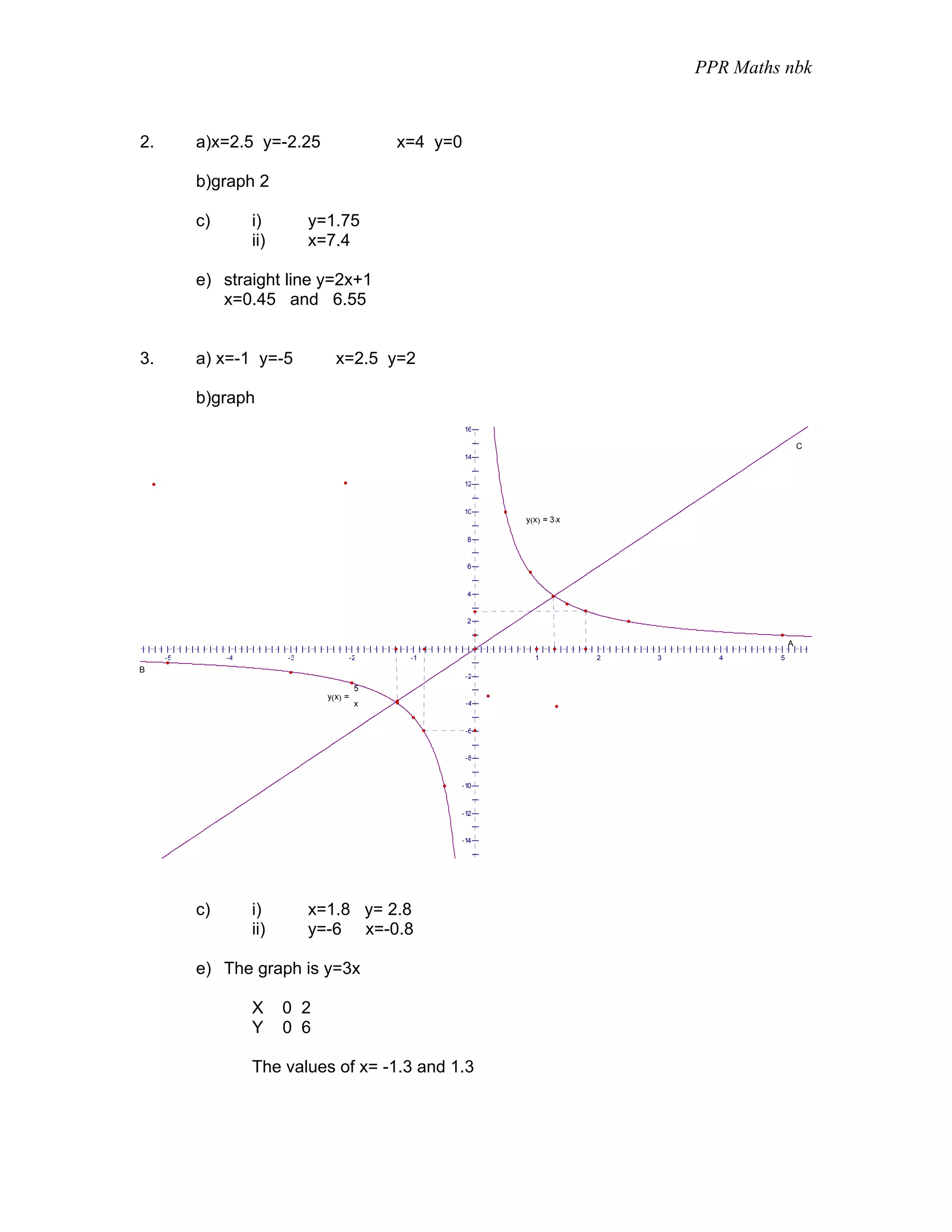

2.        a)x=2.5 y=-2.25                      x=4 y=0

          b)graph 2

          c)        i)         y=1.75
                    ii)        x=7.4

          e) straight line y=2x+1
             x=0.45 and 6.55


3.        a) x=-1 y=-5             x=2.5 y=2

          b)graph
                                                         16

                                                                                                    C
                                                         14


                                                         12


                                                         10
                                                              y(x) = 3⋅x

                                                         8


                                                         6


                                                         4


                                                         2


                                                                                                A
     -5        -4         -3              -2    -1              1          2   3     4      5
B
                                                         -2
                                           5
                                 y(x) =
                                           x             -4



                                                         -6


                                                         -8


                                                     -10



                                                     -12


                                                     -14




          c)        i)         x=1.8 y= 2.8
                    ii)        y=-6 x=-0.8

          e) The graph is y=3x

                    X     0 2
                    Y     0 6

                    The values of x= -1.3 and 1.3
PPR Maths nbk

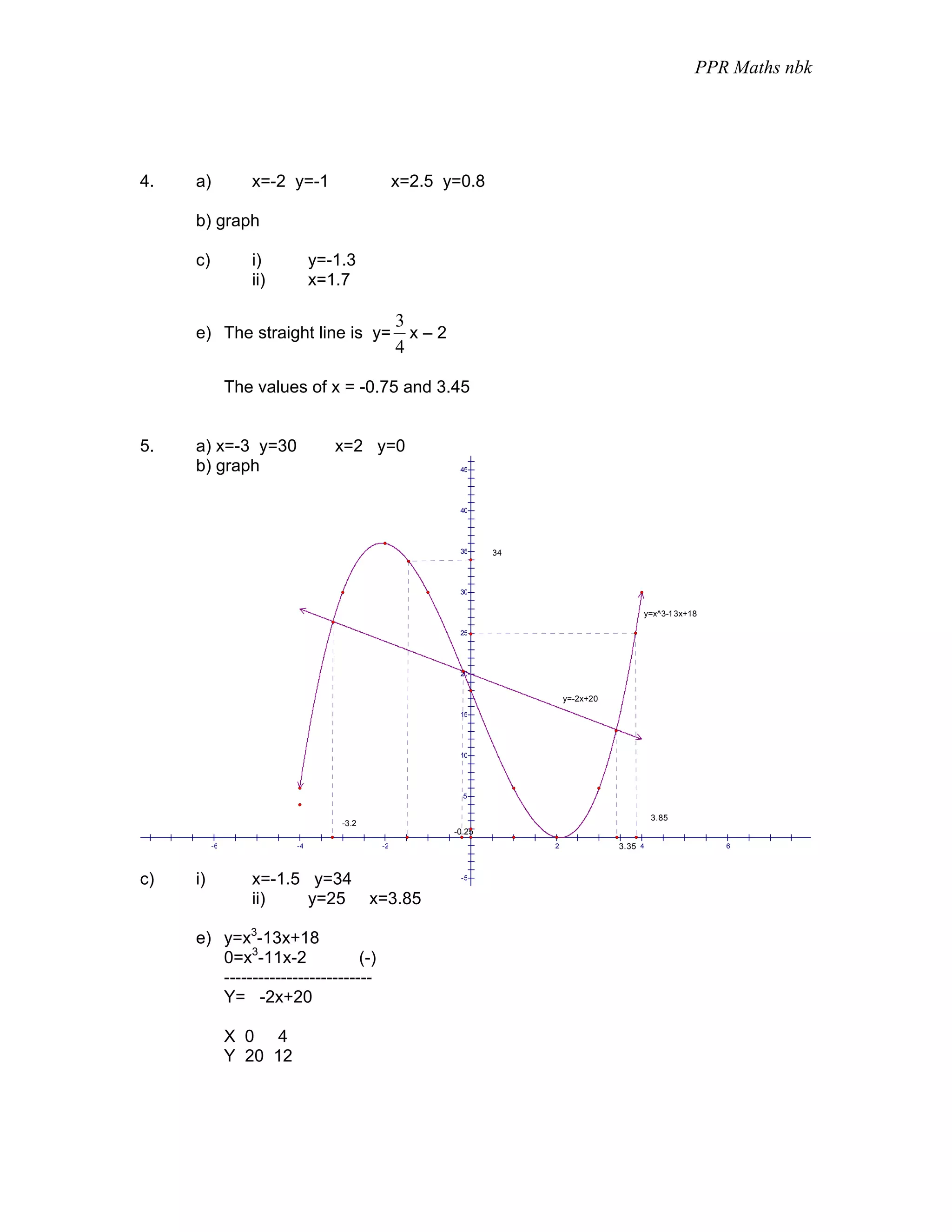

4.   a)           x=-2 y=-1                    x=2.5 y=0.8

     b) graph

     c)           i)          y=-1.3
                  ii)         x=1.7

                                               3
     e) The straight line is y=                  x–2
                                               4

               The values of x = -0.75 and 3.45


5.   a) x=-3 y=30                x=2 y=0
     b) graph                                           45




                                                        40




                                                        35     34



                                                        30


                                                                                        y=x^3-1 3x+18

                                                        25




                                                        20


                                                                        y=-2x+20
                                                        15




                                                        10




                                                         5


                                                                                            3.85
                                  -3.2
                                                       -0.25
          -6             -4               -2                        2              3.35 4               6




c)   i)           x=-1.5 y=34                           -5


                  ii)    y=25            x=3.85

     e) y=x3-13x+18
        0=x3-11x-2              (-)
        --------------------------
        Y= -2x+20

               X 0 4
               Y 20 12
PPR Maths nbk

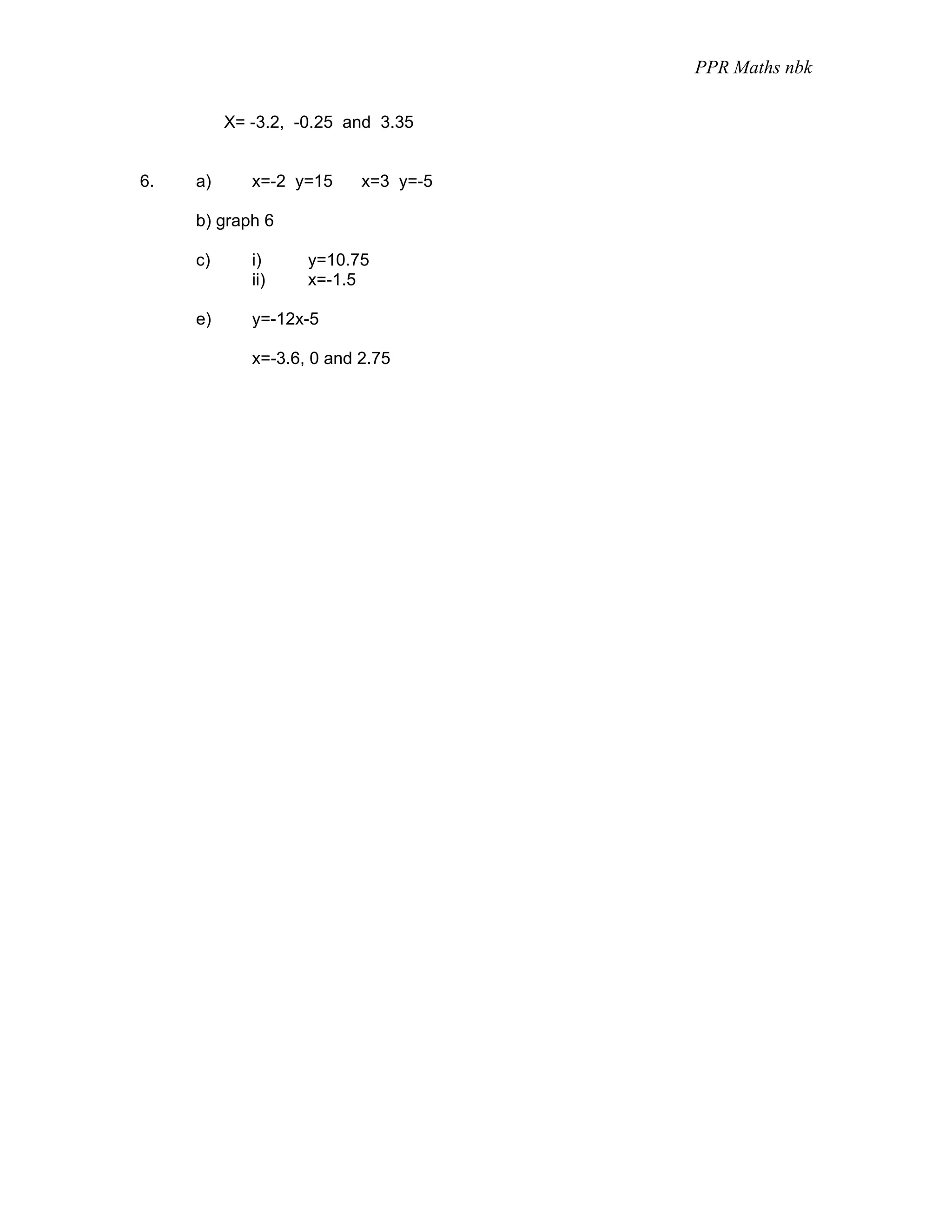

          X= -3.2, -0.25 and 3.35


6.   a)      x=-2 y=15     x=3 y=-5

     b) graph 6

     c)      i)     y=10.75
             ii)    x=-1.5

     e)      y=-12x-5

             x=-3.6, 0 and 2.75
