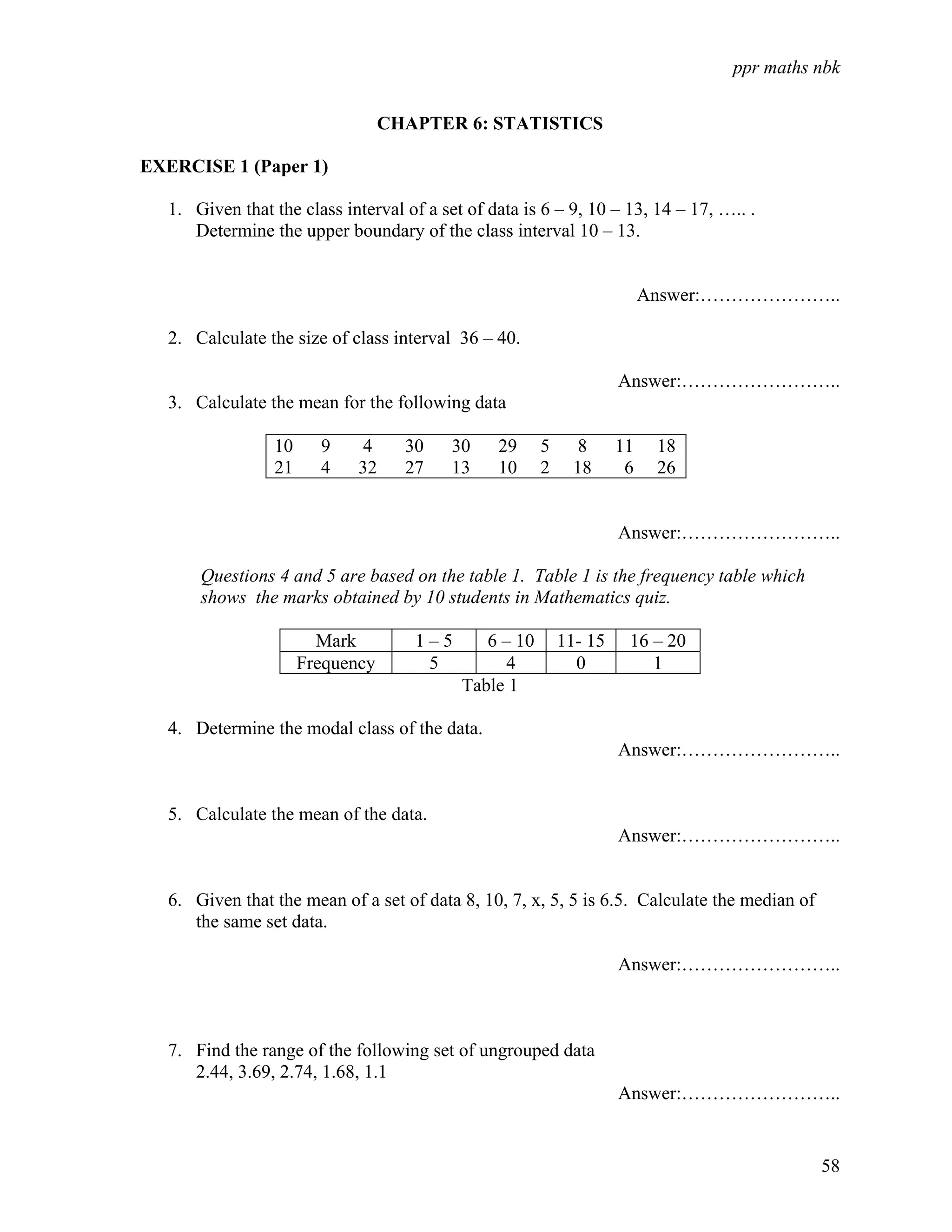

1. ppr maths nbk
CHAPTER 6: STATISTICS
EXERCISE 1 (Paper 1)
1. Given that the class interval of a set of data is 6 – 9, 10 – 13, 14 – 17, ….. .
Determine the upper boundary of the class interval 10 – 13.
Answer:…………………..
2. Calculate the size of class interval 36 – 40.
Answer:……………………..
3. Calculate the mean for the following data
10 9 4 30 30 29 5 8 11 18
21 4 32 27 13 10 2 18 6 26
Answer:……………………..
Questions 4 and 5 are based on the table 1. Table 1 is the frequency table which
shows the marks obtained by 10 students in Mathematics quiz.
Mark 1–5 6 – 10 11- 15 16 – 20
Frequency 5 4 0 1
Table 1
4. Determine the modal class of the data.
Answer:……………………..
5. Calculate the mean of the data.
Answer:……………………..
6. Given that the mean of a set of data 8, 10, 7, x, 5, 5 is 6.5. Calculate the median of
the same set data.
Answer:……………………..
7. Find the range of the following set of ungrouped data
2.44, 3.69, 2.74, 1.68, 1.1
Answer:……………………..
58

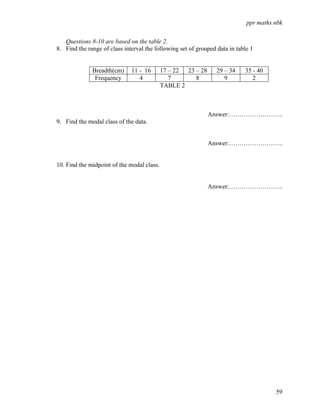

2. ppr maths nbk
Questions 8-10 are based on the table 2.
8. Find the range of class interval the following set of grouped data in table 1
Breadth(cm) 11 - 16 17 – 22 23 – 28 29 – 34 35 - 40
Frequency 4 7 8 9 2
TABLE 2
Answer:……………………..
9. Find the modal class of the data.
Answer:……………………..
10. Find the midpoint of the modal class.
Answer:……………………..
59

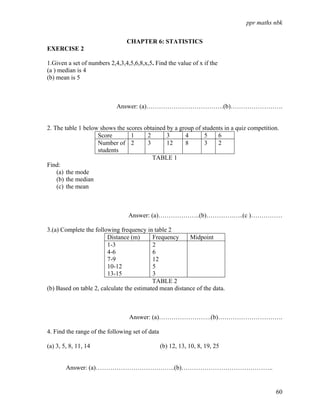

3. ppr maths nbk
CHAPTER 6: STATISTICS
EXERCISE 2
1.Given a set of numbers 2,4,3,4,5,6,8,x,5. Find the value of x if the
(a ) median is 4
(b) mean is 5
Answer: (a)……………………………….(b)…………………….
2. The table 1 below shows the scores obtained by a group of students in a quiz competition.
Score 1 2 3 4 5 6
Number of 2 3 12 8 3 2
students
TABLE 1
Find:
(a) the mode
(b) the median
(c) the mean
Answer: (a)………………..(b)………….…..(c )……………
3.(a) Complete the following frequency in table 2
Distance (m) Frequency Midpoint
1-3 2
4-6 6
7-9 12
10-12 5
13-15 3
TABLE 2
(b) Based on table 2, calculate the estimated mean distance of the data.
Answer: (a)…………………….(b)………………………….
4. Find the range of the following set of data
(a) 3, 5, 8, 11, 14 (b) 12, 13, 10, 8, 19, 25
Answer: (a)………………………………..(b)……………………………………..
60

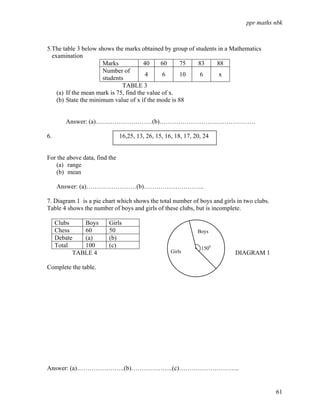

4. ppr maths nbk
5.The table 3 below shows the marks obtained by group of students in a Mathematics
examination
Marks 40 60 75 83 88
Number of
4 6 10 6 x
students
TABLE 3
(a) If the mean mark is 75, find the value of x.
(b) State the minimum value of x if the mode is 88
Answer: (a)………………………(b)……………………………………….
6. 16,25, 13, 26, 15, 16, 18, 17, 20, 24
For the above data, find the
(a) range
(b) mean
Answer: (a)……………………(b)………………………..
7. Diagram 1 is a pie chart which shows the total number of boys and girls in two clubs.
Table 4 shows the number of boys and girls of these clubs, but is incomplete.
Clubs Boys Girls
Chess 60 50 Boys
Debate (a) (b)
Total 100 (c) 1500
TABLE 4 Girls DIAGRAM 1
Complete the table.
Answer: (a)…………………..(b)………………..(c)………………………..
61

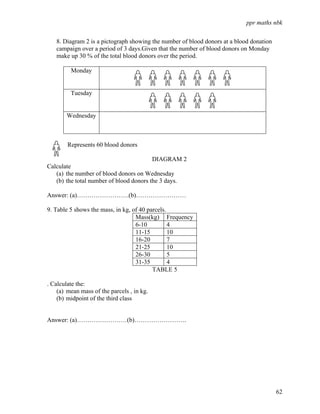

5. ppr maths nbk
8. Diagram 2 is a pictograph showing the number of blood donors at a blood donation
campaign over a period of 3 days.Given that the number of blood donors on Monday
make up 30 % of the total blood donors over the period.
Monday
Tuesday
Wednesday
Represents 60 blood donors
DIAGRAM 2
Calculate
(a) the number of blood donors on Wednesday
(b) the total number of blood donors the 3 days.
Answer: (a)…………………….(b)……………………
9. Table 5 shows the mass, in kg, of 40 parcels.
Mass(kg) Frequency
6-10 4
11-15 10
16-20 7
21-25 10
26-30 5
31-35 4
TABLE 5
. Calculate the:
(a) mean mass of the parcels , in kg.
(b) midpoint of the third class
Answer: (a)……………………(b)…………………….
62

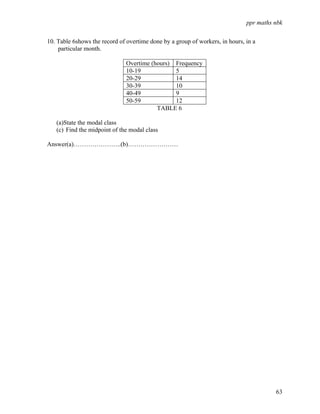

6. ppr maths nbk
10. Table 6shows the record of overtime done by a group of workers, in hours, in a
particular month.
Overtime (hours) Frequency
10-19 5
20-29 14
30-39 10
40-49 9
50-59 12
TABLE 6
(a)State the modal class
(c) Find the midpoint of the modal class
Answer(a)…………………..(b)……………………
63

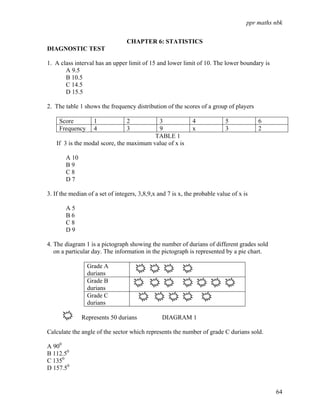

7. ppr maths nbk
CHAPTER 6: STATISTICS
DIAGNOSTIC TEST
1. A class interval has an upper limit of 15 and lower limit of 10. The lower boundary is
A 9.5
B 10.5
C 14.5
D 15.5
2. The table 1 shows the frequency distribution of the scores of a group of players
Score 1 2 3 4 5 6
Frequency 4 3 9 x 3 2
TABLE 1
If 3 is the modal score, the maximum value of x is
A 10
B9
C8
D7
3. If the median of a set of integers, 3,8,9,x and 7 is x, the probable value of x is
A5
B6
C8
D9
4. The diagram 1 is a pictograph showing the number of durians of different grades sold
on a particular day. The information in the pictograph is represented by a pie chart.
Grade A
durians
Grade B
durians
Grade C
durians
Represents 50 durians DIAGRAM 1
Calculate the angle of the sector which represents the number of grade C durians sold.
A 900
B 112.50
C 1350
D 157.50
64

8. ppr maths nbk
Questions 5 and 6 are based on table 2.
Table 2 shows the scores obtained by 12 students.
35 70 80 90
91 45 52 82
74 46 53 88
TABLE 2
5. Find the range of the score
A 55
B 56
C 57
D5
1
6. If x mark is added to each student as a bonus and the mean is 70 .
6
Find the value of x.
A2
B3
C4
D5
7. Which of the following class interval has a size of 5?
A 1.1-1.5
B 2.05-2.10
C 5-9
D 15-20
8 Find the mode for the following data
2, 2, 1, 3, 4, 1, 2
A. 1
B. 2
C. 3
D. 4
9
19, 18, 16, 15, 20, 15, 18, 16
The median for the above set of numbers is
A.16
B.17
C 18
D 20
65

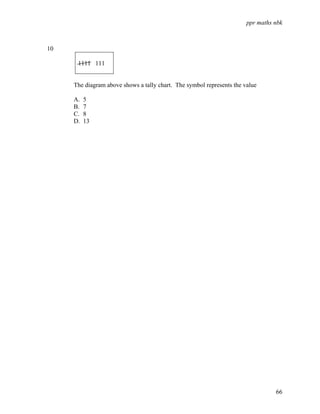

9. ppr maths nbk
10
1111 111
The diagram above shows a tally chart. The symbol represents the value
A. 5
B. 7
C. 8
D. 13
66

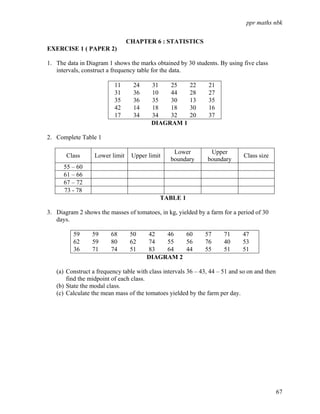

10. ppr maths nbk
CHAPTER 6 : STATISTICS
EXERCISE 1 ( PAPER 2)
1. The data in Diagram 1 shows the marks obtained by 30 students. By using five class
intervals, construct a frequency table for the data.
11 24 31 25 22 21
31 36 10 44 28 27
35 36 35 30 13 35
42 14 18 18 30 16
17 34 34 32 20 37
DIAGRAM 1
2. Complete Table 1
Lower Upper
Class Lower limit Upper limit Class size
boundary boundary
55 – 60
61 – 66
67 – 72
73 - 78
TABLE 1
3. Diagram 2 shows the masses of tomatoes, in kg, yielded by a farm for a period of 30
days.
59 59 68 50 42 46 60 57 71 47
62 59 80 62 74 55 56 76 40 53
36 71 74 51 83 64 44 55 51 51
DIAGRAM 2
(a) Construct a frequency table with class intervals 36 – 43, 44 – 51 and so on and then
find the midpoint of each class.
(b) State the modal class.
(c) Calculate the mean mass of the tomatoes yielded by the farm per day.
67

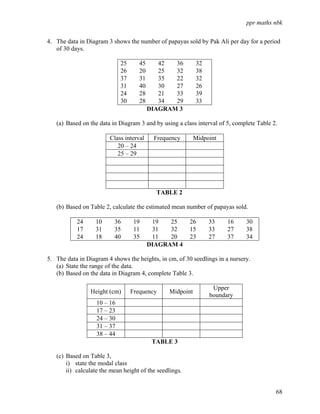

11. ppr maths nbk
4. The data in Diagram 3 shows the number of papayas sold by Pak Ali per day for a period
of 30 days.
25 45 42 36 32
26 20 25 32 38
37 31 35 22 32
31 40 30 27 26
24 28 21 33 39
30 28 34 29 33
DIAGRAM 3
(a) Based on the data in Diagram 3 and by using a class interval of 5, complete Table 2.
Class interval Frequency Midpoint
20 – 24
25 – 29
TABLE 2
(b) Based on Table 2, calculate the estimated mean number of papayas sold.
24 10 36 19 19 25 26 33 16 30
17 31 35 11 31 32 15 33 27 38
24 18 40 35 11 20 23 27 37 34
DIAGRAM 4
5. The data in Diagram 4 shows the heights, in cm, of 30 seedlings in a nursery.
(a) State the range of the data.
(b) Based on the data in Diagram 4, complete Table 3.
Upper
Height (cm) Frequency Midpoint
boundary
10 – 16
17 – 23
24 – 30
31 – 37
38 – 44
TABLE 3
(c) Based on Table 3,
i) state the modal class
ii) calculate the mean height of the seedlings.
68

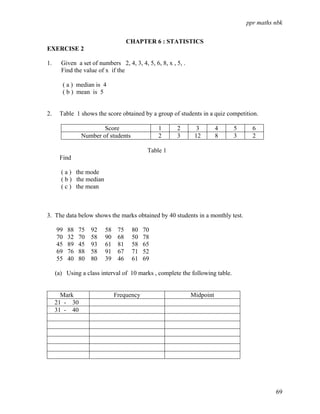

12. ppr maths nbk
CHAPTER 6 : STATISTICS
EXERCISE 2
1. Given a set of numbers 2, 4, 3, 4, 5, 6, 8, x , 5, .
Find the value of x if the
( a ) median is 4
( b ) mean is 5
2. Table 1 shows the score obtained by a group of students in a quiz competition.
Score 1 2 3 4 5 6
Number of students 2 3 12 8 3 2
Table 1
Find
( a ) the mode
( b ) the median
( c ) the mean
3. The data below shows the marks obtained by 40 students in a monthly test.
99 88 75 92 58 75 80 70
70 32 70 58 90 68 50 78
45 89 45 93 61 81 58 65
69 76 88 58 91 67 71 52
55 40 80 80 39 46 61 69
(a) Using a class interval of 10 marks , complete the following table.
Mark Frequency Midpoint
21 - 30
31 - 40
69

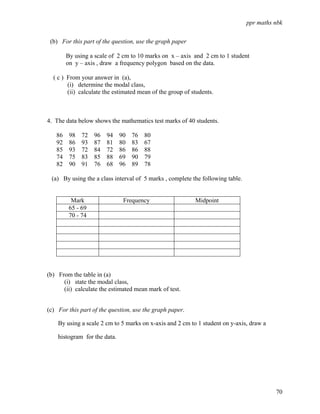

13. ppr maths nbk
(b) For this part of the question, use the graph paper
By using a scale of 2 cm to 10 marks on x – axis and 2 cm to 1 student
on y – axis , draw a frequency polygon based on the data.
( c ) From your answer in (a),
(i) determine the modal class,
(ii) calculate the estimated mean of the group of students.
4. The data below shows the mathematics test marks of 40 students.
86 98 72 96 94 90 76 80
92 86 93 87 81 80 83 67
85 93 72 84 72 86 86 88
74 75 83 85 88 69 90 79
82 90 91 76 68 96 89 78
(a) By using the a class interval of 5 marks , complete the following table.
Mark Frequency Midpoint
65 - 69
70 - 74
(b) From the table in (a)
(i) state the modal class,
(ii) calculate the estimated mean mark of test.
(c) For this part of the question, use the graph paper.
By using a scale 2 cm to 5 marks on x-axis and 2 cm to 1 student on y-axis, draw a
histogram for the data.
70

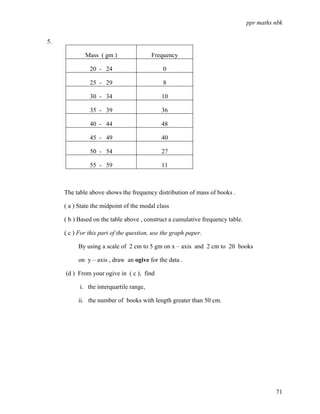

14. ppr maths nbk
5.
Mass ( gm ) Frequency
20 - 24 0
25 - 29 8
30 - 34 10
35 - 39 36
40 - 44 48
45 - 49 40
50 - 54 27
55 - 59 11
The table above shows the frequency distribution of mass of books .
( a ) State the midpoint of the modal class
( b ) Based on the table above , construct a cumulative frequency table.
( c ) For this part of the question, use the graph paper.
By using a scale of 2 cm to 5 gm on x – axis and 2 cm to 20 books
on y – axis , draw an ogive for the data .
(d ) From your ogive in ( c ), find
i. the interquartile range,
ii. the number of books with length greater than 50 cm.
71

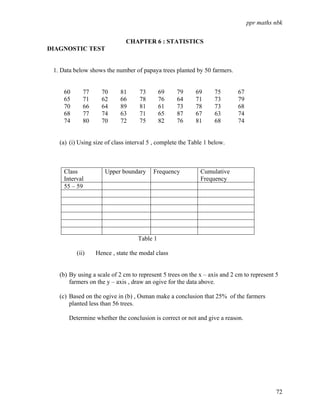

15. ppr maths nbk
CHAPTER 6 : STATISTICS
DIAGNOSTIC TEST
1. Data below shows the number of papaya trees planted by 50 farmers.
60 77 70 81 73 69 79 69 75 67
65 71 62 66 78 76 64 71 73 79
70 66 64 89 81 61 73 78 73 68
68 77 74 63 71 65 87 67 63 74
74 80 70 72 75 82 76 81 68 74
(a) (i) Using size of class interval 5 , complete the Table 1 below.
Class Upper boundary Frequency Cumulative
Interval Frequency
55 – 59
Table 1
(ii) Hence , state the modal class
(b) By using a scale of 2 cm to represent 5 trees on the x – axis and 2 cm to represent 5
farmers on the y – axis , draw an ogive for the data above.
(c) Based on the ogive in (b) , Osman make a conclusion that 25% of the farmers
planted less than 56 trees.
Determine whether the conclusion is correct or not and give a reason.
72

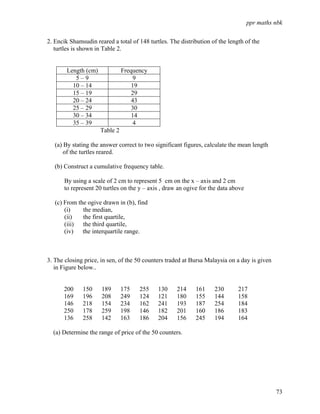

16. ppr maths nbk
2. Encik Shamsudin reared a total of 148 turtles. The distribution of the length of the
turtles is shown in Table 2.
Length (cm) Frequency
5–9 9
10 – 14 19
15 – 19 29
20 – 24 43
25 – 29 30
30 – 34 14
35 – 39 4
Table 2
(a) By stating the answer correct to two significant figures, calculate the mean length
of the turtles reared.
(b) Construct a cumulative frequency table.
By using a scale of 2 cm to represent 5 cm on the x – axis and 2 cm
to represent 20 turtles on the y – axis , draw an ogive for the data above
(c) From the ogive drawn in (b), find
(i) the median,
(ii) the first quartile,
(iii) the third quartile,
(iv) the interquartile range.
3. The closing price, in sen, of the 50 counters traded at Bursa Malaysia on a day is given
in Figure below..
200 150 189 175 255 130 214 161 230 217
169 196 208 249 124 121 180 155 144 158
146 218 154 234 162 241 193 187 254 184
250 178 259 198 146 182 201 160 186 183
136 258 142 163 186 204 156 245 194 164
(a) Determine the range of price of the 50 counters.
73

17. ppr maths nbk
(b) Using size of class interval 20 , complete the Table 3 below.
Class Mid point Frequency
Interval
121-140
Table 3
(c) Based on the frequency table constructed in (b) , draw a histogram for a data.
4. The heights, in cm, of 50 plants are distributed as shown in the following table.
(a) Height(cm) Midpoint Frequency
40 – 44 3
45 – 49 5
50 – 54 10
55 – 59 16
60 – 64 8
65 – 69 6
70 – 79 2
(i) Copy and complete the above table
(ii) Hence , calculate the mean height of the plants.
(b)
Upper 39.5 44.5
Boundary
(cm)
Cumulative 0
frequency
(i) Based on the information from the table in (a) , copy and complete
the above table.
(ii) Using a scale of 2 cm to represent 5 cm on the x – axis , and 2 cm
to represent 5 plants on the y-axis, draw an ogive for the
distribution.
From the ogive , find
(a) the median
(b) the third quartile
74

18. ppr maths nbk
5. (a)
Number of 8 9 10 11 12 13
Television
sets sold
Number of 2 5 8 10 9 6
Shops
The above table gives the numbers of televisyen sets sold by 40
electrical shops on a certain day.Find
(i) the mode
(ii) the mean of the distribution.
(b)
Time(minutes) Number of Upper boundary Cumulative
participants Frequency
6.1 – 7 .0 8
7.1 – 8.0 14
8.1 – 9.0 22
9.1 – 10.0 46
10.1 – 11.0 38
11.1 – 12.0 20
12.1 – 13.0 8
13.1 – 14.0 4
The above table shows the frequency distribution of the times , in
minutes, taken by 160 participants of a jogathon.Copy and complete
the table.
(c) Using a scale of 2 cm to represent 1 minute on the x –axis and 2 cm
to represent 20 participants on the y-axis, draw an ogive for this
distribution. From the ogive , find
(i) the median
(ii) the interquartile range
(iii) the number of prize winners , given that participants who
clocked less than 8.0 minutes were given prizes.
75
