1. Modern Android app library stack
Tomáš Kypta
#MobCon

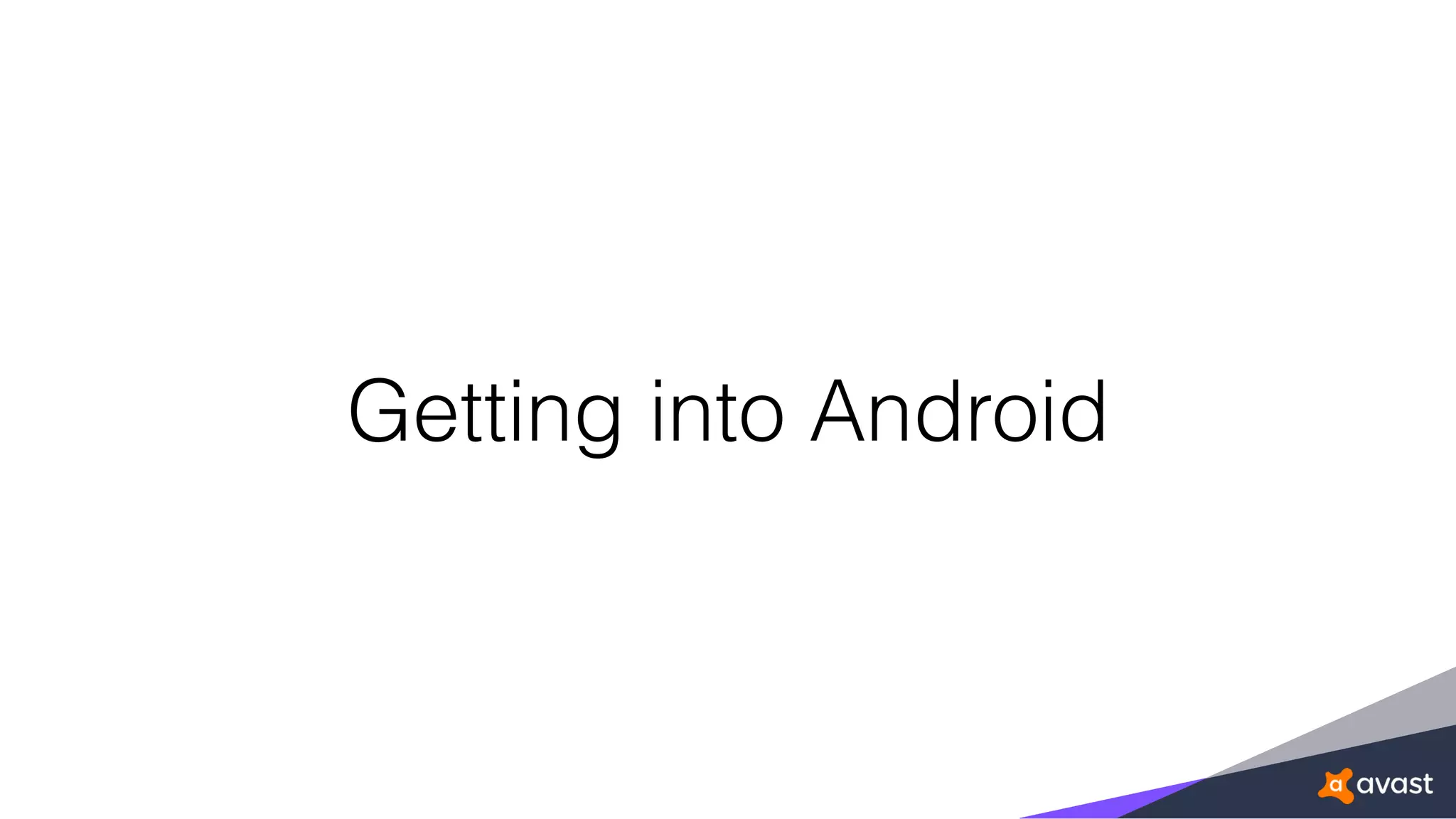

2. Getting into Android

3. Q: “How do I get the data from the server?”

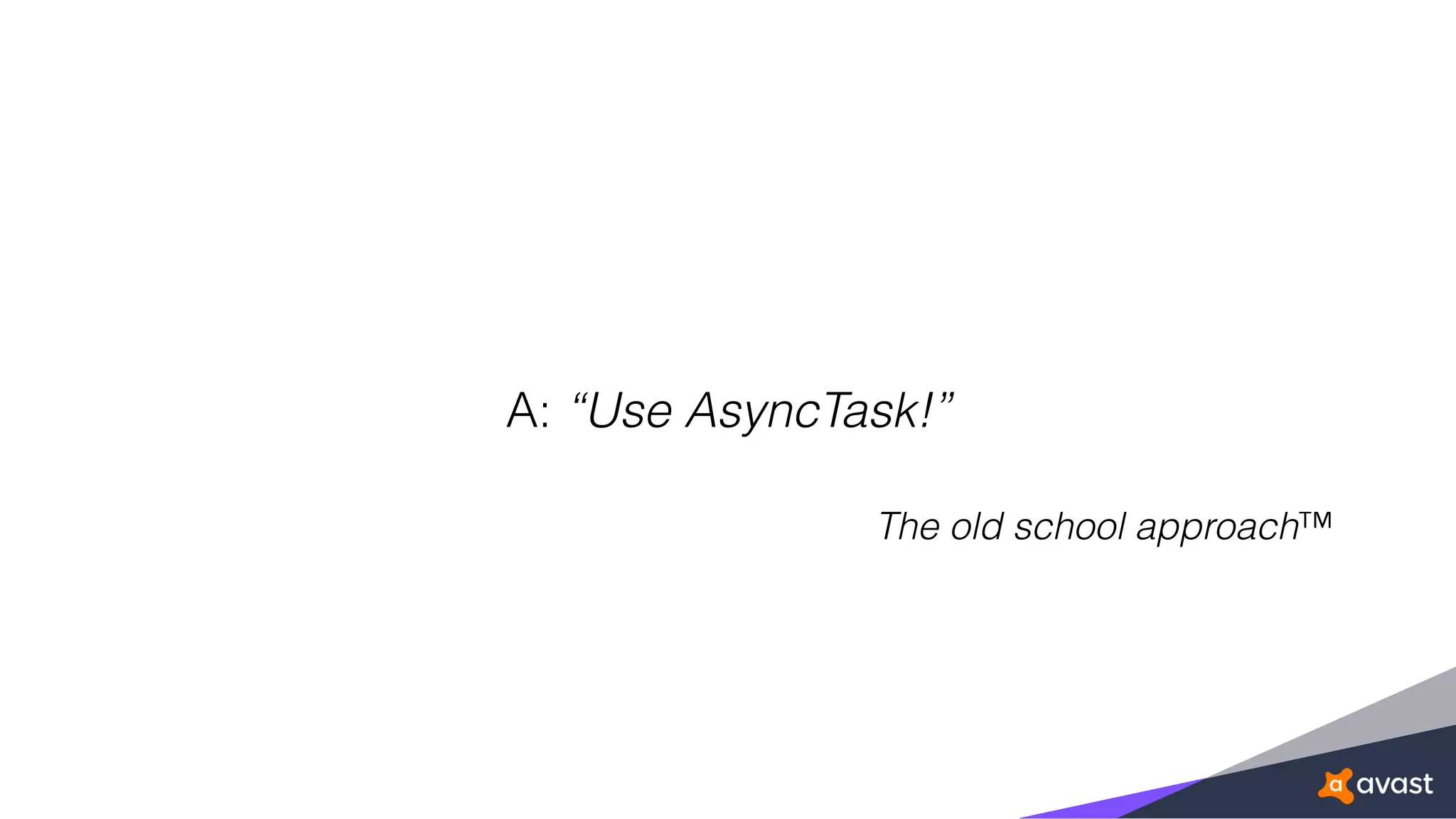

4. A: “Use AsyncTask!”
The old school approach™

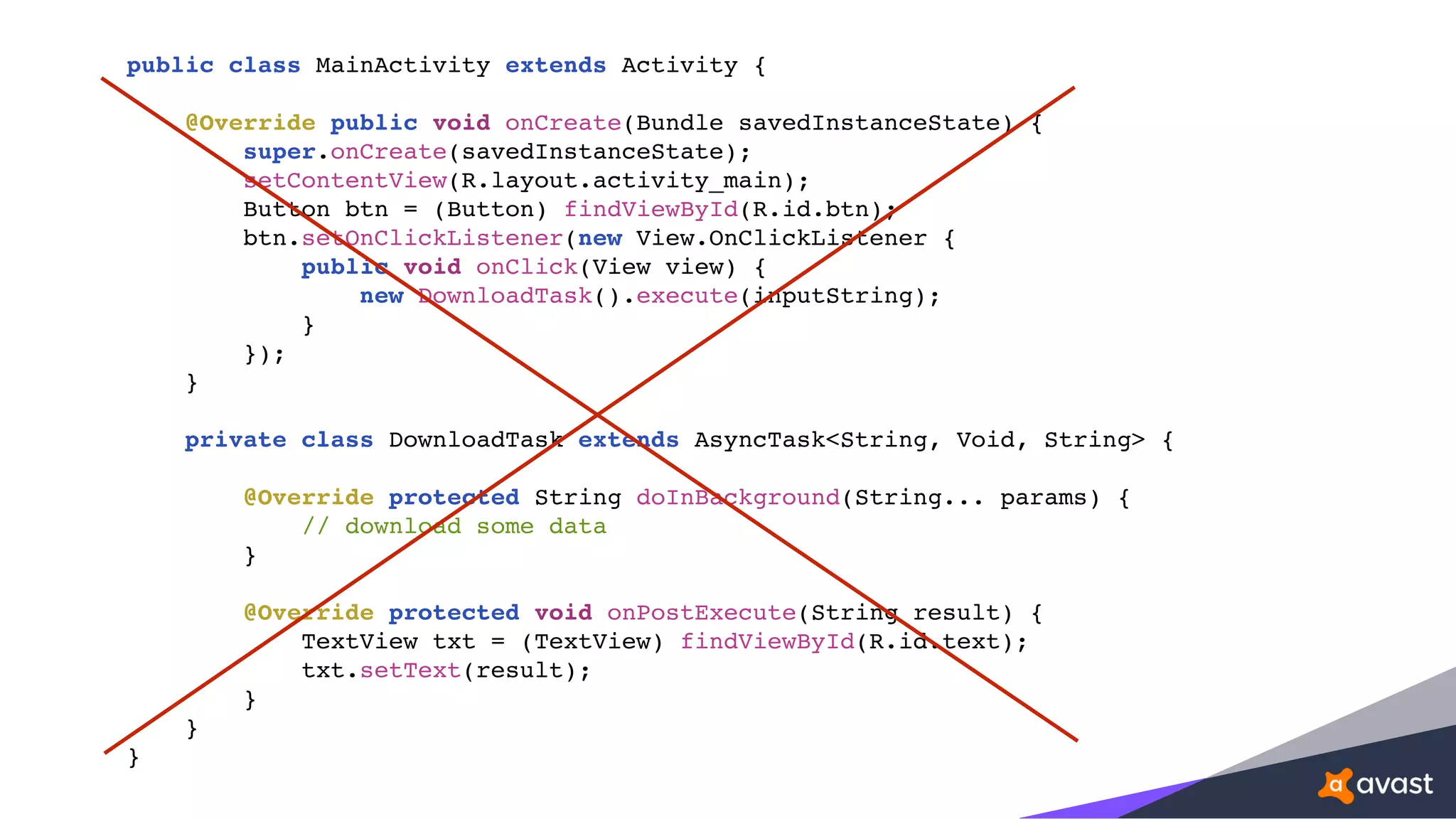

5. public class MainActivity extends Activity {
@Override public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Button btn = (Button) findViewById(R.id.btn);
btn.setOnClickListener(new View.OnClickListener {
public void onClick(View view) {
new DownloadTask().execute(inputString);
}
});
}
private class DownloadTask extends AsyncTask<String, Void, String> {
@Override protected String doInBackground(String... params) {
// download some data
}
@Override protected void onPostExecute(String result) {
TextView txt = (TextView) findViewById(R.id.text);
txt.setText(result);
}
}
}

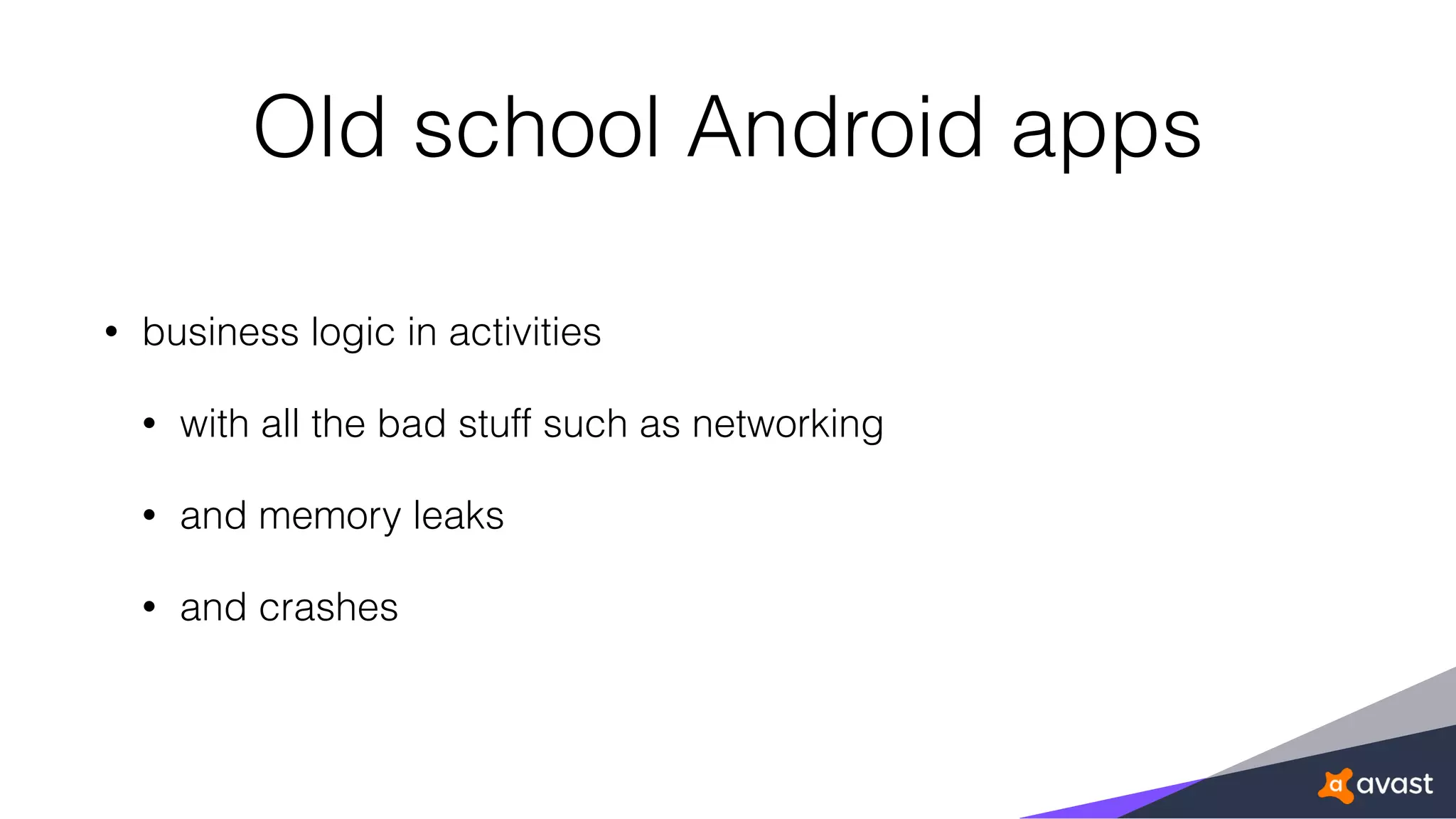

6. Old school Android apps
• business logic in activities
• with all the bad stuff such as networking
• and memory leaks
• and crashes

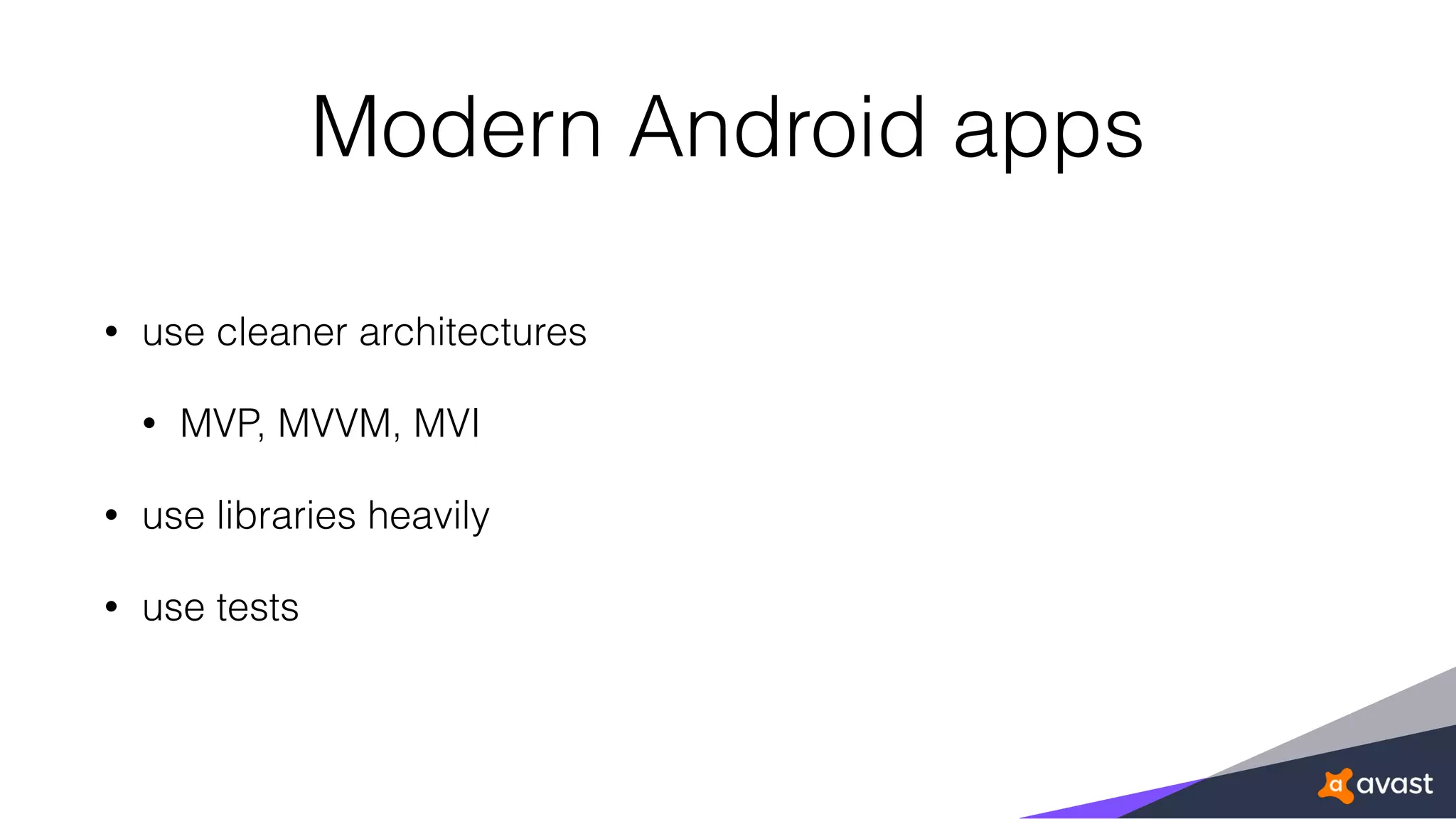

7. Modern Android apps
• use cleaner architectures
• MVP, MVVM, MVI
• use libraries heavily
• use tests

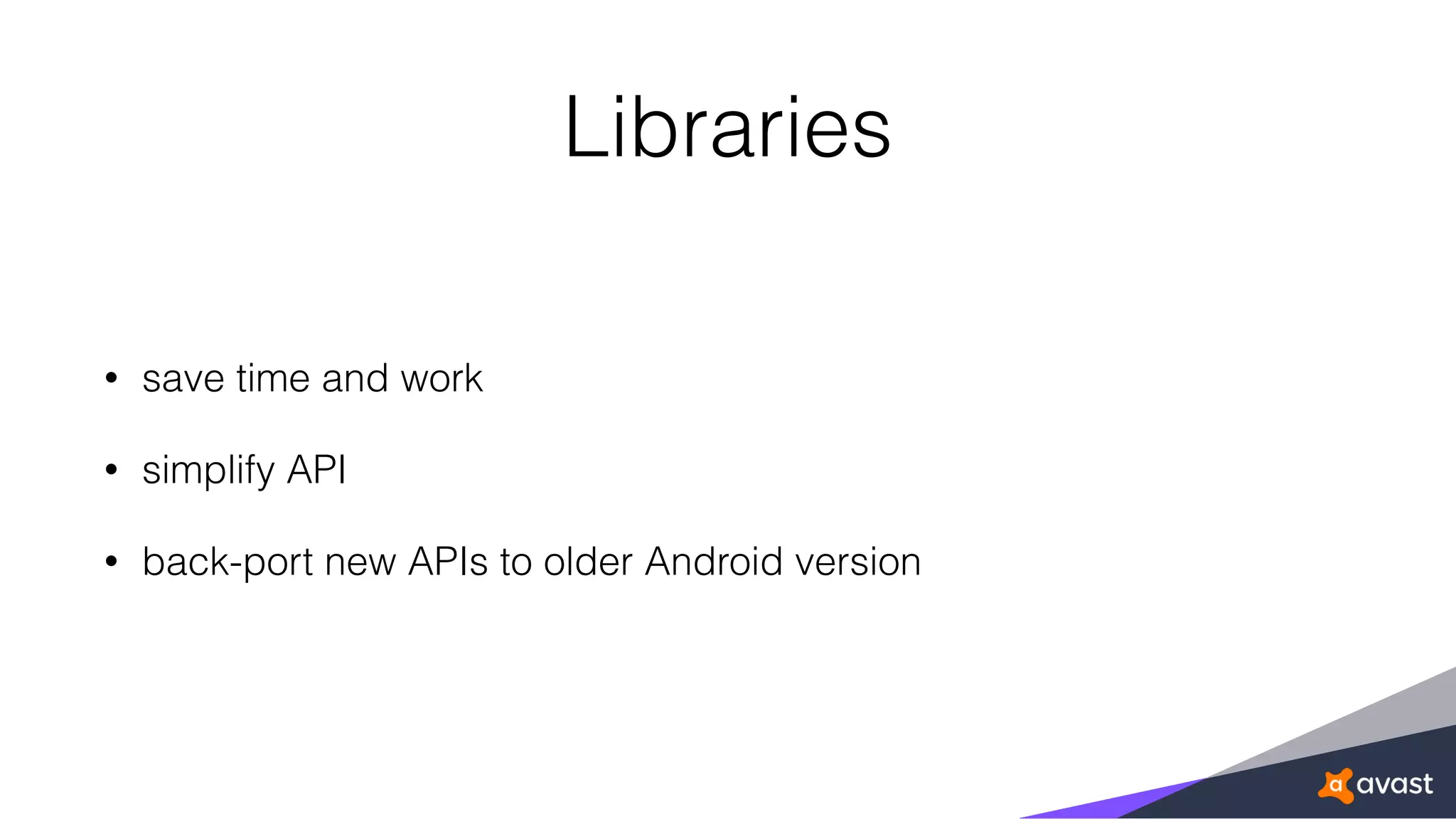

8. Libraries
• save time and work
• simplify API
• back-port new APIs to older Android version

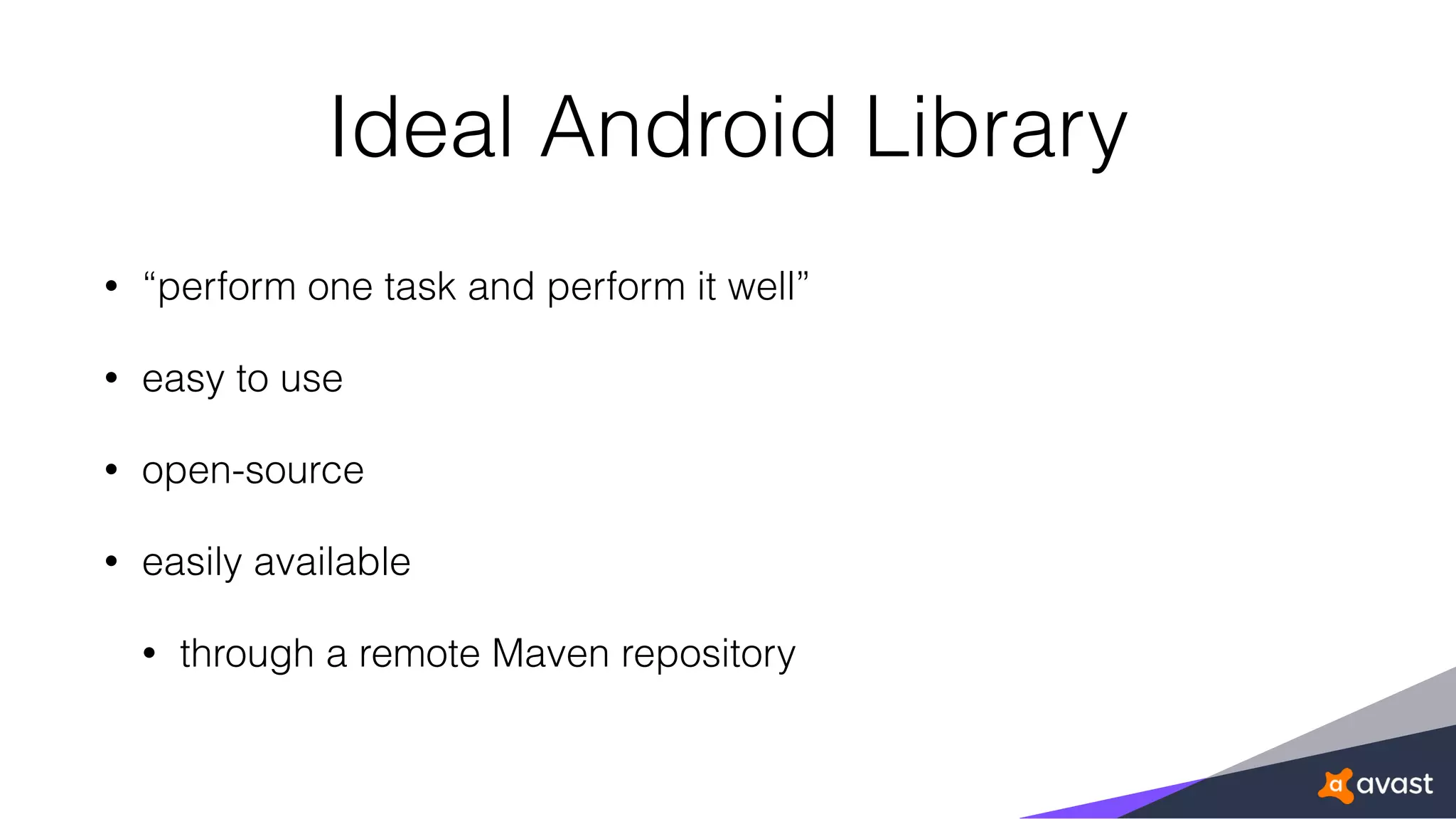

9. Ideal Android Library
• “perform one task and perform it well”
• easy to use
• open-source
• easily available
• through a remote Maven repository

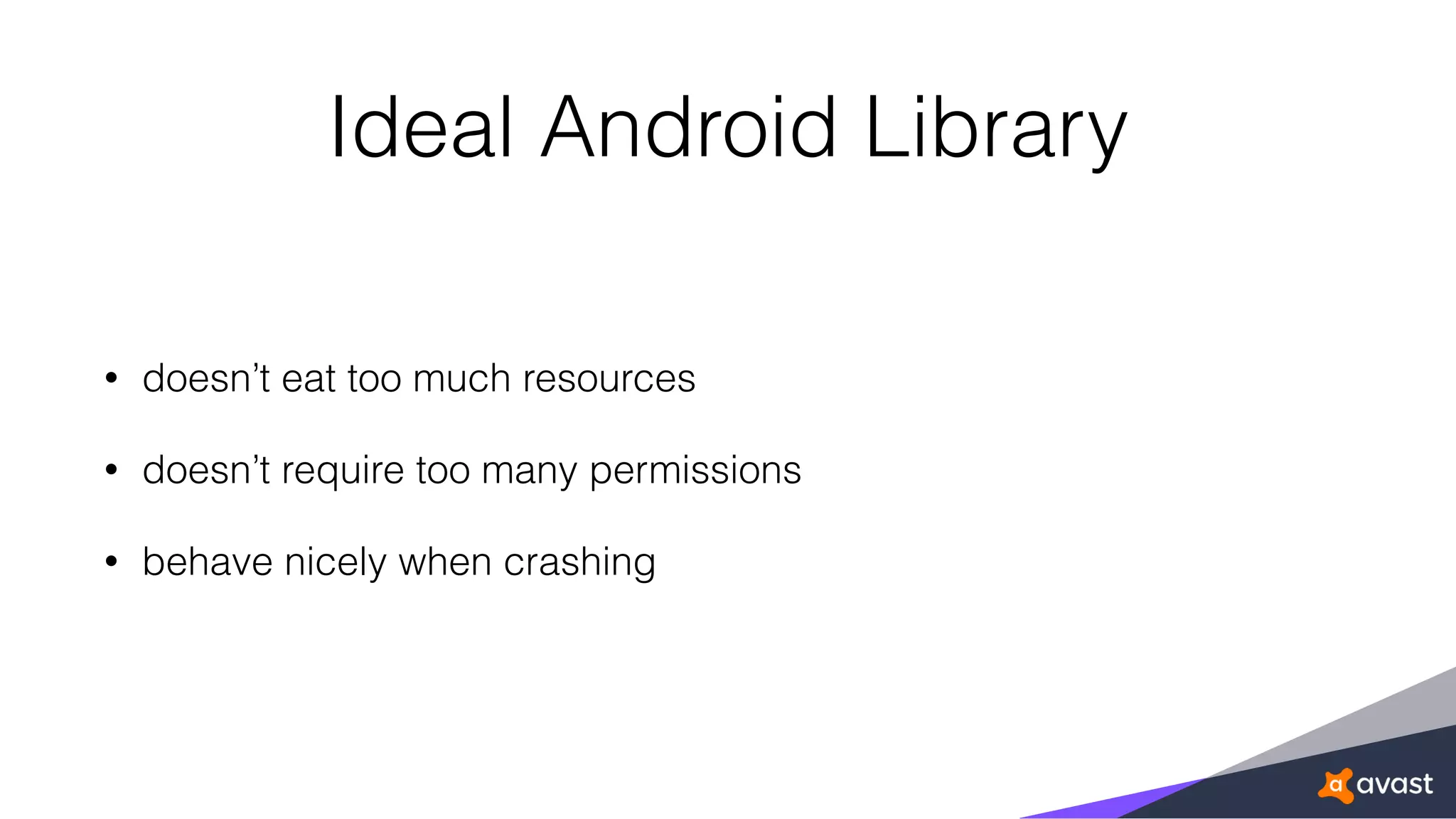

10. Ideal Android Library
• doesn’t eat too much resources
• doesn’t require too many permissions
• behave nicely when crashing

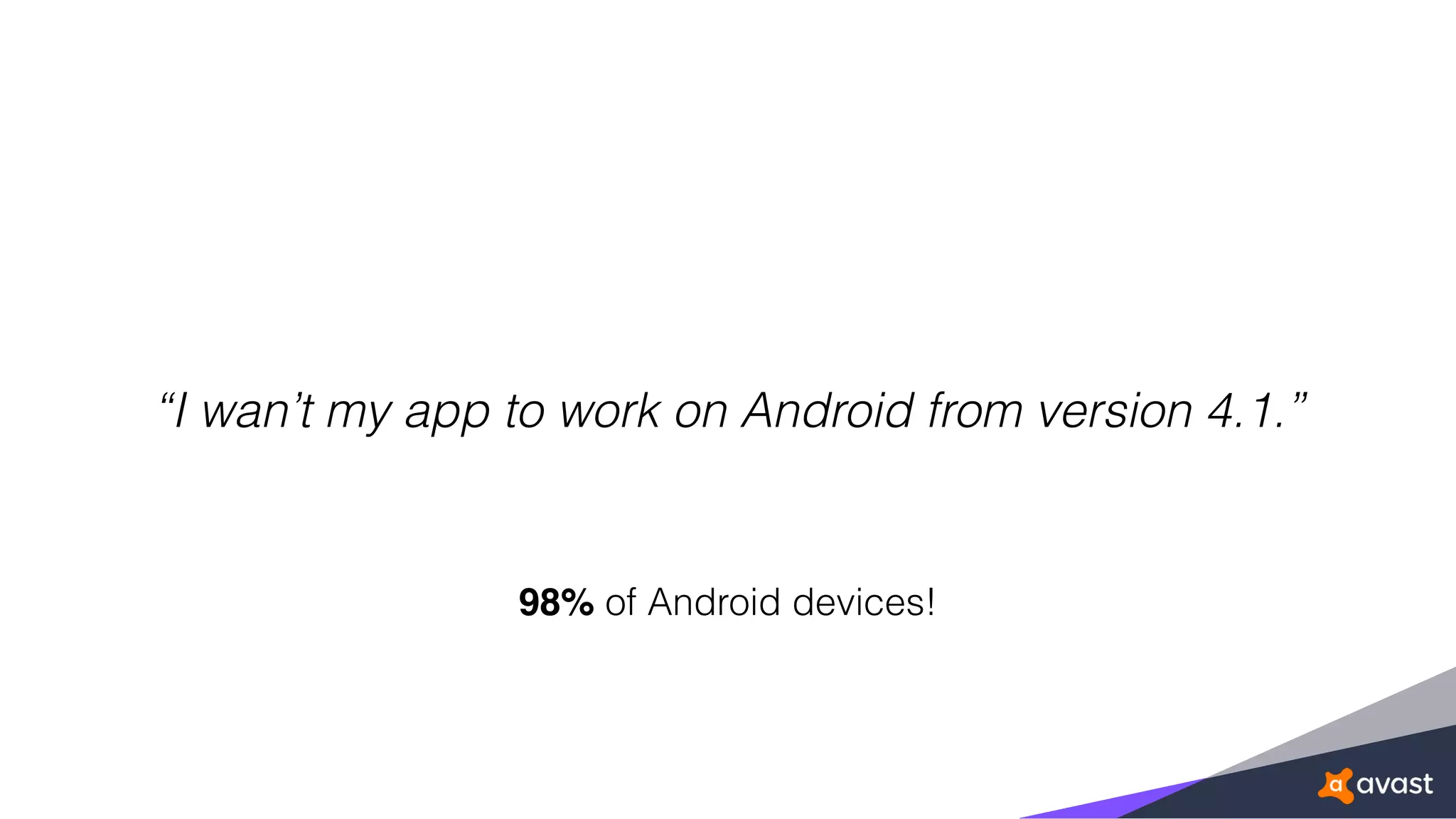

11. “I wan’t my app to work on Android from version 4.1.”
98% of Android devices!

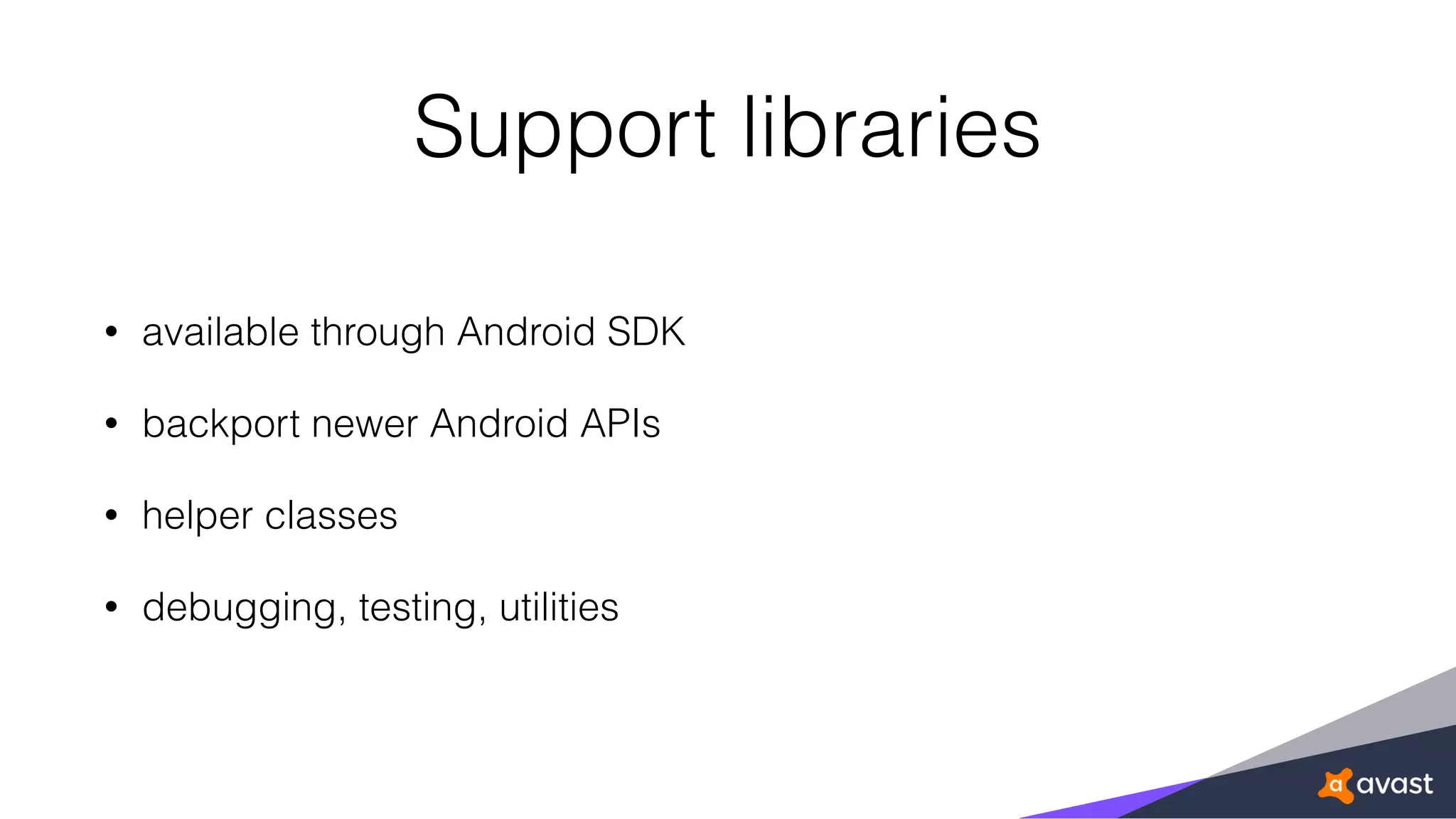

12. Support libraries
• available through Android SDK
• backport newer Android APIs
• helper classes
• debugging, testing, utilities

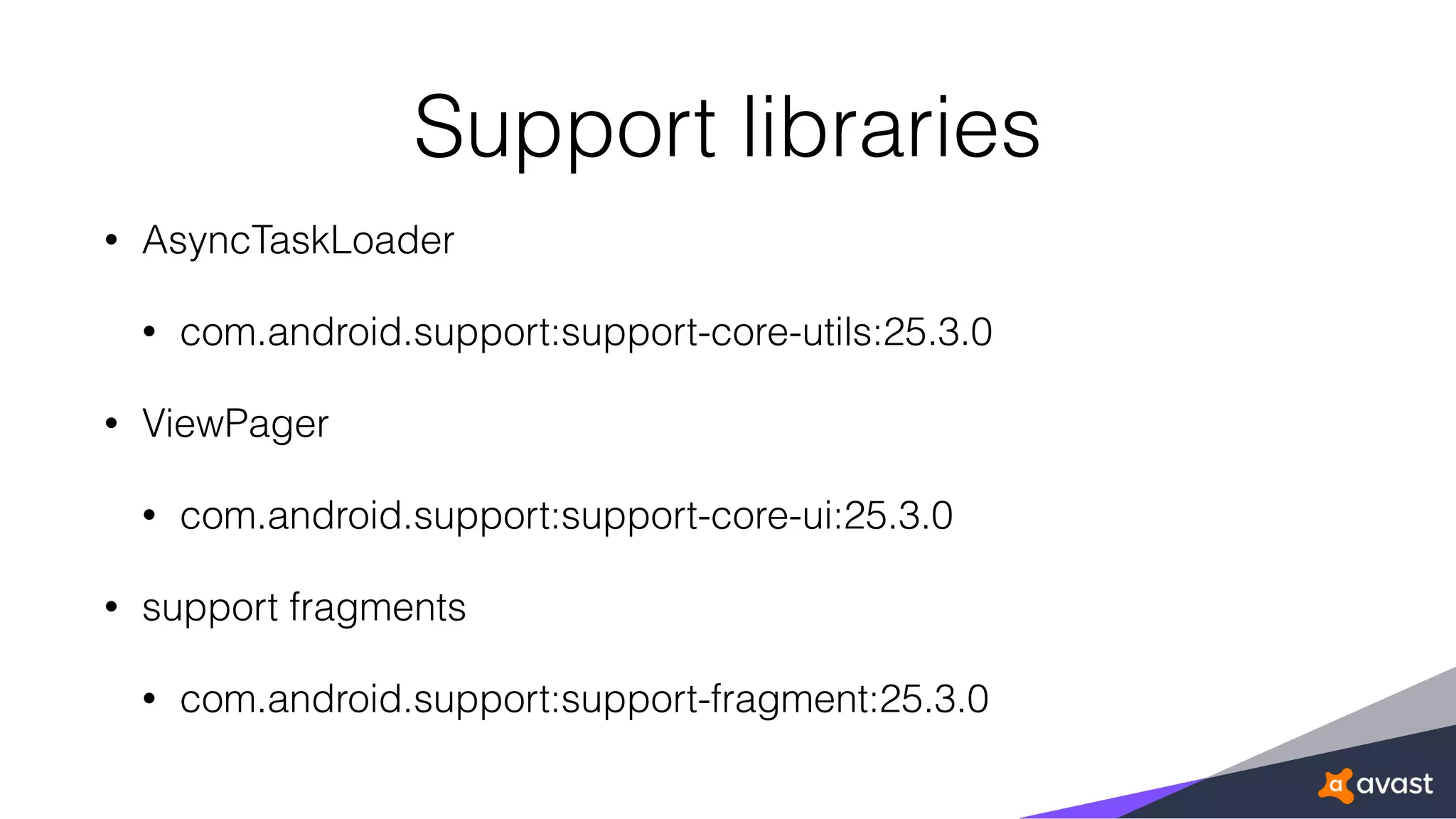

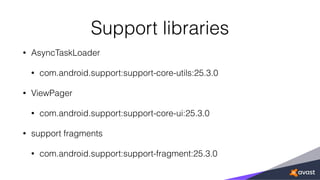

13. Support libraries
• AsyncTaskLoader
• com.android.support:support-core-utils:25.3.0
• ViewPager
• com.android.support:support-core-ui:25.3.0
• support fragments
• com.android.support:support-fragment:25.3.0

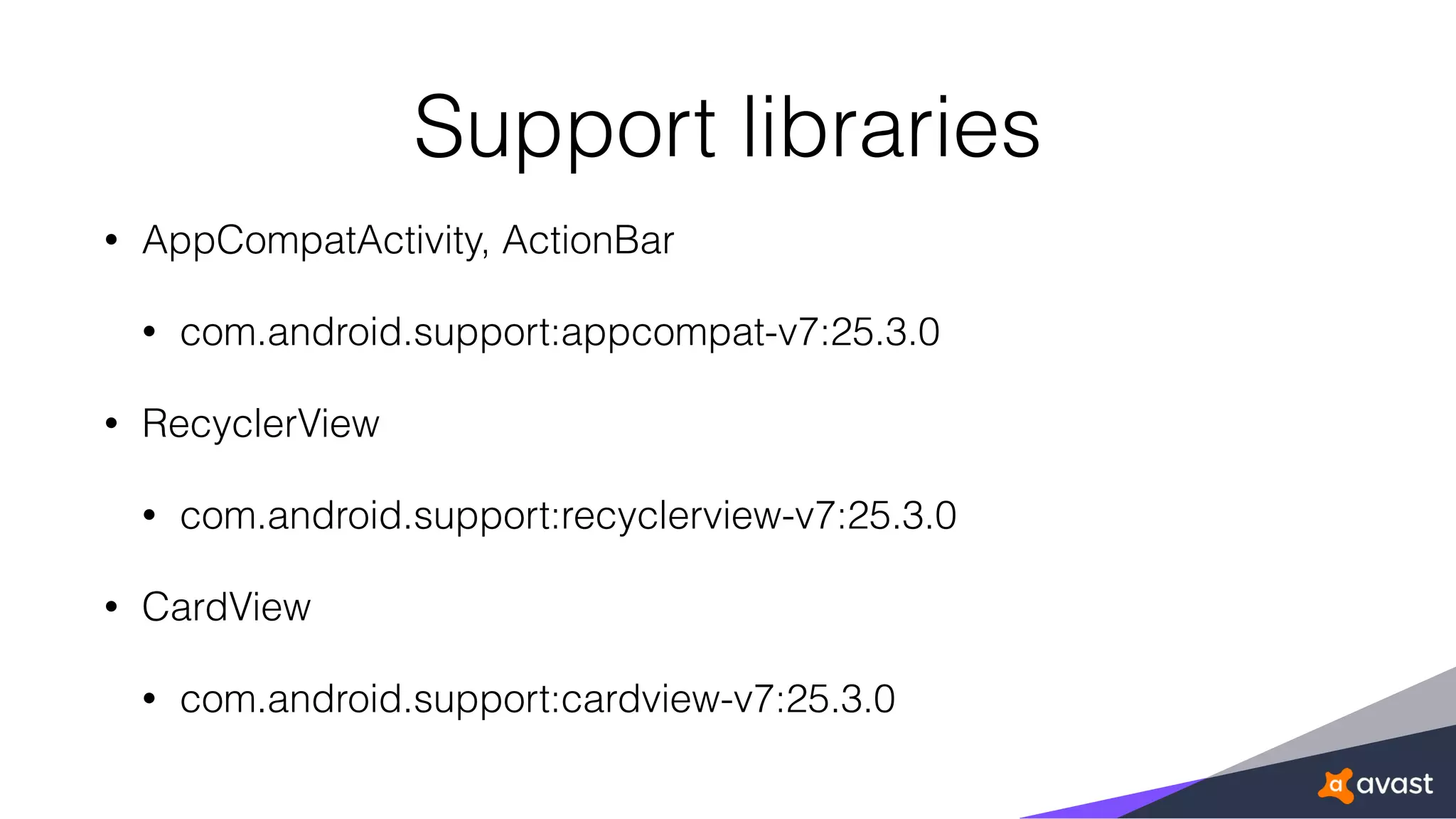

14. Support libraries
• AppCompatActivity, ActionBar
• com.android.support:appcompat-v7:25.3.0
• RecyclerView
• com.android.support:recyclerview-v7:25.3.0
• CardView
• com.android.support:cardview-v7:25.3.0

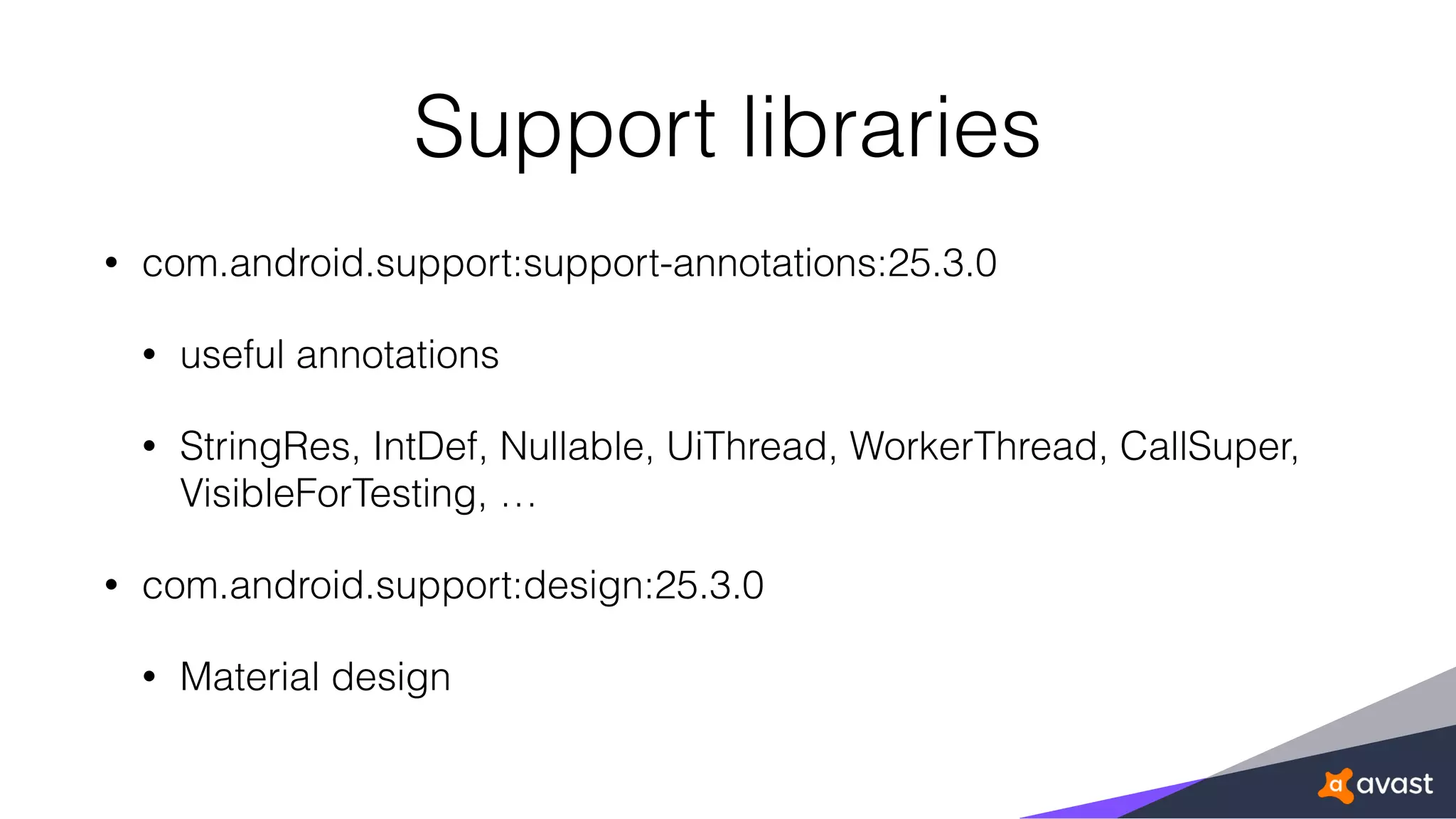

15. Support libraries
• com.android.support:support-annotations:25.3.0
• useful annotations
• StringRes, IntDef, Nullable, UiThread, WorkerThread, CallSuper,
VisibleForTesting, …
• com.android.support:design:25.3.0
• Material design

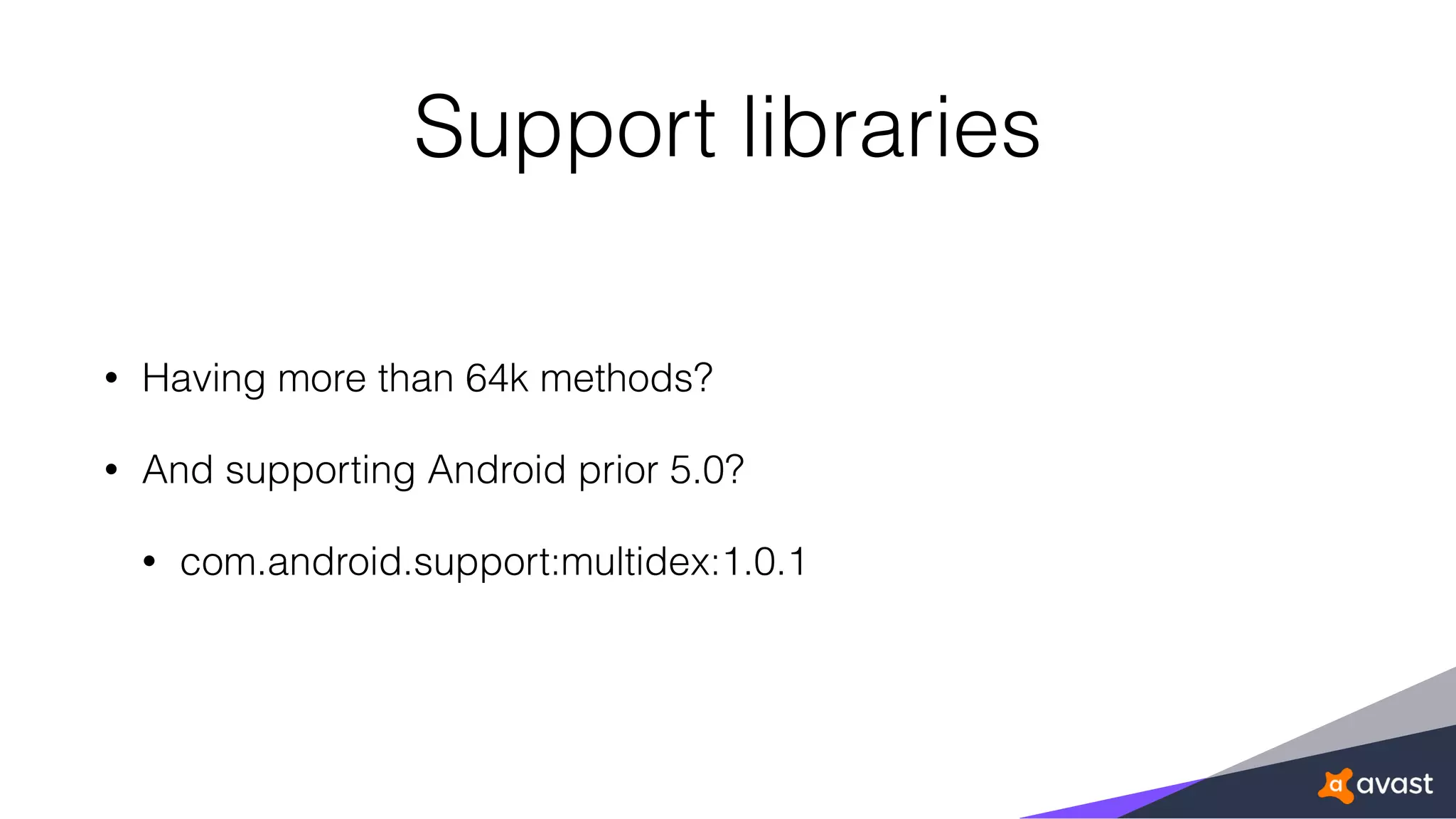

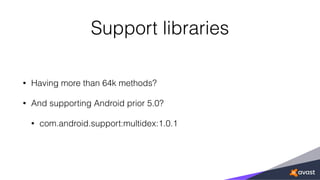

16. Support libraries
• Having more than 64k methods?
• And supporting Android prior 5.0?
• com.android.support:multidex:1.0.1

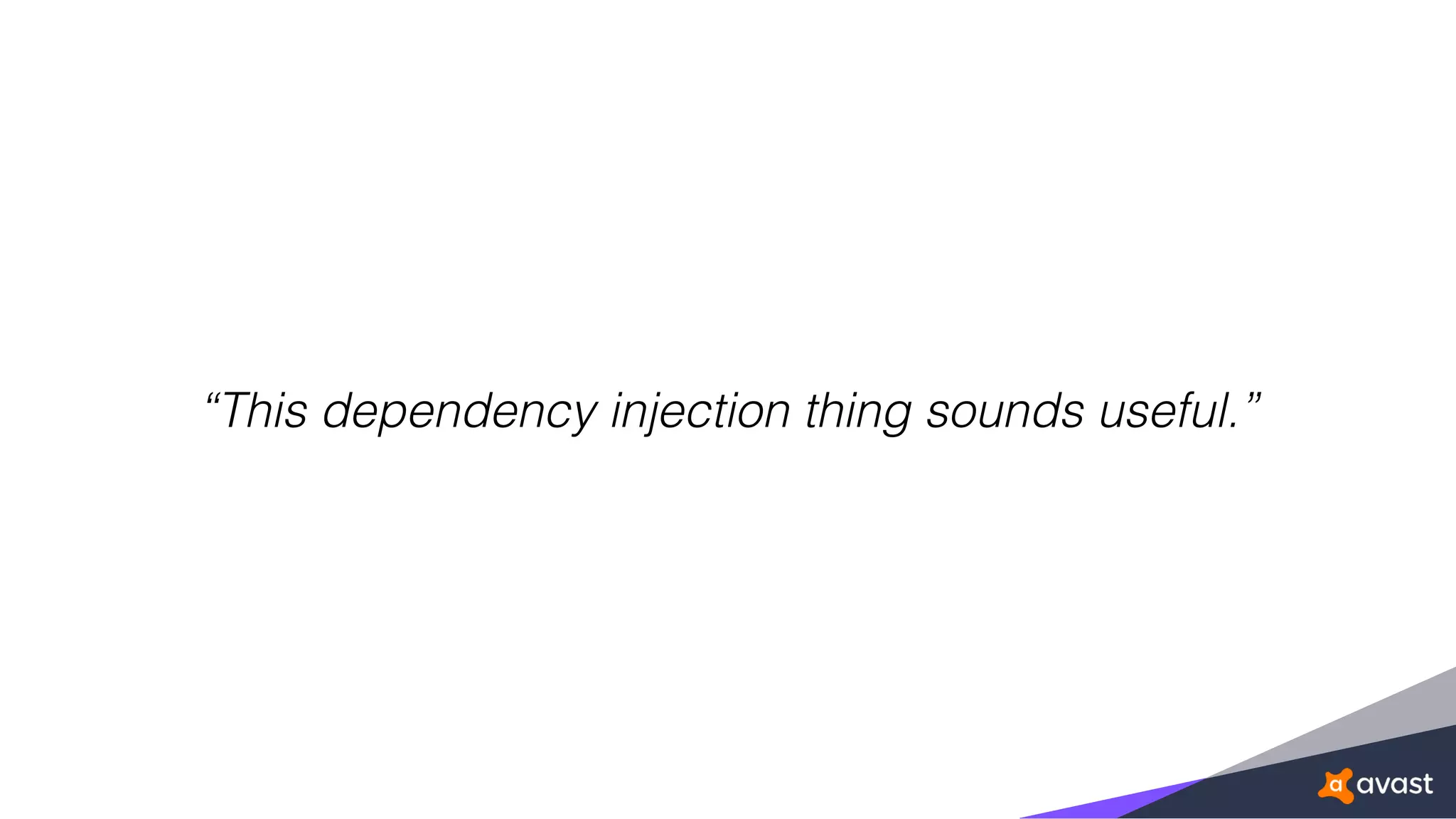

17. “This dependency injection thing sounds useful.”

18. Dagger 2
• dependency injection framework for Android and Java
• avoids reflection
• uses compile-time generated code

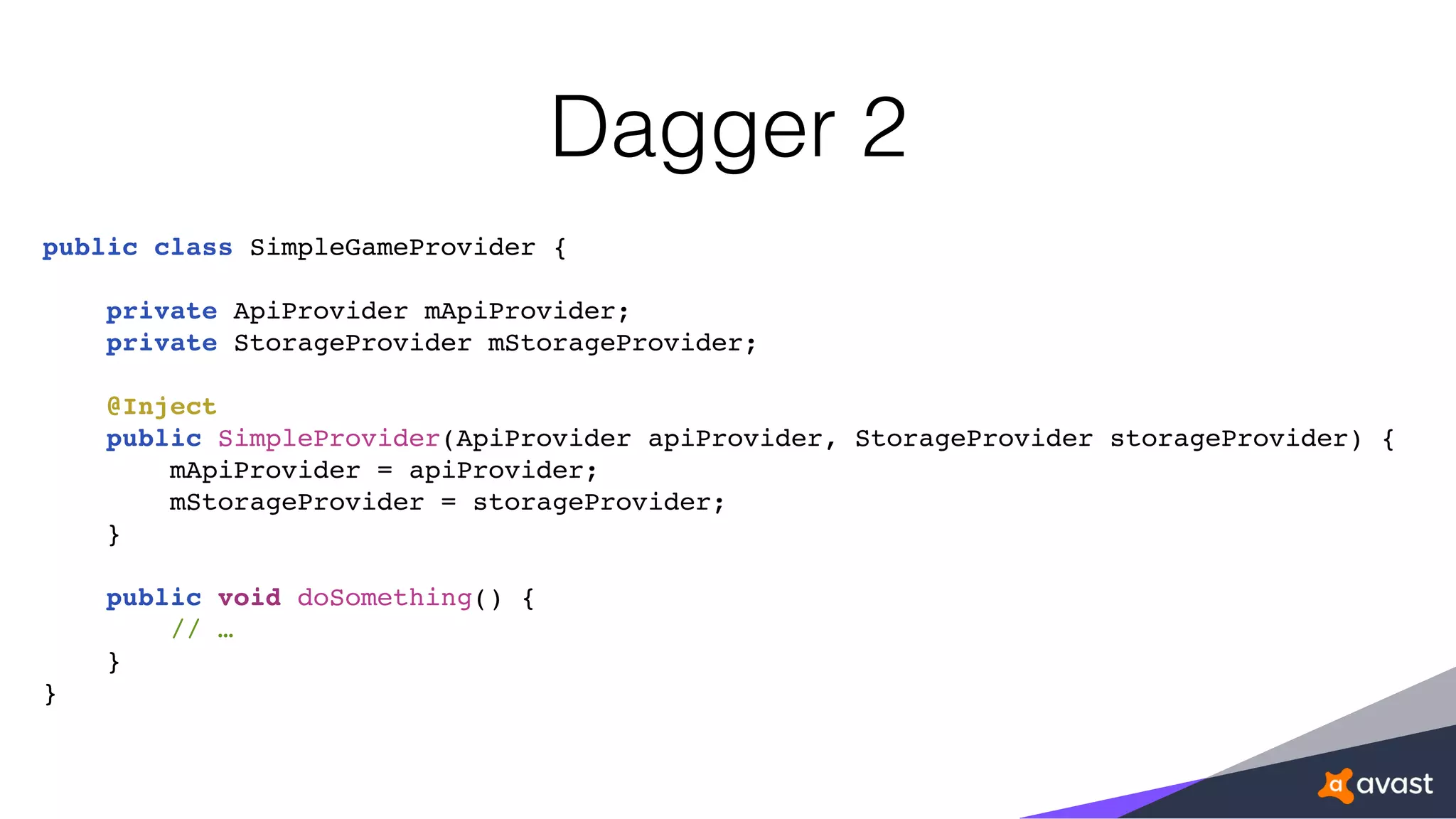

19. Dagger 2
public class SimpleGameProvider {
private ApiProvider mApiProvider;
private StorageProvider mStorageProvider;
@Inject
public SimpleProvider(ApiProvider apiProvider, StorageProvider storageProvider) {
mApiProvider = apiProvider;
mStorageProvider = storageProvider;
}
public void doSomething() {
// …
}
}

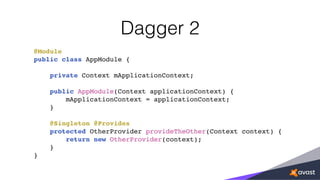

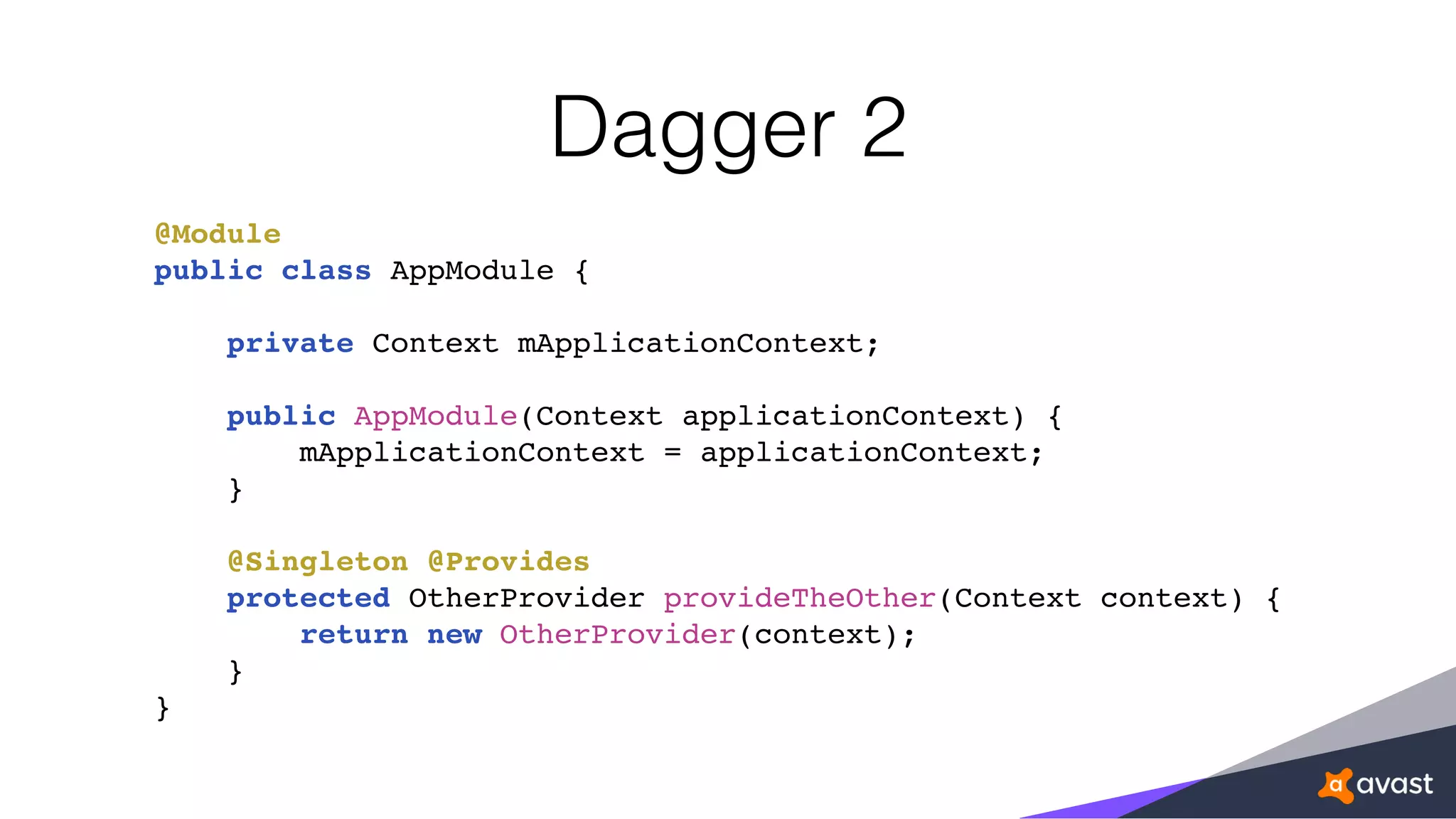

20. Dagger 2
@Module
public class AppModule {
private Context mApplicationContext;
public AppModule(Context applicationContext) {
mApplicationContext = applicationContext;
}
@Singleton @Provides
protected OtherProvider provideTheOther(Context context) {
return new OtherProvider(context);
}
}

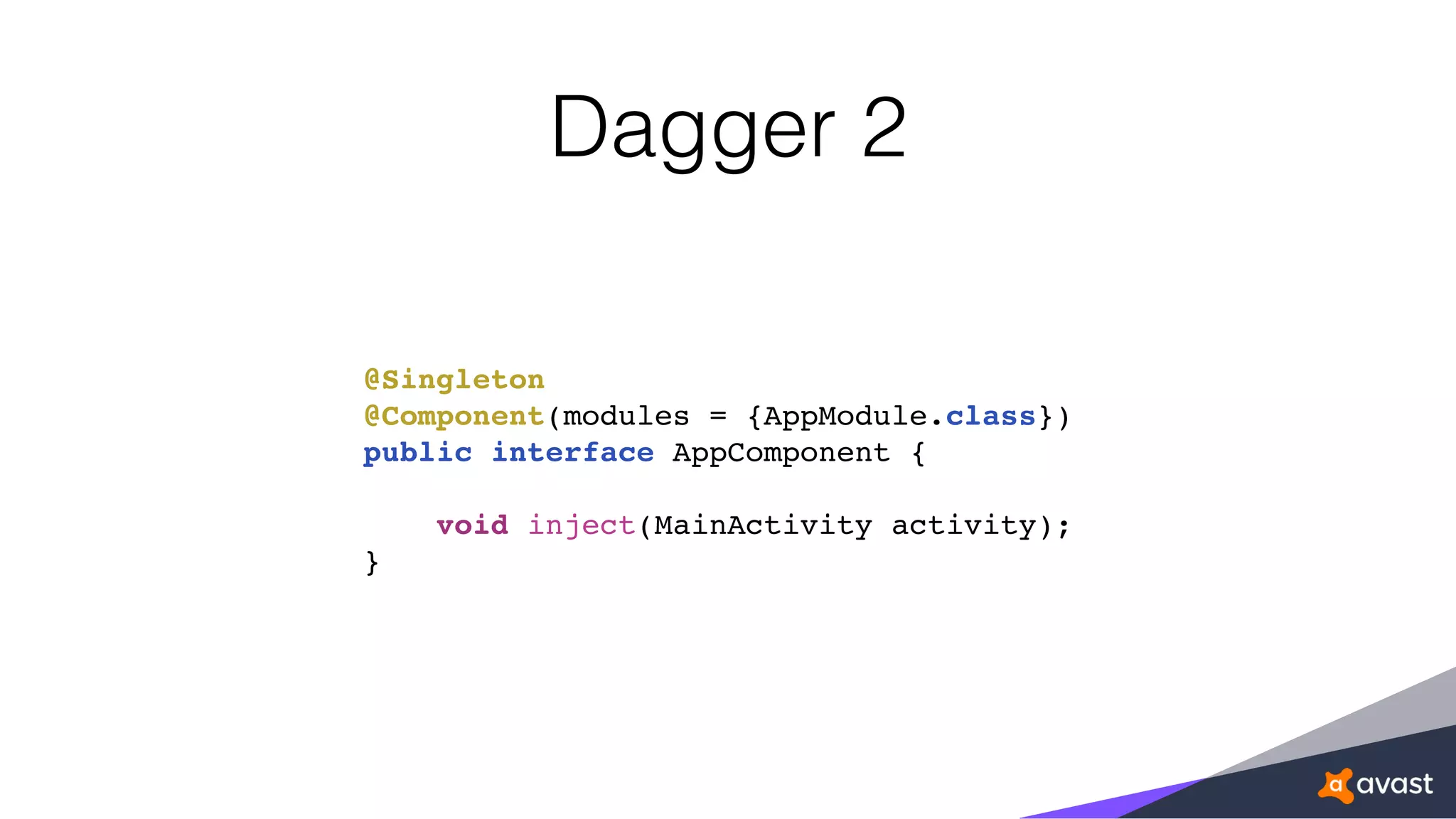

21. Dagger 2
@Singleton
@Component(modules = {AppModule.class})
public interface AppComponent {
void inject(MainActivity activity);
}

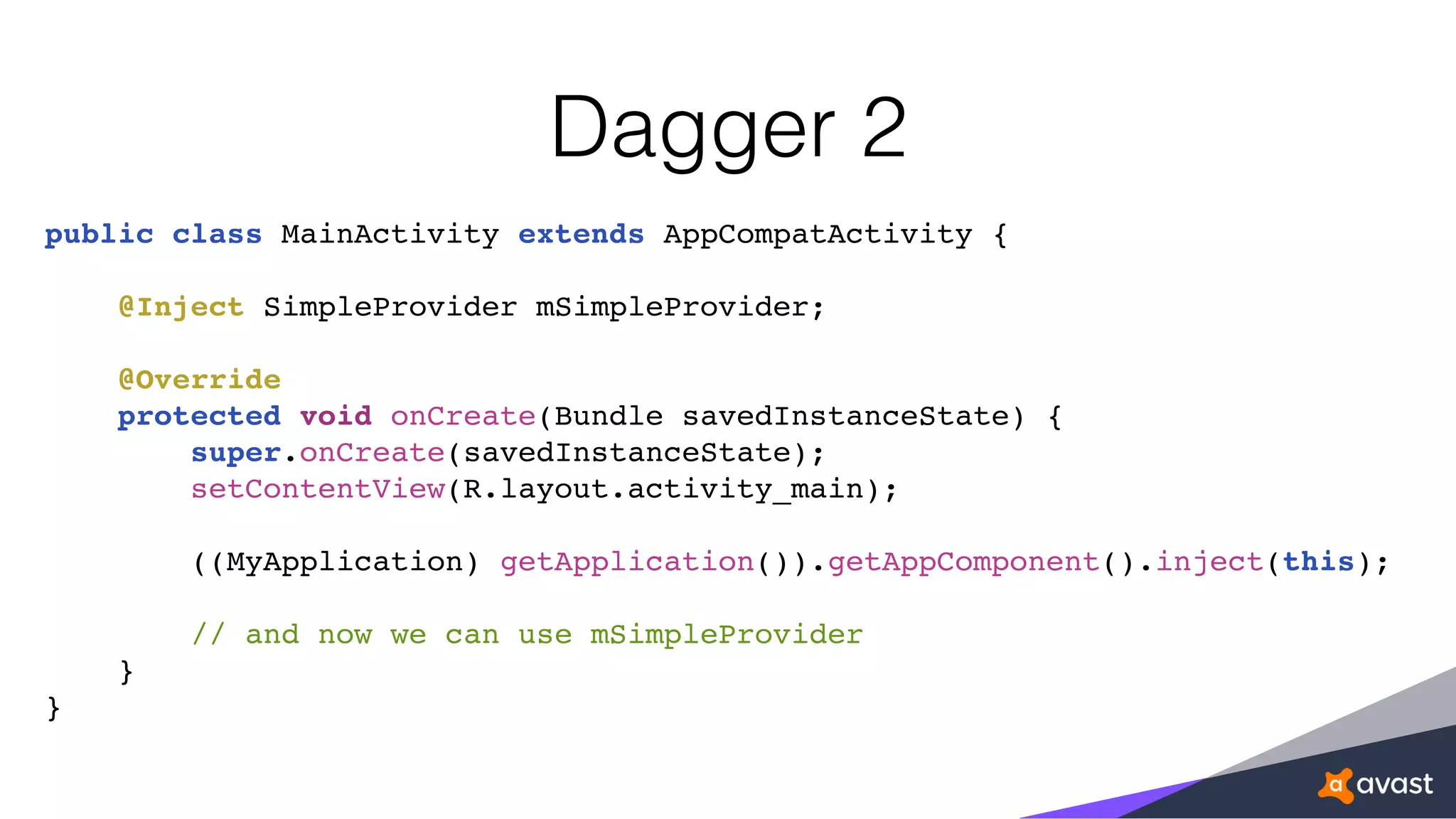

22. Dagger 2
public class MainActivity extends AppCompatActivity {
@Inject SimpleProvider mSimpleProvider;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
((MyApplication) getApplication()).getAppComponent().inject(this);
// and now we can use mSimpleProvider
}
}

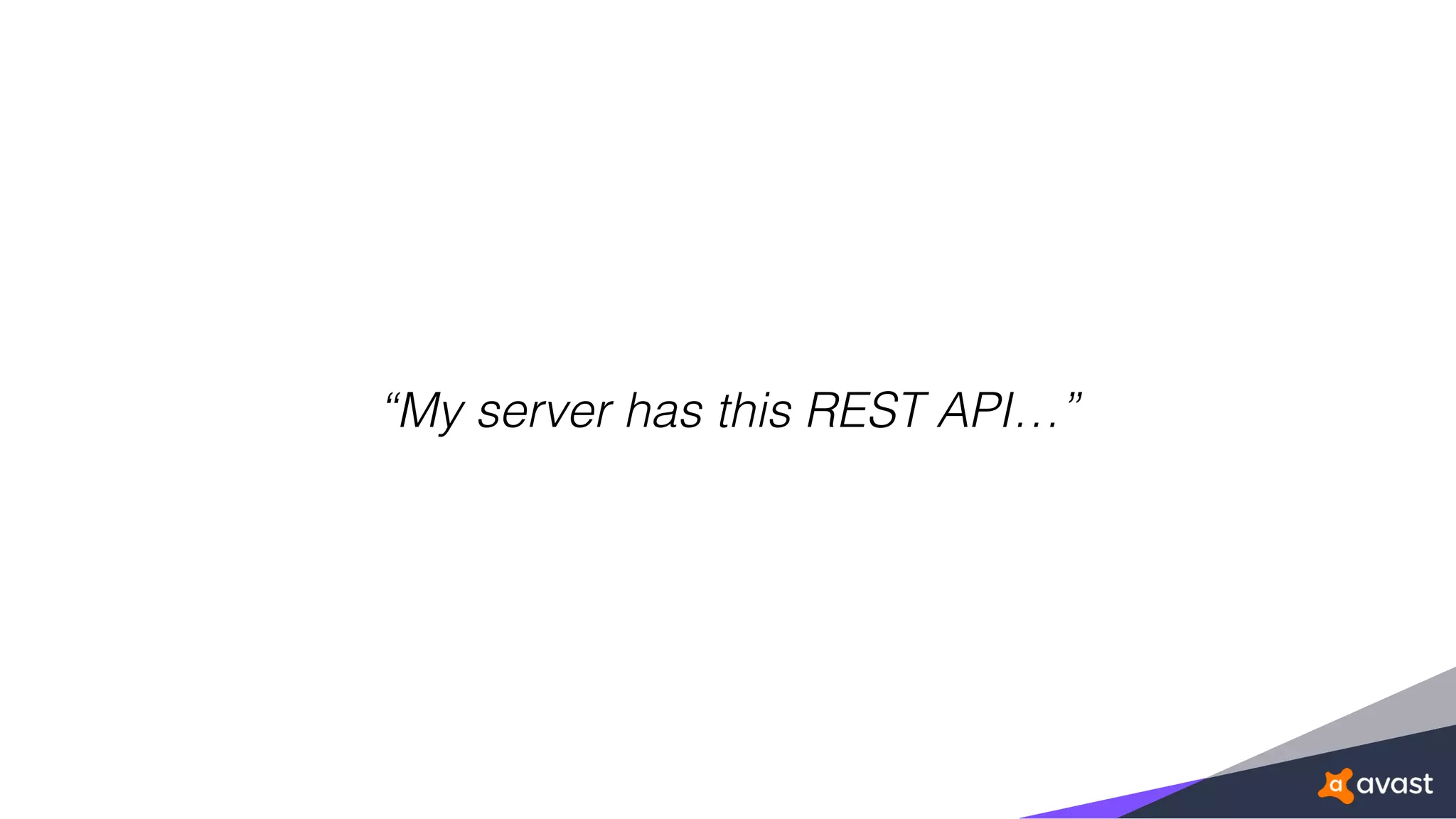

23. “My server has this REST API…”

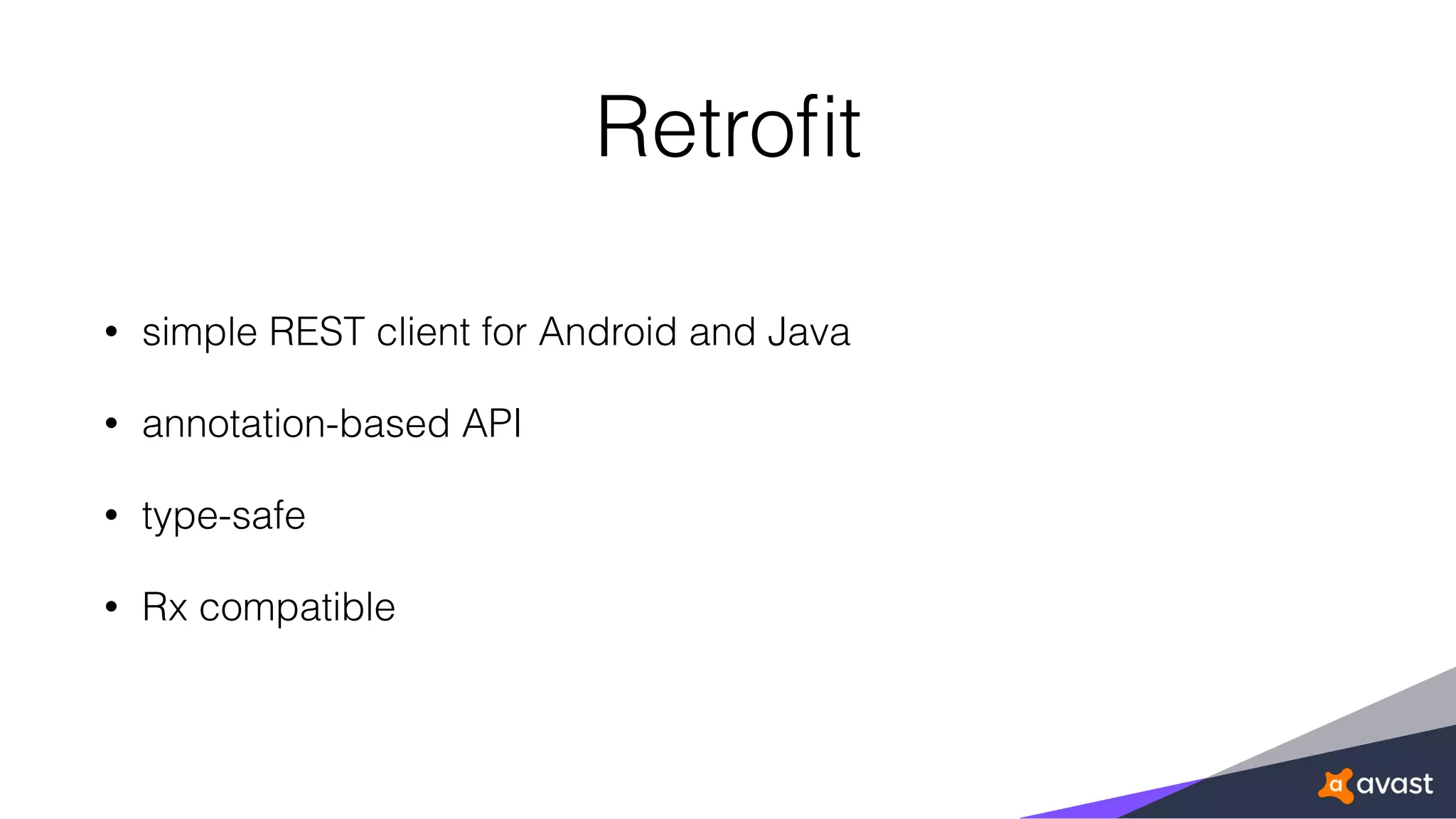

24. Retrofit
• simple REST client for Android and Java
• annotation-based API
• type-safe
• Rx compatible

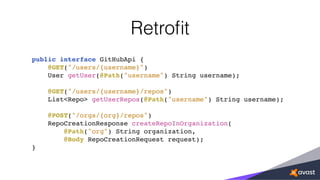

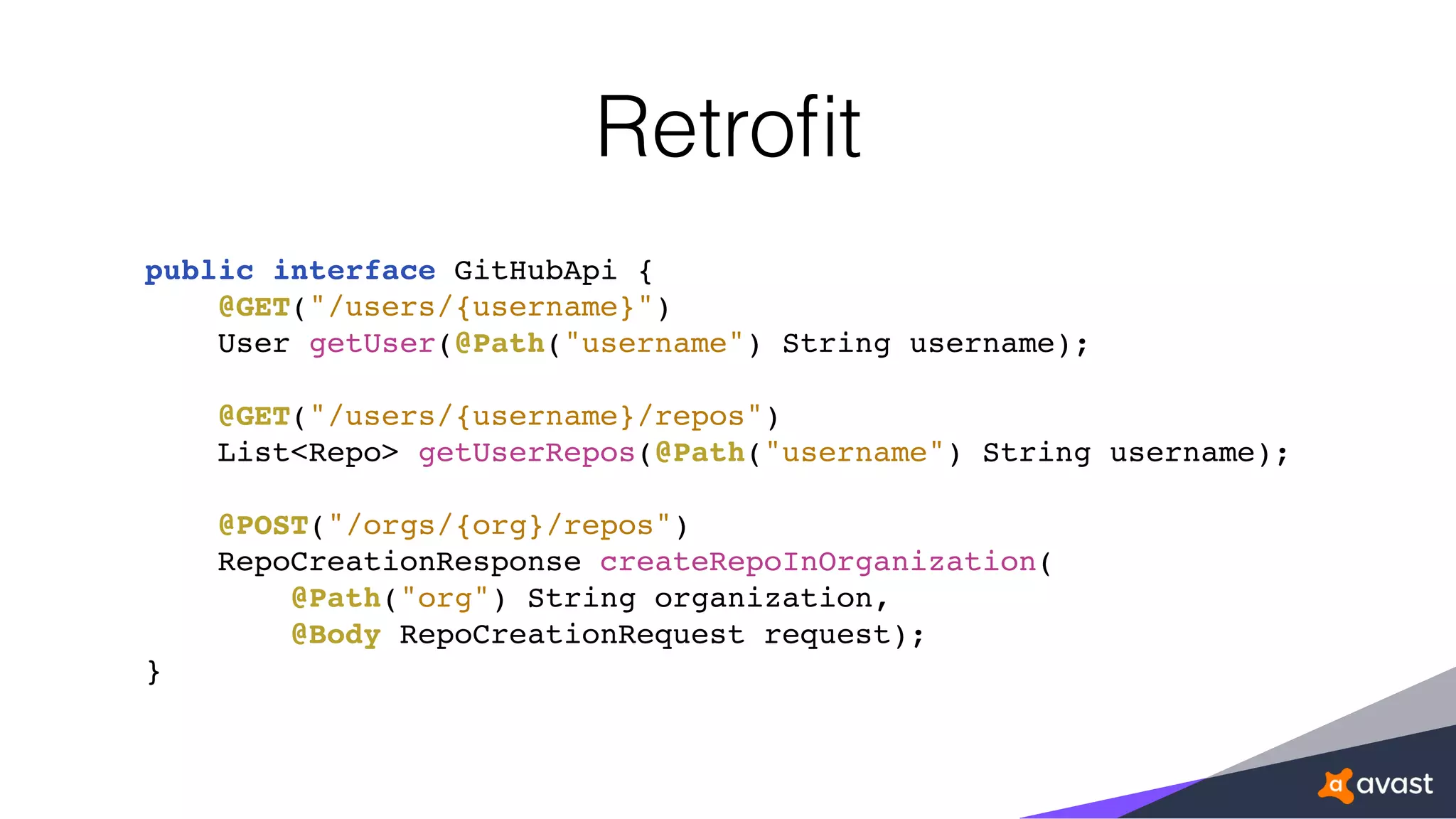

25. Retrofit
public interface GitHubApi {
@GET("/users/{username}")
User getUser(@Path("username") String username);
@GET("/users/{username}/repos")
List<Repo> getUserRepos(@Path("username") String username);
@POST("/orgs/{org}/repos")
RepoCreationResponse createRepoInOrganization(
@Path("org") String organization,
@Body RepoCreationRequest request);
}

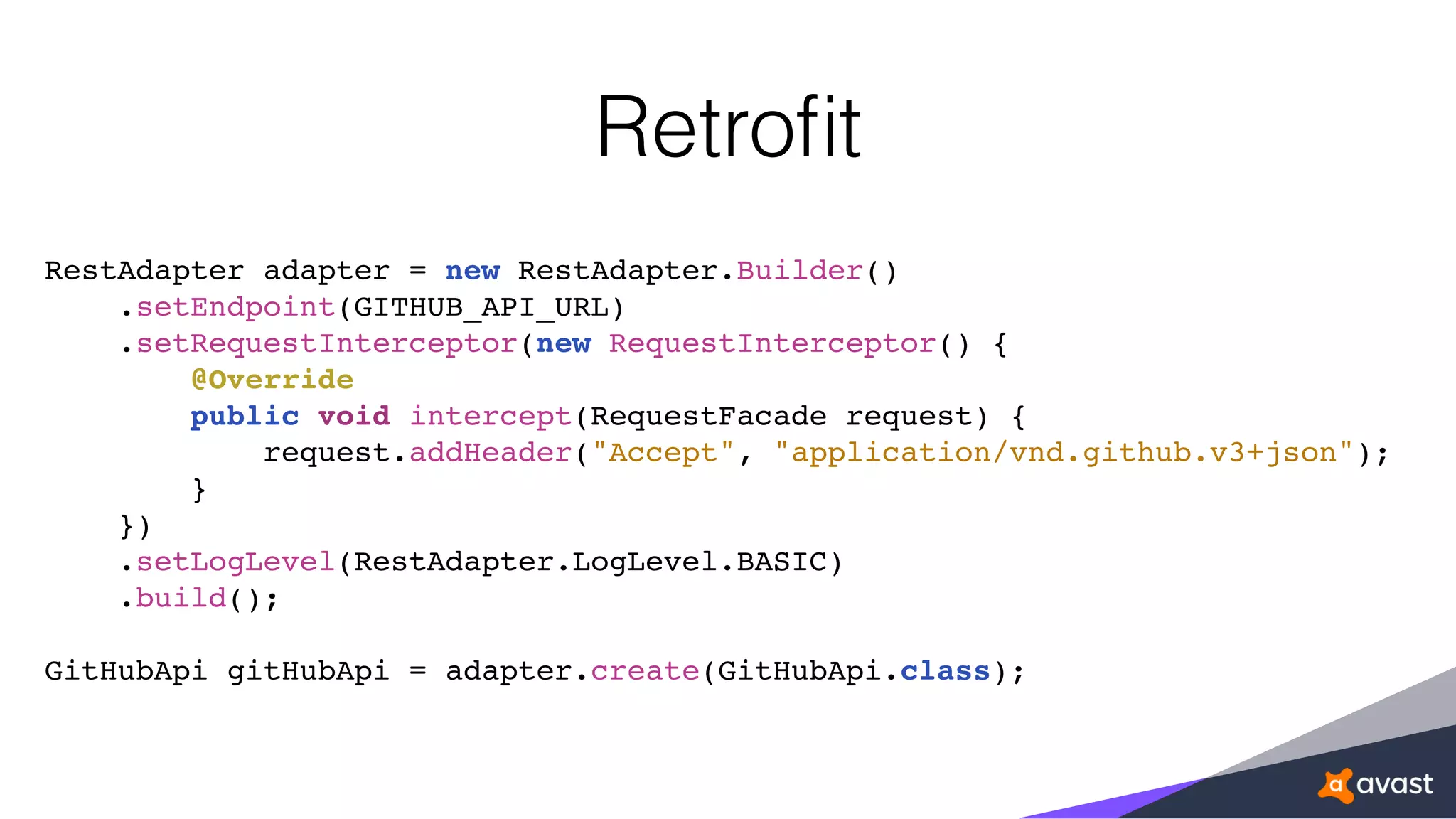

26. Retrofit
RestAdapter adapter = new RestAdapter.Builder()
.setEndpoint(GITHUB_API_URL)
.setRequestInterceptor(new RequestInterceptor() {
@Override
public void intercept(RequestFacade request) {
request.addHeader("Accept", "application/vnd.github.v3+json");
}
})
.setLogLevel(RestAdapter.LogLevel.BASIC)
.build();
GitHubApi gitHubApi = adapter.create(GitHubApi.class);

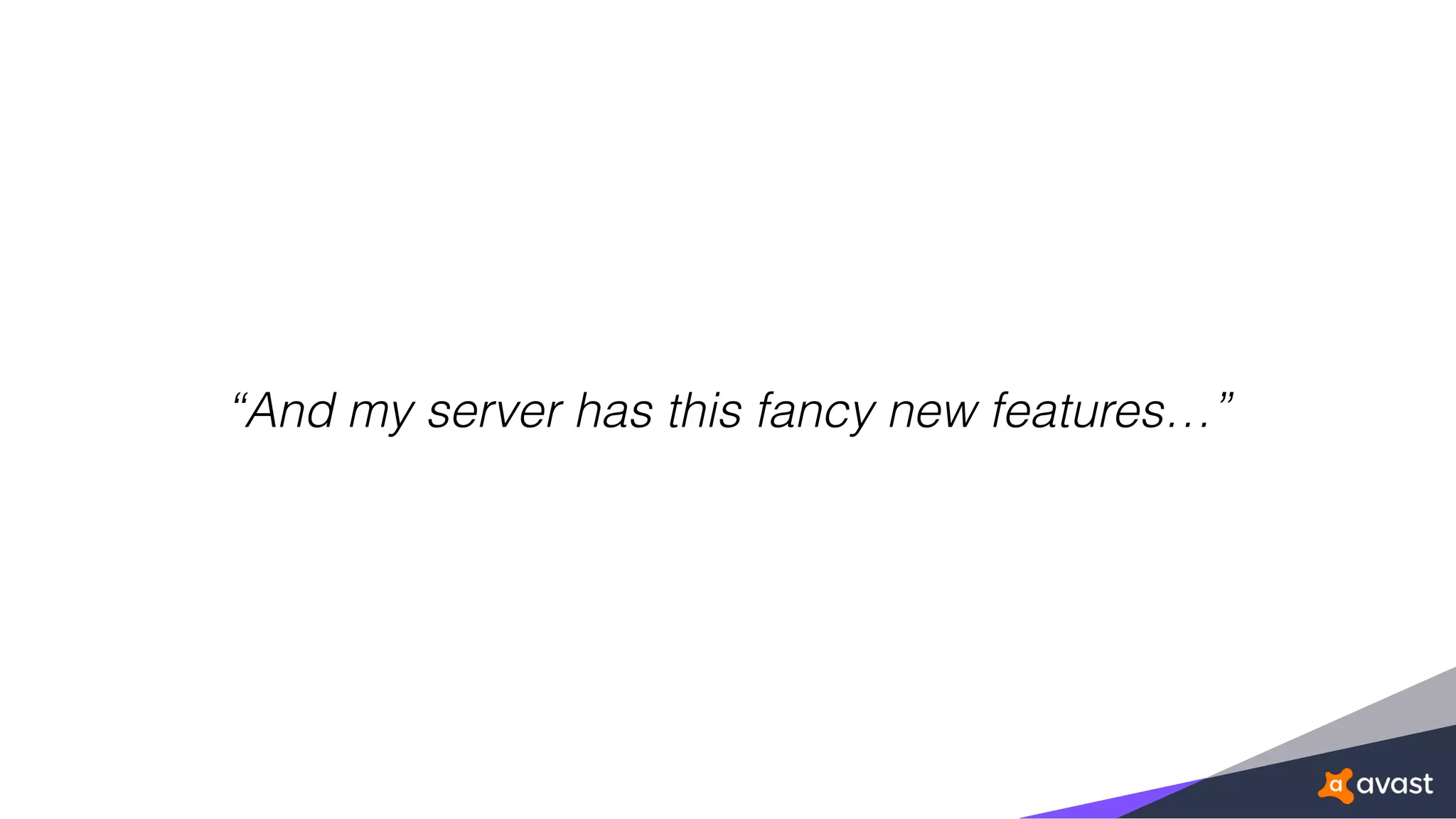

27. “And my server has this fancy new features…”

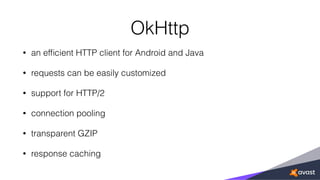

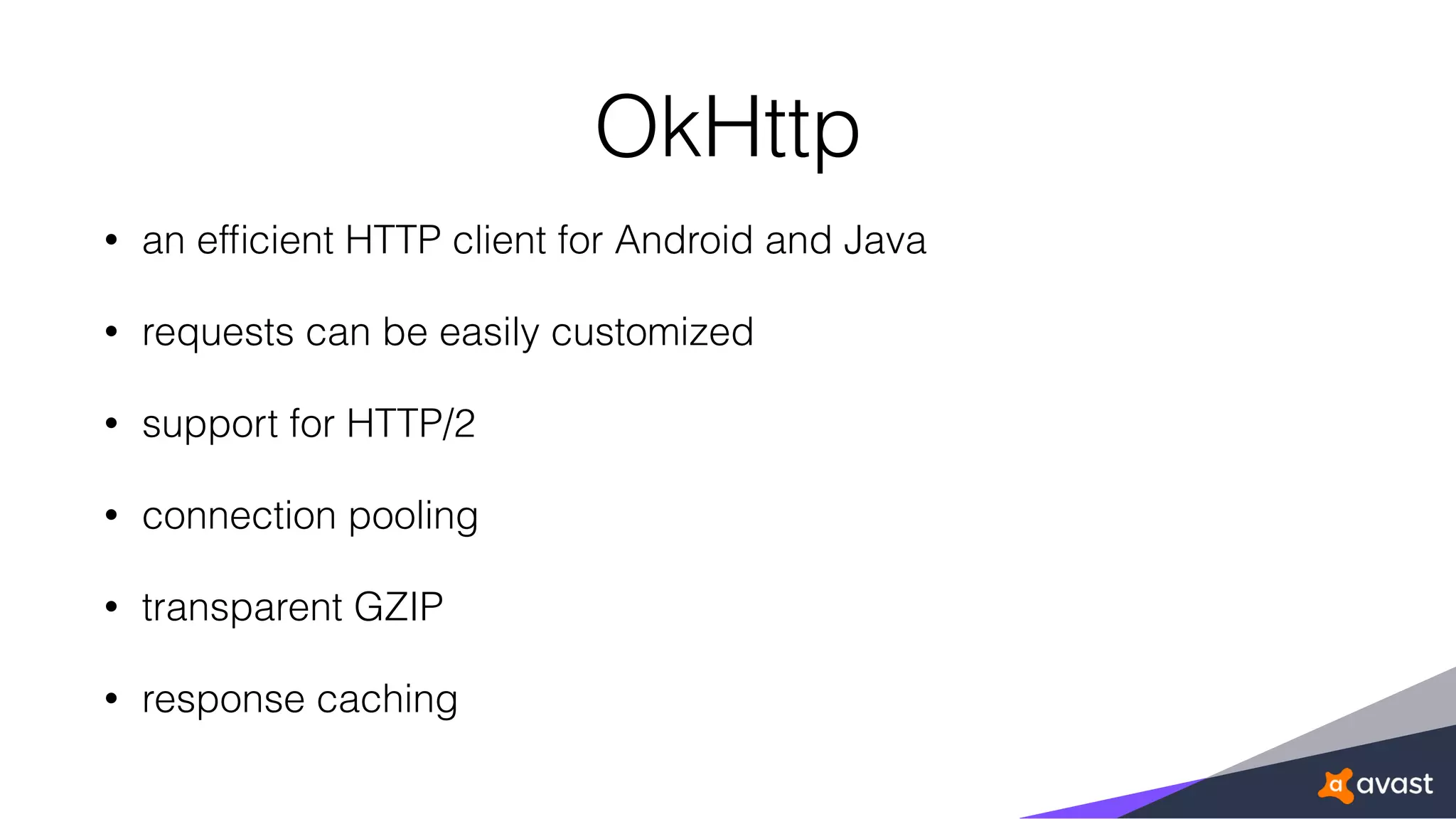

28. OkHttp
• an efficient HTTP client for Android and Java
• requests can be easily customized
• support for HTTP/2
• connection pooling
• transparent GZIP
• response caching

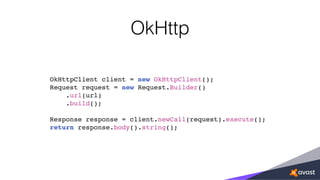

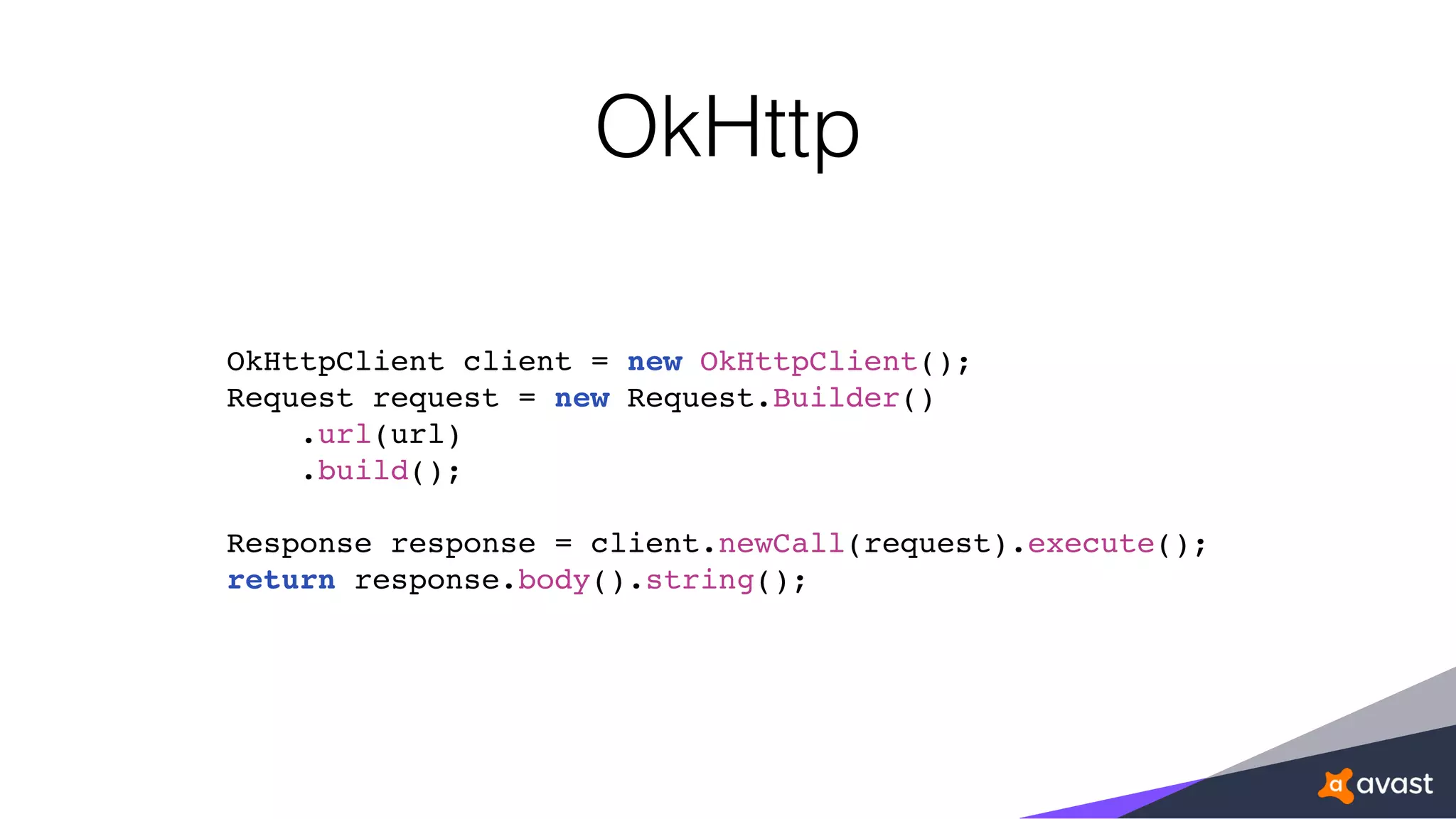

29. OkHttp
OkHttpClient client = new OkHttpClient();
Request request = new Request.Builder()
.url(url)
.build();
Response response = client.newCall(request).execute();
return response.body().string();

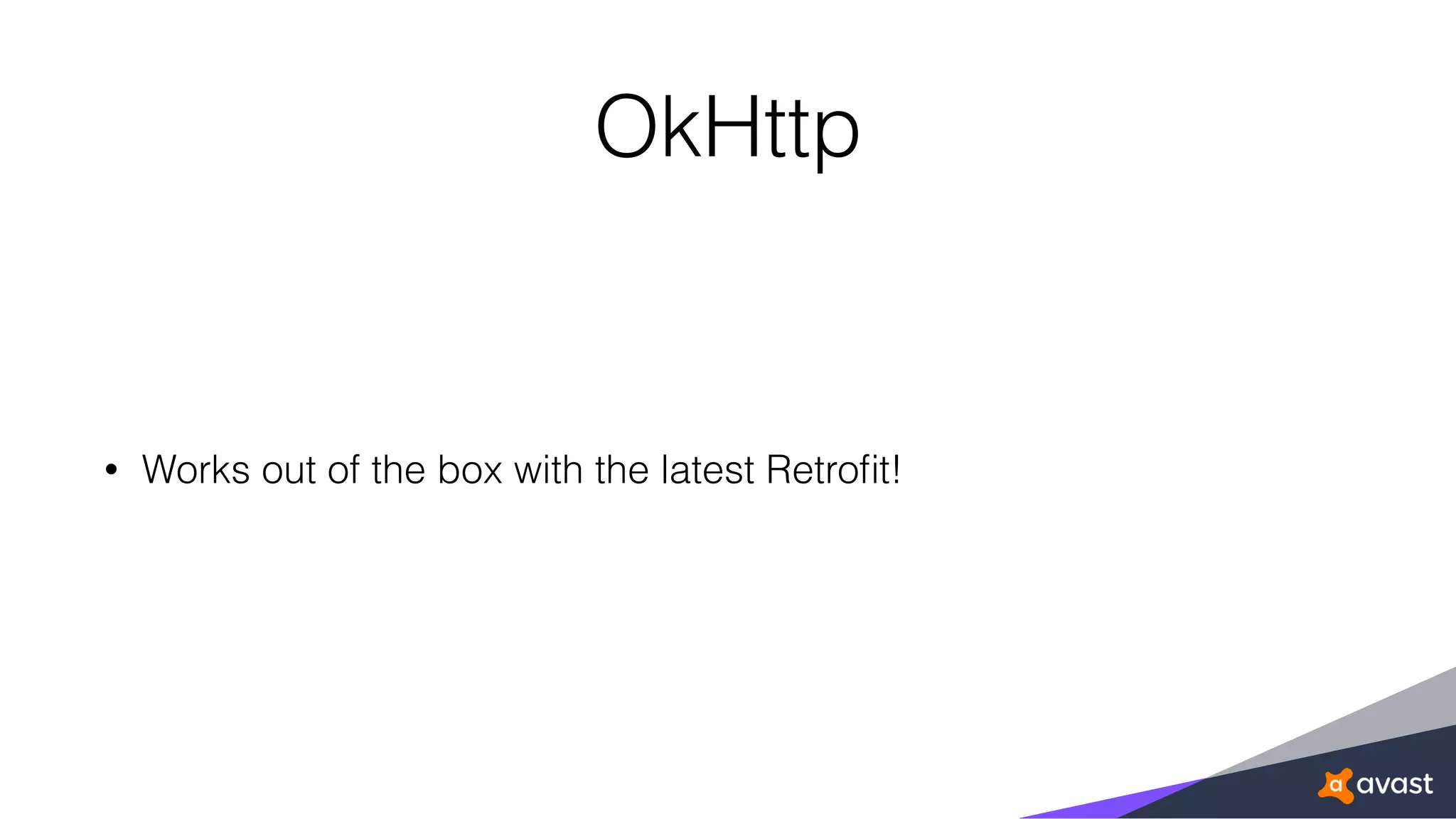

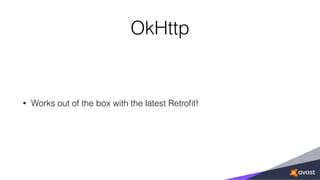

30. OkHttp
• Works out of the box with the latest Retrofit!

31. “The server returns 400. What’s wrong?”

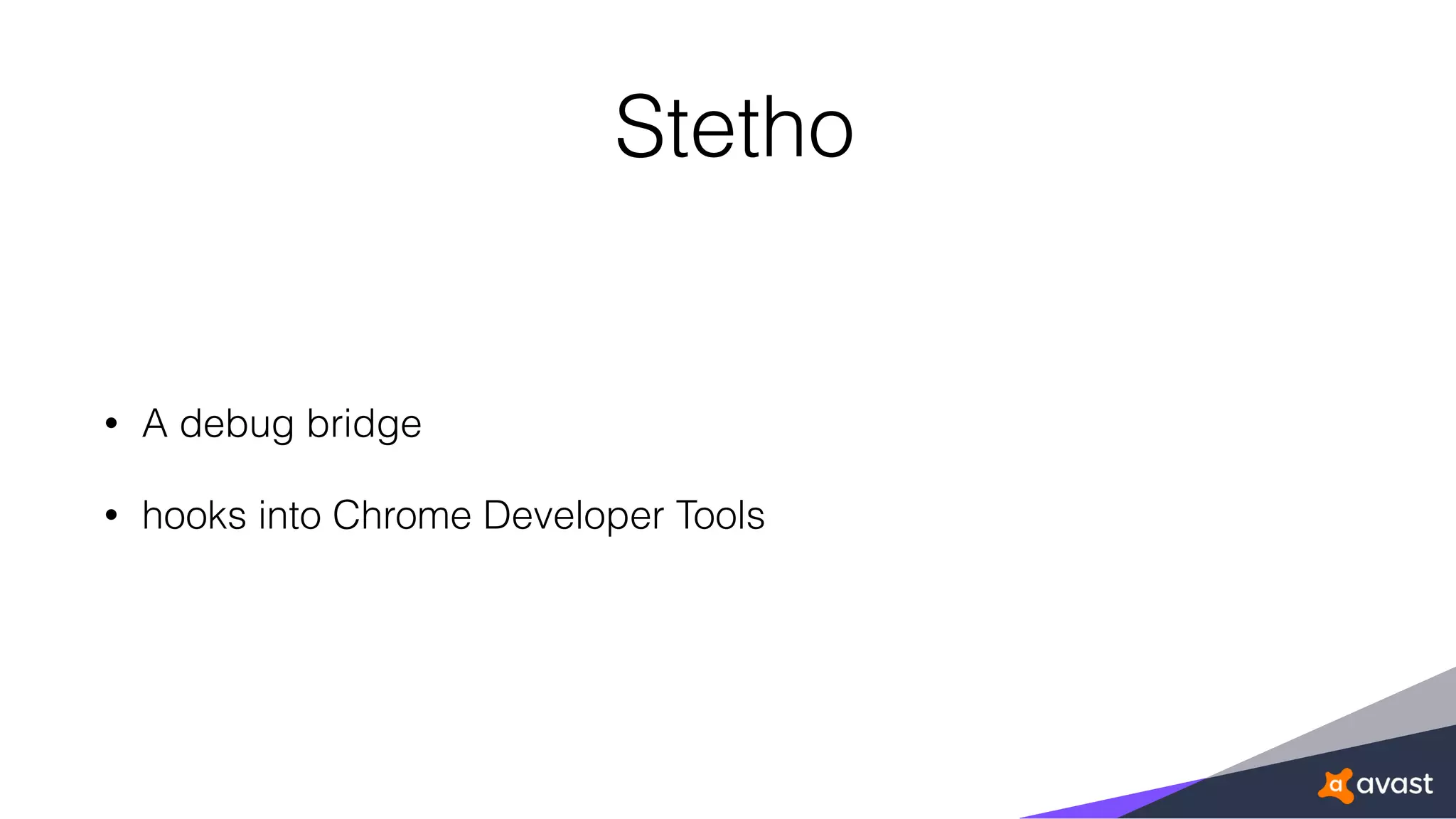

32. Stetho
• A debug bridge
• hooks into Chrome Developer Tools

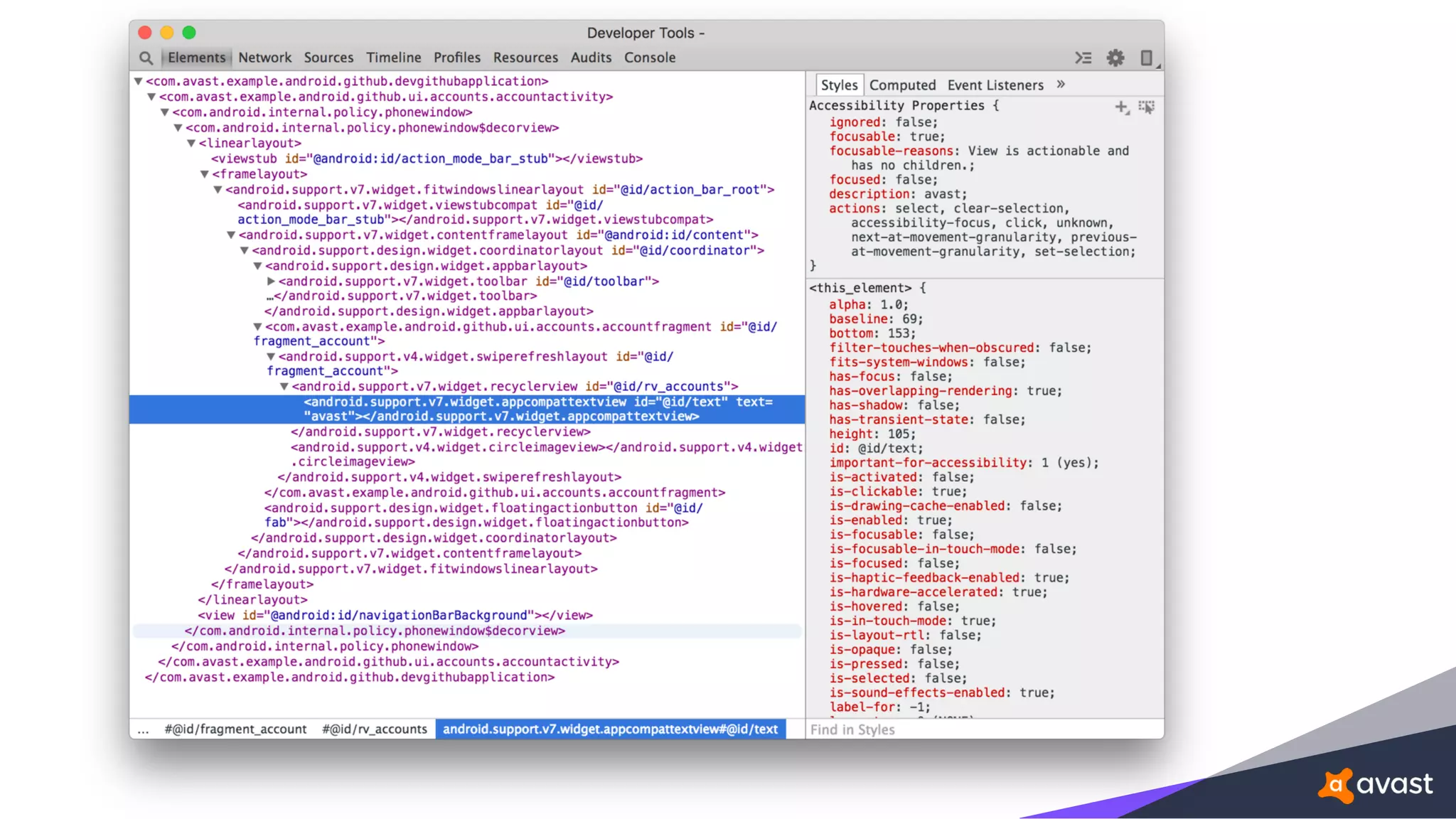

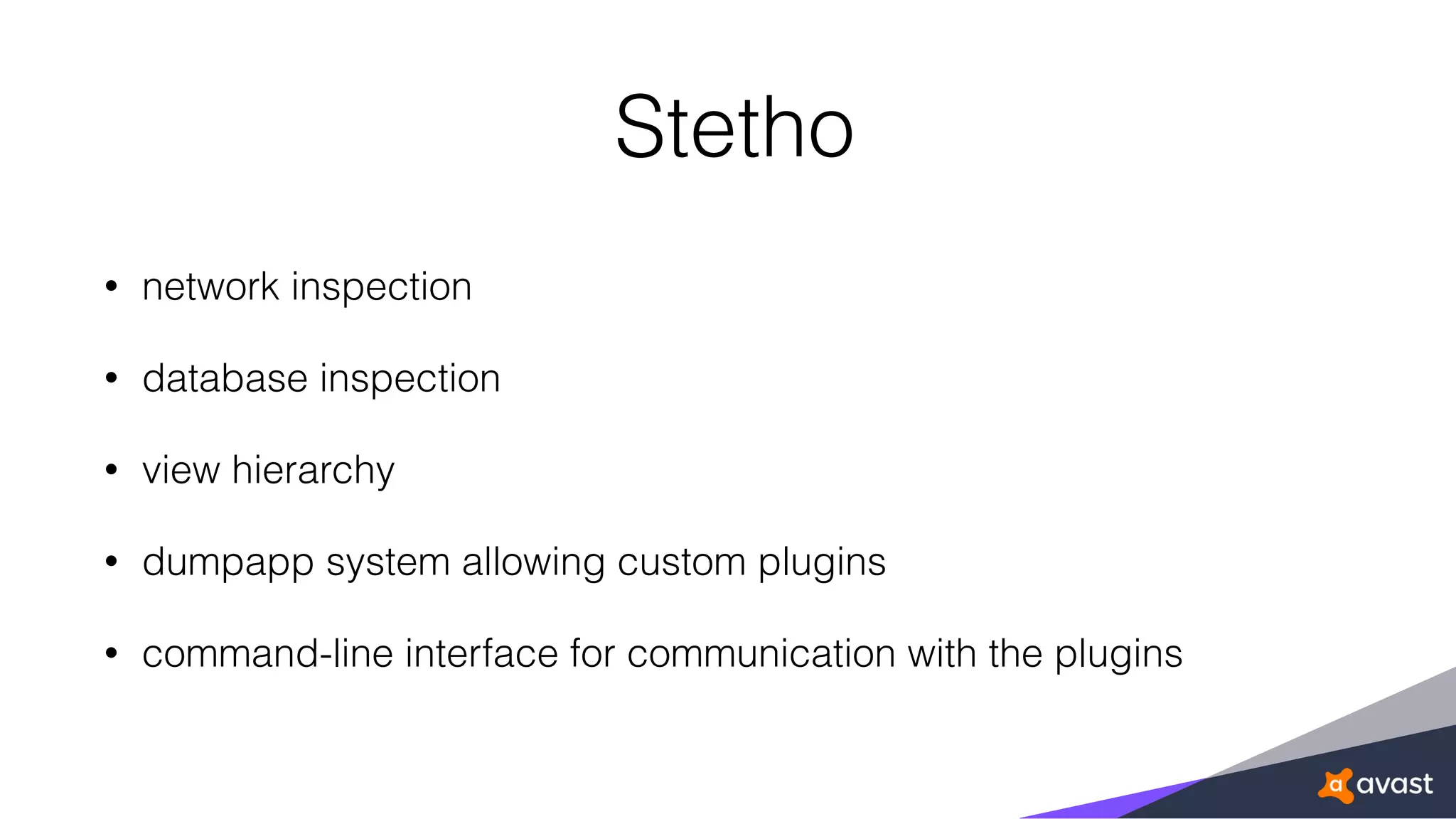

33. Stetho

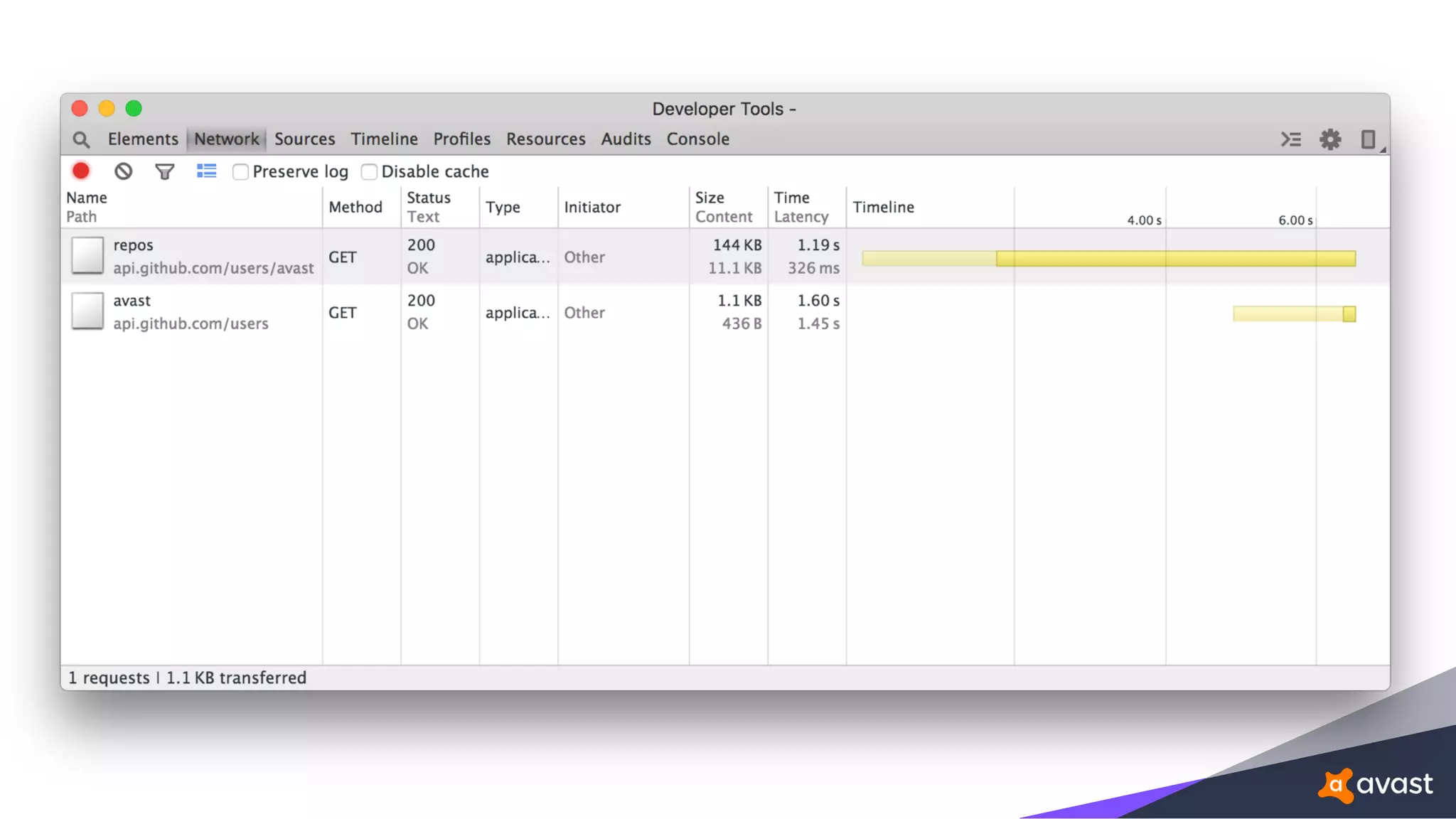

• network inspection
• database inspection

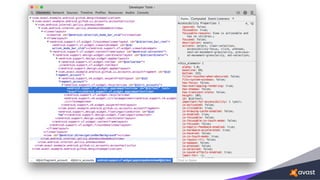

• view hierarchy
• dumpapp system allowing custom plugins
• command-line interface for communication with the plugins

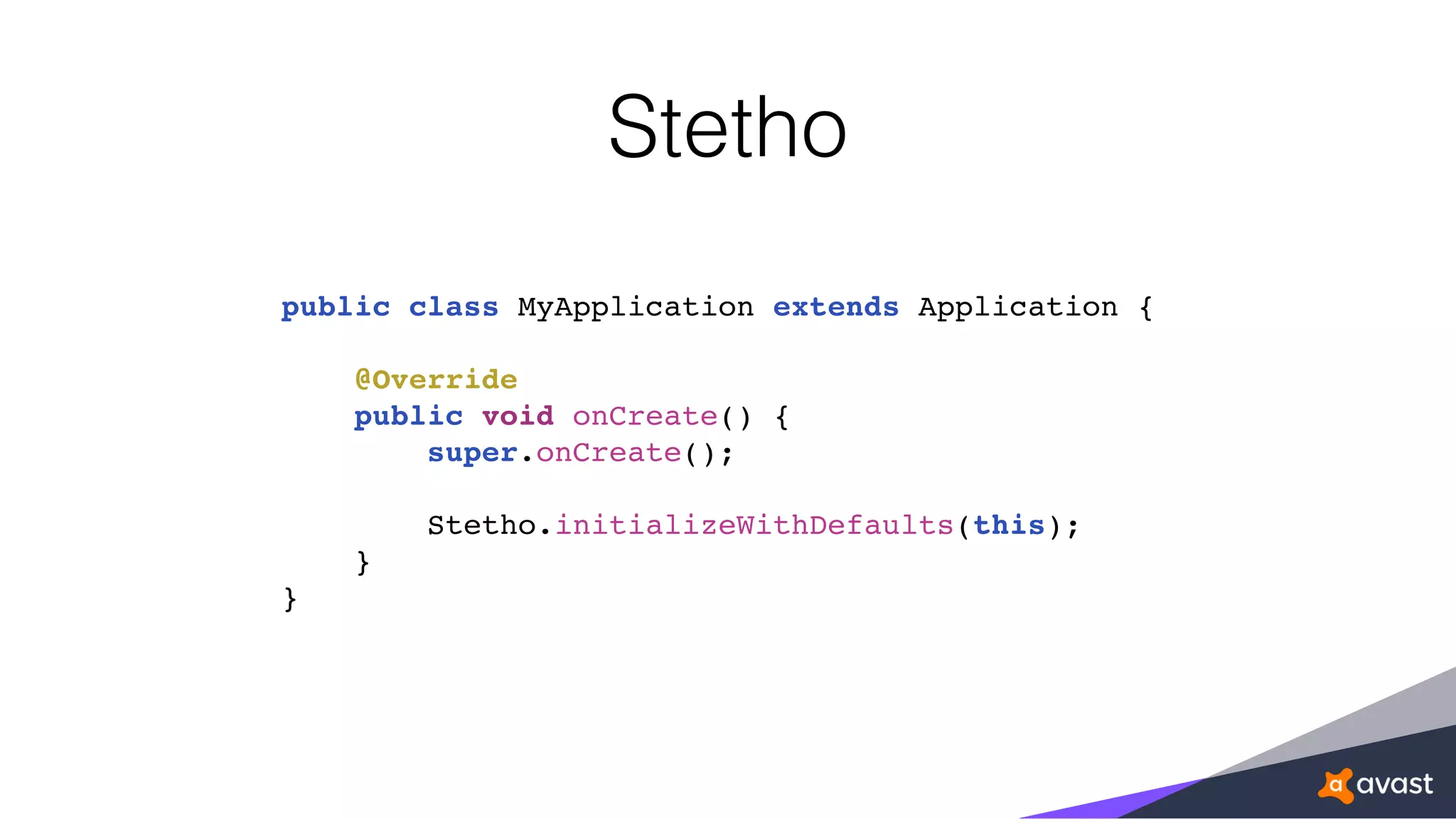

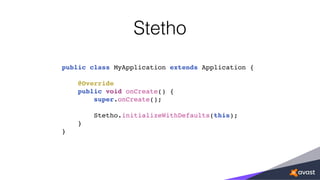

35. Stetho
public class MyApplication extends Application {
@Override
public void onCreate() {
super.onCreate();
Stetho.initializeWithDefaults(this);
}
}

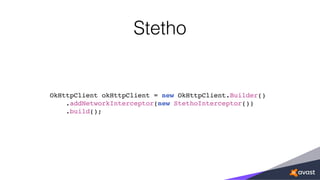

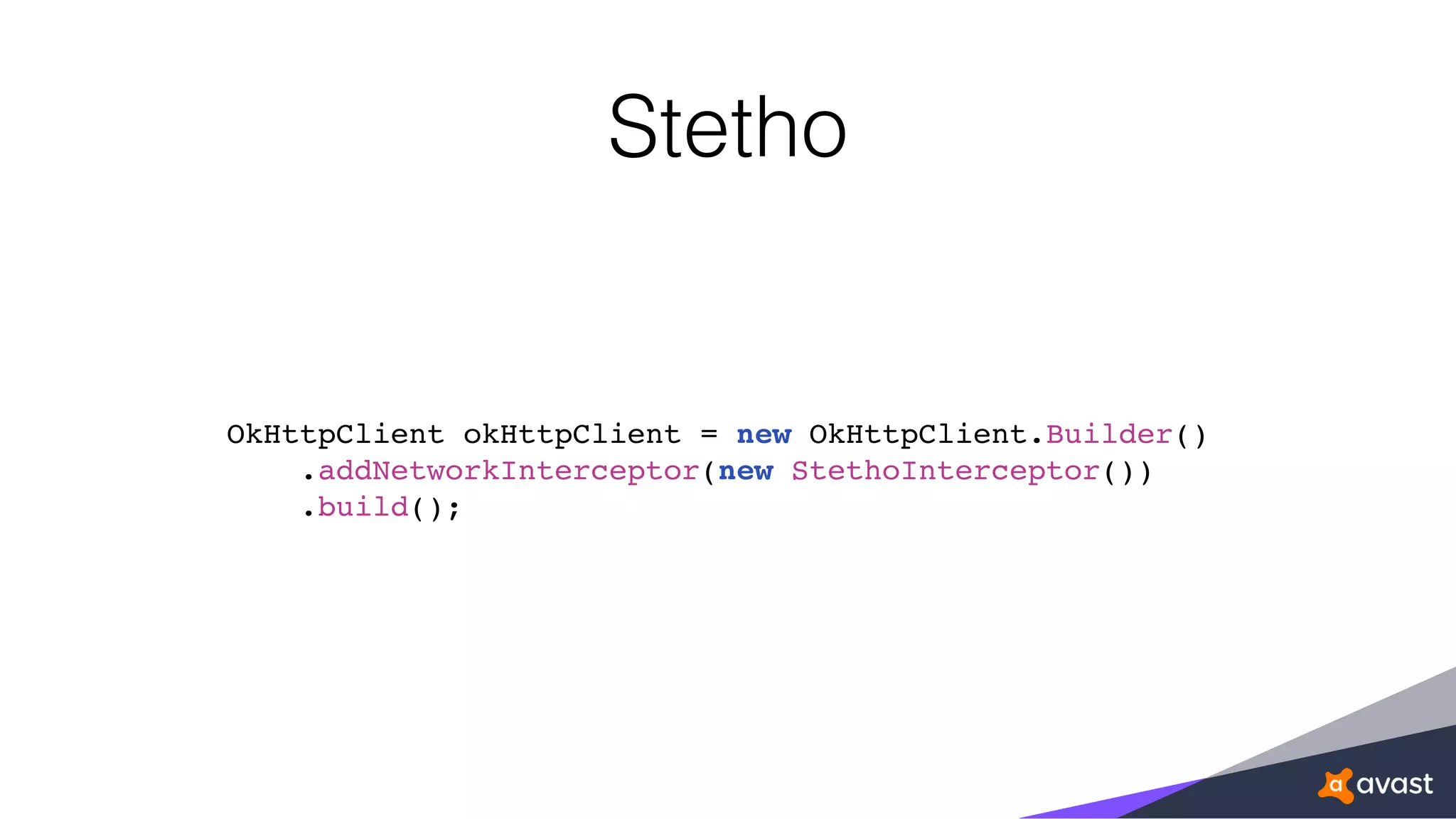

37. Stetho
OkHttpClient okHttpClient = new OkHttpClient.Builder()
.addNetworkInterceptor(new StethoInterceptor())
.build();

38. “Why I’m getting this OutOfMemoryError?”

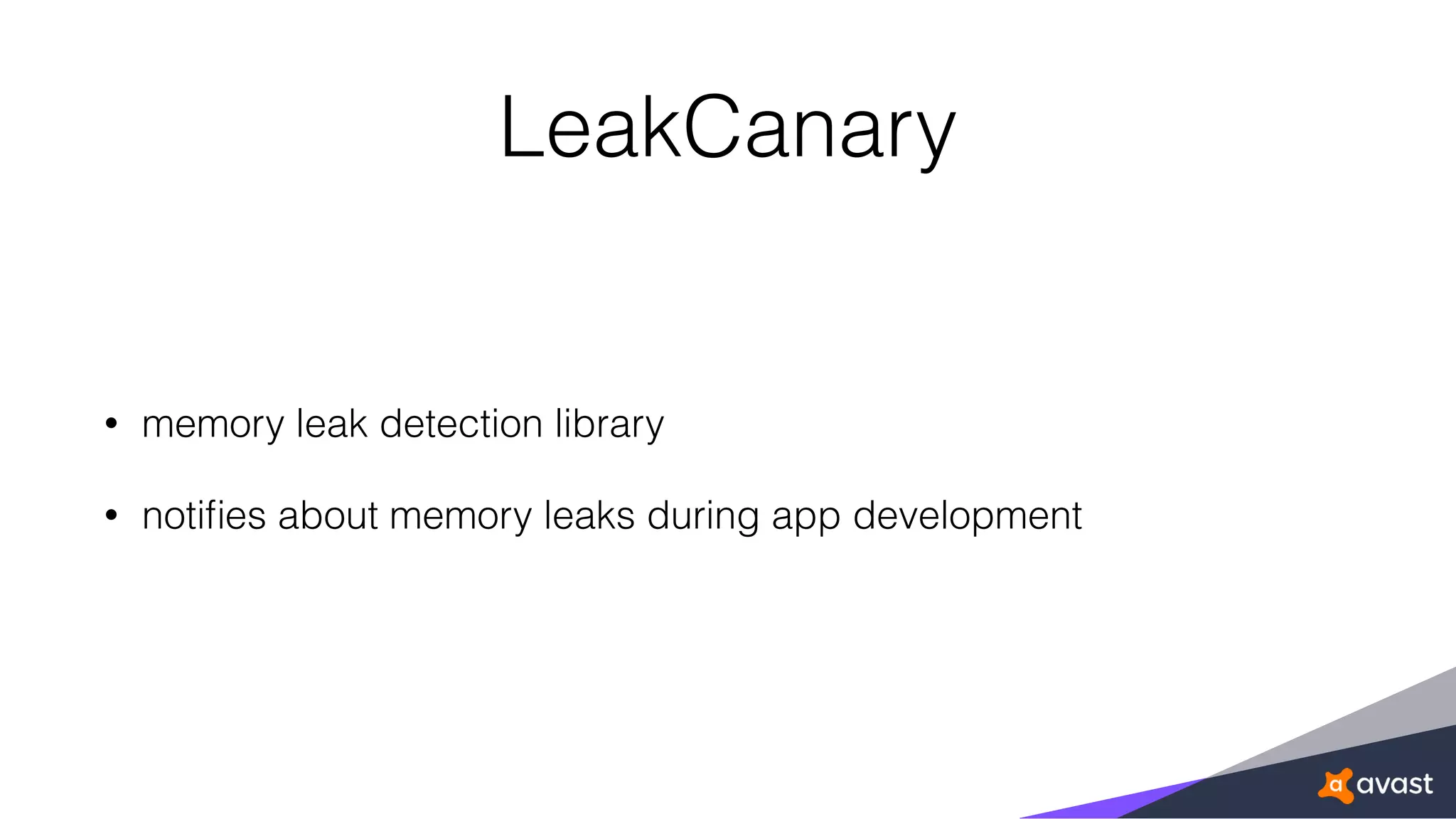

39. LeakCanary
• memory leak detection library
• notifies about memory leaks during app development

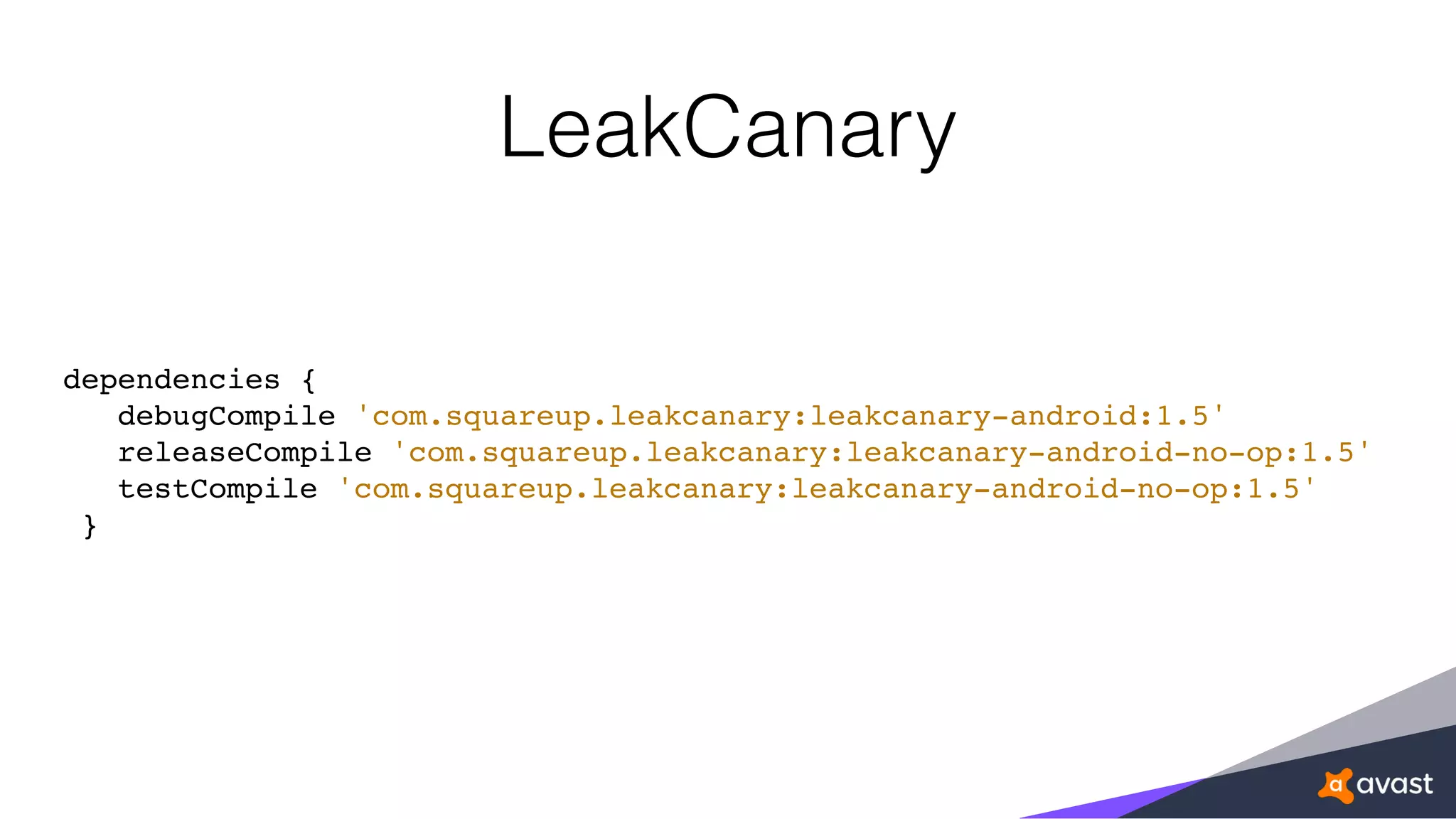

40. LeakCanary
dependencies {
debugCompile 'com.squareup.leakcanary:leakcanary-android:1.5'
releaseCompile 'com.squareup.leakcanary:leakcanary-android-no-op:1.5'
testCompile 'com.squareup.leakcanary:leakcanary-android-no-op:1.5'
}

41. “How to display this remote product image?”

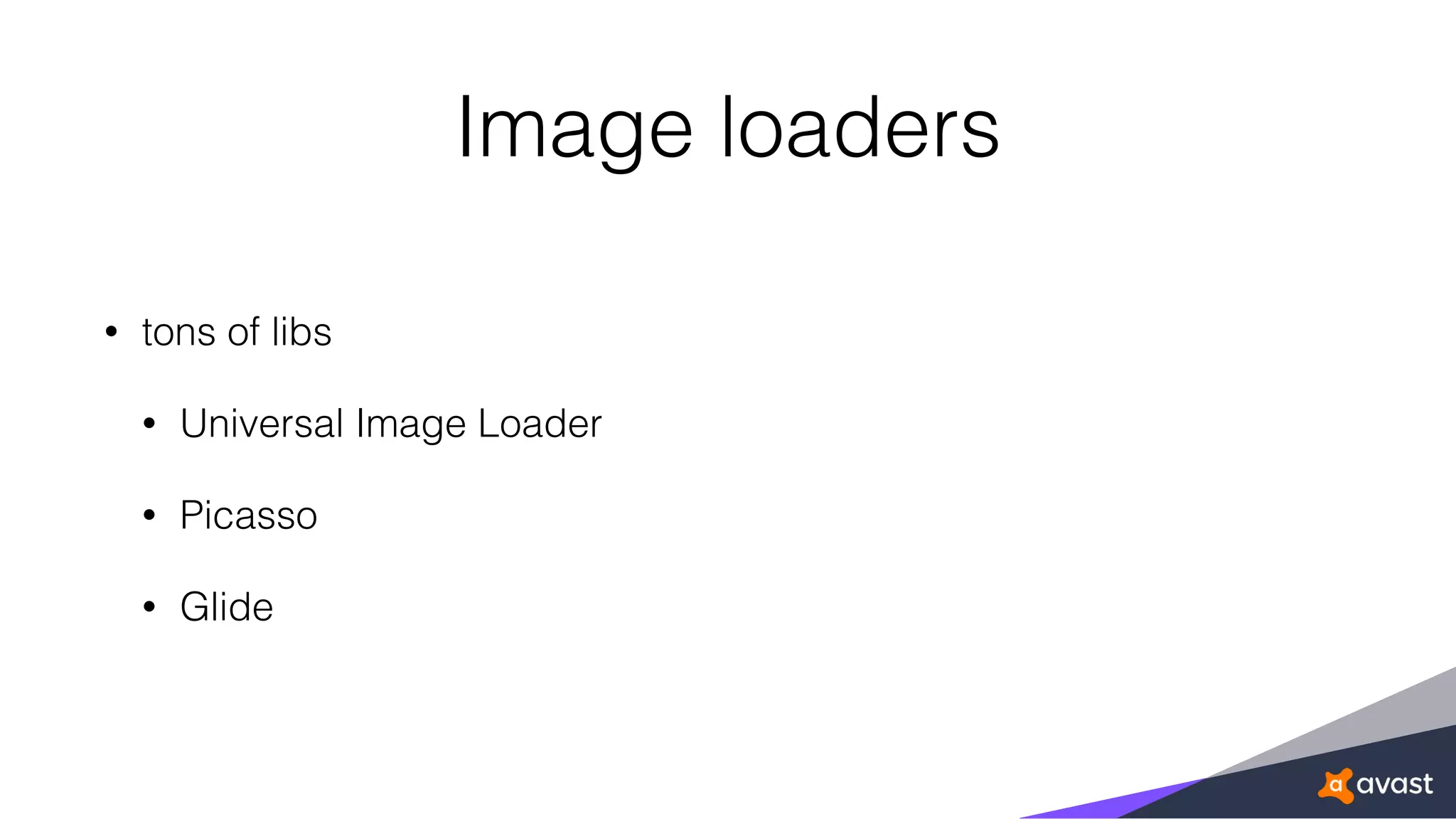

42. Image loaders
• tons of libs
• Universal Image Loader
• Picasso
• Glide

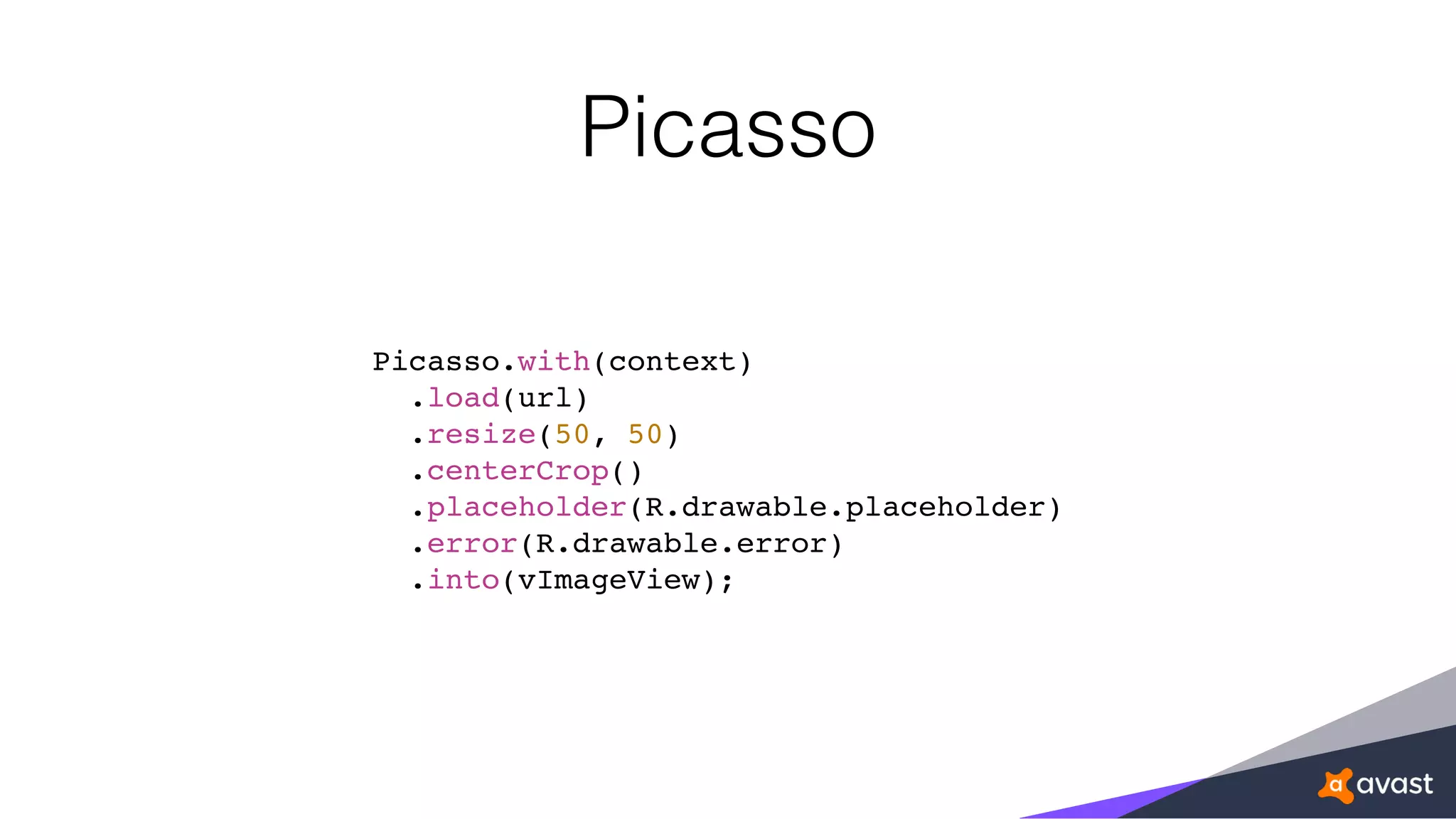

43. Picasso
Picasso.with(context)
.load(url)
.resize(50, 50)
.centerCrop()
.placeholder(R.drawable.placeholder)
.error(R.drawable.error)
.into(vImageView);

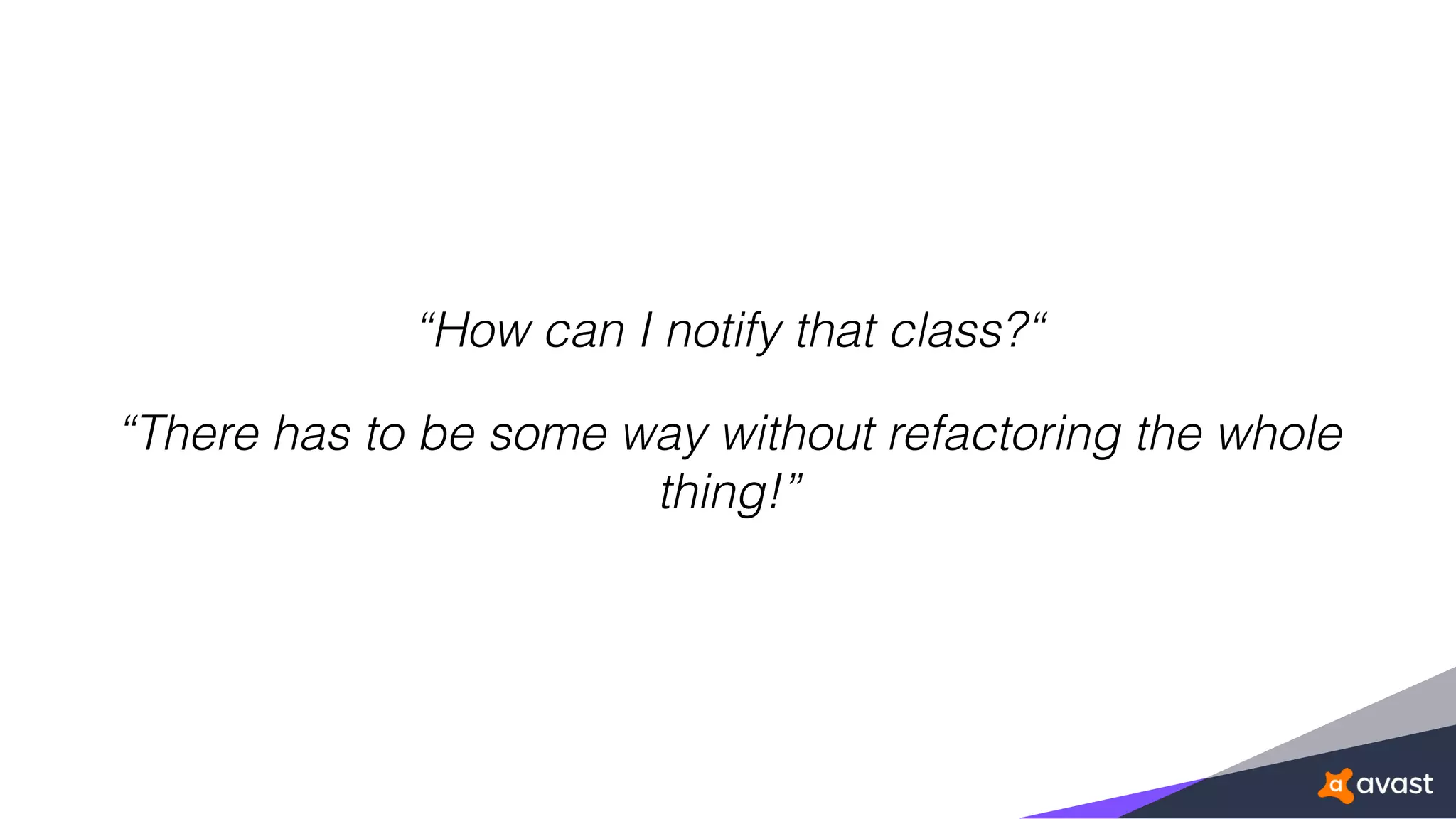

44. “How can I notify that class?“
“There has to be some way without refactoring the whole
thing!”

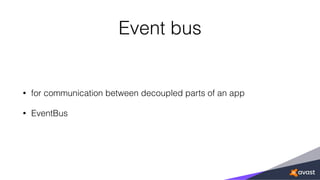

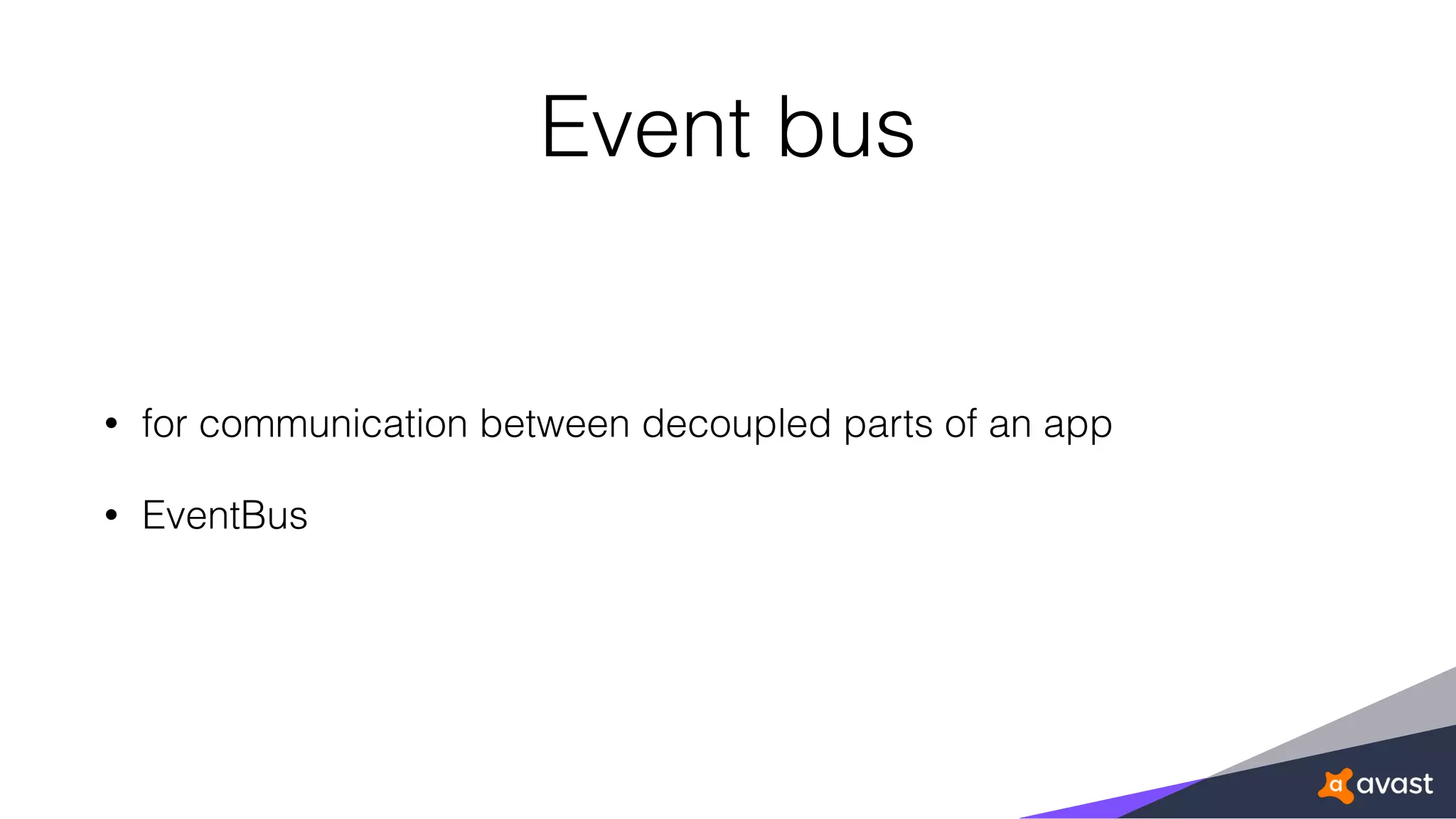

45. Event bus
• for communication between decoupled parts of an app
• EventBus

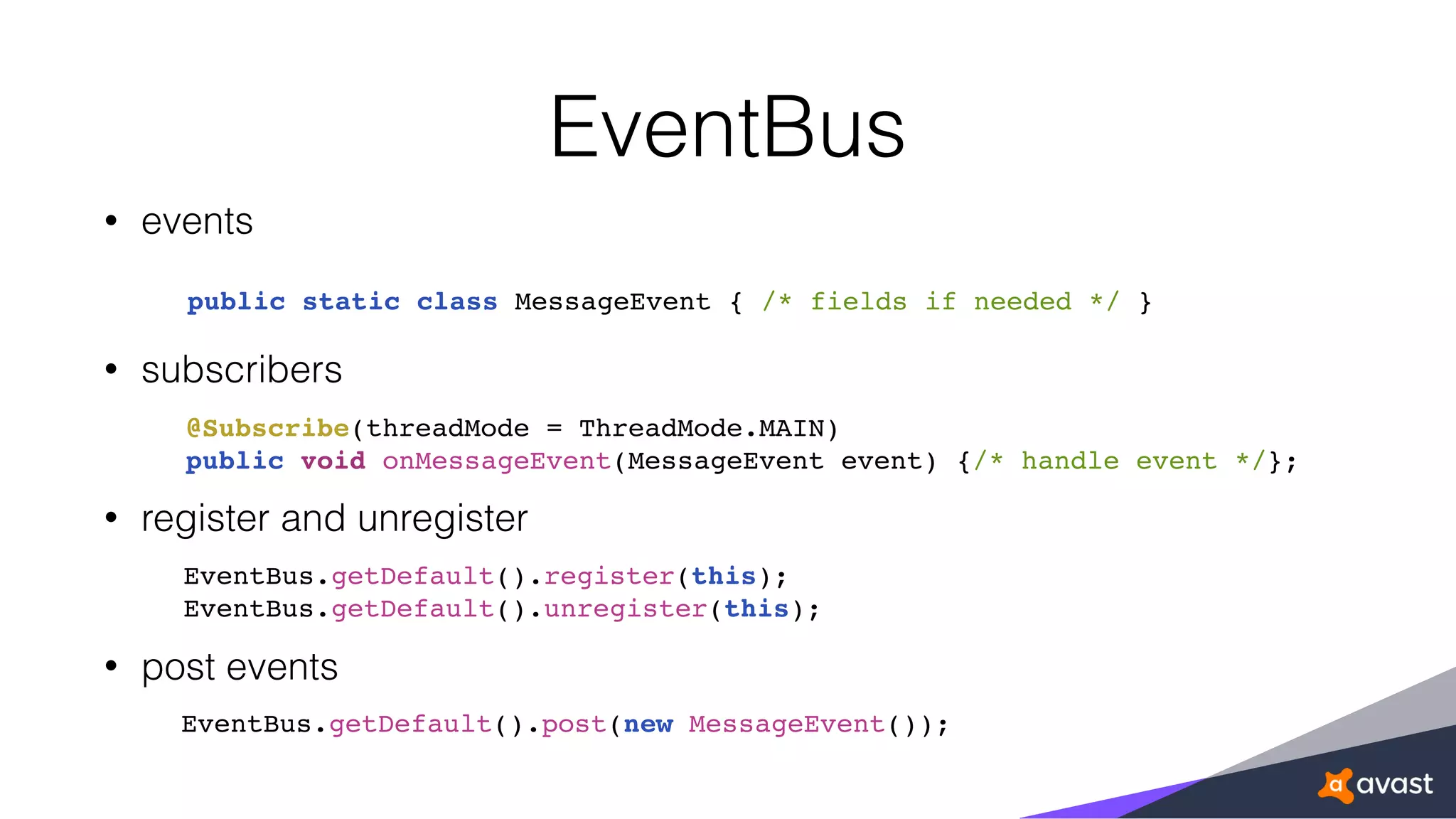

46. EventBus
• events
• subscribers
• register and unregister
• post events
public static class MessageEvent { /* fields if needed */ }
@Subscribe(threadMode = ThreadMode.MAIN)
public void onMessageEvent(MessageEvent event) {/* handle event */};
EventBus.getDefault().register(this);
EventBus.getDefault().unregister(this);
EventBus.getDefault().post(new MessageEvent());

47. “How do I get the data from the server?”
“And I have to combine couple of sources.”

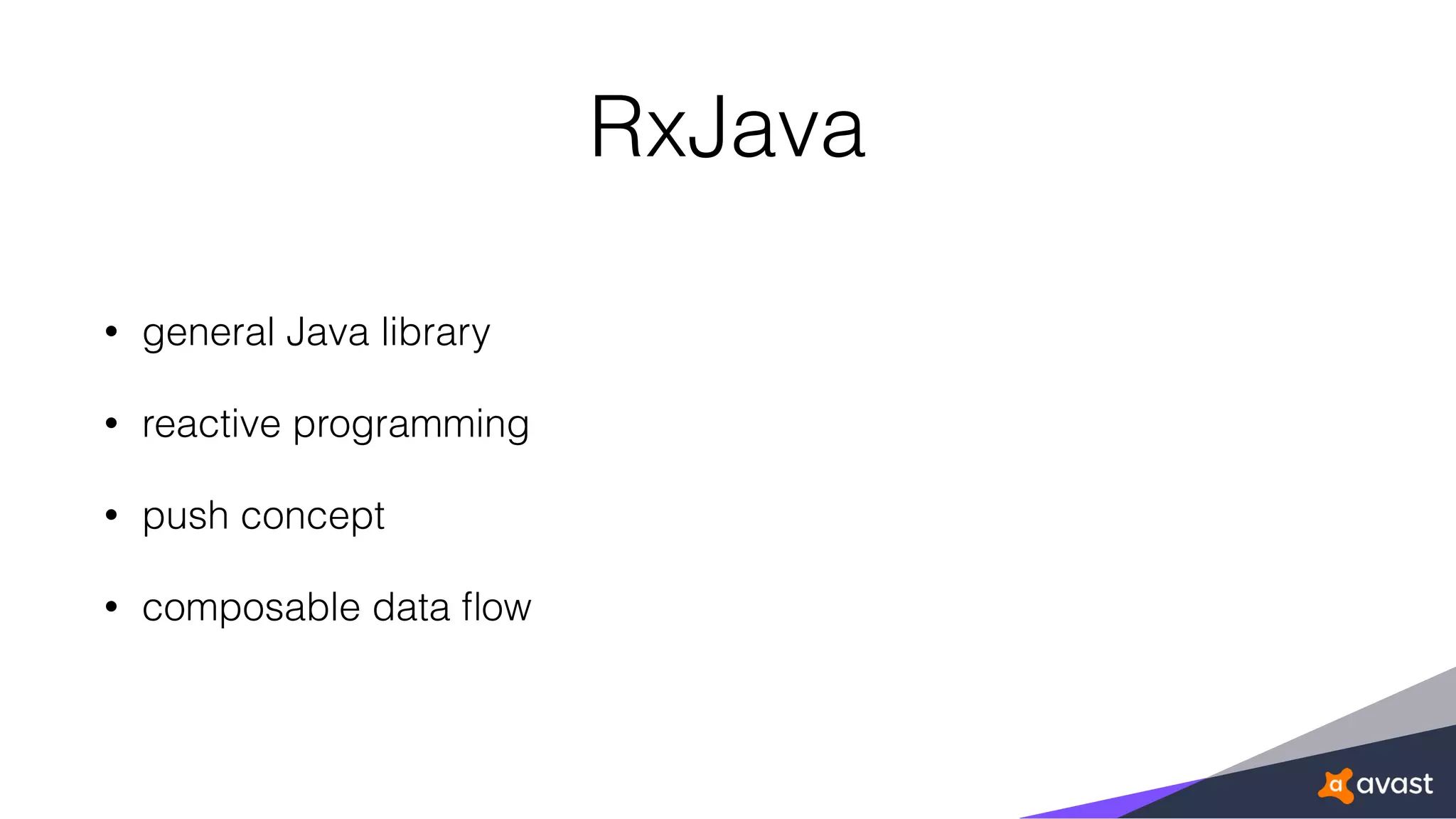

48. RxJava
• general Java library
• reactive programming
• push concept
• composable data flow

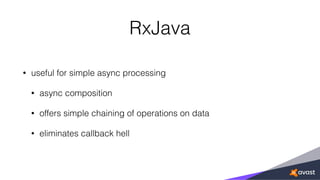

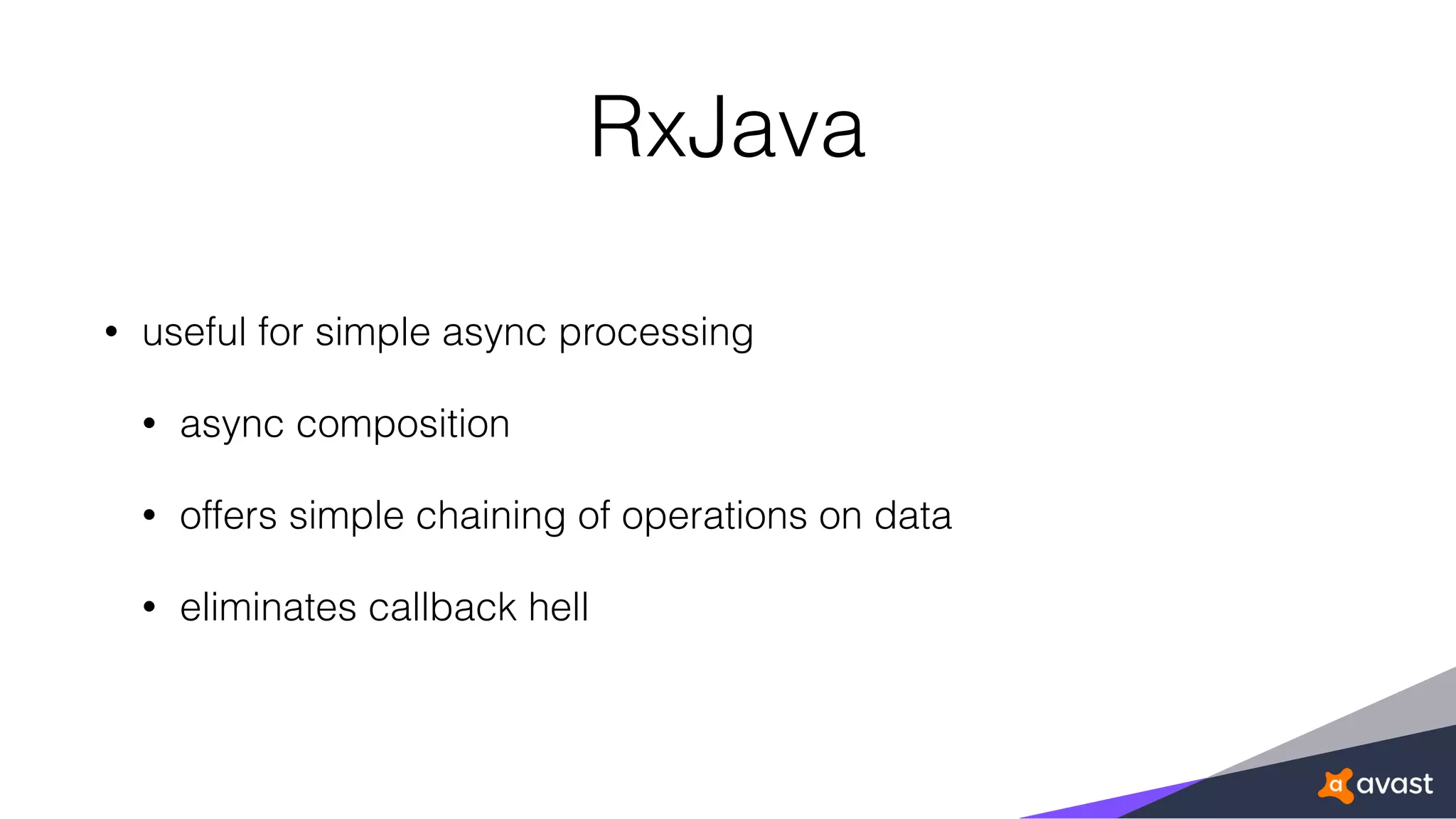

49. RxJava
• useful for simple async processing
• async composition
• offers simple chaining of operations on data
• eliminates callback hell

50. RxJava
• works well with Retrofit
• can completely replace event bus libraries
• hard to learn
• RxJava 1 vs. RxJava 2
• they will coexist for some time

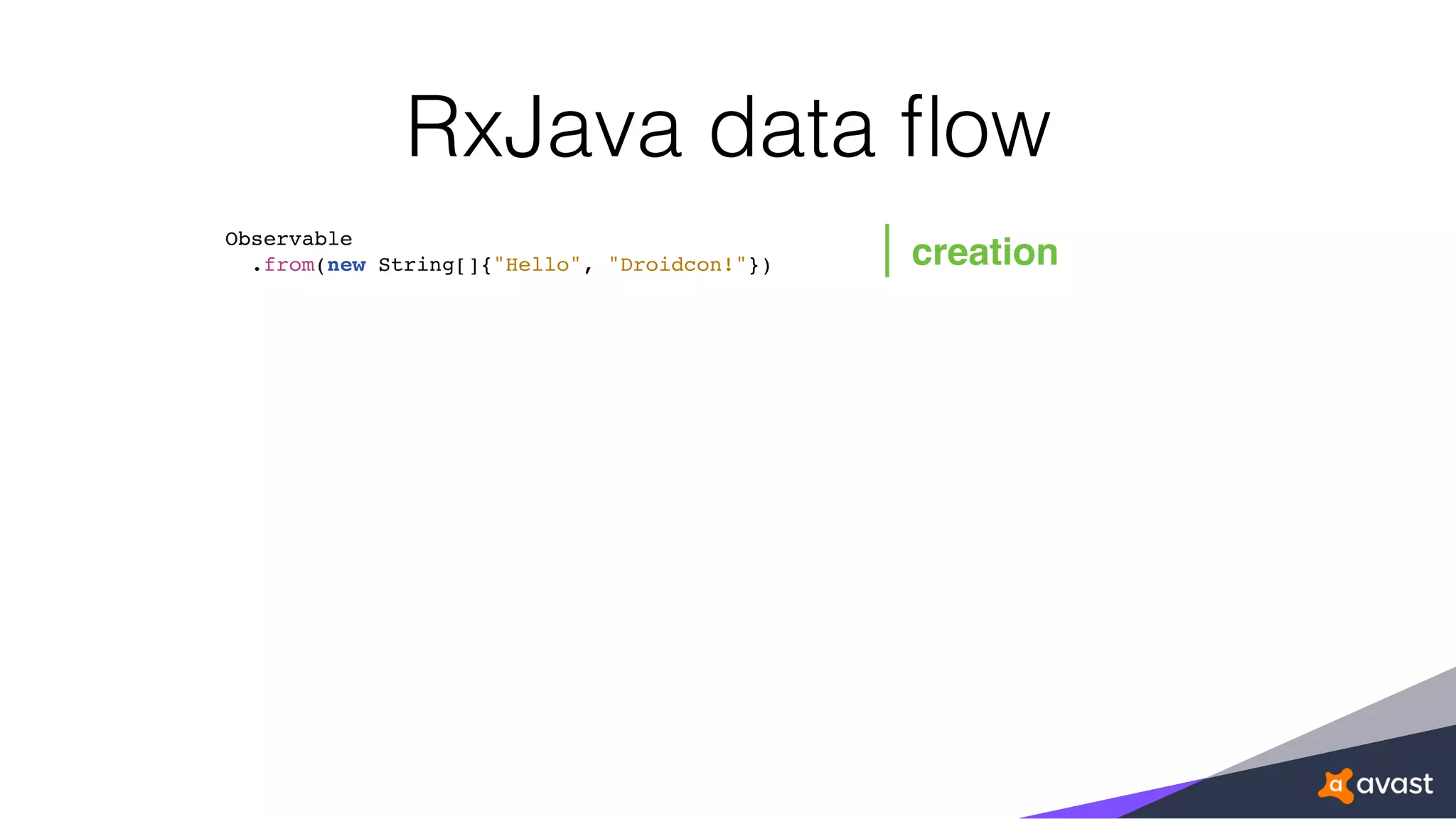

51. RxJava data flow
Observable
.from(new String[]{"Hello", "Droidcon!"}) creation

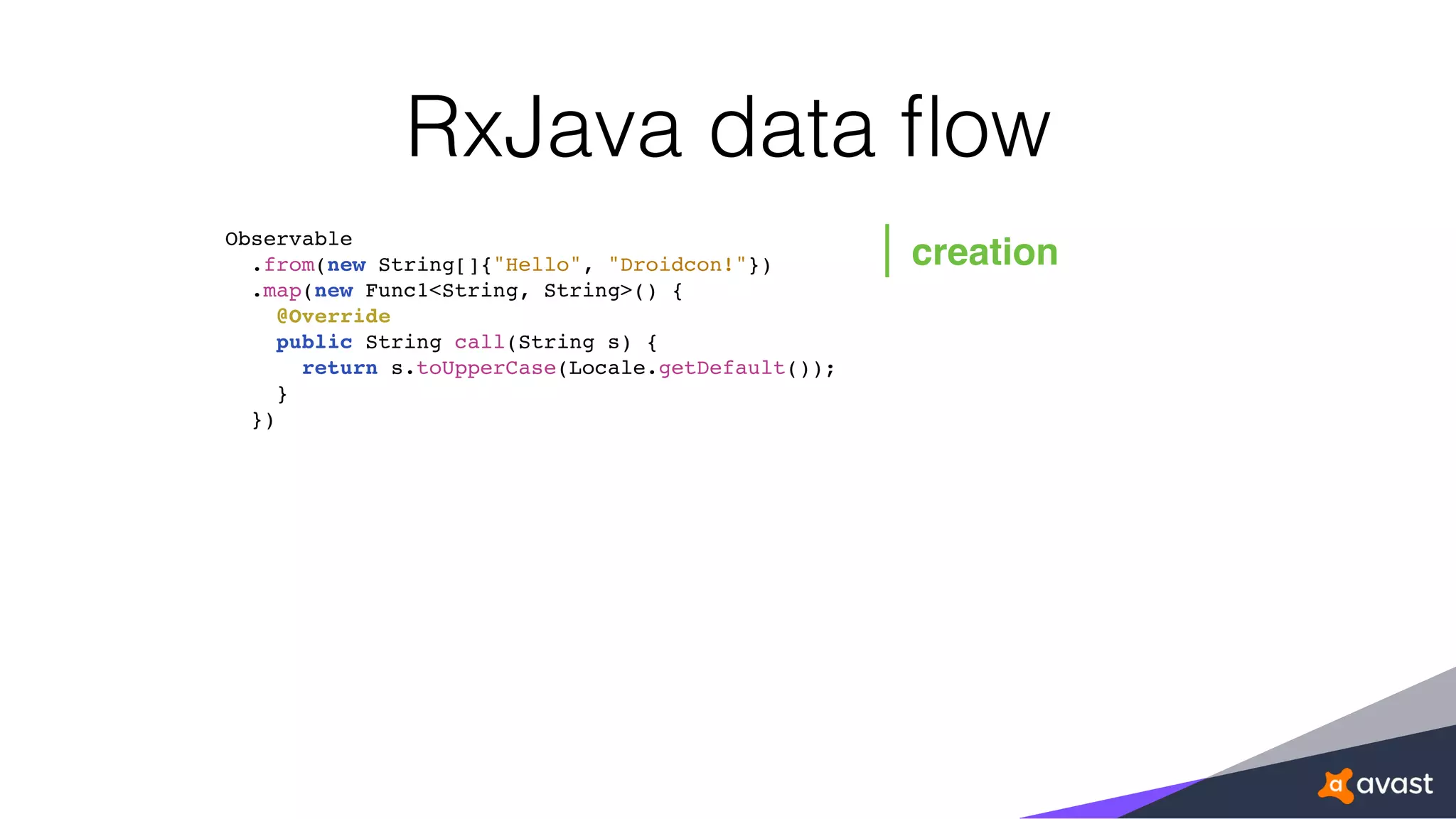

52. RxJava data flow
Observable
.from(new String[]{"Hello", "Droidcon!"})
.map(new Func1<String, String>() {
@Override
public String call(String s) {
return s.toUpperCase(Locale.getDefault());
}
})
creation

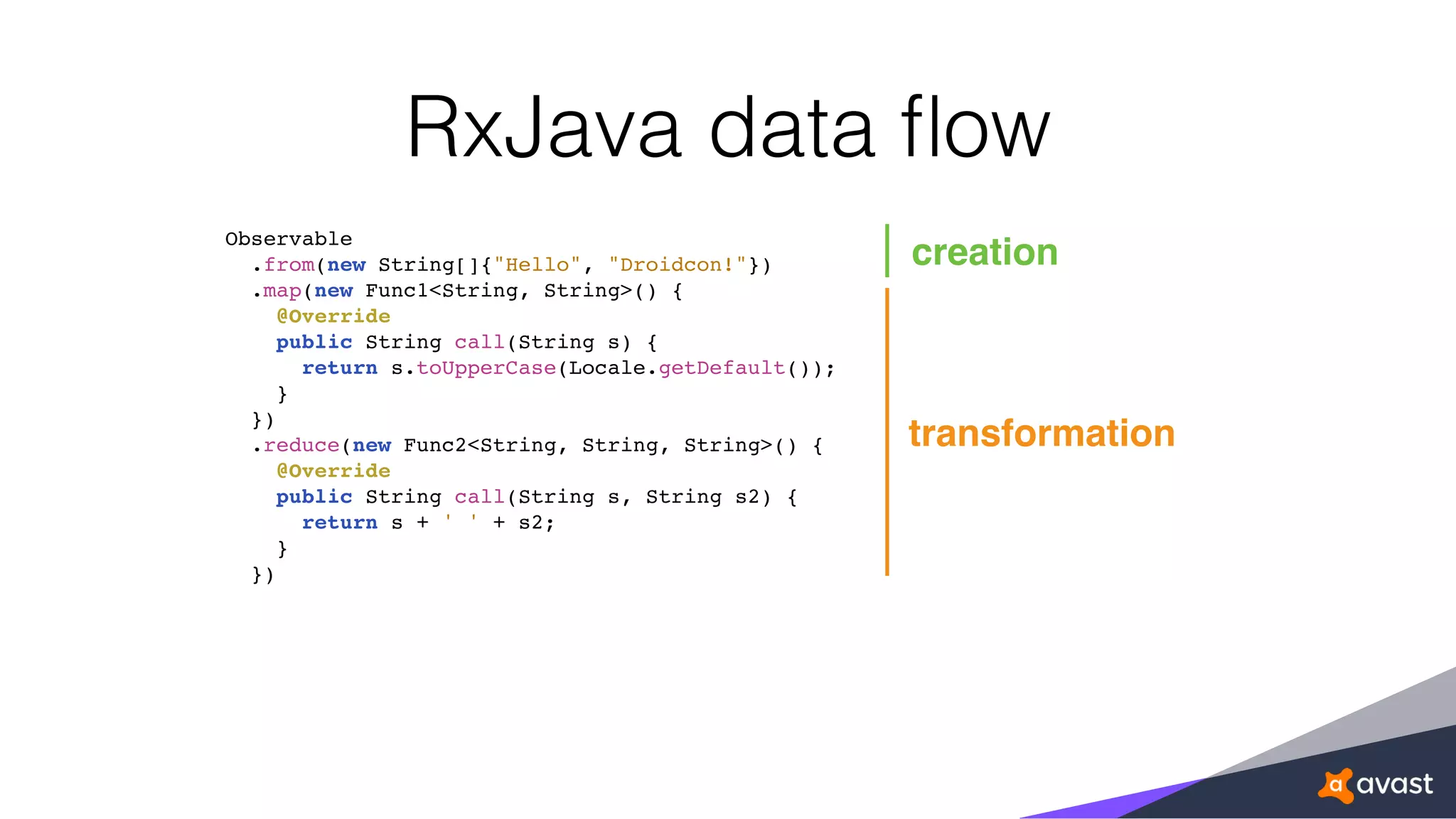

53. RxJava data flow
Observable
.from(new String[]{"Hello", "Droidcon!"})
.map(new Func1<String, String>() {
@Override
public String call(String s) {
return s.toUpperCase(Locale.getDefault());
}
})
.reduce(new Func2<String, String, String>() {
@Override
public String call(String s, String s2) {
return s + ' ' + s2;
}
})
creation
transformation

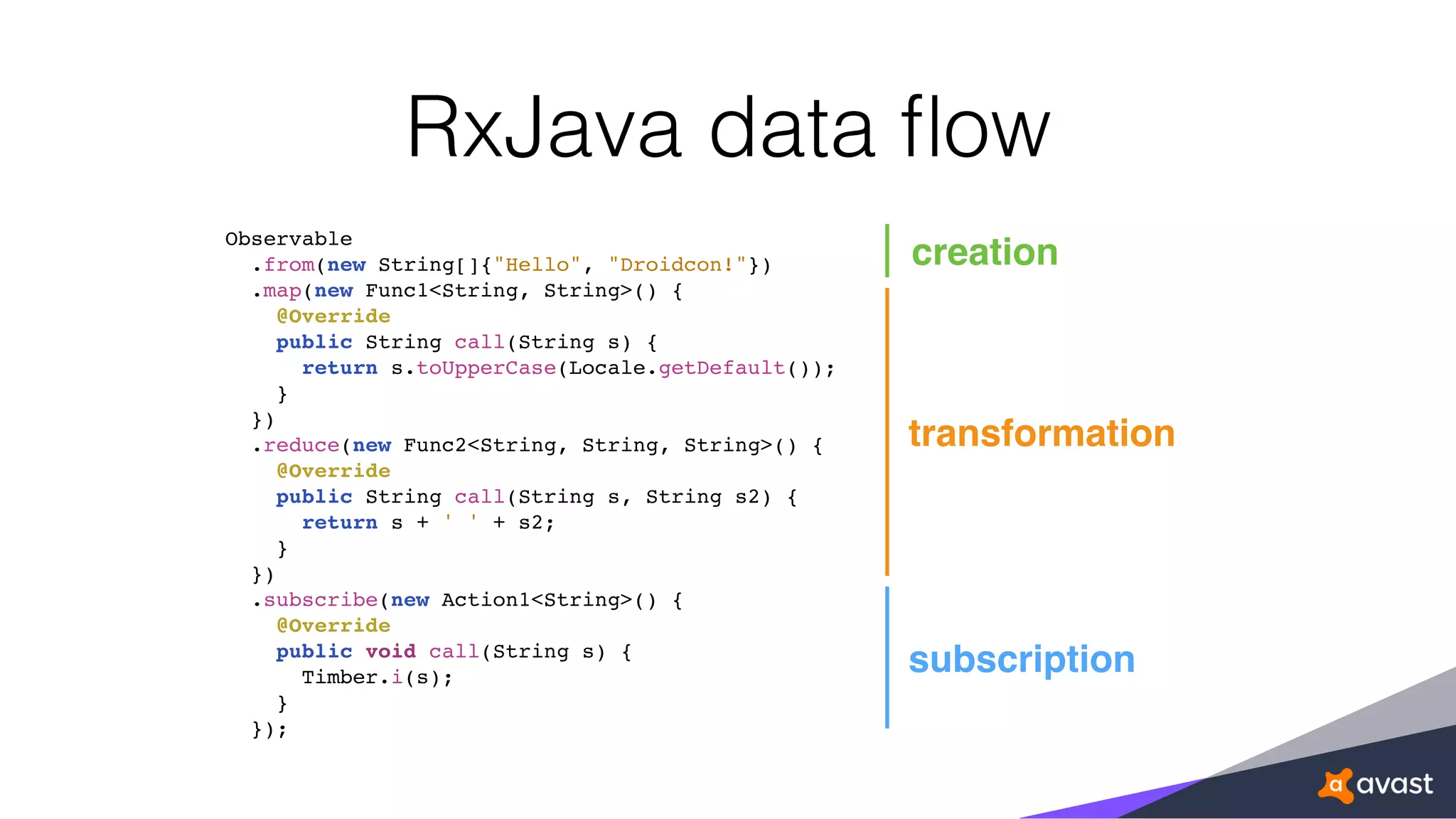

54. RxJava data flow
Observable
.from(new String[]{"Hello", "Droidcon!"})
.map(new Func1<String, String>() {
@Override
public String call(String s) {
return s.toUpperCase(Locale.getDefault());
}
})
.reduce(new Func2<String, String, String>() {
@Override
public String call(String s, String s2) {
return s + ' ' + s2;
}
})
.subscribe(new Action1<String>() {
@Override
public void call(String s) {
Timber.i(s);
}
});
creation
transformation
subscription

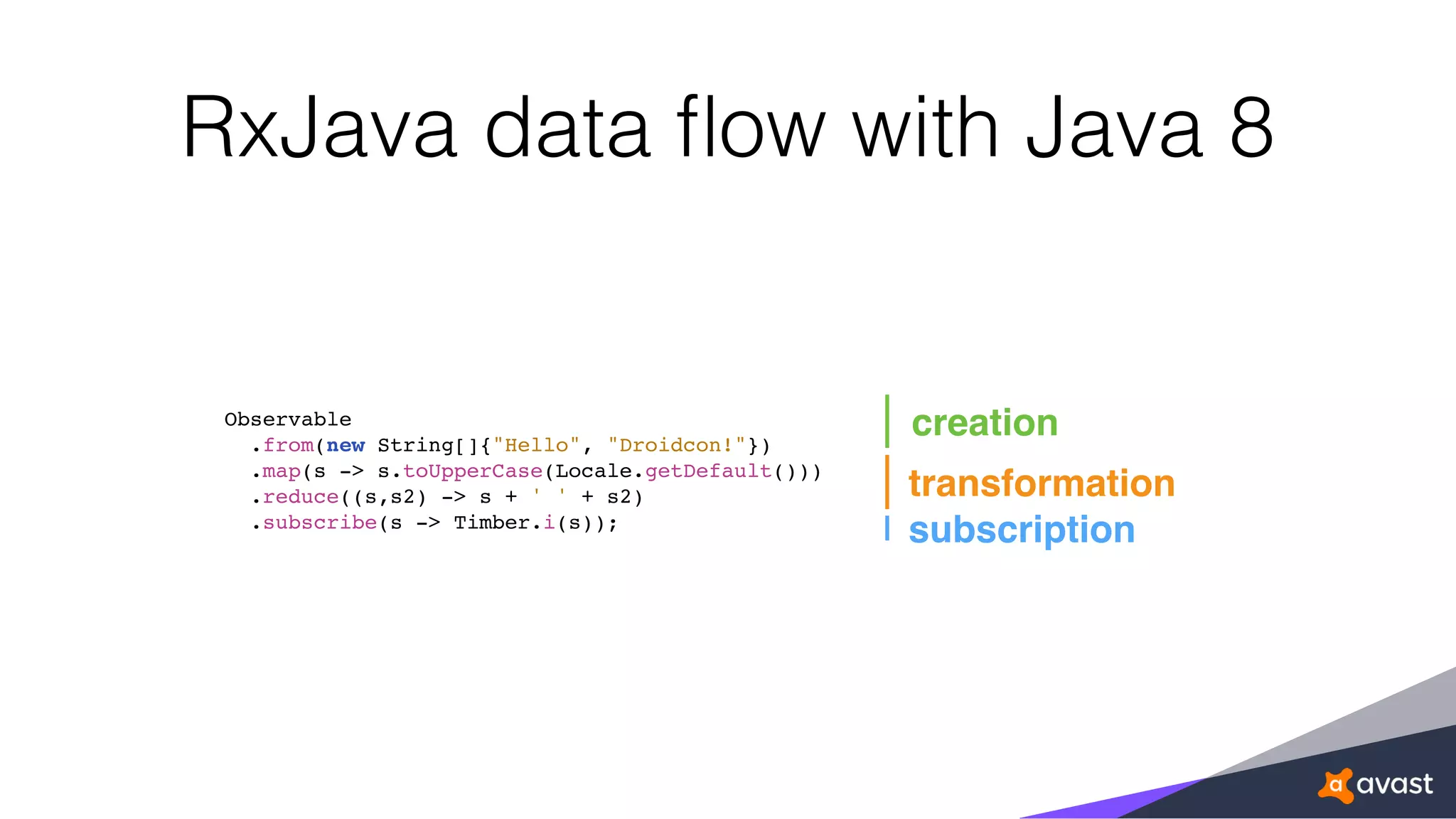

55. RxJava data flow with Java 8
creation
transformation
subscription
Observable
.from(new String[]{"Hello", "Droidcon!"})
.map(s -> s.toUpperCase(Locale.getDefault()))
.reduce((s,s2) -> s + ' ' + s2)
.subscribe(s -> Timber.i(s));

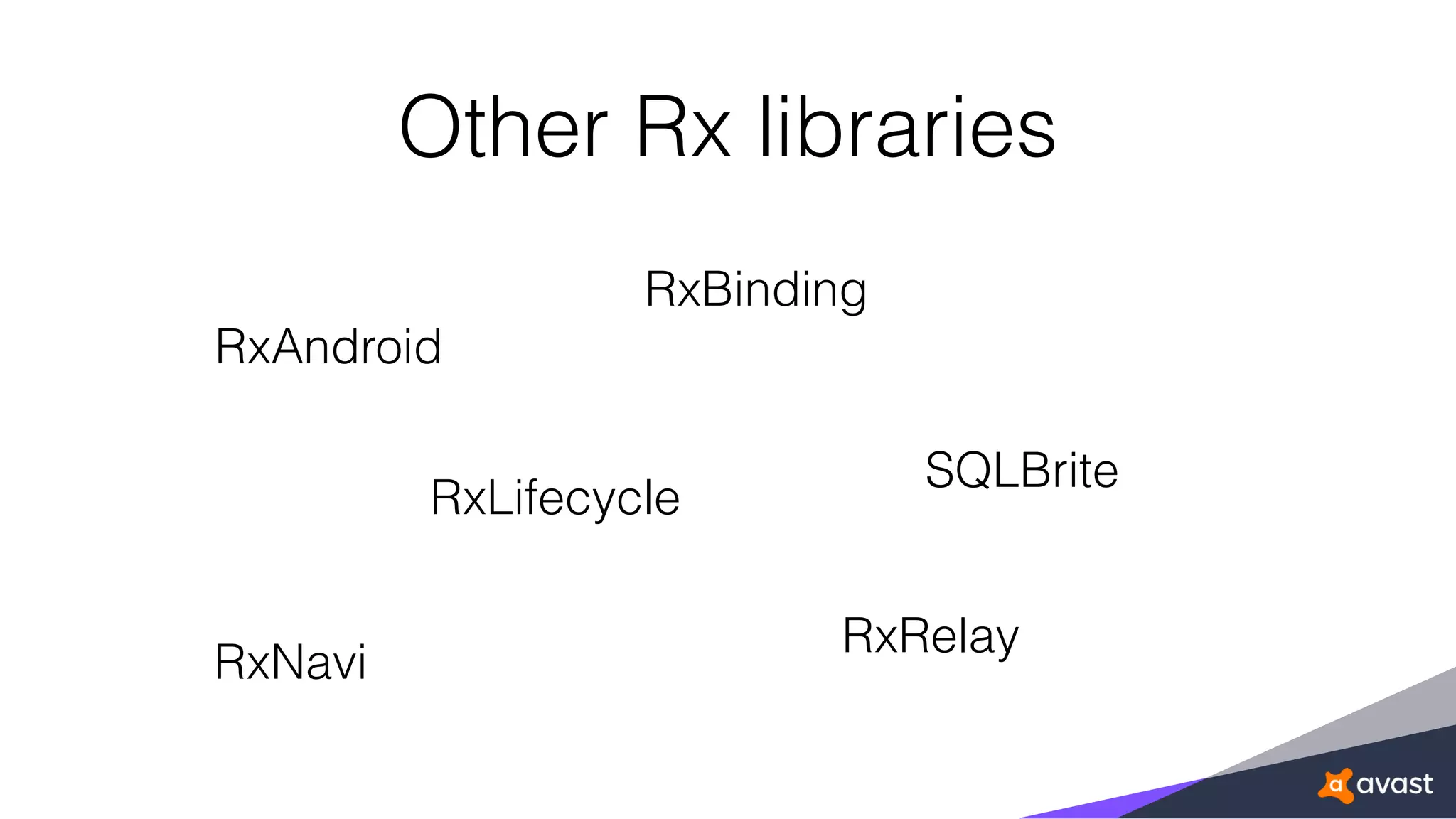

56. Other Rx libraries
RxAndroid
RxBinding
RxLifecycle
RxNavi
SQLBrite
RxRelay

57. “This new feature is great! I bet users will love it!”

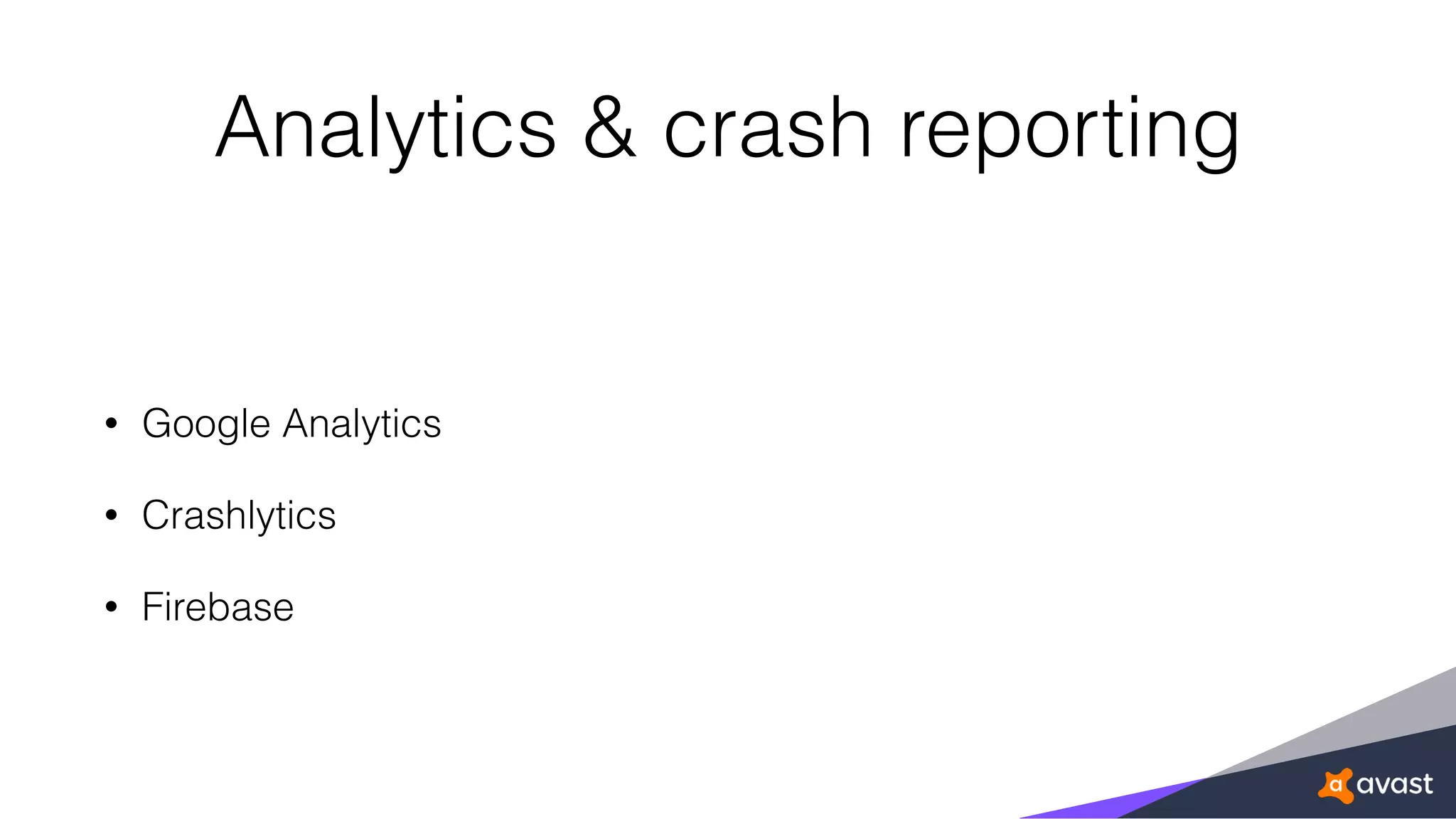

58. Analytics & crash reporting
• Google Analytics
• Crashlytics
• Firebase

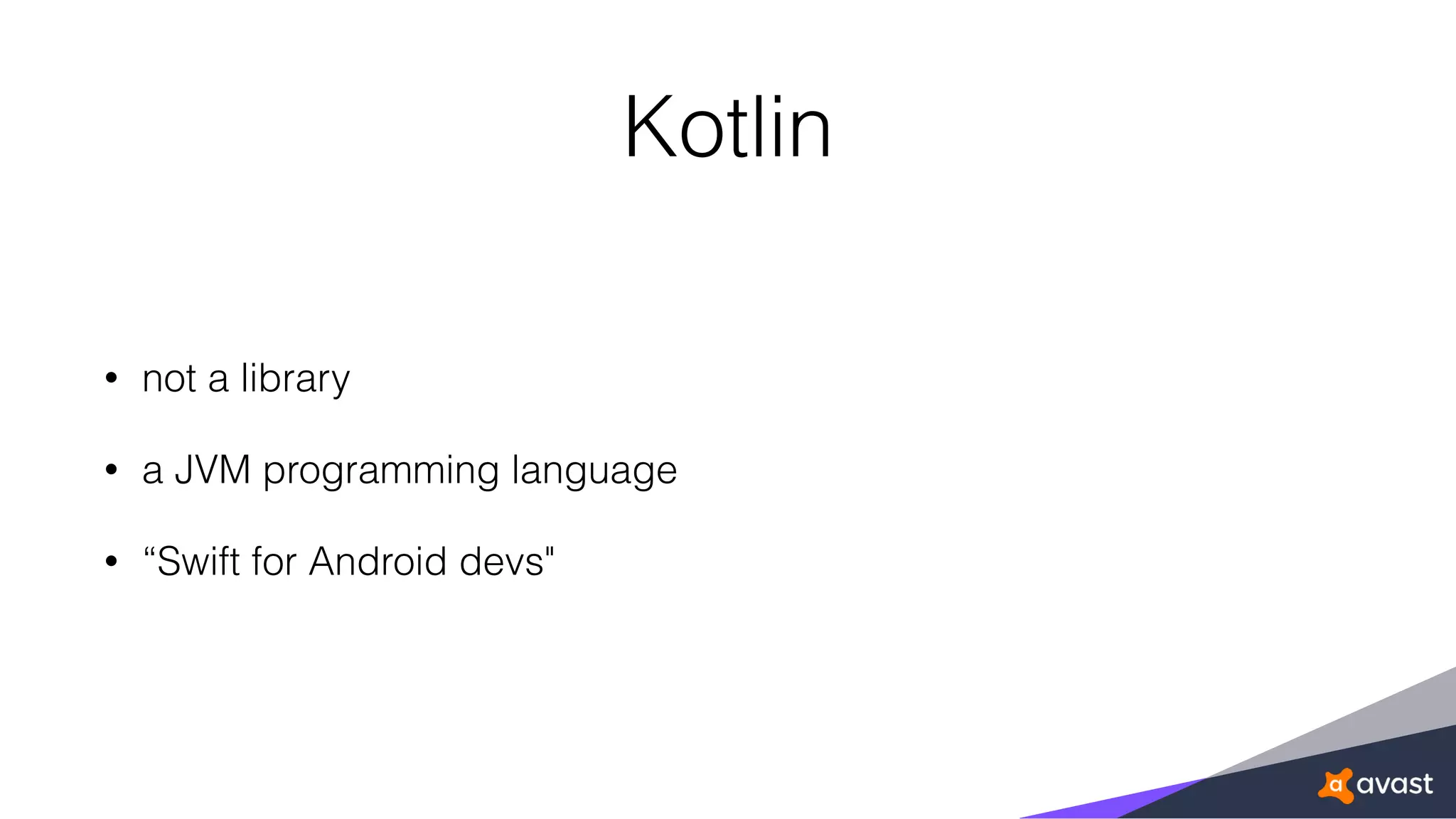

59. “I don’t like this Java language.”

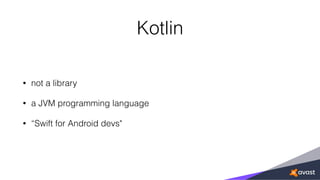

60. Kotlin
• not a library
• a JVM programming language
• “Swift for Android devs"

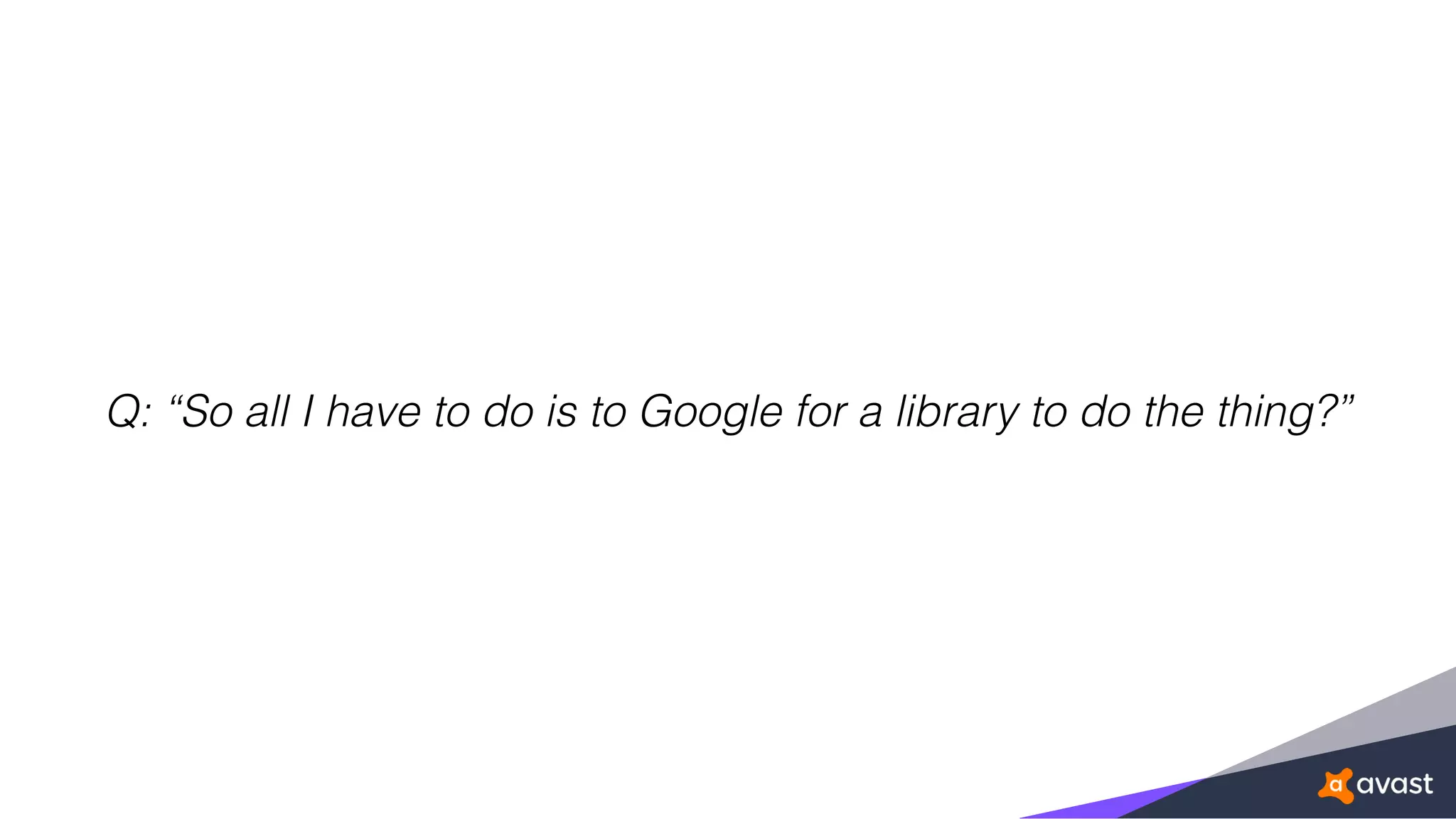

61. Q: “So all I have to do is to Google for a library to do the thing?”

62. A: “think wisely before adding a new library.”

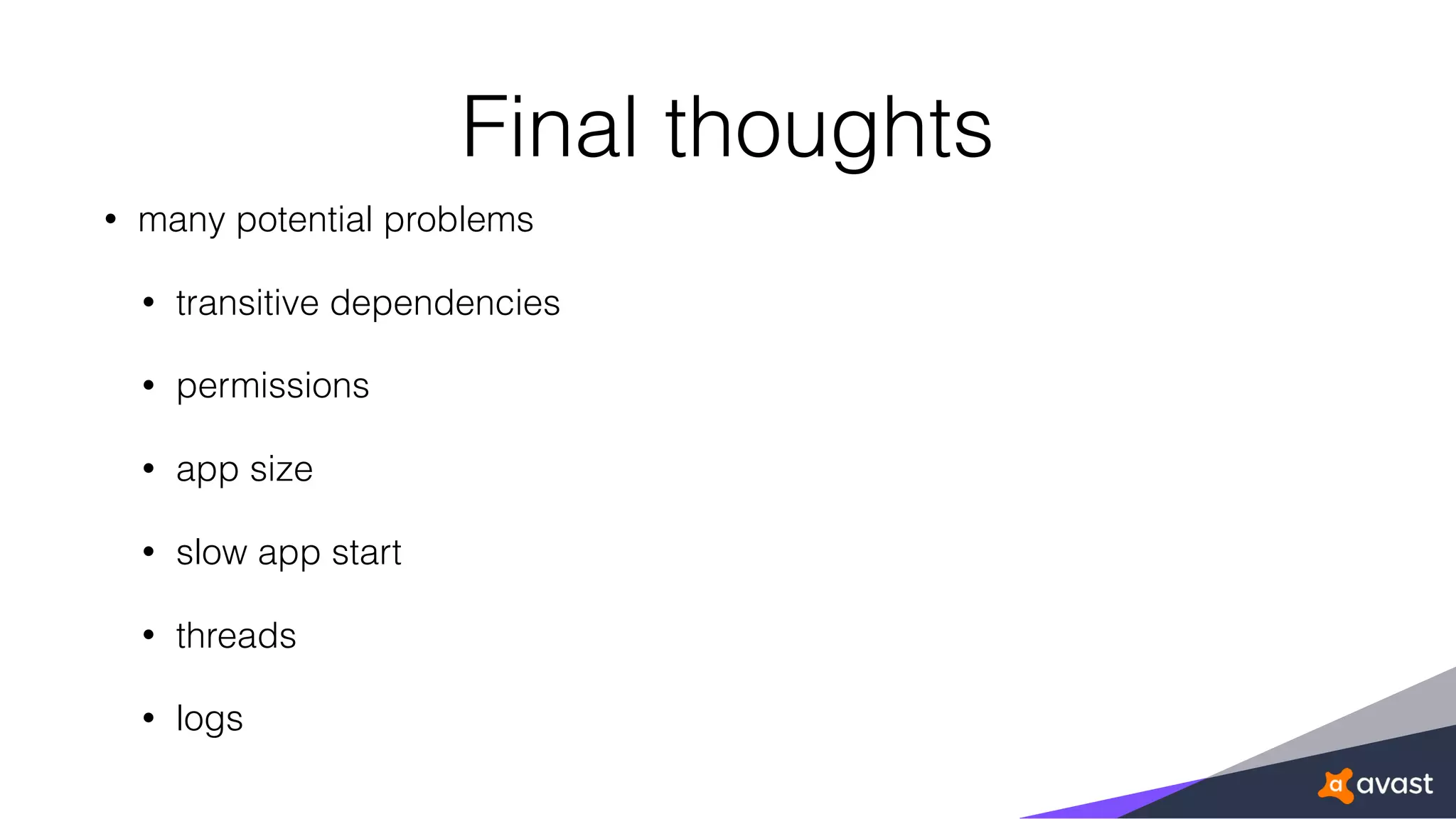

63. Final thoughts
• many potential problems
• transitive dependencies
• permissions
• app size
• slow app start
• threads
• logs

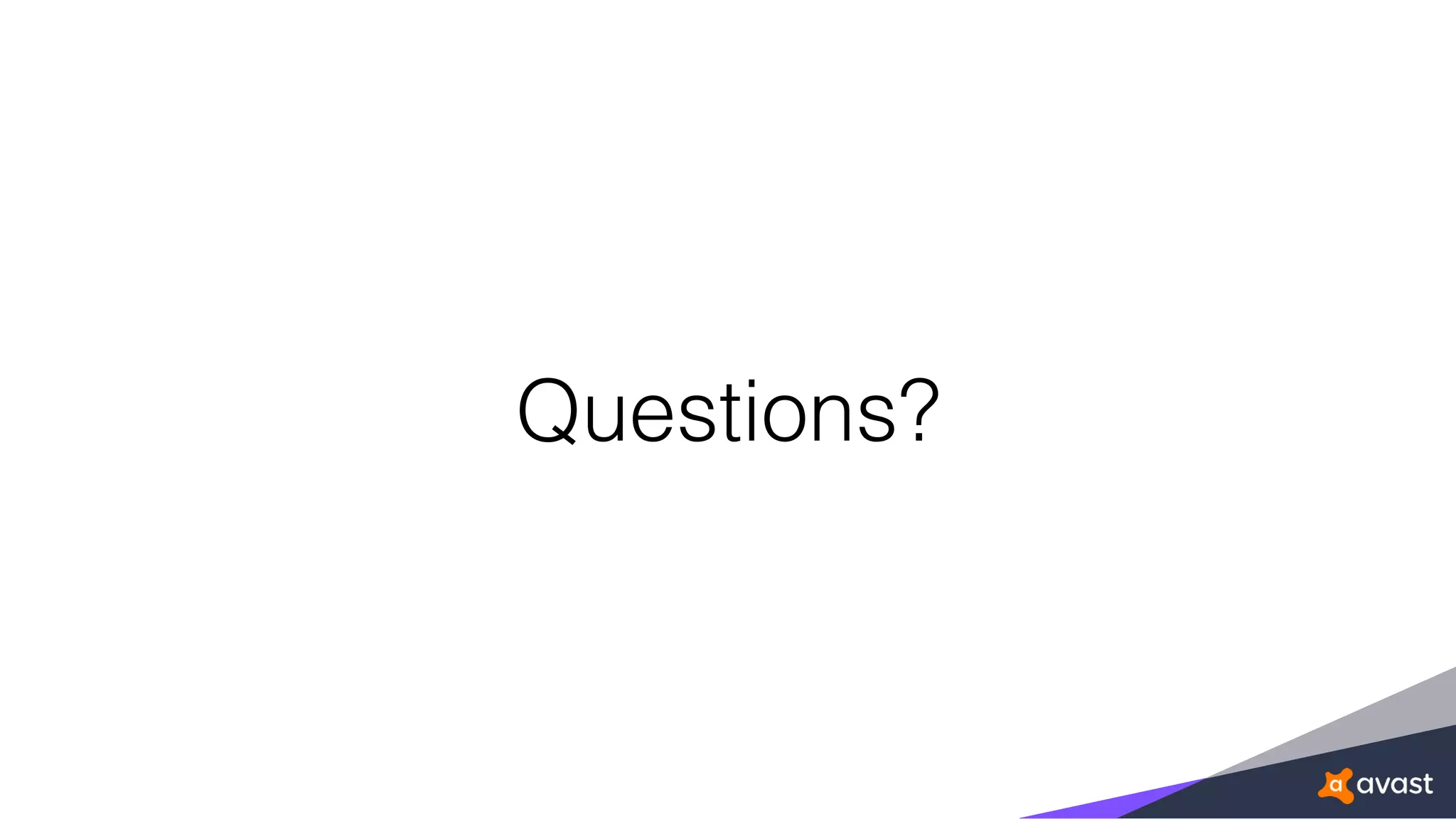

64. Questions?
