Guide to the jungle of testing frameworks
The document discusses unit testing in Android applications, outlining various types of tests including instrumentation and local unit tests, along with the respective advantages and limitations. It explains frameworks like Mockito and Robolectric for mocking and testing, provides coding examples, and emphasizes best practices for writing testable code. Code coverage tools and guidelines for good testing practices are also covered.
More Related Content
Similar to Guide to the jungle of testing frameworks
Guide to the jungle of testing frameworks
- 2. Unit Testing Experienceon Android
- 4. Android apps aredifficult to test

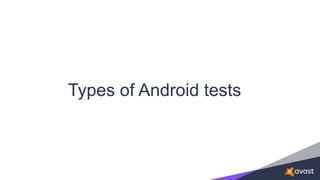

- 5. Types of Androidtests

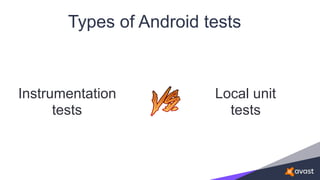

- 6. Types of Androidtests Instrumentation tests Local unit tests

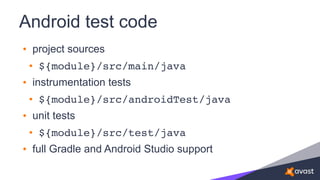

- 7. Android test code •project sources • ${module}/src/main/java • instrumentation tests • ${module}/src/androidTest/java • unit tests • ${module}/src/test/java • full Gradle and Android Studio support

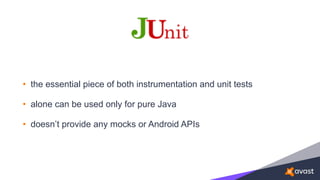

- 9. • the essentialpiece of both instrumentation and unit tests • alone can be used only for pure Java • doesn’t provide any mocks or Android APIs
- 10.

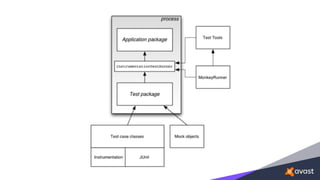

- 11. Instrumentation Tests • runningon physical device or emulator • gradle connectedAndroidTest • ${module}/build/reports/androidTests/connected/ index.html

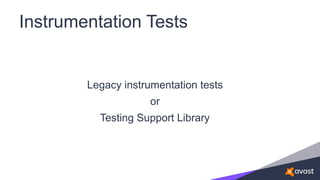

- 13. Instrumentation Tests Legacy instrumentationtests or Testing Support Library

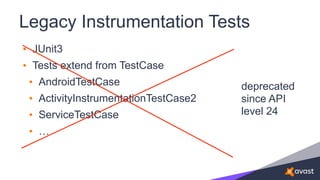

- 14. Legacy Instrumentation Tests •JUnit3 • Tests extend from TestCase • AndroidTestCase • ActivityInstrumentationTestCase2 • ServiceTestCase • … deprecated since API level 24

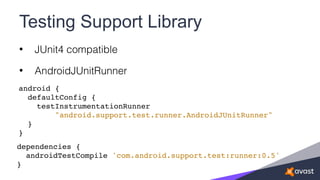

- 15. Testing Support Library •JUnit4 compatible • AndroidJUnitRunner android { defaultConfig { testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner" } } dependencies { androidTestCompile 'com.android.support.test:runner:0.5' }

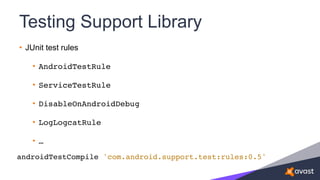

- 16. Testing Support Library •JUnit test rules • AndroidTestRule • ServiceTestRule • DisableOnAndroidDebug • LogLogcatRule • … androidTestCompile 'com.android.support.test:rules:0.5'

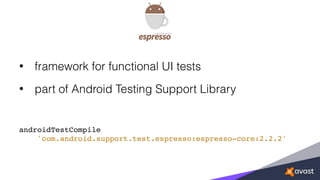

- 18. • framework forfunctional UI tests • part of Android Testing Support Library androidTestCompile 'com.android.support.test.espresso:espresso-core:2.2.2'

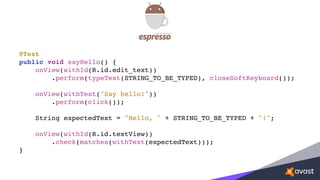

- 19. @Test public void sayHello(){ onView(withId(R.id.edit_text)) .perform(typeText(STRING_TO_BE_TYPED), closeSoftKeyboard()); onView(withText("Say hello!")) .perform(click()); String expectedText = "Hello, " + STRING_TO_BE_TYPED + "!"; onView(withId(R.id.textView)) .check(matches(withText(expectedText))); }

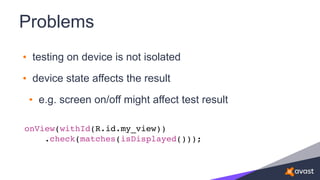

- 20. Problems • testing ondevice is not isolated • device state affects the result • e.g. screen on/off might affect test result onView(withId(R.id.my_view)) .check(matches(isDisplayed()));

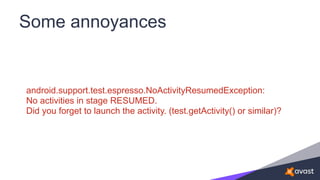

- 21. Some annoyances android.support.test.espresso.NoActivityResumedException: No activitiesin stage RESUMED. Did you forget to launch the activity. (test.getActivity() or similar)?
- 22.
- 23.

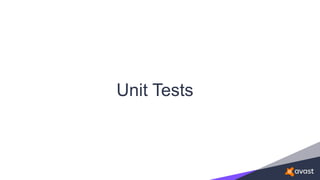

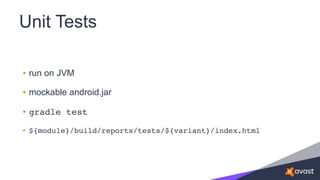

- 24. Unit Tests • runon JVM • mockable android.jar • gradle test • ${module}/build/reports/tests/${variant}/index.html
- 25.

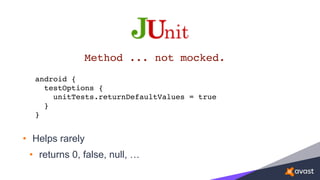

- 27. • Helps rarely •returns 0, false, null, … Method ... not mocked. android { testOptions { unitTests.returnDefaultValues = true } }

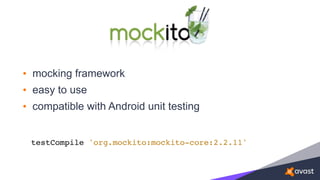

- 29. • mocking framework •easy to use • compatible with Android unit testing testCompile 'org.mockito:mockito-core:2.2.11'
- 30. • can beused also in instrumentation tests • needs dexmaker androidTestCompile 'org.mockito:mockito-core:2.2.11' androidTestCompile 'com.google.dexmaker:dexmaker:1.2' androidTestCompile 'com.google.dexmaker:dexmaker-mockito:1.2'

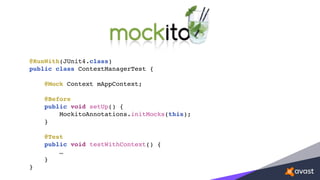

- 31. @RunWith(JUnit4.class) public class ContextManagerTest{ @Mock Context mAppContext; @Before public void setUp() { MockitoAnnotations.initMocks(this); } @Test public void testWithContext() { … } }

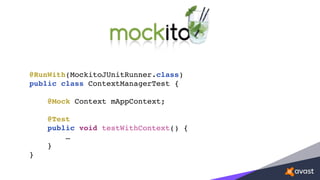

- 32. @RunWith(MockitoJUnitRunner.class) public class ContextManagerTest{ @Mock Context mAppContext; @Test public void testWithContext() { … } }

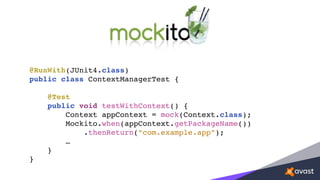

- 33. @RunWith(JUnit4.class) public class ContextManagerTest{ @Test public void testWithContext() { Context appContext = mock(Context.class); Mockito.when(appContext.getPackageName()) .thenReturn(“com.example.app”); … } }

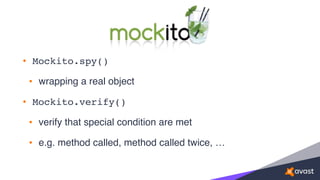

- 34. • Mockito.spy() • wrappinga real object • Mockito.verify() • verify that special condition are met • e.g. method called, method called twice, …

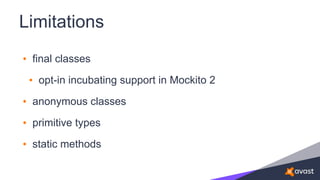

- 35. Limitations • final classes •opt-in incubating support in Mockito 2 • anonymous classes • primitive types • static methods

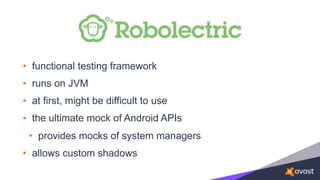

- 37. • functional testingframework • runs on JVM • at first, might be difficult to use • the ultimate mock of Android APIs • provides mocks of system managers • allows custom shadows
- 38. • possible touse for UI testing • better to use for business logic @RunWith(RobolectricTestRunner.class) public class MyTest { … }
- 39. • Robolectric • RuntimeEnvironment •Shadows • ShadowApplication • ShadowLooper

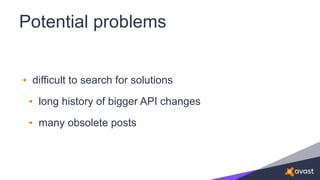

- 40. Potential problems • difficultto search for solutions • long history of bigger API changes • many obsolete posts

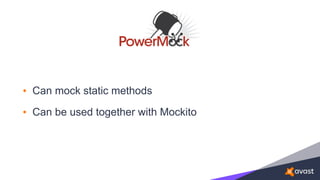

- 42. • Can mockstatic methods • Can be used together with Mockito
- 43.

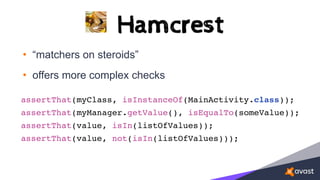

- 45. • “matchers onsteroids” • offers more complex checks assertThat(myClass, isInstanceOf(MainActivity.class)); assertThat(myManager.getValue(), isEqualTo(someValue)); assertThat(value, isIn(listOfValues)); assertThat(value, not(isIn(listOfValues)));

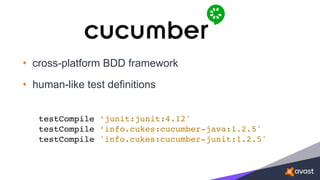

- 47. • cross-platform BDDframework • human-like test definitions testCompile ‘junit:junit:4.12' testCompile ‘info.cukes:cucumber-java:1.2.5' testCompile 'info.cukes:cucumber-junit:1.2.5'

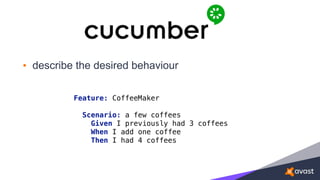

- 48. • describe thedesired behaviour Feature: CoffeeMaker Scenario: a few coffees Given I previously had 3 coffees When I add one coffee Then I had 4 coffees

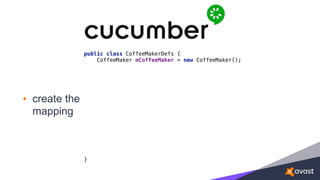

- 49. • create the mapping publicclass CoffeeMakerDefs { CoffeeMaker mCoffeeMaker = new CoffeeMaker(); }

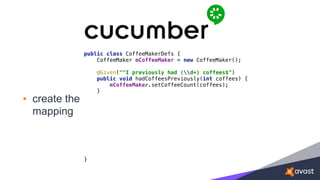

- 50. • create the mapping publicclass CoffeeMakerDefs { CoffeeMaker mCoffeeMaker = new CoffeeMaker(); @Given("^I previously had (d+) coffees$") public void hadCoffeesPreviously(int coffees) { mCoffeeMaker.setCoffeeCount(coffees); } }

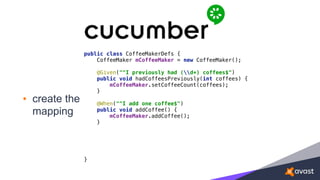

- 51. • create the mapping publicclass CoffeeMakerDefs { CoffeeMaker mCoffeeMaker = new CoffeeMaker(); @Given("^I previously had (d+) coffees$") public void hadCoffeesPreviously(int coffees) { mCoffeeMaker.setCoffeeCount(coffees); } @When("^I add one coffee$") public void addCoffee() { mCoffeeMaker.addCoffee(); } }
- 52. • create the mapping publicclass CoffeeMakerDefs { CoffeeMaker mCoffeeMaker = new CoffeeMaker(); @Given("^I previously had (d+) coffees$") public void hadCoffeesPreviously(int coffees) { mCoffeeMaker.setCoffeeCount(coffees); } @When("^I add one coffee$") public void addCoffee() { mCoffeeMaker.addCoffee(); } @Then("^I had (d+) coffees$") public void hadCoffees(int coffees) { Assert.assertEquals(coffees, mCoffeeMaker.getCoffeeCount()); } }
- 53. • place definitionand mapping at the same paths! • ${module}/src/test/java/com/example/MyMapping.java • ${module}/src/test/resources/com/example/ MyDefinition.feature @RunWith(Cucumber.class) public class RunCucumberTest { }
- 54.

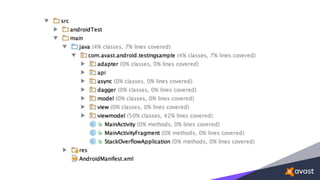

- 55. Code Coverage • instrumentationtests • JaCoCo • EMMA • obsolete • unit tests • JaCoCo

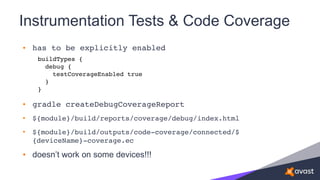

- 56. Instrumentation Tests &Code Coverage • has to be explicitly enabled • gradle createDebugCoverageReport • ${module}/build/reports/coverage/debug/index.html • ${module}/build/outputs/code-coverage/connected/$ {deviceName}-coverage.ec • doesn’t work on some devices!!! buildTypes { debug { testCoverageEnabled true } }
- 57.

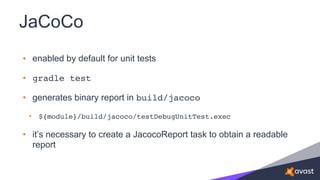

- 58. JaCoCo • enabled bydefault for unit tests • gradle test • generates binary report in build/jacoco • ${module}/build/jacoco/testDebugUnitTest.exec • it’s necessary to create a JacocoReport task to obtain a readable report
- 61.

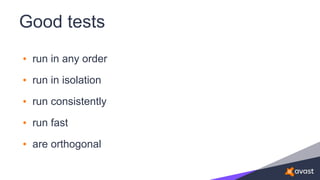

- 62. Good tests • runin any order • run in isolation • run consistently • run fast • are orthogonal

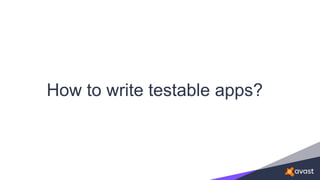

- 63. How to writetestable apps?
- 64. Rules of thumb •prefer pure Java • abstract away from Android APIs • separate business logic and UI • don’t write business logic into activities and fragments • MVP, MVVM is a way to go • try avoid static and final • use dependency injection
- 65.
