1. Name: Ruparel JayName: Ruparel Jay
Enr_no: 146020307546Enr_no: 146020307546

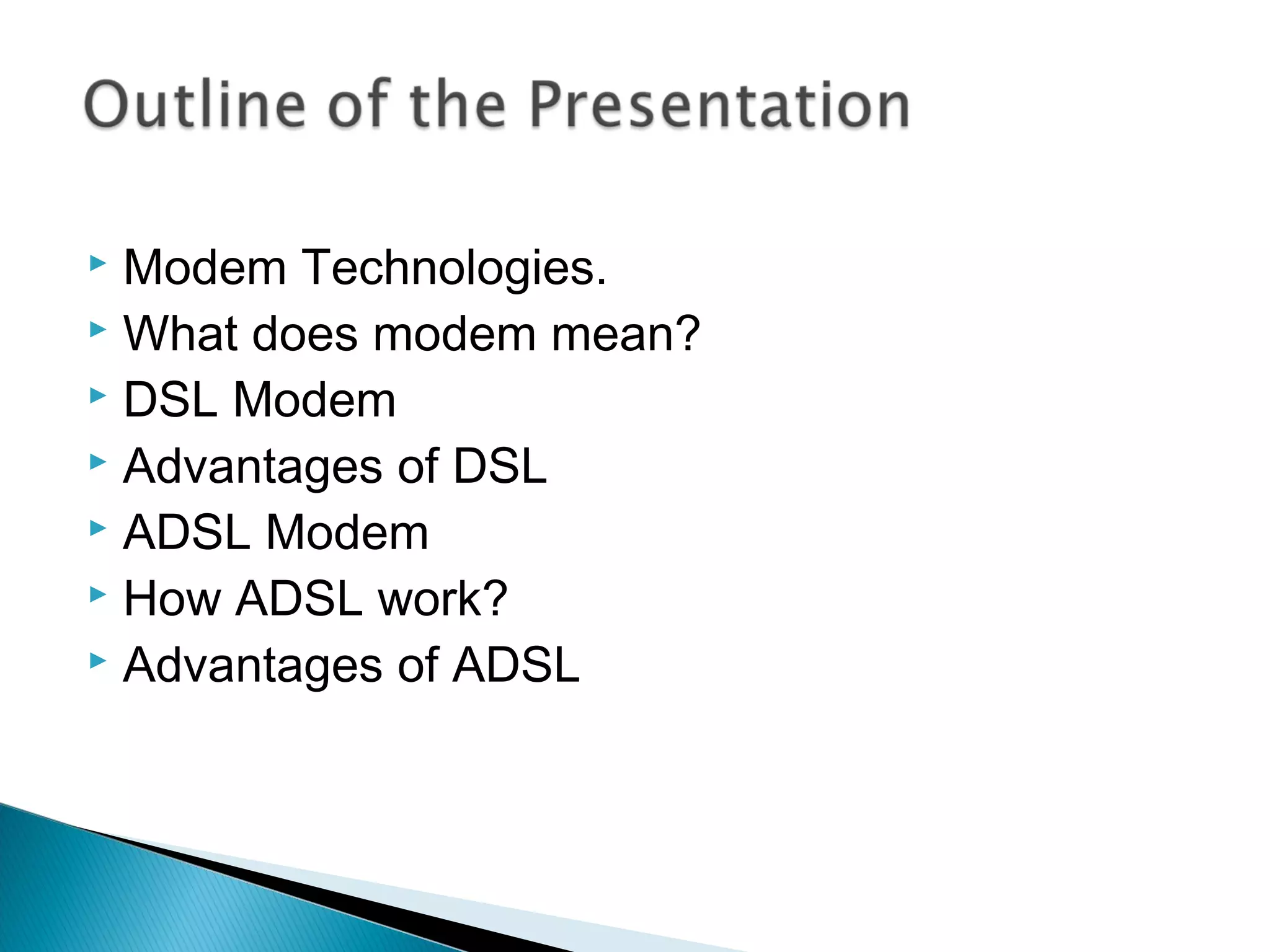

2.  Modem Technologies.
 What does modem mean?
 DSL Modem
 Advantages of DSL
 ADSL Modem
 How ADSL work?
 Advantages of ADSL

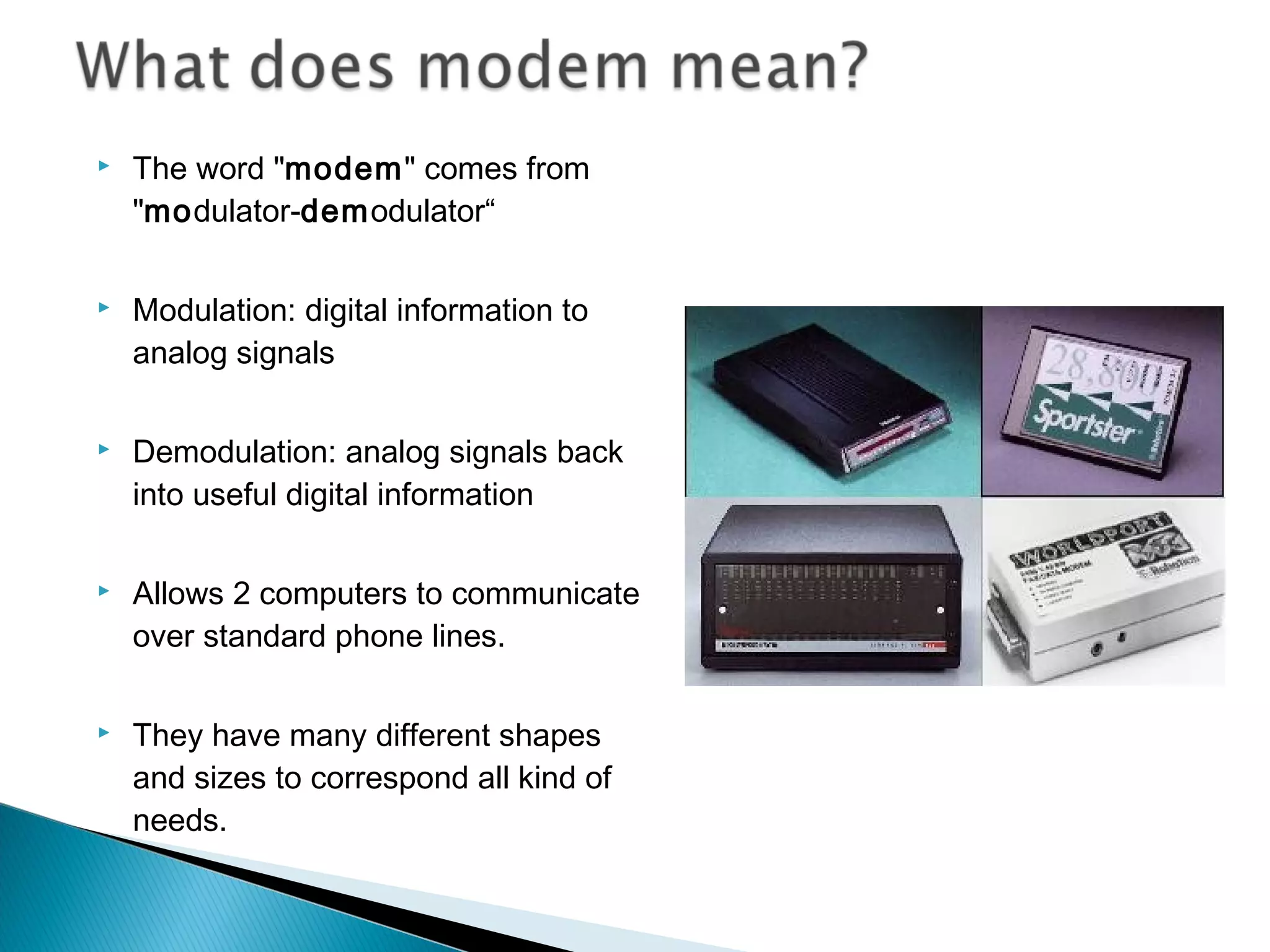

3.  The word "modem" comes from
"modulator-demodulator“

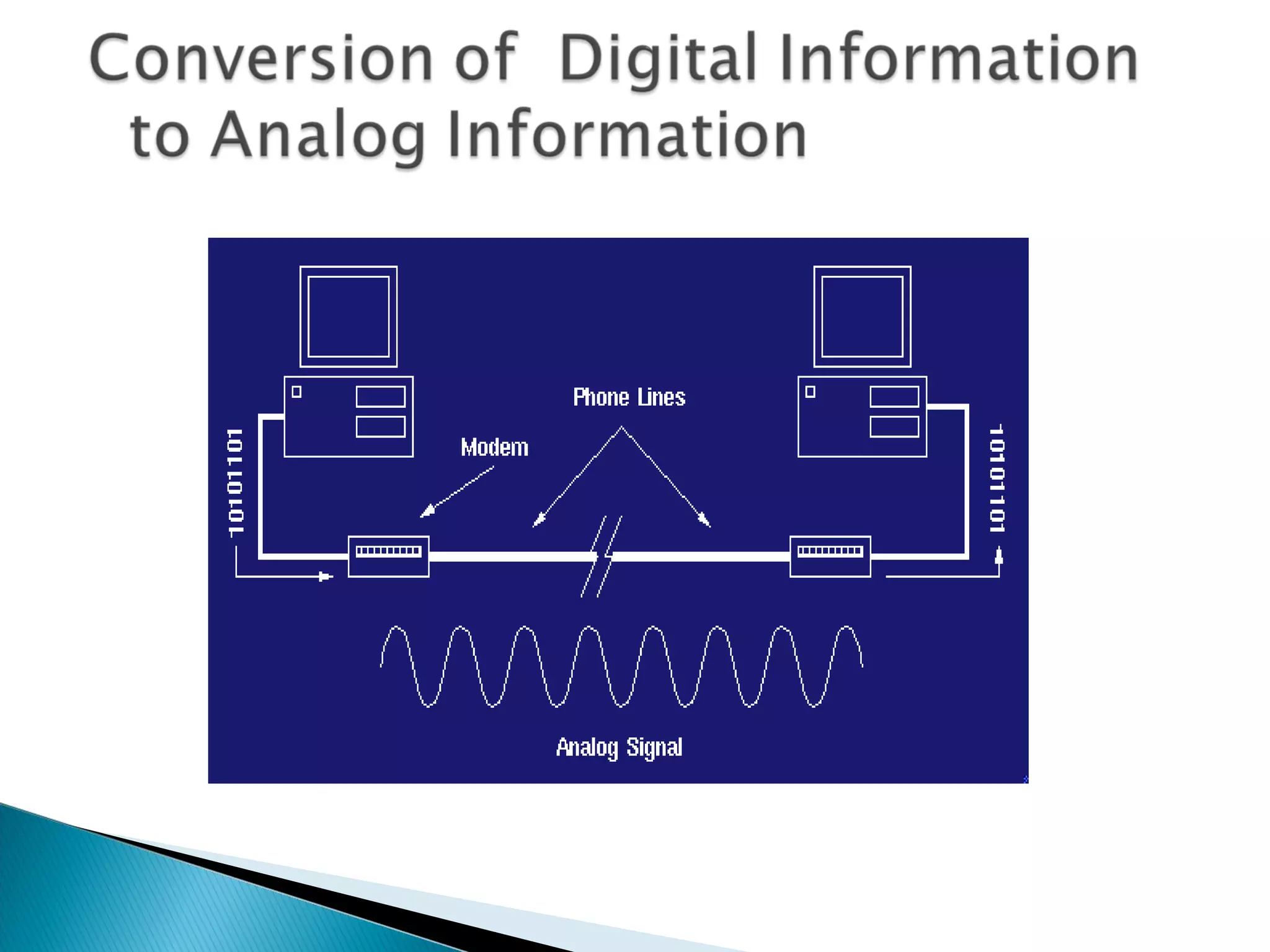

 Modulation: digital information to
analog signals
 Demodulation: analog signals back
into useful digital information
 Allows 2 computers to communicate
over standard phone lines.
 They have many different shapes
and sizes to correspond all kind of
needs.

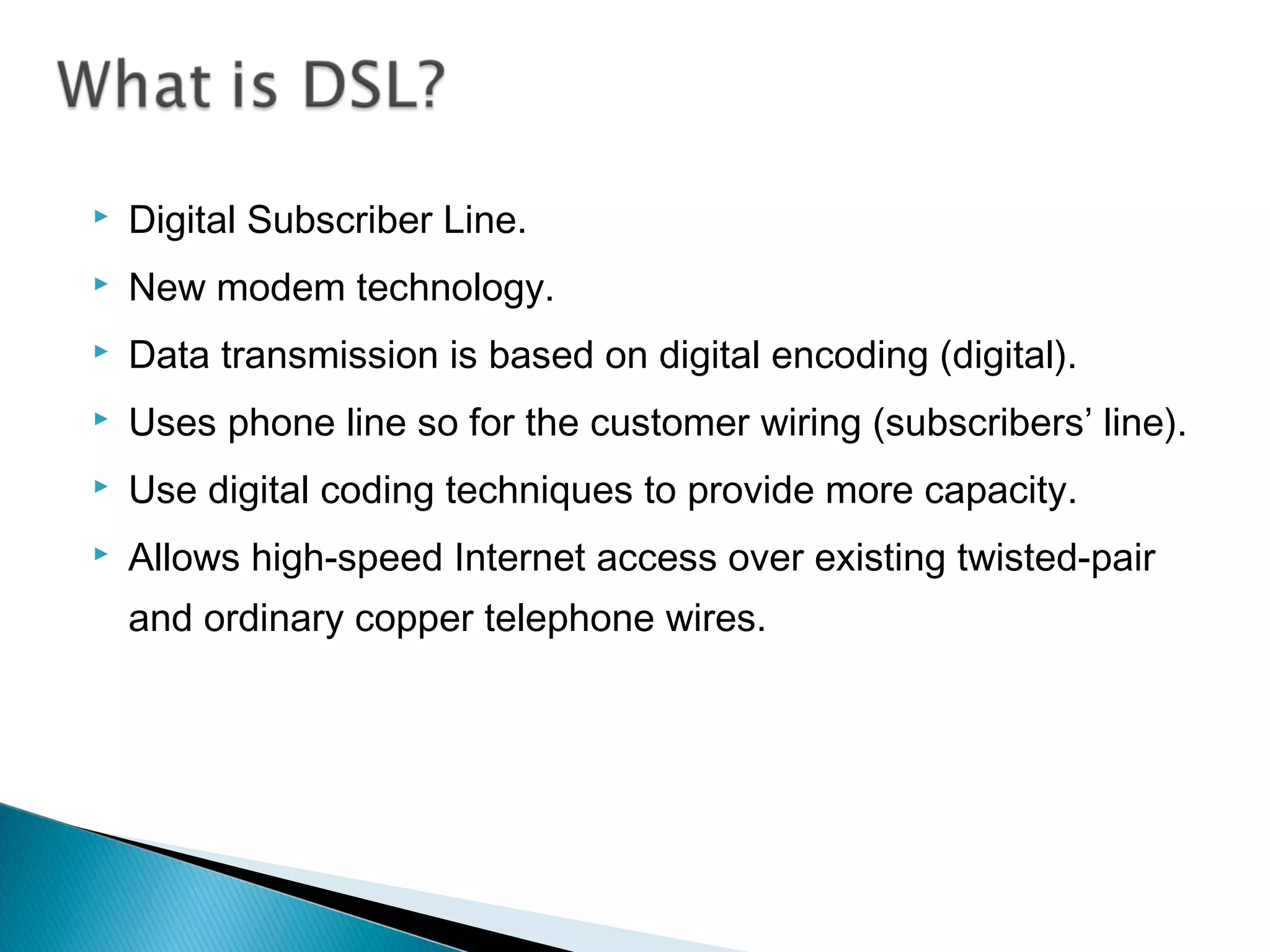

5.  Digital Subscriber Line.
 New modem technology.
 Data transmission is based on digital encoding (digital).
 Uses phone line so for the customer wiring (subscribers’ line).
 Use digital coding techniques to provide more capacity.
 Allows high-speed Internet access over existing twisted-pair
and ordinary copper telephone wires.

6.  Provides "always-on" connection.
 To transport high-bandwidth data.
 A special hardware attached to both the user and switch ends of
line.

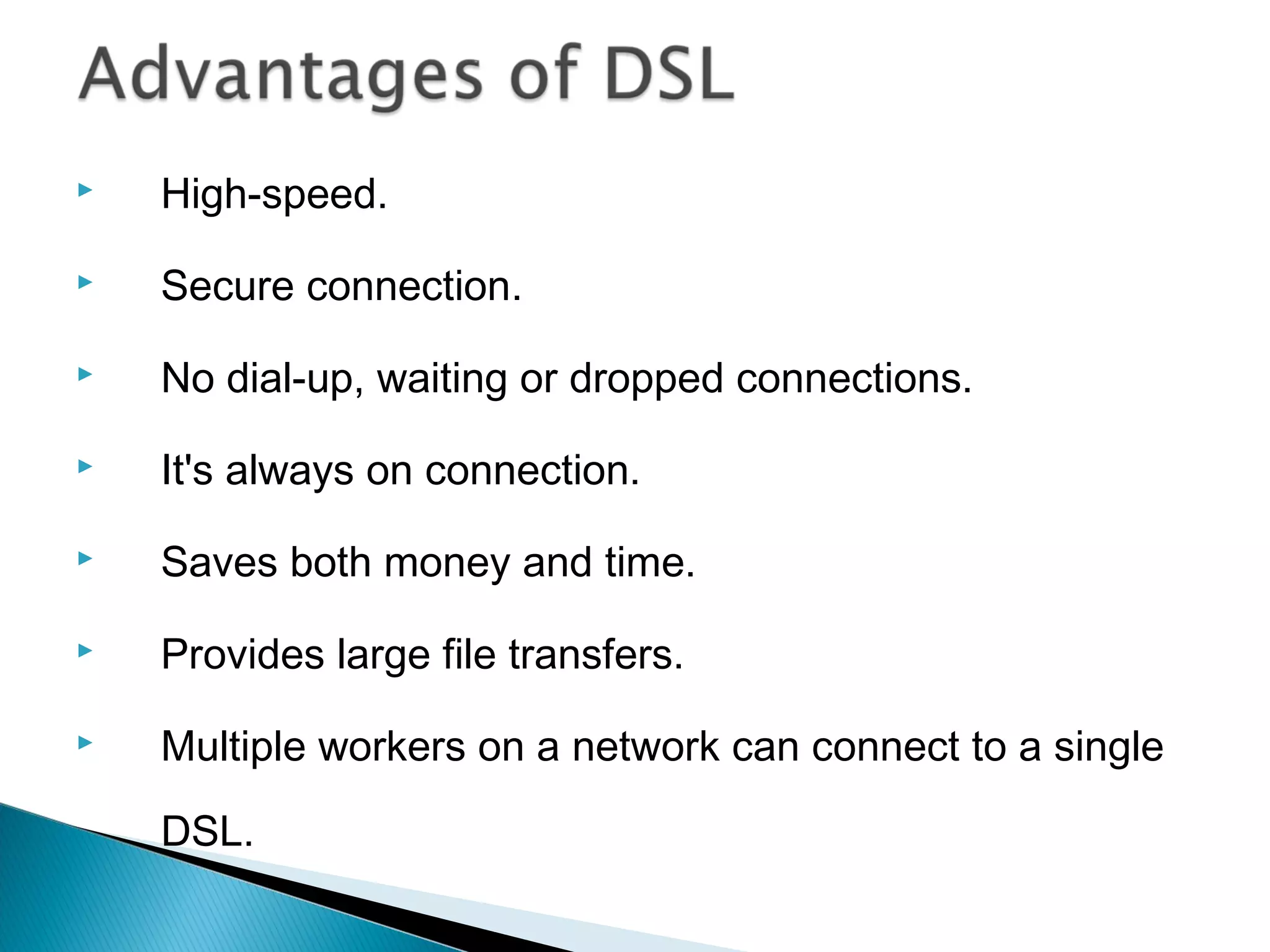

7.  High-speed.
 Secure connection.
 No dial-up, waiting or dropped connections.
 It's always on connection.
 Saves both money and time.
 Provides large file transfers.
 Multiple workers on a network can connect to a single
DSL.

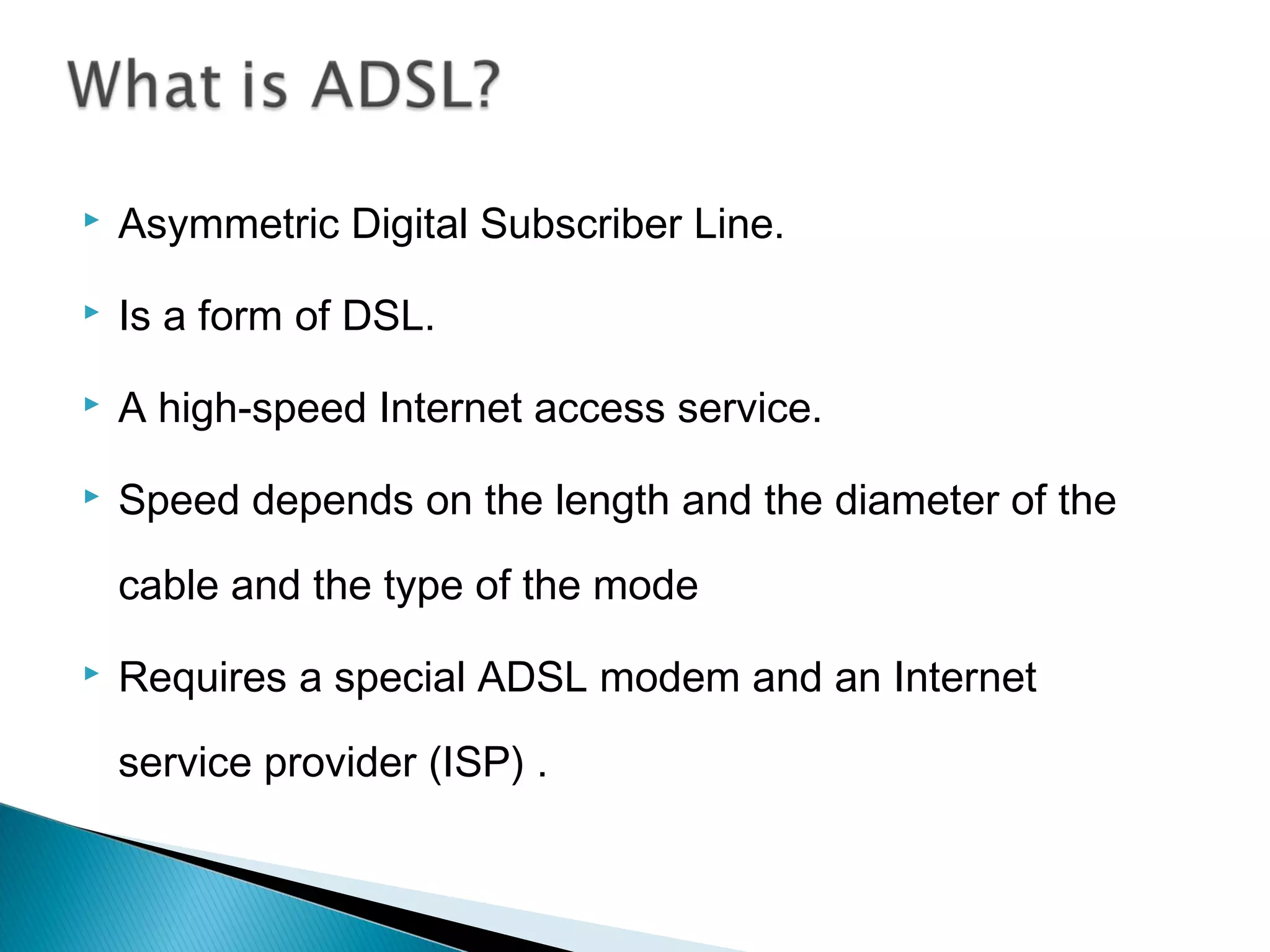

8.  Asymmetric Digital Subscriber Line.
 Is a form of DSL.
 A high-speed Internet access service.
 Speed depends on the length and the diameter of the
cable and the type of the mode
 Requires a special ADSL modem and an Internet
service provider (ISP) .

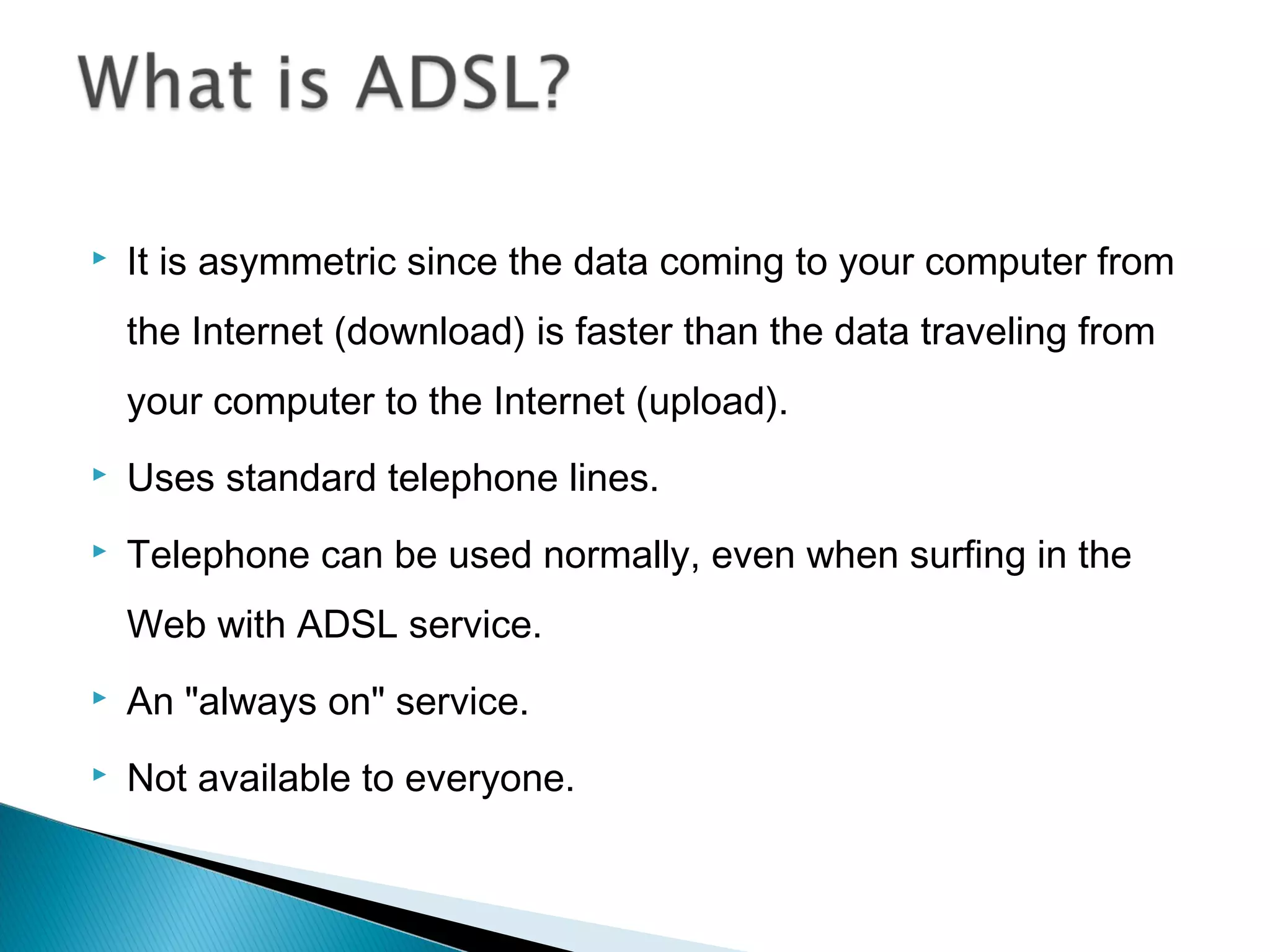

9.  It is asymmetric since the data coming to your computer from
the Internet (download) is faster than the data traveling from
your computer to the Internet (upload).
 Uses standard telephone lines.
 Telephone can be used normally, even when surfing in the
Web with ADSL service.
 An "always on" service.
 Not available to everyone.

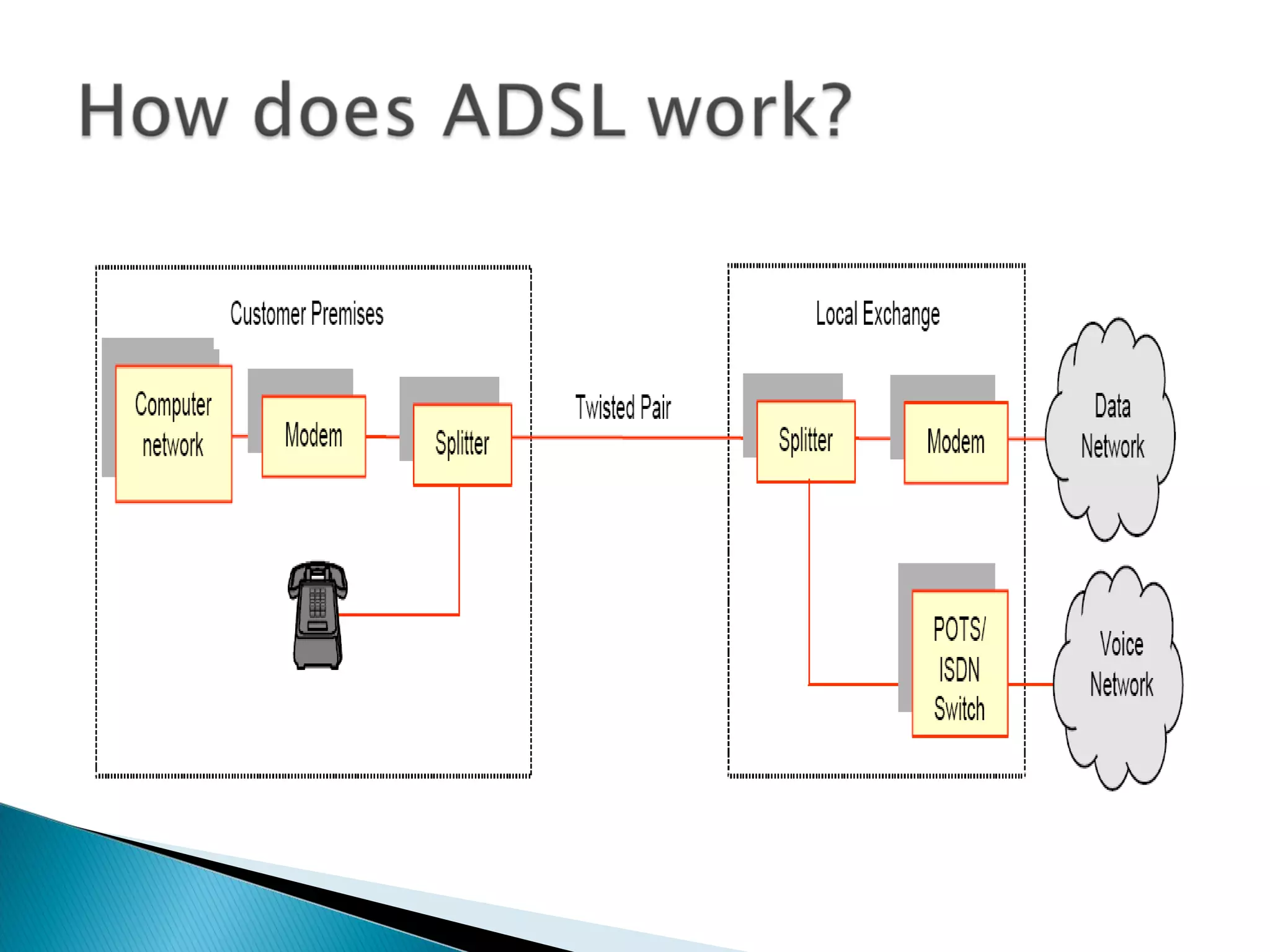

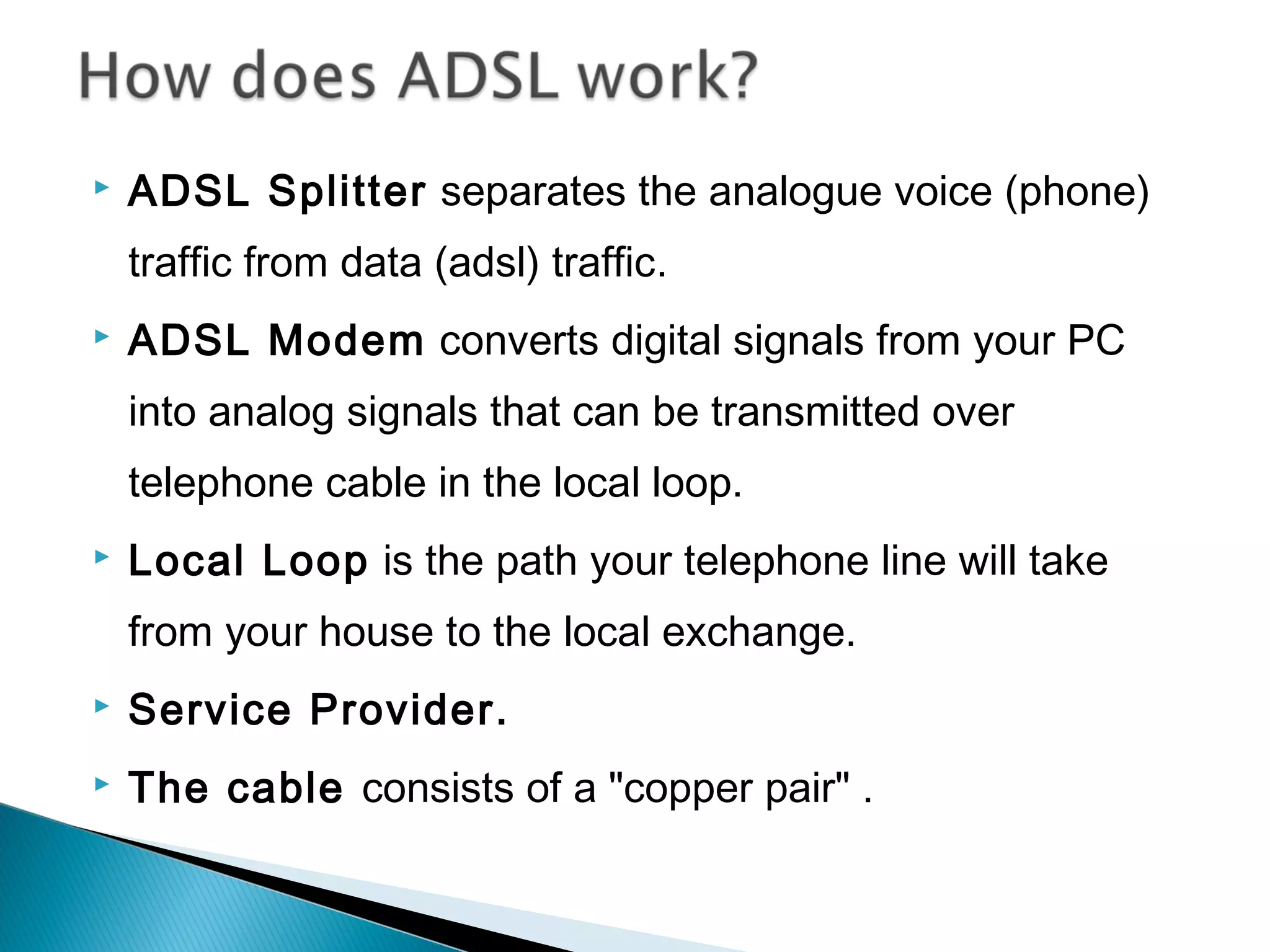

10.  ADSL Splitter separates the analogue voice (phone)
traffic from data (adsl) traffic.
 ADSL Modem converts digital signals from your PC
into analog signals that can be transmitted over
telephone cable in the local loop.
 Local Loop is the path your telephone line will take
from your house to the local exchange.
 Service Provider.
 The cable consists of a "copper pair" .

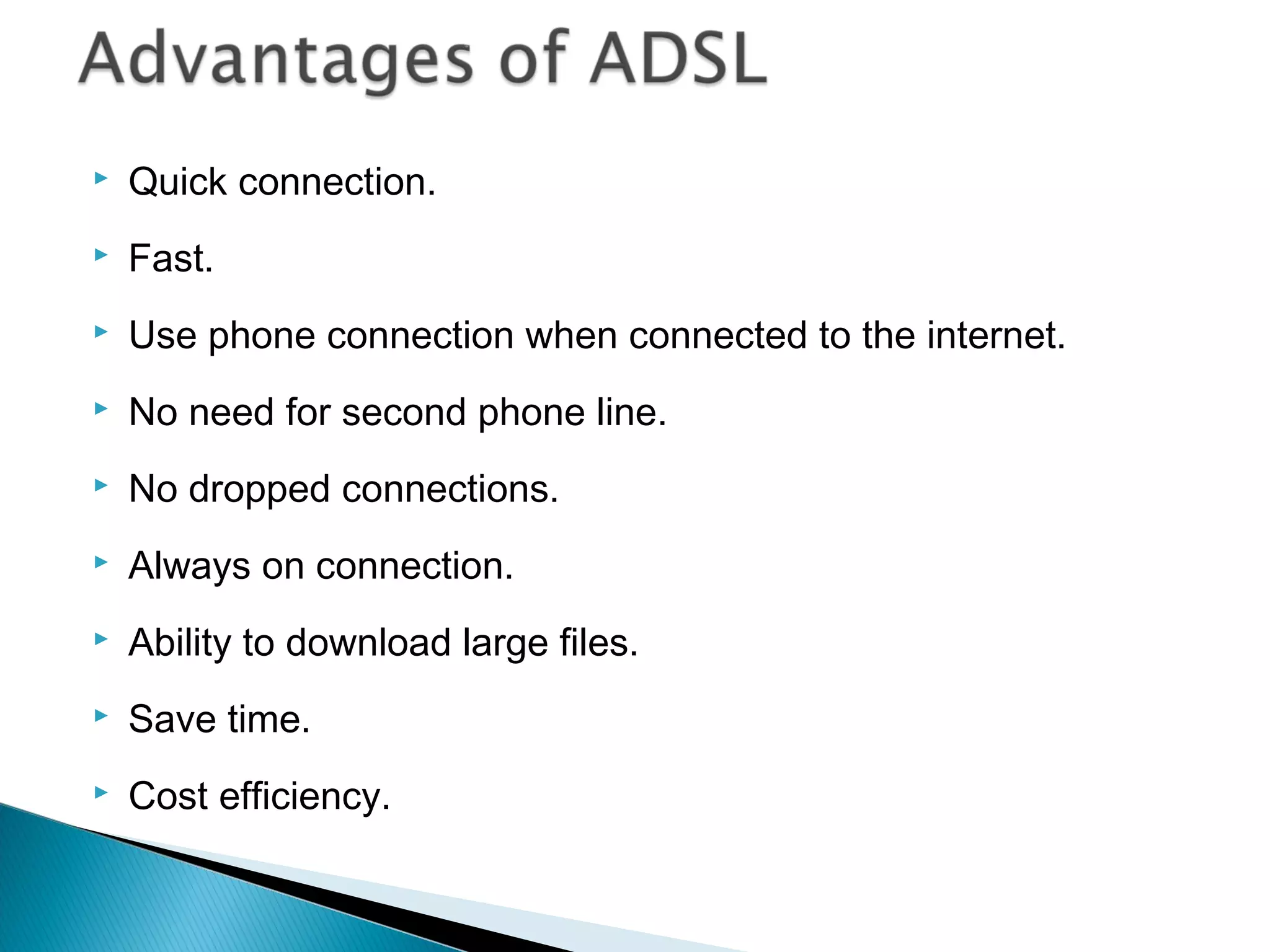

14.  Quick connection.
 Fast.
 Use phone connection when connected to the internet.
 No need for second phone line.
 No dropped connections.
 Always on connection.
 Ability to download large files.
 Save time.
 Cost efficiency.

15. QUESTIONS?
