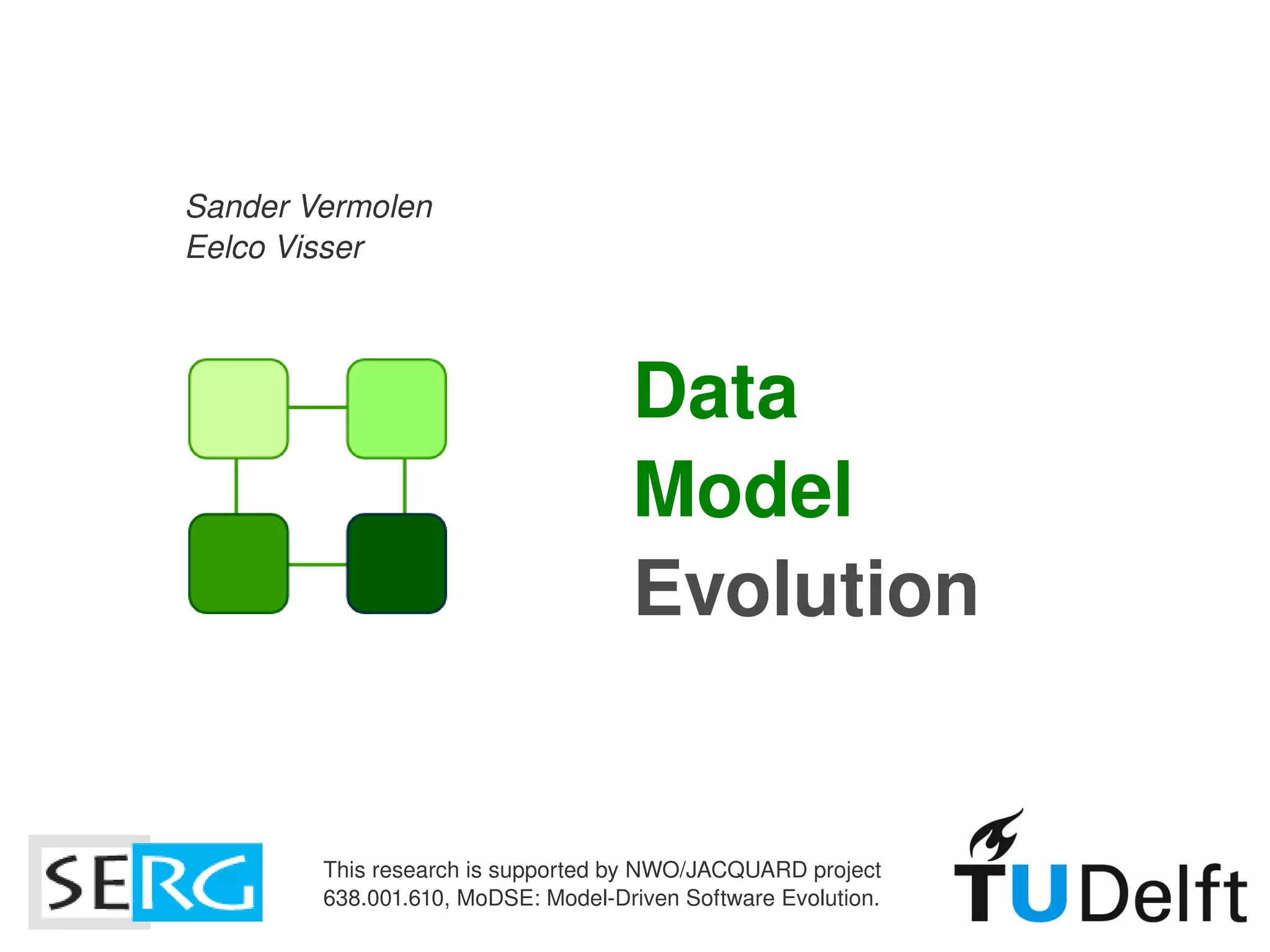

1. Sander Vermolen
Eelco Visser
Data
Model
Evolution
This research is supported by NWO/JACQUARD project
638.001.610, MoDSE: Model­Driven Software Evolution.

2. Data
Models

6. User 1
name bob
real name Bob Johnson
email b.johnson@mail.com
Page 1
title "The first page"
isRedirect false
text "Hello world"

7. Count page views
Version history

9. No page count
No revisions
User 1
name bob
real name Bob Johnson
email b.johnson@mail.com
Page 1
title "The first page"
isRedirect false
text "Hello world"

11. Coupled Data Evolution

12. ...
$dbh->bz_add_column('attachments', 'submitter_id', {TYPE => 'INT3', NOTNULL => 1}, 0);
$dbh->bz_rename_column('bugs_activity', 'when', 'bug_when');
_add_bug_vote_cache(); _update_product_name_definition(); _add_bug_keyword_cache();
$dbh->bz_add_column('profiles', 'disabledtext', {TYPE => 'MEDIUMTEXT', NOTNULL => 1}, '');
_populate_longdescs(); _update_bugs_activity_field_to_fieldid();
if (!$dbh->bz_column_info('bugs', 'lastdiffed')) {
$dbh->bz_add_column('bugs', 'lastdiffed', {TYPE =>'DATETIME'});
$dbh->do('UPDATE bugs SET lastdiffed = NOW()');
}
_add_unique_login_name_index_to_profiles();
$dbh->bz_add_column('profiles', 'mybugslink', {TYPE => 'BOOLEAN', NOTNULL => 1, DEFAULT => 'TRUE'});
_update_component_user_fields_to_ids();
$dbh->bz_add_column('bugs', 'everconfirmed', {TYPE => 'BOOLEAN', NOTNULL => 1}, 1);
$dbh->bz_add_column('products', 'maxvotesperbug', {TYPE => 'INT2', NOTNULL => 1, DEFAULT => '10000'});
$dbh->bz_add_column('products', 'votestoconfirm', {TYPE => 'INT2', NOTNULL => 1}, 0);
_populate_milestones_table();
$dbh->bz_alter_column('bugs', 'target_milestone', {TYPE => 'varchar(20)', NOTNULL => 1, DEFAULT => "'---'"});
$dbh->bz_alter_column('milestones', 'value', {TYPE => 'varchar(20)', NOTNULL => 1});
_add_products_defaultmilestone();
if (!$dbh->bz_index_info('cc', 'cc_bug_id_idx') || !$dbh->bz_index_info('cc', 'cc_bug_id_idx')->{TYPE}) {
$dbh->bz_drop_index('cc', 'cc_bug_id_idx');
$dbh->bz_add_index('cc', 'cc_bug_id_idx', {TYPE => 'UNIQUE', FIELDS => [qw(bug_id who)]});
}
if (!$dbh->bz_index_info('keywords', 'keywords_bug_id_idx') || !$dbh->bz_index_info('keywords',
'keywords_bug_id_idx')->{TYPE}) {
$dbh->bz_drop_index('keywords', 'keywords_bug_id_idx');
$dbh->bz_add_index('keywords', 'keywords_bug_id_idx', {TYPE => 'UNIQUE', FIELDS => [qw(bug_id
keywordid)]});
}
...

13. Costly
High risk
Holds back the development process
Large infrequent development steps

14. User
id : integer
name : varchar
realName : varchar
email : tinytext
Page
id : integer
title : varchar
author - User *
isRedirect : boolean
content : text
set of

15. User
id : integer Unique
name : varchar
realName : varchar ?
email : tinytext
Page : Medium
author - User min(1) max(8)
content : text
refs : url * Indexed
abstract Medium
id : integer Unique
title : ANY_NAME

16. Evolving
Data Models

21. Specifying
Data Model Evolution

22. User User
id :: integer id :: integer
name :: varchar name :: varchar
realName :: varchar realName :: varchar
email :: tinytext email :: tinytext
Page Page
id :: integer id :: integer
title :: varchar title :: varchar
author  User counter :: biginteger
isRedirect :: boolean isRedirect :: boolean
content :: text revisions  set of Revision
Revision
id :: integer
page  Page
comment :: tinyblob
timestamp :: time
revisionText :: text
author  User

23. What happened?
Added type revisions Revision
id :: integer
page  Page
comment :: tinyblob
timestamp :: time
author  User
Added attribute revisions Page
revisions  set of Revision
Moved content to revision text Revision
revisionText :: text
Added attribute counter Page
counter :: biginteger

24. 8 Basic Transformations
add or remove entity add or remove property
change name of entity change name of property
change type of set change type of property

25. 1 Advanced Transformation
move property

26. add
Revision
id : integer
page - Page
comment : tinyblob
timestamp : time
author - User
add
counter : biginteger

28. At / Entity Page / Property Title
add counter : biginteger

29. At / Entity[Id=''Page''] / Property[Id=''Title'']
add counter : biginteger

30. at // Property [Id = ../Id]
add counter :: biginteger

31. Revision
revisionText :: text
At / Entity Revision / Property timeStamp
move page.content
to revisionText :: text

32. at Entity Page / Property Title
add counter :: biginteger
;
at Entity Revision / Property timeStamp
add revisionText :: text
from page.content

33. Evolving
Data Models
8 basic transformations
1 advanced transformation
Language to specify transformations
Positioning sub language
Specify data model evolutions

34. Data
Migration

36. Technical Domain
WebDSL
Stratego/XT
Stratego/XT
Generic Aterm
SQL Databases (MySQL)

37. Program transformation for data migration
Because
we really like program transformations
generally richer than regular data acessing languages (SQL)
data migration = model transformation

38. User( User
id(1), id :: integer
name(“John”), name :: varchar
email(“johnnyboy@mail.com”) email :: tinytext
)
Page( Page
id(2), id :: integer
title(“Hello World”), title :: varchar
[author(1)] author  User
)

39. User( <user>
id(1), <id>1</id>
name(“John”), <name>John</name>
email(“jb@m.com”) <email>jb@m.com</email>
) </user>
Page( <page>
id(2), <id>2</id>
title(“Hello World”), <title>Hello World</title>
[author(1)] <authors>
) <author>1</author>
</authors>
</page>

40. Remove Attribute (1)
User( User
id(1), id :: integer
name(“John”), name :: varchar
..... email :: tinytext
)
Page( Page
id(2), id :: integer
title(“Hello World”), title :: varchar
[author(1)] author  User
)
Signature:
User := Id * Name * Email

41. Remove Attribute (2)
User( User
id(1), id :: integer
name(“John”), name :: varchar
email(“johnnyboy@mail.com”) email :: tinytext
)
Page( Page
id(2), id :: integer
title(“Hello World”), title :: varchar
[author(1)] author  User
)

42. Generic Aterm (GTerm)
User( 0, User
[ id :: integer
id(1), name :: varchar
name(“John”), email :: tinytext
email(“johnnyboy@mail.com”)
]
)
Page( 1, Page
[ id :: integer
id(2), title :: varchar
title(“Hello World”), author  User
author(0)
]
)

43. XMI
User( 0, <user id='0'>
[ <id>1</id>
id(1), <name>John</name>
name(“John”), <email>jb@m.com</email>
email(“jb@m.com”) </user>
]
)
Page( 1, <page id='1'>
[ <id>2</id>
id(2), <title>Hello World</title>
title(“Hello World”), <author>0</author>
author(0) </page>
]
)

44. GTerm Characteristics
Explicit references
No nesting
Implicit sets/lists
Storage...

45. GTerm Transformation
Gterm library
Object creation
Modifying attributes
(add, remove, change, rename, ...)
Object equivalence
Object traversals
(Object graph traversals)
Data model library
Type examination
Super/Sub type handling
Abstract type handling

46. GTerm Storage
Large quantities of data...
Storage engine:
In memory ­ list based ~10K
In memory ­ hash table based ~500K
In database ~25M ­ ...

47. GTerm Storage – In database (1)
User( 0,
[
0 User id 1
id(1),
0 User name John
name(“John”),
0 User email jb@m.com
email(“jb@m.com”)
1 Page id 2
]
1 Page title Hello World
)
1 Page author 0
Page( 1,
[
id(2),
0 User
title(“Hello World”),
1 Page
author(0)
]
)

48. GTerm Storage – In database
GTerm Storage – In database (2)
CREATE TABLE Attributes ( CREATE TABLE Objects (
id varchar(16), id varchar(16),
type varchar(30), type varchar(30)
name varchar(30), )
value text,
INDEX USING HASH (id (5)),
INDEX USING BTREE (v(10))
)

49. GTerm Performance
Database indexes
Stratego memory usage
Parallel execution

50. GTerm Storage – Regular database
0 User id 1 User:
0 User name John 1 John jb@m.com
0 User email jb@m.com
1 Page id 2 Page:
1 Page title Hello World 2 Hello World
1 Page author 0
Page­User:
2 1

51. Data model
SQL Script GTerm 2 SQL
Old Database Generic Database SQL Script
Migration (Stratego) New Database

52. DBLP Researchr

53. <dblp>
<incollection mdate="2002­01­03" key="books/acm/kim95/AnnevelinkACFHK95">
<author>Jurgen Annevelink</author>
<author>Rafiul Ahad</author>
<author>Amelia Carlson</author>
<author>Daniel H. Fishman</author>
<author>Michael L. Heytens</author>
<author>William Kent</author>
<title>Object SQL ­ A Language for the Design and
Implementation of Object Databases.</title>
<pages>42­68</pages>
<year>1995</year>
<booktitle>Modern Database Systems</booktitle>
<url>db/books/collections/kim95.html#AnnevelinkACFHK95</url>
<crossref>books/crc/KIM95</crossref>
</incollection>
....
</dblp>

54. article { book {
key : string key : string
title : string * title : string *
author : string * author : string *
editor : string * editor : string *
booktitle : string * booktitle : string *
pages : string * pages : string *
address : string * address : string *
journal : string * journal : string *
volume : string * volume : string *
number : string * number : string *
publisher : string * publisher : string *
crossref : string * crossref : string *
series : string * series : string *
school : string * school : string *
chapter : string * chapter : string *
month : string * month : string *
year : string * year : string *
url : string * url : string *
note : string * note : string *
mdate : string * mdate : string *
cite : string * cite : string *
ee : string * ee : string *
cdrom : string * cdrom : string *
isbn : string * isbn : string *
} }
....

55. DBLP Data
~ 800,000 Authors
~ 1,200,000 Publications
~ 14,000,000 Lines of XML
~ 16,000,000 Database records

56. Publication { abstract PrintPublication - Publication
key : string Unique {
title : string pages : string
authors - Author + Ind publisher : string ?
month : string firstpage : int
year : string lastpage : int ?
dblpUrl : string ? }
doi : string
links - Link * Article - PrintPublication {
abstract : string journalname : string
note : string volumenumber: string
annote : string issuenumber : string
modified : date }
modifiers - User *
cites - Publication * Alias {
ee : string ? name : string Unique
isbn : string }
issn : string
conflicts : bool AbstractAuthor {
} alias - Alias
}

57. Migration Approach
Load objects into database
9 Stages of migration
Generate SQL

58. Bridging
Meta levels

60. article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rating : string ?
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string ? number : string ?
} }
?Transformation(path, Substitution(newName), _)
renameType(|oldType, newName)
UPDATE At
SET t=newName
WHERE t = ...;

61. Proceedings - Collection { Proceedings - Collection {
booktitle : string ? conference : string ?
} }
?Transformation(path, Substitution(newName), _)
renameAtt(|oldName, newName, type, dmodel)
UPDATE At
SET n = newName
WHERE n = oldName
AND t = <getSubTypeQuery(|dmodel)> type;

62. abstract Thesis - Publication { abstract Thesis - Publication {
school : string school : string
} type : string ?
}
?Transformation(path, Addition(Att(Name(attName), PrimType(_), annotations)),_);
<getAttAnn(|"MinCard")> annotations; ?0
...
...

63. abstract Thesis - Publication { abstract Thesis - Publication {
school : string school : string
} type : string
}
?Transformation(
path,
Addition(Att(Name(attName), PrimType(_), annotations)),
_
);
<getAttAnn(|"MinCard")> annotations; ?low
<addDefaultAttributesToType(|
type, <make­int> low, attName, attType, mmodel
)> model;
onType(
addDefaultAttributes(|type, nr, attName, attType)
| type, mmodel)

64. onType
1. find objects of type
2. divide into chunks
3. per chunk in parallel
Load objects in chunk
per object
s
save object if changed

65. Publication { Publication {
key : string Unique key : string Unique
title : string ? title : string ?
authors : string + Indexed authors - Author + Indexed
year : string year : string
... ...
} }
Author {
alias : string
}
?Transformation(path, Substitution(DeclType(Name(newTypeName))), _)
...
Author alias mandatory
Author alias not unique
onType(
for each author
create author object
set author attribute
)

66. Author { Author {
alias : string alias : Alias
} }
Alias {
name : string Unique
?Transformation(path, Substitution(DeclType(Name(newTypeName))), _)
...
Alias name mandatory
Alias name unique
onType(
if alias exists then
set alias attribute to existing id
else
create alias object
set alias attribute to new id
)

67. Supported transformations
Identity
Primitive attribute addition (3)
Complex attribute addition
Attribute removal
Attribute name change
Attribute move (2)
Primitive type change
Implicit reference resolution
Attribute wrapping
Type addition
Type removal
Type name change
Abstract type handling
Inverse annotation handling (2)
Cardinality changes (2)

68. In memory vs. Database transformations
Easy to define Hard to define
Easy to optimize No need to optimize
Expressive Limited expressiveness
Easy to abstract Abstraction near impossible
Performance OK Performance great

69. Detecting
Evolution

71. article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rating : string ?
journal : string ? diff? journal : string ?
volume : string ? volume : string ?
number : string ? number : string ?
} }

73. article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rating : string ?
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string ? number : string ?
} }
Entity( Entity(
Name(“article”), Name(“Article”),
Name(“PrintPublication”), Name(“PrintPublication”),
[ [
Att( Att(
Name(“reviewid”), Name(“reviewid”),
PrimType( PrimType(
Name(“string”)), Name(“string”)),
[ [
MinCard(0), MinCard(0),
MaxCard(1) MaxCard(1)
] ]
), ),
... ...
] ]
) )

74. article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rating : string ?
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string ? number : string ?
} }
Entity( Entity(
Name(“article”), Name(“Article”),
Name(“PrintPublication”), Name(“PrintPublication”),
[ [
Att( Att(
Name(“reviewid”), Name(“reviewid”),
PrimType( PrimType(
Name(“string”)), diff? Name(“string”)),
[ [
MinCard(0), MinCard(0),
MaxCard(1) MaxCard(1)
] ]
), ),
... ...
] ]
) )

75. article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rating : string ?
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string ? number : string ?
} }
What happened?
Removed type article; Added type Article
Added type article; Removed type Article
Substituted article name with Article

76. Article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rate : string
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string nr : string ?
} }
What happened?
renamed rating; renamed number;
changed rating cardinality; changed number cardinality

77. Article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rate : string
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string nr : string ?
} }
What happened?
renamed rating; renamed number;
changed rating cardinality; changed number cardinality
swapped rating and number;
renamed rating; renamed number

78. Article - PrintPublication { Article - PrintPublication {
reviewid : string ? reviewid : string ?
rating : string ? rate : string
journal : string ? journal : string ?
volume : string ? volume : string ?
number : string nr : string ?
} }
What happened?
renamed rating; renamed number;
changed rating cardinality; changed number cardinality
swapped rating and number;
renamed rating; renamed number
deleted Article; added Article

79. Weighing transformations
Addition: 0.8 * relativeSize4
Removal: 0.5 * relativeSize4
Substitution 0.4 * relativeSize6
Custom weights:
Type removal
Type substitution (0)
Attribute substitution (0)

80. Try them all!
On both versions at the same time
Bound on weight
Increasing bound
Weight computation caching

82. Heterogeneous
Coupled Evolution

86. Horizontal Generalization

87. User
name :: varchar
realName :: varchar
email :: tinytext Entities
Properties
Page
title :: varchar Types
author  User
isRedirect :: boolean
Meta model / Grammar

89. Lists
More types
Inverse associations
Abstract types

90. Vertical Generalization

91. Heterogeneous
Coupled Evolution
of
Software Languages

92. The ingredients
Software Language
Definition Formalism
Evolving
Software Language
Software

93. Diverse
Evolution
What did we generalize?
Why did we generalize?

94. A Generic
Architecture

98. Input
Coupled evolution scenario
Mapping from Mi to Mi+1

99. Output
Domain Specific
Transformation Language
(DSTL)
Transformation Interpreter
Software Migration

100. SDF SDF
Stratego

101. Entity* ­> DataM Model
Id "{" Prop* "}" ­> Entity Entity
Id "::" Type ­> Prop Prop
"int" ­> Type Int
"bool" ­> Type Bool
Id ­> Type
"set of" Type ­> Type Set
NAME ­> Id Id

102. Lists [...]
Entity* ­> DataM Model
"add" Entity ­> LocalTransformation
"remove" ­> LocalTransformation

103. Lexicals ''...''
NAME ­> Id Id
"substitute" NAME ­> LocalTransformation

104. Multiple productions ­>*
"int" ­> Type Int
"bool" ­> Type Bool
Id ­> Type
"set of" Type ­> Type Set
"substitute" Type ­> LocalTransformation

105. Type checking .../...
"at" APath LocalTransformation ­> Transformation
Generation of local transformation domains
APath type derivation
Type checking

106. Larger grammars
Transform
Constant

108. Interpreter generation
Transformations library
Generic DSTL constructs
APath evaluation

109. A Generic
Architecture

110. Software
Language
Evolution
This research was supported by NWO/JACQUARD project
638.001.610, MoDSE: Model­Driven Software Evolution.
