Building a Social Network with MongoDB

Building a Social Network with MongoDB
Brian Zambrano

MongoSV
December 3, 2010

1

Friday, December 3, 2010

Eventbrite Brand Tenets

2


Eventbrite Brand Tenets

3

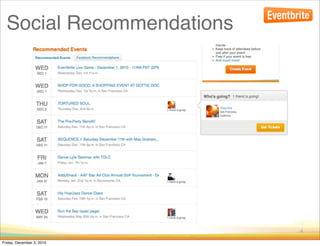

Social Recommendations

4

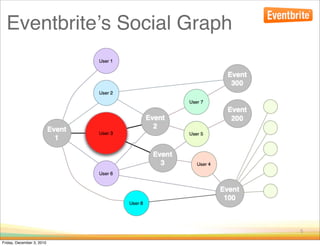

Eventbriteʼs Social Graph

5

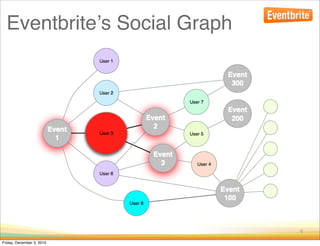

Eventbriteʼs Social Graph

6

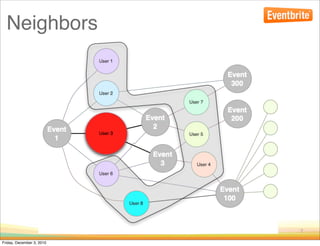

Neighbors

7

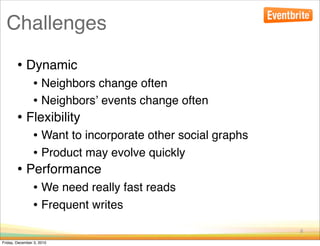

Challenges

• Dynamic
• Neighbors change often
• Neighborsʼ events change often
• Flexibility
• Want to incorporate other social graphs
• Product may evolve quickly
• Performance
• We need really fast reads
• Frequent writes
8

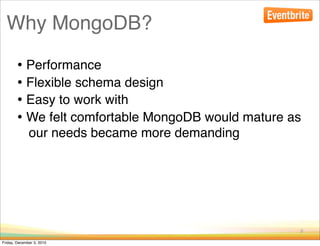

Why MongoDB?

• Performance
• Flexible schema design
• Easy to work with
• We felt comfortable MongoDB would mature as
our needs became more demanding

9

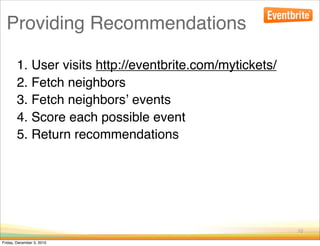

Providing Recommendations

1. User visits http://eventbrite.com/mytickets/
2. Fetch neighbors
3. Fetch neighborsʼ events
4. Score each possible event
5. Return recommendations

10

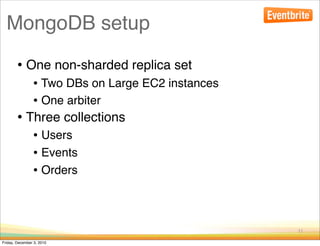

MongoDB setup

• One non-sharded replica set
• Two DBs on Large EC2 instances
• One arbiter
• Three collections
• Users
• Events
• Orders

11

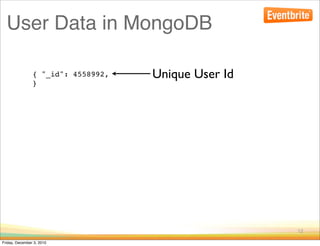

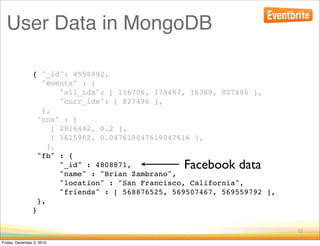

User Data in MongoDB

{ "_id": 4558992, Unique User Id
}

12

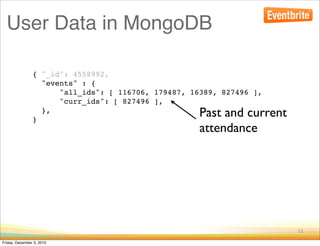

{ "_id": 4558992,
"events" : {
"all_ids": [ 116706, 179487, 16389, 827496 ],
"curr_ids": [ 827496 ],

}
},
Past and current
attendance

13



{ "_id": 4558992,
"events" : {
"all_ids": [ 116706, 179487, 16389, 827496 ],
"curr_ids": [ 827496 ],
},
"nns" : [
[ 2816442, 0.2 ],
[ 1615962, 0.047619047619047616 ],
],
} Nearest neighbors
(user_id, score)

14



{ "_id": 4558992,
"events" : {
"all_ids": [ 116706, 179487, 16389, 827496 ],
"curr_ids": [ 827496 ],
},
"nns" : [
[ 2816442, 0.2 ],
[ 1615962, 0.047619047619047616 ],
],
"fb" : {
"_id" : 4808871, Facebook data
"name" : "Brian Zambrano",
"location" : "San Francisco, California",
"friends" : [ 568876525, 569507467, 569559792 ],
},
}

15

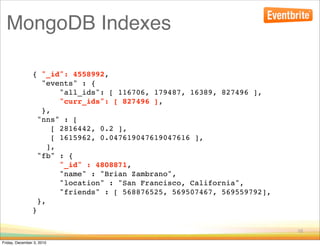

MongoDB Indexes

{ "_id": 4558992,
"events" : {
"all_ids": [ 116706, 179487, 16389, 827496 ],
"curr_ids": [ 827496 ],
},
"nns" : [
[ 2816442, 0.2 ],
[ 1615962, 0.047619047619047616 ],
],
"fb" : {
"_id" : 4808871,
"name" : "Brian Zambrano",
"location" : "San Francisco, California",
"friends" : [ 568876525, 569507467, 569559792],
},
}

16

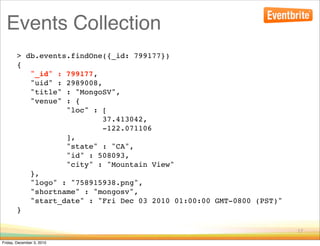

Events Collection
> db.events.findOne({_id: 799177})
{
"_id" : 799177,
"uid" : 2989008,
"title" : "MongoSV",
"venue" : {
"loc" : [
37.413042,
-122.071106
],
"state" : "CA",
"id" : 508093,
"city" : "Mountain View"
},
"logo" : "758915938.png",
"shortname" : "mongosv",
"start_date" : "Fri Dec 03 2010 01:00:00 GMT-0800 (PST)"
}

17

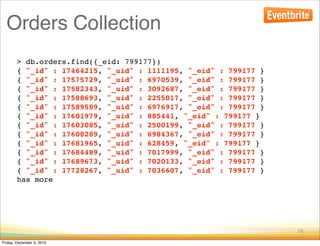

Orders Collection
> db.orders.find({_eid: 799177})
{ "_id" : 17464215, "_uid" : 1111195, "_eid" : 799177 }
{ "_id" : 17575729, "_uid" : 6970539, "_eid" : 799177 }
{ "_id" : 17582343, "_uid" : 3092687, "_eid" : 799177 }
{ "_id" : 17588693, "_uid" : 2255017, "_eid" : 799177 }
{ "_id" : 17589589, "_uid" : 6976917, "_eid" : 799177 }
{ "_id" : 17601979, "_uid" : 885441, "_eid" : 799177 }
{ "_id" : 17603085, "_uid" : 2500199, "_eid" : 799177 }
{ "_id" : 17608289, "_uid" : 6984367, "_eid" : 799177 }
{ "_id" : 17681965, "_uid" : 628459, "_eid" : 799177 }
{ "_id" : 17684489, "_uid" : 7017999, "_eid" : 799177 }
{ "_id" : 17689673, "_uid" : 7020133, "_eid" : 799177 }
{ "_id" : 17728267, "_uid" : 7036607, "_eid" : 799177 }
has more

18

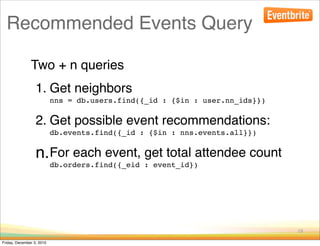

Recommended Events Query

Two + n queries
1. Get neighbors
nns = db.users.find({_id : {$in : user.nn_ids}})

2. Get possible event recommendations:
db.events.find({_id : {$in : nns.events.all}})

n.For each event, get total attendee count
db.orders.find({_eid : event_id})

19

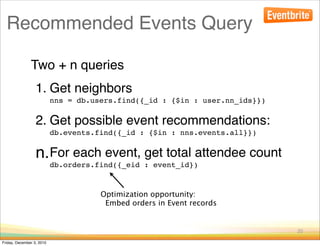

Recommended Events Query

Two + n queries
1. Get neighbors
nns = db.users.find({_id : {$in : user.nn_ids}})

2. Get possible event recommendations:
db.events.find({_id : {$in : nns.events.all}})

n.For each event, get total attendee count
db.orders.find({_eid : event_id})

Optimization opportunity:
Embed orders in Event records

20


Updating Neighbors
Two queries, one update
1. Get all orders for a userʼs past events:
uids = db.orders.find({_id : {$in : user.events.all}})

2. Get all neighbors:
nns = db.users.find({_id : {$in : uids}})

➡Score neighbors
3. Update nn_ids
db.users.update({_id : uid},
{$set : {nn_ids: nn}})

21

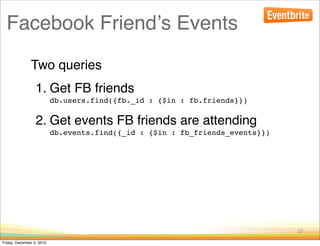

Facebook Friendʼs Events
Two queries
1. Get FB friends
db.users.find({fb._id : {$in : fb.friends}})

2. Get events FB friends are attending
db.events.find({_id : {$in : fb_friends_events}})

22

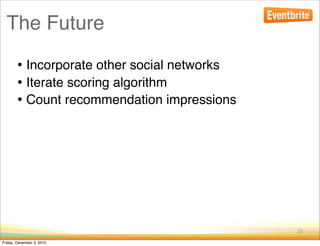

The Future

• Incorporate other social networks
• Iterate scoring algorithm
• Count recommendation impressions

23


Weʼre hiring!
http://www.eventbrite.com/jobs/

24

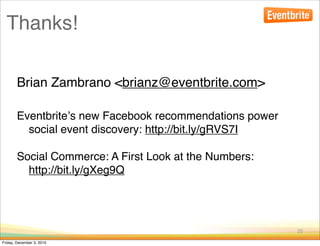

Thanks!

Brian Zambrano <brianz@eventbrite.com>

Eventbriteʼs new Facebook recommendations power
social event discovery: http://bit.ly/gRVS7I

Social Commerce: A First Look at the Numbers:
http://bit.ly/gXeg9Q

25
