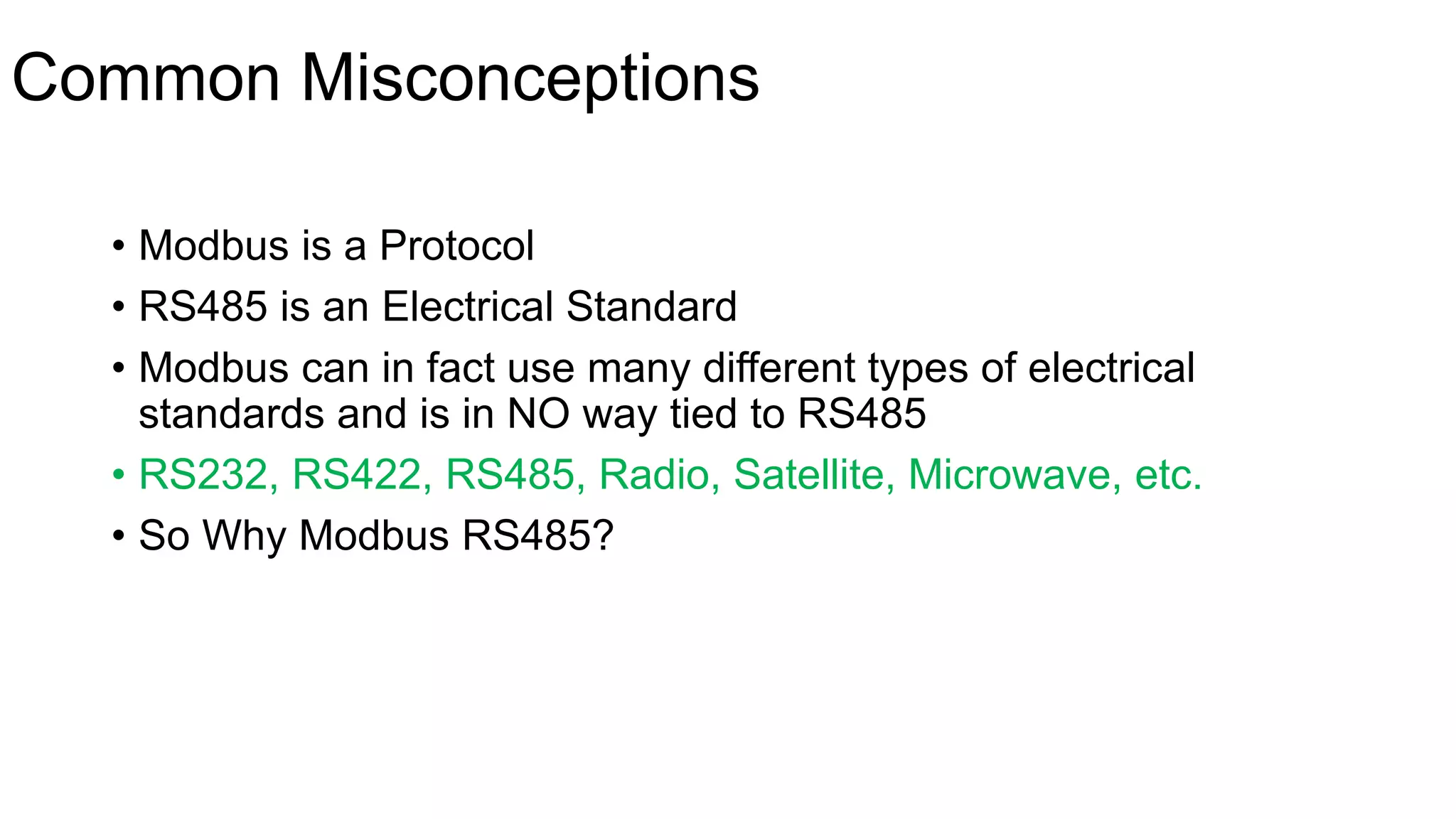

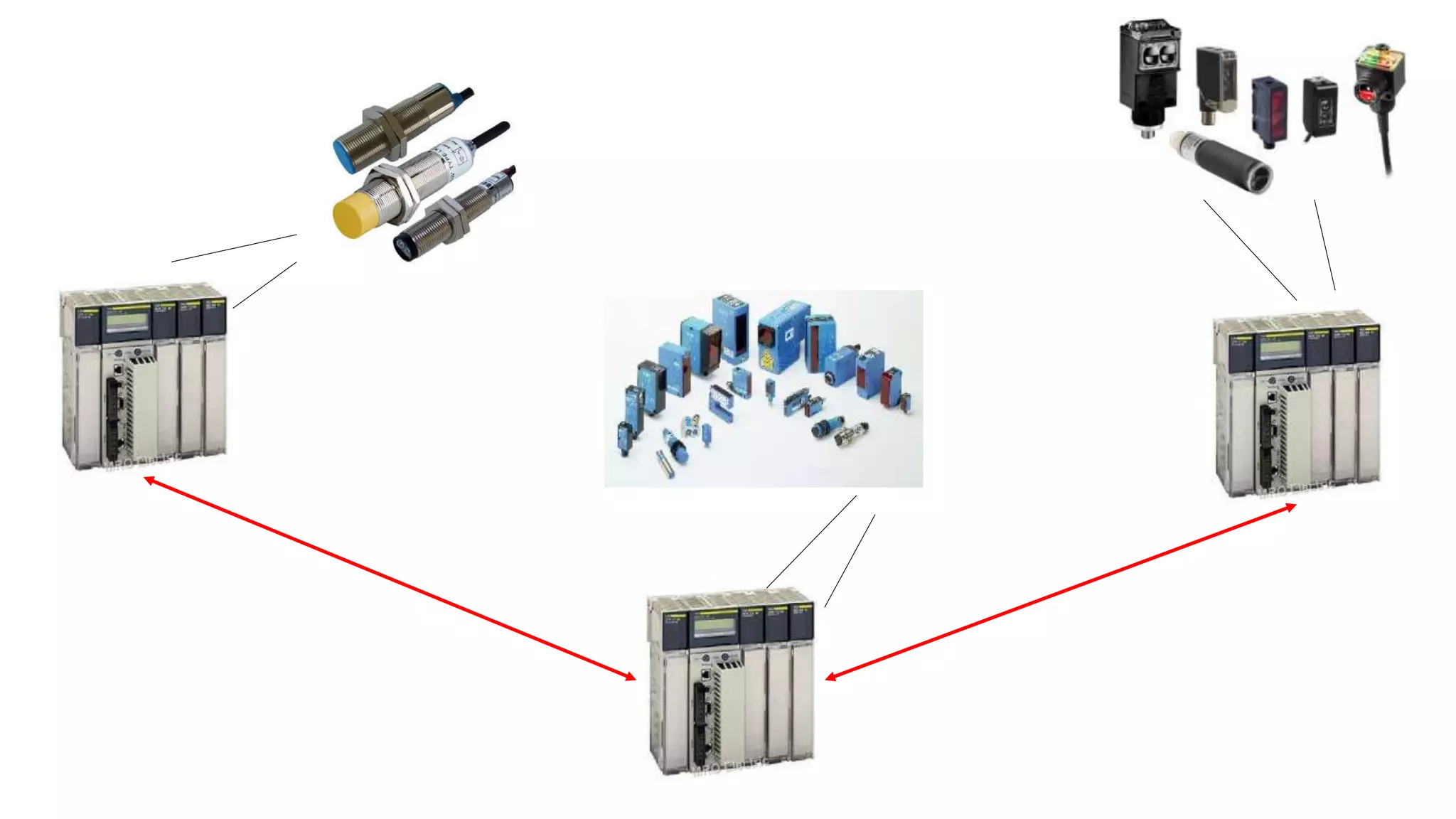

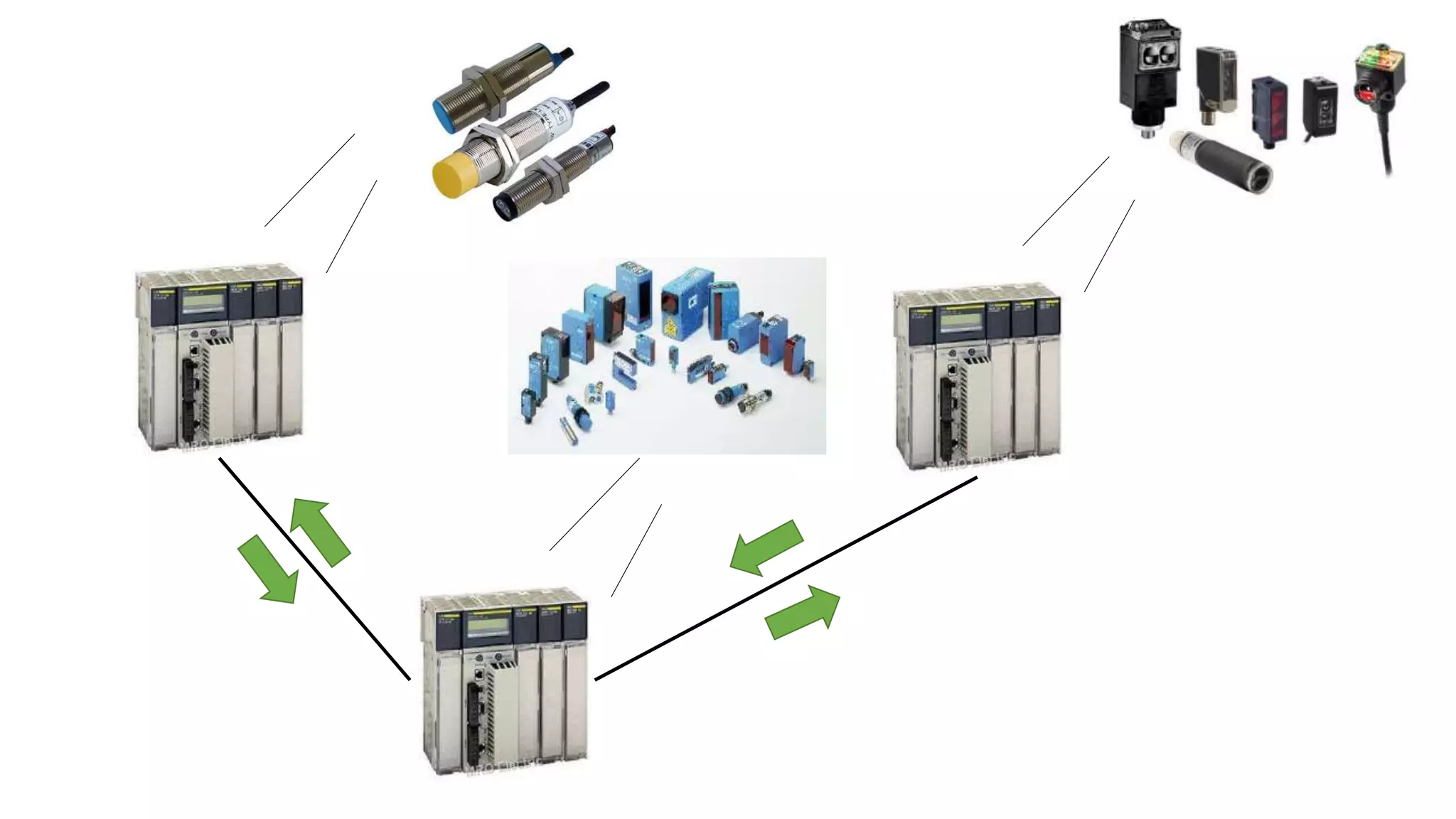

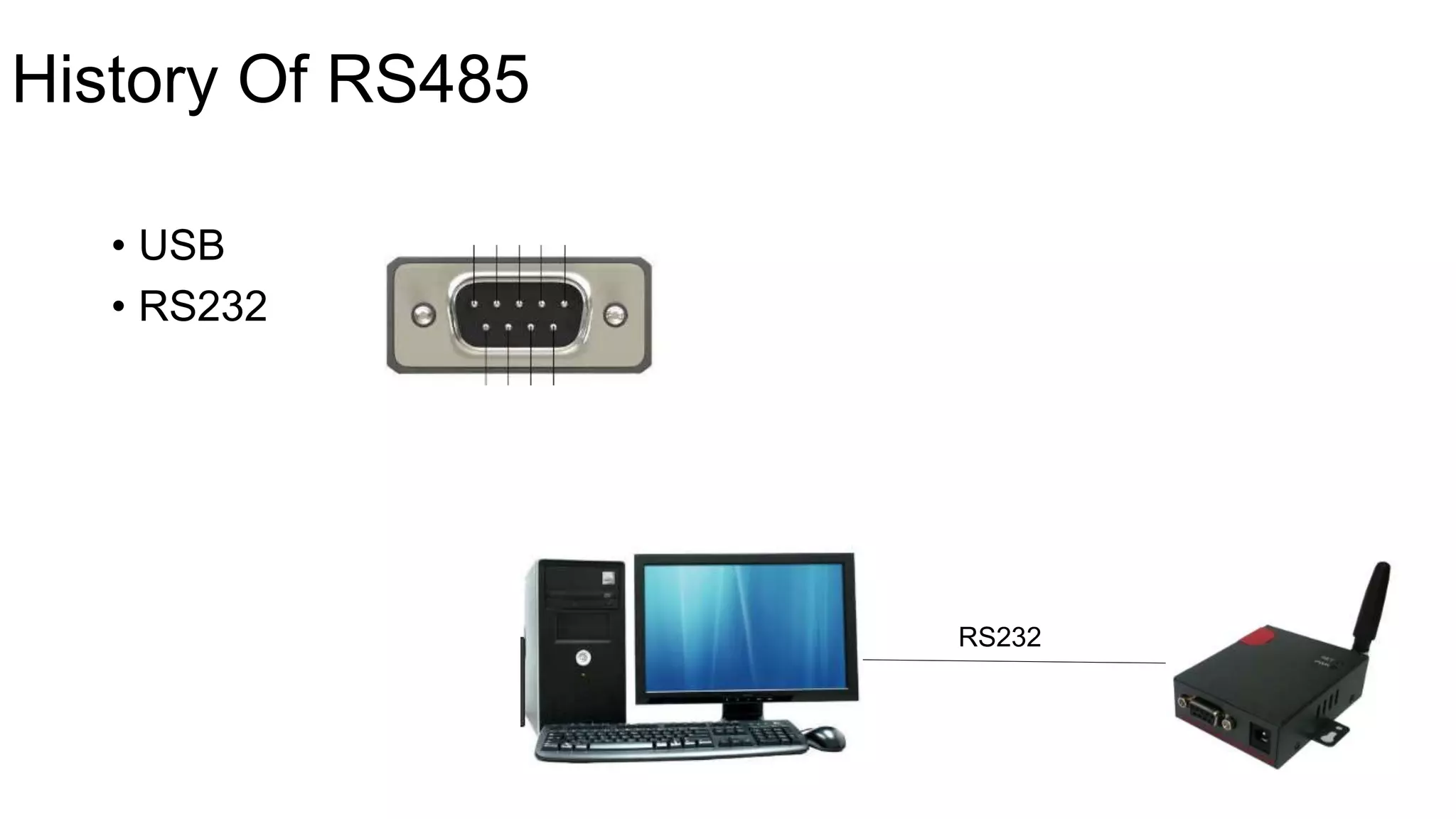

13. Common Misconceptions
• Modbus is a Protocol
• RS485 is an Electrical Standard
• Modbus can in fact use many different types of electrical
standards and is in NO way tied to RS485
• RS232, RS422, RS485, Radio, Satellite, Microwave, etc.

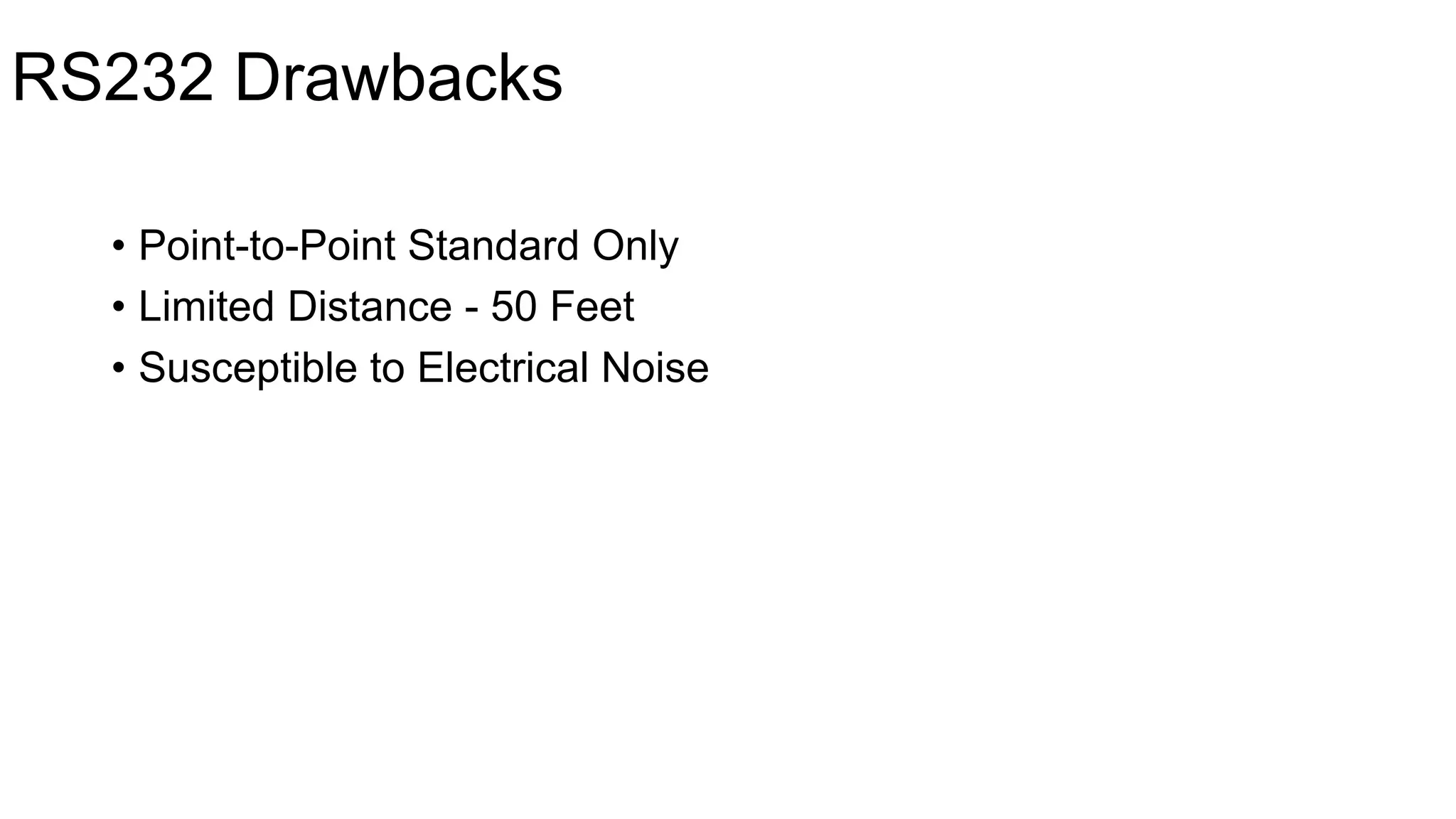

• So Why Modbus RS485?

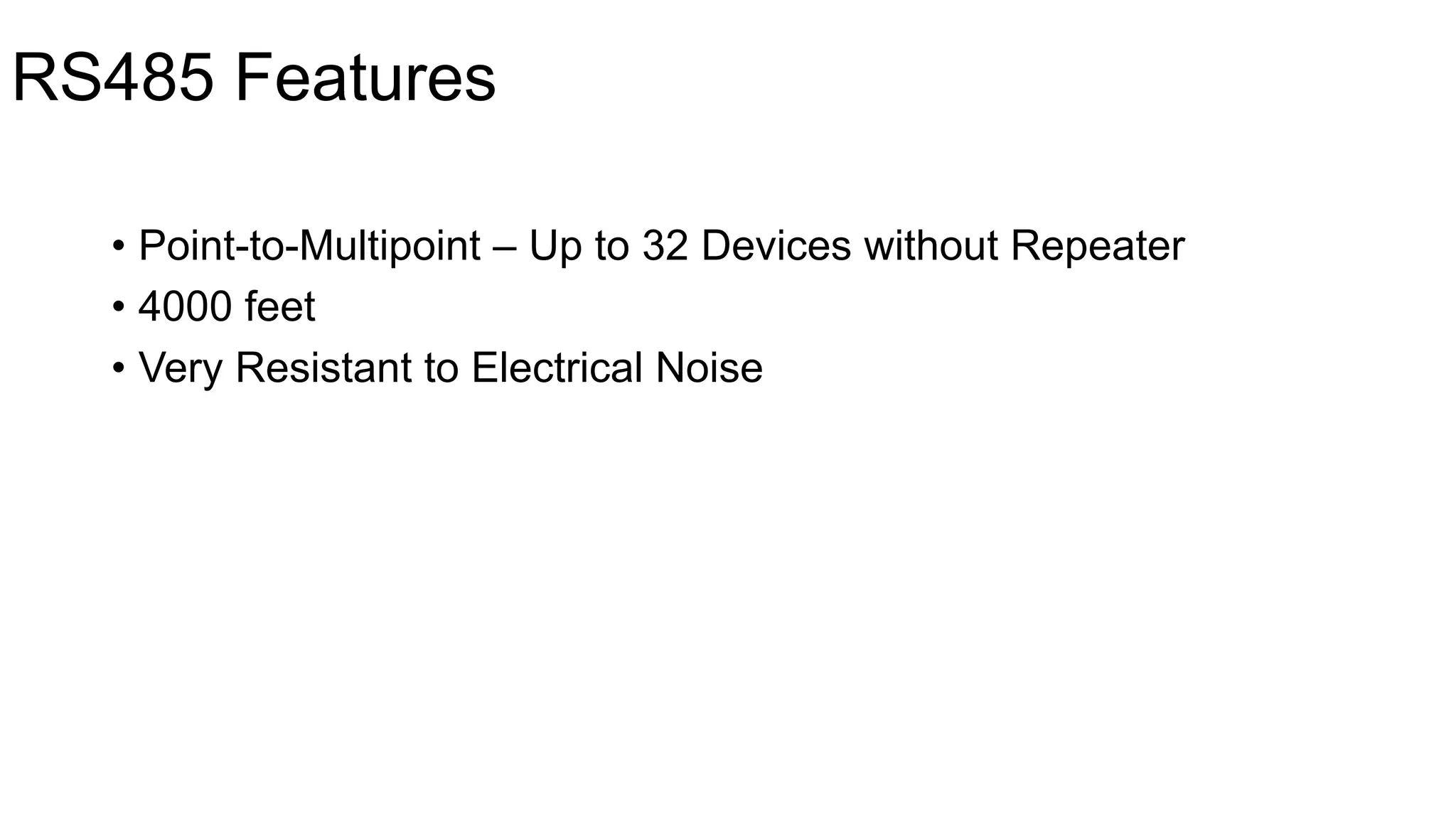

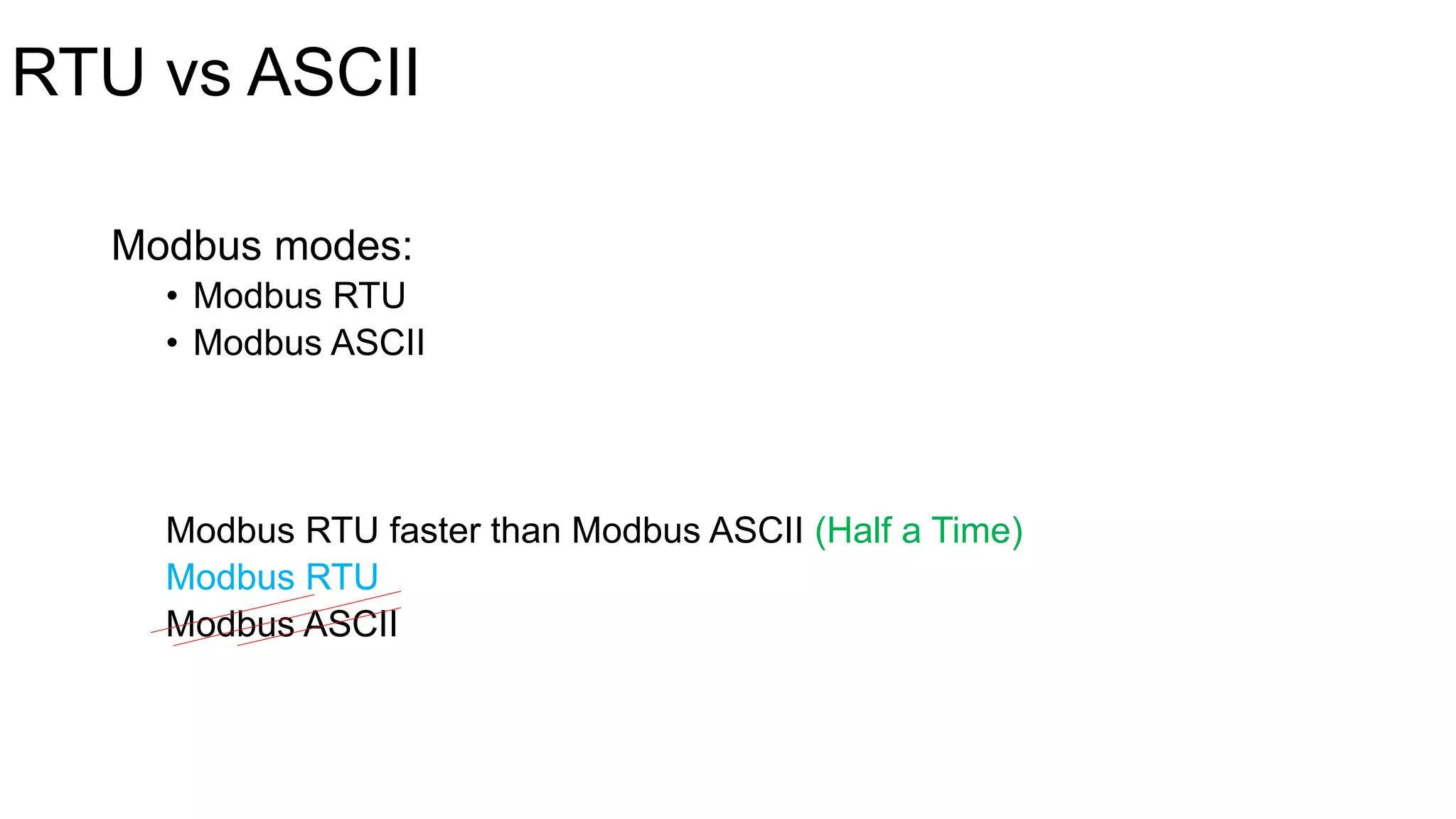

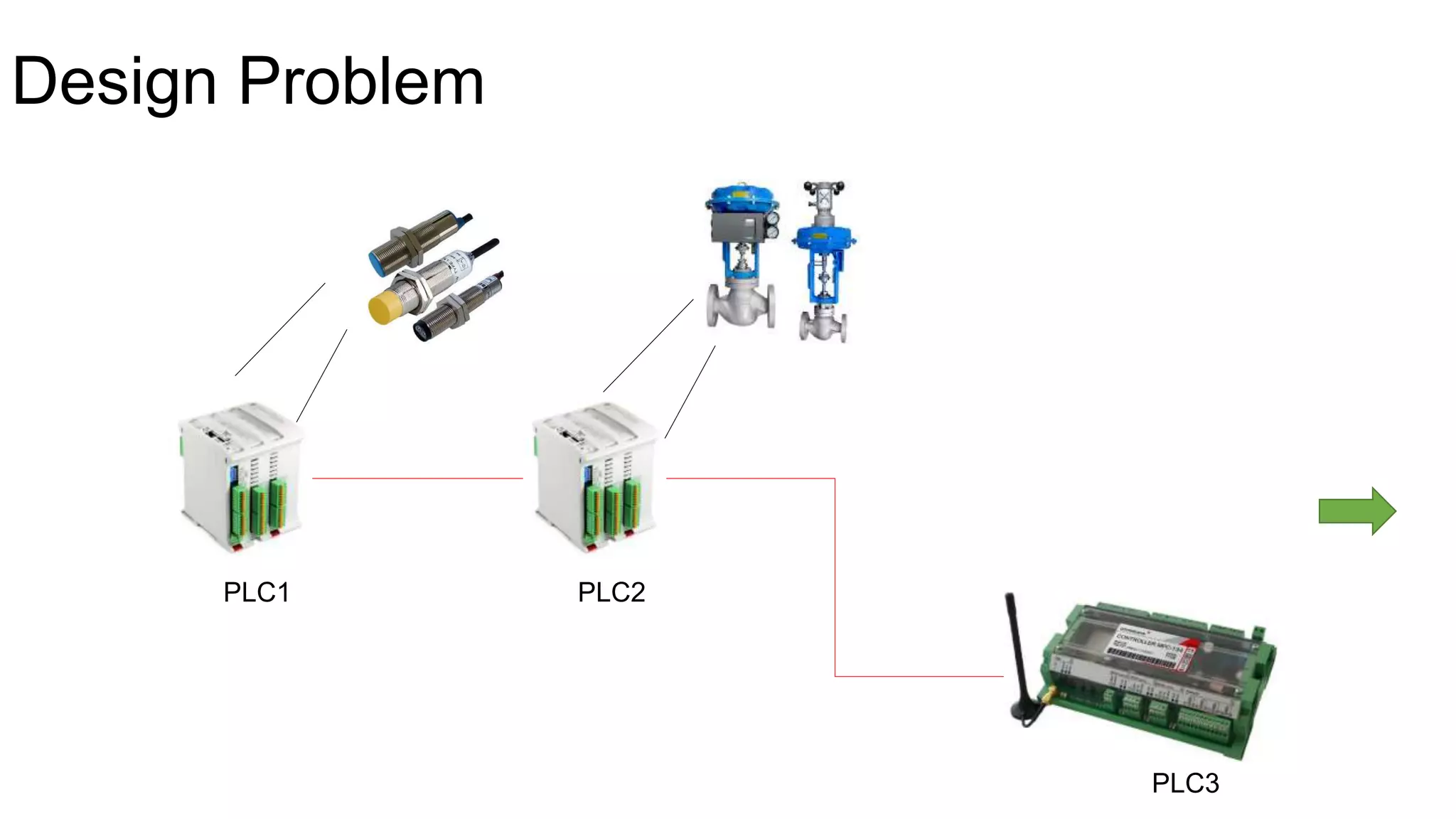

15. RTU vs ASCII
Modbus modes:
• Modbus RTU
• Modbus ASCII
Modbus RTU faster than Modbus ASCII (Half a Time)
Modbus RTU
Modbus ASCII

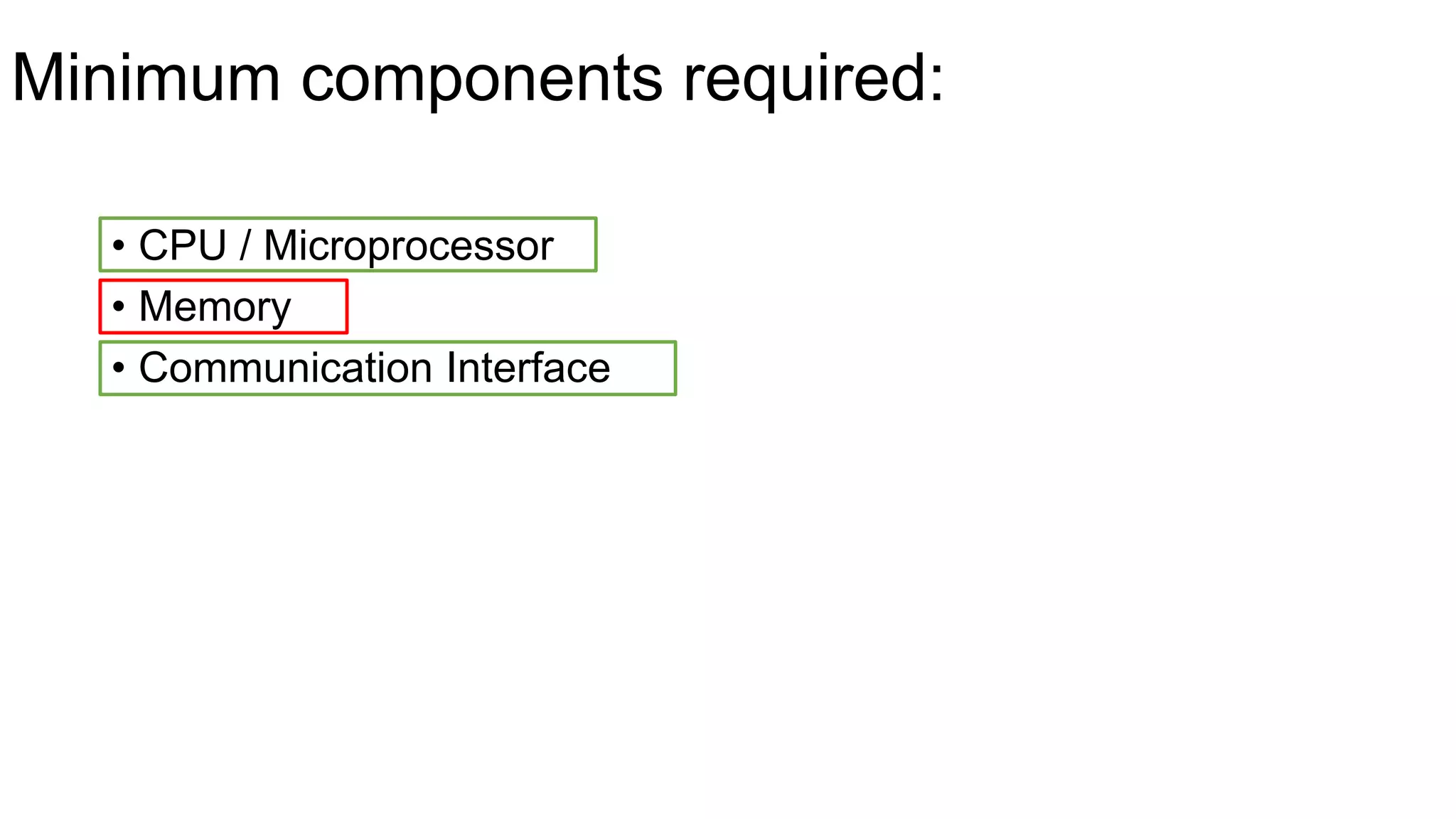

16. Modbus Device Components
• Example devices that support Modbus:

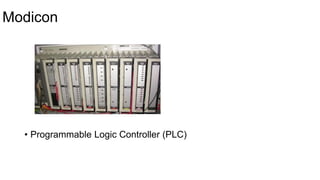

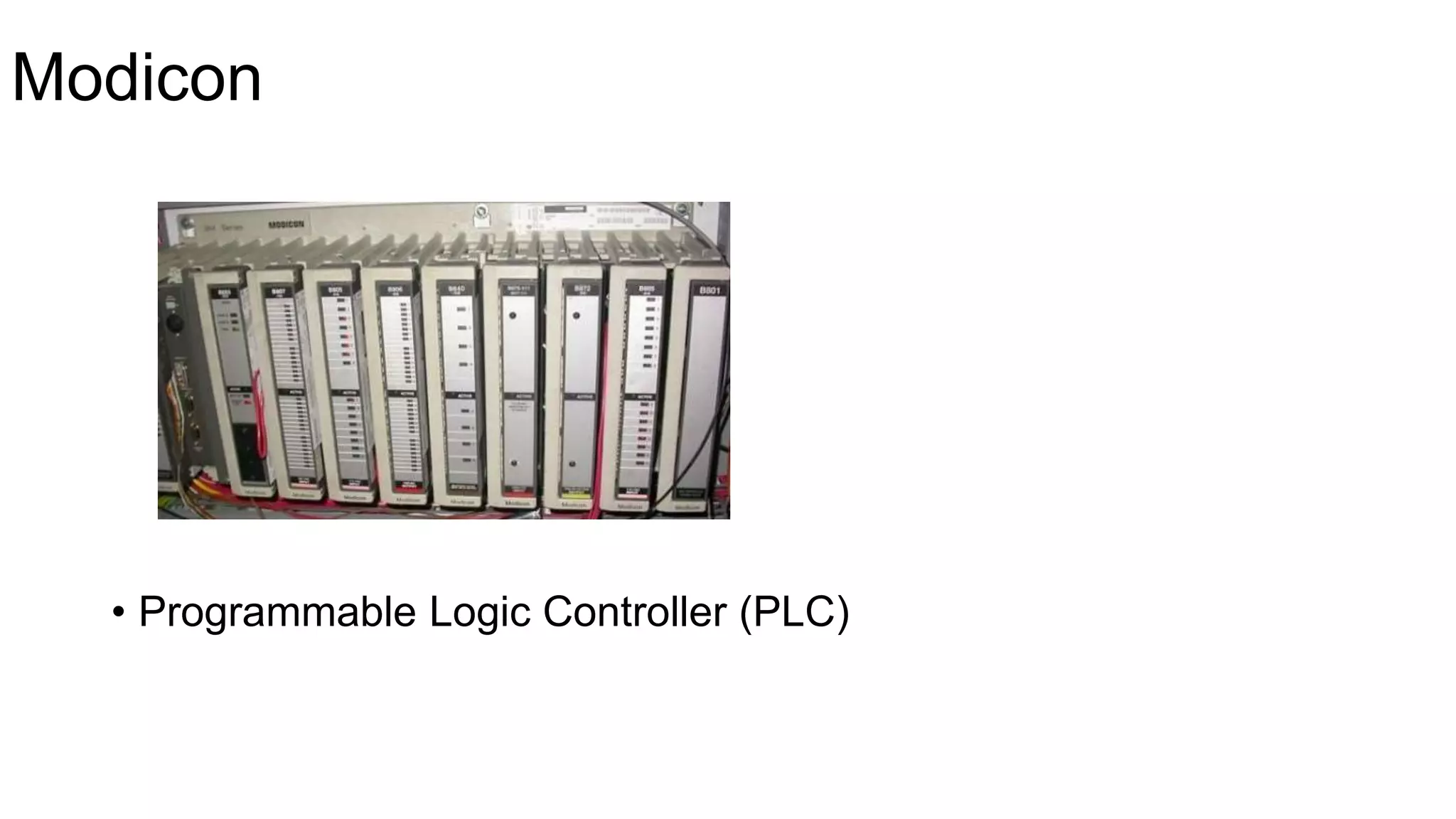

• Programmable Logic Controllers (PLCs)
• Remote Terminal Units (RTUs)
• Loop Controllers
• Power Meters
• Motor Controllers
• Pump Controllers
• etc.

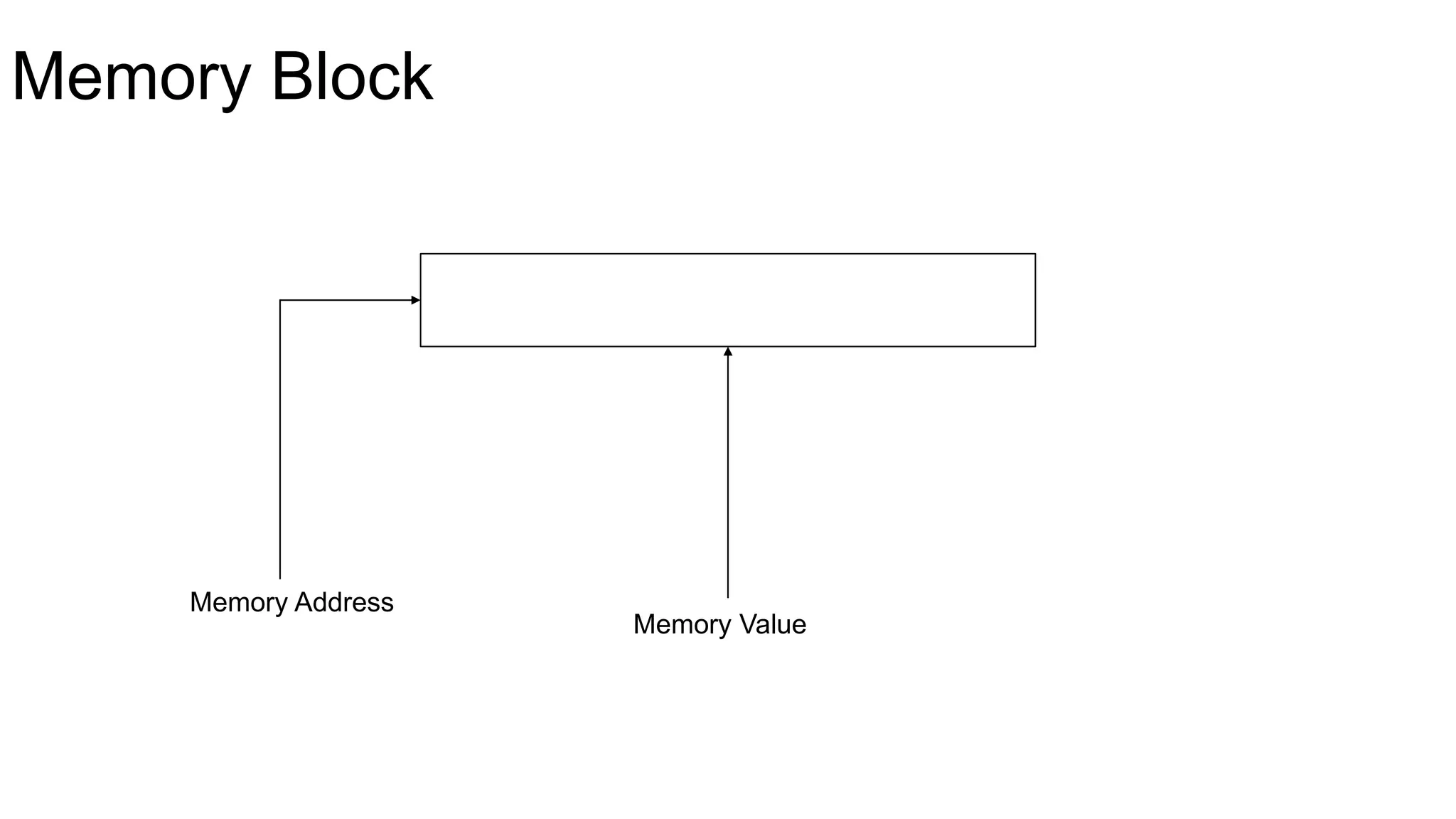

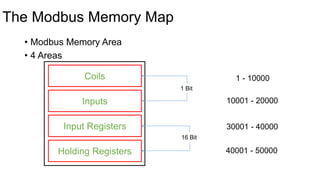

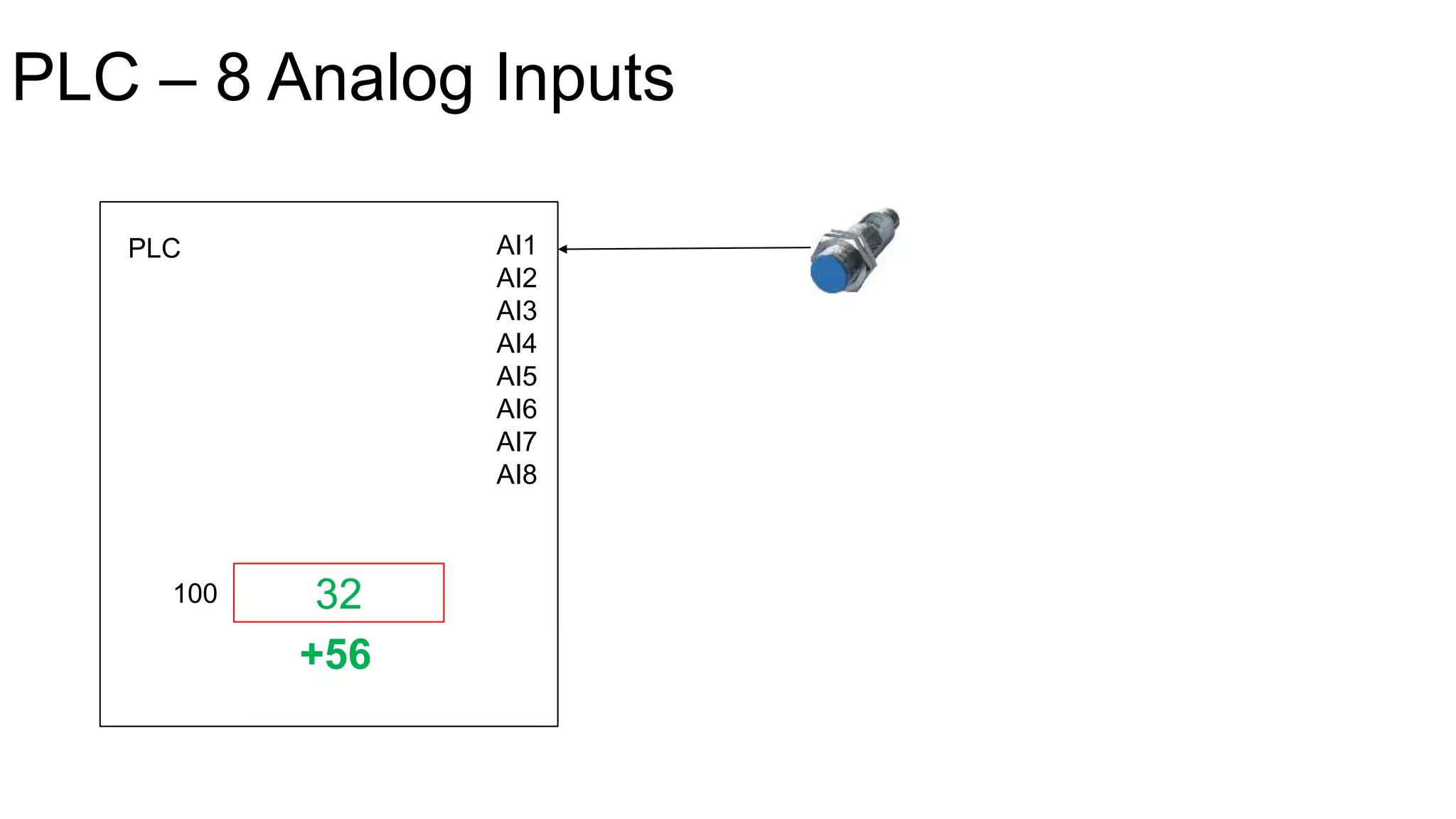

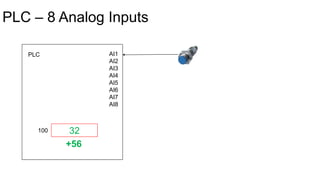

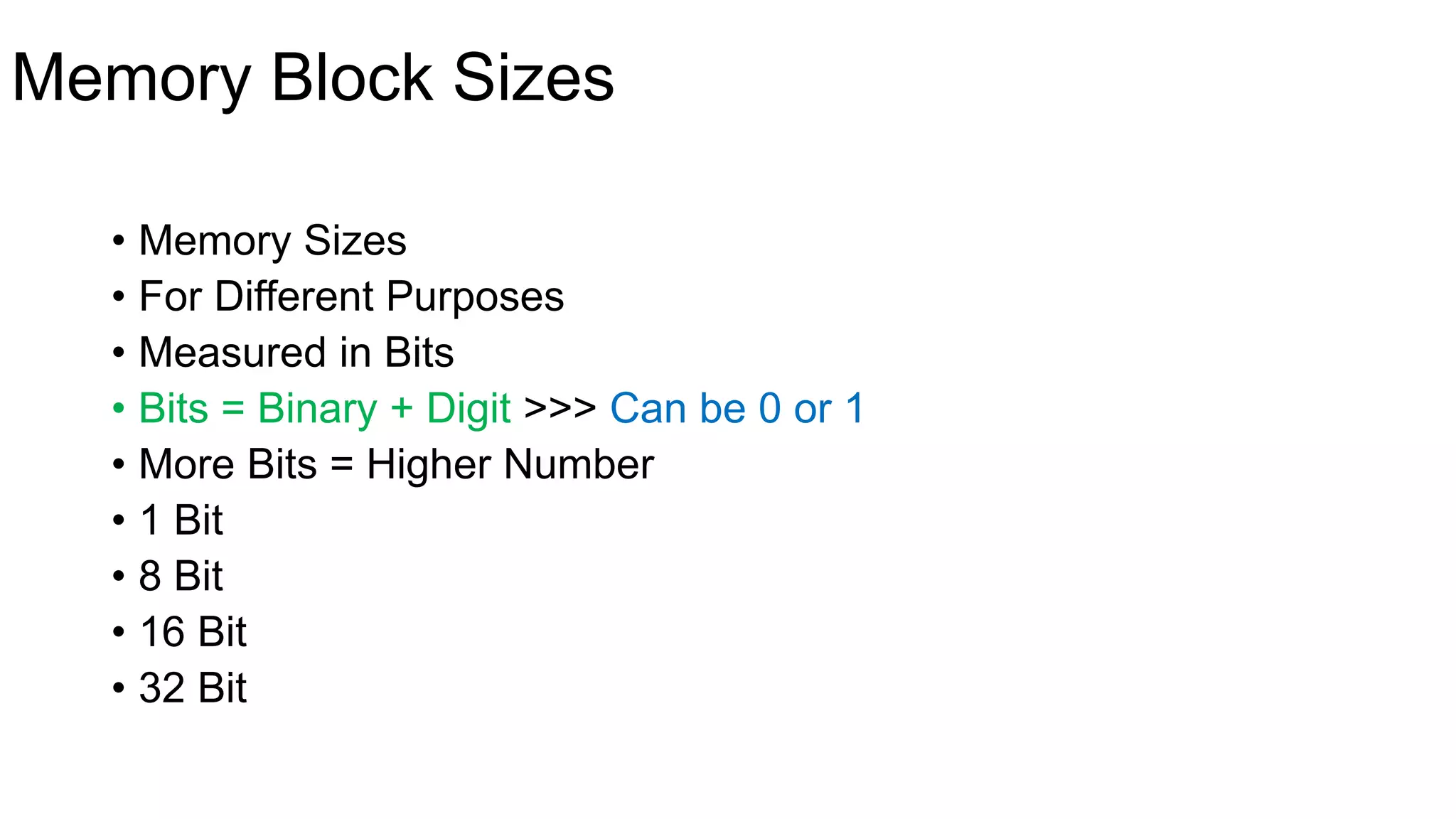

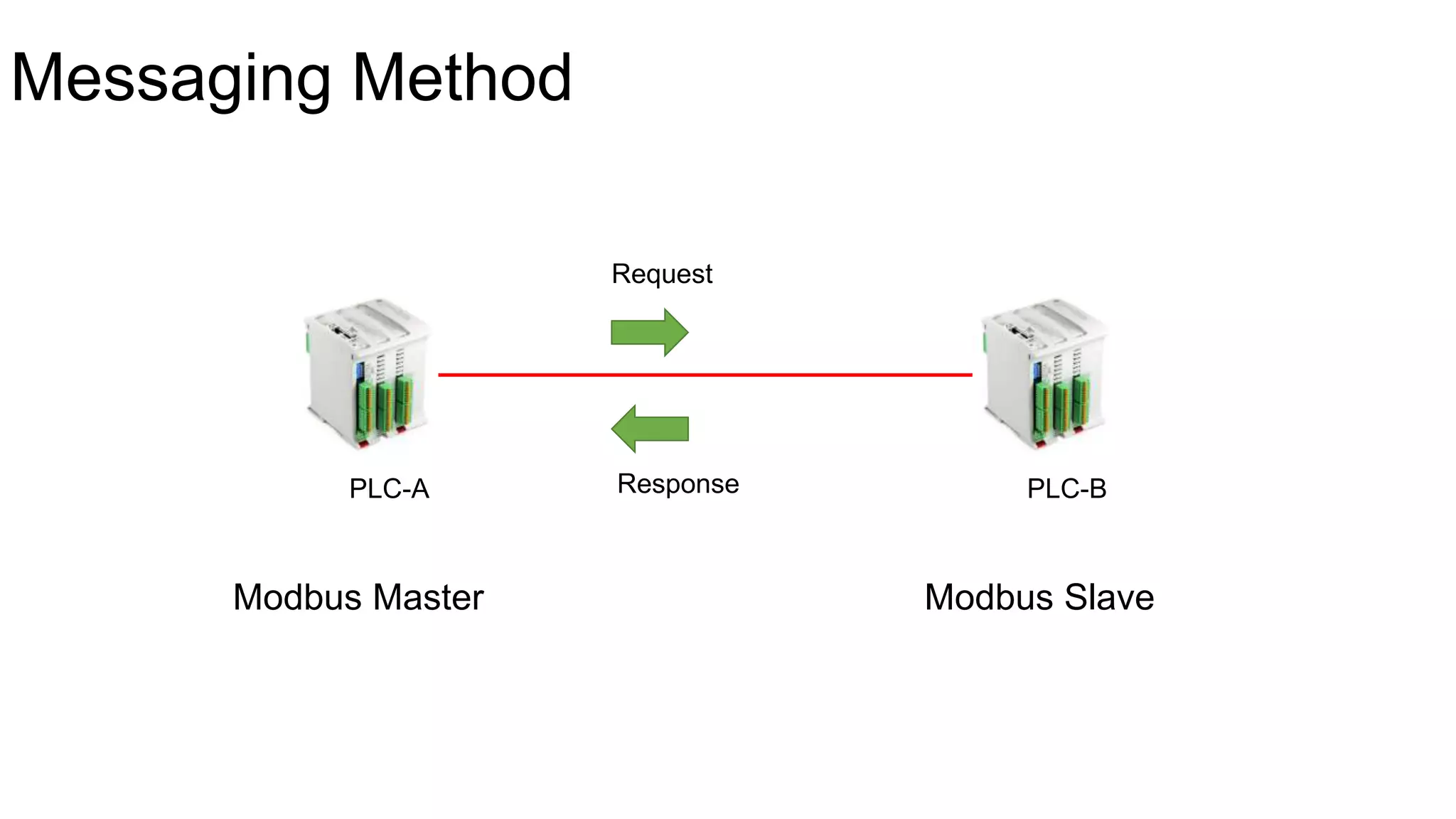

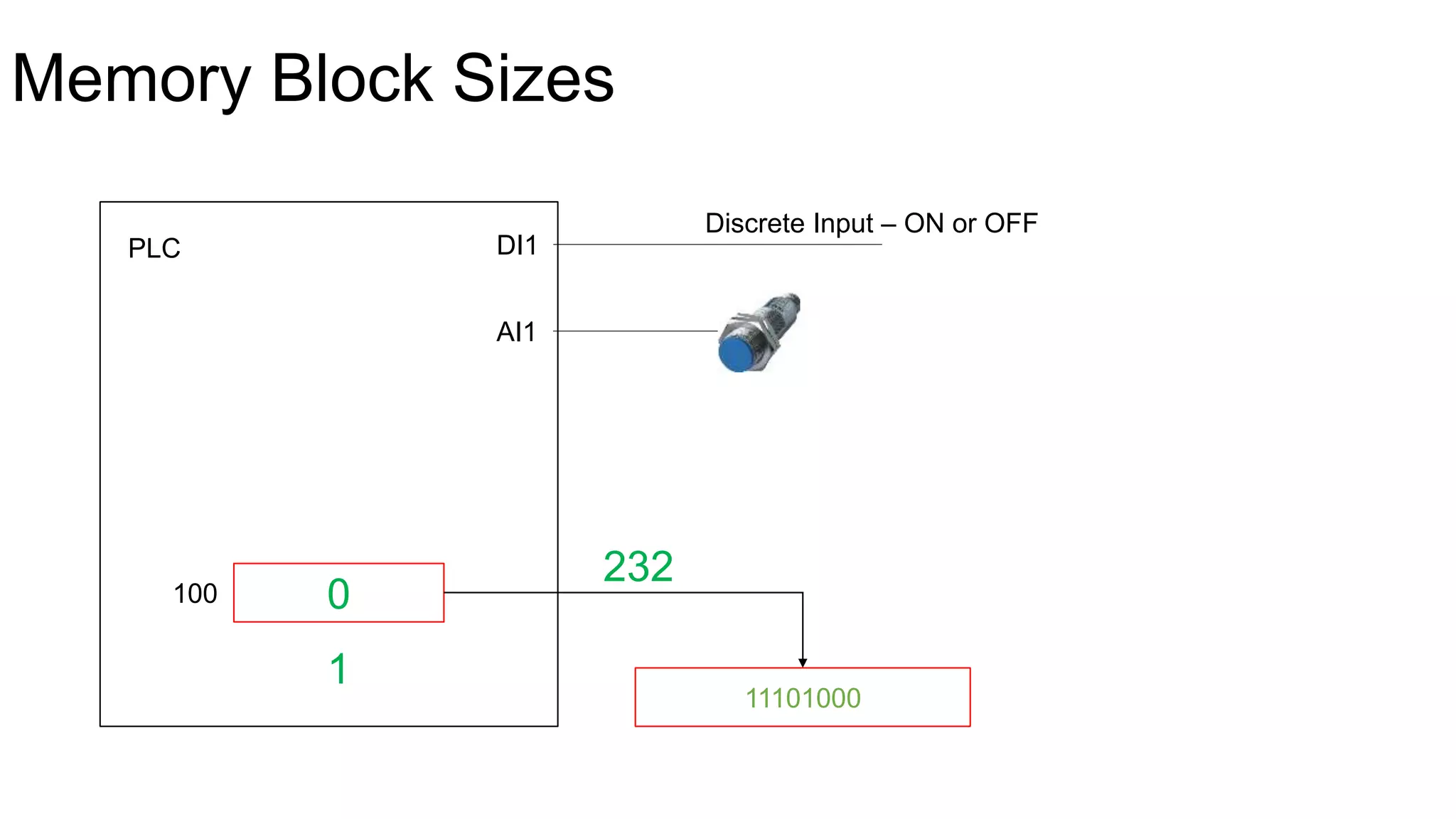

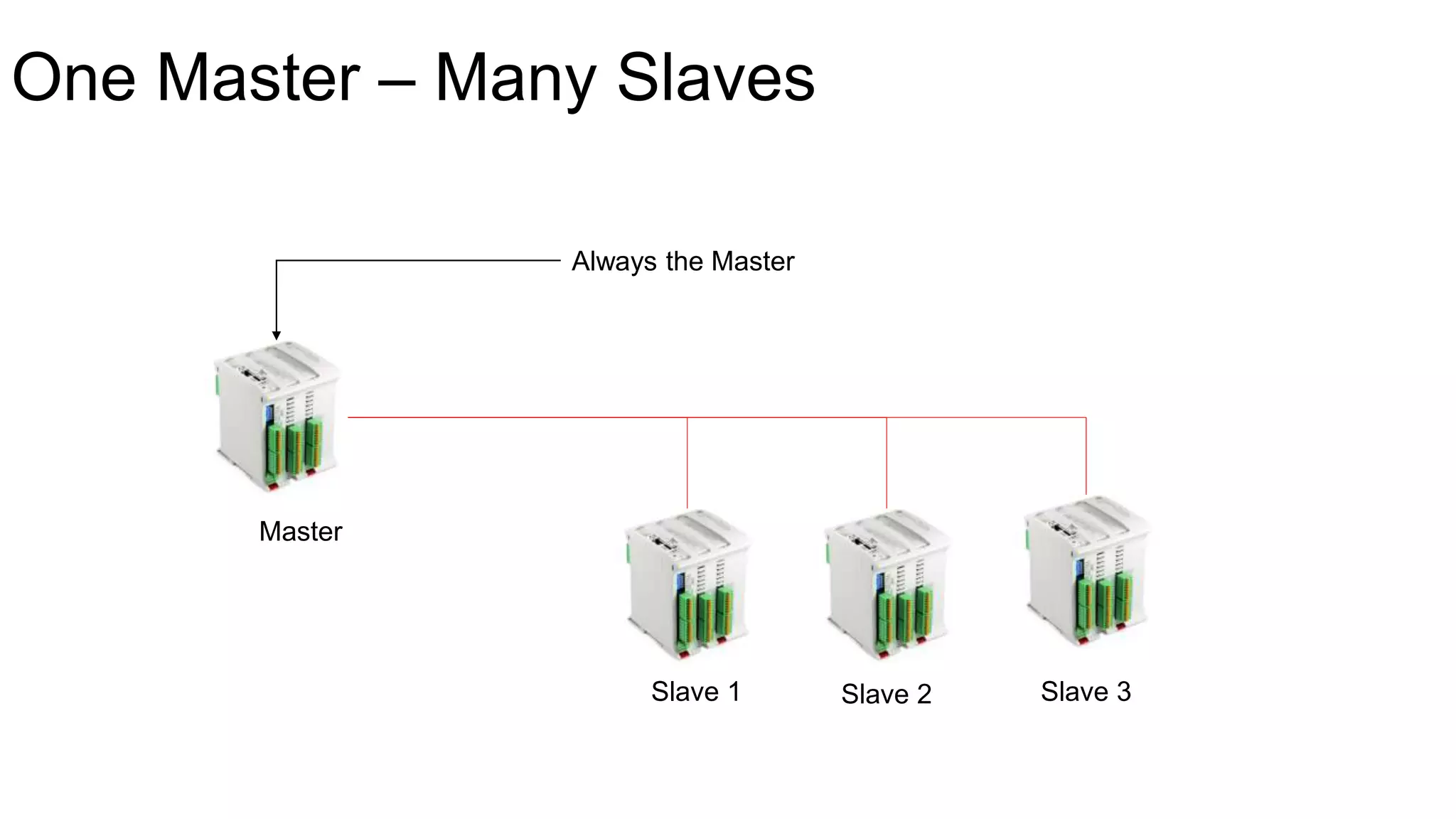

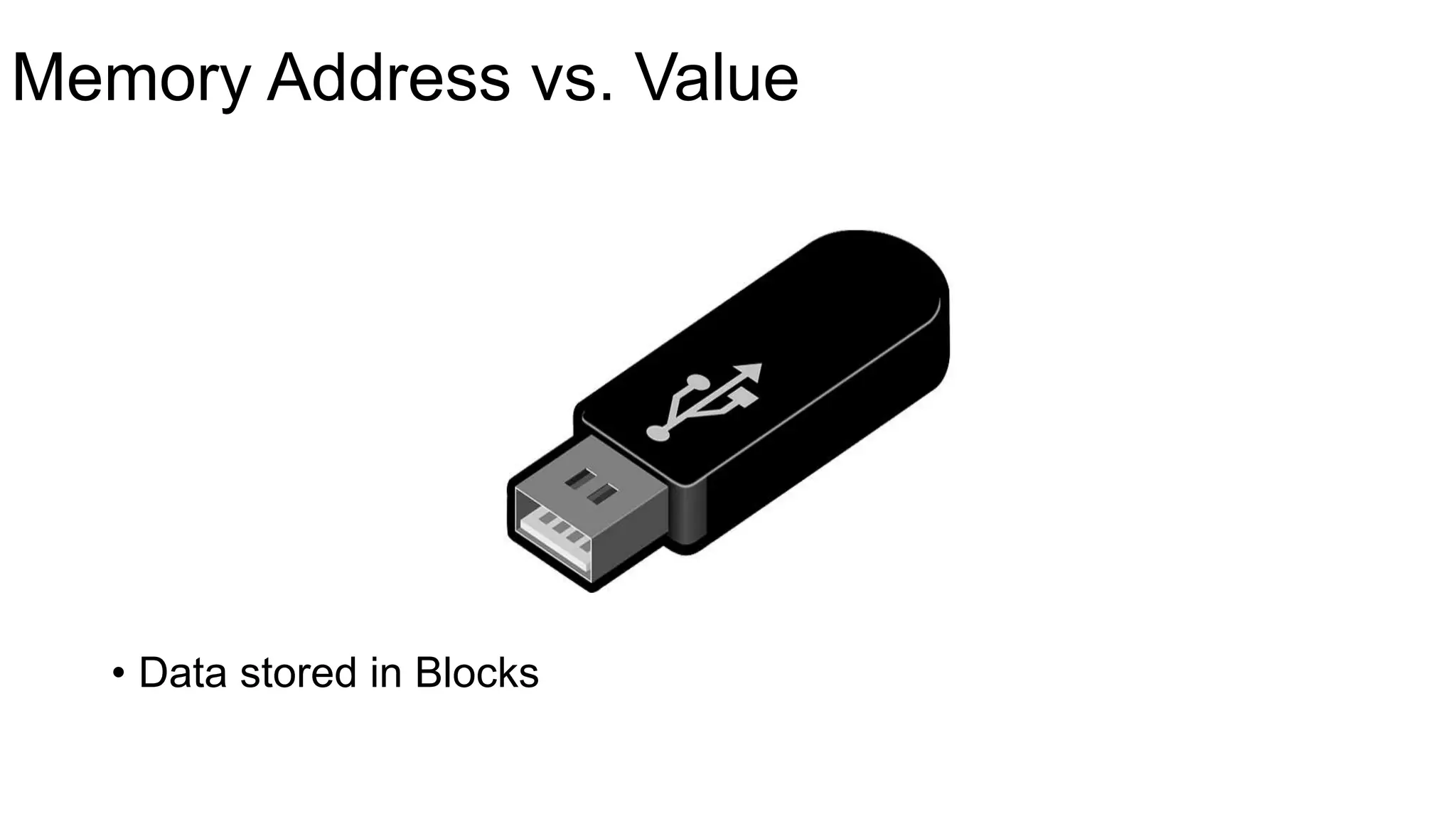

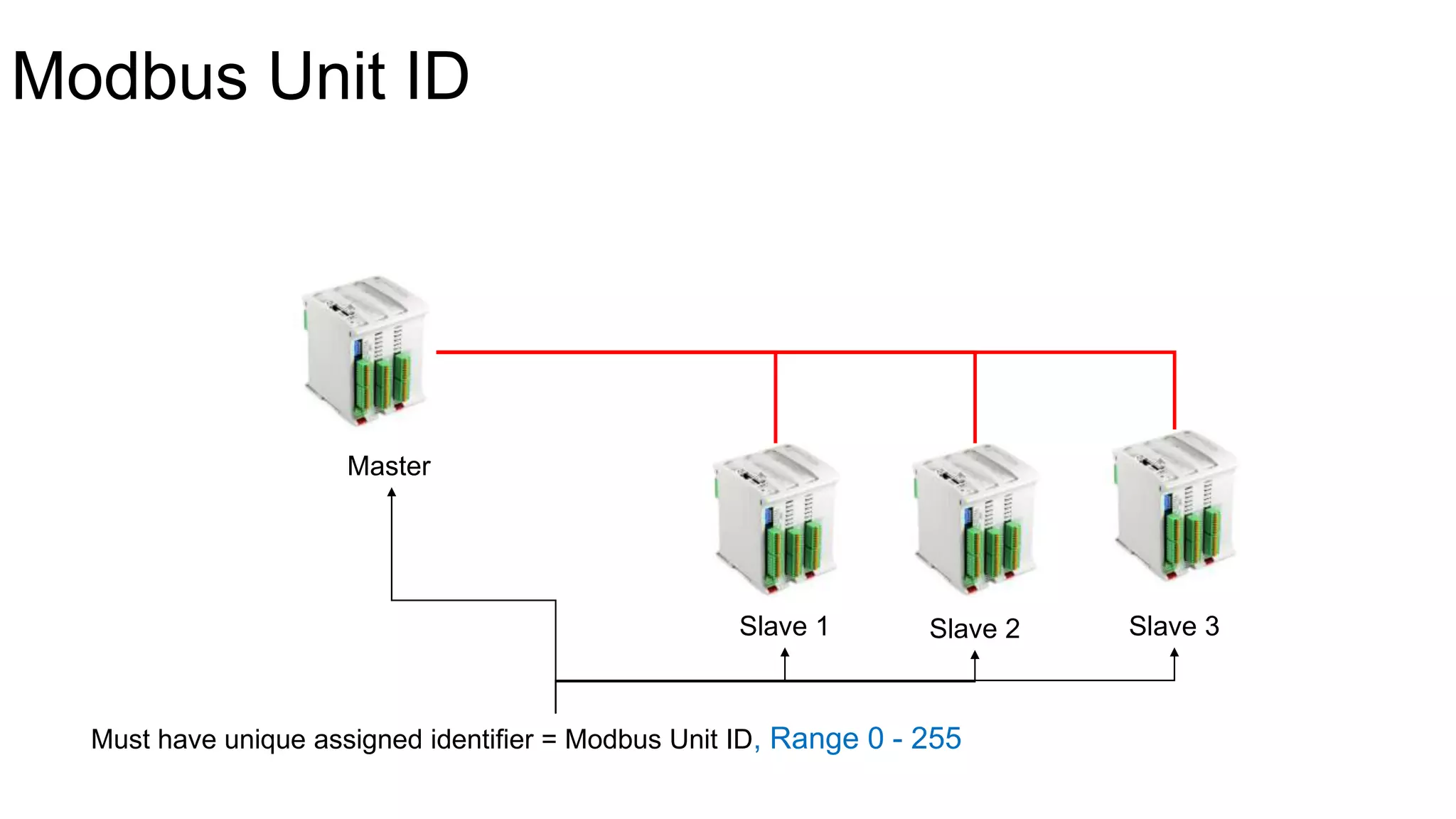

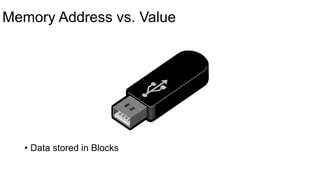

21. Memory Block Sizes
• Memory Sizes
• For Different Purposes
• Measured in Bits
• Bits = Binary + Digit >>> Can be 0 or 1
• More Bits = Higher Number
• 1 Bit
• 8 Bit
• 16 Bit
• 32 Bit

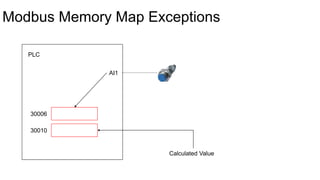

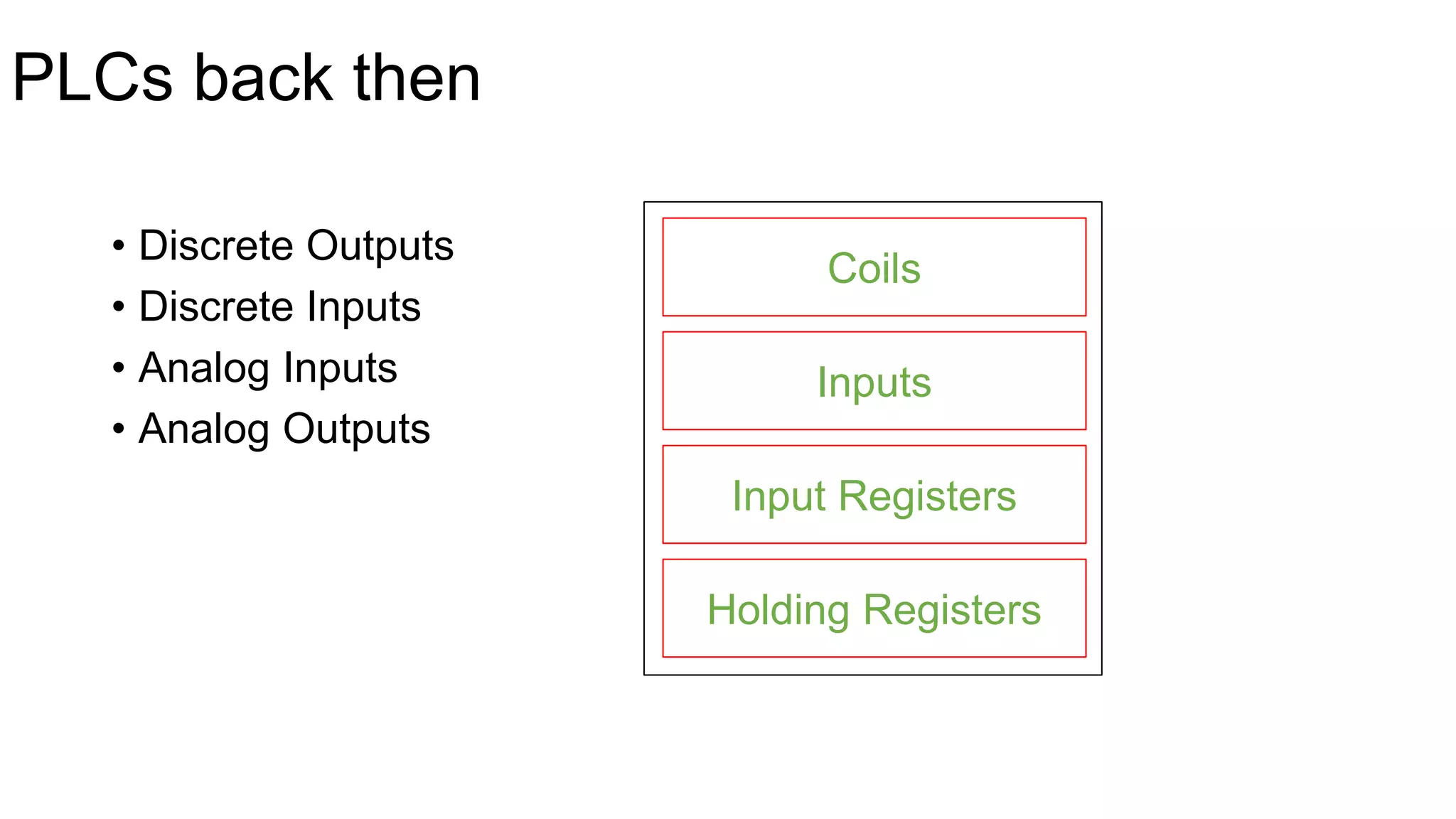

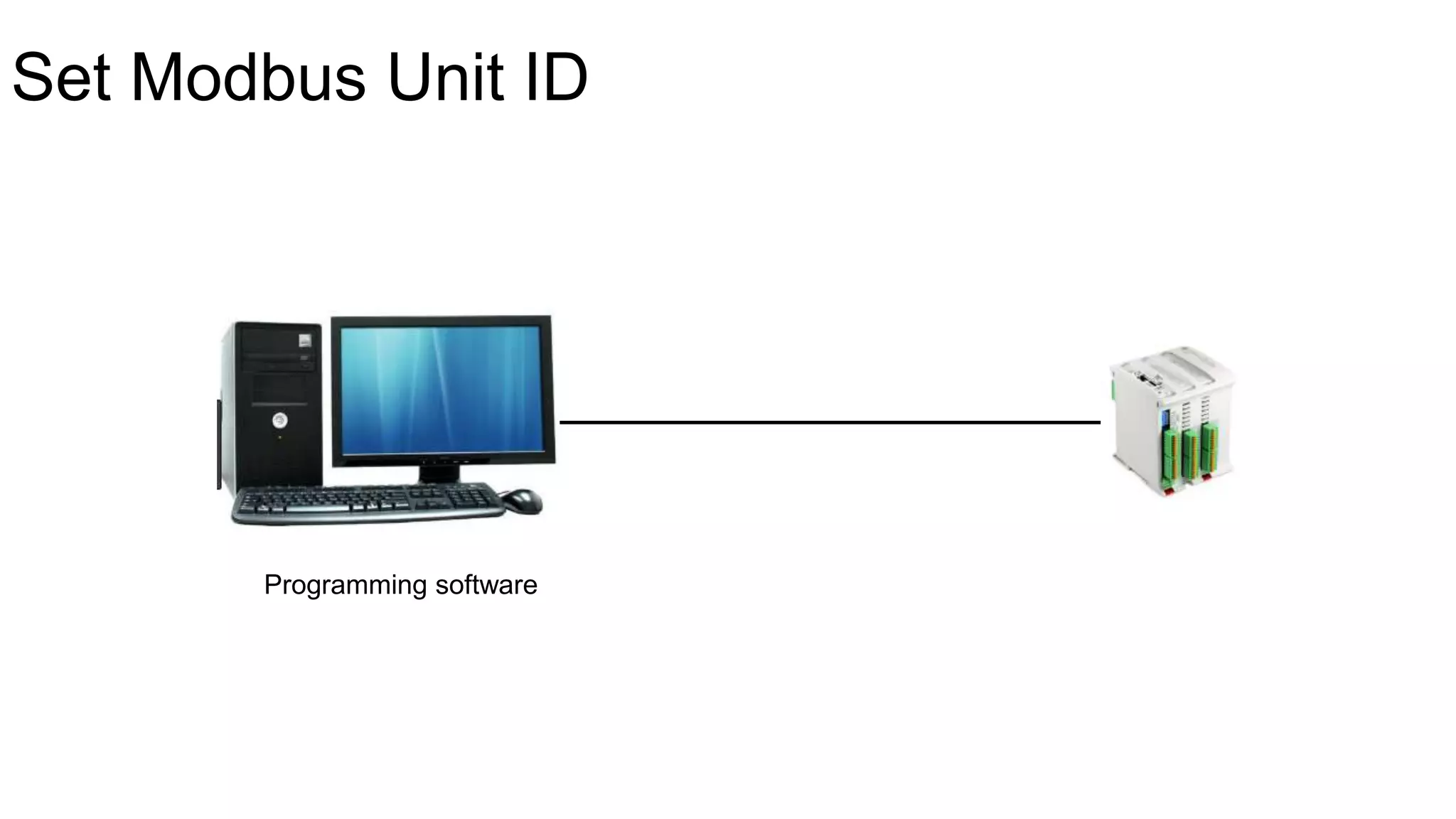

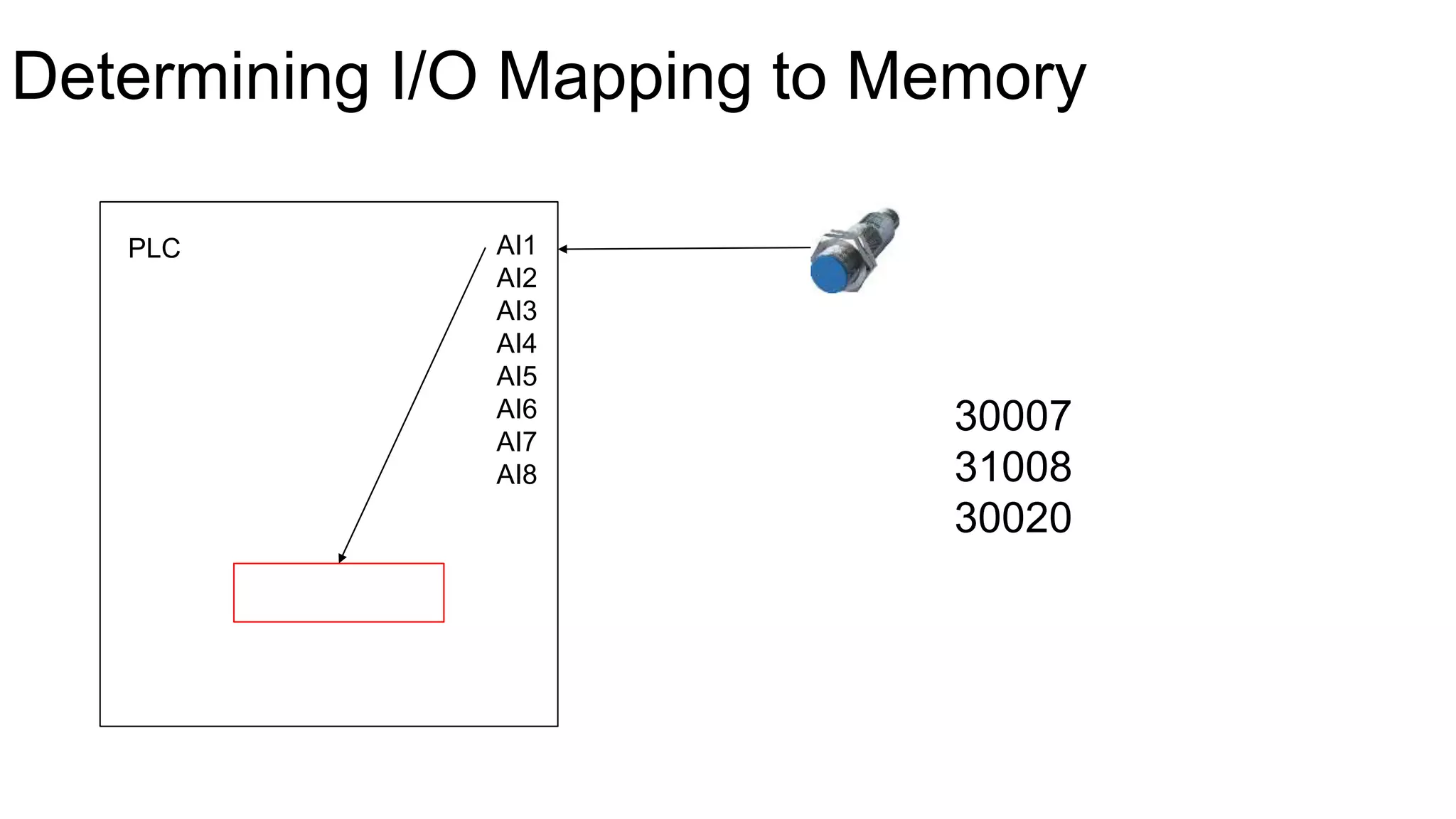

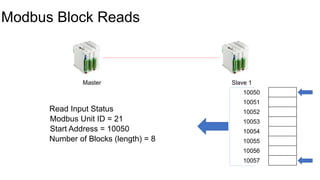

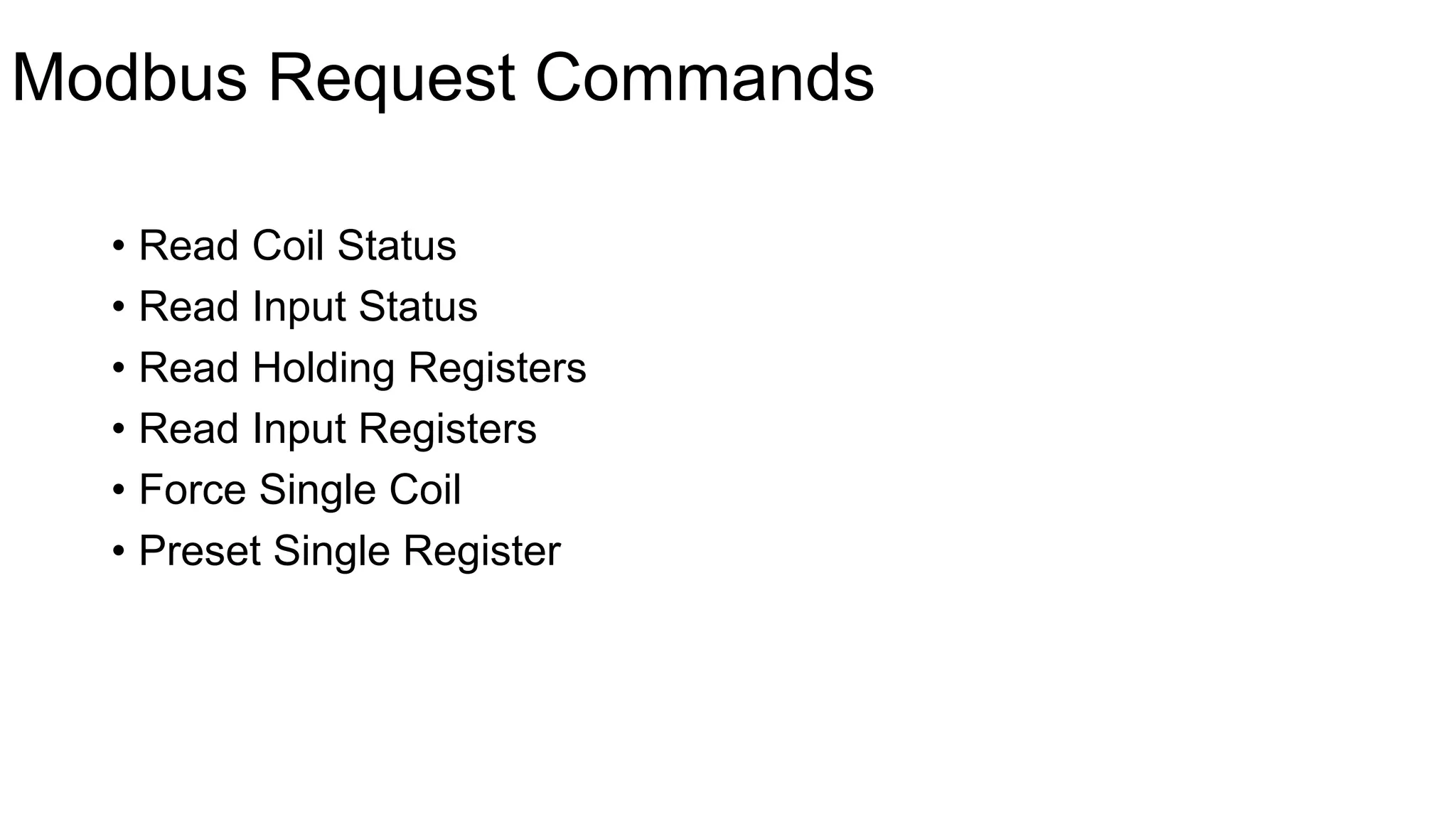

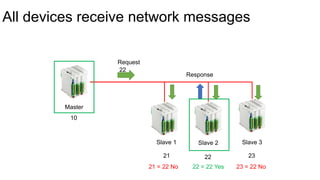

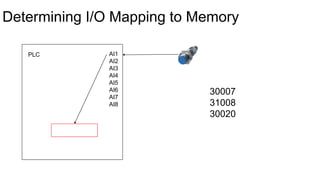

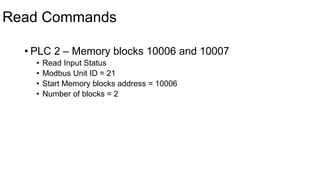

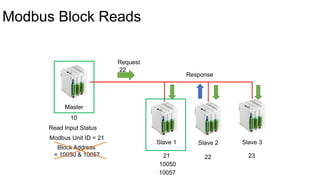

37. Read Commands
• PLC 2 – Memory blocks 10006 and 10007
• Read Input Status
• Modbus Unit ID = 21
• Start Memory blocks address = 10006
• Number of blocks = 2

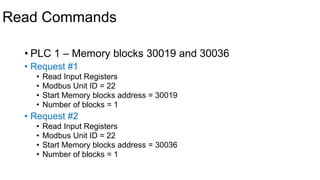

38. Read Commands

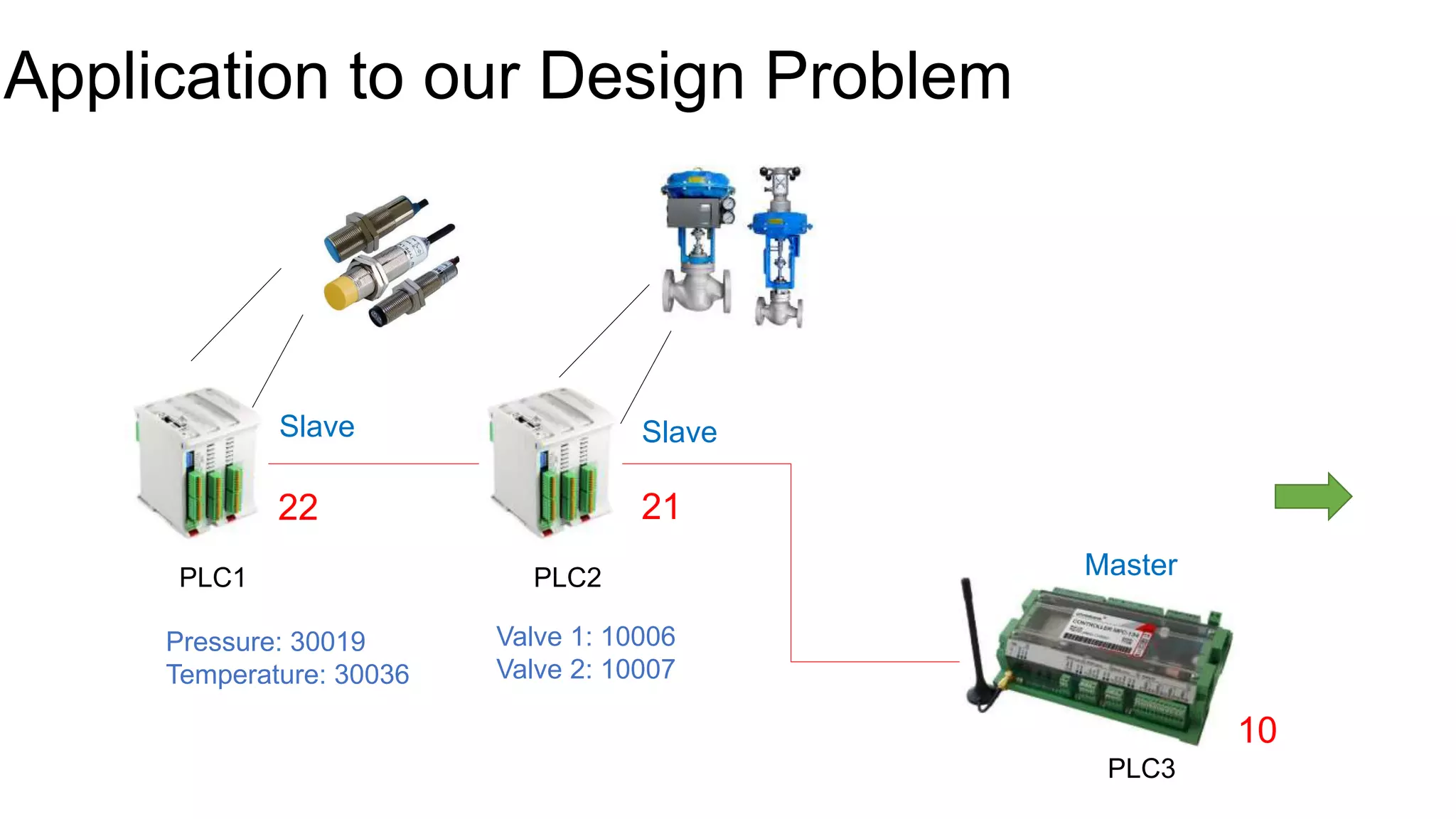

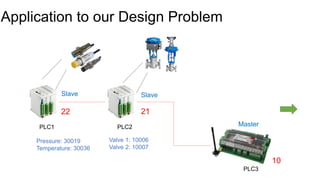

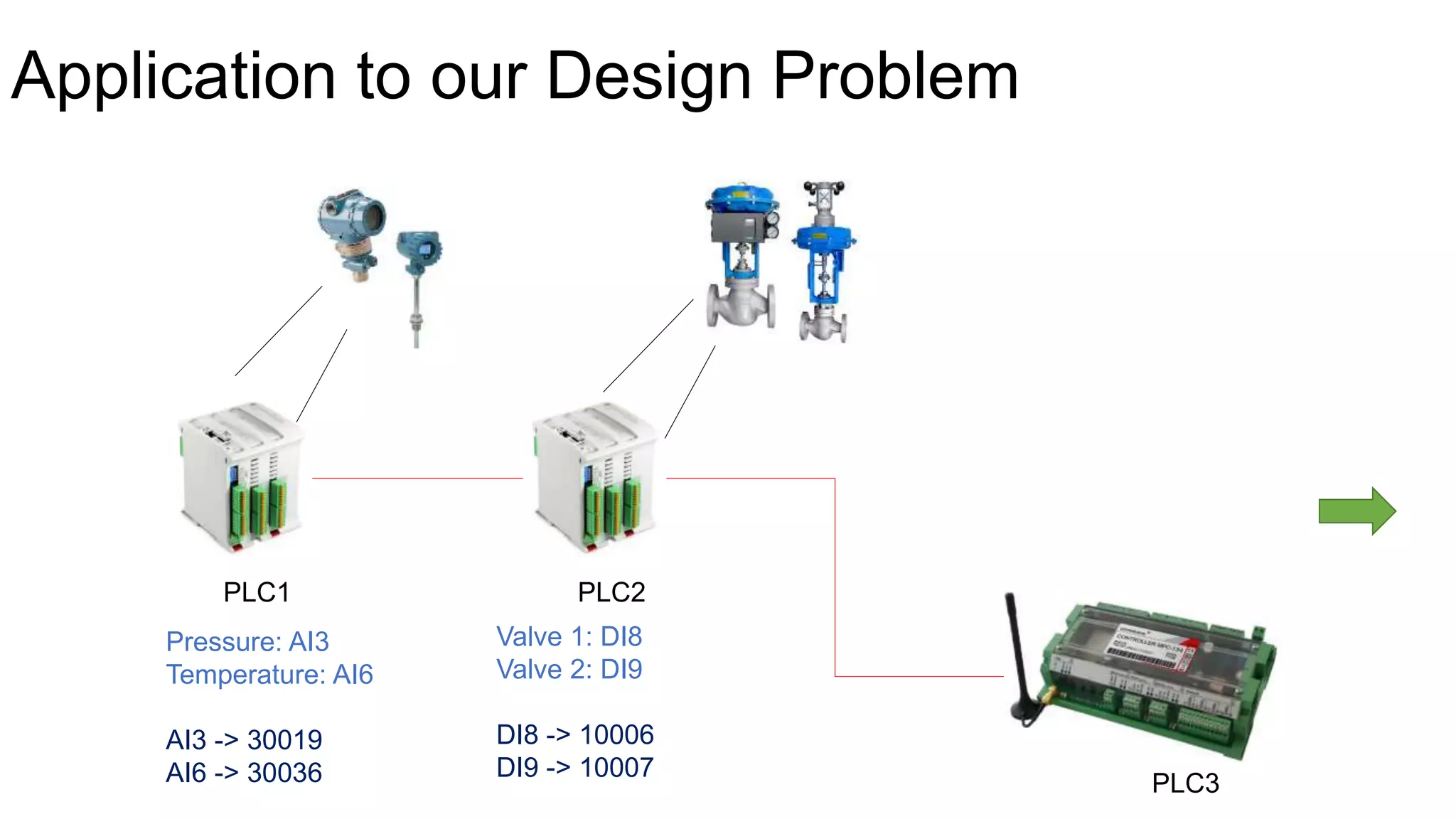

• PLC 1 – Memory blocks 30019 and 30036
• Request #1
• Read Input Registers
• Modbus Unit ID = 22
• Start Memory blocks address = 30019
• Number of blocks = 1
• Request #2
• Read Input Registers
• Modbus Unit ID = 22
• Start Memory blocks address = 30036
• Number of blocks = 1

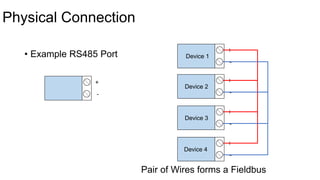

39. Physical Connection
• Example RS485 Port
+
-
+
-
+
-
+
-
+
-
Device 1
Device 2
Device 3
Device 4
Pair of Wires forms a Fieldbus

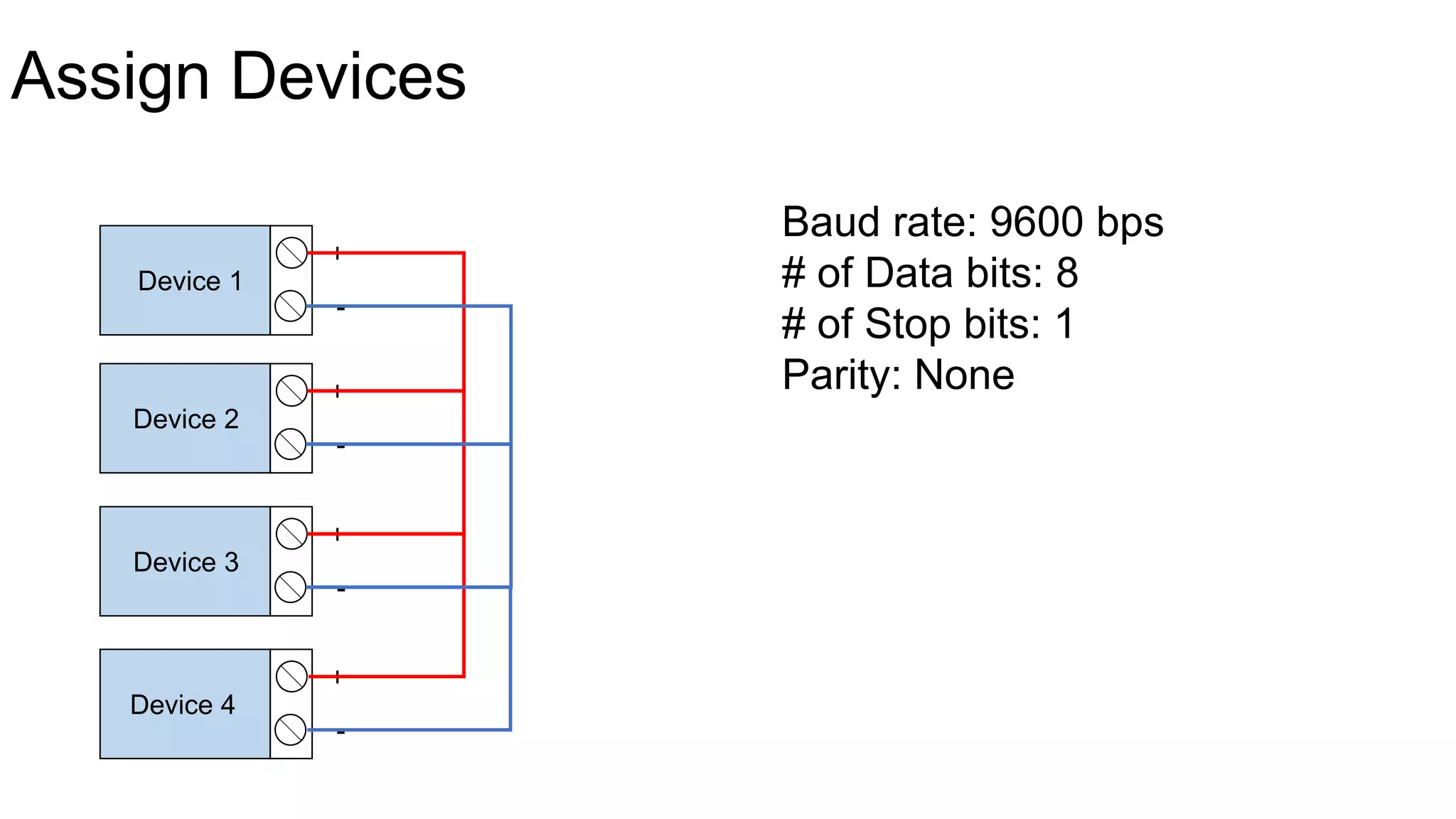

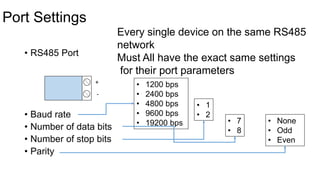

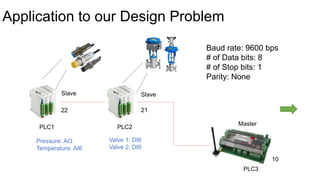

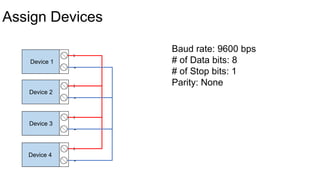

40. Port Settings
• RS485 Port
• Baud rate
• Number of data bits
• Number of stop bits
• Parity
+
-
Every single device on the same RS485
network
Must All have the exact same settings
for their port parameters
• 1200 bps
• 2400 bps
• 4800 bps
• 9600 bps
• 19200 bps
• 1
• 2
• 7
• 8
• None
• Odd
• Even
