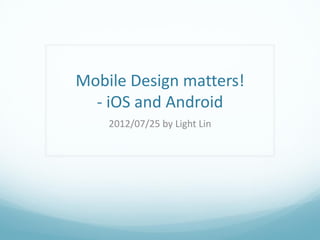

1. Mobile Design matters!
- iOS and Android
2012/07/25 by Light Lin

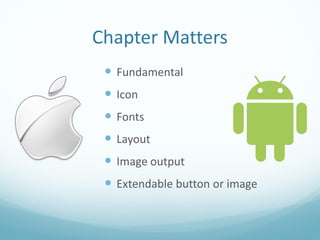

2. Chapter Matters
 Fundamental
 Icon
 Fonts
 Layout
 Image output
 Extendable button or image

3. Before we start…
There is something…

4. Guideline is not a limitation！

6. iOS – Fundamental
Update every year…

7. iOS – Fundamental

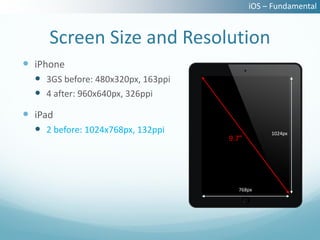

Screen Size and Resolution

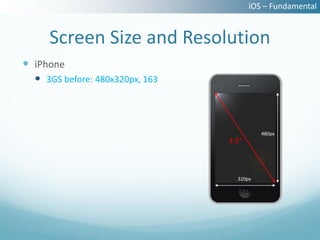

 iPhone
 3GS before: 480x320px, 163
480px
3.5”
320px

8. iOS – Fundamental
Screen Size and Resolution

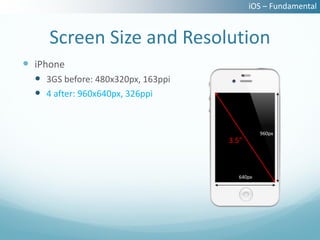

 iPhone
 3GS before: 480x320px, 163ppi
 4 after: 960x640px, 326ppi
960px
3.5”
640px

9. iOS – Fundamental
Screen Size and Resolution
 iPhone
 3GS before: 480x320px, 163ppi
 4 after: 960x640px, 326ppi

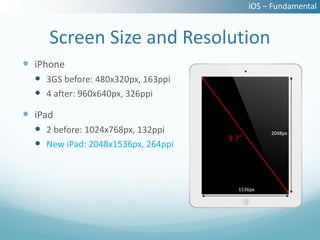

 iPad
 2 before: 1024x768px, 132ppi 1024px
9.7”
768px

10. iOS – Fundamental
Screen Size and Resolution
 iPhone
 3GS before: 480x320px, 163ppi
 4 after: 960x640px, 326ppi
 iPad
 2 before: 1024x768px, 132ppi 2048px
9.7”
 New iPad: 2048x1536px, 264ppi
1536px

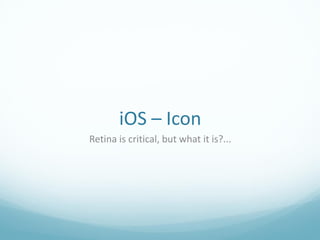

11. iOS – Icon
Retina is critical, but what it is?...

12. I’m also Retina, if you back away…

13. See, I’m Retina

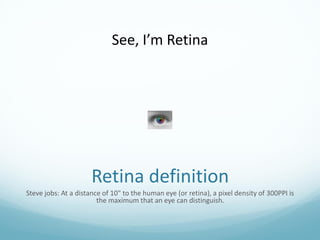

Retina definition
Steve jobs: At a distance of 10" to the human eye (or retina), a pixel density of 300PPI is
the maximum that an eye can distinguish.

14. iOS – Icon
No float number in pixel world

15. iOS – Icon
What should take care

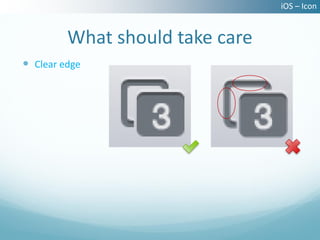

 Clear edge

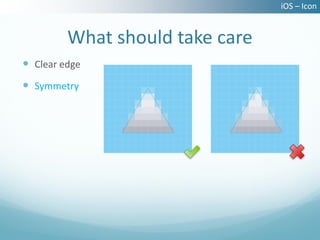

16. iOS – Icon
What should take care
 Clear edge
 Symmetry

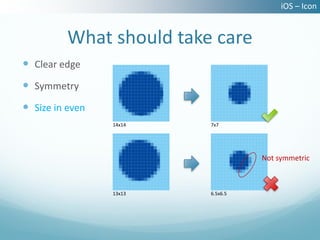

17. iOS – Icon
What should take care
 Clear edge
 Symmetry
 Size in even
14x14 7x7
Not symmetric
13x13 6.5x6.5

18. iOS – Icon
What should take care
 Clear edge
 Symmetry

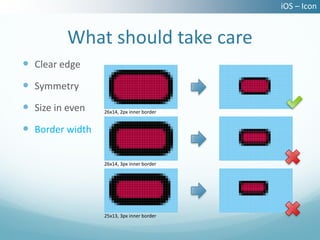

 Size in even 26x14, 2px inner border
 Border width
26x14, 3px inner border
25x13, 3px inner border

19. iOS – Icon

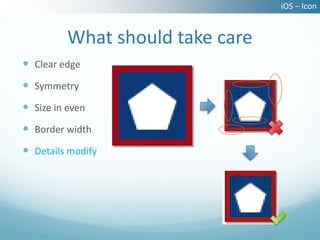

What should take care
 Clear edge
 Symmetry
 Size in even
 Border width
 Details modify

20. iOS – Icon
What tools to use
 Use shape layer in Photoshop
 Use Illustrator as assistant

21. iOS – Fonts
The default is Helvetica…

22. iOS – Fonts

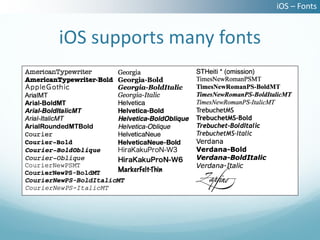

iOS supports many fonts

23. iOS – Layout
Provide useful information…

24. iOS – Layout

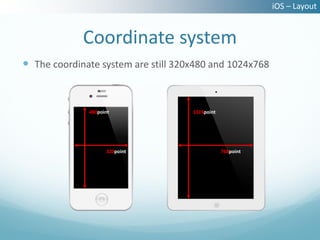

Coordinate system
 The coordinate system are still 320x480 and 1024x768
480point 1024point
320point 768point

25. iOS – Layout

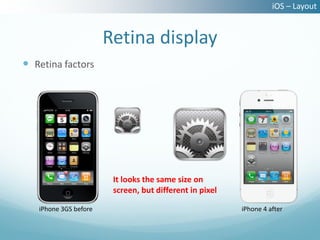

Retina display
 Retina factors
It looks the same size on
screen, but different in pixel
iPhone 3GS before iPhone 4 after

26. iOS – Layout

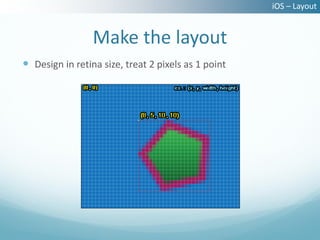

Make the layout
 Design in retina size, treat 2 pixels as 1 point

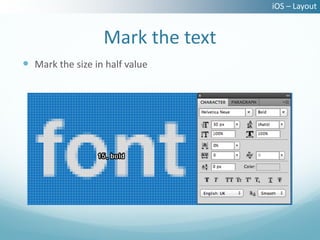

27. iOS – Layout
Mark the text
 Mark the size in half value

28. iOS – Layout

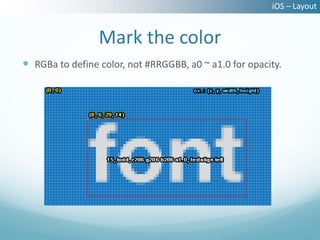

Mark the color
 RGBa to define color, not #RRGGBB, a0 ~ a1.0 for opacity.

29. iOS – Layout

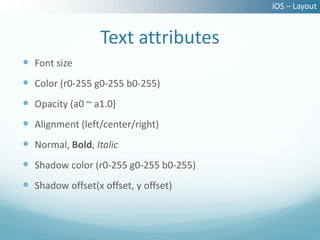

Text attributes
 Font size
 Color (r0-255 g0-255 b0-255)
 Opacity (a0 ~ a1.0)
 Alignment (left/center/right)
 Normal, Bold, Italic
 Shadow color (r0-255 g0-255 b0-255)
 Shadow offset(x offset, y offset)

30. iOS – Layout

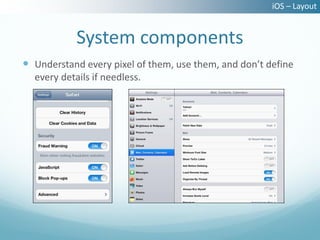

System components
 Understand every pixel of them, use them, and don’t define
every details if needless.

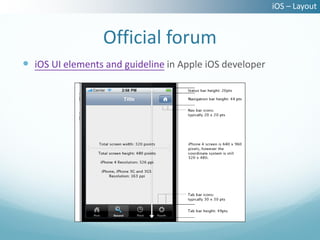

31. iOS – Layout
Official forum
 iOS UI elements and guideline in Apple iOS developer

32. iOS magic number: 44

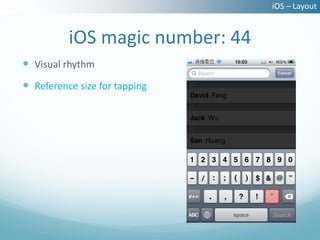

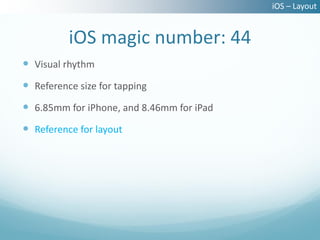

33. iOS – Layout

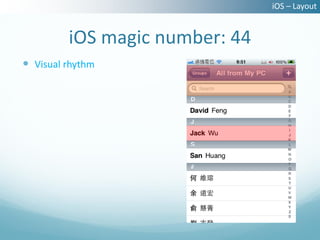

iOS magic number: 44
 Visual rhythm

34. iOS – Layout
iOS magic number: 44
 Visual rhythm
 Reference size for tapping

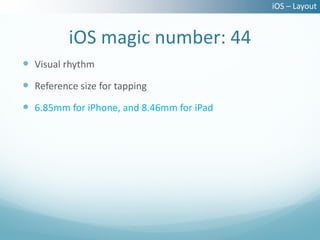

35. iOS – Layout
iOS magic number: 44
 Visual rhythm
 Reference size for tapping
 6.85mm for iPhone, and 8.46mm for iPad

36. iOS – Layout
iOS magic number: 44
 Visual rhythm
 Reference size for tapping
 6.85mm for iPhone, and 8.46mm for iPad
 Reference for layout

37. iOS – Image output
Fit the size might not be the best…

38. iOS – Image output

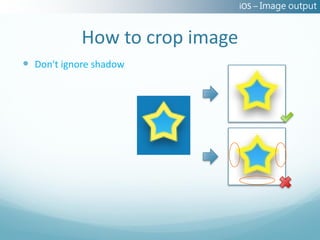

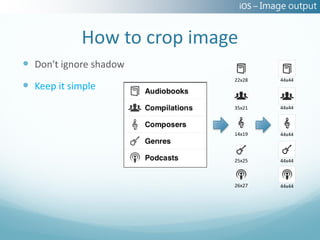

How to crop image
 Don't ignore shadow

39. iOS – Image output
How to crop image
 Don't ignore shadow
22x28 44x44
 Keep it simple
35x21 44x44
14x19 44x44
25x25 44x44
26x27 44x44

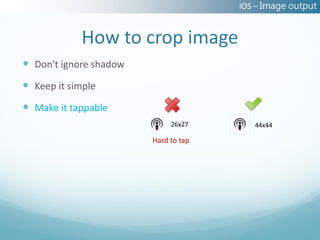

40. iOS – Image output
How to crop image
 Don't ignore shadow
 Keep it simple
 Make it tappable
26x27 44x44
Hard to tap

41. iOS – Image output

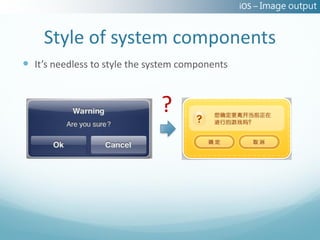

Style of system components
 It’s needless to style the system components
?

42. iOS – Image output

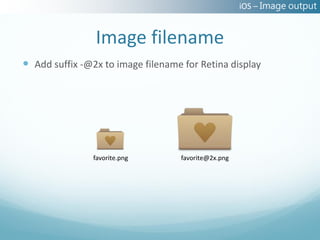

Image filename
 Add suffix -@2x to image filename for Retina display
favorite.png favorite@2x.png

43. iOS – Image output

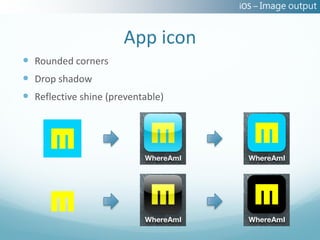

App icon
 Rounded corners
 Drop shadow
 Reflective shine (preventable)

44. iOS – Image output

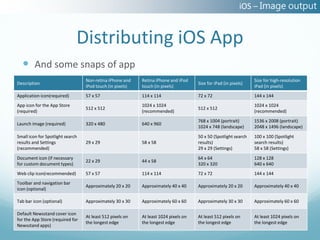

Distributing iOS App
 And some snaps of app
Non-retina iPhone and Retina iPhone and iPod Size for high-resolution
Description Size for iPad (in pixels)
iPod touch (in pixels) touch (in pixels) iPad (in pixels)
Application icon(required) 57 x 57 114 x 114 72 x 72 144 x 144
App icon for the App Store 1024 x 1024 1024 x 1024
512 x 512 512 x 512
(required) (recommended) (recommended)
768 x 1004 (portrait) 1536 x 2008 (portrait)
Launch image (required) 320 x 480 640 x 960
1024 x 748 (landscape) 2048 x 1496 (landscape)
Small icon for Spotlight search 50 x 50 (Spotlight search 100 x 100 (Spotlight
results and Settings 29 x 29 58 x 58 results) search results)
(recommended) 29 x 29 (Settings) 58 x 58 (Settings)
Document icon (if necessary 64 x 64 128 x 128
22 x 29 44 x 58
for custom document types) 320 x 320 640 x 640
Web clip icon(recommended) 57 x 57 114 x 114 72 x 72 144 x 144
Toolbar and navigation bar
Approximately 20 x 20 Approximately 40 x 40 Approximately 20 x 20 Approximately 40 x 40
icon (optional)
Tab bar icon (optional) Approximately 30 x 30 Approximately 60 x 60 Approximately 30 x 30 Approximately 60 x 60
Default Newsstand cover icon
At least 512 pixels on At least 1024 pixels on At least 512 pixels on At least 1024 pixels on
for the App Store (required for
the longest edge the longest edge the longest edge the longest edge
Newsstand apps)

45. iOS – Extendable button or image
Save your time…

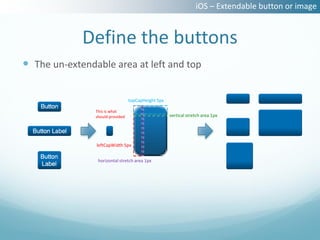

46. iOS – Extendable button or image
Define the buttons
 The un-extendable area at left and top
topCapHeight 5px
This is what
should provided vertical stretch area 1px
leftCapWidth 5px
horizontal stretch area 1px

47. iOS – Extendable button or image
Only 1px is stretchable
topCapHeight 5px
vertical stretch area 1px
leftCapWidth 5px
horizontal stretch area 1px

48. iOS – Extendable button or image

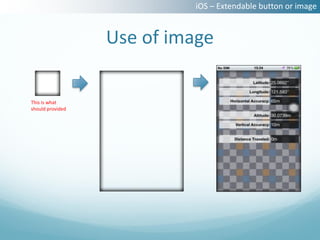

Use of image
This is what
should provided

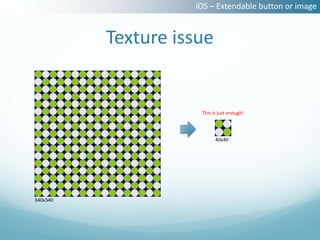

49. iOS – Extendable button or image
Texture issue
This is just enough!
40x40
340x340

50. iOS – Summary

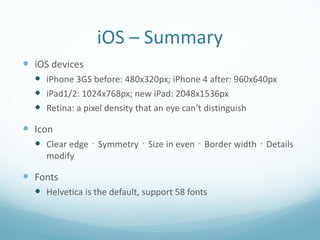

 iOS devices
 iPhone 3GS before: 480x320px; iPhone 4 after: 960x640px
 iPad1/2: 1024x768px; new iPad: 2048x1536px
 Retina: a pixel density that an eye can’t distinguish
 Icon
 Clear edge、Symmetry、Size in even、Border width、Details
modify
 Fonts
 Helvetica is the default, support 58 fonts

51. iOS – Summary

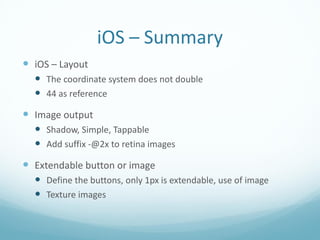

 iOS – Layout
 The coordinate system does not double
 44 as reference
 Image output
 Shadow, Simple, Tappable
 Add suffix -@2x to retina images
 Extendable button or image
 Define the buttons, only 1px is extendable, use of image
 Texture images

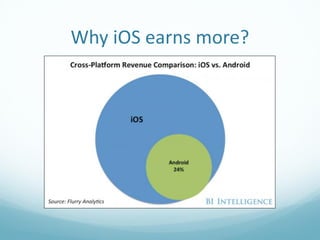

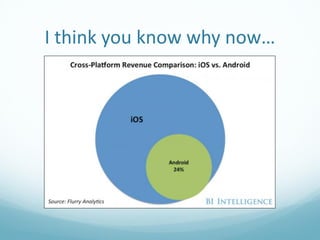

52. Why iOS earns more?

54. Android – Fundamental
Lots of differences in versions…

55. Android – Fundamental

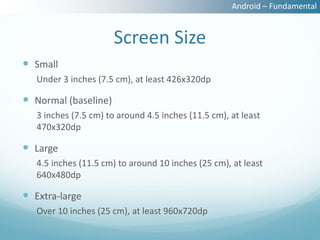

Screen Size
 Small
Under 3 inches (7.5 cm), at least 426x320dp
 Normal (baseline)
3 inches (7.5 cm) to around 4.5 inches (11.5 cm), at least
470x320dp
 Large
4.5 inches (11.5 cm) to around 10 inches (25 cm), at least
640x480dp
 Extra-large
Over 10 inches (25 cm), at least 960x720dp

56. Android – Fundamental

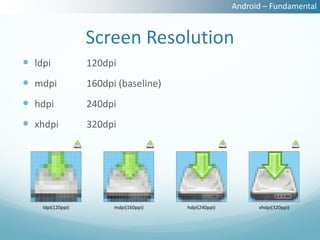

Screen Resolution
 ldpi 120dpi
 mdpi 160dpi (baseline)
 hdpi 240dpi
 xhdpi 320dpi
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)

57. Android – Fundamental

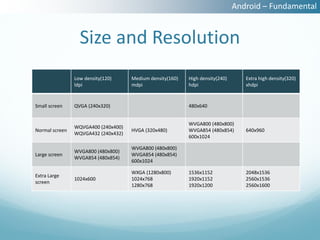

Size and Resolution
Low density(120) Medium density(160) High density(240) Extra high density(320)
ldpi mdpi hdpi xhdpi
Small screen QVGA (240x320) 480x640
WVGA800 (480x800)
WQVGA400 (240x400)
Normal screen HVGA (320x480) WVGA854 (480x854) 640x960
WQVGA432 (240x432)
600x1024
WVGA800 (480x800)
WVGA800 (480x800)
Large screen WVGA854 (480x854)
WVGA854 (480x854)
600x1024
WXGA (1280x800) 1536x1152 2048x1536
Extra Large
1024x600 1024x768 1920x1152 2560x1536
screen
1280x768 1920x1200 2560x1600

58. Android – Icon
Flexibility and optimization…

59. Android – Icon
Concept of density
 They all look the same size
ldpi, mdpi, hdpi, xhdpi,
Samsung Galaxy Y, Samsung Galaxy Ace, Samsung Galaxy S Plus, Samsung Galaxy SII HD
133ppi 165ppi 233ppi LTE ,316ppi

60. Android – Icon

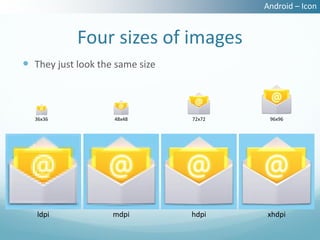

Four sizes of images
 They just look the same size
36x36 48x48 72x72 96x96
ldpi mdpi hdpi xhdpi

61. Android – Icon
Do not provide big image only!
 Do not use big image and shrink by device
 The memory is really limited

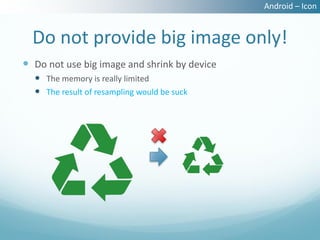

62. Android – Icon
Do not provide big image only!
 Do not use big image and shrink by device
 The memory is really limited
 The result of resampling would be suck

63. Android – Icon
Do not provide big image only!
 Do not use big image and shrink by device
 The memory is really limited
 The result of resampling would be suck
 Details optimization

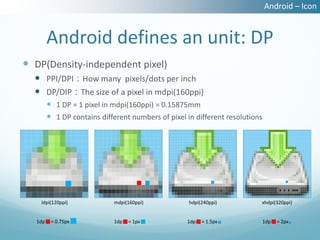

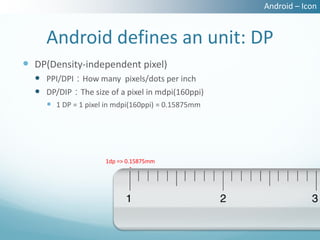

64. Android – Icon

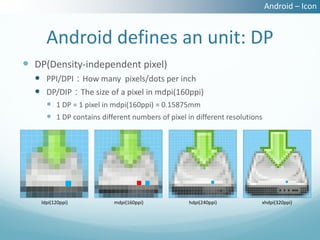

Android defines an unit: DP
 DP(Density-independent pixel)
 PPI/DPI：How many pixels/dots per inch
 DP/DIP：The size of a pixel in mdpi(160ppi)
 1 DP = 1 pixel in mdpi(160ppi) = 0.15875mm
1dp => 0.15875mm

65. Android – Icon

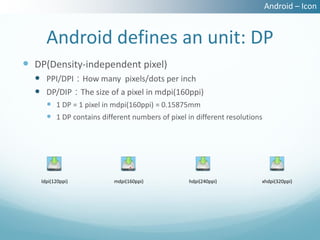

Android defines an unit: DP
 DP(Density-independent pixel)
 PPI/DPI：How many pixels/dots per inch
 DP/DIP：The size of a pixel in mdpi(160ppi)
 1 DP = 1 pixel in mdpi(160ppi) = 0.15875mm
 1 DP contains different numbers of pixel in different resolutions
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)

66. Android – Icon
Android defines an unit: DP
 DP(Density-independent pixel)
 PPI/DPI：How many pixels/dots per inch
 DP/DIP：The size of a pixel in mdpi(160ppi)
 1 DP = 1 pixel in mdpi(160ppi) = 0.15875mm
 1 DP contains different numbers of pixel in different resolutions
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)

67. Android – Icon
Android defines an unit: DP
 DP(Density-independent pixel)
 PPI/DPI：How many pixels/dots per inch
 DP/DIP：The size of a pixel in mdpi(160ppi)
 1 DP = 1 pixel in mdpi(160ppi) = 0.15875mm
 1 DP contains different numbers of pixel in different resolutions
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)
1dp = 0.75px 1dp = 1px 1dp = 1.5px 1dp = 2px

68. Android – Icon
Make them look the same size
 The proportions in different resolutions
 Start from mdpi(keep it multiple of 4)
 Their looked sizes on Phone are different from PC
48x48dp icon (7.62x7.62mm)
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)
36x36px 48x48px 72x72px 96x96px

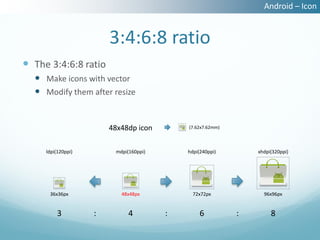

69. Android – Icon
3:4:6:8 ratio
 The 3:4:6:8 ratio
 Make icons with vector
 Modify them after resize
48x48dp icon (7.62x7.62mm)
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)
36x36px 48x48px 72x72px 96x96px
3 : 4 : 6 : 8

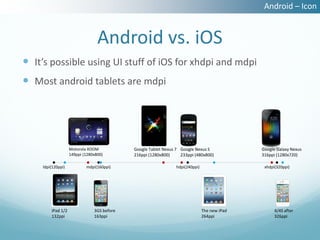

70. Android – Icon
Android vs. iOS
 It’s possible using UI stuff of iOS for xhdpi and mdpi
 Most android tablets are mdpi
Motorola XOOM Google Tablet Nexus 7 Google Nexus S Google Galaxy Nexus
149ppi (1280x800) 216ppi (1280x800) 233ppi (480x800) 316ppi (1280x720)
ldpi(120ppi) mdpi(160ppi) hdpi(240ppi) xhdpi(320ppi)
iPad 1/2 3GS before The new iPad 4/4S after
132ppi 163ppi 264ppi 326ppi

71. Android – Fonts
Droid Sans before 3.0; Roboto after 4.0…

72. Android – Fonts

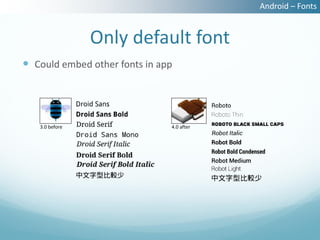

Only default font
 Could embed other fonts in app
3.0 before 4.0 after

73. Android – Layout
Start from mdpi...

74. Android – Layout

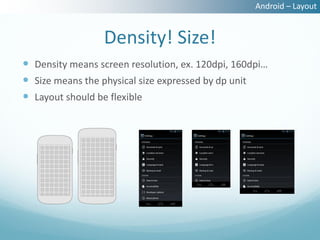

Density! Size!
 Density means screen resolution, ex. 120dpi, 160dpi…
 Size means the physical size expressed by dp unit
 Layout should be flexible

75. Android – Layout

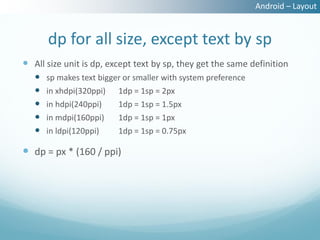

dp for all size, except text by sp
 All size unit is dp, except text by sp, they get the same definition
 sp makes text bigger or smaller with system preference
 in xhdpi(320ppi) 1dp = 1sp = 2px
 in hdpi(240ppi) 1dp = 1sp = 1.5px
 in mdpi(160ppi) 1dp = 1sp = 1px
 in ldpi(120ppi) 1dp = 1sp = 0.75px
 dp = px * (160 / ppi)

76. Android – Layout
Four screen sizes
 Google defines four screen sizes
 Extra-large at least 960dp x 720dp
 Large at least 640dp x 480dp
 Normal at least 470dp x 320dp
 Small at least 426dp x 320dp

77. Android – Layout
Compatibility issue

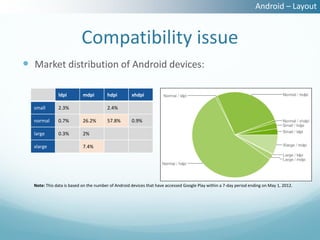

 Market distribution of Android devices:
ldpi mdpi hdpi xhdpi
small 2.3% 2.4%
normal 0.7% 26.2% 57.8% 0.9%
large 0.3% 2%
xlarge 7.4%
Note: This data is based on the number of Android devices that have accessed Google Play within a 7-day period ending on May 1, 2012.

78. Android – Layout

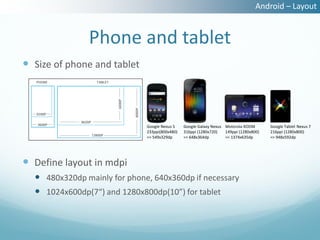

Phone and tablet
 Size of phone and tablet
Google Nexus S Google Galaxy Nexus Motorola XOOM Google Tablet Nexus 7
233ppi(800x480) 316ppi (1280x720) 149ppi (1280x800) 216ppi (1280x800)
=> 549x329dp => 648x364dp => 1374x635dp => 948x592dp
 Define layout in mdpi
 480x320dp mainly for phone, 640x360dp if necessary
 1024x600dp(7“) and 1280x800dp(10”) for tablet

79. Android – Layout

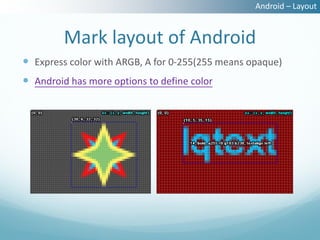

Mark layout of Android
 Express color with ARGB, A for 0-255(255 means opaque)
 Android has more options to define color

80. Android – Layout

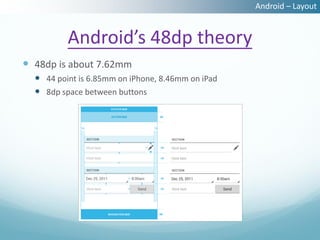

Android’s 48dp theory
 48dp is about 7.62mm
 44 point is 6.85mm on iPhone, 8.46mm on iPad
 8dp space between buttons

81. Android – Layout

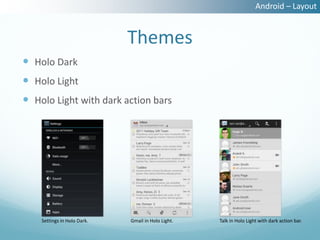

Themes
 Holo Dark
 Holo Light
 Holo Light with dark action bars
Settings in Holo Dark. Gmail in Holo Light. Talk in Holo Light with dark action bar.

82. Android – Layout

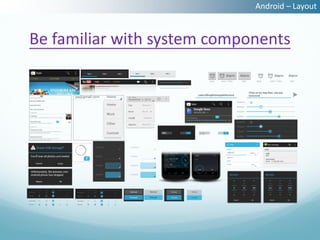

Be familiar with system components

83. Android – Layout
Planning and work out
 It’s hard for designer to implement the layouts

84. Android – Layout
Useful information from design
 The sufficient information designer provide, the efficient
engineer implement

85. Android – Image output
Four times per image…

86. Android – Image output

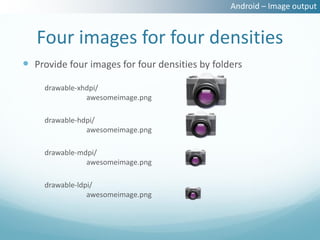

Four images for four densities
 Provide four images for four densities by folders
drawable-xhdpi/
drawable-hdpi/
drawable-mdpi/
drawable-ldpi/

87. Android – Image output
Normal as a baseline of size
 320x480dp(px) for phone
 1024x600dp(px) and 1280x800dp(px) for tablet

88. Android – Image output

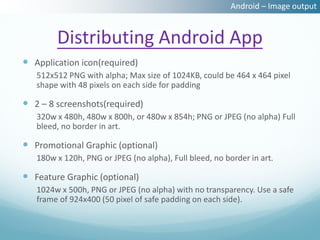

Distributing Android App
 Application icon(required)
512x512 PNG with alpha; Max size of 1024KB, could be 464 x 464 pixel
shape with 48 pixels on each side for padding
 2 – 8 screenshots(required)
320w x 480h, 480w x 800h, or 480w x 854h; PNG or JPEG (no alpha) Full
bleed, no border in art.
 Promotional Graphic (optional)
180w x 120h, PNG or JPEG (no alpha), Full bleed, no border in art.
 Feature Graphic (optional)
1024w x 500h, PNG or JPEG (no alpha) with no transparency. Use a safe
frame of 924x400 (50 pixel of safe padding on each side).

89. Android – Extendable button or
Do something smart…

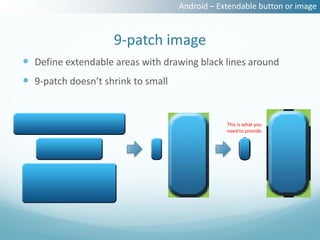

90. Android – Extendable button or image
9‐patch image
 Define extendable areas with drawing black lines around
 9‐patch doesn’t shrink to small
This is what you
need to provide.

91. Android – Extendable button or image

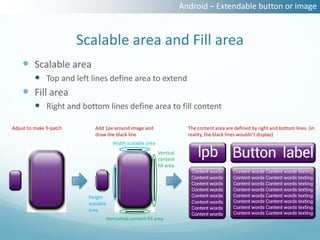

Scalable area and Fill area
 Scalable area
 Top and left lines define area to extend
 Fill area
 Right and bottom lines define area to fill content
Adjust to make 9‐patch Add 1px around image and The content area are defined by right and bottom lines. (in
draw the black line reality, the black lines wouldn’t display)
Width scalable area
Vertical
content
fill area
Height
scalable
area
Horizontal content fill area

92. Android – Extendable button or image

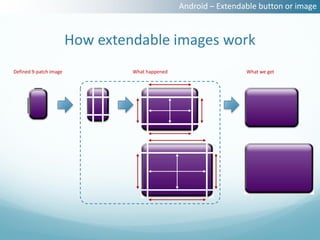

How extendable images work
Defined 9‐patch image What happened What we get

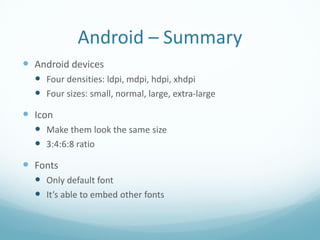

93. Android – Summary
 Android devices
 Four densities: ldpi, mdpi, hdpi, xhdpi
 Four sizes: small, normal, large, extra-large
 Icon
 Make them look the same size
 3:4:6:8 ratio
 Fonts
 Only default font
 It’s able to embed other fonts

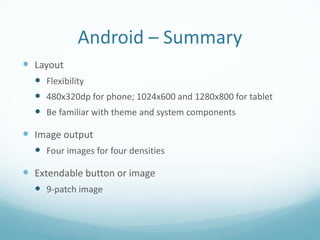

94. Android – Summary
 Layout
 Flexibility
 480x320dp for phone; 1024x600 and 1280x800 for tablet
 Be familiar with theme and system components
 Image output
 Four images for four densities
 Extendable button or image
 9-patch image

95. I think you know why now…

96. Conclusions and suggestions
Finally…

97. The modification
of details

98. Habits and guideline for system

99. The limitation
and convenience
from screen

100. The different styles
from systems

101. Layout flexibility and tolerance

102. Conclusions and suggestions

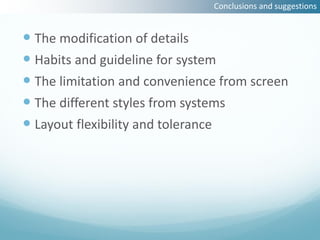

 The modification of details
 Habits and guideline for system
 The limitation and convenience from screen
 The different styles from systems
 Layout flexibility and tolerance

103. Appendix
 iOS Human Interface Guidelines
 Android User Interface Guidelines
 phone-size.com
 Helvetica的由來

104. Thanks for your time~
Q&A?
