Parsimonious Pixel
Pushing
(or: how to maybe make your apps do real good or at least
better with lots of these new big fancy picture screens)

John Cromartie

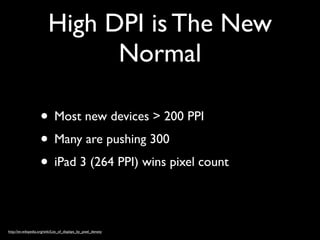

High DPI is The New
Normal

• Most new devices > 200 PPI
• Many are pushing 300
• iPad 3 (264 PPI) wins pixel count

http://en.wikipedia.org/wiki/List_of_displays_by_pixel_density

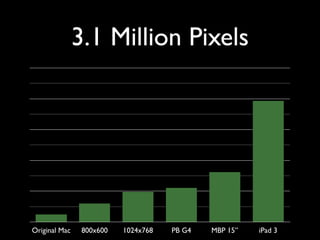

3.1 Million Pixels

Original Mac 800x600 1024x768 PB G4 MBP 15” iPad 3

Performance
• General trend:
• Everything on the GPU
• Tons of RAM, multi-core
• iPad 3 vs iPad 2
• 2X RAM and GPU cores
• 129.2 Mtris/sec raw

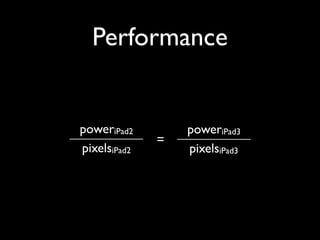

Performance

poweriPad2 poweriPad3
=
pixelsiPad2 pixelsiPad3

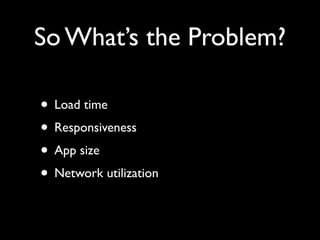

So What’s the Problem?

• Load time
• Responsiveness
• App size
• Network utilization

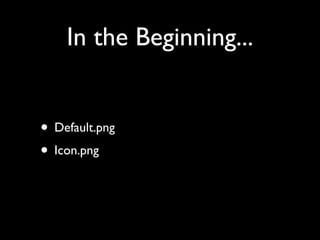

In the Beginning...

• Default.png
• Icon.png

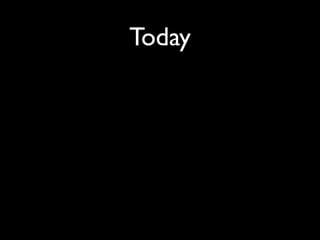

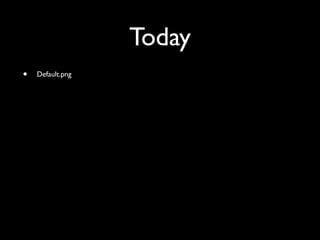

Today
• Default.png

• Default@2x.png

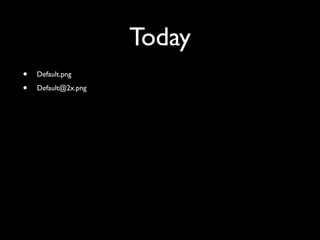

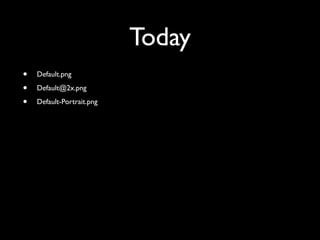

Today
• Default.png

• Default@2x.png

• Default-Portrait.png

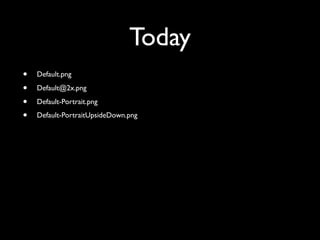

Today
• Default.png

• Default@2x.png


• Default-PortraitUpsideDown.png

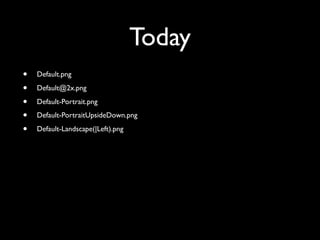

Today
• Default.png

• Default@2x.png



• Default-Landscape(|Left).png

Today
• Default.png

• Default@2x.png




• Default-LandscapeRight.png

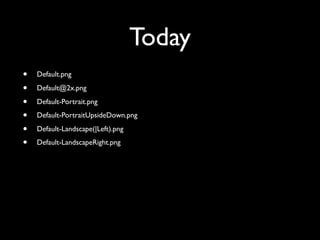

Today
• Default.png

• Default@2x.png





• Default-Portrait@2x.png

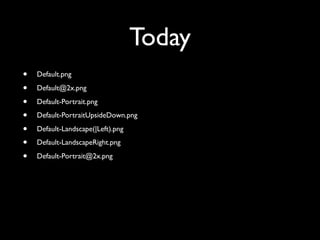

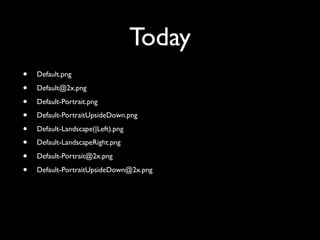

Today
• Default.png

• Default@2x.png






• Default-PortraitUpsideDown@2x.png

Today
• Default.png

• Default@2x.png







• Default-Landscape(|Left)@2x.png

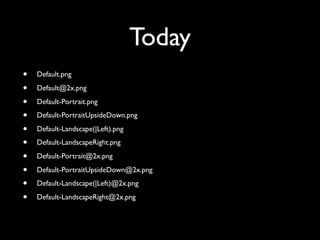

Today
• Default.png

• Default@2x.png








• Default-LandscapeRight@2x.png

Today
• Default.png

• Default@2x.png









• Default-iPhone5@2x.png...?

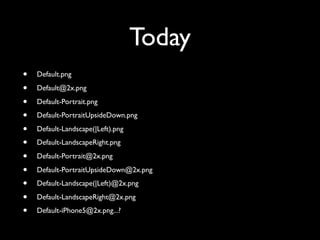

Today
• Default.png • Icon.png

• Default@2x.png • Icon@2x.png

• Default-Portrait.png • Icon-72.png

• Default-PortraitUpsideDown.png • Icon-72@2x.png







• Default-iPhone5@2x.png...?

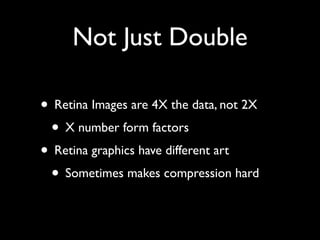

Not Just Double

• Retina Images are 4X the data, not 2X
• X number form factors
• Retina graphics have different art
• Sometimes makes compression hard

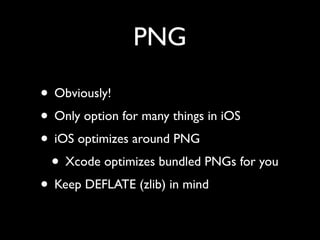

PNG

• Obviously!
• Only option for many things in iOS
• iOS optimizes around PNG
• Xcode optimizes bundled PNGs for you
• Keep DEFLATE (zlib) in mind

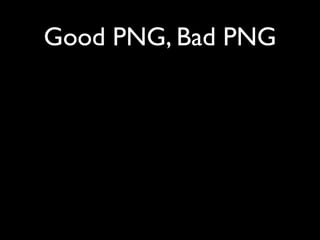

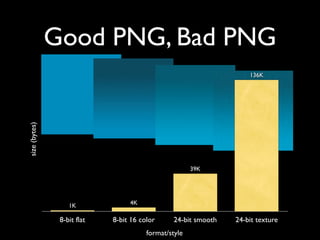

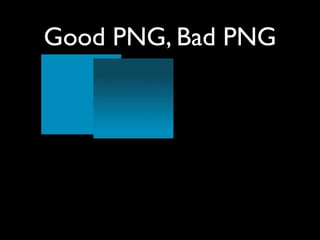

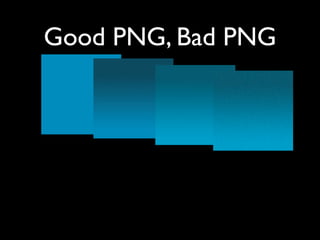

Good PNG, Bad PNG
136K
size (bytes)

39K

1K 4K

8-bit flat 8-bit 16 color 24-bit smooth 24-bit texture
format/style

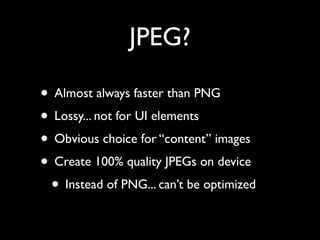

JPEG?

• Almost always faster than PNG
• Lossy... not for UI elements
• Obvious choice for “content” images
• Create 100% quality JPEGs on device
• Instead of PNG... can’t be optimized

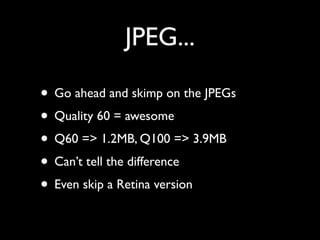

JPEG...

• Go ahead and skimp on the JPEGs
• Quality 60 = awesome
• Q60 => 1.2MB, Q100 => 3.9MB
• Can’t tell the difference
• Even skip a Retina version

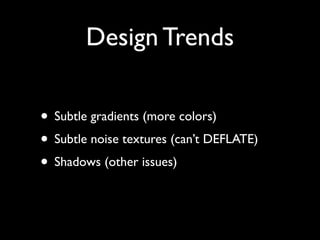

Design Trends

• Subtle gradients (more colors)
• Subtle noise textures (can’t DEFLATE)
• Shadows (other issues)

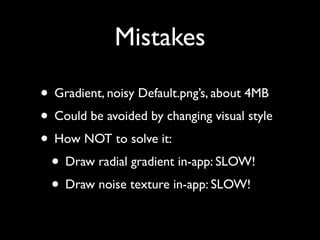

Mistakes

• Gradient, noisy Default.png’s, about 4MB
• Could be avoided by changing visual style
• How NOT to solve it:
• Draw radial gradient in-app: SLOW!
• Draw noise texture in-app: SLOW!

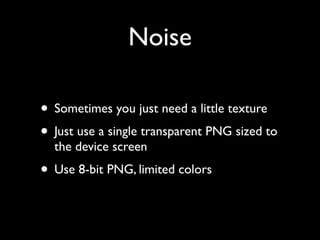

Noise

• Sometimes you just need a little texture
• Just use a single transparent PNG sized to
the device screen
• Use 8-bit PNG, limited colors

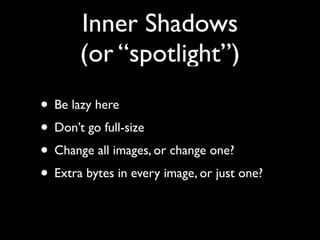

Inner Shadows
(or “spotlight”)
• Be lazy here
• Don’t go full-size
• Change all images, or change one?
• Extra bytes in every image, or just one?

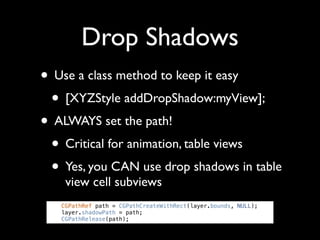

Drop Shadows
• Use a class method to keep it easy
• [XYZStyle addDropShadow:myView];
• ALWAYS set the path!
• Critical for animation, table views
• Yes, you CAN use drop shadows in table
view cell subviews
CGPathRef path = CGPathCreateWithRect(layer.bounds, NULL);
layer.shadowPath = path;
CGPathRelease(path);

The Network

• Run pngcrush on PNGs
• Q60 JPEGs, optimize
• gzip won’t help you
• server: optimize, optimize, optimize...
• device: cache, cache, cache...

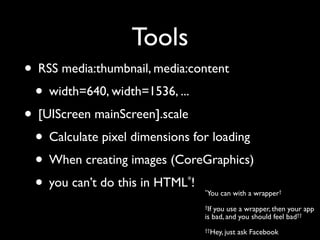

Tools
• RSS media:thumbnail, media:content
• width=640, width=1536, ...
• [UIScreen mainScreen].scale
• Calculate pixel dimensions for loading
• When creating images (CoreGraphics)
• you can’t do this in HTML !
*
*You can with a wrapper†
†Ifyou use a wrapper, then your app
is bad, and you should feel bad††
††Hey, just ask Facebook

Resizable Images

• For UI components: endcaps
• +[UIImage resizableImageWithCapInsets:]

• Linear gradients: just stretch it

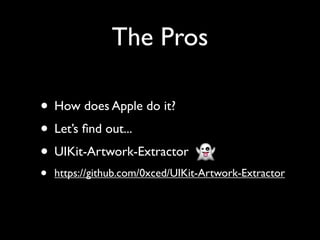

The Pros

• How does Apple do it?
• Let’s ﬁnd out...
• UIKit-Artwork-Extractor
• https://github.com/0xced/UIKit-Artwork-Extractor

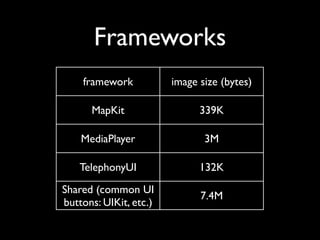

Frameworks
framework image size (bytes)

MapKit 339K

MediaPlayer 3M

TelephonyUI 132K
Shared (common UI
7.4M
buttons: UIKit, etc.)

MapKit route callout
UIActionSheet action/cancel buttons

UINavigationBar background

(stretched)

UINavigationBar default, back buttons LCD background

tinted back button shadow, mask, highlight

(stretched)

Thanks!

john@mobomo.com
@johncromartie
jcromartie.tumblr.com
