1. Microsoft Cloud Stack
THOMAS MAURER
MVP Hyper-V
itnetx gmbh
Blog: www.thomasmaurer.ch
Twitter: @thomasmaurer
MICHAEL RUEEFLI
MVP Cloud & Datacenter Management
itnetx gmbh
Blog: www.miru.ch
Twitter: @drmiru

2. Session Objectives
• Get insights into Microsoft private Cloud Stack with
vCurrent
• See the stack in action
• See how to deploy the current stack
• Get a “sneak peak” on vNext (Azure Stack)

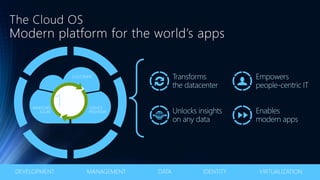

3. The Cloud OS
Modern platform for the world’s apps

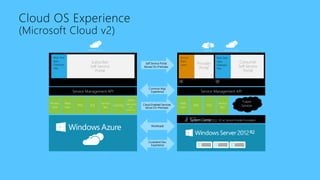

4. Cloud OS Experience
(Microsoft Cloud v2)
R2w/ServiceProviderFoundation
Future
Services
Service

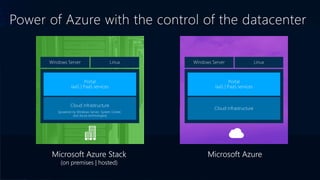

Bus
SQLVMs
Web
Sites
Service
Plans
Users Provider
Portal
Consumer
Self-Service
Portal
Web Sites
Apps
Database
VMs
Service ProviderCustomer
Self Service Portal
Moves On-Premises
Common Mgt.
Experience
Workloads
Cloud-Enabled Services
Move On-Premises
Consistent Dev.
Experience
Other
Services
CDN.
Media,, etc.
Caching
Service
Bus
SQLVMs
Web
Sites
Worker
Role
Web Sites
Apps
Database
VMs
Subscriber
Self-Service
Portal
Windows Azure
R2

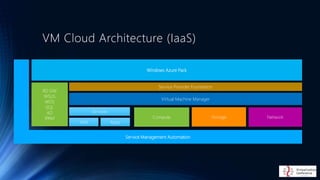

5. VM Cloud Architecture (IaaS)
Virtual Machine Manager
NetworkStorageCompute
Services
VMs Apps
Service Provider Foundation
Windows Azure Pack
RD GW
WSUS
WDS
SQL
AD
IPAM
Service Management Automation

7. DEMO
AZURE PACK IN ACTION

8. DEMO
DEPLOYING AZURE PACK IN 15 MIN.

9. Build Cloud OS in ONE
Day

10. • COSN Project
• For Microsoft Hosting Western Europe
• Show Cloud Platform, WAP IaaS, SQL, Websites, Automation
• Everyone can Deploy Cloud Platform PoCs
• Targeting simple and quick deployments
Why Build Cloud OS in ONE Day

11. • Quick Deployment of Management Fabric based on System Center and
Windows Azure Pack on any hardware platform
• PoC design
• Pre-defined services, WAP IaaS, SQL, Websites, Automation
• Deploy Cloud Platform in less than 5 hours
• Targeting simple and quick deployments
Build Cloud OS in ONE Day Focus

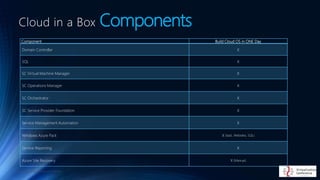

12. Cloud in a Box Components
Component Build Cloud OS in ONE Day
Domain Controller X
SQL X
SC Virtual Machine Manager X
SC Operations Manager X
SC Orchestrator X
SC Service Provider Foundation X
Service Management Automation X
Windows Azure Pack X (IaaS, Websites, SQL)
Service Reporting X
Azure Site Recovery X (Manual)

13. • PDT DC, SQL, System Center and Windows Azure Pack
• Sources Ready
• Predefined Deployment scripts
• Predefined Configuration scripts and sources
• Custom Deployment & Training Guides
Build Cloud OS in ONE Day Design

14. But Wait....
One more thing!

15. Cloud in a Box
BY ITNETX

16. • More efficient Deployments Projects focus on the important things
• More Deployments in less time
• Pre-defined services Customer gets what he pays for
• Winning new customers with better prices
Why Cloud in a Box

17. • Quick Deployment of Management Fabric based on System Center
and Windows Azure Pack incl. selected hardware components
• PLA compliant and CPS design
• Pre-defined services, focus on IaaS in v1
• We can deploy a Cloud Platform in less than a week
• Targeting small and medium sized customers (starting with ~100 VMs)
Cloud in a Box Focus

18. Cloud in a Box Offerings
Characteristics Bronze * Silver Gold Platinum
Scenario
Main scenario / design
POC 100+ VM’s 200+ VM’s 300+ VM’s
Paramizable
Customer can choose naming's and other parameters
X X X
Flexible Architecture
Customers can change / add / remove components
X X X
Can be used for Hosters
Designed for multi-tenancy
X X X X
Can be used in Production
Designed to be deployed with productive workload
X X X
Extension to Multi-Site
Option to extend design with multiple sites
Optional Optional
Extension to Azure Cloud
Option to extend design with public cloud
Optional Optional Optional

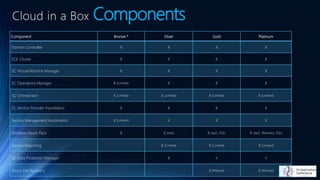

19. Cloud in a Box Components
Component Bronze * Silver Gold Platinum
Domain Controller X X X X
SQL Cluster X X X X
SC Virtual Machine Manager X X X X
SC Operations Manager X (Limited) X X X
SC Orchestrator X (Limited) X (Limited) X (Limited) X (Limited)
SC Service Provider Foundation X X X X
Service Management Automation X (Limited) X X X
Windows Azure Pack X X (IaaS) X (IaaS, SQL) X (IaaS, Websites, SQL)
Service Reporting X (Limited) X (Limited) X (Limited)
SC Data Protection Manager X X X
Azure Site Recovery X (Manual) X (Manual)

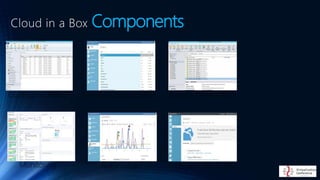

20. Cloud in a Box Components
Configure/deploy
Monitoring
Service Administration
Automation
Backup (Tenant/MC)
Disaster Recovery

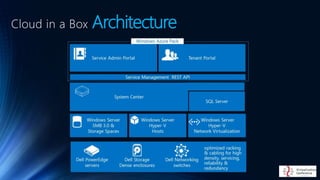

21. Cloud in a Box Architecture

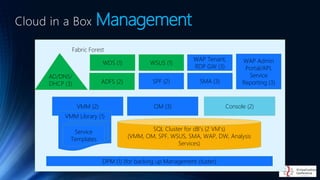

22. Cloud in a Box Management
VMM (2)
SQL Cluster for dB’s (2 VM’s)
(VMM, OM, SPF, WSUS, SMA, WAP, DW, Analysis
Services)
VMM Library (1)
Service
Templates
AD/DNS/
DHCP (3)
Fabric Forest
DPM (1) (for backing up Management cluster)
SPF (2) SMA (3)
WDS (1) WSUS (1)
WAP Tenant,
RDP GW (3)
WAP Admin
Portal/API,
Service
Reporting (3)ADFS (2)
OM (3) Console (2)

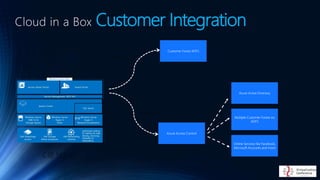

23. Cloud in a Box Customer Integration
CIB Stamp
Option 1
Option 2

24. DEMO
DEPLOYING CLOUD IN A BOX.

25. Azure Stack and OMS
THE FUTURE…

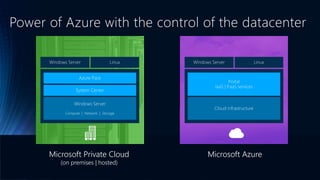

26. Power of Azure with the control of the datacenter
Microsoft Private Cloud
(on premises | hosted)
Microsoft Azure

27. Power of Azure with the control of the datacenter
Microsoft Private Cloud
(on premises | hosted)
Microsoft Azure

28. Microsoft Private Cloud
(on-premises | hosted)
Power of Azure with the control of the datacenter
Microsoft Azure Stack
(on-premises | hosted)
Microsoft AzureMicrosoft AzureMicrosoft Private Cloud
(on-premises/hosted)
Microsoft Azure Stack
(on premises | hosted)

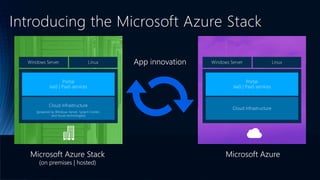

29. Introducing the Microsoft Azure Stack
Microsoft AzureMicrosoft Private Cloud
(on-premises/hosted)
Microsoft Azure Stack
(on premises | hosted)
App innovation

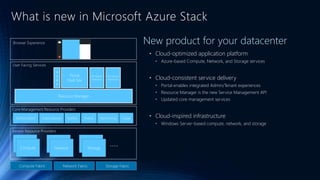

30. • Cloud-optimized application platform
• Azure-based Compute, Network, and Storage services
• Cloud-consistent service delivery
• Portal enables integrated Admin/Tenant experiences
• Resource Manager is the new Service Management API
• Updated core management services
• Cloud-inspired infrastructure
• Windows Server-based compute, network, and storage
What is new in Microsoft Azure Stack
Compute Fabric Network Fabric Storage Fabric
Portal
Shell Site
Resource Manager
UsageEventsSubscriptions
User Facing Services
H
U
B
S
RP Admin
Extension
RP Tenant
Extension
Gallery
Core Management Resource Providers
StorageNetworkCompute
Service Resource Providers
…..
Browser Experience
Authorization Monitoring

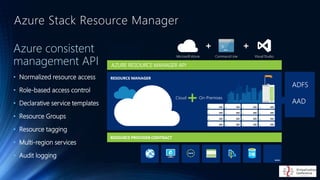

31. Azure Stack Resource Manager
Azure consistent
management API
• Normalized resource access
• Role-based access control
• Declarative service templates
• Resource Groups
• Resource tagging
• Multi-region services
• Audit logging
AZURE RESOURCE MANAGER API

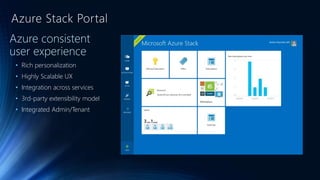

32. • Rich personalization
• Highly Scalable UX
• Integration across services
• 3rd-party extensibility model
• Integrated Admin/Tenant
Azure Stack Portal

33. Hybrid and
Heterogeneous
Starting the journey | Modern management
Operations
Management Suite
System Center
foundation

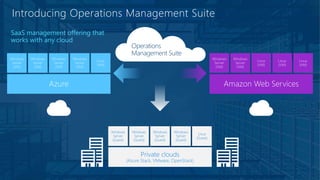

34. Introducing Operations Management Suite
Private clouds
(Azure Stack, VMware, OpenStack)
Windows
Server
(Guest)
Windows
Server
(Guest)
Windows
Server
(Guest)
Windows
Server
(Guest)
Linux
(Guest)
Operations
Management Suite

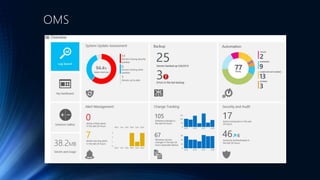

35. OMS
