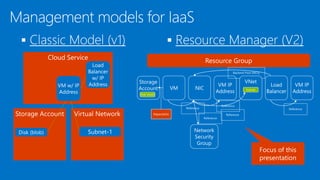

3.  

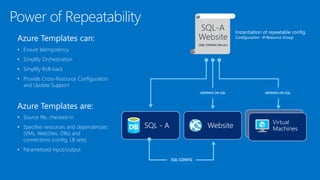

4. Azure Templates can:
• Ensure Idempotency
• Simplify Orchestration
• Simplify Roll-back
• Provide Cross-Resource Configuration
and Update Support
Azure Templates are:
• Source file, checked-in
• Specifies resources and dependencies
(VMs, WebSites, DBs) and
connections (config, LB sets)
• Parametized input/output
Instantiation of repeatable config.
Configuration  Resource Group
SQL - A Website
Virtual
Machines
SQL-A
Website
[SQL CONFIG] VM (2x)
DEPENDS ON SQLDEPENDS ON SQL
SQL CONFIG

5. 










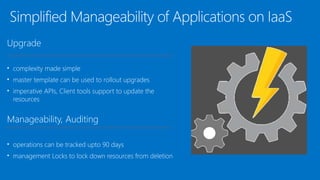

6. Upgrade
• complexity made simple
• master template can be used to rollout upgrades
• imperative APIs, Client tools support to update the
resources
Manageability, Auditing
• operations can be tracked upto 90 days
• management Locks to lock down resources from deletion

7.  Wide range of Quickstart Templates
 Github Repo
 Indexed on Azure.com
 Community & Microsoft contributed
 Integration of IaaS with Azure Services

8. https://github.com/Azure/azure-quickstart-templates

10. 


















Get-AzureRmResourceProvider -ListAvailable

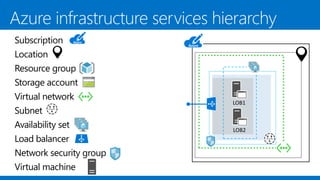

11. Subscription
Location
Resource group
Storage account
Virtual network
Subnet
Availability set
Load balancer
Network security group
Virtual machine
LOB1
LOB2

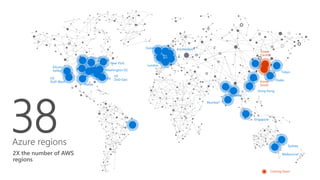

12. US
DoD West
US
DoD East

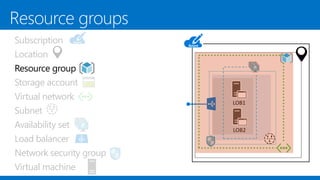

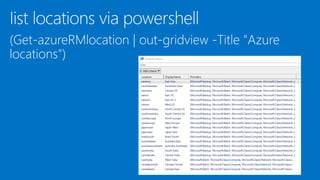

14. Subscription
Location
Resource group
Storage account
Virtual network
Subnet
Availability set
Load balancer
Network security group
Virtual machine
LOB1
LOB2

15. 









16. 



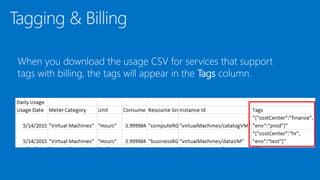

17. When you download the usage CSV for services that support
tags with billing, the tags will appear in the Tags column.

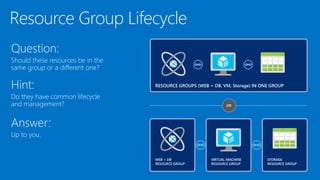

18. Question:
Should these resources be in the
same group or a different one?
Hint:
Do they have common lifecycle
and management?
Answer:
Up to you.

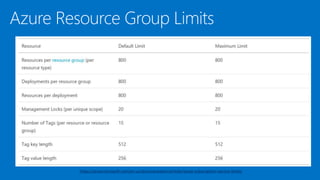

19. https://azure.microsoft.com/en-us/documentation/articles/azure-subscription-service-limits/

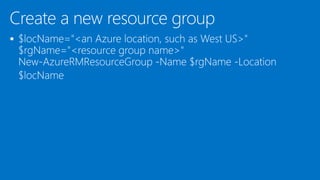

20. New-AzureRmResourceGroup -Name Azure101 -Location "West Europe"

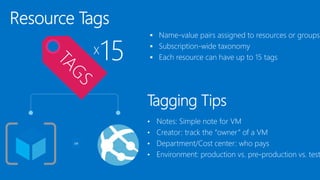

21. Adding tags to the collection
New-AzureRmTag -Name "Demo" -Value "azureworkshop"

22. 
•
•

•
•
•

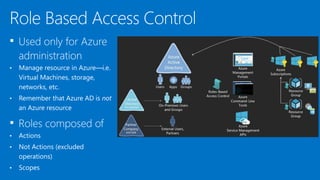

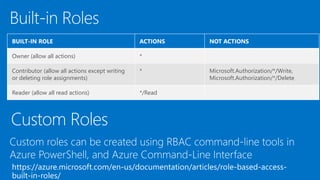

24. BUILT-IN ROLE ACTIONS NOT ACTIONS
Owner (allow all actions) *
Contributor (allow all actions except writing
or deleting role assignments)
* Microsoft.Authorization/*/Write,
Microsoft.Authorization/*/Delete
Reader (allow all read actions) */Read

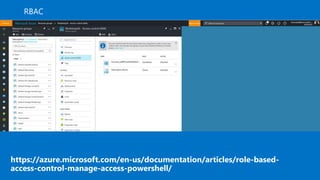

25. https://azure.microsoft.com/en-us/documentation/articles/role-based-
access-control-manage-access-powershell/

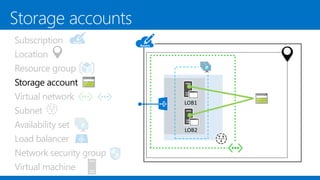

26. Subscription
Location
Resource group
Storage account
Virtual network
Subnet
Availability set
Load balancer
Network security group
Virtual machine
LOB1
LOB2

27. Subscription
Location
Resource group
Storage account
Virtual network
Subnet
Availability set
Load balancer
Network security group
Virtual machine
LOB1
LOB2
OS
Data

29. 








30. 








31. 








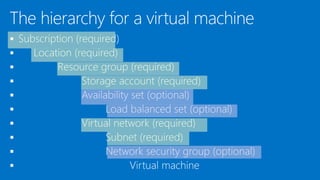

32. 










34. 1.
2.
3.
4.
5.
6.

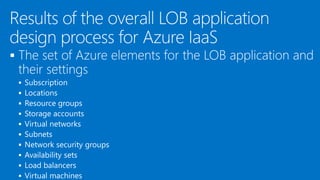

Web-based LOB application
Intranet SharePoint 2013 farm

35. 


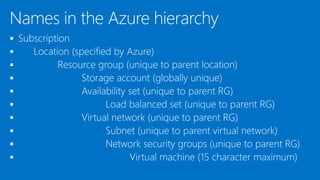

36. 










37. 




Name element Examples
Environment or deployment role dev, stg, prd
Azure location usw (West US), use (East US 2)
Azure component, service, or product rg for resource group, vnet for virtual network, vm for virtual machine
Role sql, ora, sp, iis
Instance 01, 02, 03, etc.

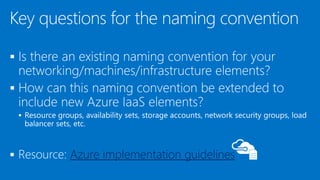

38. 


 Azure implementation guidelines

39. 









40. 












41. Secure site-to-site
VPN connectivity
• SMB, Enterprises
• Connect to Azure compute
Secure point-to-site
connectivity
• Developers
• POC Efforts
• Small scale deployments
• Connect from anywhere
ExpressRoute private
connectivity
• SMB & Enterprises
• Mission critical workloads
• Backup/DR, media, HPC
• Connect to all Azure services
Internet Connectivity
• Consumers
• Access over public IP
• DNS resolution
• Connect from anywhere

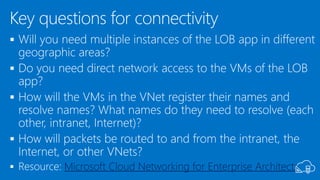

42. 



 Microsoft Cloud Networking for Enterprise Architects

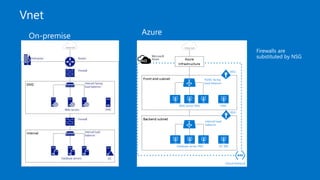

43. An Azure virtual network (VNet) is a representation of your own network
in the cloud. It is a logical isolation of the Azure cloud dedicated to your
subscription. You can fully control the IP address blocks, DNS settings,
security policies, and route tables within this network. You can also further
segment your VNet into subnets and launch Azure IaaS virtual machines
(VMs) and/or Cloud services (PaaS role instances). Additionally you can
connect the virtual network to your on-premises network using one of the
connectivity options available in Azure

45. Virtual Network Benefits;
Isolation. VNets are completely isolated from one another. That allows you to create disjoint
networks for development, testing, and production that use the same CIDR address blocks.
Access to the public Internet. All IaaS VMs and PaaS role instances in a VNet can access the
public Internet by default. You can control access by using Network Security Groups (NSGs).
Access to VMs within the VNet. PaaS role instances and IaaS VMs can be launched in the
same virtual network and they can connect to each other using private IP addresses even if
they are in different subnets without the need to configure a gateway or use public IP
addresses.
Name resolution. Azure provides internal name resolution for IaaS VMs and PaaS role
instances deployed in your VNet. You can also deploy your own DNS servers and configure the
VNet to use them.
Security. Traffic entering and exiting the virtual machines and PaaS role instances in a VNet can
be controlled using Network Security groups.
Connectivity. VNets can be connected to each other, and even to your on-premises datacenter,
by using a site-to-site VPN connection, or ExpressRoute connection.

46. 











47. 








48. 



 Azure implementation guidelines

49.  Blob storage stores file data. A blob can be any type of text or binary data, such as a document, media file, or application installer.
 Table storage stores structured datasets. Table storage is a NoSQL key-attribute data store, which allows for rapid development and
fast access to large quantities of data.
 Queue storage provides reliable messaging for workflow processing and for communication between components of cloud
services.
 File storage offers shared storage for legacy applications using the standard SMB 2.1 protocol. Azure virtual machines and cloud
services can share file data across application components via mounted shares, and on-premise applications can access file data in
a share via the File service REST AP

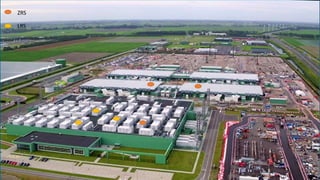

50. ZRS
LRS

51. Azure Virtual Machine Storage

52. Standard Storage Capacity Planning
 IOPS Per Disk
300 for Basic Tier
500 for Standard Tier (60 Mbps)
 IOPS Per Storage Account: 20,000
Supports up to 40 data disks using maximum IOPS per disk
Group disks into striped sets to for more IOPS
• Example: 4-disk X 500 IOPS = 2000 IOPS

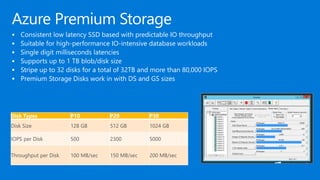

53. Azure Premium Storage
 Consistent low latency SSD based with predictable IO throughput
 Suitable for high-performance IO-intensive database workloads
 Single digit milliseconds latencies
 Supports up to 1 TB blob/disk size
 Stripe up to 32 disks for a total of 32TB and more than 80,000 IOPS
 Premium Storage Disks work in with DS and GS sizes
Disk Types P10 P20 P30
Disk Size 128 GB 512 GB 1024 GB
IOPS per Disk 500 2300 5000
Throughput per Disk 100 MB/sec 150 MB/sec 200 MB/sec

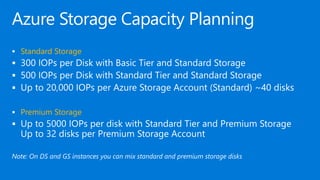

54. Azure Storage Capacity Planning
 Standard Storage
 300 IOPs per Disk with Basic Tier and Standard Storage
 500 IOPs per Disk with Standard Tier and Standard Storage
 Up to 20,000 IOPs per Azure Storage Account (Standard) ~40 disks
 Premium Storage
 Up to 5000 IOPs per disk with Standard Tier and Premium Storage
Up to 32 disks per Premium Storage Account
Note: On DS and GS instances you can mix standard and premium storage disks

55. #storageaccount
$stName = “workshopbin123"
$locName = "West Europe"
$rgName = “Azureworkshop“
$storageAcc = New-AzureRmStorageAccount -ResourceGroupName $rgName -Name
$stName -Type "Standard_GRS" -Location $locName
Note:
Storage account names must be between 3 and 24 characters in
length and may contain numbers and lowercase letters only.
Your storage account name must be unique within Azure. The Azure
Portal will indicate if the storage account name you select is already
in use

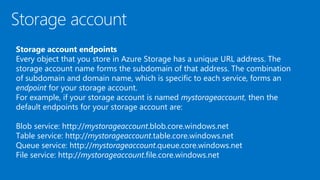

56. Storage account endpoints
Every object that you store in Azure Storage has a unique URL address. The
storage account name forms the subdomain of that address. The combination
of subdomain and domain name, which is specific to each service, forms an
endpoint for your storage account.
For example, if your storage account is named mystorageaccount, then the
default endpoints for your storage account are:
Blob service: http://mystorageaccount.blob.core.windows.net
Table service: http://mystorageaccount.table.core.windows.net
Queue service: http://mystorageaccount.queue.core.windows.net
File service: http://mystorageaccount.file.core.windows.net

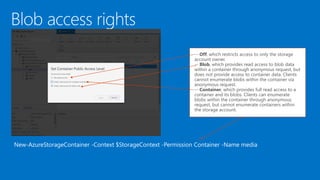

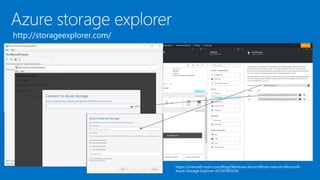

59. New-AzureStorageContainer -Context $StorageContext -Permission Container -Name media
-- Off, which restricts access to only the storage
account owner.
-- Blob, which provides read access to blob data
within a container through anonymous request, but
does not provide access to container data. Clients
cannot enumerate blobs within the container via
anonymous request.
-- Container, which provides full read access to a
container and its blobs. Clients can enumerate
blobs within the container through anonymous
request, but cannot enumerate containers within
the storage account.

60. 












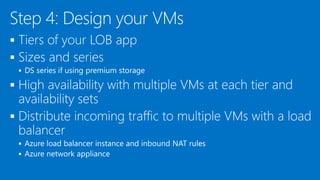

61. 







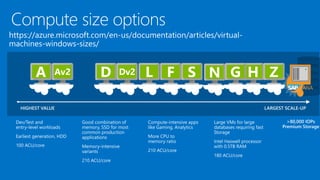

63. 






 Azure implementation guidelines

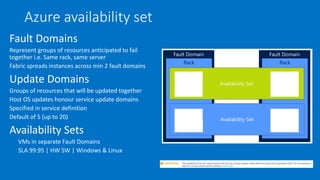

64. Azure availability set
Fault Domains
Represent groups of resources anticipated to fail
together i.e. Same rack, same server
Fabric spreads instances across min 2 fault domains
Update Domains
Groups of resources that will be updated together
Host OS updates honour service update domains
Specified in service definition
Default of 5 (up to 20)
Availability Sets
VMs in separate Fault Domains
SLA 99.95 | HW SW | Windows & Linux

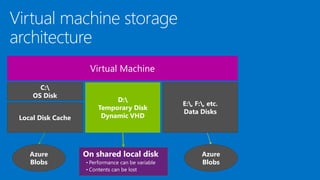

65. Virtual Machine
C:
OS Disk
E:, F:, etc.
Data Disks
D:
Temporary Disk
Dynamic VHDLocal Disk Cache
Azure
Blobs
On shared local disk
• Performance can be variable
• Contents can be lost
Azure
Blobs

69. https://azure.microsoft.com/en-us/documentation/articles/virtual-networks-multiple-nics/
The VM size determines the number of NICS
that you can create for a VM!

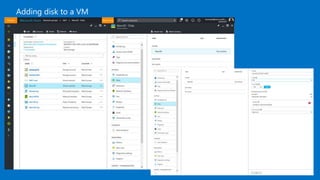

71. 









72. 








73. 









74. 


 Azure identity management

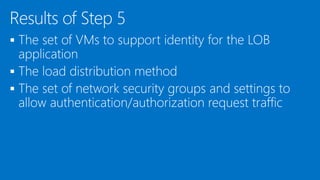

75. 



76. 










77. 


 Virtual Machines-Security

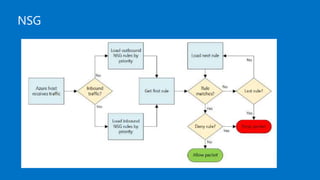

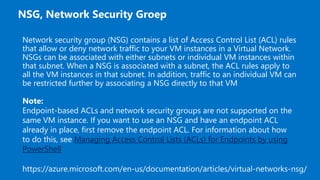

78. Network security group (NSG) contains a list of Access Control List (ACL) rules
that allow or deny network traffic to your VM instances in a Virtual Network.
NSGs can be associated with either subnets or individual VM instances within
that subnet. When a NSG is associated with a subnet, the ACL rules apply to
all the VM instances in that subnet. In addition, traffic to an individual VM can
be restricted further by associating a NSG directly to that VM
Note:
Endpoint-based ACLs and network security groups are not supported on the
same VM instance. If you want to use an NSG and have an endpoint ACL
already in place, first remove the endpoint ACL. For information about how
to do this, see Managing Access Control Lists (ACLs) for Endpoints by using
PowerShell

80. VIRTUAL_NETWORK
AZURE_LOADBALANCER
INTERNET

83. 








84. 











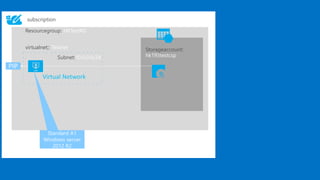

85. subscription
Resourcegroup: HKTestRG
Storageaccount:
hk193testcsp
Virtual Network
virtualnet;:
Subnet:10.0.0.0/24

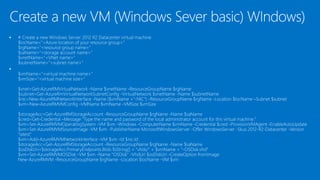

86. #create the vm
$stName = "hk193testcsp"
$locName = "West Europe"
$rgName = "HKTestRG“
New-AzureRmResourceGroup -Name $rgName -Location $locName
$storageAcc = New-AzureRmStorageAccount -ResourceGroupName $rgName -Name $stName -Type "Standard_GRS" -Location
$locName
$singleSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name singleSubnet -AddressPrefix 10.0.0.0/24
$vnet = New-AzureRmVirtualNetwork -Name TestNet -ResourceGroupName $rgName -Location $locName -AddressPrefix
10.0.0.0/16 -Subnet $singleSubnet
$pip = New-AzureRmPublicIpAddress -Name TestPIP -ResourceGroupName $rgName -Location $locName -AllocationMethod
Dynamic
$nic = New-AzureRmNetworkInterface -Name TestNIC -ResourceGroupName $rgName -Location $locName -SubnetId
$vnet.Subnets[0].Id -PublicIpAddressId $pip.Id
$cred = Get-Credential -Message "Type the name and password of the local administrator account."
$vm = New-AzureRmVMConfig -VMName WindowsVM -VMSize "Standard_A1"
$vm = Set-AzureRmVMOperatingSystem -VM $vm -Windows -ComputerName MyWindowsVM -Credential $cred -
ProvisionVMAgent -EnableAutoUpdate
$vm = Set-AzureRmVMSourceImage -VM $vm -PublisherName MicrosoftWindowsServer -Offer WindowsServer -Skus 2012-R2-
Datacenter -Version "latest"
$vm = Add-AzureRmVMNetworkInterface -VM $vm -Id $nic.Id
$osDiskUri = $storageAcc.PrimaryEndpoints.Blob.ToString() + "vhds/WindowsVMosDisk.vhd"
$vm = Set-AzureRmVMOSDisk -VM $vm -Name "windowsvmosdisk" -VhdUri $osDiskUri -CreateOption fromImage
New-AzureRmVM -ResourceGroupName $rgName -Location $locName -VM $vm

88. New-AzureRmResourceGroupDeployment -Name testDeployment -ResourceGroupName $rgname -
TemplateUri https://raw.githubusercontent.com/Azure/azure-quickstart-templates/master/101-vm-
simple-windows/azuredeploy.json -Mode Incremental

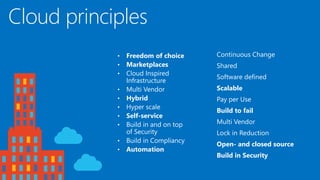

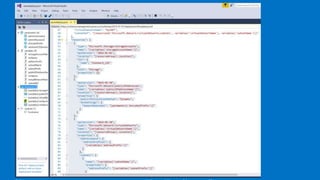

90. Cloud principles
• Freedom of choice
• Marketplaces
• Cloud Inspired
Infrastructure
• Multi Vendor
• Hybrid
• Hyper scale
• Self-service
• Build in and on top
of Security
• Build in Compliancy
• Automation
Continuous Change
Shared
Software defined
Scalable
Pay per Use
Build to fail
Multi Vendor
Lock in Reduction
Open- and closed source
Build in Security

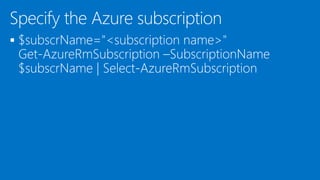

94. 

95. 

96. 

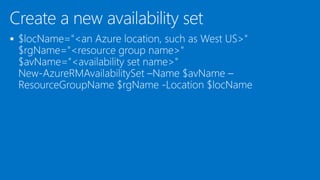

97. 

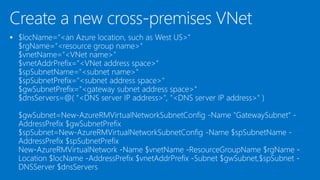

98. 

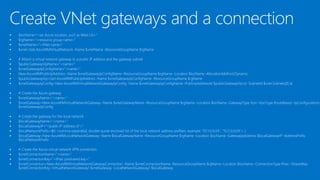

99. 






















100. 













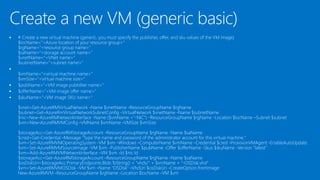

101. 
























102. 





103. 


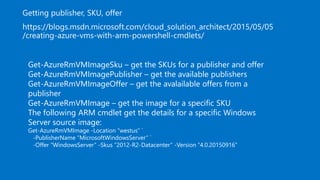

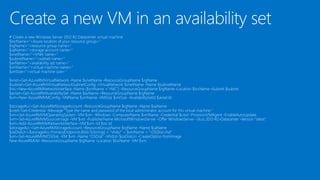

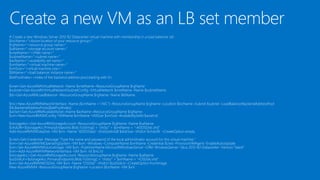

108. Get-AzureRmVMImageSku – get the SKUs for a publisher and offer
Get-AzureRmVMImagePublisher – get the available publishers
Get-AzureRmVMImageOffer – get the avalailable offers from a
publisher
Get-AzureRmVMImage – get the image for a specific SKU
The following ARM cmdlet get the details for a specific Windows
Server source image:
Get-AzureRmVMImage -Location “westus” `
-PublisherName “MicrosoftWindowsServer” `
-Offer “WindowsServer” -Skus “2012-R2-Datacenter” -Version “4.0.20150916”

110. 

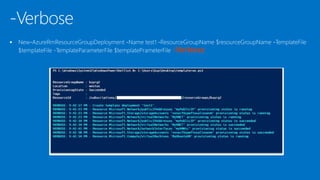

-Verbose

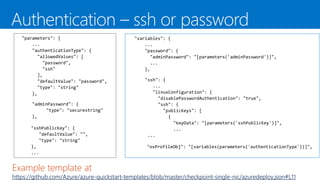

111. Example template at
https://github.com/Azure/azure-quickstart-templates/blob/master/checkpoint-single-nic/azuredeploy.json#L11

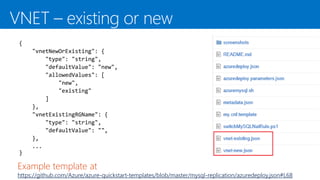

112. Example template at
https://github.com/Azure/azure-quickstart-templates/blob/master/mysql-replication/azuredeploy.json#L68

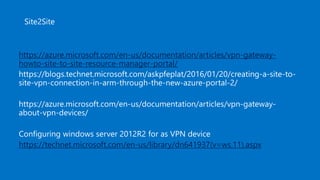

114. https://azure.microsoft.com/en-us/documentation/articles/vpn-gateway-
howto-site-to-site-resource-manager-portal/
https://technet.microsoft.com/en-us/library/dn641937(v=ws.11).aspx

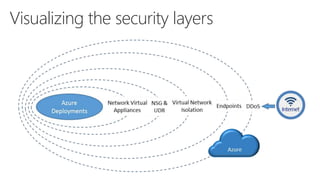

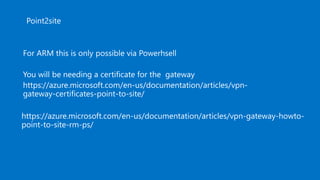

117. Visualizing the security layers
