CELL STRUCTURE AND TAXONOMY

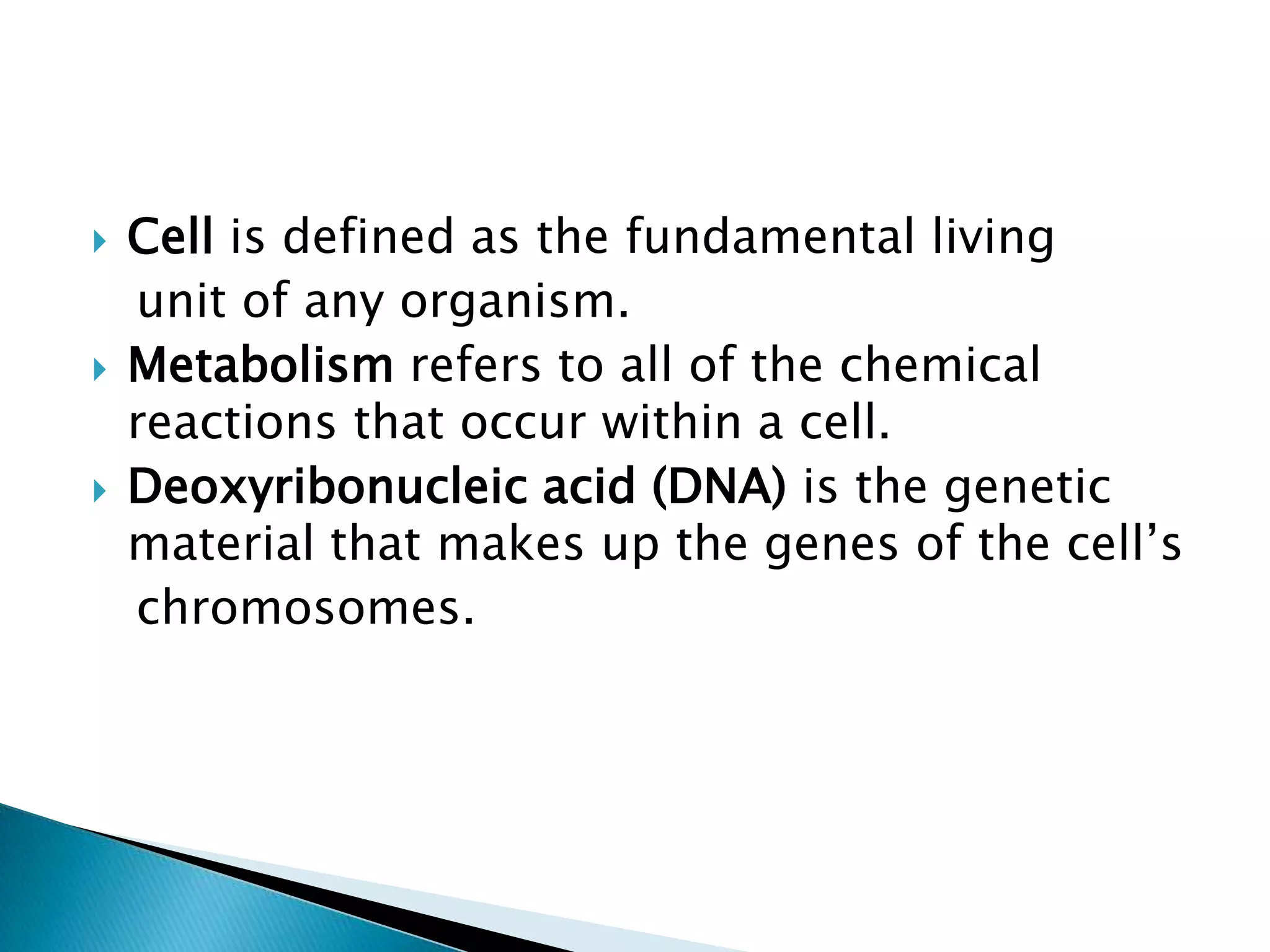

Cell is defined as the fundamental living    unit of any organism. Metabolism refers to all of the chemical reactions that occur within a cell. Deoxyribonucleic acid (DNA) is the genetic material that makes up the genes of the cell’s    chromosomes.

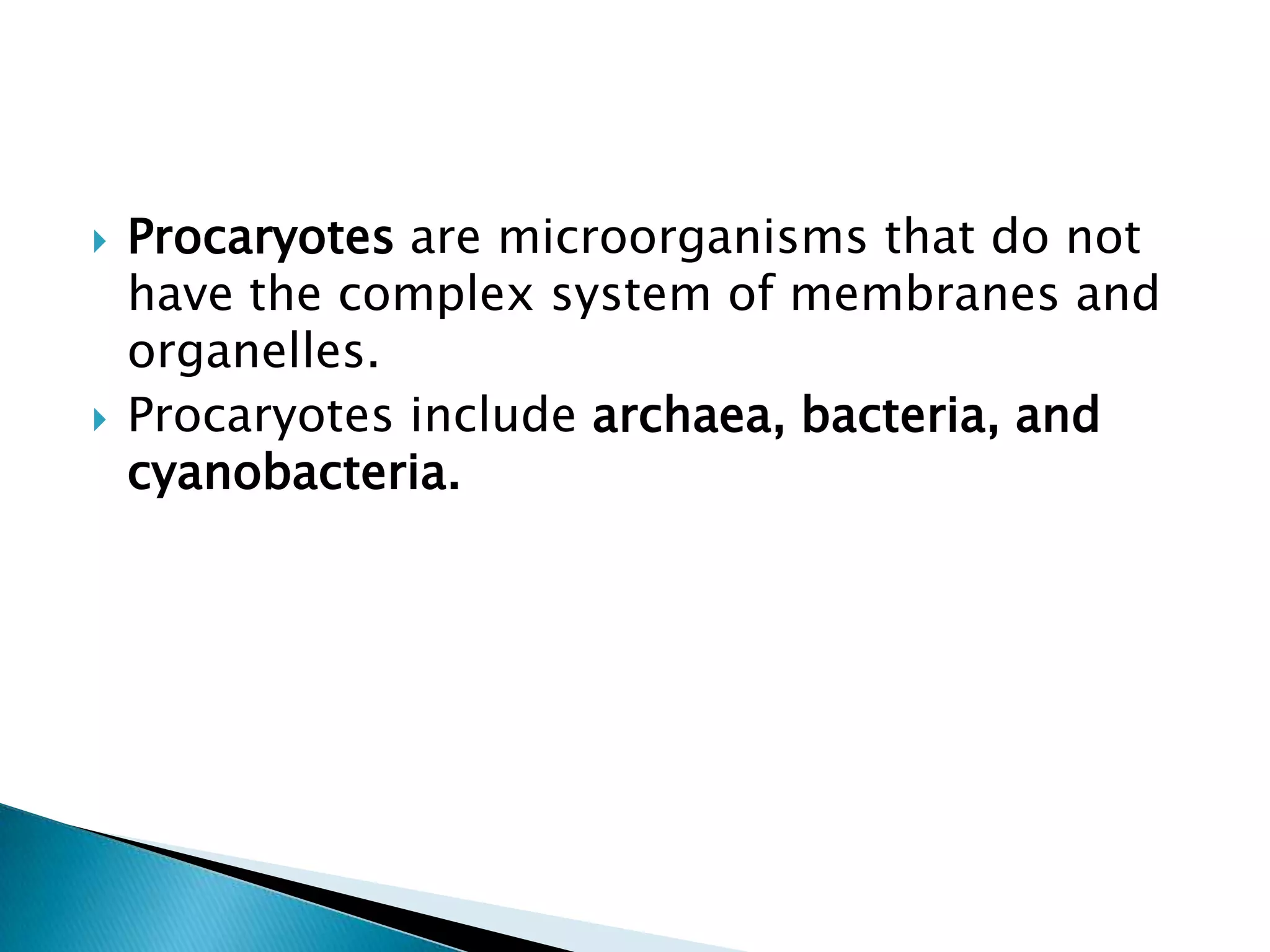

Procaryotes are microorganisms that do not have the complex system of membranes and organelles. Procaryotes include archaea, bacteria, and cyanobacteria.

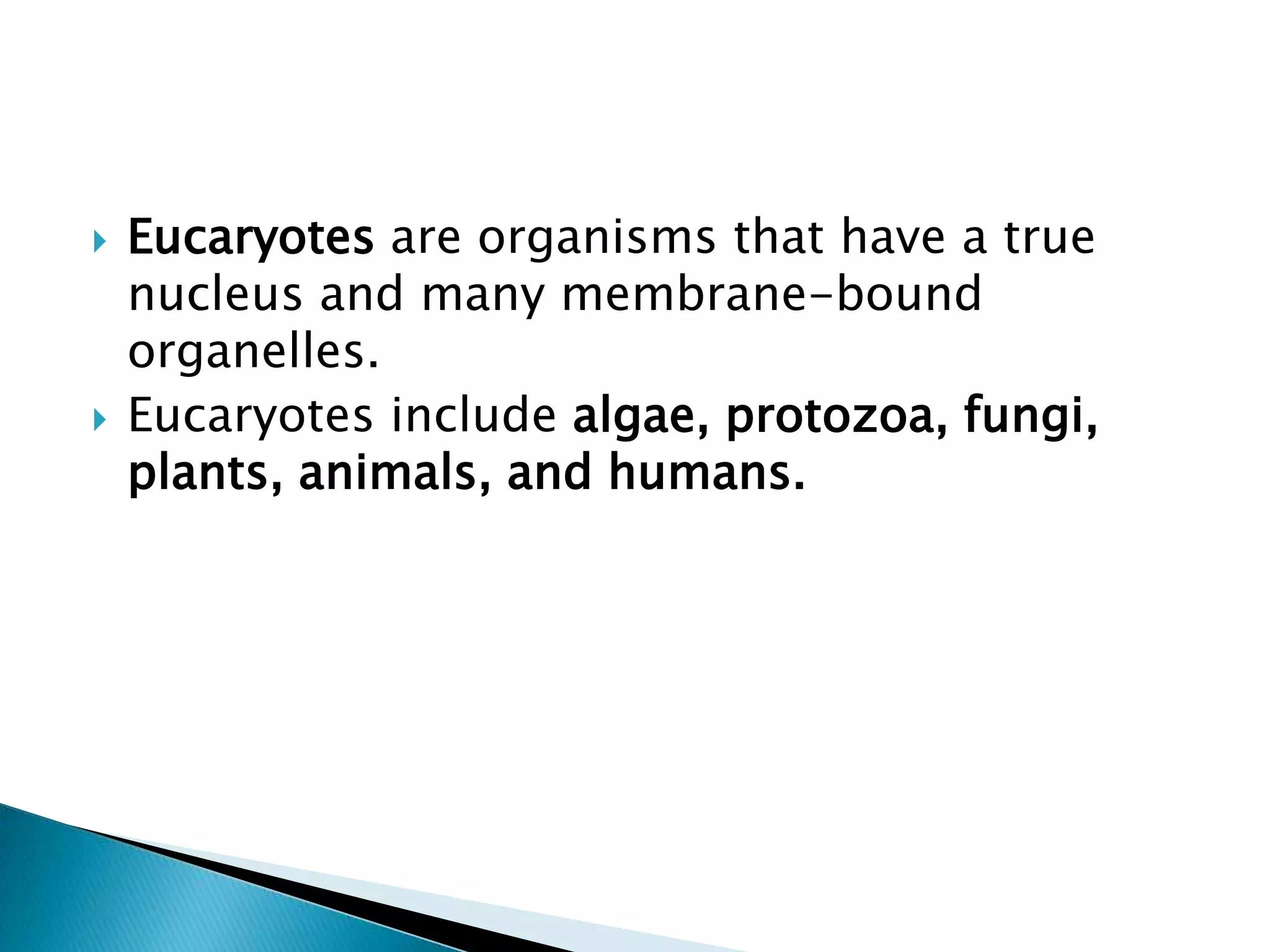

Eucaryotes are organisms that have a true nucleus and many membrane-bound organelles. Eucaryotes include algae, protozoa, fungi, plants, animals, and humans.

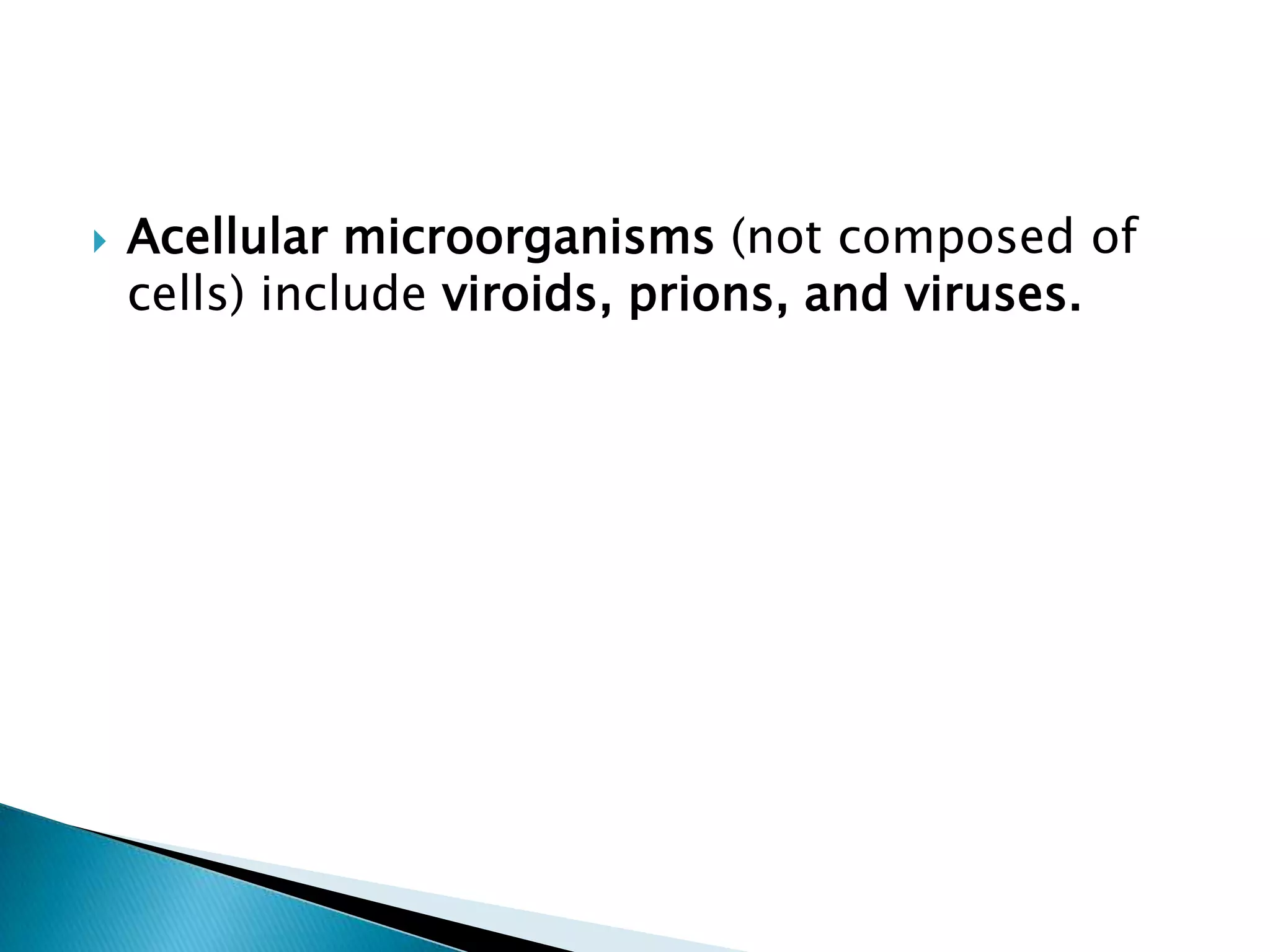

Acellular microorganisms (not composed of cells) include viroids, prions, and viruses.

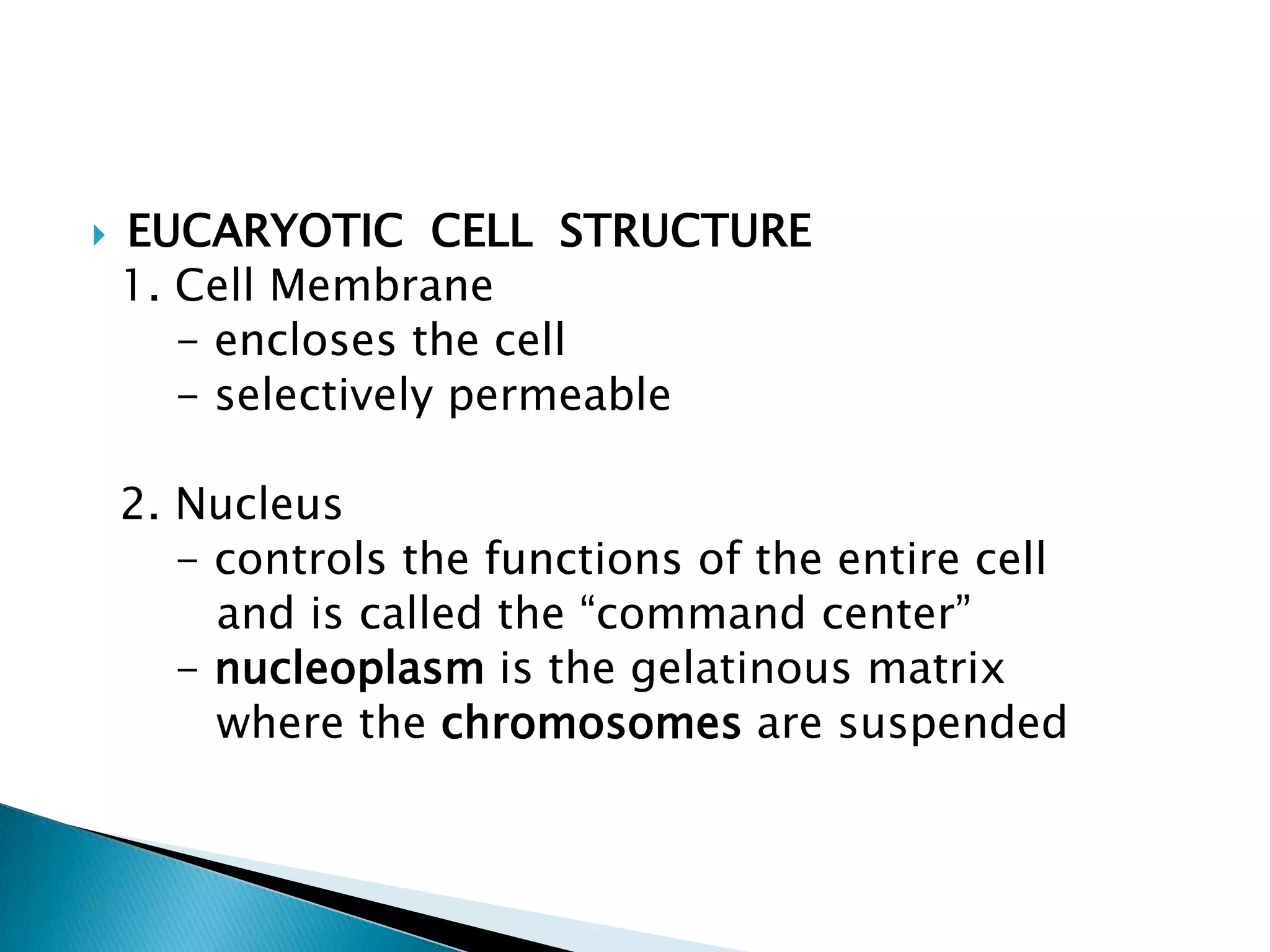

EUCARYOTIC  CELL  STRUCTURE 1. Cell Membrane - encloses the cell - selectively permeable   2. Nucleus       - controls the functions of the entire cell          and is called the “command center”       - nucleoplasmis the gelatinous matrix          where the chromosomes are suspended

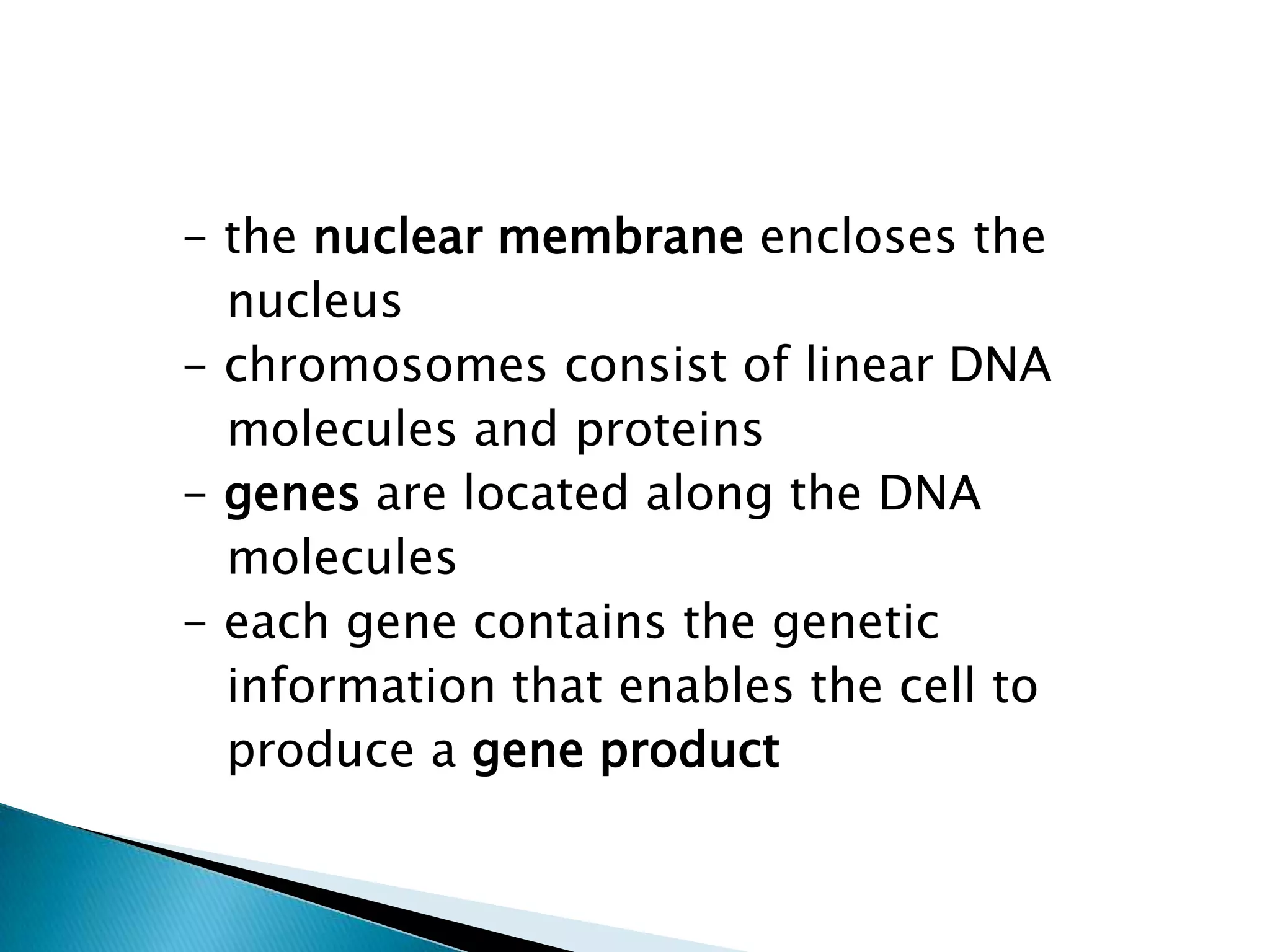

      - the nuclear membrane encloses the           nucleus       - chromosomes consist of linear DNA          molecules and proteins       - genes are located along the DNA          molecules       - each gene contains the genetic           information that enables the cell to          produce a gene product

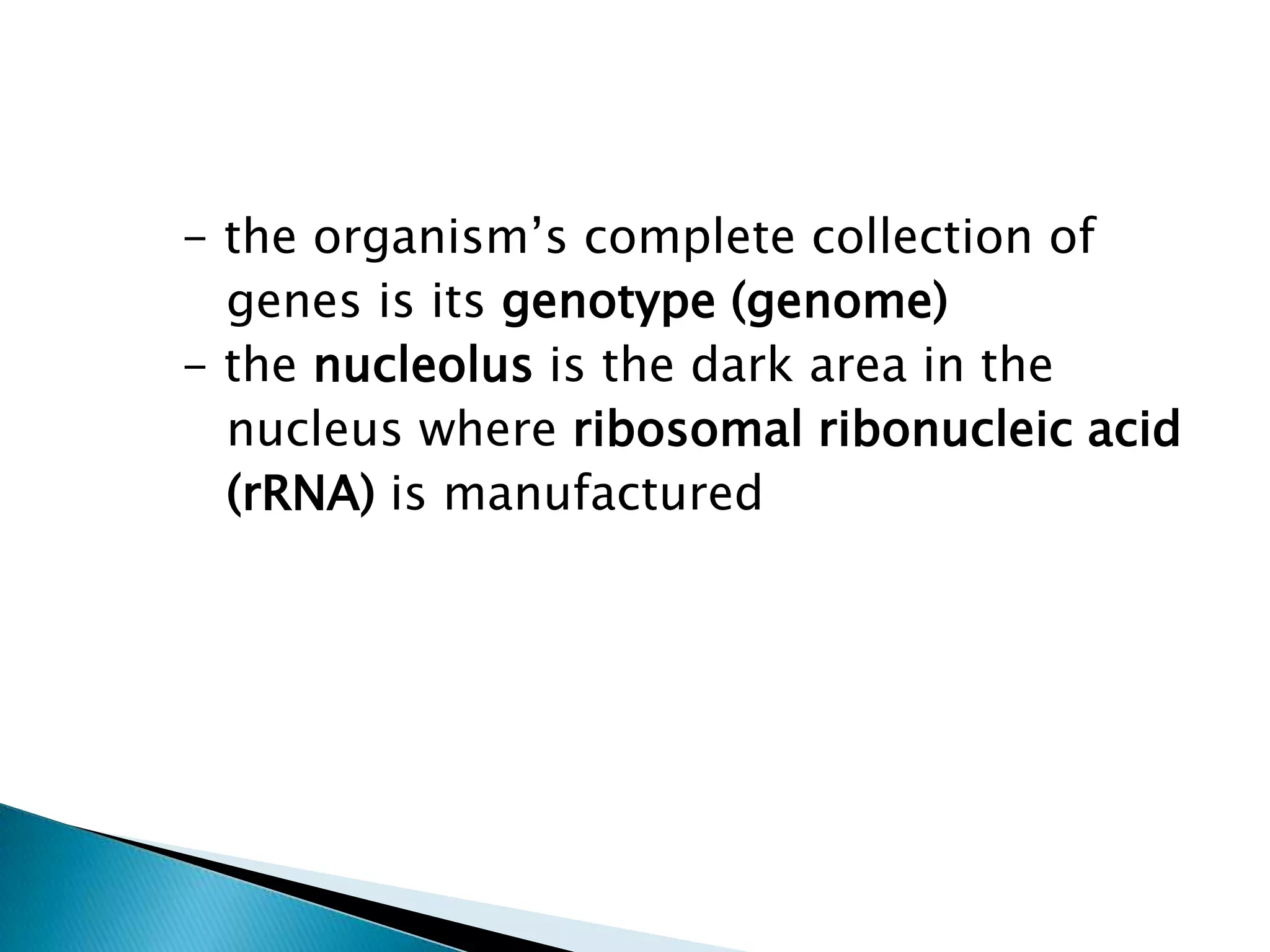

      - the organism’s complete collection of           genes is its genotype (genome)       - the nucleolus is the dark area in the           nucleus where ribosomal ribonucleic acid (rRNA) is manufactured

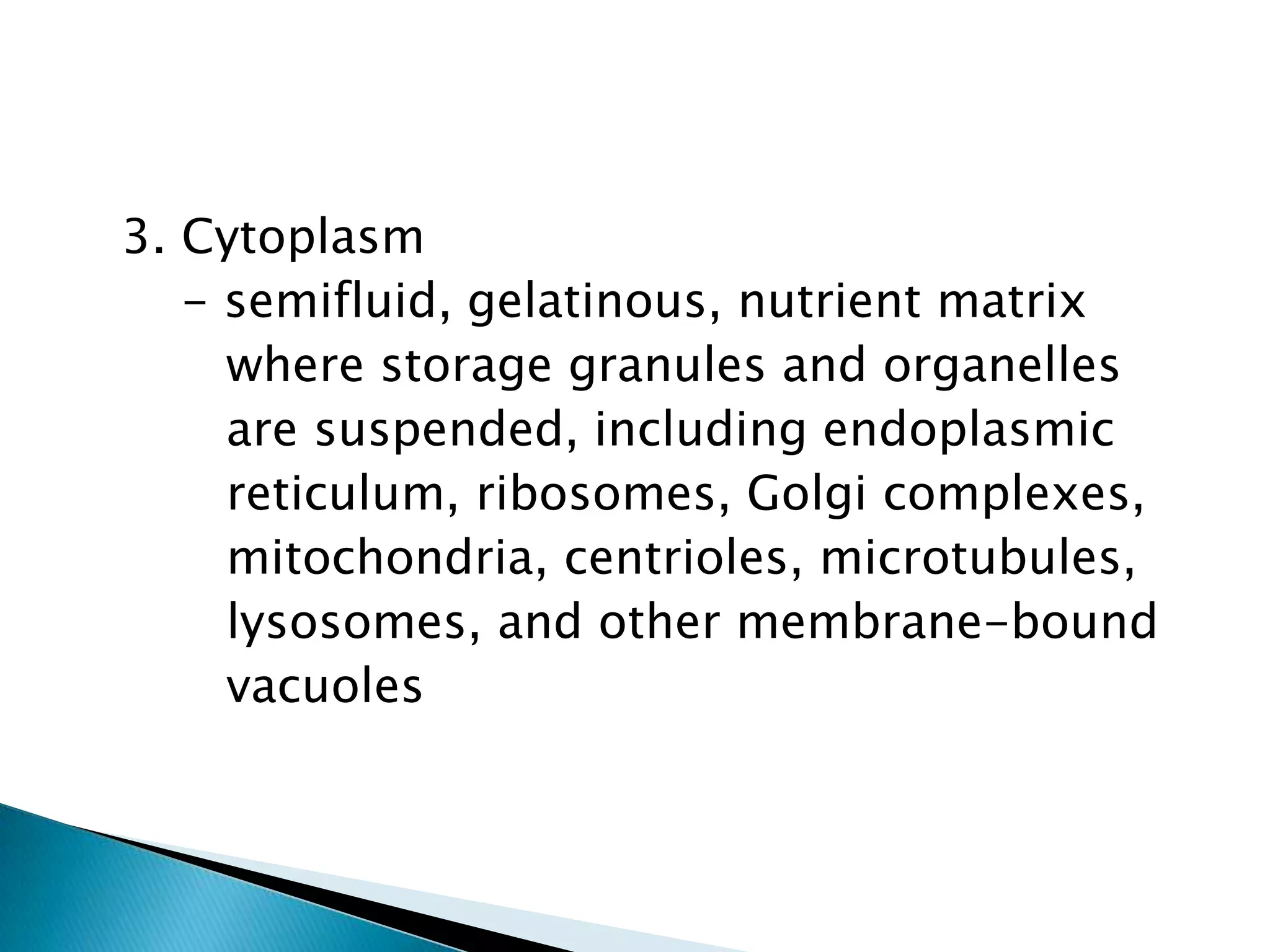

  3. Cytoplasm       - semifluid, gelatinous, nutrient matrix           where storage granules and organelles           are suspended, including endoplasmic          reticulum, ribosomes, Golgi complexes,          mitochondria, centrioles, microtubules, lysosomes, and other membrane-bound          vacuoles

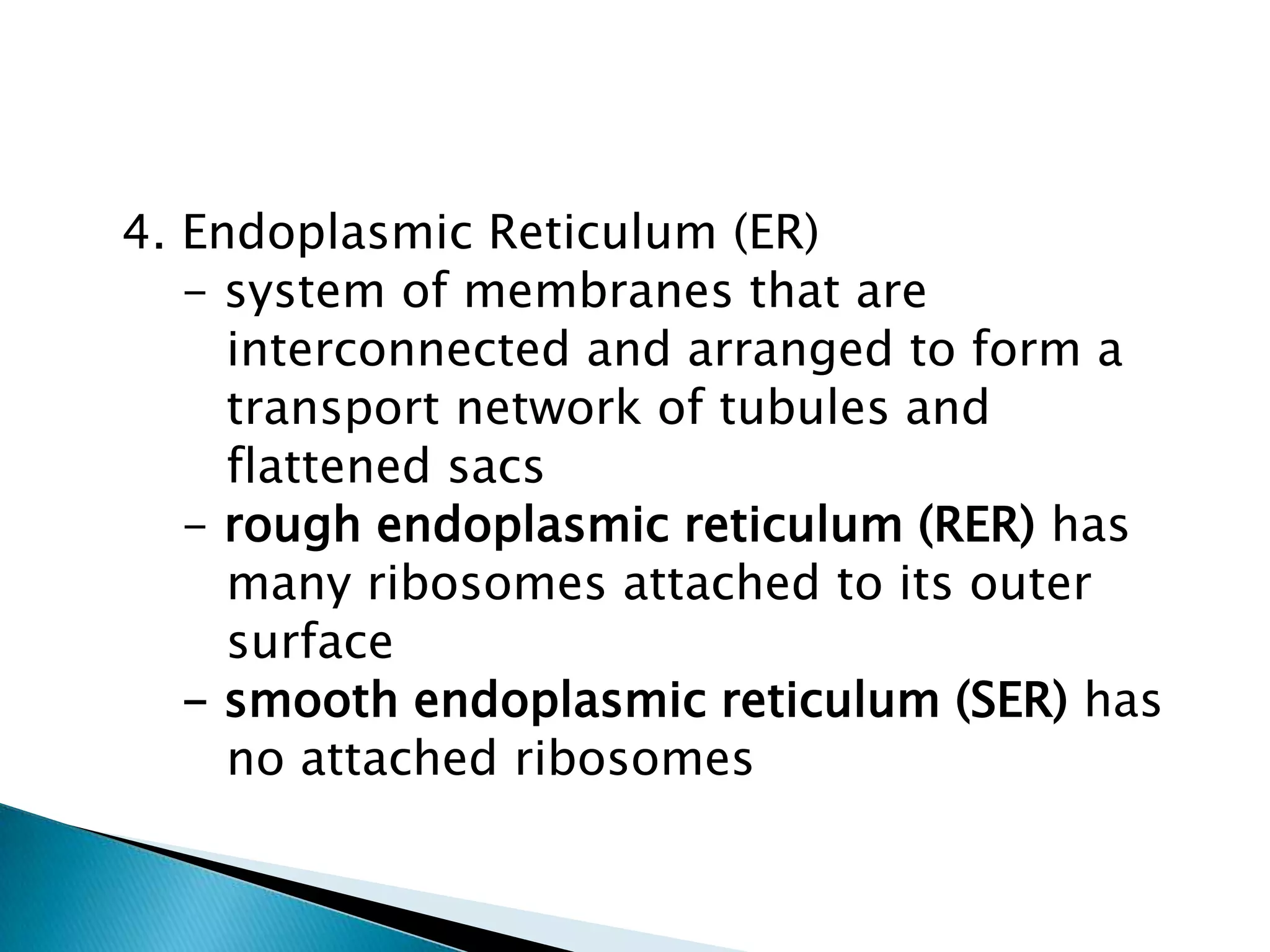

  4. Endoplasmic Reticulum (ER)       - system of membranes that are           interconnected and arranged to form a           transport network of tubules and           flattened sacs       - rough endoplasmic reticulum (RER) has many ribosomes attached to its outer surface       - smooth endoplasmic reticulum (SER) has no attached ribosomes

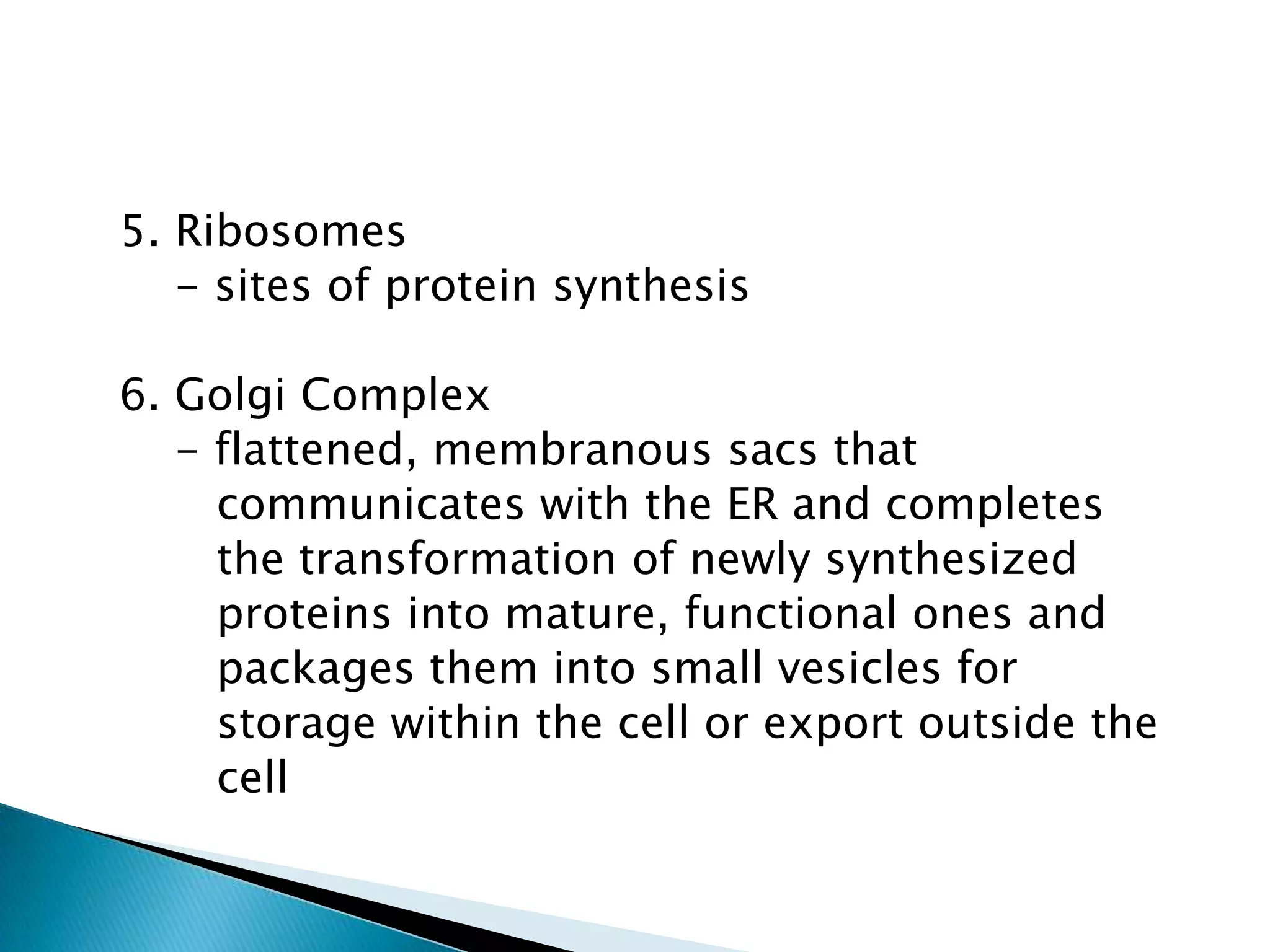

  5. Ribosomes       - sites of protein synthesis   6. Golgi Complex       - flattened, membranous sacs that           communicates with the ER and completes           the transformation of newly synthesized          proteins into mature, functional ones and          packages them into small vesicles for          storage within the cell or export outside the          cell

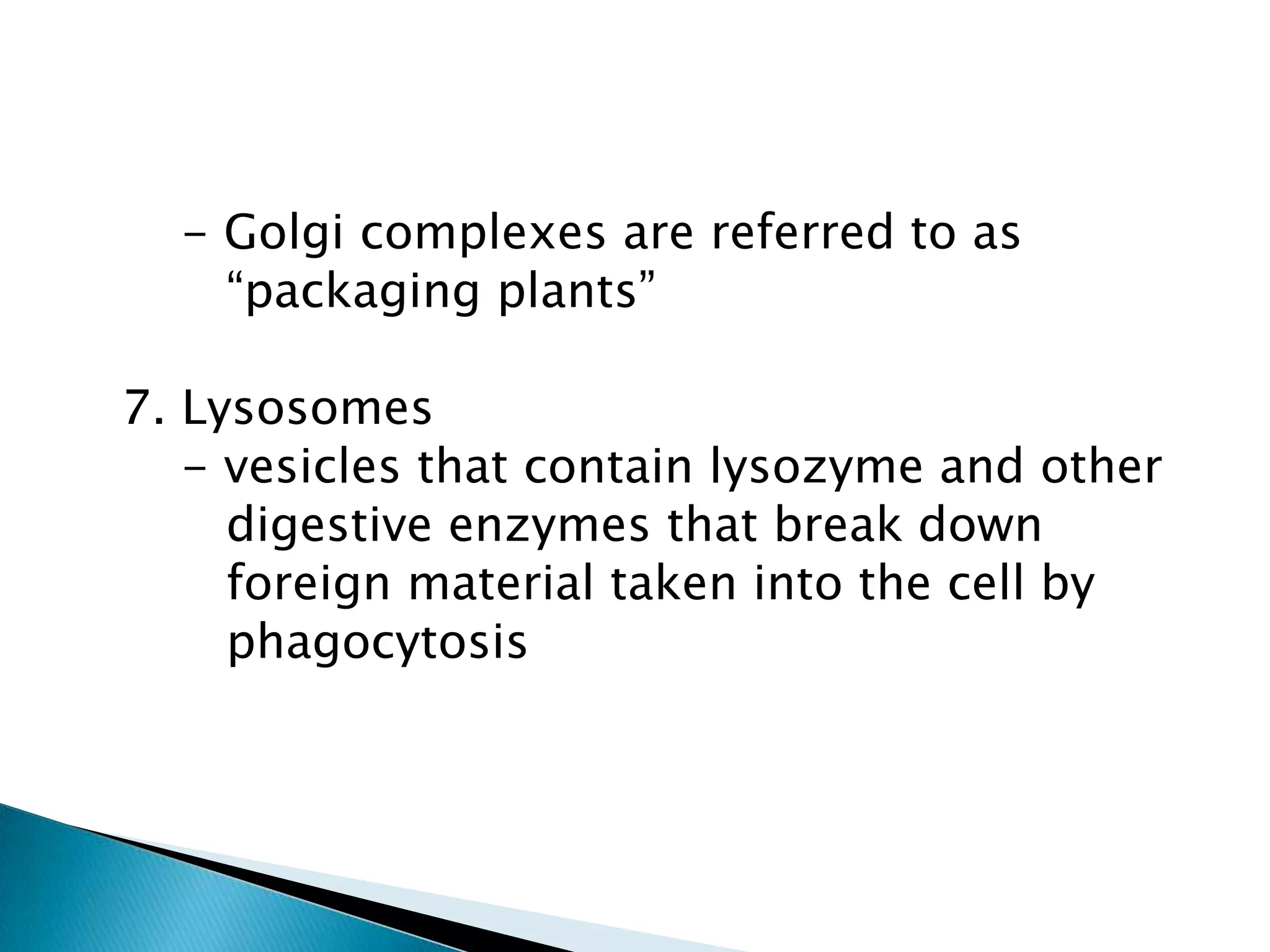

      - Golgi complexes are referred to as          “packaging plants”   7. Lysosomes       - vesicles that contain lysozyme and other          digestive enzymes that break down           foreign material taken into the cell by phagocytosis

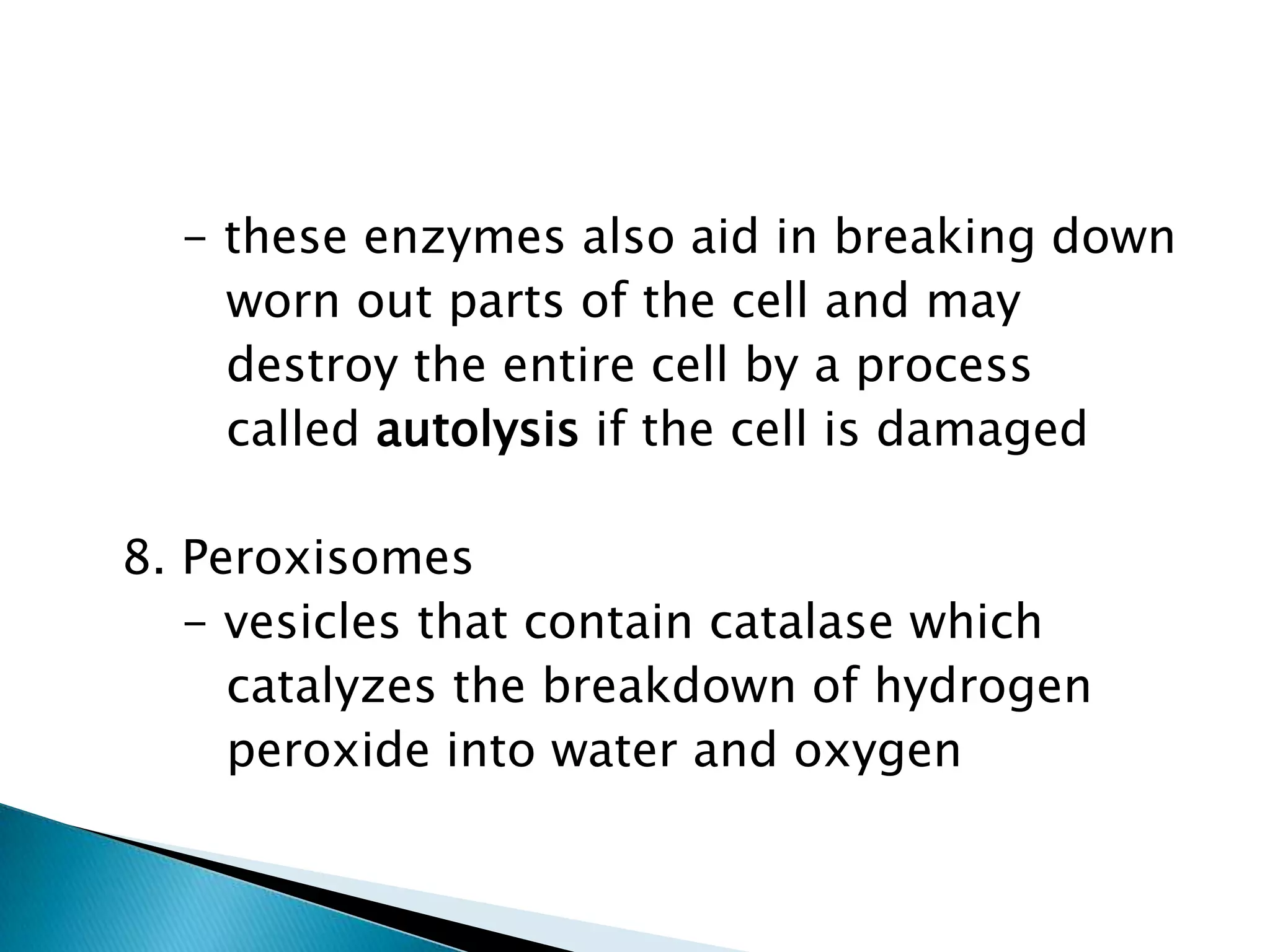

      - these enzymes also aid in breaking down          worn out parts of the cell and may           destroy the entire cell by a process           called autolysis if the cell is damaged   8. Peroxisomes       - vesicles that contain catalase which          catalyzes the breakdown of hydrogen          peroxide into water and oxygen
  9. Mitochondria       - sites of adenosine triphosphate (ATP)          formation and are referred to as          “powerhouses” of the cell   10. Plastids         - sites of photosynthesis         - a plastid called chloroplast contains a            green, photosynthetic pigment called chlorophyll

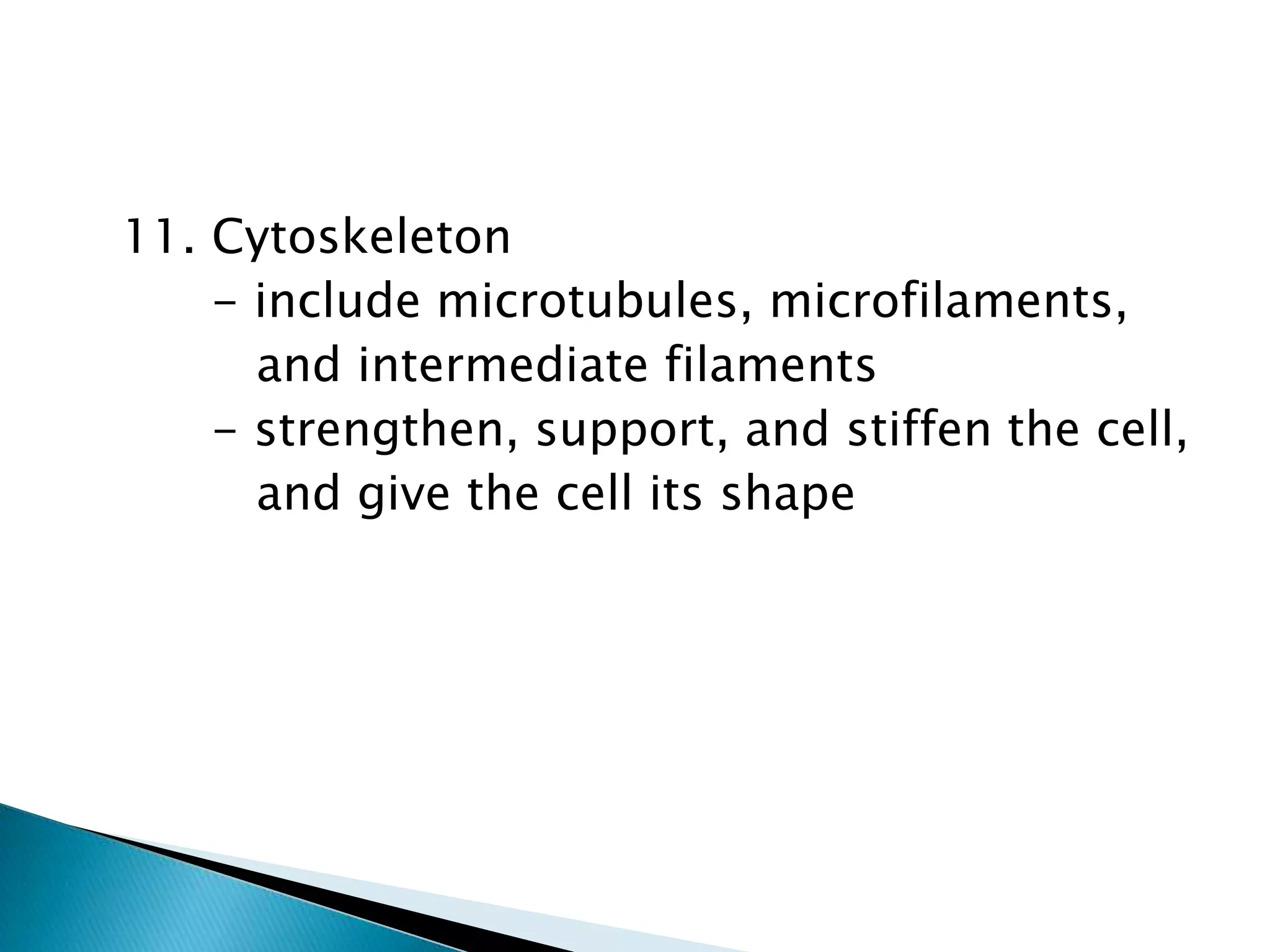

  11. Cytoskeleton         - include microtubules, microfilaments,            and intermediate filaments         - strengthen, support, and stiffen the cell,            and give the cell its shape

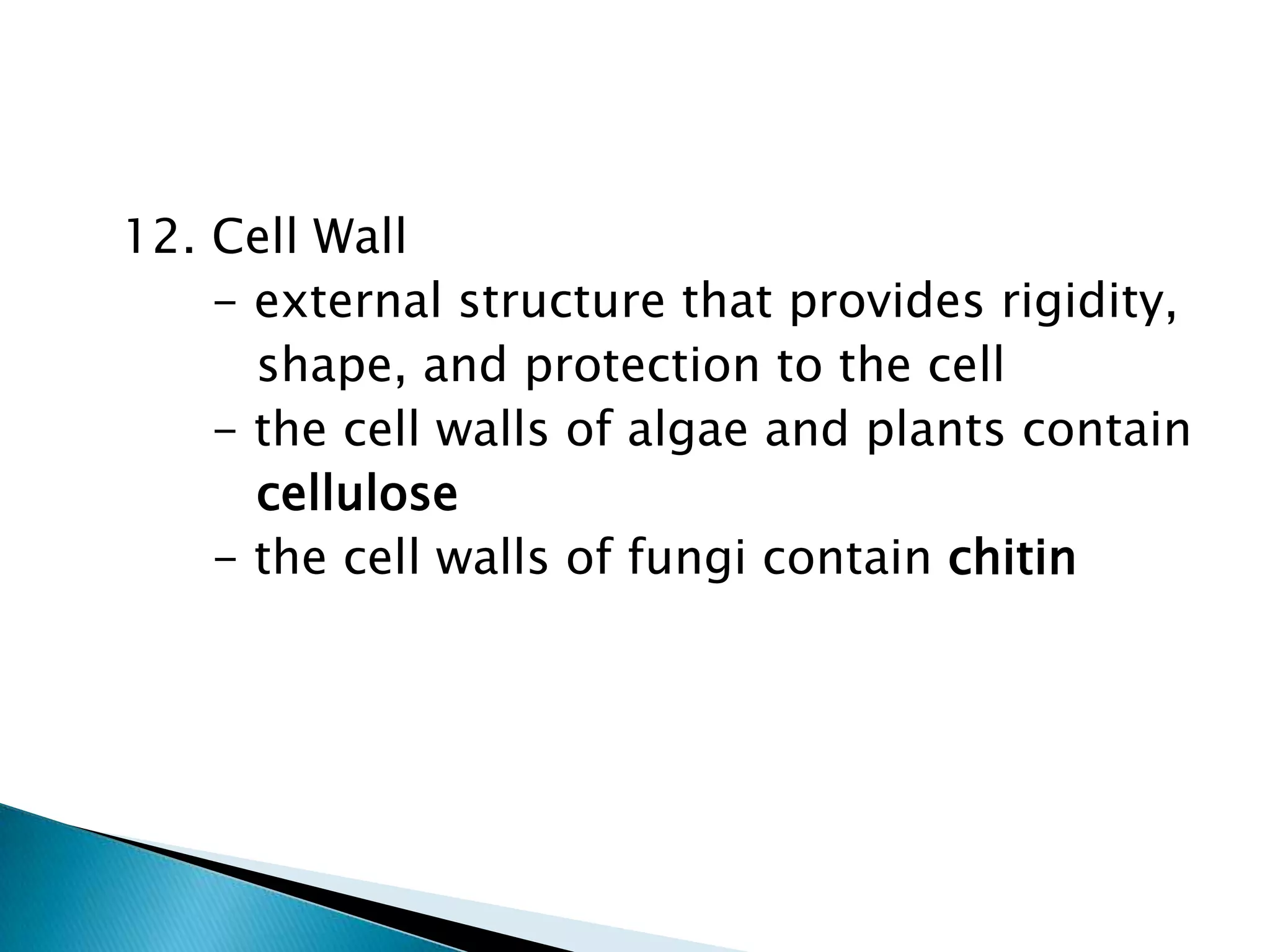

  12. Cell Wall         - external structure that provides rigidity,            shape, and protection to the cell         - the cell walls of algae and plants contain cellulose  - the cell walls of fungi contain chitin

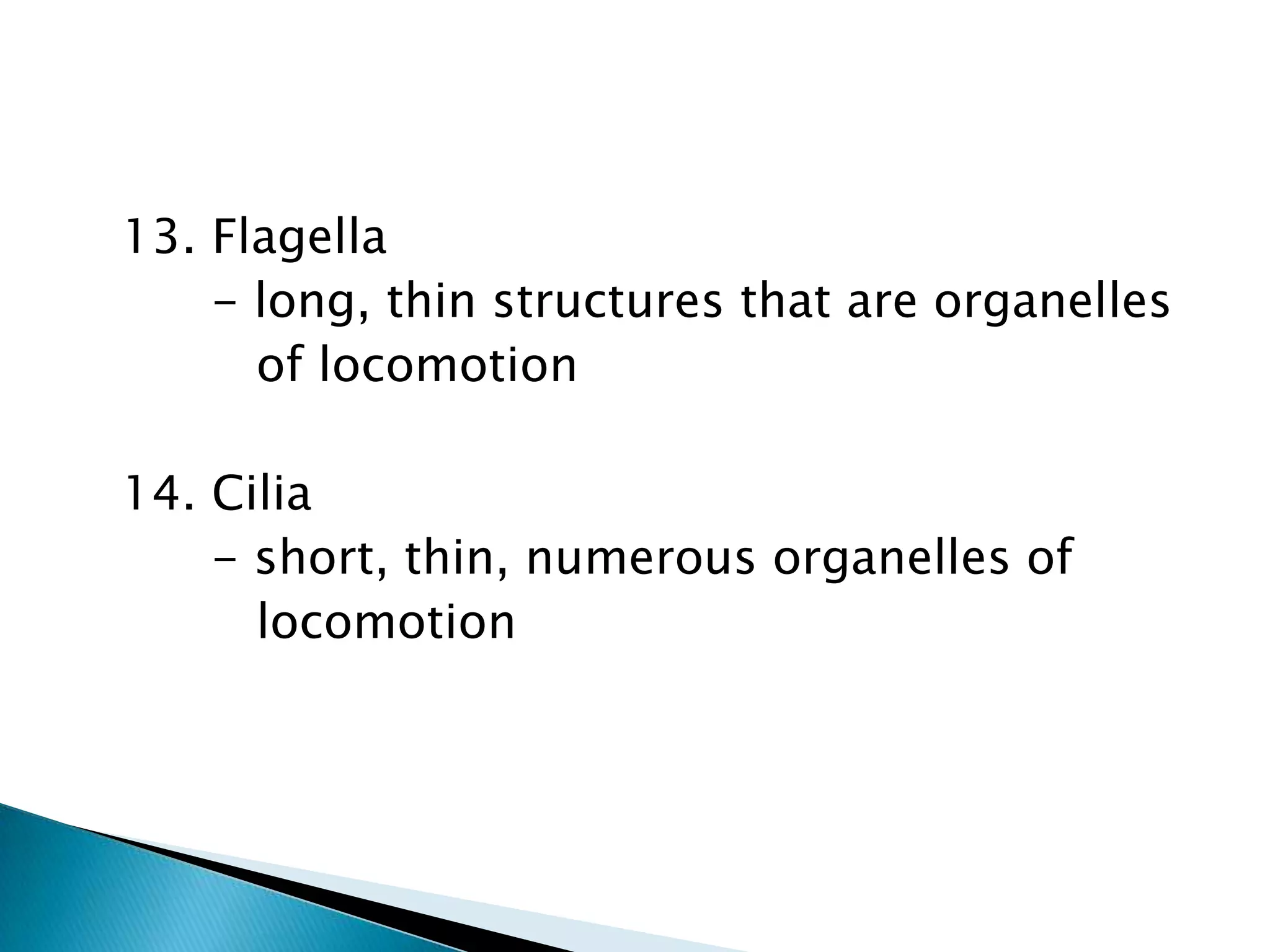

  13. Flagella         - long, thin structures that are organelles            of locomotion   14. Cilia         - short, thin, numerous organelles of            locomotion

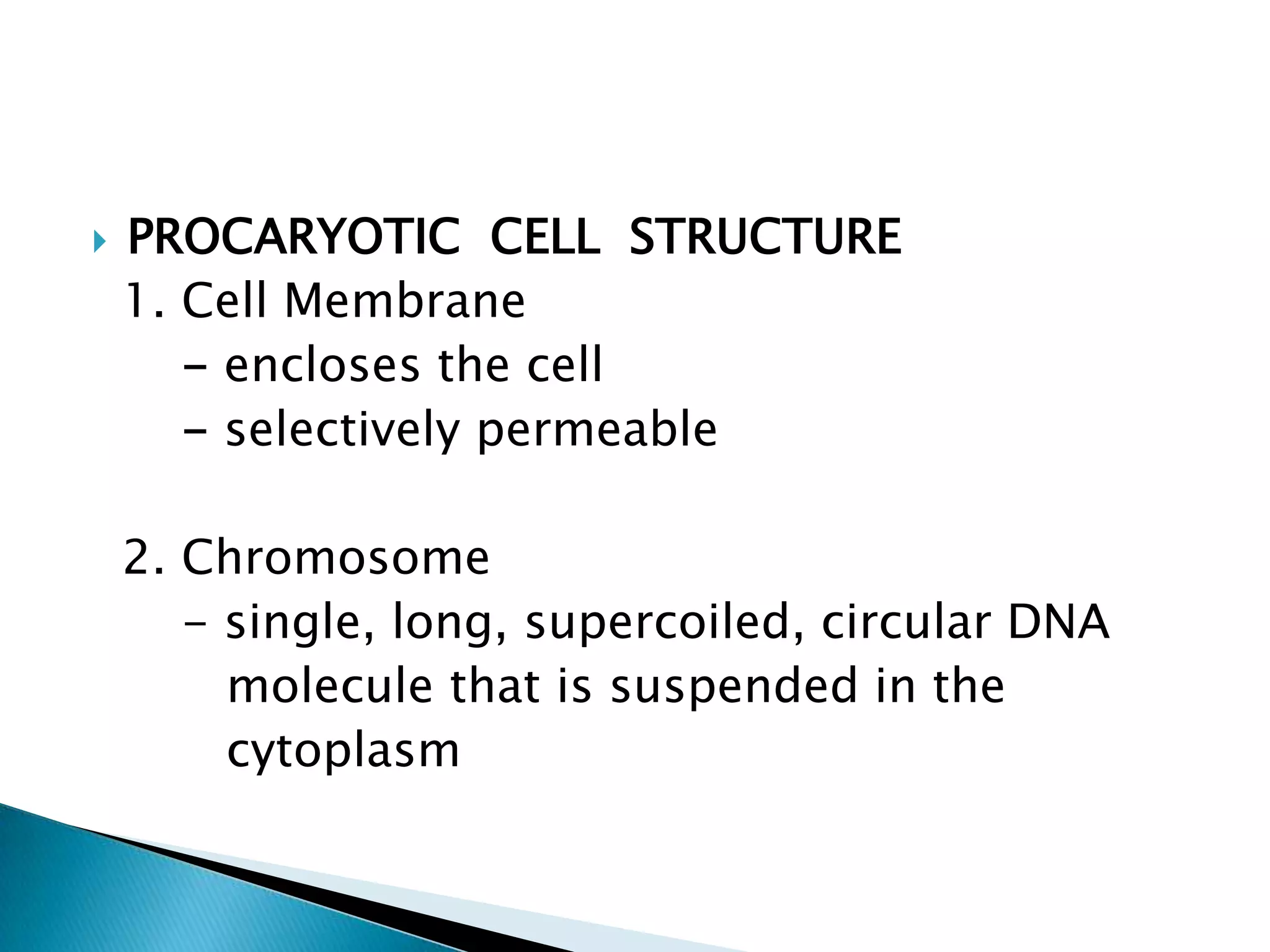

PROCARYOTIC  CELL  STRUCTURE 1. Cell Membrane       - encloses the cell       - selectively permeable 2. Chromosome - single, long, supercoiled, circular DNA  molecule that is suspended in the  cytoplasm

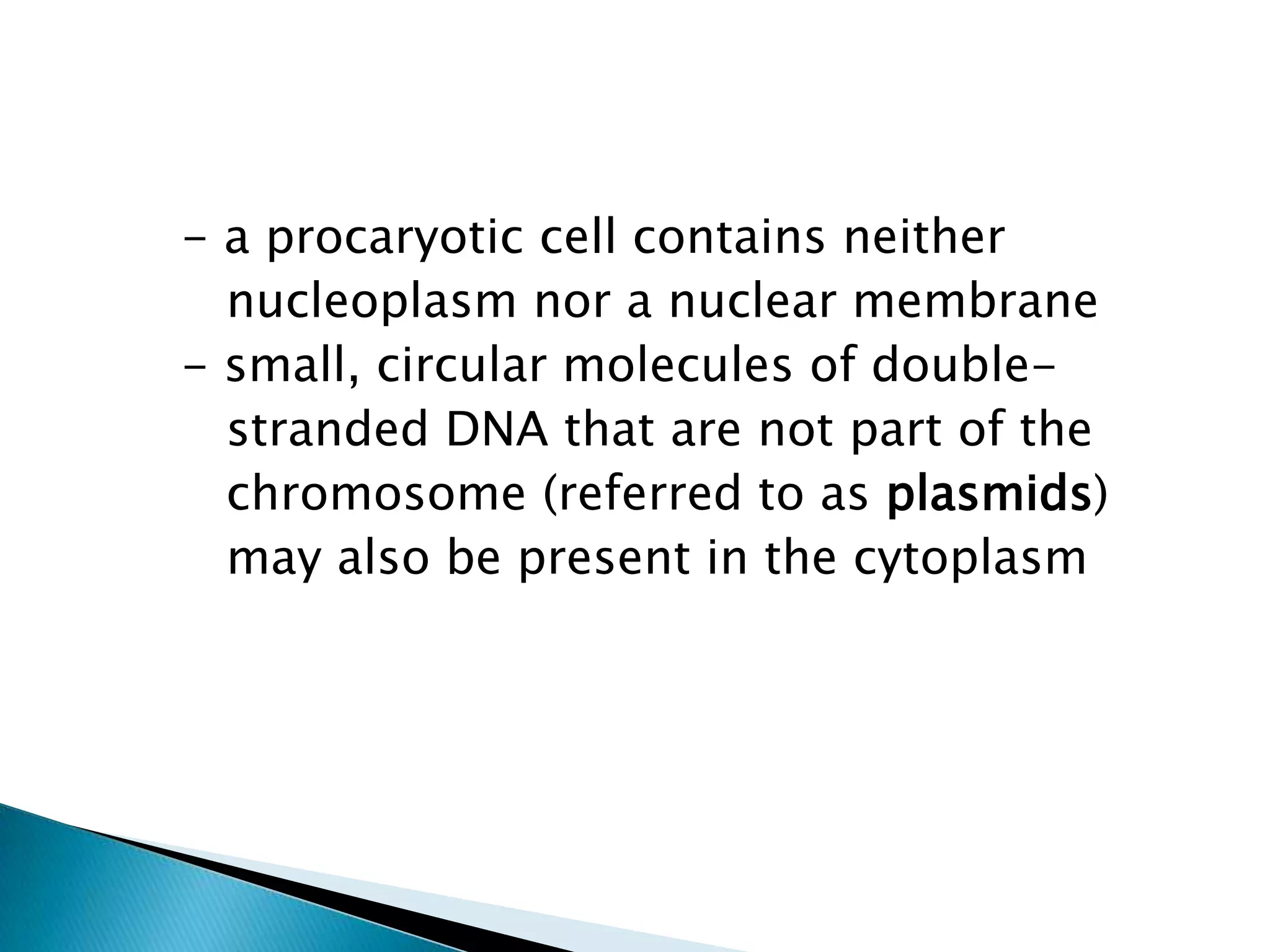

      - a procaryotic cell contains neither nucleoplasm nor a nuclear membrane       - small, circular molecules of double-          stranded DNA that are not part of the          chromosome (referred to as plasmids)          may also be present in the cytoplasm

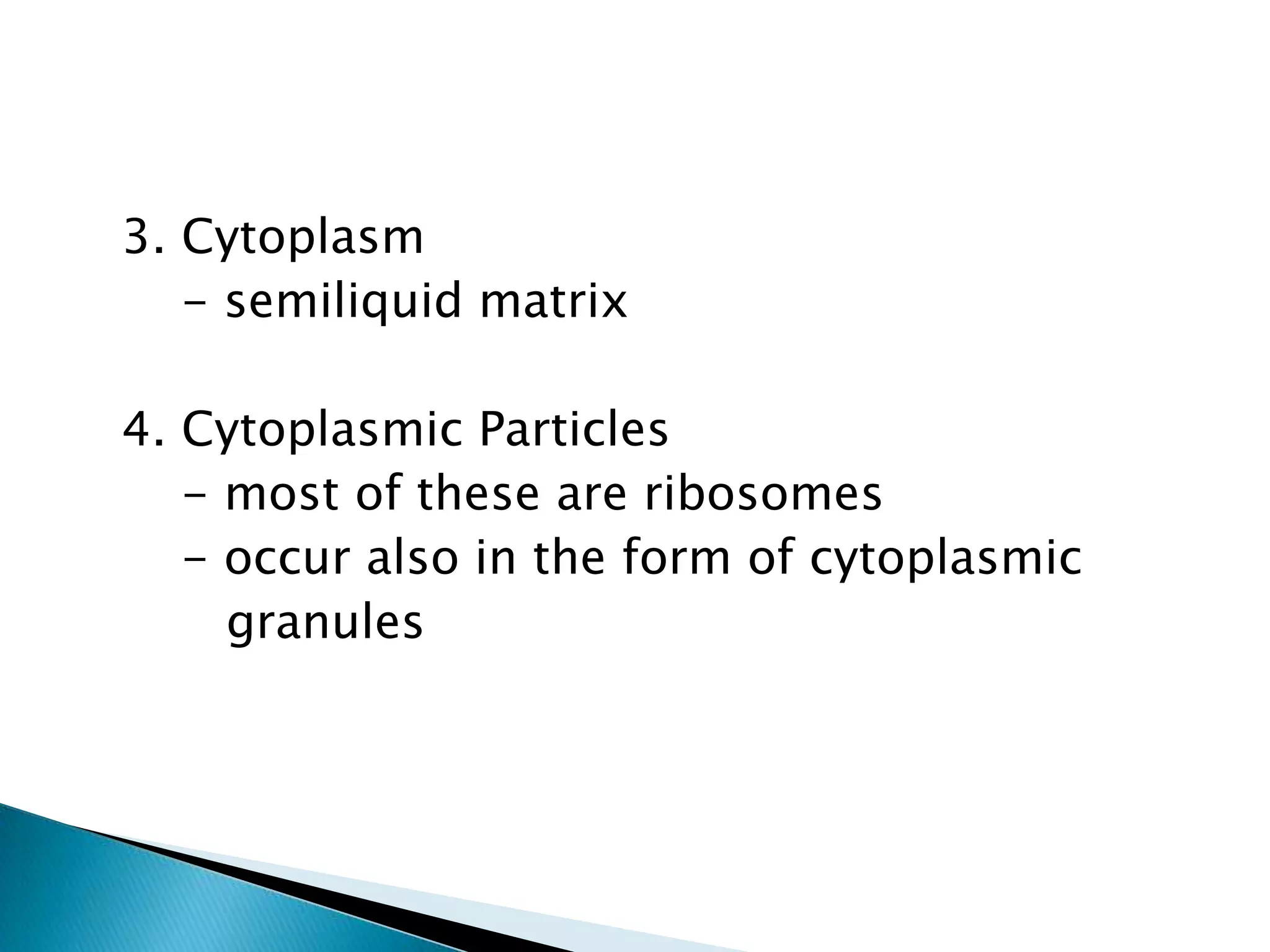

  3. Cytoplasm       - semiliquid matrix   4. Cytoplasmic Particles       - most of these are ribosomes       - occur also in the form of cytoplasmic          granules

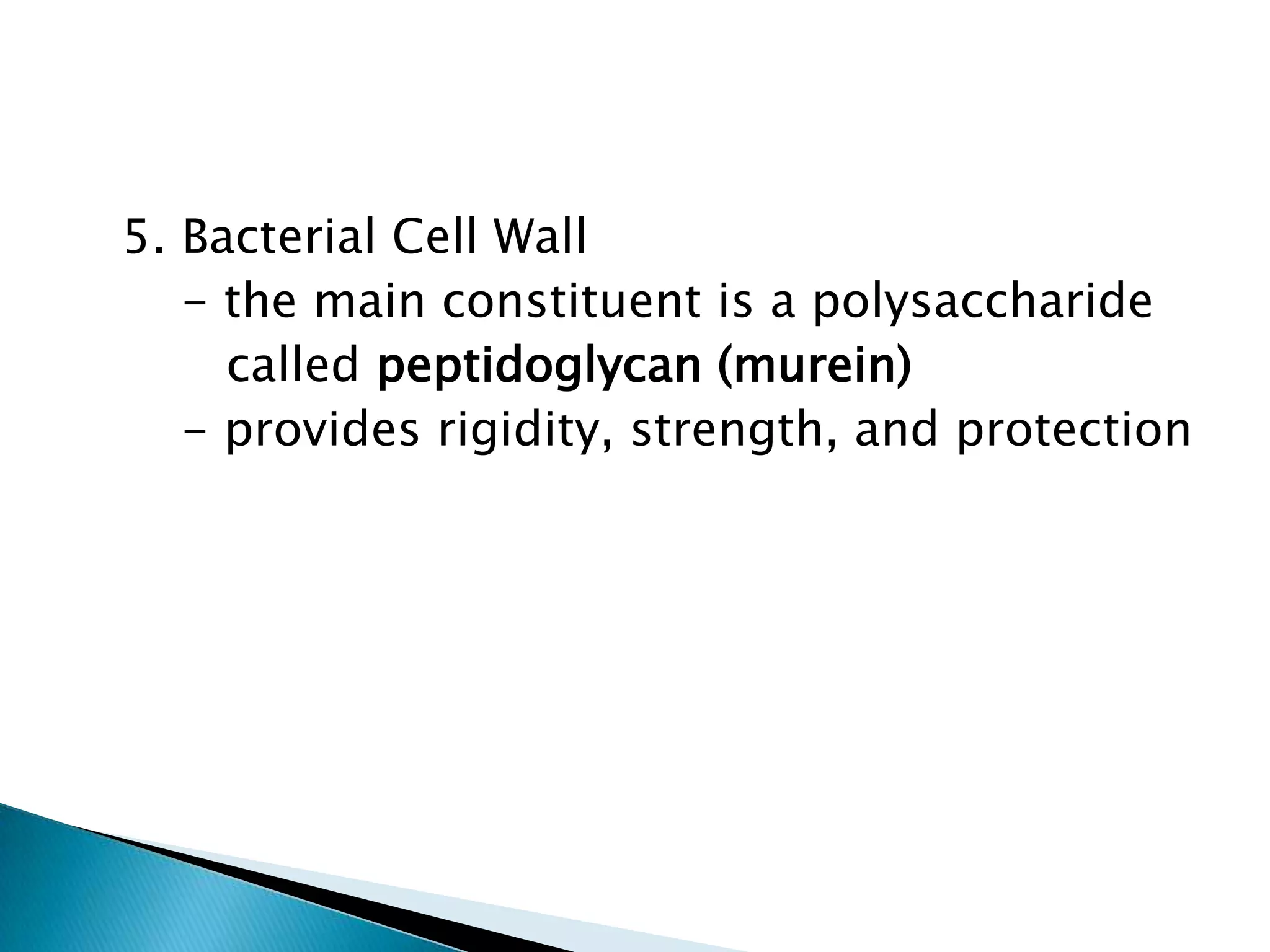

  5. Bacterial Cell Wall       - the main constituent is a polysaccharide          called peptidoglycan (murein)       - provides rigidity, strength, and protection

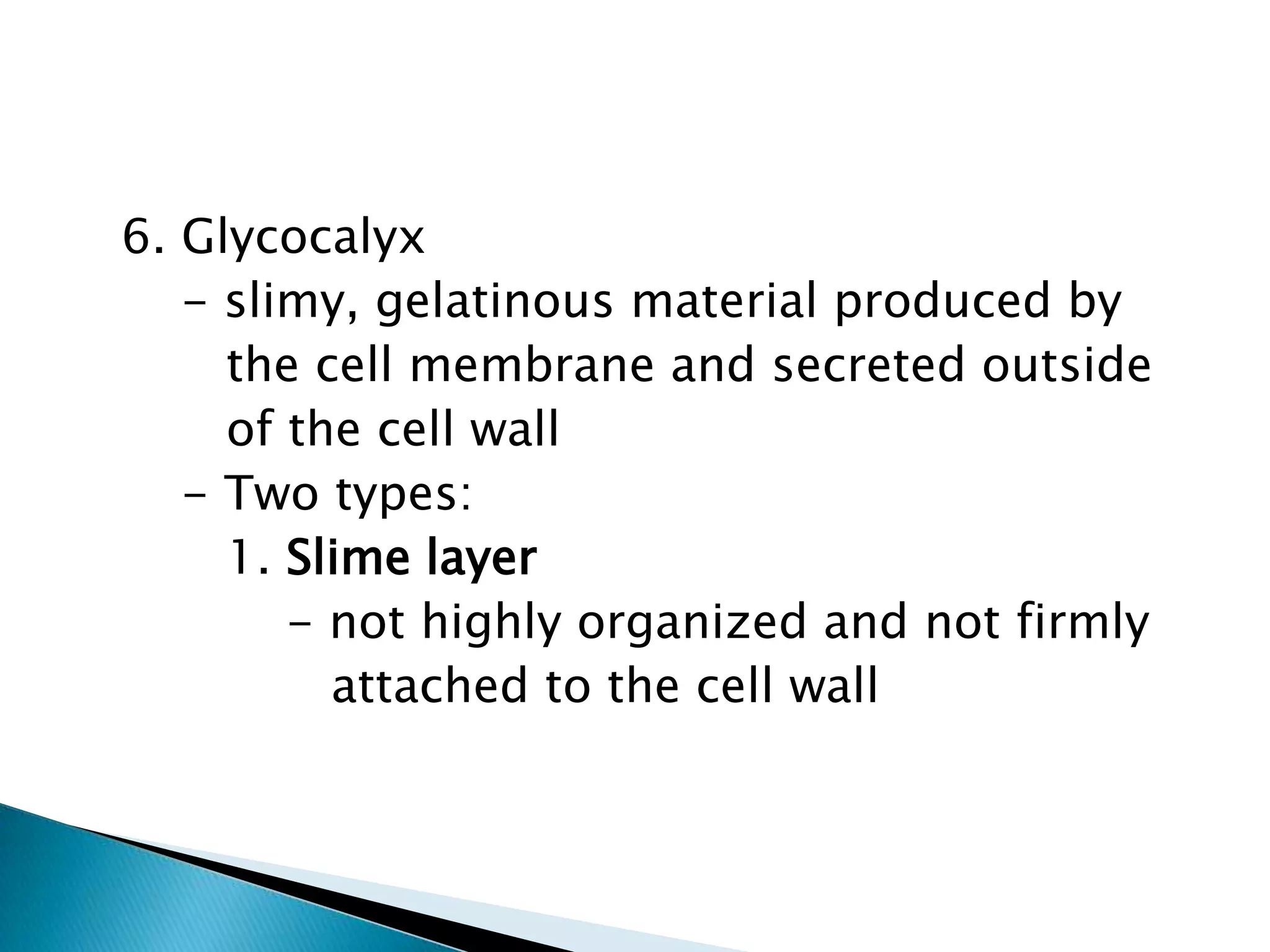

  6. Glycocalyx       - slimy, gelatinous material produced by           the cell membrane and secreted outside          of the cell wall       - Two types:          1. Slime layer              - not highly organized and not firmly                 attached to the cell wall

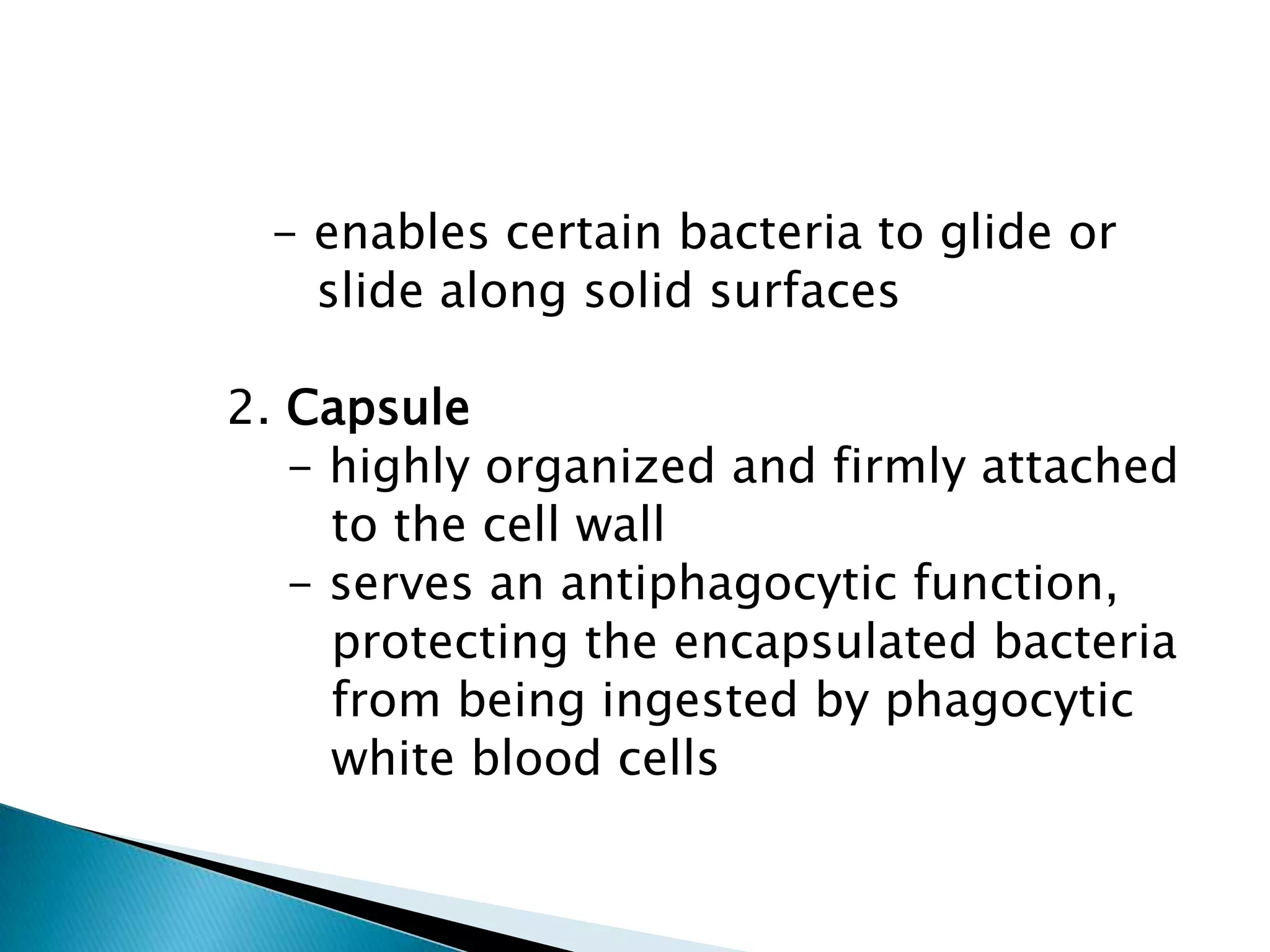

            - enables certain bacteria to glide or                slide along solid surfaces          2. Capsule              - highly organized and firmly attached                 to the cell wall              - serves an antiphagocytic function,                 protecting the encapsulated bacteria                 from being ingested by phagocytic                 white blood cells

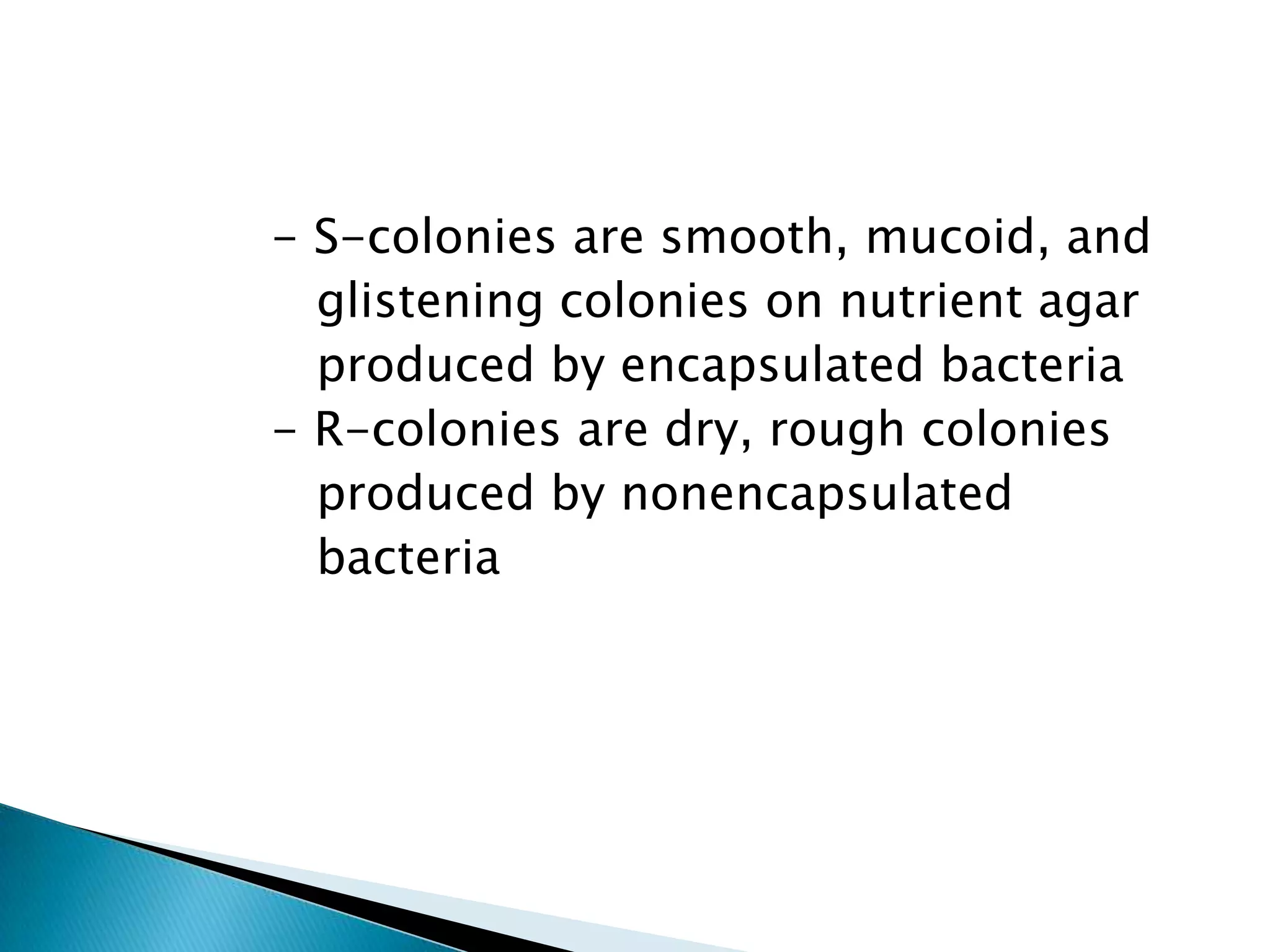

            - S-colonies are smooth, mucoid, and                glistening colonies on nutrient agar                produced by encapsulated bacteria             - R-colonies are dry, rough colonies                produced by nonencapsulated                bacteria

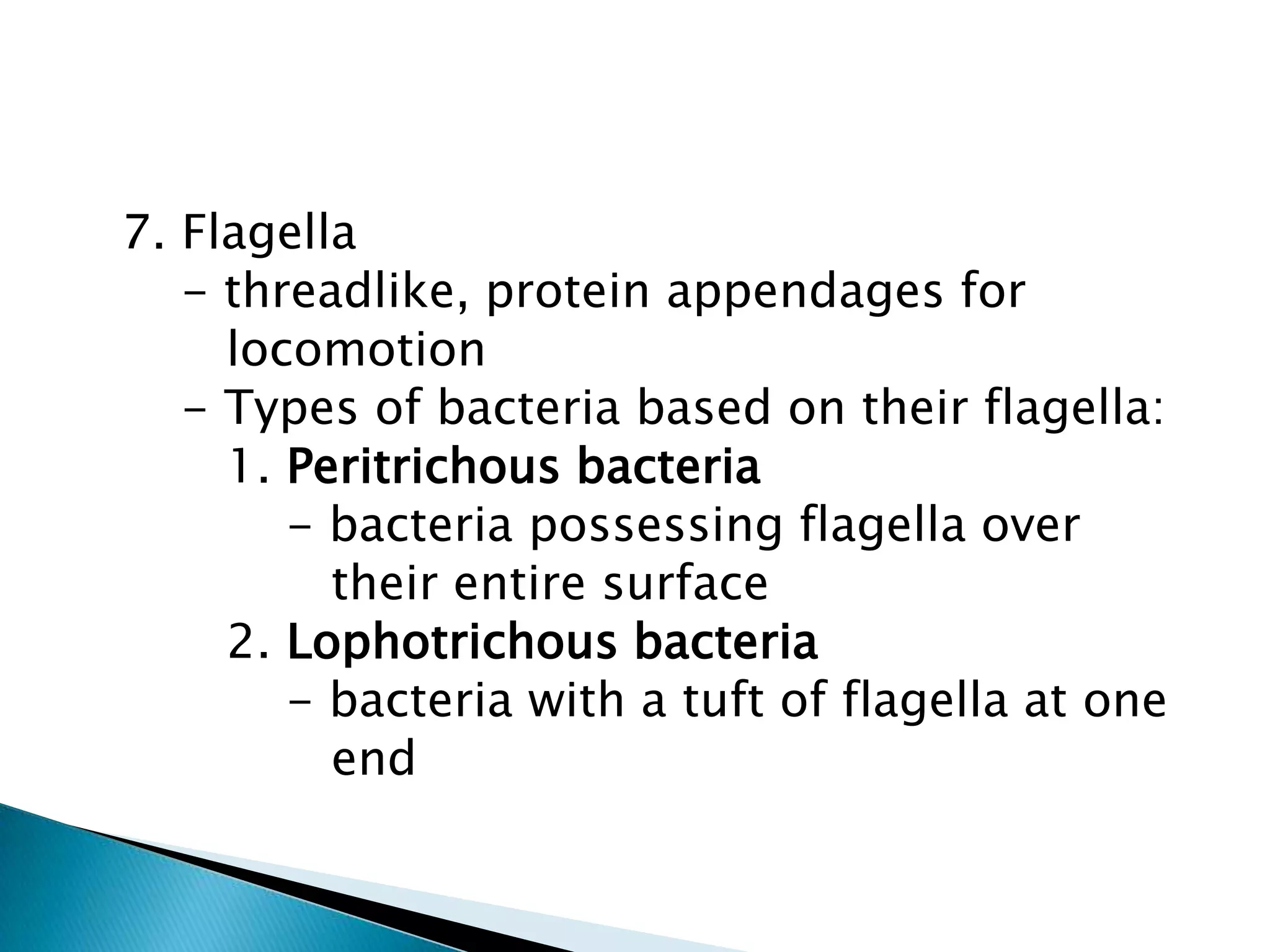

  7. Flagella       - threadlike, protein appendages for          locomotion       - Types of bacteria based on their flagella:          1. Peritrichous bacteria              - bacteria possessing flagella over                  their entire surface          2. Lophotrichous bacteria              - bacteria with a tuft of flagella at one                 end

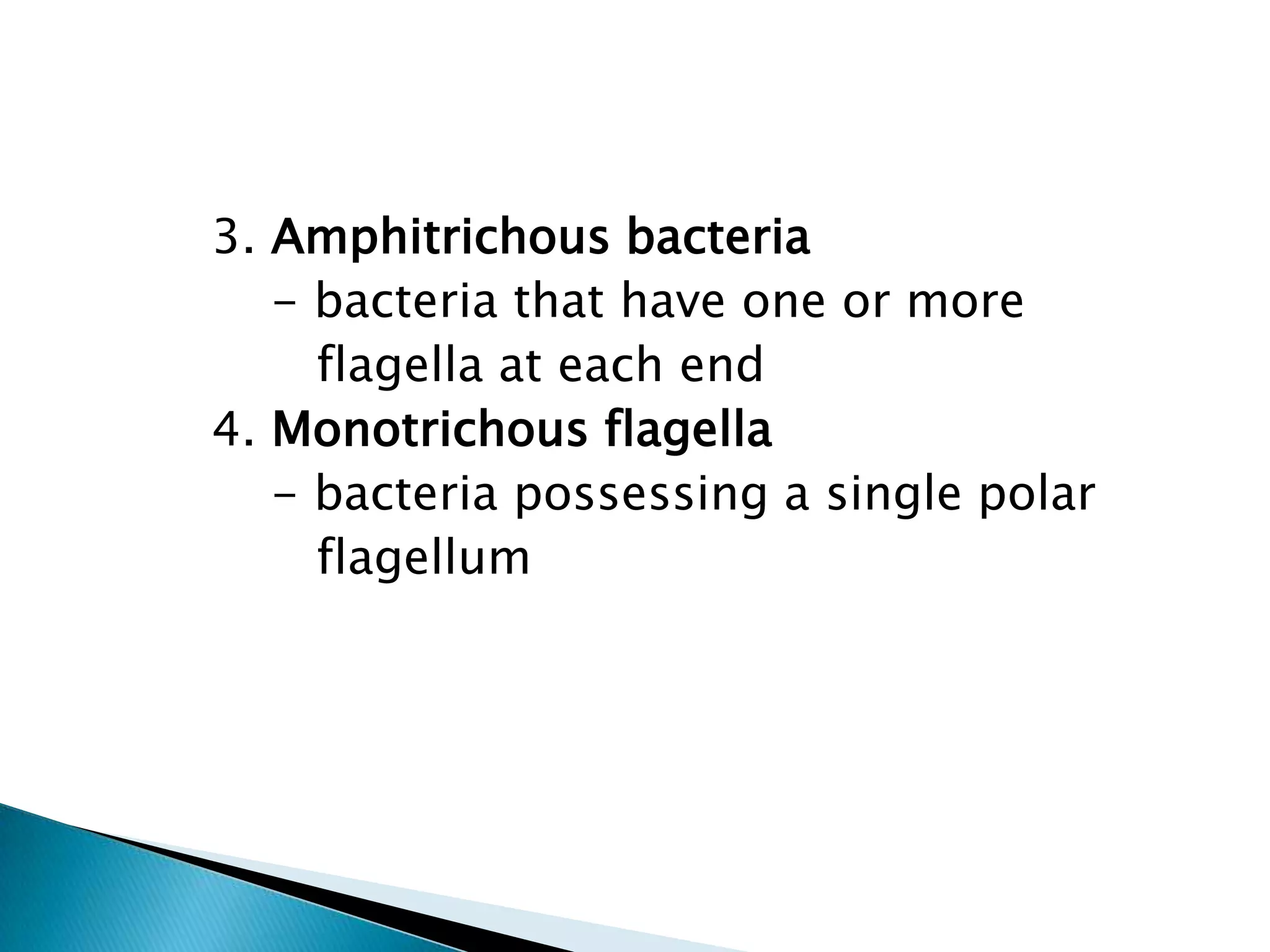

        3. Amphitrichous bacteria             - bacteria that have one or more                 flagella at each end         4. Monotrichous flagella             - bacteria possessing a single polar                flagellum

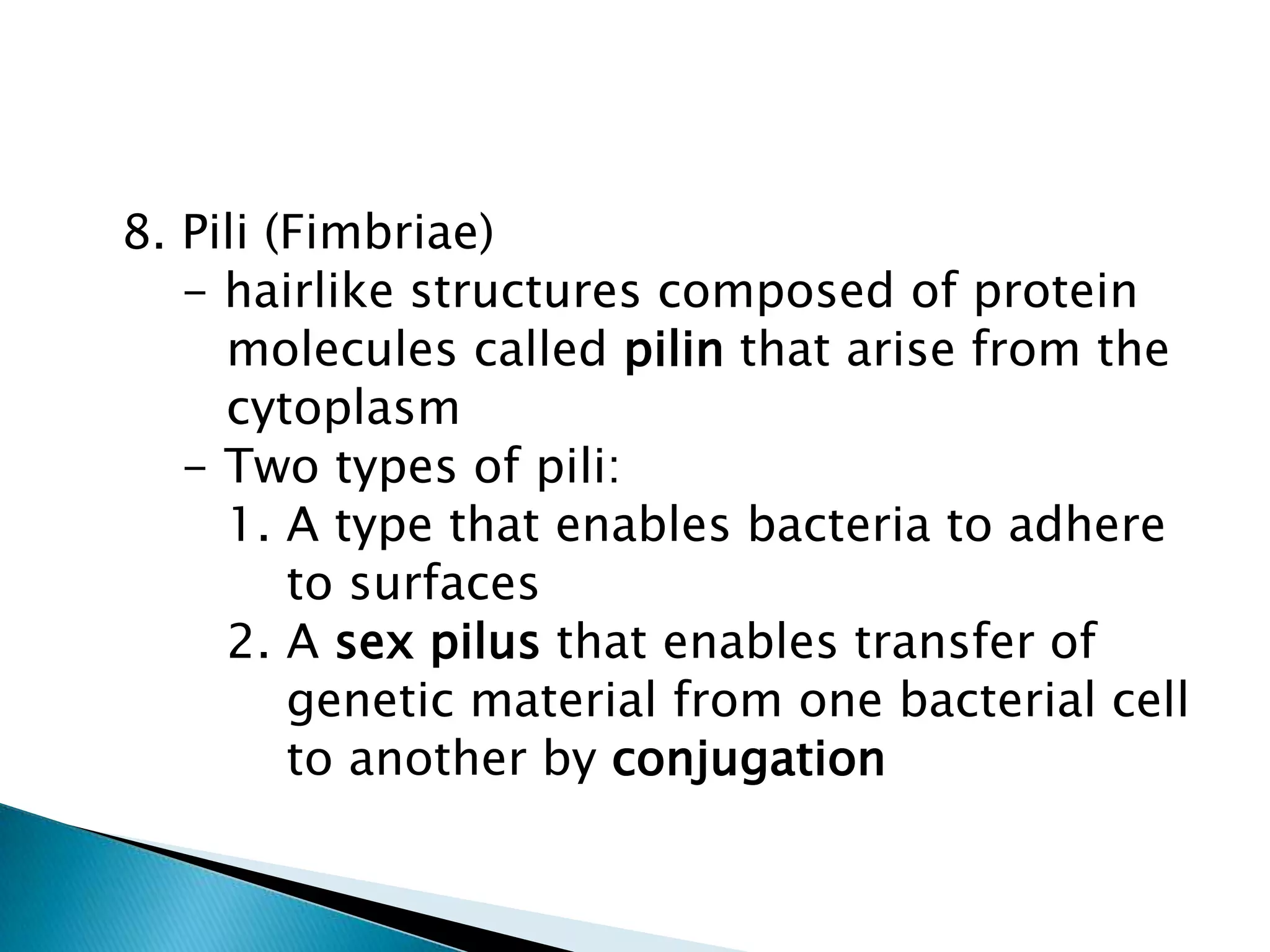

  8. Pili (Fimbriae)       - hairlike structures composed of protein          molecules called pilin that arise from the          cytoplasm       - Two types of pili:          1. A type that enables bacteria to adhere              to surfaces          2. A sex pilusthat enables transfer of              genetic material from one bacterial cell              to another by conjugation

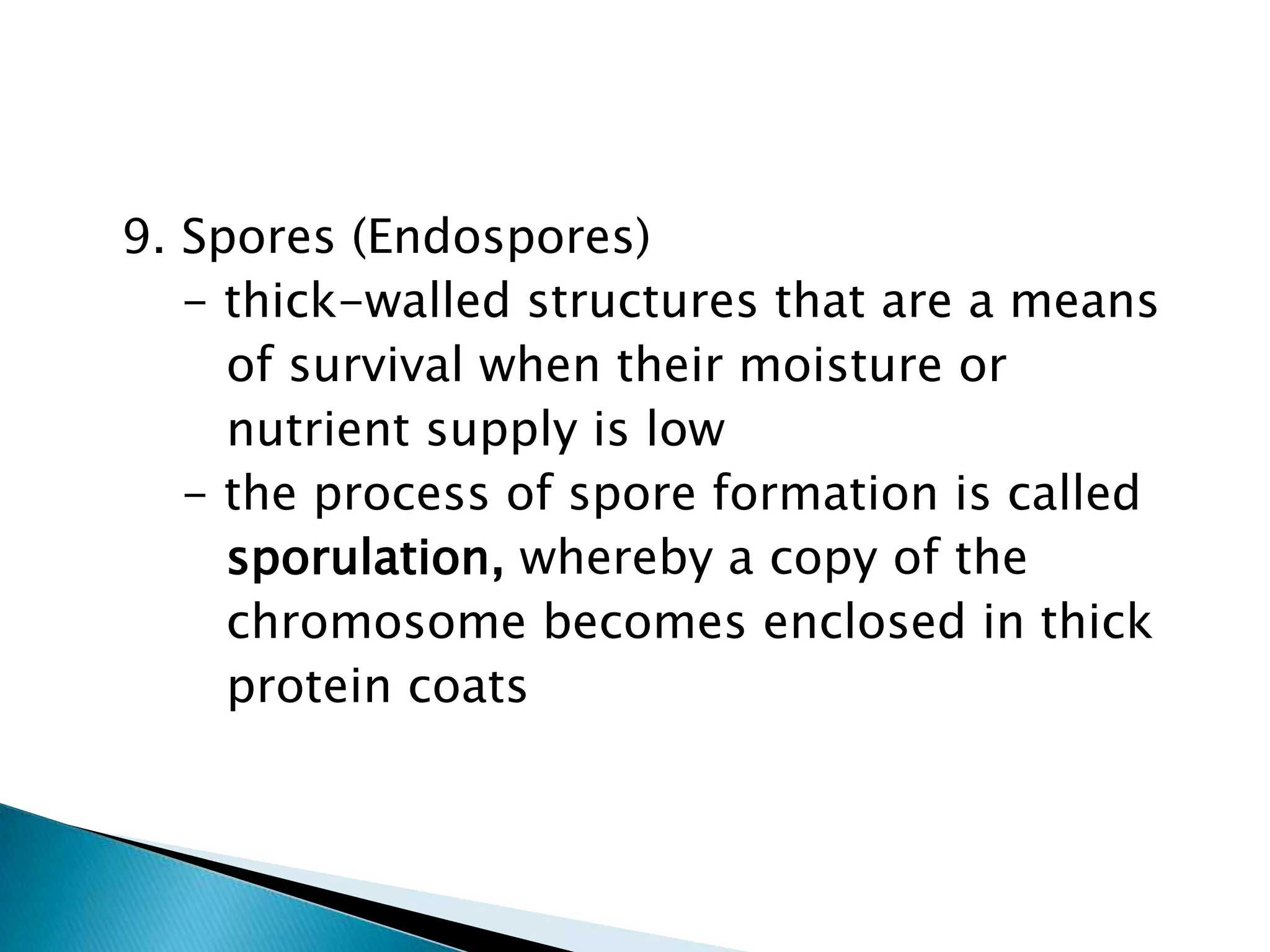

  9. Spores (Endospores)       - thick-walled structures that are a means          of survival when their moisture or          nutrient supply is low       - the process of spore formation is called sporulation, whereby a copy of the  chromosome becomes enclosed in thick protein coats

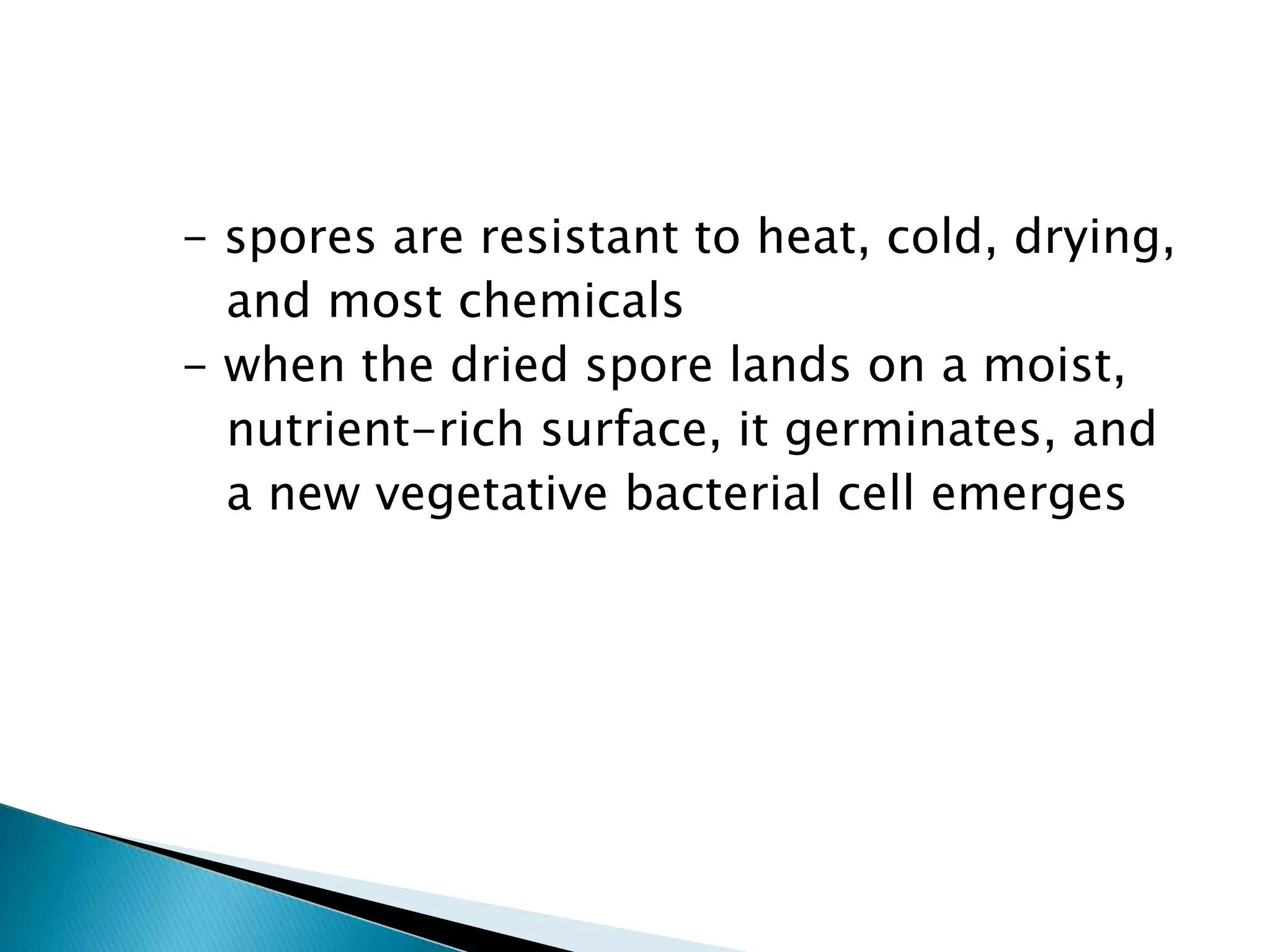

      - spores are resistant to heat, cold, drying,          and most chemicals       - when the dried spore lands on a moist,          nutrient-rich surface, it germinates, and          a new vegetative bacterial cell emerges
PROCARYOTIC  CELL  REPRODUCTION Procaryotic cells reproduce by binary fission, in which one cell (the parent cell) splits in half to become two daughter cells. Generation time is the time it takes for binary fission to occur.

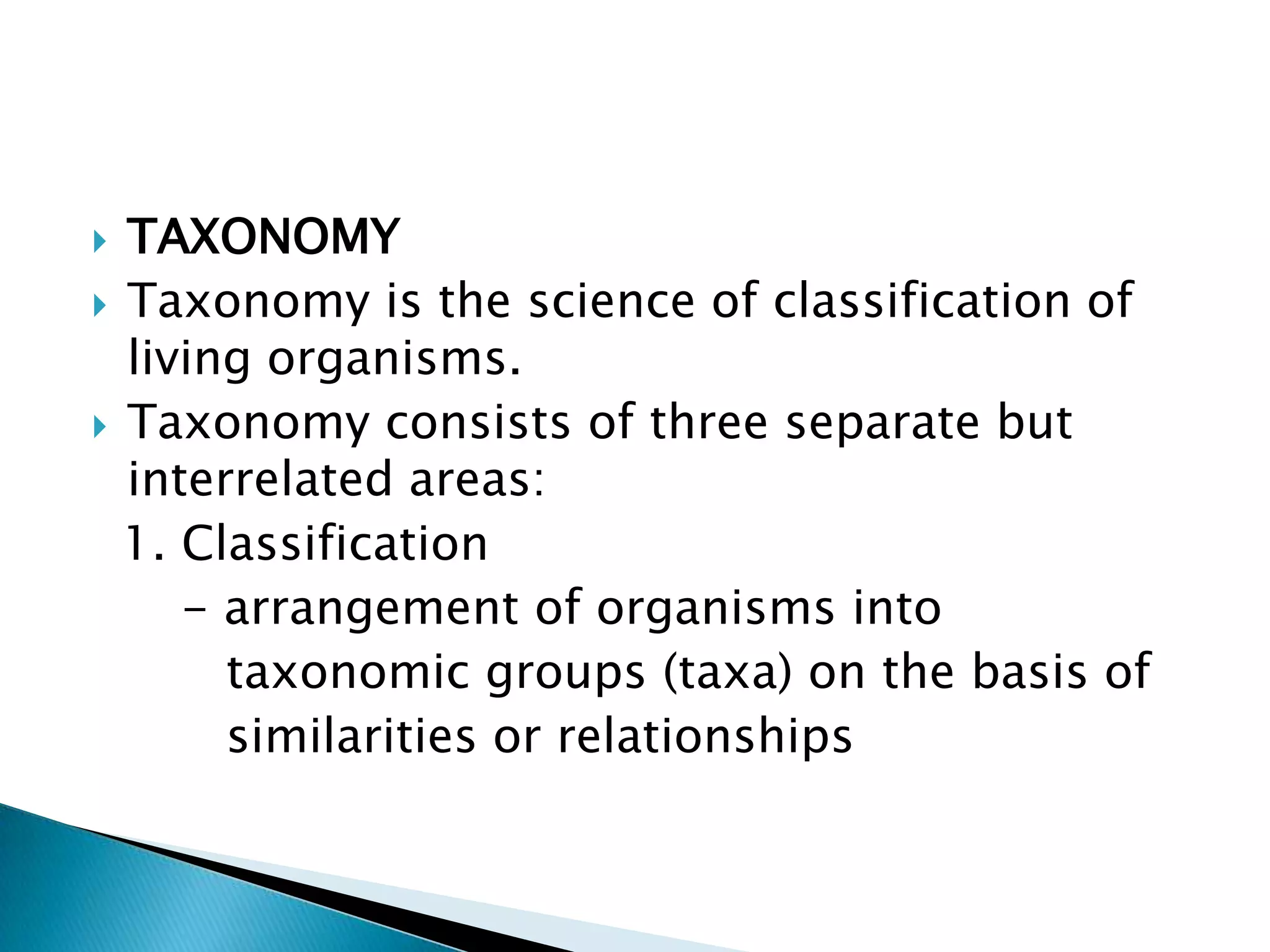

TAXONOMY Taxonomy is the science of classification of living organisms. Taxonomy consists of three separate but interrelated areas:   1. Classification       - arrangement of organisms into           taxonomic groups (taxa) on the basis of          similarities or relationships

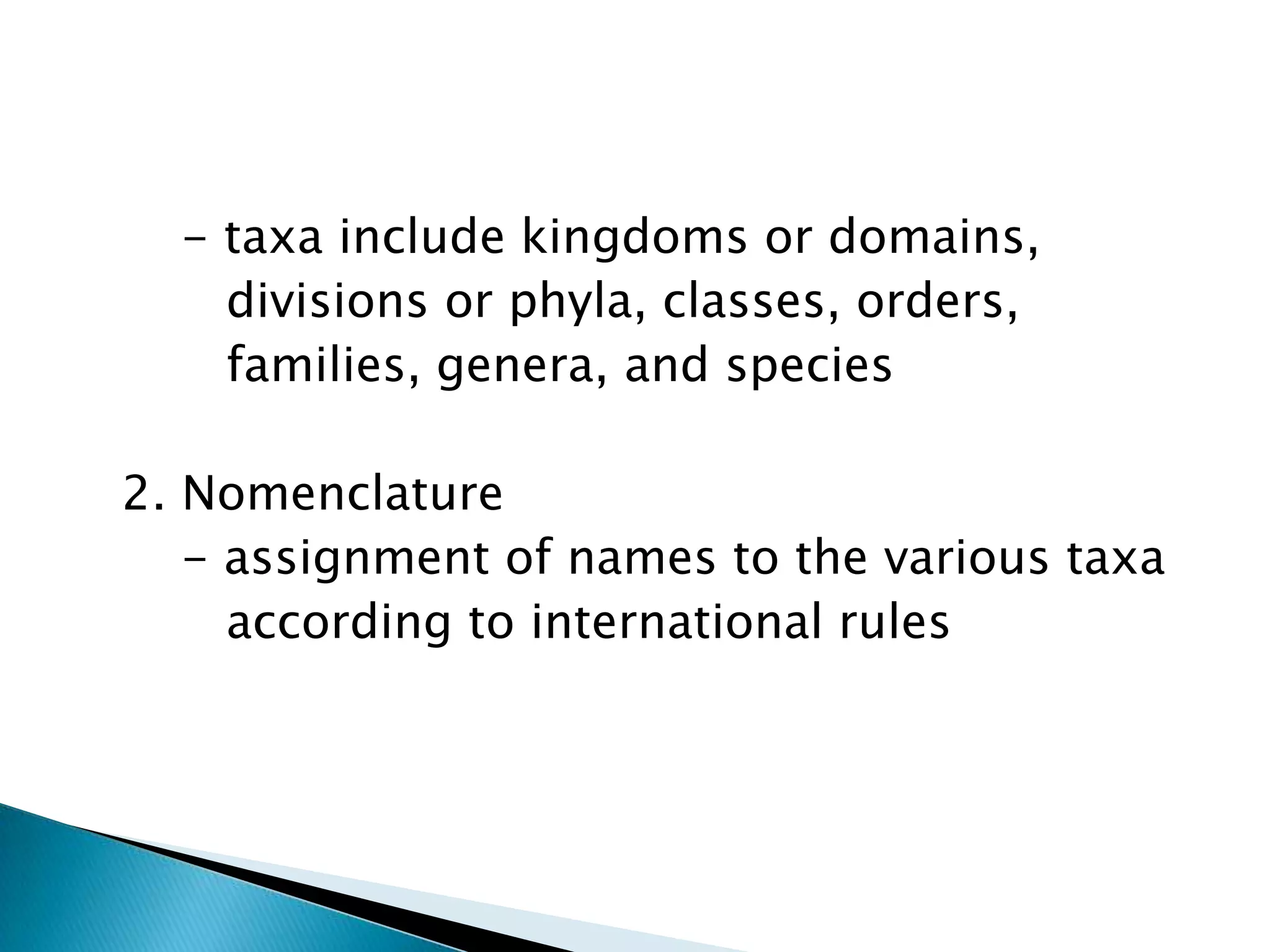

      - taxa include kingdoms or domains,           divisions or phyla, classes, orders,           families, genera, and species   2. Nomenclature       - assignment of names to the various taxa          according to international rules

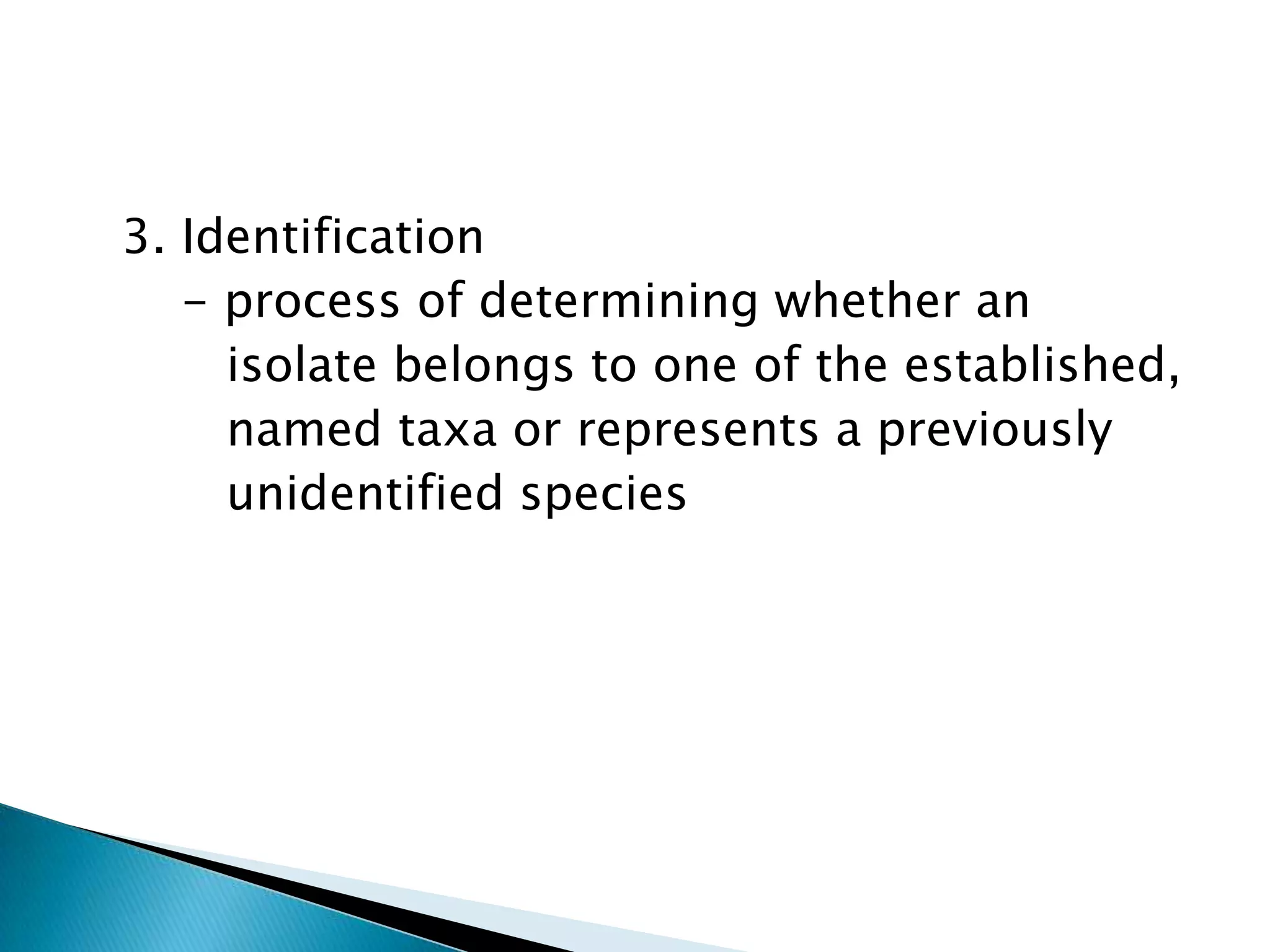

  3. Identification       - process of determining whether an           isolate belongs to one of the established,          named taxa or represents a previously          unidentified species

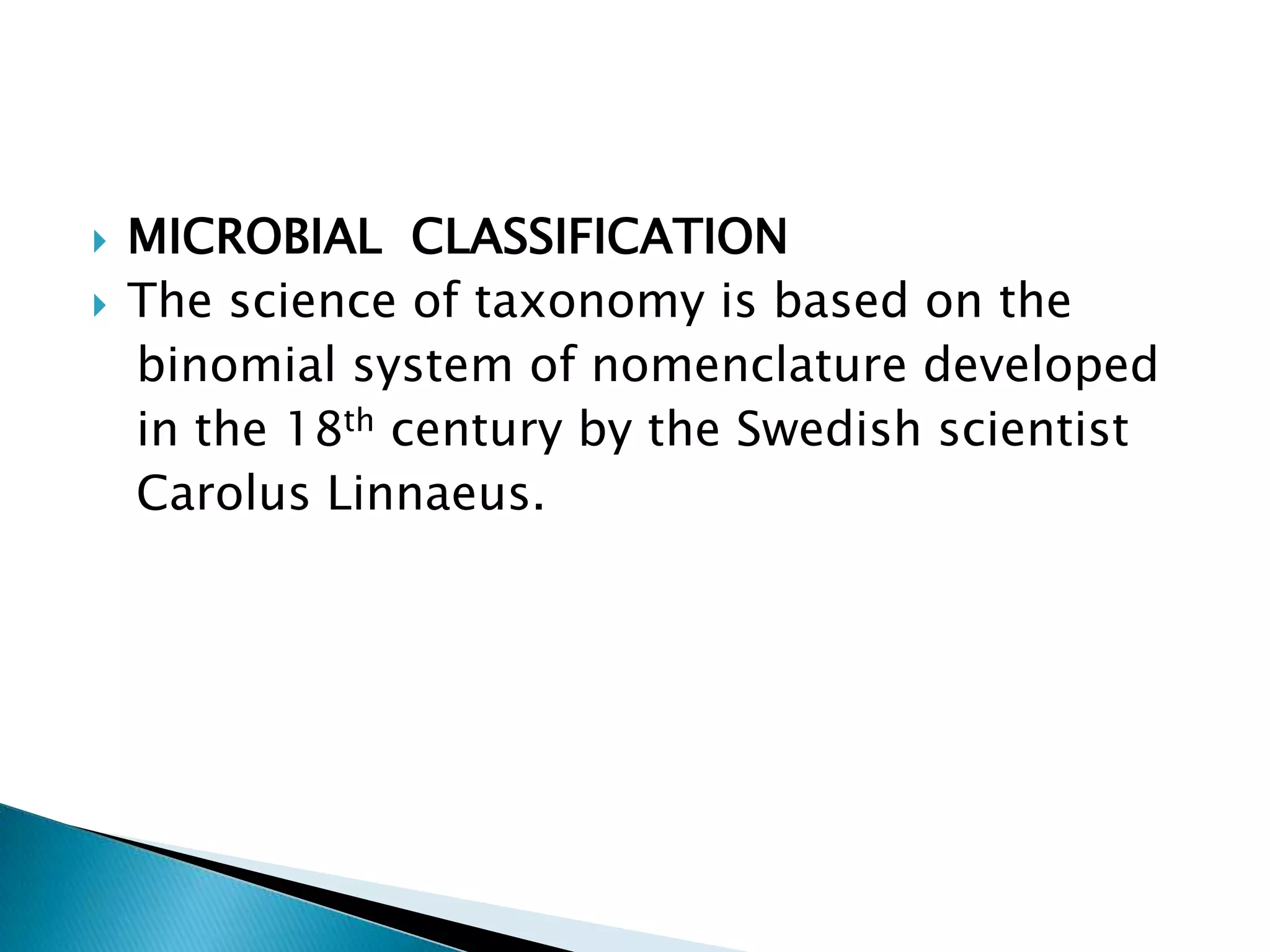

MICROBIAL  CLASSIFICATION The science of taxonomy is based on the    binomial system of nomenclature developed    in the 18th century by the Swedish scientist Carolus Linnaeus.

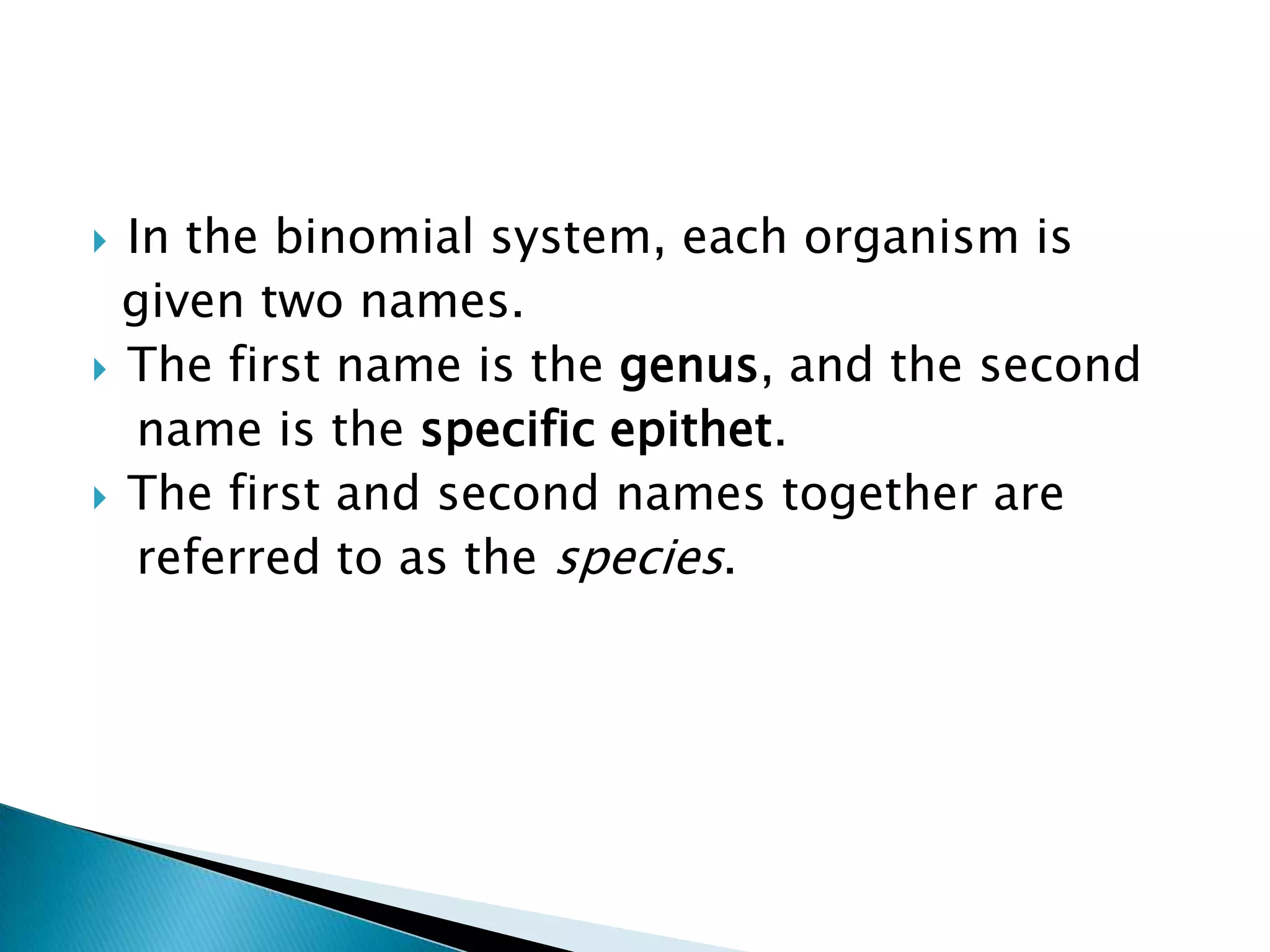

In the binomial system, each organism is   given two names. The first name is the genus, and the second    name is the specific epithet. The first and second names together are    referred to as the species.

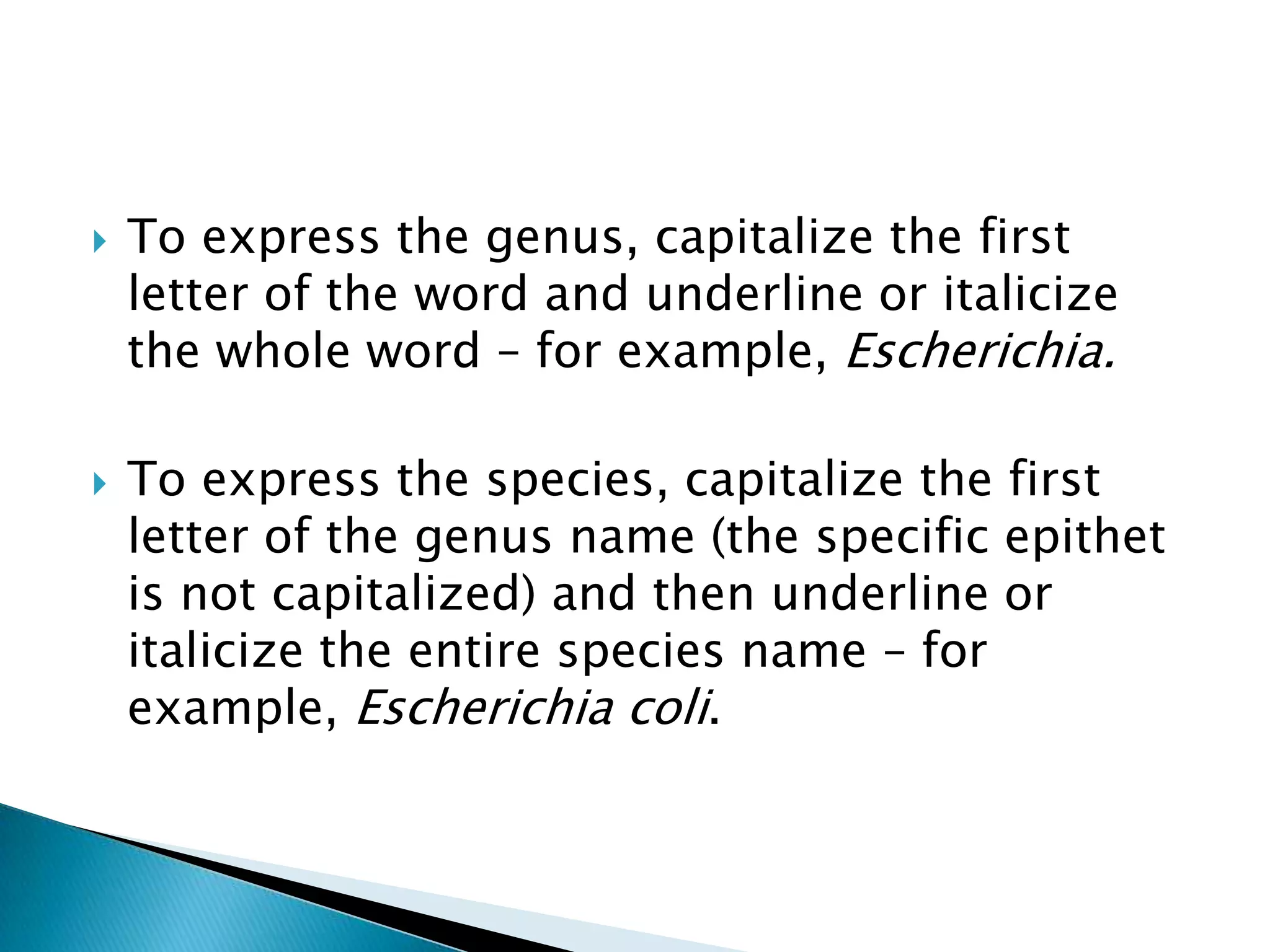

To express the genus, capitalize the first letter of the word and underline or italicize the whole word – for example, Escherichia. To express the species, capitalize the first letter of the genus name (the specific epithet is not capitalized) and then underline or italicize the entire species name – for example, Escherichia coli.

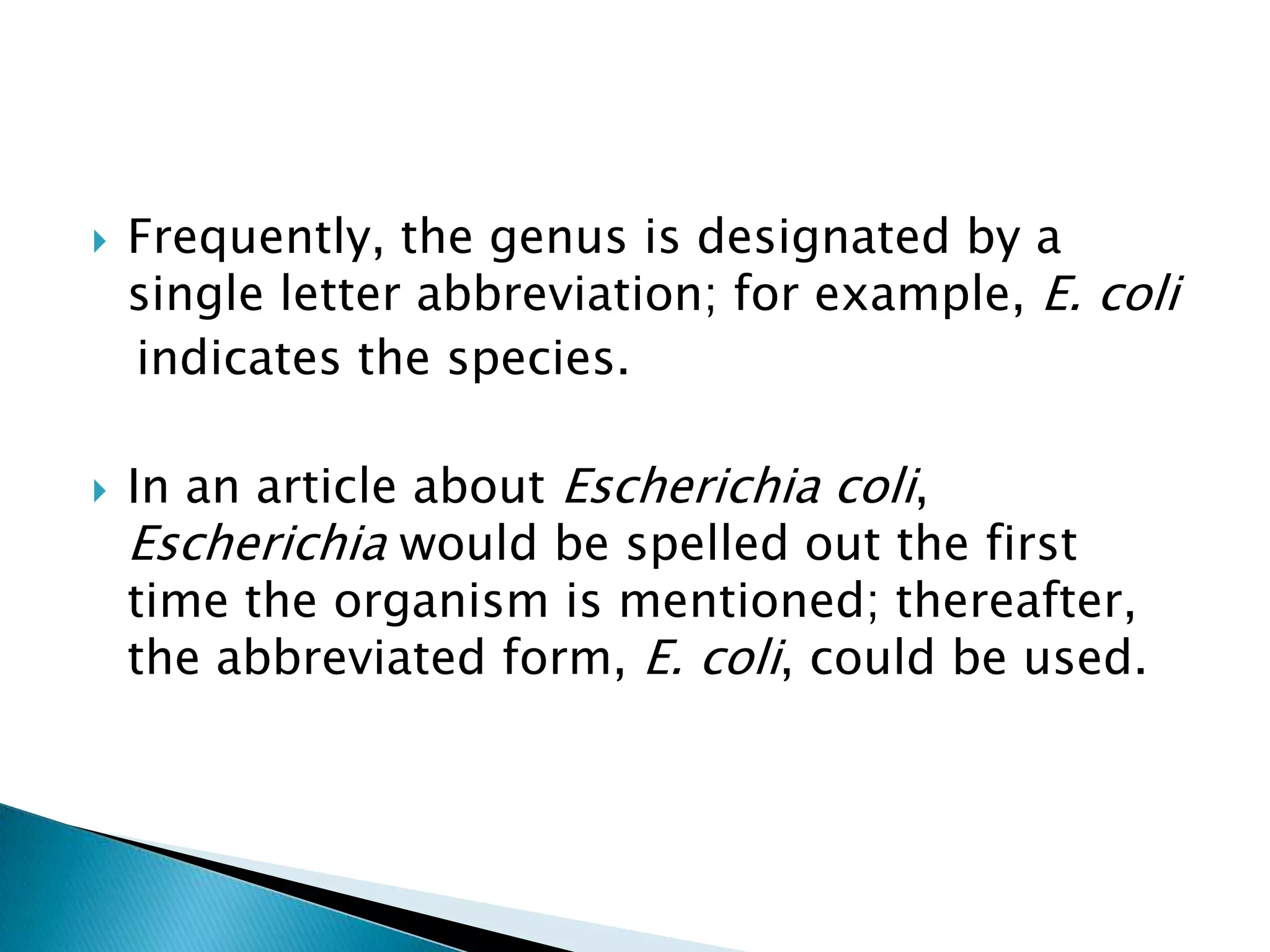

Frequently, the genus is designated by a single letter abbreviation; for example, E. coli    indicates the species. In an article about Escherichia coli, Escherichia would be spelled out the first time the organism is mentioned; thereafter, the abbreviated form, E. coli, could be used.
The abbreviation “sp.” is used to designate a single species, whereas the abbreviation “spp.” is used to designate more than one species.

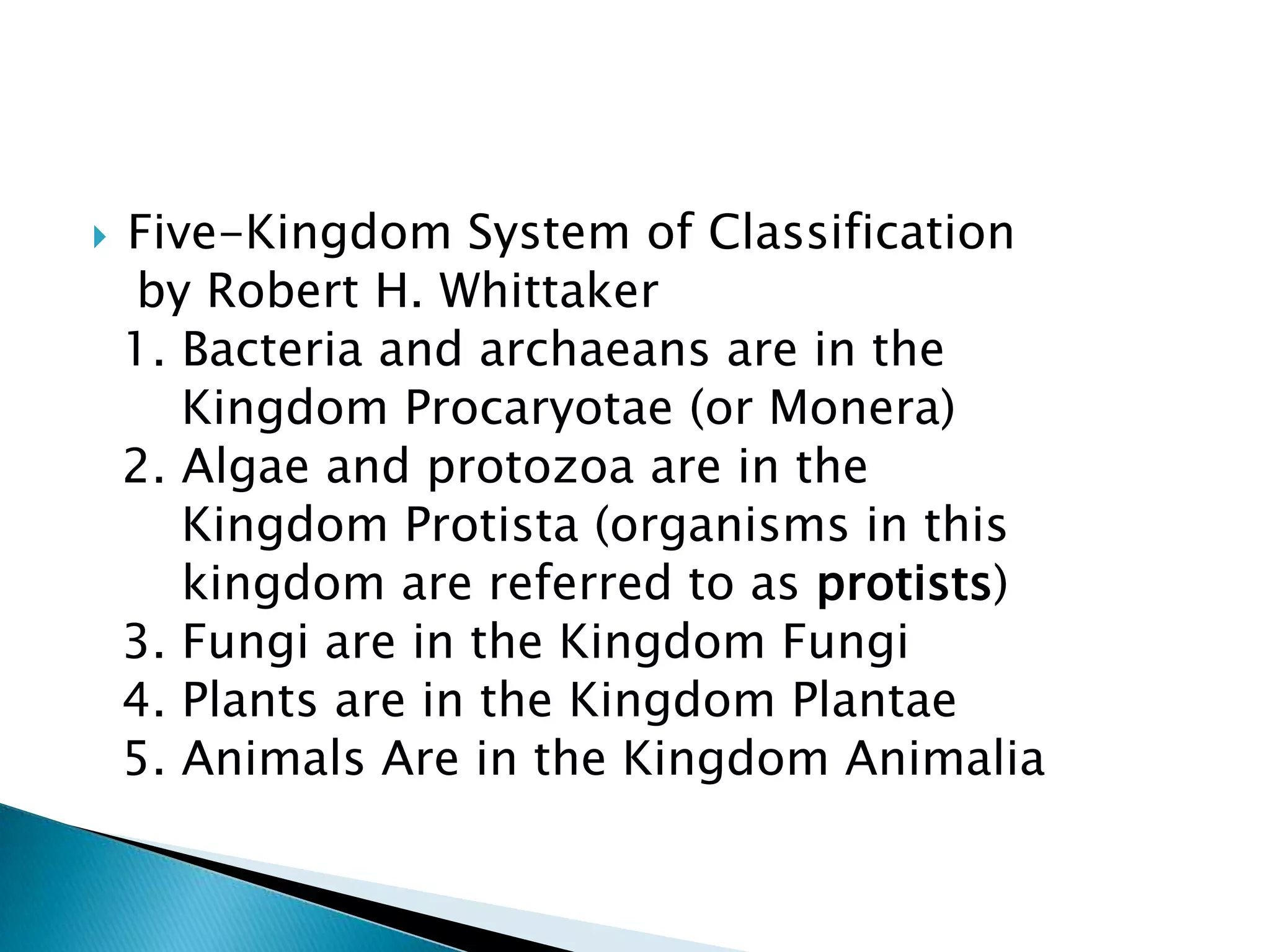

Five-Kingdom System of Classification    by Robert H. Whittaker   1. Bacteria and archaeans are in the       Kingdom Procaryotae (or Monera)   2. Algae and protozoa are in the        Kingdom Protista (organisms in this        kingdom are referred to as protists)   3. Fungi are in the Kingdom Fungi   4. Plants are in the Kingdom Plantae   5. Animals Are in the Kingdom Animalia

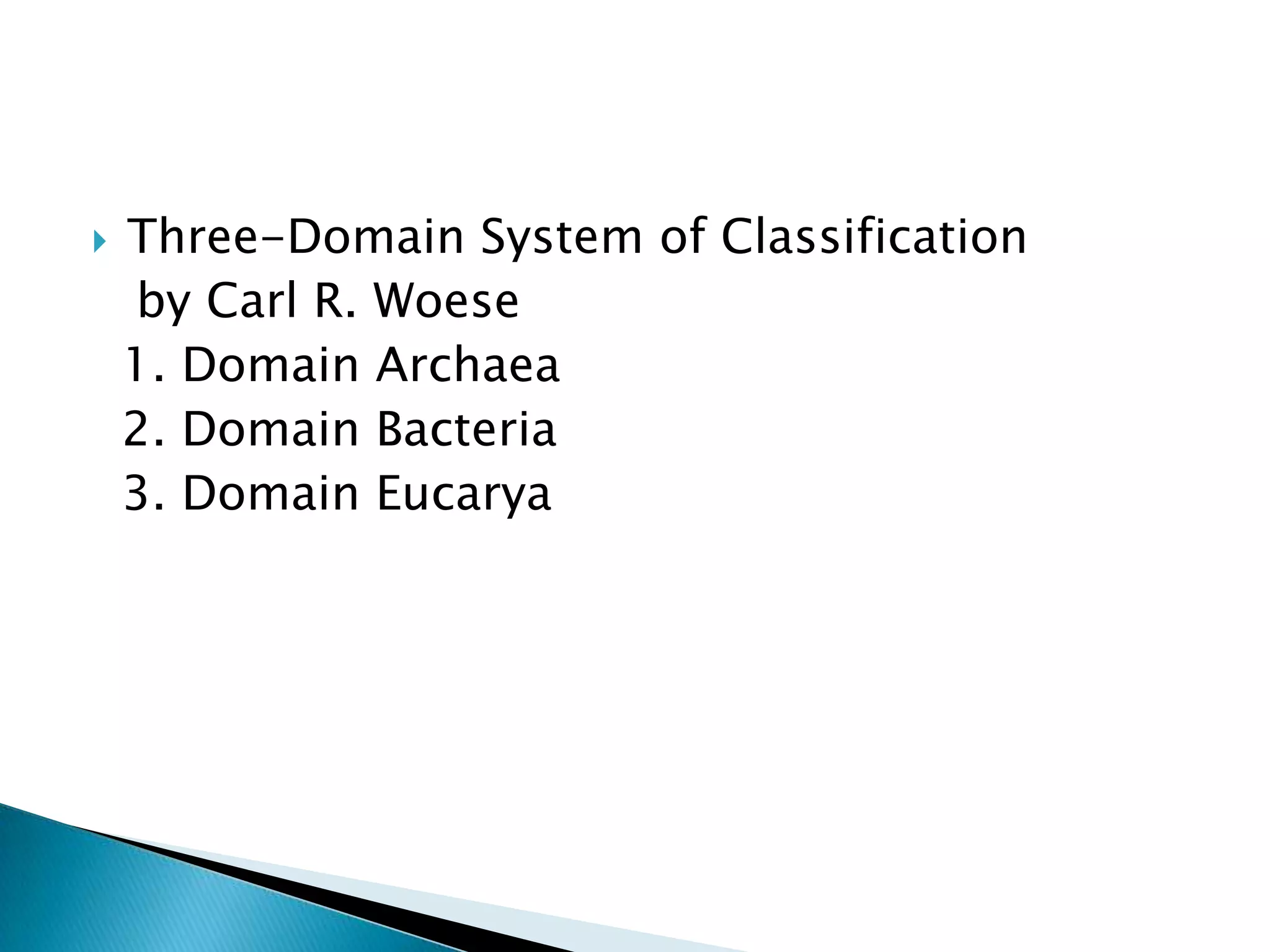

Three-Domain System of Classification    by Carl R. Woese   1. Domain Archaea   2. Domain Bacteria   3. Domain Eucarya
